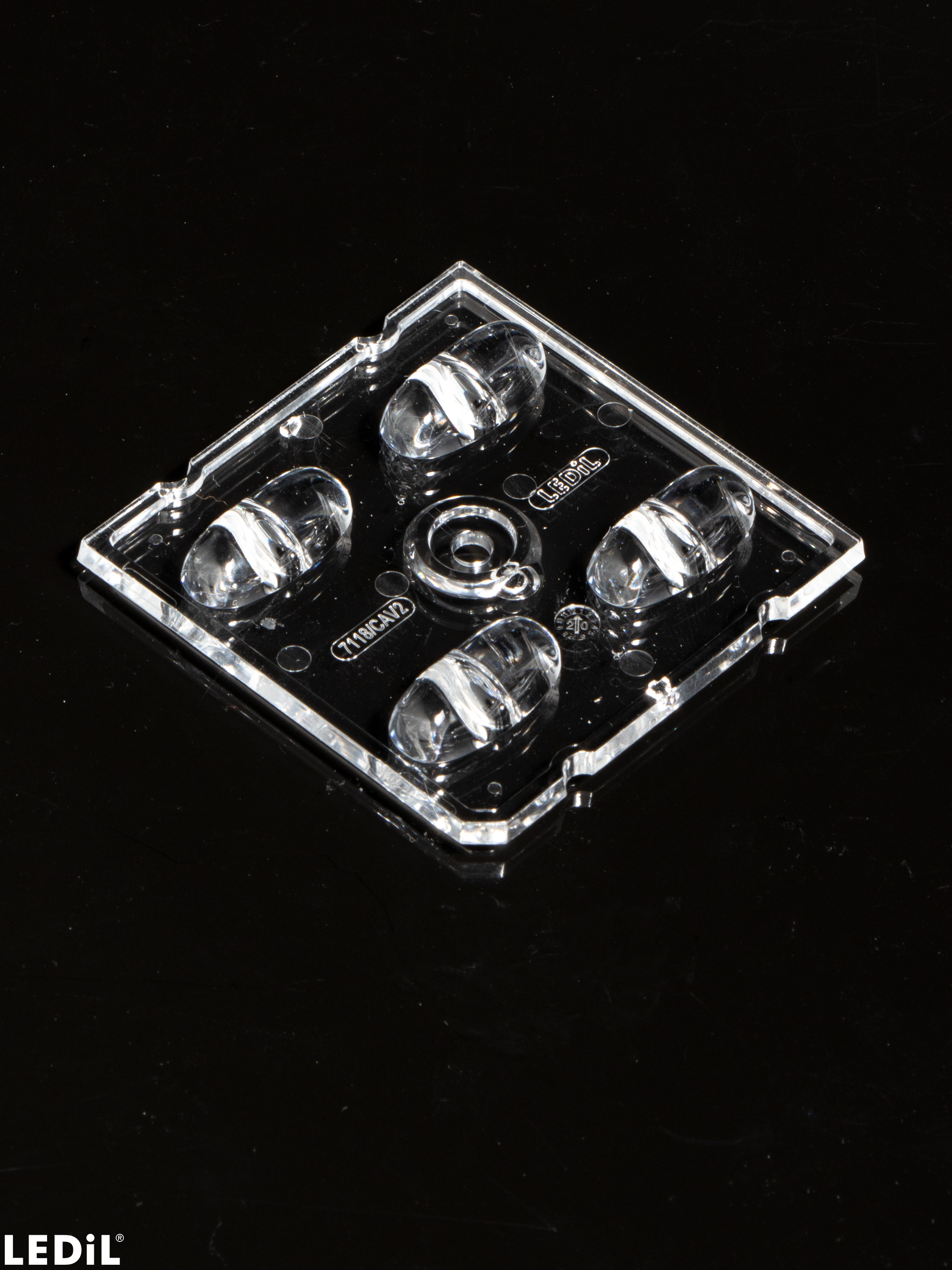

C17118_STRADA-2X2-T1-M
Print
IESNA Type I (medium) beam applicable for European P-class standard for pedestrian lighting and bicycle paths. Compatible with up to 3535 size LED packages.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
J Series 3030
FWHM: asymmetric
Peak intensity:
1.007 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 3030
FWHM: asymmetric
Peak intensity:
0.727 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM: asymmetric
Peak intensity:
0.493 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.524 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

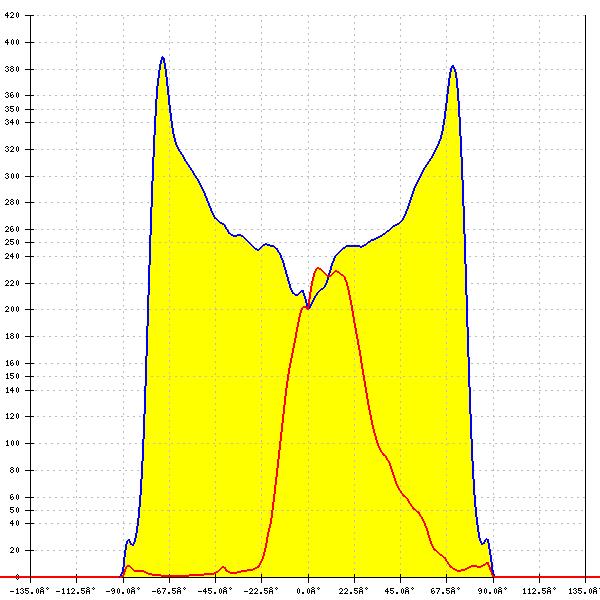

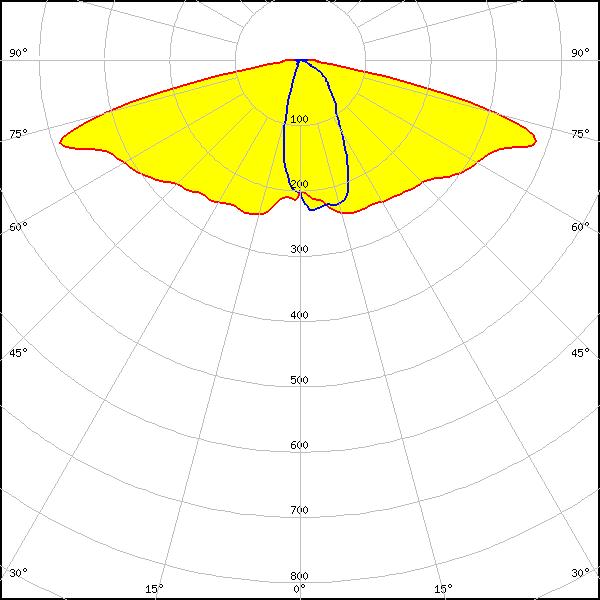

LED:
XP-G3
FWHM: asymmetric
Peak intensity:
1.193 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

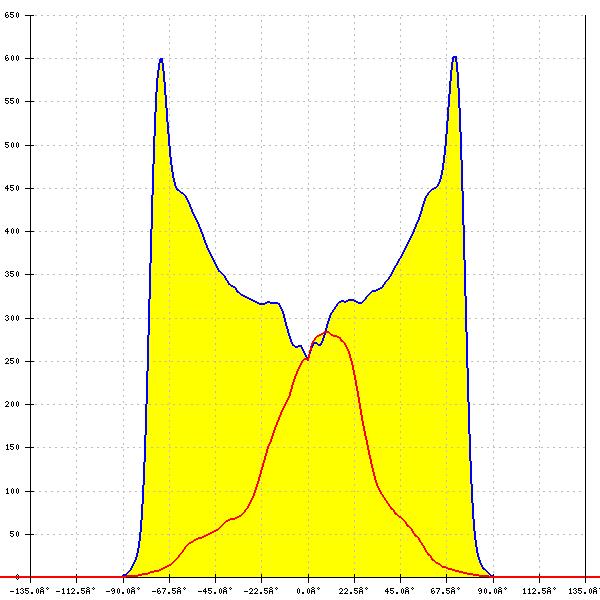

LED:

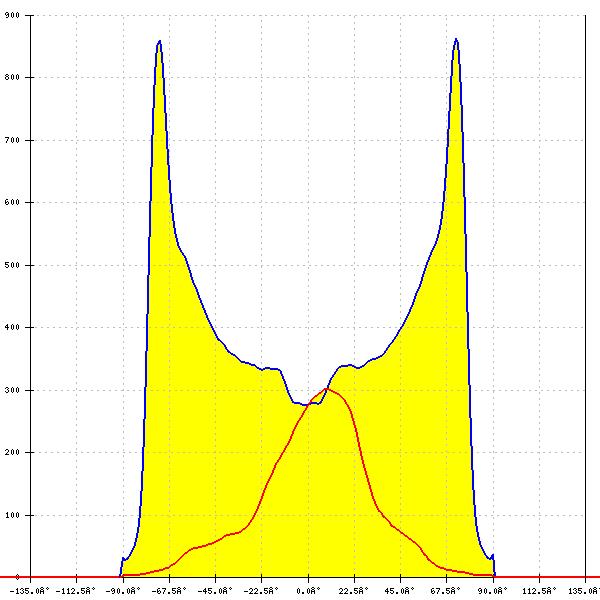

XP-G4
FWHM: asymmetric
Peak intensity:
0.898 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G4
FWHM: asymmetric
Peak intensity:
0.635 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 HE Plus
FWHM: asymmetric
Peak intensity:
0.992 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 HE Plus
FWHM: asymmetric
Peak intensity:
0.692 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:

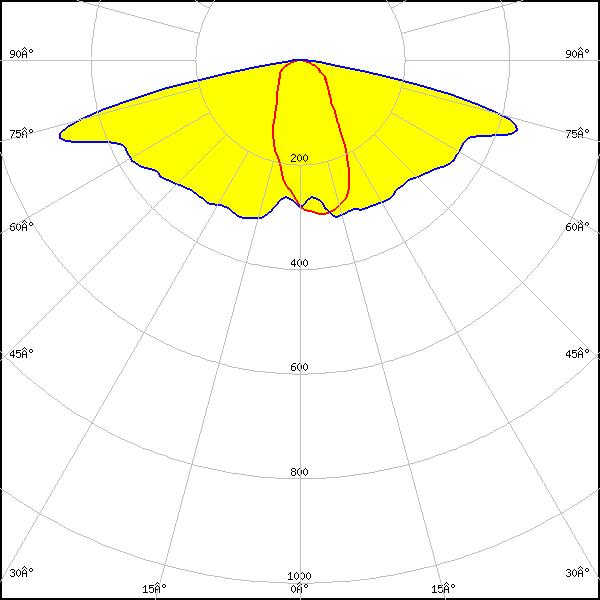

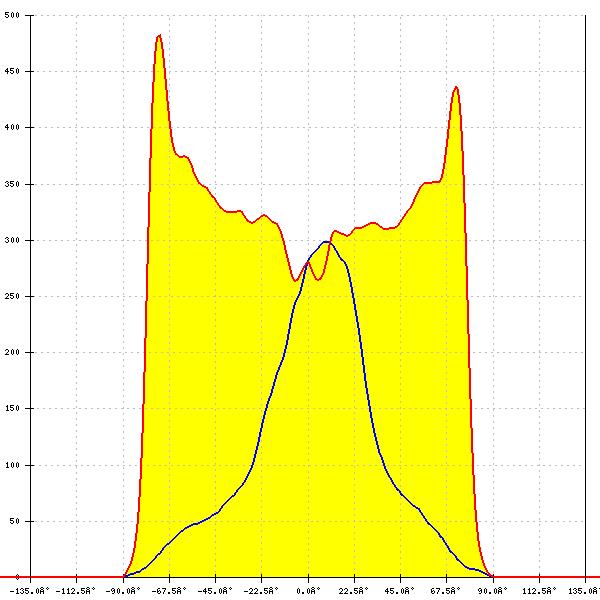

LUXEON HL2X
FWHM: asymmetric
Peak intensity:
0.499 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

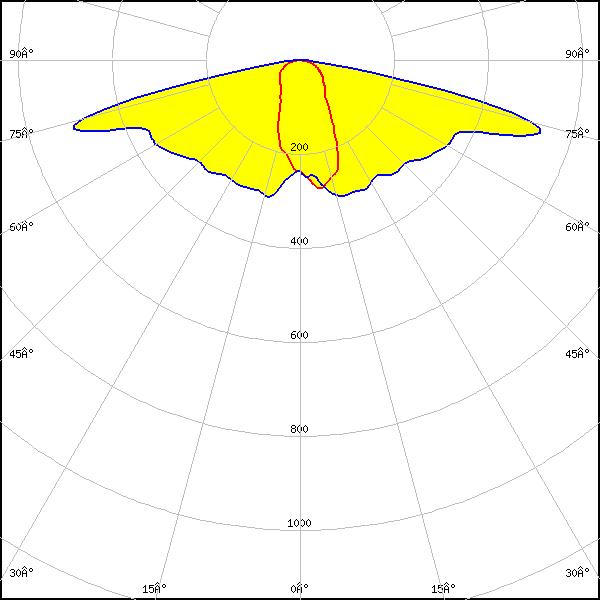

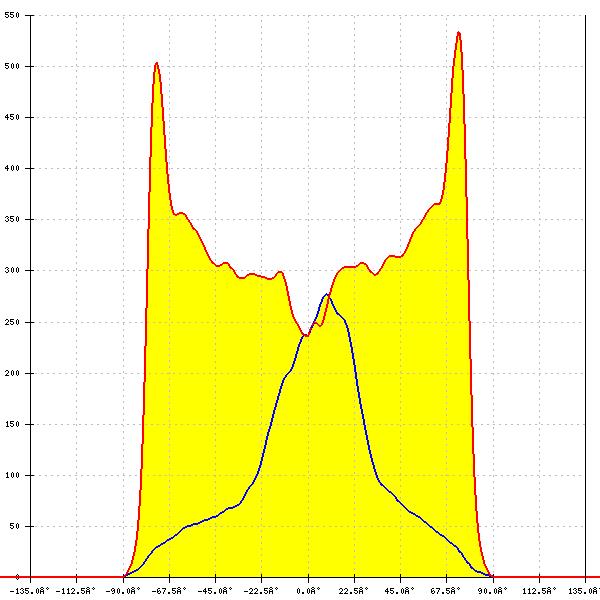

LUXEON TX
FWHM: asymmetric
Peak intensity:
0.543 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON V2
FWHM: asymmetric
Peak intensity:
0.564 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON V2
FWHM: asymmetric
Peak intensity:
0.969 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity:
0.499 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.806 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity:
0.605 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity:
0.865 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM: asymmetric
Peak intensity:
1.319 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM: asymmetric
Peak intensity:
0.744 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

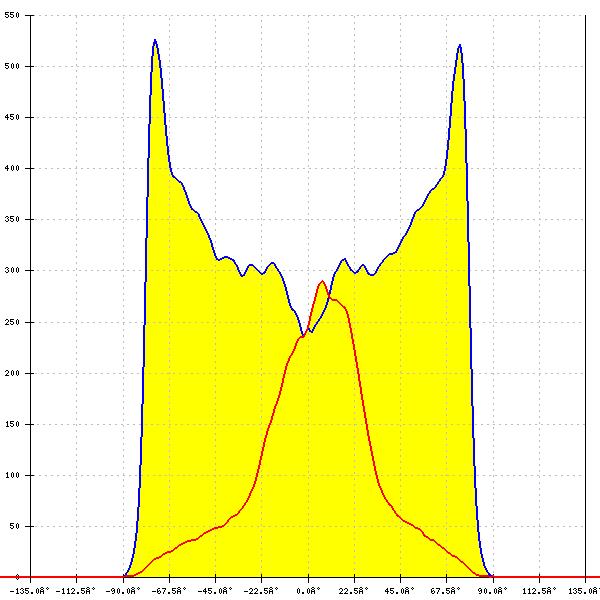

LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.548 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.890 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM: asymmetric
Peak intensity:
0.518 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM: asymmetric
Peak intensity:
0.829 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM: asymmetric
Peak intensity:
0.513 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM: asymmetric
Peak intensity:
0.827 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351D
FWHM: asymmetric
Peak intensity:
0.420 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351D
FWHM: asymmetric
Peak intensity:
0.609 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030C
FWHM: asymmetric
Peak intensity:
1.044 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030C
FWHM: asymmetric
Peak intensity:
0.709 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:

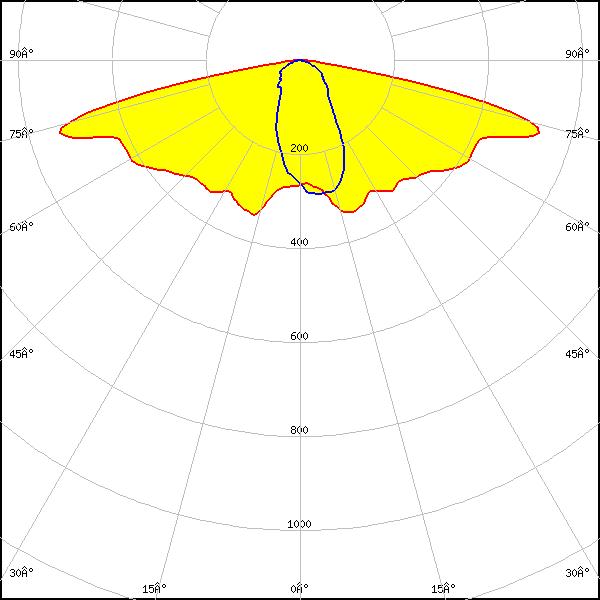

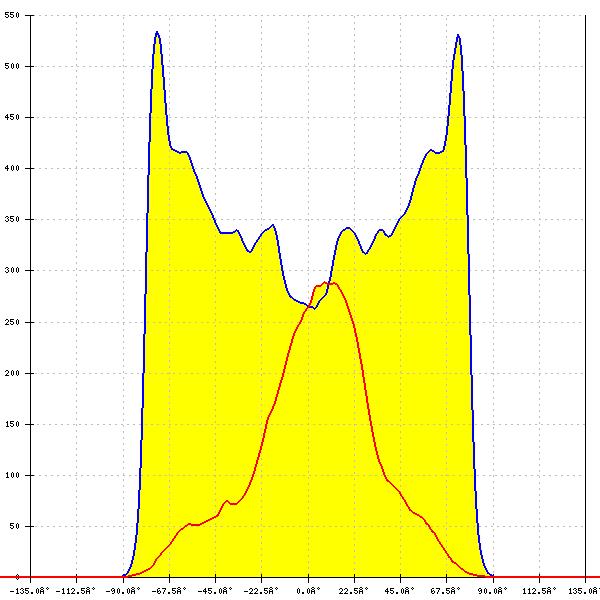

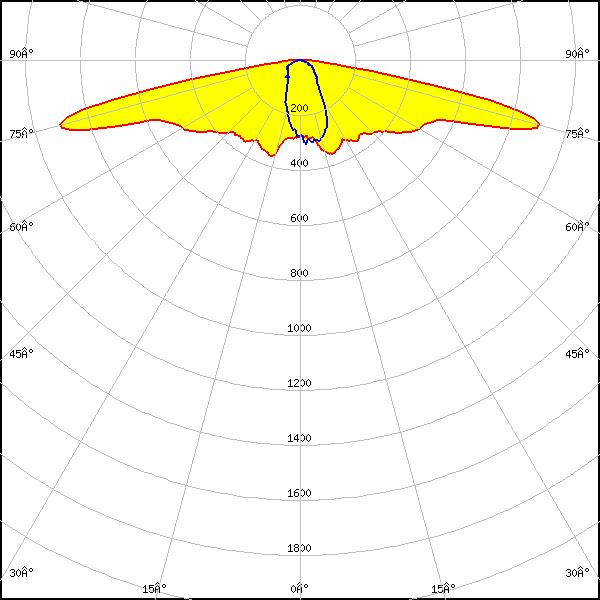

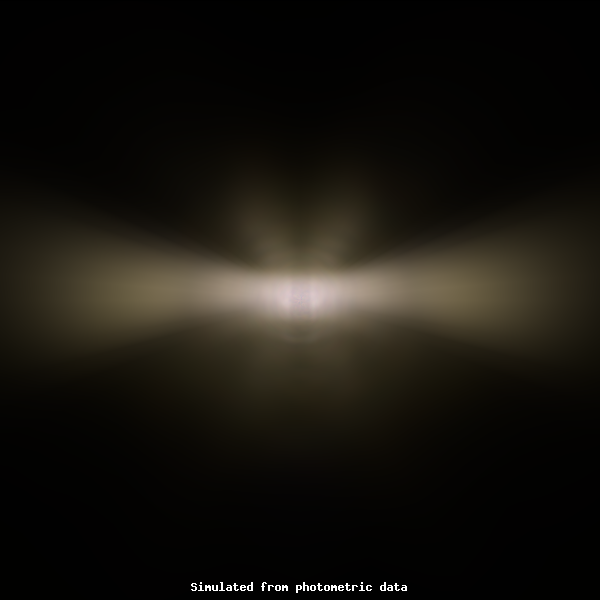

Z5M3-E1
FWHM: asymmetric
Peak intensity:
0.949 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM: asymmetric
Peak intensity:
0.561 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4
FWHM: asymmetric
Peak intensity:
1.005 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4
FWHM: asymmetric
Peak intensity:
0.672 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

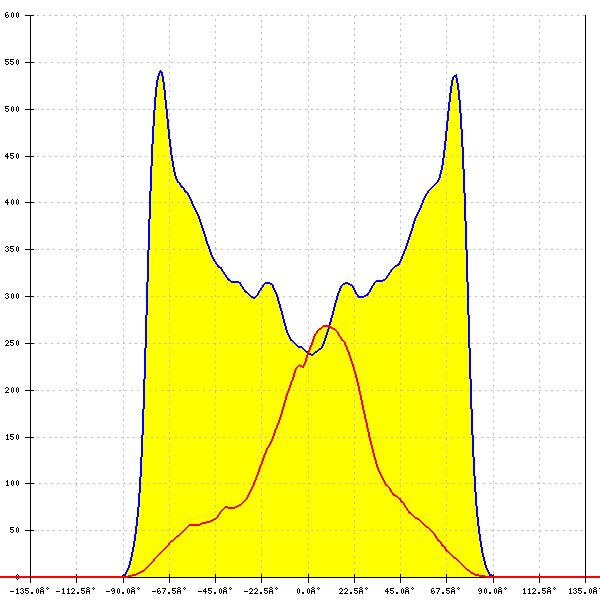

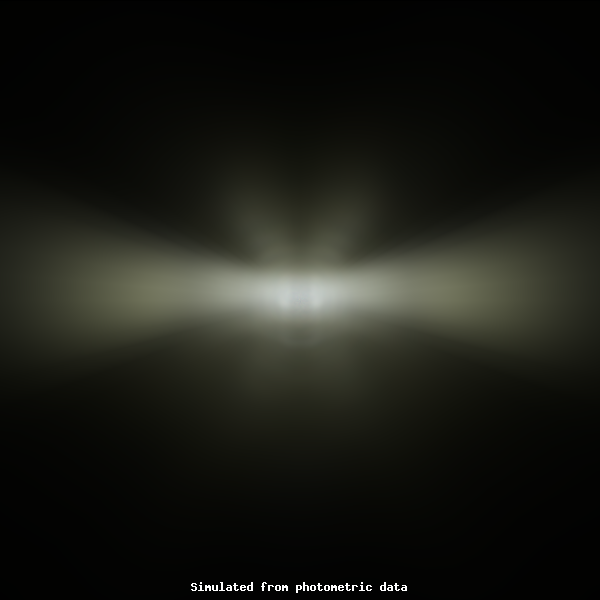

LED:

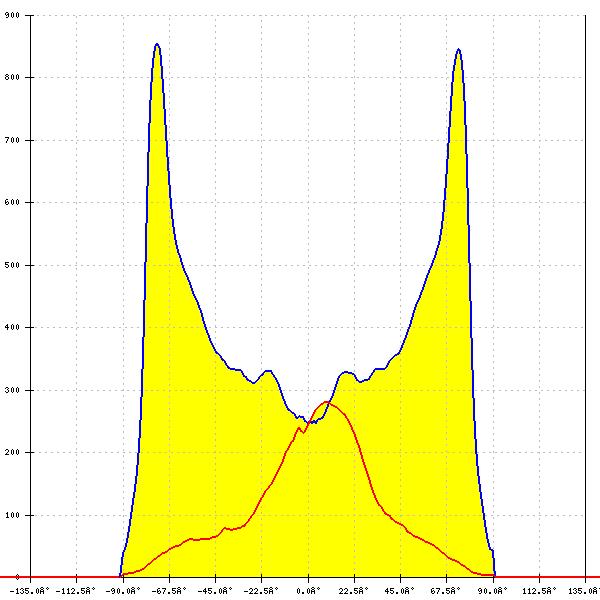

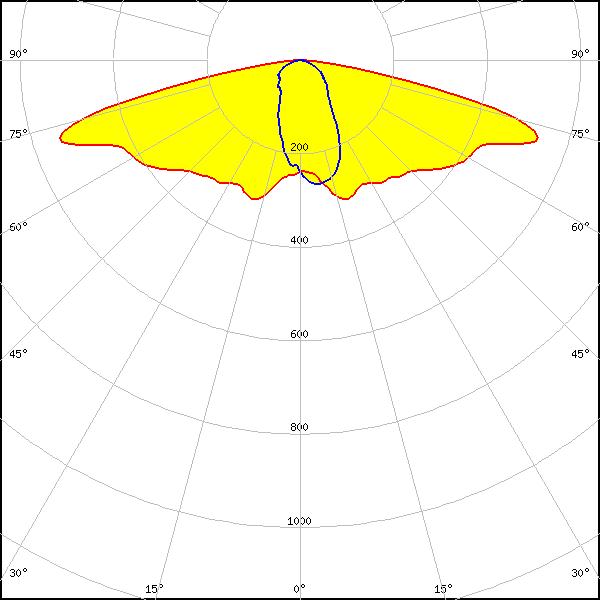

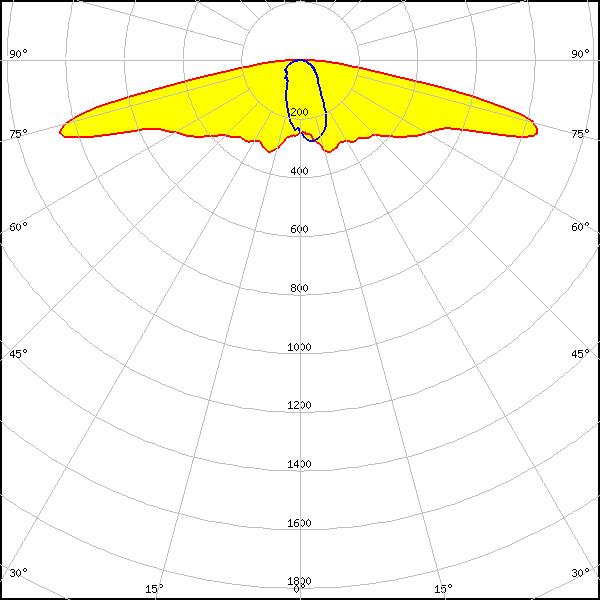

Z5M4-E1
FWHM: asymmetric
Peak intensity:
0.888 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4-E1
FWHM: asymmetric
Peak intensity:
0.568 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

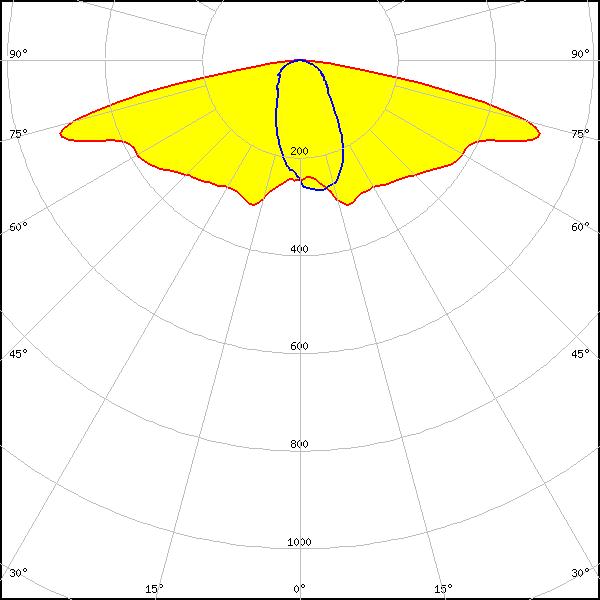

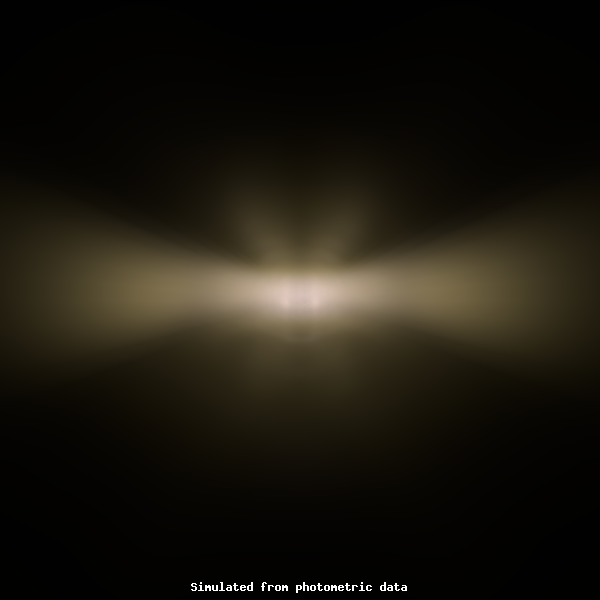

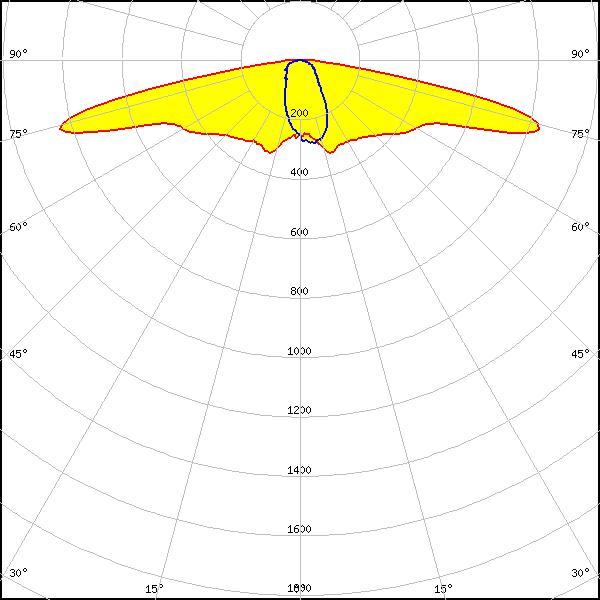

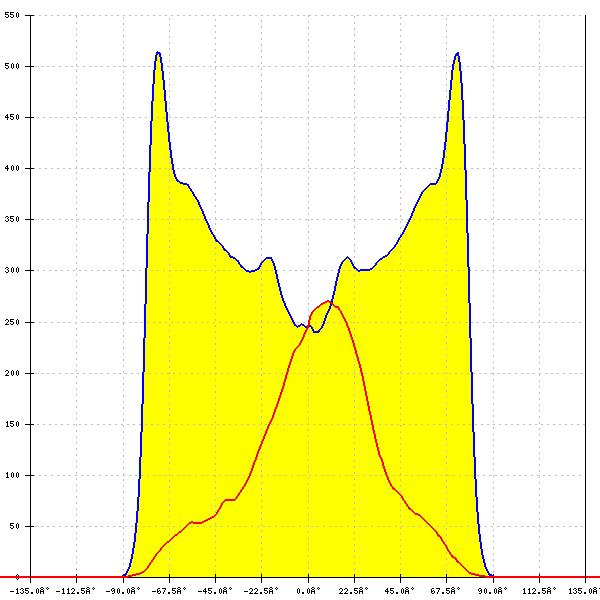

Z5M4-E2
FWHM: asymmetric
Peak intensity:
0.862 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4-E2
FWHM: asymmetric
Peak intensity:
0.538 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM: asymmetric
Peak intensity:
1.451 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
