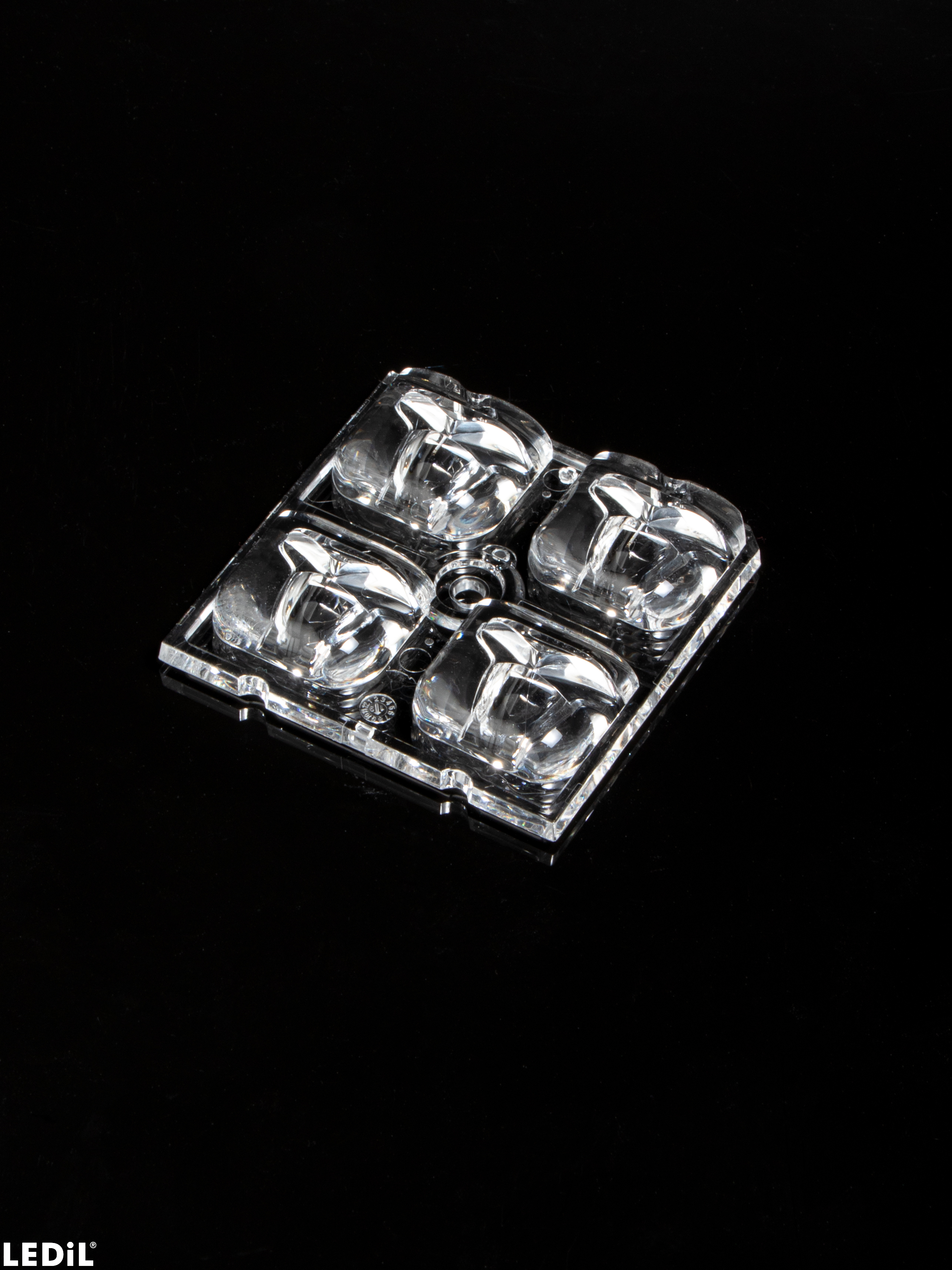

C17065_STRADA-2X2-5050-T3-M
Print
IESNA Type III (medium) beam with excellent back light control, illuminance uniformity and cutoff. Variant optimized for flat 5050 size LED packages.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

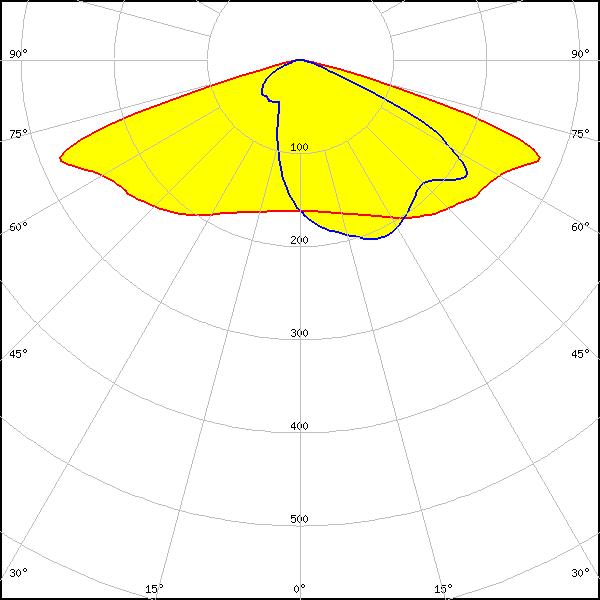

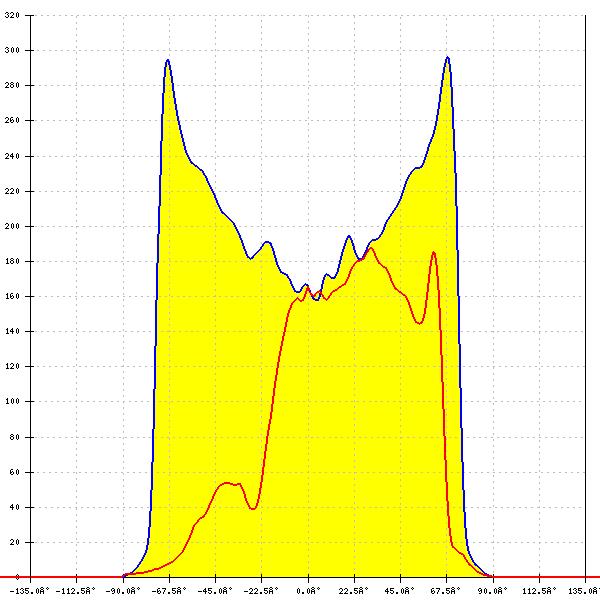

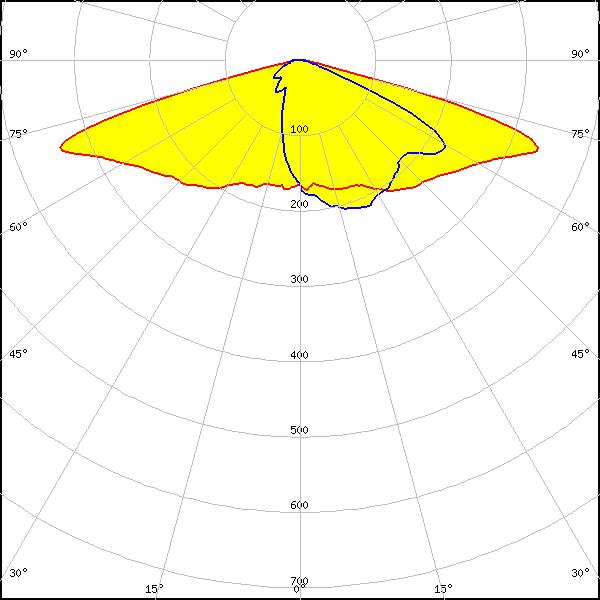

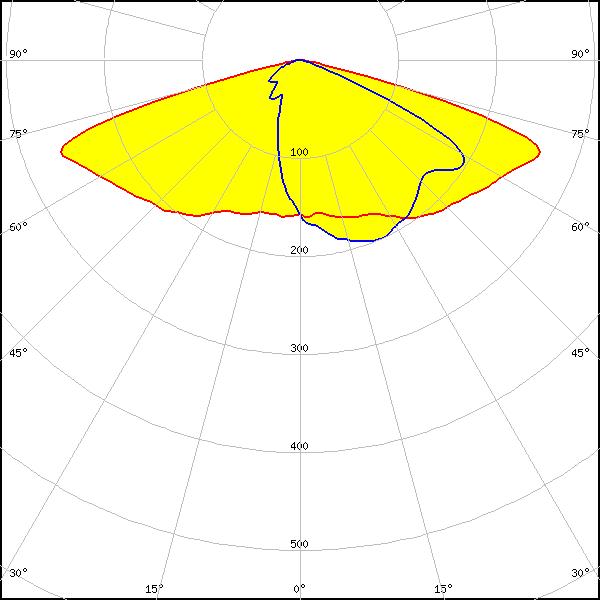

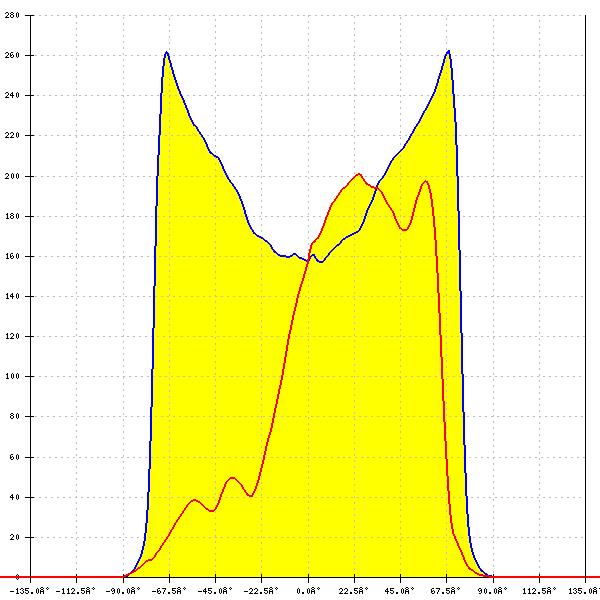

Optical results
LED:
J Series 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.761 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.468 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.686 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.483 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

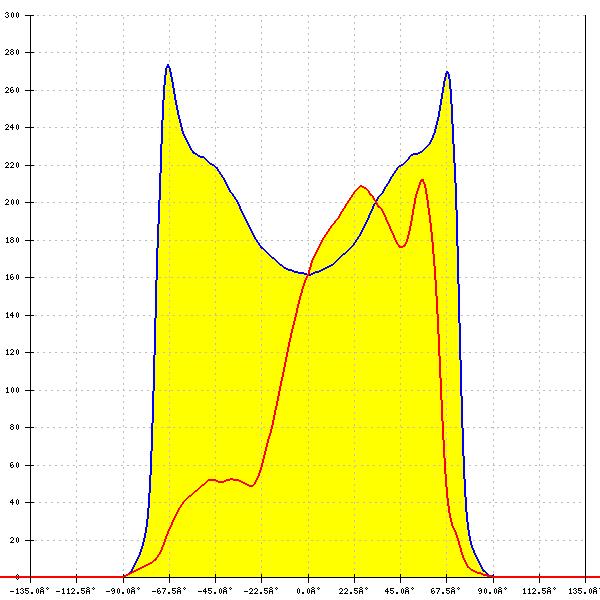

LED:

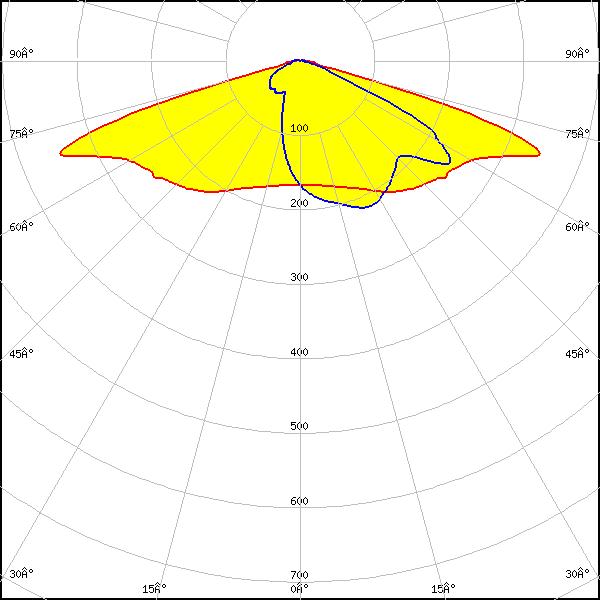

J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity:
0.519 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity:
0.913 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM: asymmetric
Peak intensity:
0.770 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2 HE
FWHM: asymmetric
Peak intensity:
0.780 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.883 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.547 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

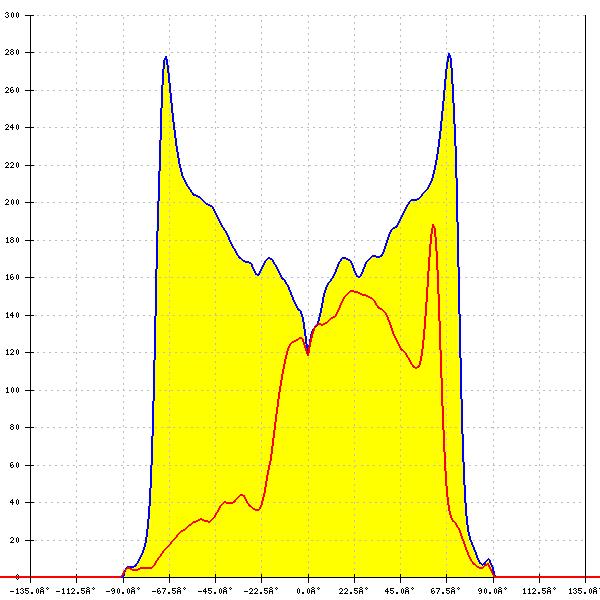

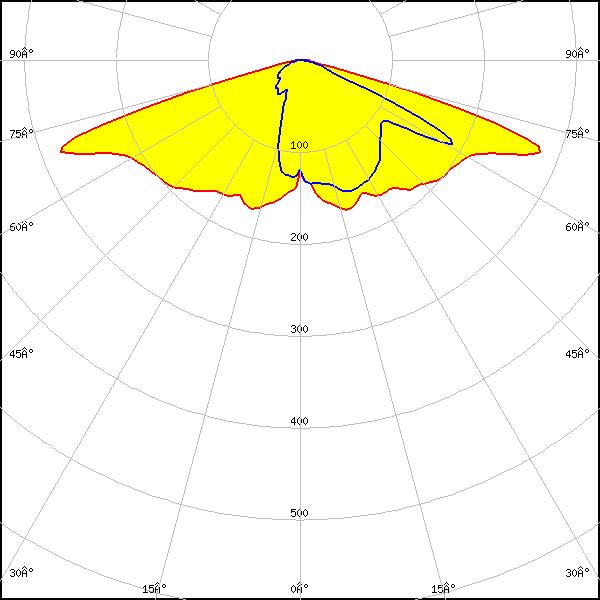

XT-E
FWHM: asymmetric
Peak intensity:
0.624 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 HE
FWHM: asymmetric
Peak intensity:
0.736 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

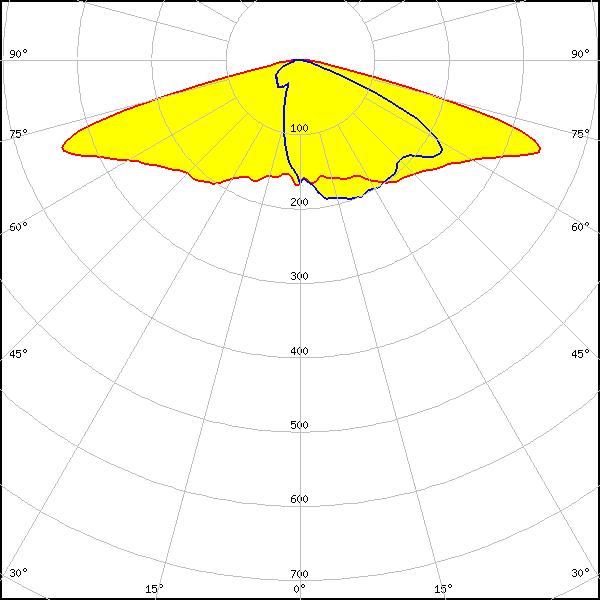

LUXEON 5050 HE
FWHM: asymmetric
Peak intensity:
0.490 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

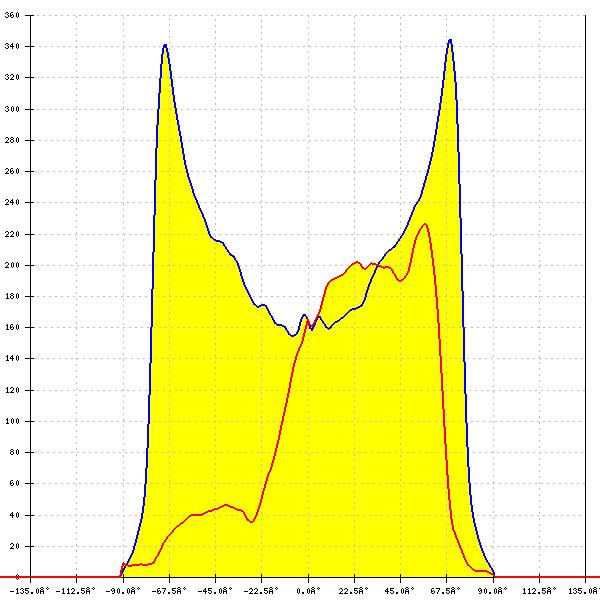

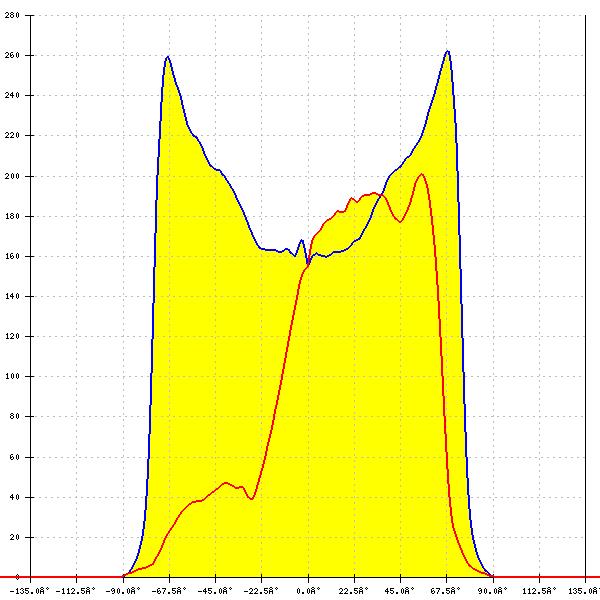

LUXEON 5050 HE Plus
FWHM: asymmetric
Peak intensity:
0.473 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 HE Plus
FWHM: asymmetric
Peak intensity:
0.680 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.745 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.450 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.442 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.720 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-5050 SQR (L213-xxxx016MRH001)
FWHM: asymmetric
Peak intensity:
0.825 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

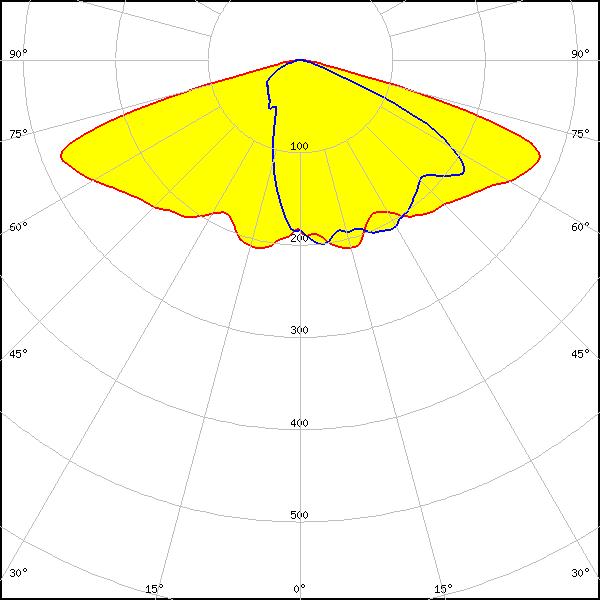

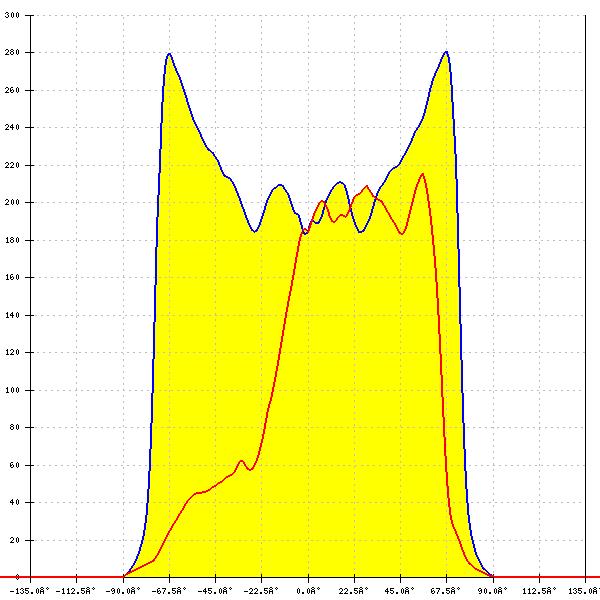

LED:

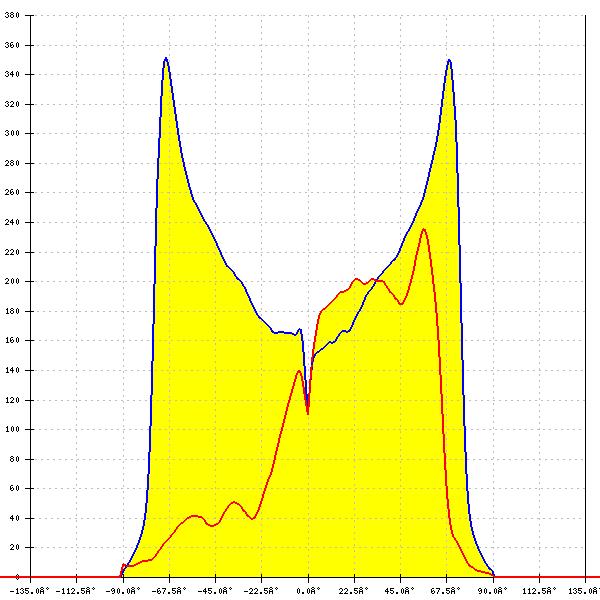

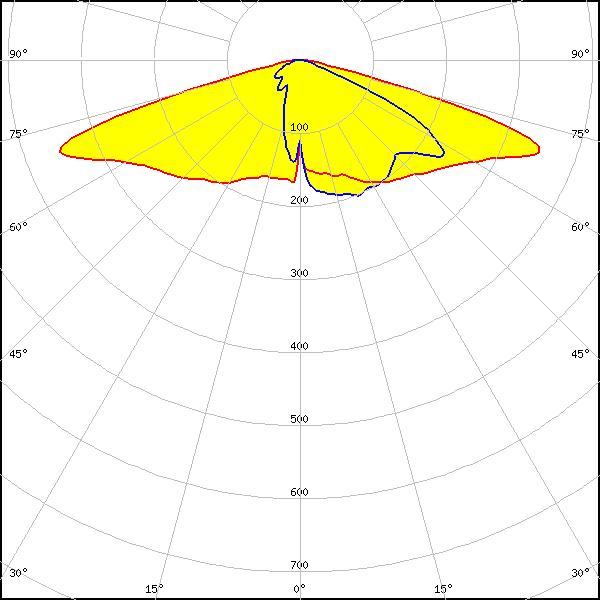

MP-5050-240E_810E
FWHM: asymmetric
Peak intensity:
0.706 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MP-5050-240E_810E
FWHM: asymmetric
Peak intensity:
0.515 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

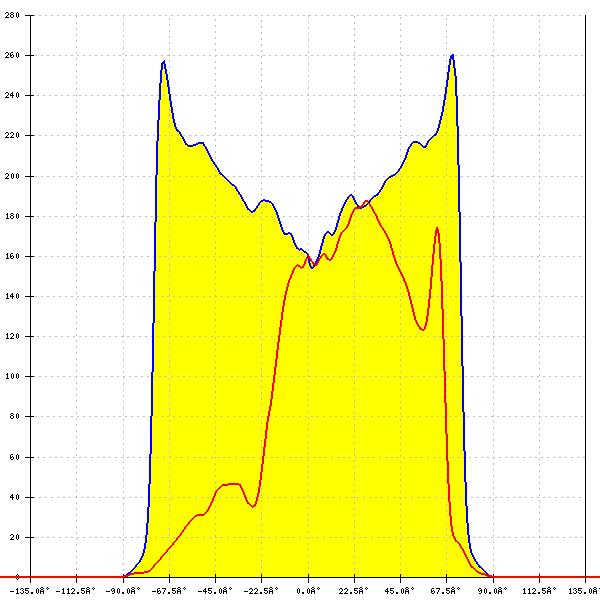

LED:
RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity:
0.491 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

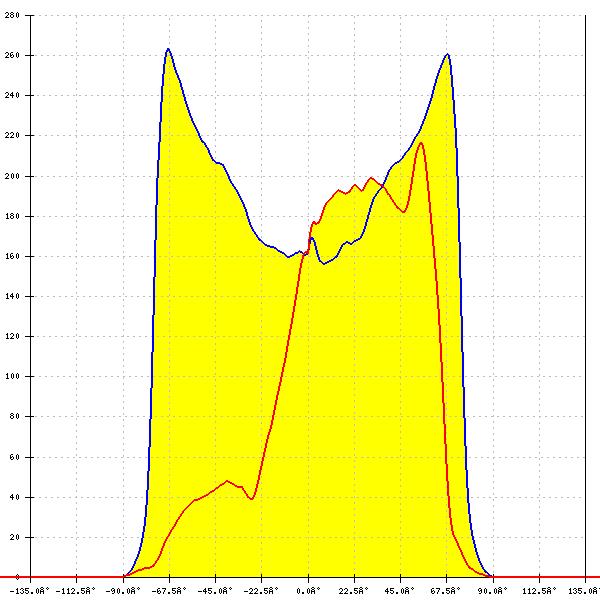

LED:
RecLED 122x50mm 2x4 5050
FWHM: asymmetric
Peak intensity:
0.472 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

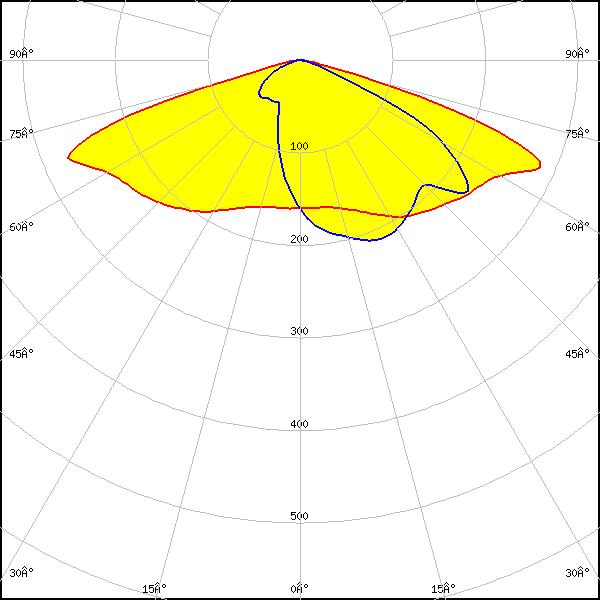

LED:

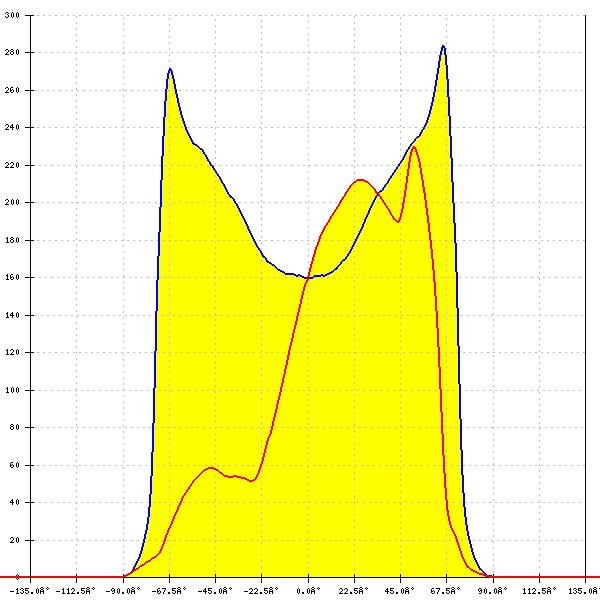

RecLED 173x50mm 2900lm 740 2x6 5050 Opt G1
FWHM: asymmetric
Peak intensity:
0.530 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RecLED 173x50mm 2900lm 740 2x6 5050 Opt G1
FWHM: asymmetric
Peak intensity:
0.830 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

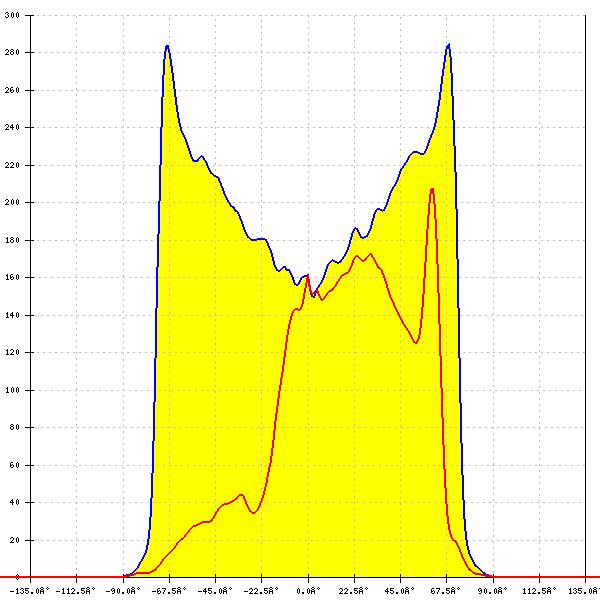

NFSx757G
FWHM: asymmetric
Peak intensity:
0.561 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM: asymmetric
Peak intensity:
0.704 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.674 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:
Duris S8
FWHM: asymmetric
Peak intensity:
0.699 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM: asymmetric
Peak intensity:
0.443 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

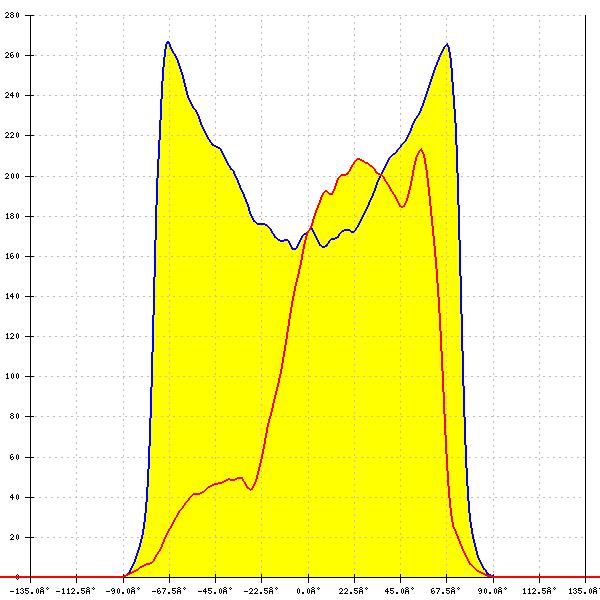

OSCONIQ S 5050 (Q9LR32)
FWHM: asymmetric
Peak intensity:
0.709 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR32)
FWHM: asymmetric
Peak intensity:
0.448 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 SFC
FWHM: asymmetric
Peak intensity:
0.830 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 SFC
FWHM: asymmetric
Peak intensity:
0.524 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

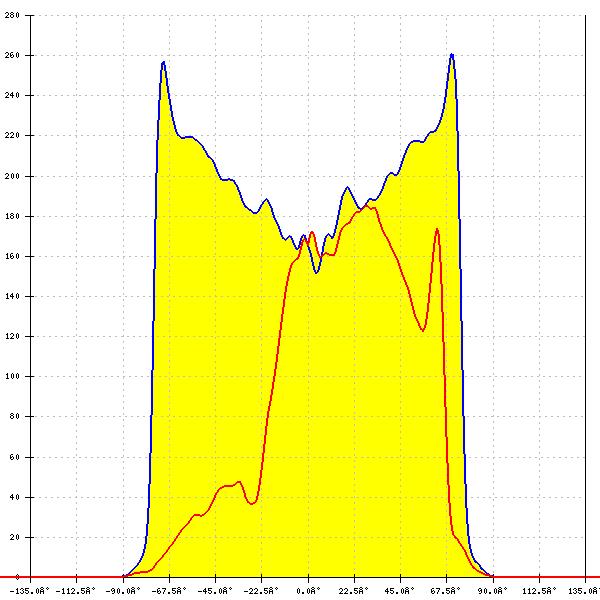

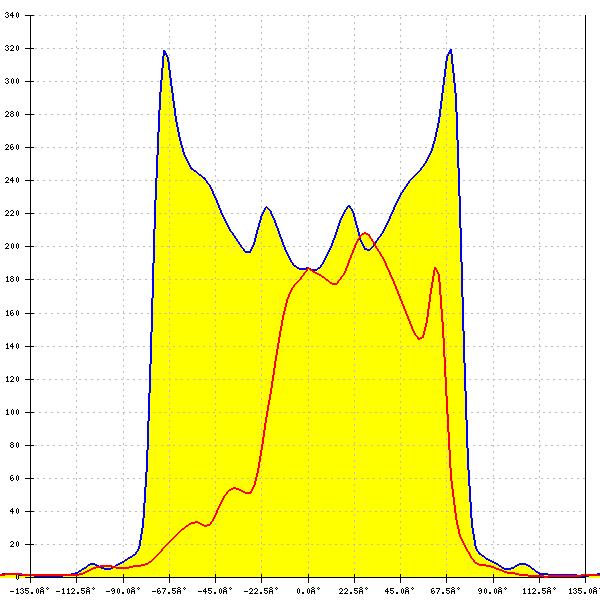

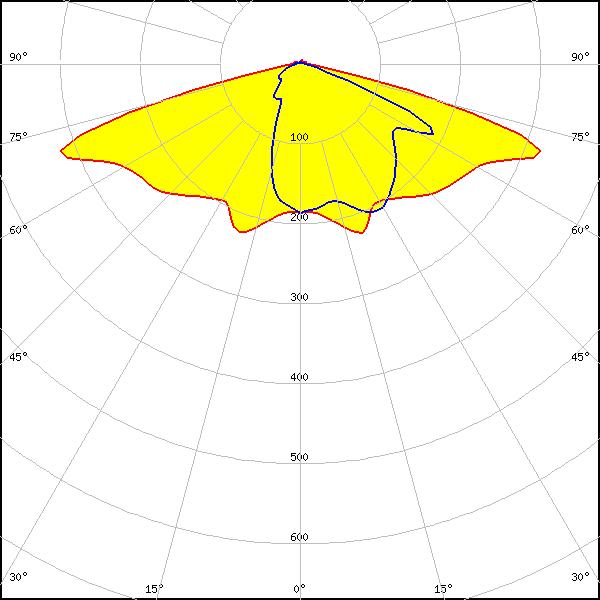

OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.495 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA (U)HE
FWHM: asymmetric
Peak intensity:
0.515 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA (U)HE
FWHM: asymmetric
Peak intensity:
0.820 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM: asymmetric
Peak intensity:
0.442 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:

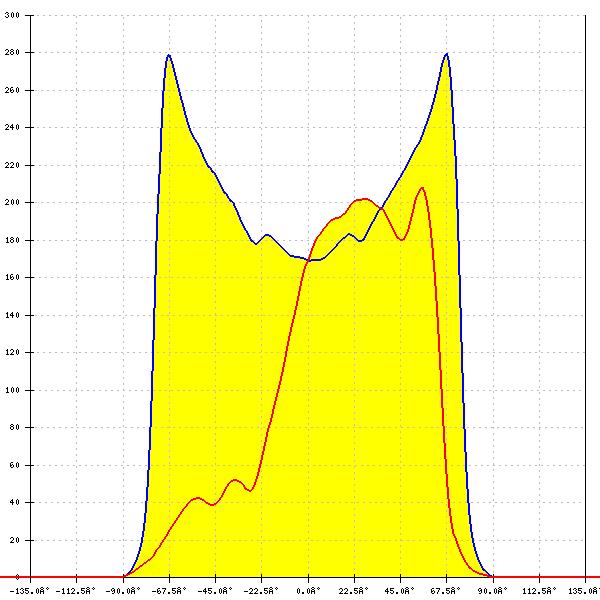

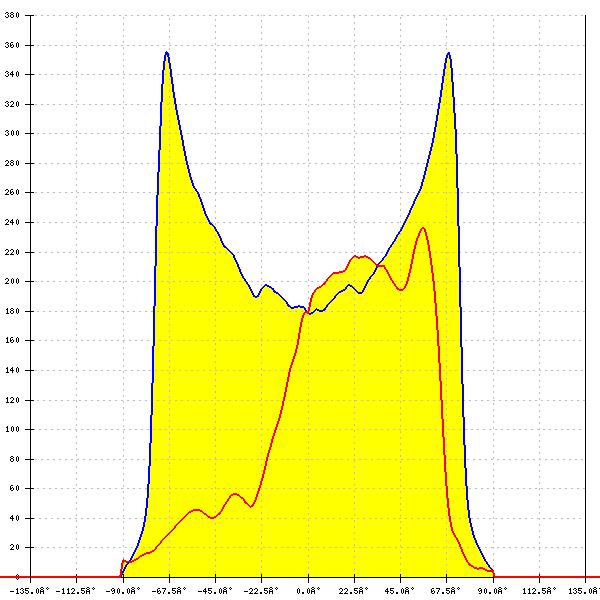

LH502C
FWHM: asymmetric
Peak intensity:
0.724 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502C
FWHM: asymmetric
Peak intensity:
0.459 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

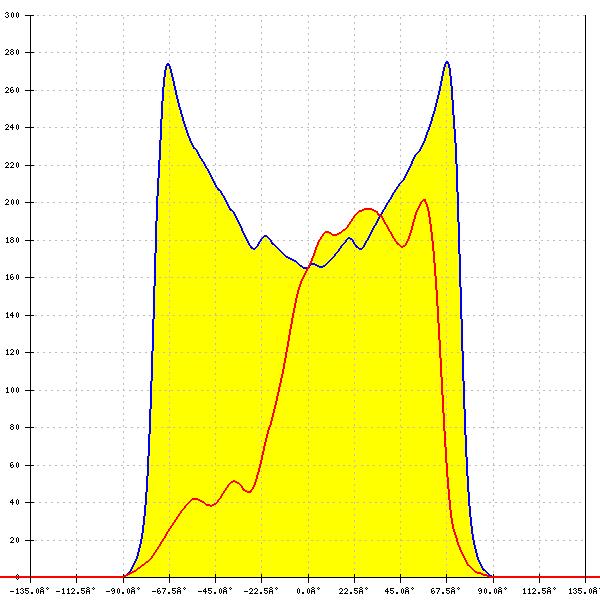

LH502D
FWHM: asymmetric
Peak intensity:
0.730 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502D
FWHM: asymmetric
Peak intensity:
0.453 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT 5050
FWHM: asymmetric
Peak intensity:
0.691 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

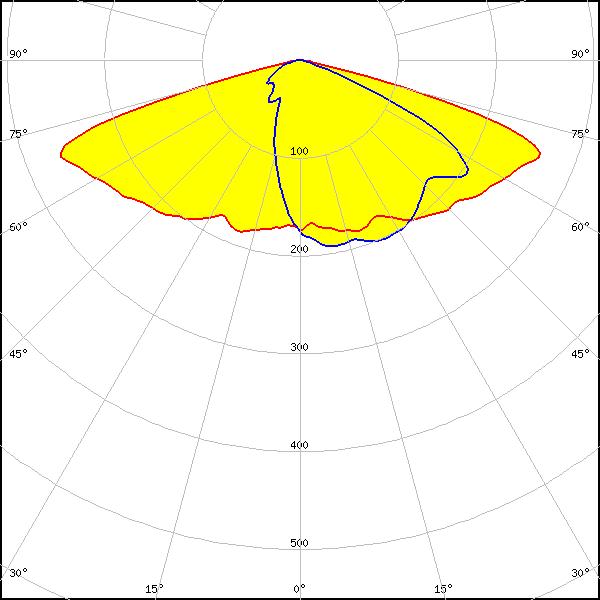

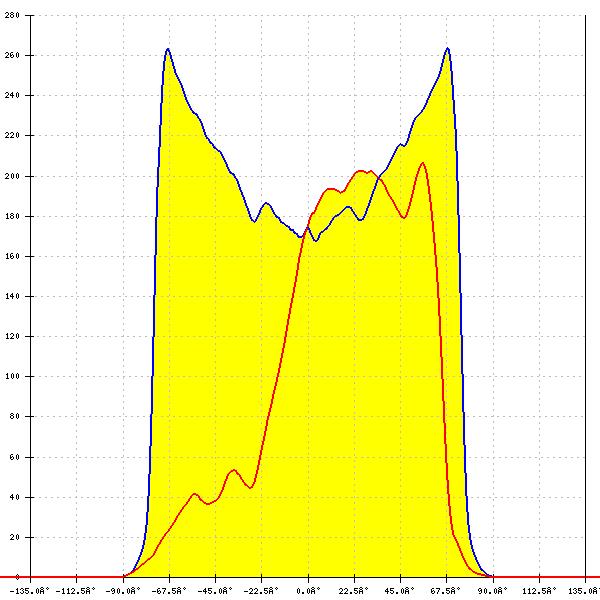

LED:
Seoul 5050 G-Series
FWHM: asymmetric
Peak intensity:
0.776 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Seoul 5050 G-Series
FWHM: asymmetric
Peak intensity:
0.508 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity:
0.712 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity:
0.445 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

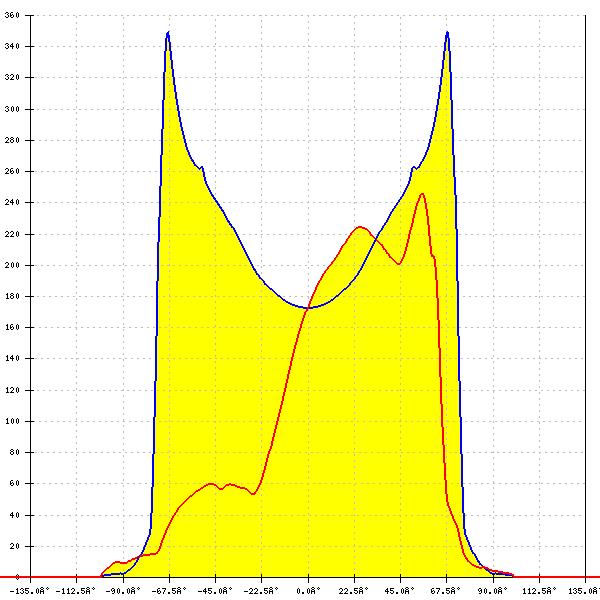

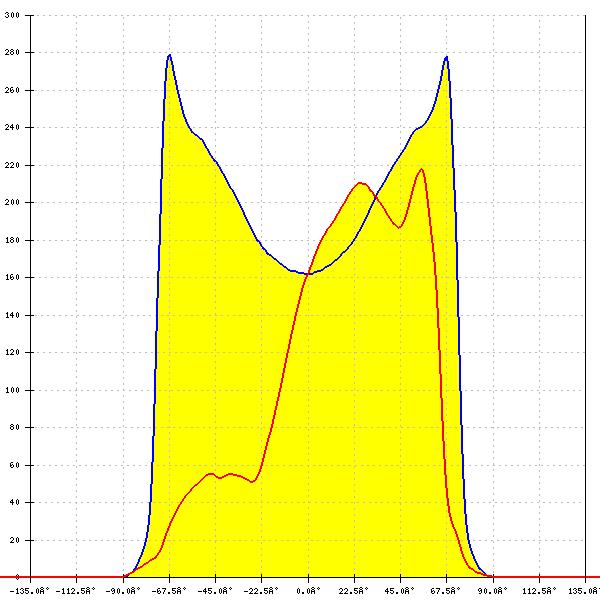

RLE 2x8 6000lm HP HE EXC3 OTD
FWHM: asymmetric
Peak intensity:
0.866 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
