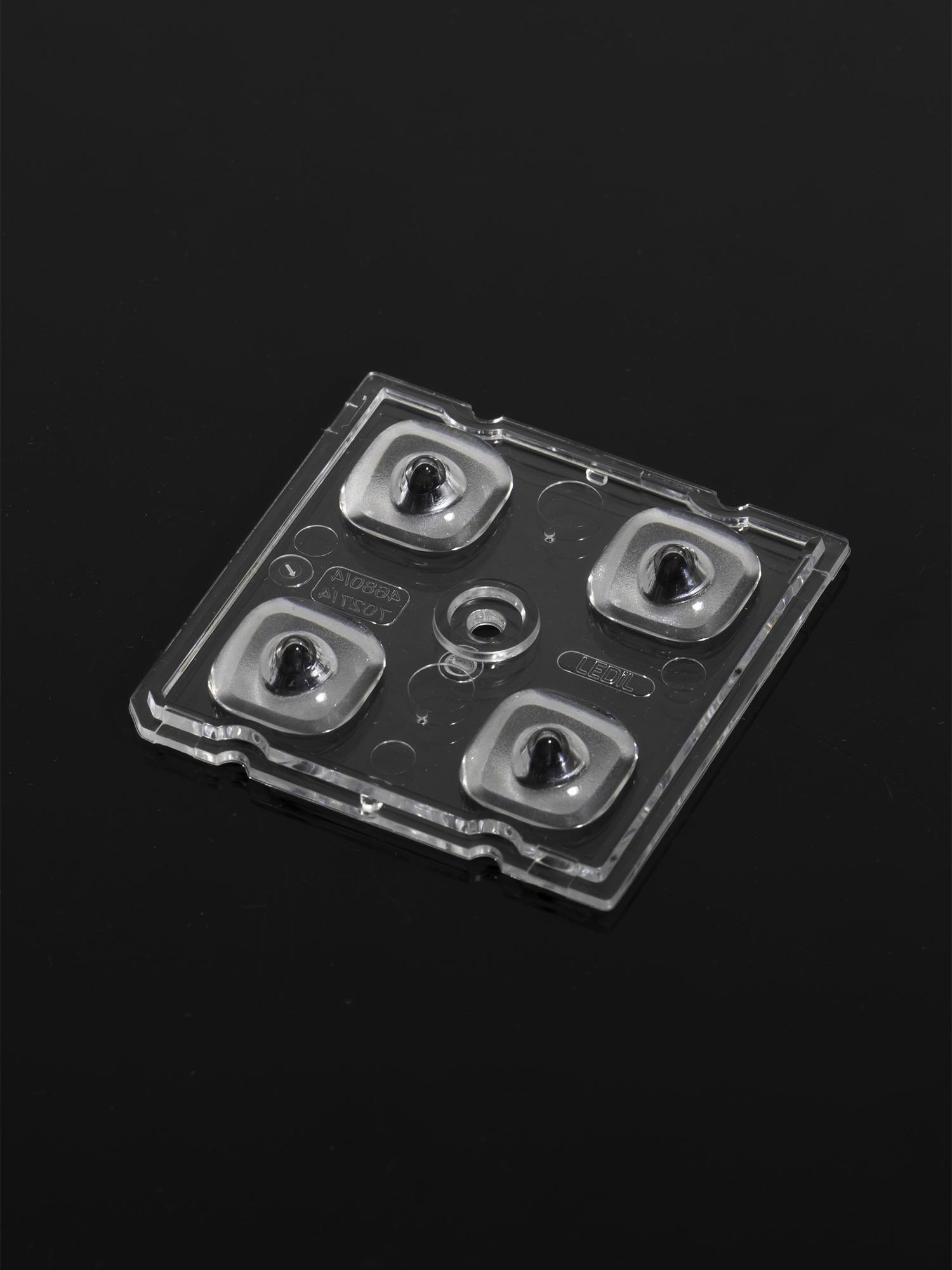

    C17027_STRADA-2X2-VSM-PC

    Print

    IESNA Type V beam for wide areas such as car parks. Variant made from PC.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      6.14 mm
    • Fastening:
      glue, pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.4 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17027_STRADA-2X2-VSM-PC
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New street and high bay beams

    News

    New Products - 2018-12-20

    Application area

    Horticultural Lighting

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    Guide for Street lighting optics

    Application area

    Urban lighting with LEDiL optics

    Application example

    Urban lighting with LEDiL optics

    Reference product

    Bollard lamp for urban environments

    Case story

    Naberezhne Highway in Kiev

    Application area

    Industrial Lighting

    Installation guide

    STRADA-2X2 Installation guide

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    STRADA-2X2-SHD-WHT

    White shade for additional backlight control.

    STRADA-2X2-SHD-BLK

    Black shade for additional backlight control.

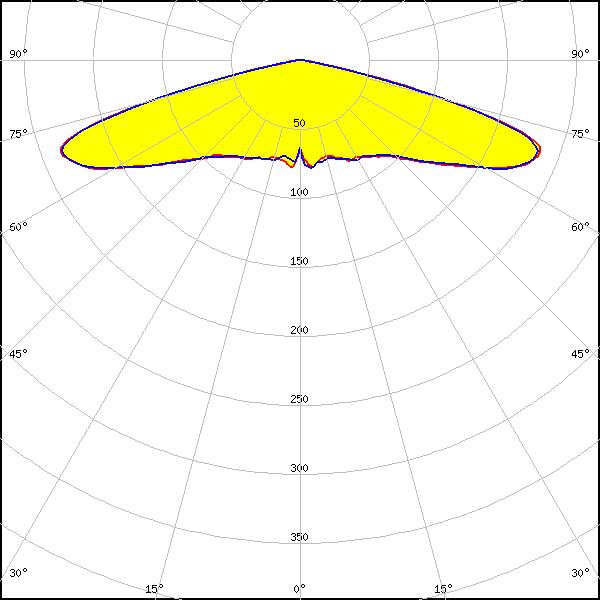

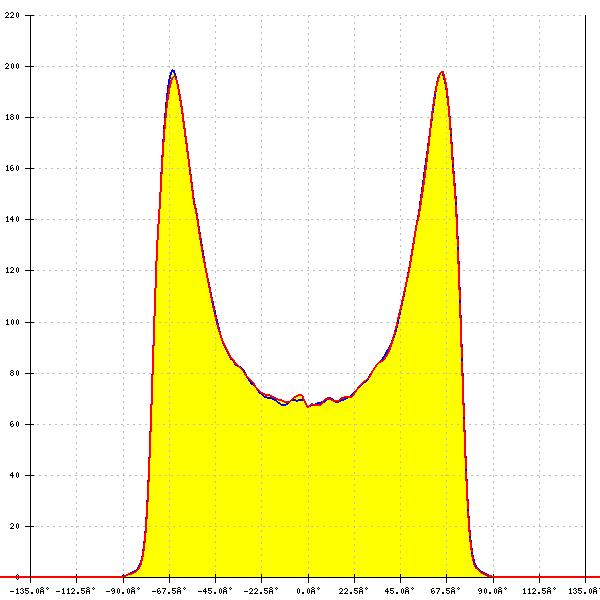

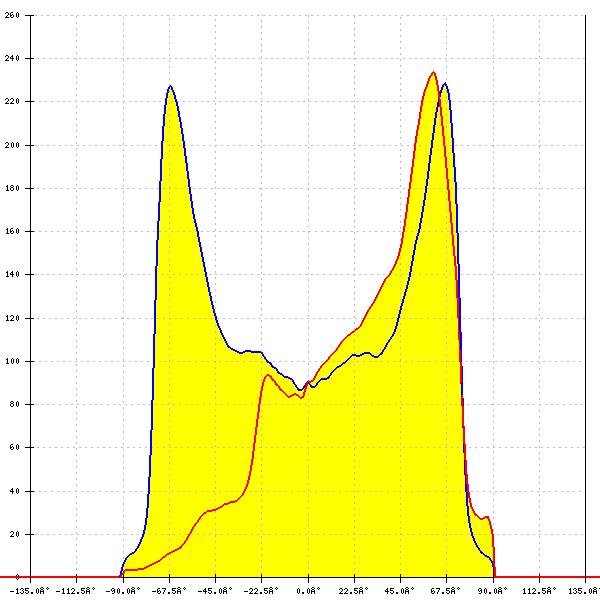

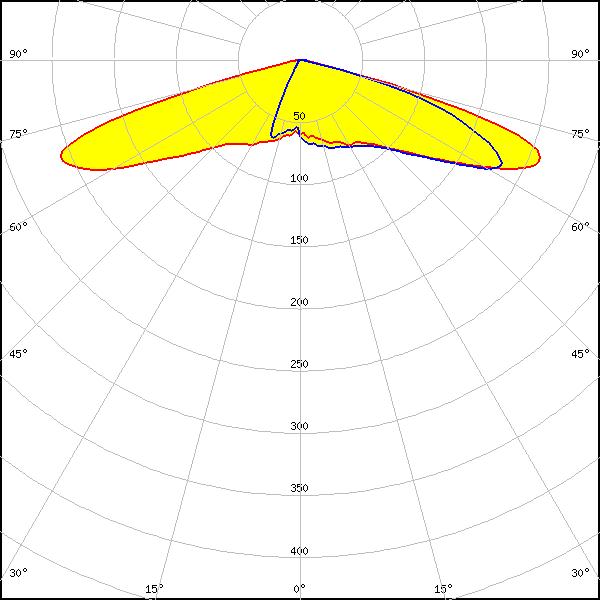

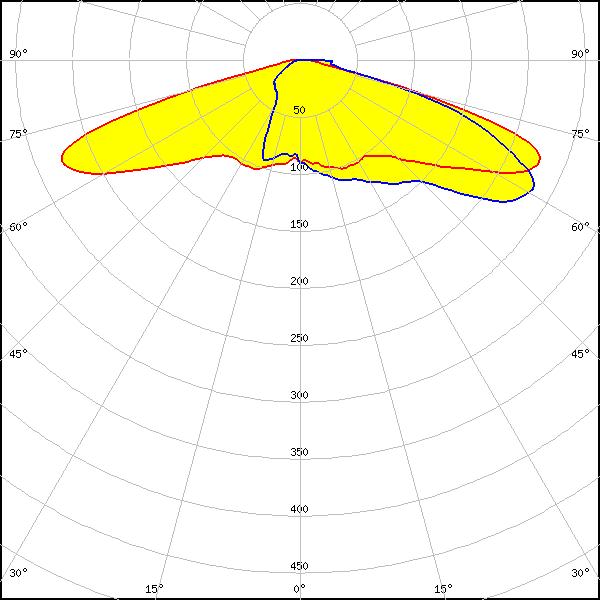

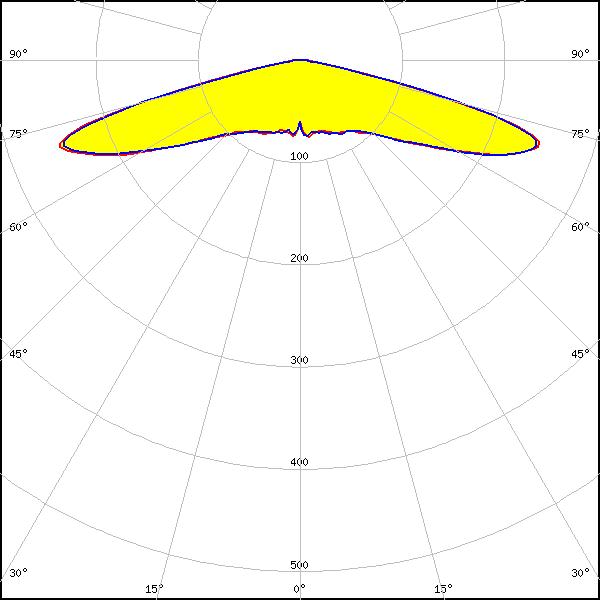

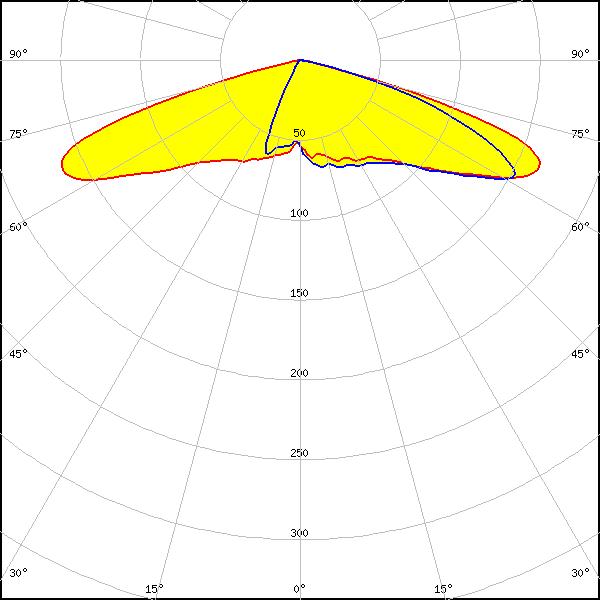

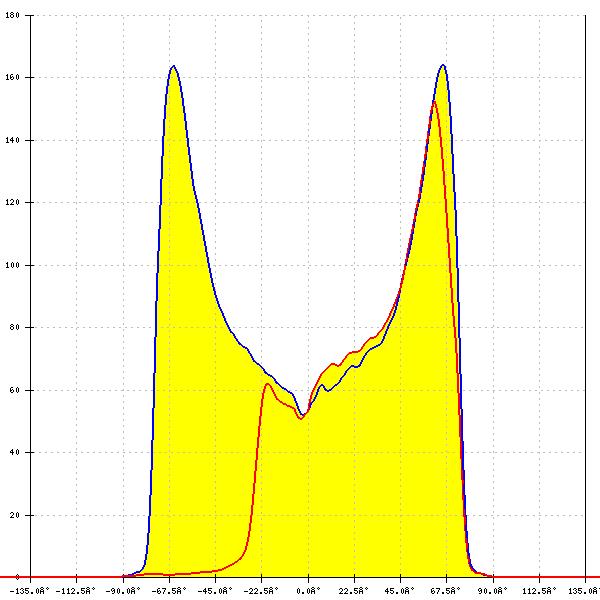

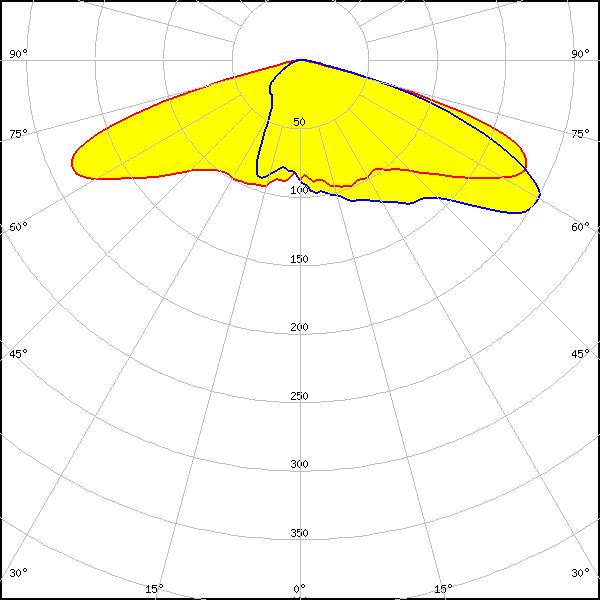

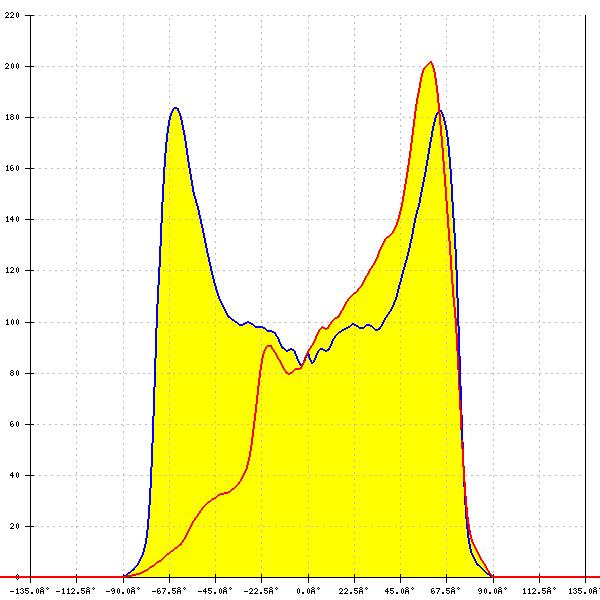

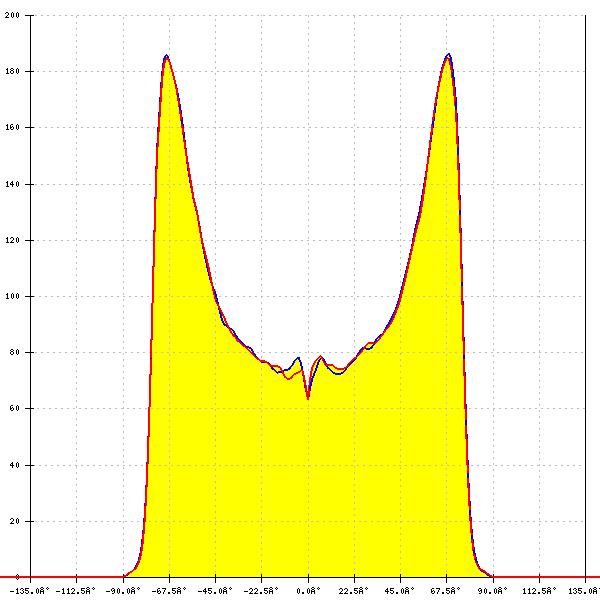

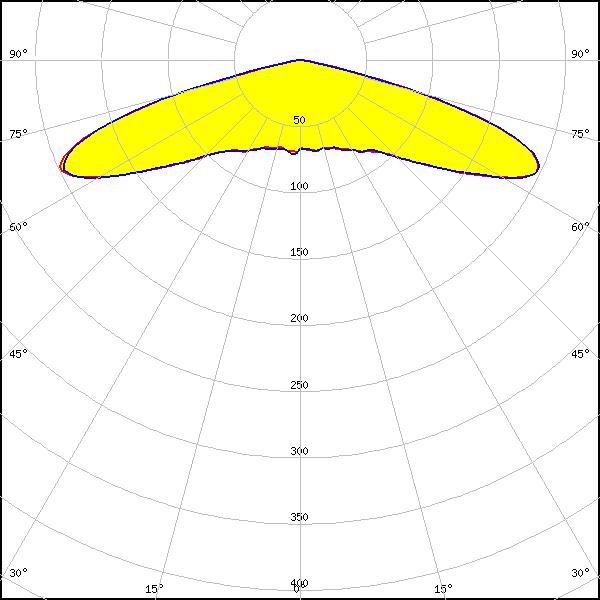

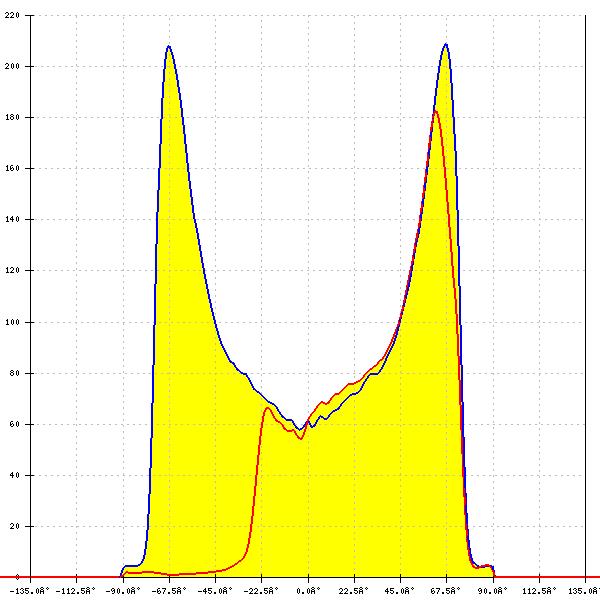

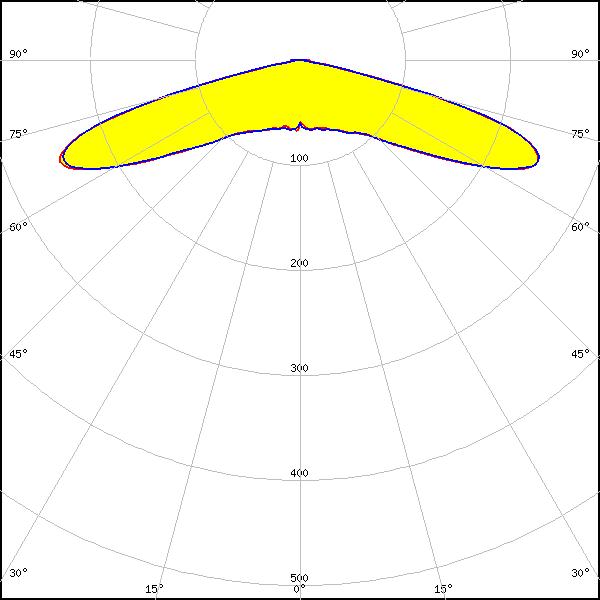

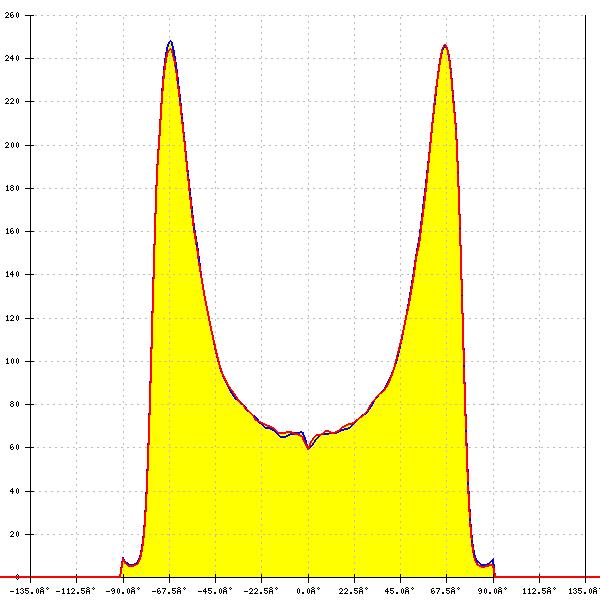

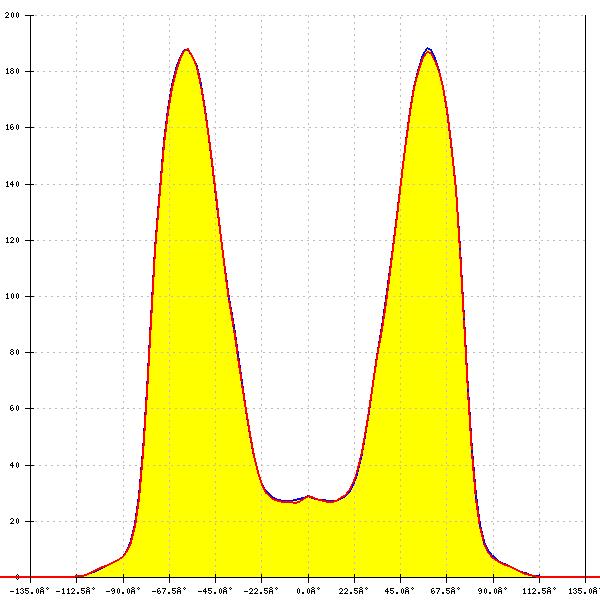

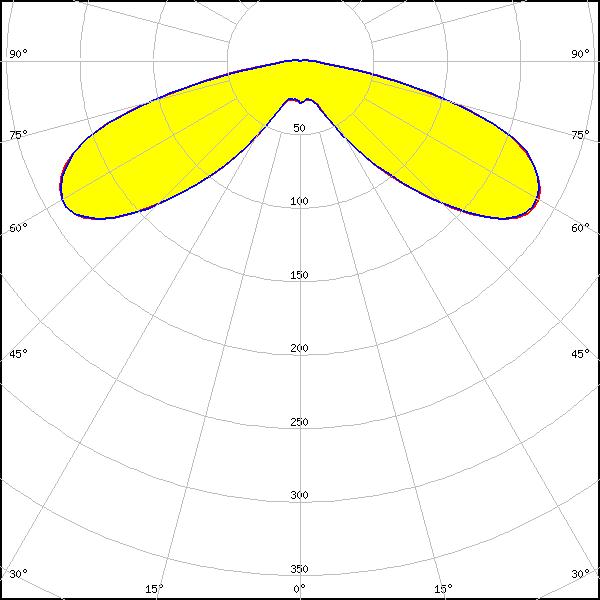

    Optical results

    LED: J Series 5050 Round LES
    FWHM: 150°
    FWTM: 160°
    Peak intensity: 0.355 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: 148°
    FWTM: 159°
    Peak intensity: 0.274 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 30V K Class
    FWHM: 152°
    FWTM: 163°
    Peak intensity: 0.320 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 30V K Class
    FWHM: 150°
    FWTM: 162°
    Peak intensity: 0.233 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: 150°
    FWTM: 162°
    Peak intensity: 0.330 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: 148°
    FWTM: 160°
    Peak intensity: 0.250 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 153°
    FWTM: 164°
    Peak intensity: 0.429 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: 147°
    FWTM: 162°
    Peak intensity: 0.590 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: 150°
    FWTM: 159°
    Peak intensity: 0.279 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 122x50mm 2x4 5050
    FWHM: 148°
    FWTM: 160°
    Peak intensity: 0.247 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: 152°
    FWTM: 160°
    Peak intensity: 0.408 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: 158°
    FWTM: 164°
    Peak intensity: 0.397 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: 156°
    FWTM: 164°
    Peak intensity: 0.260 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: 152°
    FWTM: 160°
    Peak intensity: 0.423 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
