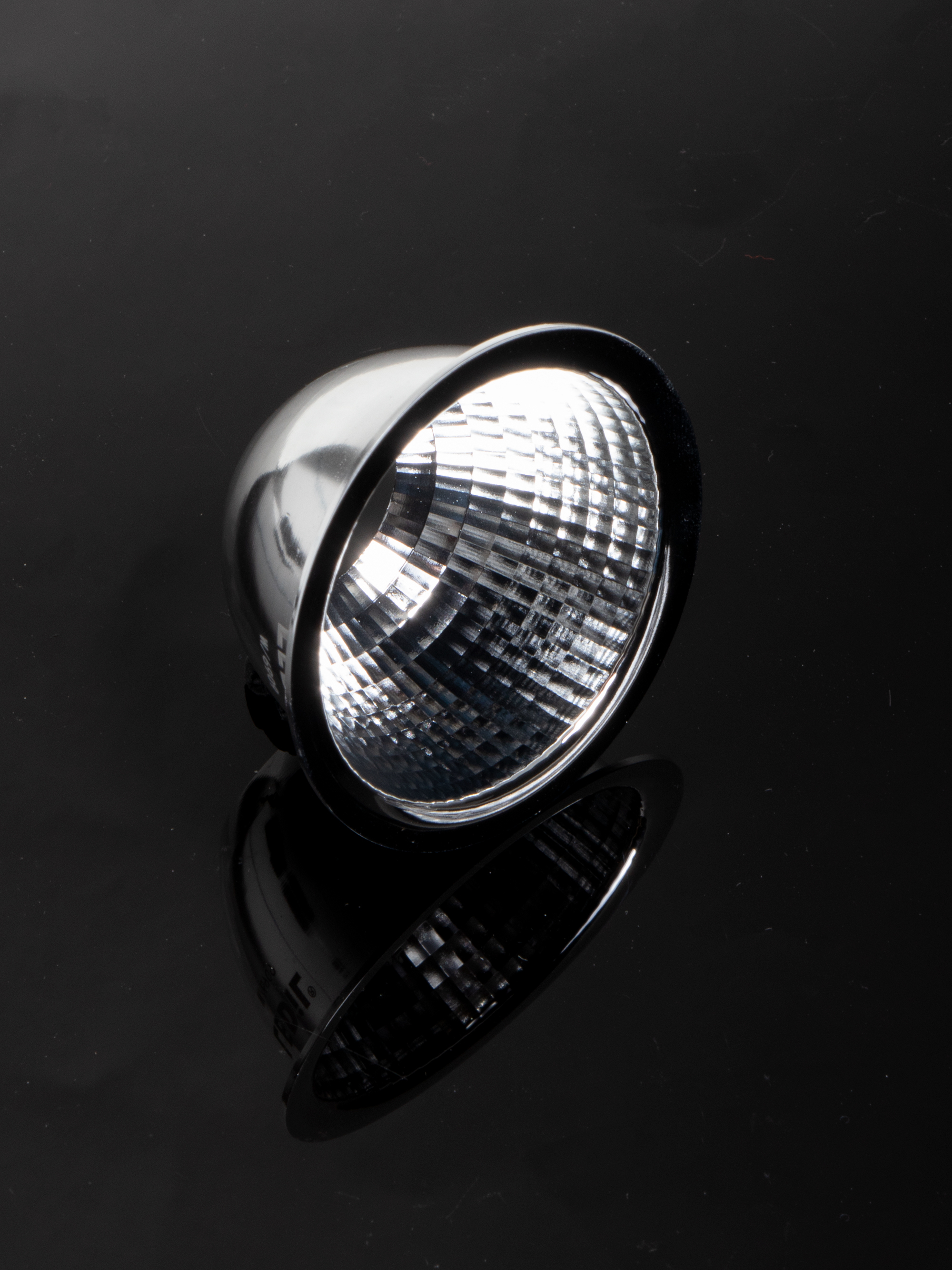

    C16909_ALISE-50-W

    Print

    ~36° wide beam

    Specification
    • Dimensions:
      50 mm
    • Height:
      25.00 mm
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      750 pcs
    • Box size:
      370 x 320 x 210 mm
    • Box weight:
      5.3 kg
    • MPQ:
      25 pcs
    • MOQ:
      100 pcs
    • MOQ size:
      310 x 230 x 100 mm
    • MOQ weight:
      0.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16909_ALISE-50-W

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    Assembly of ALISE and ELISE reflector accessories

    News

    NEW PRODUCTS – AUGUST 6, 2020

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    UV-C LIGHTING

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    ALISE from LEDiL, aluminum reflectors for retail lighting

    Luminaire, example

    Track light luminaires with ALISE/ELISE

    Application example

    Supermarket lighting with LINDA and ALISE

    Application example

    Aisle lighting using track lights with ALISE reflectors

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    ALISE-50-CL

    Clear sublens for ∅50 mm ALISE and ELISE reflectors.

    ALISE-50-DL

    Diffusing sublens for ∅50 mm ALISE and ELISE reflectors.

    ALISE-50-RING

    Mounting ring for ∅50 mm ALISE and ELISE reflectors.

    Optical results

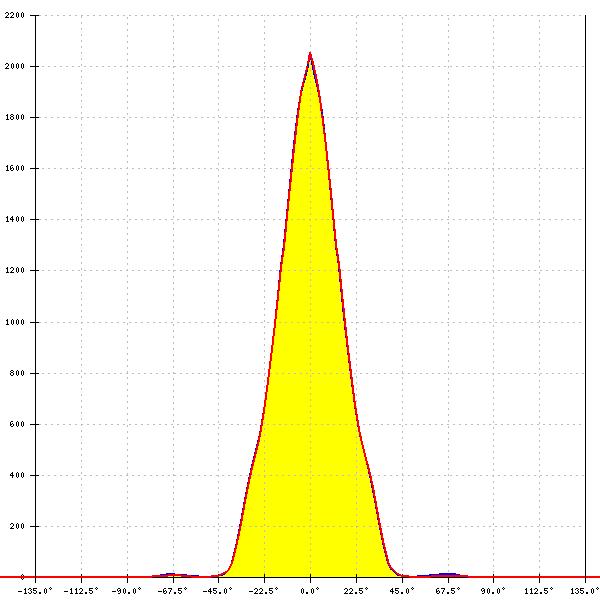

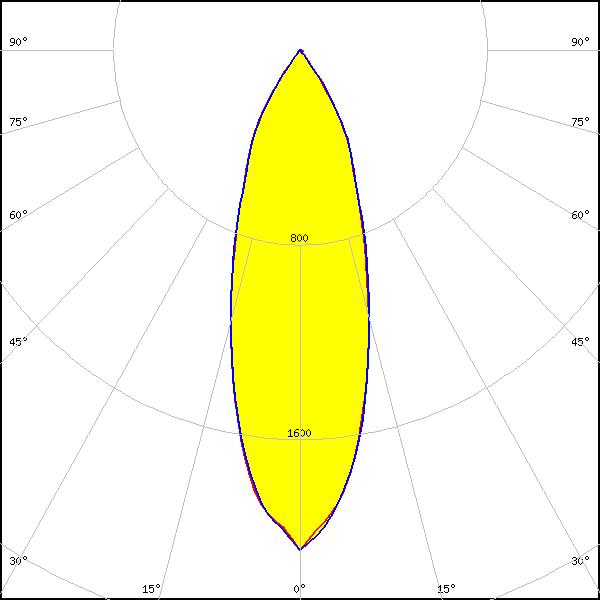

    LED: Vero SE 10
    LES size: 9.9 mm
    FWHM: 33°
    FWTM: 68°
    Peak intensity: 2.056 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

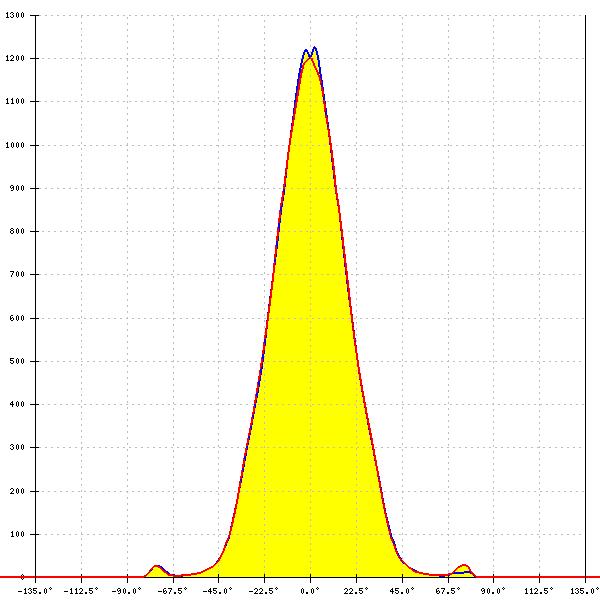

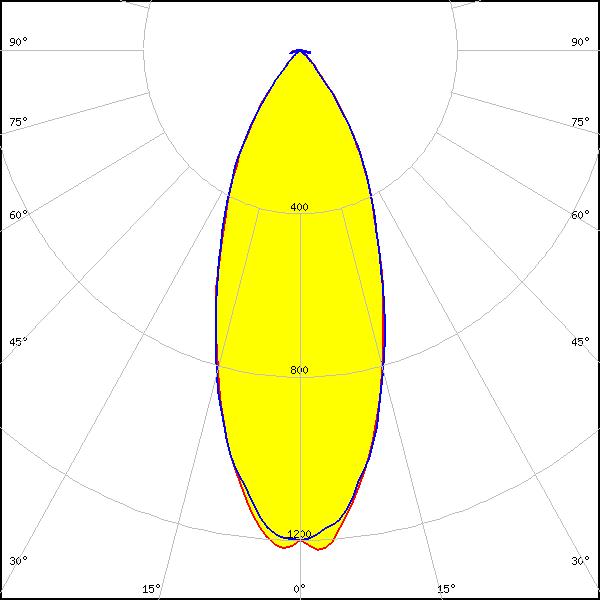

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    C17099_ALISE-50-DL
    FWHM: 40°
    FWTM: 78°
    Peak intensity: 1.225 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

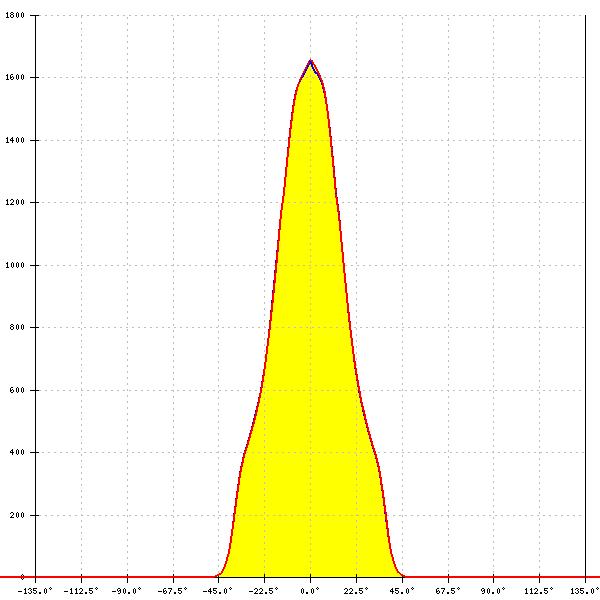

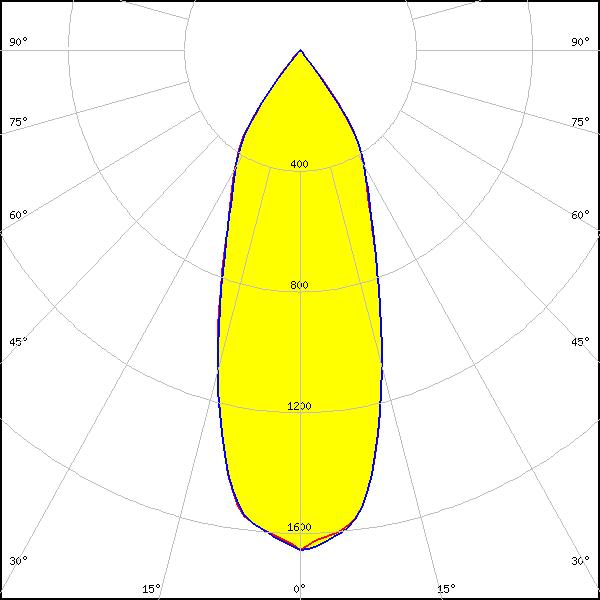

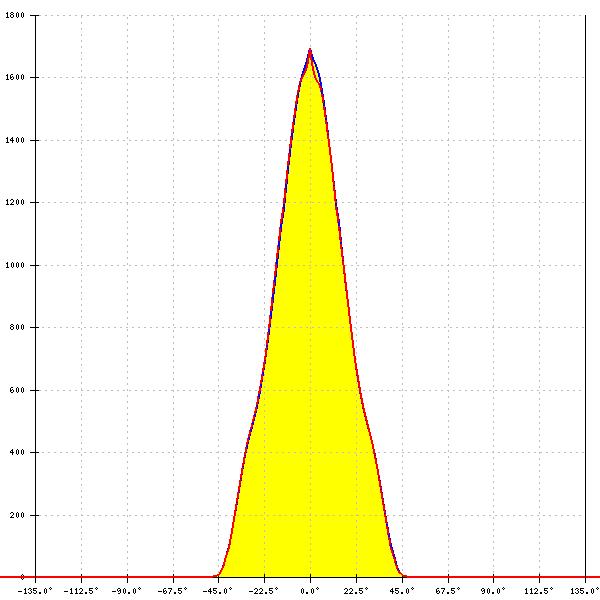

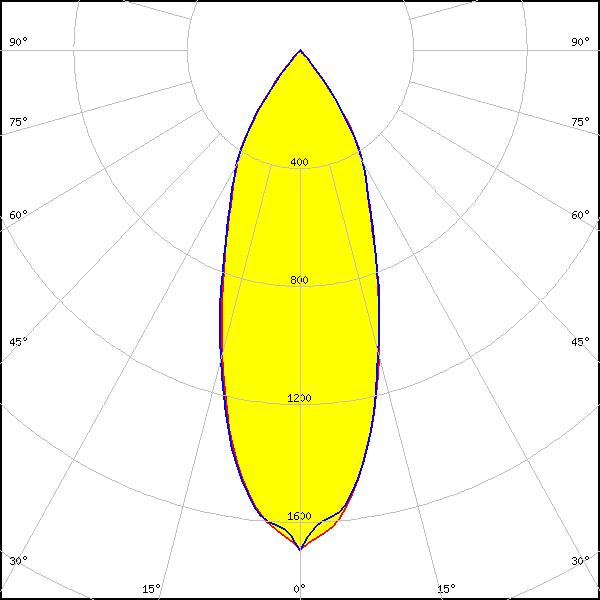

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    FWHM: 38°
    FWTM: 76°
    Peak intensity: 1.660 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    FWHM: 38°
    FWTM: 76°
    Peak intensity: 1.695 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

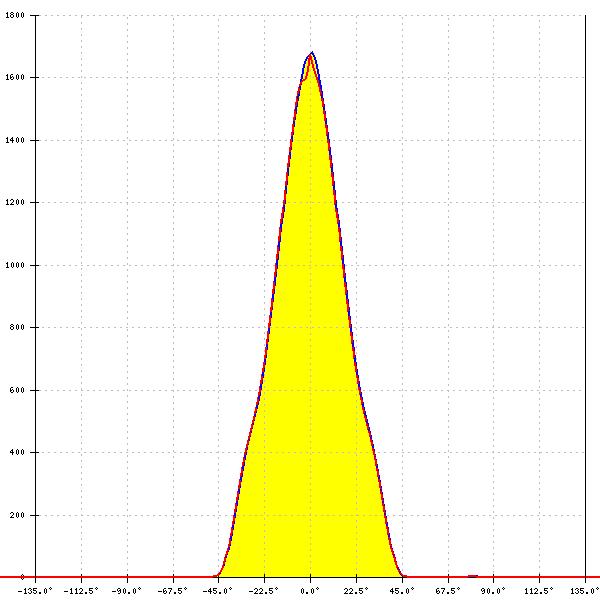

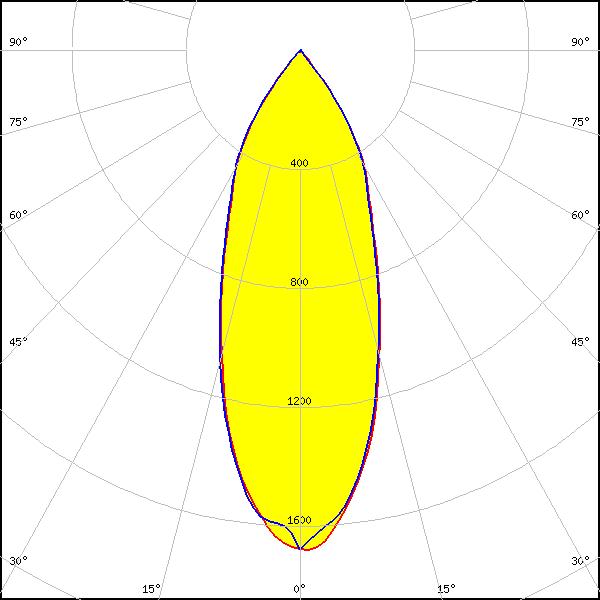

    LED: CMT14xx
    LES size: 9.8 mm
    FWHM: 38°
    FWTM: 76°
    Peak intensity: 1.680 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

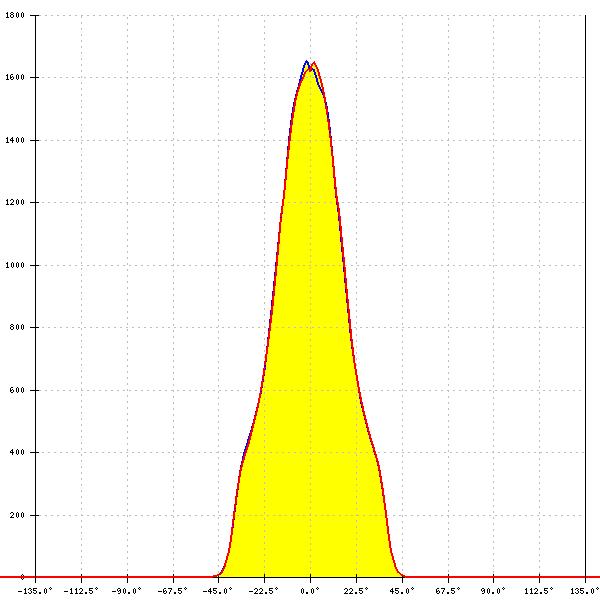

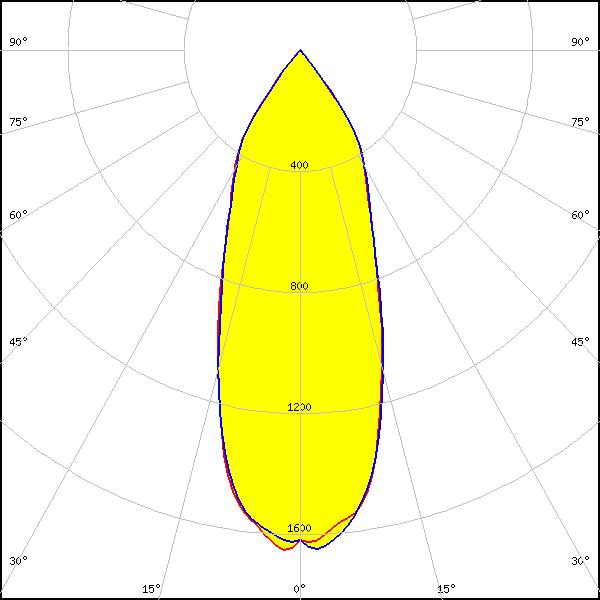

    LED: LUXEON CoB 1202s
    LES size: 6.5 mm
    FWHM: 38°
    FWTM: 76°
    Peak intensity: 1.680 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

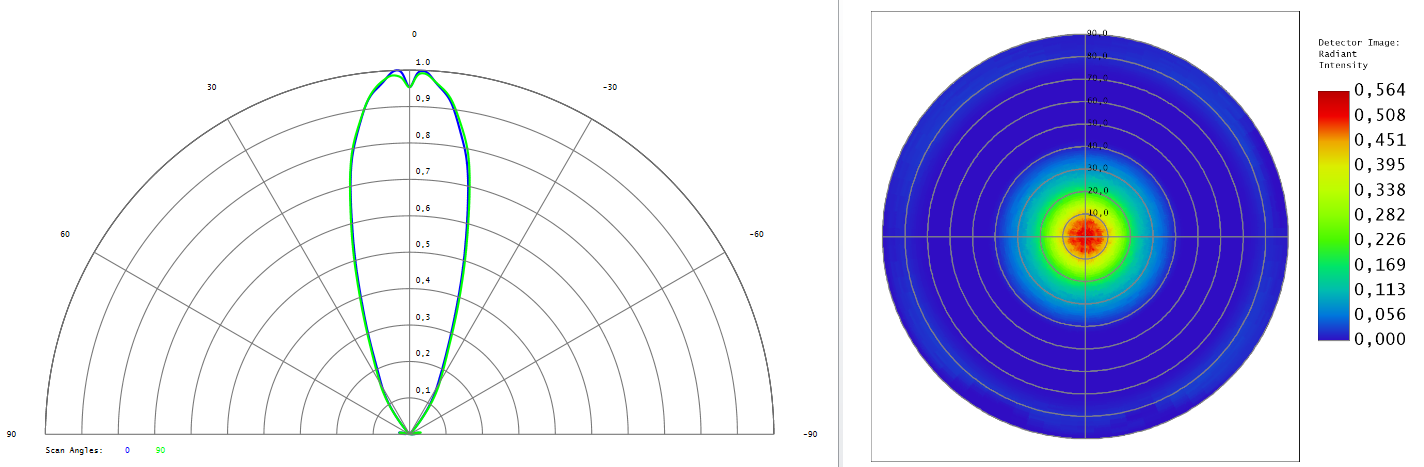

    LED: WICOP DY9560-27
    LES size: 0.0 mm
    FWHM: 35°
    FWTM: 70°
    Efficiency: 88 %
    LEDs/each optic: 24
    Light colour/type: UV-C
    LED: ZEUBE265 Series
    LES size: 0.0 mm
    FWHM: 16°
    FWTM: 82°
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: UV-C
