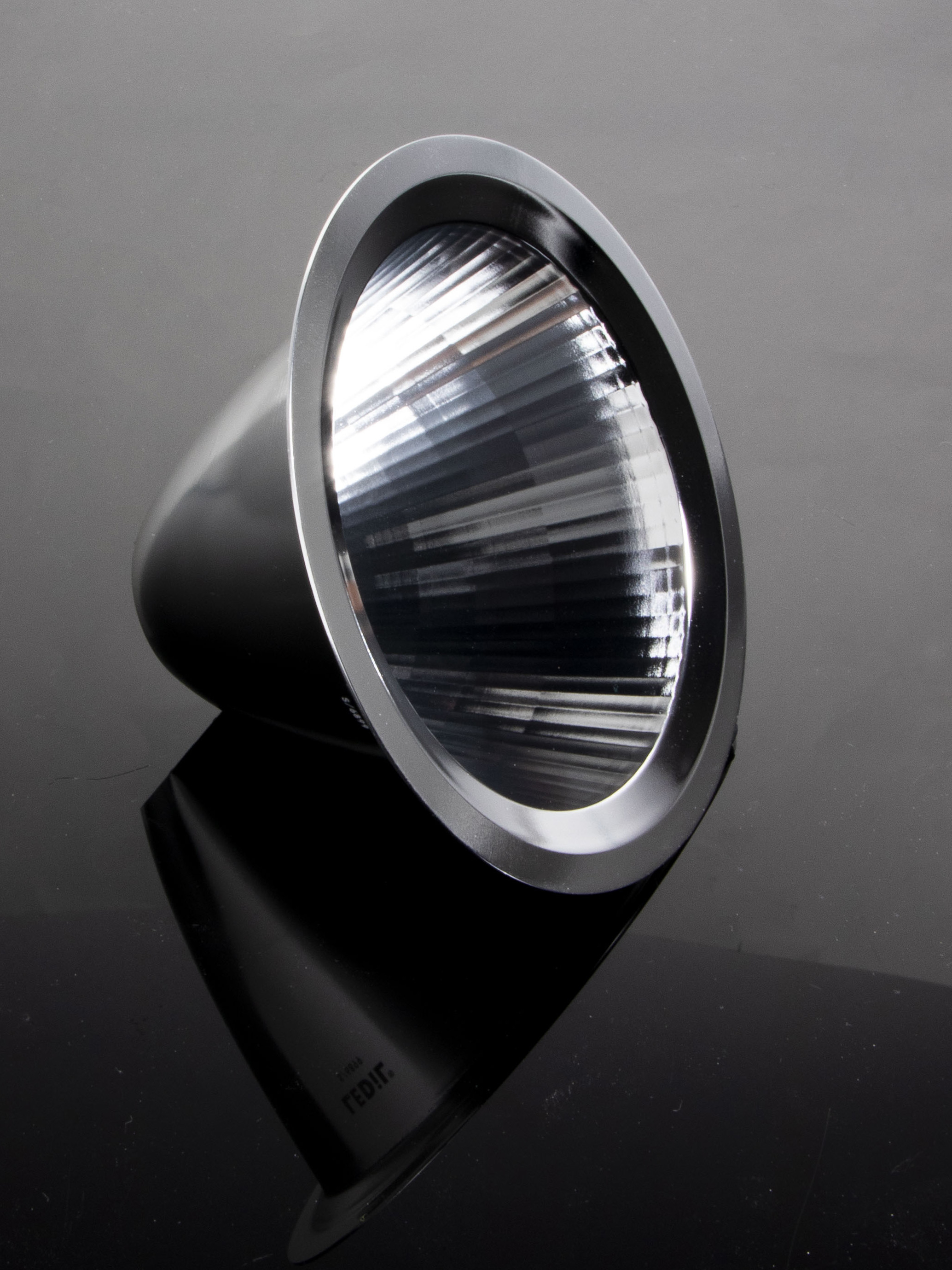

    C16899_ALISE-110-S

    Print

    ~15° spot beam

    Specification
    • Dimensions:
      110 mm
    • Height:
      65.00 mm
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      300 pcs
    • Box size:
      500 x 375 x 250 mm
    • Box weight:
      11.1 kg
    • MPQ:
      25 pcs
    • MOQ:
      100 pcs
    • MOQ size:
      480 x 280 x 150 mm
    • MOQ weight:
      3.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16899_ALISE-110-S

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    Assembly of ALISE and ELISE reflector accessories

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    UV-C LIGHTING

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    ALISE from LEDiL, aluminum reflectors for retail lighting

    Luminaire, example

    Track light luminaires with ALISE/ELISE

    Application example

    Supermarket lighting with LINDA and ALISE

    Application example

    Aisle lighting using track lights with ALISE reflectors

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    ALISE-110-CL

    Clear sublens for ∅110 mm ALISE and ELISE reflectors.

    ALISE-110-DL

    Diffusing sublens for ∅110 mm ALISE and ELISE reflectors.

    ALISE-110-RING

    Mounting ring for ∅110 mm ALISE and ELISE reflectors.

    Optical results

    LED: Vero SE 18
    LES size: 18.6 mm
    FWHM: 15°
    FWTM: 37°
    Peak intensity: 6.800 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    FWHM: 20°
    FWTM: 50°
    Peak intensity: 4.400 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1840
    LES size: 14.0 mm
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 9.296 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA3090
    LES size: 23.0 mm
    FWHM: 20°
    FWTM: 52°
    Peak intensity: 4.086 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT28xx
    LES size: 22.0 mm
    FWHM: 20°
    FWTM: 51°
    Peak intensity: 4.400 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU22xx
    LES size: 22.0 mm
    FWHM: 20°
    FWTM: 52°
    Peak intensity: 4.112 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU22xx
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ L3
    FWHM: 21°
    FWTM: 54°
    Peak intensity: 3.795 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 30xx
    LES size: 23.0 mm
    FWHM: 17°
    FWTM: 40°
    Peak intensity: 6.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 8.833 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1213/1216/1812
    LES size: 23.0 mm
    FWHM: 21°
    FWTM: 53°
    Peak intensity: 3.865 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-22 (28x28)
    LES size: 22.0 mm
    FWHM: 20°
    FWTM: 50°
    Peak intensity: 4.214 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    LES size: 14.6 mm
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 9.275 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: 20°
    FWTM: 51°
    Peak intensity: 4.300 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
