C16800_STRADELLA-16-HB-M2
Print

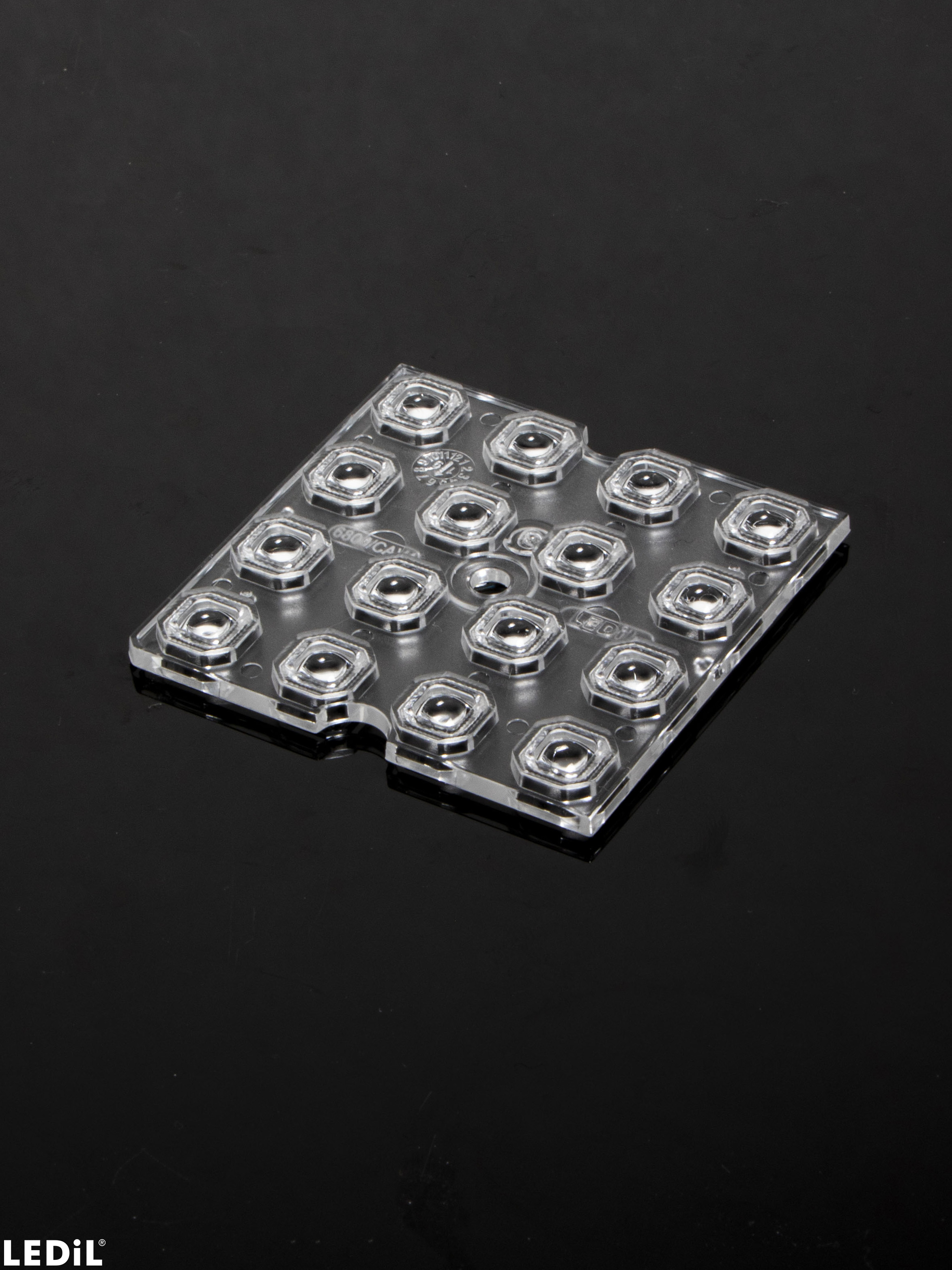

~60° medium beam for industrial applications. Improved version with excellent cutoff and low glare.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

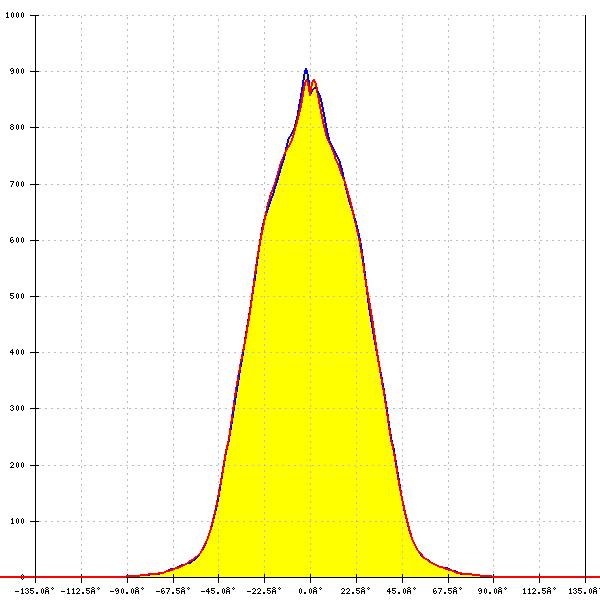

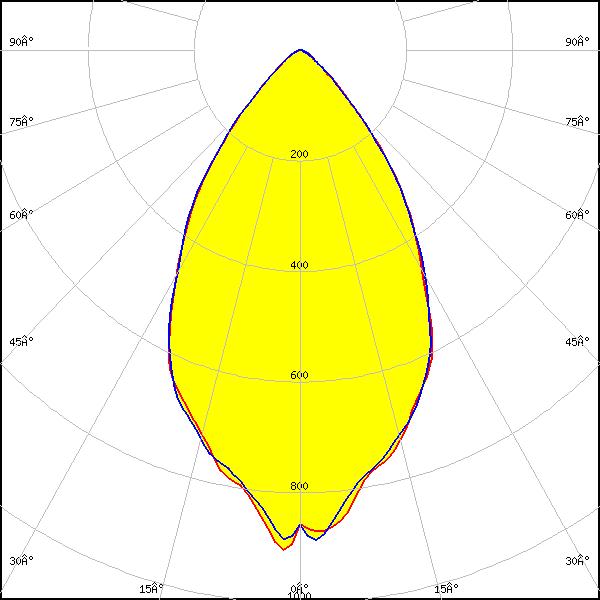

LED:
Bridgelux SMD 2835
FWHM:
61° + 62°
FWTM:
96° + 96°
Peak intensity:
0.905 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

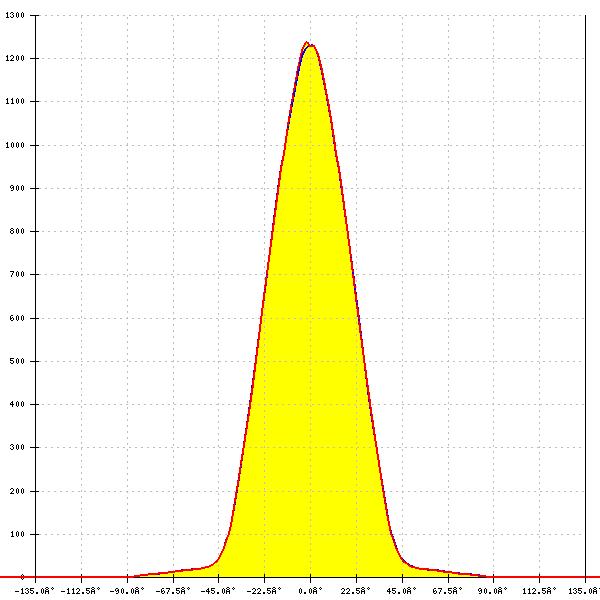

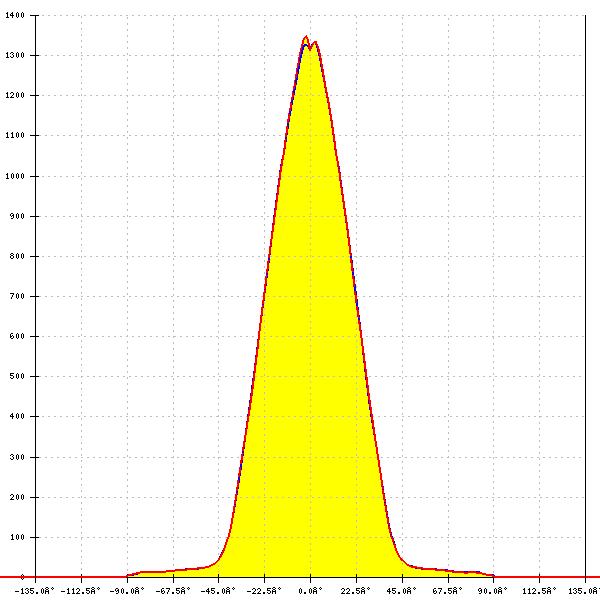

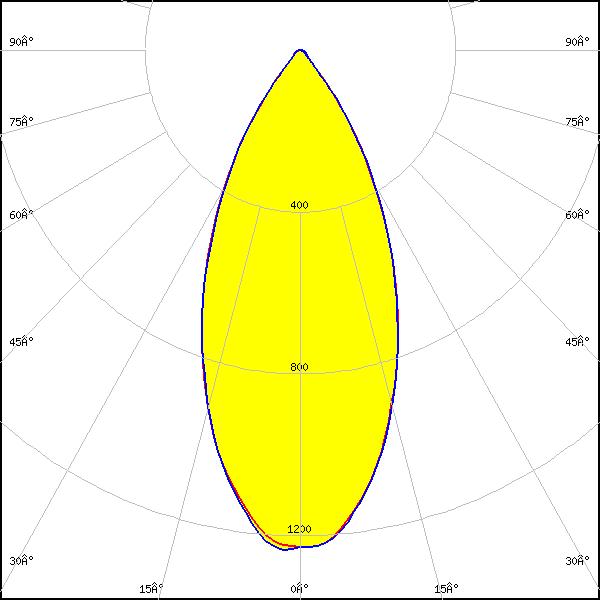

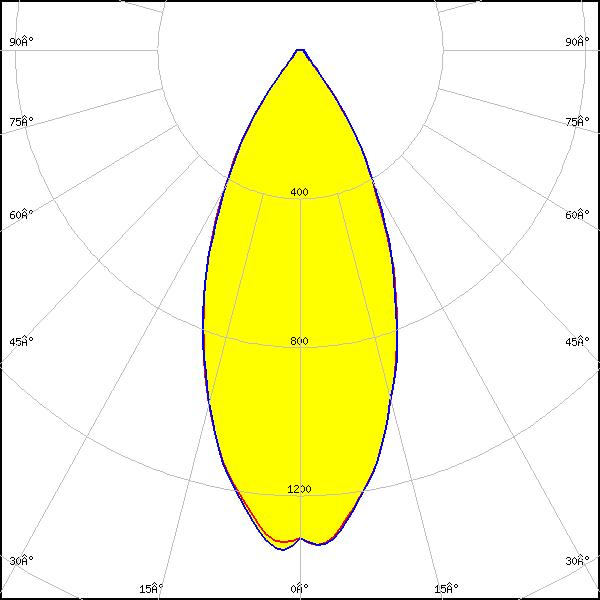

LED:
CSP 2727 (BXCP)
FWHM:
46°
FWTM:
78°
Peak intensity:
1.354 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CSP 2727 (BXCP)
FWHM:
47° + 46°
FWTM:
78° + 78°
Peak intensity:
1.238 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

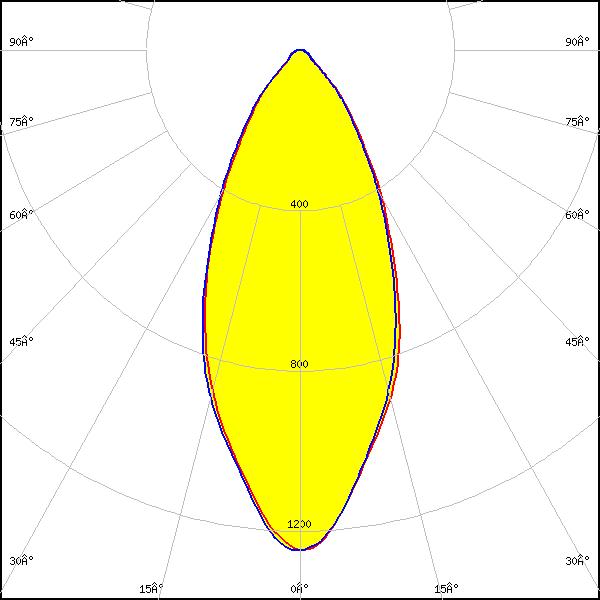

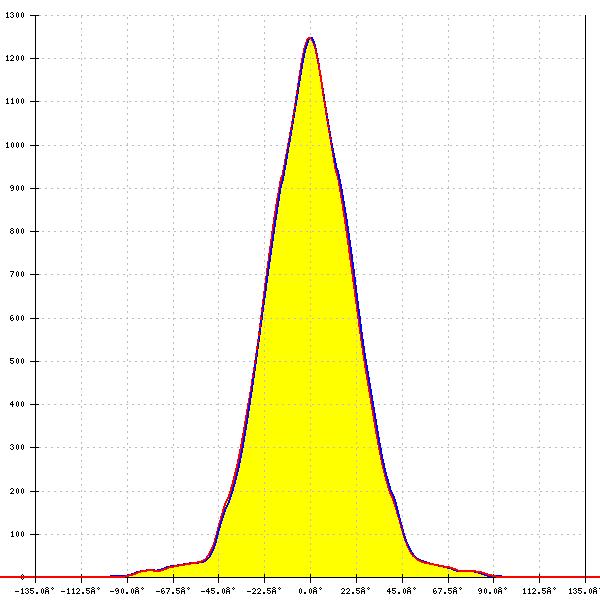

LED:
J Series 3030
FWHM:
47°
FWTM:
88°
Peak intensity:
1.247 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

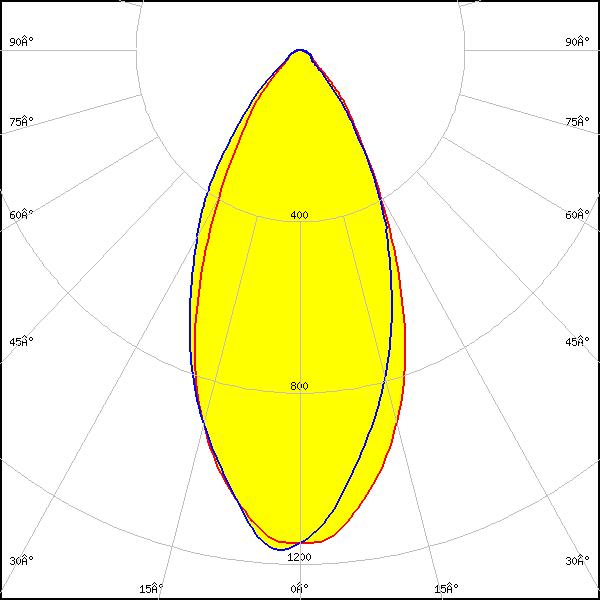

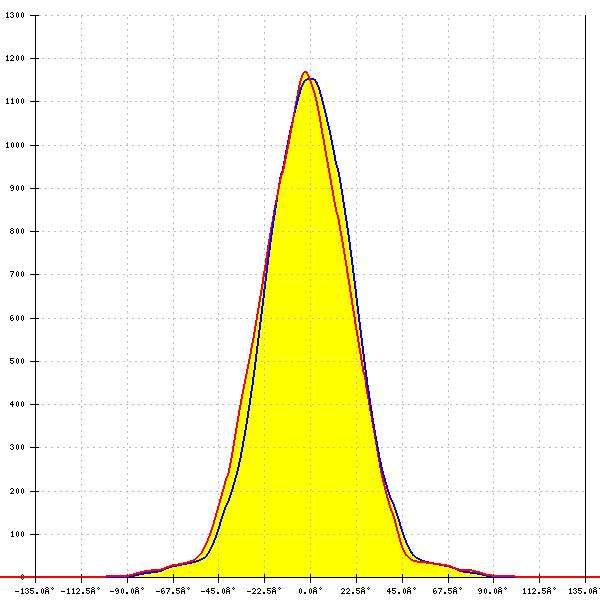

LED:
EHP-223.5x50-1604-xx-70-LS30-06-NTC
FWHM:
49°
FWTM:
89°
Peak intensity:
1.169 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

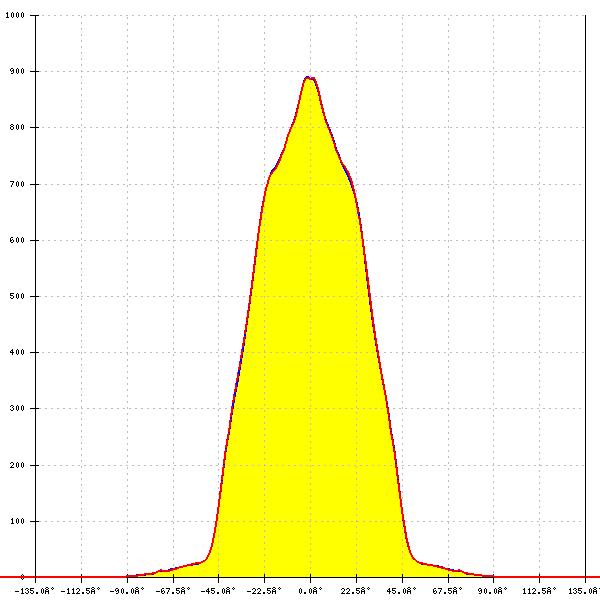

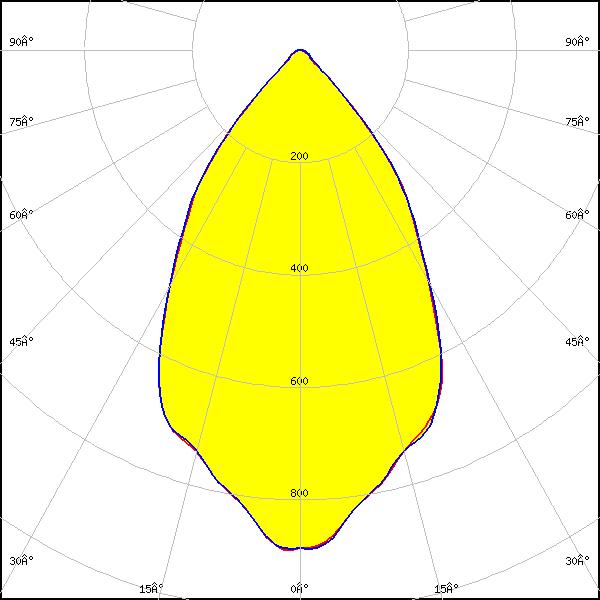

LED:
LUXEON 2835 Architectural
FWHM:
63°
FWTM:
92°
Peak intensity:
0.892 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

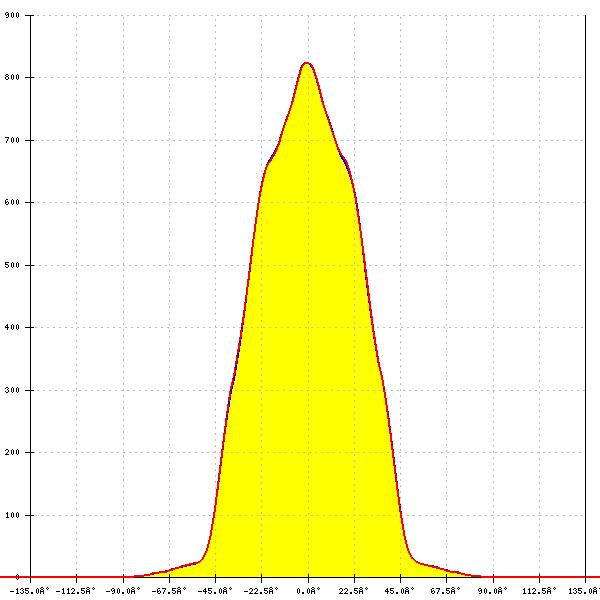

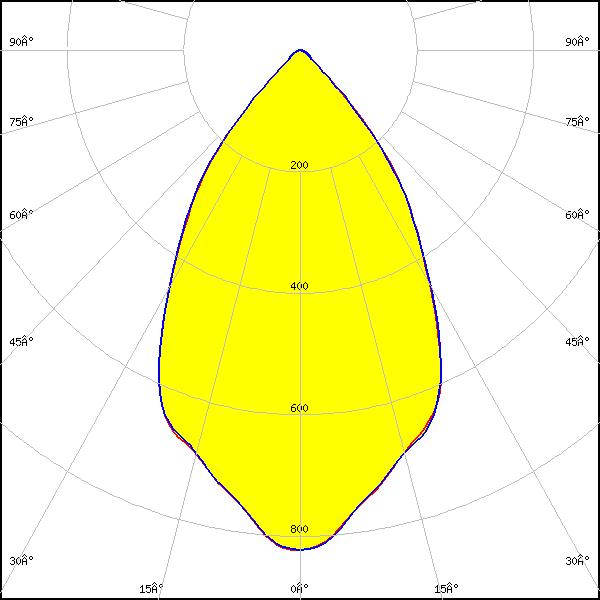

LED:
LUXEON 2835 Architectural
FWHM:
63°
FWTM:
92°
Peak intensity:
0.824 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

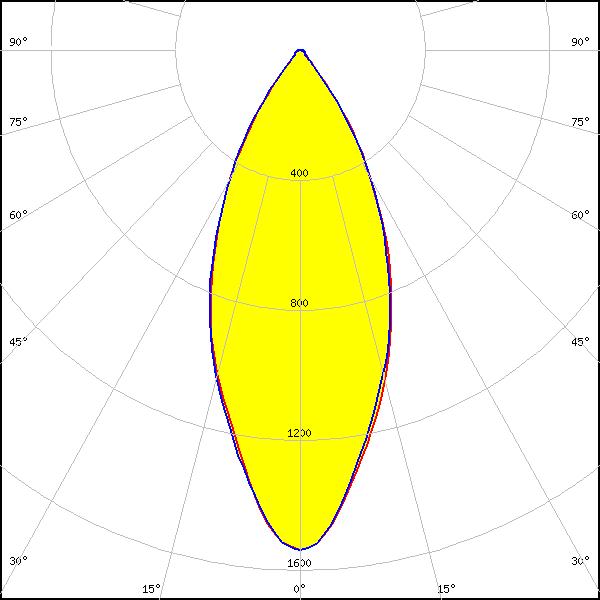

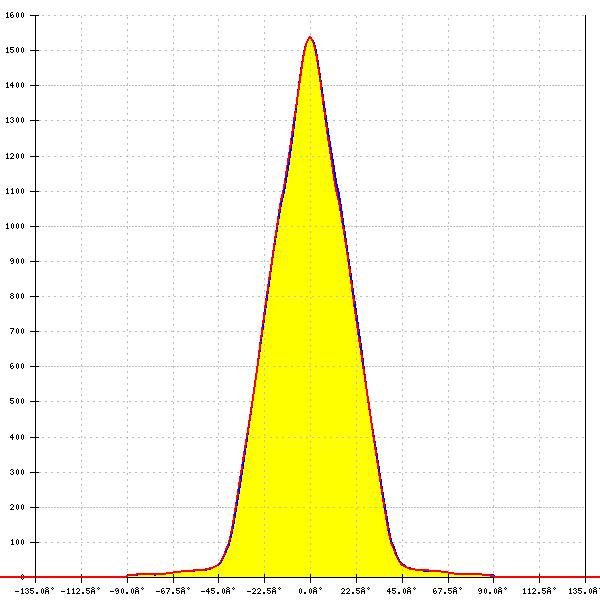

LED:
LUXEON HL2Z
FWHM:
44°
FWTM:
76°
Peak intensity:
1.549 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

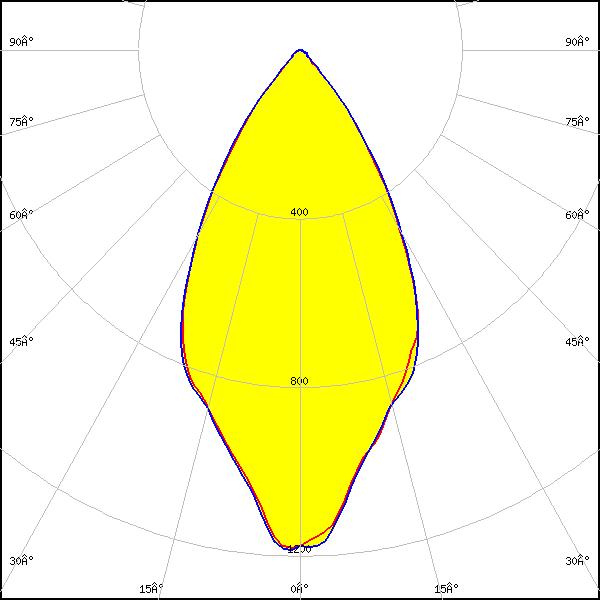

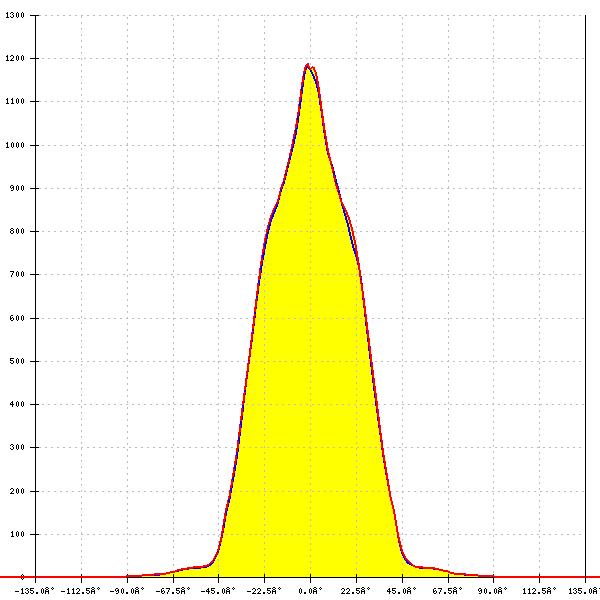

LED:
OSCONIQ C 2424
FWHM:
56°
FWTM:
84°
Peak intensity:
1.188 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

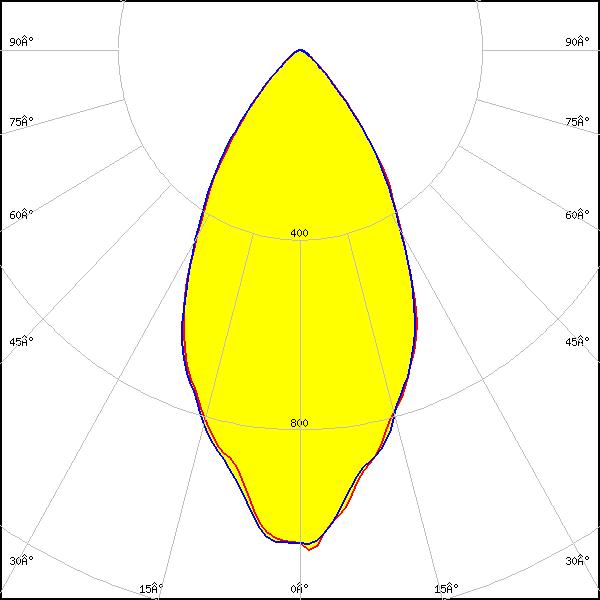

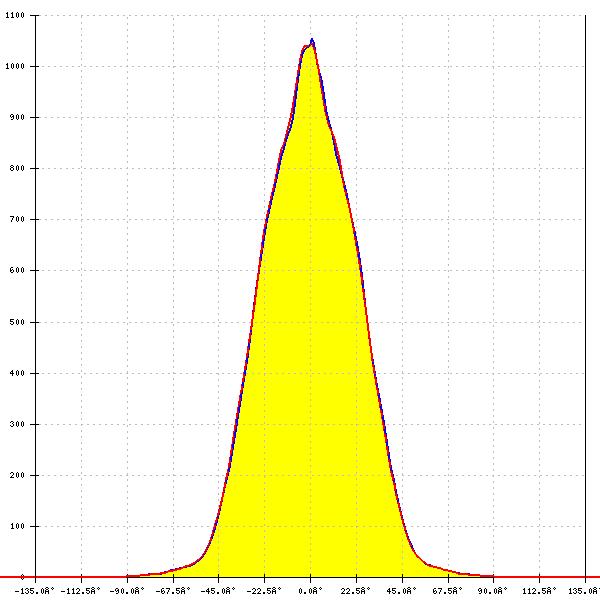

LED:
OSCONIQ S 3030 (QSLR31)
FWHM:
55°
FWTM:
92°
Peak intensity:
1.070 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

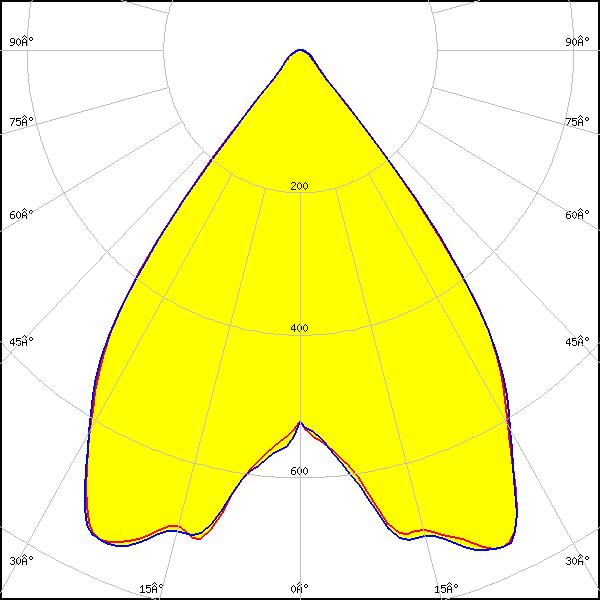

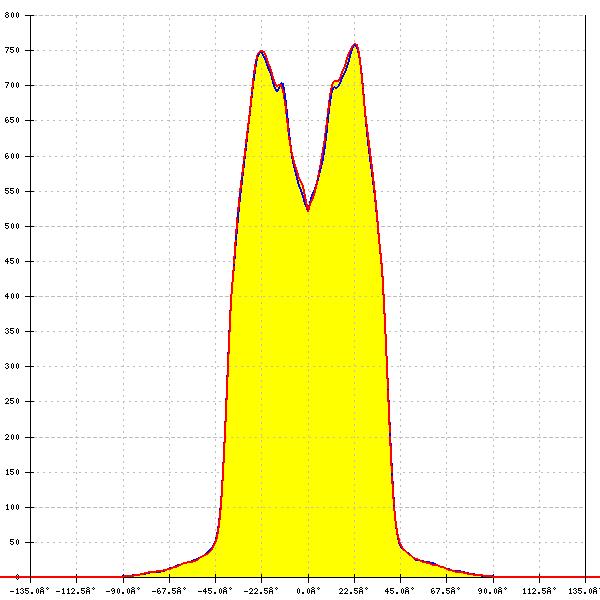

LED:
OSLON Pure 1414
FWHM:
74°
FWTM:
86°
Peak intensity:
0.787 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

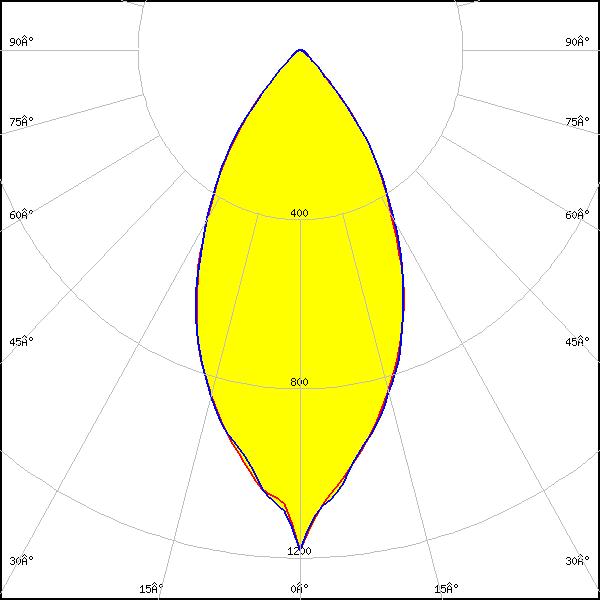

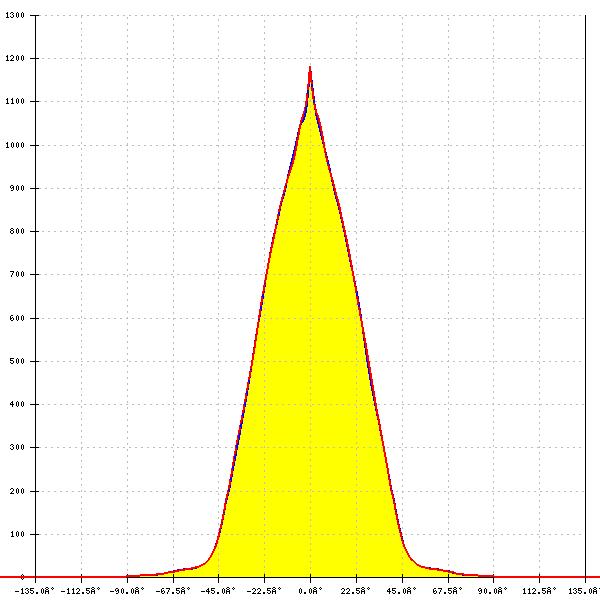

LED:
LH231B
FWHM:
50°
FWTM:
86°
Peak intensity:
1.182 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

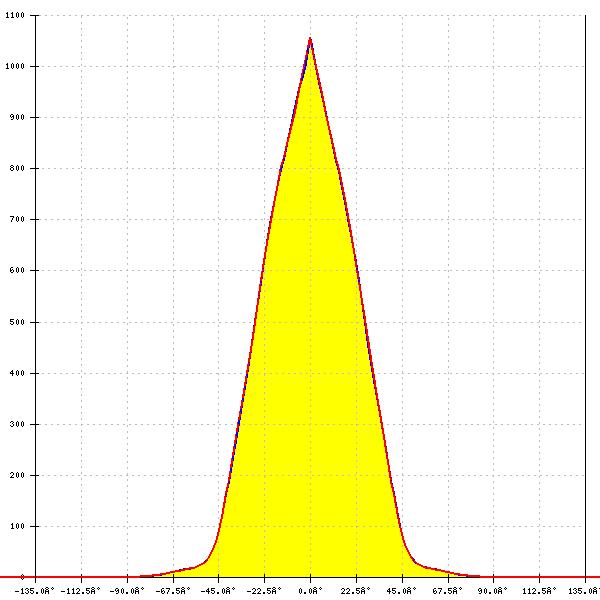

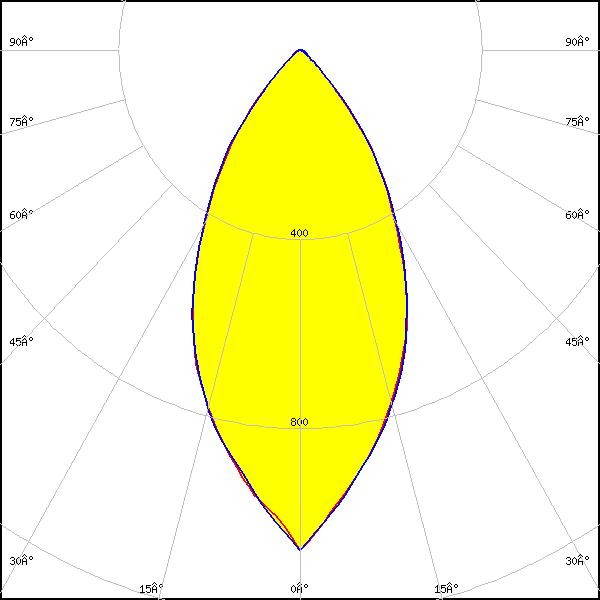

LED:
LH231B
FWHM:
52°
FWTM:
88°
Peak intensity:
1.058 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

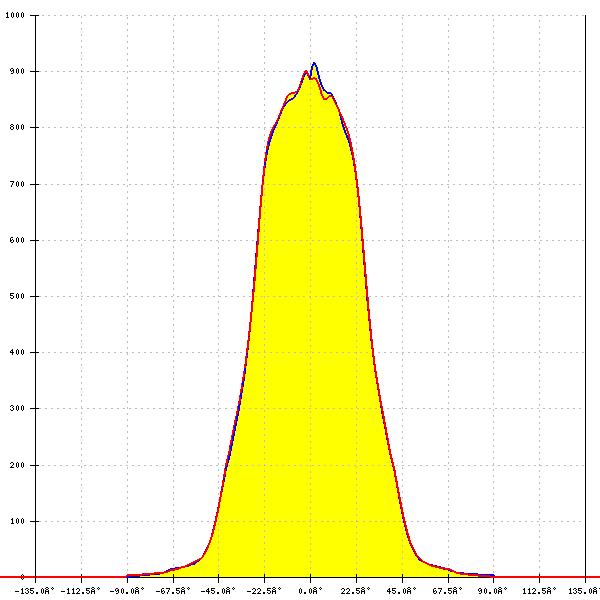

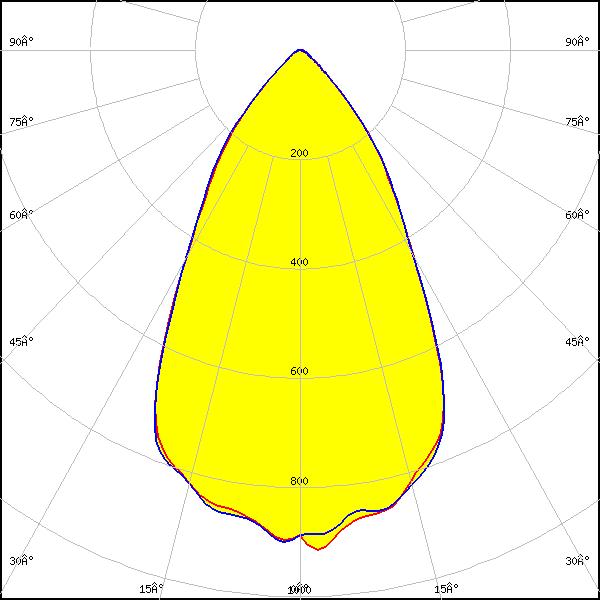

LED:
LM28xB Series
FWHM:
58°
FWTM:
94°
Peak intensity:
0.917 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

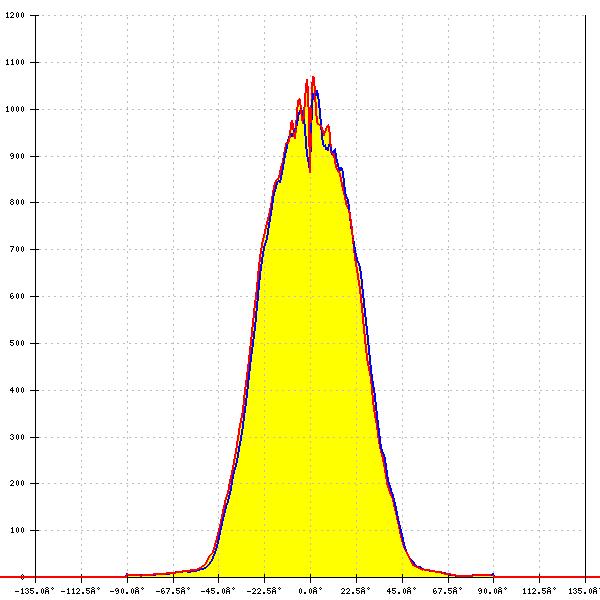

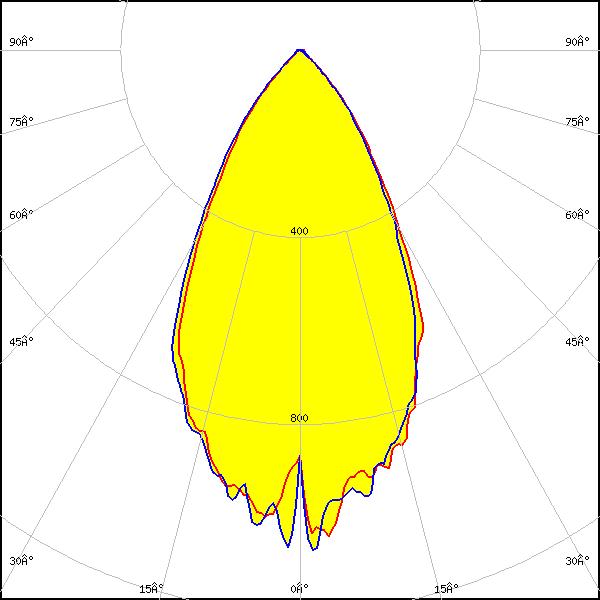

LED:
LM301B
FWHM:
55°
FWTM:
87°
Peak intensity:
1.080 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

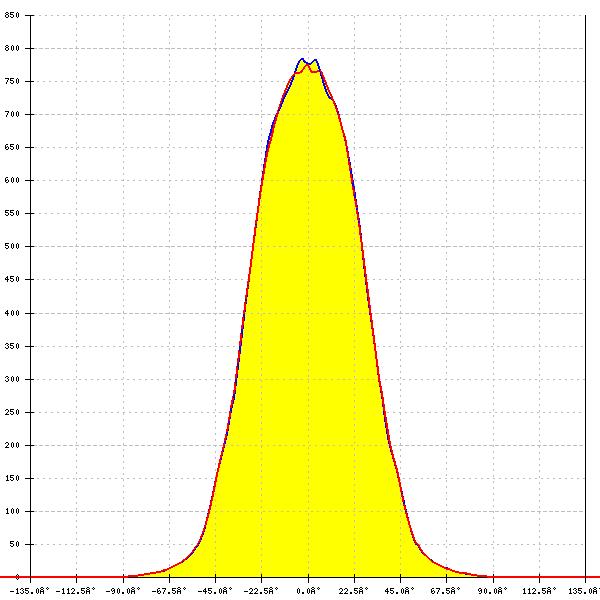

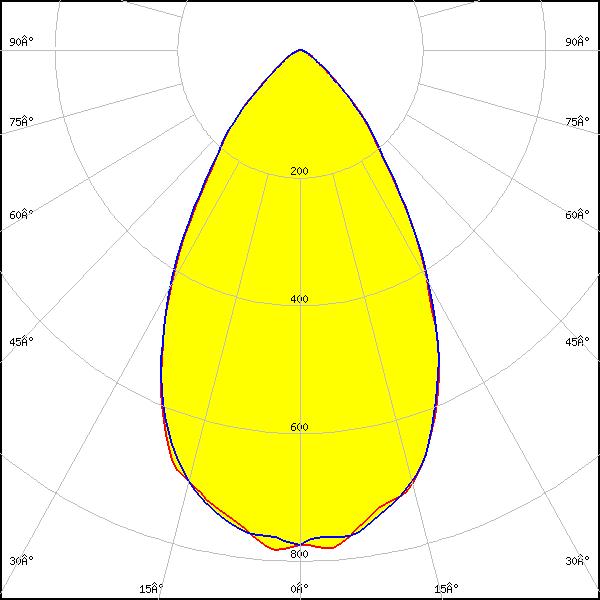

LED:
LM301B
FWHM:
63°
FWTM:
100°
Peak intensity:
0.792 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

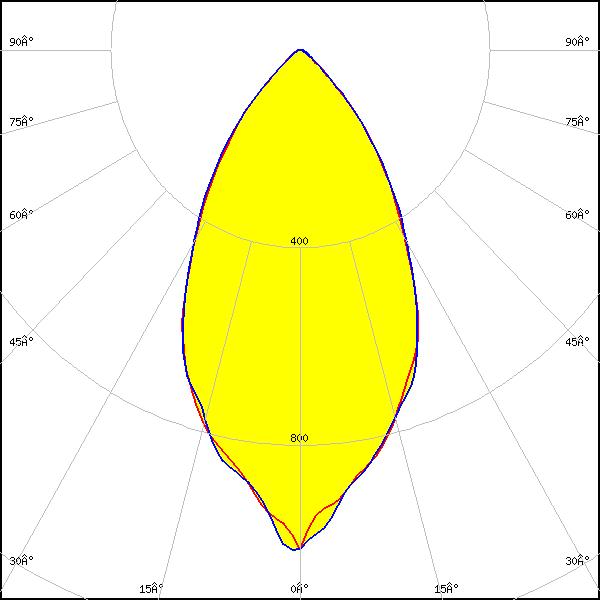

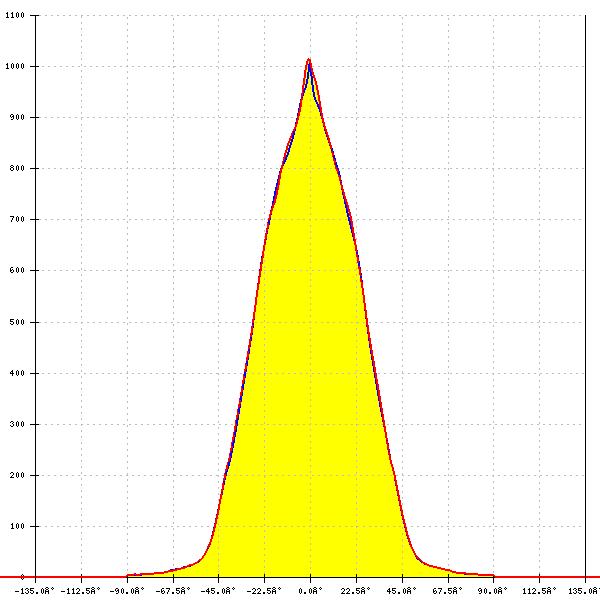

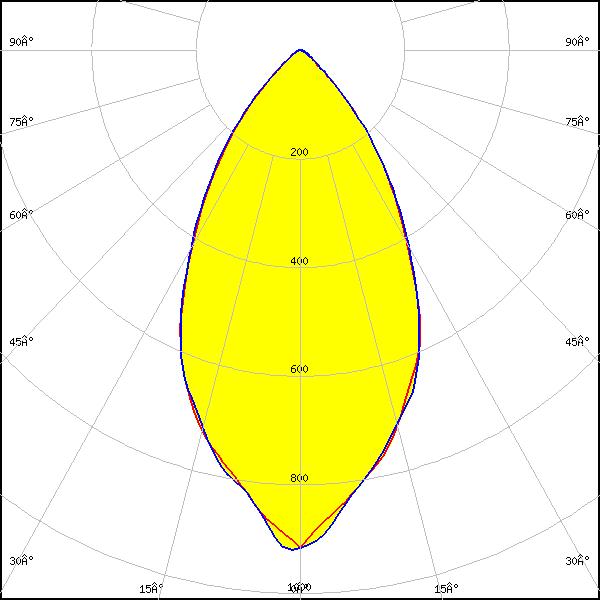

LED:
LM302Z plus
FWHM:
56°
FWTM:
93°
Peak intensity:
1.026 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

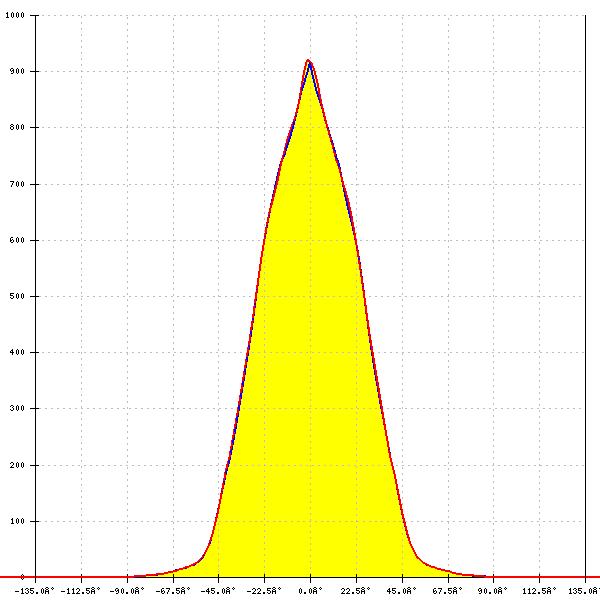

LED:
LM302Z plus
FWHM:
56°
FWTM:
94°
Peak intensity:
0.925 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

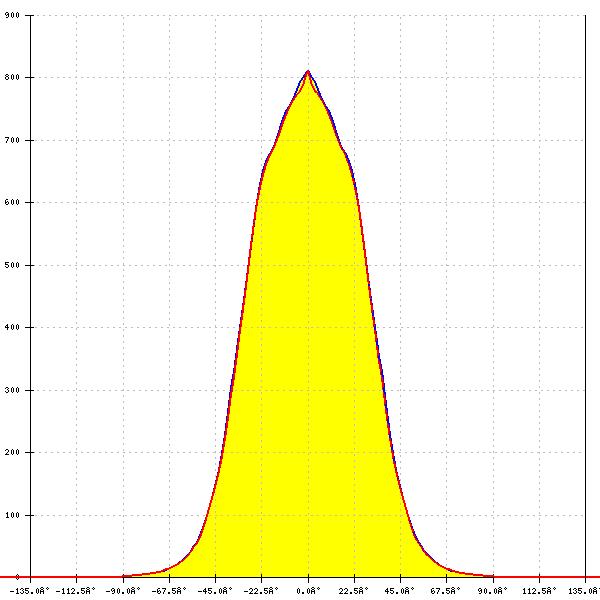

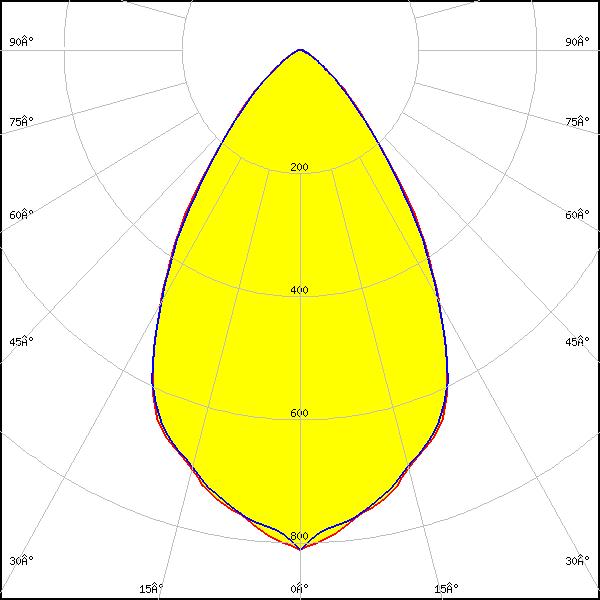

LED:
SEOUL DC 3030C
FWHM:
65°
FWTM:
102°
Peak intensity:
0.810 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
58°
FWTM:
98°
Peak intensity:
0.942 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
