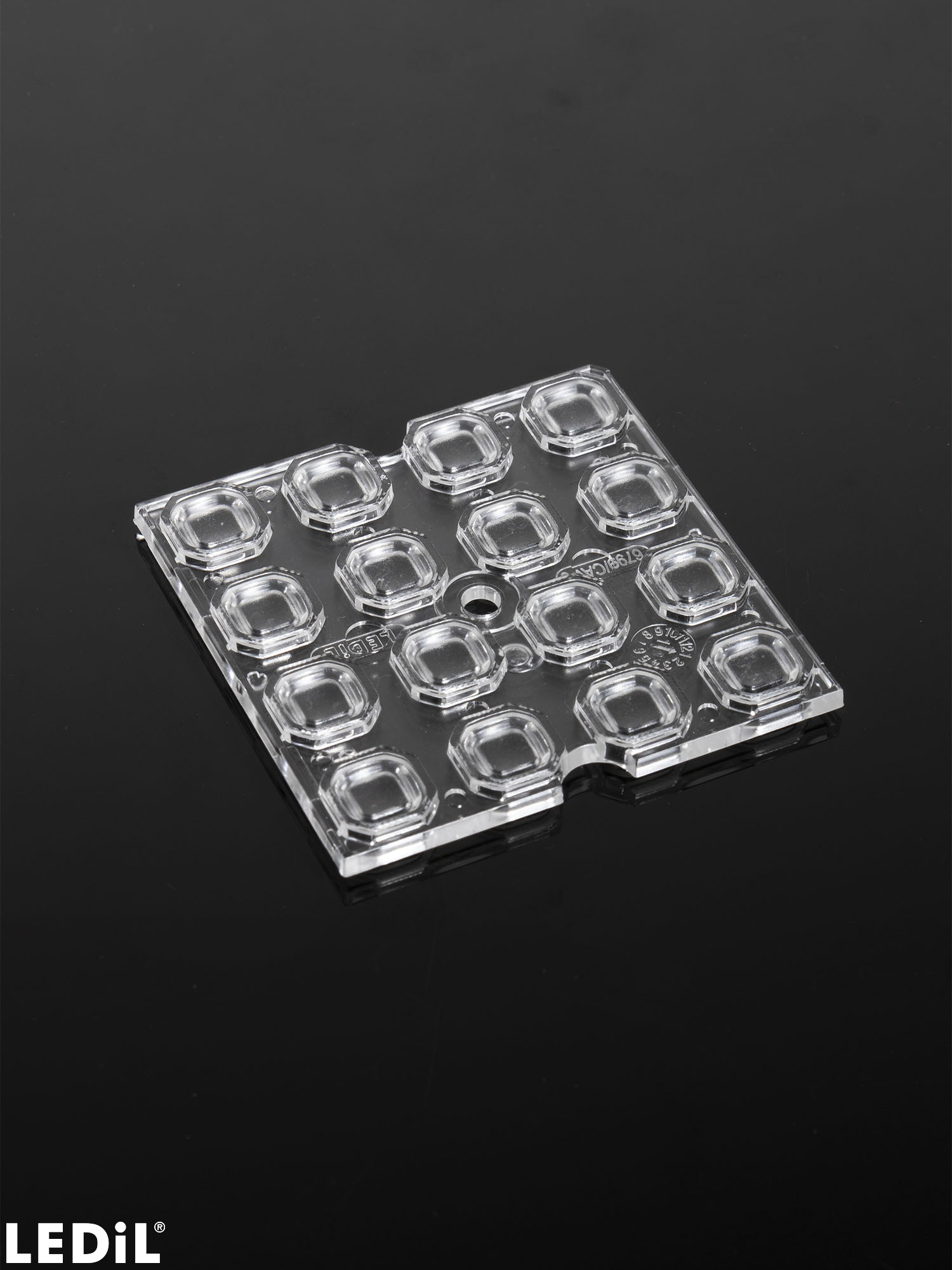

C16799_STRADELLA-16-HB-W2
Print
~90° medium beam for industrial applications. Improved version with excellent cutoff and low glare.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

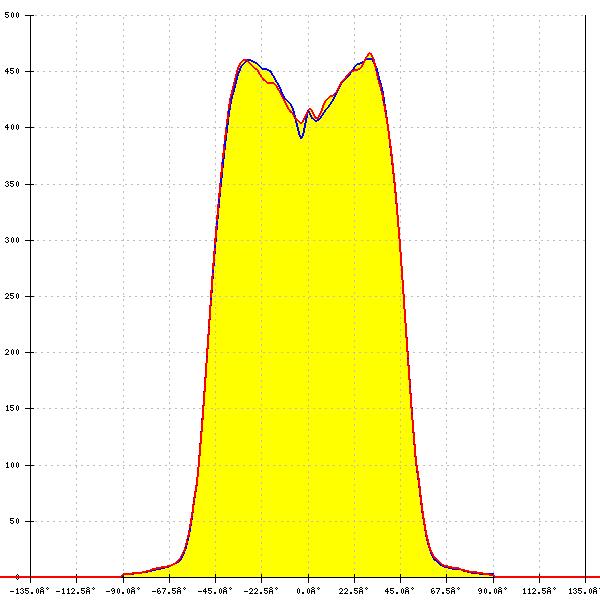

LED:
Bridgelux SMD 2835
FWHM:
96°
FWTM:
114°
Peak intensity:
0.466 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

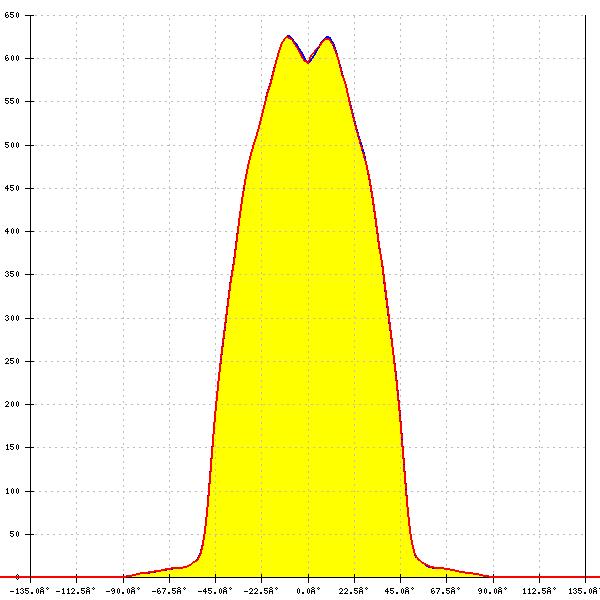

LED:
CSP 2727 (BXCP)
FWHM:
78°
FWTM:
98°
Peak intensity:
0.693 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CSP 2727 (BXCP)
FWHM:
78°
FWTM:
100°
Peak intensity:
0.636 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 3030
FWHM:
86°
FWTM:
110°
Peak intensity:
0.582 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
EHP-223.5x50-1604-xx-70-LS30-06-NTC
FWHM:
91°
FWTM:
116°
Peak intensity:
0.526 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 2835 Architectural
FWHM:
96°
FWTM:
112°
Peak intensity:
0.460 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 2835 Architectural
FWHM:
96°
FWTM:
112°
Peak intensity:
0.424 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

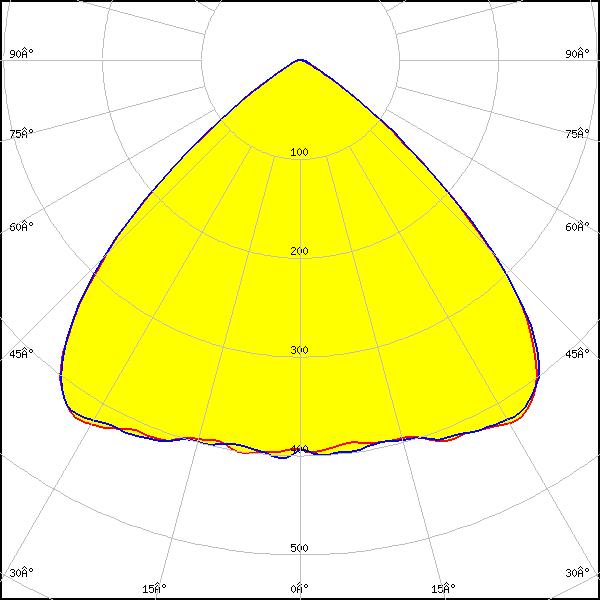

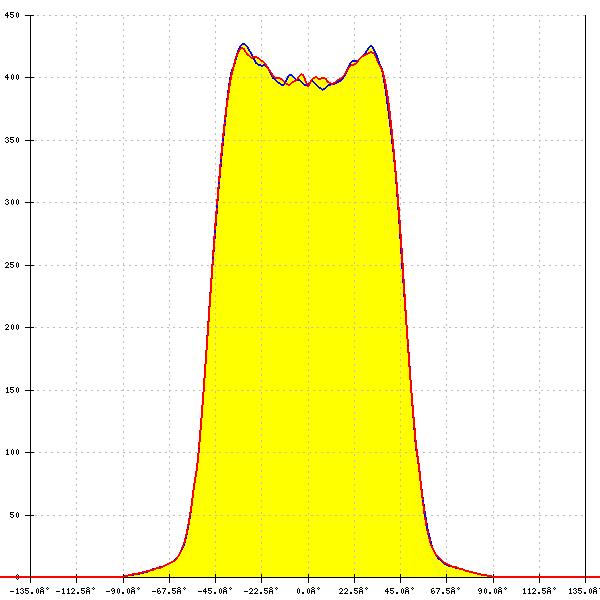

LED:
LUXEON 3535L HE PLUS
FWHM:
96°
FWTM:
116°
Peak intensity:
0.427 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

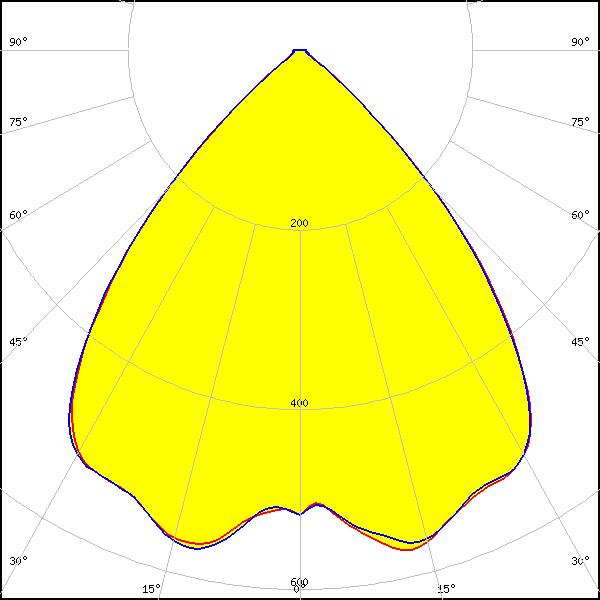

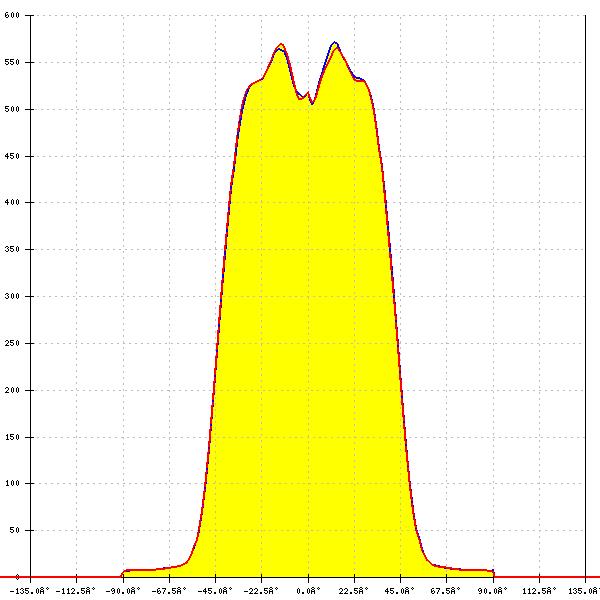

LED:
LUXEON HL2Z
FWHM:
86°
FWTM:
106°
Peak intensity:
0.590 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

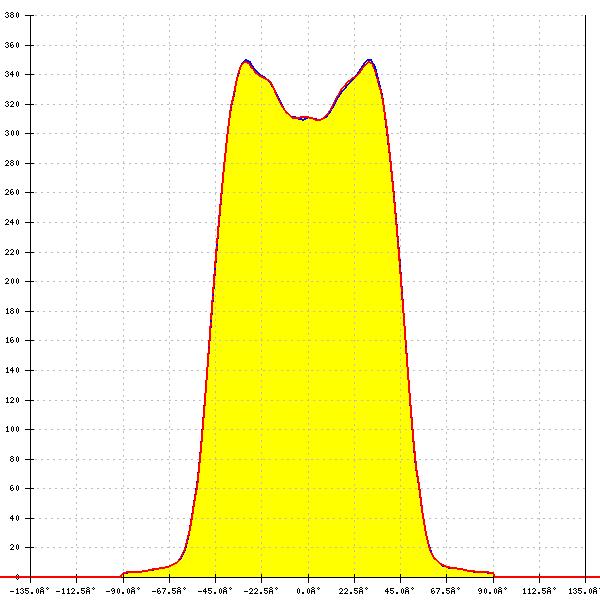

LED:
DURIS S5 (2 chip)
FWHM:
94°
FWTM:
114°
Peak intensity:
0.350 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM:
92°
FWTM:
108°
Peak intensity:
0.515 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 3030 (QSLR31)
FWHM:
93°
FWTM:
112°
Peak intensity:
0.488 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

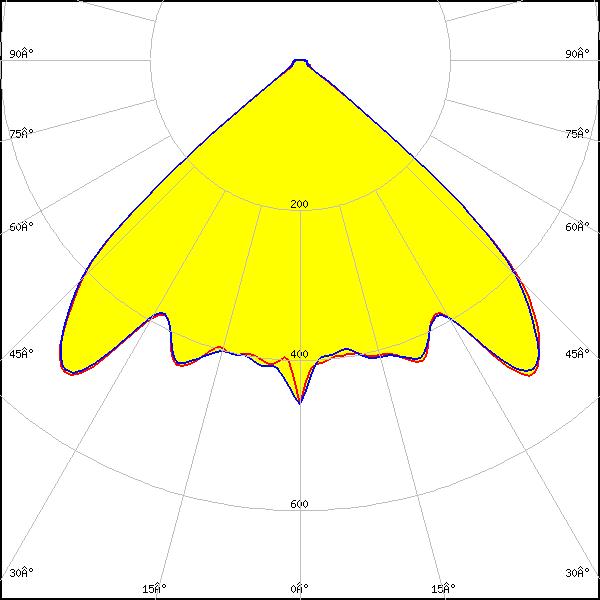

LED:
OSLON Pure 1414
FWHM:
98°
FWTM:
104°
Peak intensity:
0.521 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH231B
FWHM:
88°
FWTM:
108°
Peak intensity:
0.543 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH231B
FWHM:
88°
FWTM:
108°
Peak intensity:
0.501 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

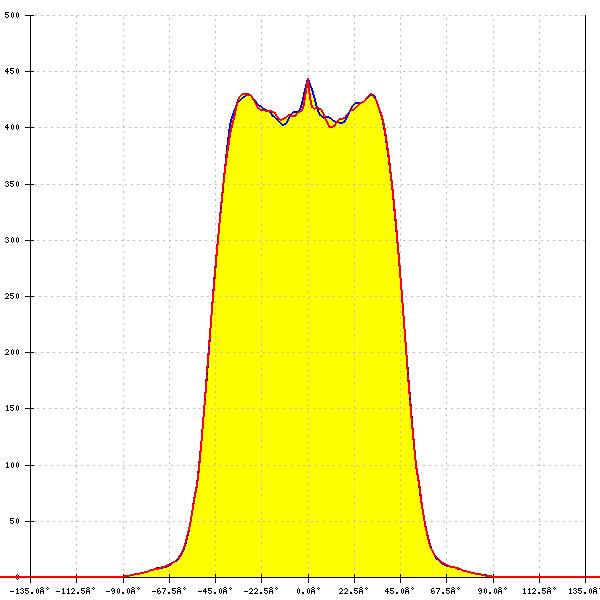

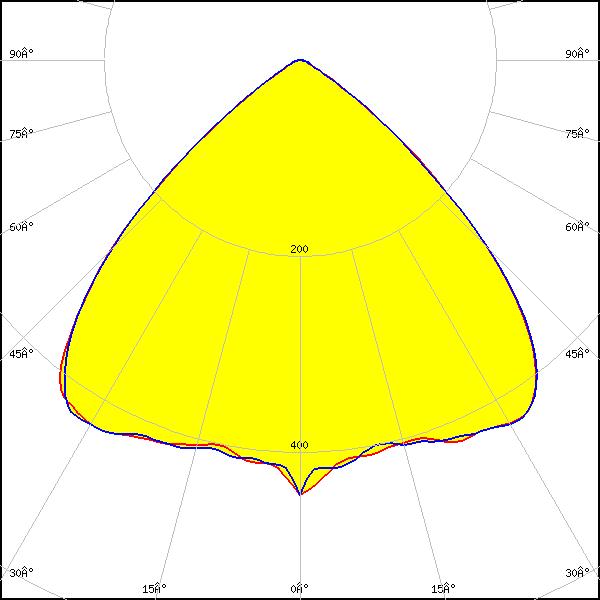

LED:
LM301B
FWHM:
94°
FWTM:
114°
Peak intensity:
0.444 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
92°
FWTM:
112°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XLE-S44XTEHE (XT-E HE)
FWHM:
96°
FWTM:
139°
Peak intensity:
0.496 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL 3030
FWHM:
92°
FWTM:
112°
Peak intensity:
0.483 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030C
FWHM:
96°
FWTM:
115°
Peak intensity:
0.450 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
