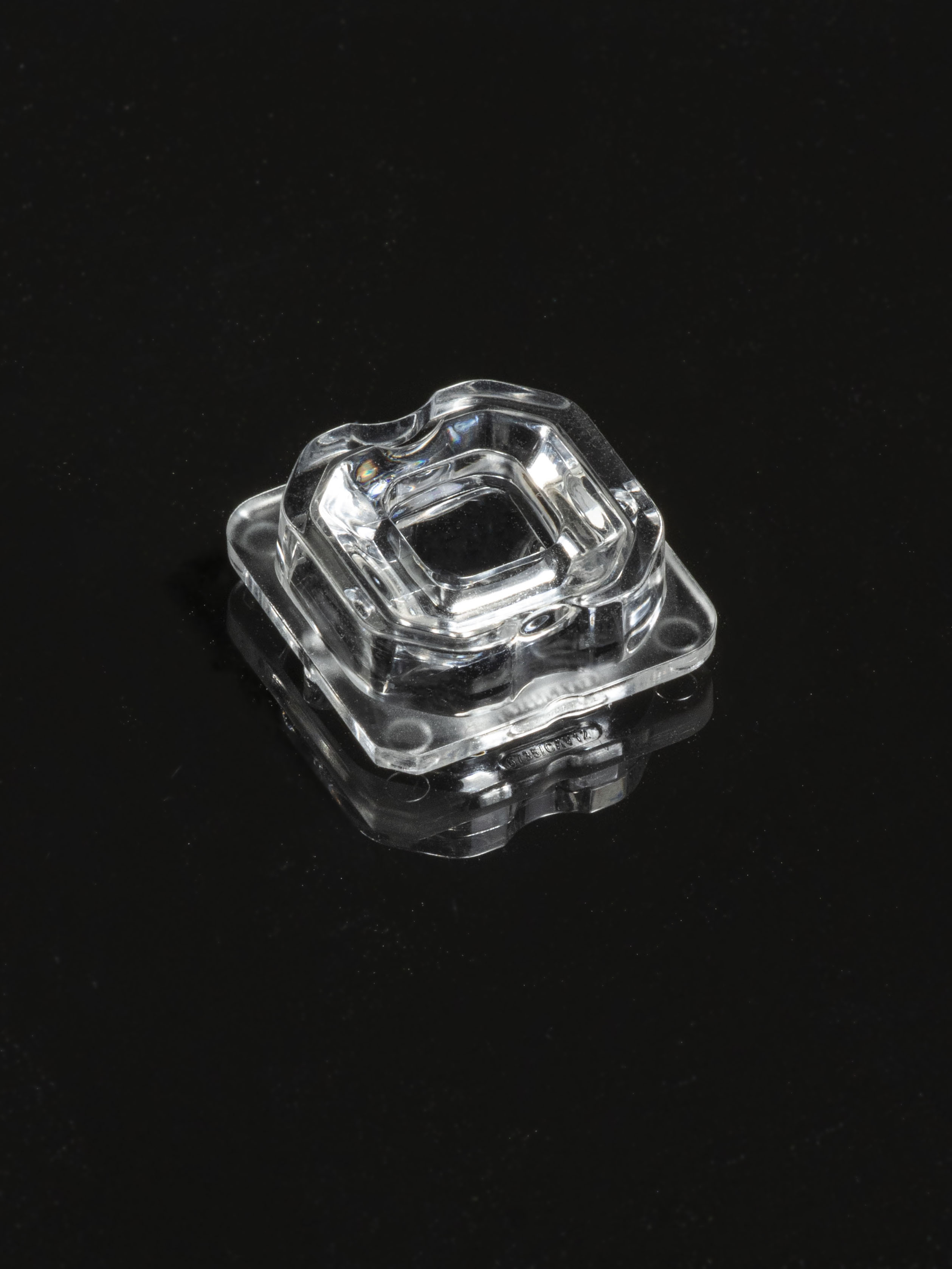

C16735_SITARA-HB-M

~65° wide beam

Dimensions:

18 x 18 mm
Height:

5.70 mm
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Quantity in box:

8000 pcs
Box size:

430 x 390 x 215 mm
Box weight:

10.6 kg
MPQ:

2000 pcs
MOQ:

2000 pcs
MOQ size:

380 x 200 x 100 mm
MOQ weight:

2.6 kg

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

ORDER ONLINE

LED: MHB-A/B

FWHM: 81°

FWTM: 119°

Peak intensity: 0.472 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

LED: LUXEON 5050 Round LES

FWHM: 63° + 64°

FWTM: 94° + 99°

Peak intensity: 0.756 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

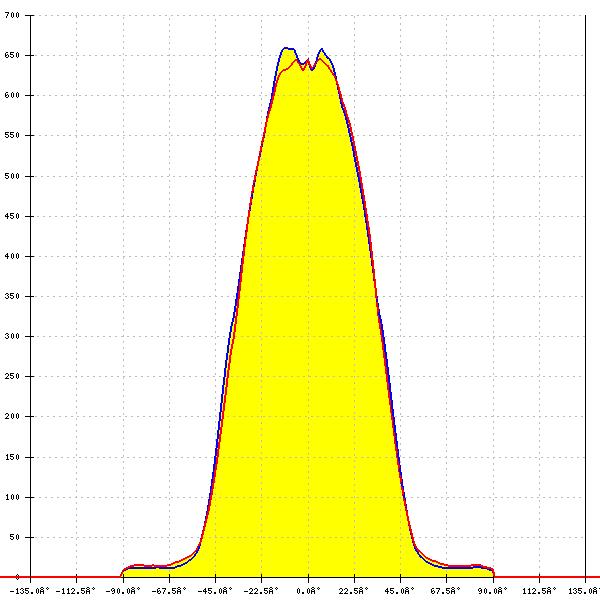

LED: Duris S8

FWHM: 64°

FWTM: 98°

Peak intensity: 0.748 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

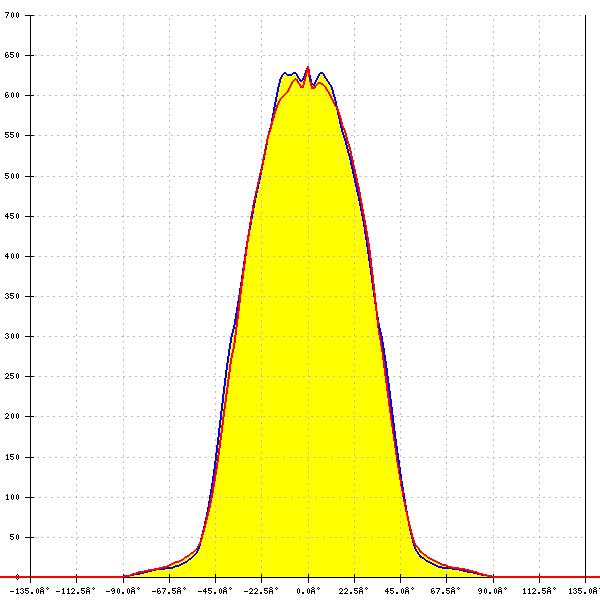

LED: Duris S8

FWHM: 70°

FWTM: 100°

Peak intensity: 0.676 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

LED: Duris S8

FWHM: 70°

FWTM: 100°

Peak intensity: 0.706 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files
