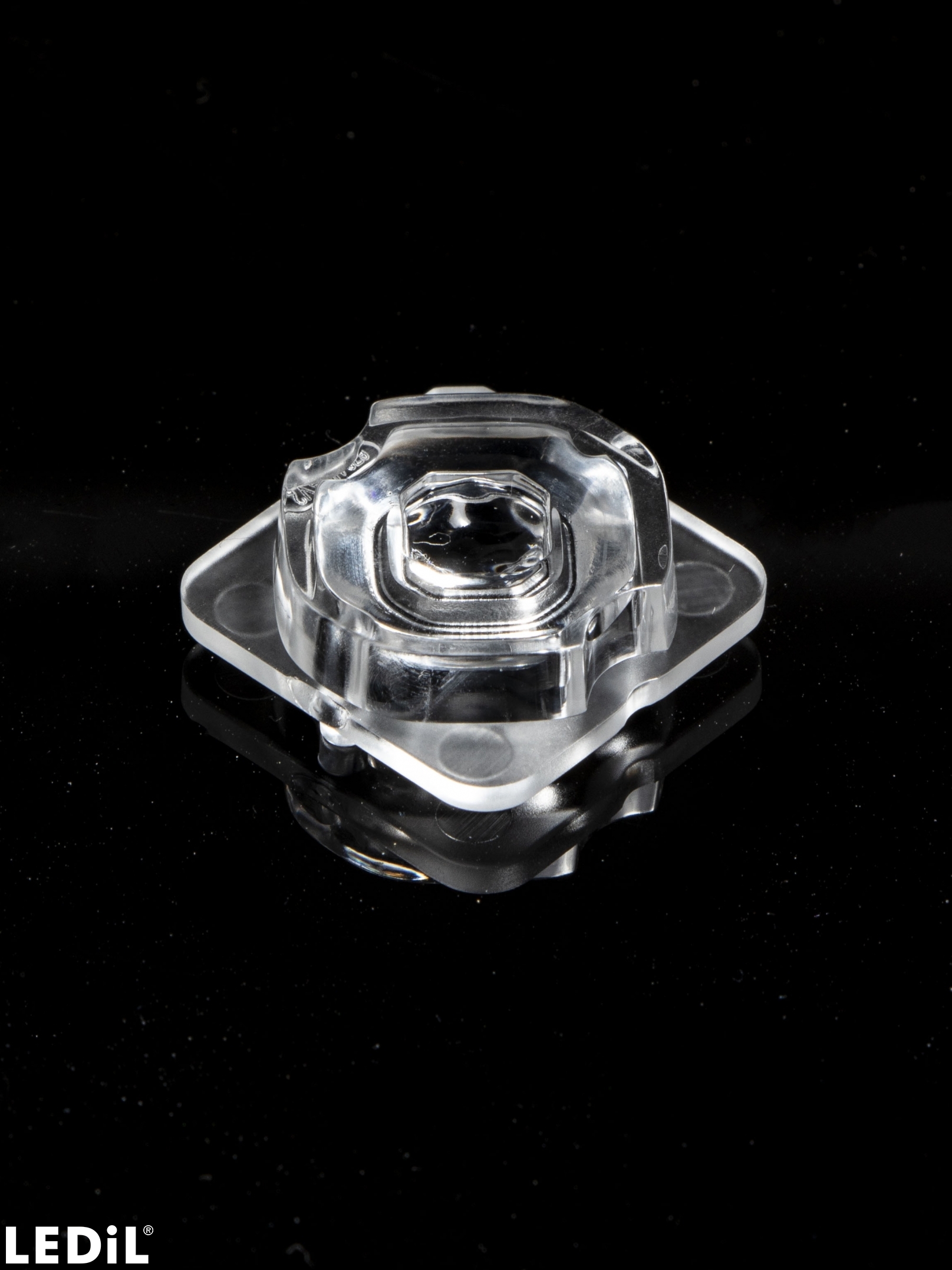

C16734_SITARA-HB-S

~35° spot beam

Dimensions:

18 x 18 mm
Height:

5.00 mm
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Quantity in box:

8000 pcs
Box size:

430 x 390 x 215 mm
Box weight:

9.5 kg
MPQ:

2000 pcs
MOQ:

2000 pcs
MOQ size:

380 x 200 x 100 mm
MOQ weight:

2.3 kg

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

ORDER ONLINE

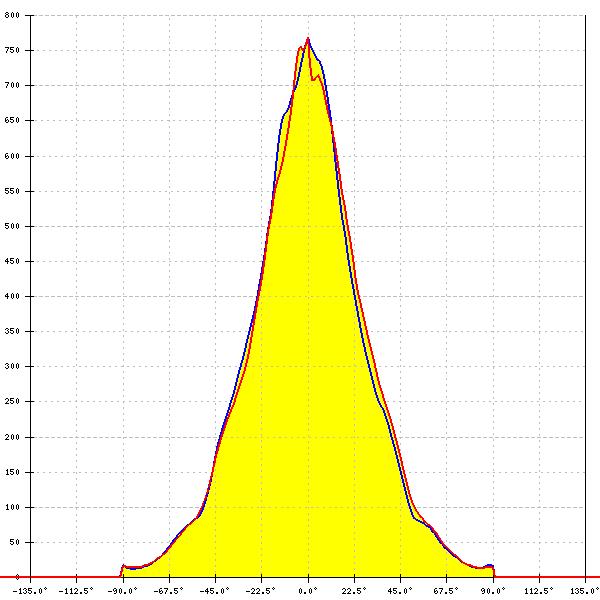

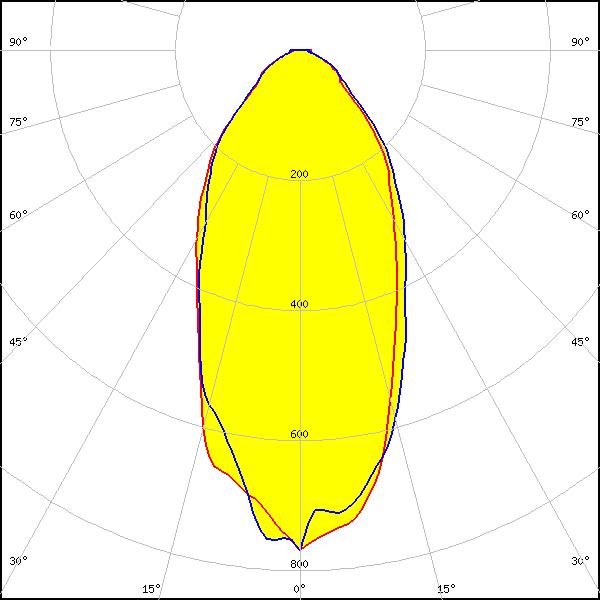

LED: MHB-A/B

FWHM: 50°

FWTM: 114°

Peak intensity: 0.780 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

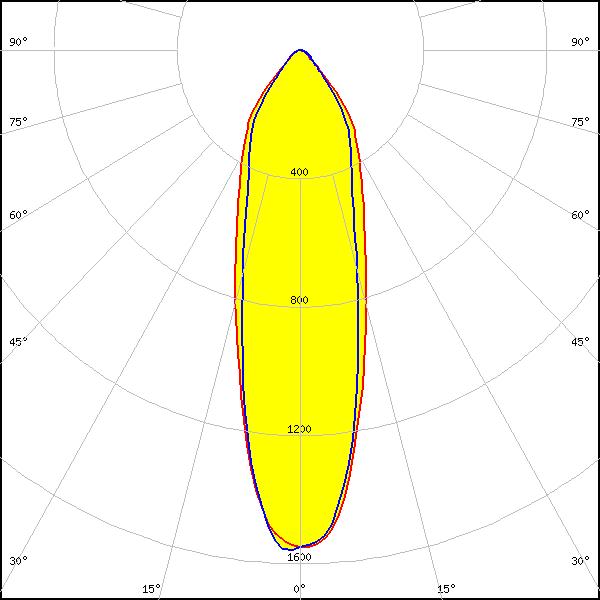

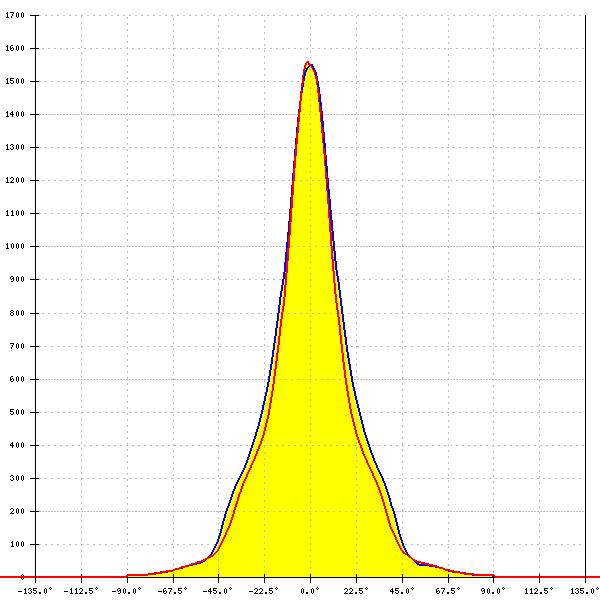

LED: LUXEON 5050 Round LES

FWHM: 30°

FWTM: 83°

Peak intensity: 1.565 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

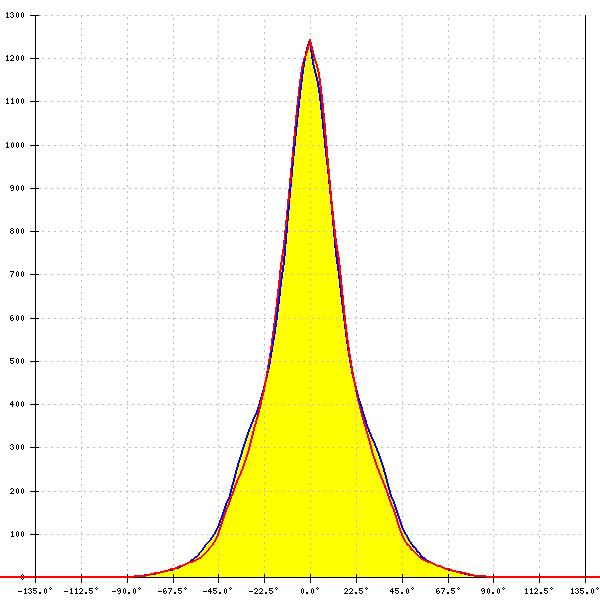

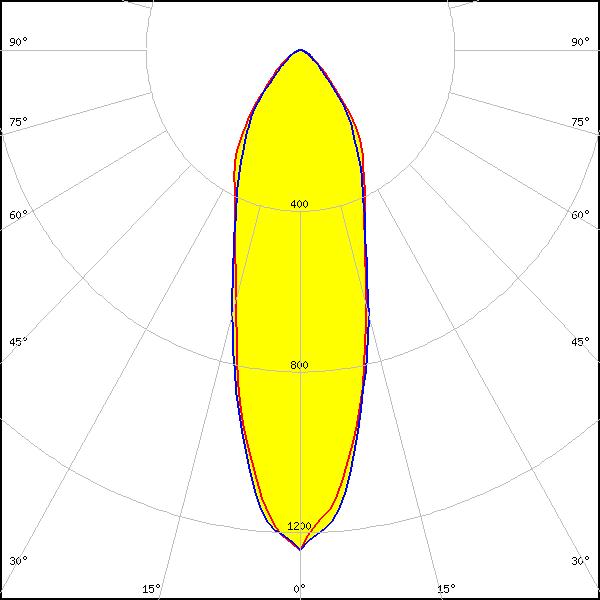

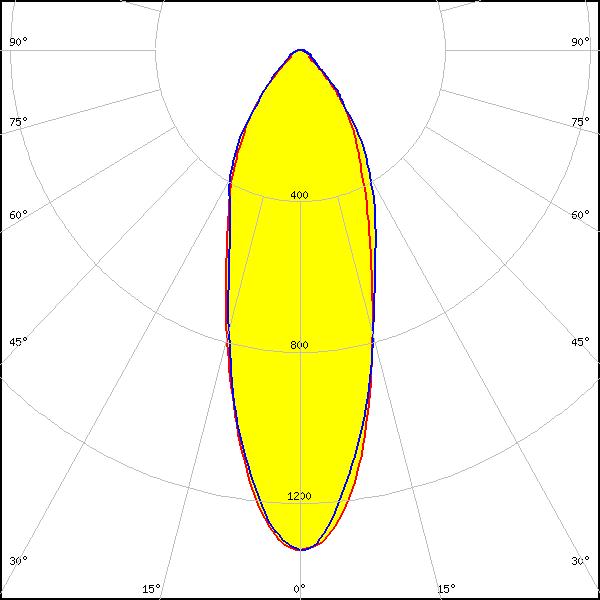

LED: Duris S8

FWHM: 32°

FWTM: 88°

Peak intensity: 1.244 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

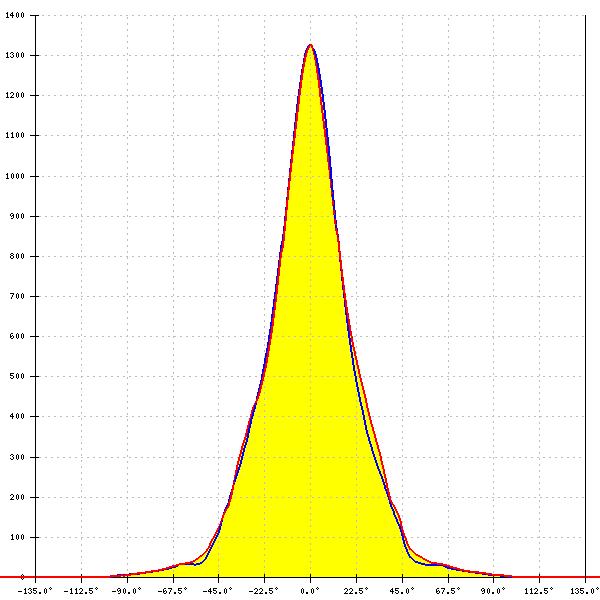

LED: Duris S8

FWHM: 36°

FWTM: 88°

Peak intensity: 1.300 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files
