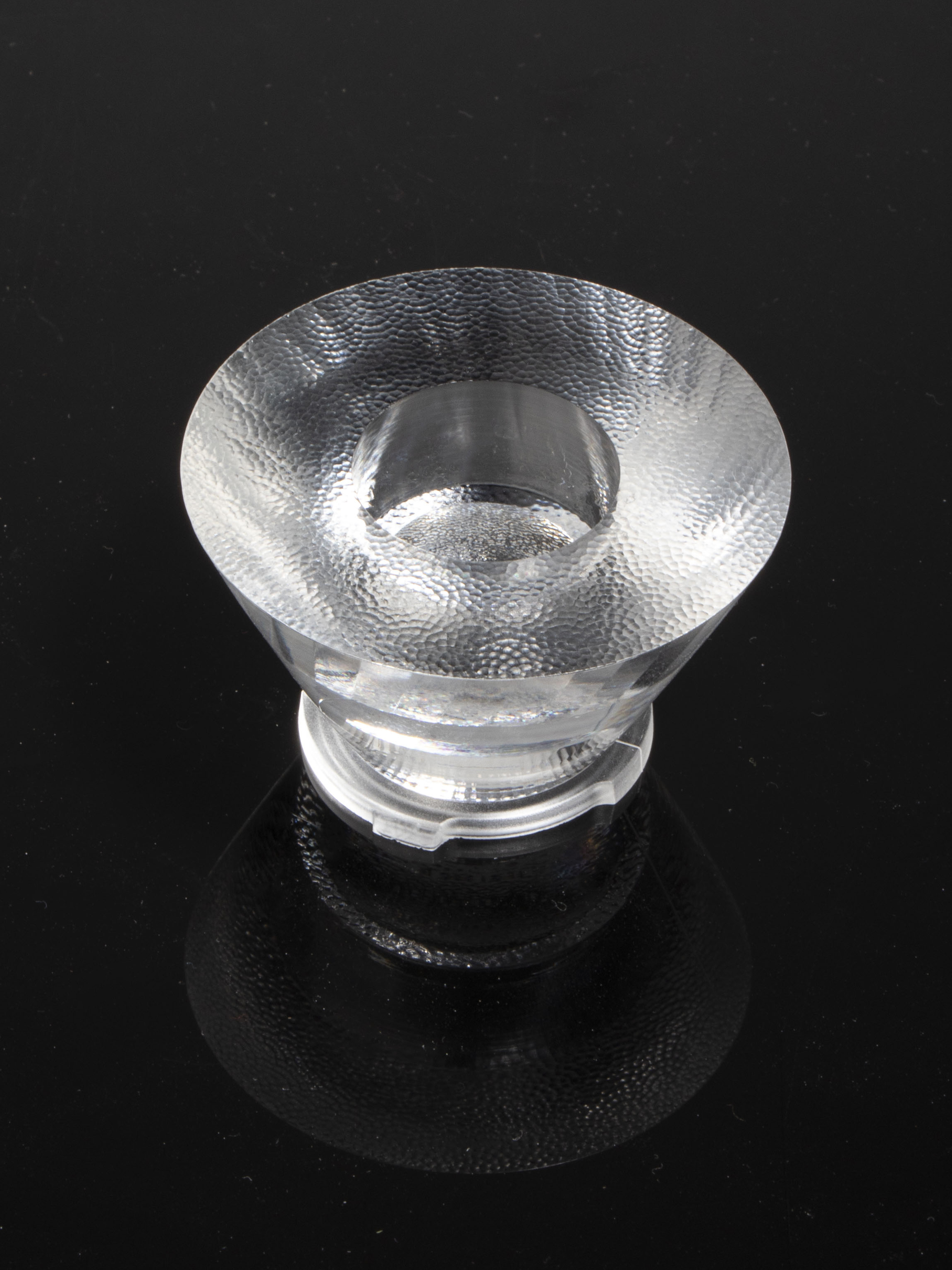

C16731_ILONA-SS
Print
~14° smooth spot beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V11 HD Gen 8
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
22°
FWTM:
41°
Peak intensity:
4.759 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen 8-9
LES size: 14.8 mm
Required components:
FWHM:
30°
FWTM:
52°
Peak intensity:
3.009 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
12°
FWTM:
23°
Peak intensity:
15.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
12.326 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 7
LES size: 7.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
15°
FWTM:
27°
Peak intensity:
11.134 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
15°
FWTM:
27°
Peak intensity:
11.370 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
18°
FWTM:
32°
Peak intensity:
7.657 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vero SE 10
LES size: 9.9 mm
FWHM:
18°
FWTM:
36°
Peak intensity:
6.739 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vero SE 13
LES size: 13.4 mm
Required components:
FWHM:
20°
FWTM:
50°
Peak intensity:
3.526 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
FWHM:
18°
FWTM:
32°
Peak intensity:
7.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
FWHM:
18°
FWTM:
36°
Peak intensity:
6.539 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
14°
FWTM:
28°
Peak intensity:
10.265 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (9W) DP
LES size: 10.3 mm
Required components:
FWHM:
18°
FWTM:
35°
Peak intensity:
6.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
21°
FWTM:
35°
Peak intensity:
6.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
14°
FWTM:
25°
Peak intensity:
12.900 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU712/713
LES size: 8.5 mm
Required components:
FWHM:
18°
FWTM:
33°
Peak intensity:
7.605 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM:
11°
FWTM:
21°
Peak intensity:
18.040 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7B2
LES size: 3.3 mm
Required components:
FWHM:
10°
FWTM:
20°
Peak intensity:
19.714 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHA0304
LES size: 3.3 mm
Required components:
FWHM:
11°
FWTM:
22°
Peak intensity:
18.119 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHA0410
LES size: 4.2 mm
Required components:
FWHM:
12°
FWTM:
24°
Peak intensity:
15.143 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1303
LES size: 4.5 mm
Required components:
FWHM:
12°
FWTM:
24°
Peak intensity:
16.001 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LZ4-00XX08
LES size: 0.0 mm
Required components:
FWHM:
10°
FWTM:
22°
Peak intensity:
19.659 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LZ4-00XX08
LES size: 0.0 mm
Required components:
FWHM:
12°
FWTM:
23°
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
26°
FWTM:
52°
Peak intensity:
3.029 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
19°
FWTM:
35°
Peak intensity:
6.764 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
12.149 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
FWHM:
26°
FWTM:
47°
Peak intensity:
3.611 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
FWHM:
28°
FWTM:
52°
Peak intensity:
2.903 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
13°
FWTM:
25°
Peak intensity:
13.211 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
14°
FWTM:
27°
Peak intensity:
11.681 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
19°
FWTM:
35°
Peak intensity:
6.836 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
22°
FWTM:
43°
Peak intensity:
4.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
17°
FWTM:
33°
Peak intensity:
7.575 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
13°
FWTM:
26°
Peak intensity:
12.302 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rubix
LES size: 0.0 mm
FWHM:
13°
FWTM:
24°
Peak intensity:
15.092 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
CxM-14 (18.5x18.5)
LES size: 13.5 mm
Required components:
FWHM:
30°
FWTM:
54°
Peak intensity:
2.727 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-3
LES size: 3.5 mm
Required components:
FWHM:
11°
FWTM:
20°
Peak intensity:
20.235 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
LES size: 4.5 mm
Required components:
FWHM:
12°
FWTM:
23°
Peak intensity:
15.757 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
LES size: 5.9 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
12.104 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
LES size: 5.9 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
12.227 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
16°
FWTM:
30°
Peak intensity:
10.198 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NFSWE11A
LES size: 0.0 mm
Required components:
FWHM:
18°
FWTM:
32°
Peak intensity:
7.529 cd/lm
Efficiency:
88 %
LEDs/each optic:
30
Light colour/type:
White
LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
16°
FWTM:
30°
Peak intensity:
9.665 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
20°
FWTM:
40°
Peak intensity:
5.309 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WN)
LES size: 0.0 mm
Required components:
FWHM:
10°
FWTM:
19°
Peak intensity:
22.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WP)
LES size: 0.0 mm
FWHM:
12°
FWTM:
21°
Peak intensity:
18.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WP)
LES size: 0.0 mm
Required components:
FWHM:
11°
FWTM:
21°
Peak intensity:
18.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
24°
FWTM:
46°
Peak intensity:
3.886 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
26°
FWTM:
51°
Peak intensity:
3.224 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
19°
FWTM:
34°
Peak intensity:
6.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
18°
FWTM:
37°
Peak intensity:
6.087 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
14°
FWTM:
28°
Peak intensity:
11.418 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020T (Tunable white)
LES size: 13.0 mm
Required components:
FWHM:
22°
FWTM:
42°
Peak intensity:
4.596 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
LES size: 14.5 mm
Required components:
FWHM:
33°
FWTM:
57°
Peak intensity:
2.381 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
12.521 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM:
21°
FWTM:
37°
Peak intensity:
5.928 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
18°
FWTM:
34°
Peak intensity:
7.037 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
11.684 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
19°
FWTM:
35°
Peak intensity:
6.839 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
