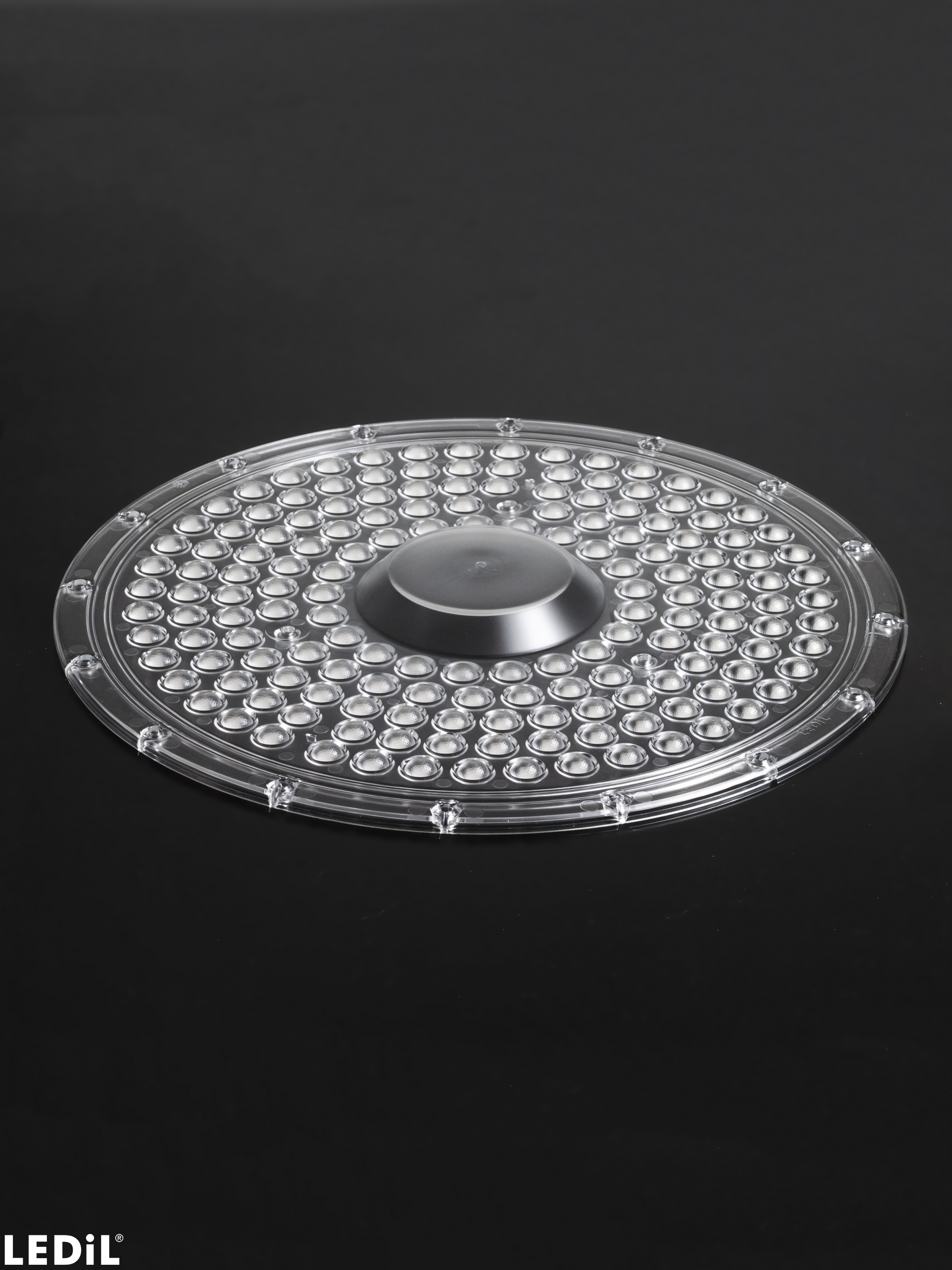

C16670_VICTORIA-W

Print

~60° wide beam

Specification
  • Dimensions:
    300 mm
  • Height:
    20.00 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    40 pcs
  • Box size:
    343 x 343 x 298 mm
  • Box weight:
    10.2 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    343 x 343 x 298 mm
  • MOQ weight:
    10.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C16670_VICTORIA-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

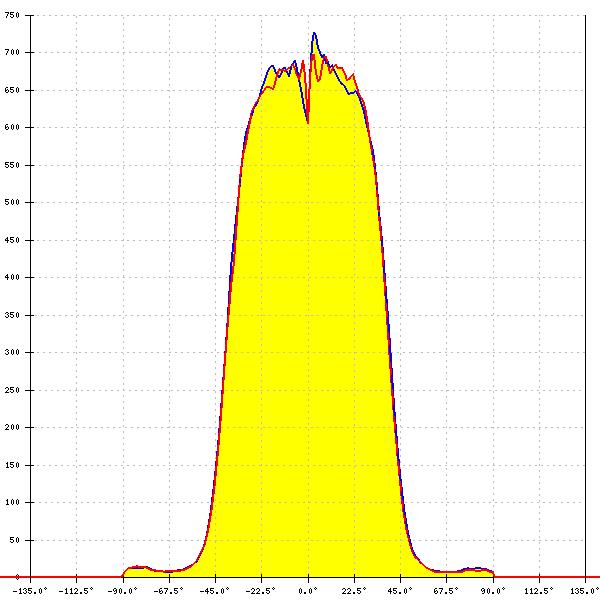

LED: MHB-A/B
FWHM: 76°
FWTM: 96°
Peak intensity: 0.730 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

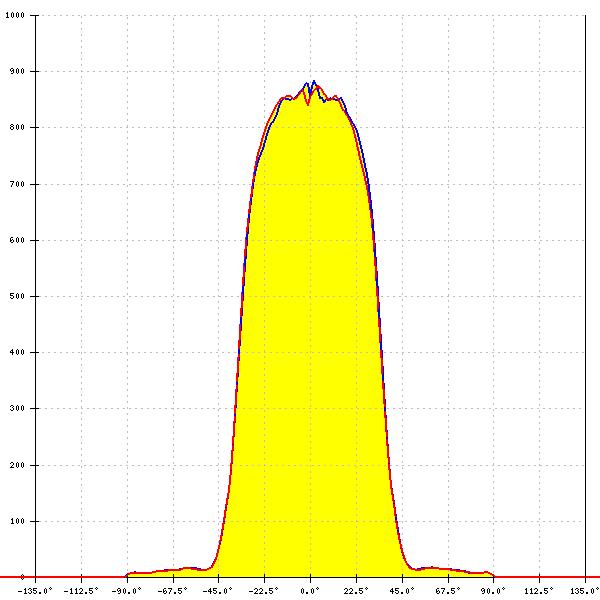

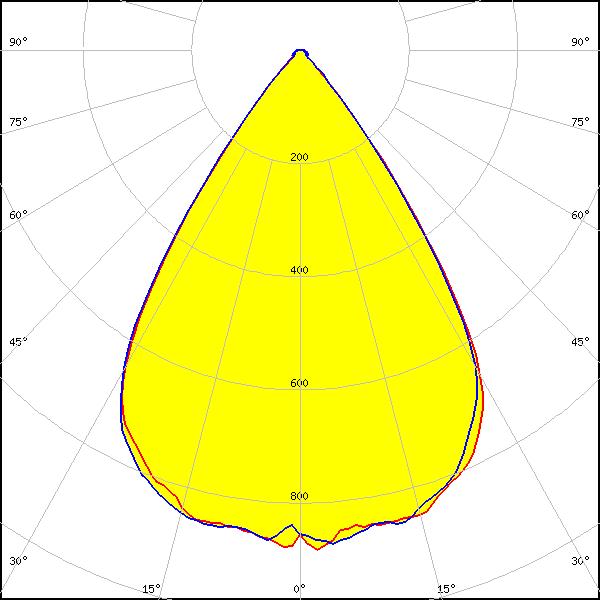

LED: NFMW48xA
FWHM: 69°
FWTM: 85°
Peak intensity: 0.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

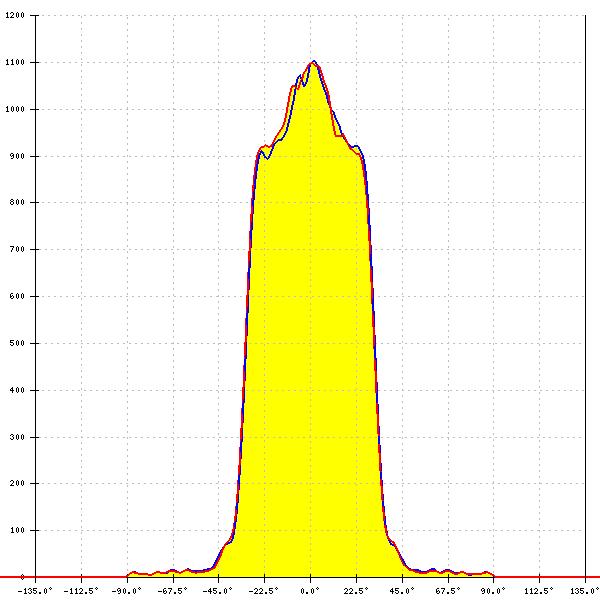

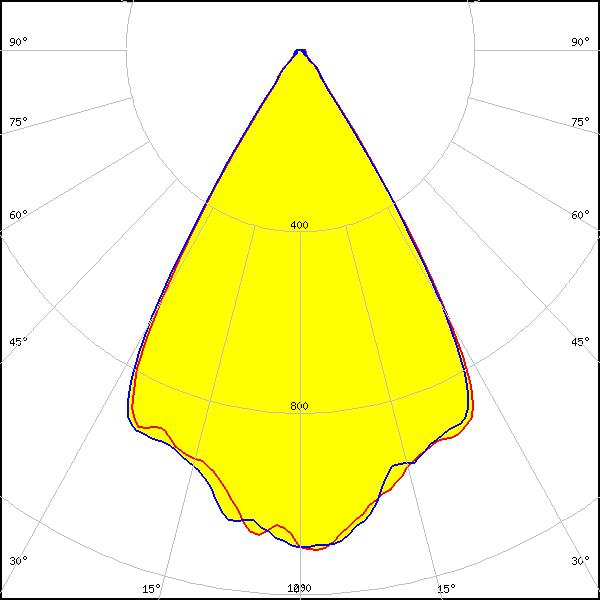

LED: LM28xB Series
FWHM: 62°
FWTM: 75°
Peak intensity: 1.152 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
