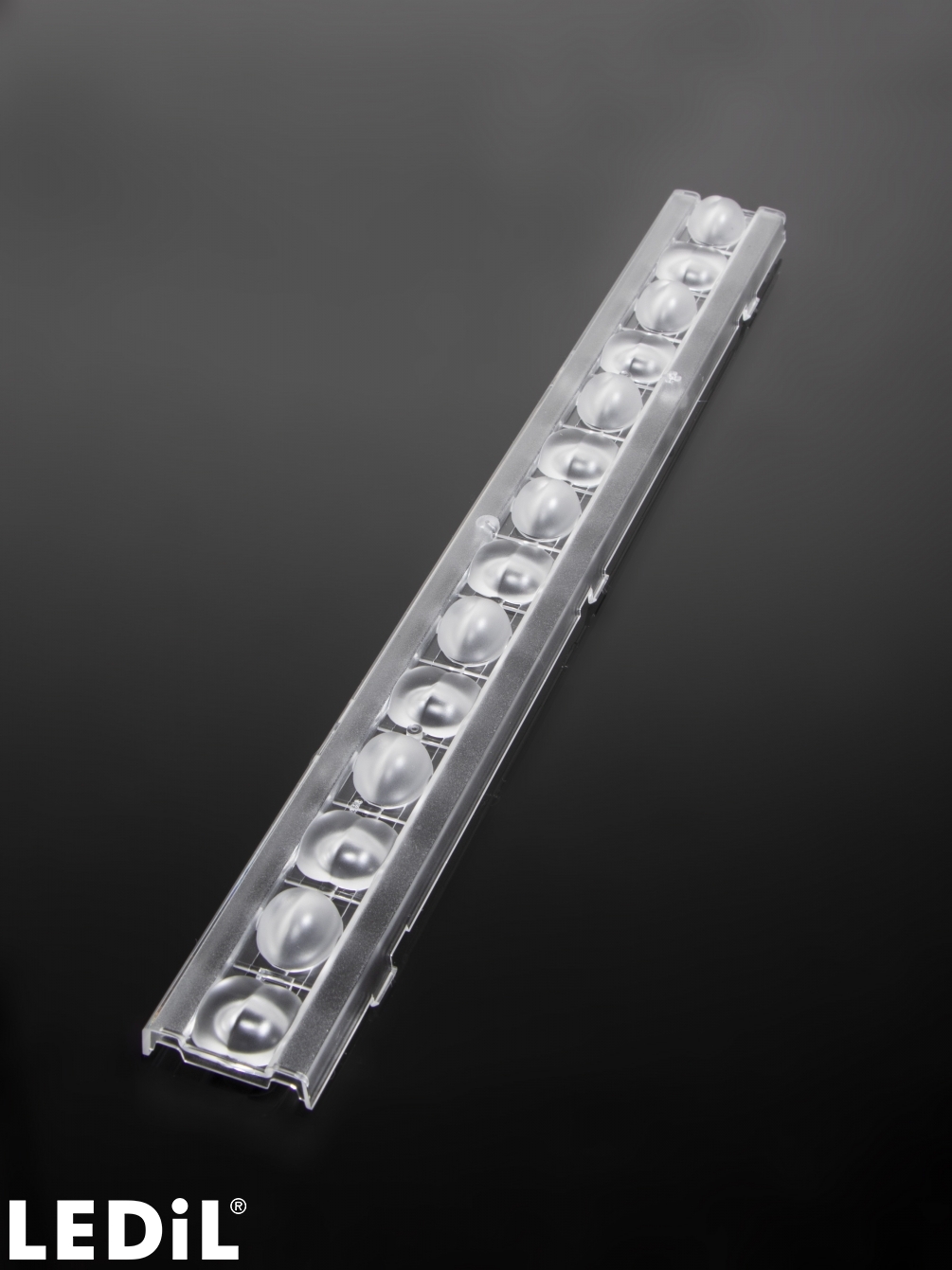

C16663_CLAUDIA-Z2T25

Double asymmetric beam for aisle and shelf lighting

Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

Specification

Dimensions:

279 x 29 mm
Height:

13.60 mm
Fastening:

clips
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

180 pcs
Box size:

400 x 300 x 300 mm
Box weight:

6.8 kg
MPQ:

180 pcs
MOQ:

20160 pcs
MOQ size:

400 x 300 x 300 mm
MOQ weight:

6.8 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: C16663_CLAUDIA-Z2T25

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PCB drawing

PRODUCT NAME(S):

C16663_CLAUDIA-Z2T25

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

WHERE TO BUY

FIND A DISTRIBUTOR

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR184 - Change of minimum order quantities of specific products (002)

News

New Products - 2019-08-27

Application guide

LEDiL Guide for Retail Lighting Optics

PCN

Product change notification NR174 - Additional PMMA material approved

Article

Illuminating supermarkets with LEDiL optics

News

Linear lighting solutions

News

NEW PRODUCTS - 2018-11-13

News

CLAUDIA The affordable choice for supermarket and retail lighting

Application area

Indoor Architectural Lighting

Application area

Industrial Lighting

Application area

Retail Lighting

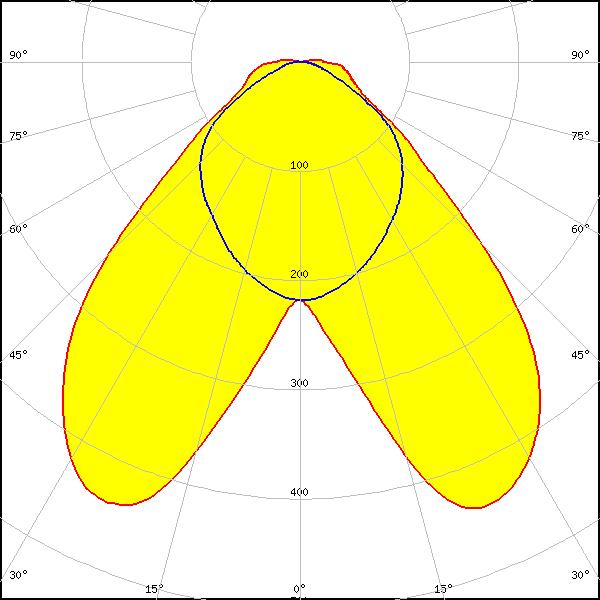

Optical results

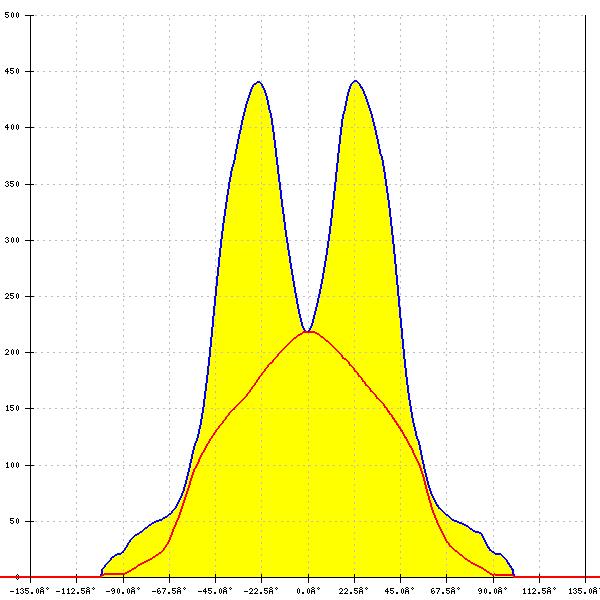

LED: J Series 2835

FWHM: asymmetric

Peak intensity: 0.441 cd/lm

Efficiency: 90 %

LEDs/each optic: 2

Light colour/type: White

Datasheet

Light distribution files

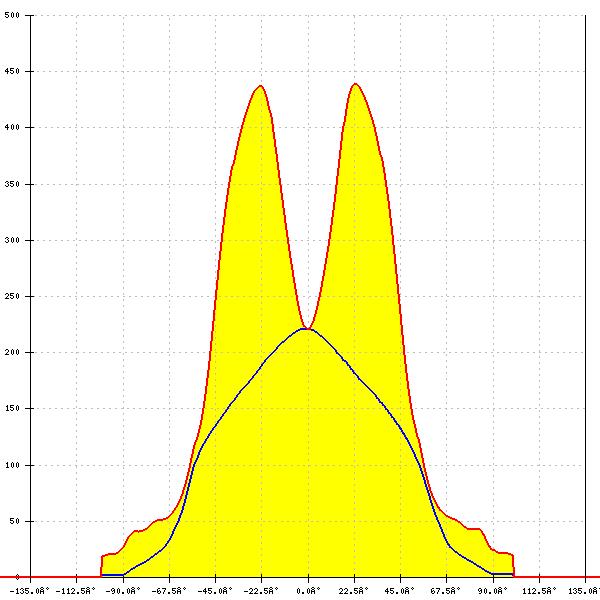

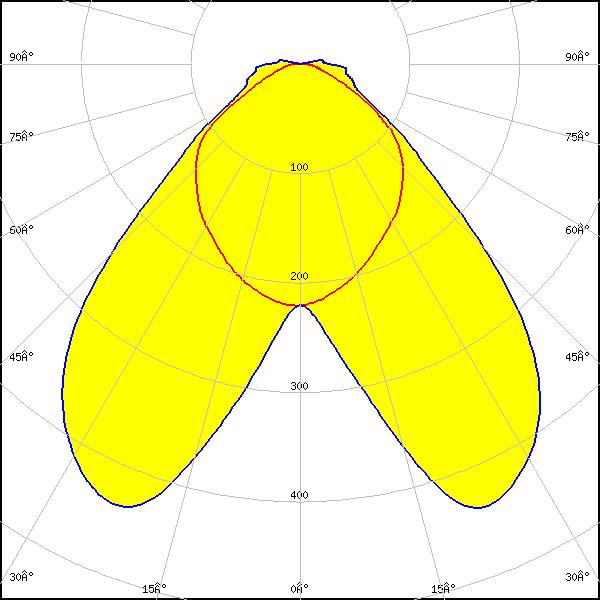

LED: LinLED 280x26mm 1300lm 840 2C 42V Opt G1

FWHM: asymmetric

Peak intensity: 0.439 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

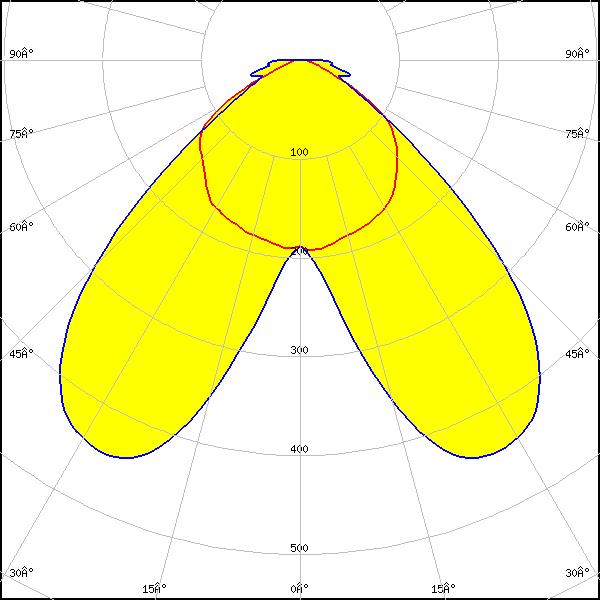

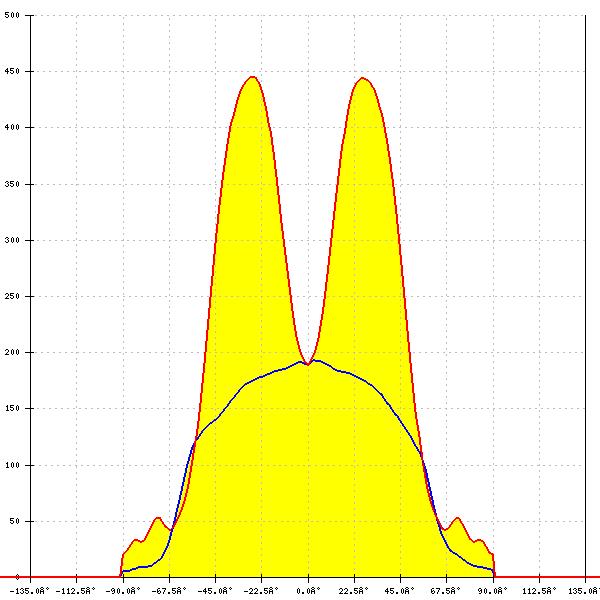

LED: NFMW48xA

FWHM: asymmetric

Peak intensity: 0.445 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

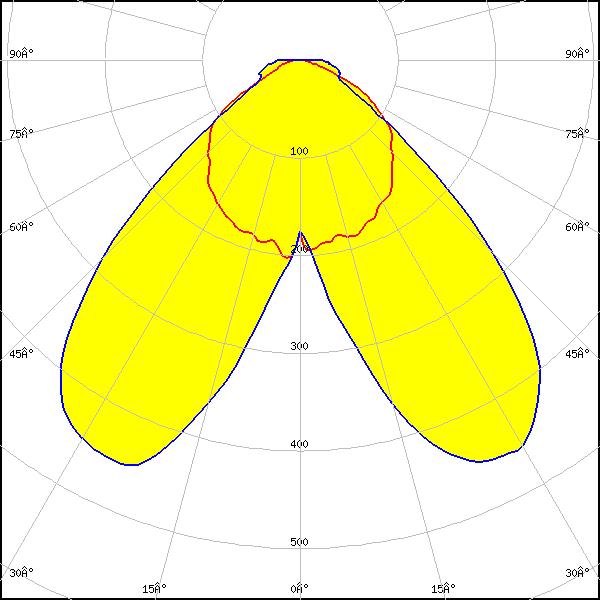

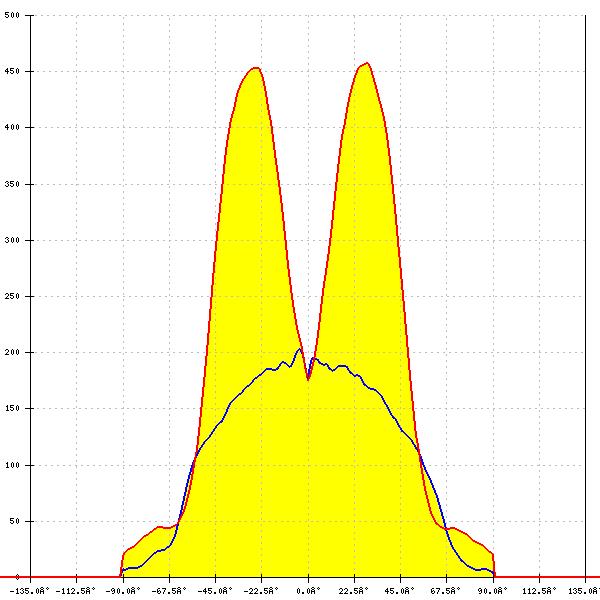

LED: Duris S8

FWHM: asymmetric

Peak intensity: 0.458 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

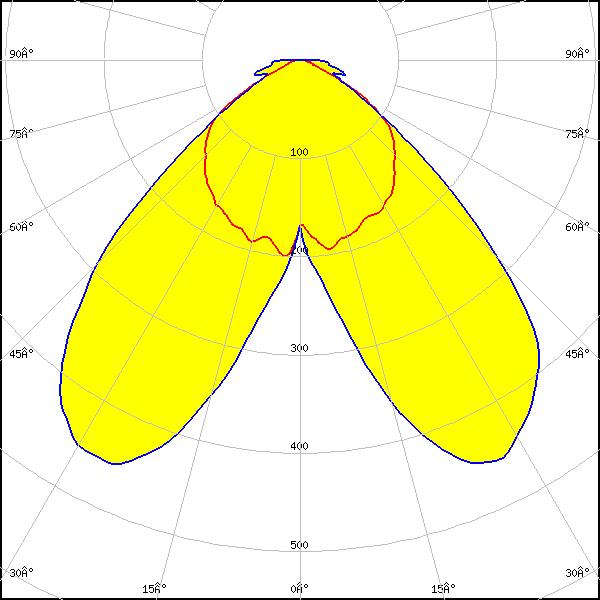

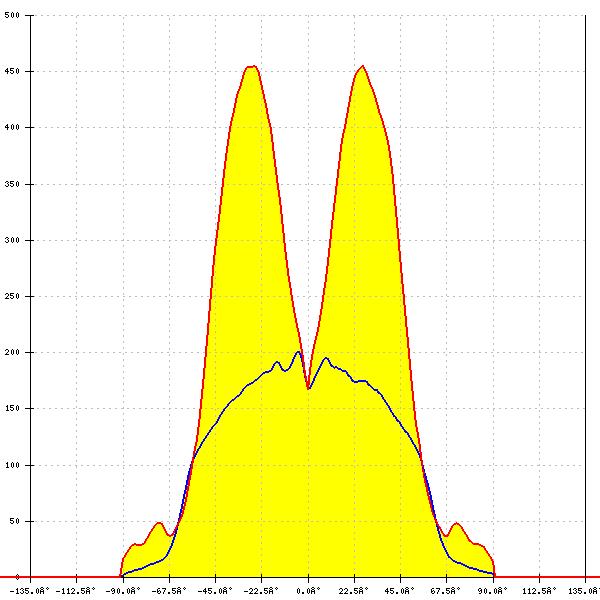

LED: Duris S8

FWHM: asymmetric

Peak intensity: 0.455 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

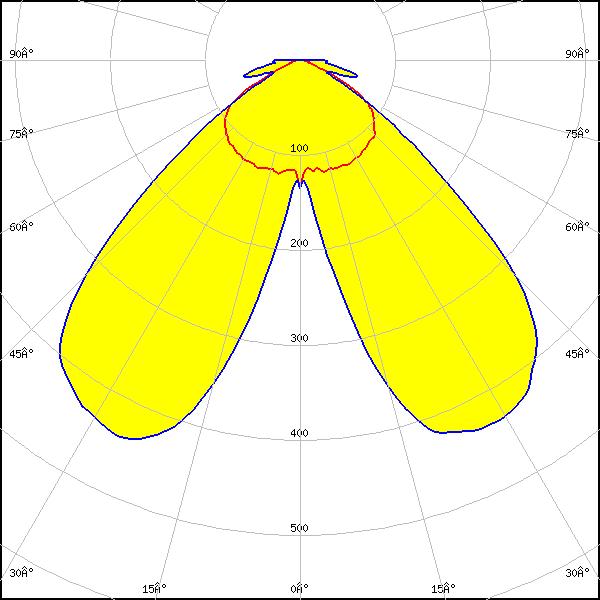

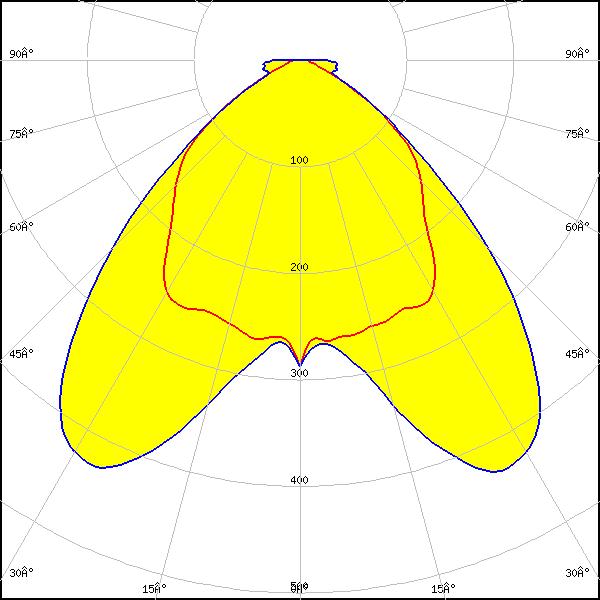

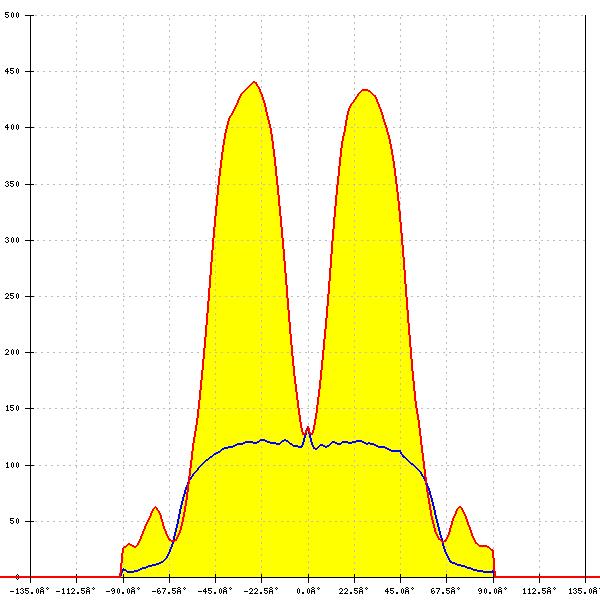

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 0.440 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: Hyper Red

Datasheet

Light distribution files

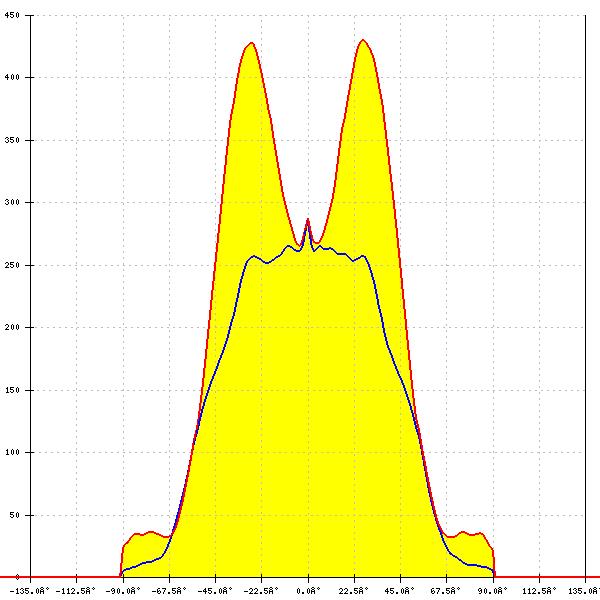

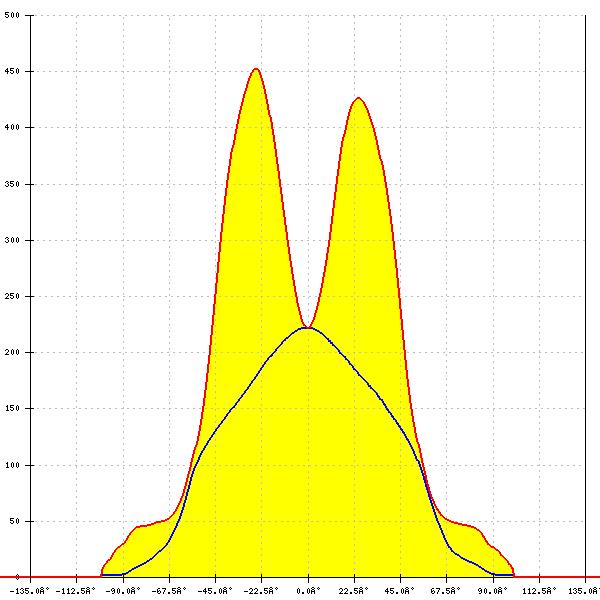

LED: LM28xB Series

FWHM: asymmetric

Peak intensity: 0.430 cd/lm

Efficiency: 87 %

LEDs/each optic: 4

Light colour/type: White

Datasheet

Light distribution files

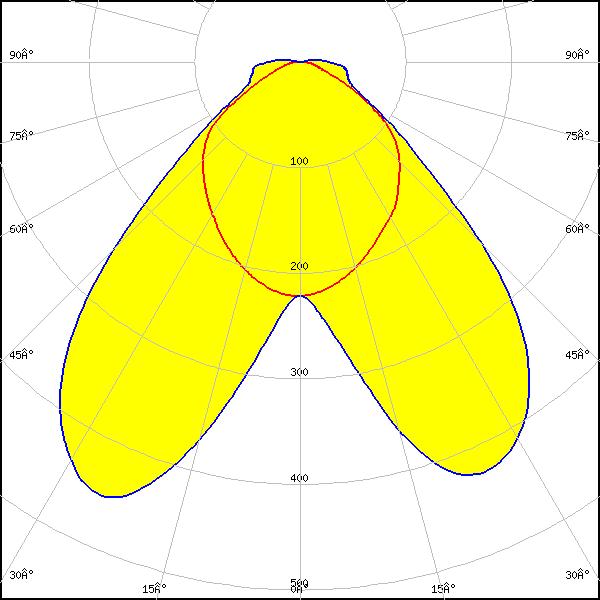

LED: LM28xB Series

FWHM: asymmetric

Peak intensity: 0.450 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
