C16520_PETUNIA2
Print

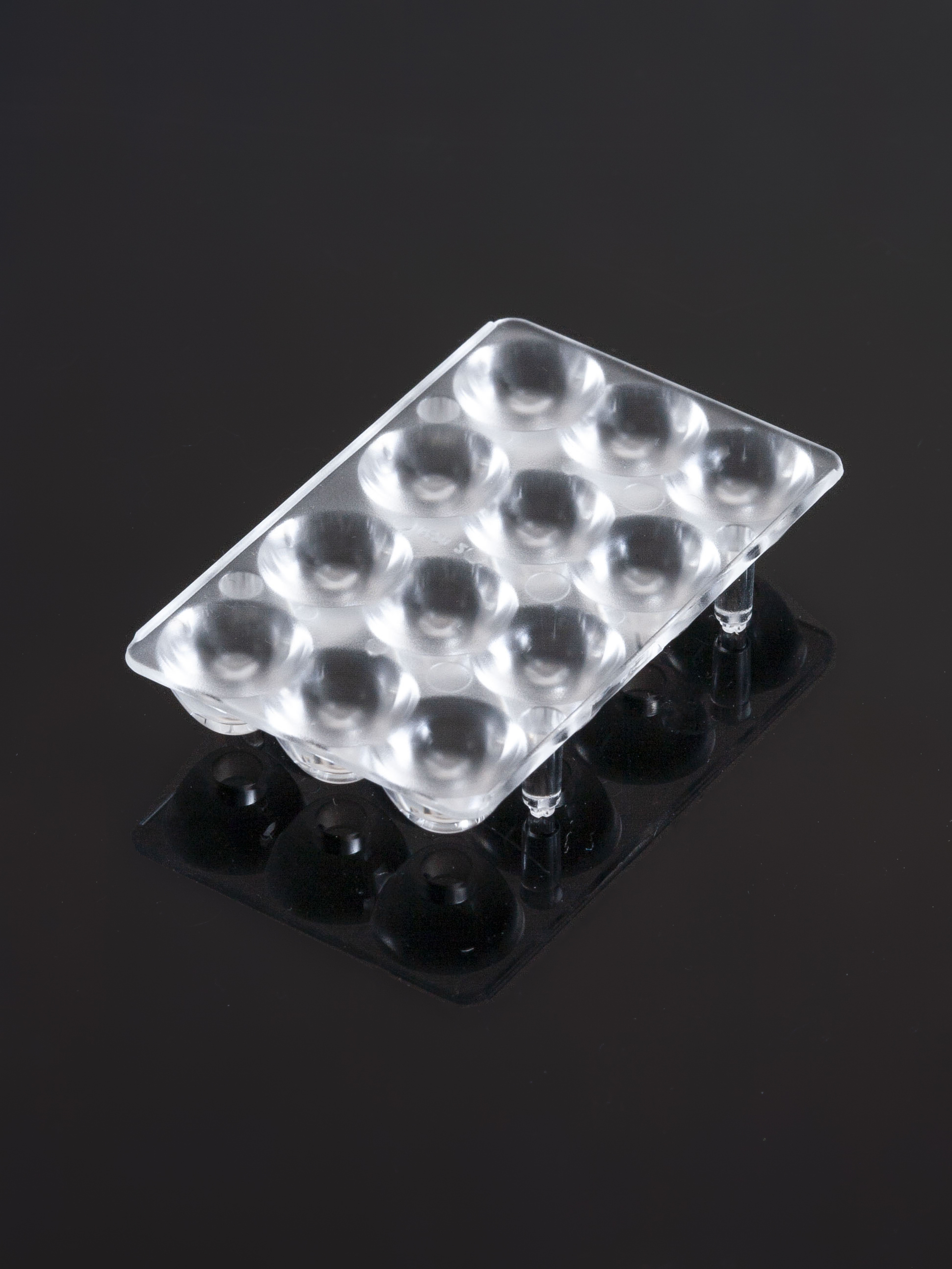

~25° beam with more space for 3535 HP LEDs
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

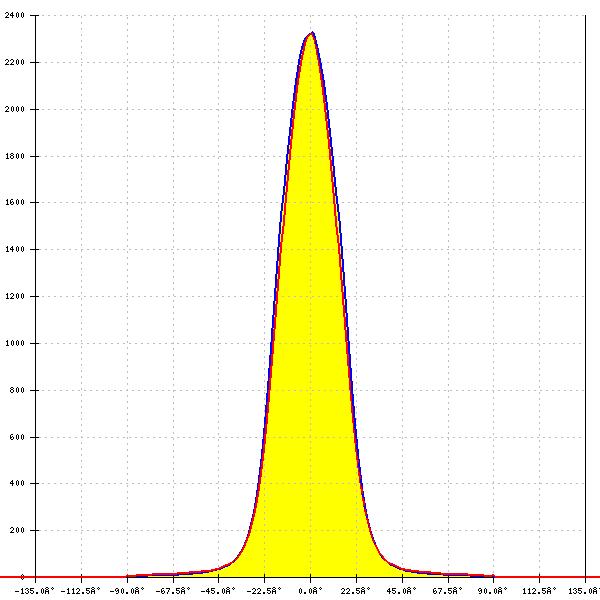

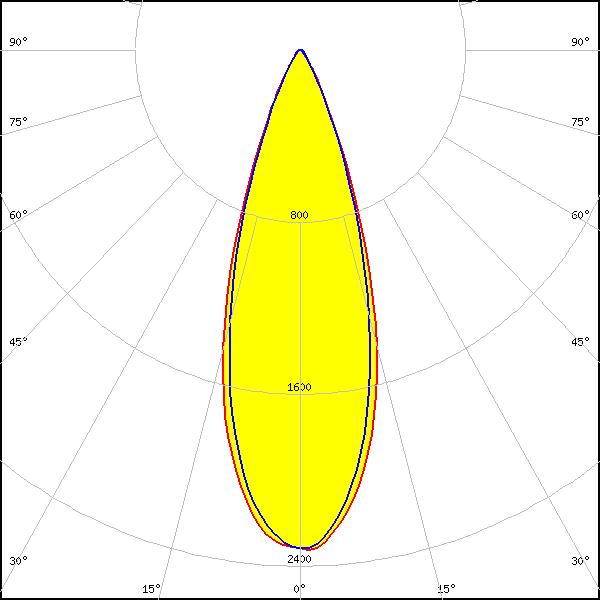

Optical results
LED:
XB-D
FWHM:
25°
FWTM:
48°
Peak intensity:
3.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM:
25°
FWTM:
46°
Peak intensity:
3.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
34°
FWTM:
58°
Peak intensity:
2.190 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
FWHM:
31°
FWTM:
55°
Peak intensity:
2.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel
FWHM:
26°
FWTM:
49°
Peak intensity:
3.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
29°
FWTM:
54°
Peak intensity:
2.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
30°
FWTM:
48°
Peak intensity:
3.262 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
SST-20
FWHM:
27°
FWTM:
46°
Peak intensity:
3.530 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

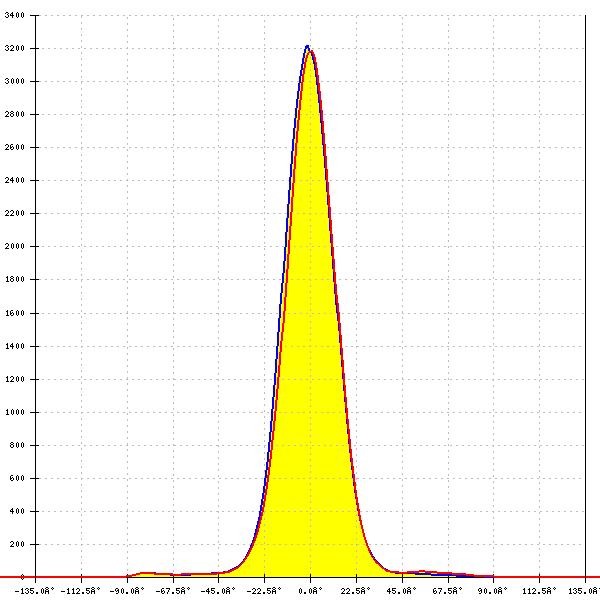

NFSx757G
FWHM:
28°
FWTM:
51°
Peak intensity:
3.234 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
28°
FWTM:
53°
Peak intensity:
2.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
20°
FWTM:
40°
Peak intensity:
4.684 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
30°
FWTM:
50°
Peak intensity:
2.972 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
22°
FWTM:
43°
Peak intensity:
4.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
24°
FWTM:
46°
Peak intensity:
3.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
