C16280_STRADA-2X2CSP-T3

IESNA Type III (medium) beam for roads that are equal or wider than mounting height.

Specification

Dimensions:

50 x 50 mm
Height:

6.40 mm
Fastening:

pin, screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

800 pcs
Box size:

476 x 273 x 292 mm
Box weight:

5.8 kg
MPQ:

160 pcs
MOQ:

160 pcs
MOQ size:

480 x 280 x 70 mm
MOQ weight:

1.2 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: C16280_STRADA-2X2CSP-T3

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C16280_STRADA-2X2CSP-T3

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

STRADA-2X2-SHD – Blocks backlight in 20+ LEDiL lenses

News

New Products 2018-07-06

Application guide

Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

AVAILABLE LEDiL ACCESSORIES

STRADA-2X2-SHD-WHT

White shade for additional backlight control.

STRADA-2X2-SHD-BLK

Black shade for additional backlight control.

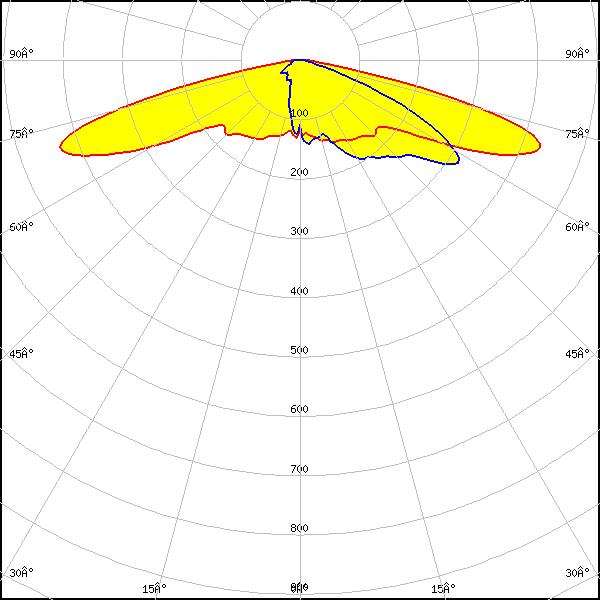

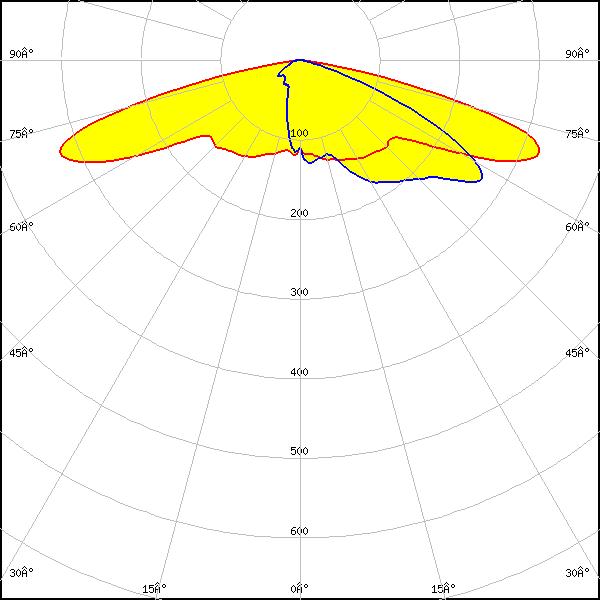

Optical results

LED: LUXEON HL2Z

FWHM: asymmetric

Peak intensity: 0.942 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON HL2Z

FWHM: asymmetric

Peak intensity: 0.601 cd/lm

Efficiency: 75 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NCSxE17A

FWHM: asymmetric

Peak intensity: 1.003 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSxE21A

FWHM: asymmetric

Peak intensity: 0.840 cd/lm

Efficiency: 82 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSxE21A

FWHM: asymmetric

Peak intensity: 1.200 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: SMJQ-D36W12Mx

FWHM: asymmetric

Peak intensity: 0.950 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Z8Y15

FWHM: asymmetric

Peak intensity: 1.202 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Z8Y19

FWHM: asymmetric

Peak intensity: 1.035 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Z8Y22

FWHM: asymmetric

Peak intensity: 0.930 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
