C16226_STRADELLA-8-HV-ME

Print

Fulfils EN13201 M-class requirements where road width is ≤ the pole height. Excellent longitudinal luminance uniformity. Variant with improved creepage distance for high voltage circuit design.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    5.50 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.6 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16226_STRADELLA-8-HV-ME

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

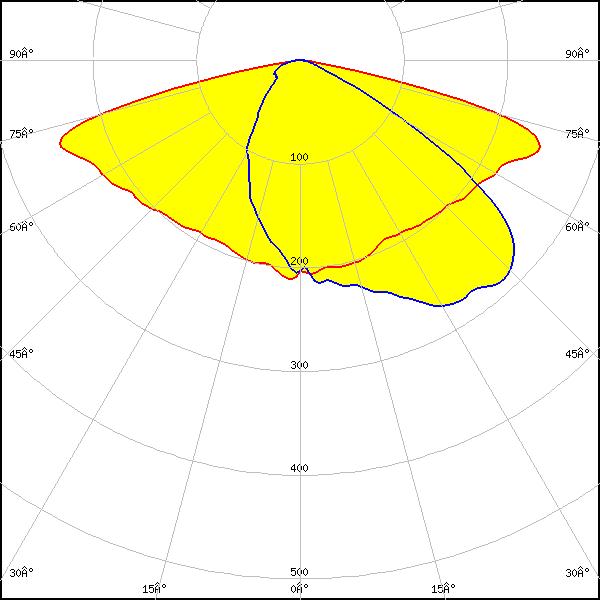

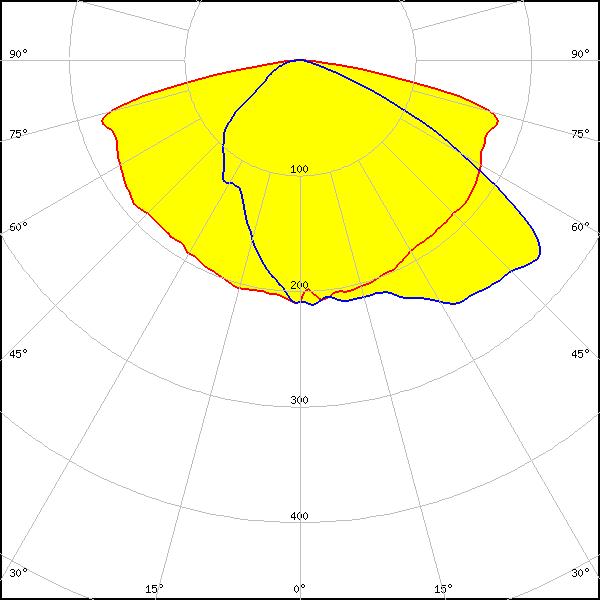

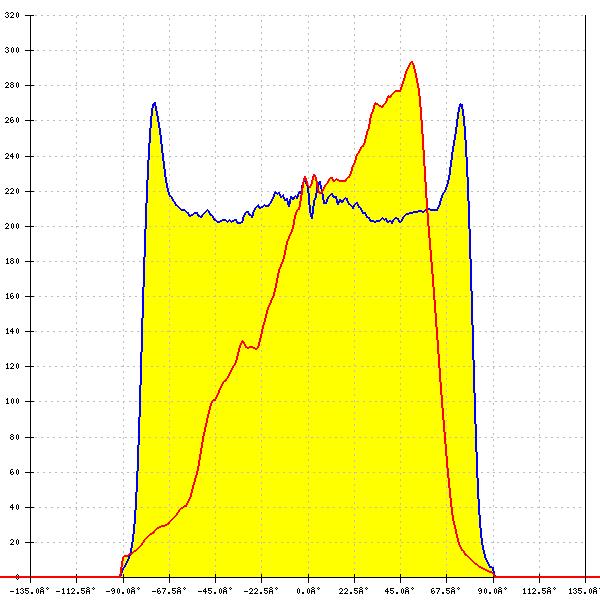

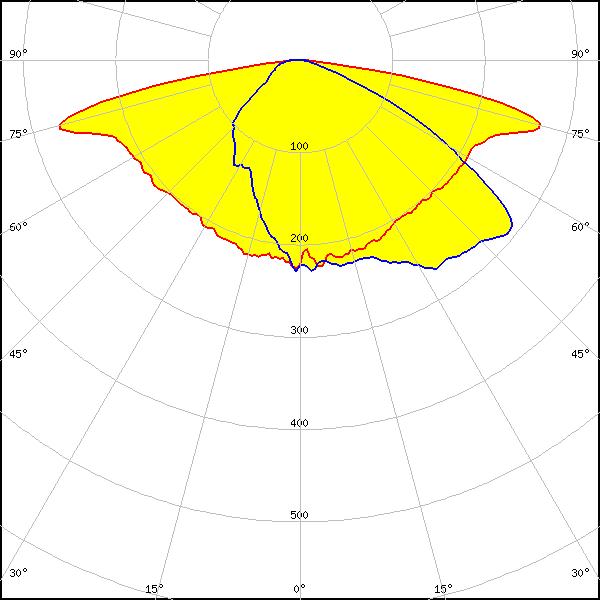

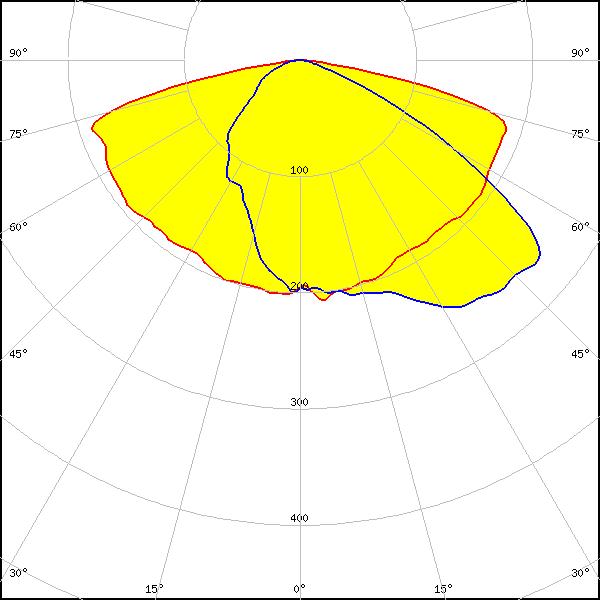

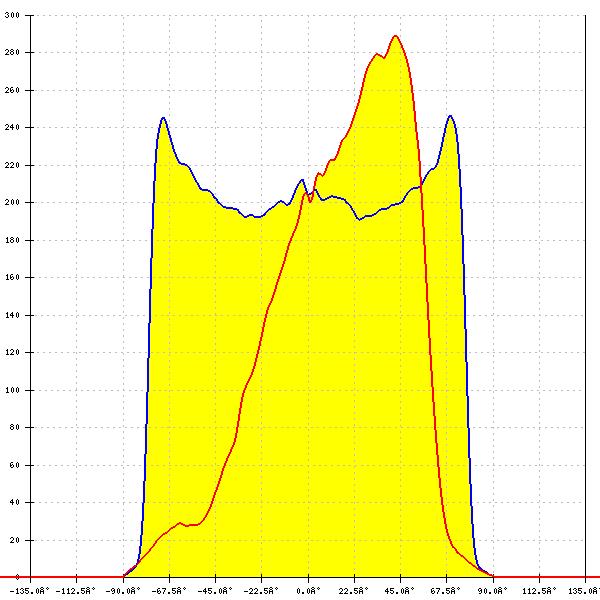

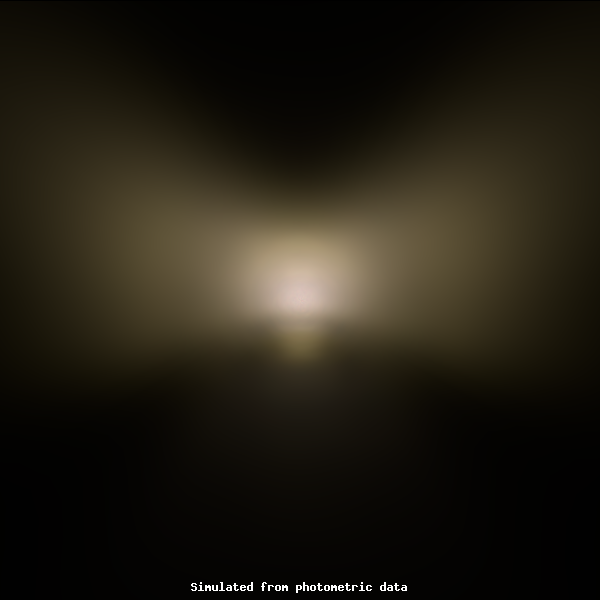

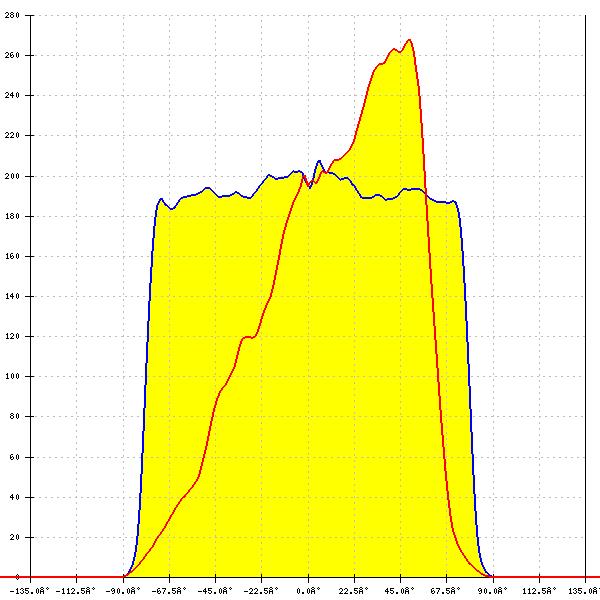

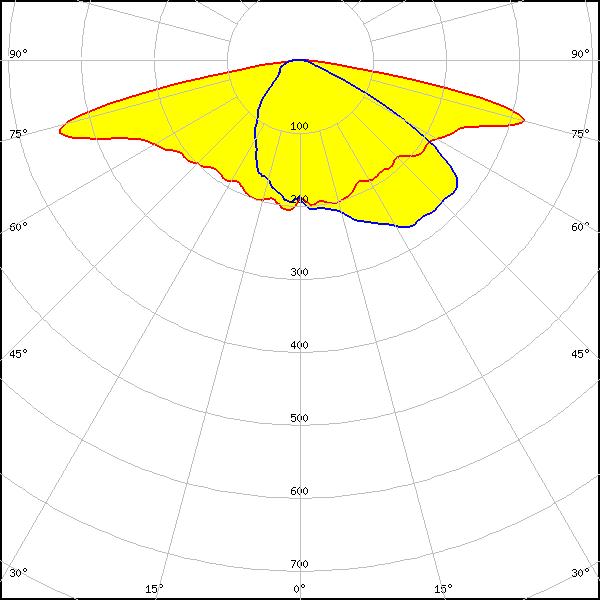

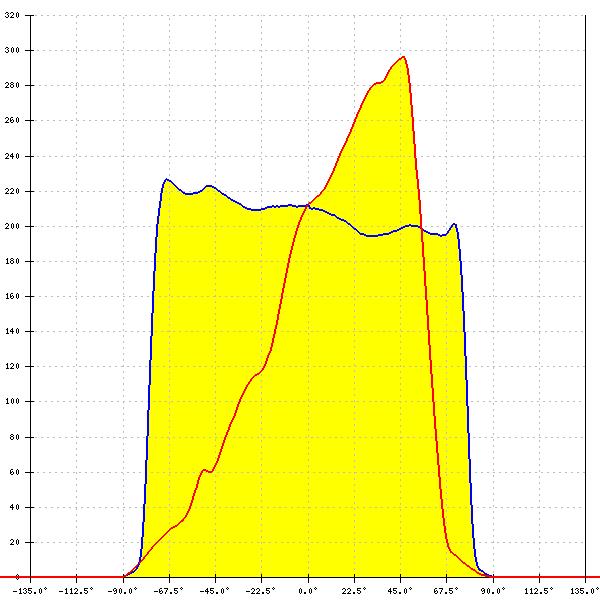

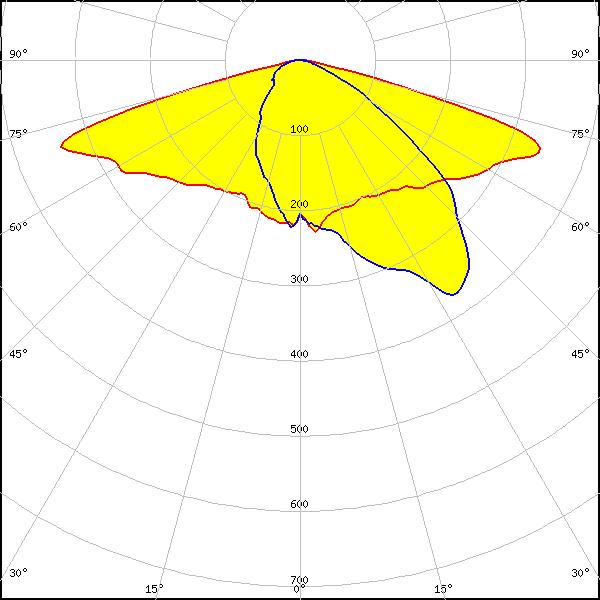

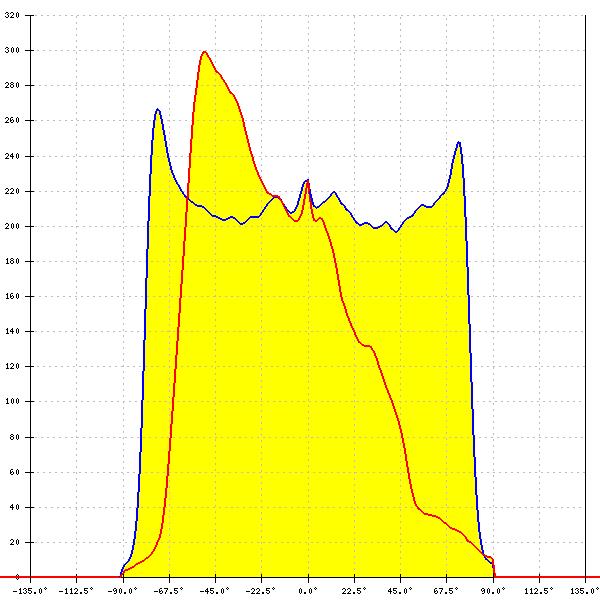

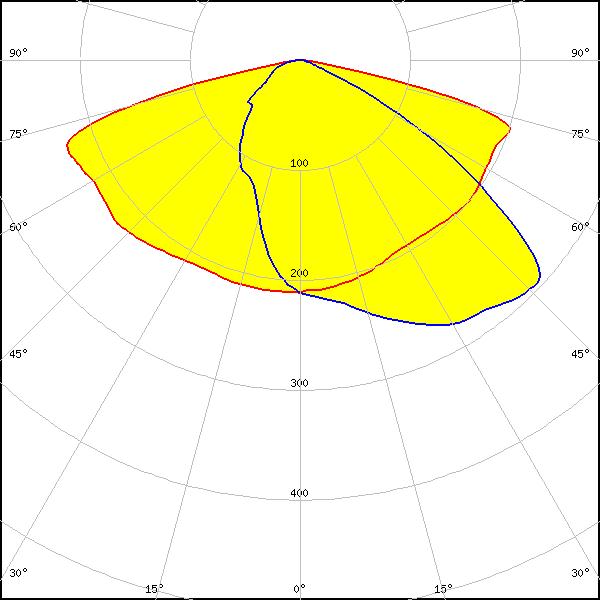

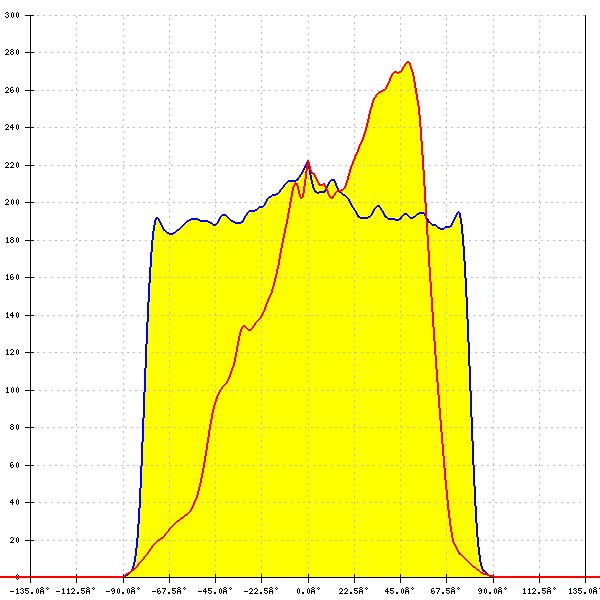

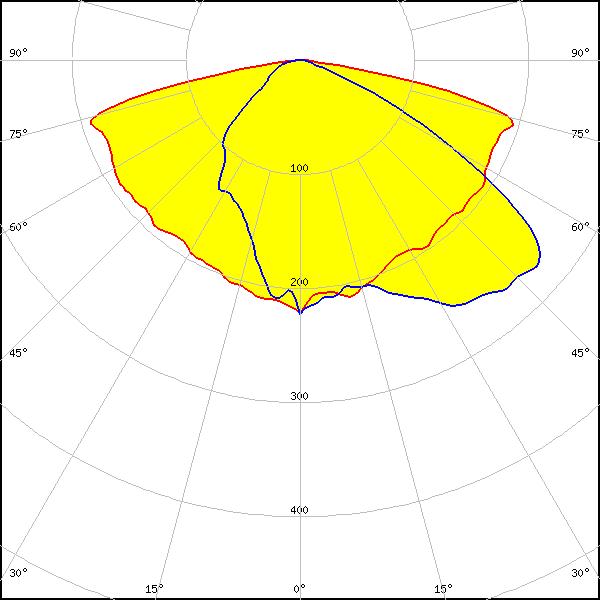

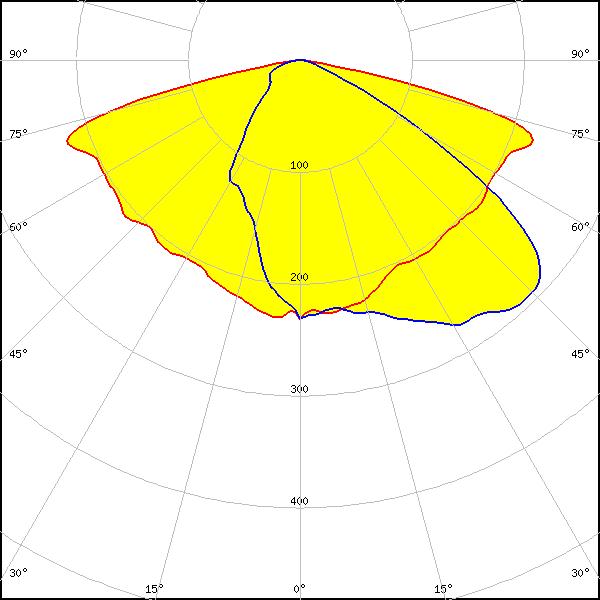

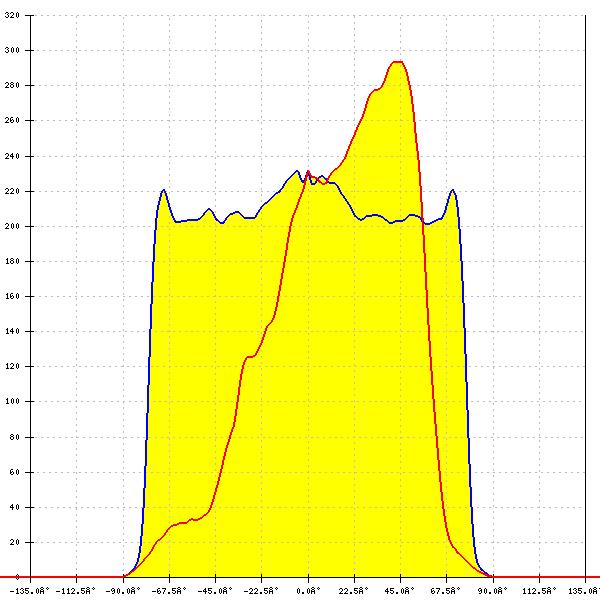

Optical results

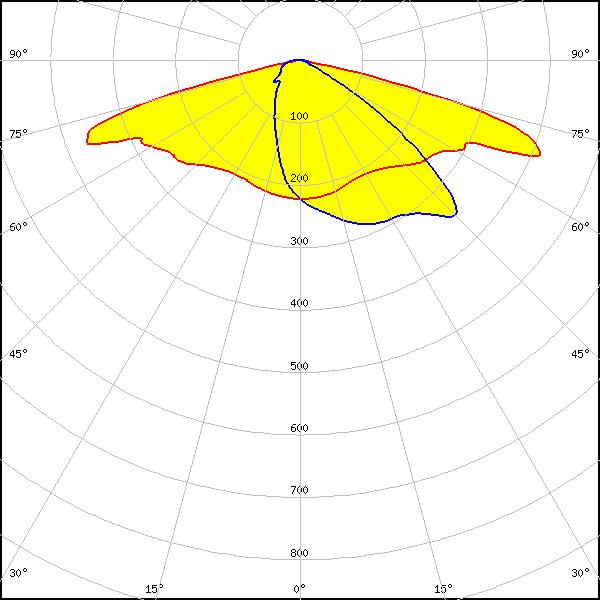

LED: J Series 3030
FWHM: asymmetric
Peak intensity: 0.716 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

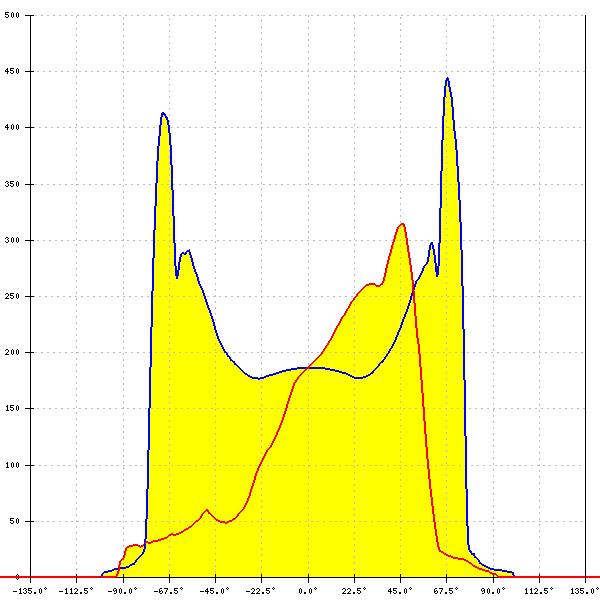

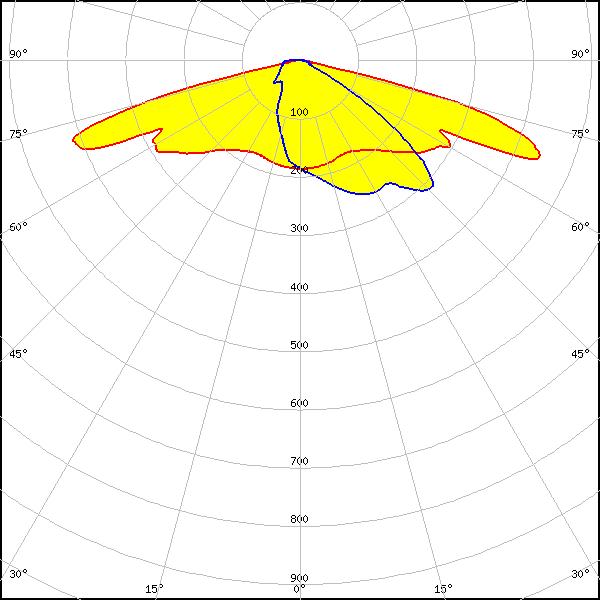

LED: XD16
FWHM: asymmetric
Peak intensity: 0.850 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

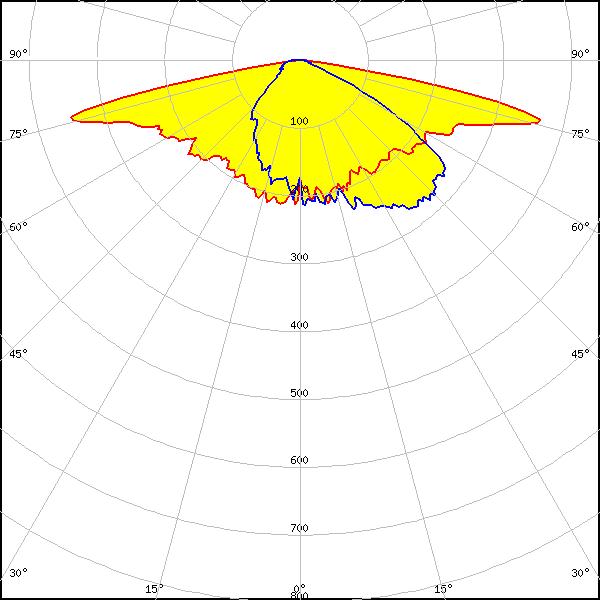

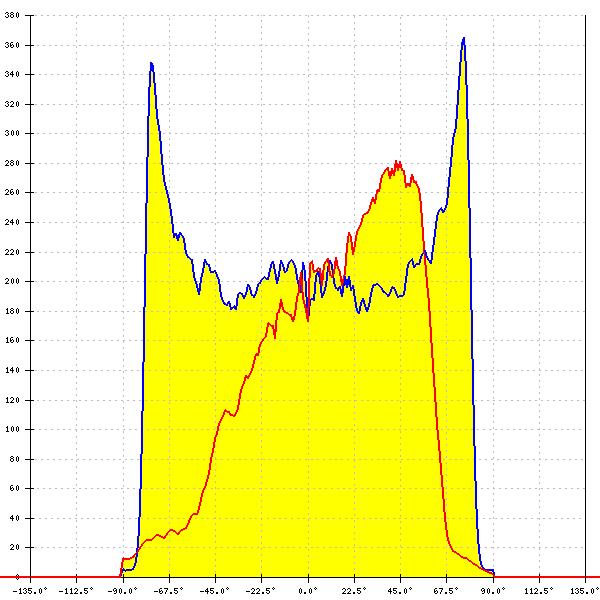

LED: XP-G2
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

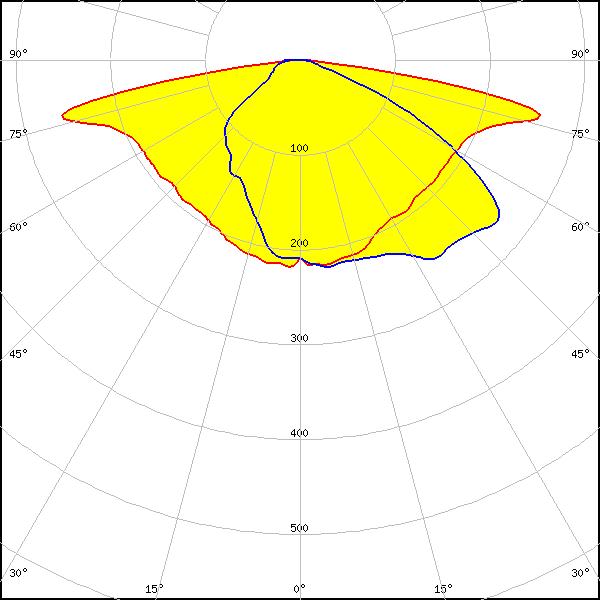

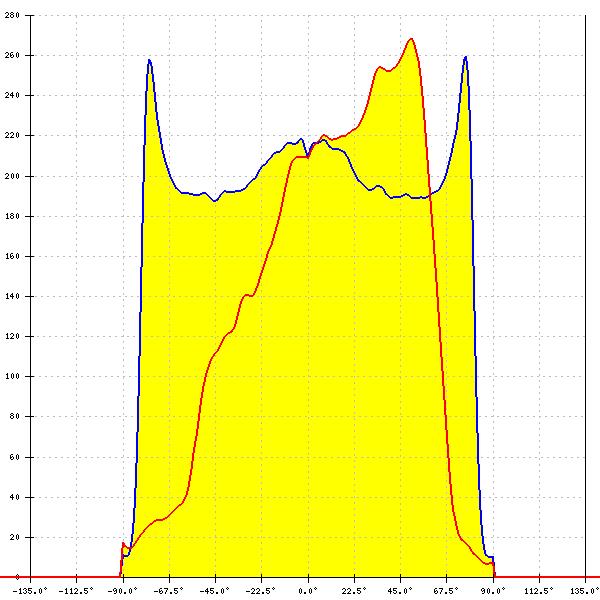

LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.439 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

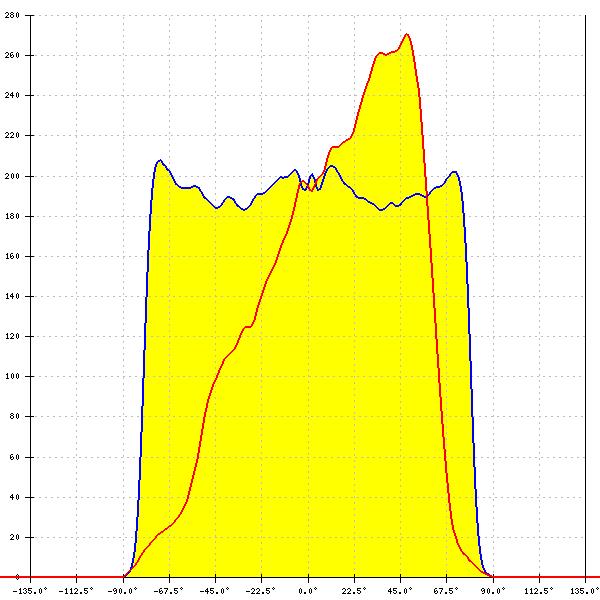

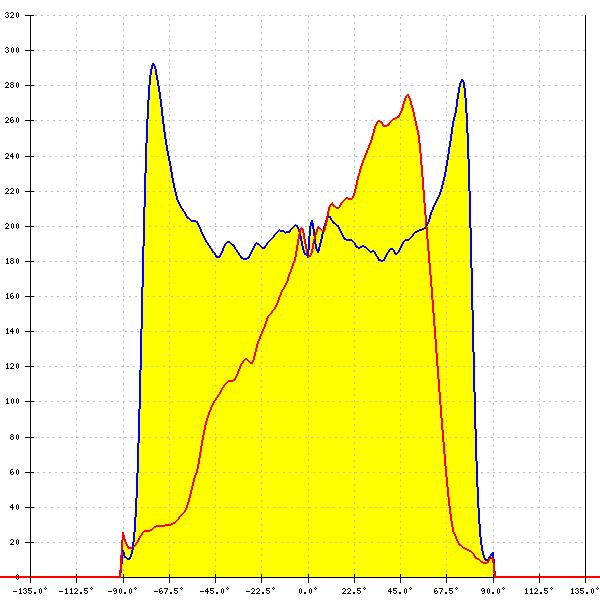

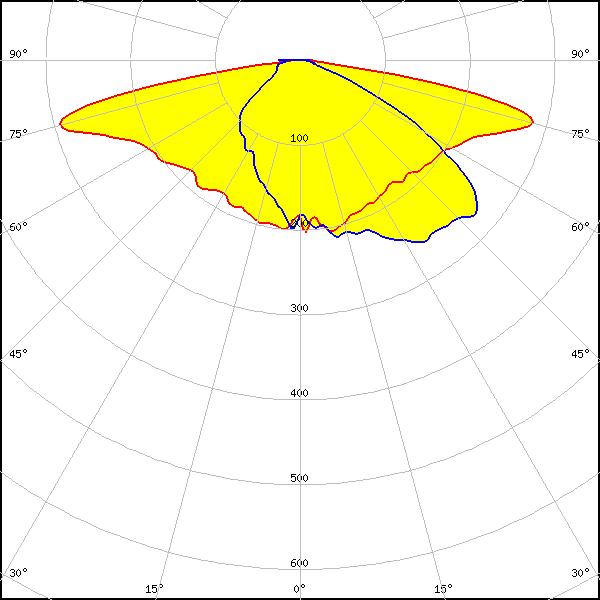

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.520 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.328 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

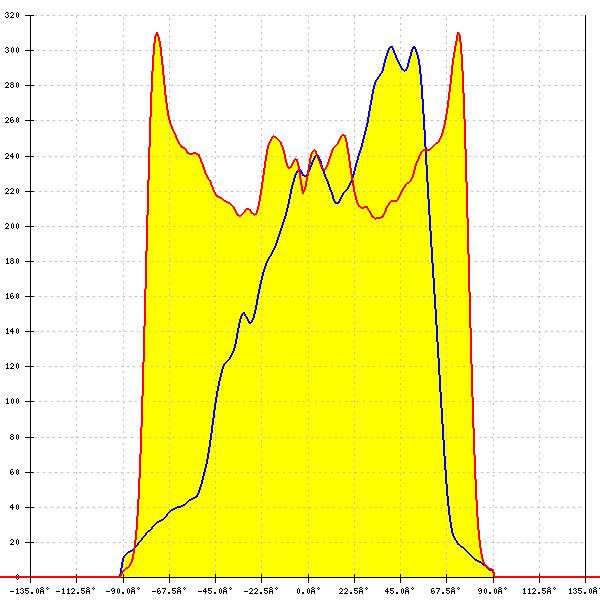

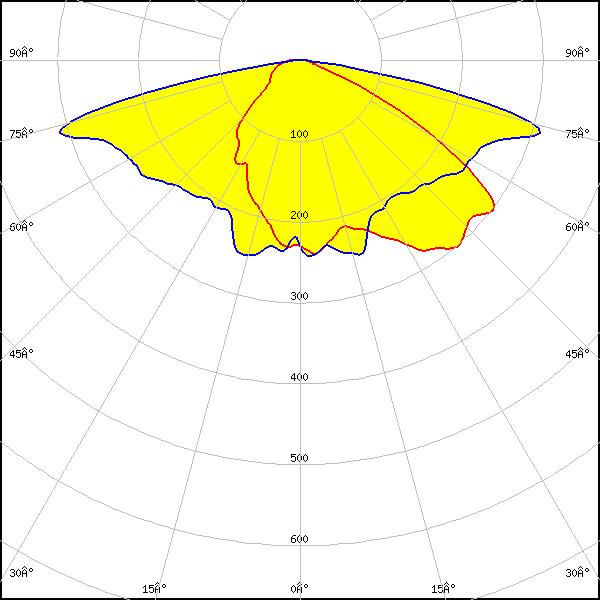

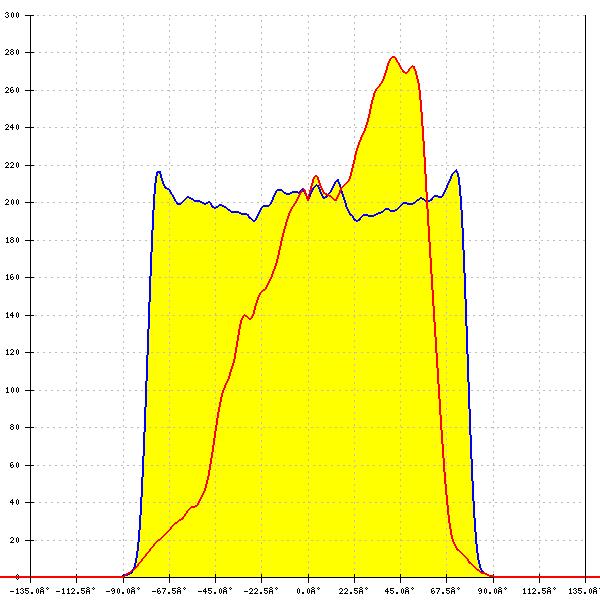

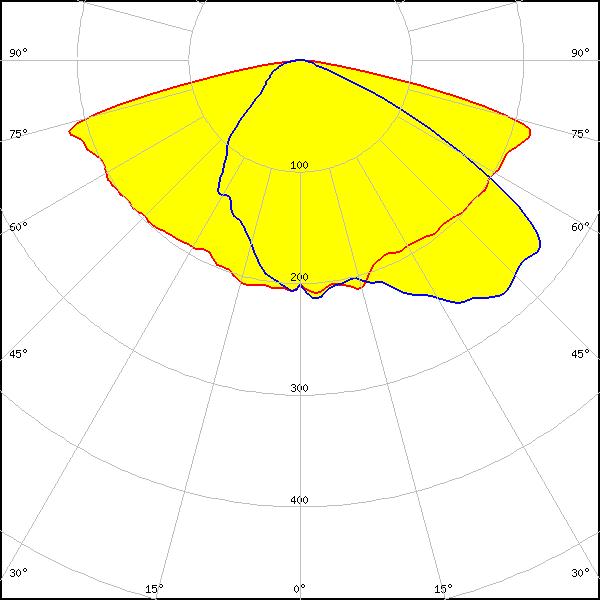

LED: XP-G4
FWHM: asymmetric
Peak intensity: 0.492 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

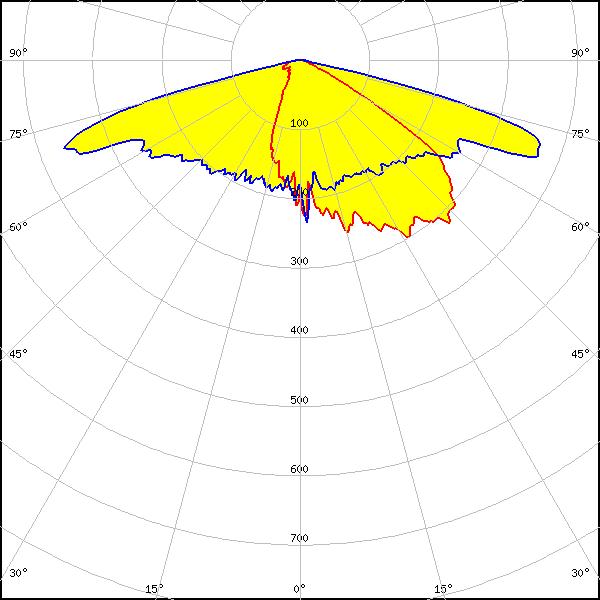

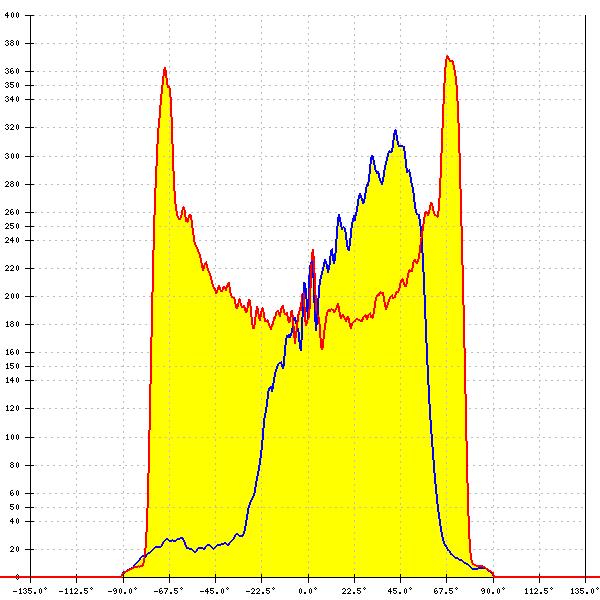

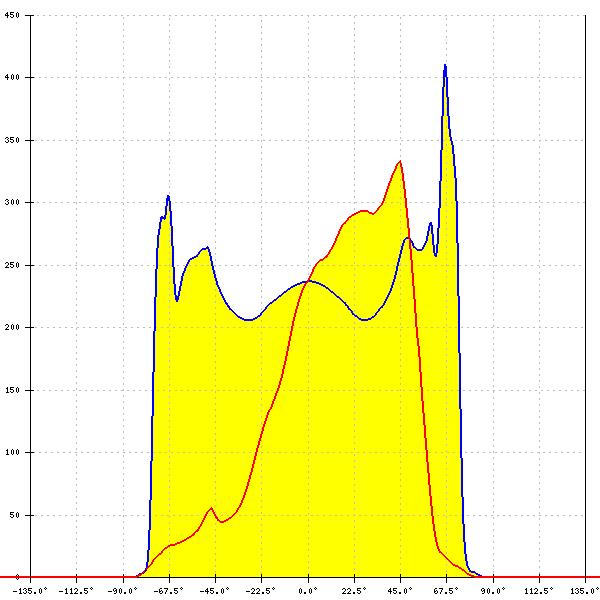

LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.817 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

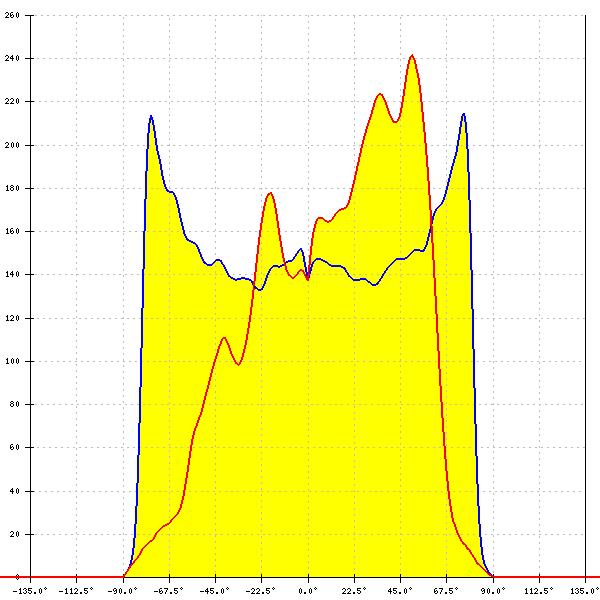

LED: LUXEON C
FWHM: asymmetric
Peak intensity: 0.410 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

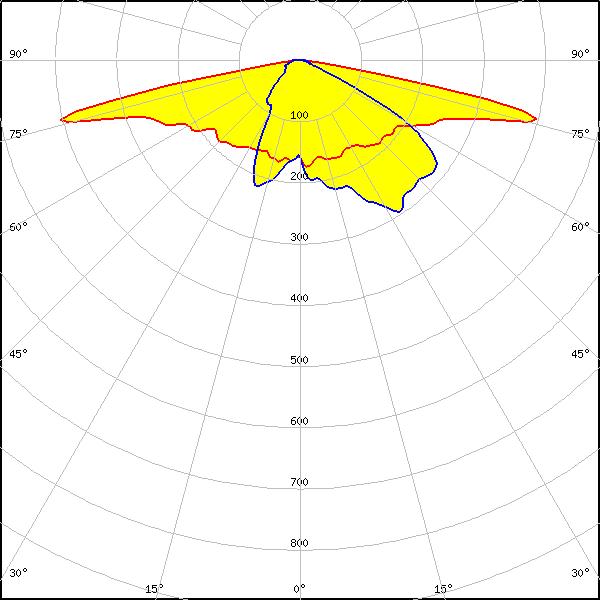

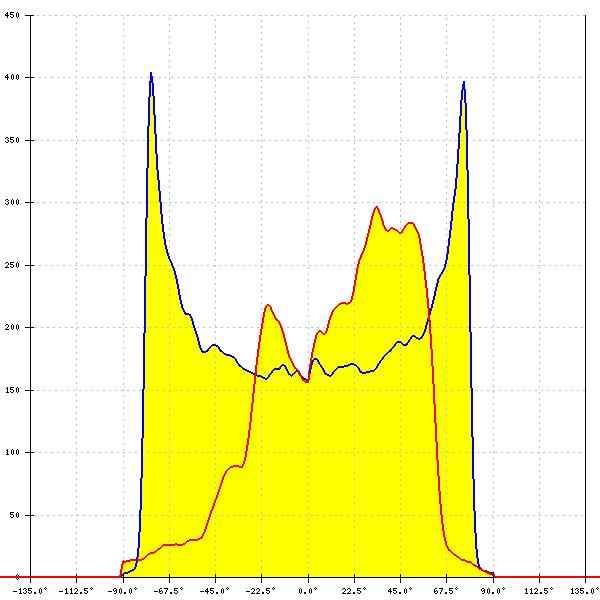

LED: LUXEON CZ
FWHM: asymmetric
Peak intensity: 0.785 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

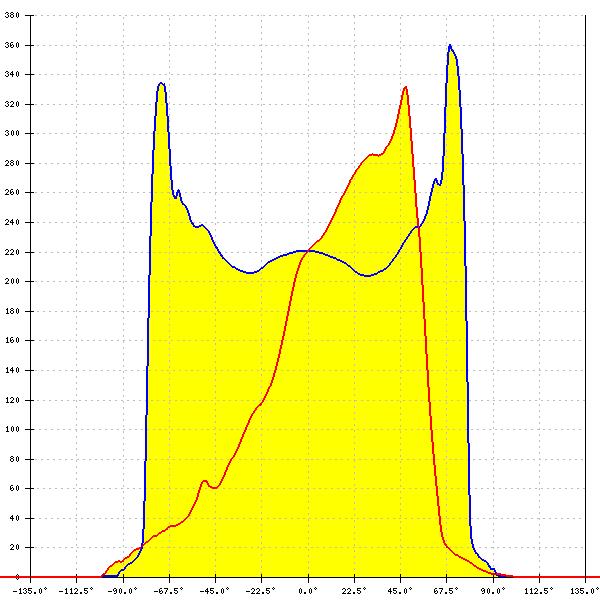

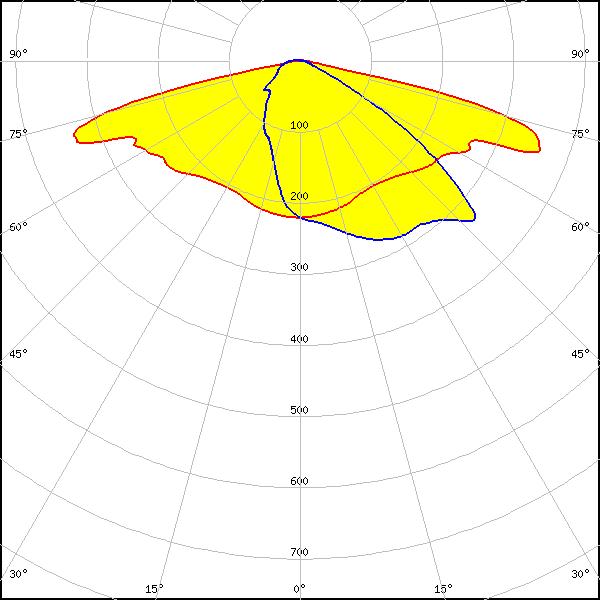

LED: LUXEON V2
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

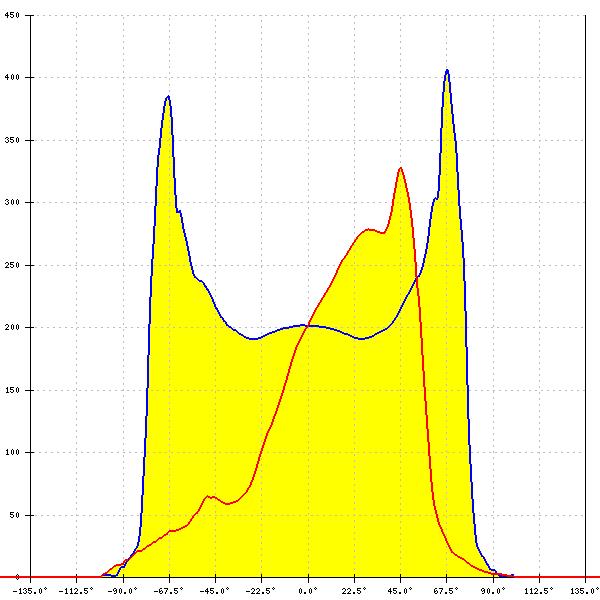

LED: NF2W585AR
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

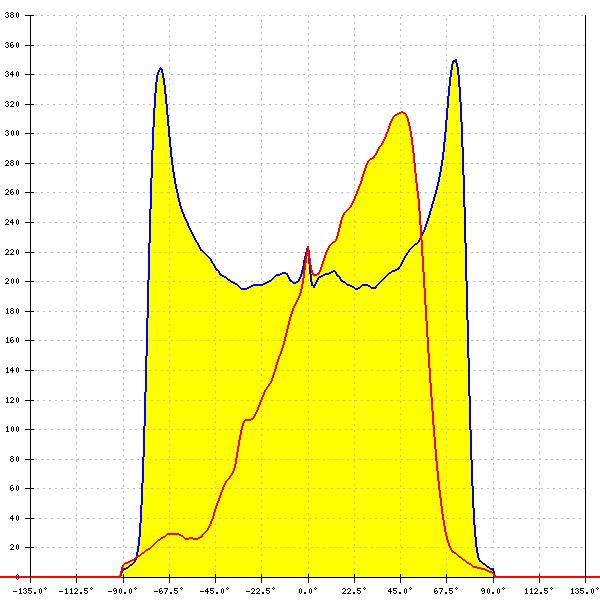

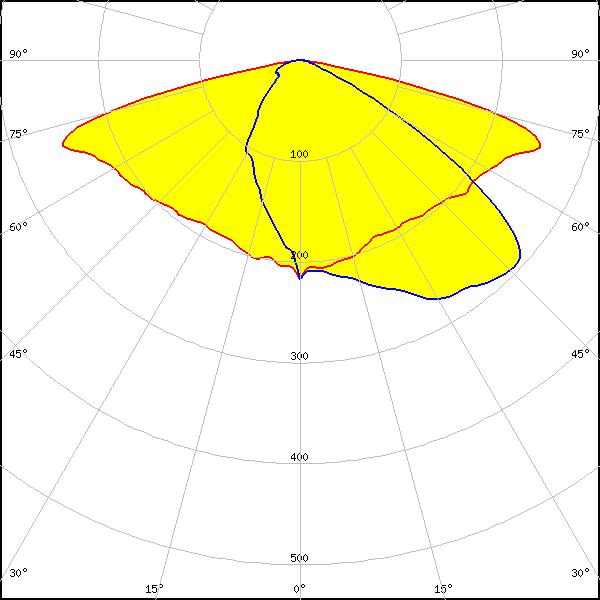

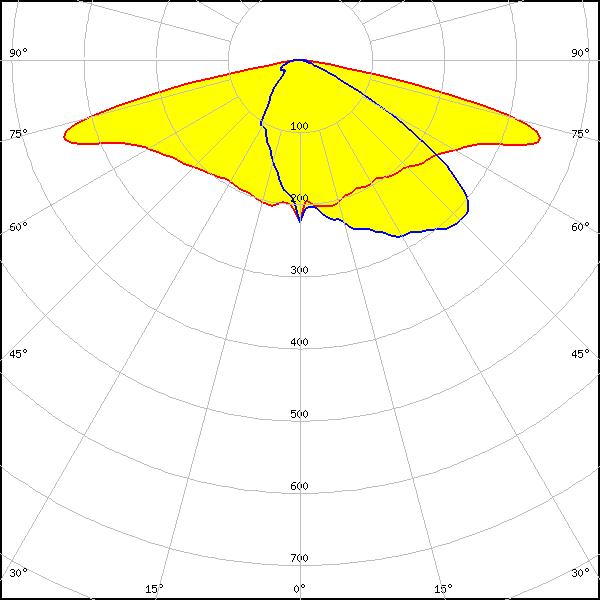

LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.607 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.428 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

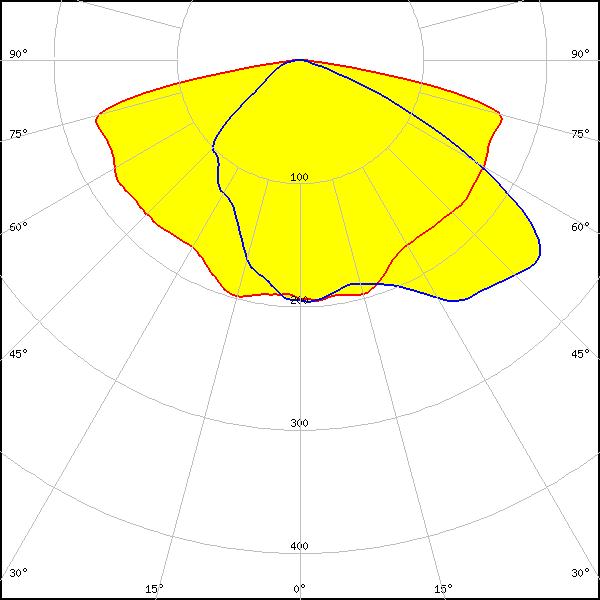

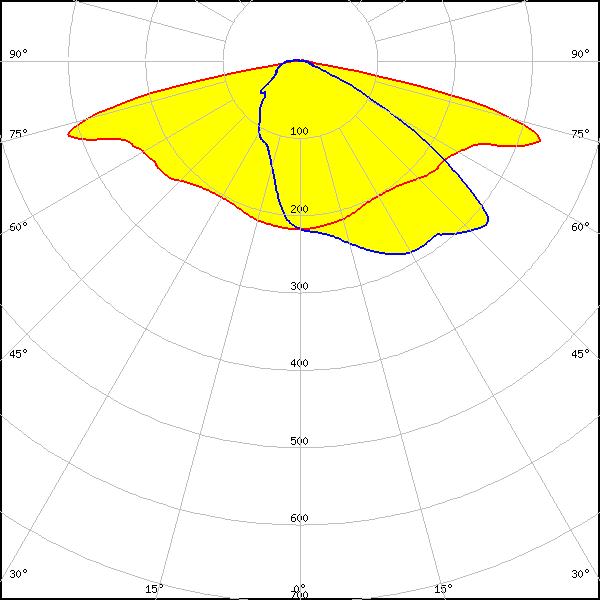

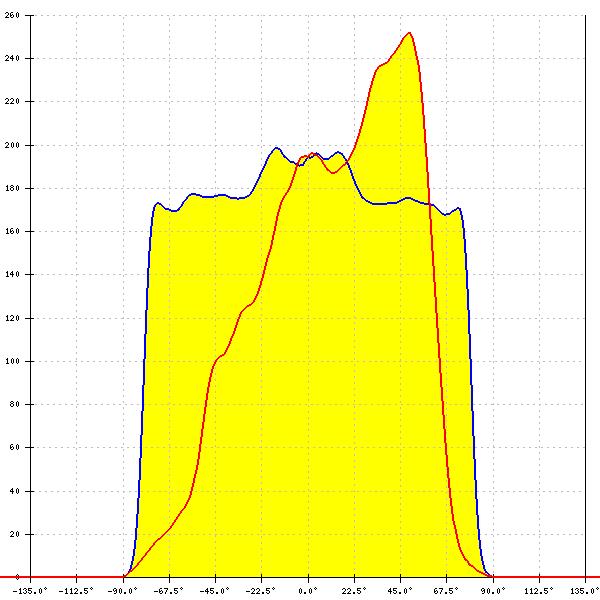

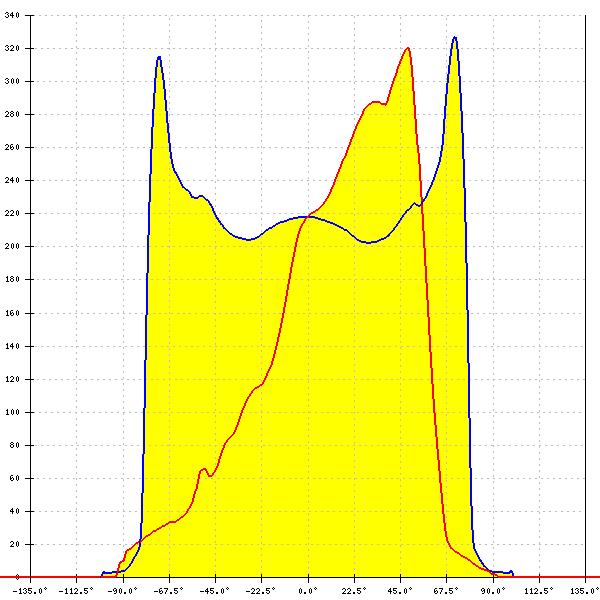

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.267 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

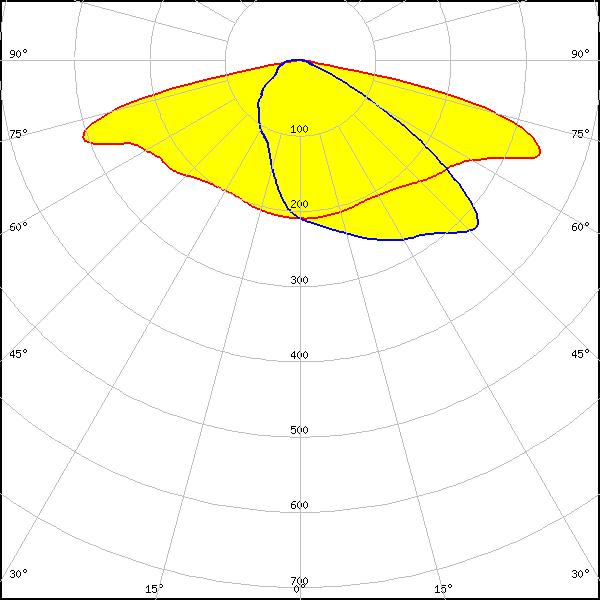

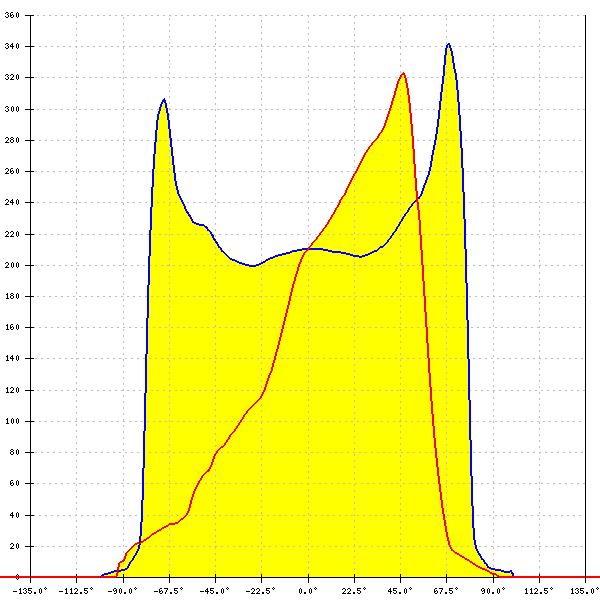

LED: NVSW319B
FWHM: asymmetric
Peak intensity: 0.570 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

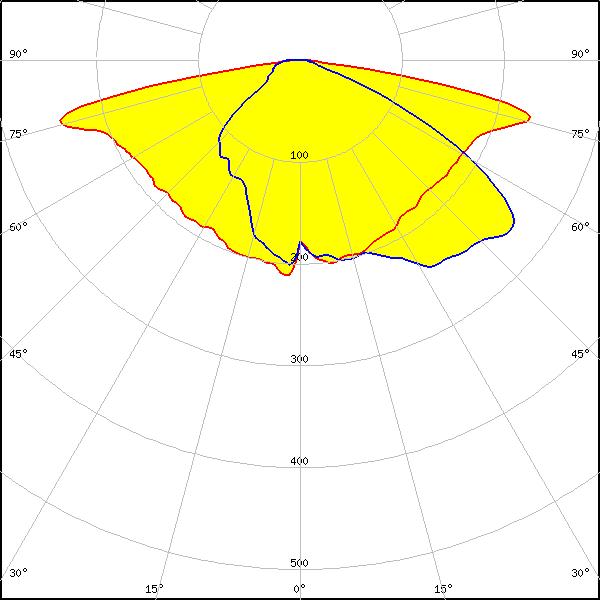

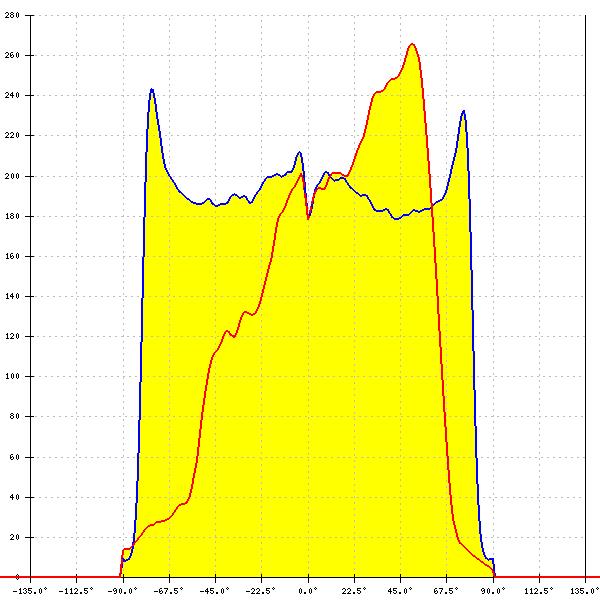

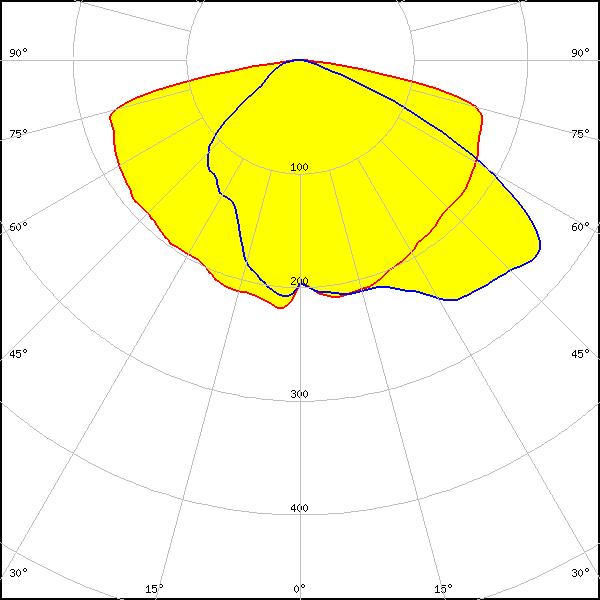

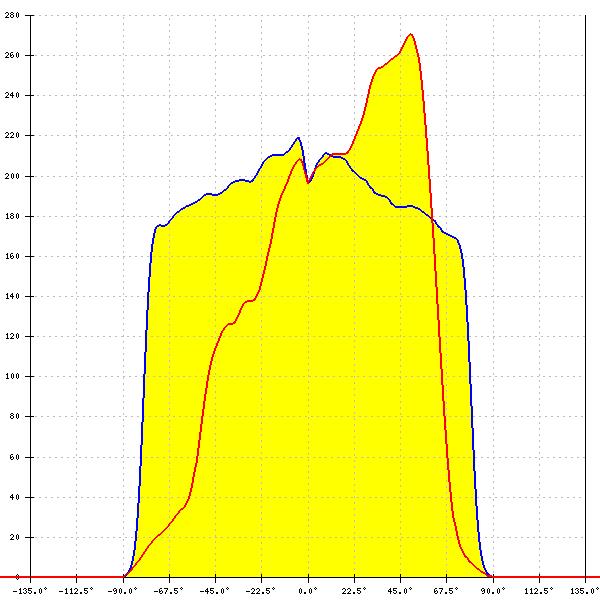

LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.274 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.409 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

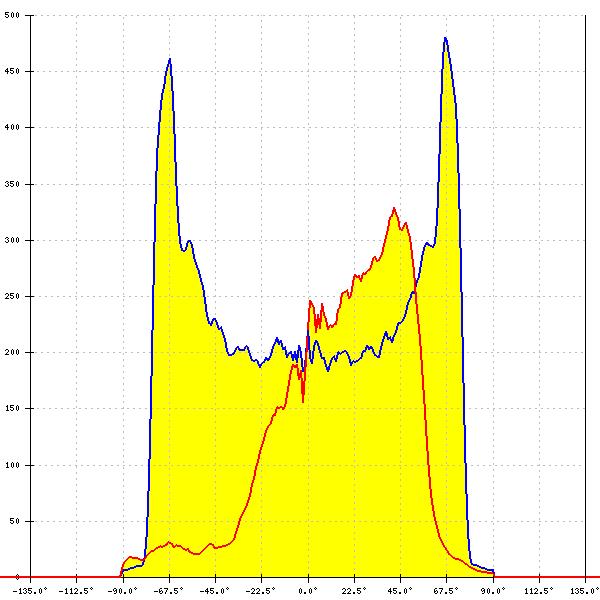

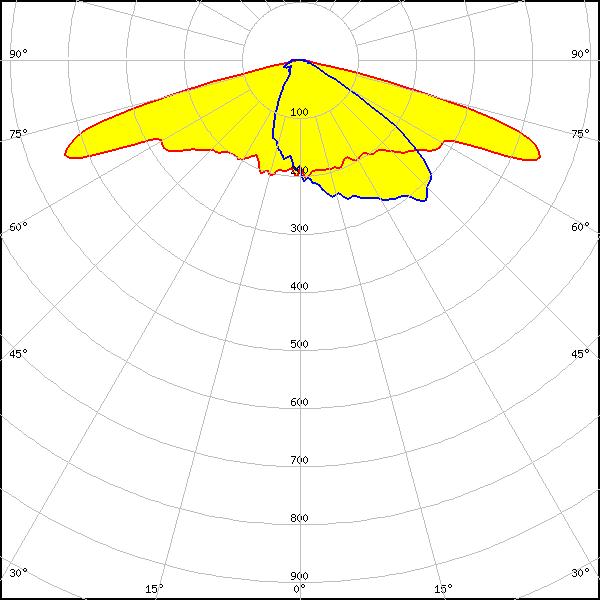

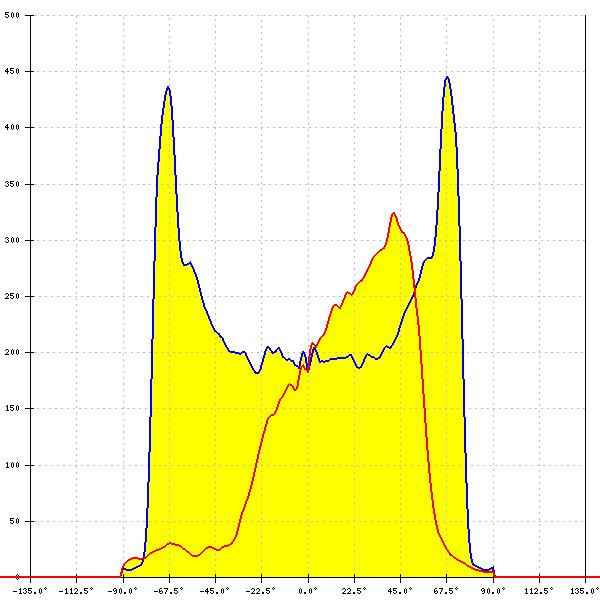

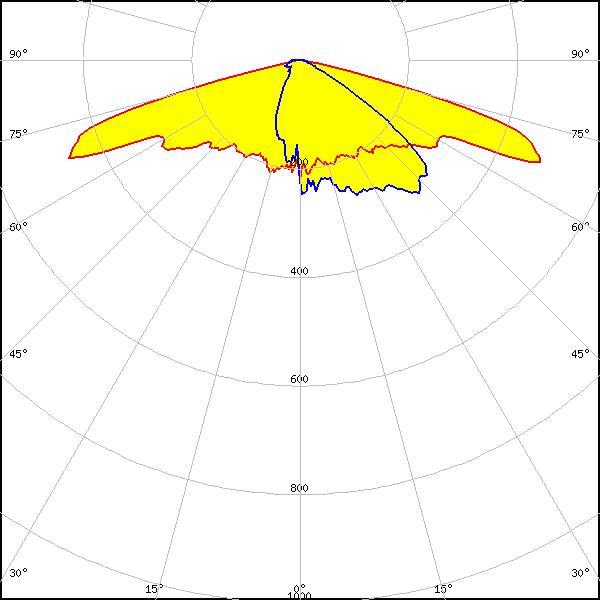

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.818 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

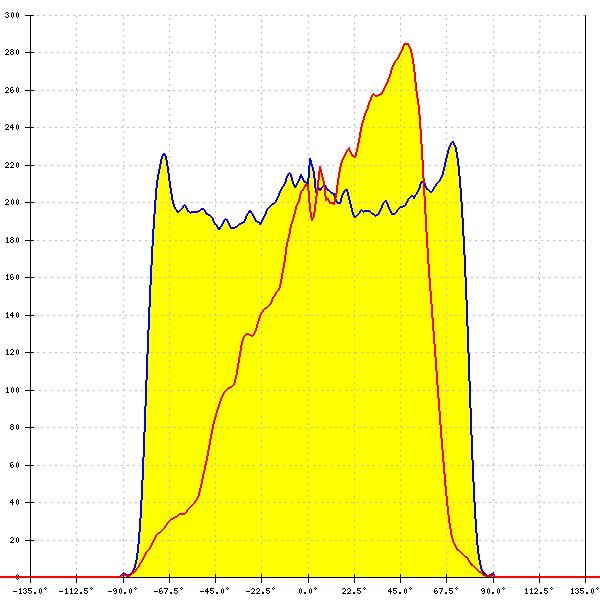

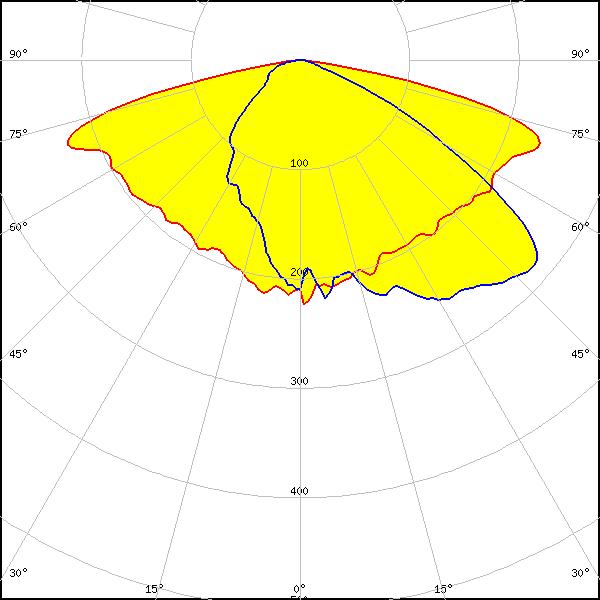

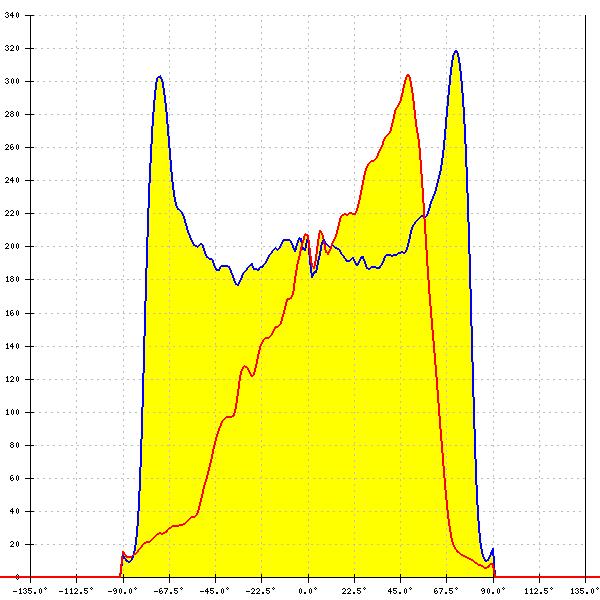

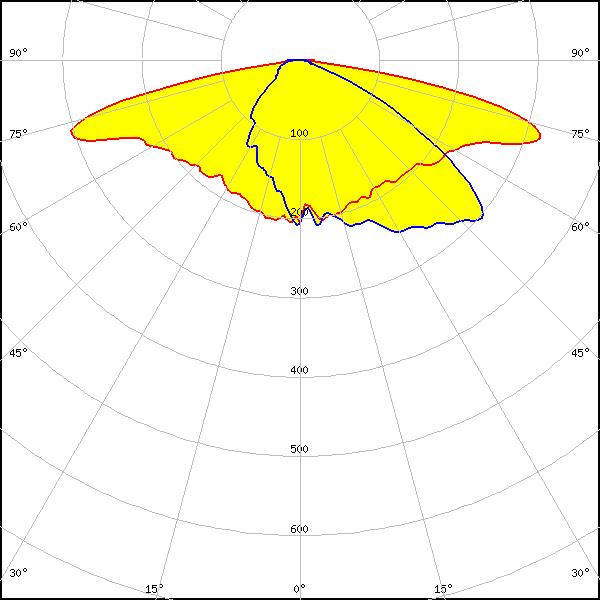

LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.540 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.380 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

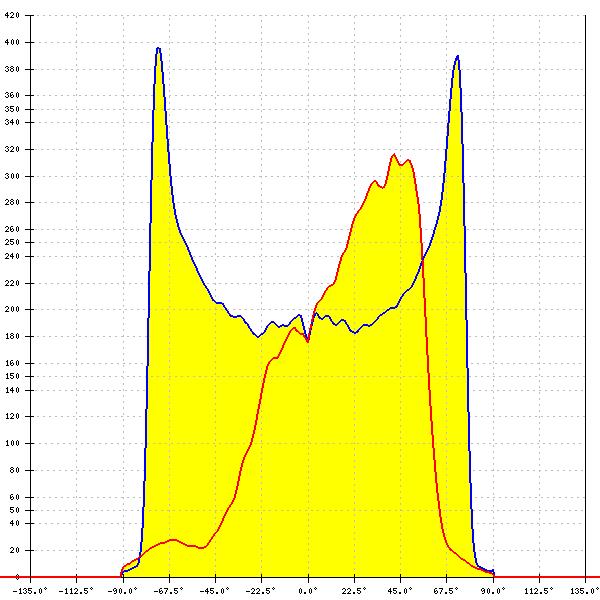

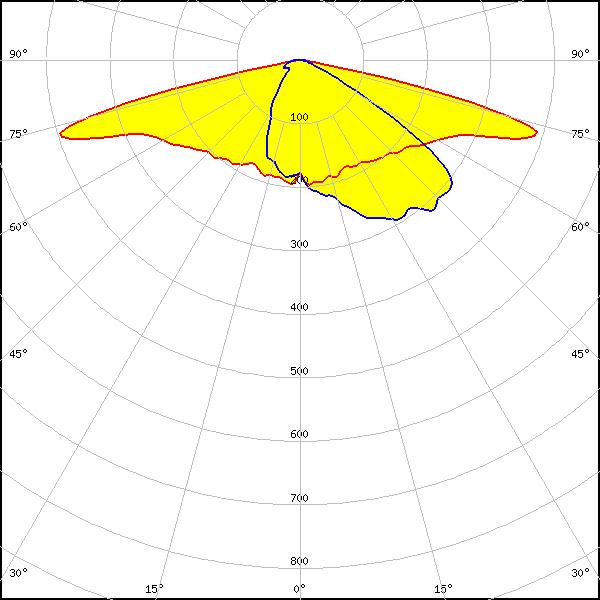

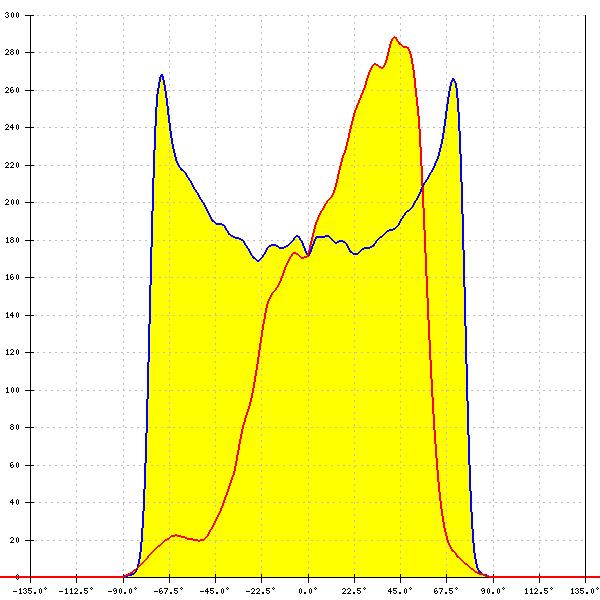

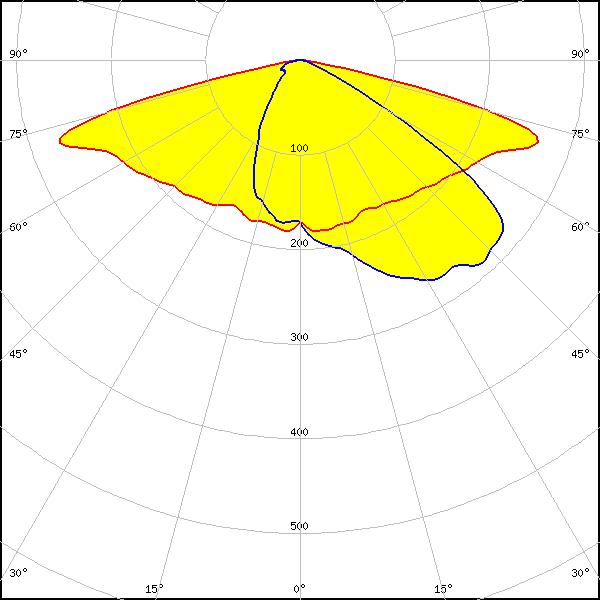

LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 0.717 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 0.450 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3030
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity: 0.710 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

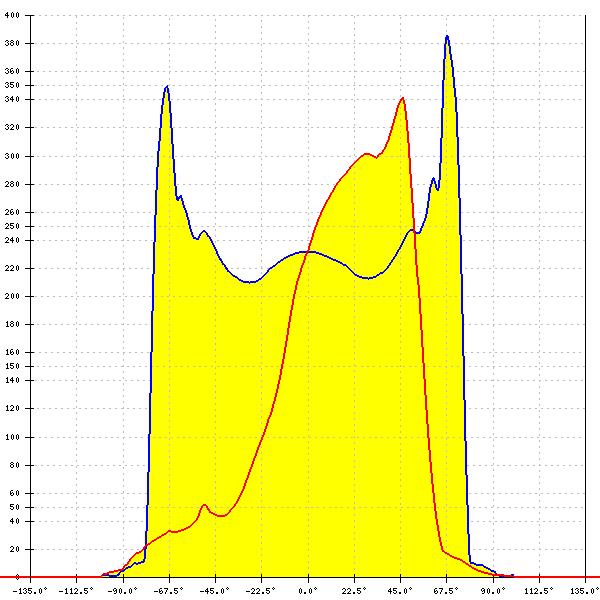

LED: OSCONIQ S 3030 (QSLR31)
FWHM: asymmetric
Peak intensity: 0.734 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

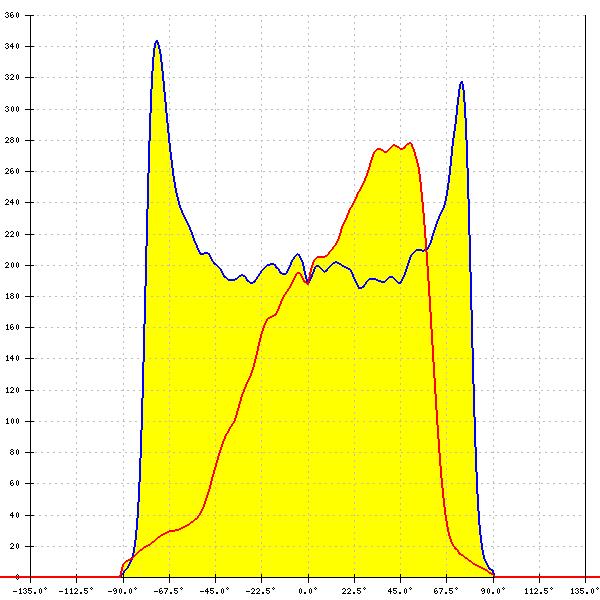

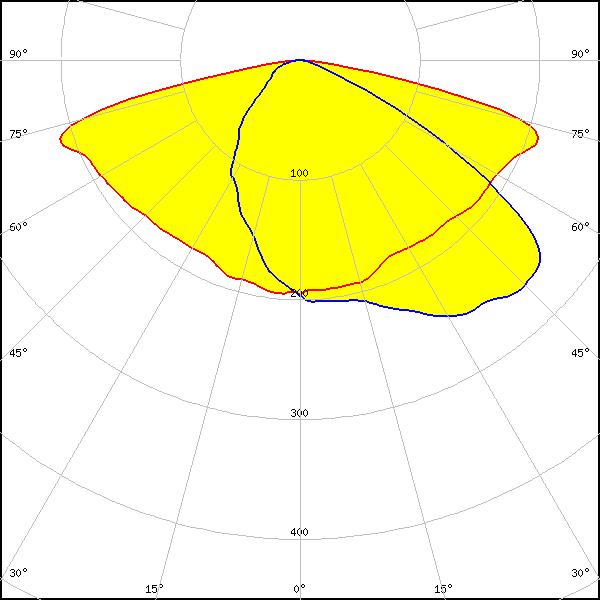

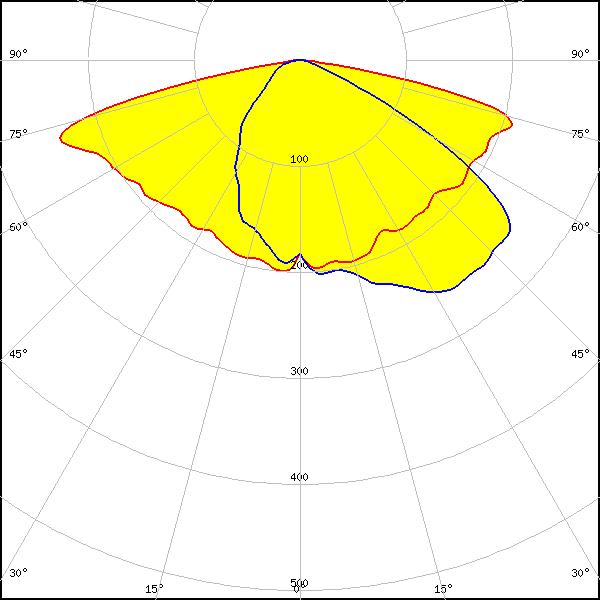

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.344 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.392 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

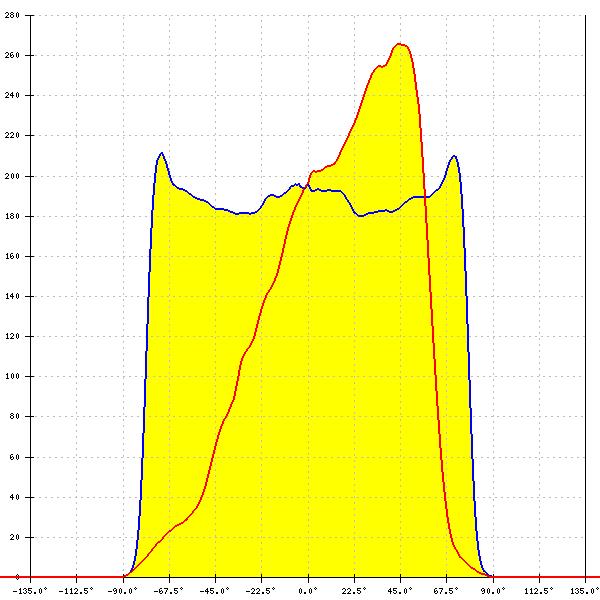

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

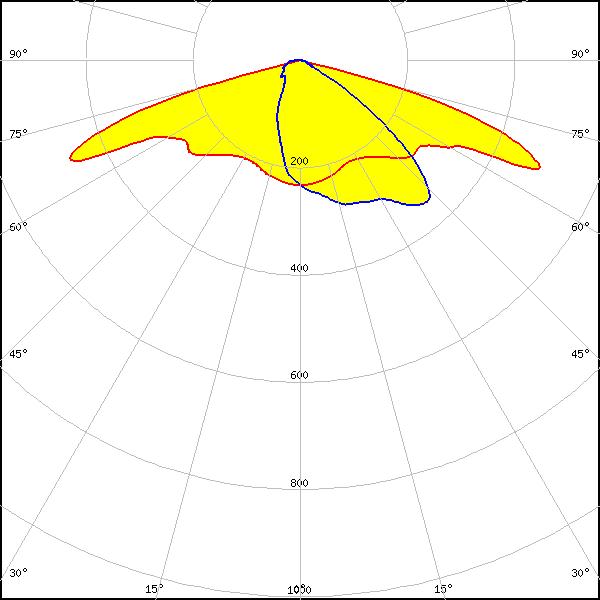

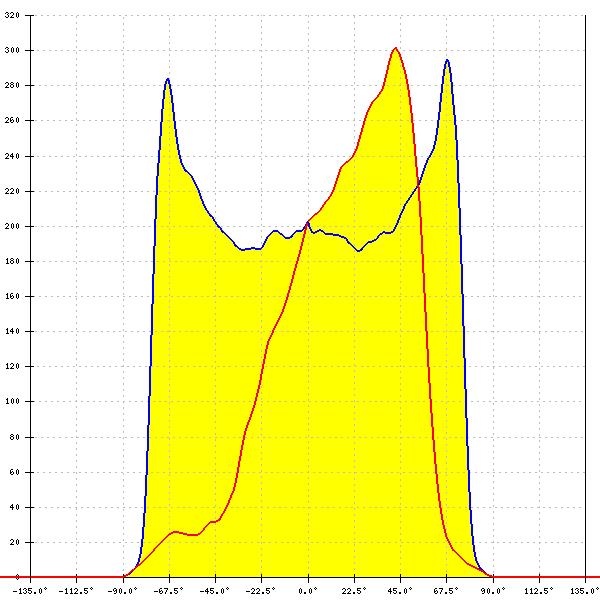

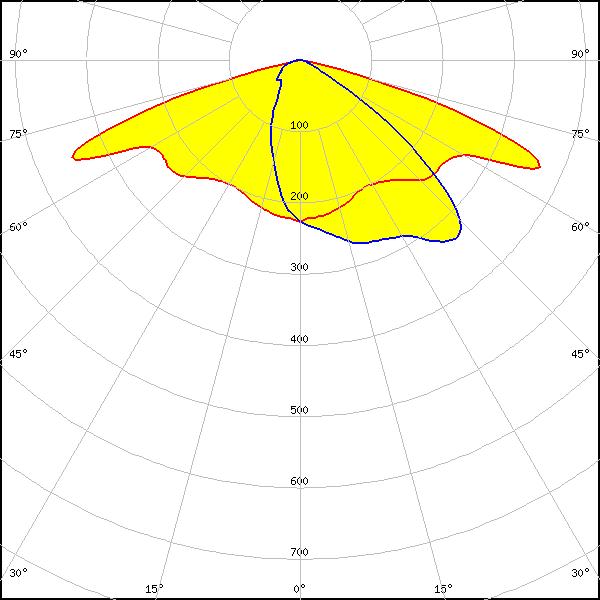

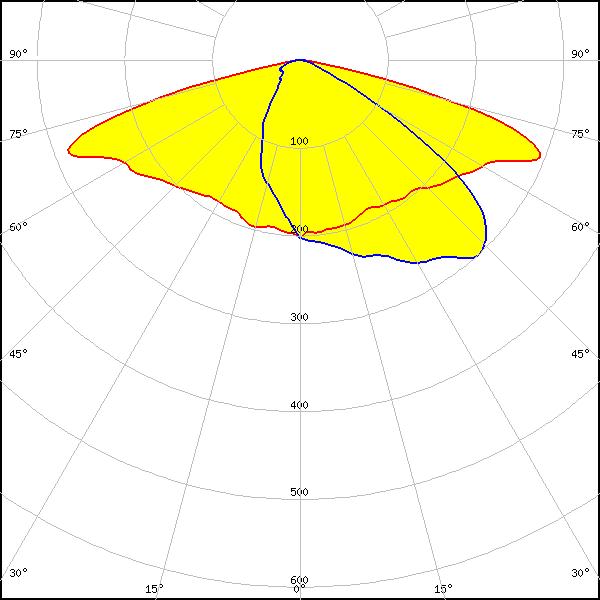

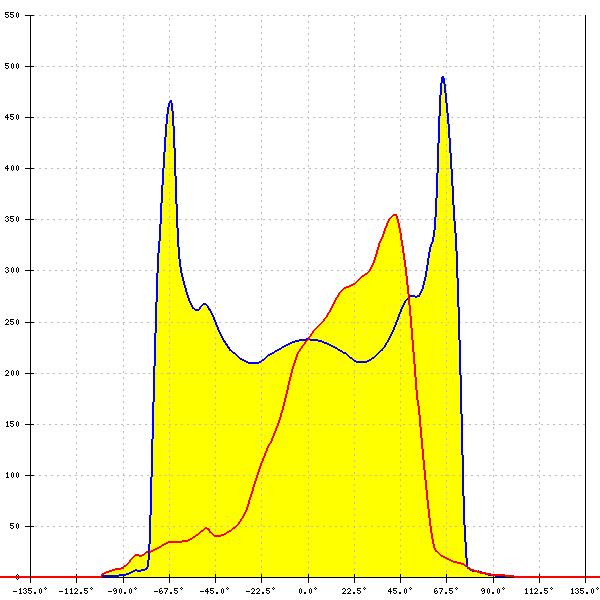

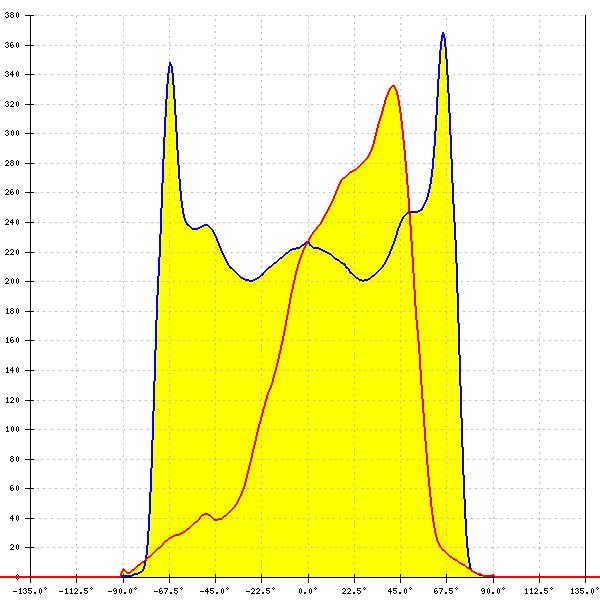

LED: Fortimo FastFlex LED 4x8up PR G5
FWHM: asymmetric
Peak intensity: 0.585 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 4x8up PR G5
FWHM: asymmetric
Peak intensity: 0.885 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

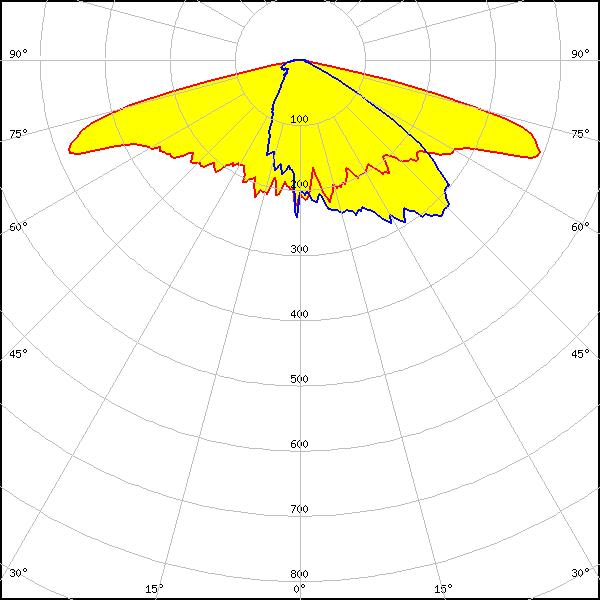

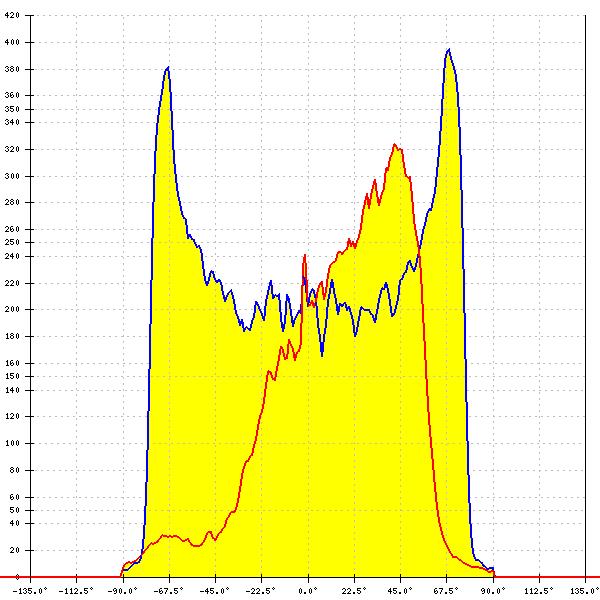

LED: LH181B
FWHM: asymmetric
Peak intensity: 0.467 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

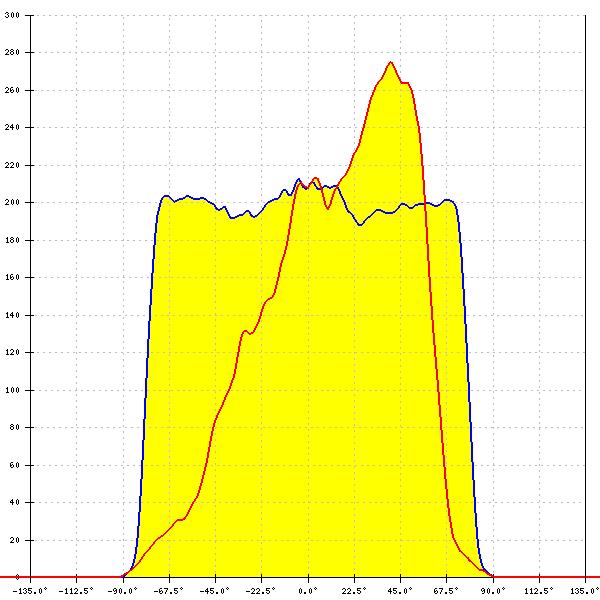

LED: LH181B
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

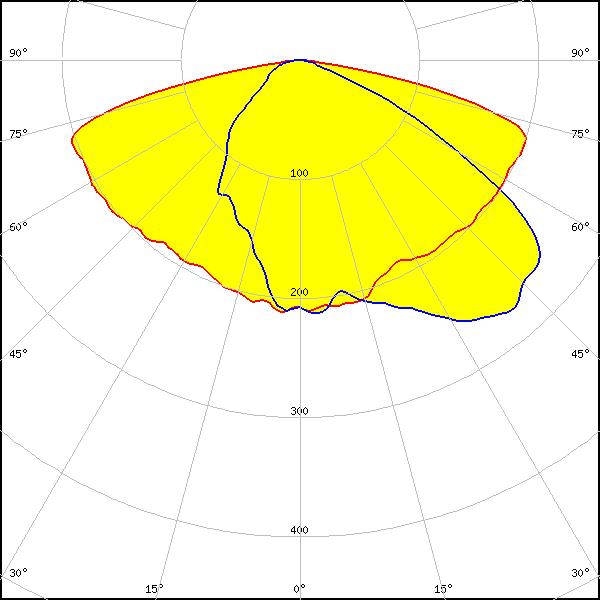

LED: LH351B
FWHM: asymmetric
Peak intensity: 0.310 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 0.439 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

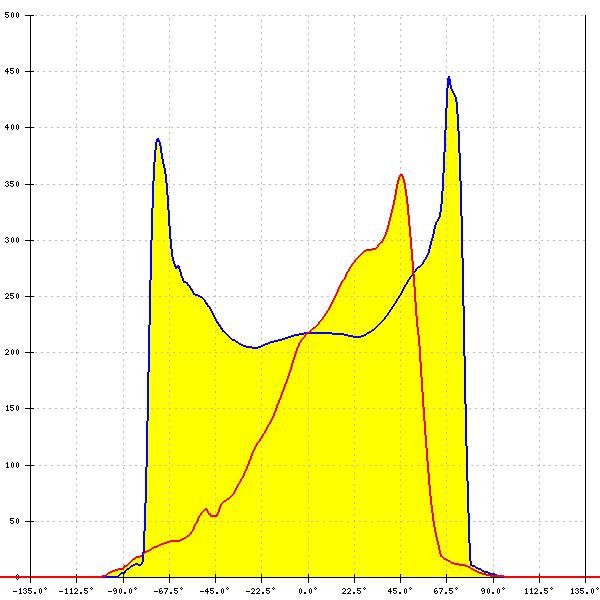

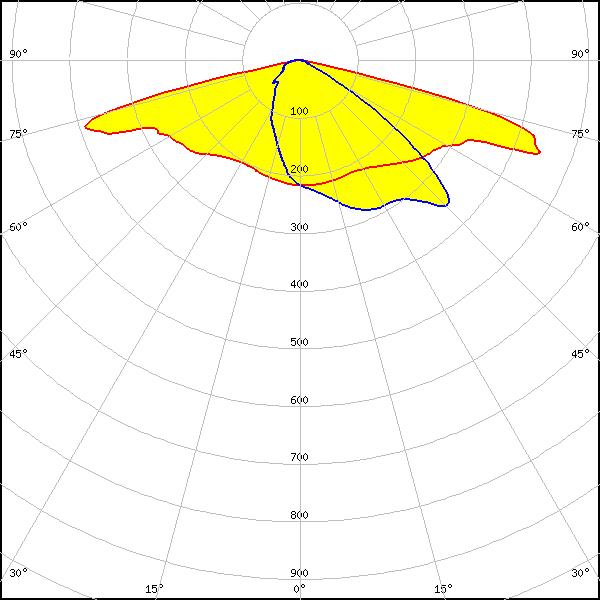

LED: SEOUL DC 3030C
FWHM: asymmetric
Peak intensity: 0.737 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

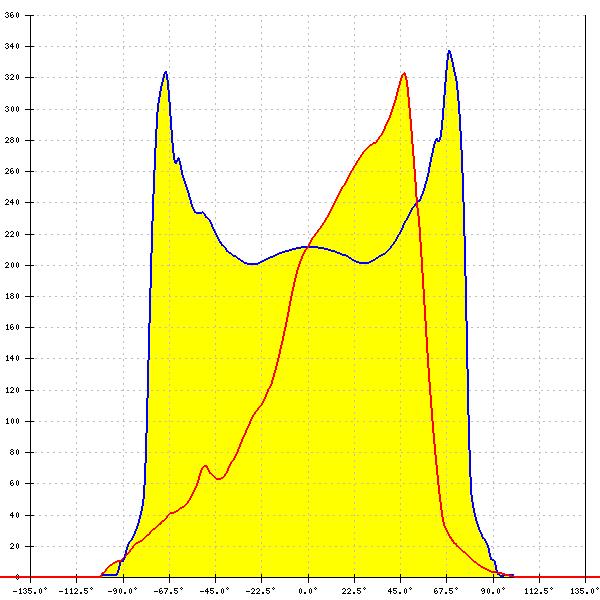

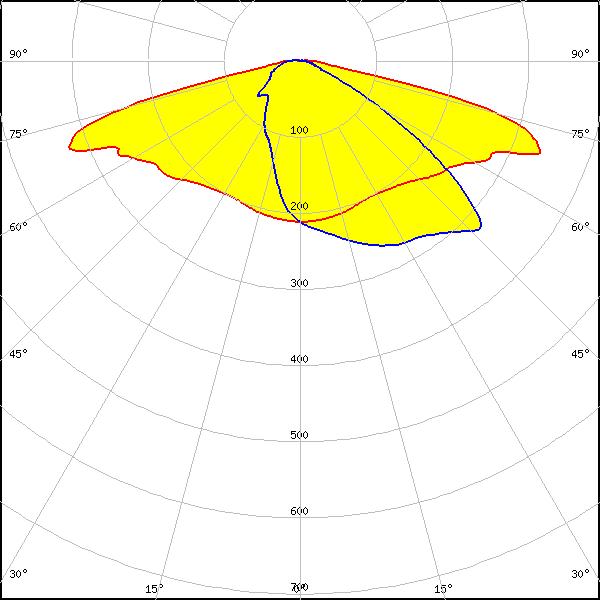

LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

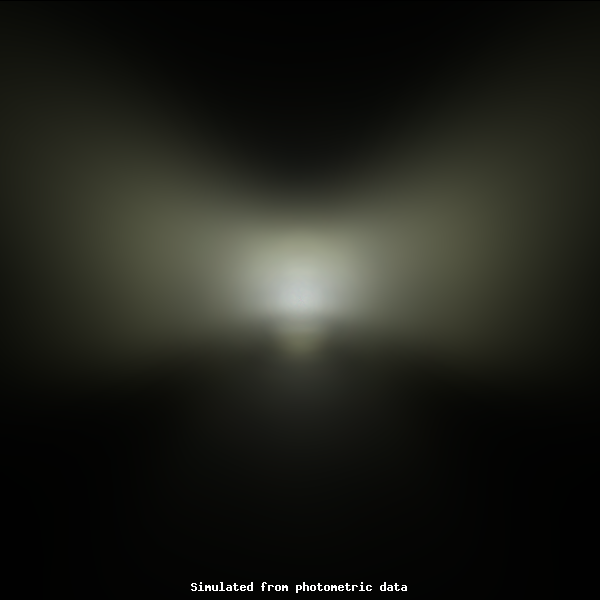

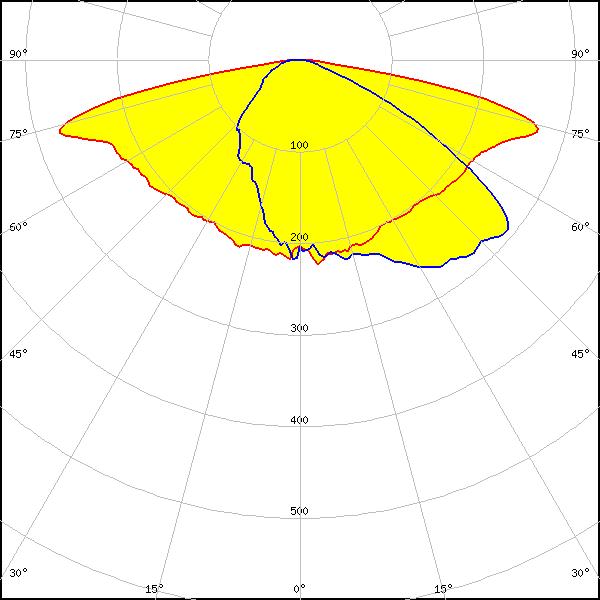

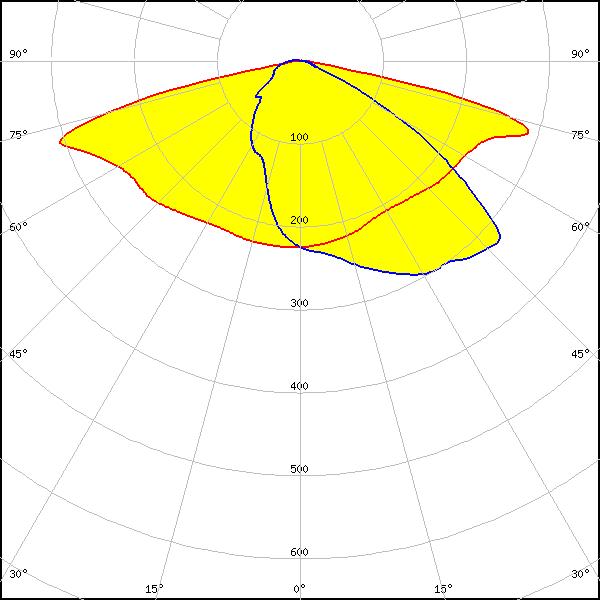

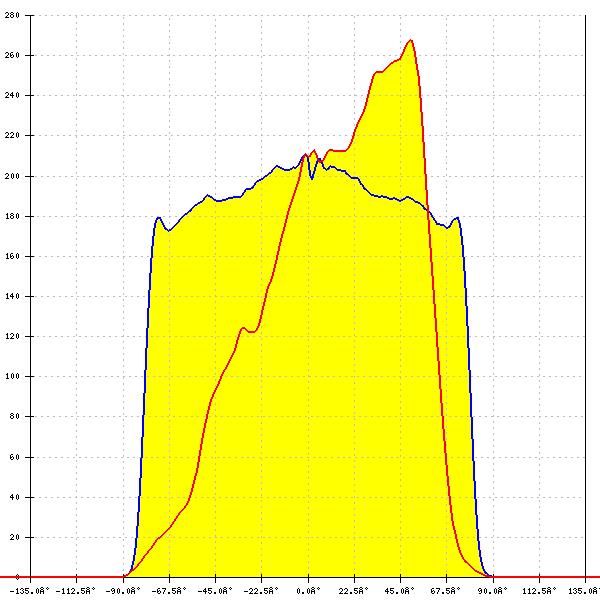

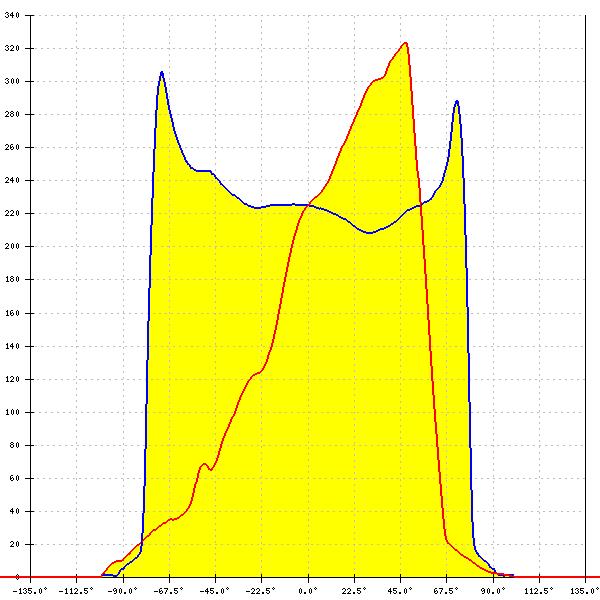

LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.367 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.542 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

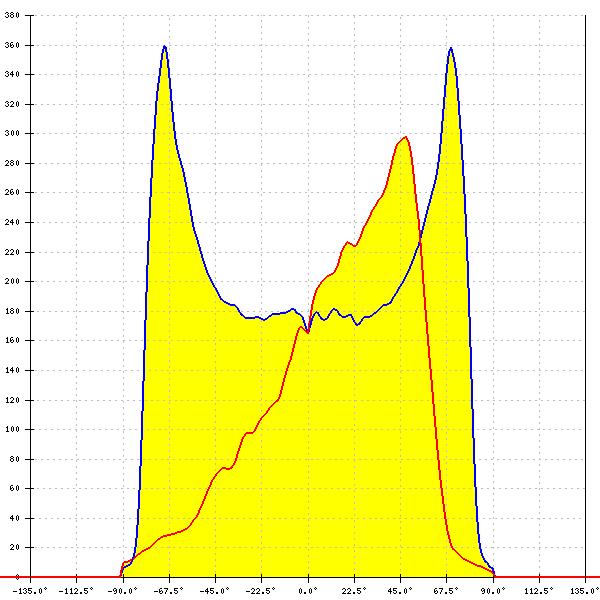

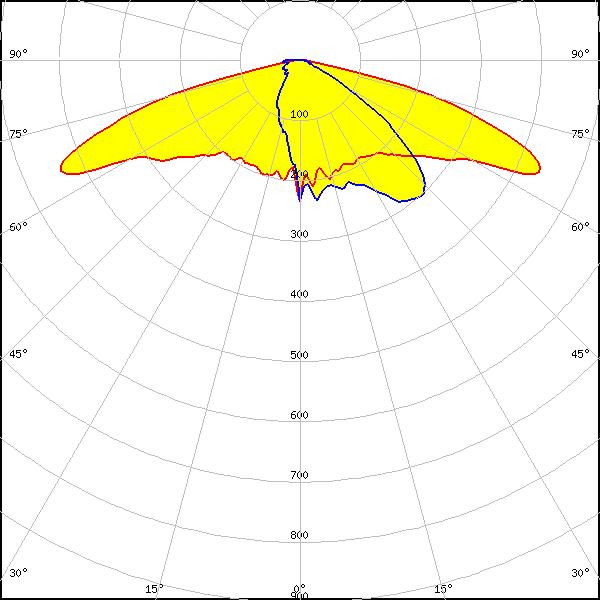

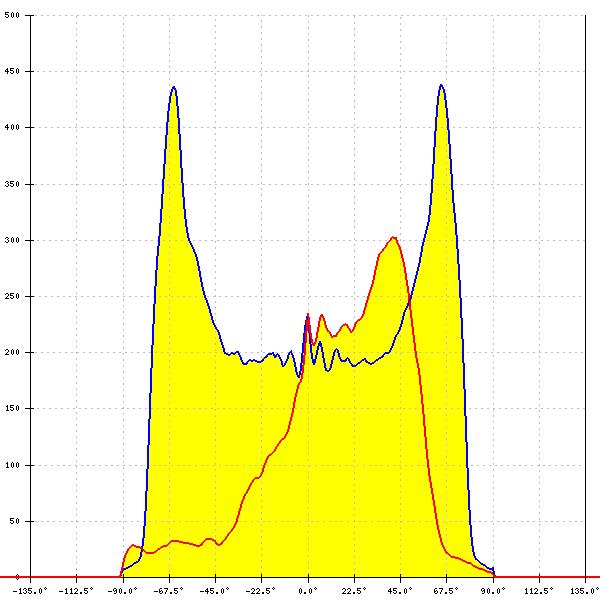

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.710 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

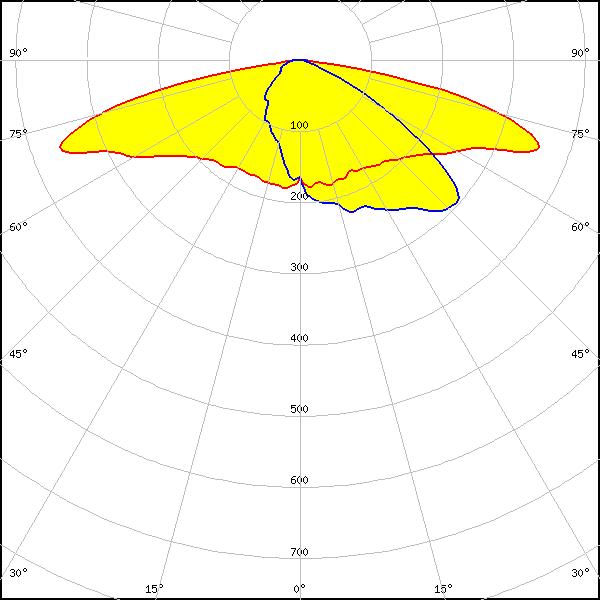

LED: Z8Y22P
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
