C16118_STRADELLA-8-HV-HB-O
Print

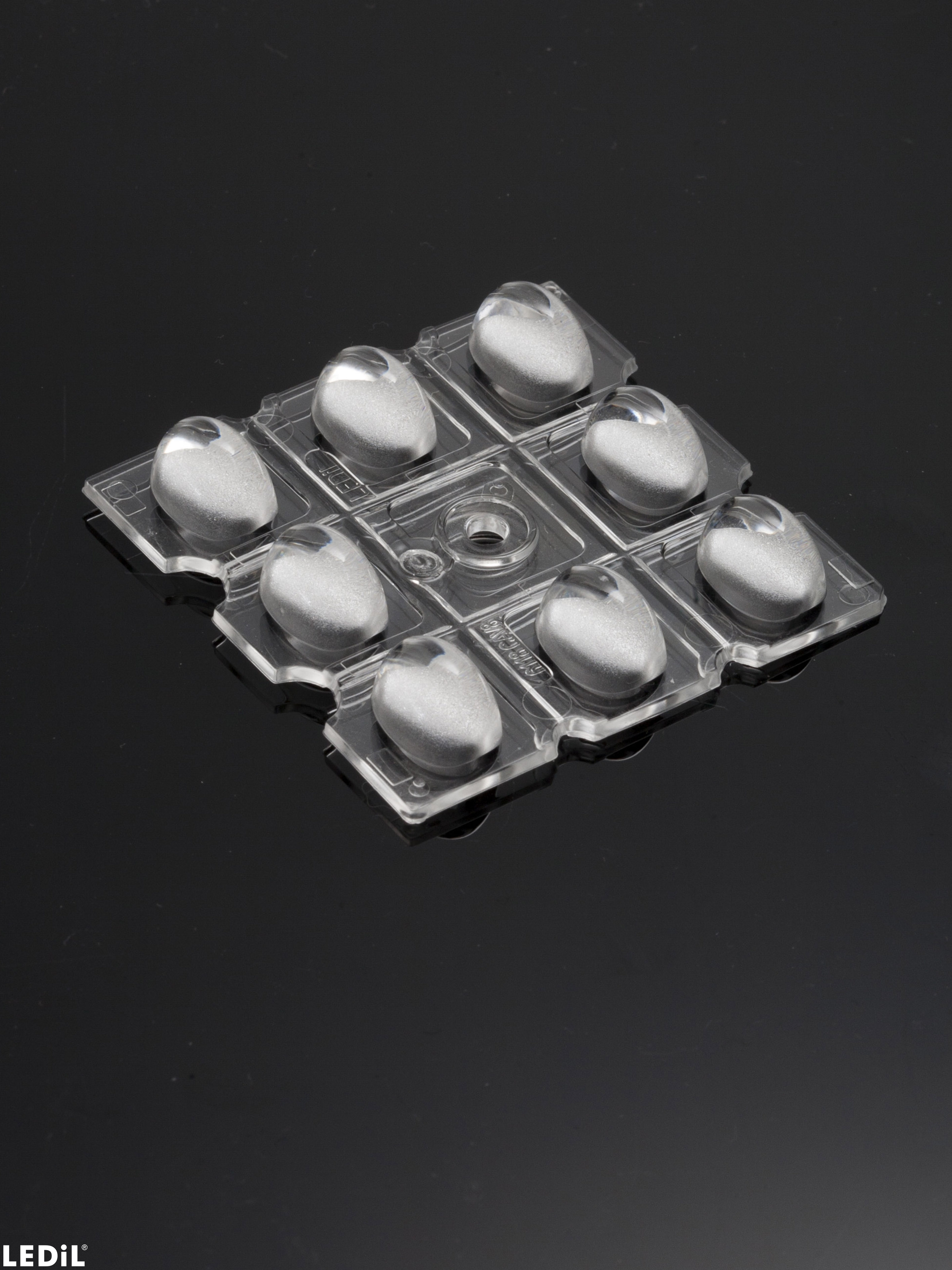

Oval beam for high bay aisles. Variant with improved creepage distance for high voltage circuit design.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

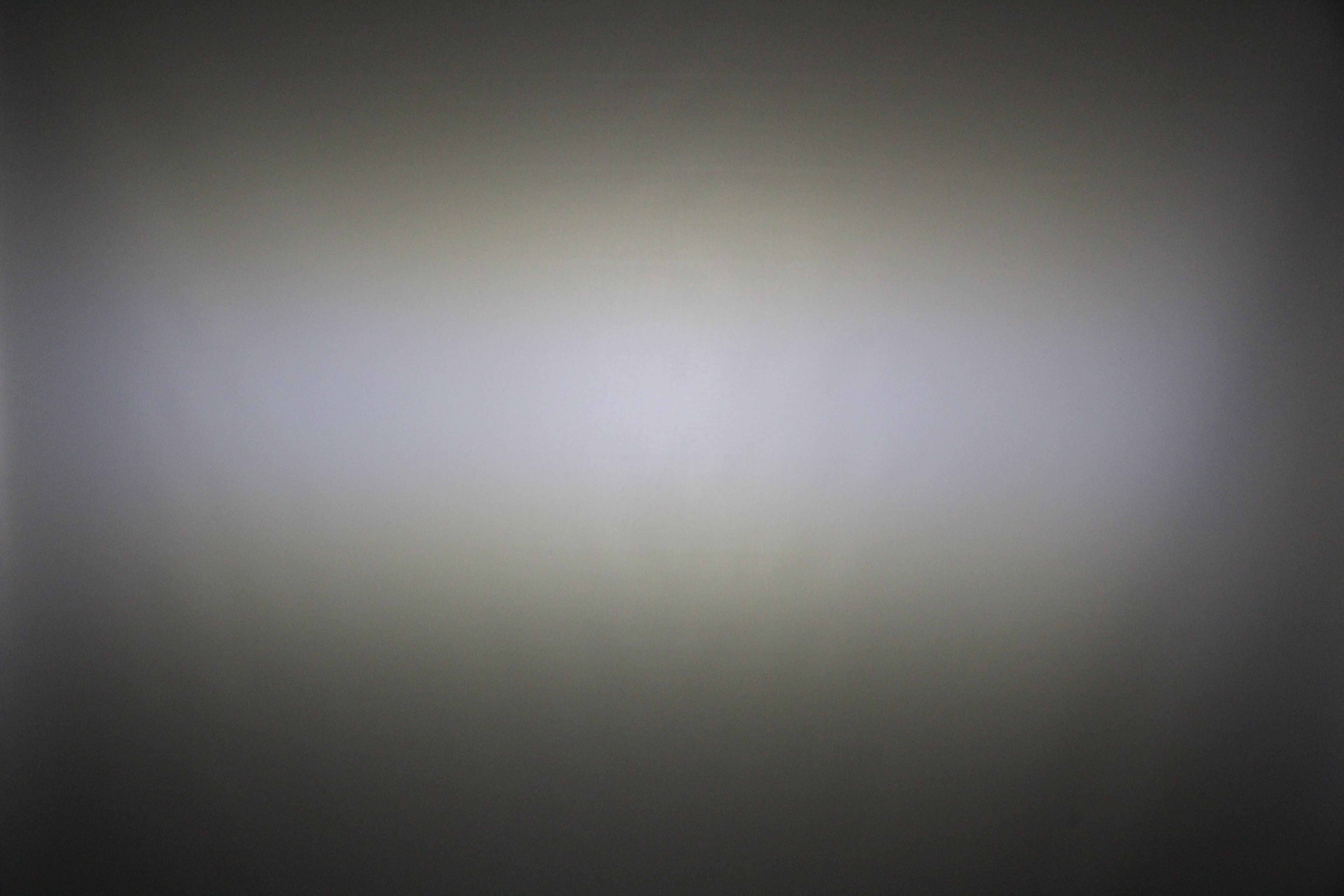

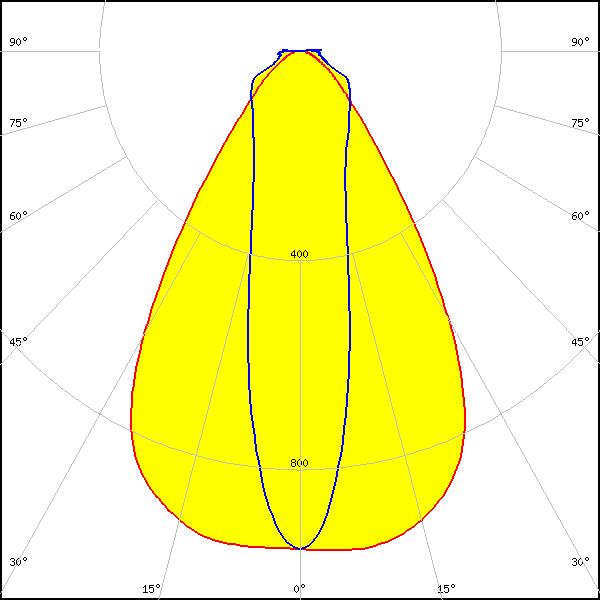

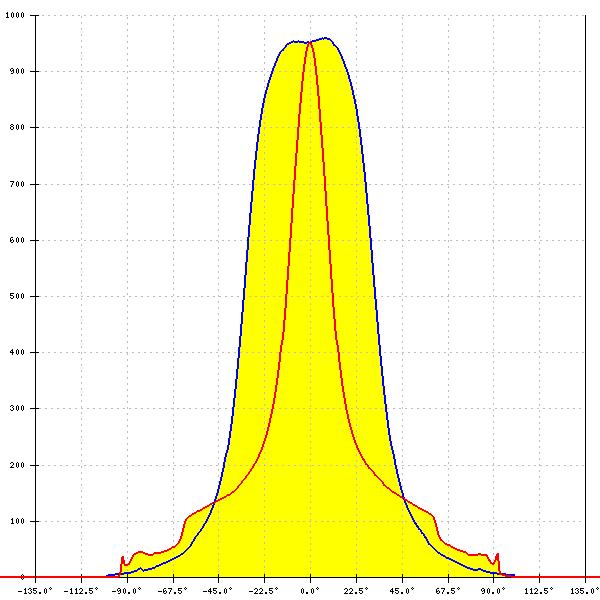

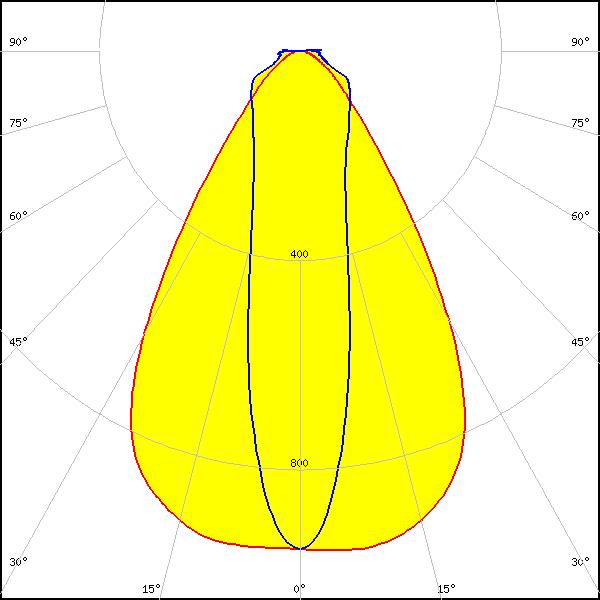

LED:
J Series 3030
FWHM:
66° + 25°
FWTM:
103° + 124°
Peak intensity:
0.959 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

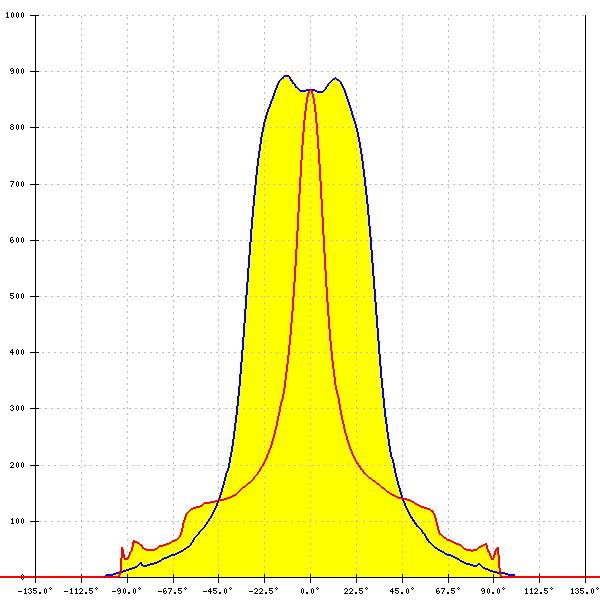

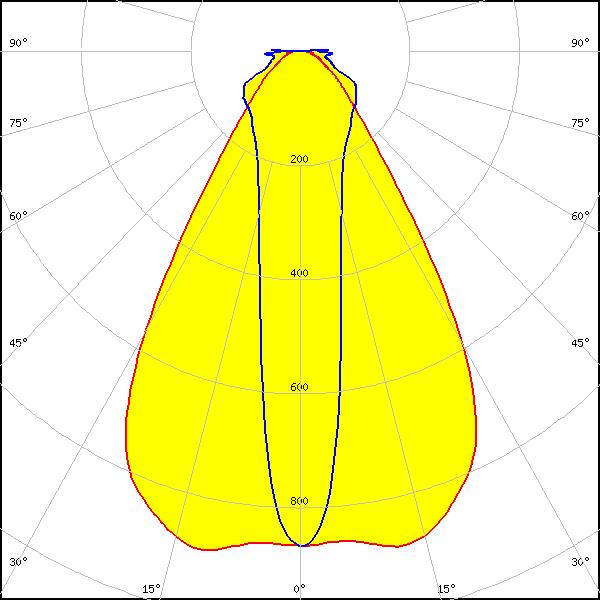

LED:
XD16
FWHM:
66° + 20°
FWTM:
106° + 126°
Peak intensity:
0.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

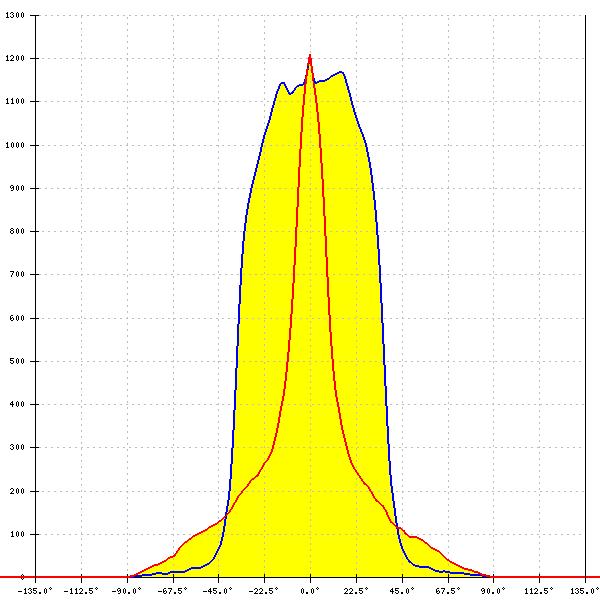

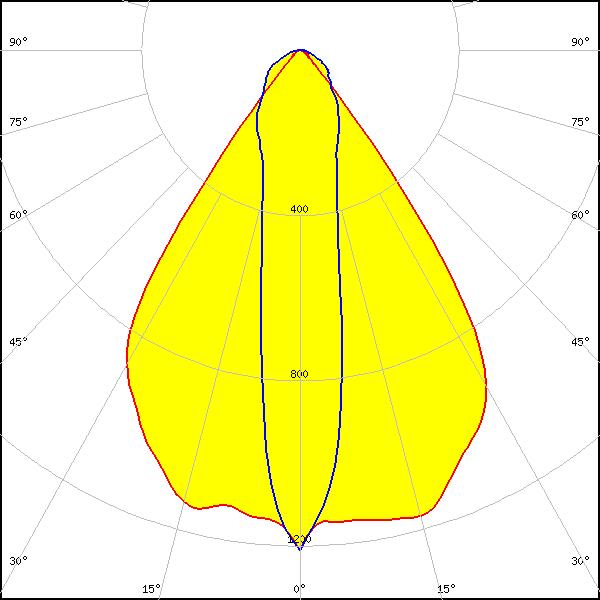

LED:
XP-G2
FWHM:
70° + 20°
FWTM:
90° + 120°
Peak intensity:
1.544 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

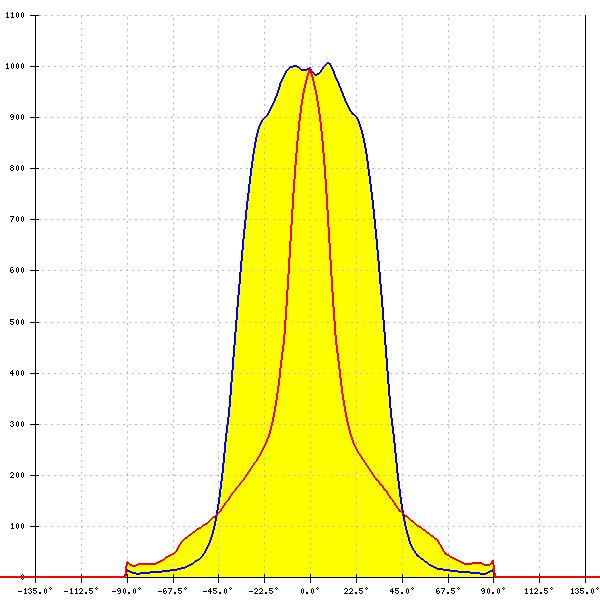

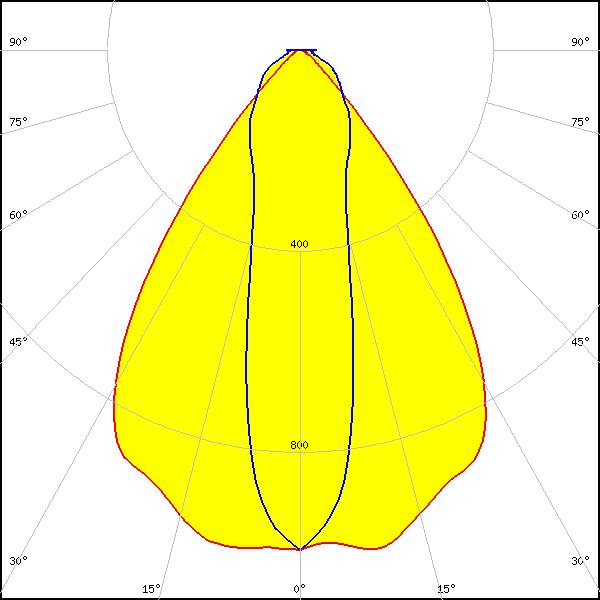

LED:
XP-G2 HE
FWHM:
72° + 24°
FWTM:
94° + 106°
Peak intensity:
1.007 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

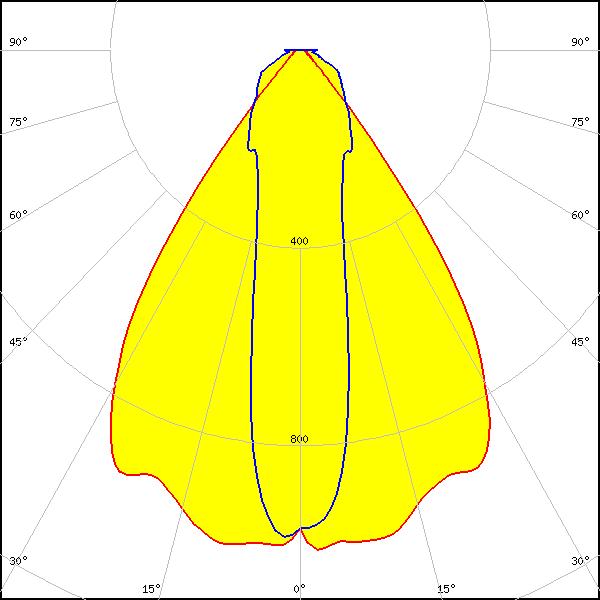

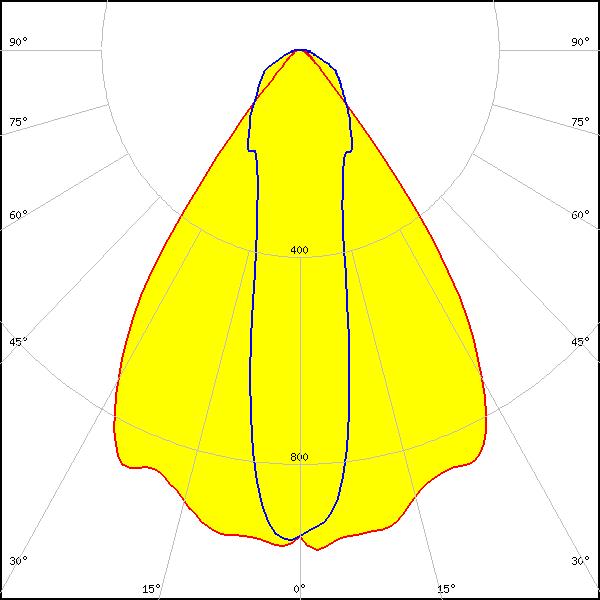

LED:

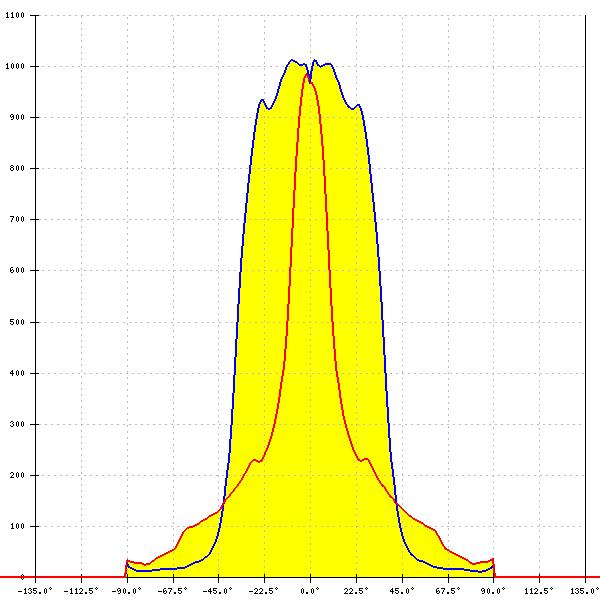

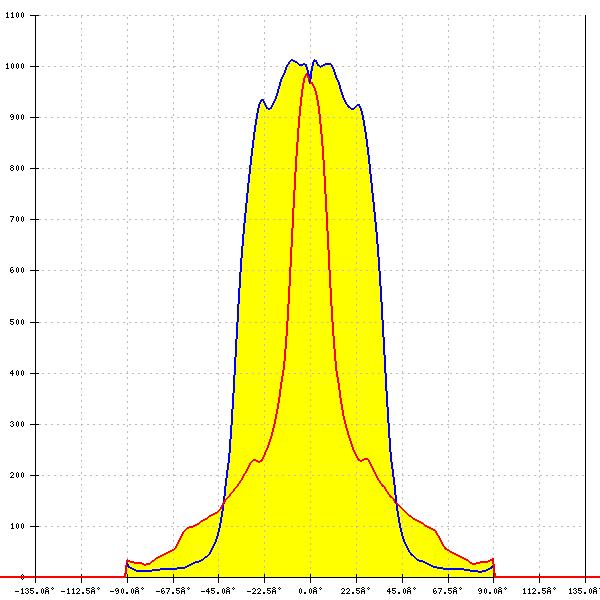

XP-G3
FWHM:
72° + 22°
FWTM:
88° + 116°
Peak intensity:
1.013 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

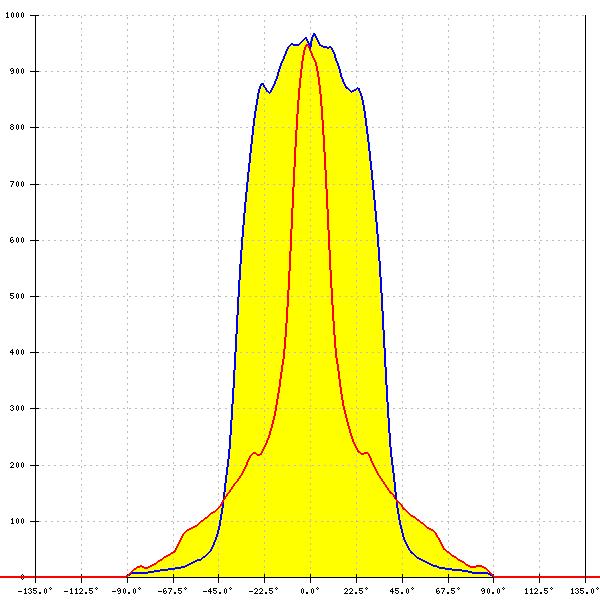

LED:
XP-G3
FWHM:
71° + 22°
FWTM:
88° + 110°
Peak intensity:
0.968 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

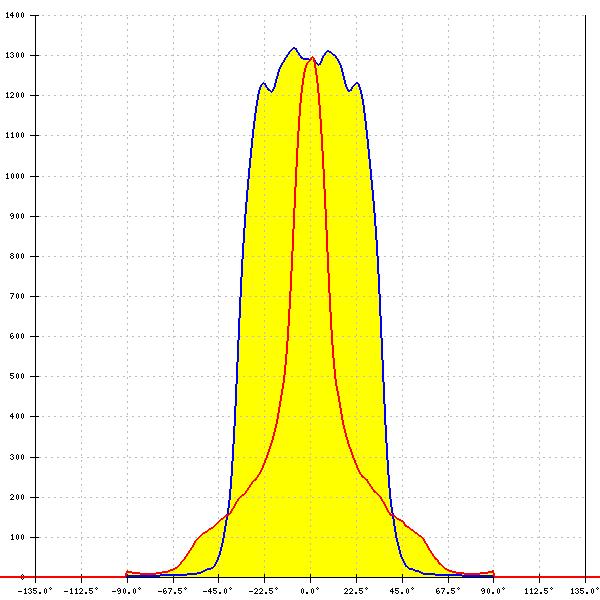

LED:

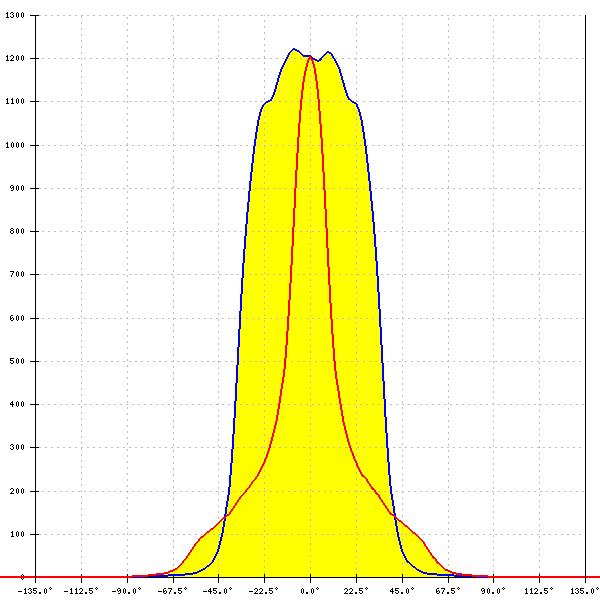

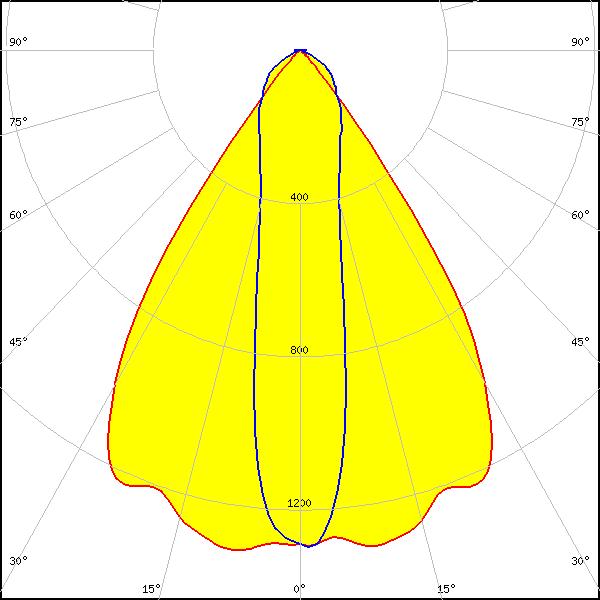

XP-G4
FWHM:
70° + 20°
FWTM:
82° + 93°
Peak intensity:
1.317 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

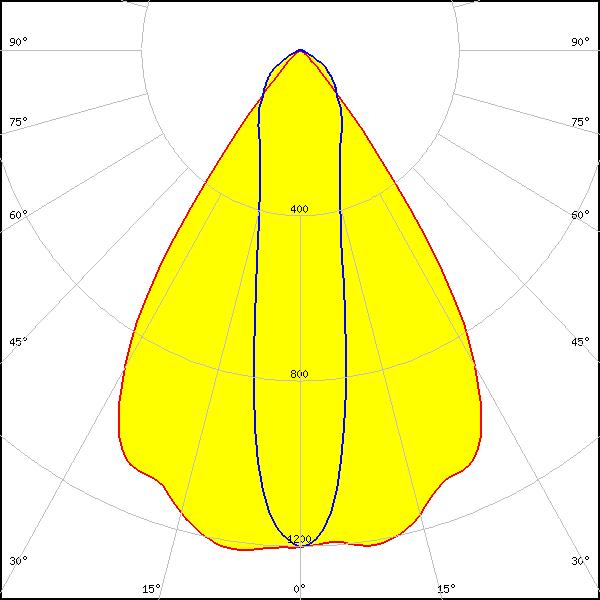

LED:
XP-G4
FWHM:
68° + 22°
FWTM:
84° + 92°
Peak intensity:
1.220 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

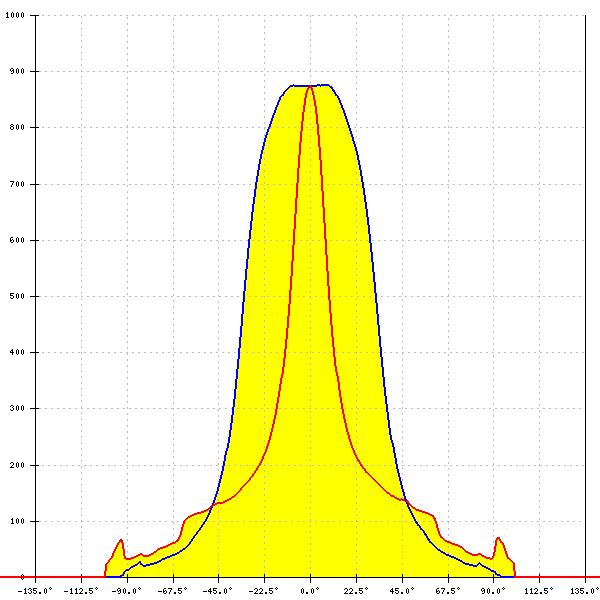

LED:
XT-E
FWHM:
68° + 22°
FWTM:
108° + 126°
Peak intensity:
0.880 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

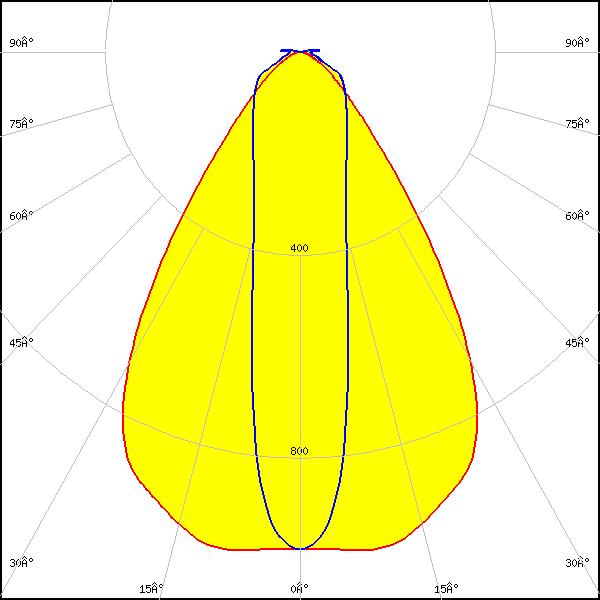

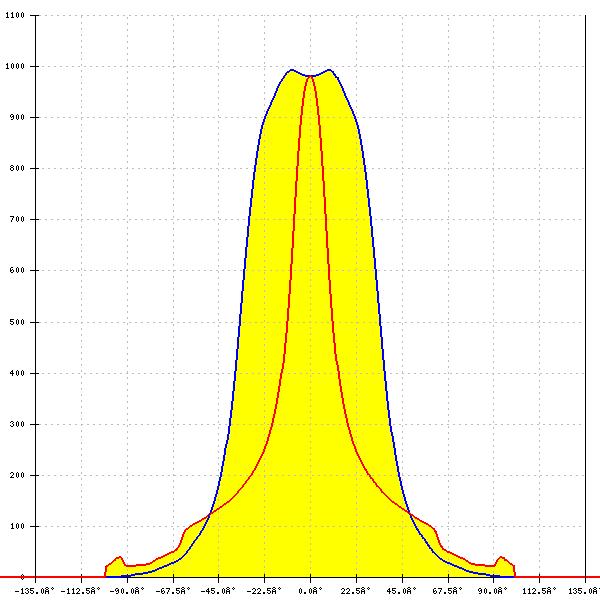

PL-BRICK HP 3x8 Stradella-8
FWHM:
70° + 23°
FWTM:
104° + 119°
Peak intensity:
0.993 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

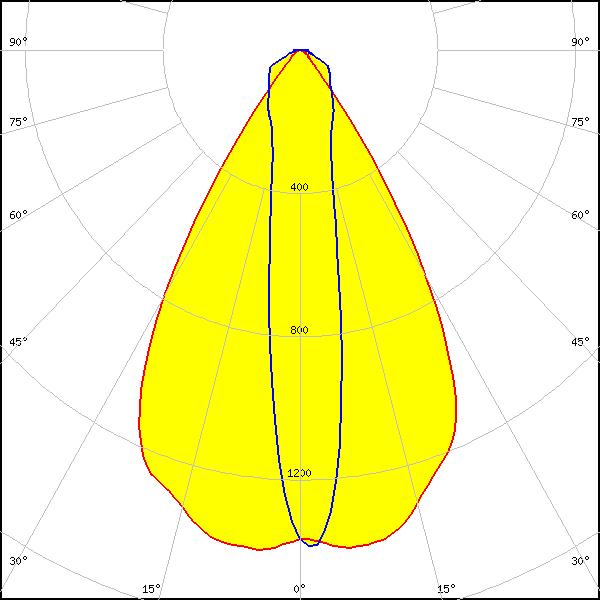

LED:
LUXEON 3030 2D (Round LES)
FWHM:
61° + 17°
FWTM:
80° + 78°
Peak intensity:
1.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

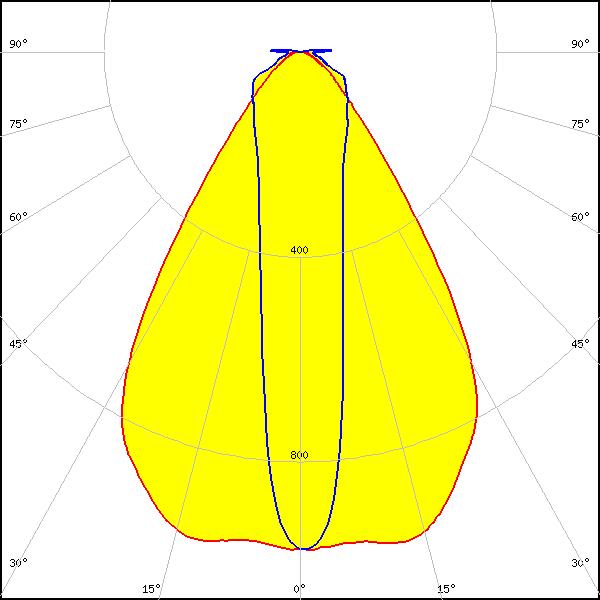

LED:
SST-10-B130
FWHM:
69° + 20°
FWTM:
102° + 124°
Peak intensity:
0.981 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Deep Red

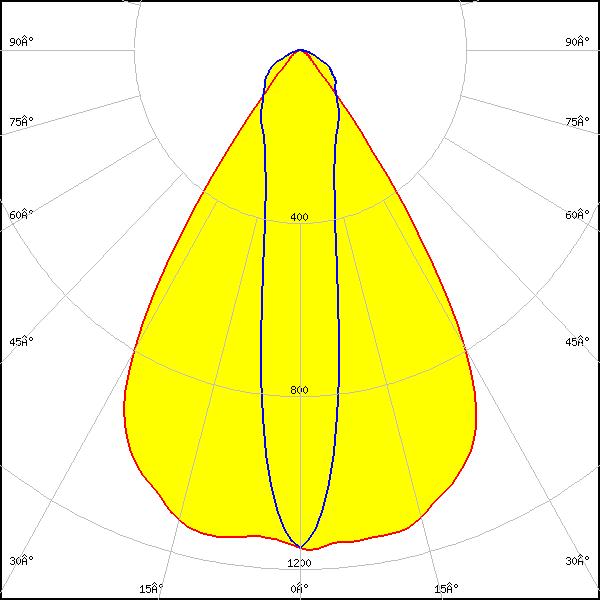

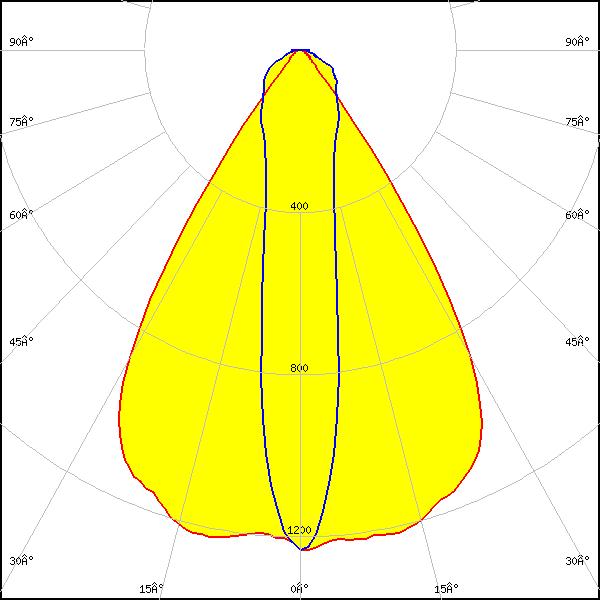

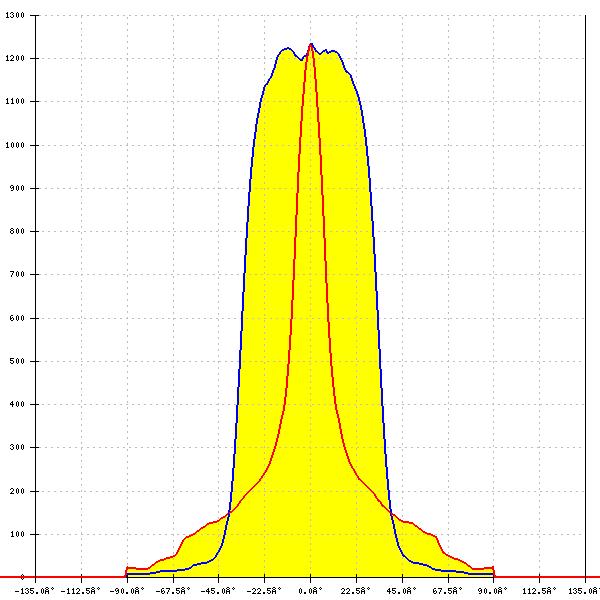

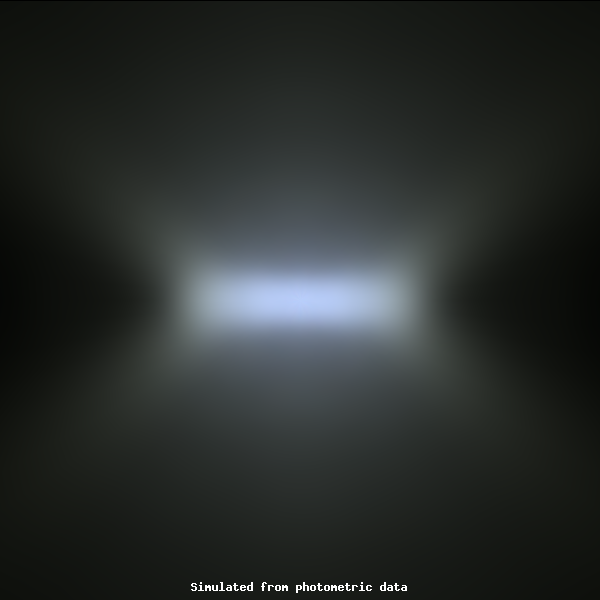

LED:

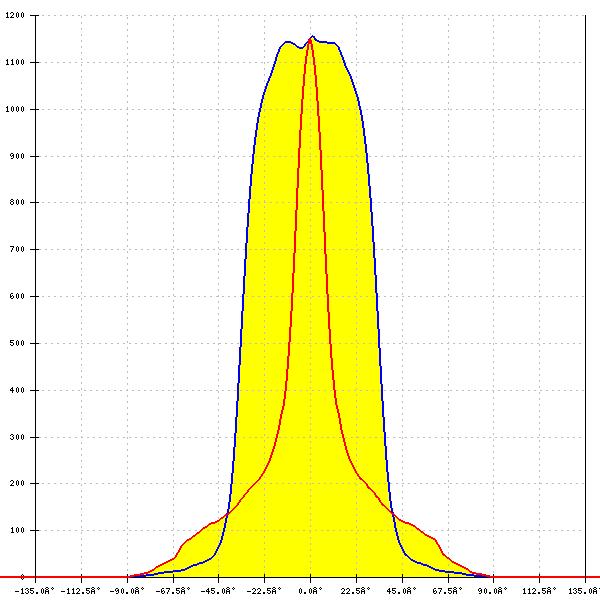

SST-20 Gen2
FWHM:
66° + 18°
FWTM:
82° + 99°
Peak intensity:
1.243 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-20 Gen2
FWHM:
66° + 18°
FWTM:
82° + 96°
Peak intensity:
1.160 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

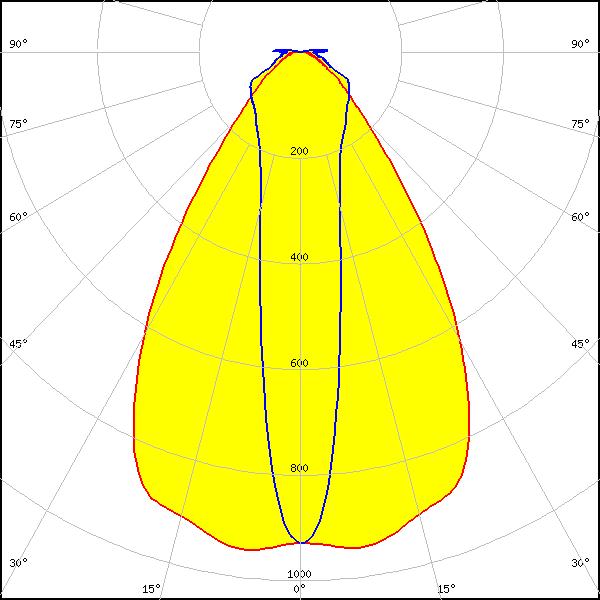

LED:

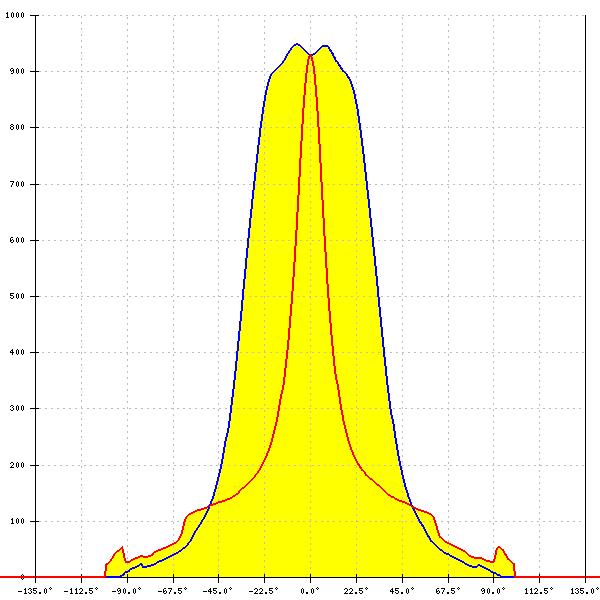

NF2W585AR
FWHM:
68° + 20°
FWTM:
109° + 124°
Peak intensity:
0.950 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

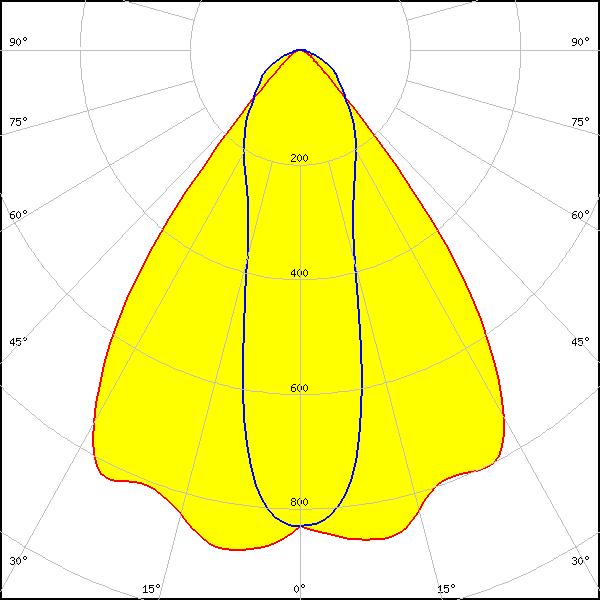

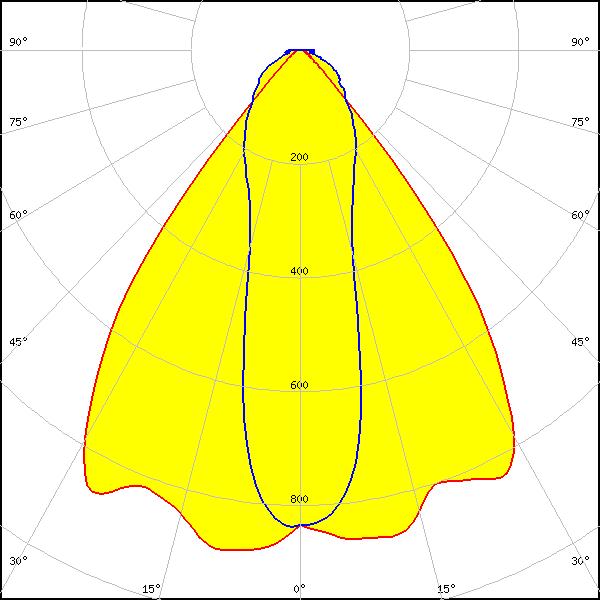

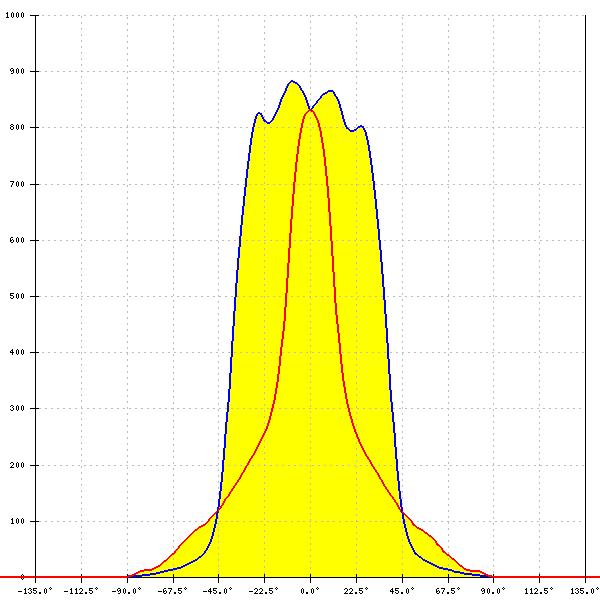

LED:

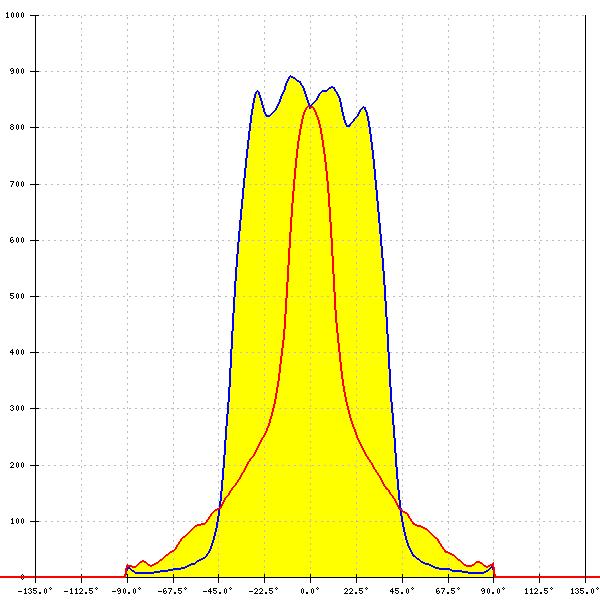

NVSW519A
FWHM:
76° + 28°
FWTM:
94° + 111°
Peak intensity:
0.884 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM:
76° + 27°
FWTM:
92° + 115°
Peak intensity:
0.896 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

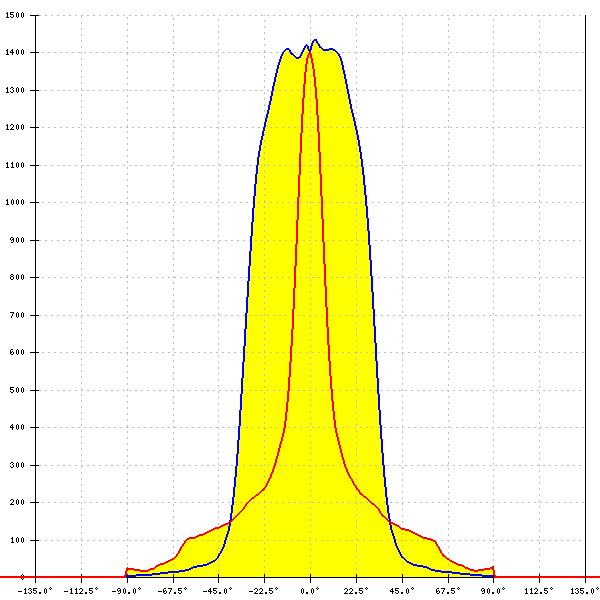

LED:

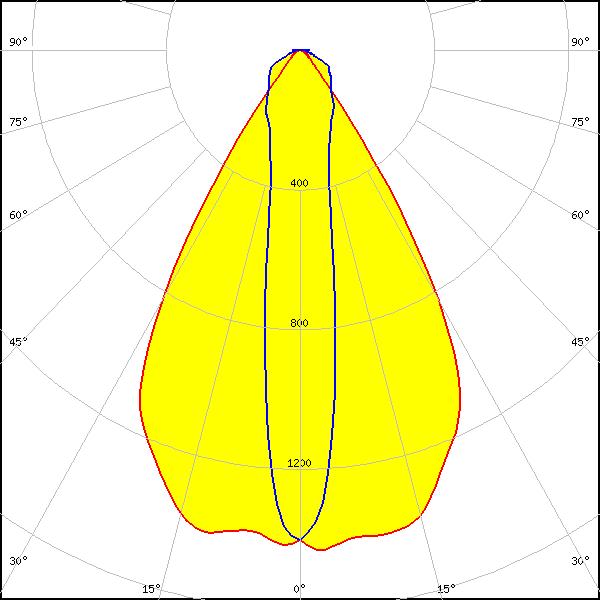

OSCONIQ C 2424
FWHM:
62° + 16°
FWTM:
80° + 83°
Peak intensity:
1.445 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

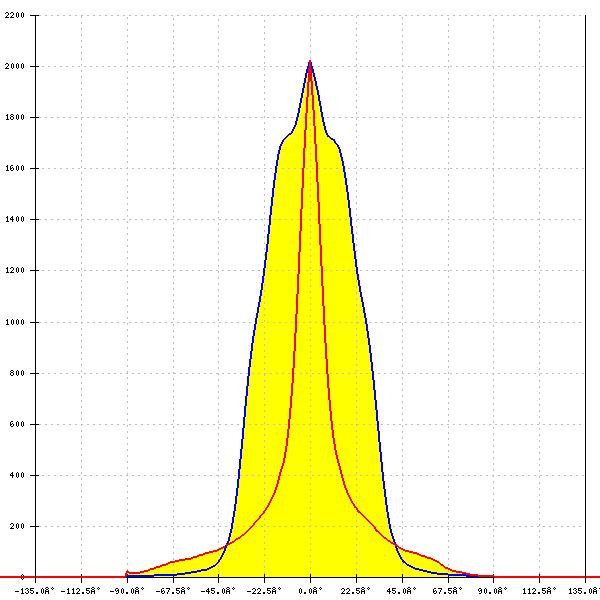

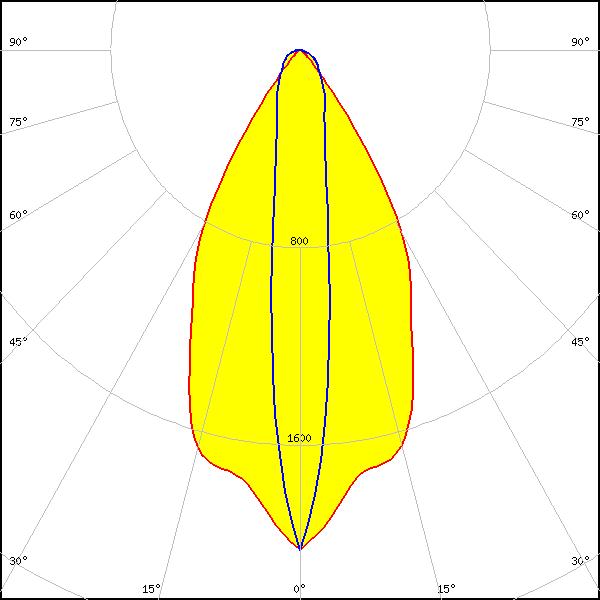

OSCONIQ P 3030
FWHM:
53° + 14°
FWTM:
77° + 59°
Peak intensity:
2.026 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 3030 (QSLR31)
FWHM:
66° + 23°
FWTM:
101° + 123°
Peak intensity:
0.988 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

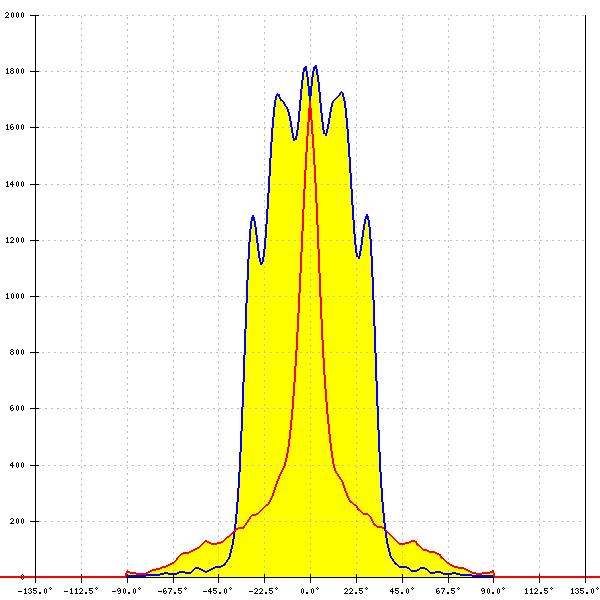

LED:

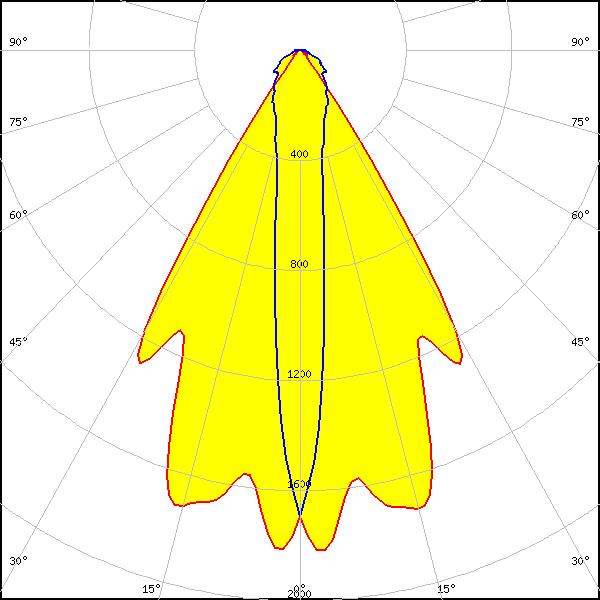

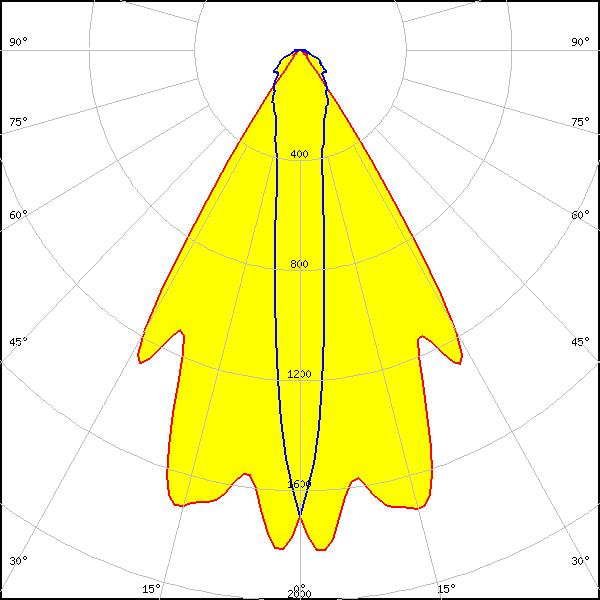

OSLON Pure 1414
FWHM:
64° + 12°
FWTM:
74° + 73°
Peak intensity:
1.834 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

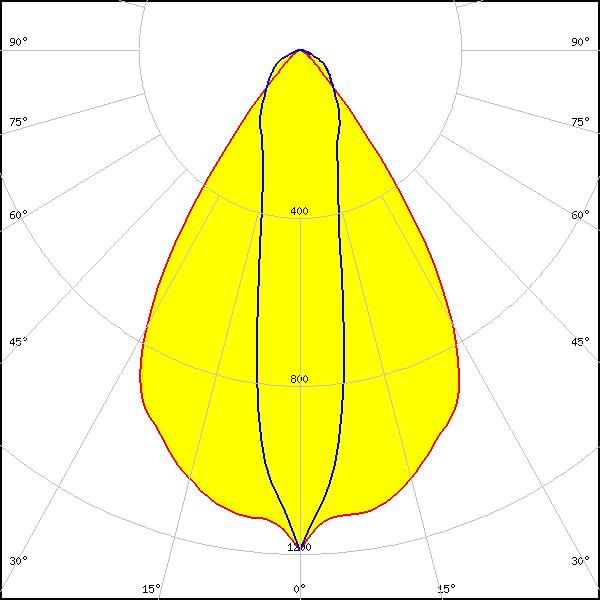

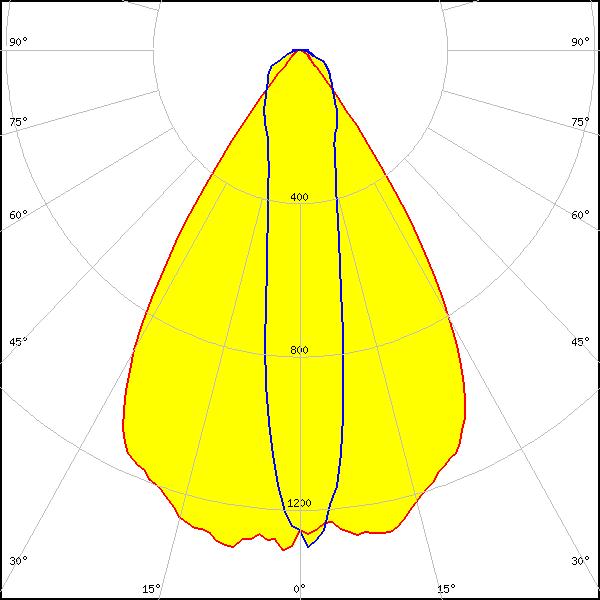

LED:

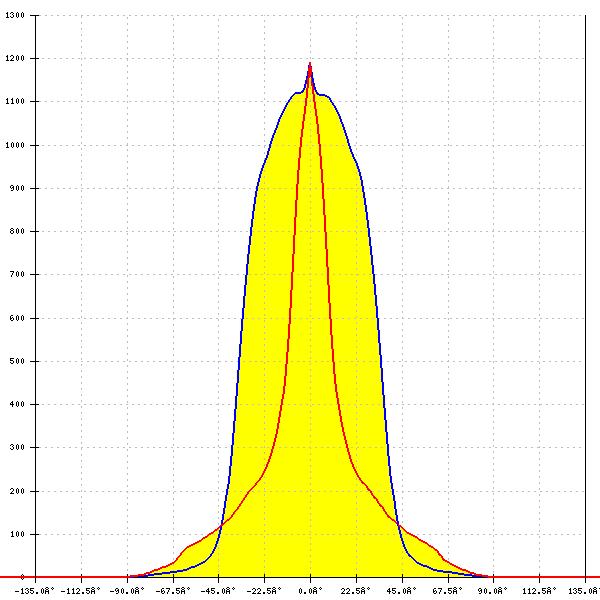

OSLON Square CSSRM2/CSSRM3
FWHM:
64° + 18°
FWTM:
83° + 86°
Peak intensity:
1.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

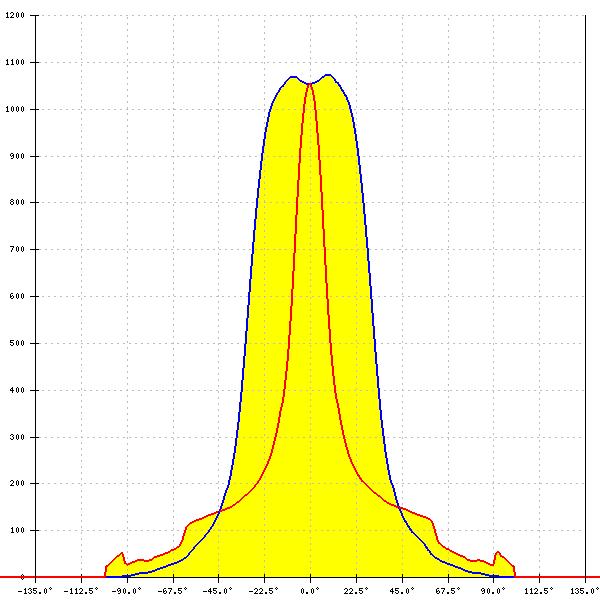

LED:

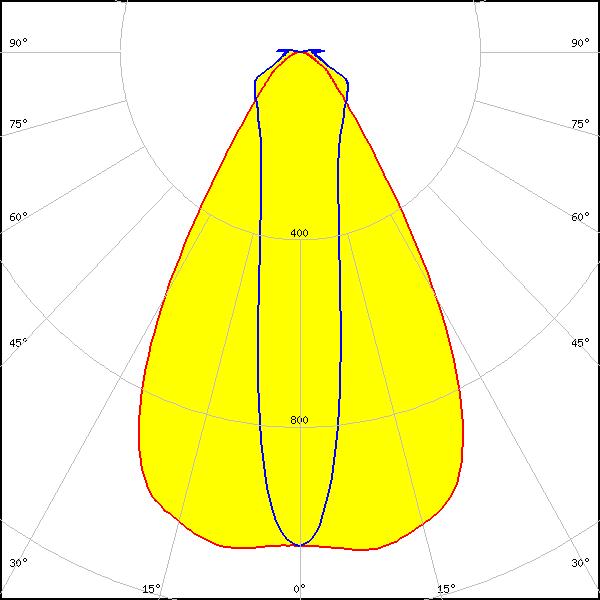

Fortimo FastFlex LED 4x8up PR G5
FWHM:
62° + 20°
FWTM:
96° + 122°
Peak intensity:
1.073 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

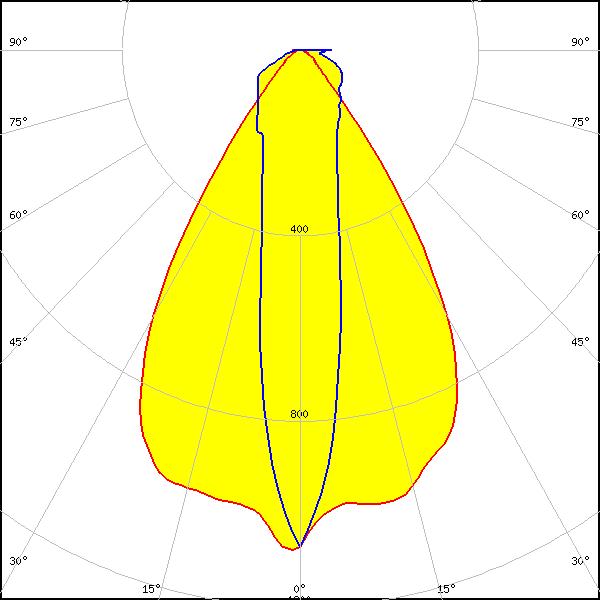

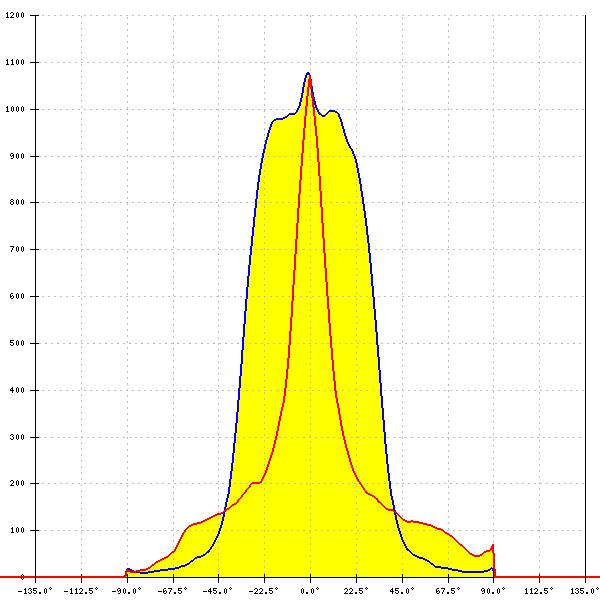

LED:
LH181A
FWHM:
66° + 26°
FWTM:
90° + 120°
Peak intensity:
1.080 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

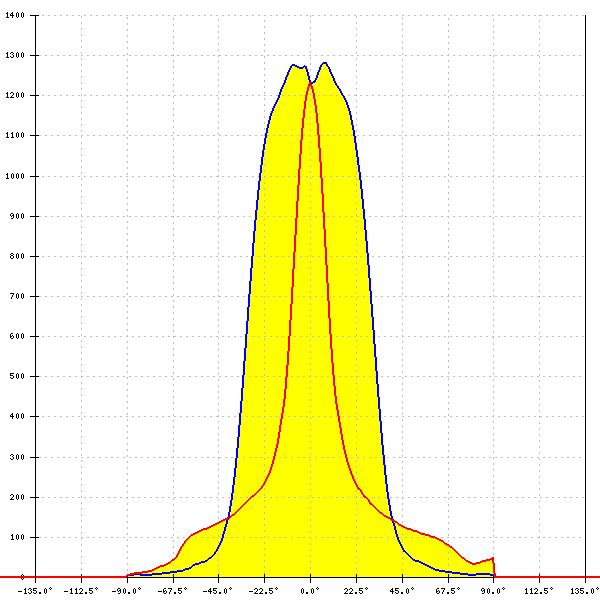

LED:
LH181B
FWHM:
60° + 20°
FWTM:
80° + 120°
Peak intensity:
1.280 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

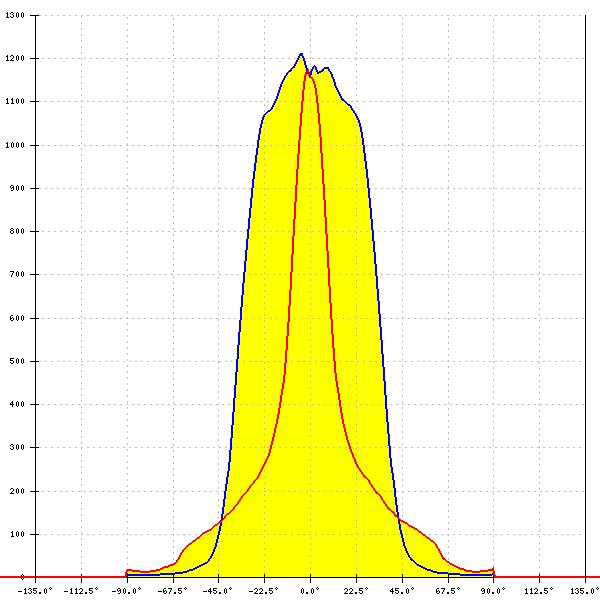

LED:

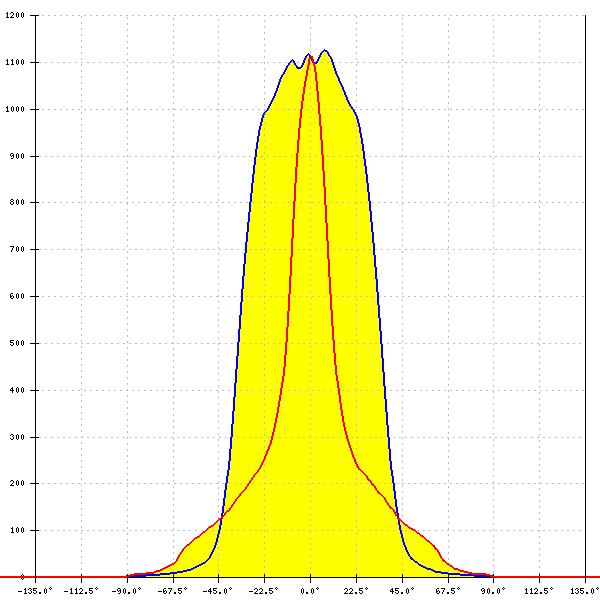

LH351B
FWHM:
68° + 22°
FWTM:
88° + 95°
Peak intensity:
1.125 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
69° + 21°
FWTM:
87° + 96°
Peak intensity:
1.210 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

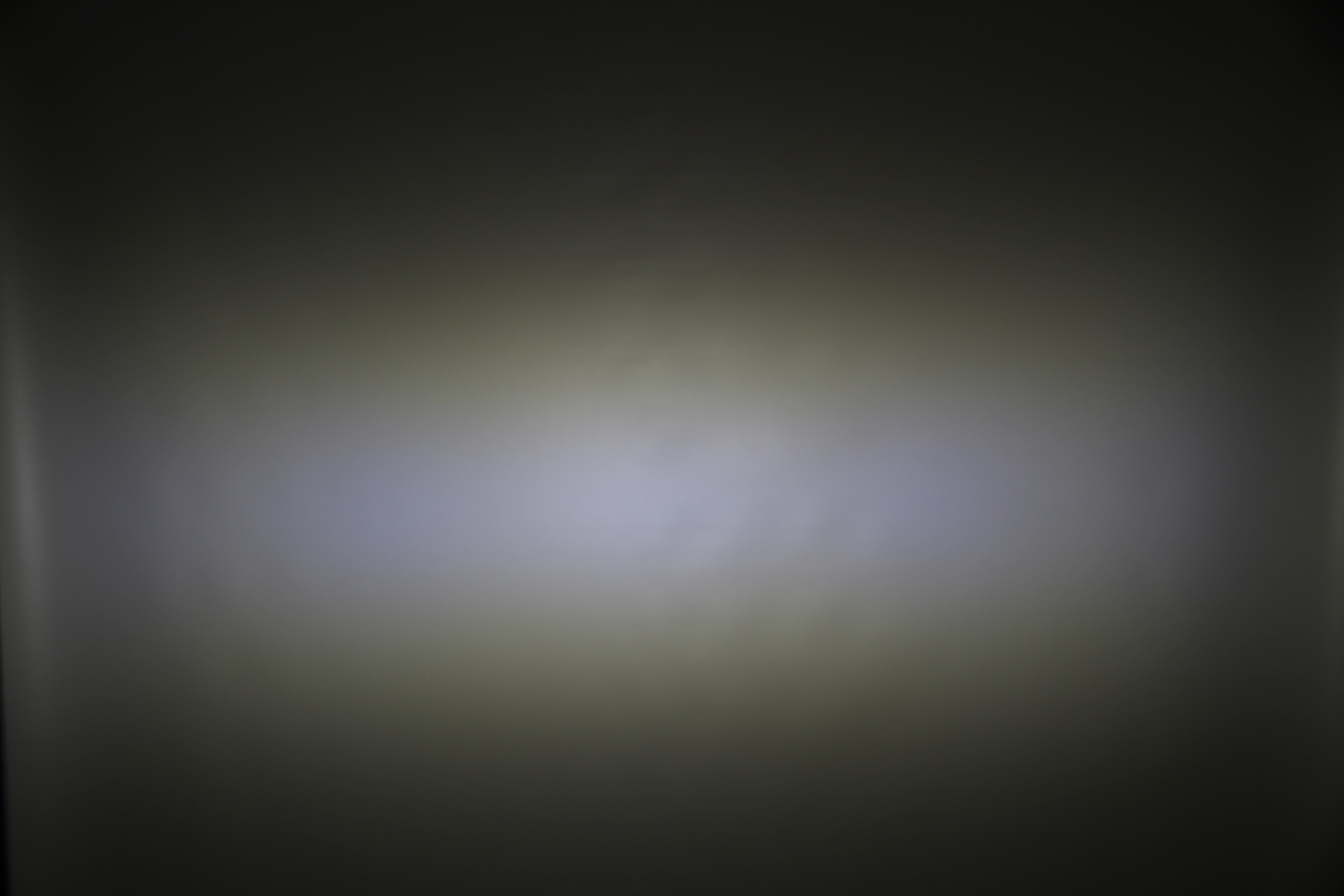

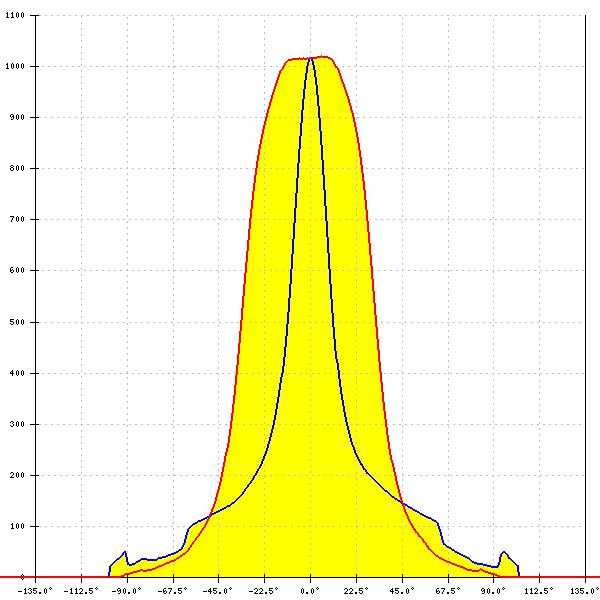

LED:

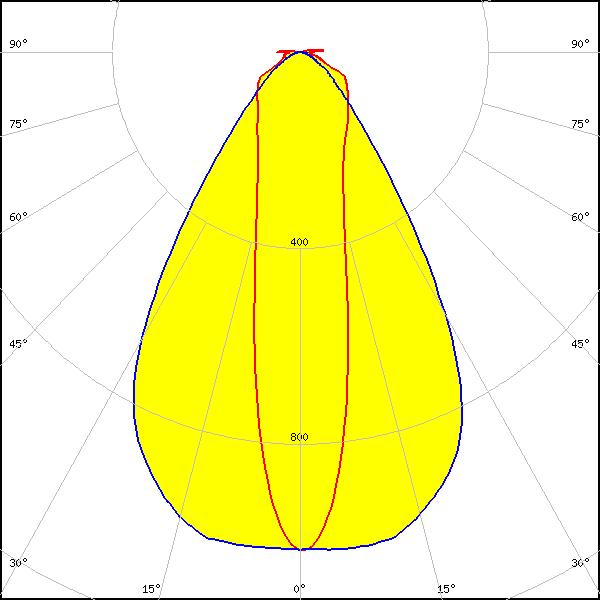

SEOUL DC 3030C
FWHM:
22° + 66°
FWTM:
121° + 101°
Peak intensity:
1.019 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

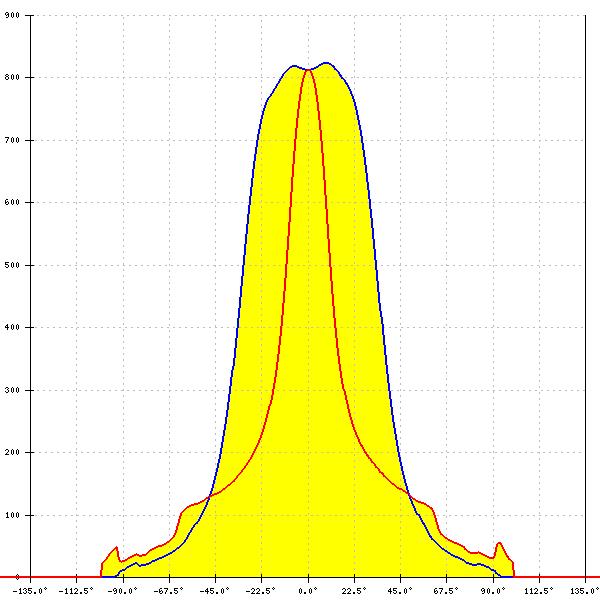

LED:

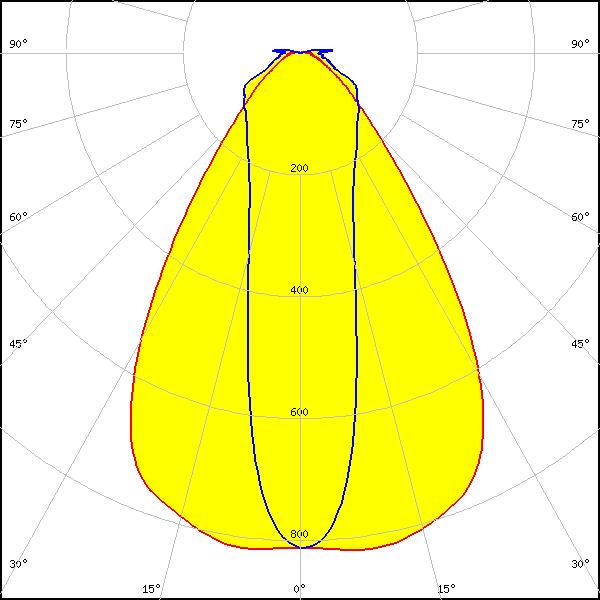

Z5M3
FWHM:
70° + 26°
FWTM:
112° + 127°
Peak intensity:
0.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

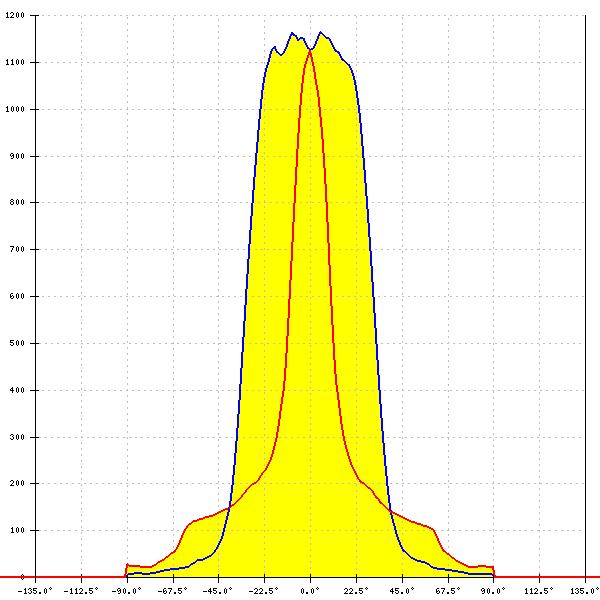

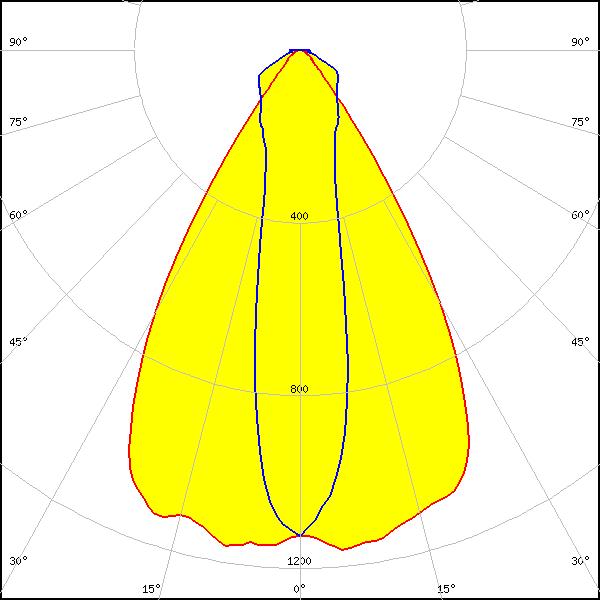

LED:
Z8Y22T
FWHM:
63° + 21°
FWTM:
82° + 103°
Peak intensity:
1.170 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
