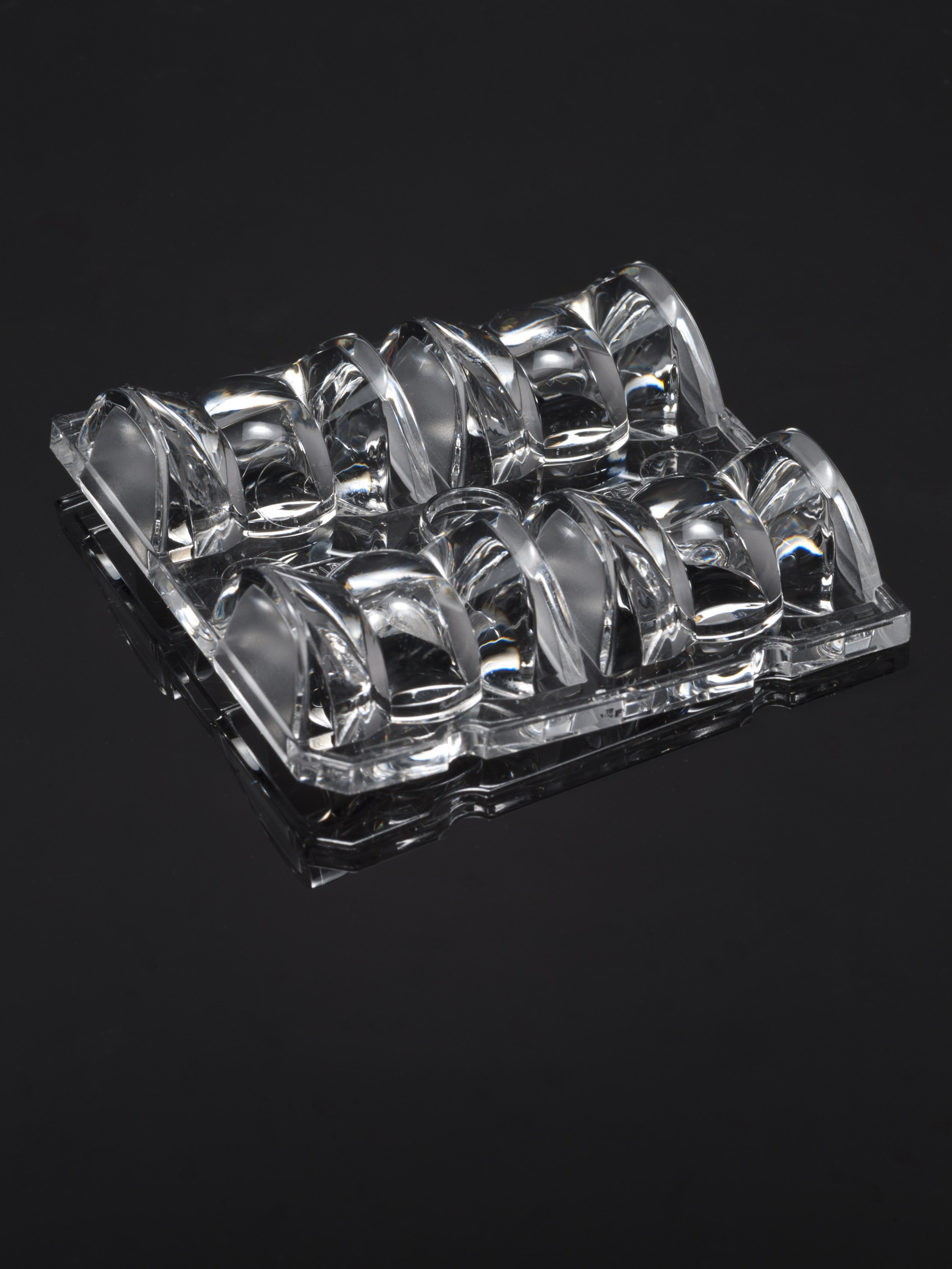

C16044_HB-2X2-O-PC
Print
~20° + 115° oval beam for aisle lighting
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

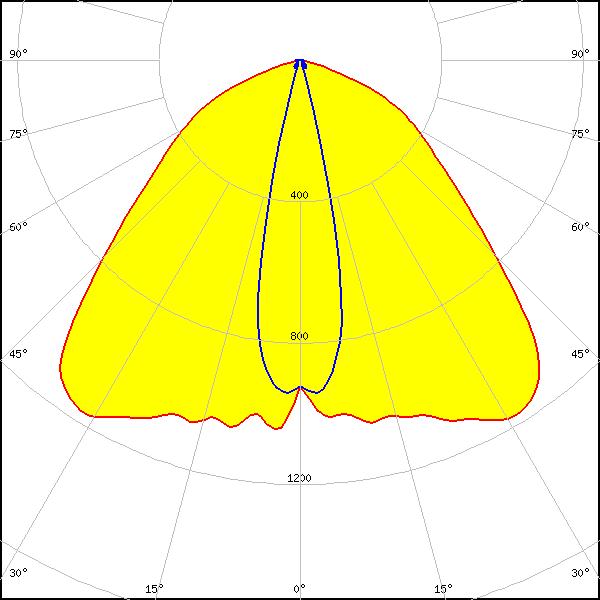

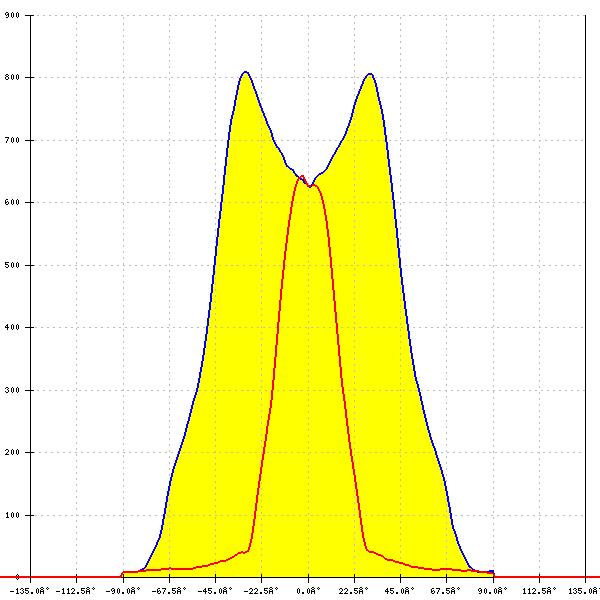

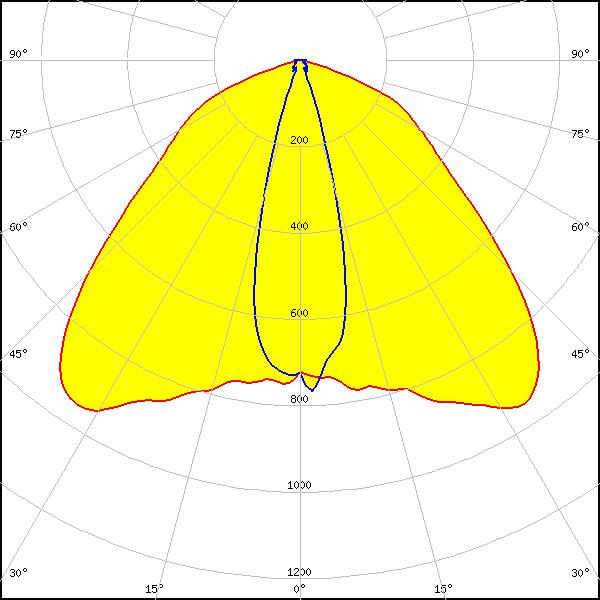

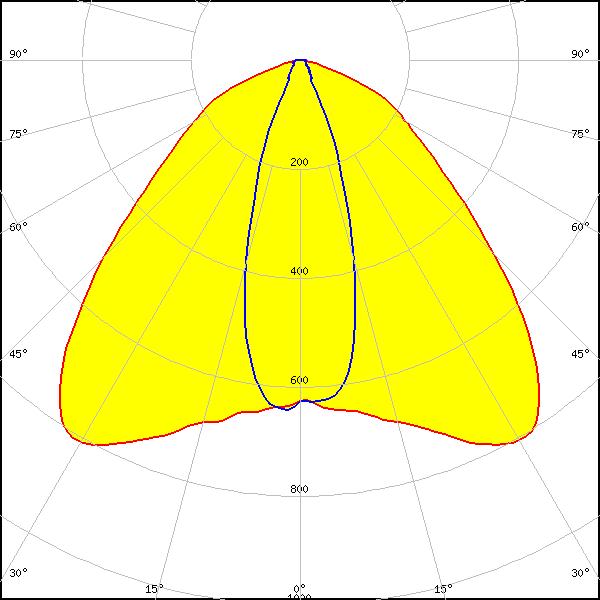

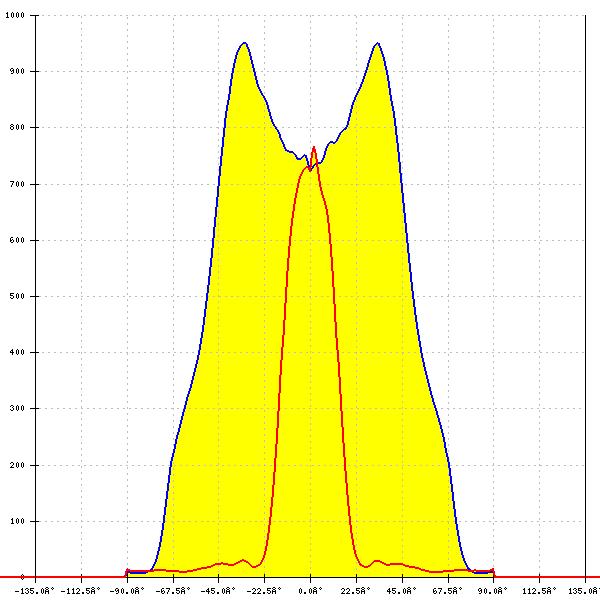

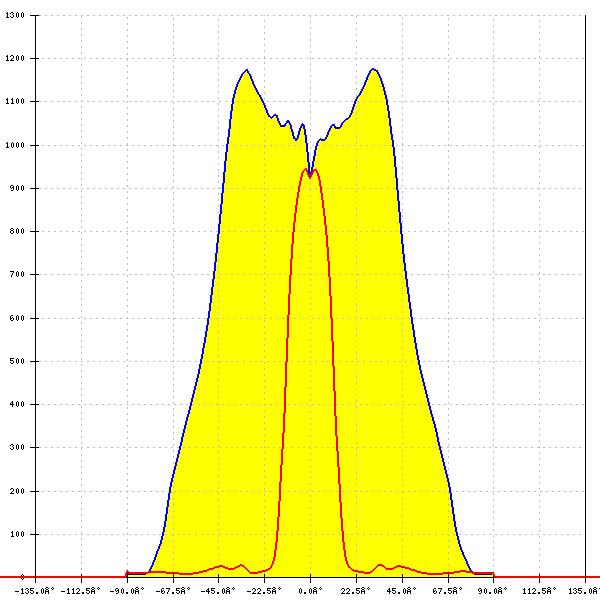

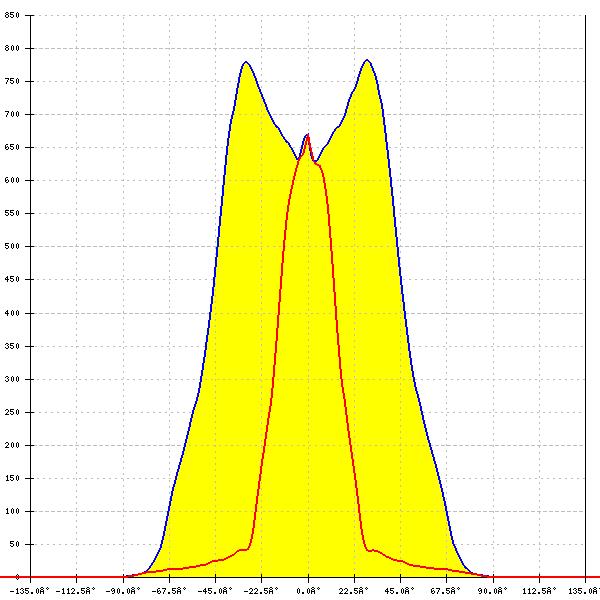

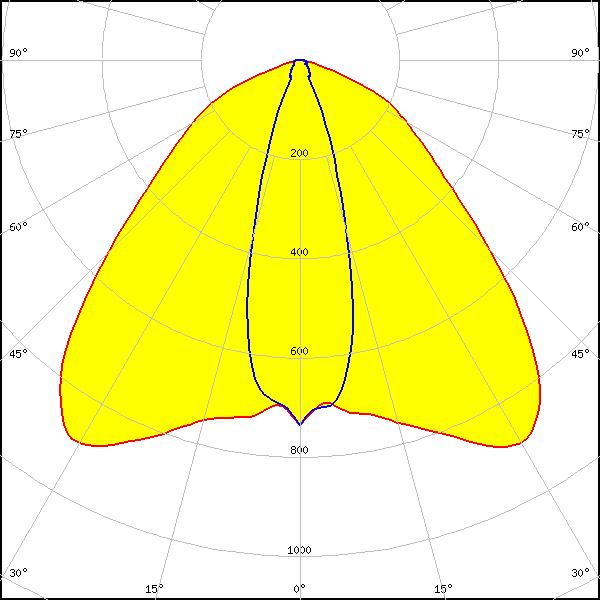

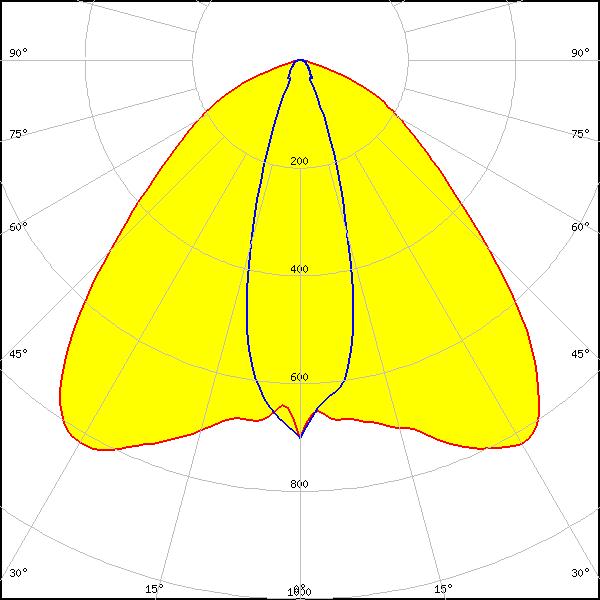

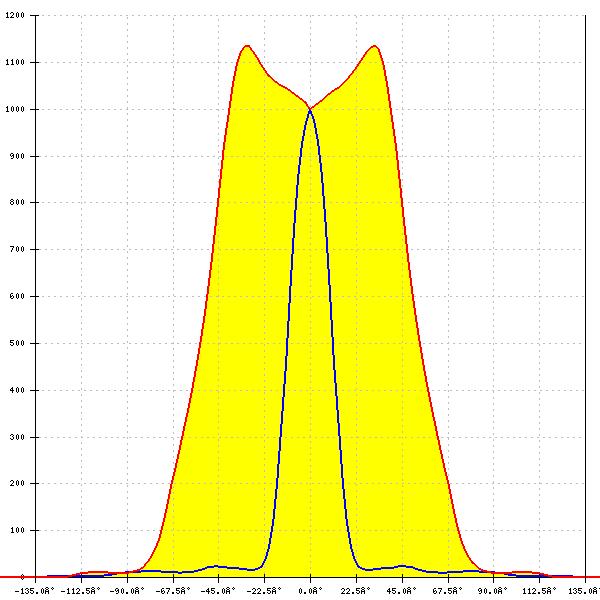

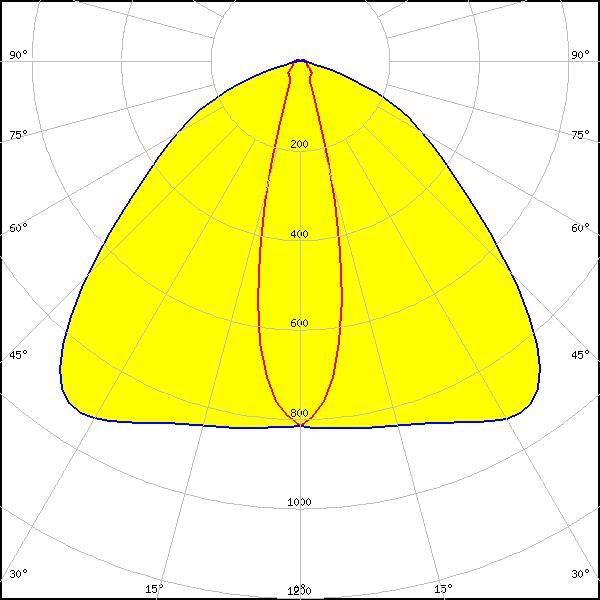

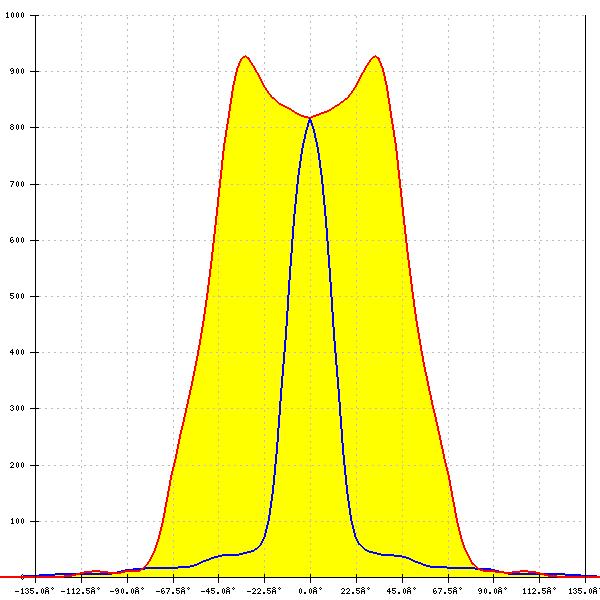

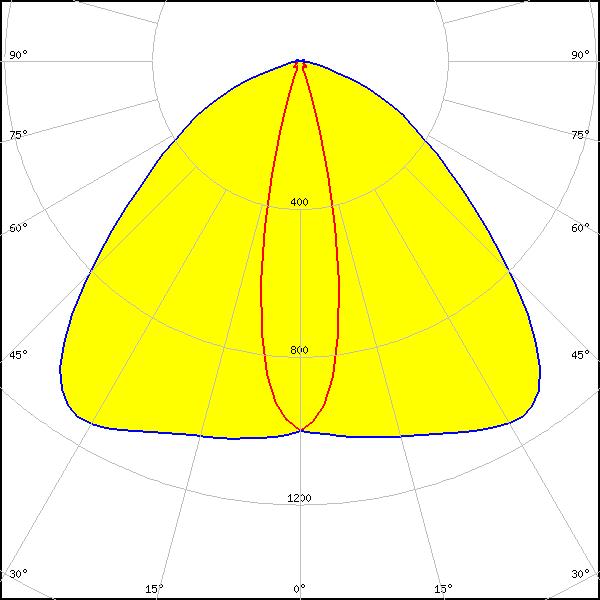

Optical results
LED:
XP-G2
FWHM:
20° + 122°
FWTM:
32° + 151°
Peak intensity:
1.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

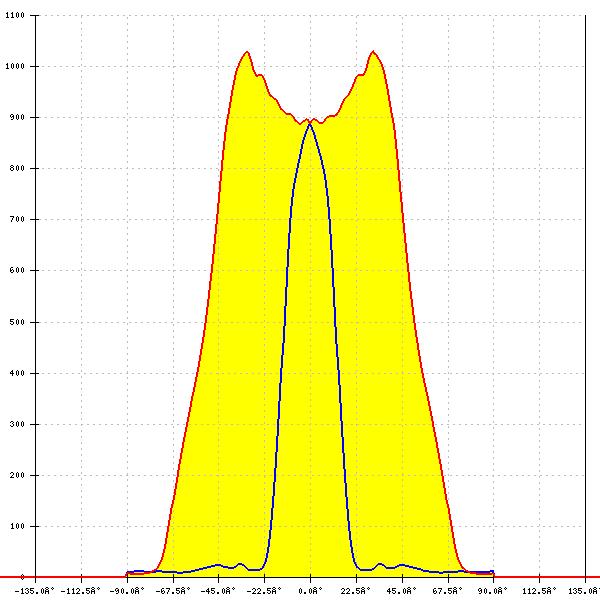

LED:
LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
26° + 102°
FWTM:
38° + 138°
Peak intensity:
1.029 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

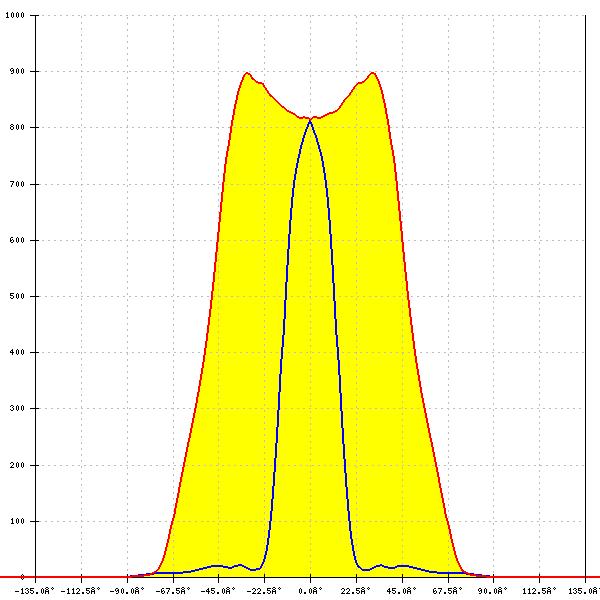

LED:
LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
28° + 100°
FWTM:
40° + 136°
Peak intensity:
0.898 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NV4WB35AM
FWHM:
30° + 98°
FWTM:
40° + 144°
Peak intensity:
0.951 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM:
18° + 98°
FWTM:
28° + 141°
Peak intensity:
1.389 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
