C16005_STRADELLA-8-T1-A
Print

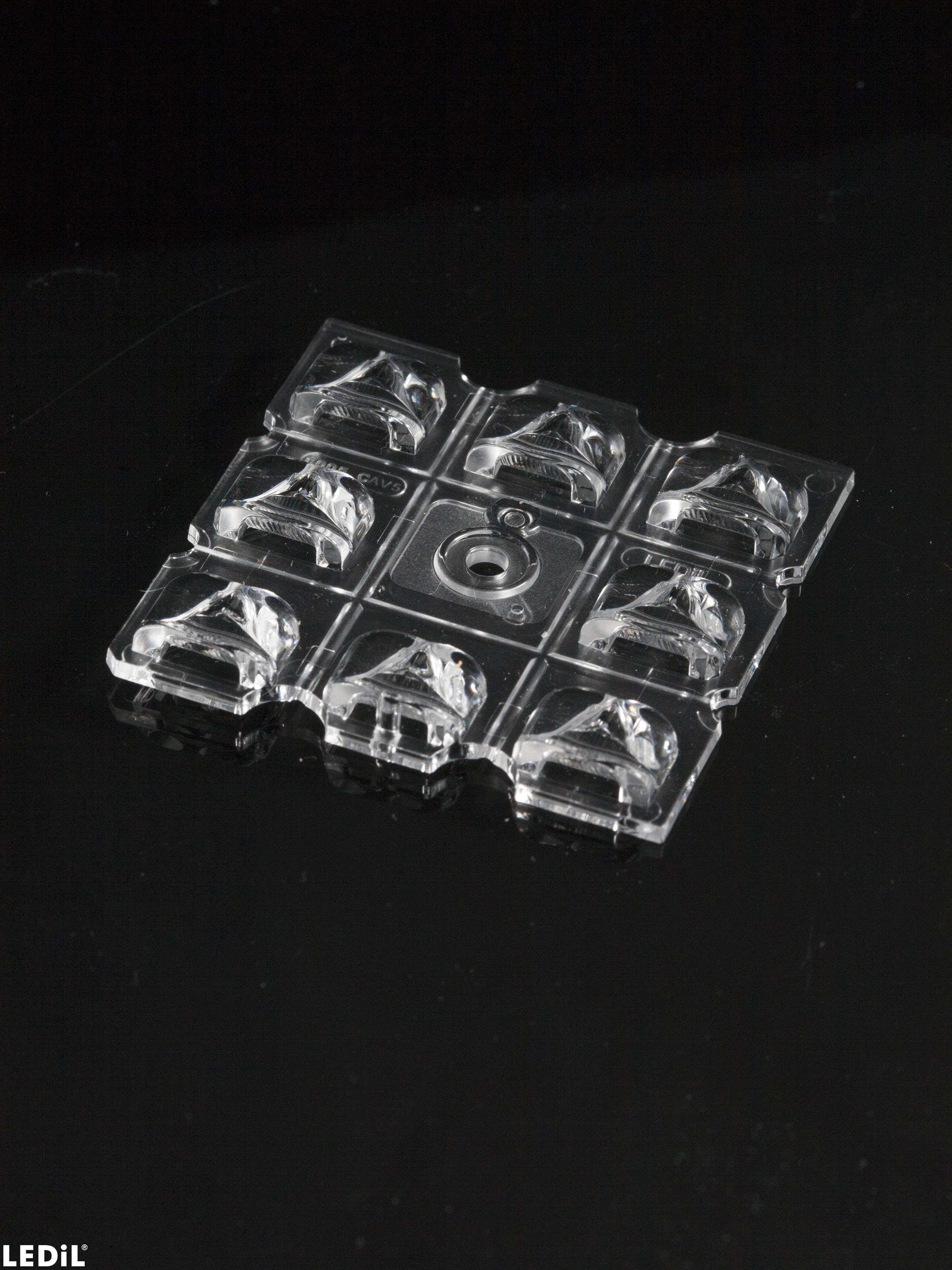

Asymmetric IESNA Type I (short) beam designed for tilted poles. Suitable for Indian EESL specification.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

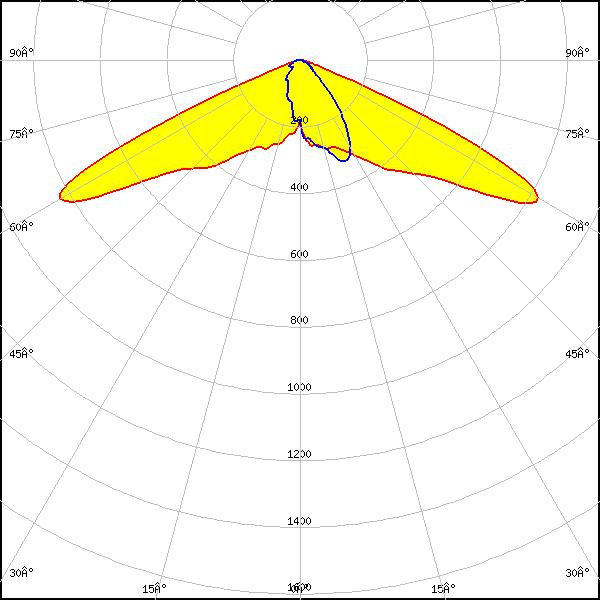

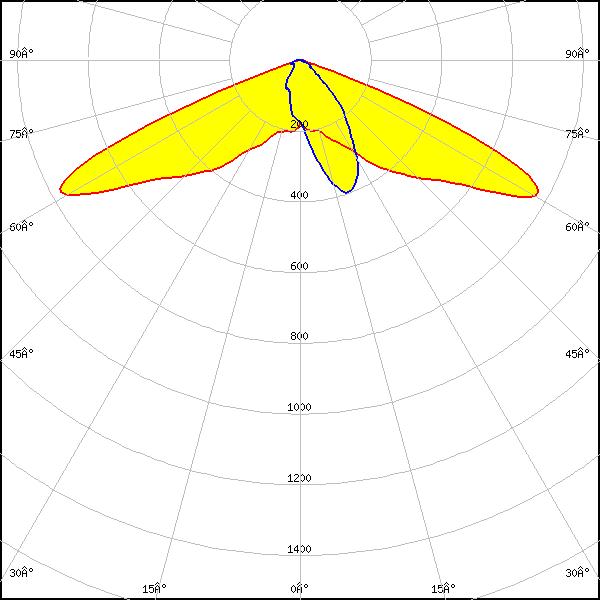

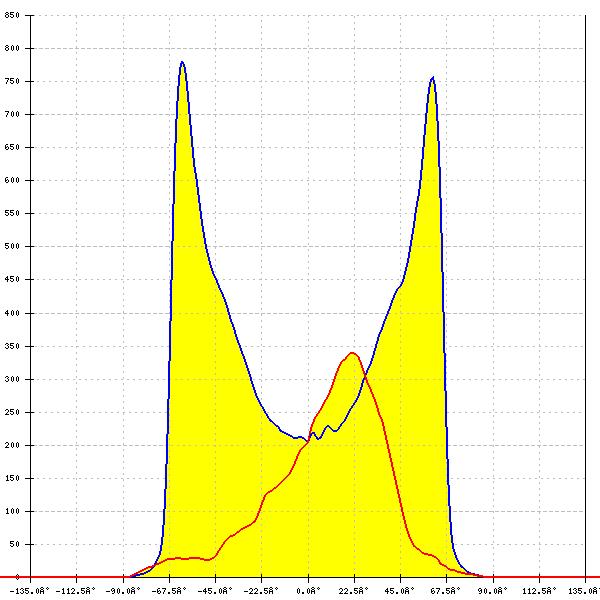

Optical results

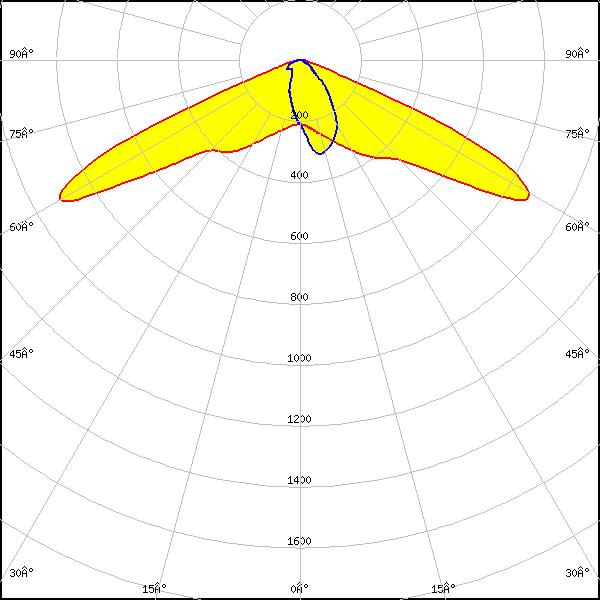

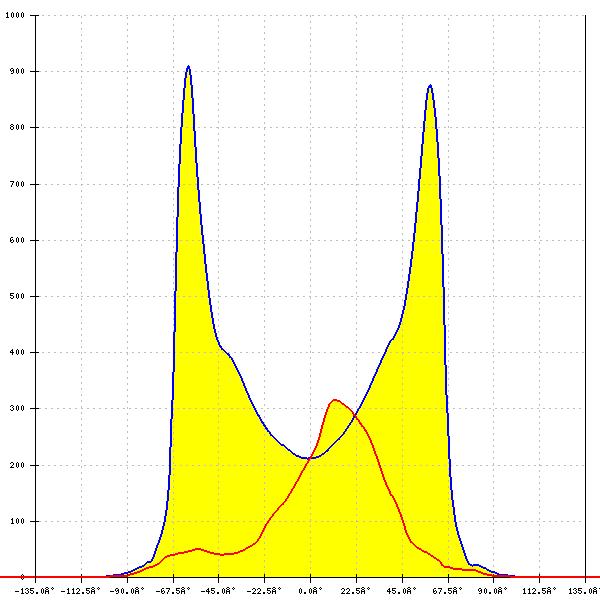

LED:
QUICK FLUX XT 2x8 xxx STRDLL G5
FWHM: asymmetric
Peak intensity:
0.910 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

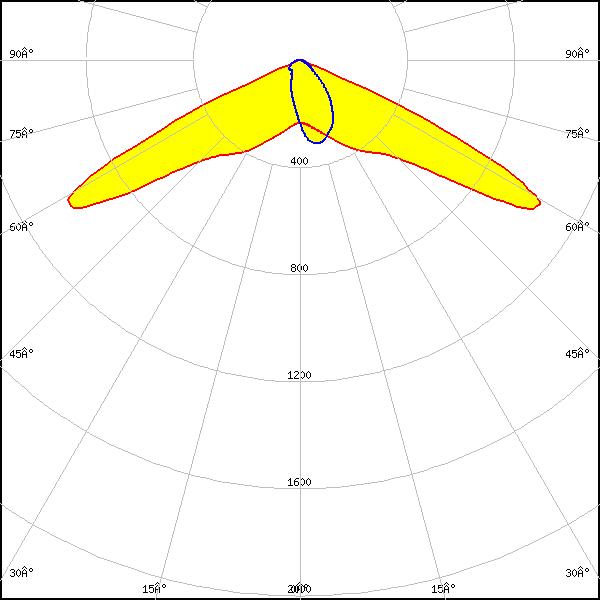

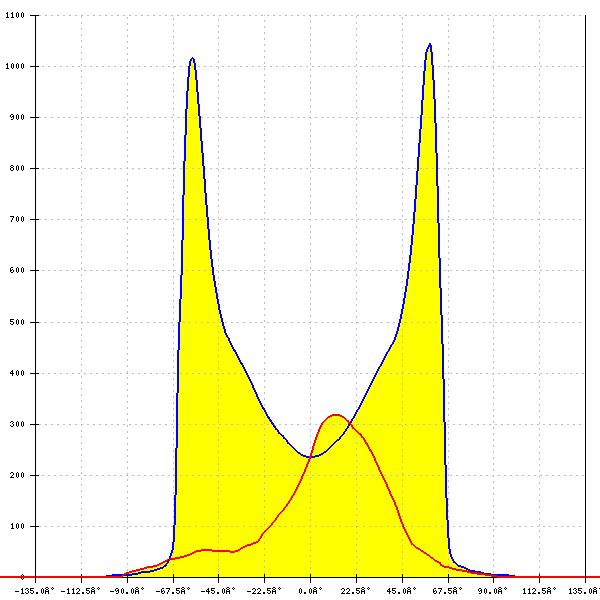

J Series 3030
FWHM: asymmetric
Peak intensity:
1.077 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

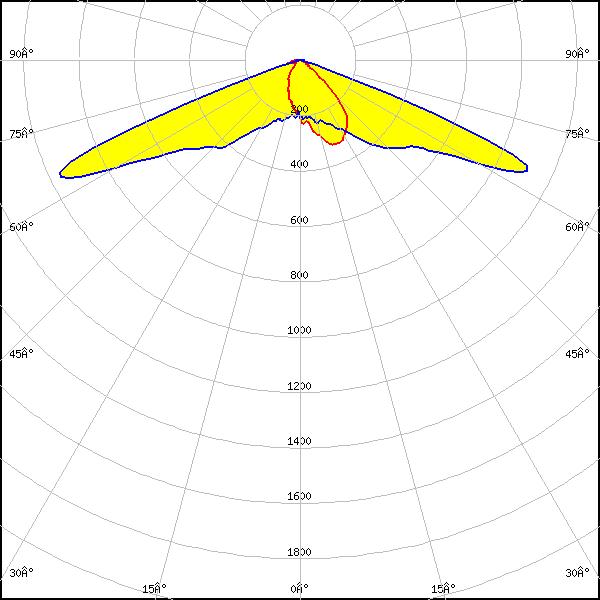

LED:

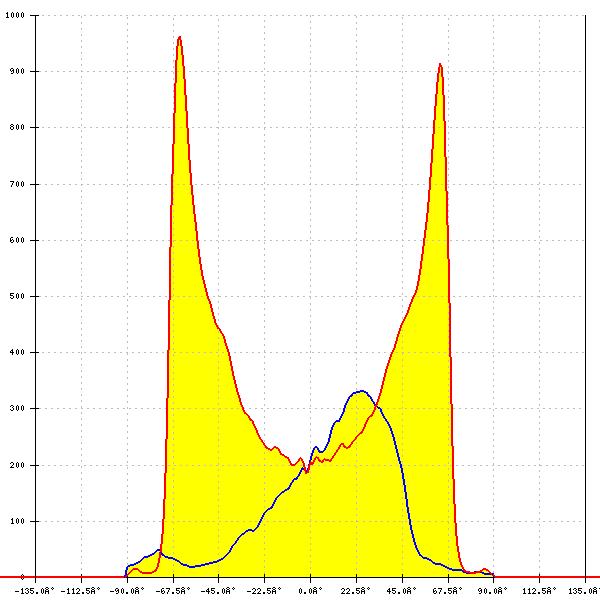

XP-G2
FWHM: asymmetric
Peak intensity:
0.973 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

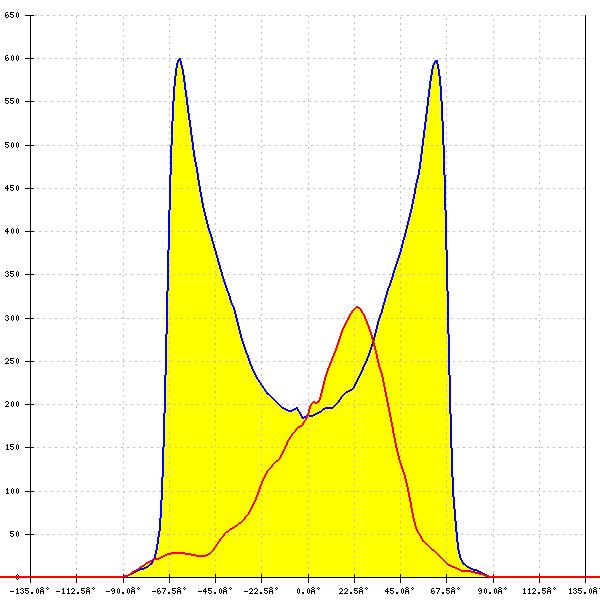

XP-G3
FWHM: asymmetric
Peak intensity:
0.599 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

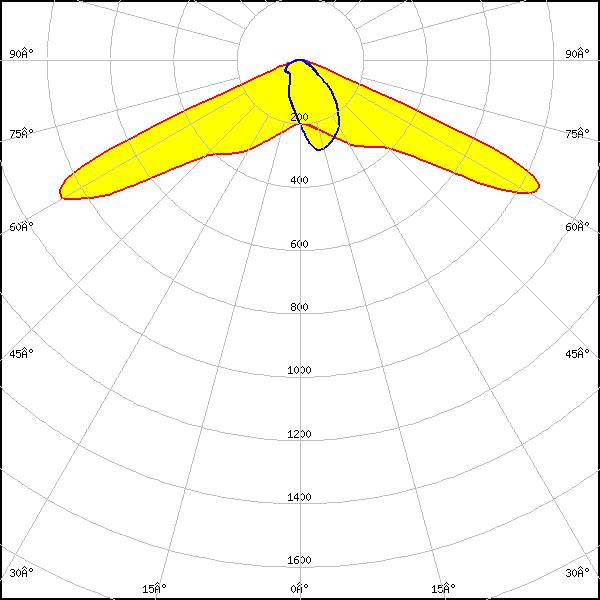

LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.870 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

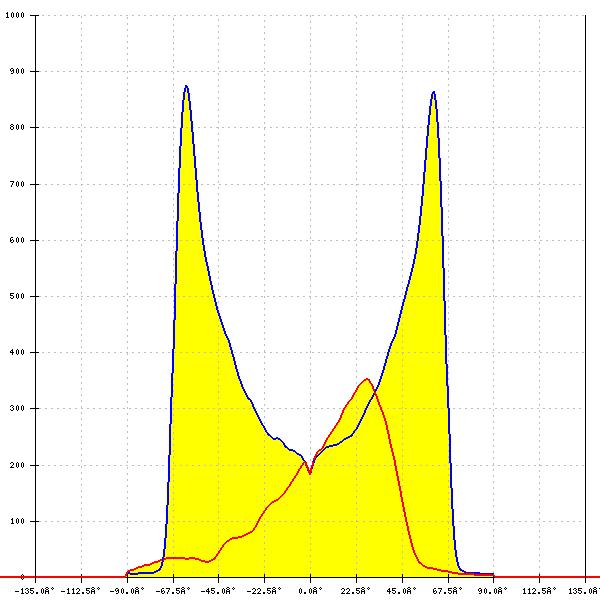

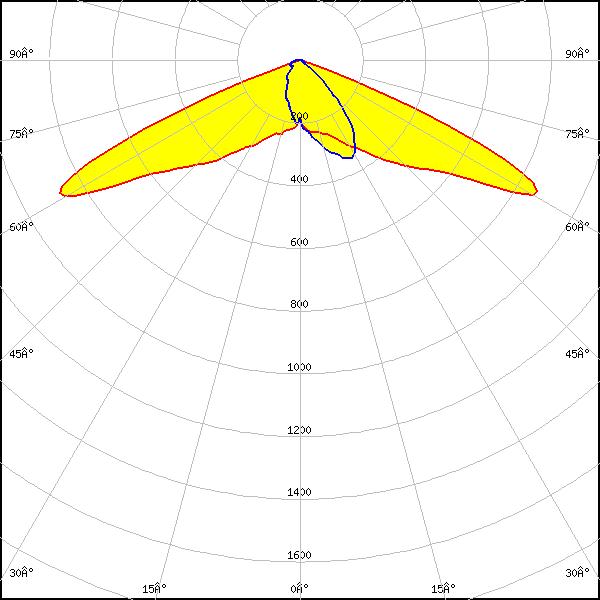

LED:
XP-G4
FWHM: asymmetric
Peak intensity:
0.882 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

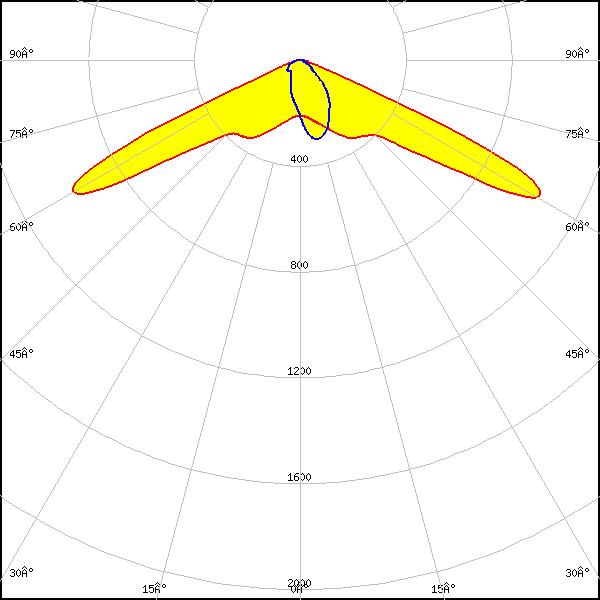

LED:

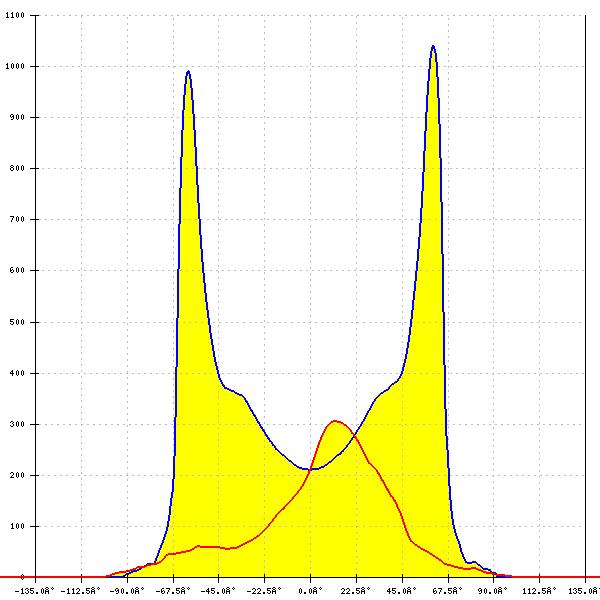

XT-E
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

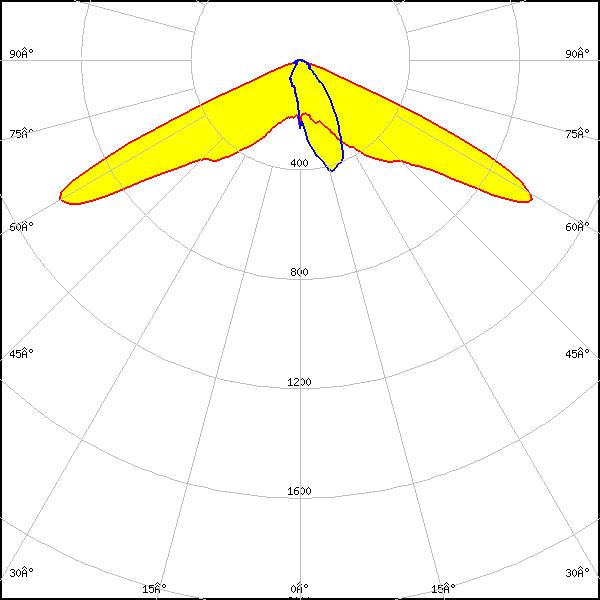

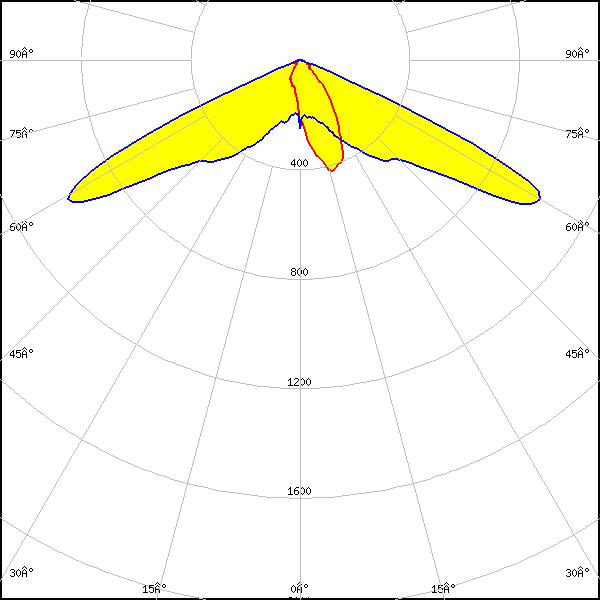

LED:

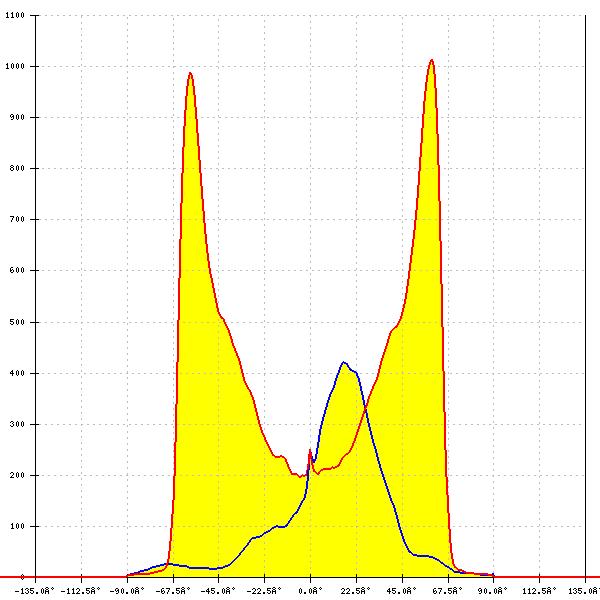

LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity:
1.090 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 2D (Square LES)
FWHM: asymmetric
Peak intensity:
1.020 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

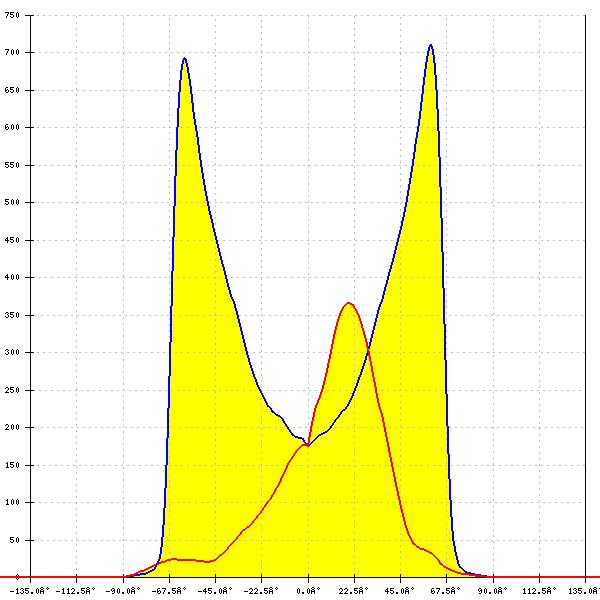

LED:

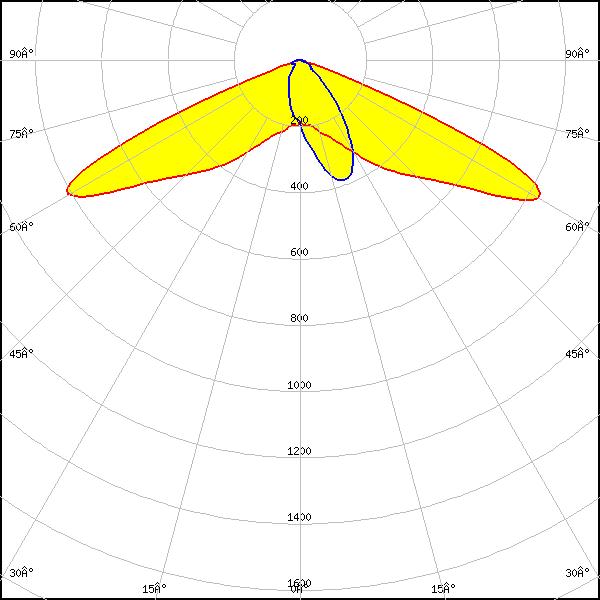

LUXEON 3030 HE Plus
FWHM: asymmetric
Peak intensity:
0.720 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

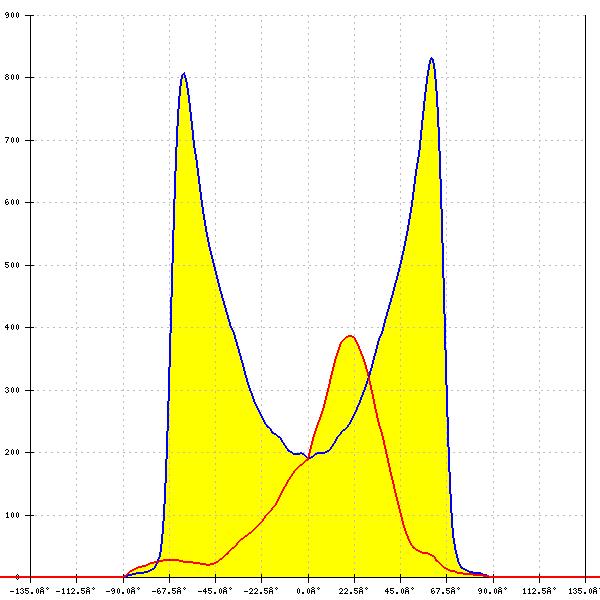

LED:
LUXEON 3030 HE Plus
FWHM: asymmetric
Peak intensity:
0.841 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

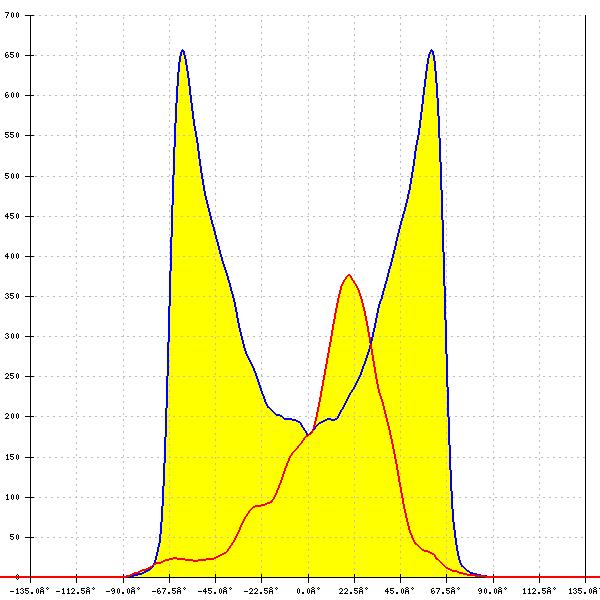

LUXEON 3535L HE PLUS
FWHM: asymmetric
Peak intensity:
0.812 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3535L HE PLUS
FWHM: asymmetric
Peak intensity:
0.696 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

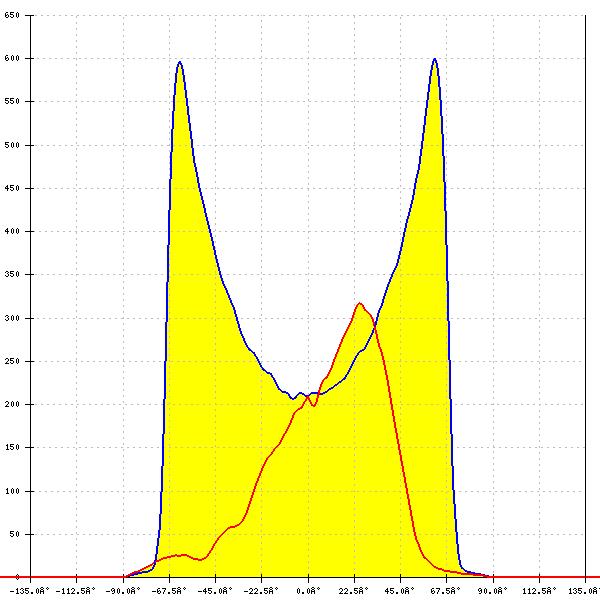

LED:

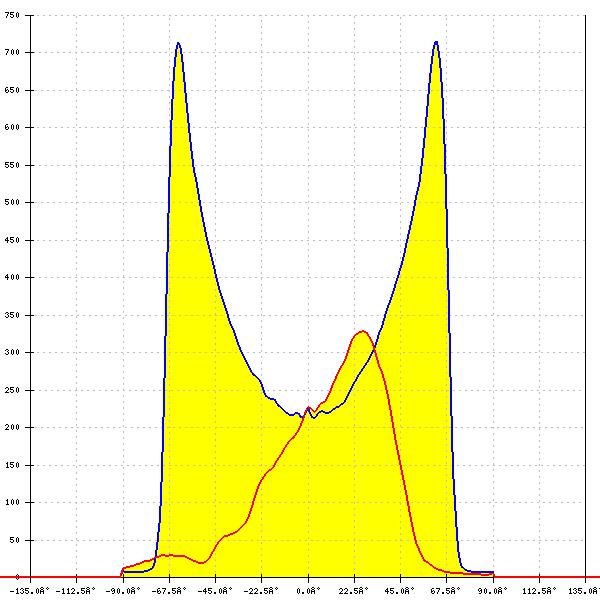

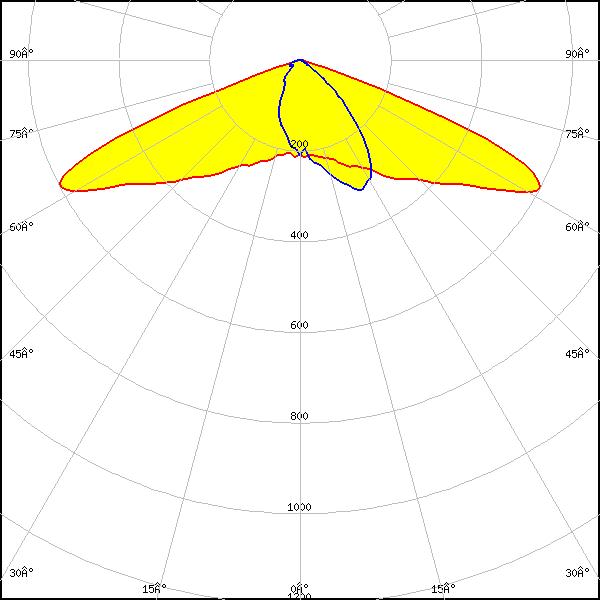

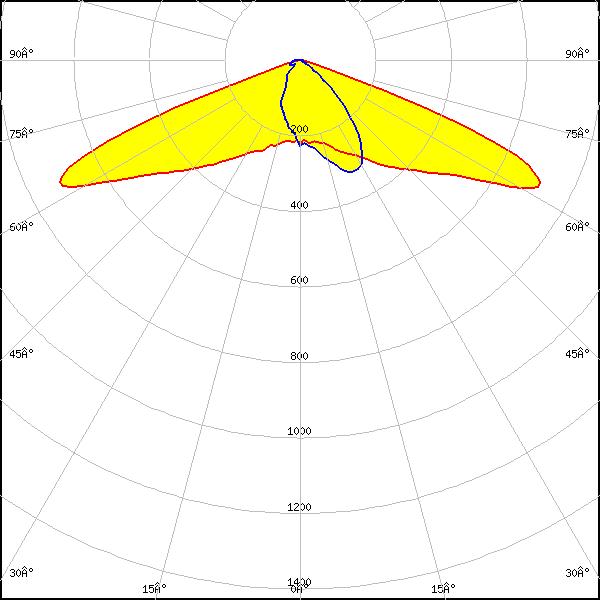

LUXEON HL2X
FWHM: asymmetric
Peak intensity:
0.717 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2X
FWHM: asymmetric
Peak intensity:
0.603 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

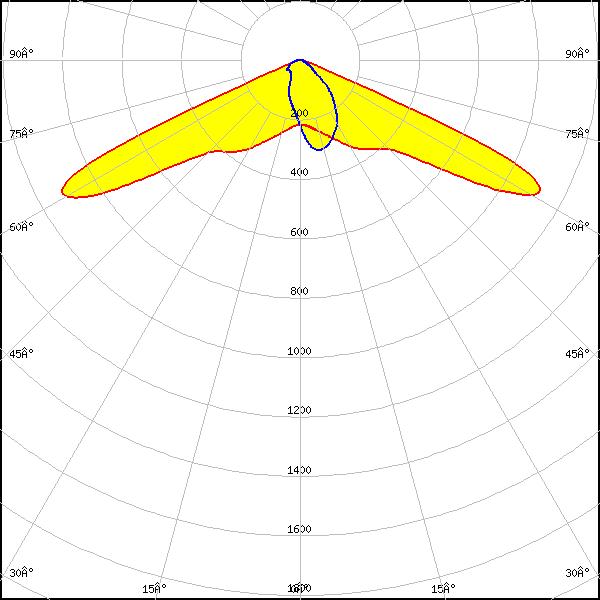

LED:

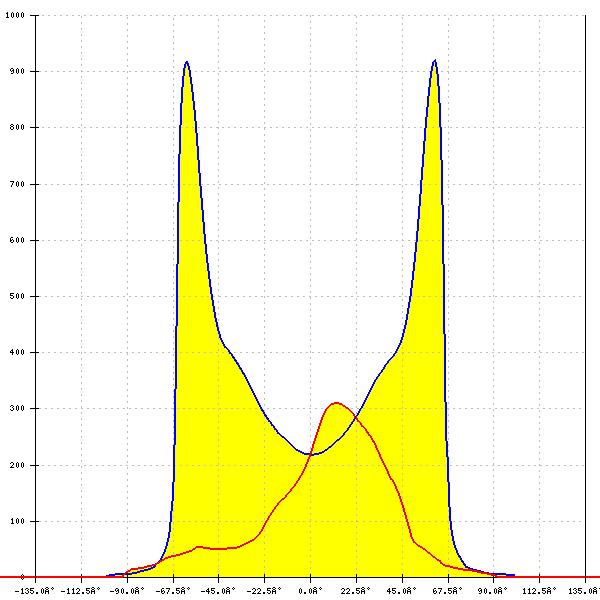

LUXEON V2
FWHM: asymmetric
Peak intensity:
0.930 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

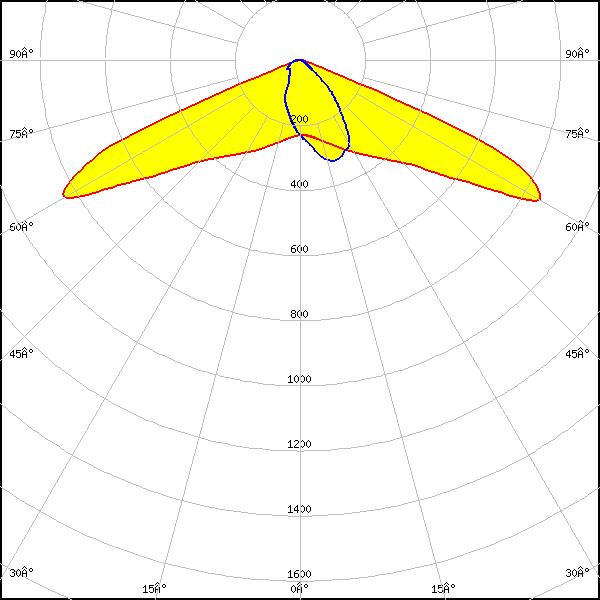

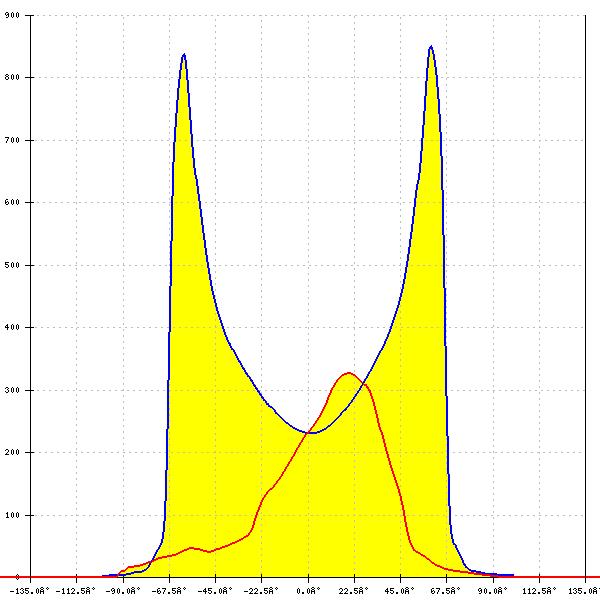

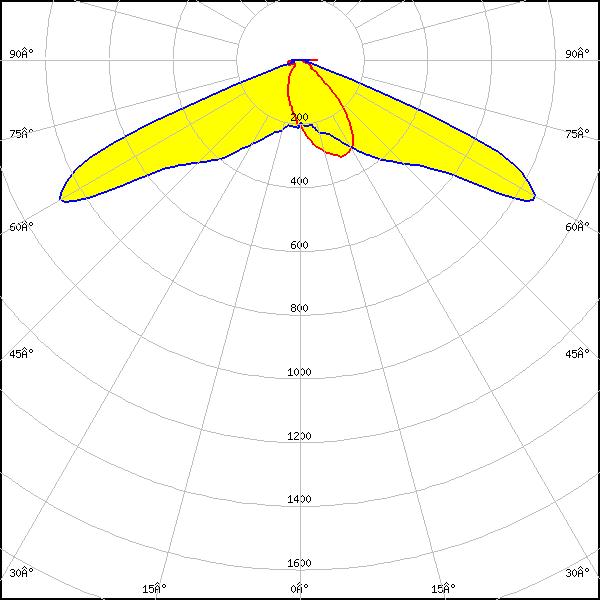

LED:

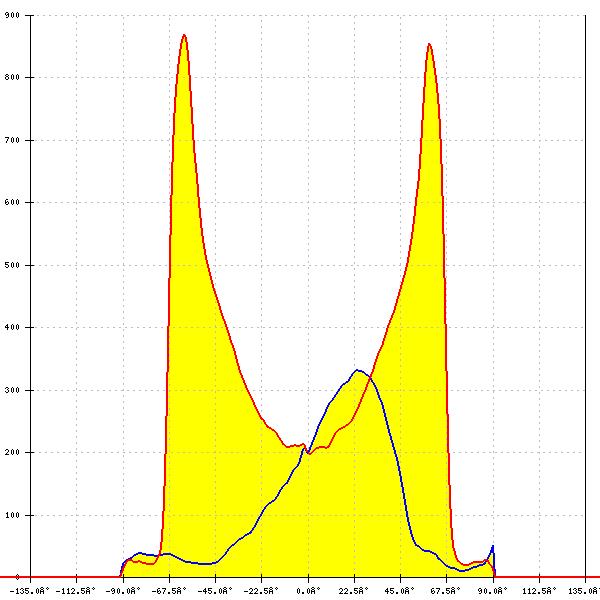

NVSW219D
FWHM: asymmetric
Peak intensity:
0.850 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

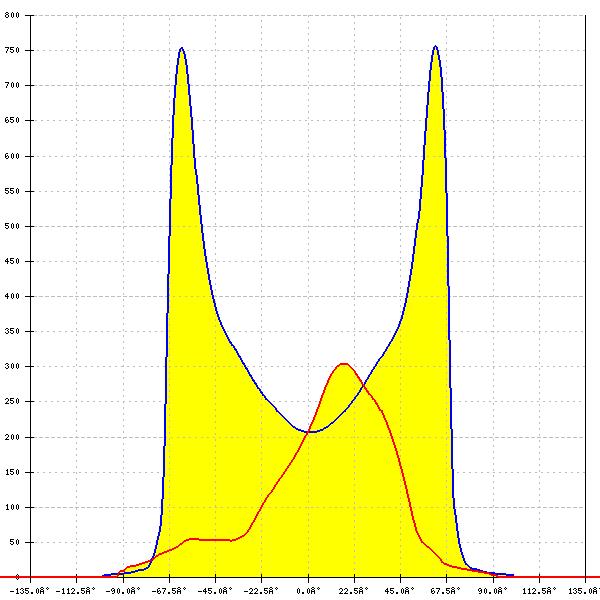

LED:

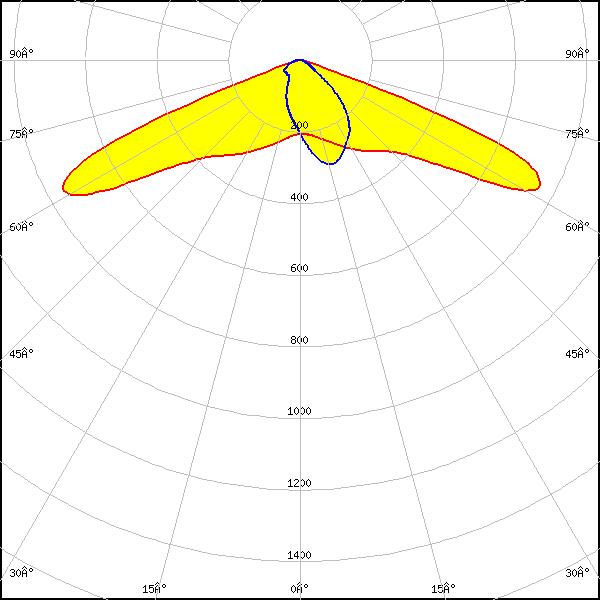

NVSW319B
FWHM: asymmetric
Peak intensity:
0.770 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

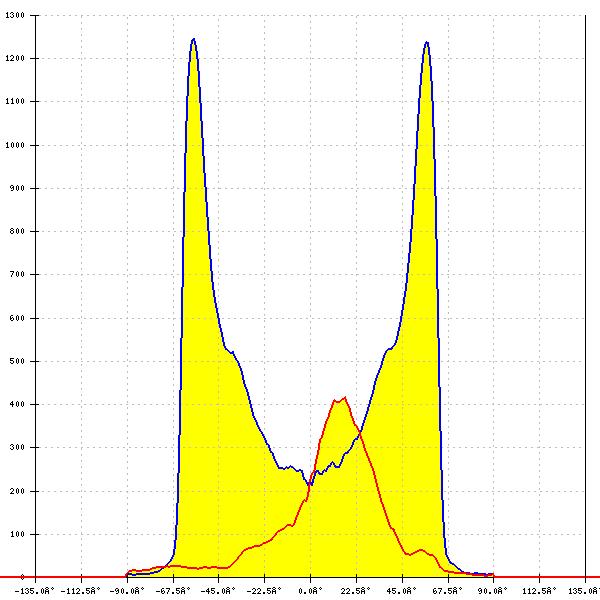

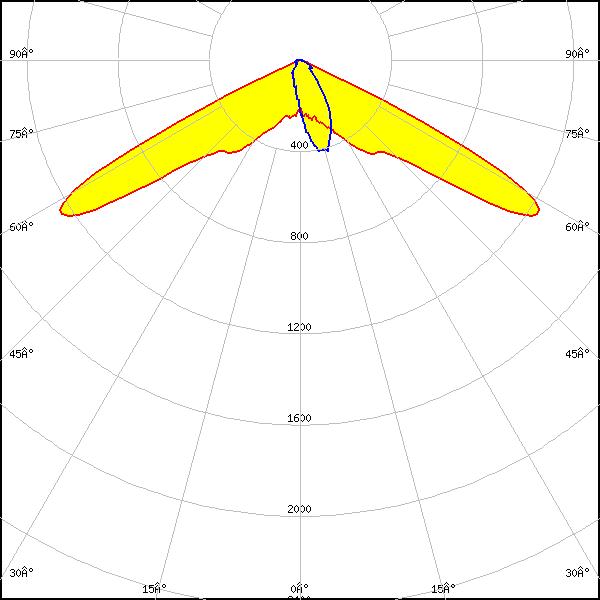

LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
1.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity:
0.873 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

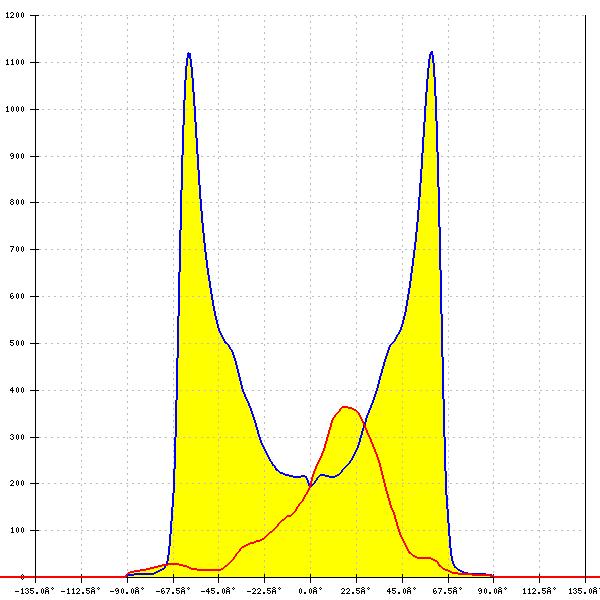

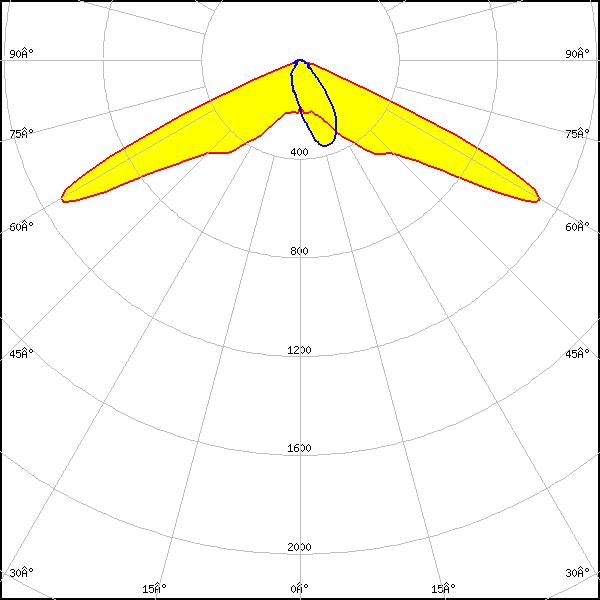

LED:

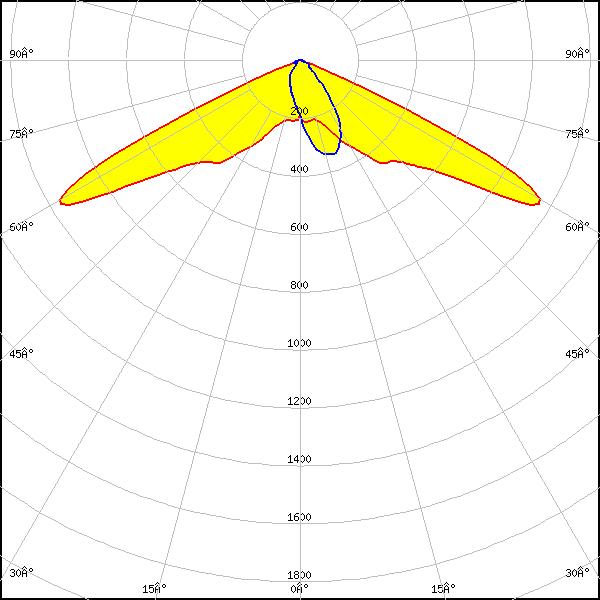

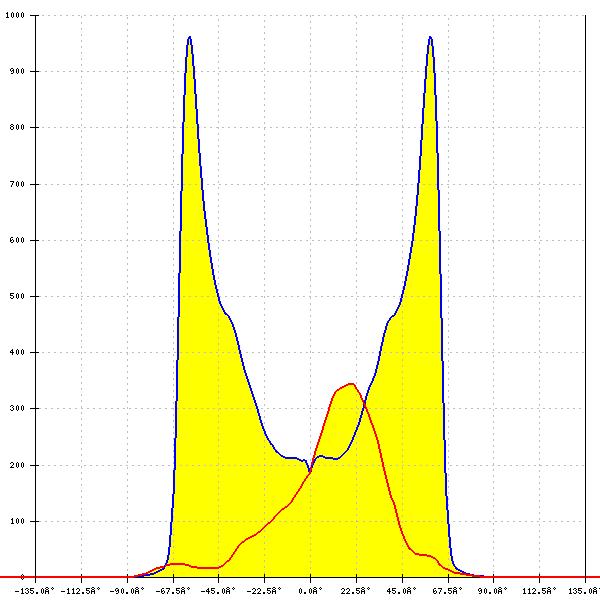

OSCONIQ C 2424
FWHM: asymmetric
Peak intensity:
1.137 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM: asymmetric
Peak intensity:
0.981 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

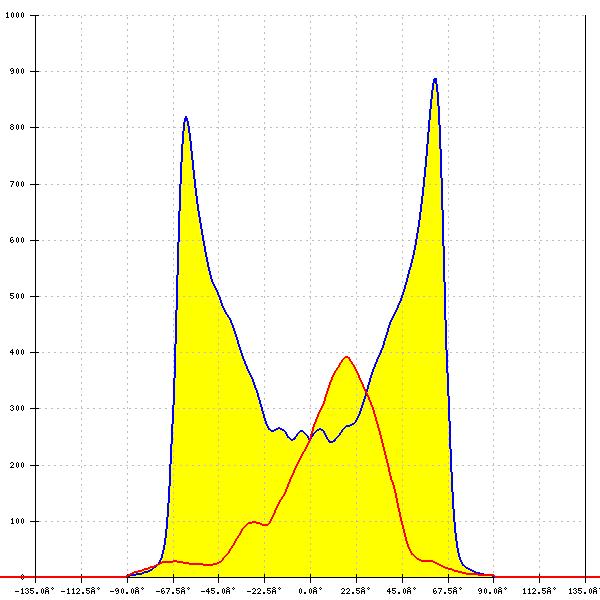

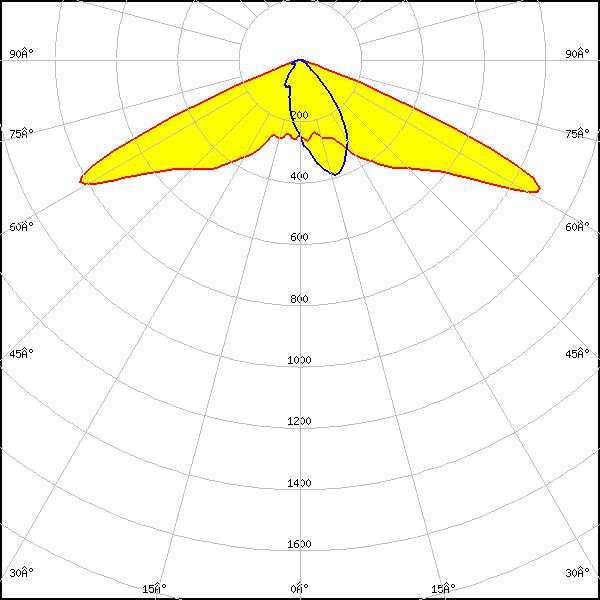

OSCONIQ P 3030
FWHM: asymmetric
Peak intensity:
0.907 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity:
0.830 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

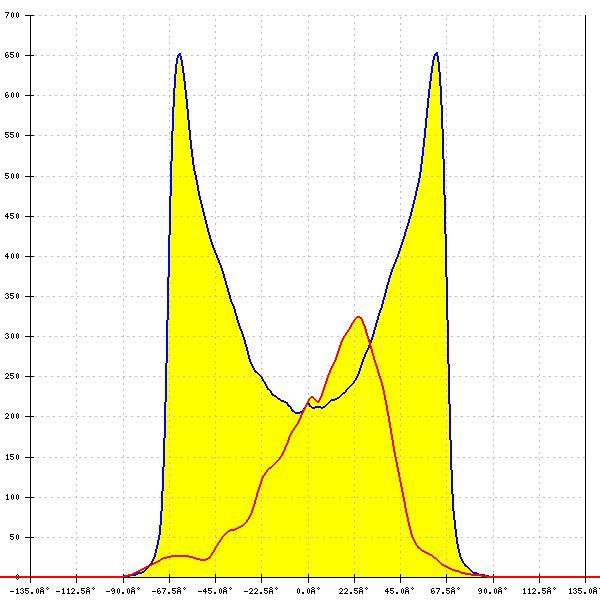

LED:

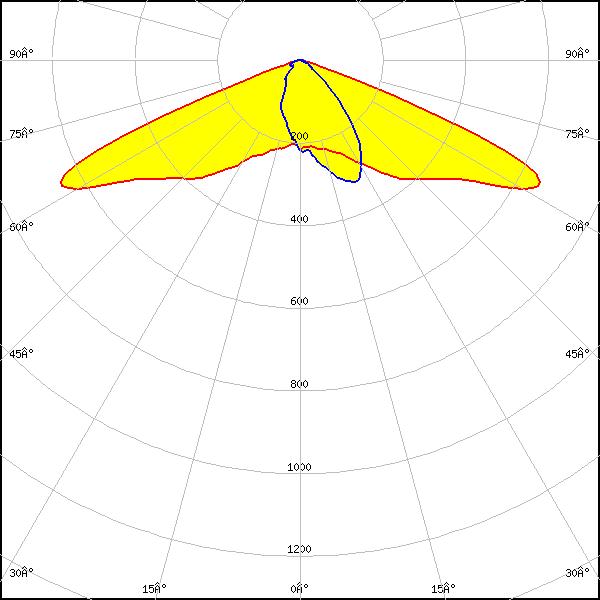

OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.655 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

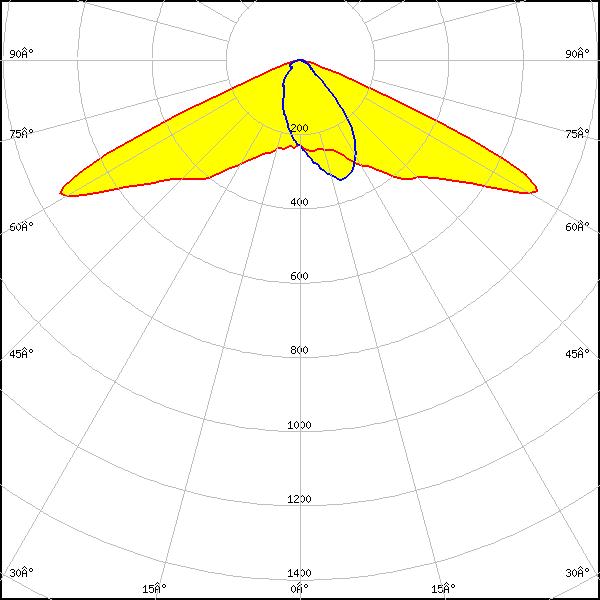

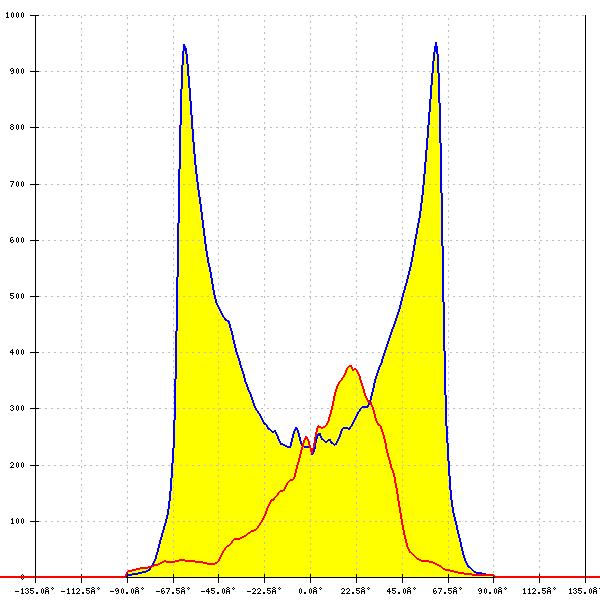

LED:

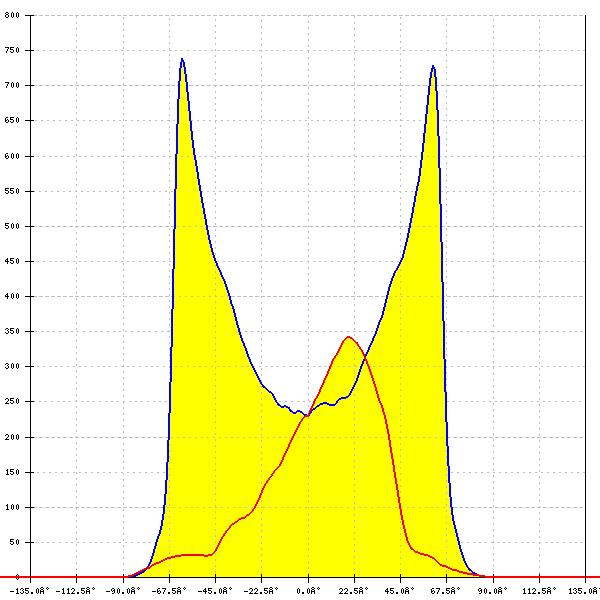

OSLON Square PC
FWHM: asymmetric
Peak intensity:
0.750 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square PC
FWHM: asymmetric
Peak intensity:
0.970 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

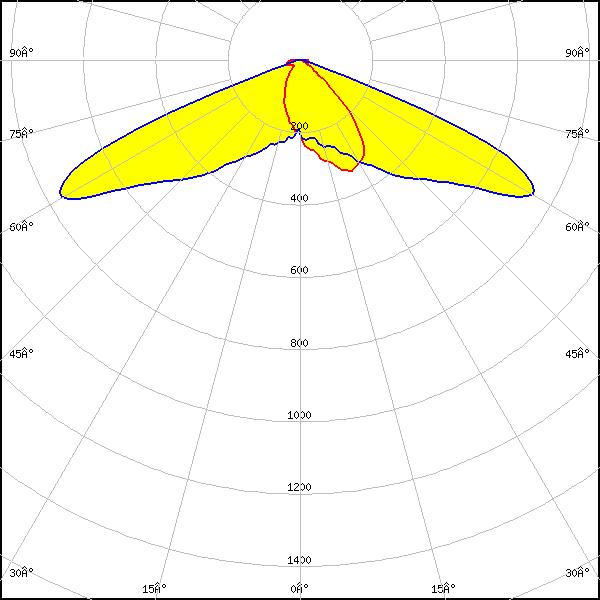

LED:
LH351B
FWHM: asymmetric
Peak intensity:
0.769 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM: asymmetric
Peak intensity:
0.627 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

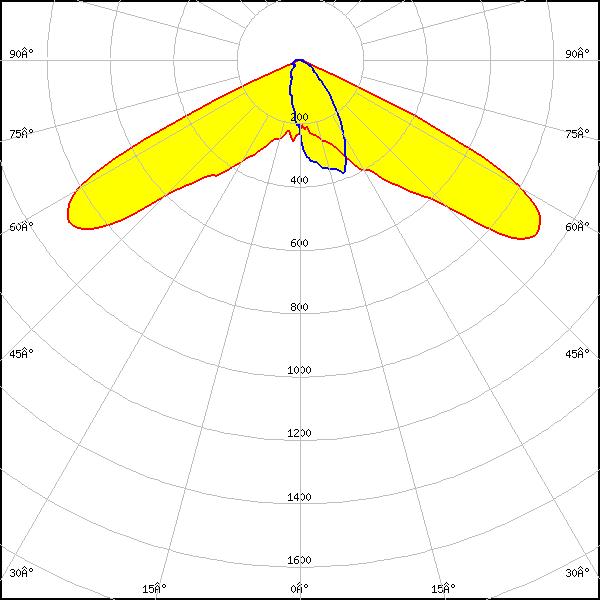

LH351C
FWHM: asymmetric
Peak intensity:
0.930 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

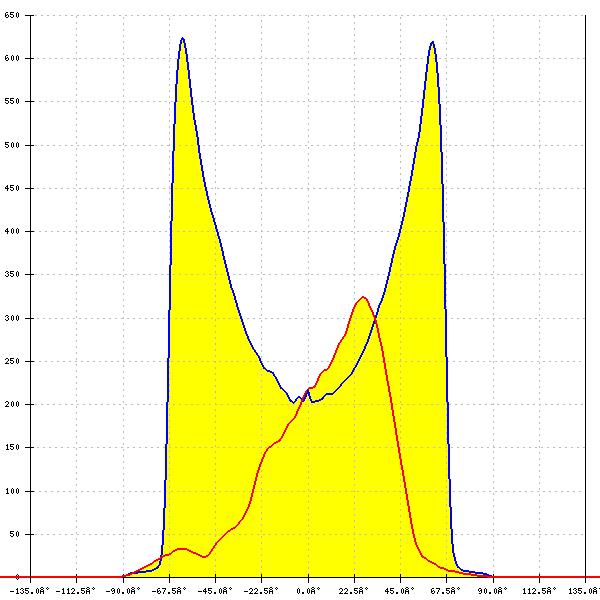

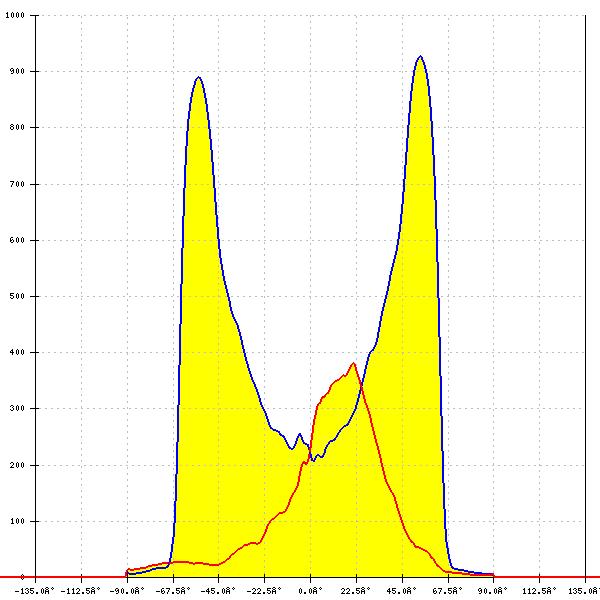

LED:
LH351C
FWHM: asymmetric
Peak intensity:
0.623 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

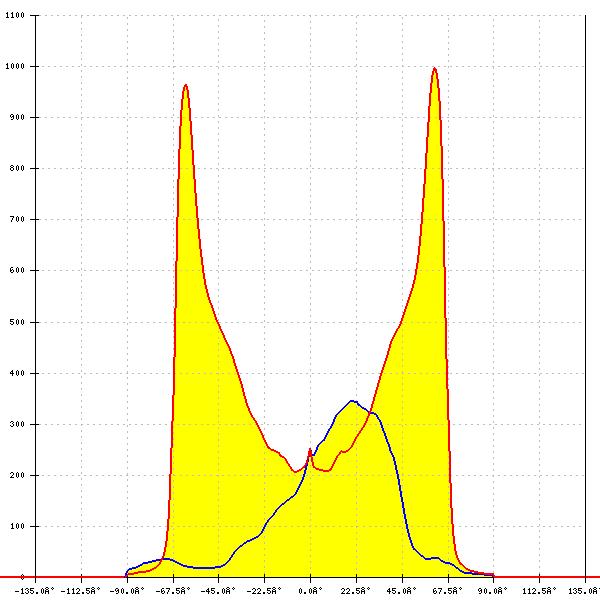

Z5M1/Z5M2
FWHM: asymmetric
Peak intensity:
0.780 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

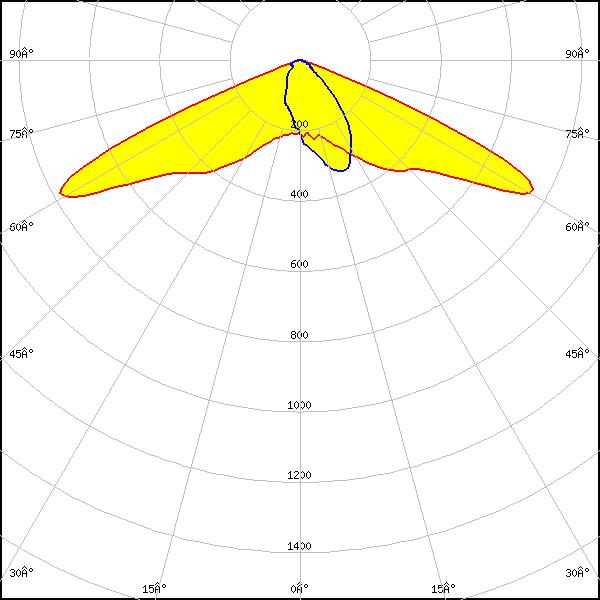

LED:
Z5M1/Z5M2
FWHM: asymmetric
Peak intensity:
1.009 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

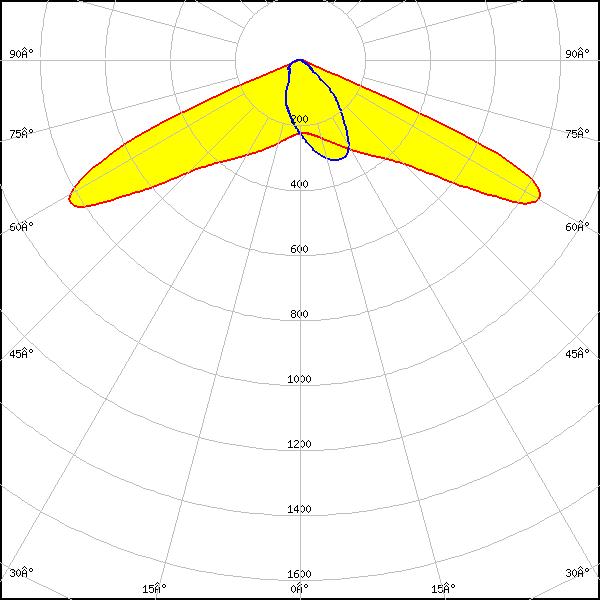

Z5M4
FWHM: asymmetric
Peak intensity:
0.861 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

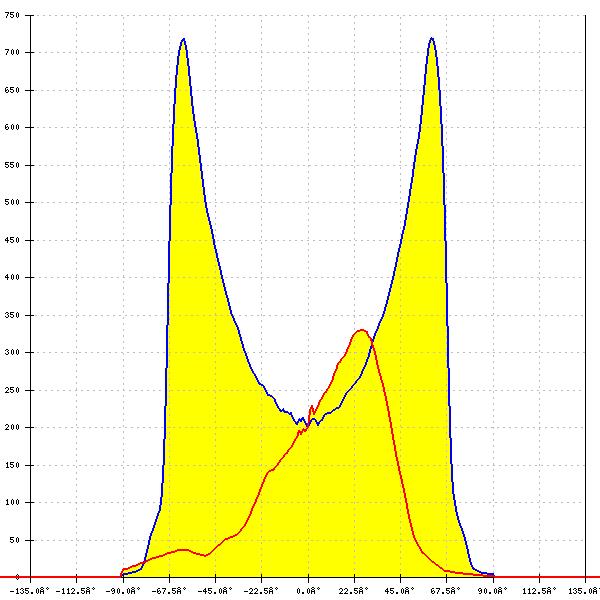

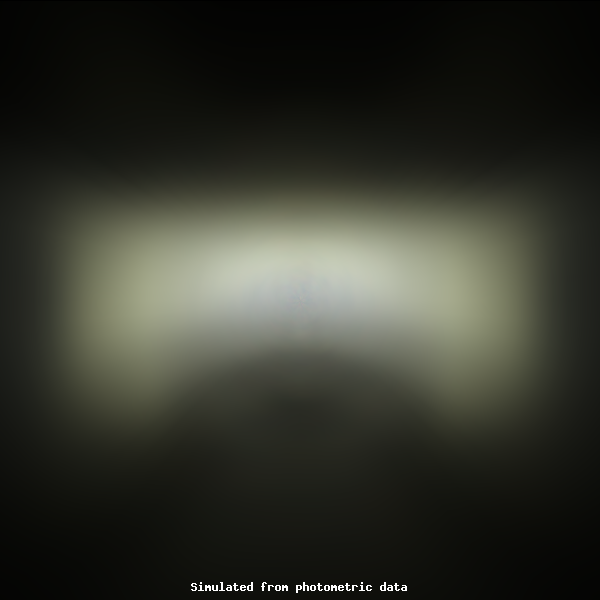

LED:

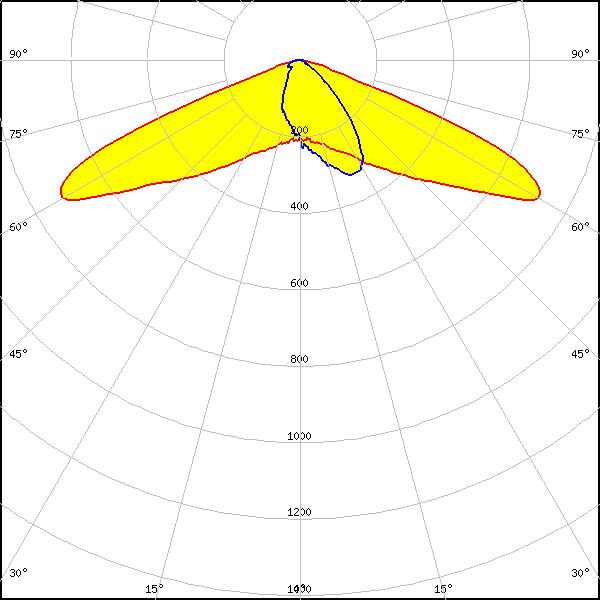

Z5M4-E1
FWHM: asymmetric
Peak intensity:
0.720 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

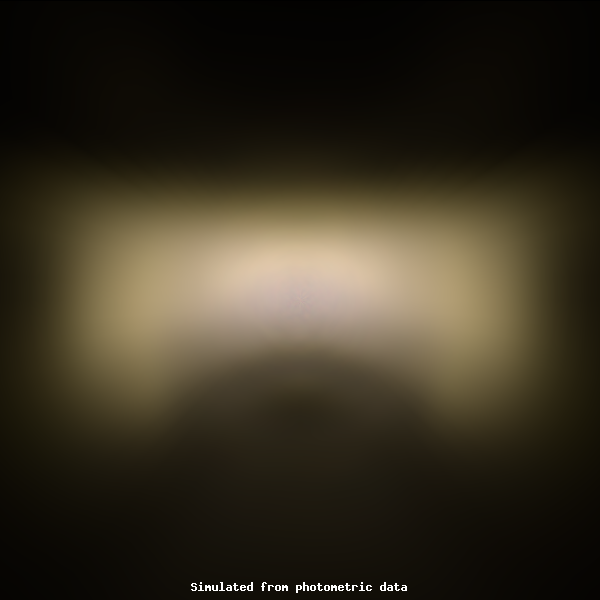

LED:

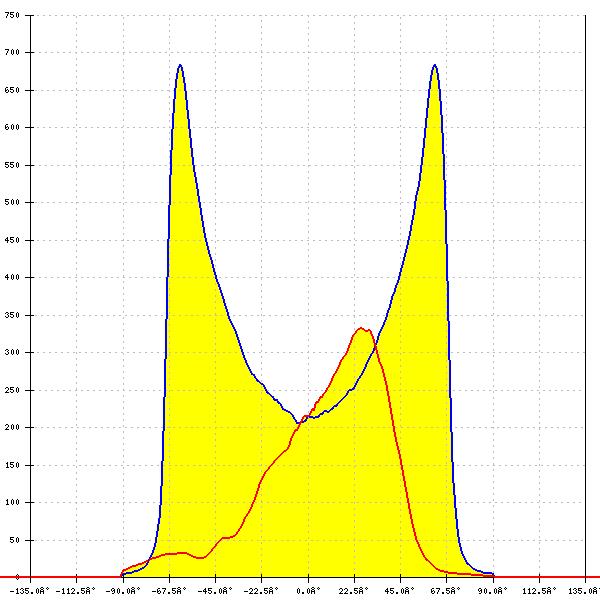

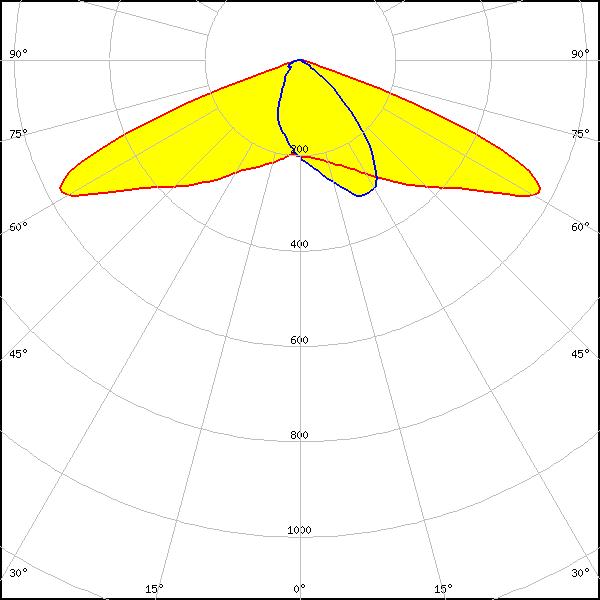

Z5M4-E2
FWHM: asymmetric
Peak intensity:
0.685 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4-E2
FWHM: asymmetric
Peak intensity:
0.572 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
