C15920_STRADELLA-8-HV-CY
Print
Beam for canopy lighting with batwing light distribution. Suitable for symmetrical tunnel lighting. Variant with improved creepage distance for high voltage circuit designs.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

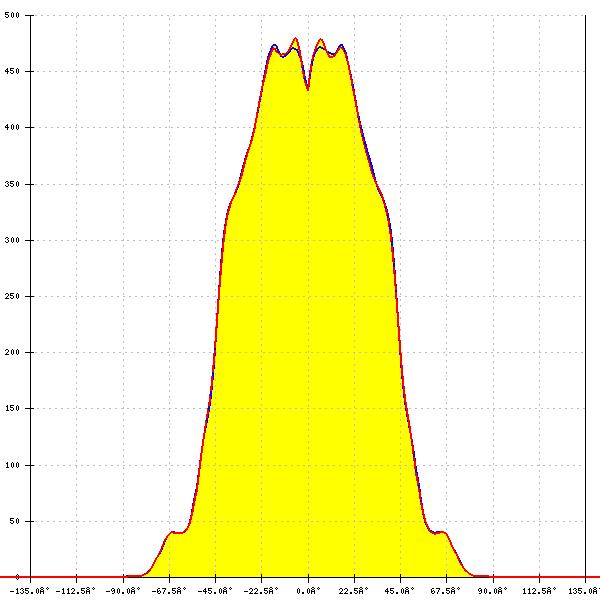

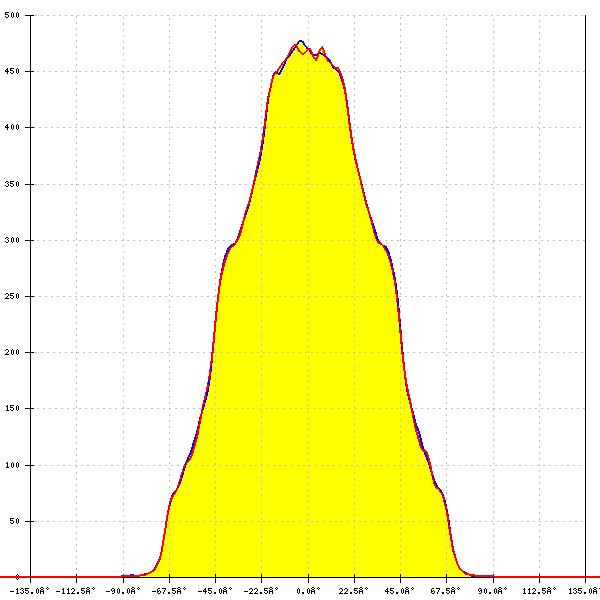

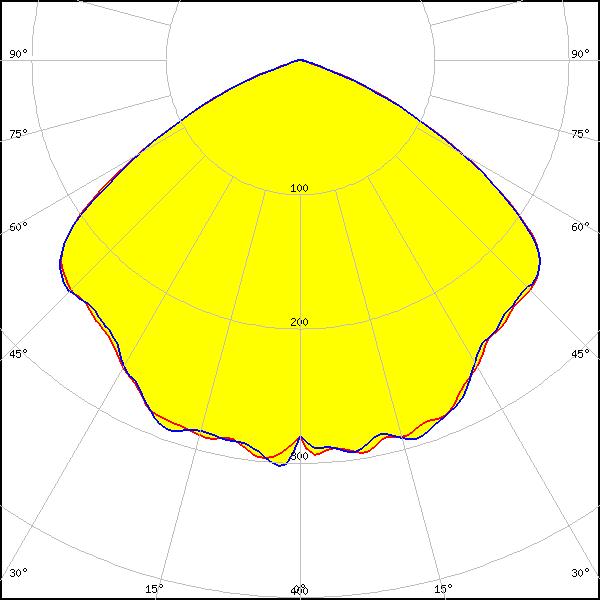

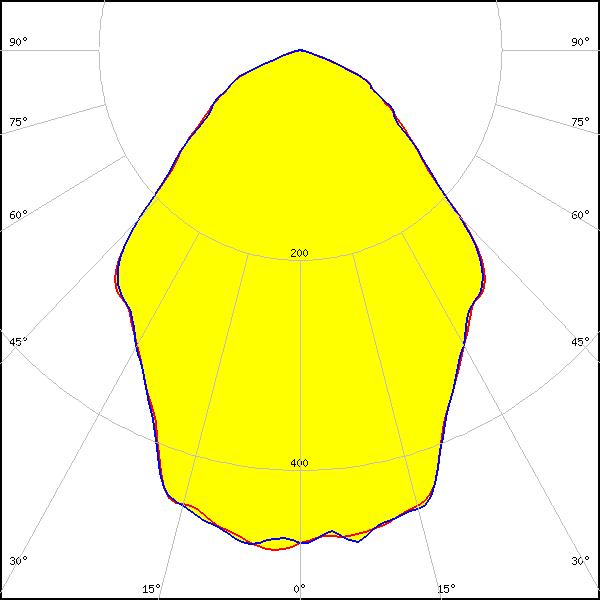

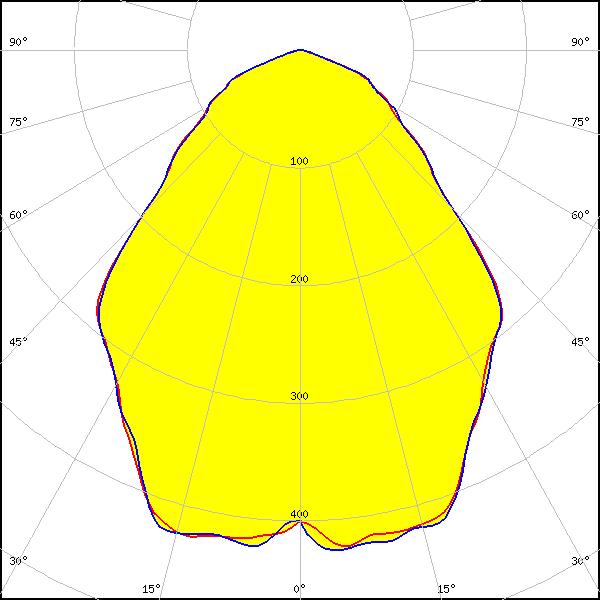

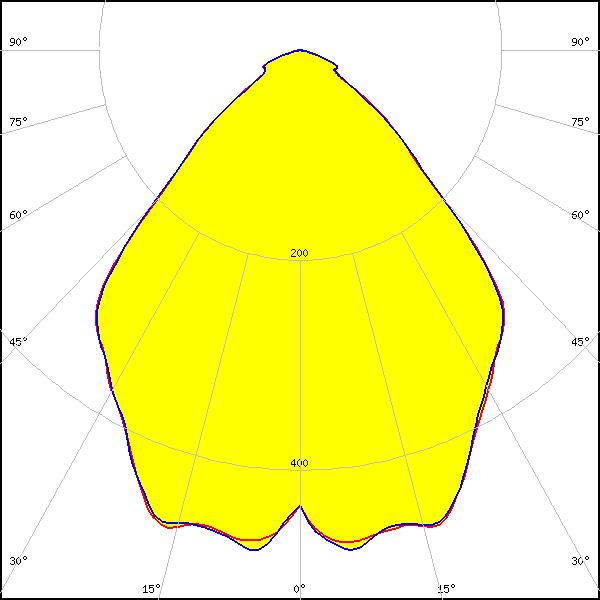

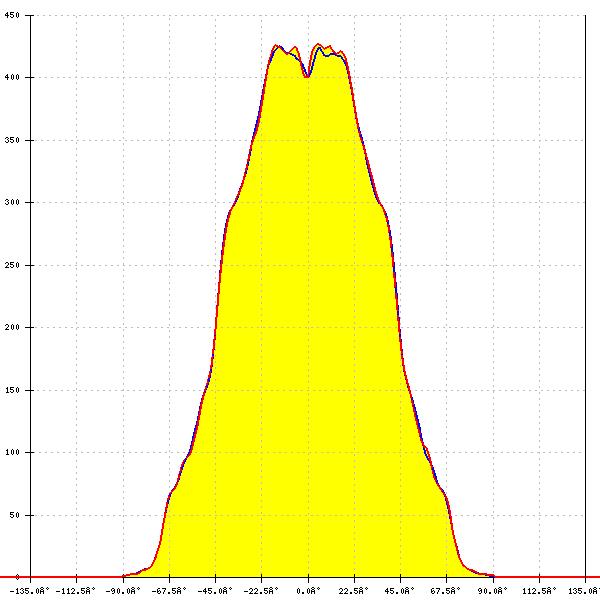

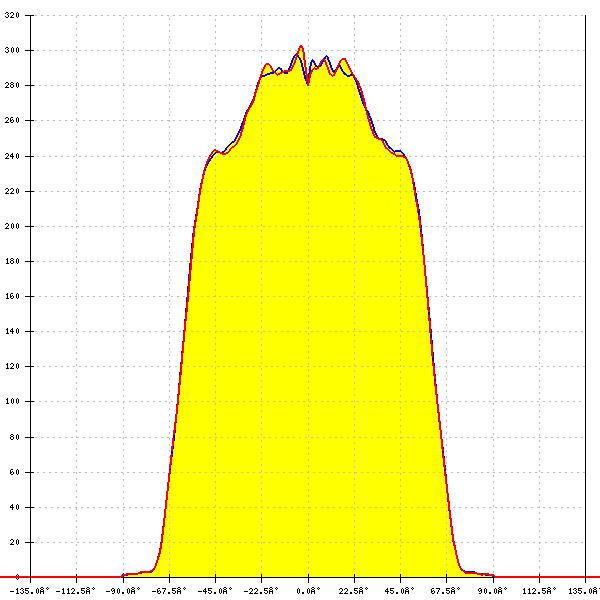

Optical results
LED:
J Series 3030
FWHM:
121°
FWTM:
136°
Peak intensity:
0.414 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XD16
FWHM:
129°
FWTM:
142°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G4
FWHM:
114°
FWTM:
122°
Peak intensity:
0.411 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G4
FWHM:
114°
FWTM:
124°
Peak intensity:
0.355 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G4 HI
FWHM:
124°
FWTM:
140°
Peak intensity:
0.379 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
125° + 126°
FWTM:
146° + 146°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PL-BRICK HP 3x8 Stradella-8
FWHM:
116°
FWTM:
135°
Peak intensity:
0.388 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 2D (Round LES)
FWHM:
120°
FWTM:
135°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM:
114°
FWTM:
136°
Peak intensity:
0.325 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CZ
FWHM:
120°
FWTM:
138°
Peak intensity:
0.427 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Blue
LED:
LUXEON CZ
FWHM:
123°
FWTM:
140°
Peak intensity:
0.403 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON V2
FWHM:
124°
FWTM:
140°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
126°
FWTM:
144°
Peak intensity:
0.399 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
Deep Red
LED:
SST-20 Gen2
FWHM:
124°
FWTM:
138°
Peak intensity:
0.409 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-20 Gen2
FWHM:
122°
FWTM:
138°
Peak intensity:
0.357 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2W585AR
FWHM:
130°
FWTM:
143°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219D
FWHM:
116°
FWTM:
140°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW319B
FWHM:
122°
FWTM:
136°
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM:
123°
FWTM:
136°
Peak intensity:
0.323 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM:
122°
FWTM:
136°
Peak intensity:
0.297 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
120°
FWTM:
133°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM:
120°
FWTM:
136°
Peak intensity:
0.415 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
118°
FWTM:
135°
Peak intensity:
0.384 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
116°
FWTM:
134°
Peak intensity:
0.333 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 3030 (QSLR31)
FWHM:
121°
FWTM:
136°
Peak intensity:
0.417 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Pure 1414
FWHM:
121° + 120°
FWTM:
136° + 136°
Peak intensity:
0.437 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4715AS
FWHM:
93°
FWTM:
124°
Peak intensity:
0.475 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
Fortimo FastFlex LED 4x8up PR G5
FWHM:
120°
FWTM:
134°
Peak intensity:
0.443 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH181A
FWHM:
130°
FWTM:
138°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH181B
FWHM:
128°
FWTM:
132°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM:
118°
FWTM:
130°
Peak intensity:
0.321 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351D
FWHM:
120°
FWTM:
134°
Peak intensity:
0.310 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030C
FWHM: asymmetric
Peak intensity:
0.420 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM:
113°
FWTM:
136°
Peak intensity:
0.330 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3
FWHM:
124°
FWTM:
144°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM:
116°
FWTM:
128°
Peak intensity:
0.365 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM:
116°
FWTM:
128°
Peak intensity:
0.324 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4
FWHM:
117°
FWTM:
127°
Peak intensity:
0.394 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
118°
FWTM:
130°
Peak intensity:
0.379 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
118°
FWTM:
130°
Peak intensity:
0.330 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
