    C15594_STRADA-2X2-MEW

    Print

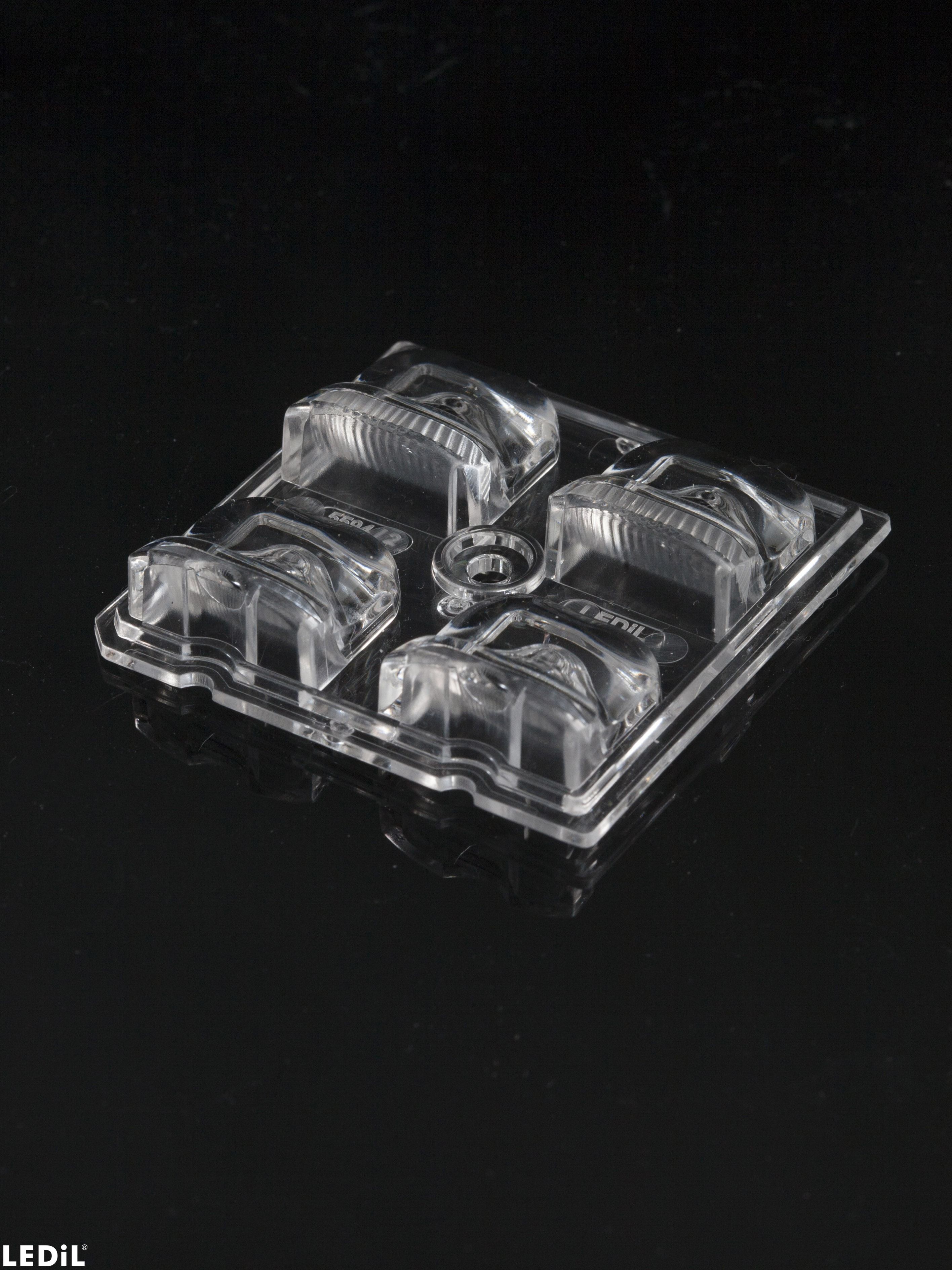

    Beam with extremely low glare fulfilling EN13201 M-class requirements for wet road surfaces in North Europe

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      10.16 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.6 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 70 mm
    • MOQ weight:
      2.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C15594_STRADA-2X2-MEW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - STRADA-2X2-MEW

    Catalogue

    LEDiL Latest products catalogue Q1 2025

    Application guide

    Guide for Street lighting optics

    Application area

    Urban lighting with LEDiL optics

    Application example

    Urban lighting with LEDiL optics

    Reference product

    Bollard lamp for urban environments

    Case story

    Naberezhne Highway in Kiev

    Application area

    Industrial Lighting

    Installation guide

    STRADA-2X2 Installation guide

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

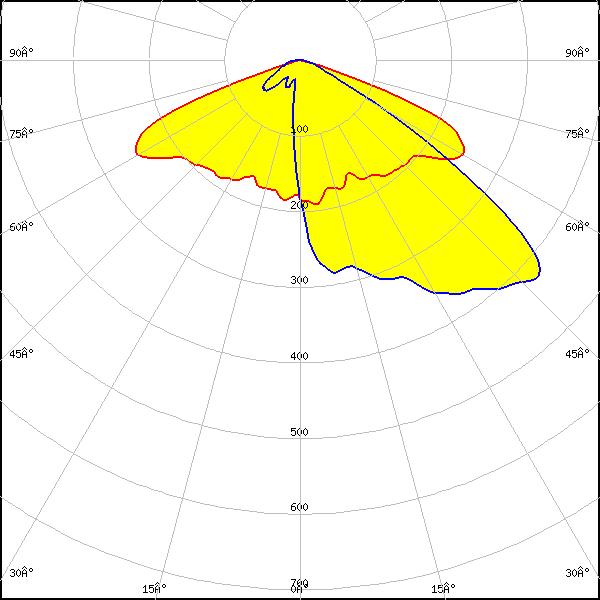

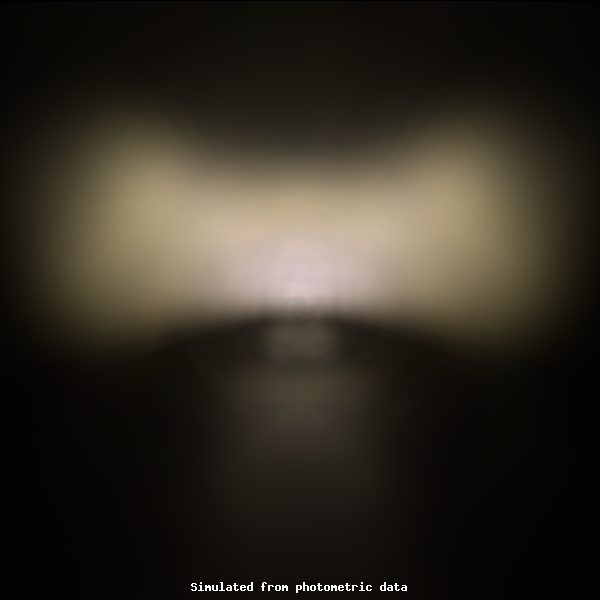

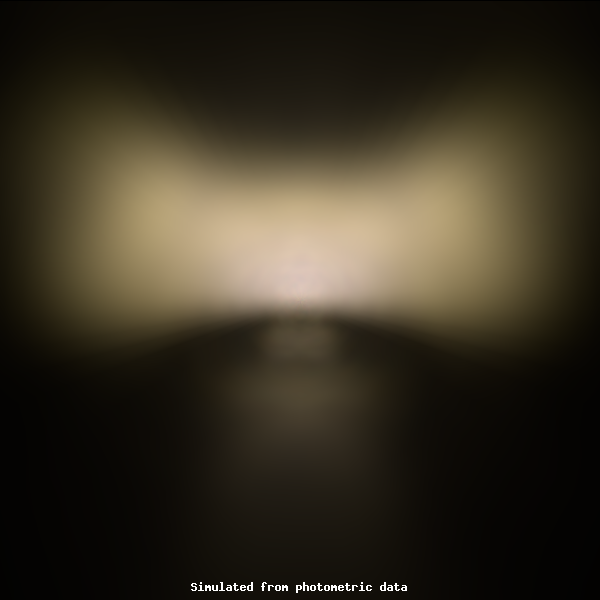

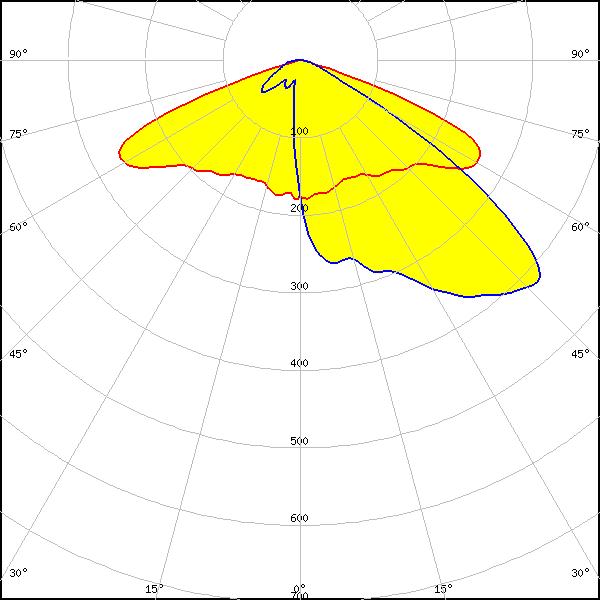

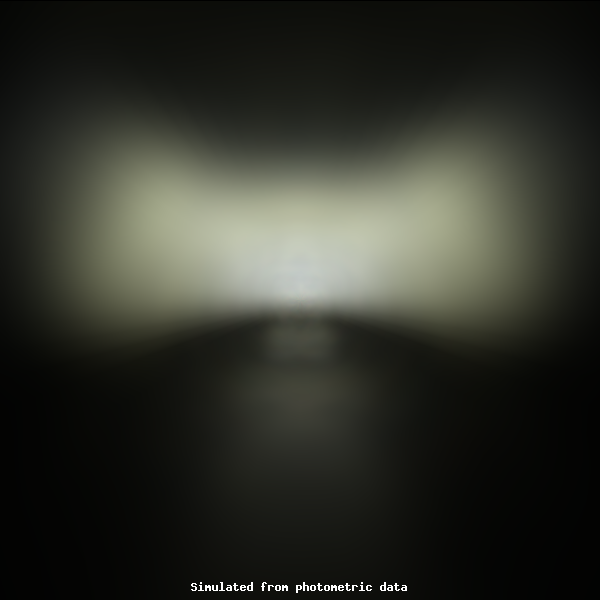

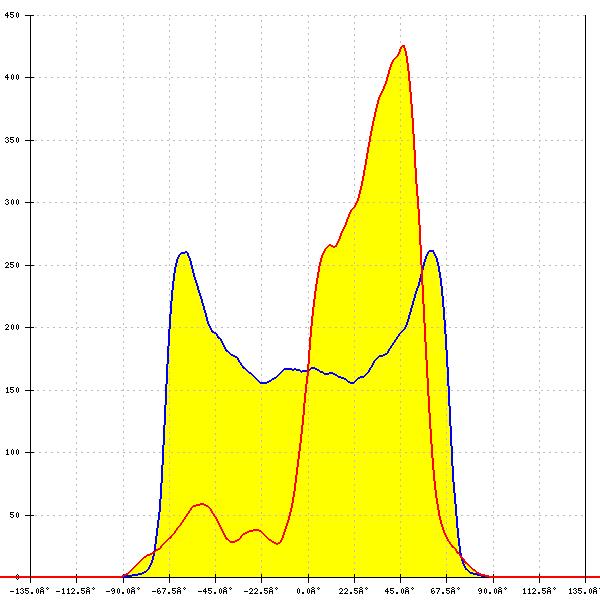

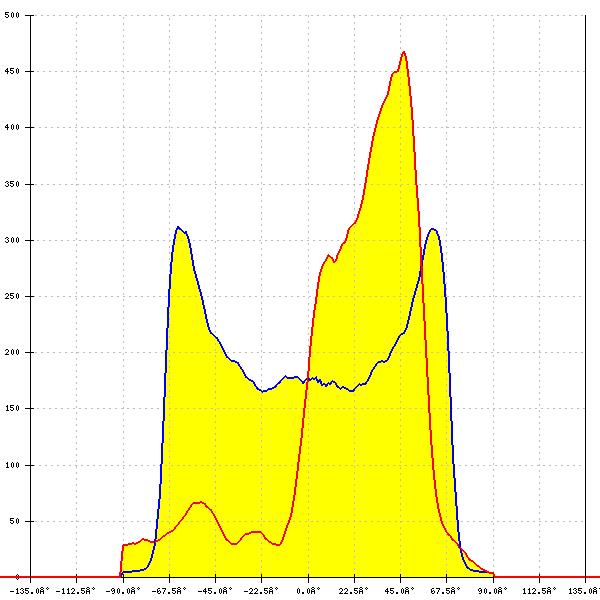

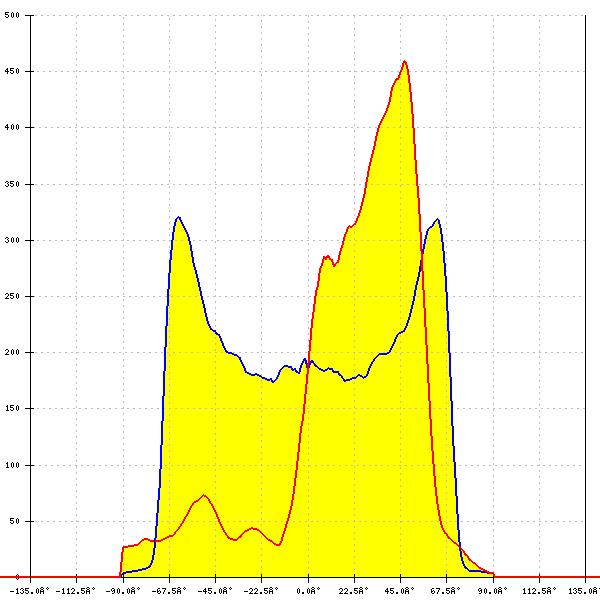

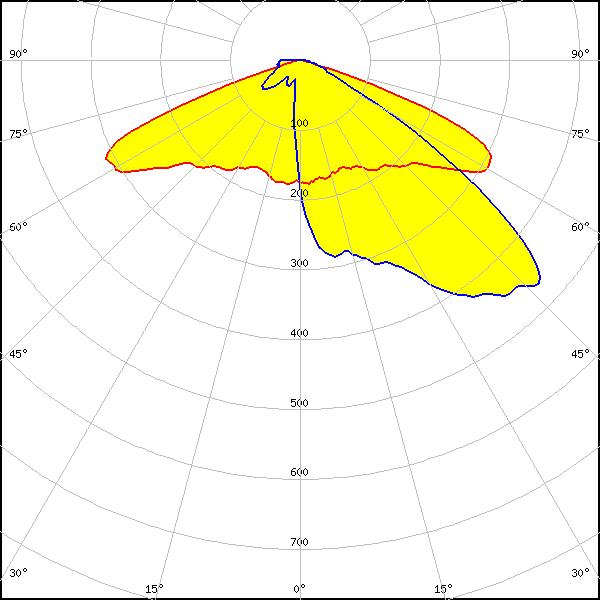

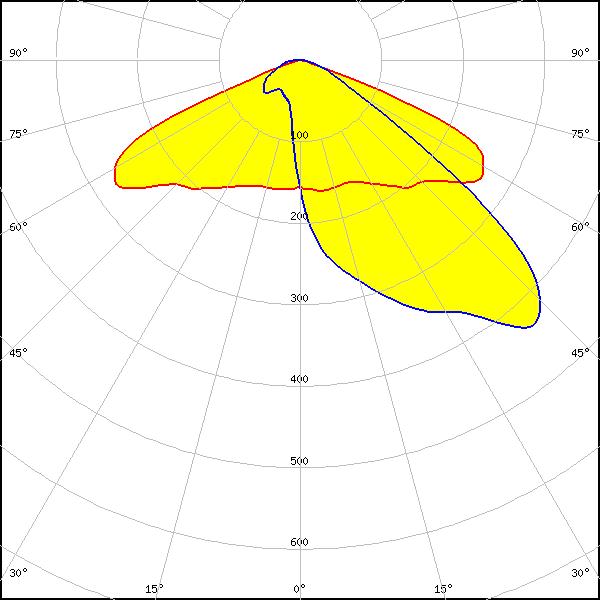

    Optical results

    LED: Bridgelux SMD 5050
    FWHM: asymmetric
    Peak intensity: 0.588 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

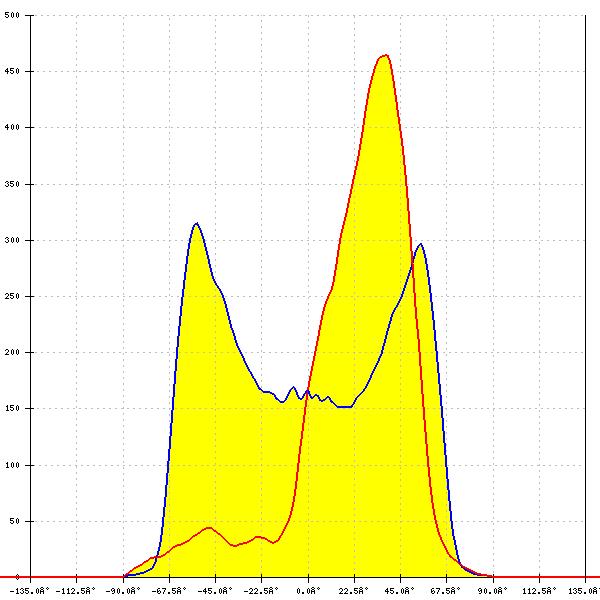

    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.599 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: XHP35 HD
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HI
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L2
    FWHM: asymmetric
    Peak intensity: 0.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.816 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    FWHM: asymmetric
    Peak intensity: 0.846 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

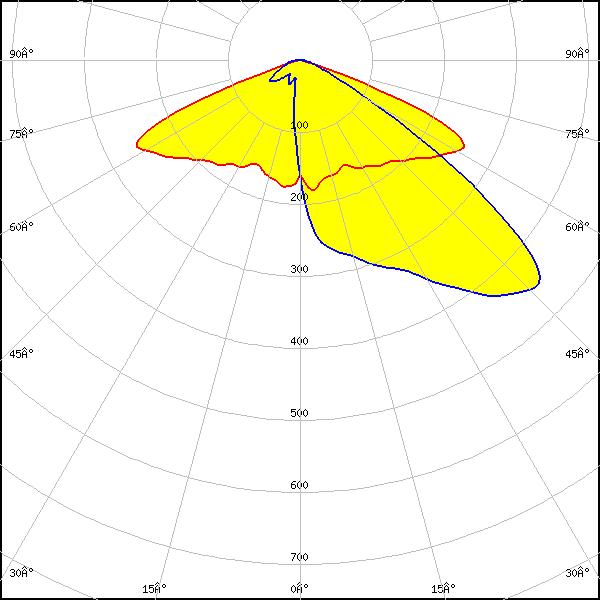

    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 0.920 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 0.689 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: asymmetric
    Peak intensity: 0.850 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 0.823 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Brick HP 2x8
    FWHM: asymmetric
    Peak intensity: 0.950 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

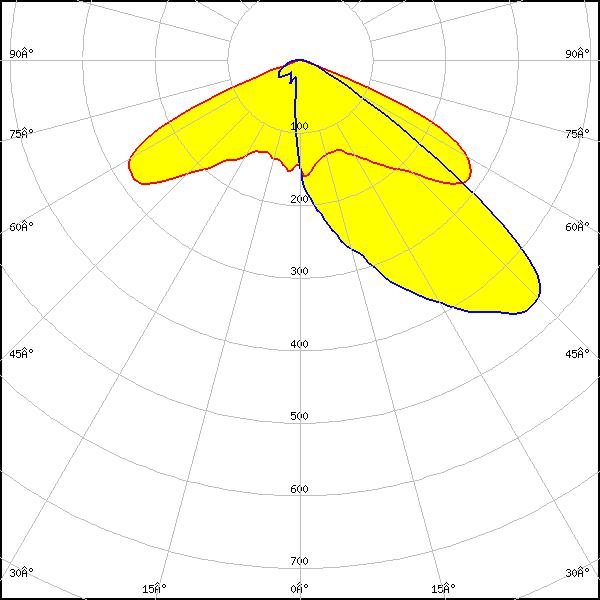

    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.861 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

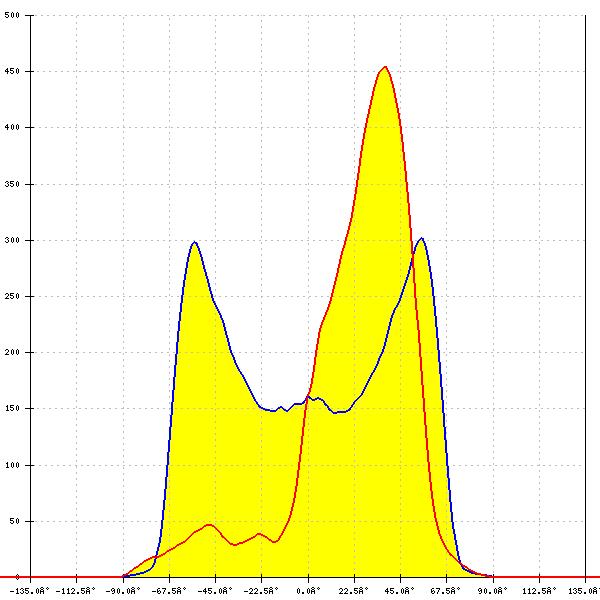

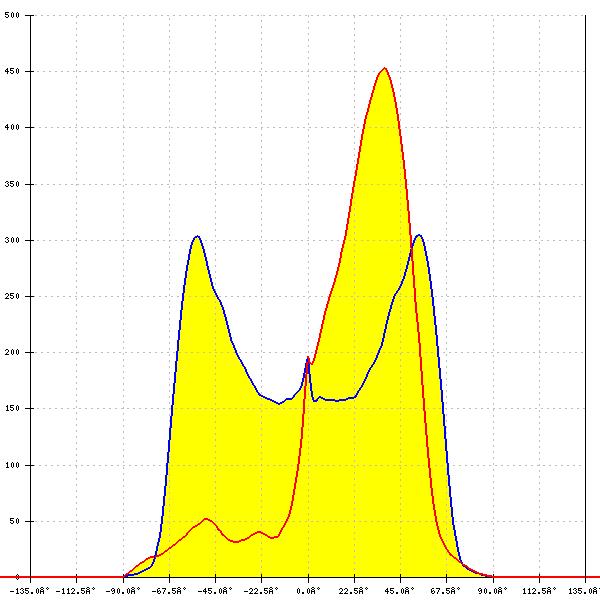

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.613 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.629 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.720 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.609 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.693 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

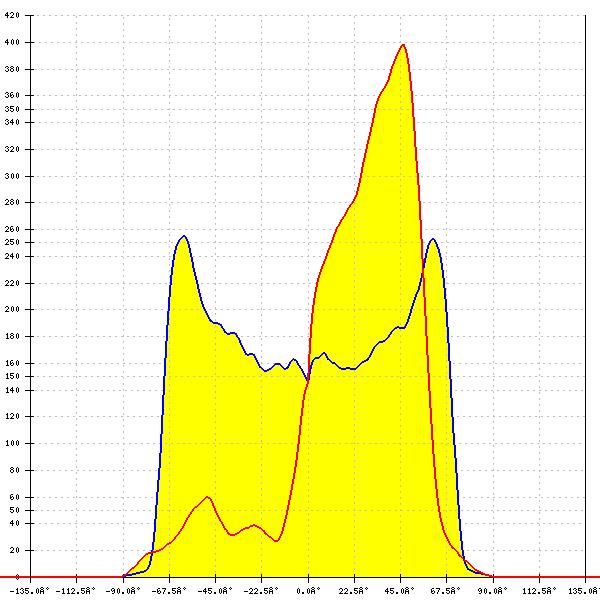

    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 0.641 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

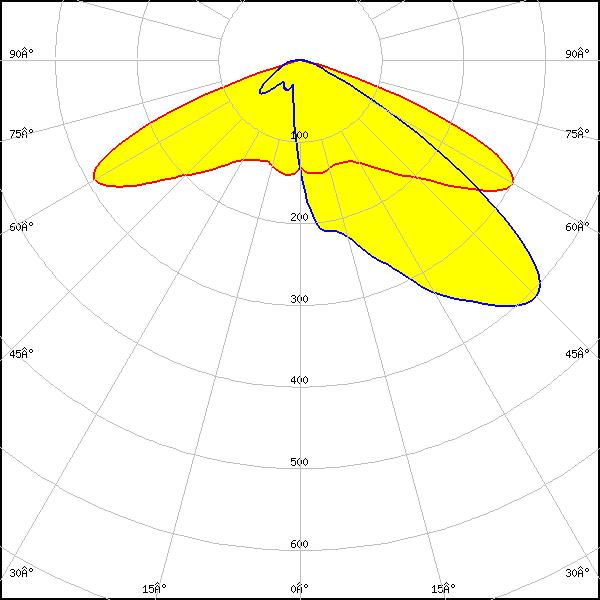

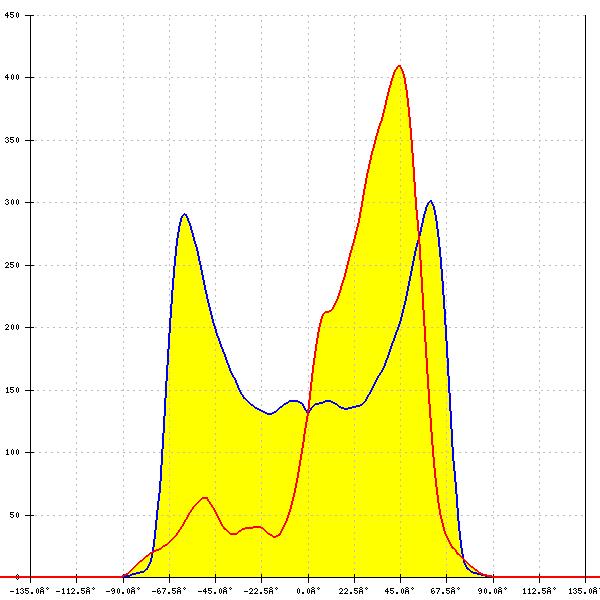

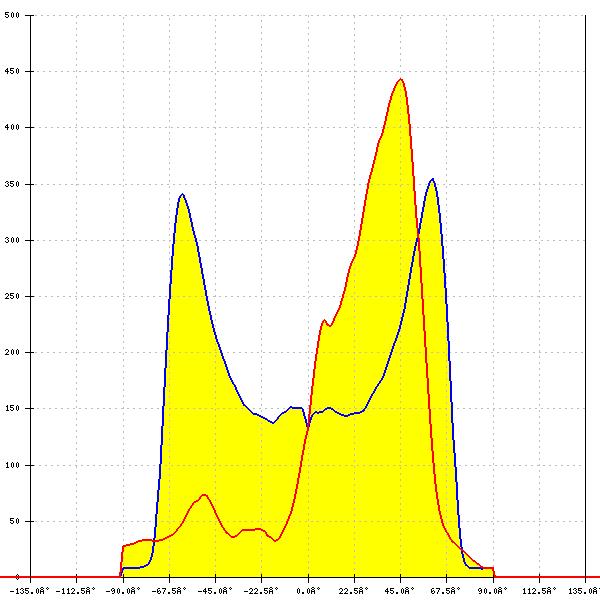

    LED: LUXEON HL4X
    FWHM: asymmetric
    Peak intensity: 0.816 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL4X
    FWHM: asymmetric
    Peak intensity: 0.643 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON TX
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON V
    FWHM: asymmetric
    Peak intensity: 0.770 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

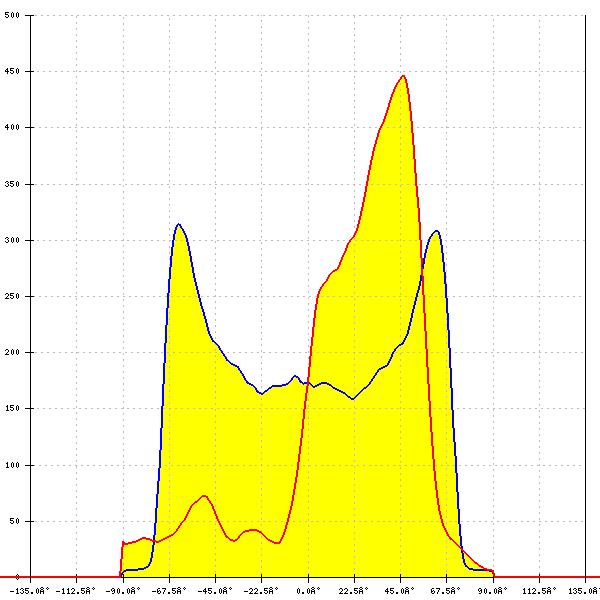

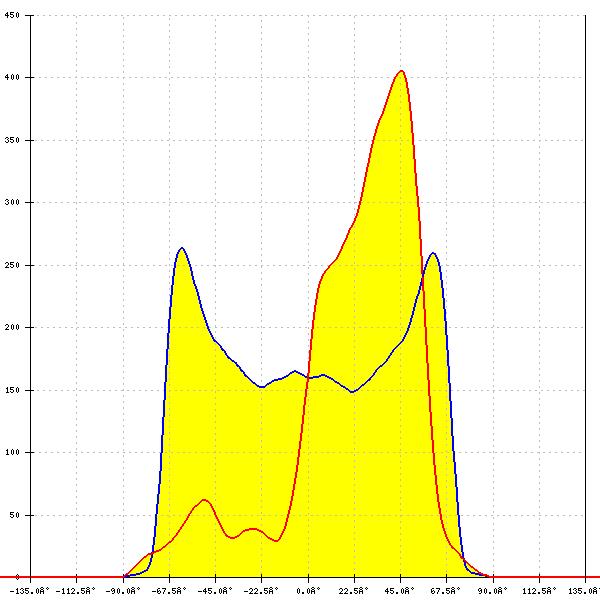

    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 0.811 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 0.614 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

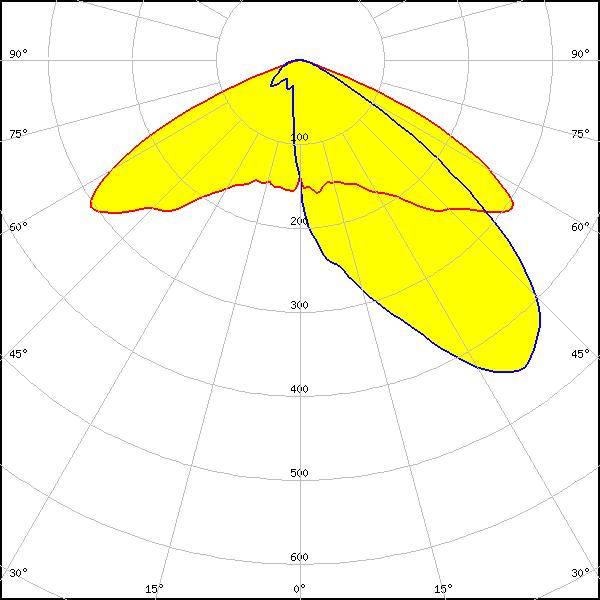

    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: asymmetric
    Peak intensity: 1.002 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxx19B
    FWHM: asymmetric
    Peak intensity: 0.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White

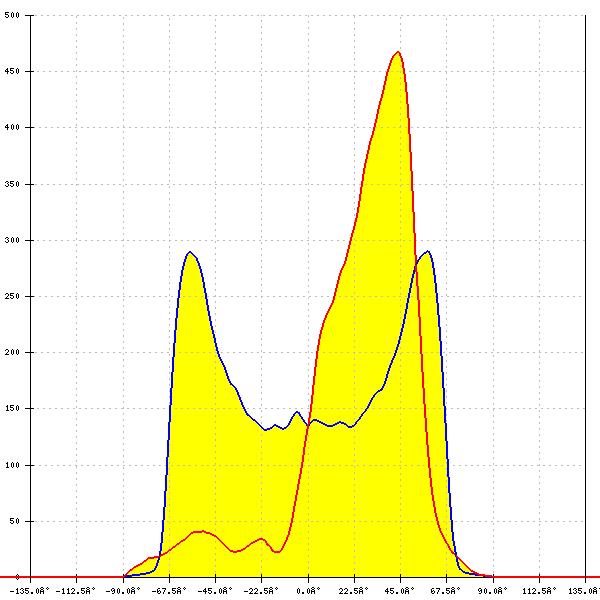

    LED: NF2x757G
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

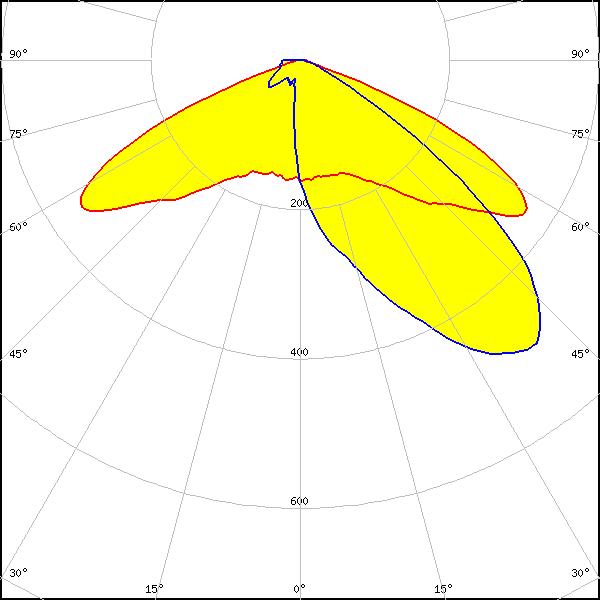

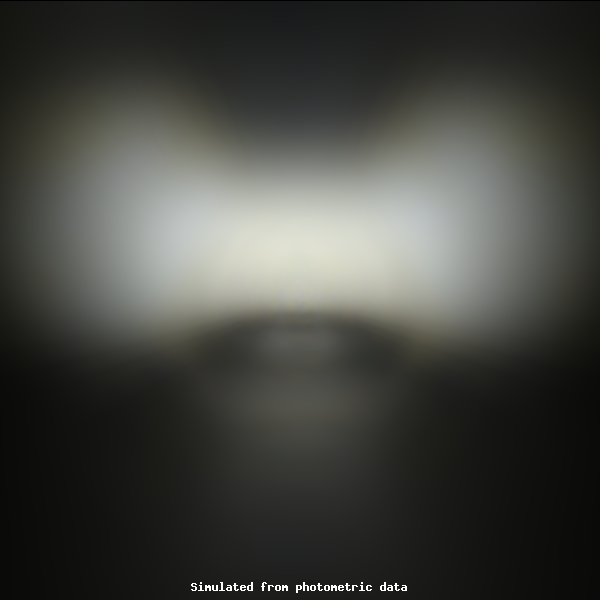

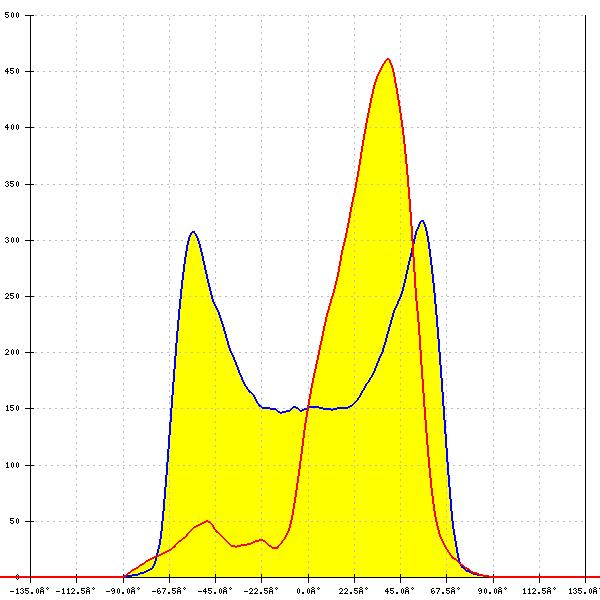

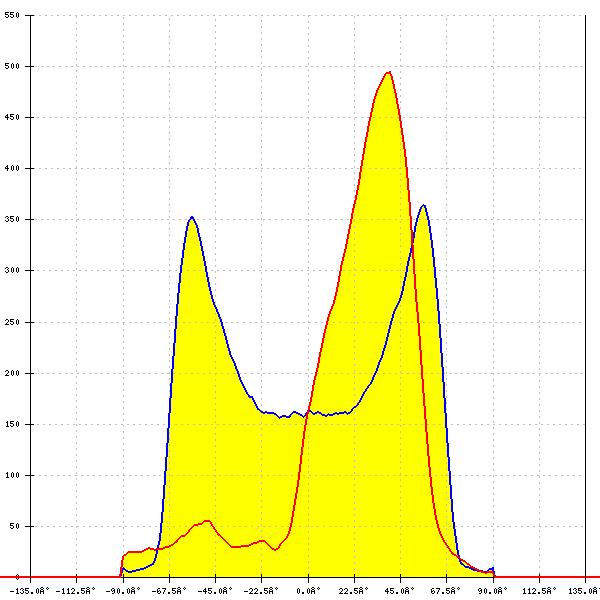

    LED: NFMW486AM-V2
    FWHM: asymmetric
    Peak intensity: 0.720 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFMW486AM-V2
    FWHM: asymmetric
    Peak intensity: 0.623 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 0.792 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219D
    FWHM: asymmetric
    Peak intensity: 0.990 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.723 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW319B
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.796 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.630 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.870 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 0.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 0.747 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.558 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.659 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 0.715 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

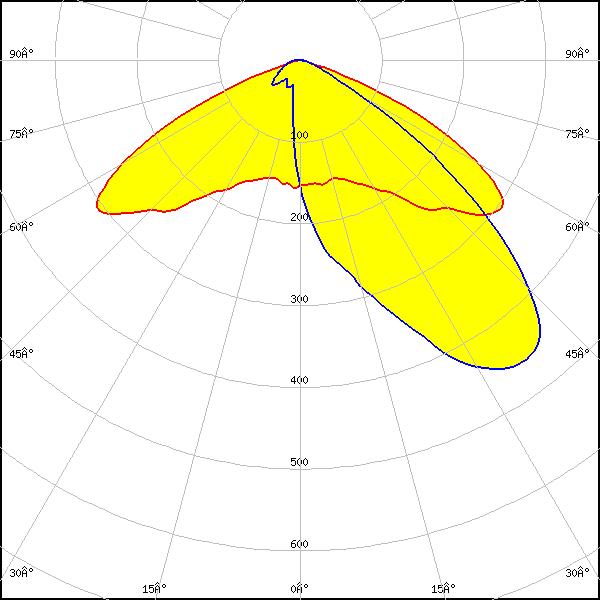

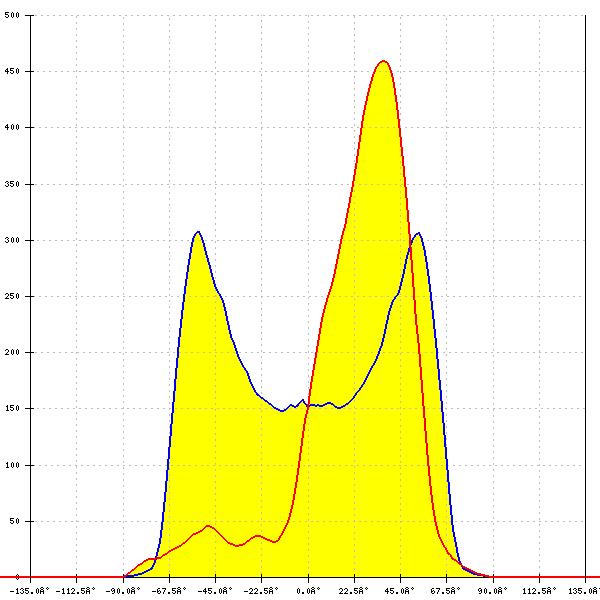

    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: asymmetric
    Peak intensity: 0.575 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

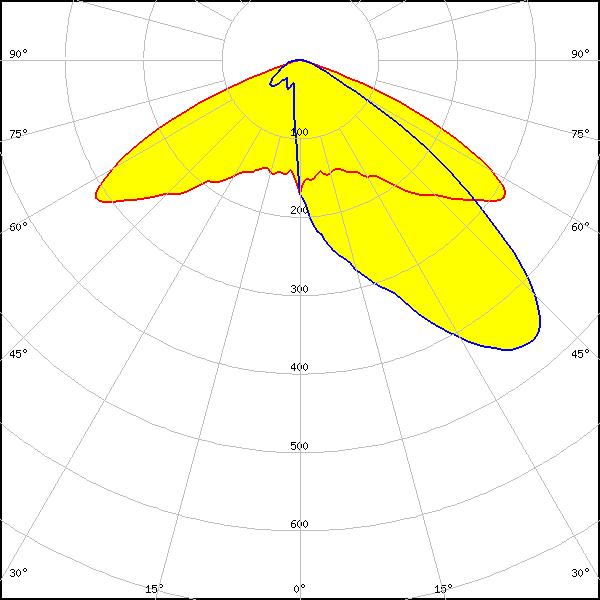

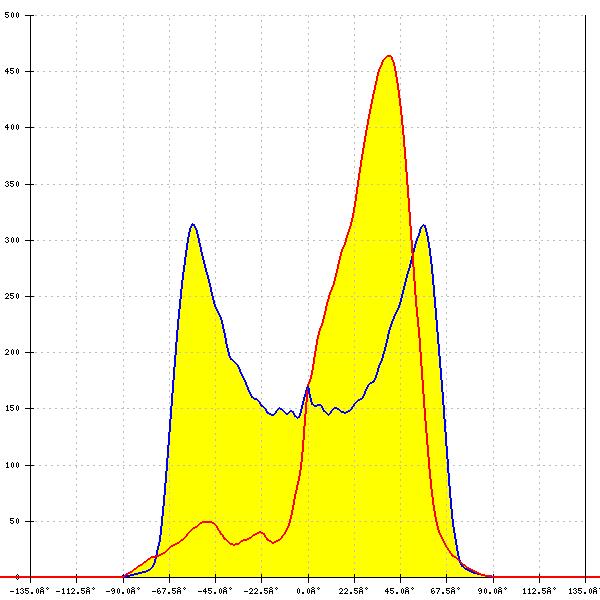

    LED: OSCONIQ S 5050 (Q9LR35)
    FWHM: asymmetric
    Peak intensity: 0.626 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.877 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.950 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square PC
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

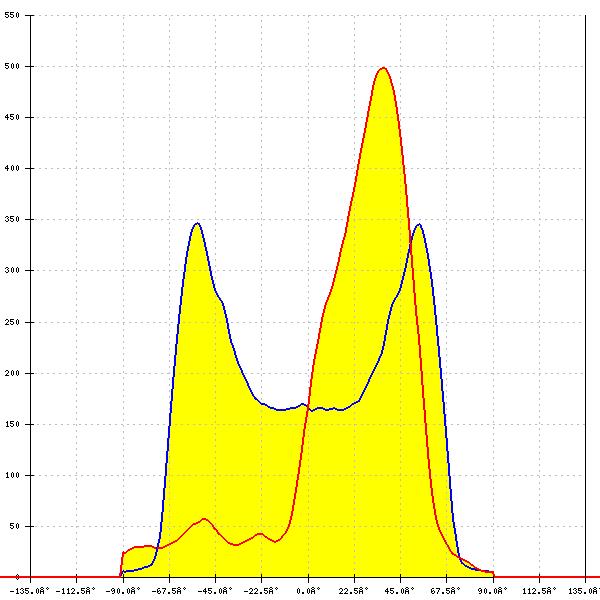

    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: asymmetric
    Peak intensity: 0.657 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: asymmetric
    Peak intensity: 0.554 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4+
    FWHM: asymmetric
    Peak intensity: 0.951 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: asymmetric
    Peak intensity: 0.659 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: asymmetric
    Peak intensity: 0.879 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DAX G4
    FWHM: asymmetric
    Peak intensity: 0.880 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RC12 Z (LH181B)
    FWHM: asymmetric
    Peak intensity: 1.147 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH12 Z (LH351C)
    FWHM: asymmetric
    Peak intensity: 0.769 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH12 Z (LH351C)
    FWHM: asymmetric
    Peak intensity: 1.032 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH16 (LH351C)
    FWHM: asymmetric
    Peak intensity: 0.990 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM12 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.713 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM16 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.719 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM8 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.701 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.717 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 0.792 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.605 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH508A
    FWHM: asymmetric
    Peak intensity: 0.627 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH508B
    FWHM: asymmetric
    Peak intensity: 0.696 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH508B
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT 5050
    FWHM: asymmetric
    Peak intensity: 0.661 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

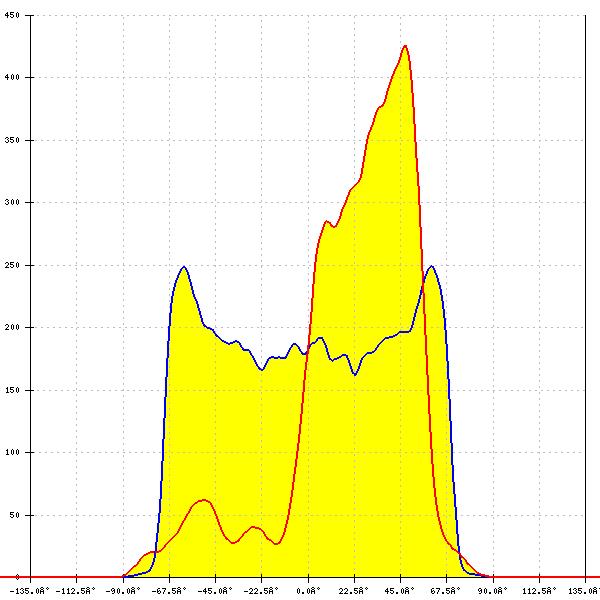

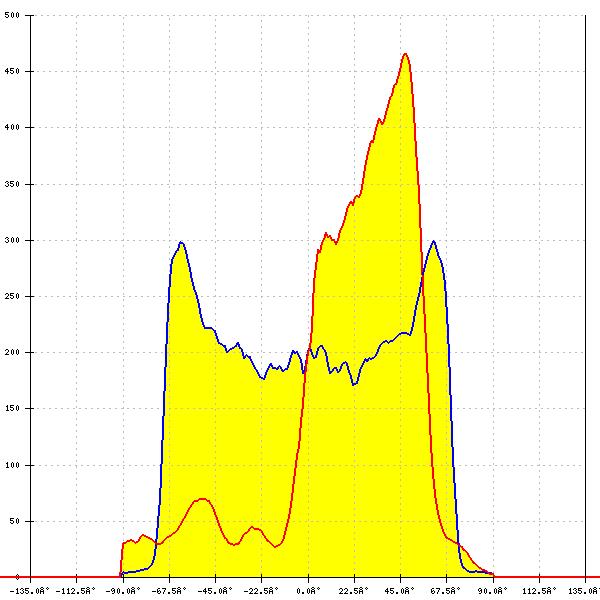

    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 0.717 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 0.910 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: asymmetric
    Peak intensity: 0.924 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: asymmetric
    Peak intensity: 0.711 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 0.733 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 0.959 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E1
    FWHM: asymmetric
    Peak intensity: 0.876 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E1
    FWHM: asymmetric
    Peak intensity: 0.699 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

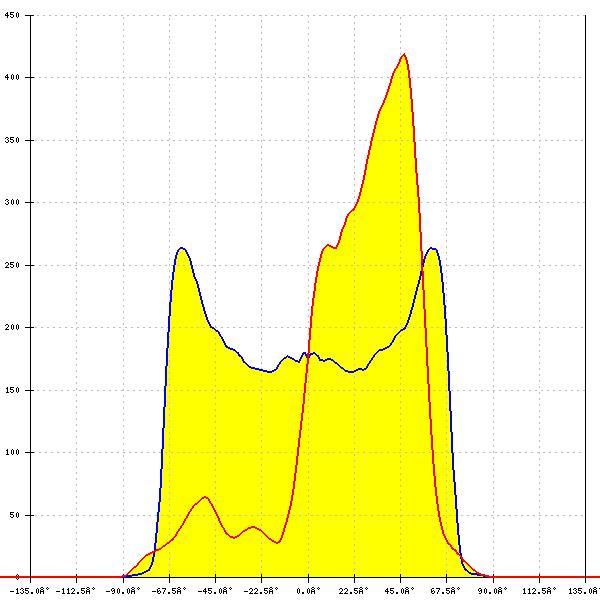

    LED: Z5M4-E2
    FWHM: asymmetric
    Peak intensity: 0.862 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E2
    FWHM: asymmetric
    Peak intensity: 0.676 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22
    FWHM: asymmetric
    Peak intensity: 0.890 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 0.605 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
