C15184_STRADELLA-8-HB-M
Print
~60° medium beam for industrial applications
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

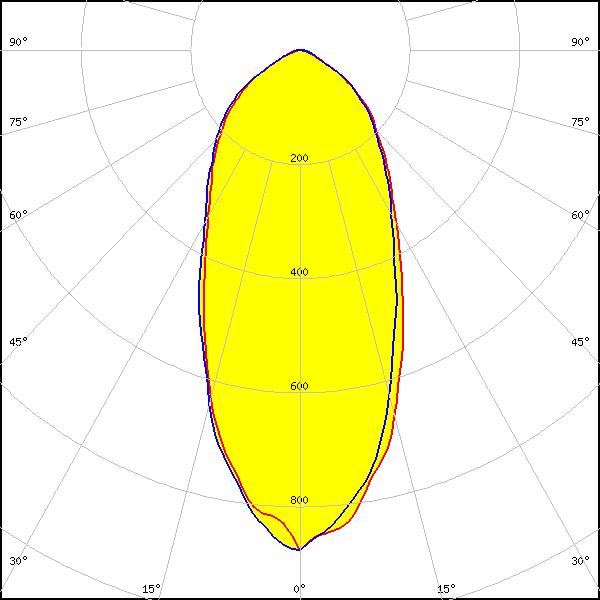

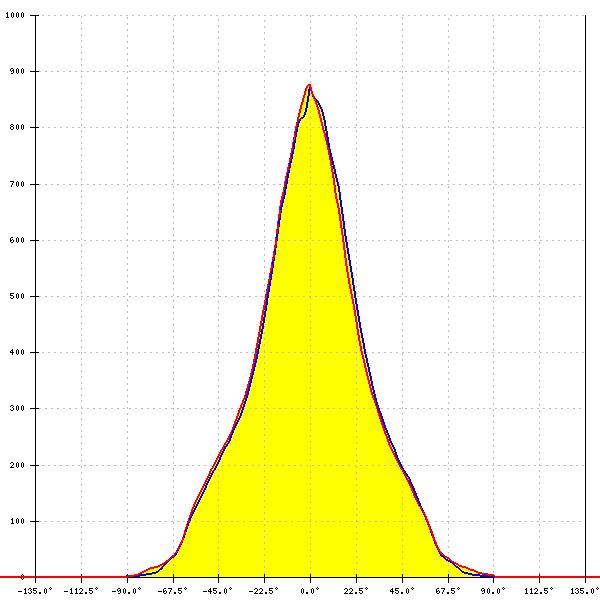

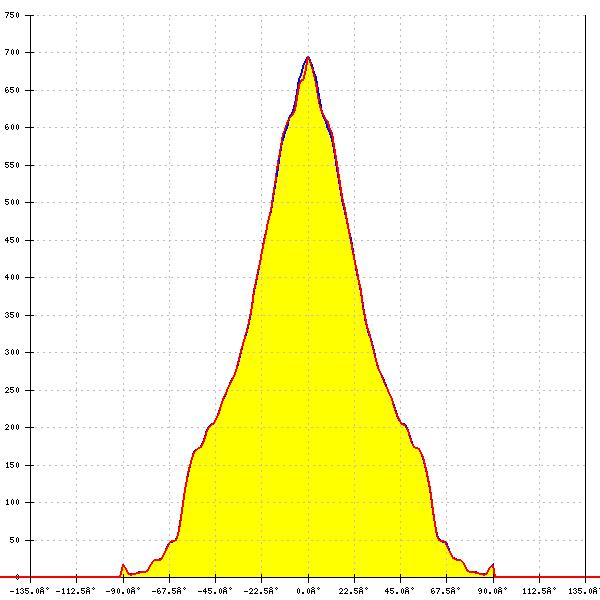

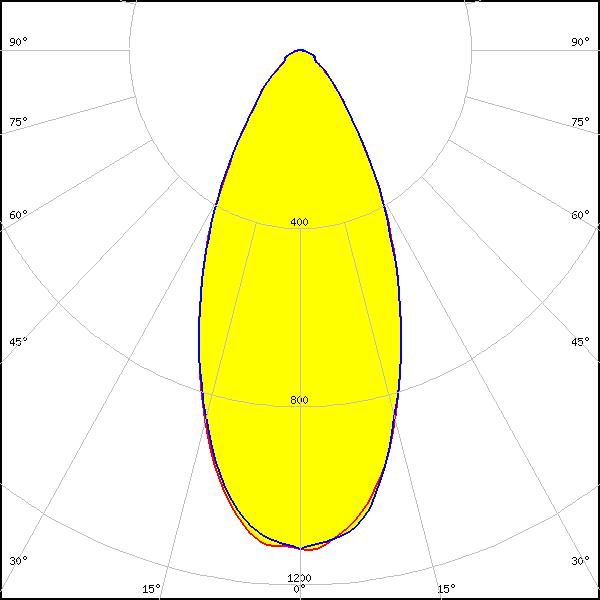

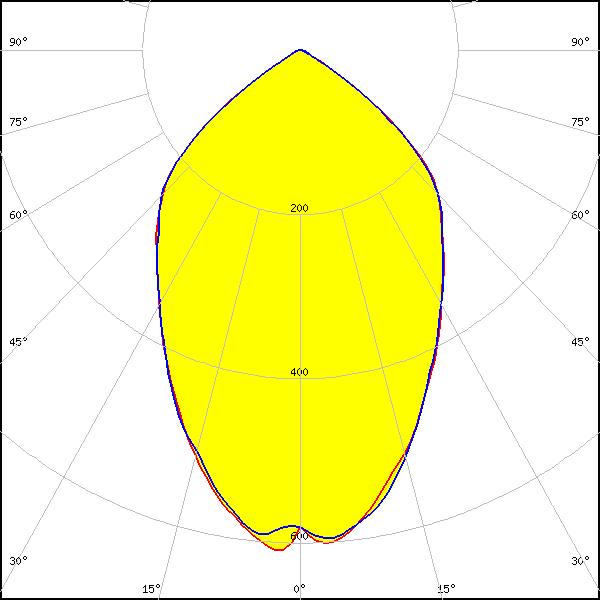

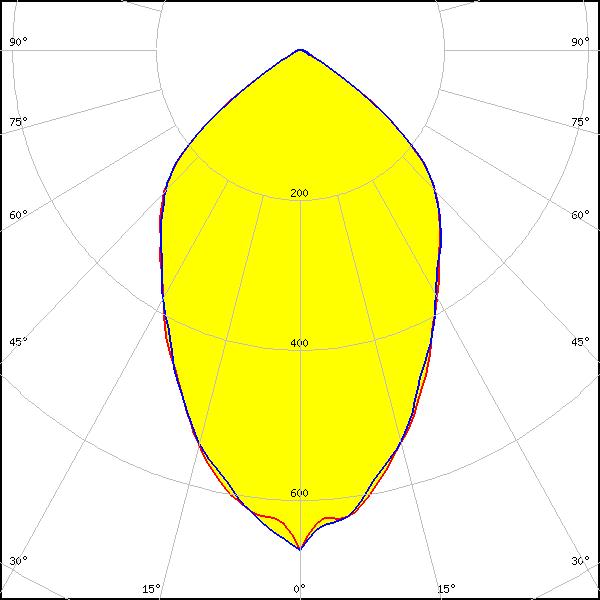

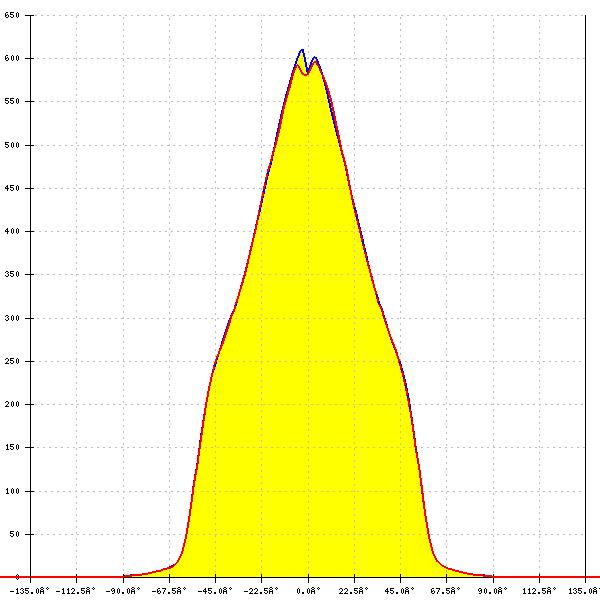

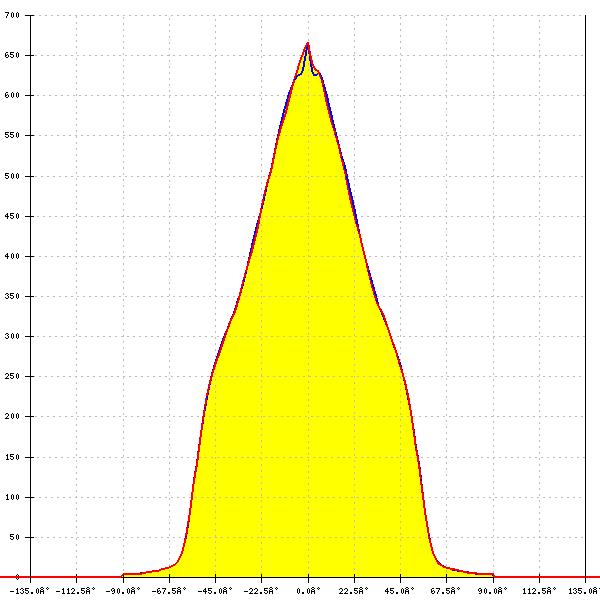

Optical results

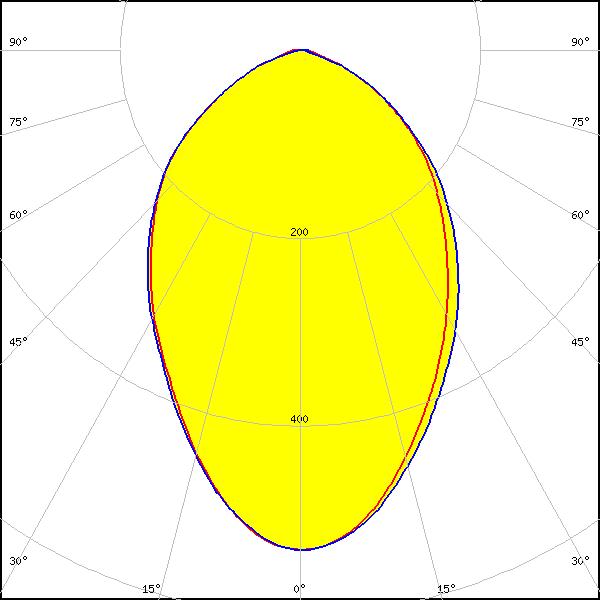

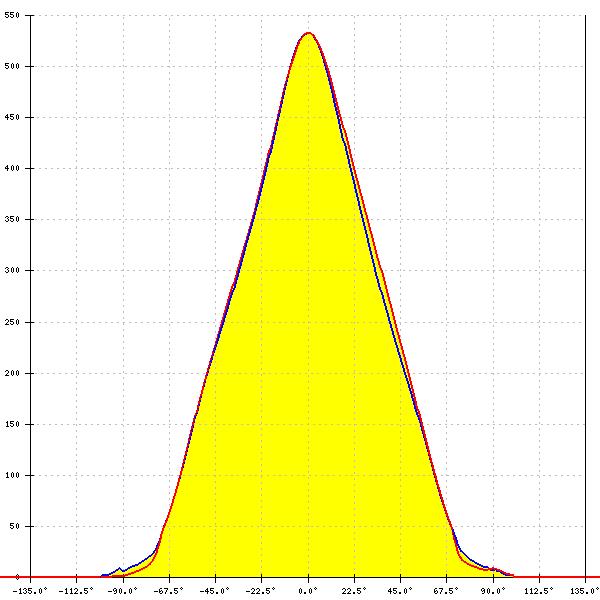

LED:
QUICK FLUX XT 2x8 xxx STRDLL G5
FWHM:
78°
FWTM:
139°
Peak intensity:
0.960 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

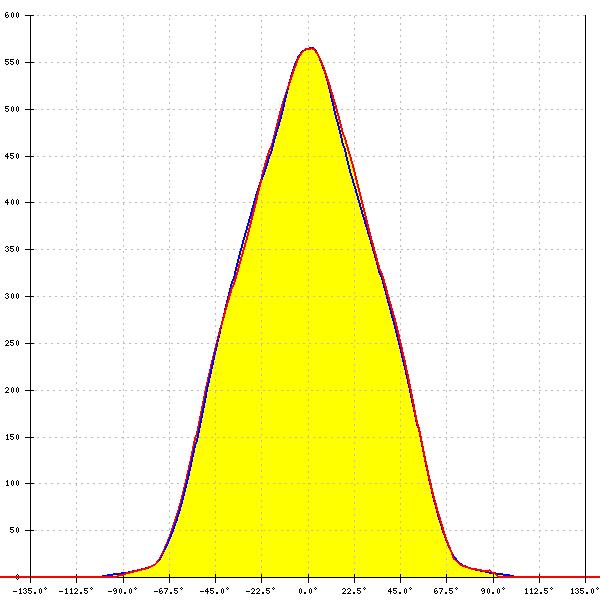

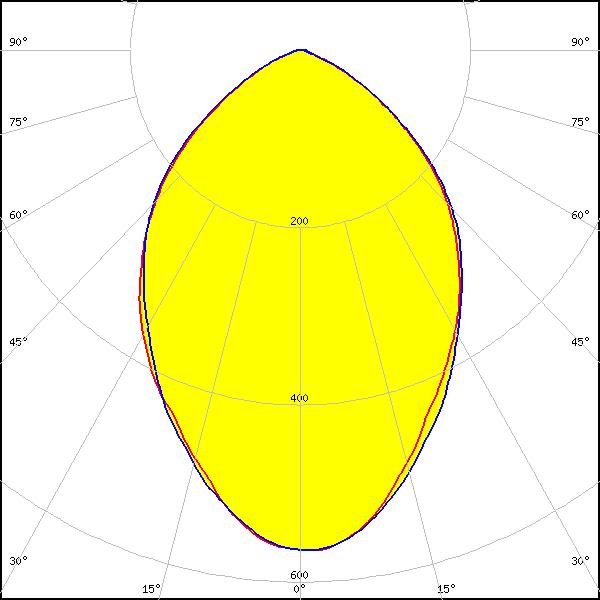

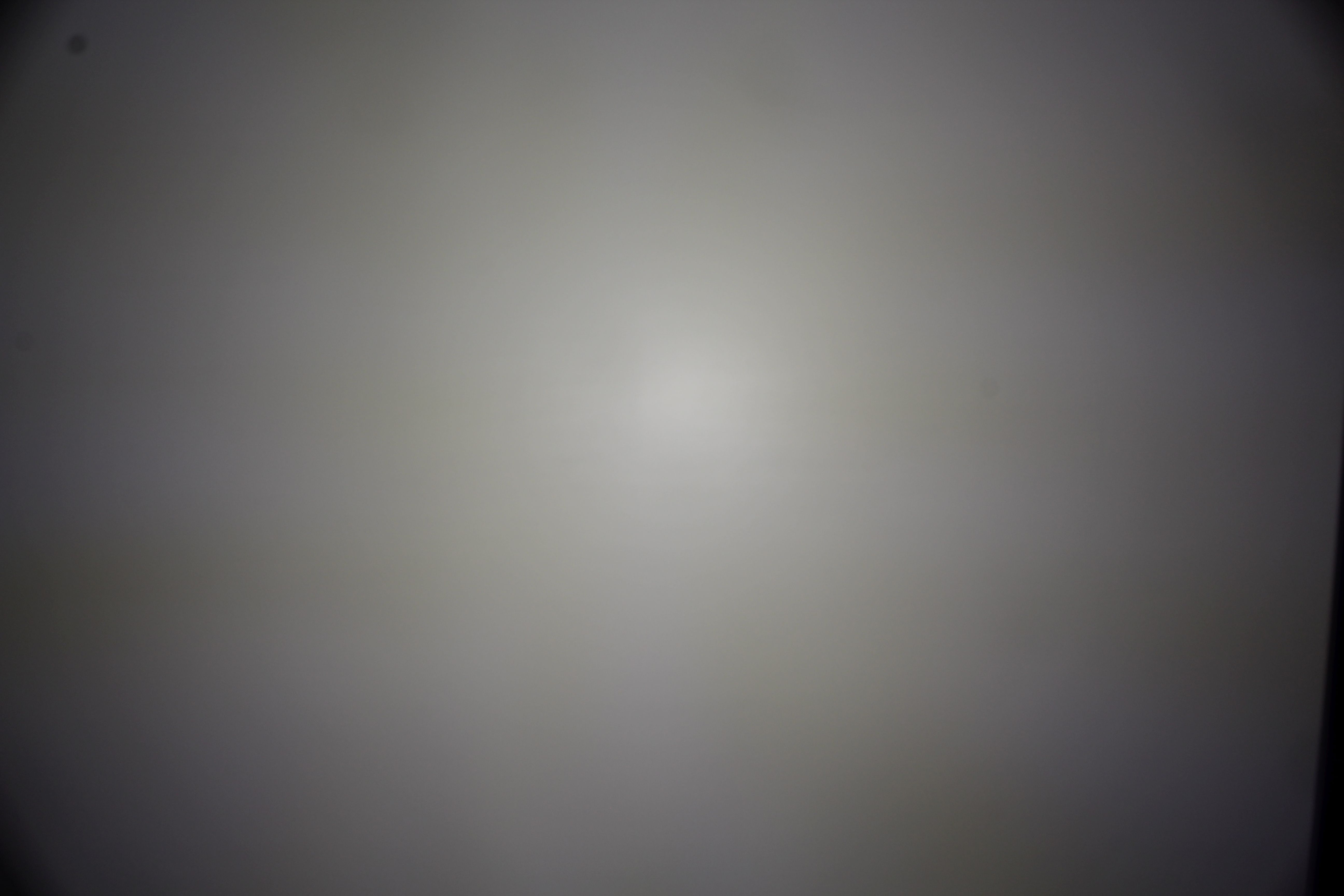

LED:
J Series 3030
FWHM:
81°
FWTM:
130°
Peak intensity:
0.565 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

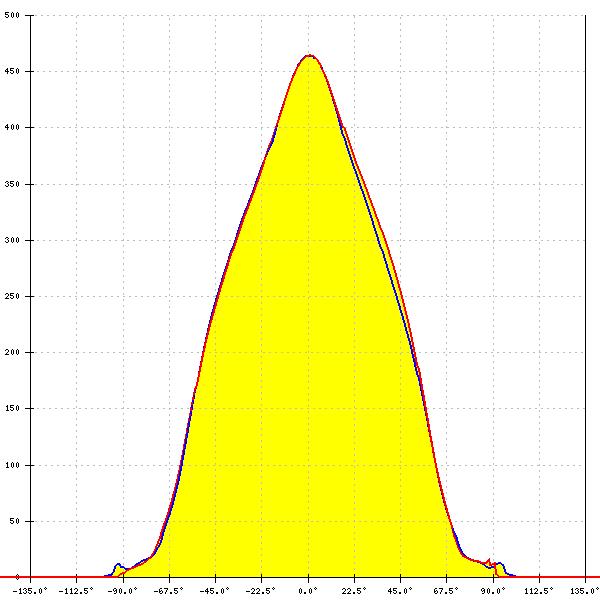

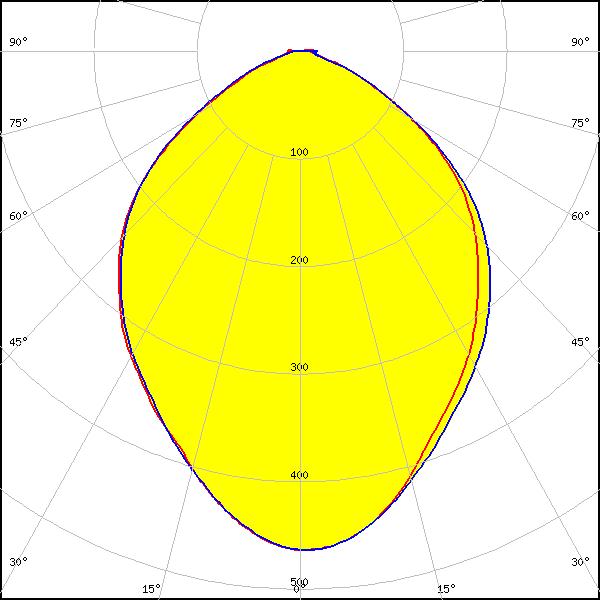

LED:
XP-G3
FWHM:
94°
FWTM:
140°
Peak intensity:
0.460 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

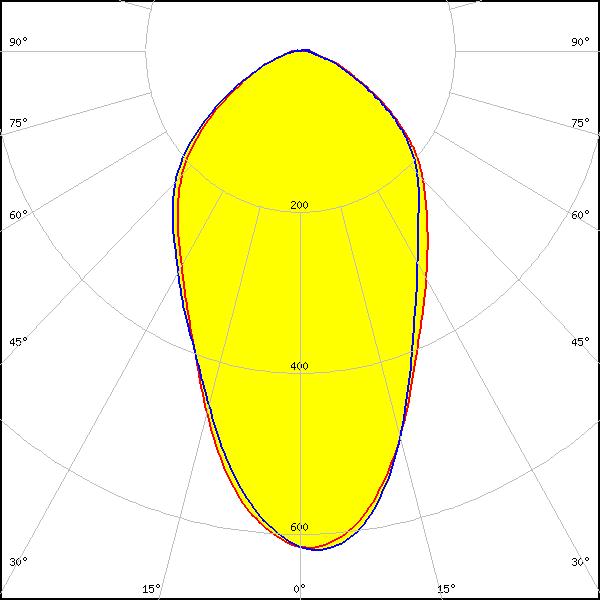

LED:

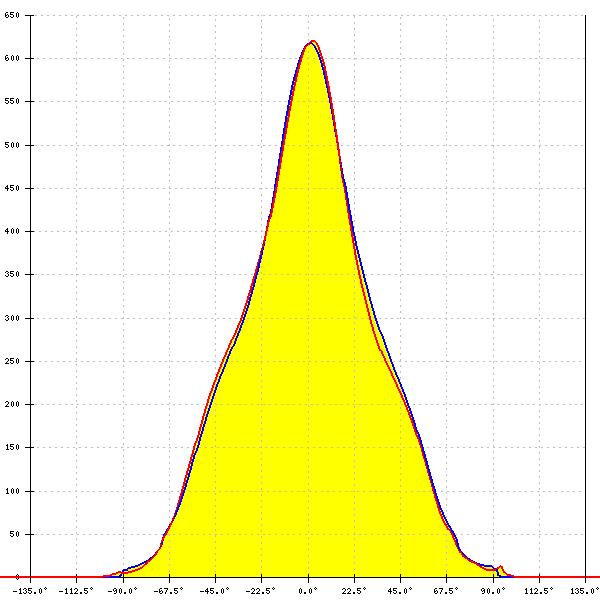

XT-E
FWHM:
61°
FWTM:
134°
Peak intensity:
0.621 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
62°
FWTM:
136°
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

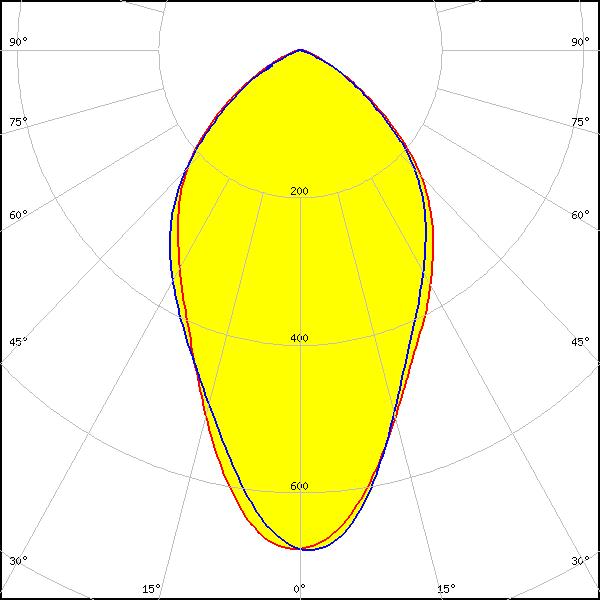

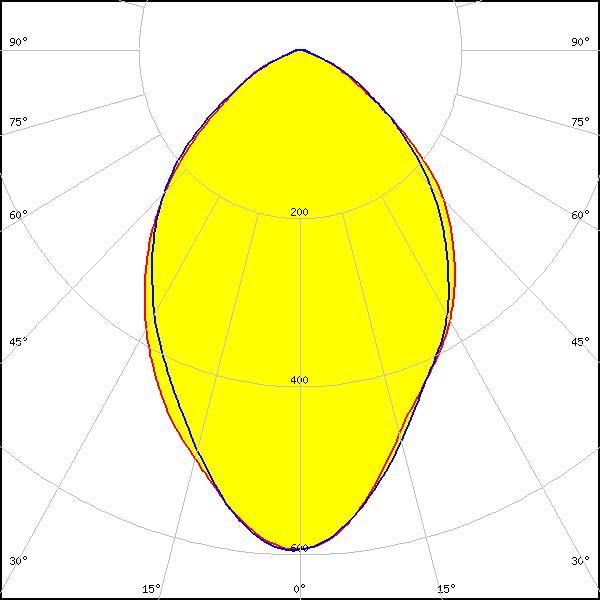

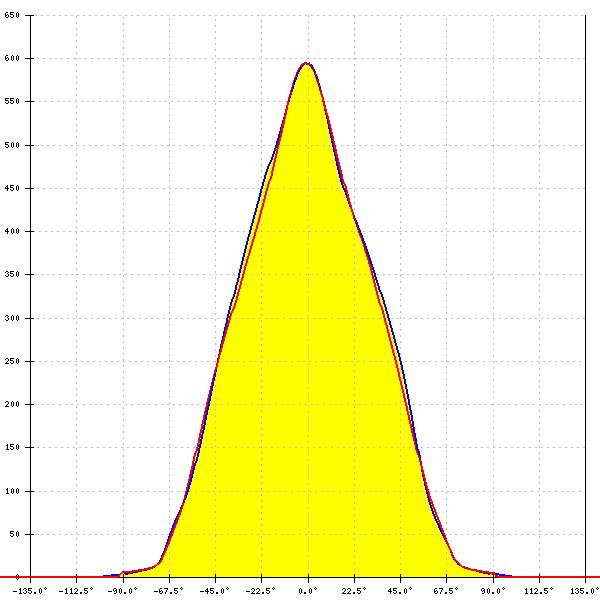

LED:

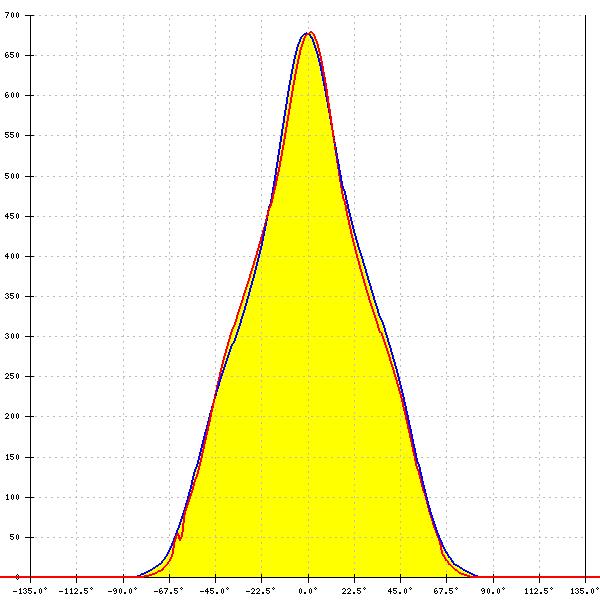

LUXEON 3030 2D (Round LES)
FWHM:
79°
FWTM:
129°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 2D (Round LES)
FWHM:
64°
FWTM:
122°
Peak intensity:
0.680 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3535L HE
FWHM:
52°
FWTM:
122°
Peak intensity:
0.730 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HR30
FWHM:
54°
FWTM:
121°
Peak intensity:
0.750 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

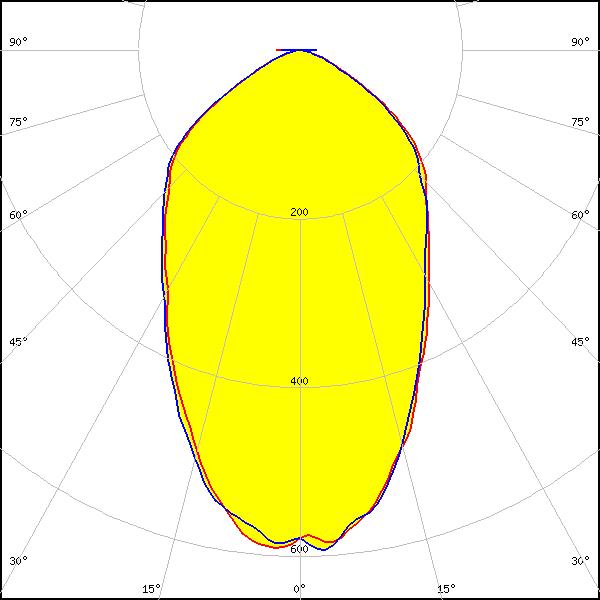

LED:

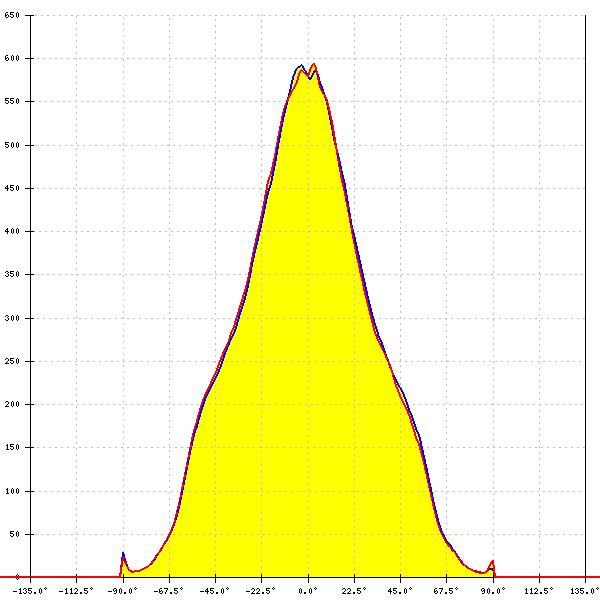

LUXEON TX
FWHM:
61°
FWTM:
128°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

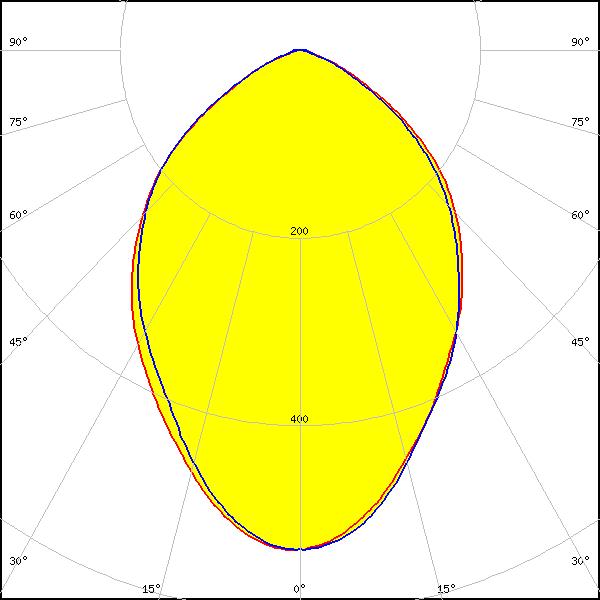

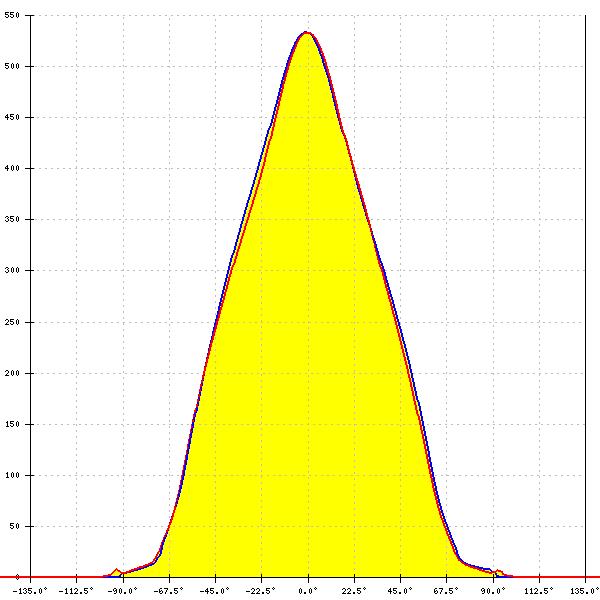

LED:
LUXEON V2
FWHM:
83°
FWTM:
134°
Peak intensity:
0.530 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

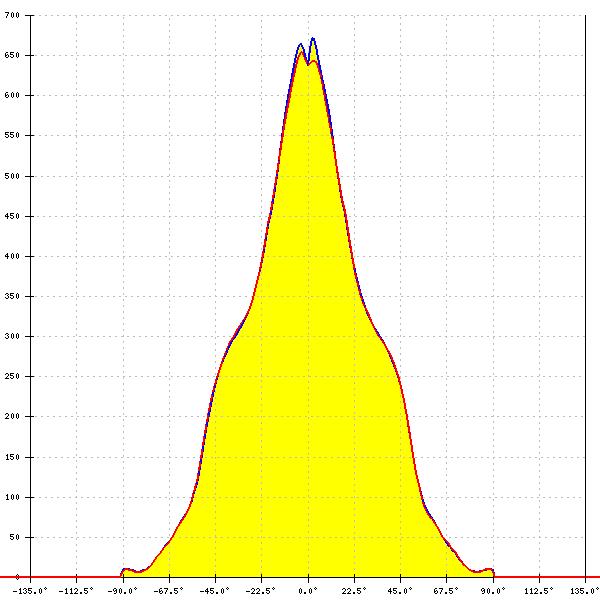

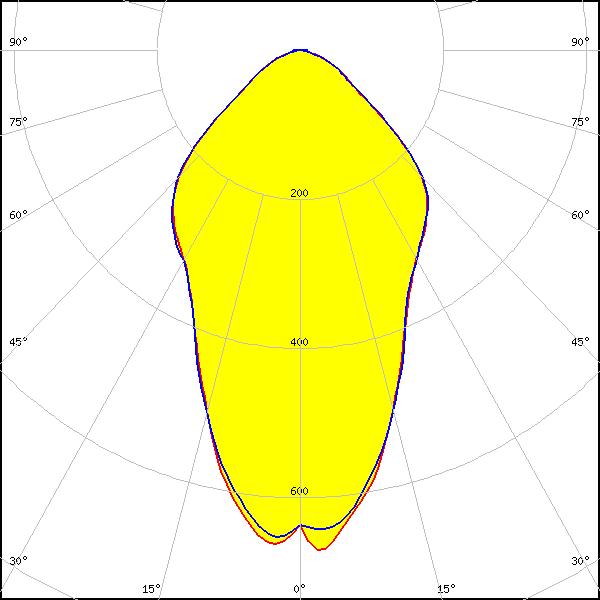

LED:
NCSxE17A
FWHM:
57°
FWTM:
124°
Peak intensity:
0.670 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

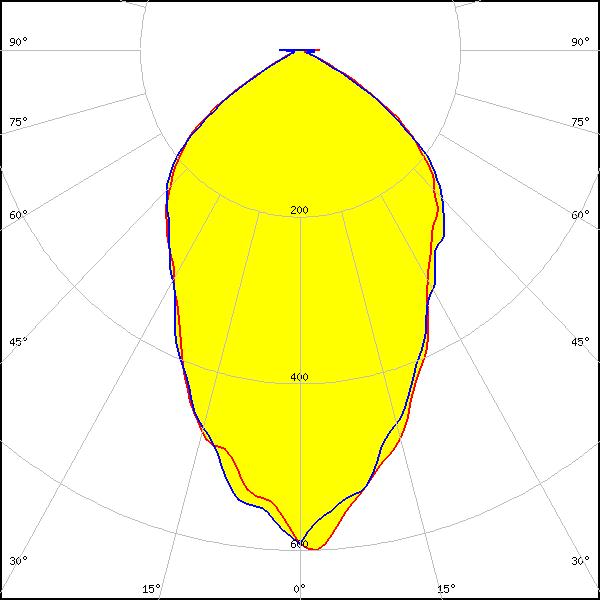

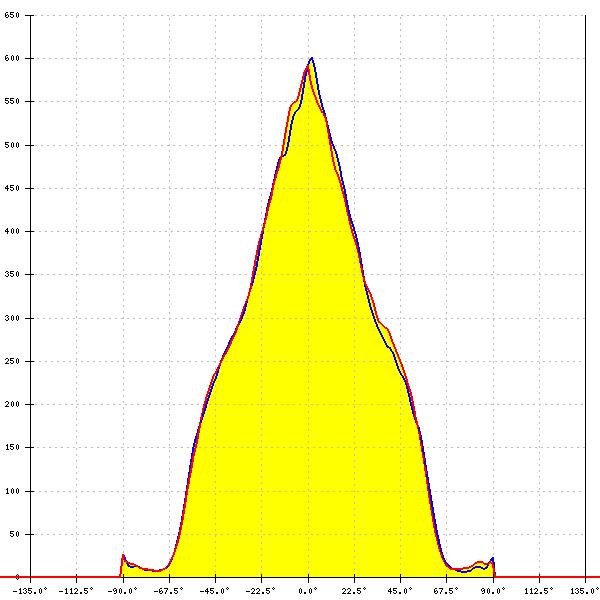

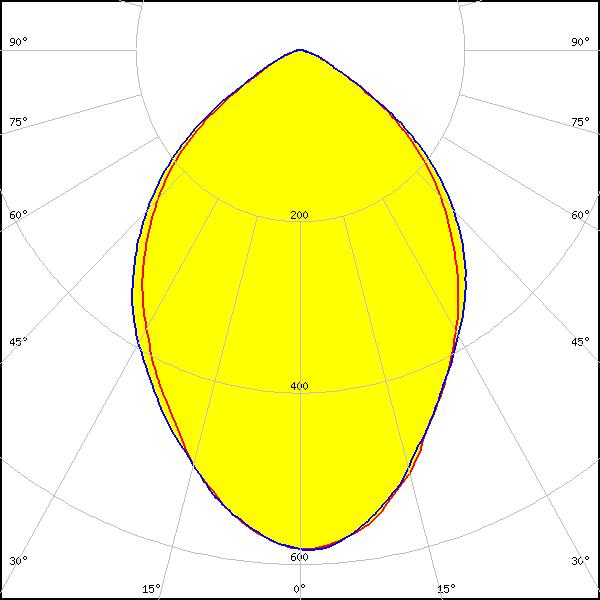

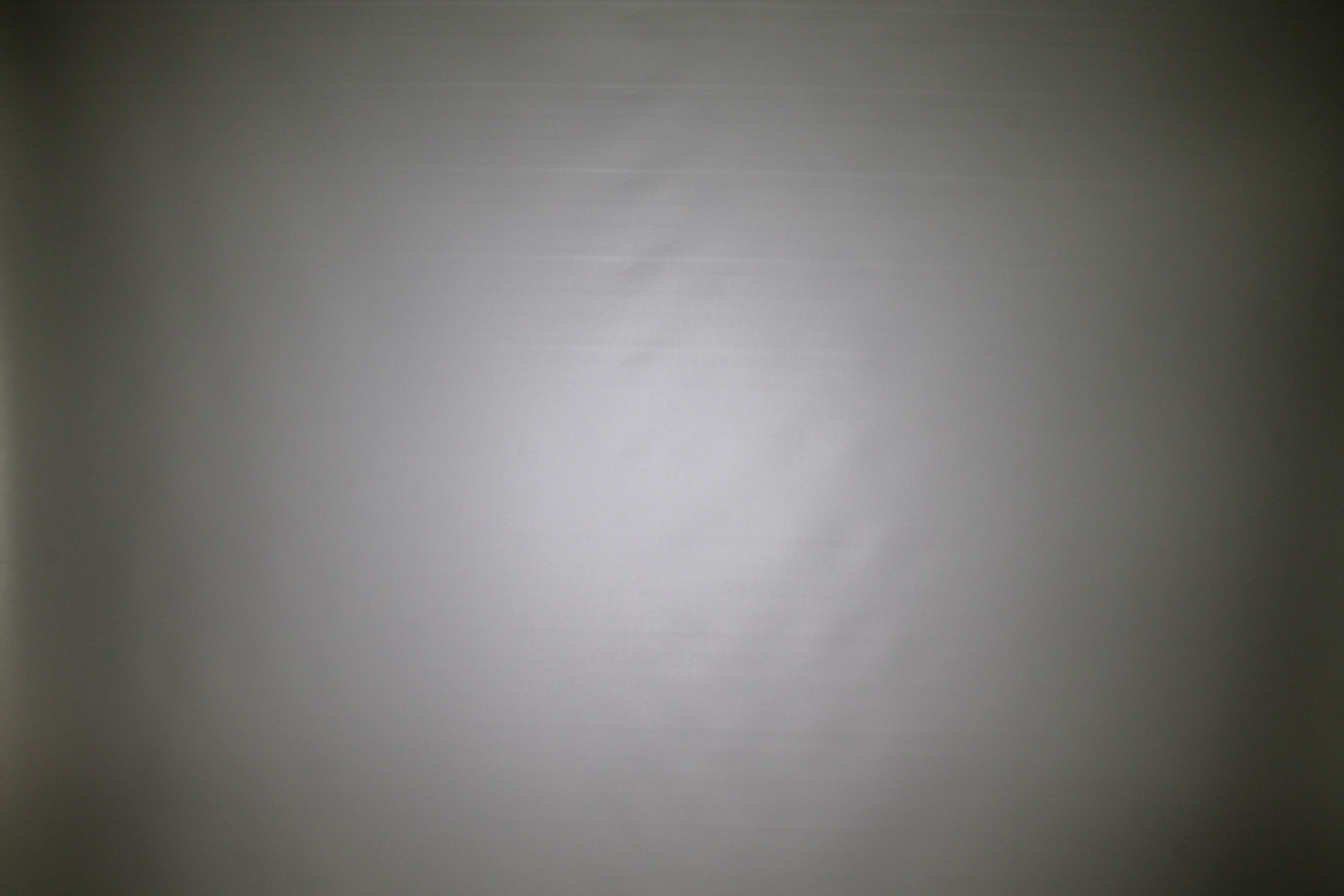

LED:

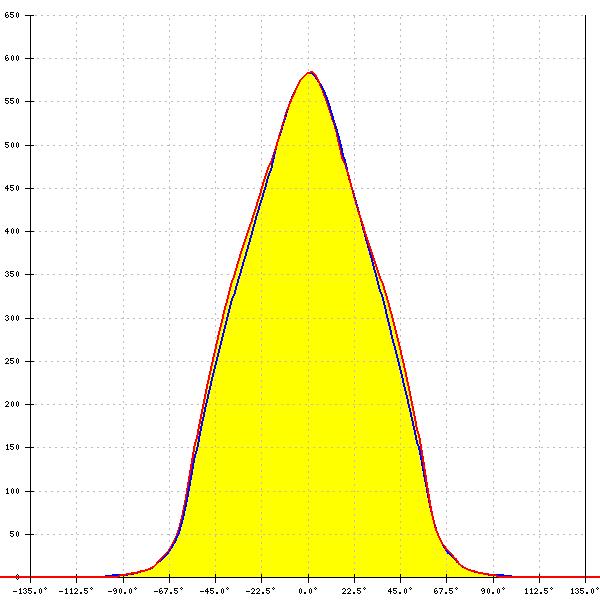

NVSW219D
FWHM:
82°
FWTM:
124°
Peak intensity:
0.580 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

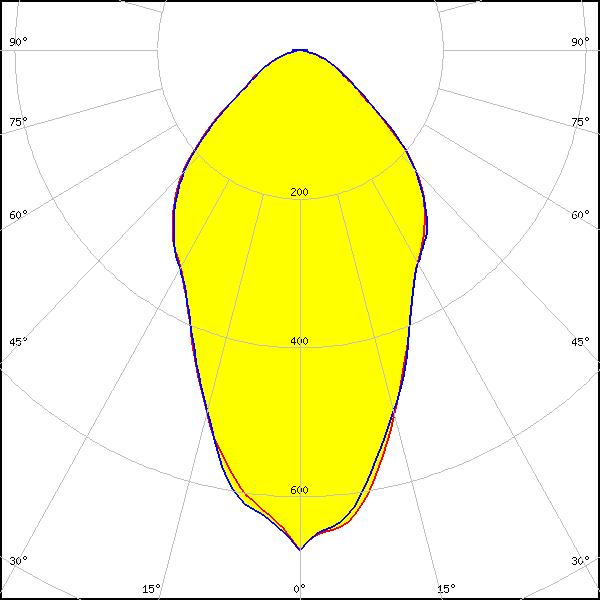

LED:

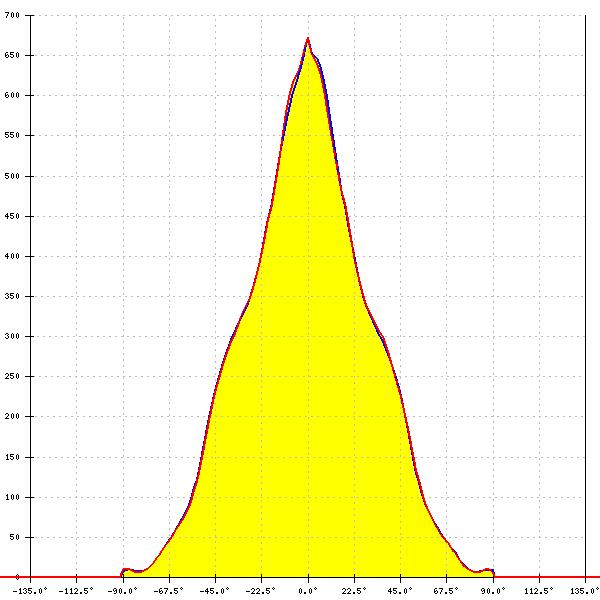

NVSxE21A
FWHM:
59°
FWTM:
124°
Peak intensity:
0.670 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
65°
FWTM:
124°
Peak intensity:
0.630 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

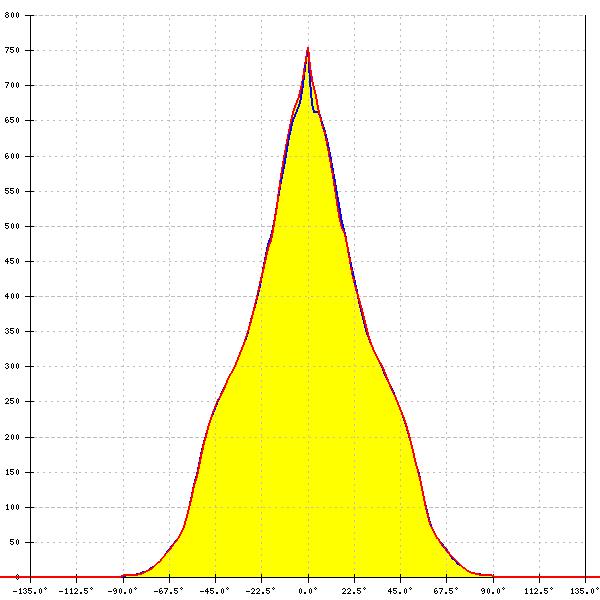

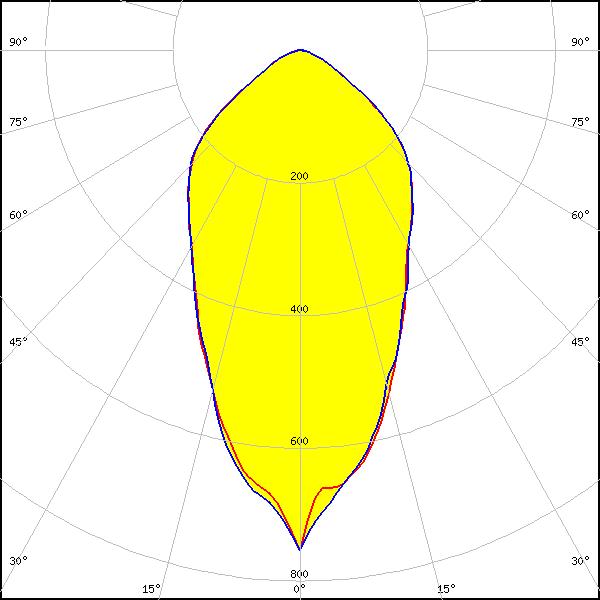

LED:
OSCONIQ C 2424
FWHM:
52° + 53°
FWTM:
120° + 120°
Peak intensity:
0.754 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
48°
FWTM:
120°
Peak intensity:
0.878 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (2W version)
FWHM:
61°
FWTM:
124°
Peak intensity:
0.680 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
86°
FWTM:
133°
Peak intensity:
0.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

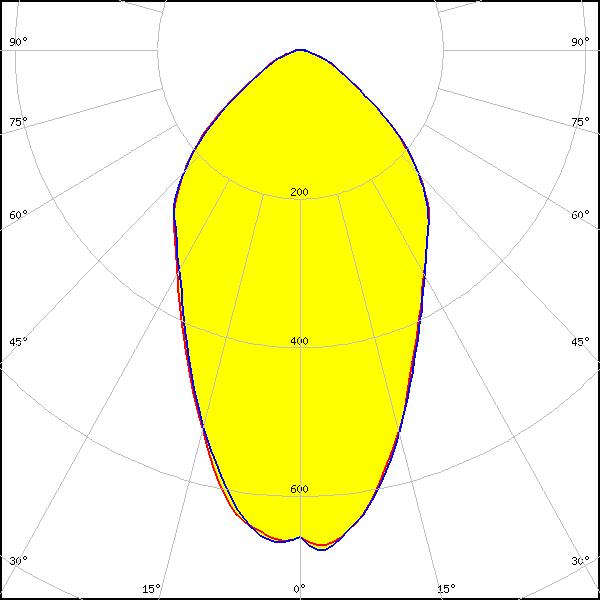

LED:
LH181B
FWHM:
62°
FWTM:
123°
Peak intensity:
0.680 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

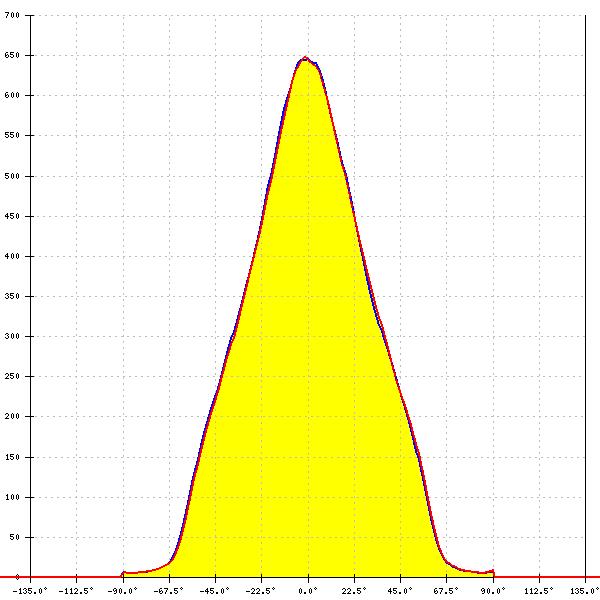

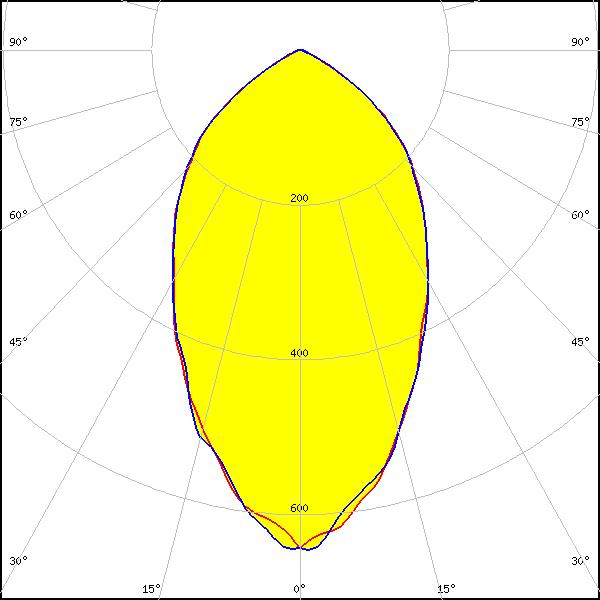

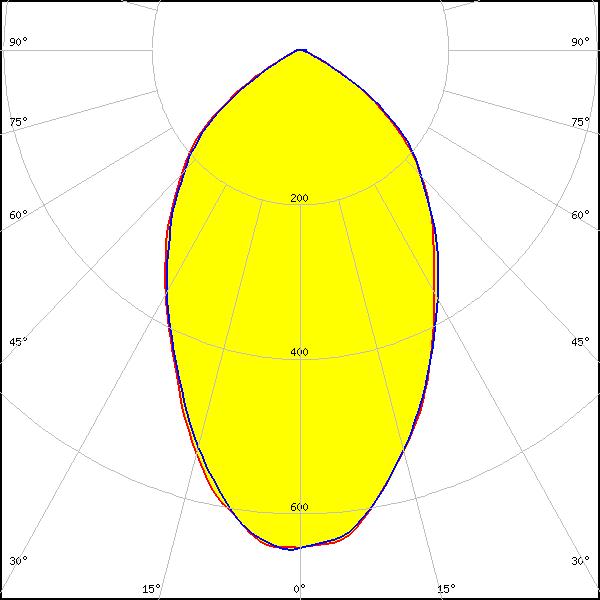

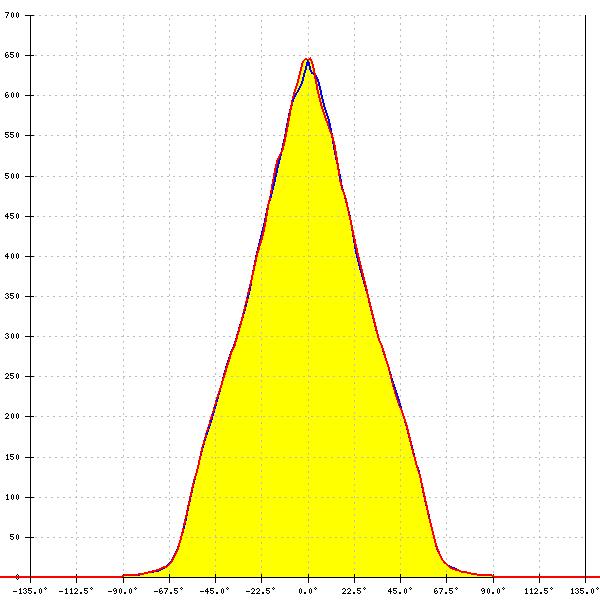

LED:
LH351B
FWHM:
64°
FWTM:
120°
Peak intensity:
0.649 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
68°
FWTM:
121°
Peak intensity:
0.650 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

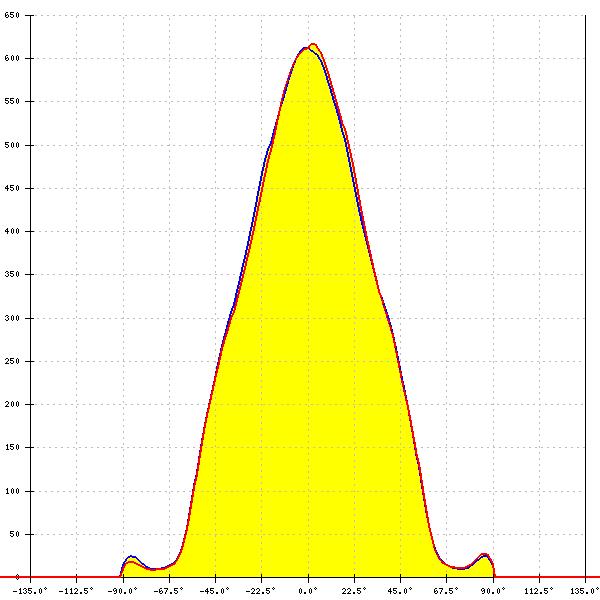

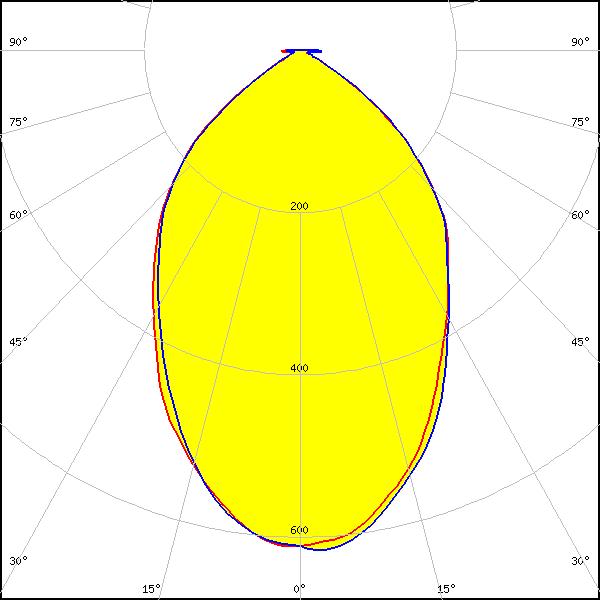

LED:
LH351C
FWHM:
74°
FWTM:
117°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

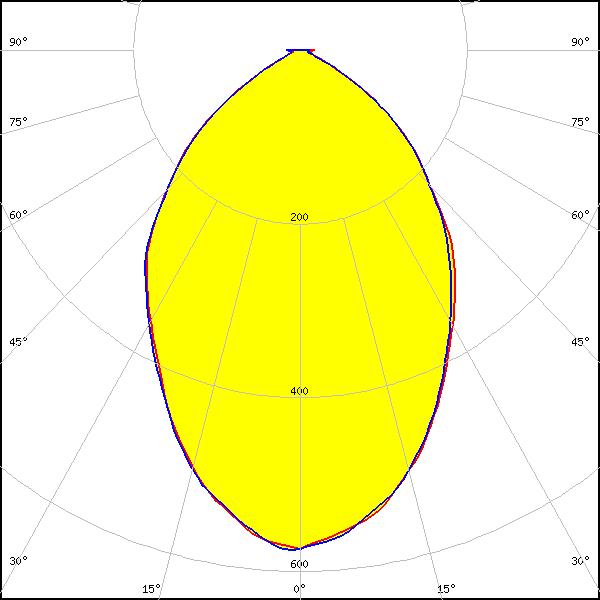

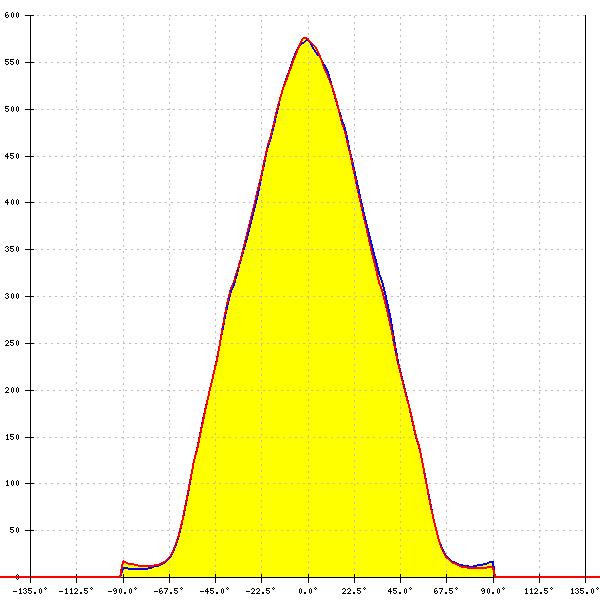

LED:
LH351D
FWHM:
79°
FWTM:
124°
Peak intensity:
0.580 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
66°
FWTM:
127°
Peak intensity:
0.624 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
68°
FWTM:
126°
Peak intensity:
0.562 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

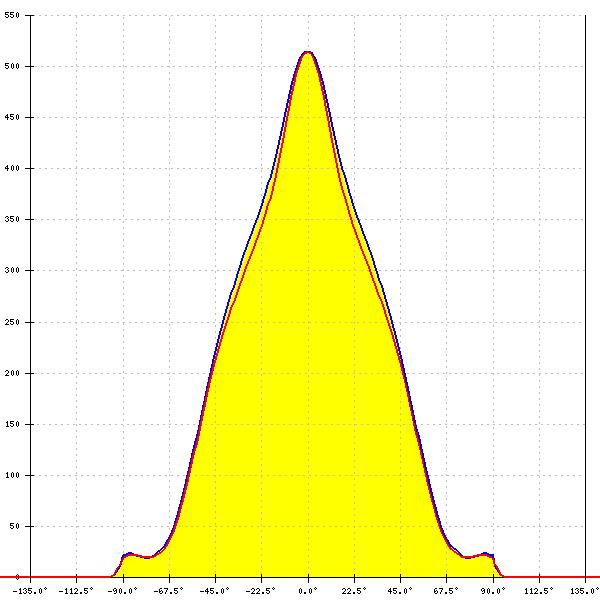

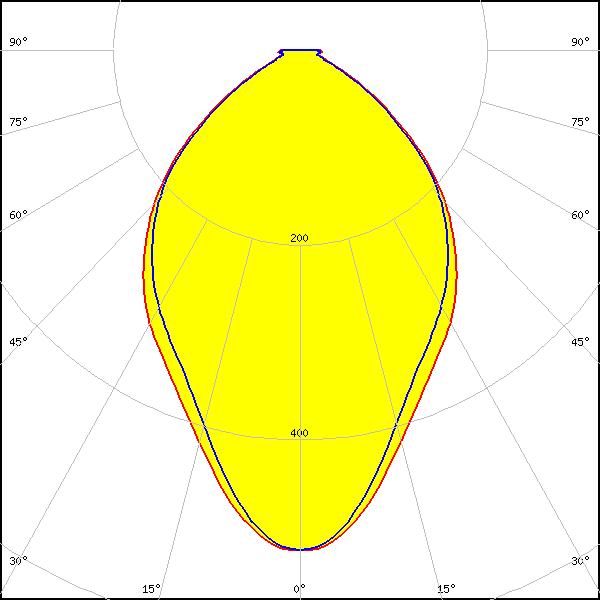

LED:
Z8Y19
FWHM:
80°
FWTM:
130°
Peak intensity:
0.510 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

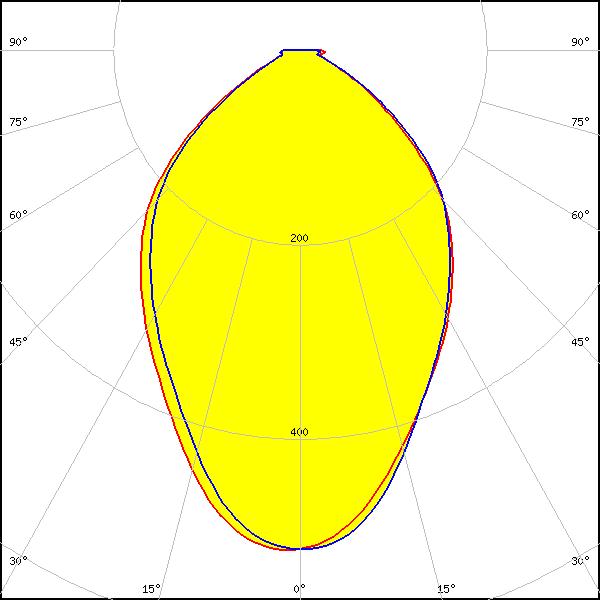

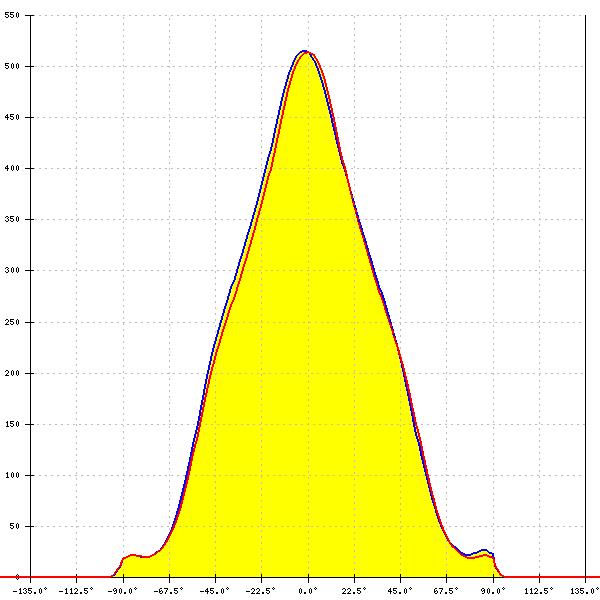

LED:
Z8Y22
FWHM:
81°
FWTM:
131°
Peak intensity:
0.510 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

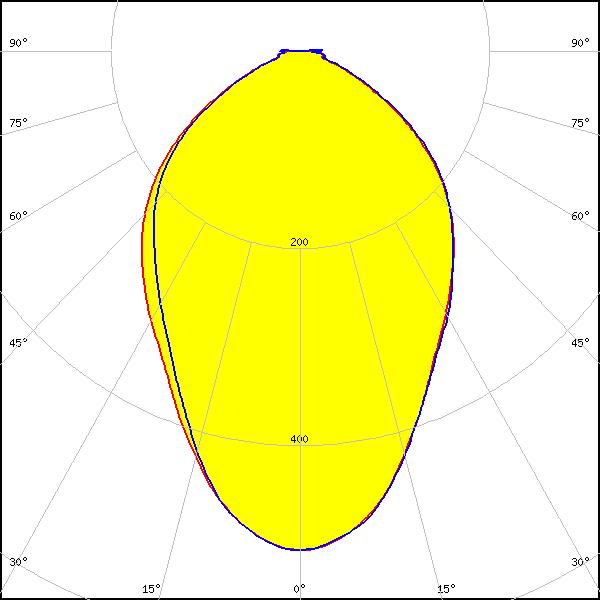

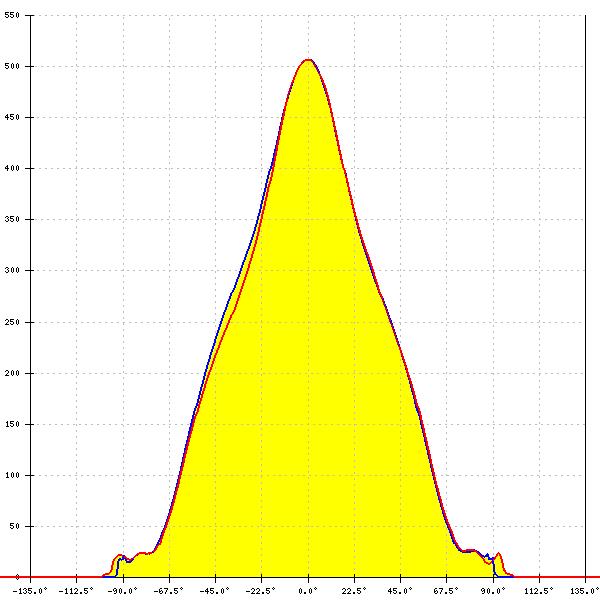

LED:
Z8Y22P
FWHM:
79°
FWTM:
138°
Peak intensity:
0.510 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
