C15183_STRADELLA-8-HB-S

Print

~25° spot beam for industrial applications

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    7.50 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Box weight:
    5.0 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C15183_STRADELLA-8-HB-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

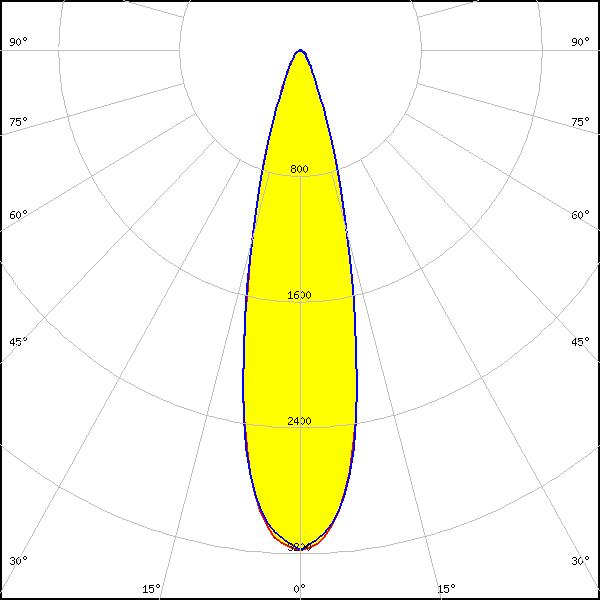

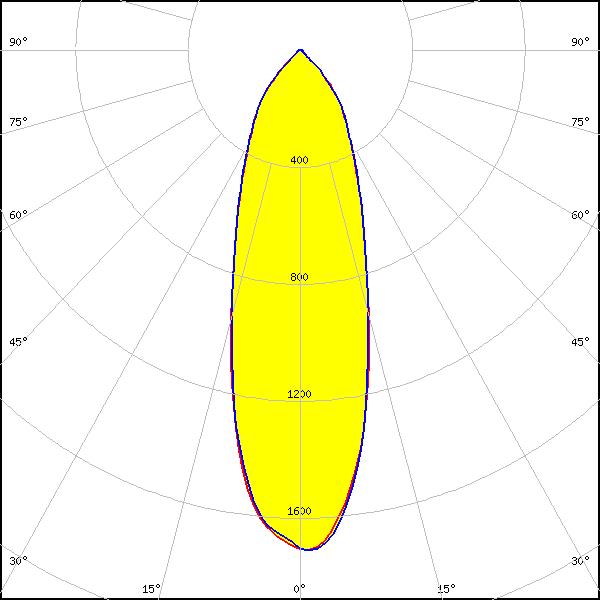

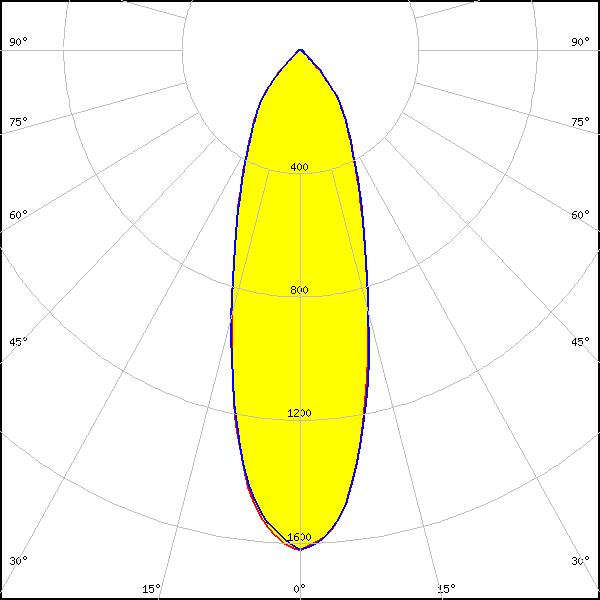

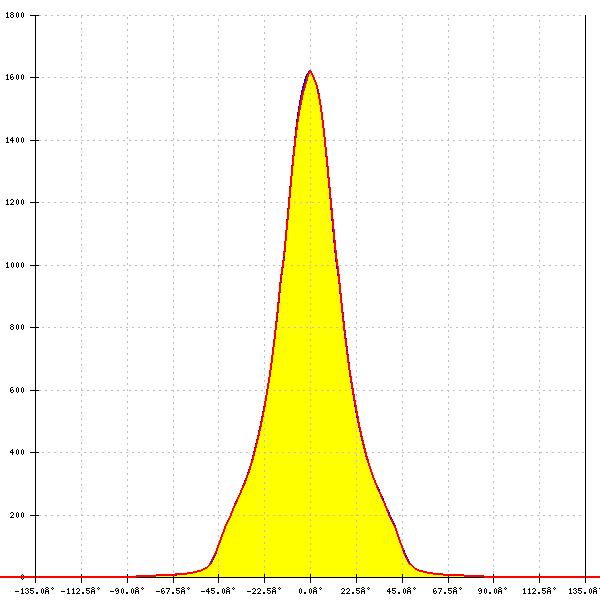

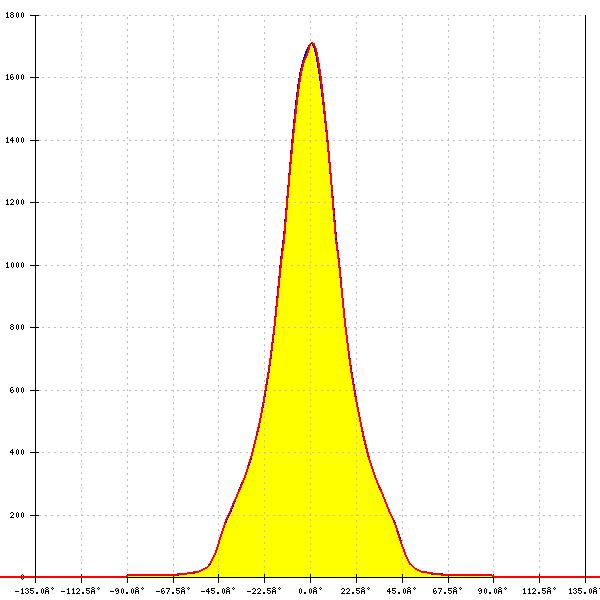

Optical results

LED: QUICK FLUX XT 2x8 xxx STRDLL G5
FWHM: 31°
FWTM: 81°
Peak intensity: 1.500 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 3030
FWHM: 28°
FWTM: 76°
Peak intensity: 1.812 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35.2 HI
FWHM: 40°
FWTM: 94°
Peak intensity: 1.188 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: 34°
FWTM: 93°
Peak intensity: 1.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-P
FWHM: 20°
FWTM: 62°
Peak intensity: 2.807 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: XT-E
FWHM: 28°
FWTM: 83°
Peak intensity: 1.595 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3030 2D (Round LES)
FWHM: 23°
FWTM: 66°
Peak intensity: 2.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3030 2D (Round LES)
FWHM: 23°
FWTM: 64°
Peak intensity: 2.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3535L
FWHM: 24°
FWTM: 66°
Peak intensity: 2.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3535L HE
FWHM: 20°
FWTM: 65°
Peak intensity: 2.300 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HR30
FWHM: 26°
FWTM: 72°
Peak intensity: 2.100 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON TX
FWHM: 29°
FWTM: 75°
Peak intensity: 1.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON V2
FWHM: 31°
FWTM: 81°
Peak intensity: 1.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NCSxE17A
FWHM: 19°
FWTM: 59°
Peak intensity: 2.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NF2x757G
FWHM: 29°
FWTM: 76°
Peak intensity: 1.950 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219D
FWHM: 33°
FWTM: 80°
Peak intensity: 1.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: 22°
FWTM: 67°
Peak intensity: 2.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
FWHM: 30°
FWTM: 86°
Peak intensity: 1.590 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S5 (2 chip)
FWHM: 23°
FWTM: 64°
Peak intensity: 2.300 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 2424
FWHM: 24°
FWTM: 68°
Peak intensity: 2.292 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

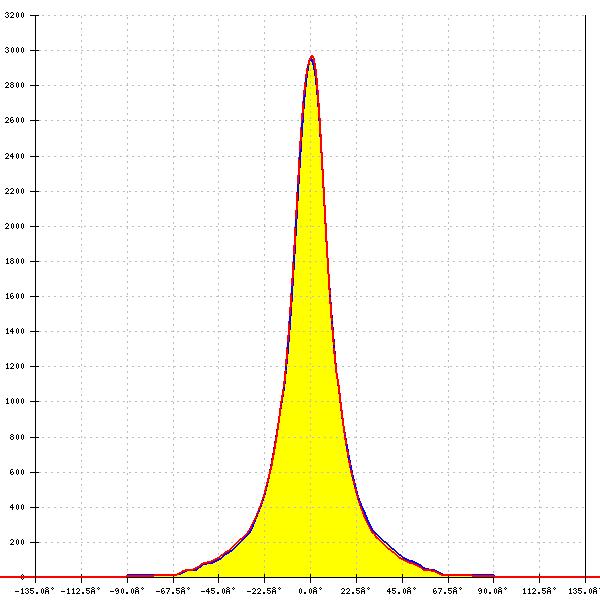

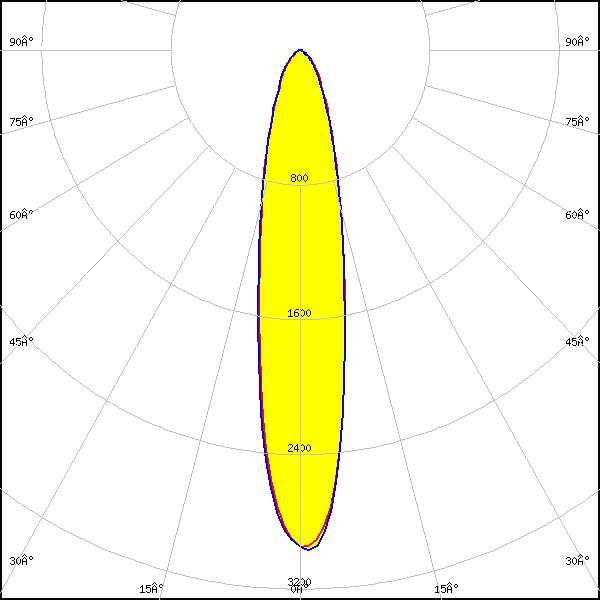

LED: OSCONIQ P 3030
FWHM: 21°
FWTM: 58°
Peak intensity: 2.994 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (2W version)
FWHM: 28°
FWTM: 76°
Peak intensity: 1.950 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: 27°
FWTM: 78°
Peak intensity: 1.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LH181B
FWHM: 27°
FWTM: 75°
Peak intensity: 2.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
FWHM: 33°
FWTM: 82°
Peak intensity: 1.580 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
FWHM: 33°
FWTM: 83°
Peak intensity: 1.670 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351C
FWHM: 35°
FWTM: 86°
Peak intensity: 1.600 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351D
FWHM: 44°
FWTM: 93°
Peak intensity: 1.200 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

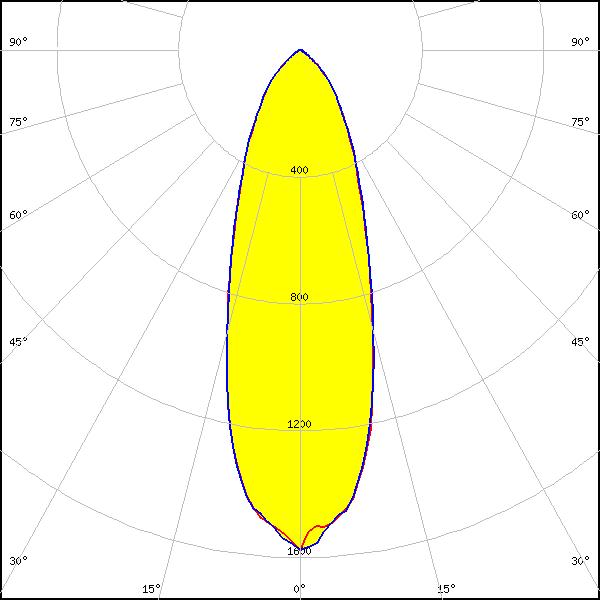

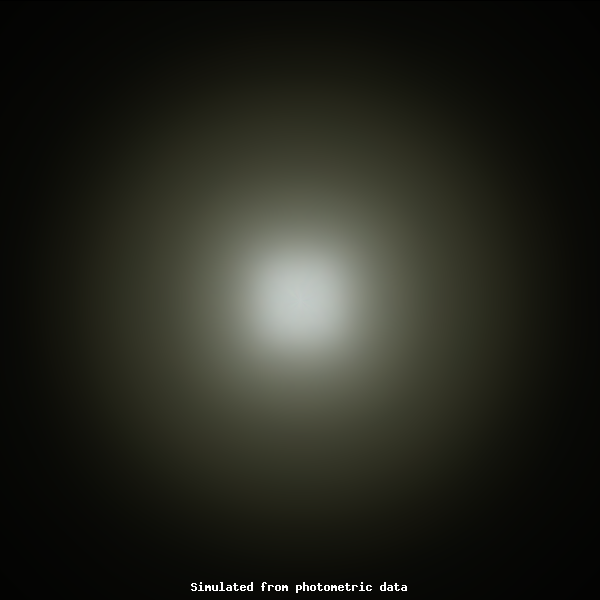

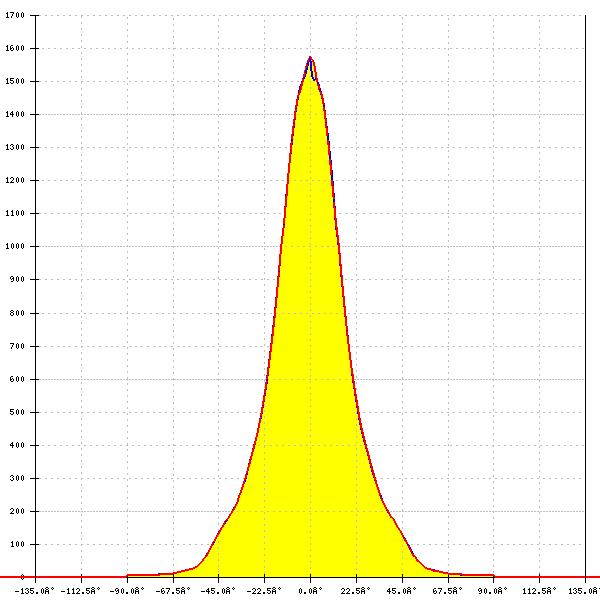

LED: Z5M4
FWHM: 31°
FWTM: 80°
Peak intensity: 1.761 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M5
FWHM: 34°
FWTM: 92°
Peak intensity: 1.402 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M5
FWHM: 34°
FWTM: 92°
Peak intensity: 1.281 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y19
FWHM: 23°
FWTM: 81°
Peak intensity: 1.800 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y22P
FWHM: 31°
FWTM: 99°
Peak intensity: 1.400 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
