    C15021_STRADA-2X2-SCL

    Print

    Type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. EN13201 P-classes.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      7.80 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.3 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C15021_STRADA-2X2-SCL
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - STRADA-2X2-SCL

    PCN

    Product change notification NR118a - Change of packaging quantities and packaging type 200416

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    Guide for Street lighting optics

    Application area

    Urban lighting with LEDiL optics

    Application example

    Urban lighting with LEDiL optics

    Reference product

    Bollard lamp for urban environments

    Case story

    Naberezhne Highway in Kiev

    Application area

    Industrial Lighting

    Installation guide

    STRADA-2X2 Installation guide

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    STRADA-2X2-SHD-WHT

    White shade for additional backlight control.

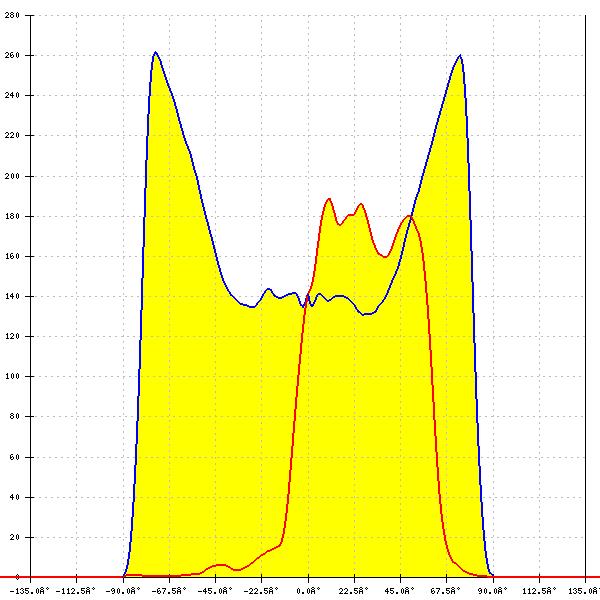

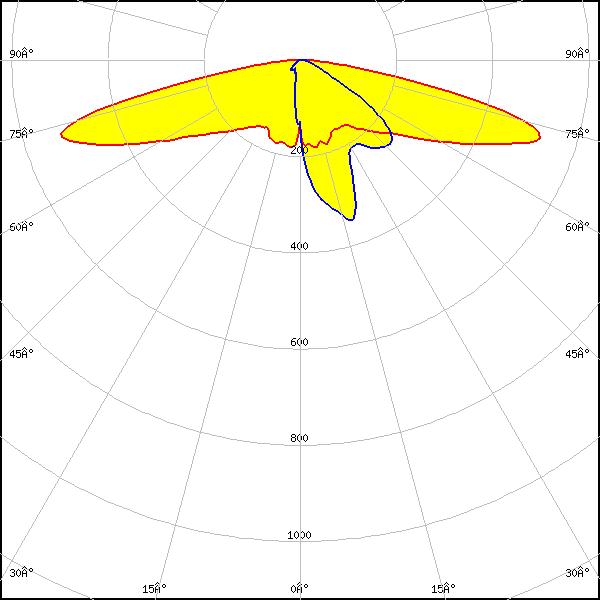

    STRADA-2X2-SHD-BLK

    Black shade for additional backlight control.

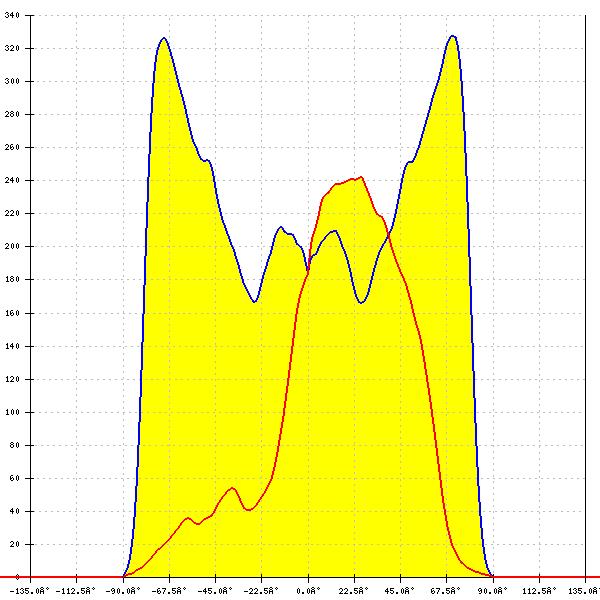

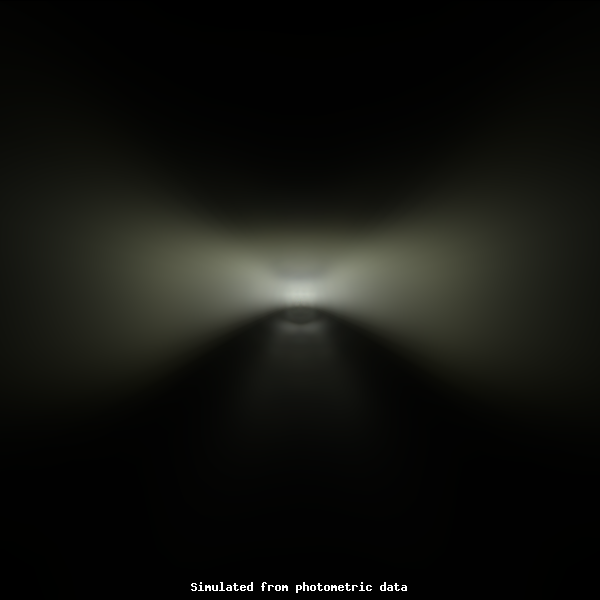

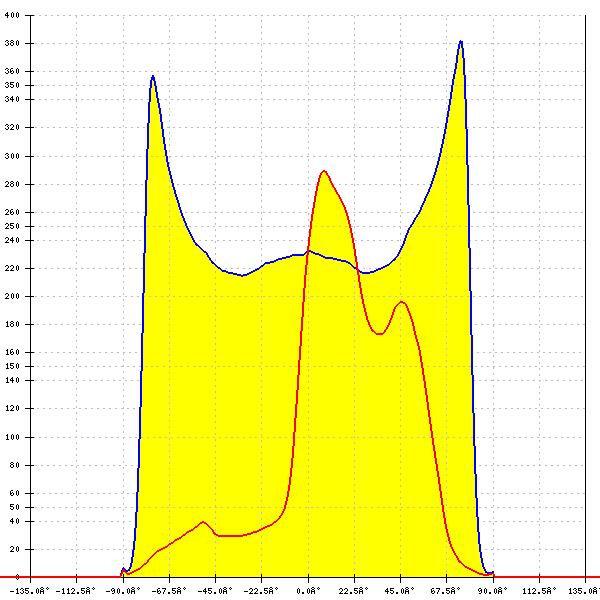

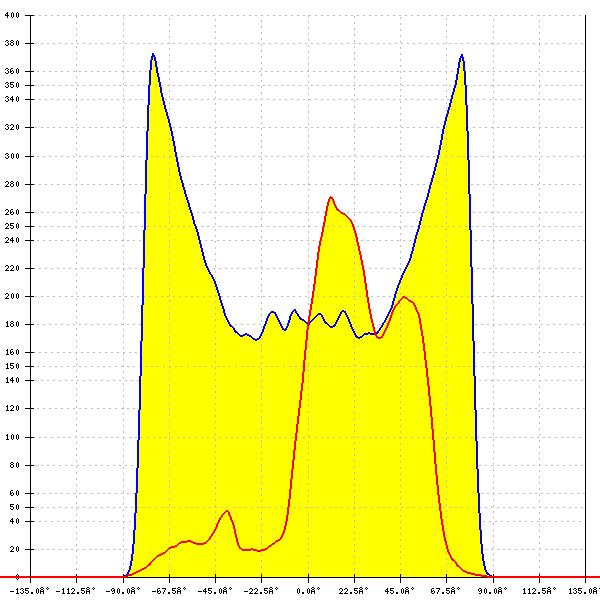

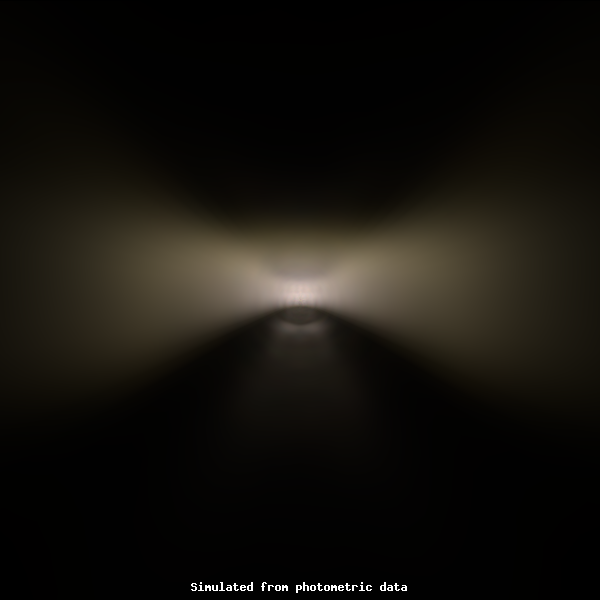

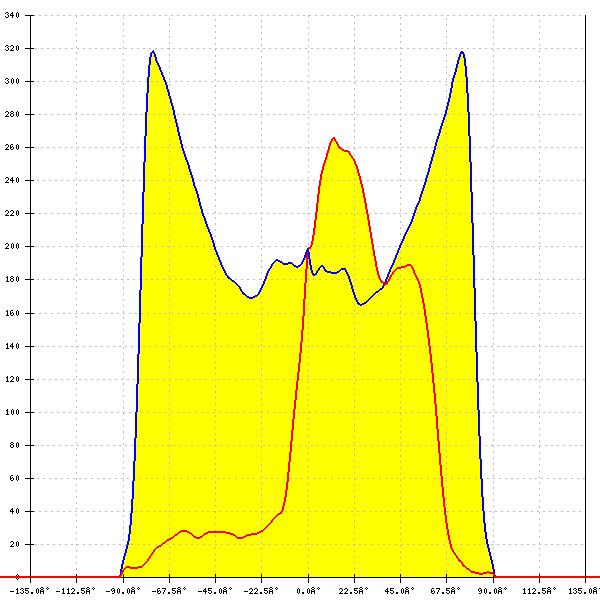

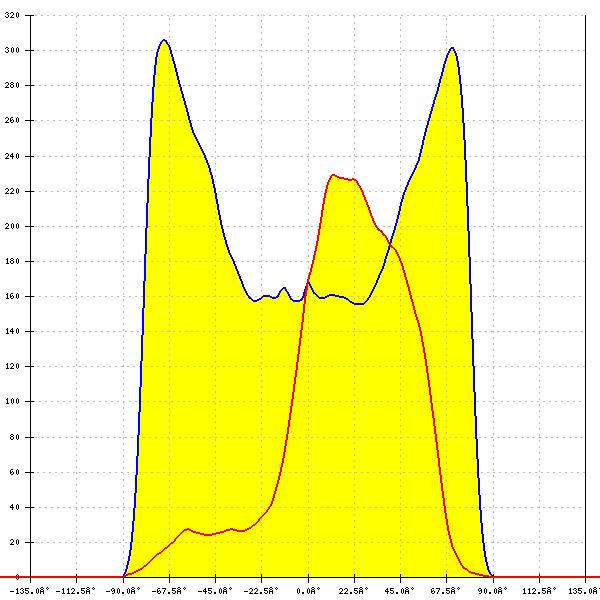

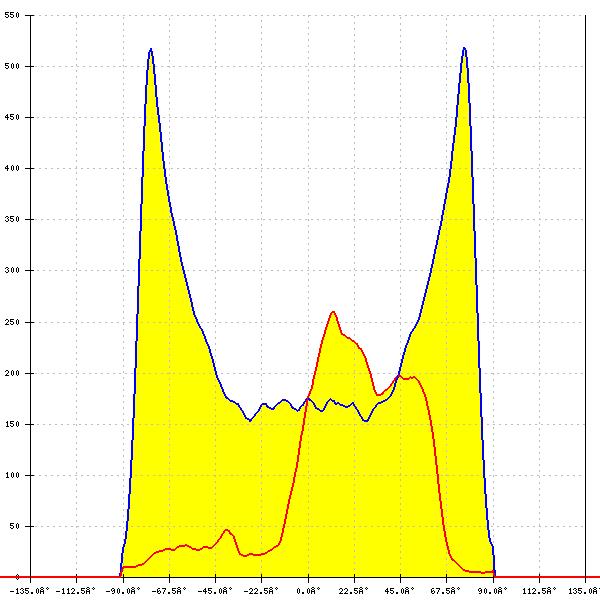

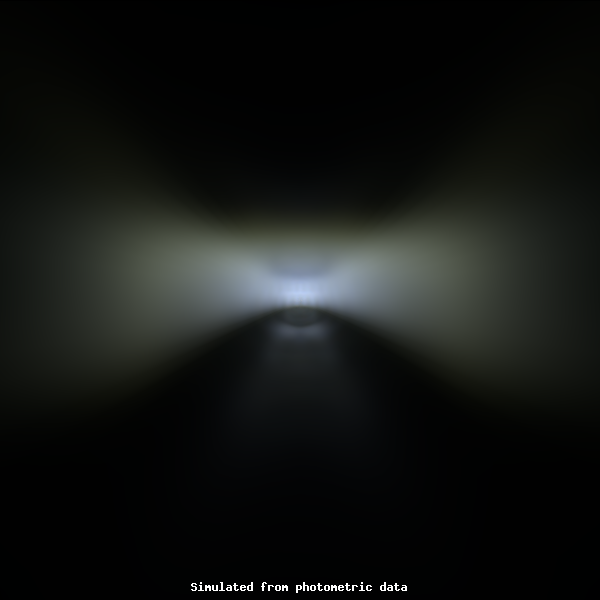

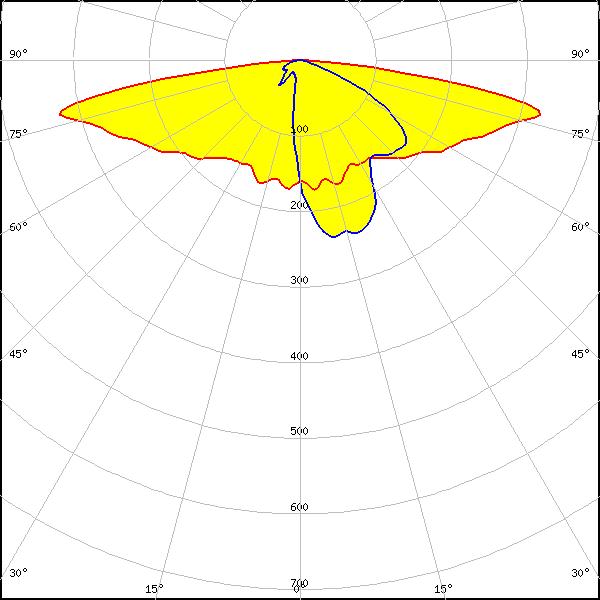

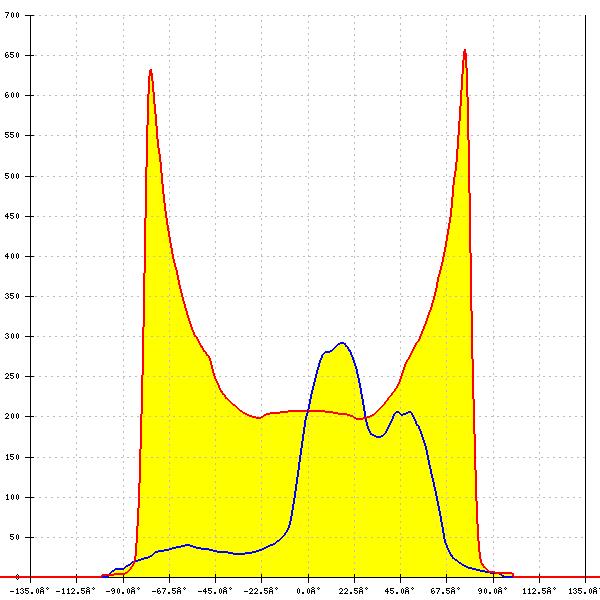

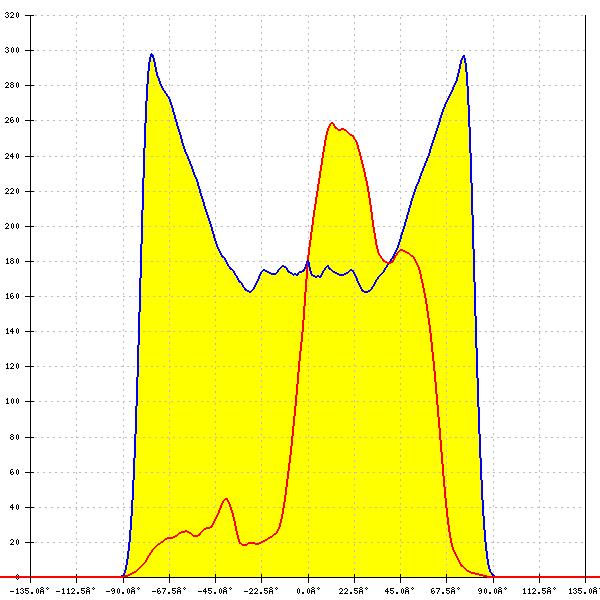

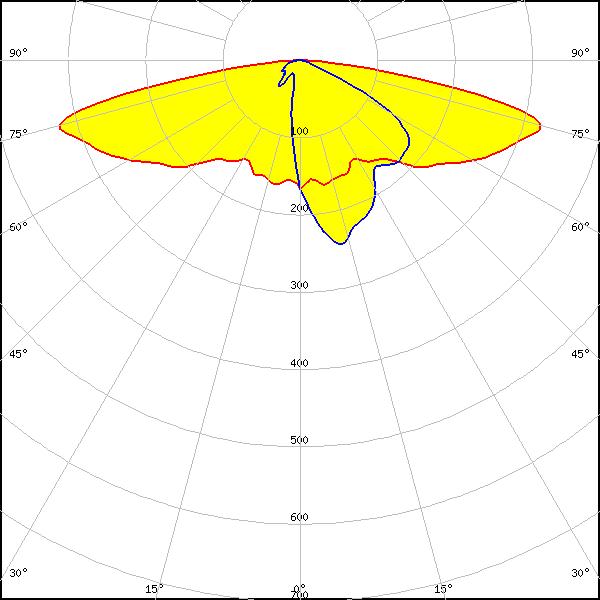

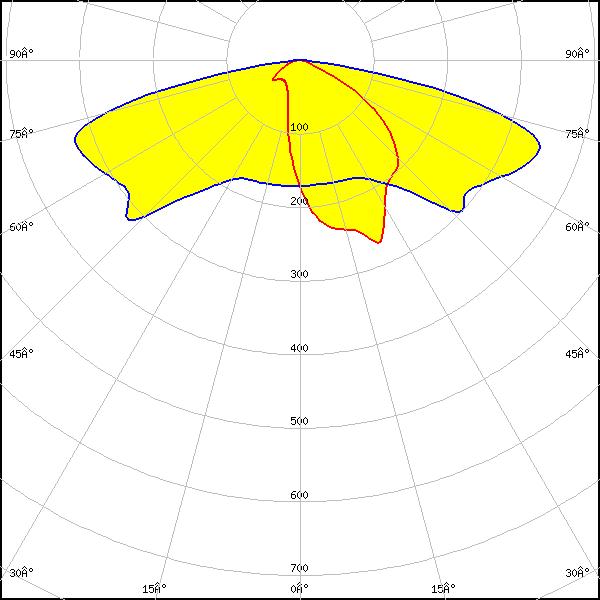

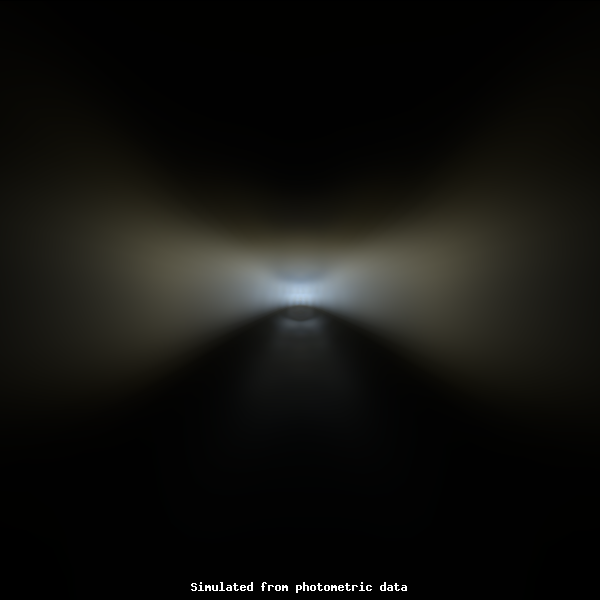

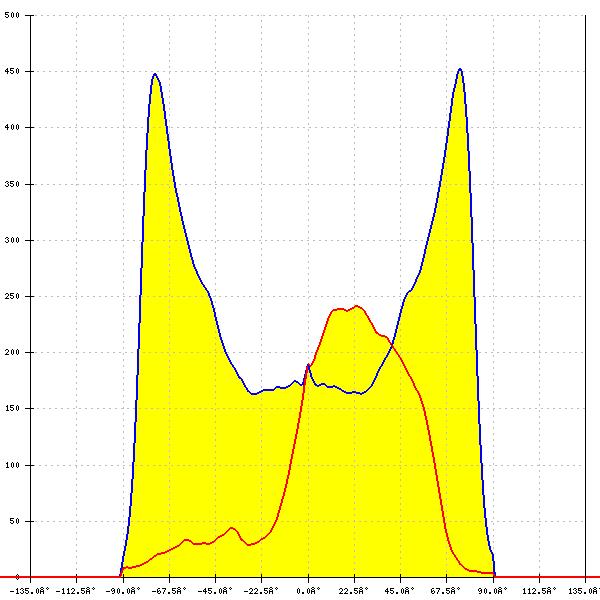

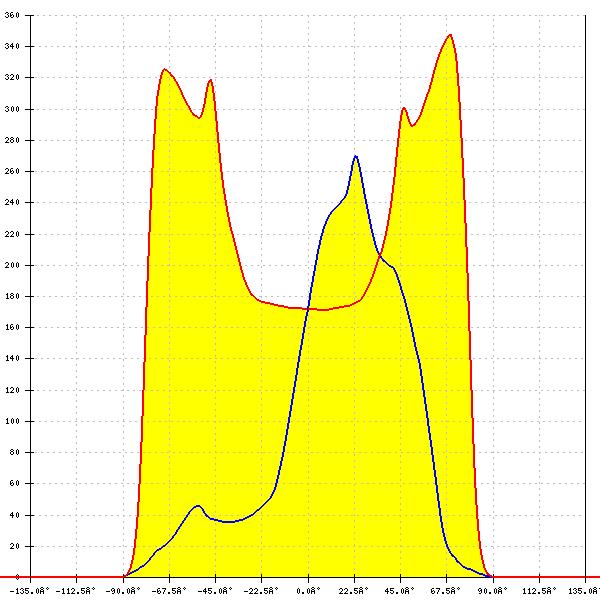

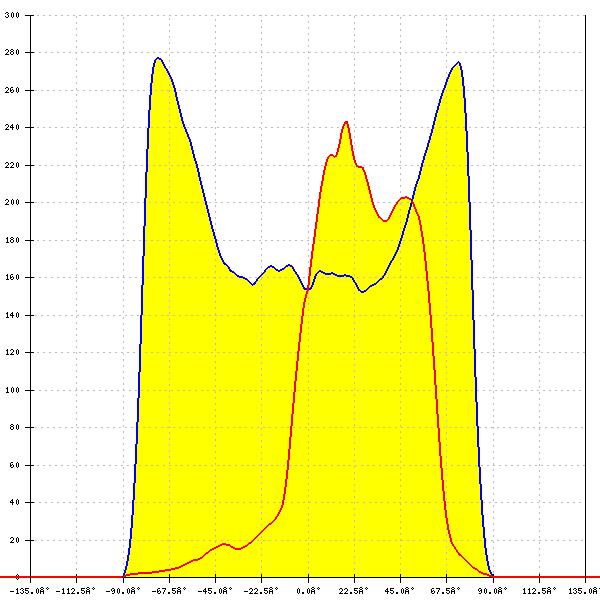

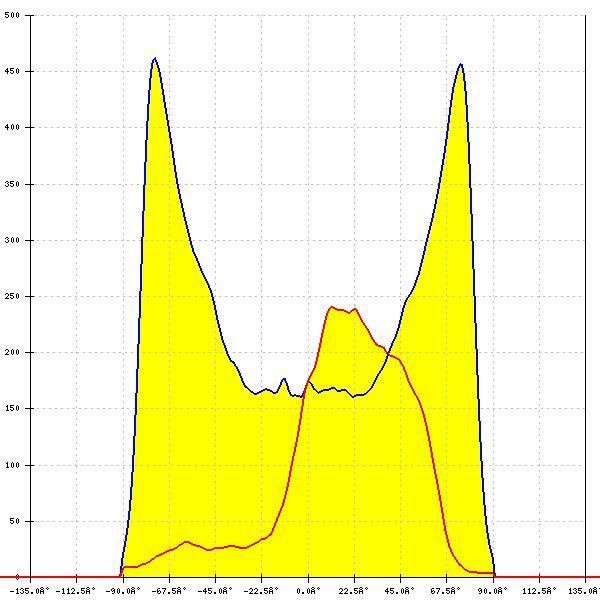

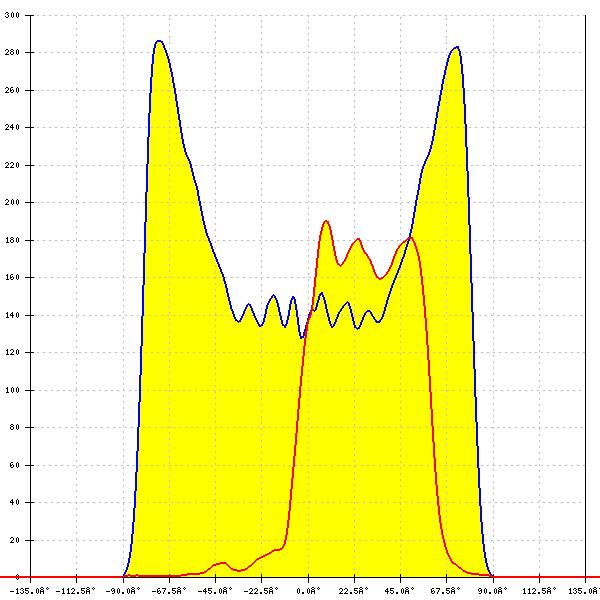

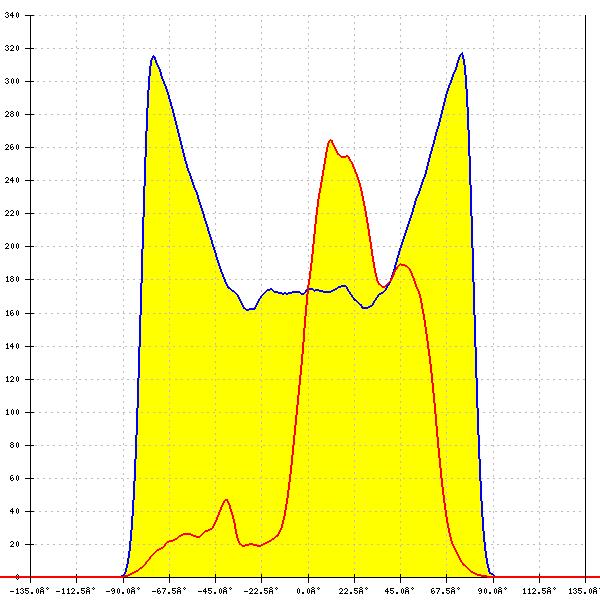

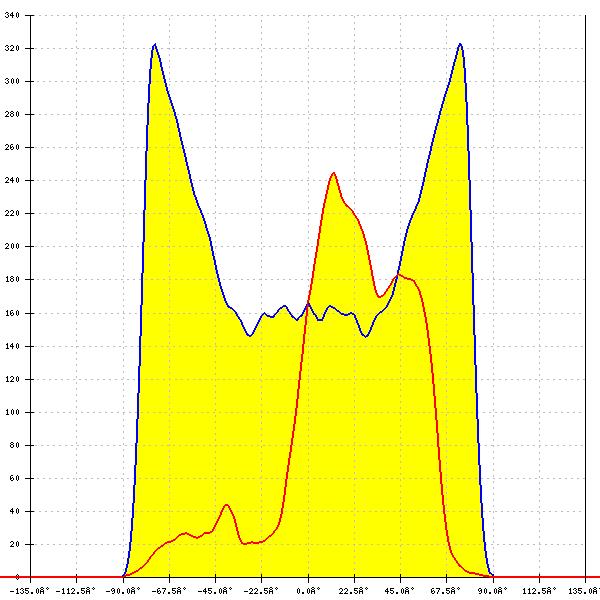

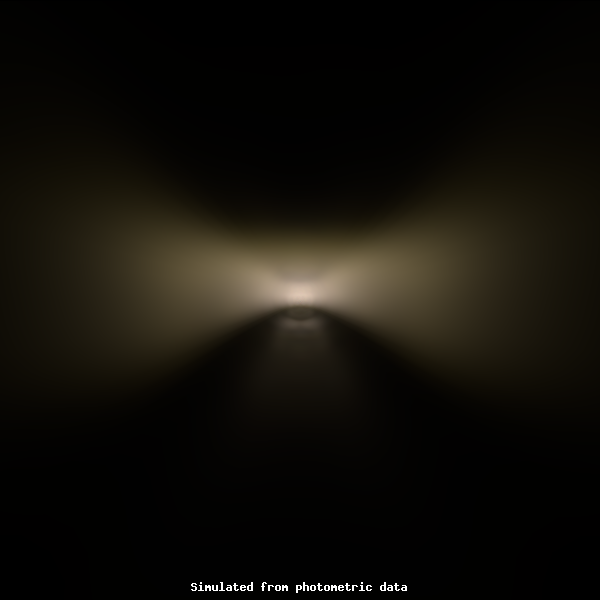

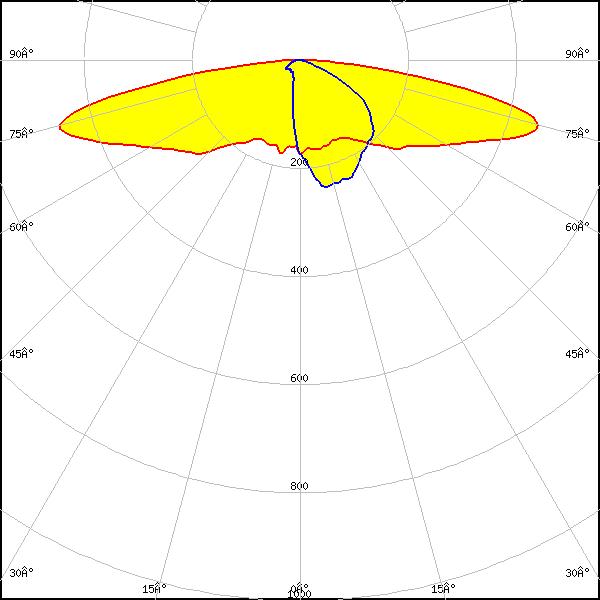

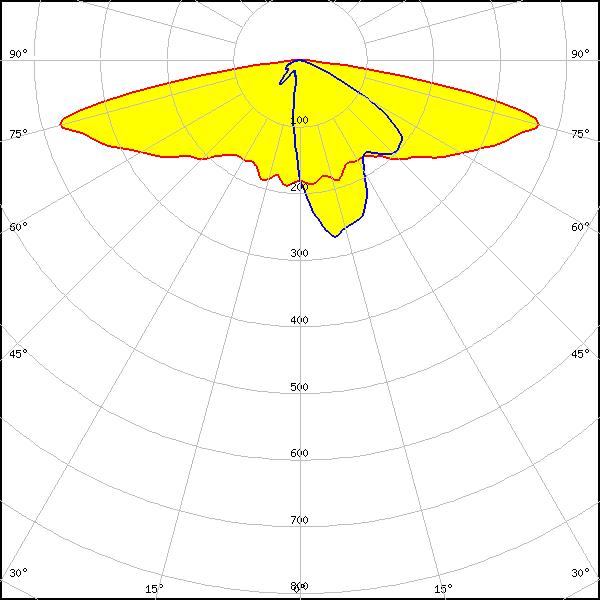

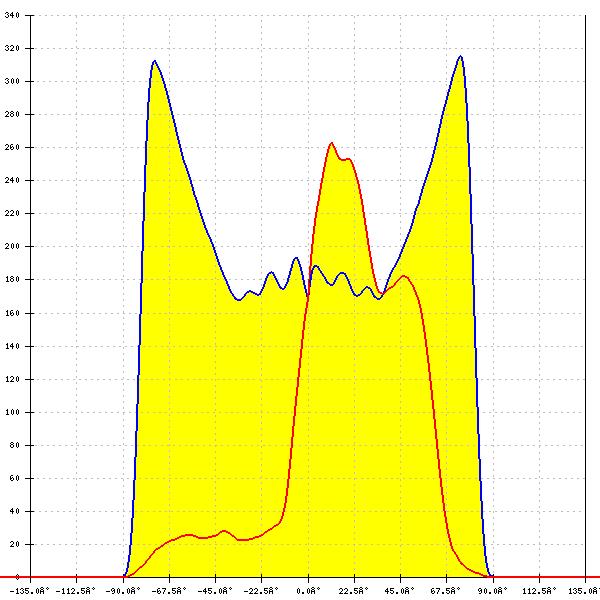

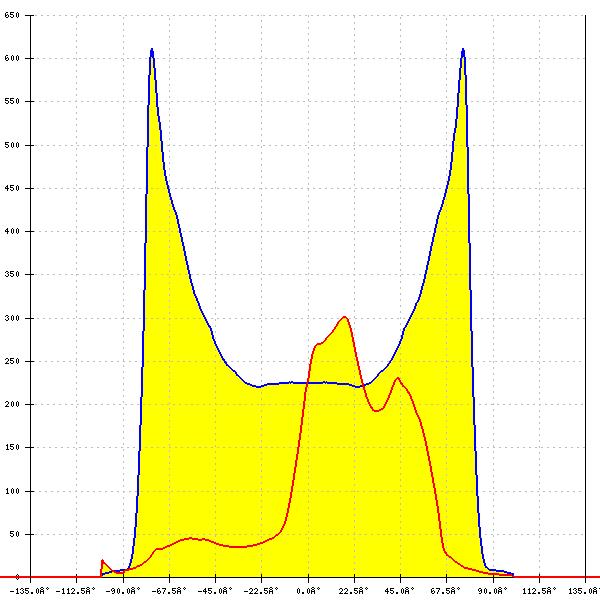

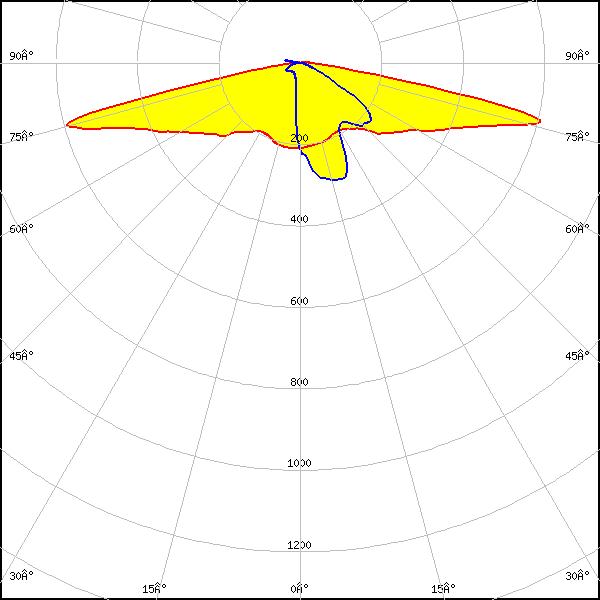

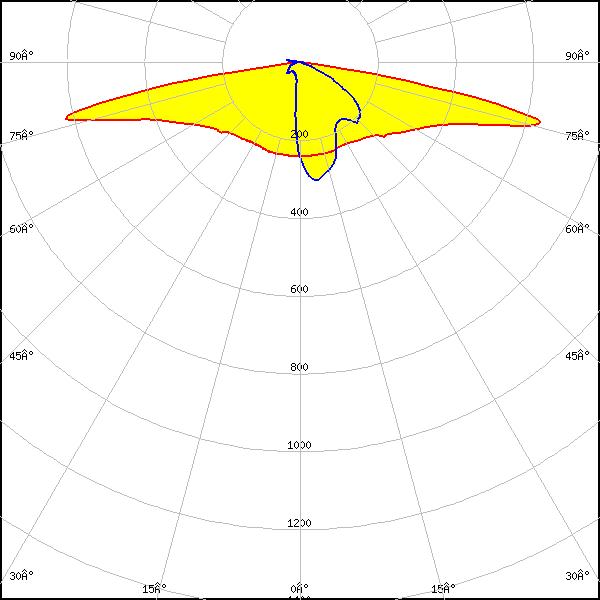

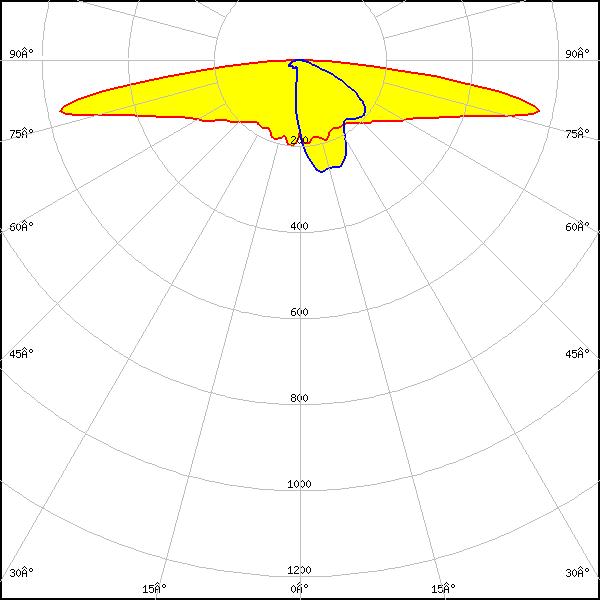

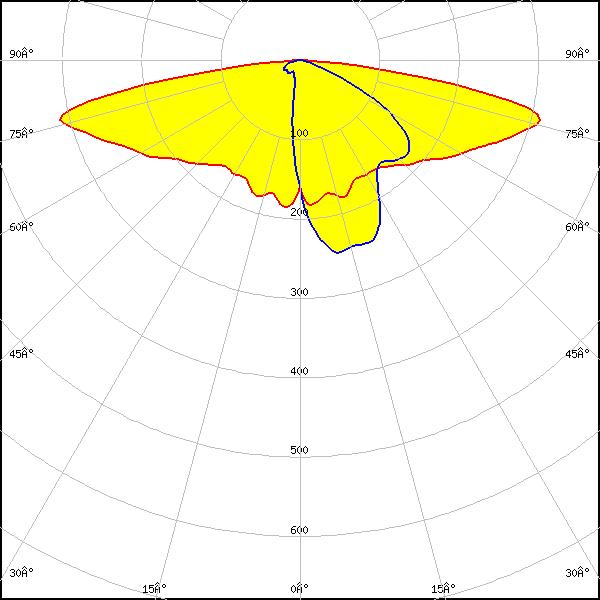

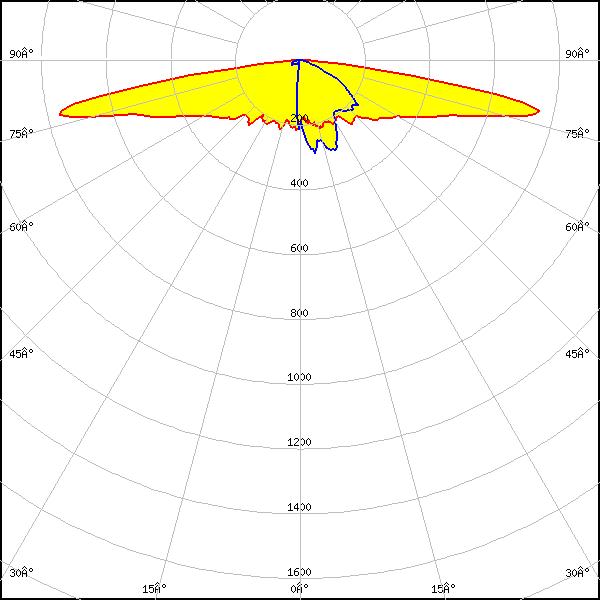

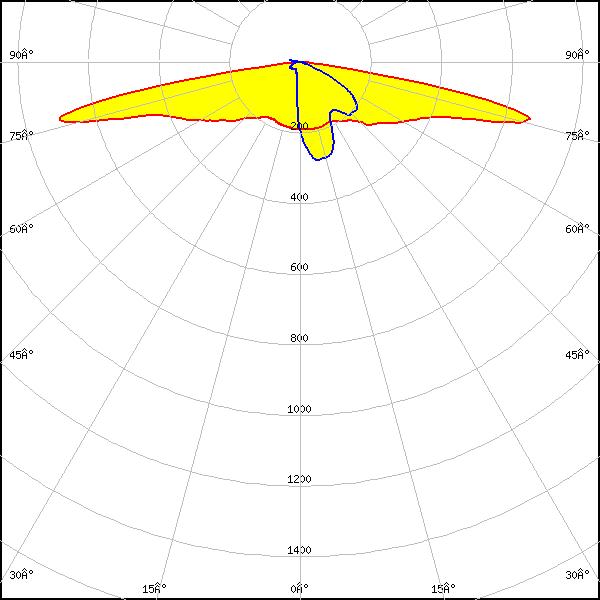

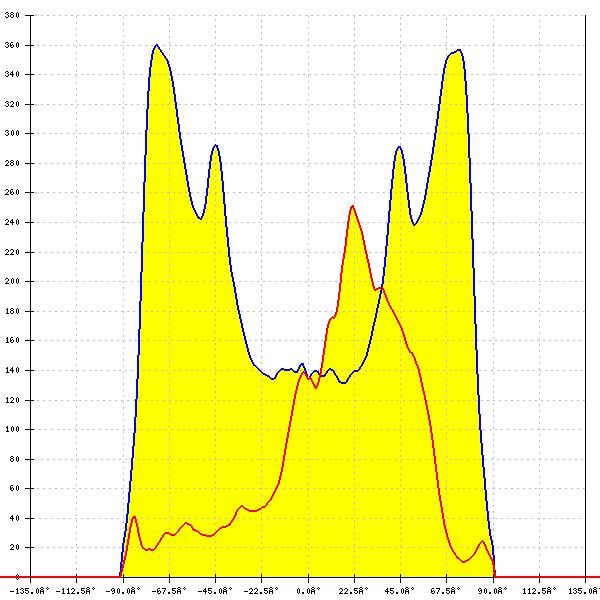

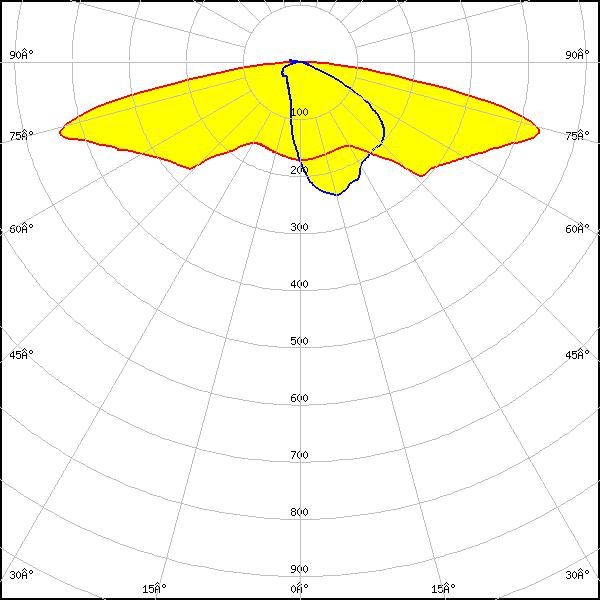

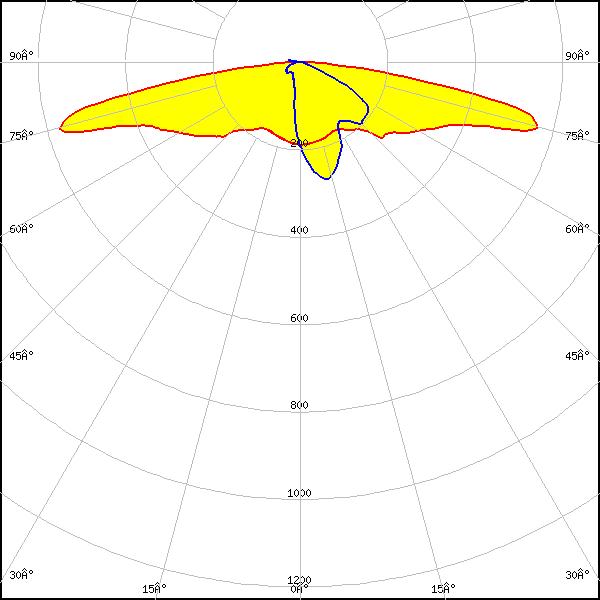

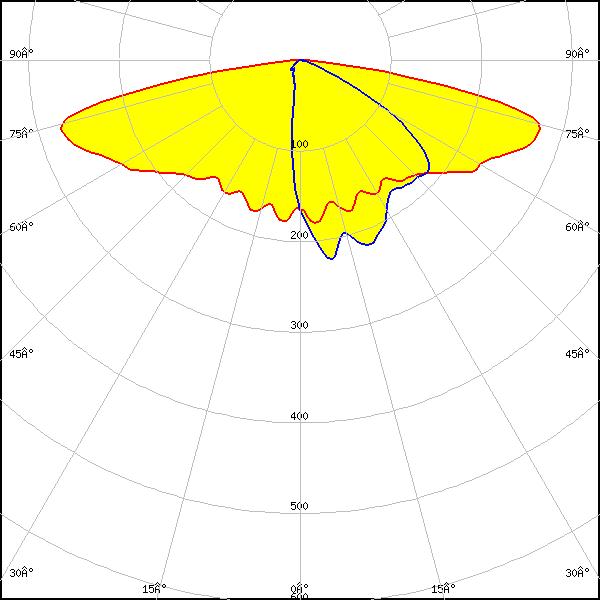

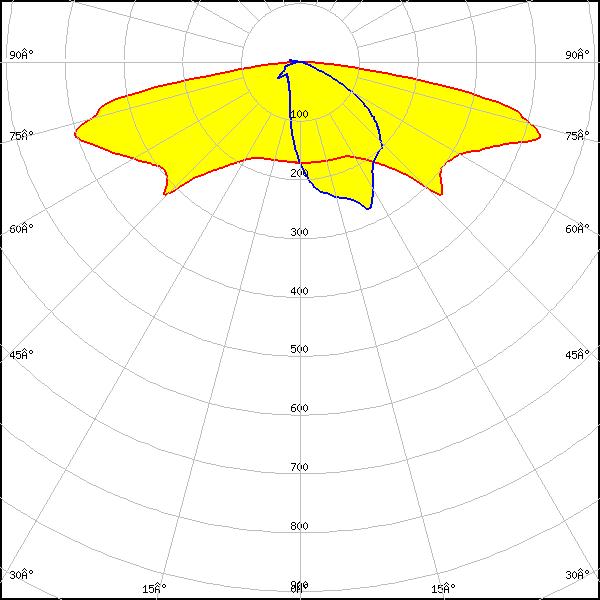

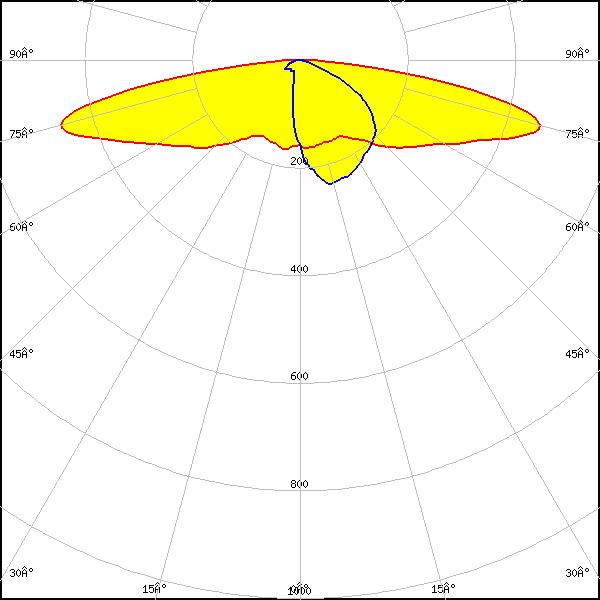

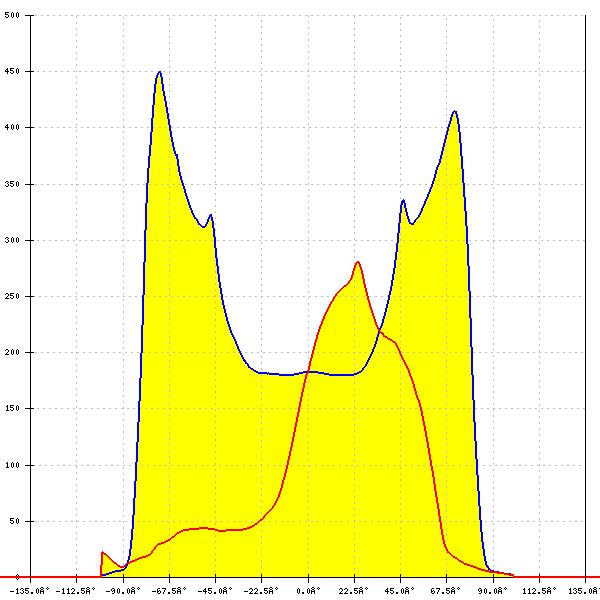

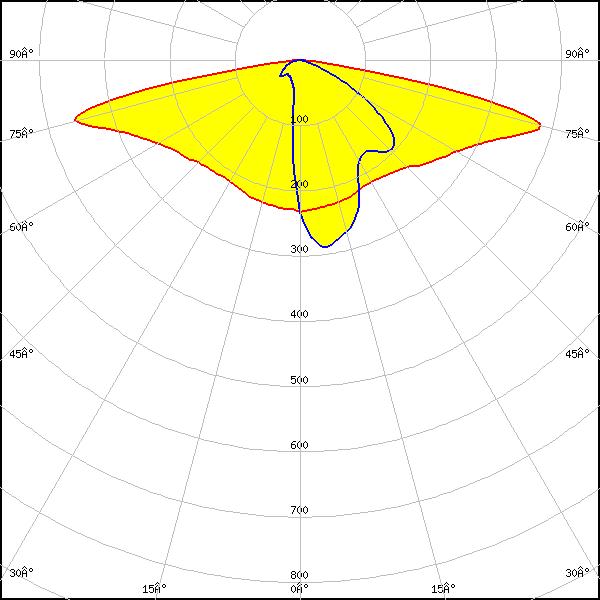

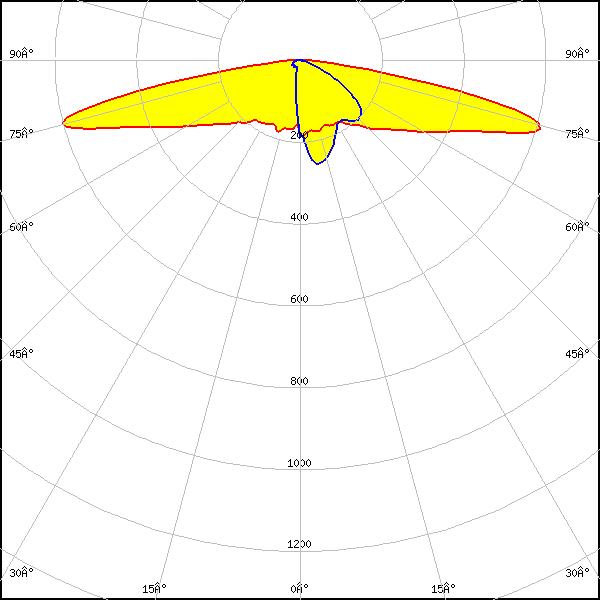

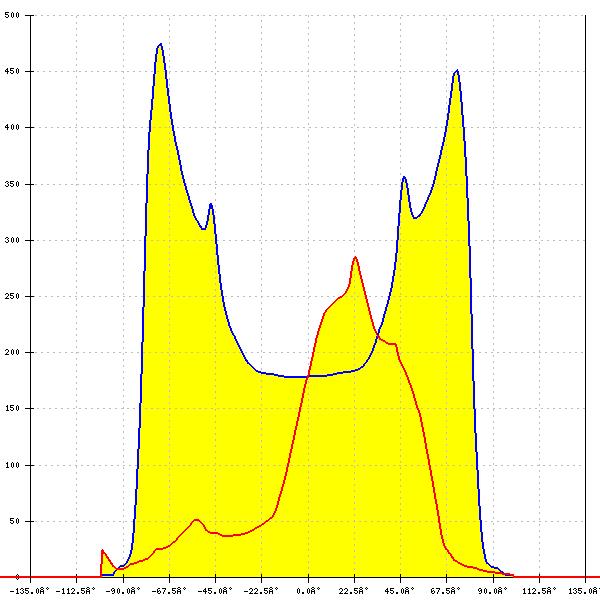

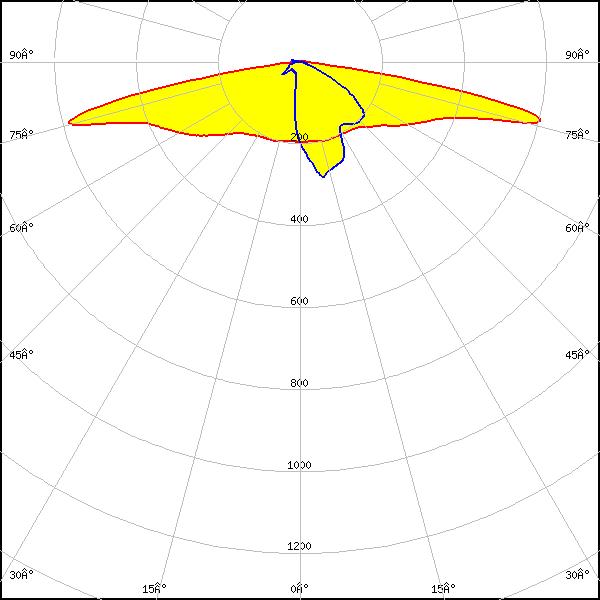

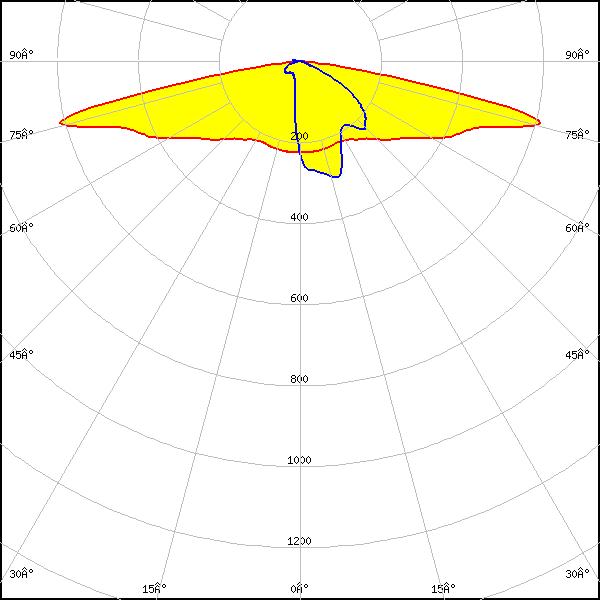

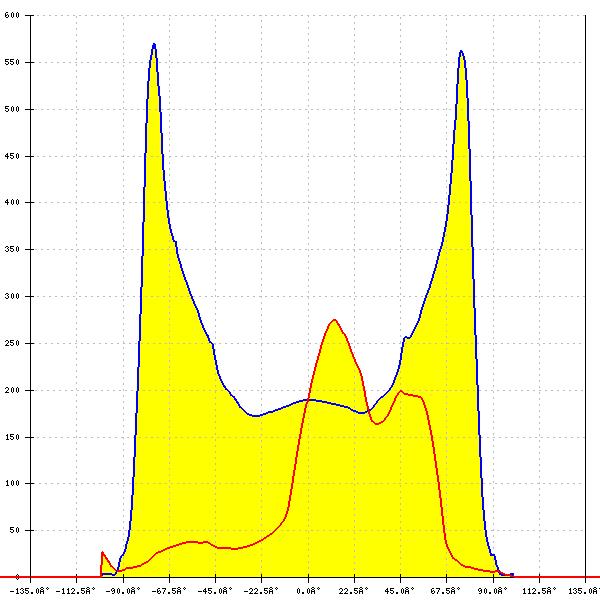

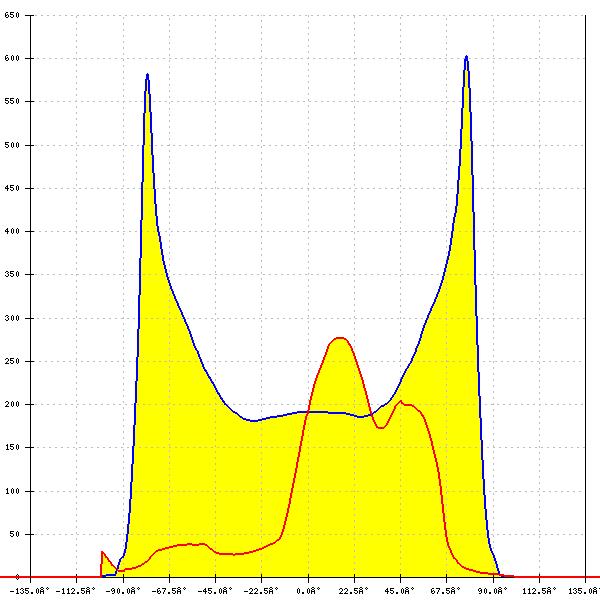

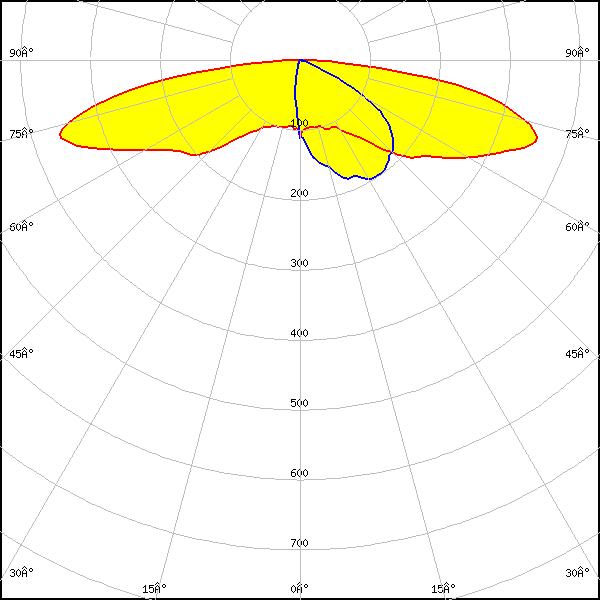

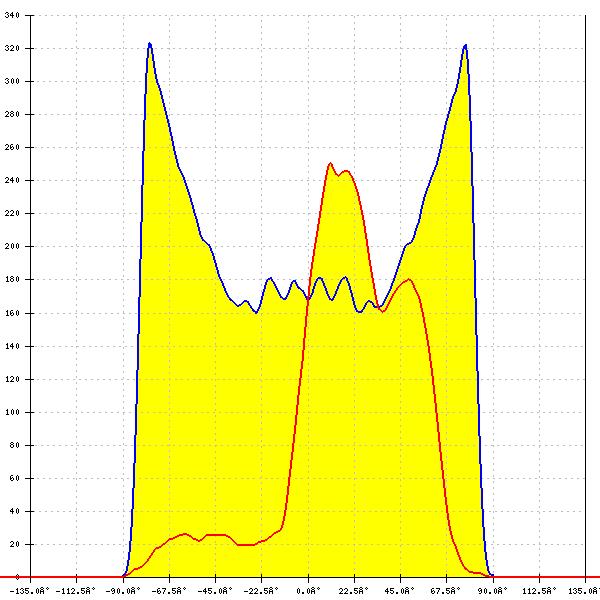

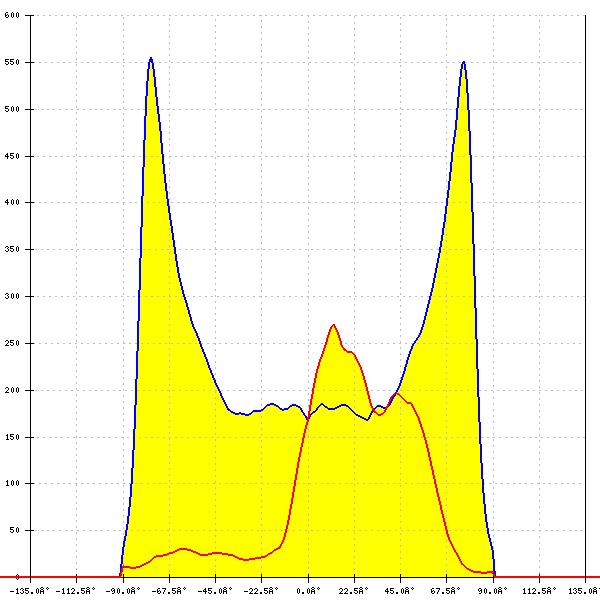

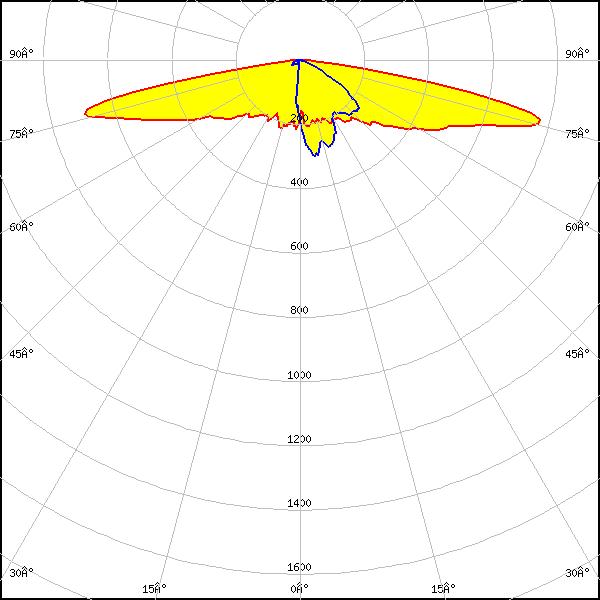

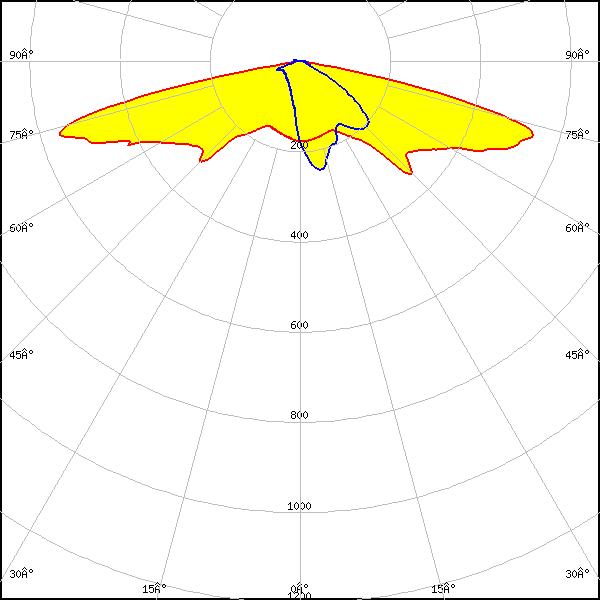

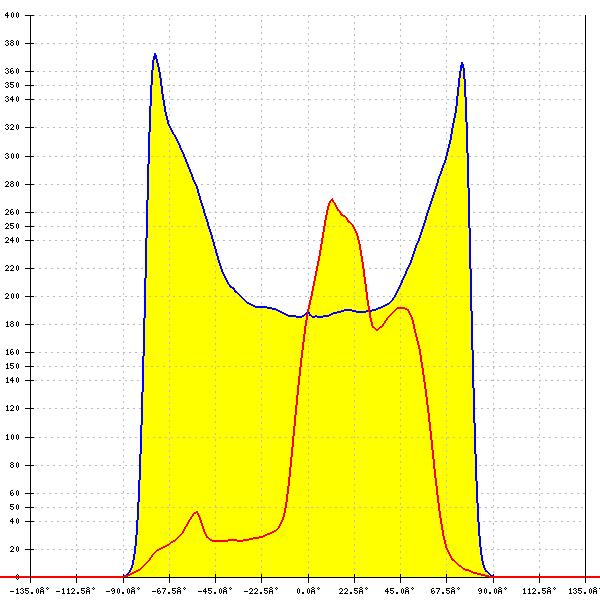

    Optical results

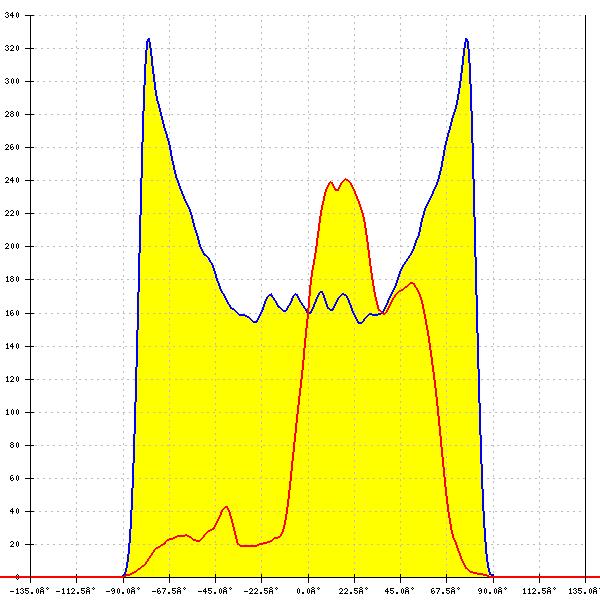

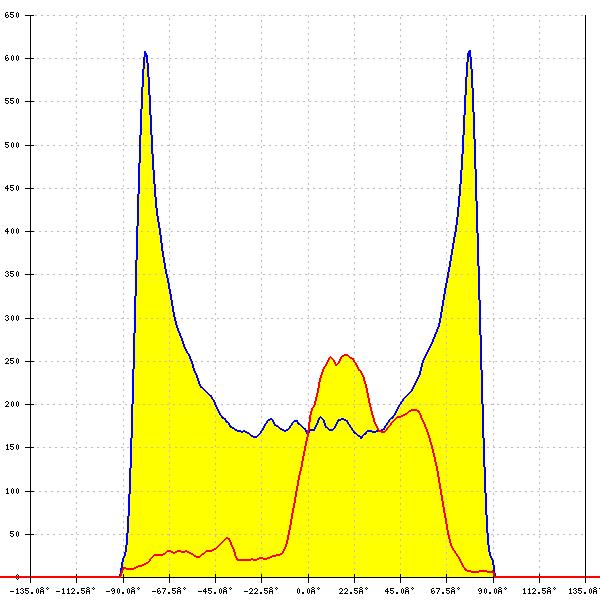

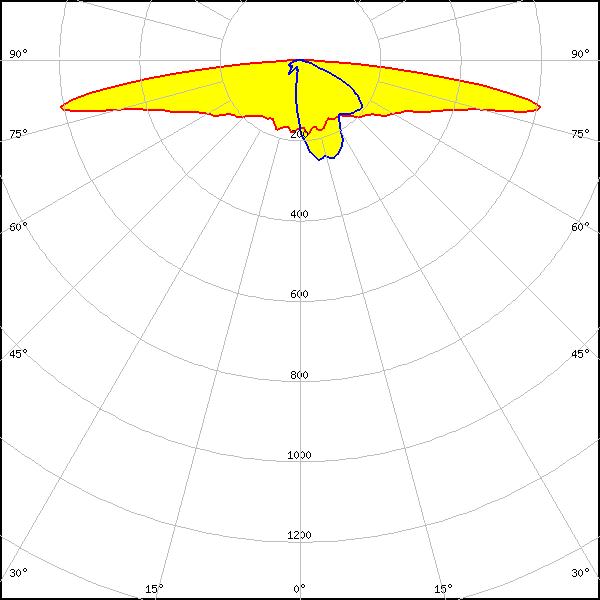

    LED: Bridgelux SMD 3535 (3B1)
    FWHM: asymmetric
    Peak intensity: 0.889 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Bridgelux SMD 3535 (3B1)
    FWHM: asymmetric
    Peak intensity: 0.449 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

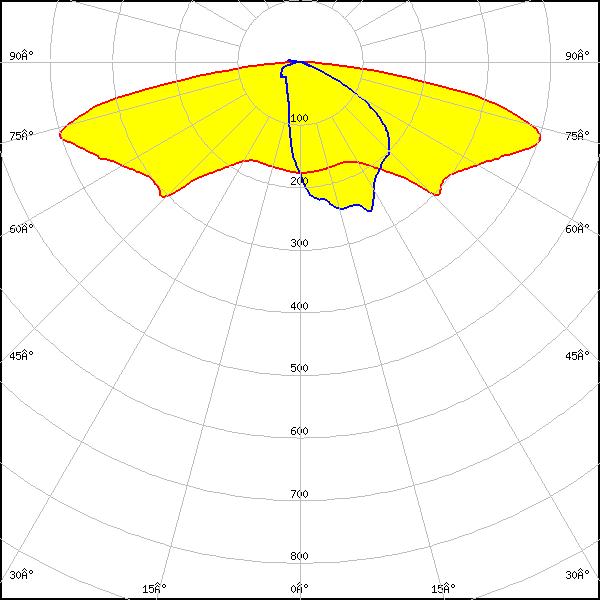

    LED: Bridgelux SMD 5050
    FWHM: asymmetric
    Peak intensity: 0.630 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

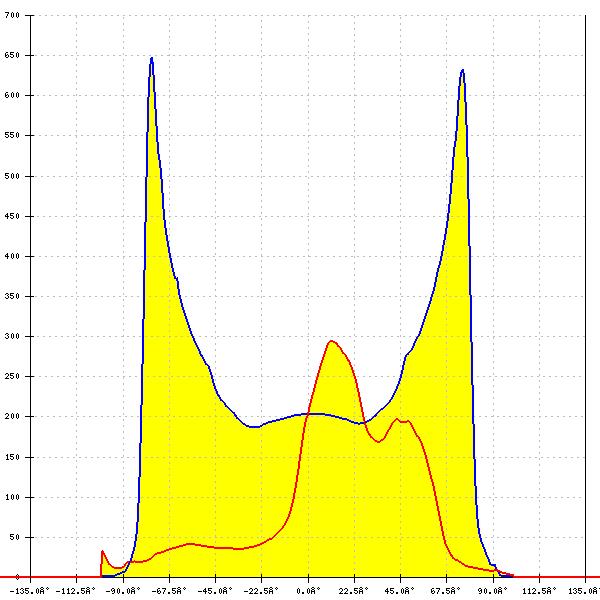

    LED: QUICK FLUX XTP 2x4 xxx LS G5
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

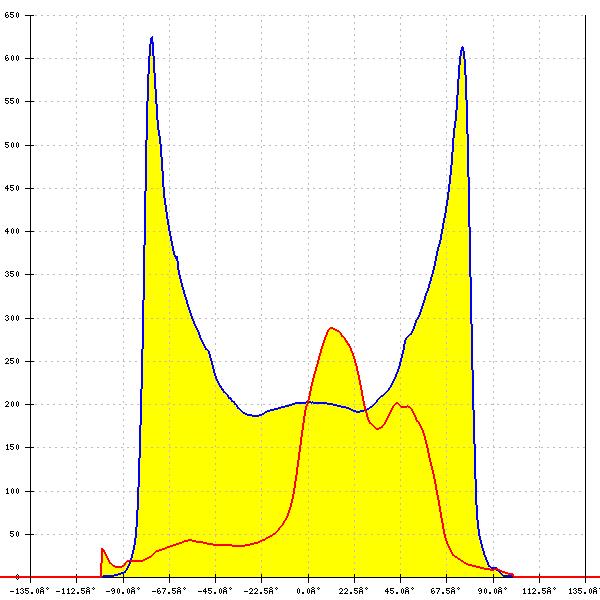

    LED: QUICK FLUX XTP 2x6 xxx LS G5
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

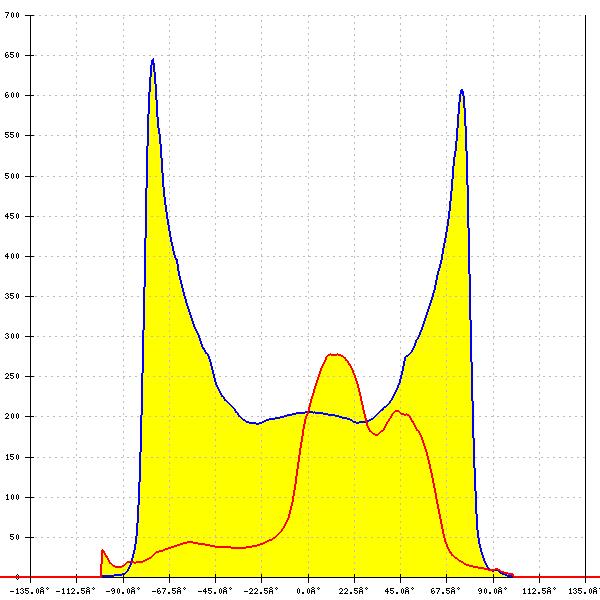

    LED: QUICK FLUX XTP 2x8 xxx LS G5
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

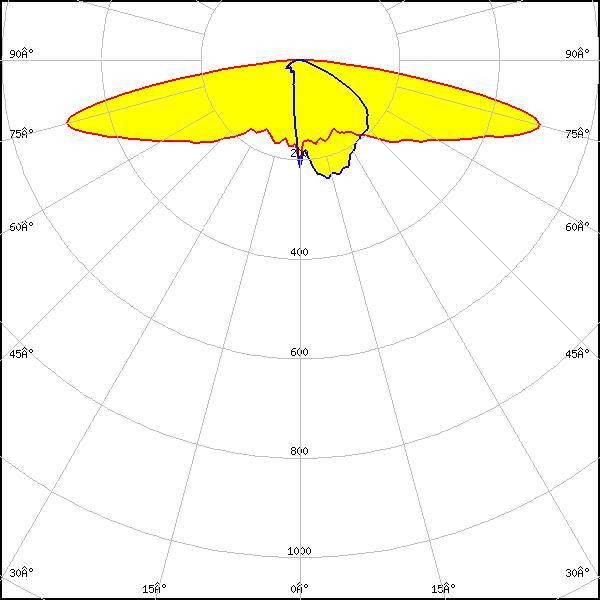

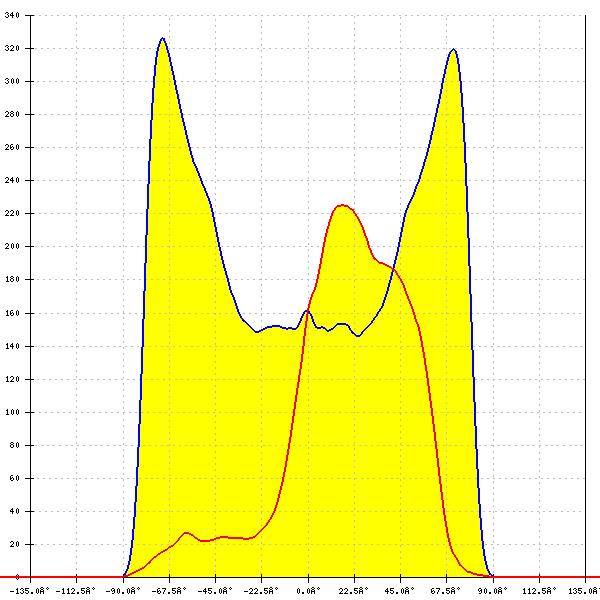

    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.688 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.660 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.425 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

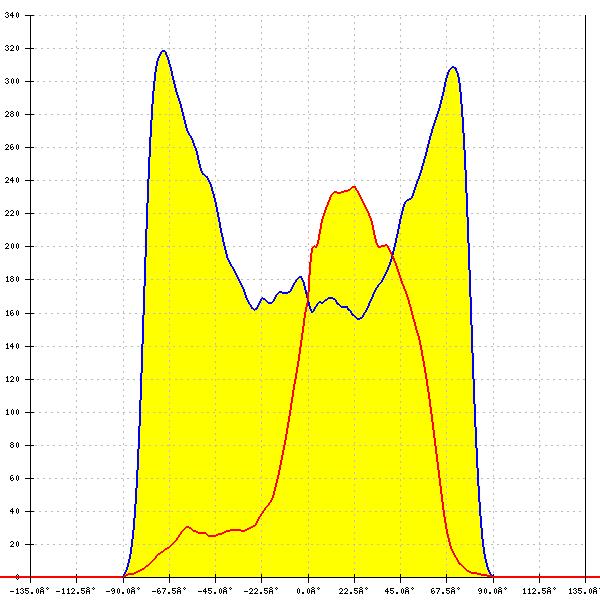

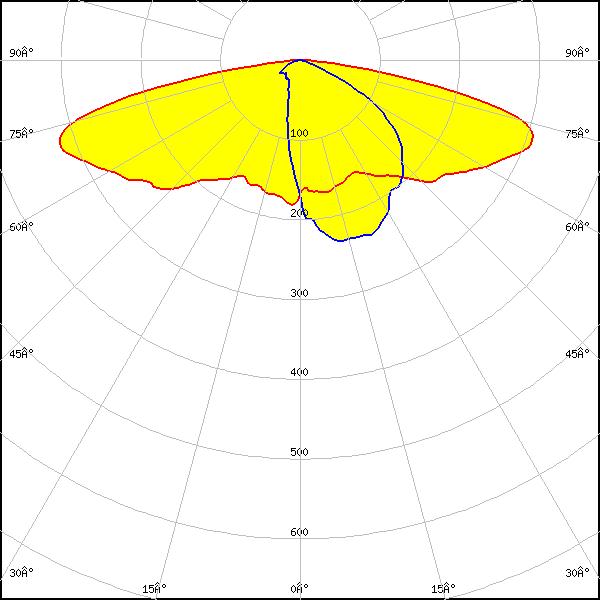

    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.437 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XB-H
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: XHP35 HD
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L2
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L3
    FWHM: asymmetric
    Peak intensity: 1.087 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

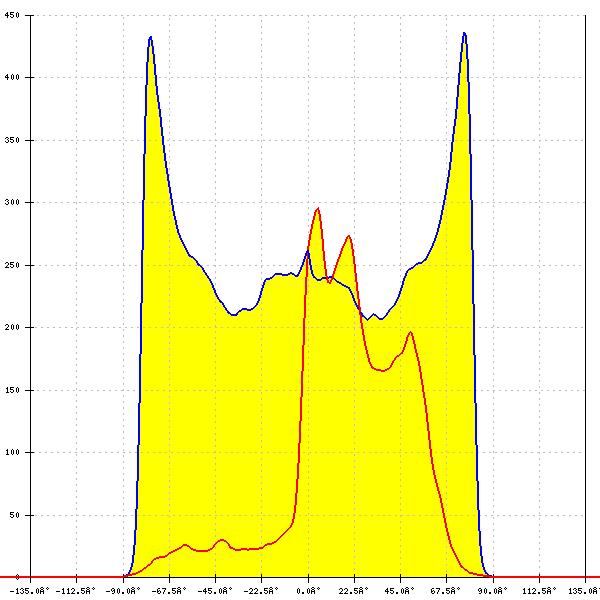

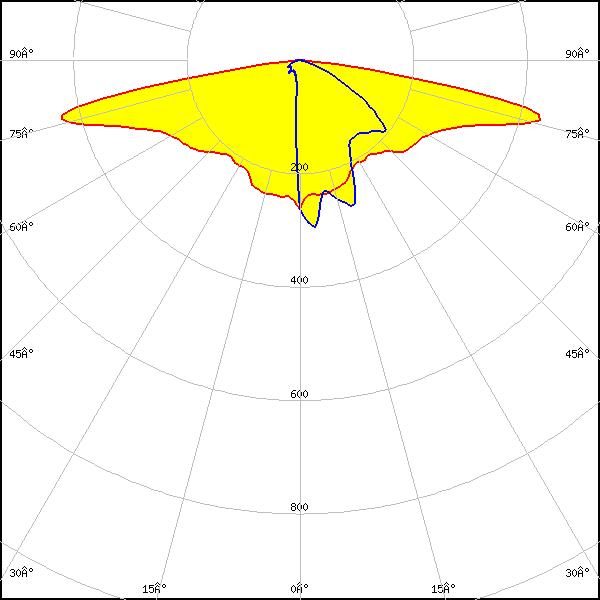

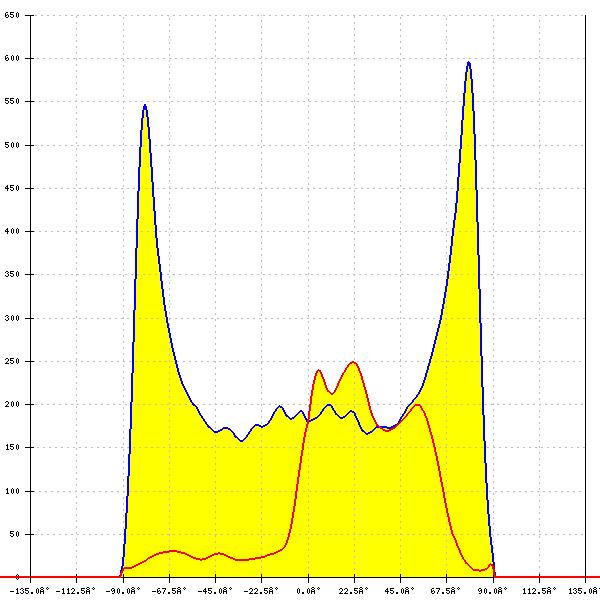

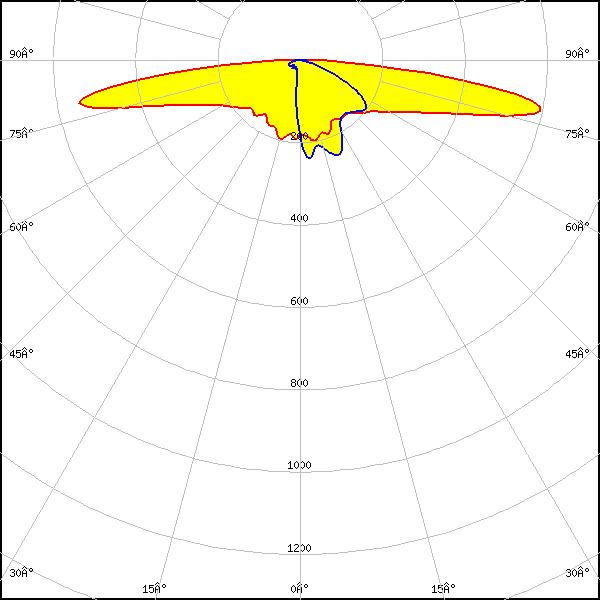

    LED: XP-E2
    FWHM: asymmetric
    Peak intensity: 0.660 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: asymmetric
    Peak intensity: 0.531 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

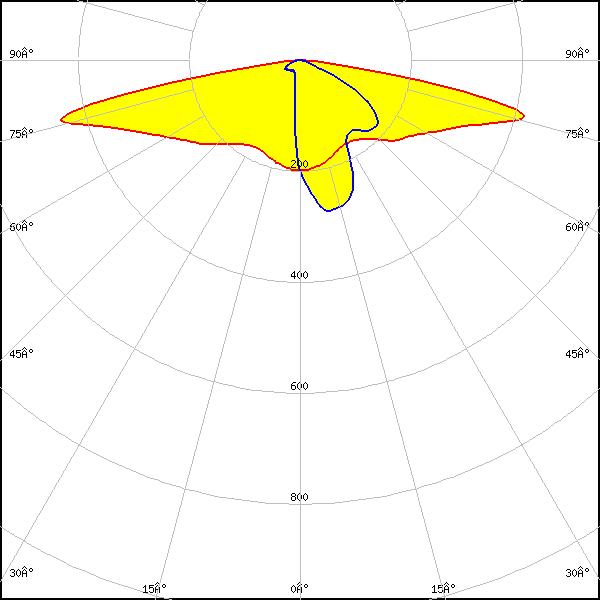

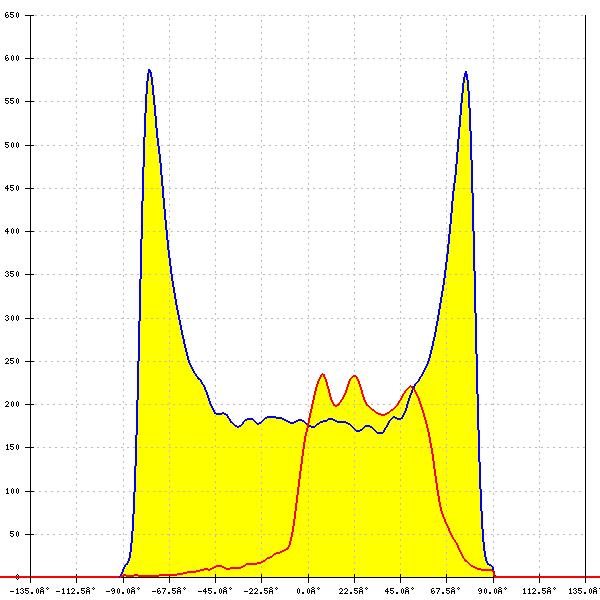

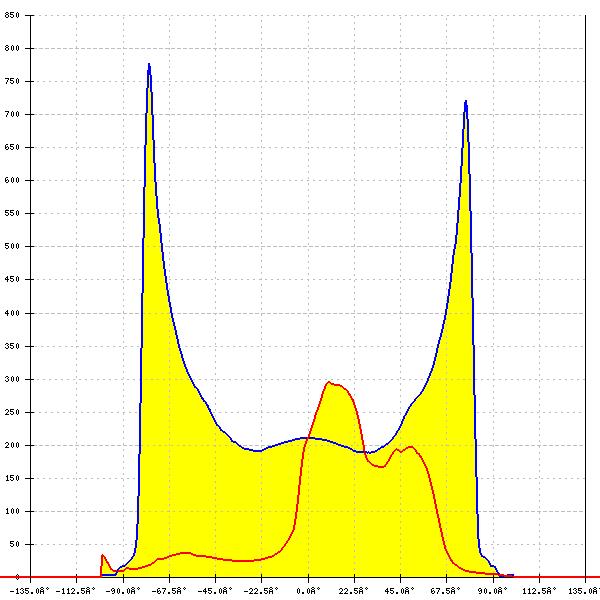

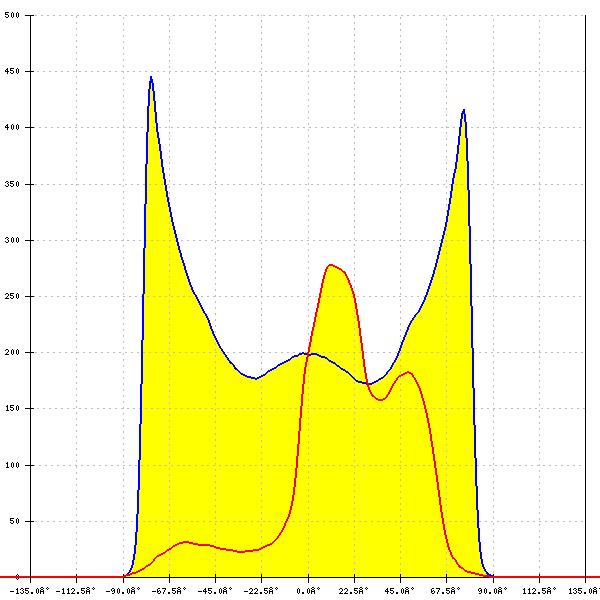

    LED: XP-G2
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.756 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.570 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

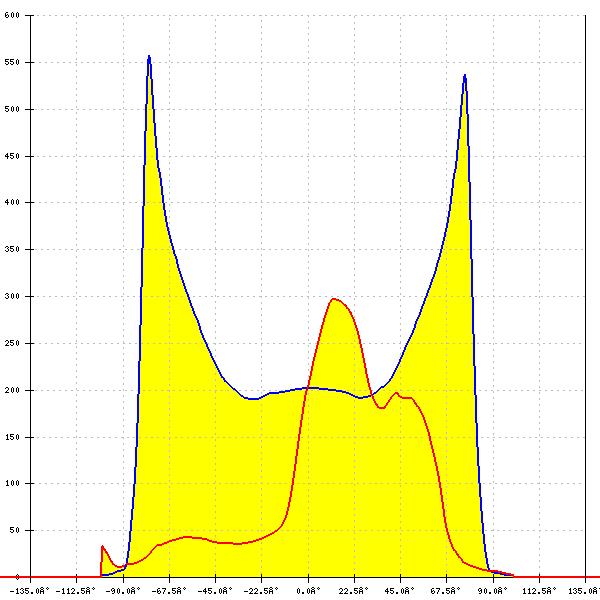

    LED: XP-G2 HE
    FWHM: asymmetric
    Peak intensity: 0.952 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

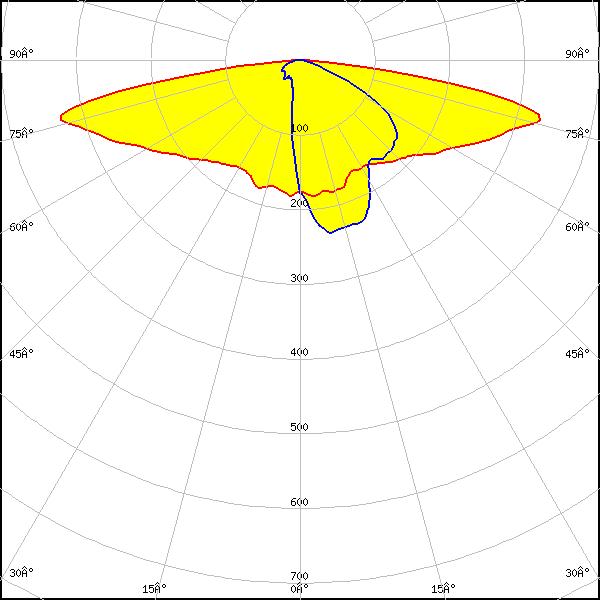

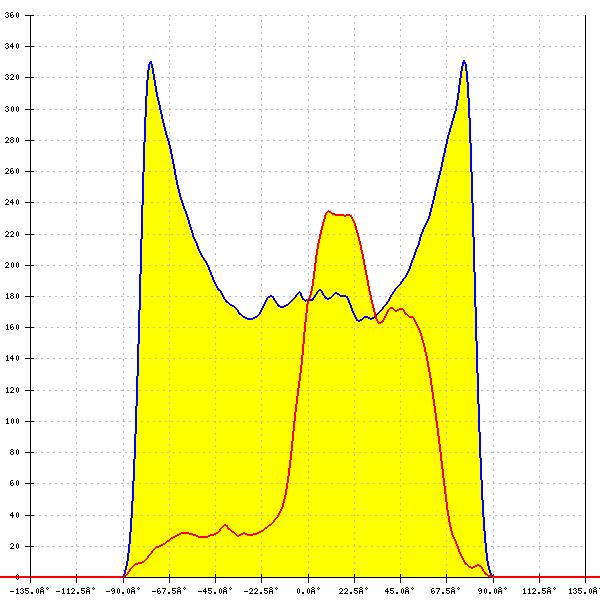

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.439 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

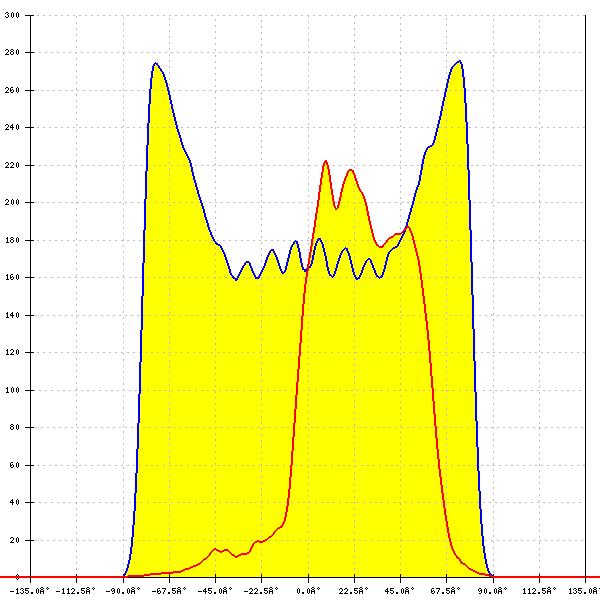

    LED: XP-G3
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.585 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

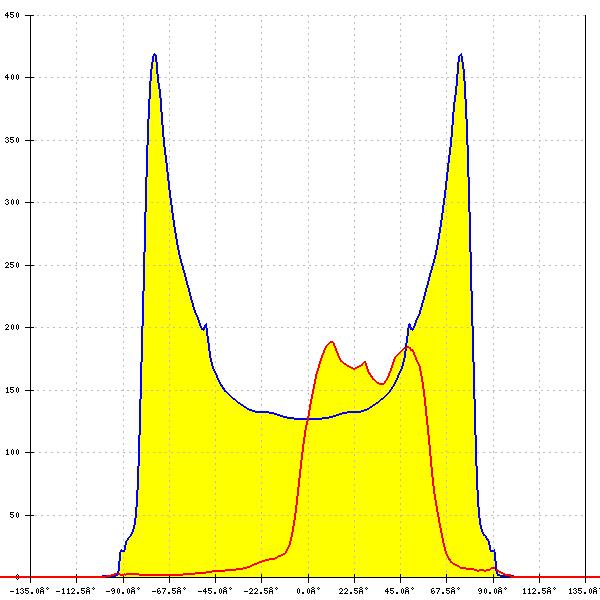

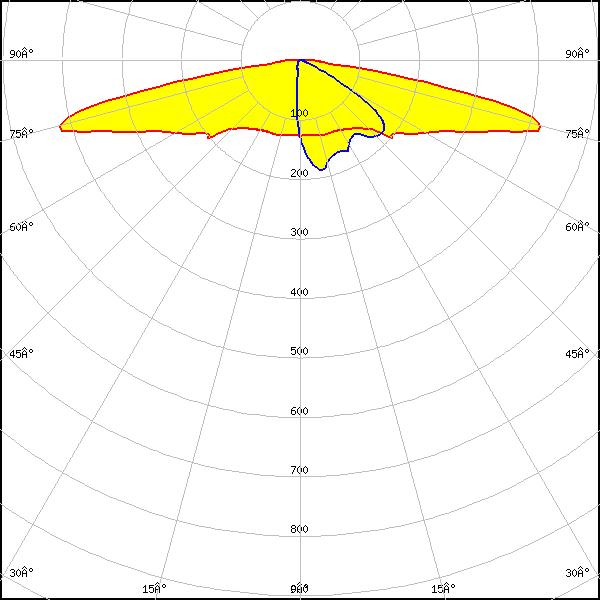

    LED: XP-G3
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.736 cd/lm
    Efficiency: 67 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.970 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

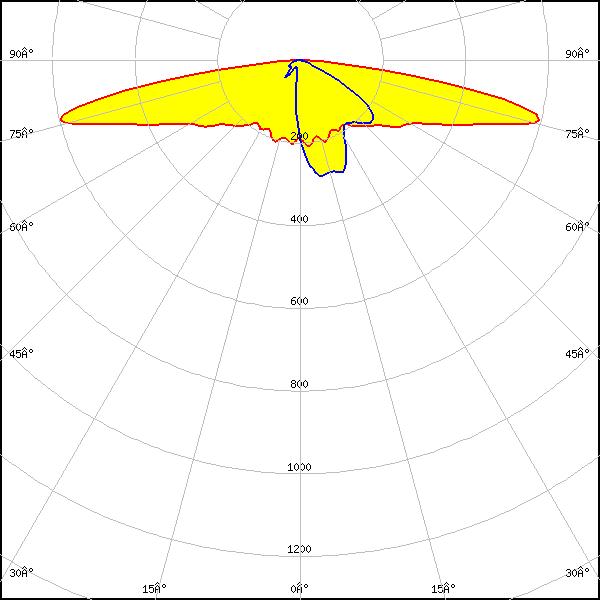

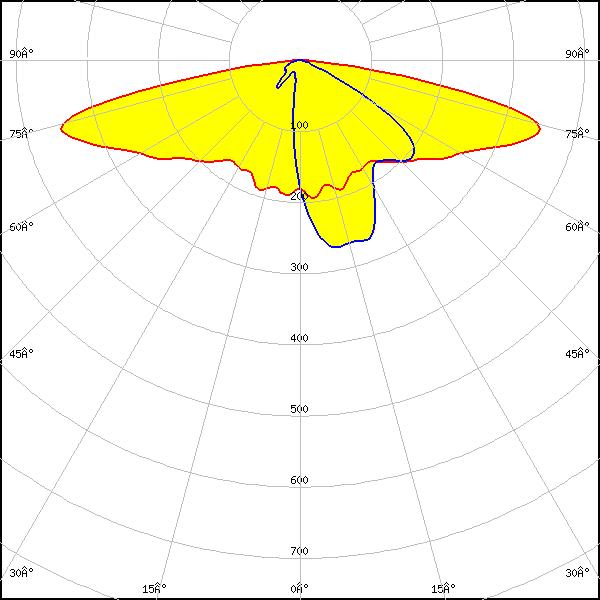

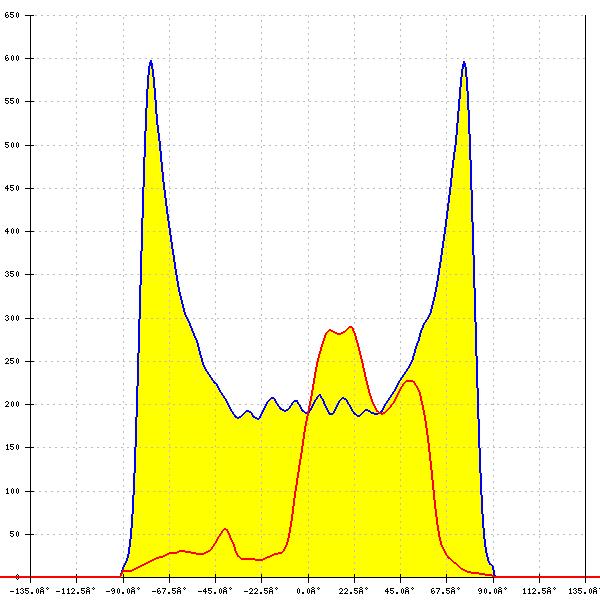

    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 0.724 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 0.461 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: asymmetric
    Peak intensity: 0.550 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White

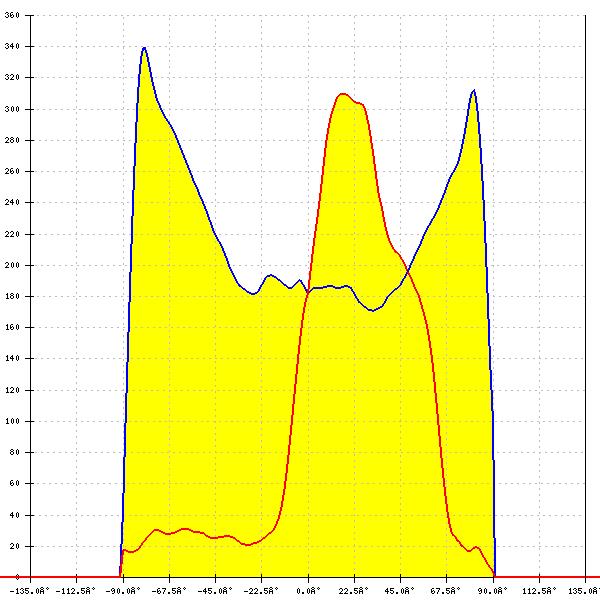

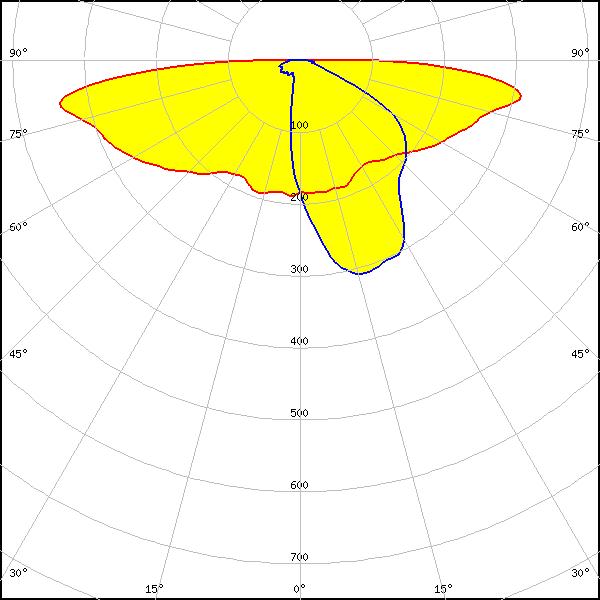

    LED: XP-L RGBW HD
    FWHM: asymmetric
    Peak intensity: 0.477 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

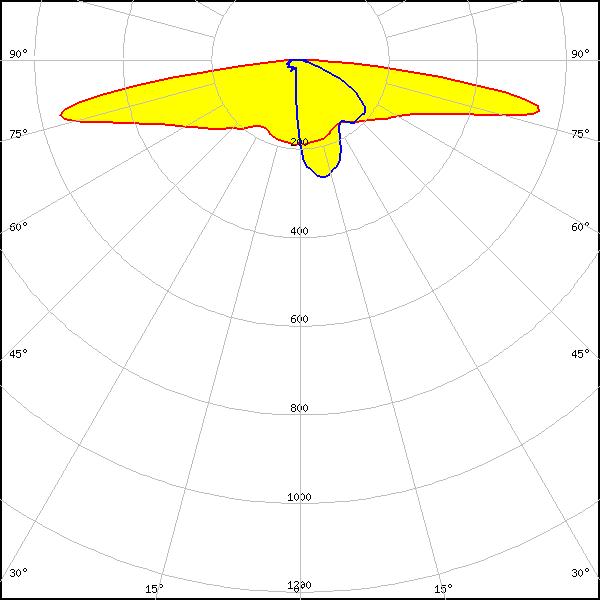

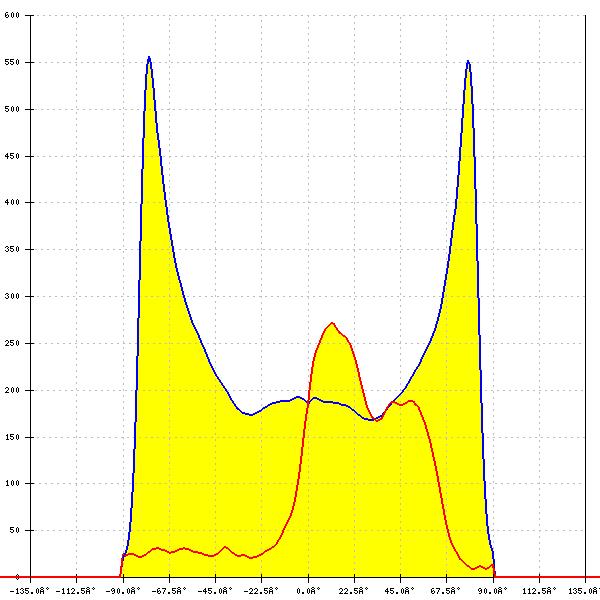

    LED: XP-L RGBW HI
    FWHM: asymmetric
    Peak intensity: 0.752 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

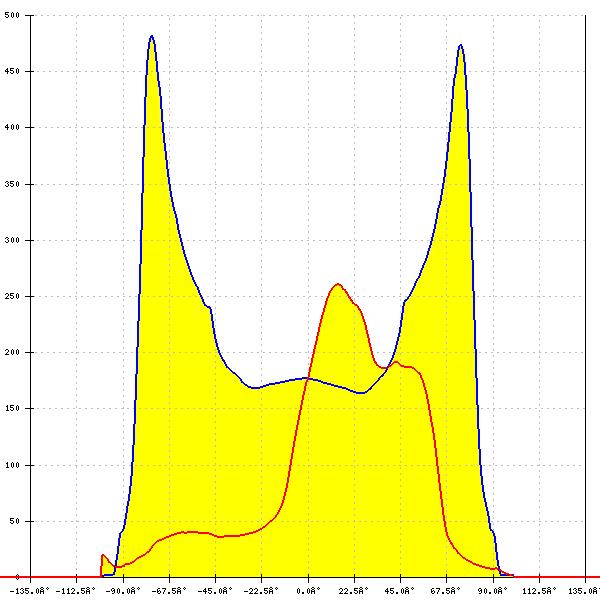

    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

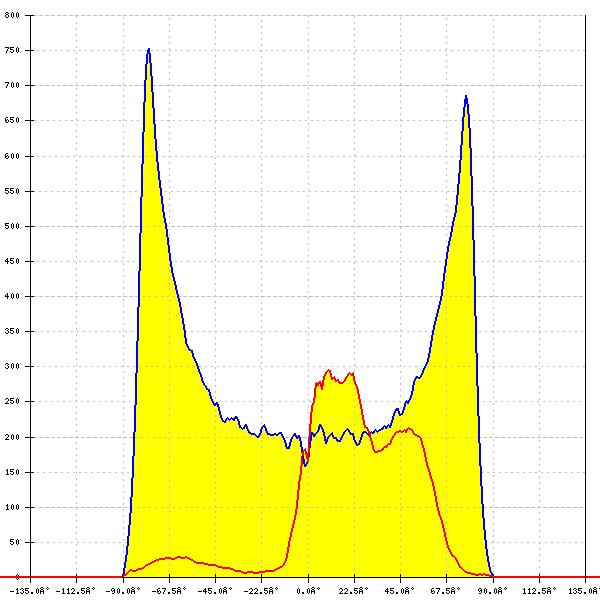

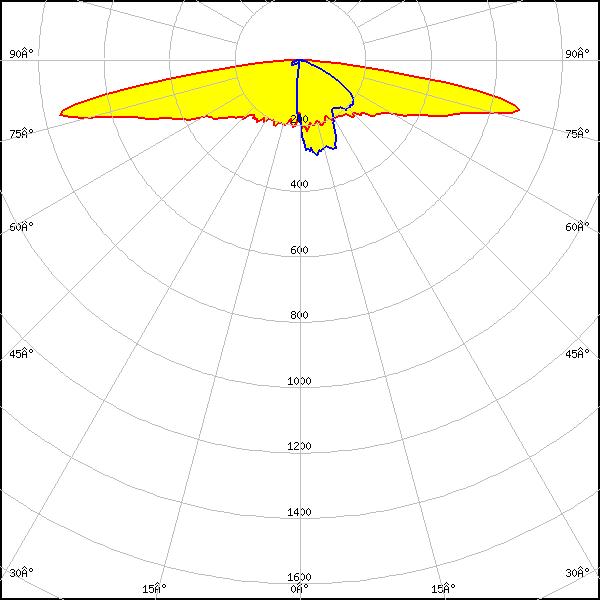

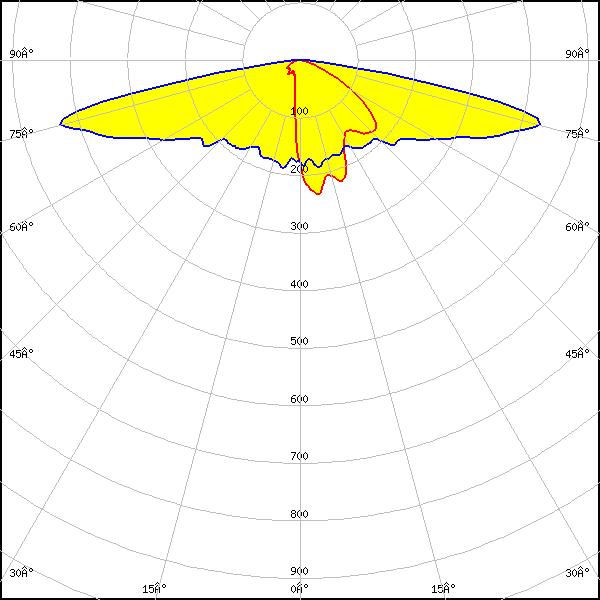

    LED: XT-E
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 0.536 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: EHP-2x8-3535
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

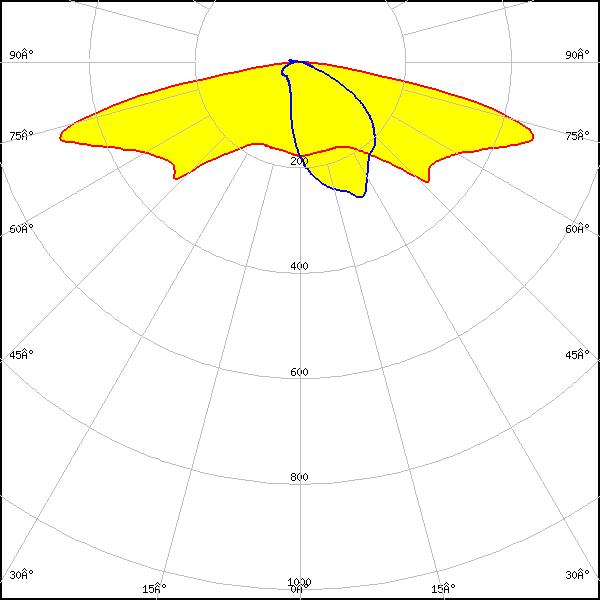

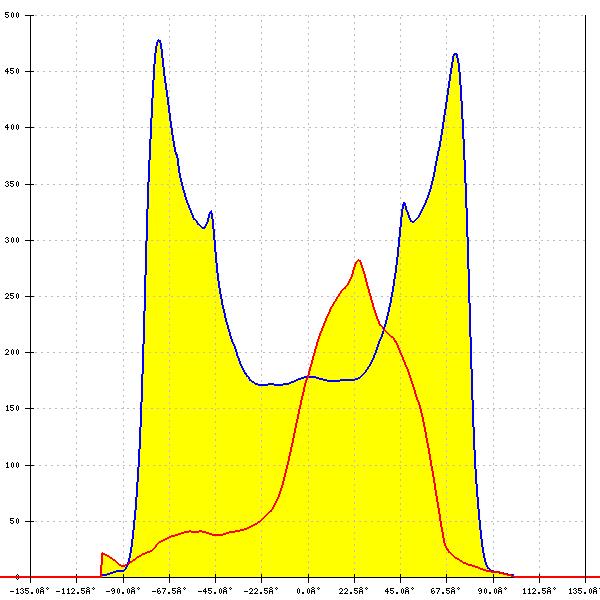

    LED: EHP-2x8-5050
    FWHM: asymmetric
    Peak intensity: 0.641 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

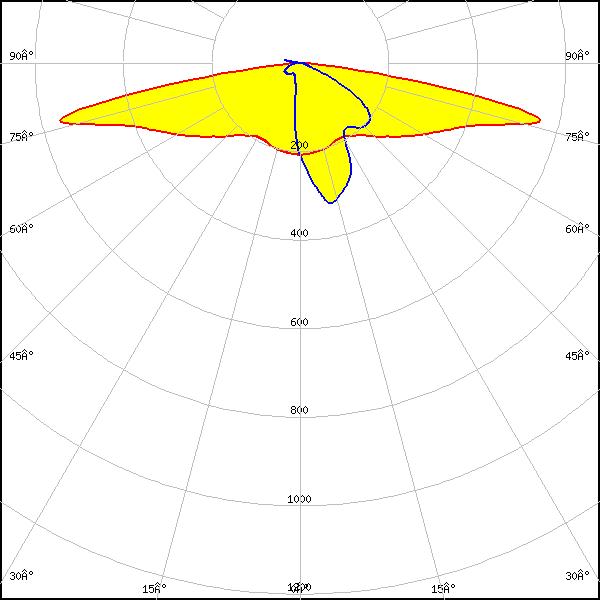

    LED: PL-BRICK HP 3800 2x8 SSG
    FWHM: asymmetric
    Peak intensity: 0.878 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

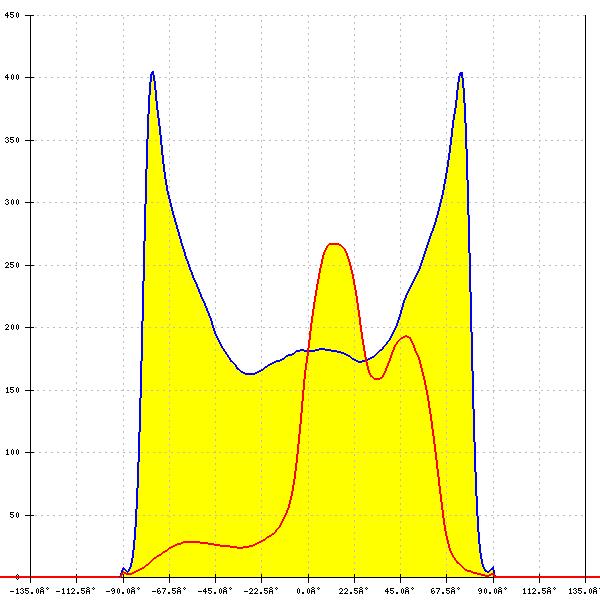

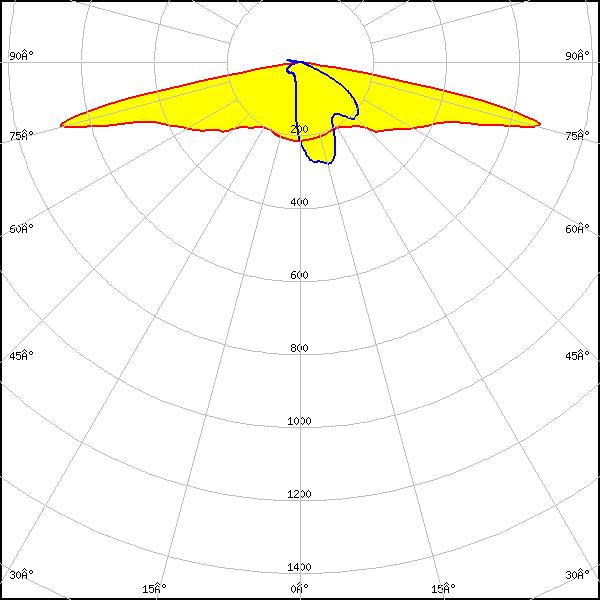

    LED: PrevaLED Brick HP 2x8
    FWHM: asymmetric
    Peak intensity: 0.522 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Brick HP 2x8
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

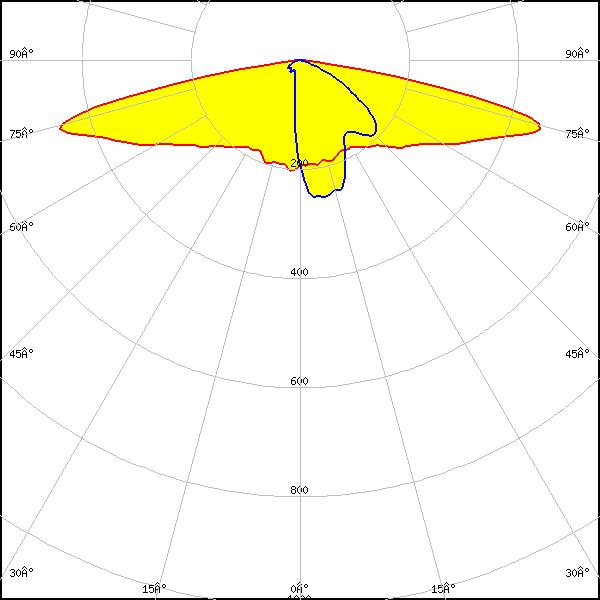

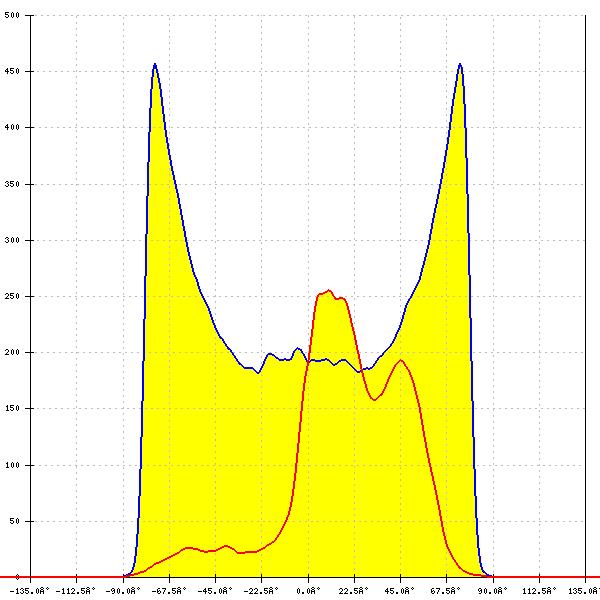

    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.553 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.520 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.660 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

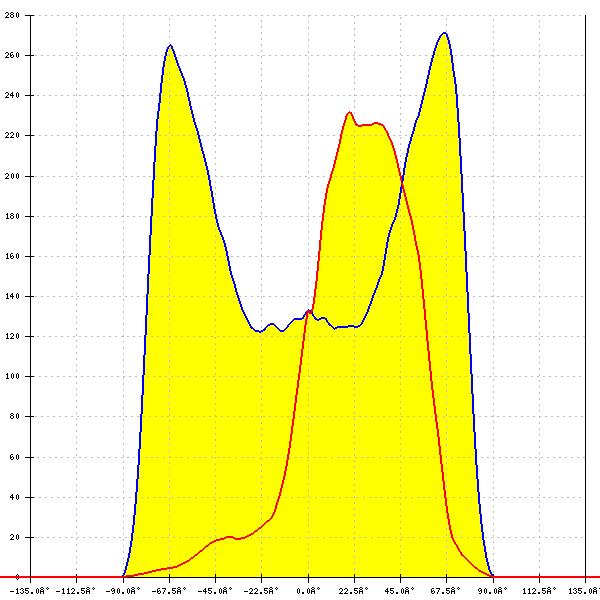

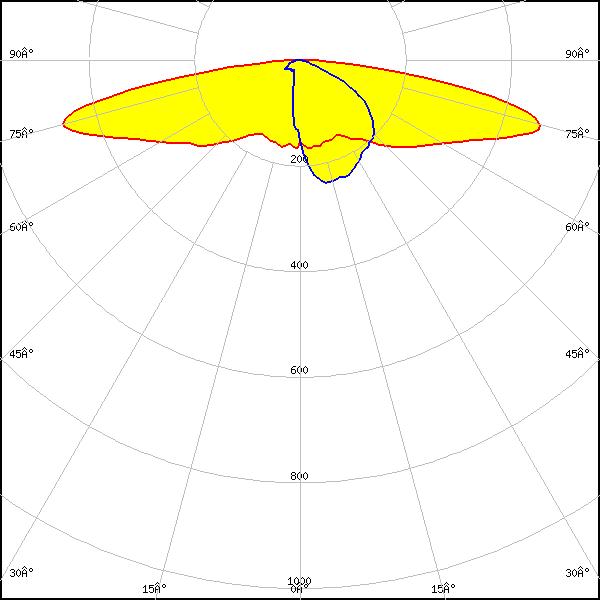

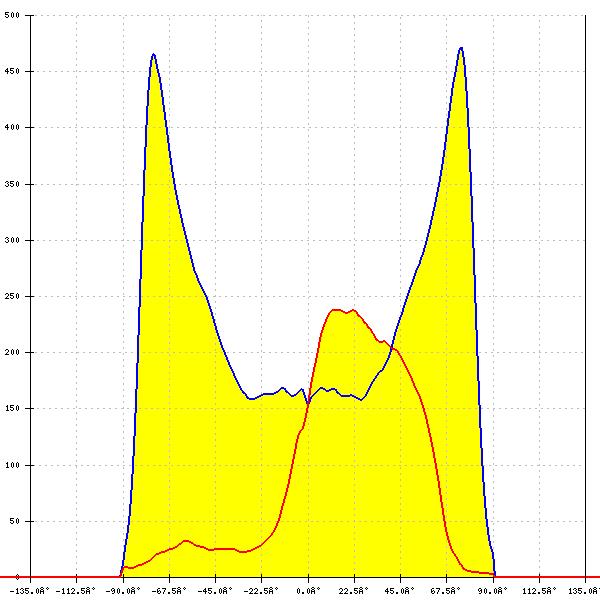

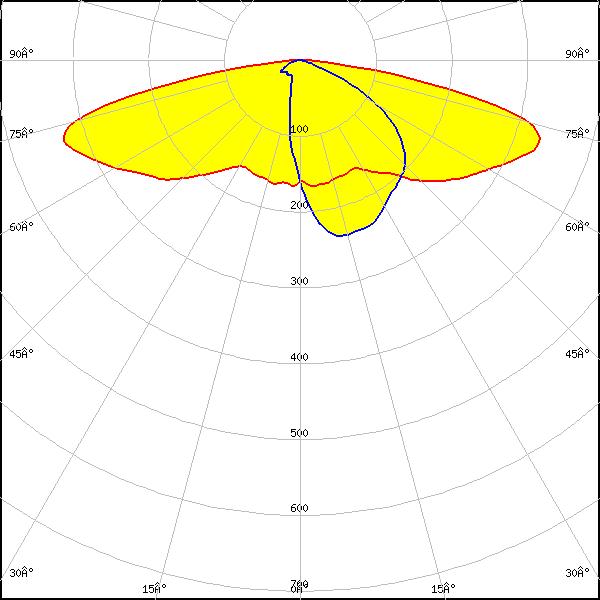

    LED: LUXEON 5050 Square LES
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.405 cd/lm
    Efficiency: 67 %
    LEDs/each optic: 1
    Light colour/type: White

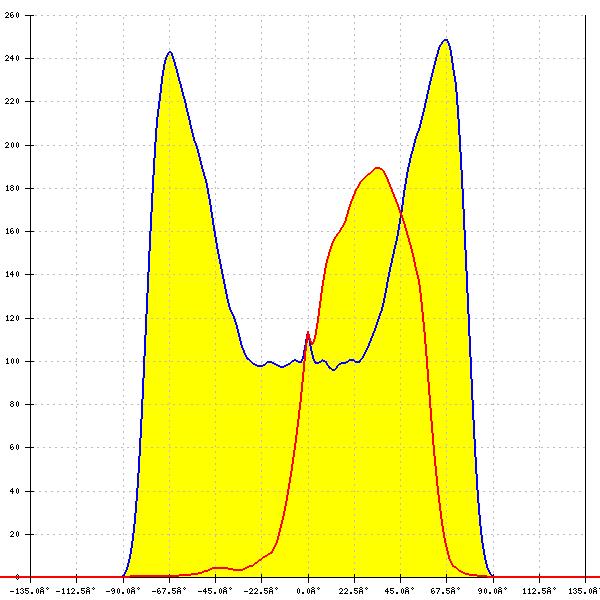

    LED: LUXEON 5050 Square LES
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.377 cd/lm
    Efficiency: 56 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.635 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.441 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5258
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White

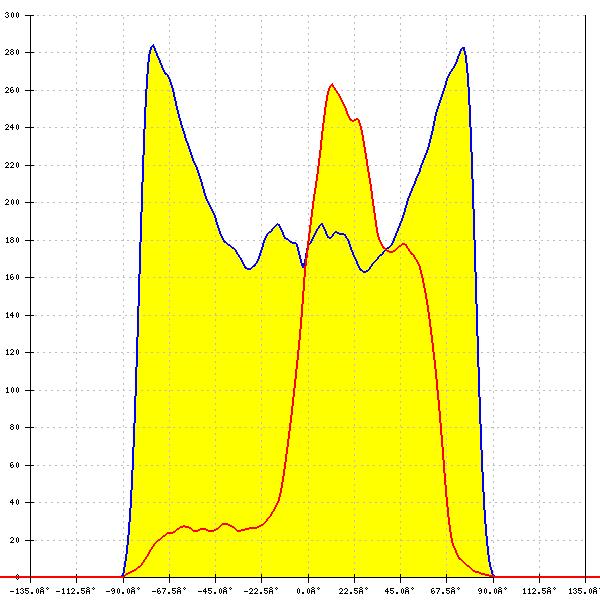

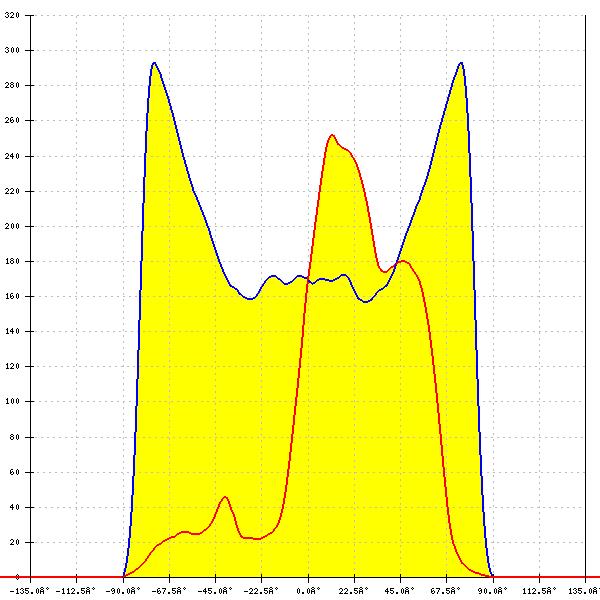

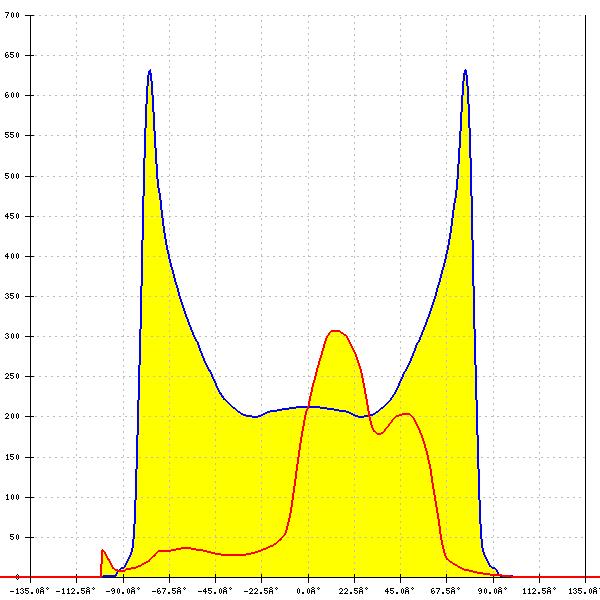

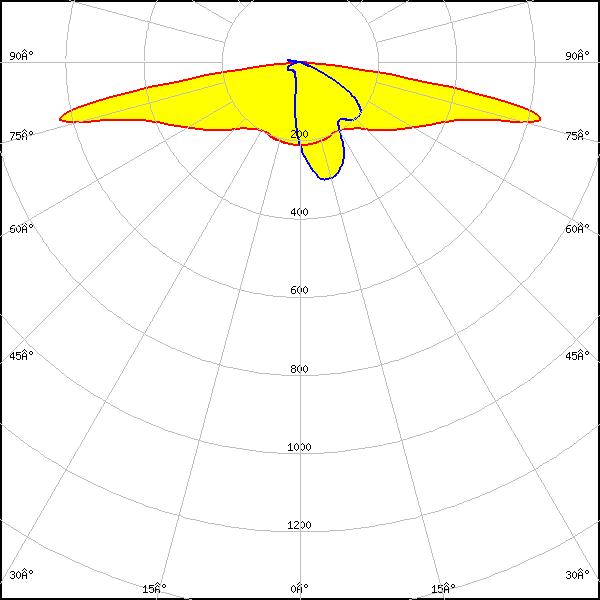

    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 0.405 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 0.935 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

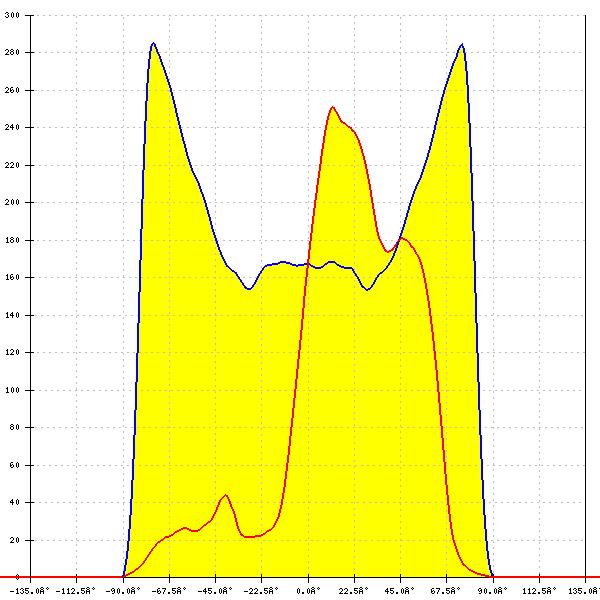

    LED: LUXEON HL2X-D
    FWHM: asymmetric
    Peak intensity: 0.675 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-D
    FWHM: asymmetric
    Peak intensity: 0.384 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

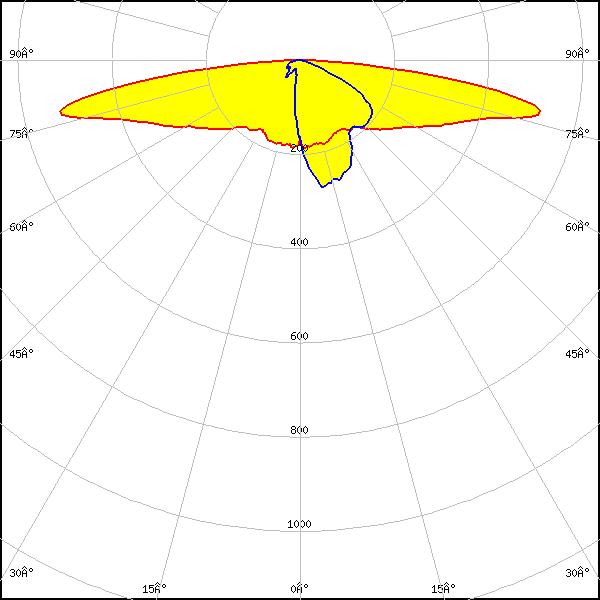

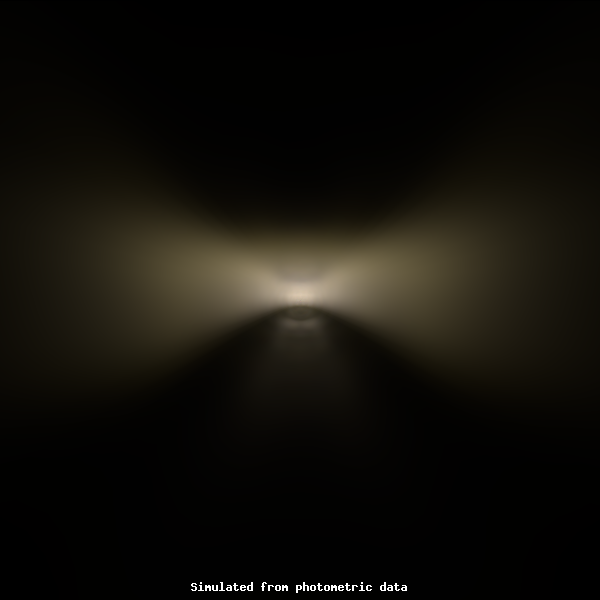

    LED: LUXEON HL2X-E
    FWHM: asymmetric
    Peak intensity: 0.432 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-E
    FWHM: asymmetric
    Peak intensity: 0.748 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

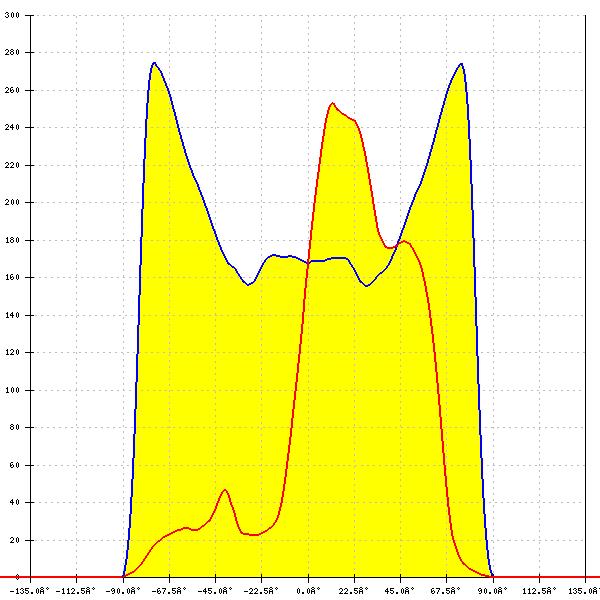

    LED: LUXEON HL2X-P
    FWHM: asymmetric
    Peak intensity: 0.377 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-P
    FWHM: asymmetric
    Peak intensity: 0.649 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

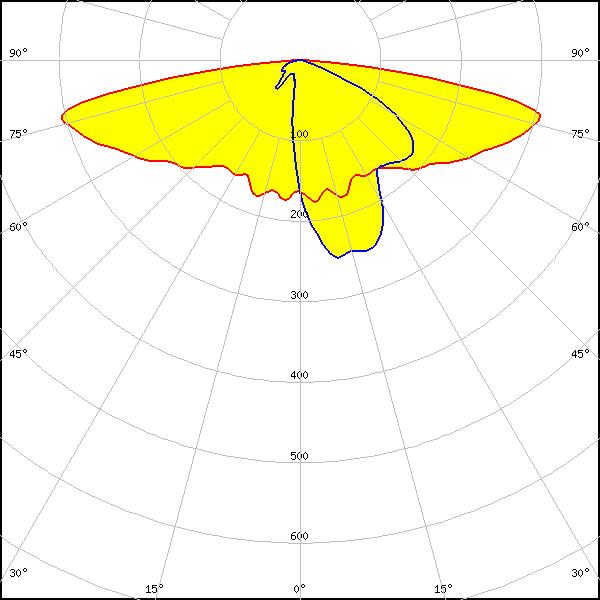

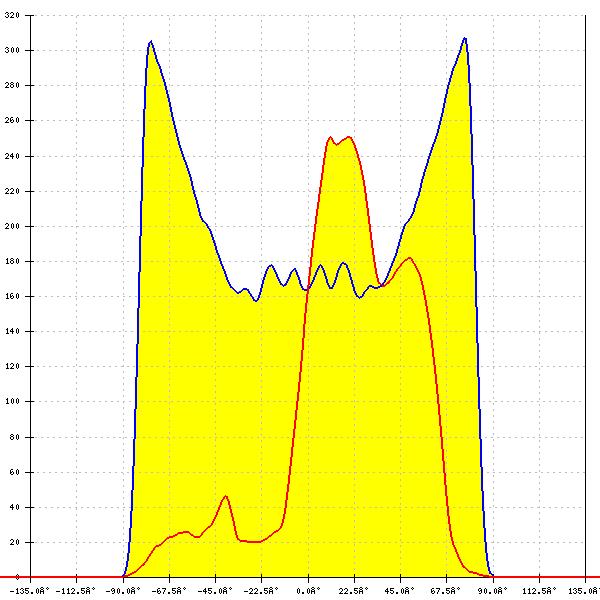

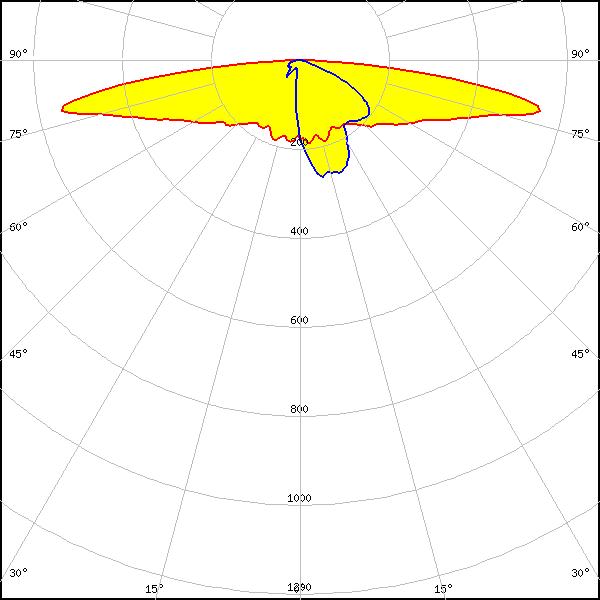

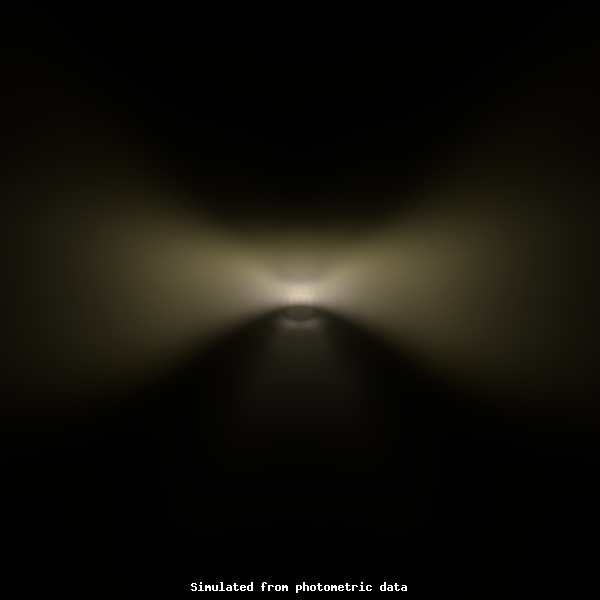

    LED: LUXEON HL2X-V
    FWHM: asymmetric
    Peak intensity: 0.782 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-V
    FWHM: asymmetric
    Peak intensity: 0.441 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON TX
    FWHM: asymmetric
    Peak intensity: 1.040 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON V
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON V2
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 0.678 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 0.392 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

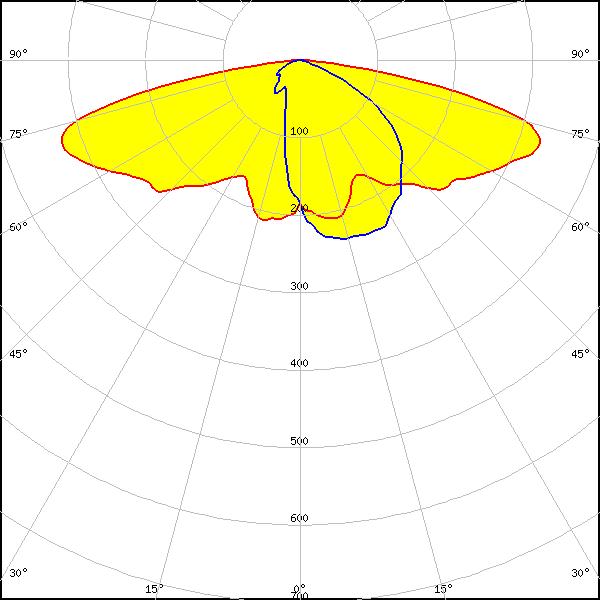

    LED: MP-5050-240E_810E
    FWHM: asymmetric
    Peak intensity: 0.458 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

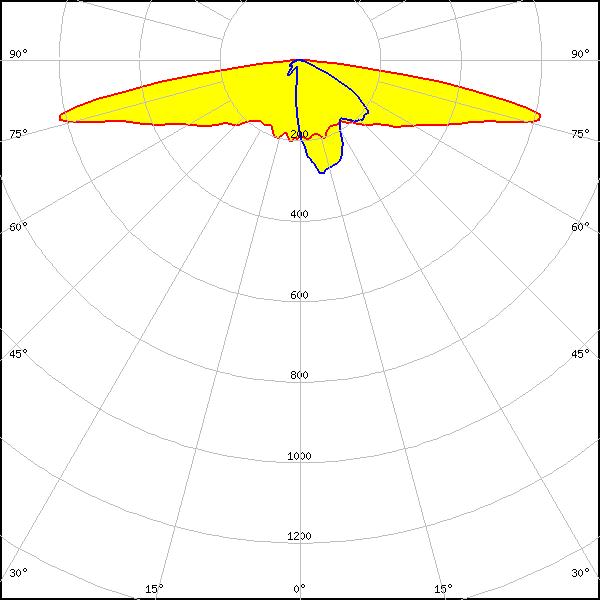

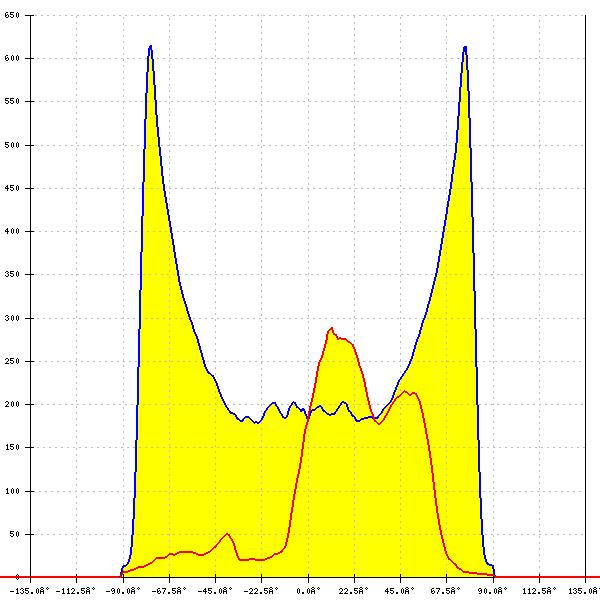

    LED: SST-20F-W
    FWHM: asymmetric
    Peak intensity: 0.816 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-20F-W
    FWHM: asymmetric
    Peak intensity: 0.506 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

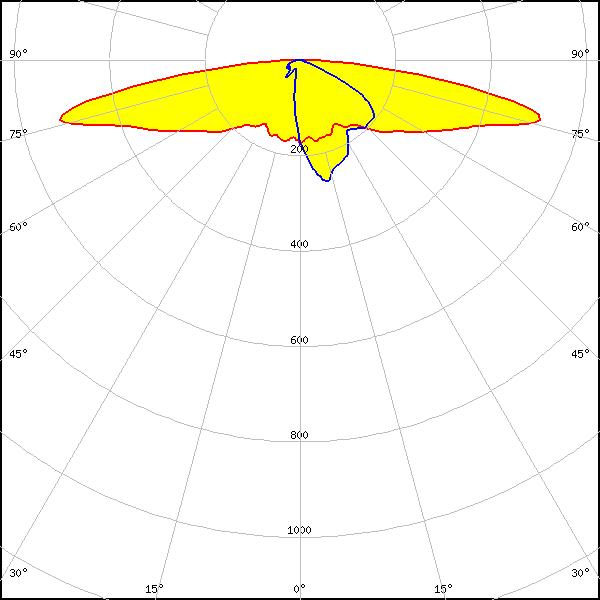

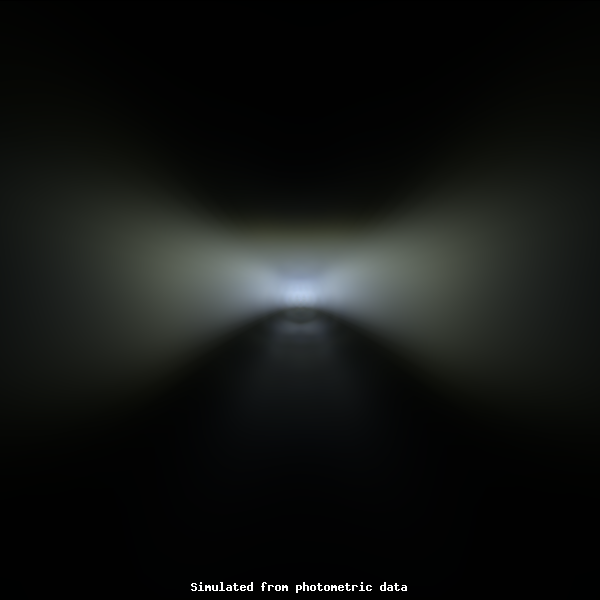

    LED: SST-36F-W
    FWHM: asymmetric
    Peak intensity: 0.745 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-36F-W
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: asymmetric
    Peak intensity: 0.493 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: asymmetric
    Peak intensity: 0.937 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

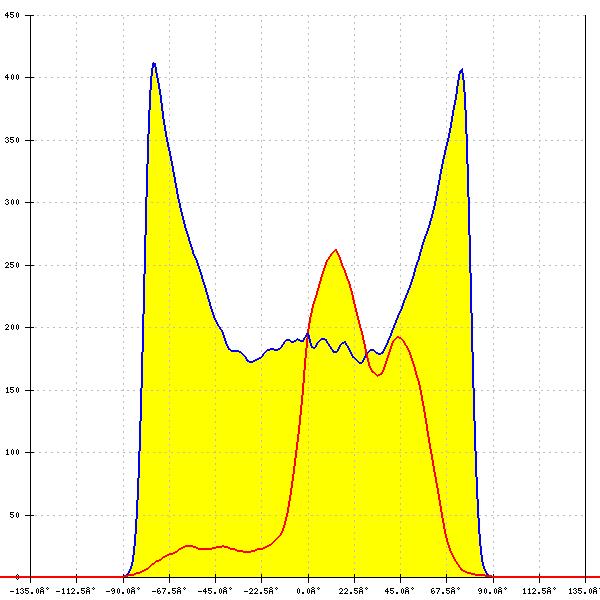

    LED: NF2x757G
    FWHM: asymmetric
    Peak intensity: 0.523 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

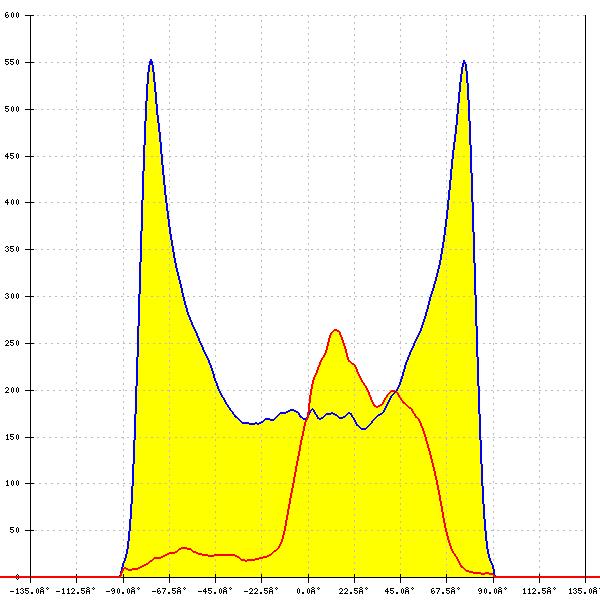

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 0.769 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

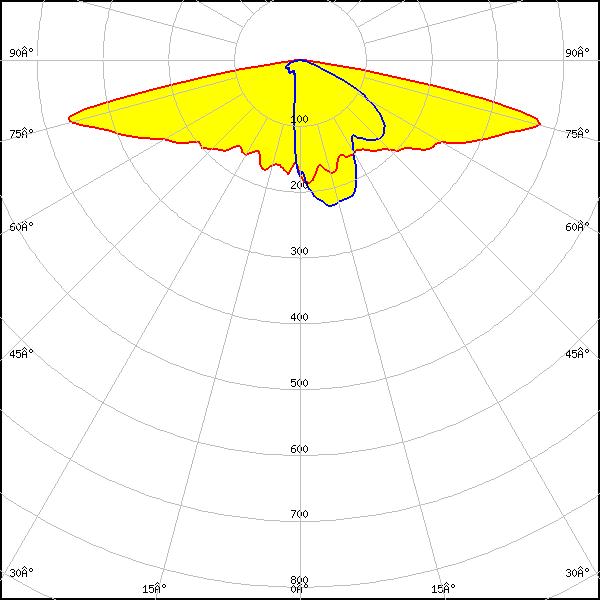

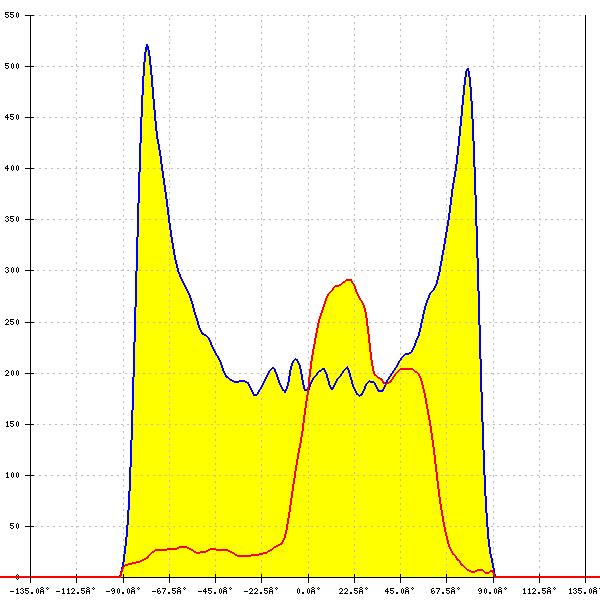

    LED: NVSW219D
    FWHM: asymmetric
    Peak intensity: 0.660 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

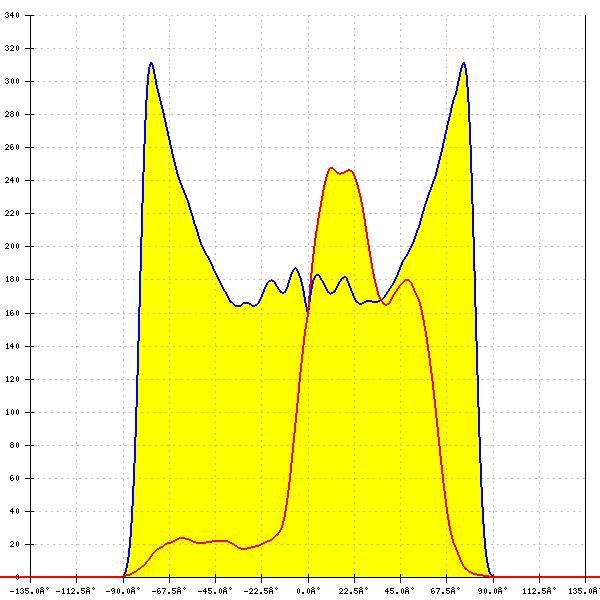

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.737 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.404 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW319B
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW3x9A
    FWHM: asymmetric
    Peak intensity: 0.930 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.690 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.392 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

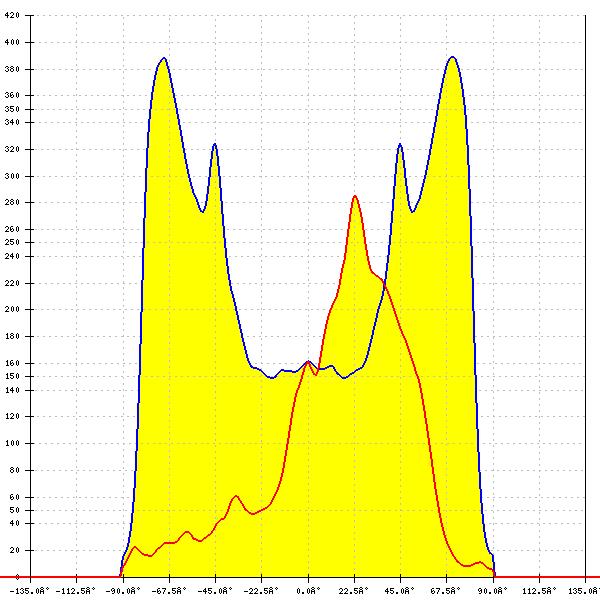

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.549 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.405 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.380 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 0.510 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 0.830 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

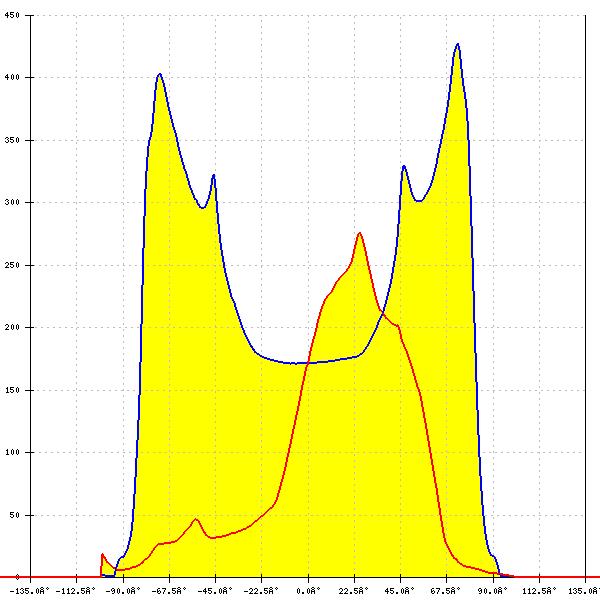

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.440 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.505 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.508 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.612 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 0.710 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

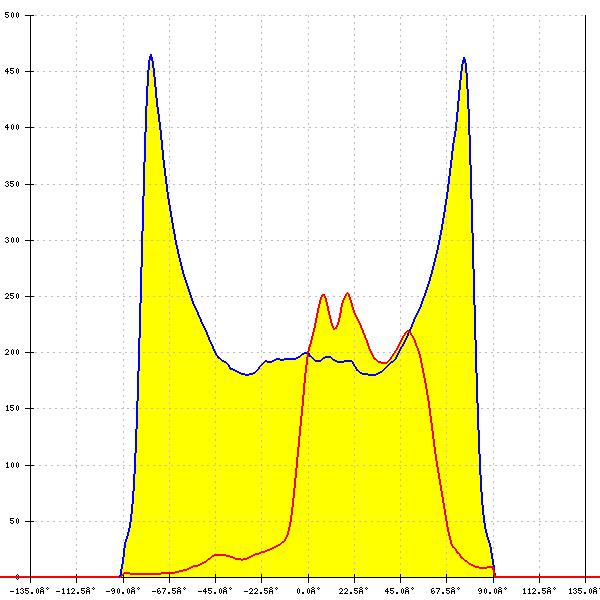

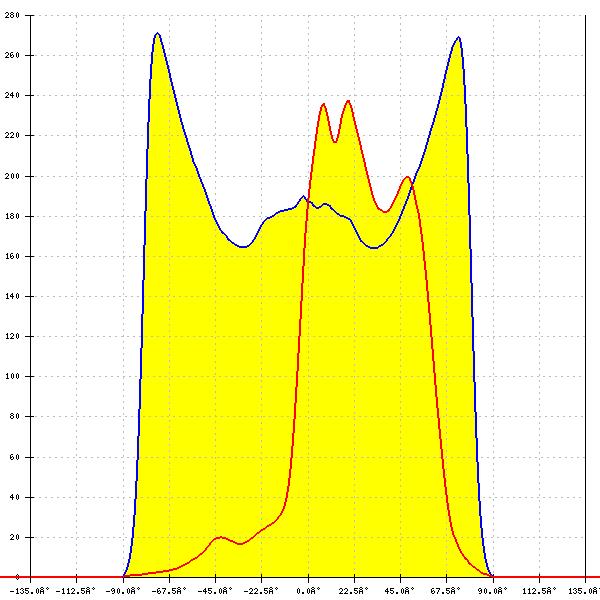

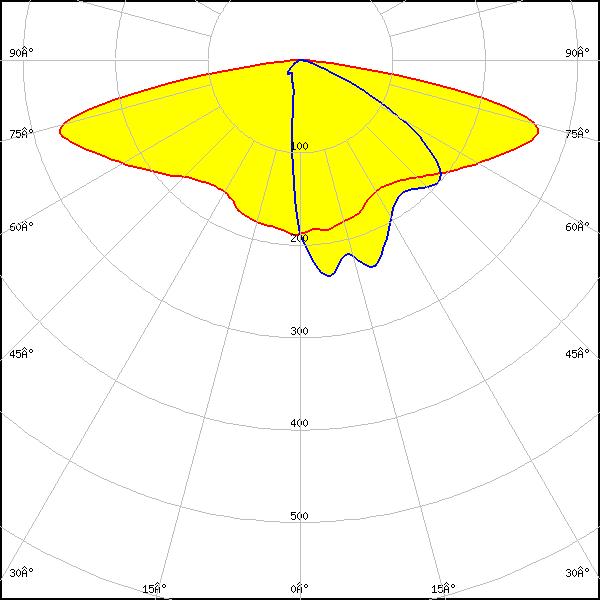

    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.390 cd/lm
    Efficiency: 65 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.470 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

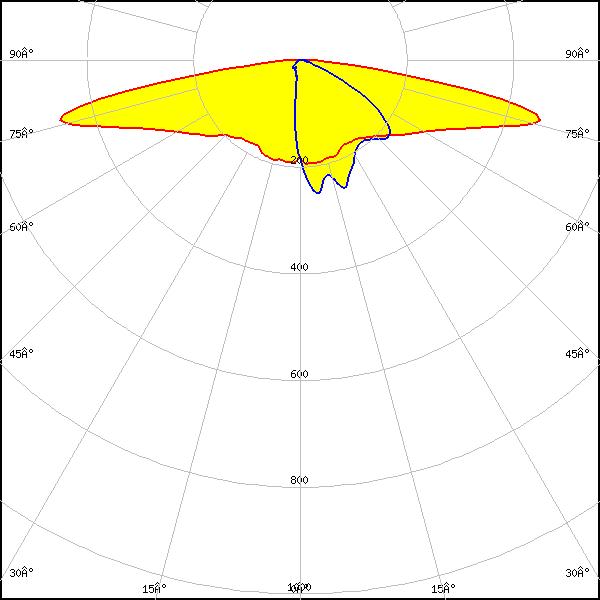

    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.643 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.645 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.397 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

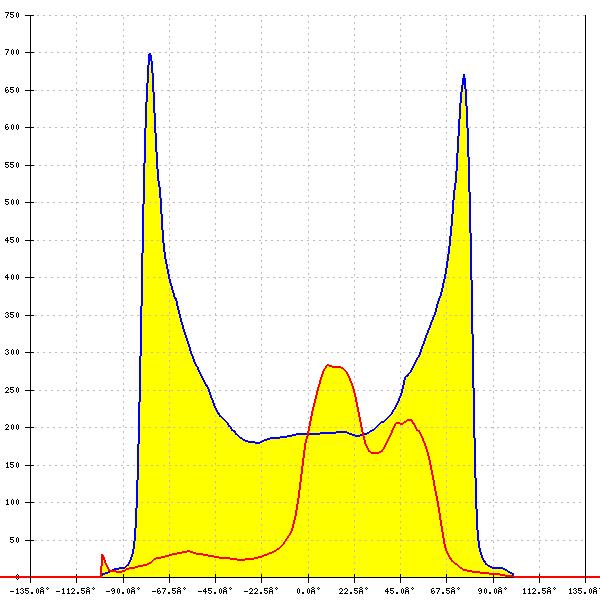

    LED: OSLON Square PC
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: asymmetric
    Peak intensity: 0.609 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: asymmetric
    Peak intensity: 0.404 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4+
    FWHM: asymmetric
    Peak intensity: 0.952 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: asymmetric
    Peak intensity: 0.527 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

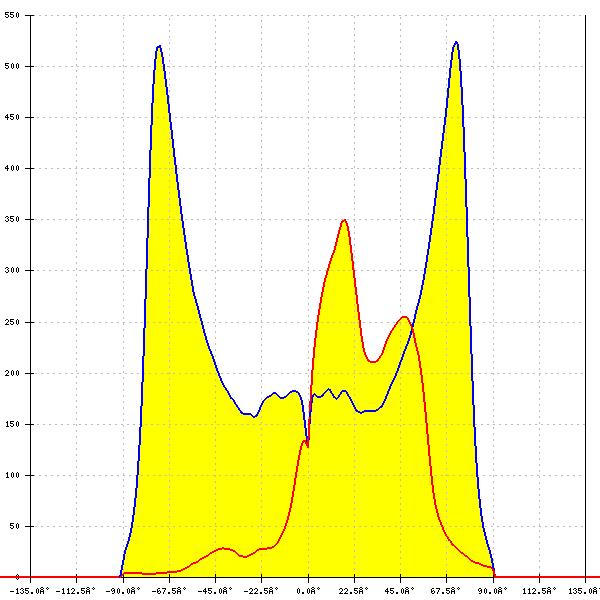

    LED: Fortimo FastFlex LED 2x8 DA G5
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.733 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: asymmetric
    Peak intensity: 0.976 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DAX G4
    FWHM: asymmetric
    Peak intensity: 0.760 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RC12 Z (LH181B)
    FWHM: asymmetric
    Peak intensity: 1.018 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

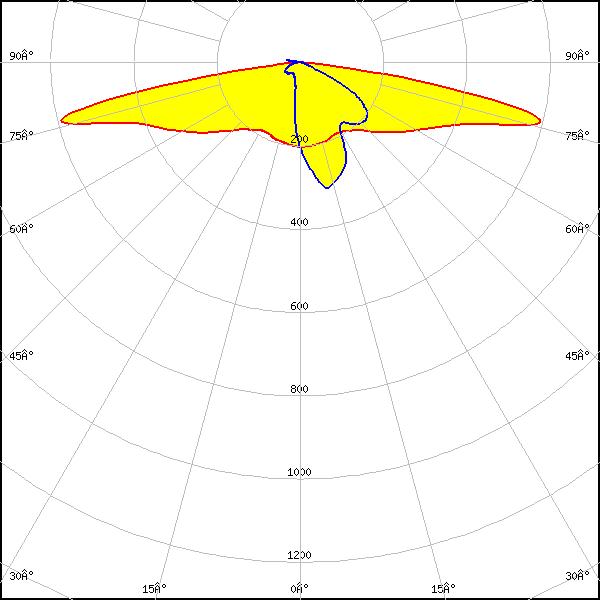

    LED: HiLOM RH12 Z (LH351C)
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH12 Z (LH351C)
    FWHM: asymmetric
    Peak intensity: 0.934 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

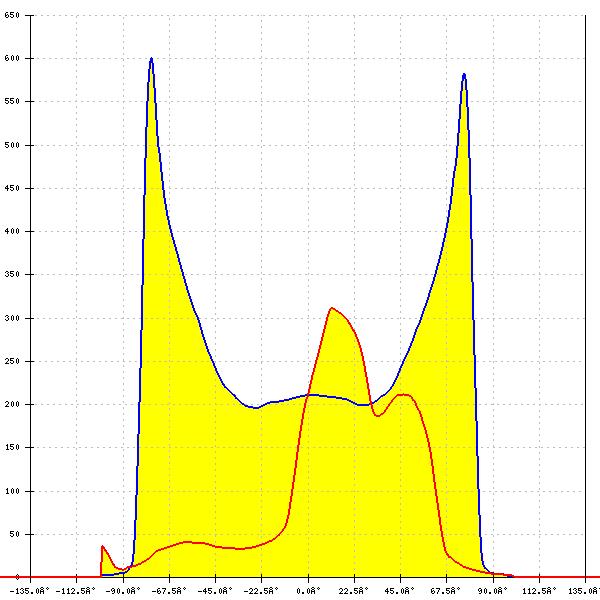

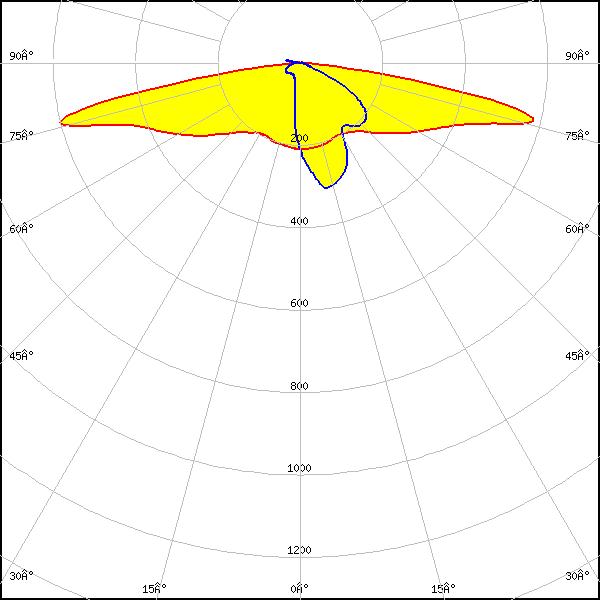

    LED: HiLOM RH16 (LH351C)
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM12 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM16 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.612 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM8 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.477 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM8 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.651 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

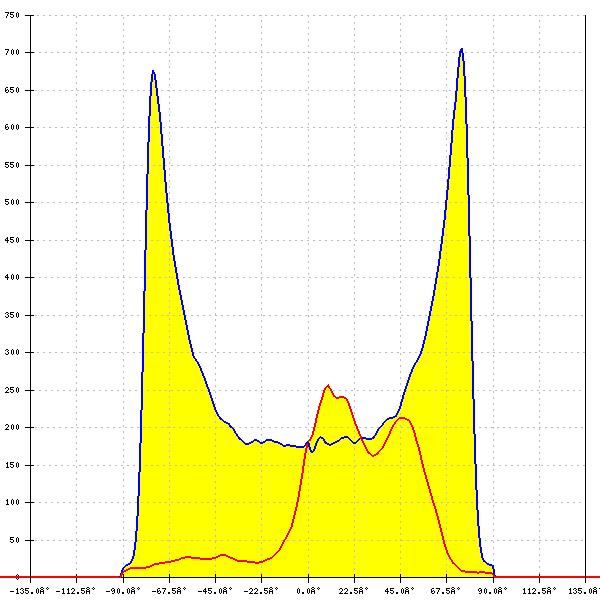

    LED: LH181B
    FWHM: asymmetric
    Peak intensity: 0.830 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH231B
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.420 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.421 cd/lm
    Efficiency: 59 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.860 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.391 cd/lm
    Efficiency: 59 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.416 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 0.440 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

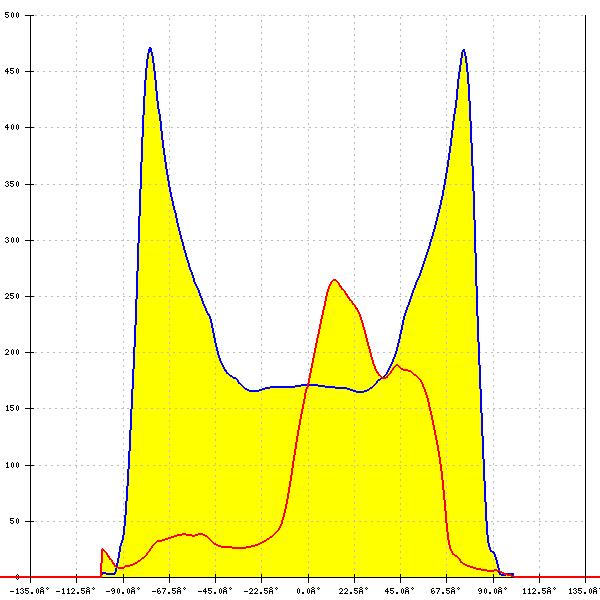

    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 0.740 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.619 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.402 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH508A
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-Pa-L15c2W11c2-xxx-C050-01
    FWHM: asymmetric
    Peak intensity: 1.082 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT 5050
    FWHM: asymmetric
    Peak intensity: 0.597 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

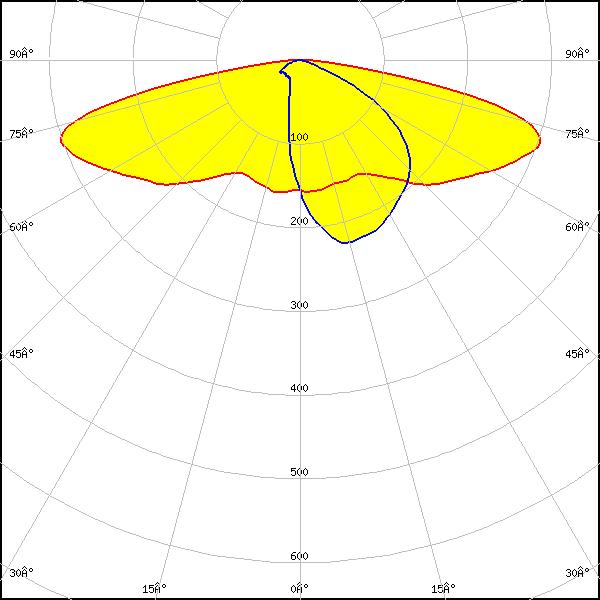

    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.626 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.396 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M1/Z5M2
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White

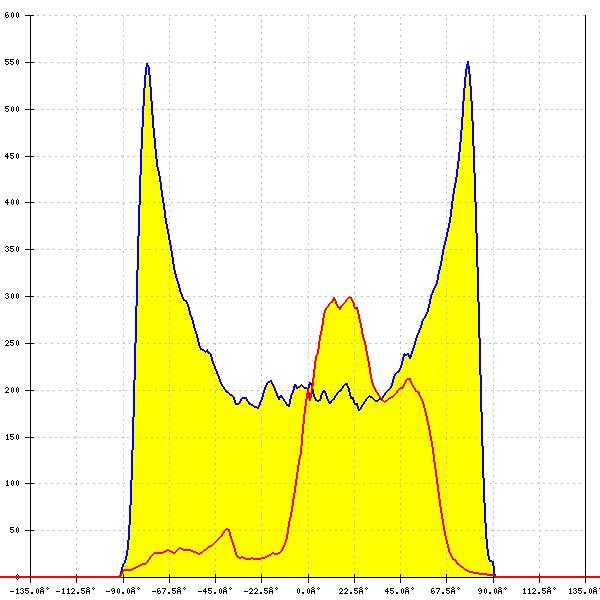

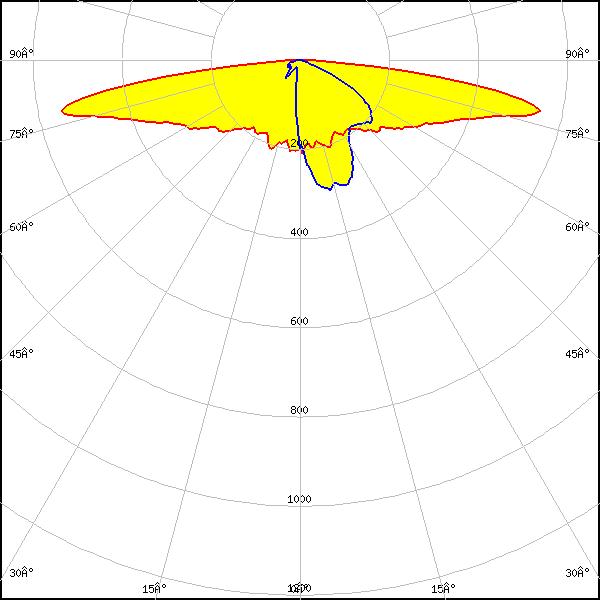

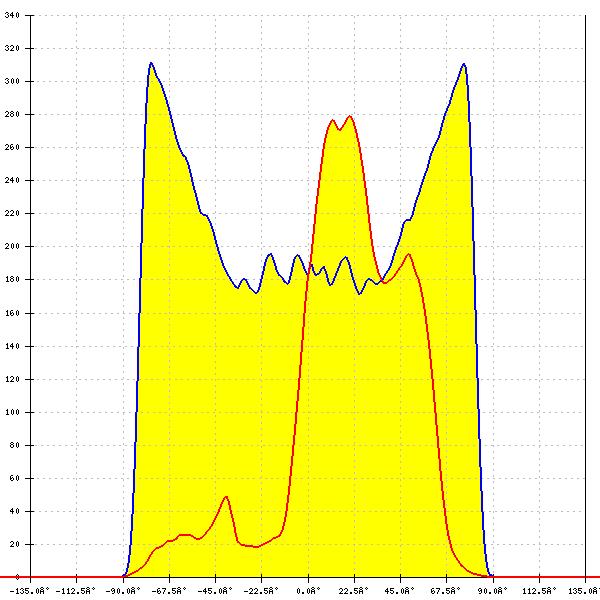

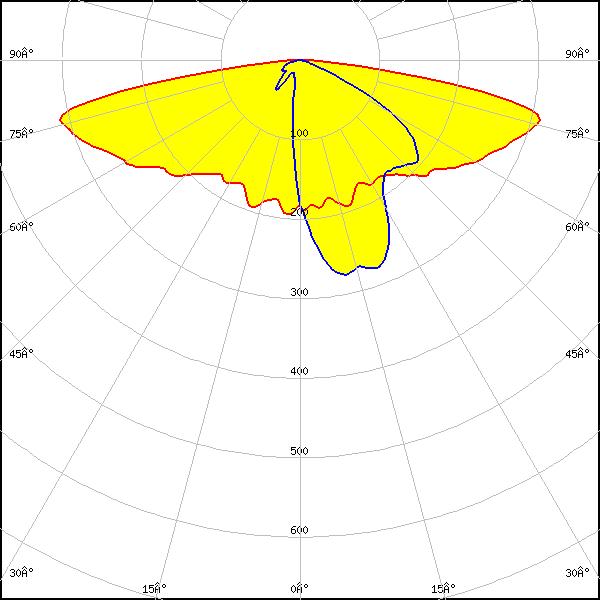

    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 0.515 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 0.970 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: asymmetric
    Peak intensity: 0.747 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: asymmetric
    Peak intensity: 0.446 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

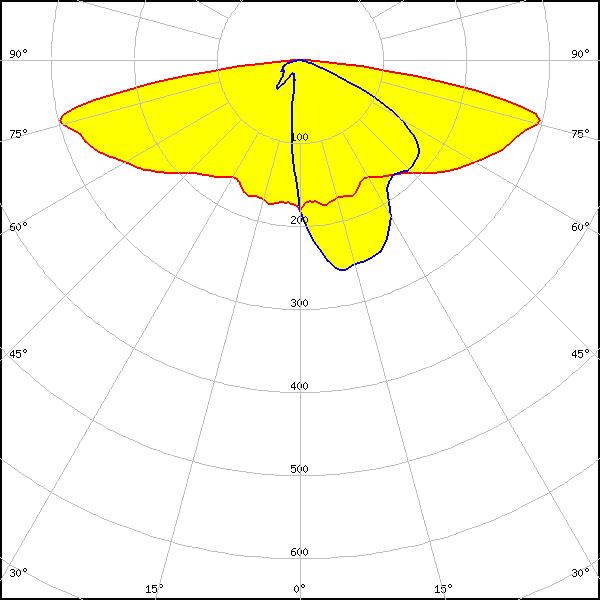

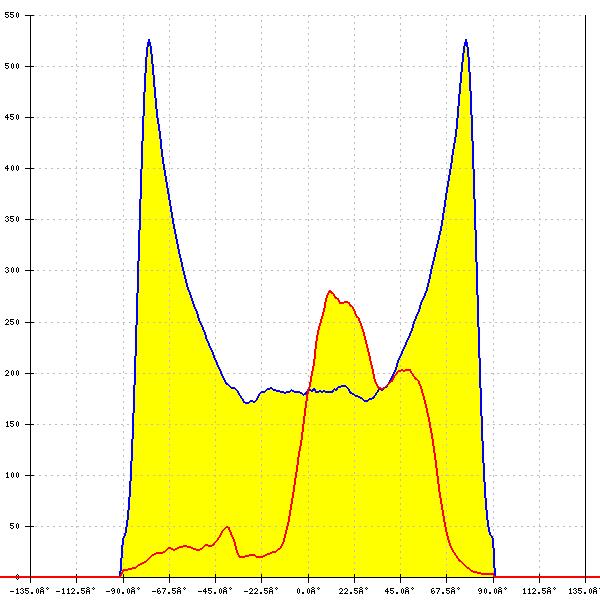

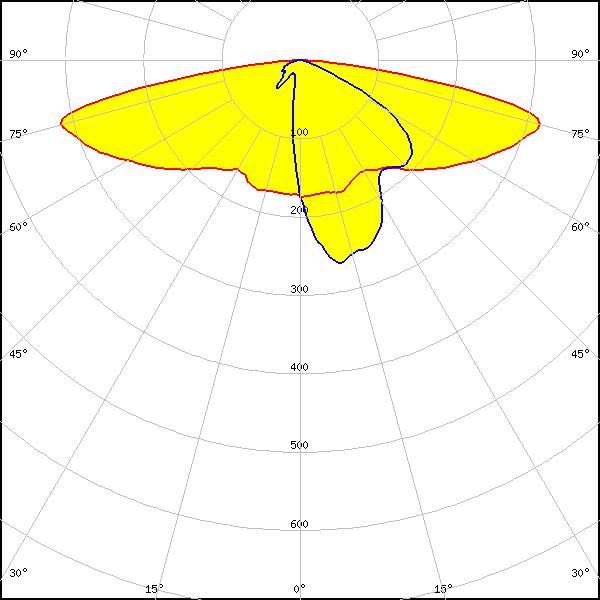

    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 0.522 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 0.970 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E1
    FWHM: asymmetric
    Peak intensity: 0.726 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E1
    FWHM: asymmetric
    Peak intensity: 0.444 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E2
    FWHM: asymmetric
    Peak intensity: 0.726 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E2
    FWHM: asymmetric
    Peak intensity: 0.419 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: asymmetric
    Peak intensity: 0.740 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: asymmetric
    Peak intensity: 0.475 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y19
    FWHM: asymmetric
    Peak intensity: 0.540 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: Z8Y22
    FWHM: asymmetric
    Peak intensity: 0.870 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22P
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

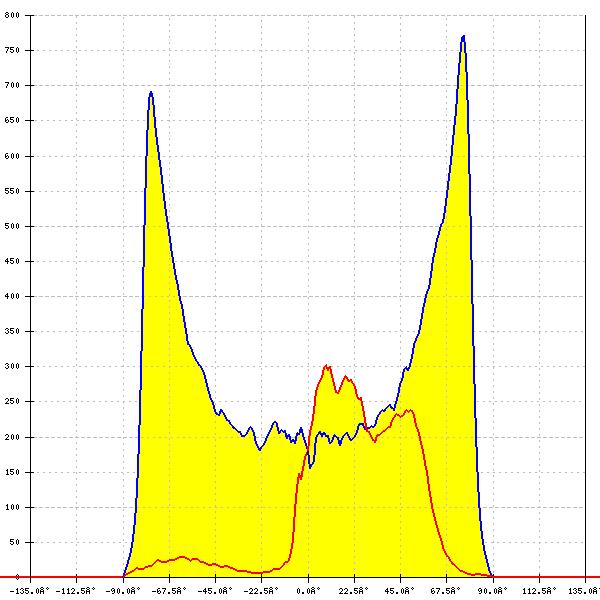

    LED: TL1L4
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x4 3000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 0.619 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

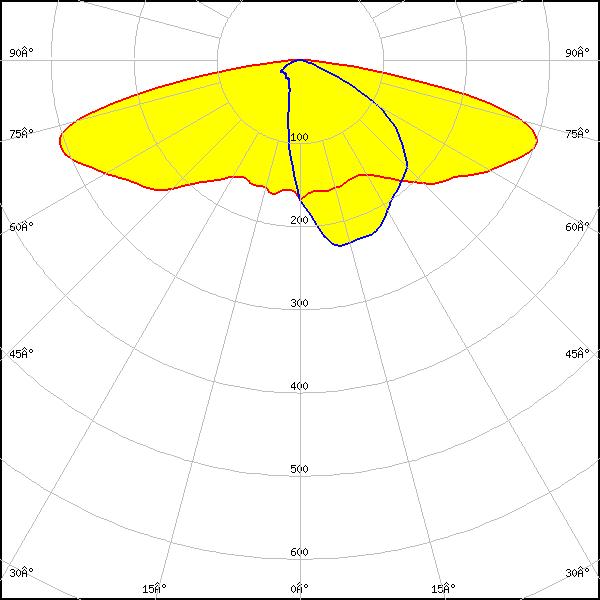

    LED: RLE 2x4 3000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 0.402 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 0.595 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x121mm 2000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x133mm 2000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x223mm 4000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x245mm 4000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
