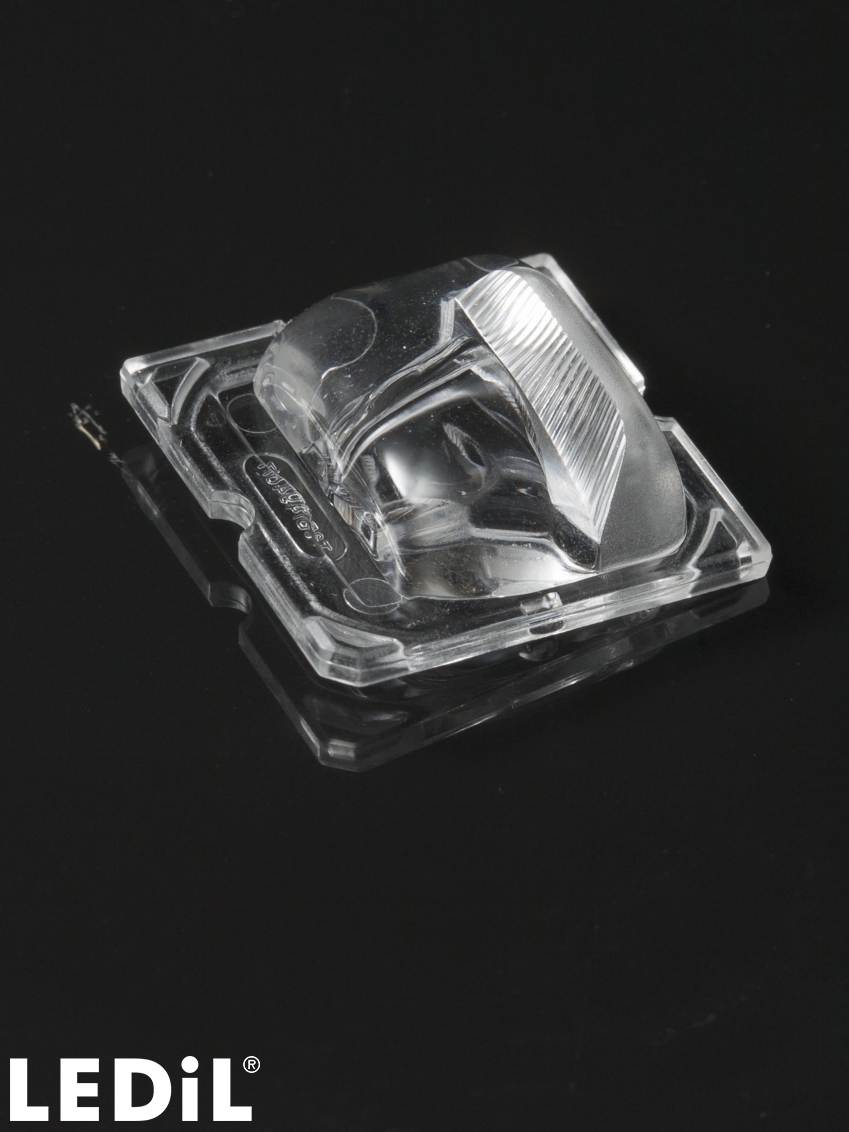

C14948_STRADA-SQ-T3B

IESNA Type III (medium) beam with minimized backlight. Version with location pins.

Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

Specification

Dimensions:

25 x 25 mm
Height:

8.20 mm
Fastening:

tape
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

2058 pcs
Box size:

480 x 280 x 300 mm
Box weight:

7.9 kg
MPQ:

2058 pcs
MOQ:

6174 pcs
MOQ size:

480 x 280 x 300 mm
MOQ weight:

7.9 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: C14948_STRADA-SQ-T3B

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C14948_STRADA-SQ-T3B

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

WHERE TO BUY

FIND A DISTRIBUTOR

Related Content

User and installation guide

General guide to LEDiL optics

News

PRODUCT NEWS - STRADA-SQ-T3B

Application guide

Guide for Street lighting optics

News

PRODUCT NEWS - STRADA-SQ

Application area

Industrial Lighting

Application guide

Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

Optical results

LED: MK-R

FWHM: asymmetric

Peak intensity: 0.480 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

LED: XHP50

FWHM: asymmetric

Peak intensity: 0.690 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

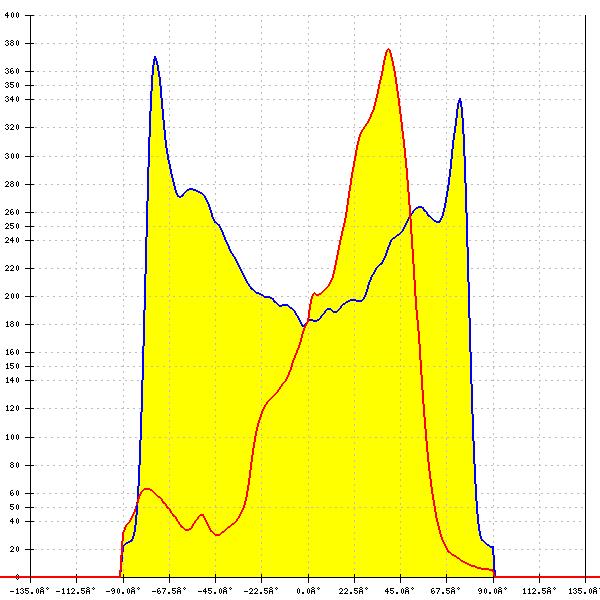

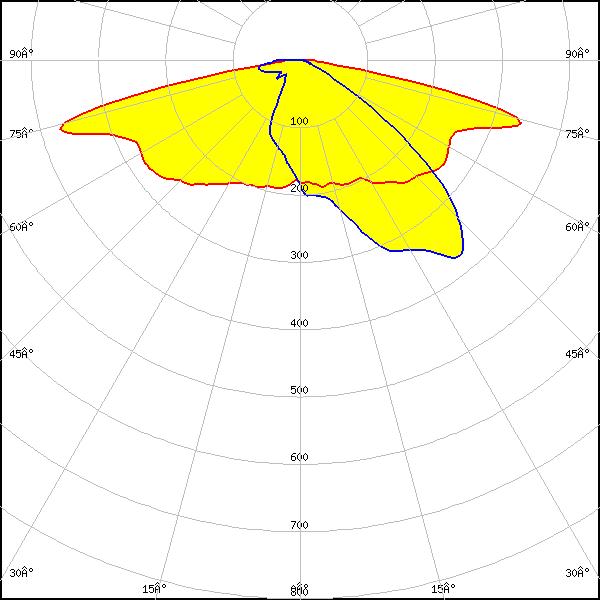

LED: XHP50.3 HD

FWHM: asymmetric

Peak intensity: 0.463 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

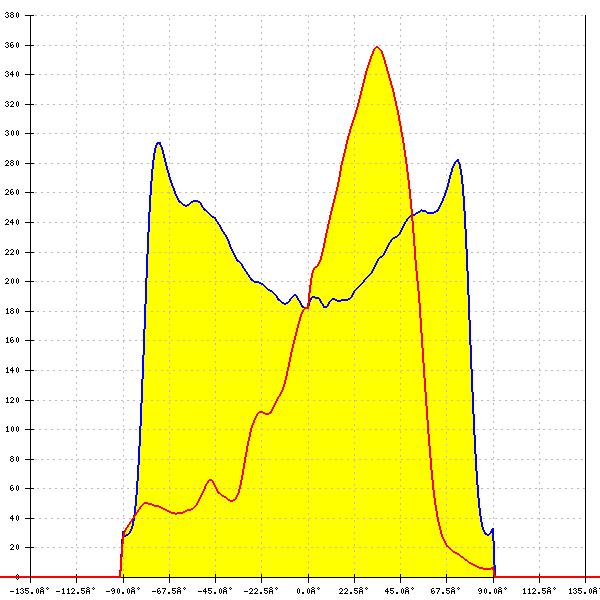

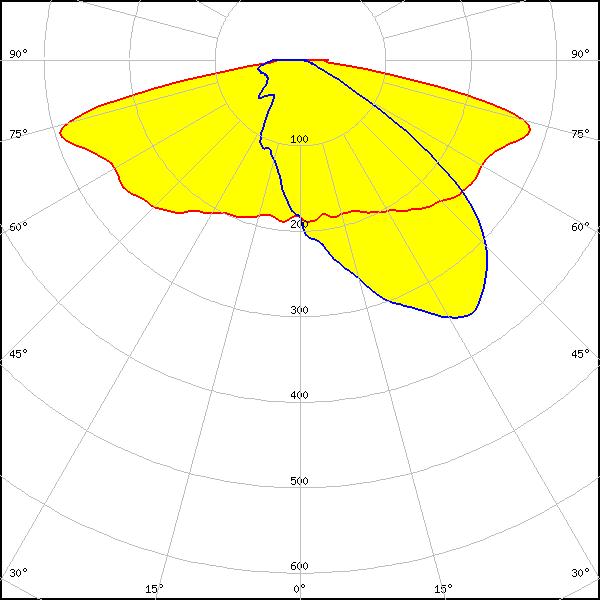

LED: XHP70.3 HD

FWHM: asymmetric

Peak intensity: 0.374 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

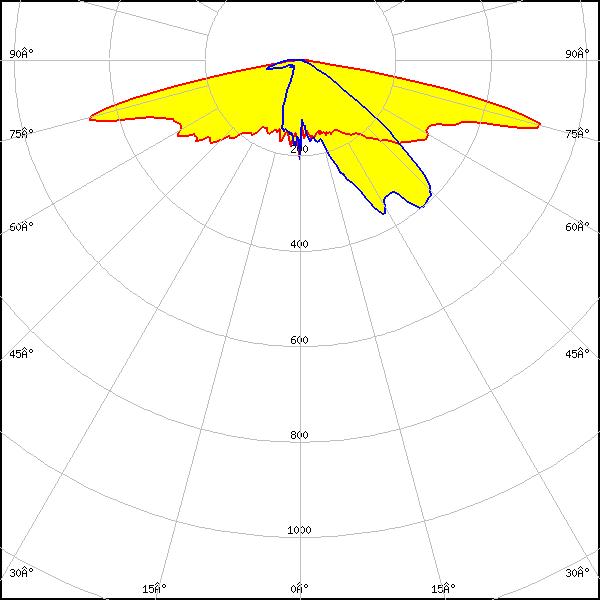

LED: XP-L HD

FWHM: asymmetric

Peak intensity: 0.627 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

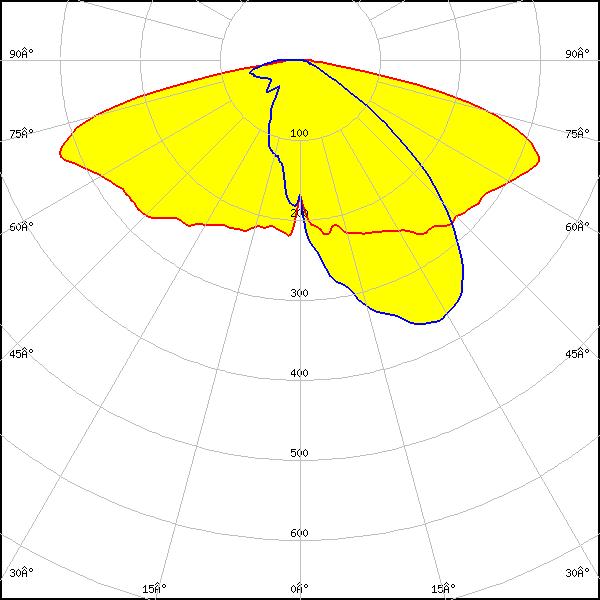

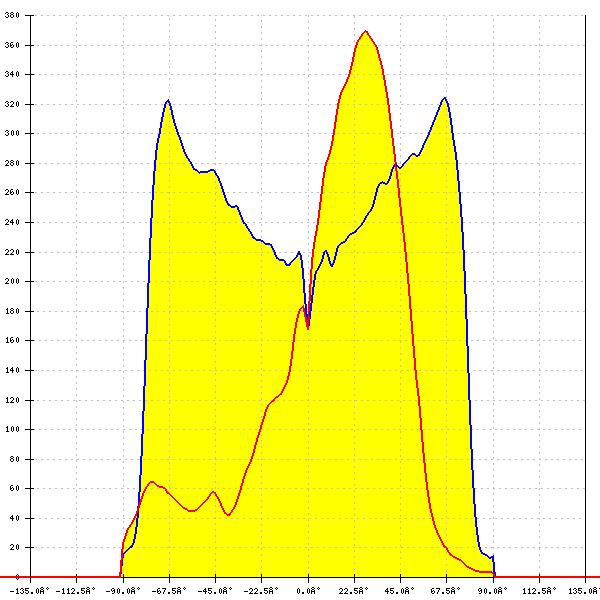

LED: LUXEON 7070

FWHM: asymmetric

Peak intensity: 0.426 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

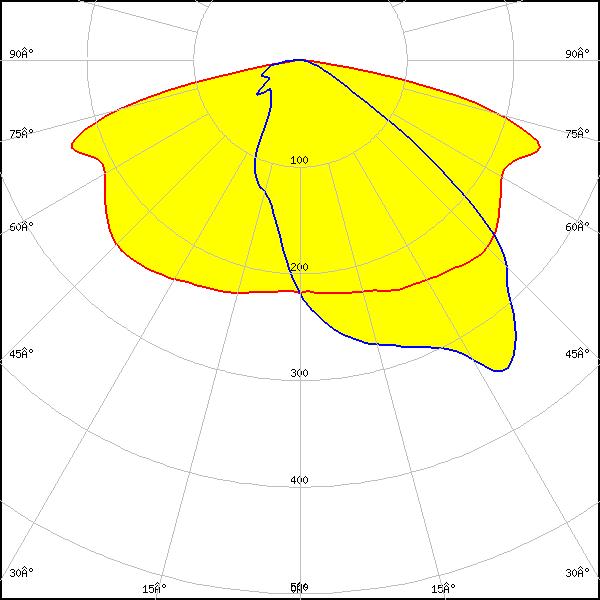

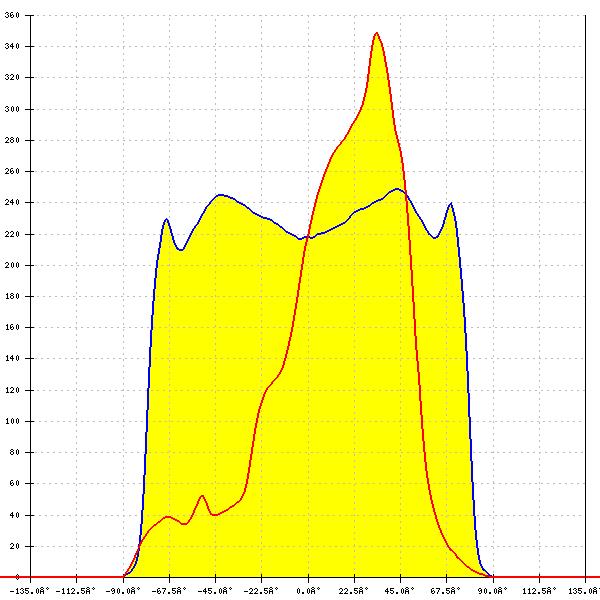

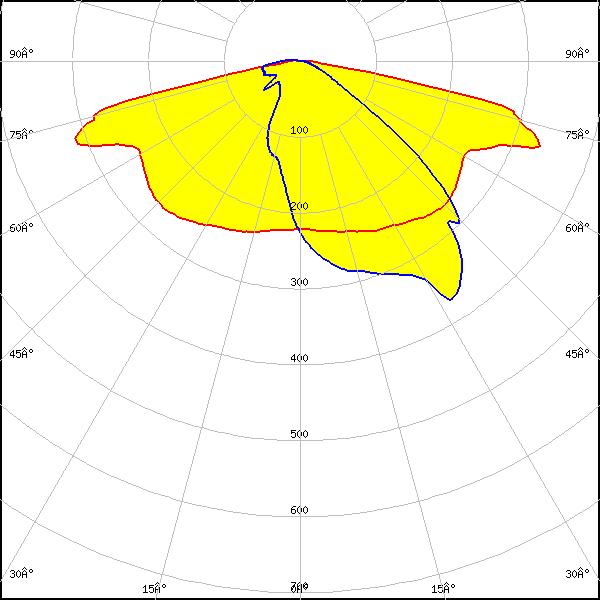

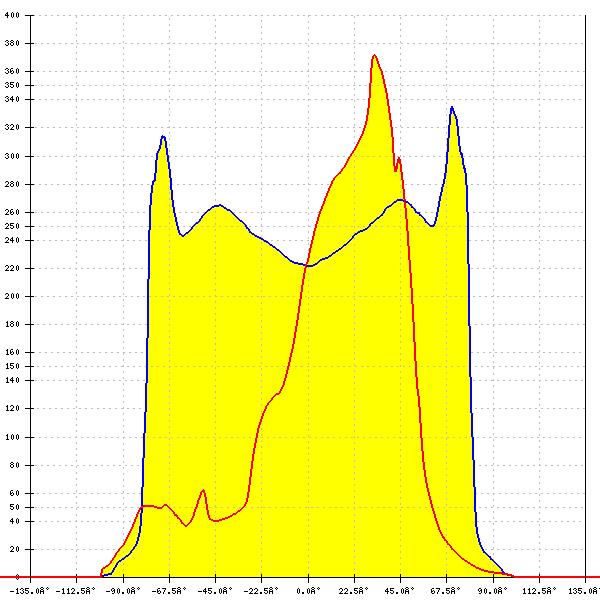

LED: LUXEON M/MX

FWHM: asymmetric

Peak intensity: 0.380 cd/lm

Efficiency: 81 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON M/MX

FWHM: asymmetric

Peak intensity: 0.500 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON MZ

FWHM: asymmetric

Peak intensity: 0.840 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

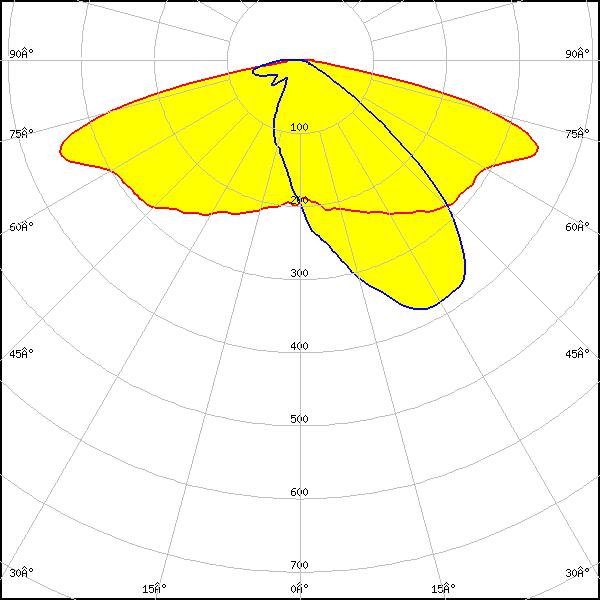

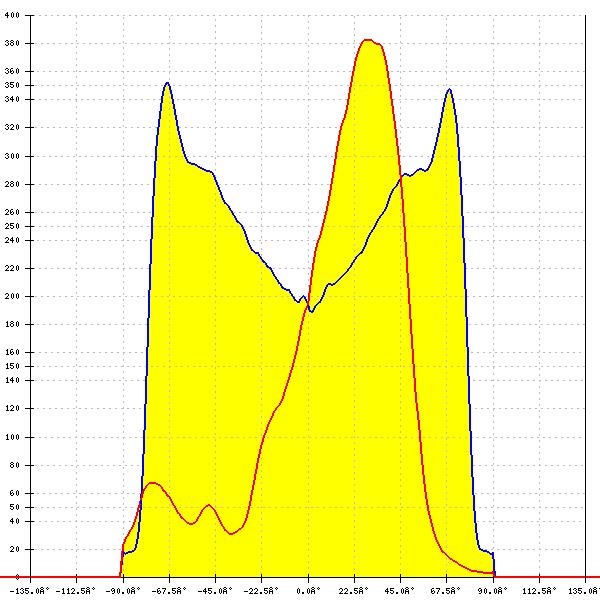

LED: MP 7070

FWHM: asymmetric

Peak intensity: 0.455 cd/lm

Efficiency: 96 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

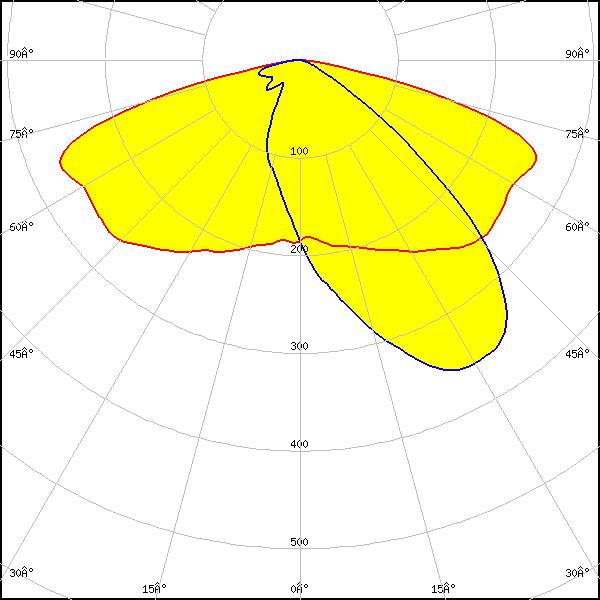

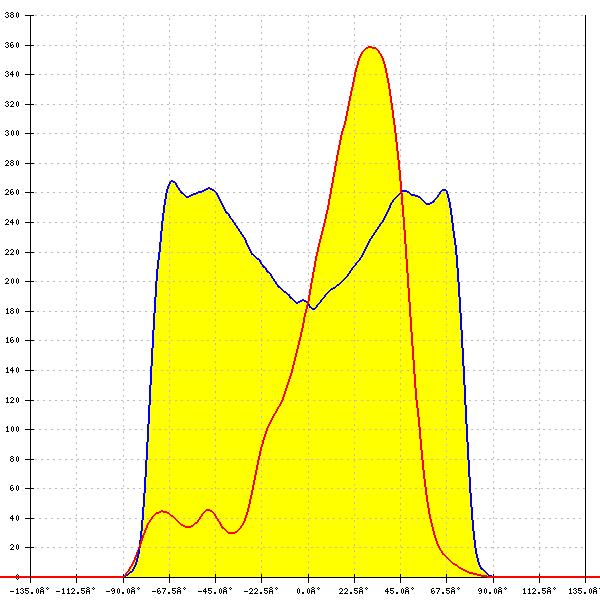

LED: MP 7070

FWHM: asymmetric

Peak intensity: 0.404 cd/lm

Efficiency: 82 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

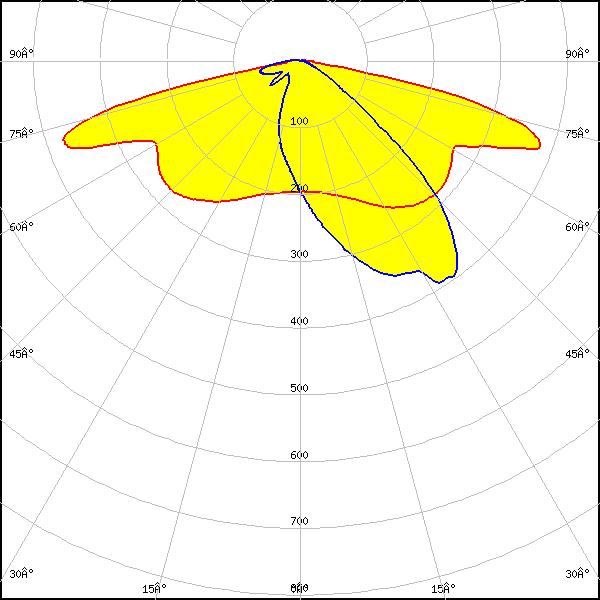

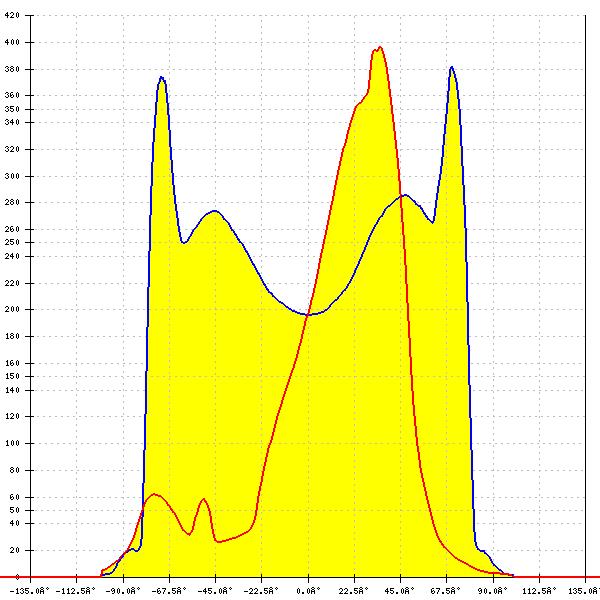

LED: NFMW48xA

FWHM: asymmetric

Peak intensity: 0.570 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

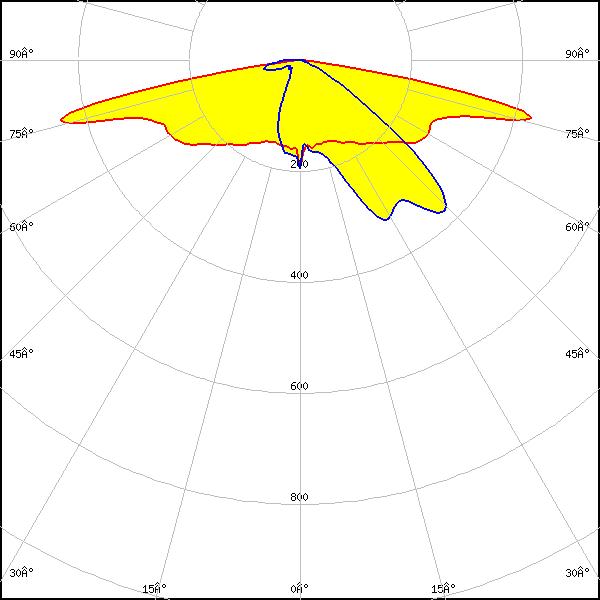

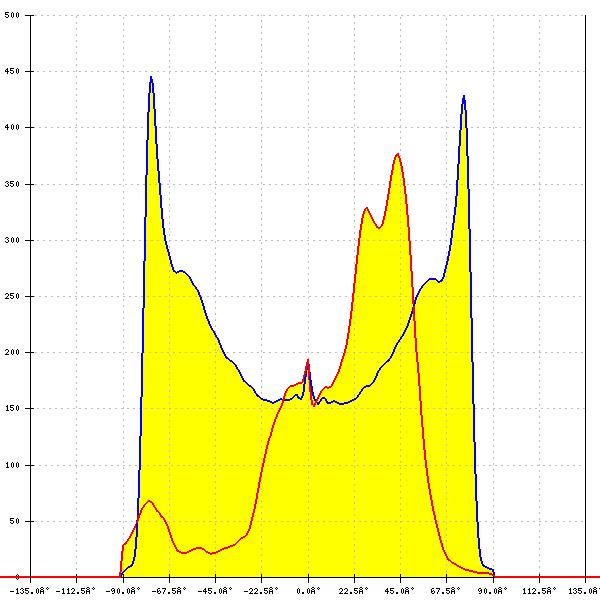

LED: NVSW519A

FWHM: asymmetric

Peak intensity: 0.518 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSCONIQ P 7070

FWHM: asymmetric

Peak intensity: 0.500 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

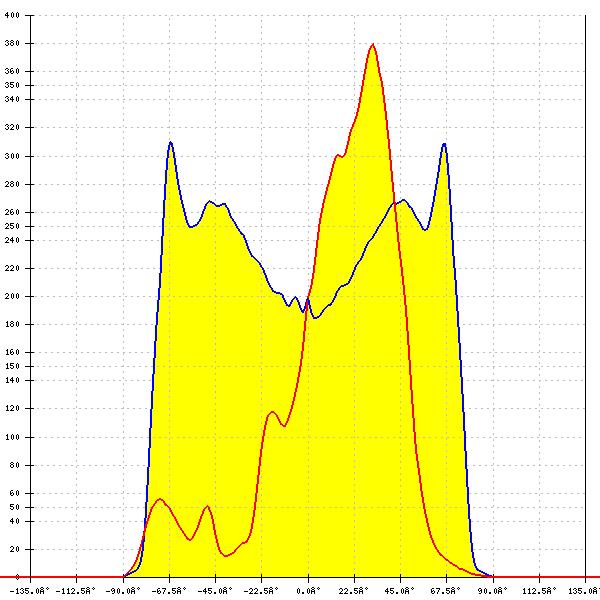

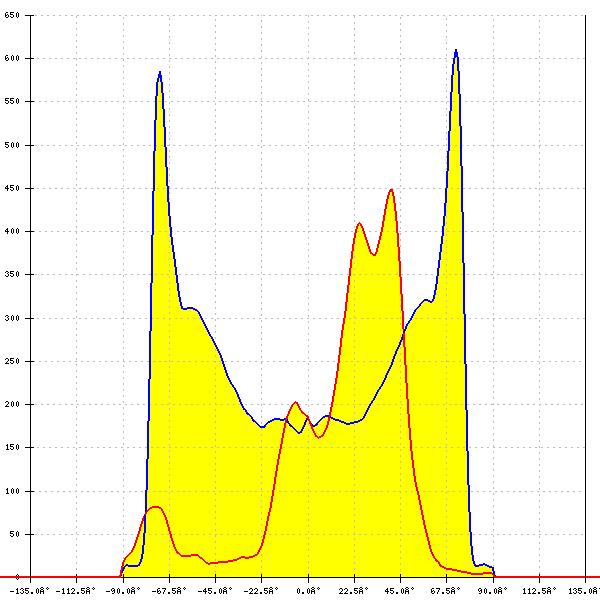

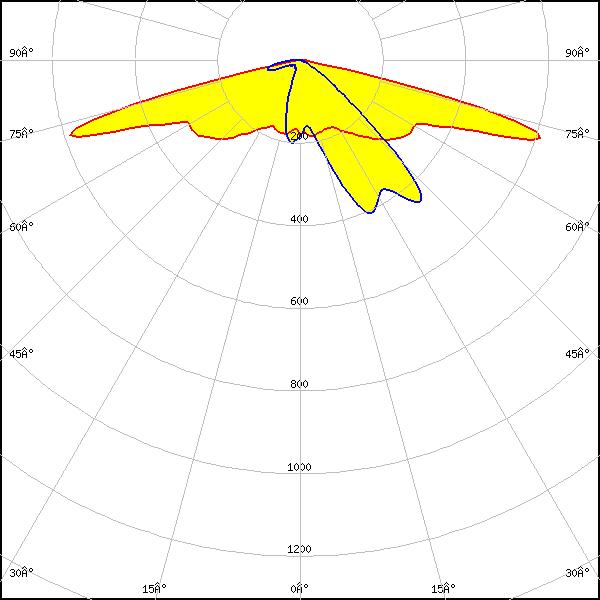

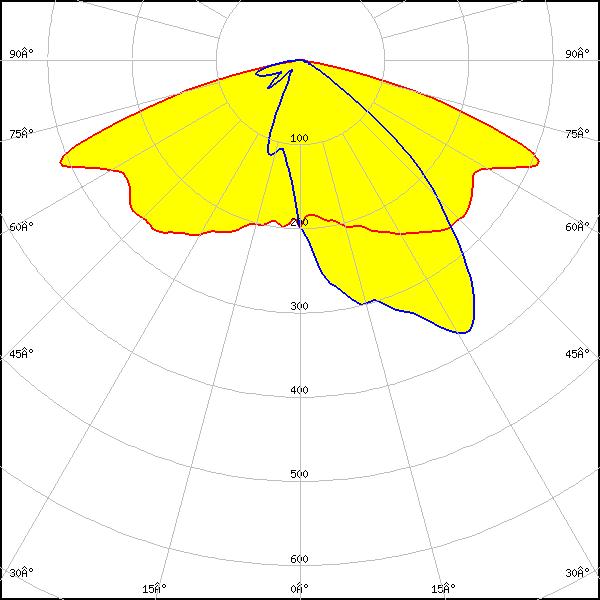

LED: LH181B

FWHM: asymmetric

Peak intensity: 0.438 cd/lm

Efficiency: 81 %

LEDs/each optic: 4

Light colour/type: White

Datasheet

Light distribution files

LED: LH181B

FWHM: asymmetric

Peak intensity: 0.703 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
