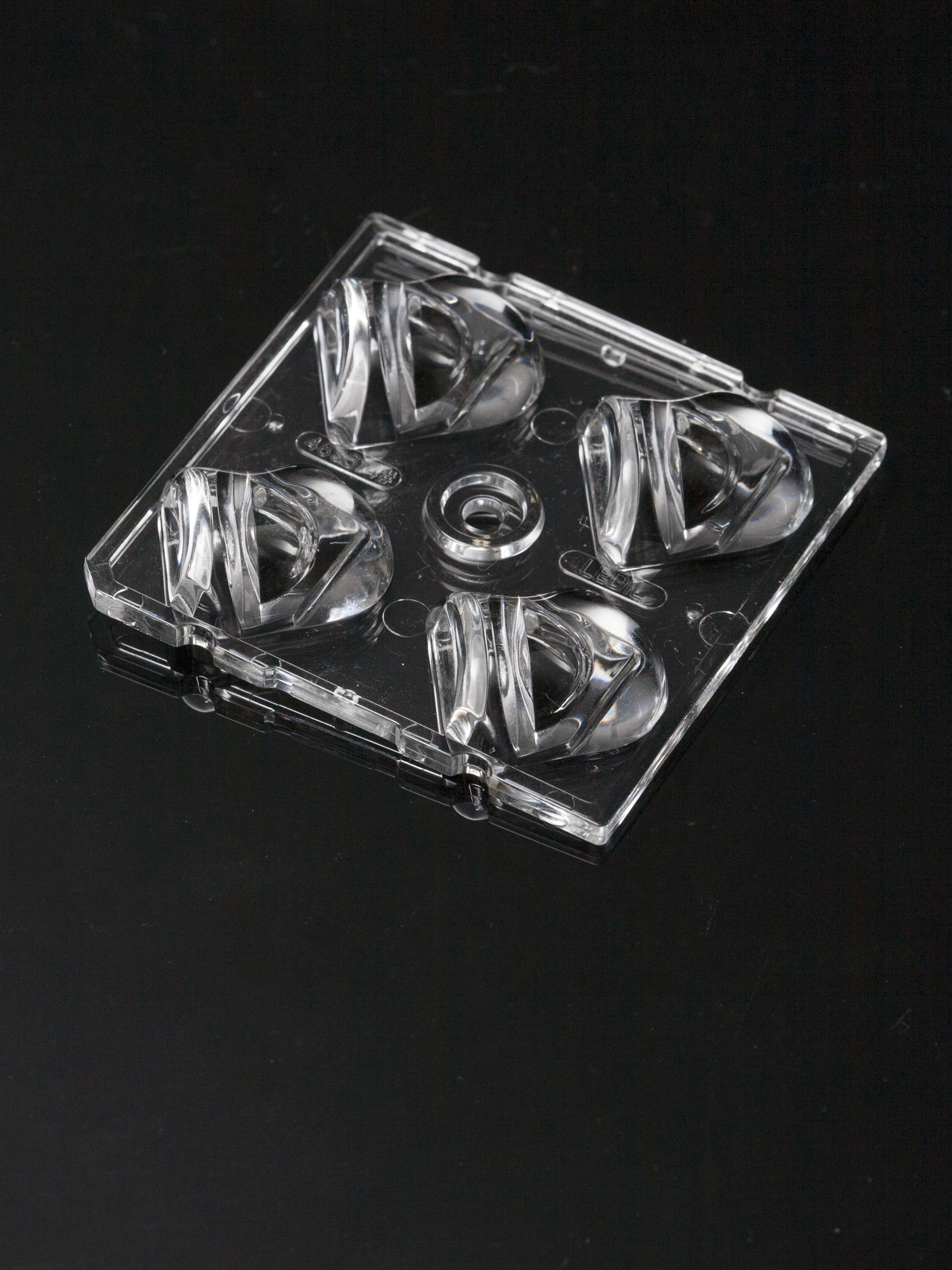

    C14896_STRADA-2X2-PXL

    Print

    Fully asymmetric beam designed to highlight pedestrian crossings for left side traffic

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      8.00 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.9 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14896_STRADA-2X2-PXL
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - STRADA-2X2-PXL

    PCN

    Product change notification NR118a - Change of packaging quantities and packaging type 200416

    Application example

    Pedestrian crossings with STRADA-2X2-PX and -PXL

    Catalogue

    LEDiL Latest products catalogue Q1 2025

    Application guide

    Guide for Street lighting optics

    Application area

    Urban lighting with LEDiL optics

    Application example

    Urban lighting with LEDiL optics

    Reference product

    Bollard lamp for urban environments

    Case story

    Naberezhne Highway in Kiev

    Application area

    Industrial Lighting

    Installation guide

    STRADA-2X2 Installation guide

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

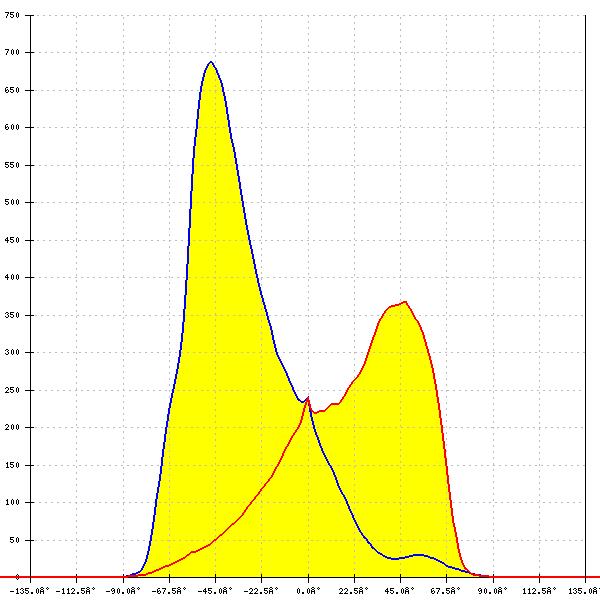

    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.762 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

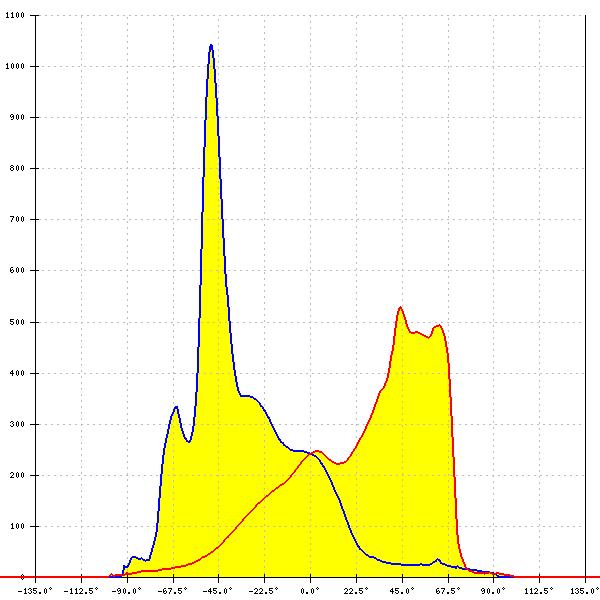

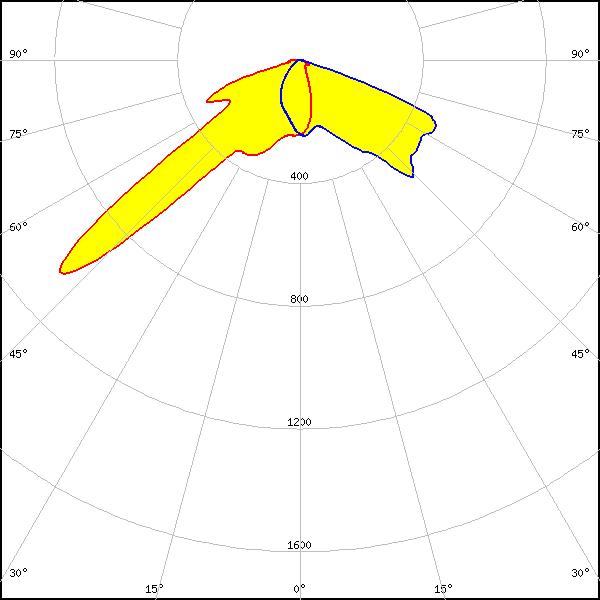

    LED: XD16
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

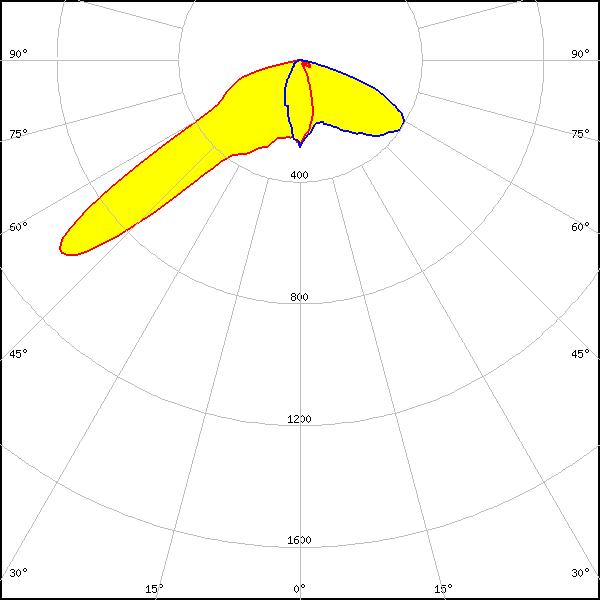

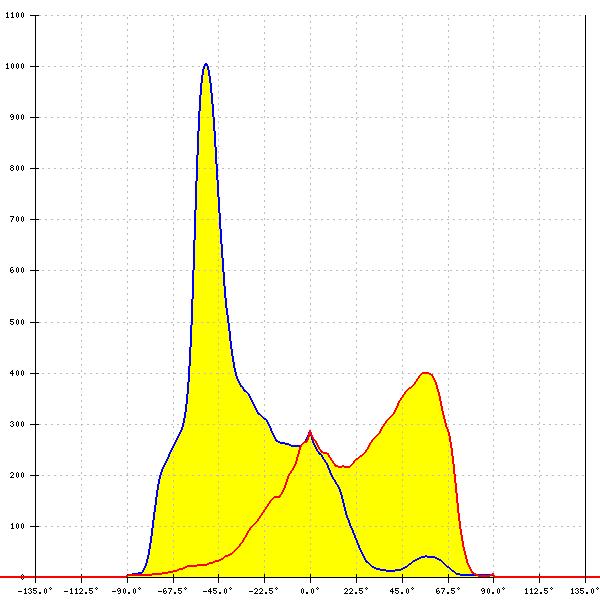

    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 1.125 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

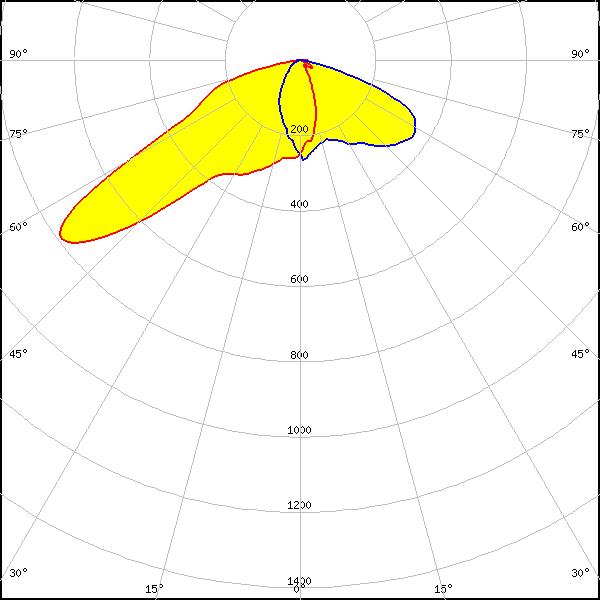

    LED: XP-G2 HE
    FWHM: asymmetric
    Peak intensity: 0.881 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

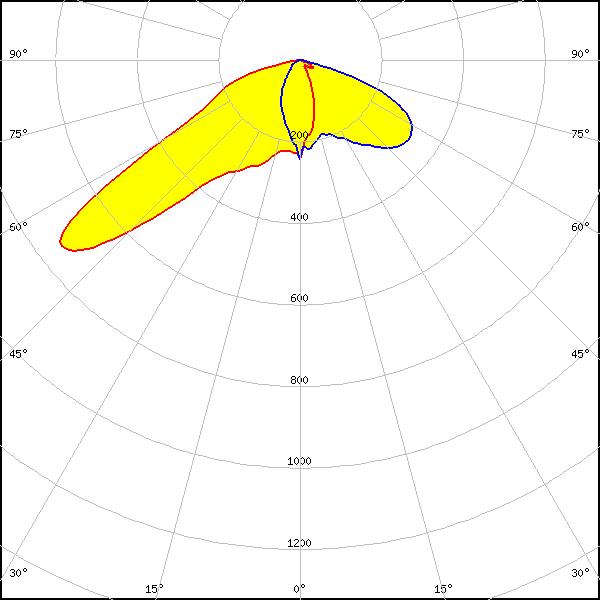

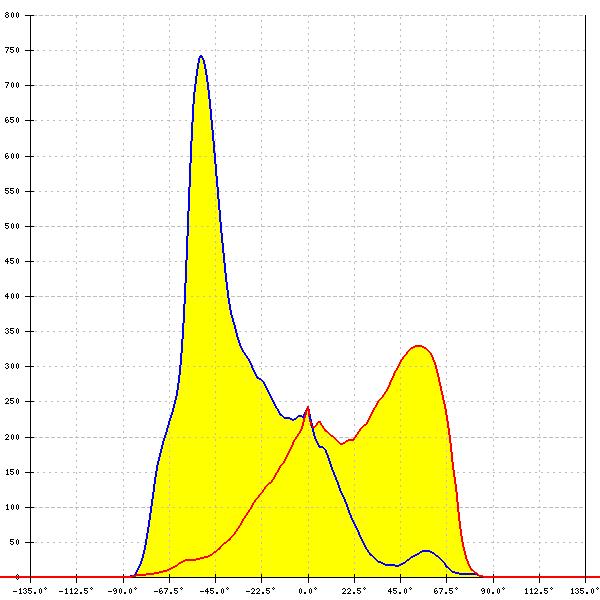

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.824 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

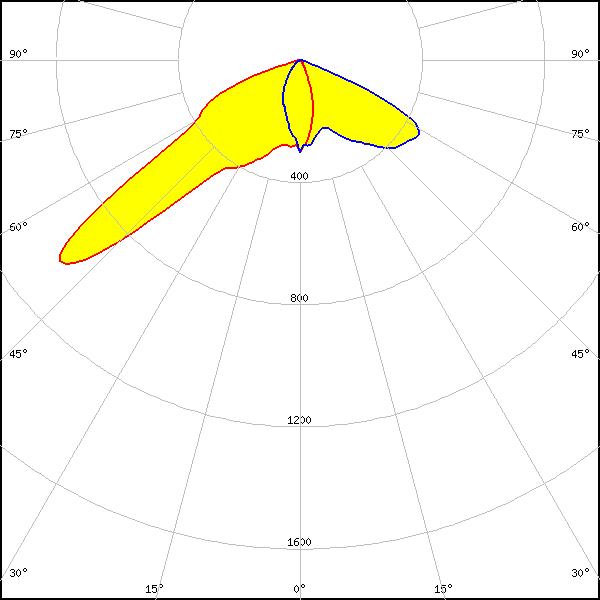

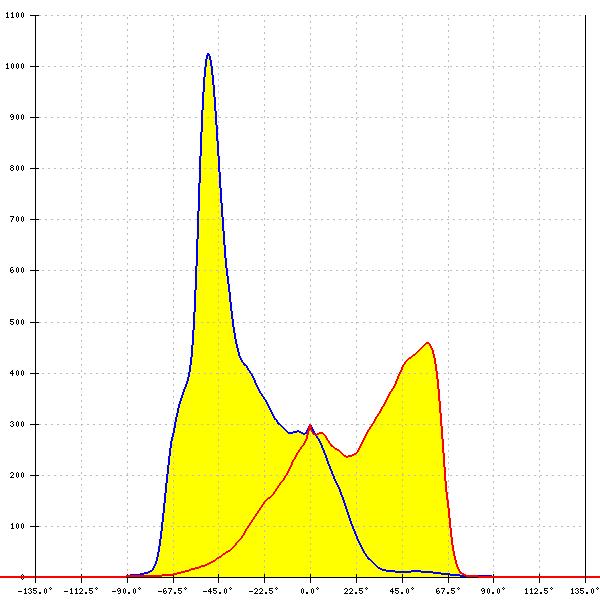

    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 1.169 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

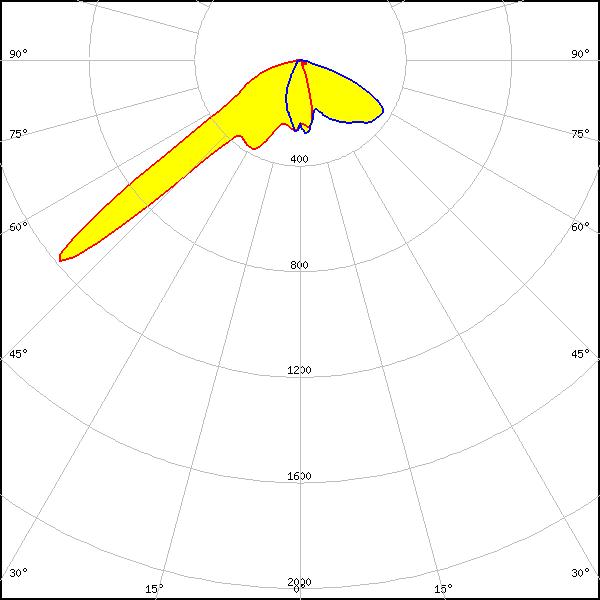

    LED: XP-P
    FWHM: asymmetric
    Peak intensity: 1.456 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

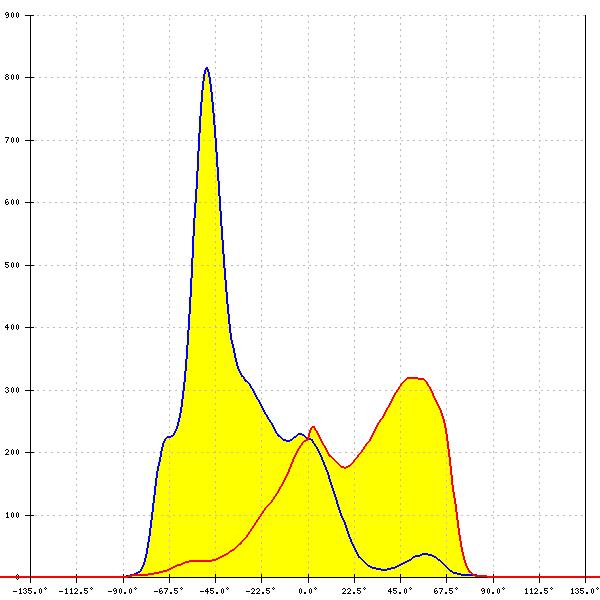

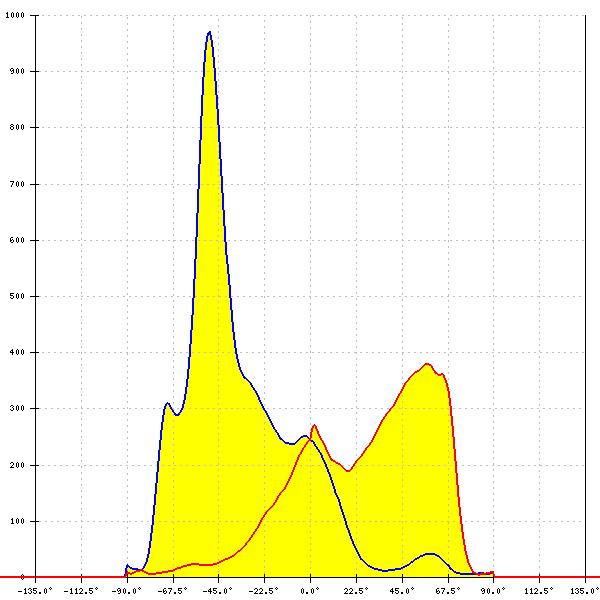

    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 1.077 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 0.914 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

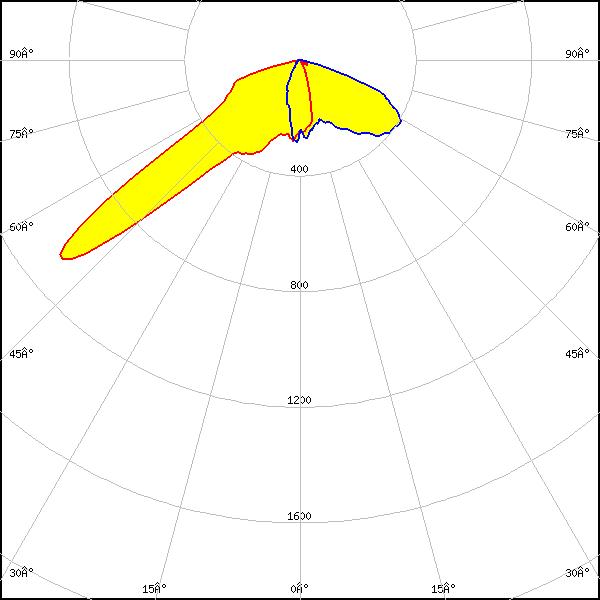

    LED: PrevaLED Brick HP 2x8
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

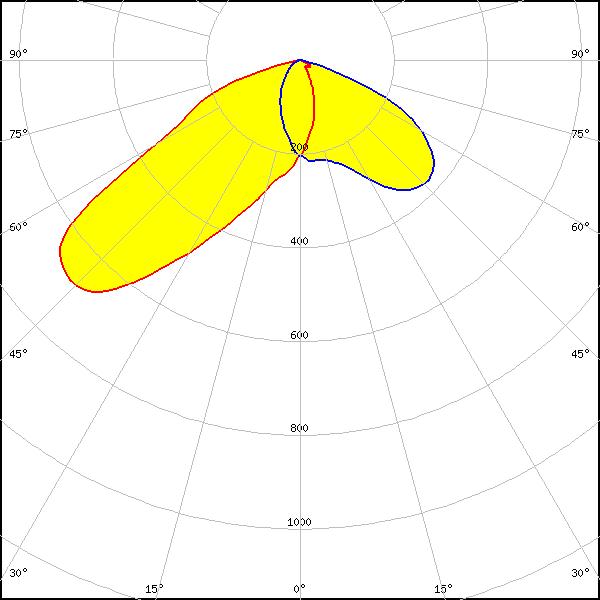

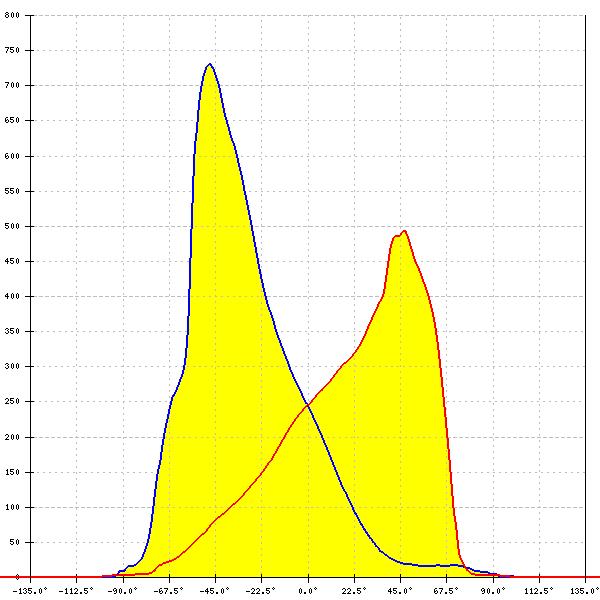

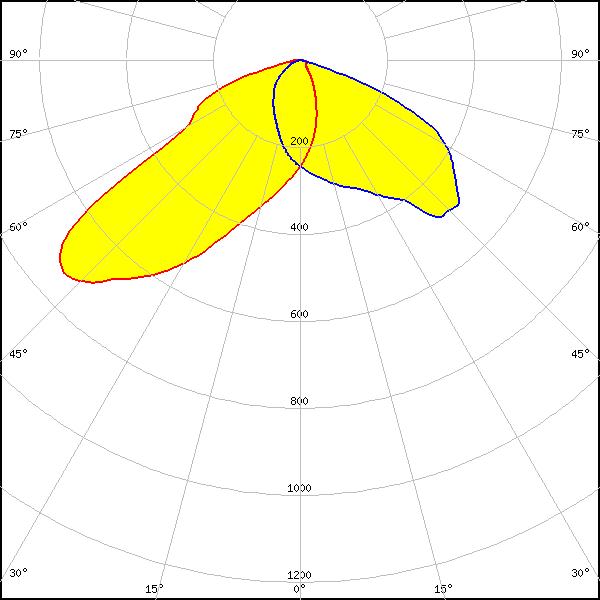

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.754 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.790 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

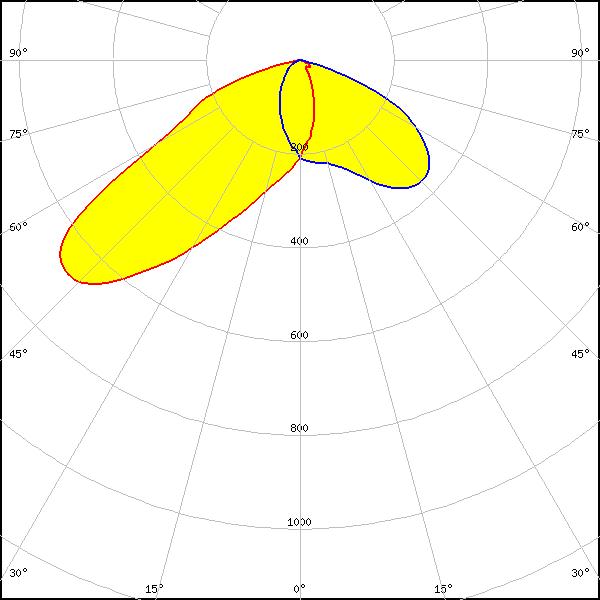

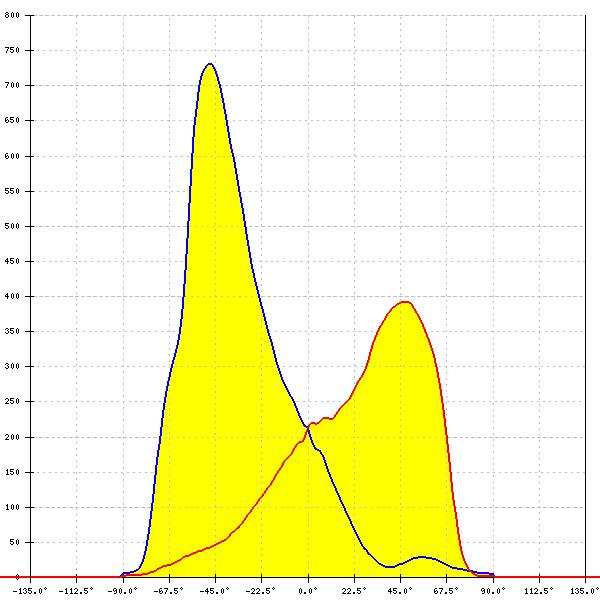

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.762 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.821 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

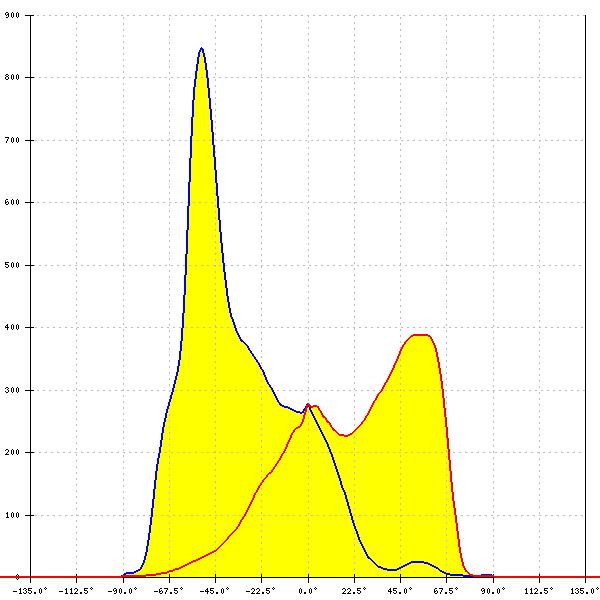

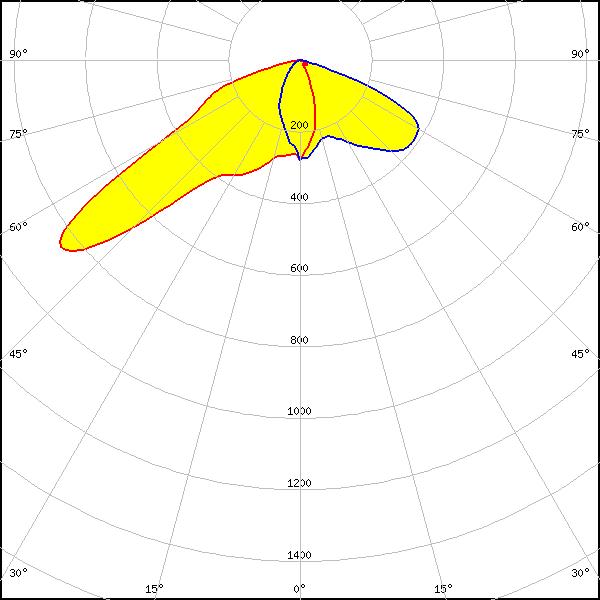

    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 0.958 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

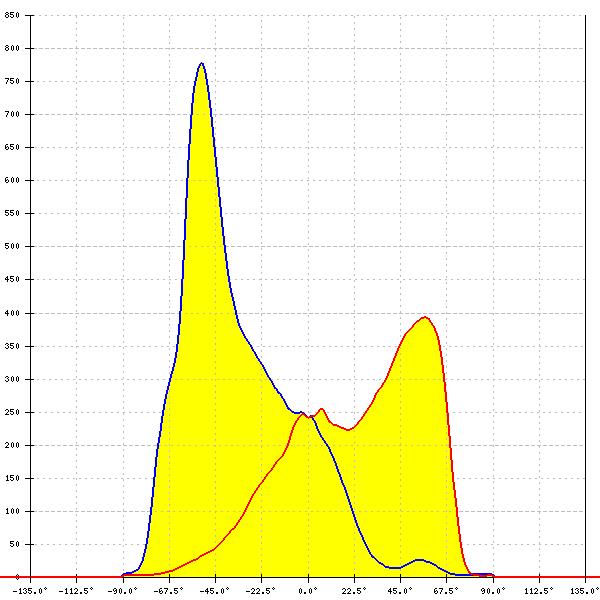

    LED: LUXEON HL2X-P
    FWHM: asymmetric
    Peak intensity: 0.872 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

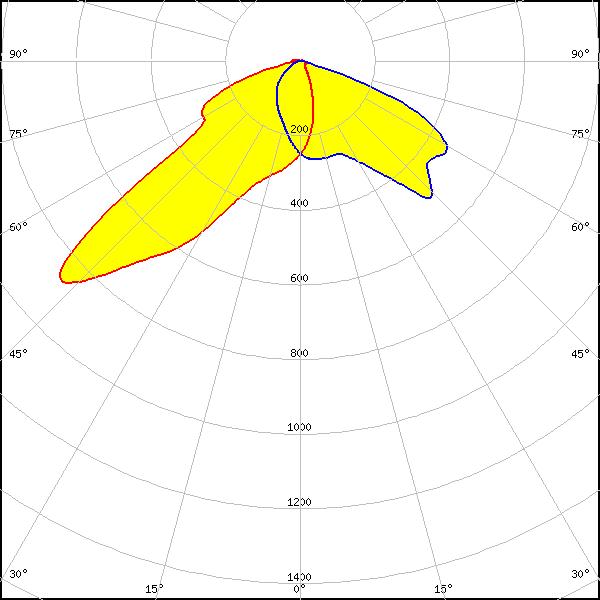

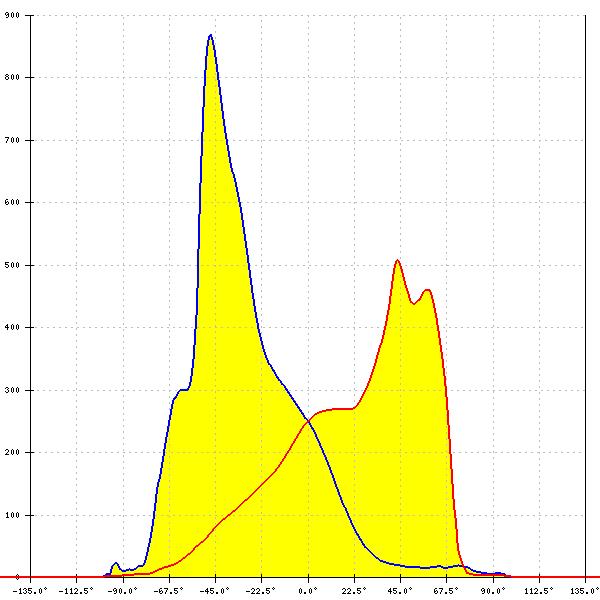

    LED: LUXEON MZ
    FWHM: asymmetric
    Peak intensity: 0.880 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

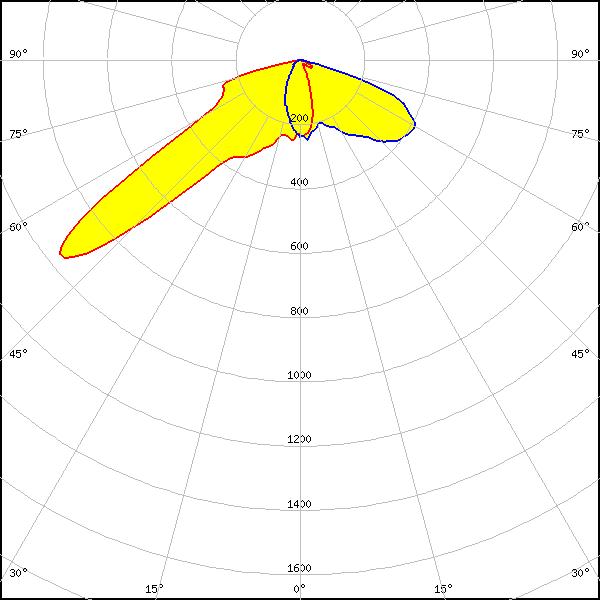

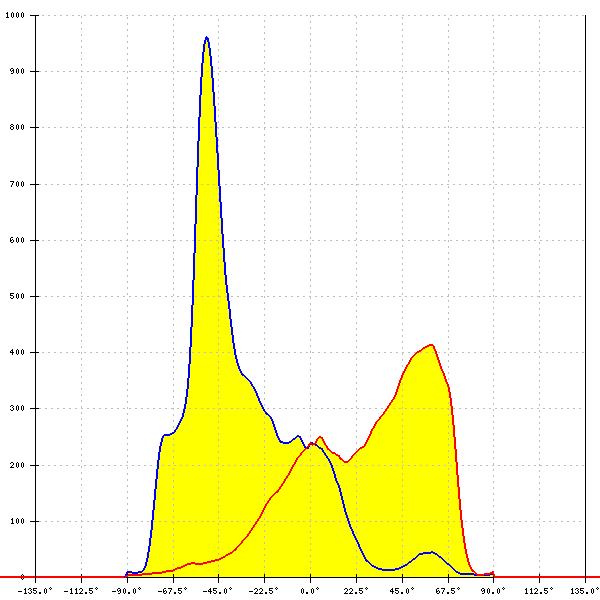

    LED: LUXEON TX
    FWHM: asymmetric
    Peak intensity: 1.080 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

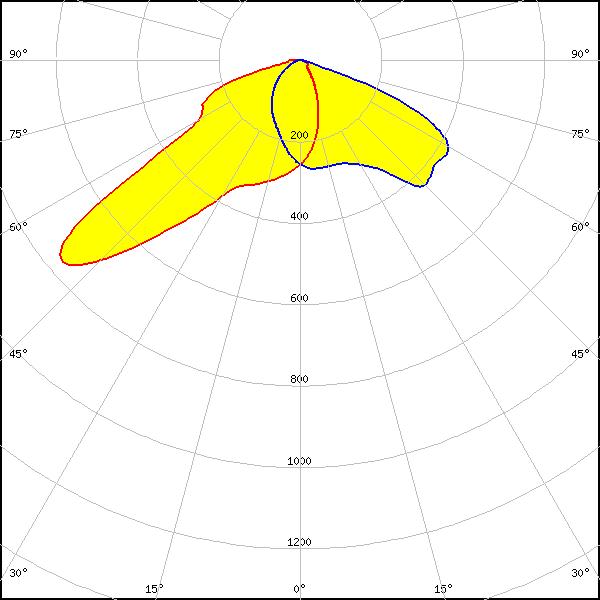

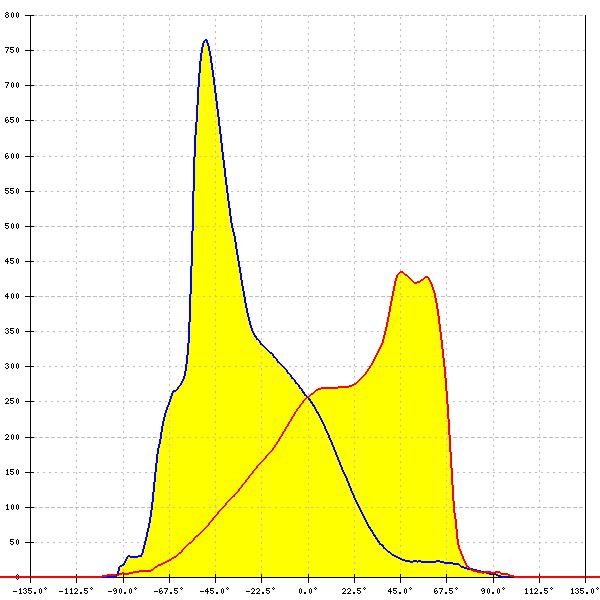

    LED: LUXEON V
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

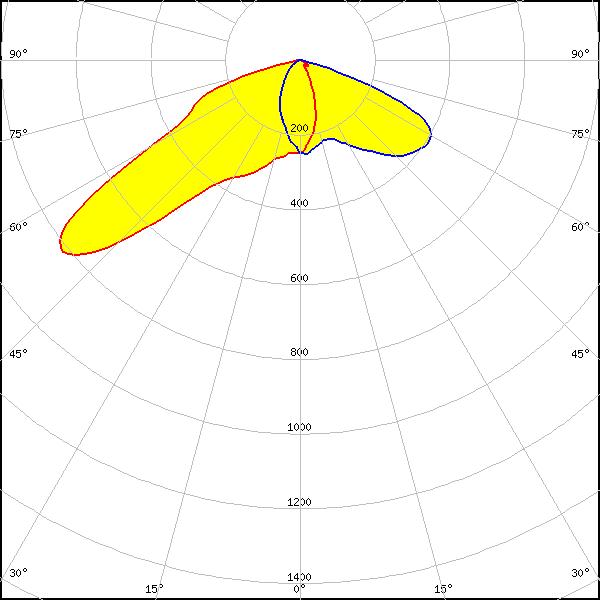

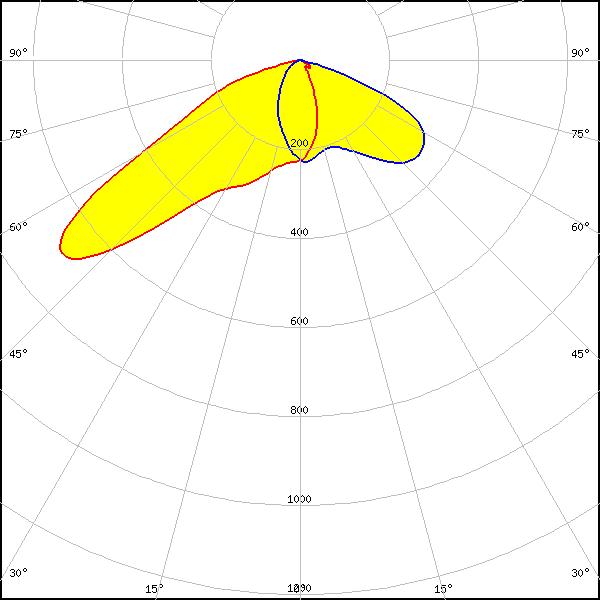

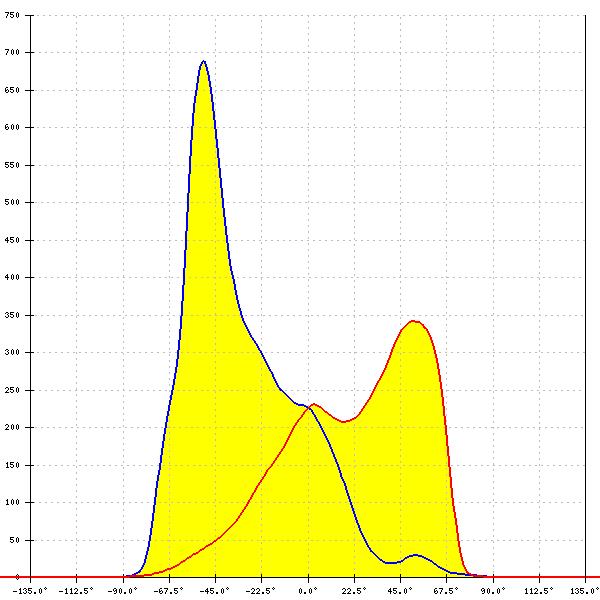

    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 0.907 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 0.780 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

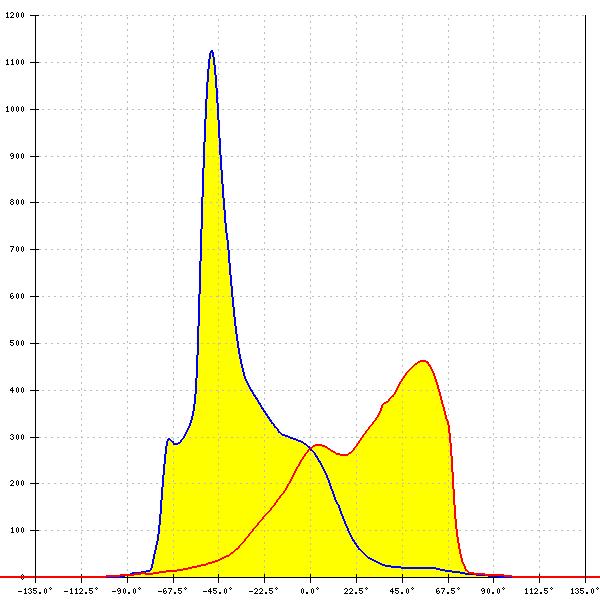

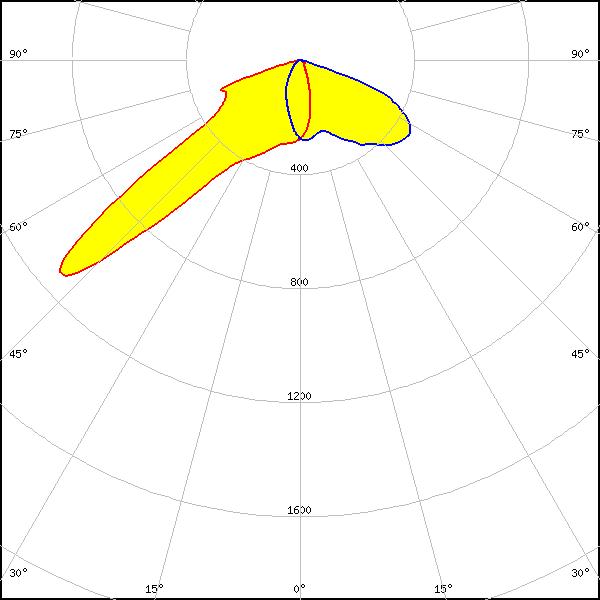

    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: asymmetric
    Peak intensity: 1.189 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

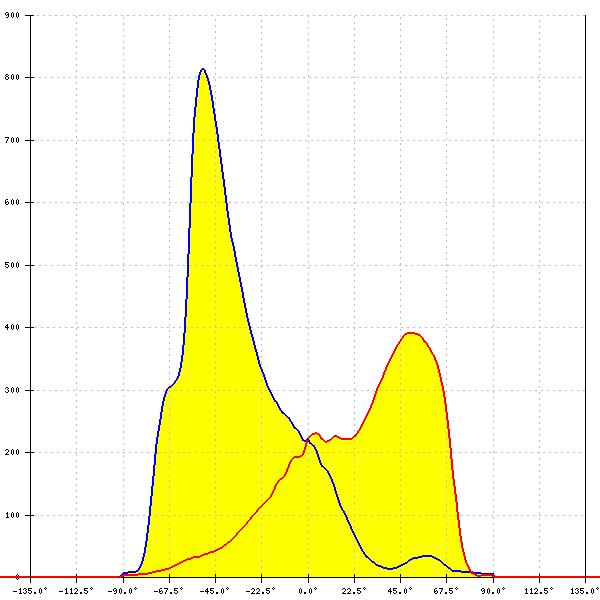

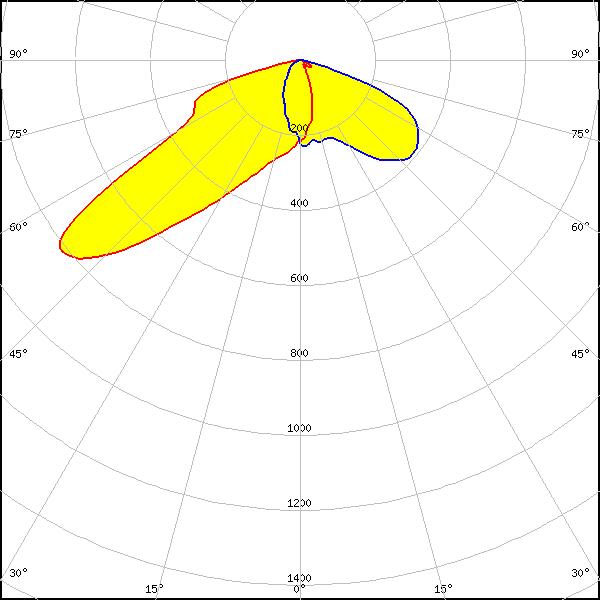

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 0.896 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

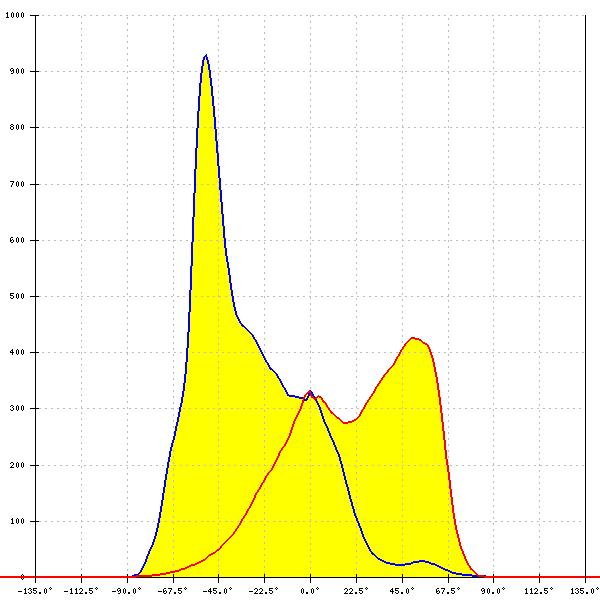

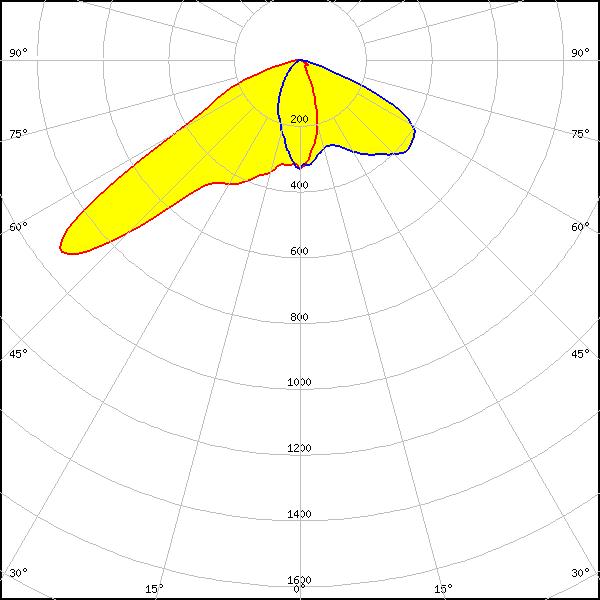

    LED: NVSW219D
    FWHM: asymmetric
    Peak intensity: 1.050 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

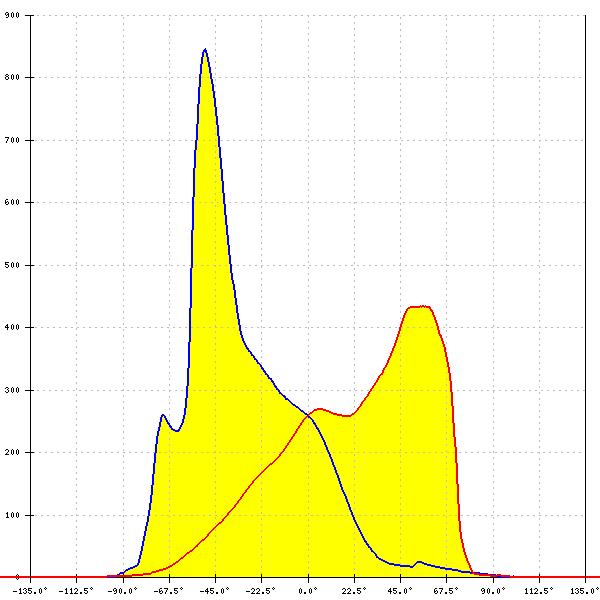

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.920 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

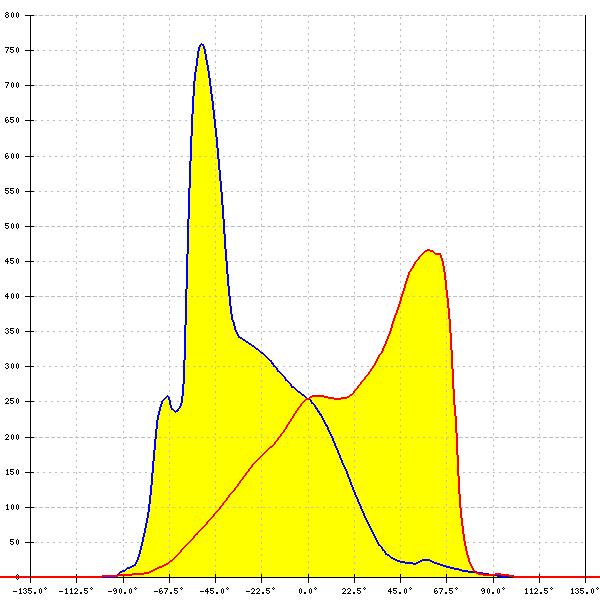

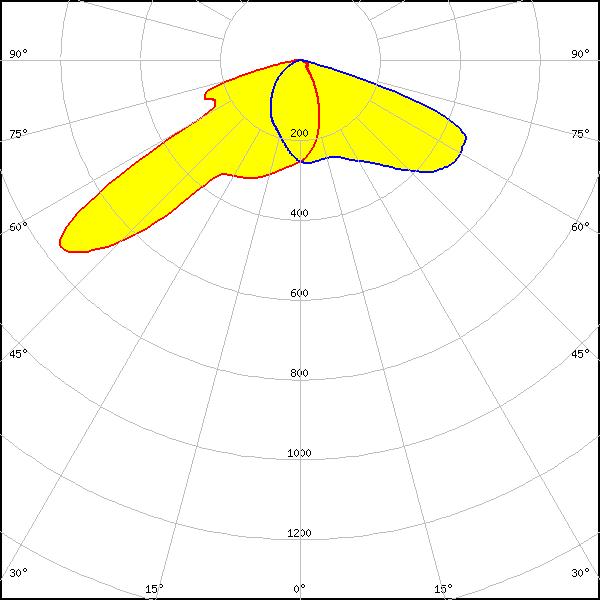

    LED: NVSW319B
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

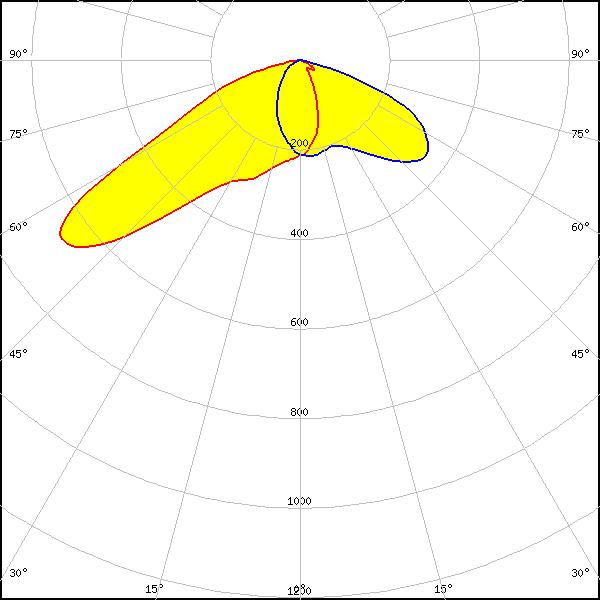

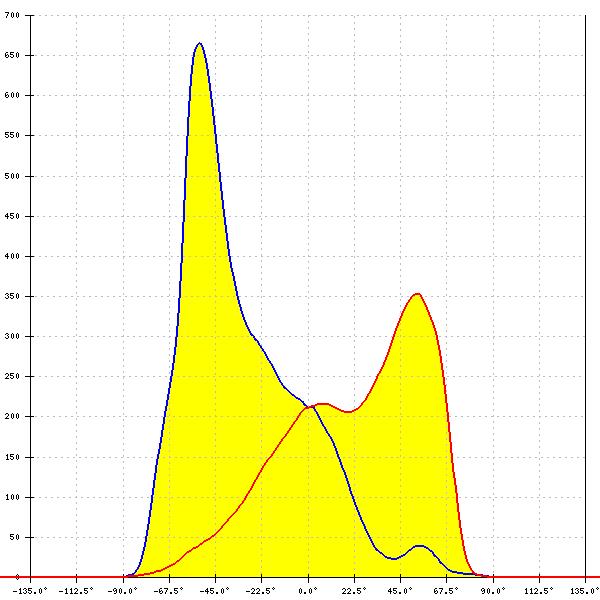

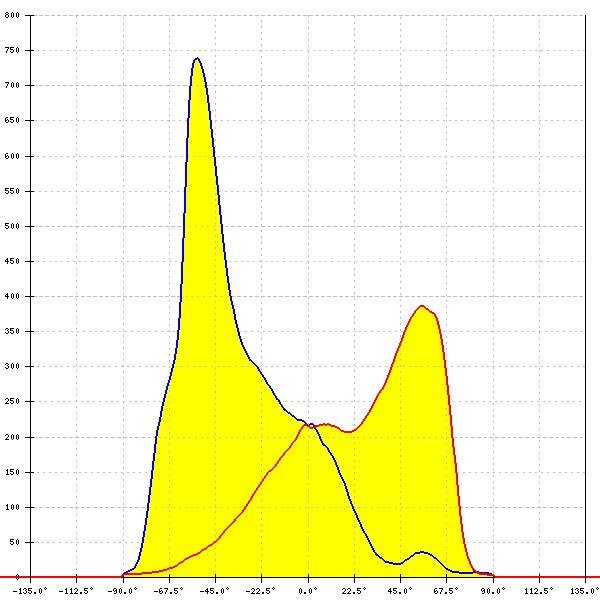

    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.806 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.736 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

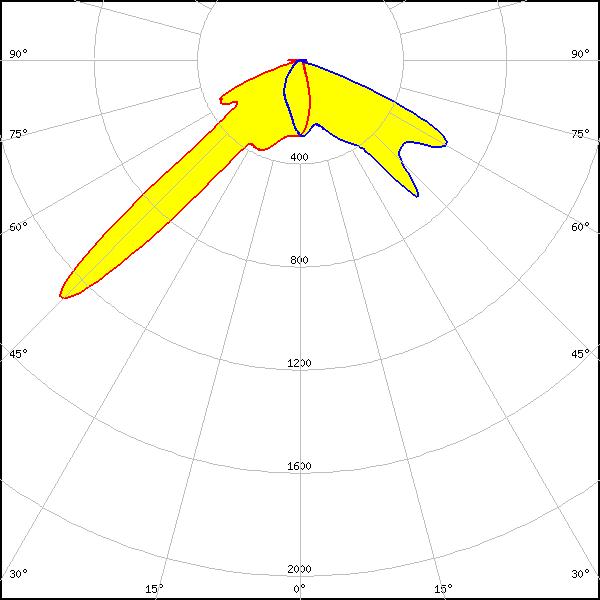

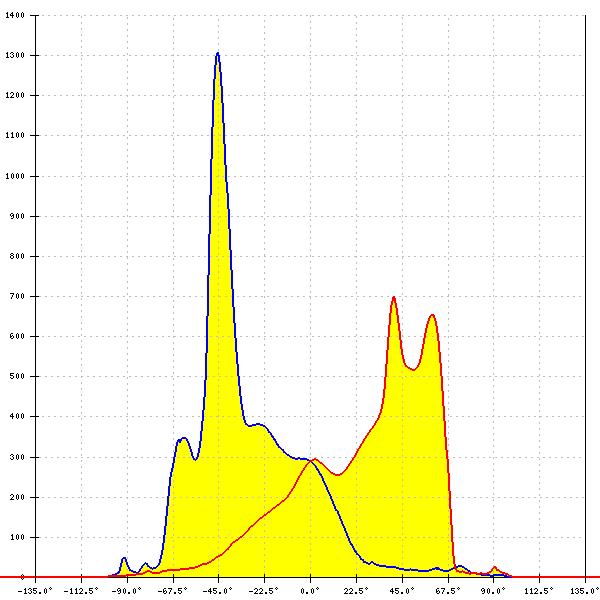

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 1.430 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

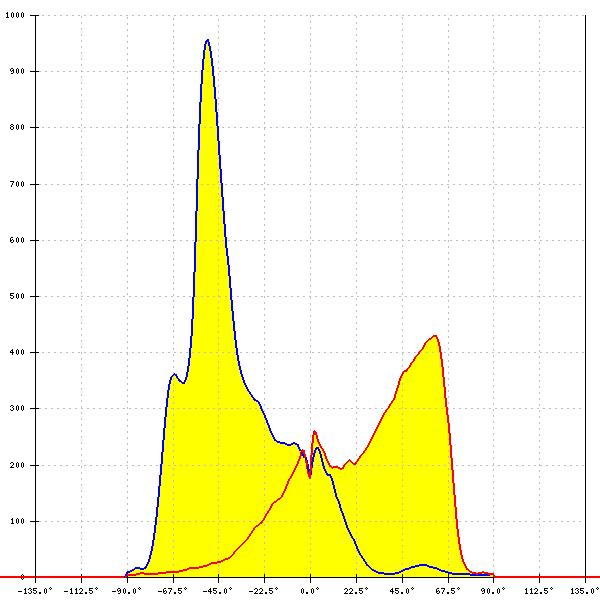

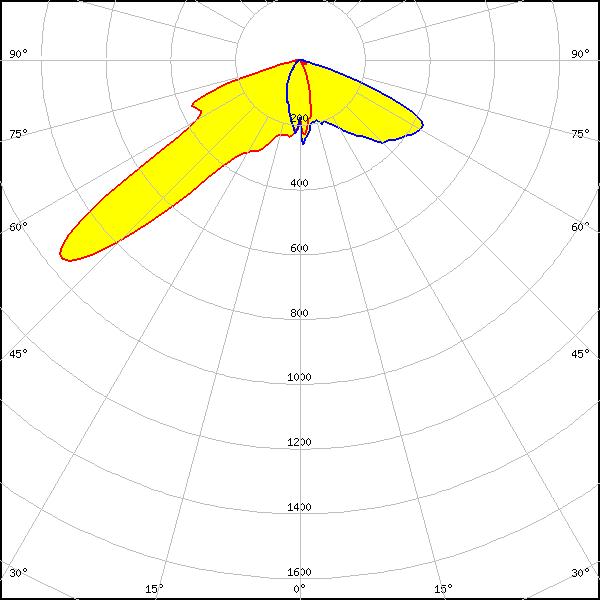

    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

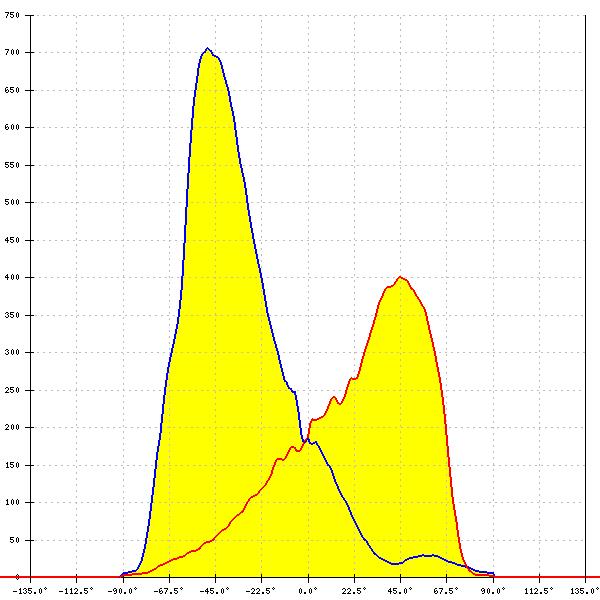

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.790 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

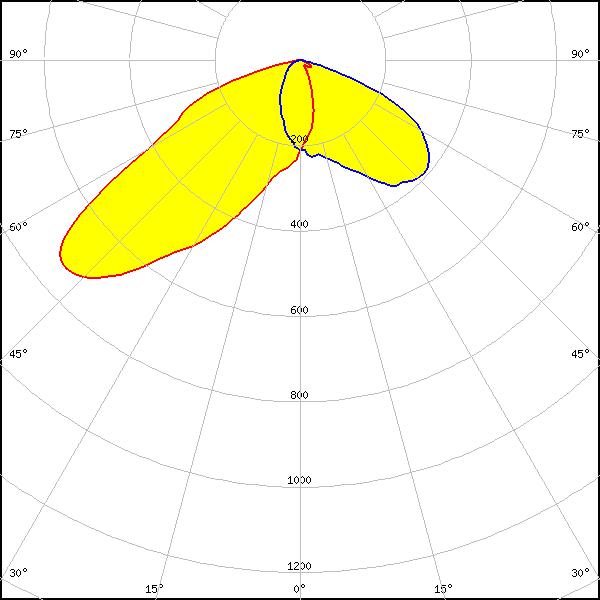

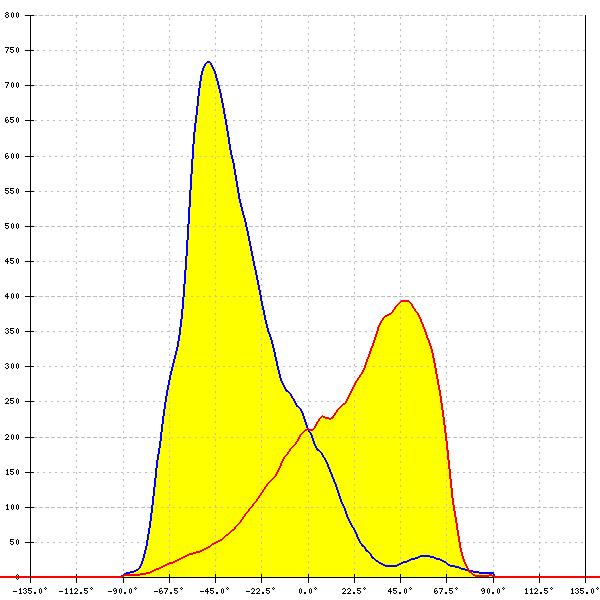

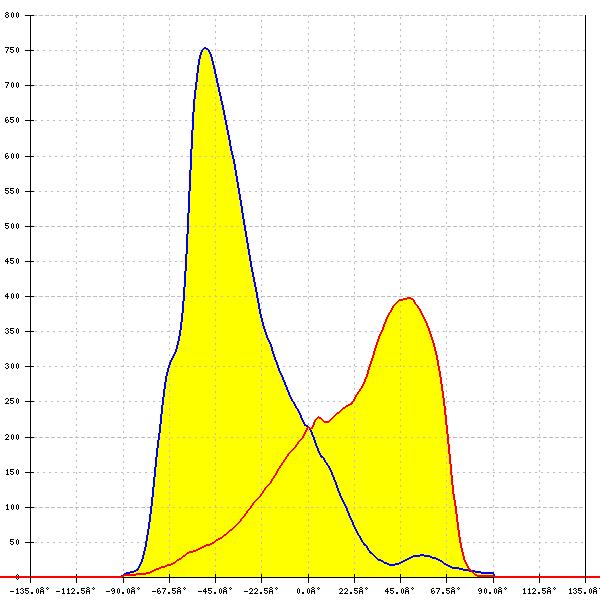

    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: asymmetric
    Peak intensity: 0.835 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

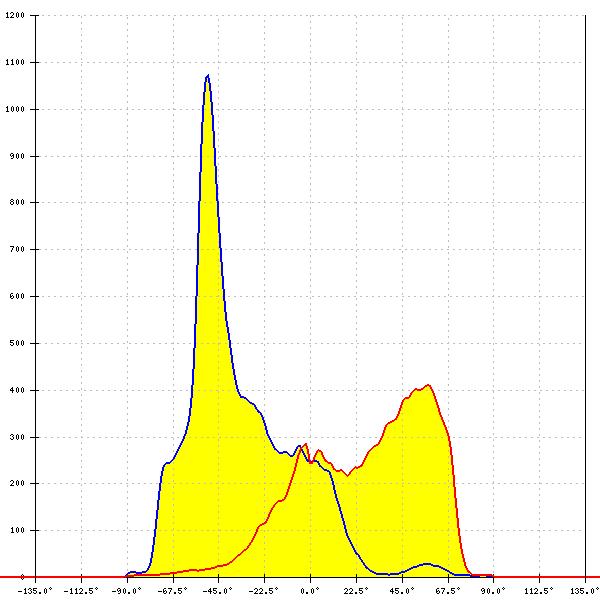

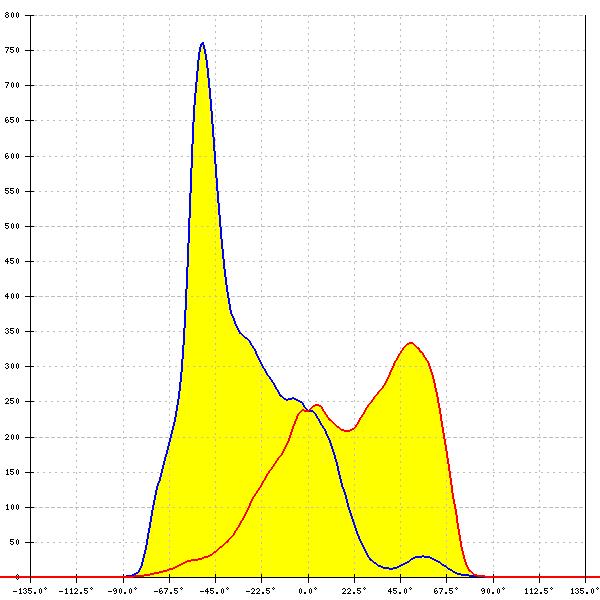

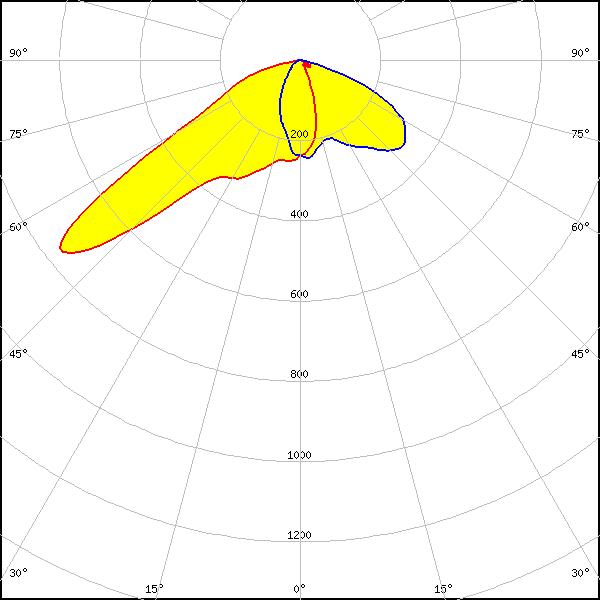

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.859 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

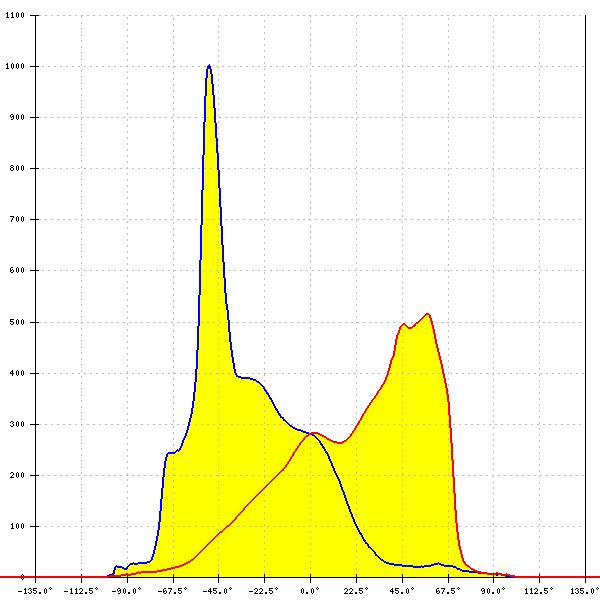

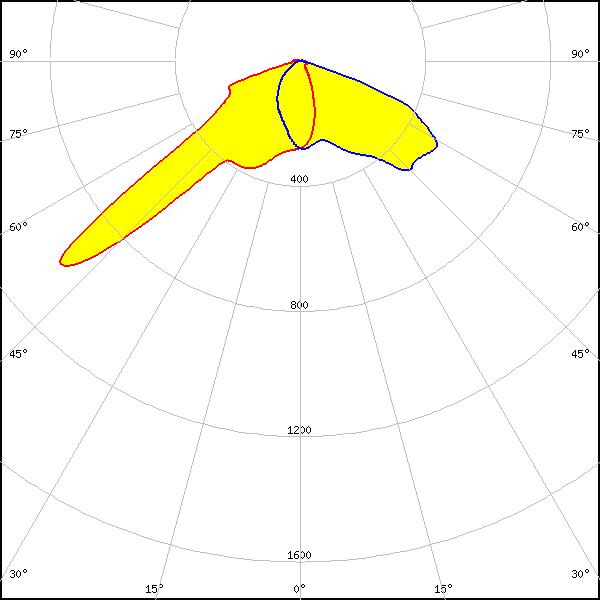

    LED: OSLON Square PC
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

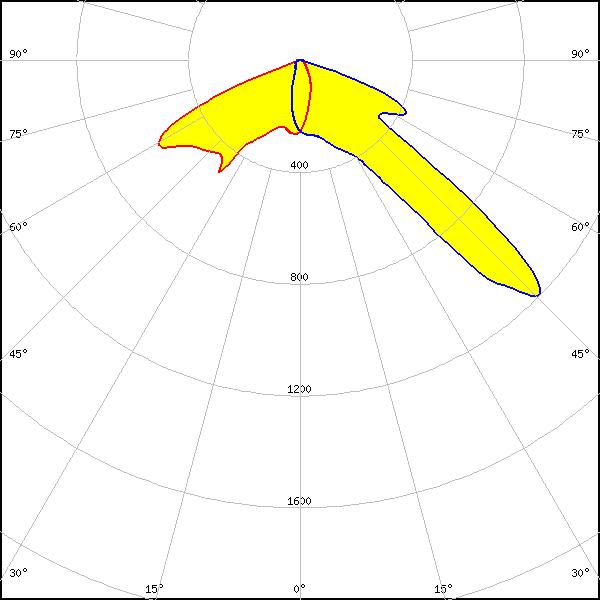

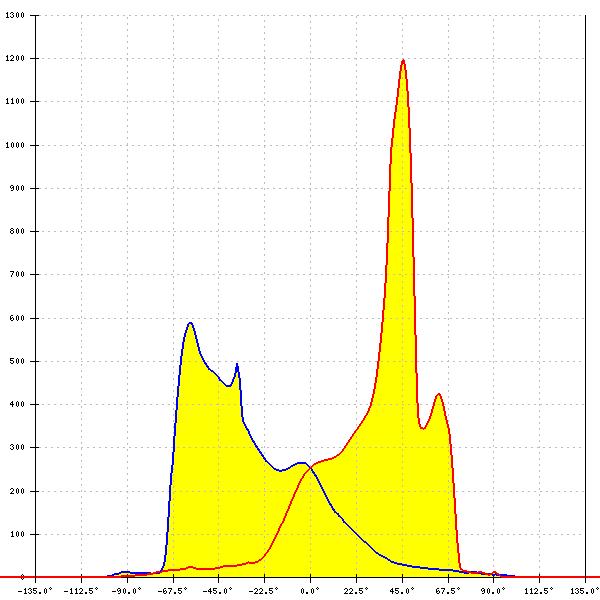

    LED: HiLOM RC12 Z (LH181B)
    FWHM: asymmetric
    Peak intensity: 1.303 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

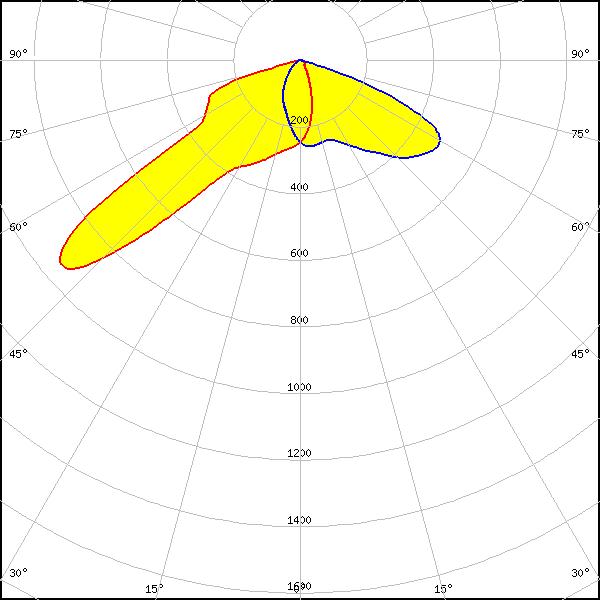

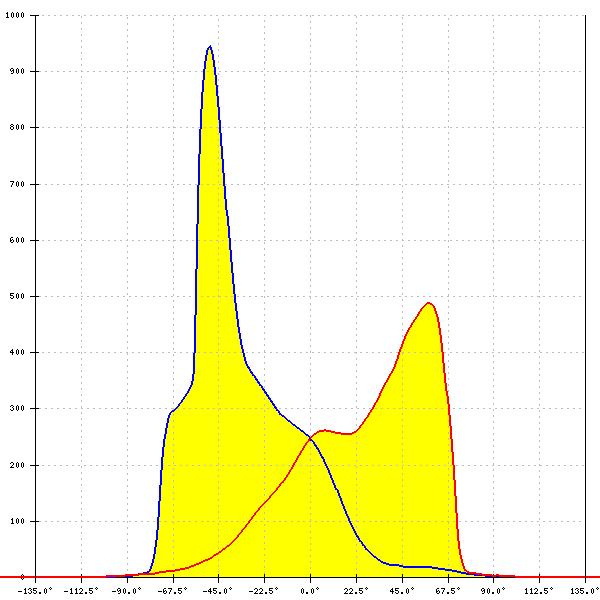

    LED: HiLOM RH12 Z (LH351C)
    FWHM: asymmetric
    Peak intensity: 1.011 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

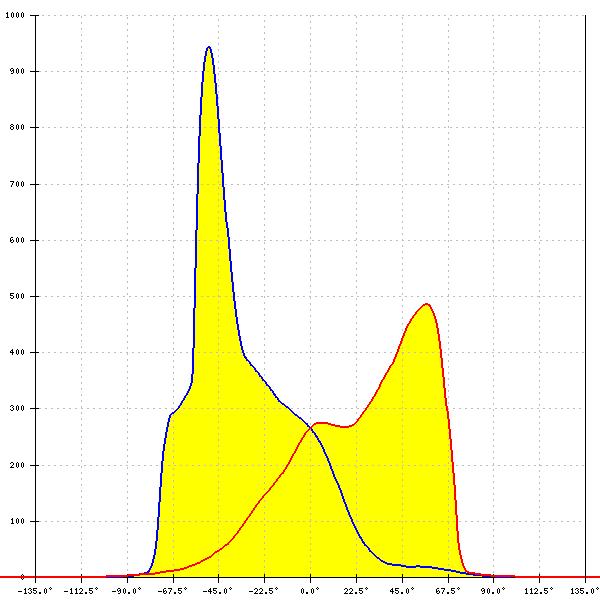

    LED: HiLOM RH16 (LH351C)
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

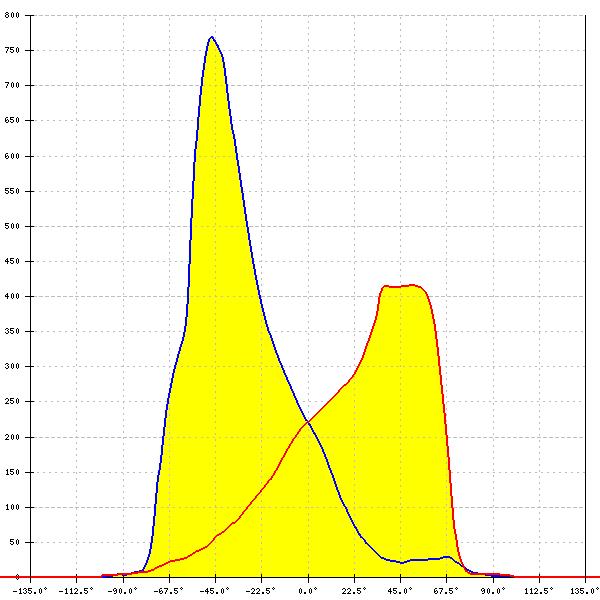

    LED: HiLOM RM12 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.898 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

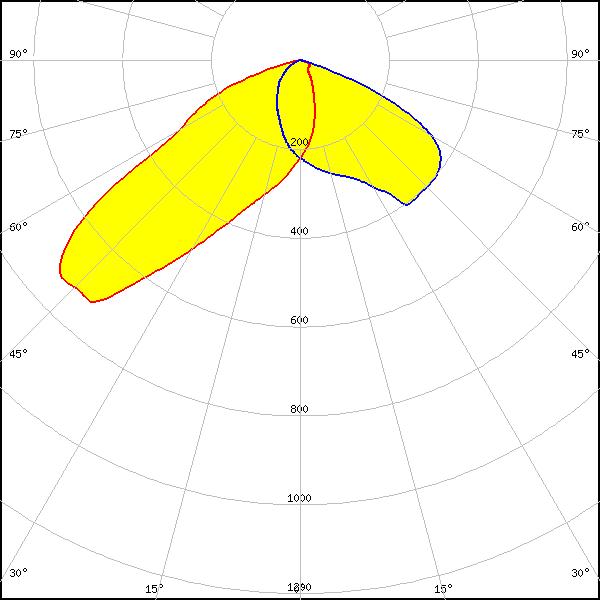

    LED: HiLOM RM16 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.893 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM16 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.864 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

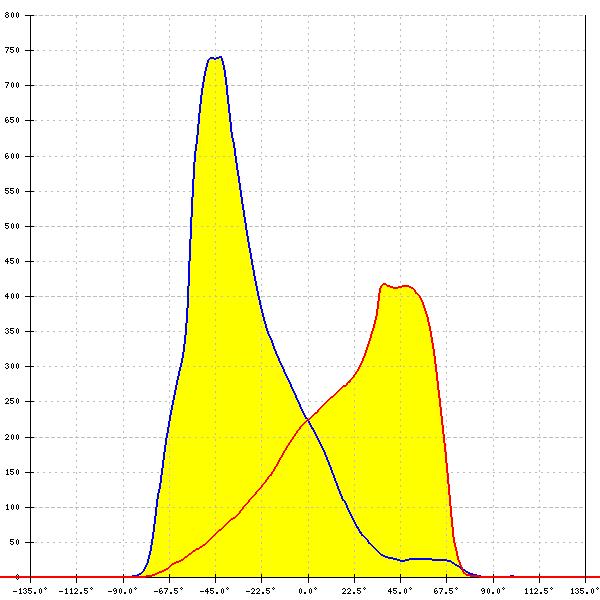

    LED: HiLOM RM8 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.896 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM8 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.883 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

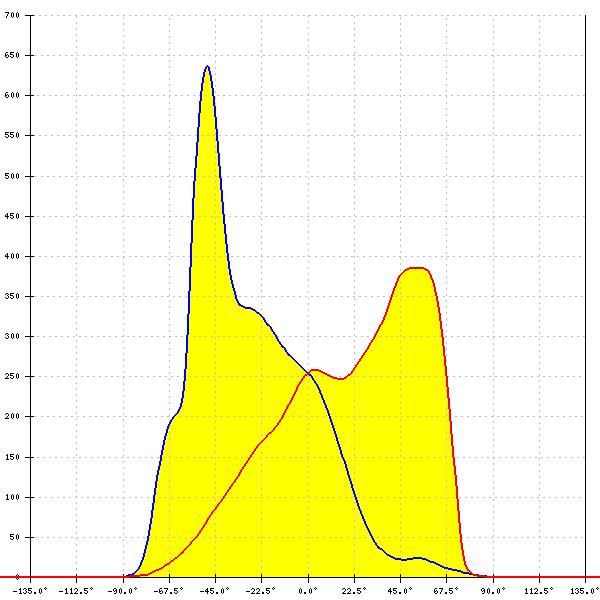

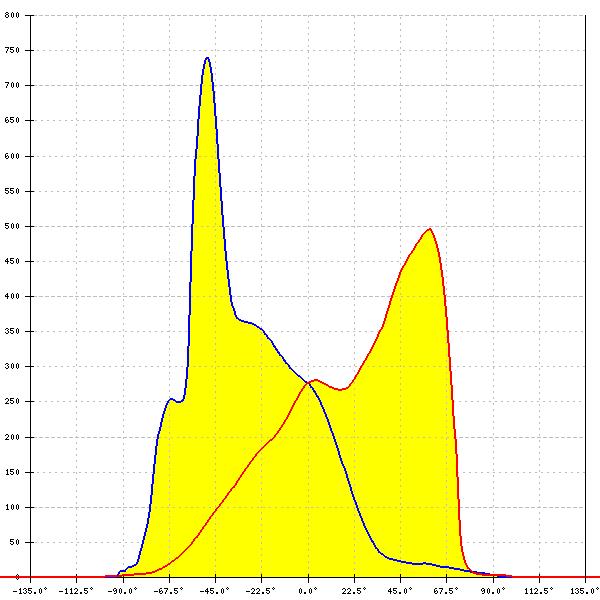

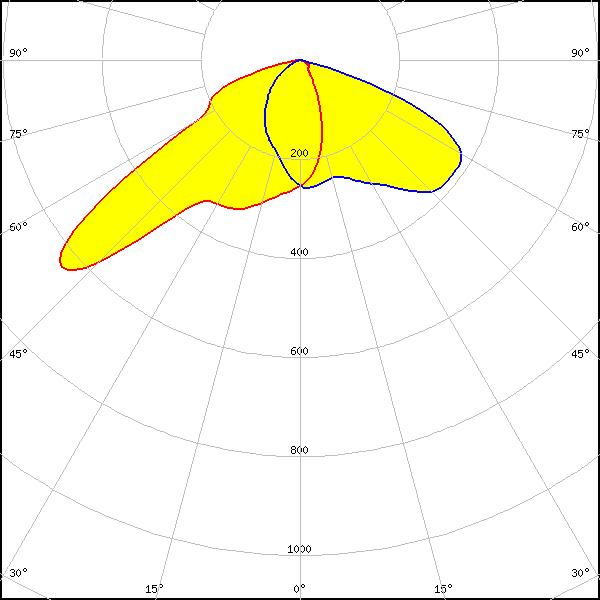

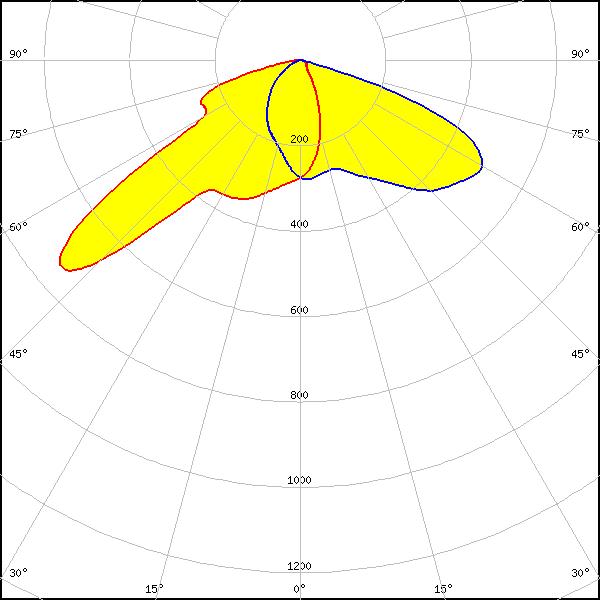

    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.730 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.860 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT 5050
    FWHM: asymmetric
    Peak intensity: 0.806 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

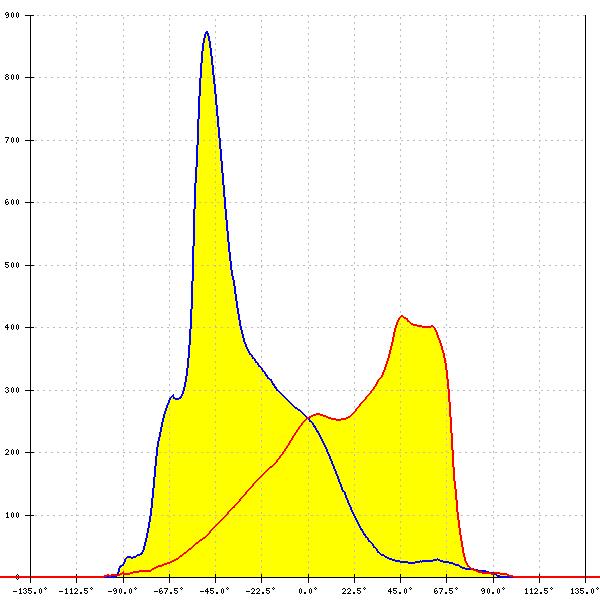

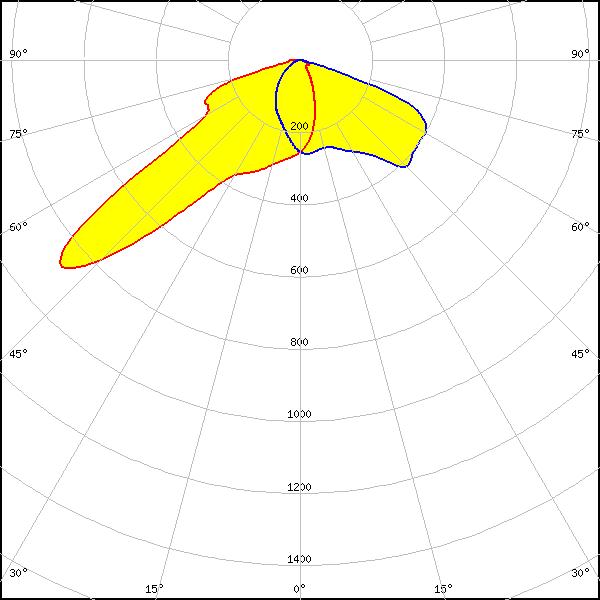

    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 0.920 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

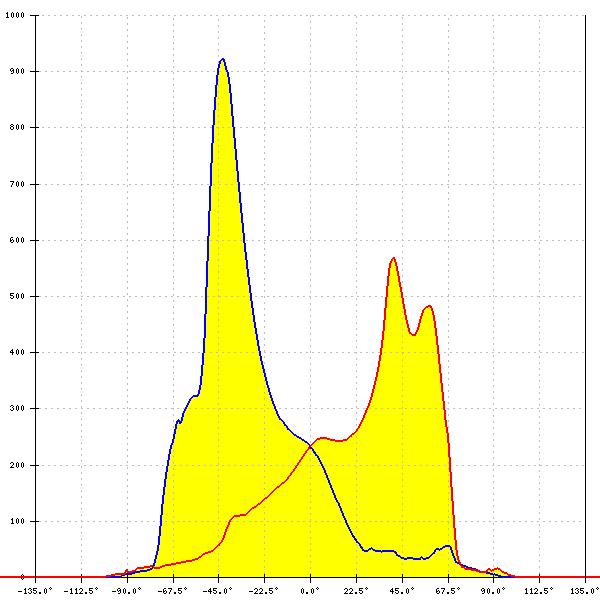

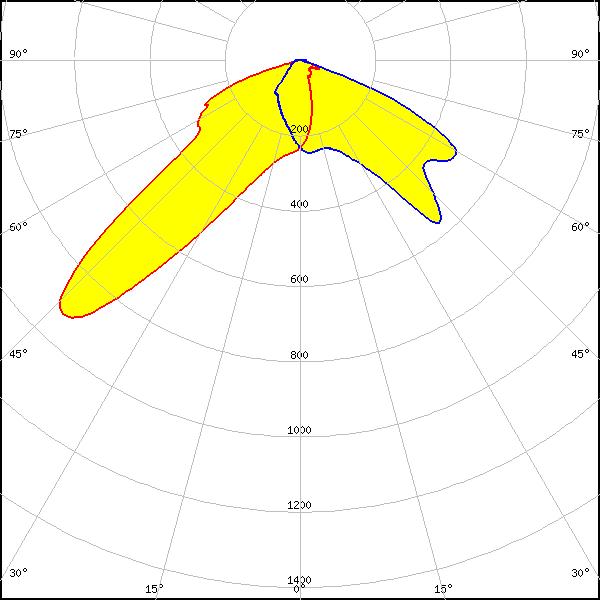

    LED: Z8Y22
    FWHM: asymmetric
    Peak intensity: 0.950 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

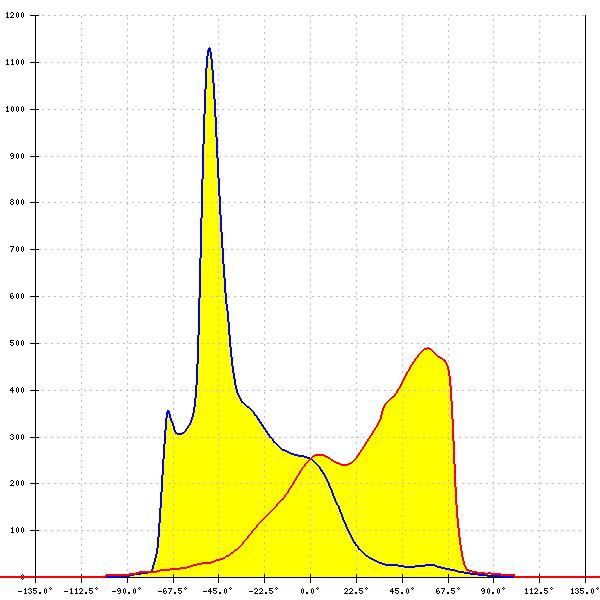

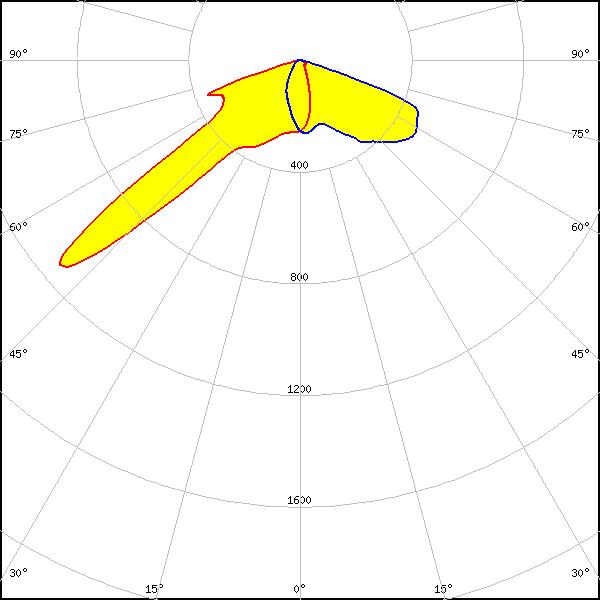

    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
