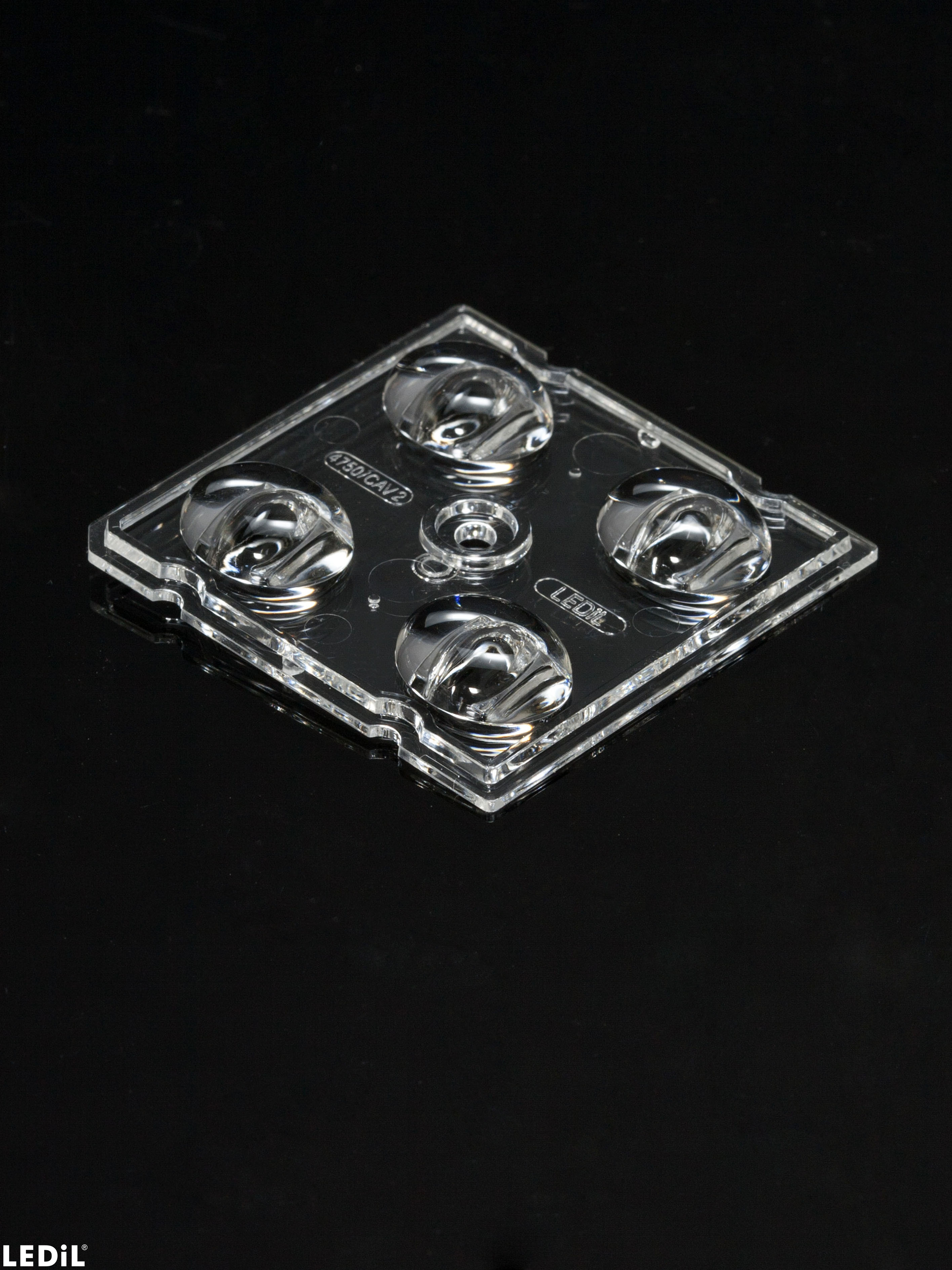

C14750_STRADA-2X2-CAT
Print
Catenary street light beam optimized for EN13201 M-classes
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

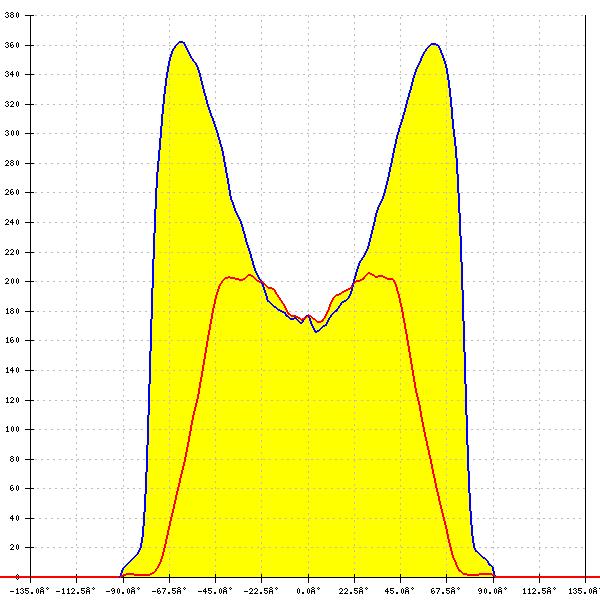

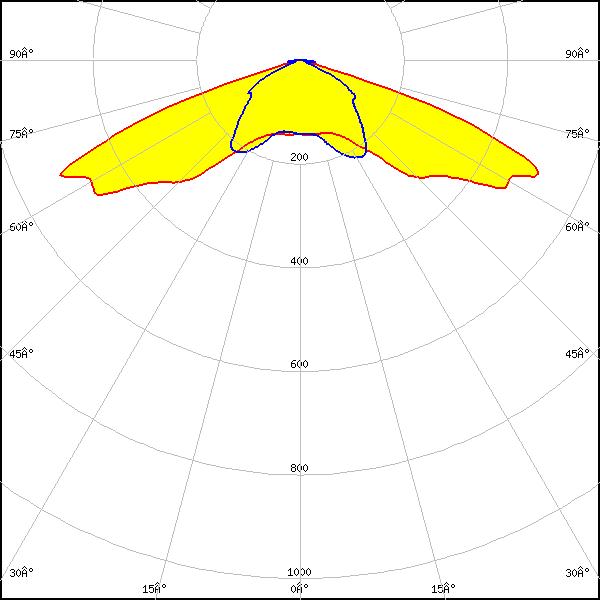

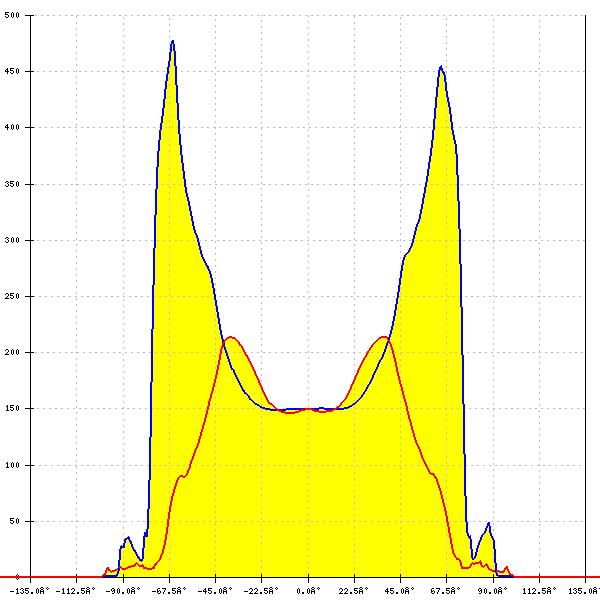

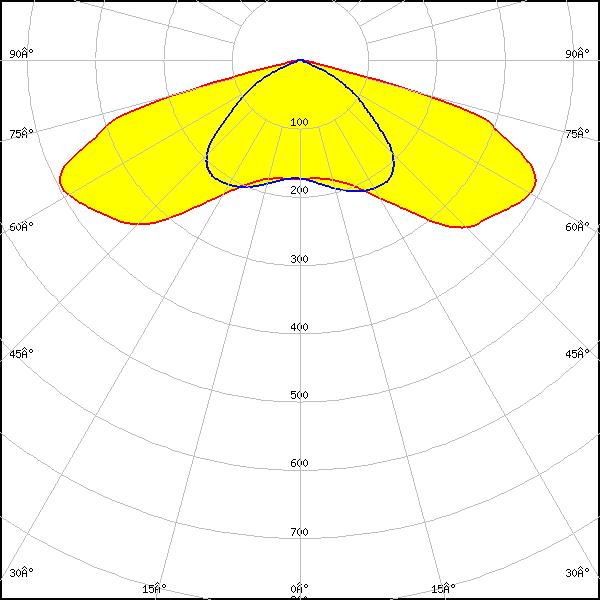

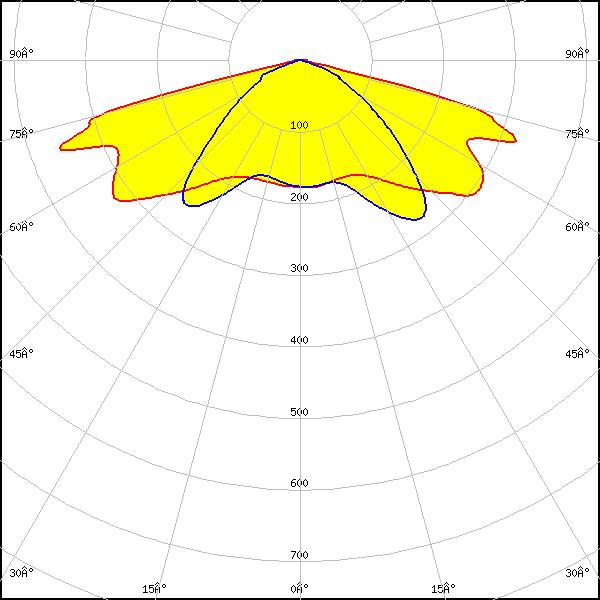

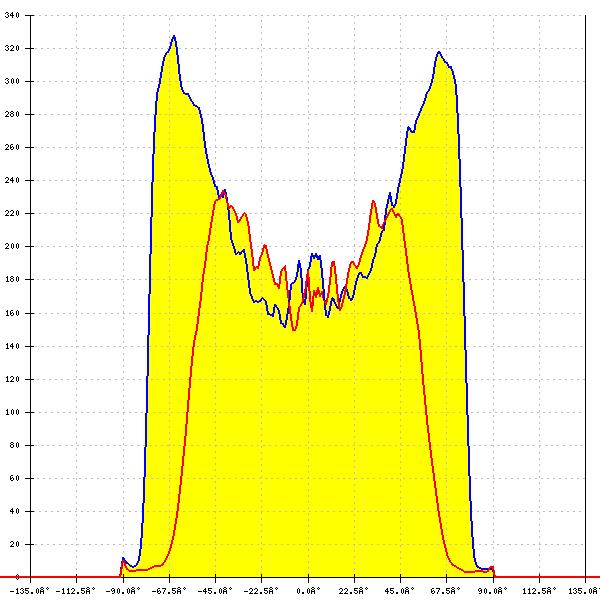

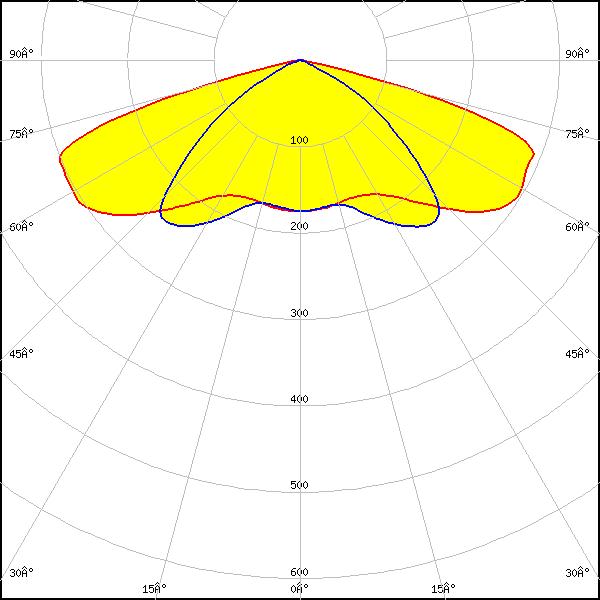

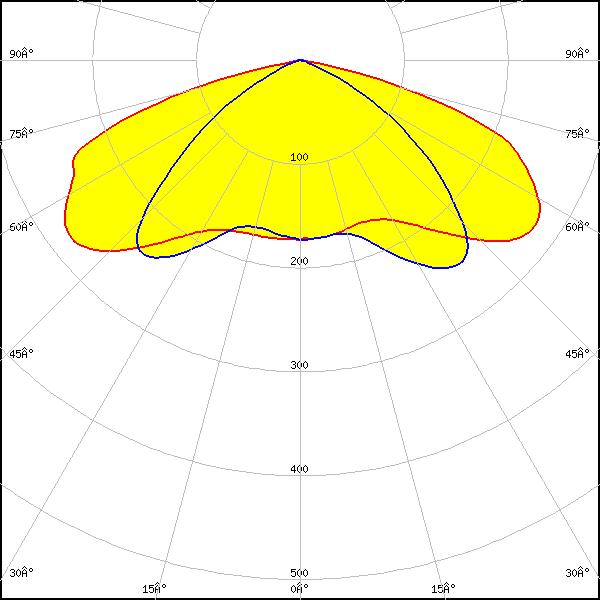

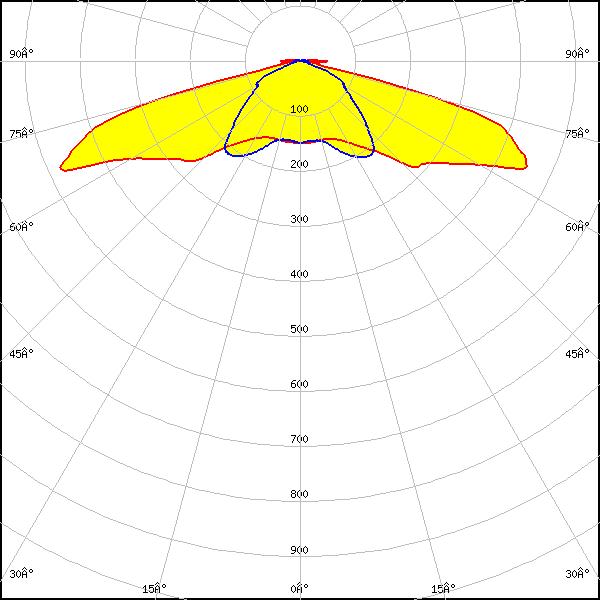

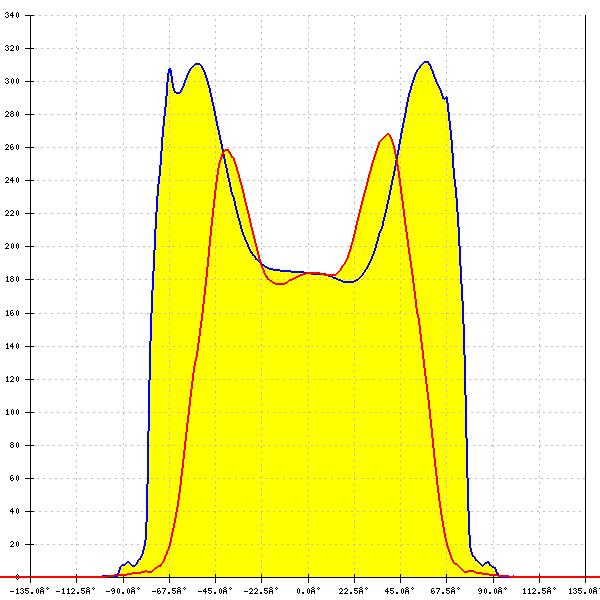

Optical results
LED:

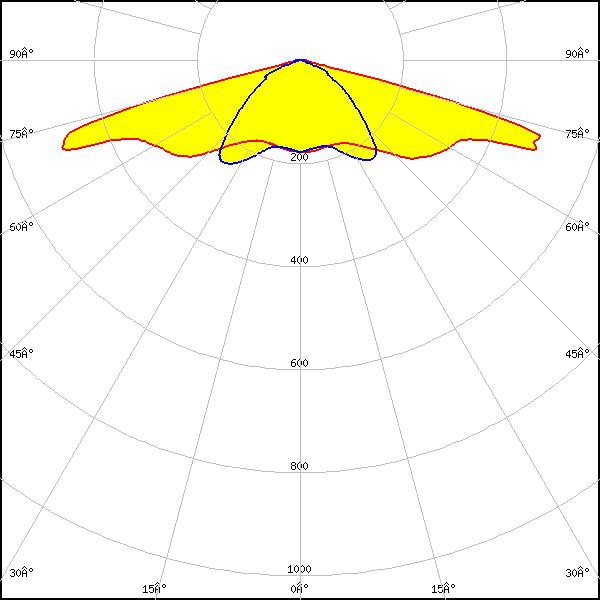

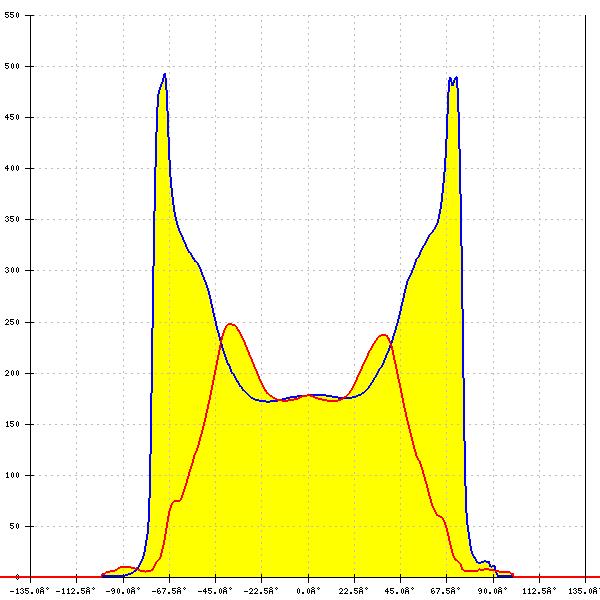

QUICK FLUX XTP 2x4 xxx LS G5
FWHM:
152° + 117°
FWTM:
158° + 144°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

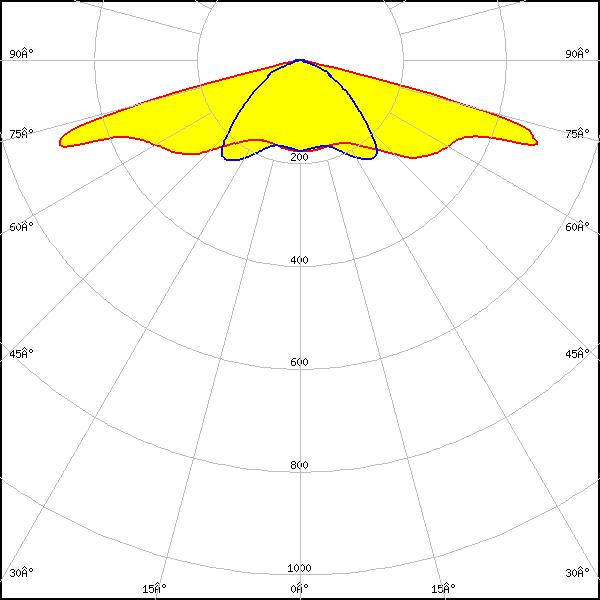

QUICK FLUX XTP 2x6 xxx LS G5
FWHM:
153° + 118°
FWTM:
158° + 145°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

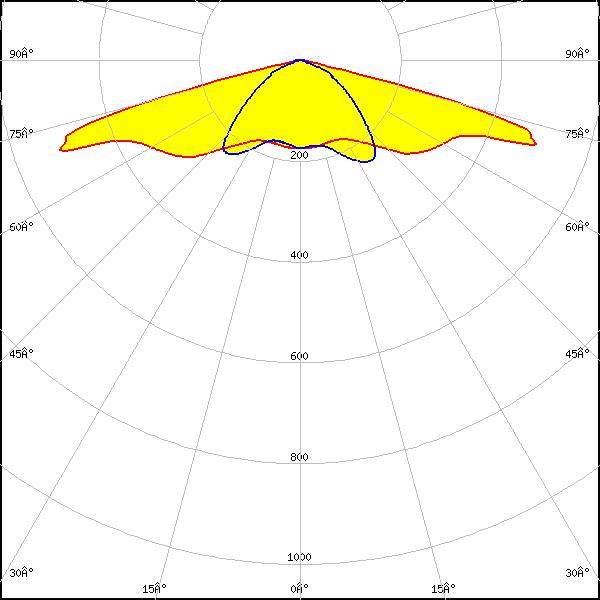

LED:

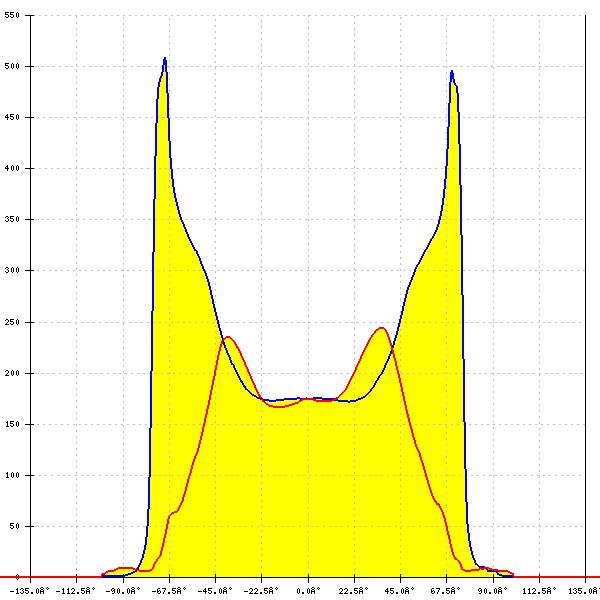

QUICK FLUX XTP 2x8 xxx LS G5
FWHM:
152° + 118°
FWTM:
157° + 145°
Peak intensity:
0.510 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.363 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

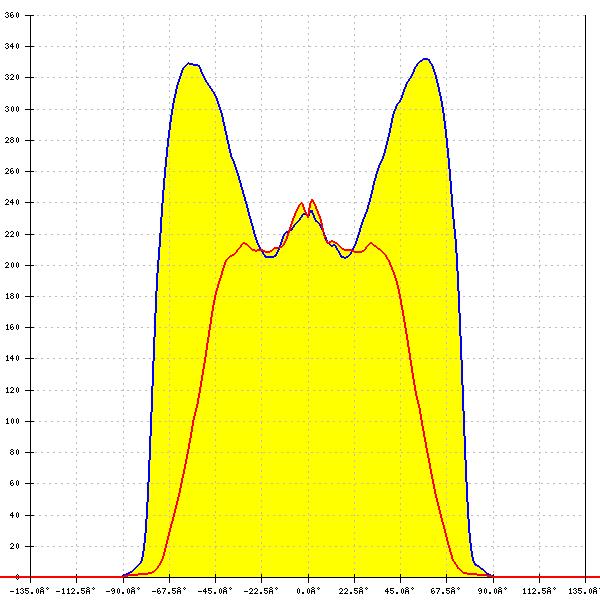

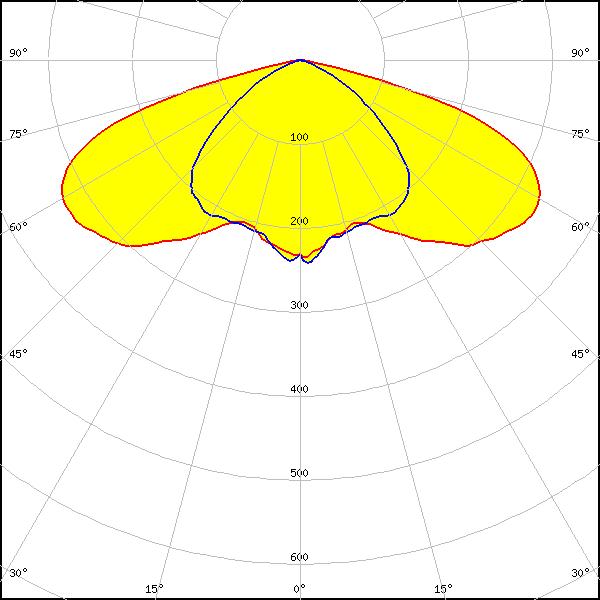

LED:

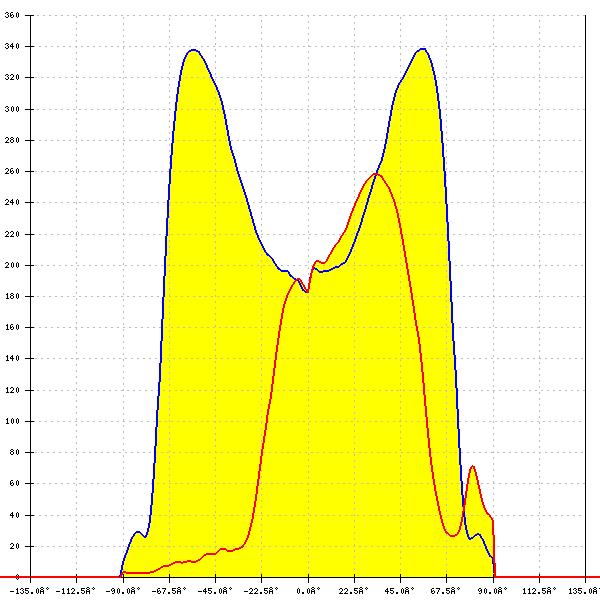

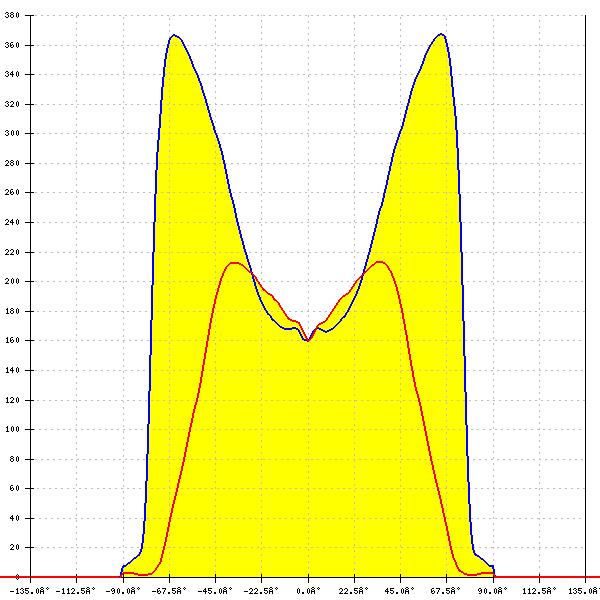

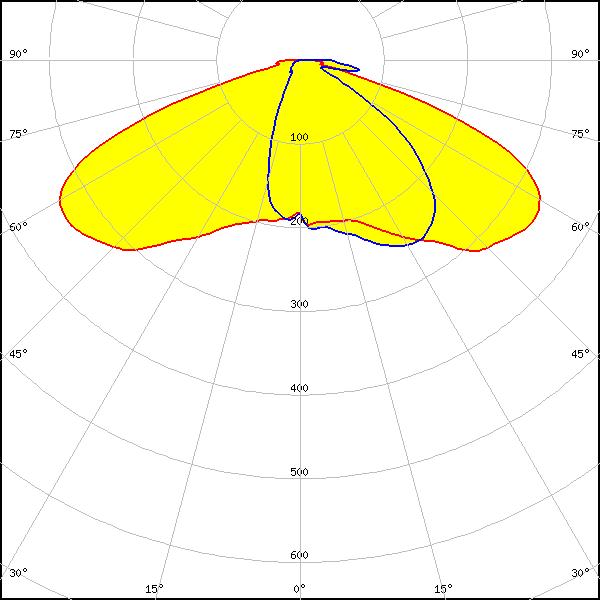

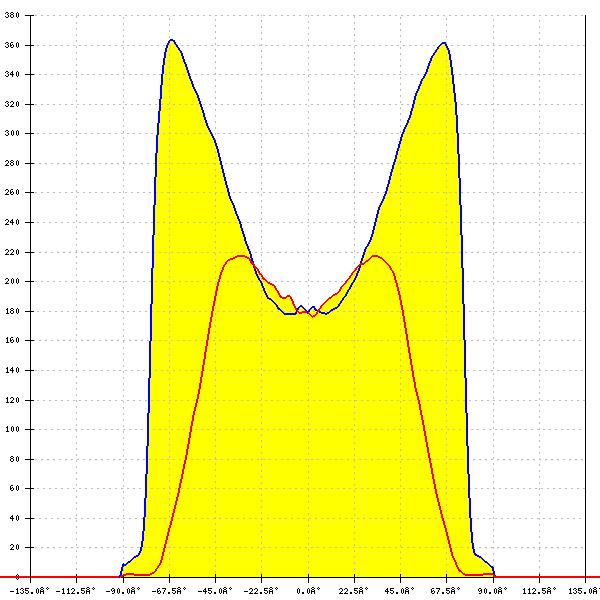

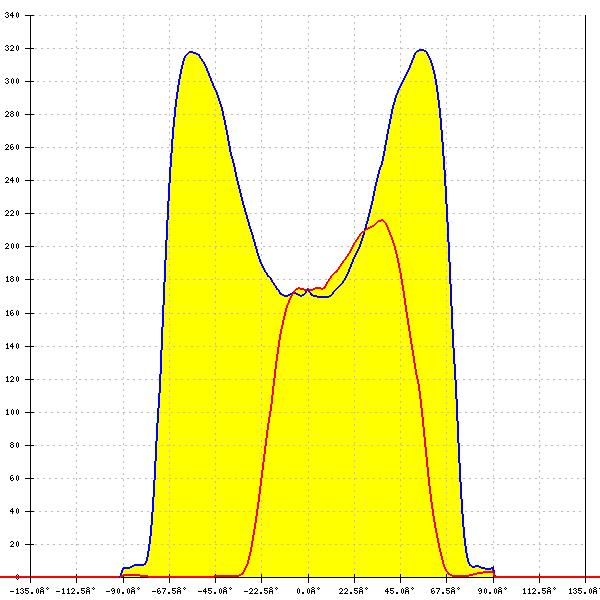

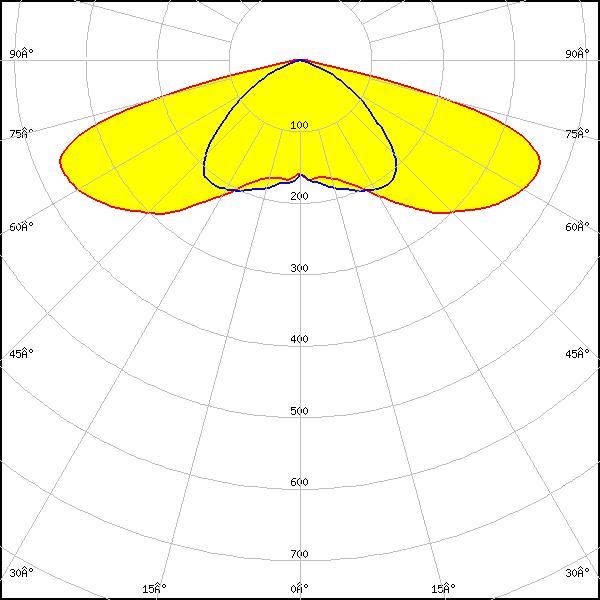

J Series 5050C 6V E Class
FWHM:
152° + 112°
FWTM:
158° + 140°
Peak intensity:
0.367 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
Required components:
FWHM: asymmetric
Peak intensity:
0.349 cd/lm
Efficiency:
61 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
Required components:
FWHM: asymmetric
Peak intensity:
0.371 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XB-D
FWHM:
154° + 107°
FWTM:
180° + 180°
Peak intensity:
0.456 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

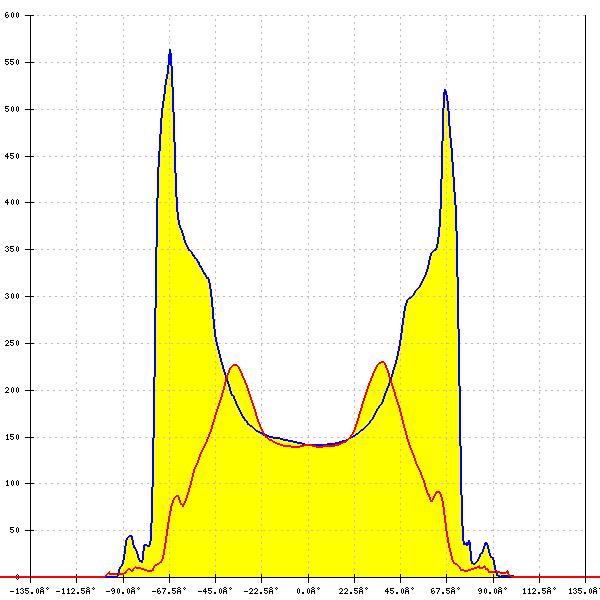

LED:

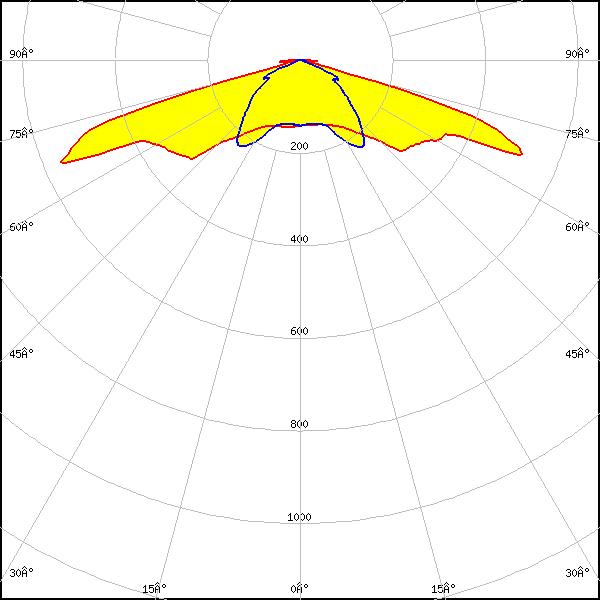

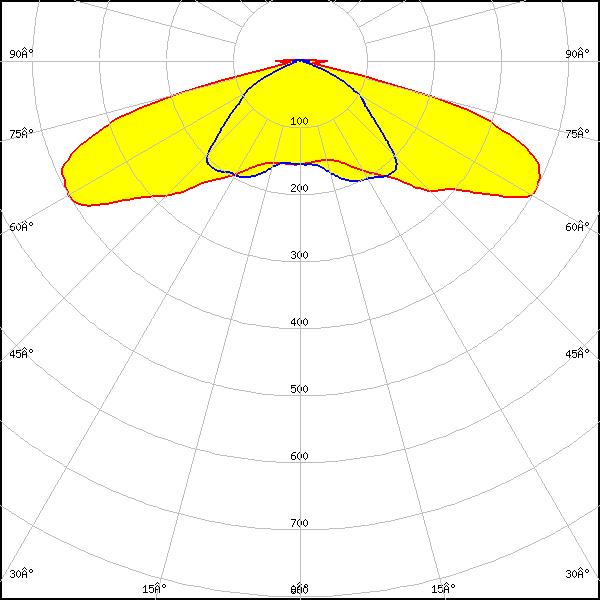

XD16
FWHM:
148° + 133°
FWTM:
176° + 145°
Peak intensity:
0.570 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XD16
FWHM:
150° + 126°
FWTM:
178° + 142°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:

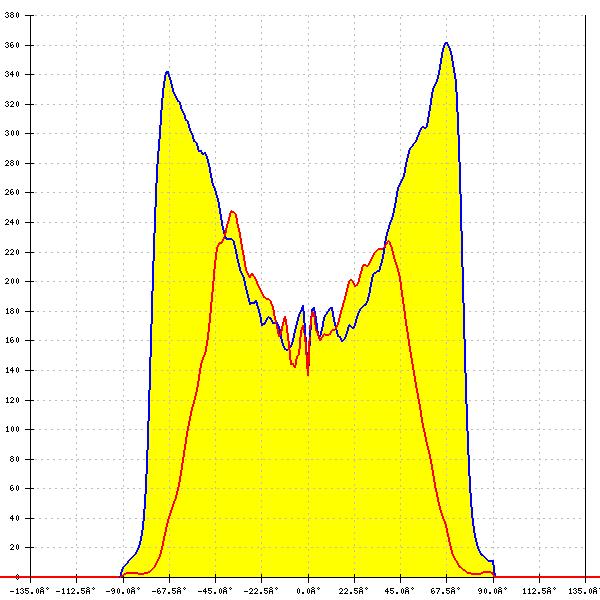

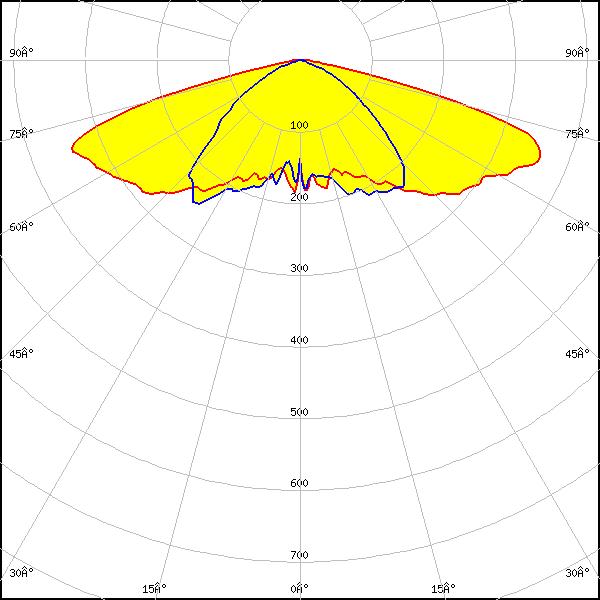

XM-L
FWHM:
109° + 152°
FWTM:
142° + 162°
Peak intensity:
0.360 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L2
FWHM:
153° + 112°
FWTM:
159° + 139°
Peak intensity:
0.423 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

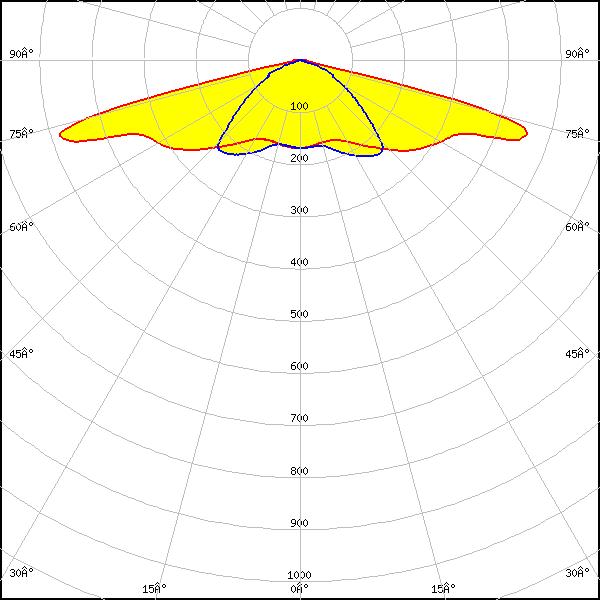

LED:
XM-L3
FWHM: asymmetric
Peak intensity:
0.482 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM:
156° + 112°
FWTM:
161° + 144°
Peak intensity:
0.430 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

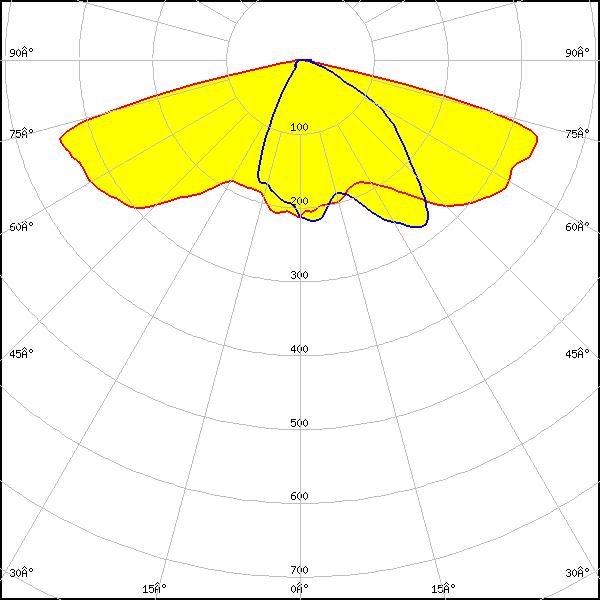

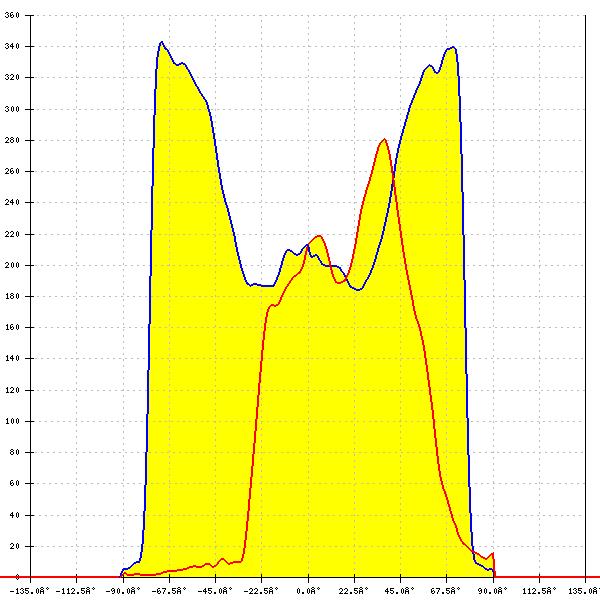

LED:

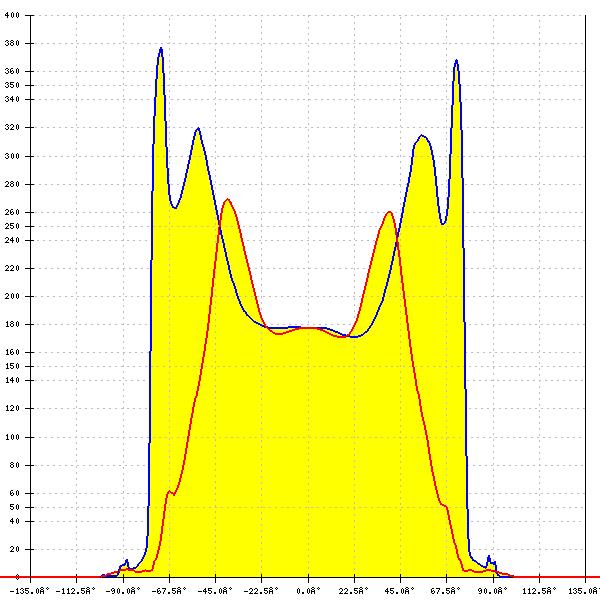

XP-G2
Required components:
FWHM: asymmetric
Peak intensity:
0.373 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
153° + 118°
FWTM:
156° + 142°
Peak intensity:
0.380 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

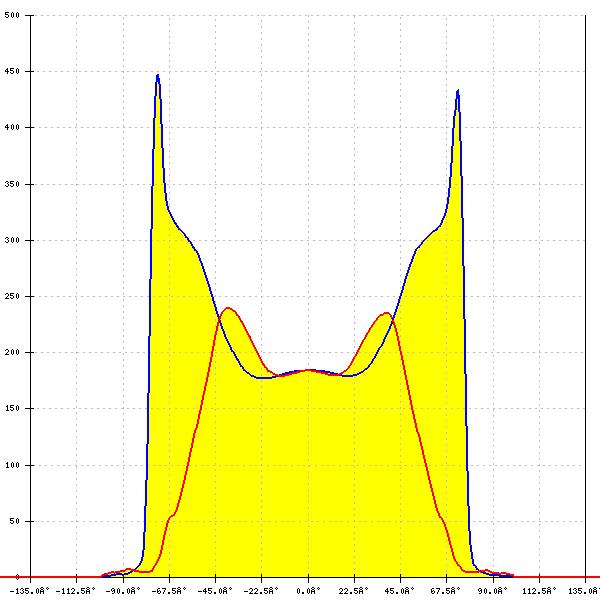

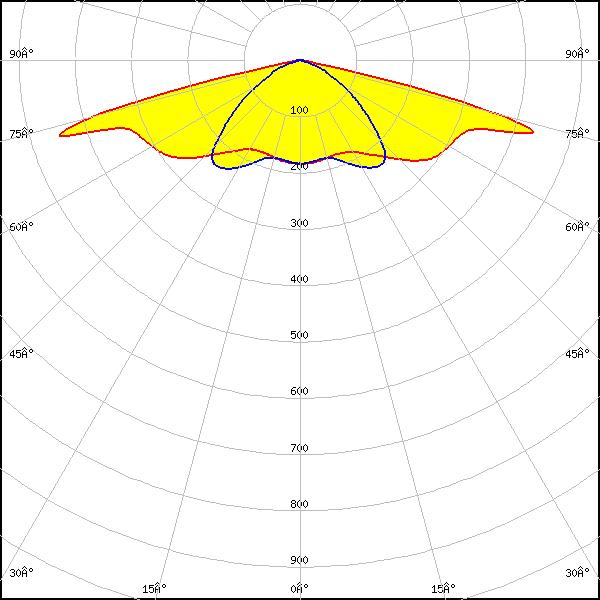

XP-G2 HE
FWHM: asymmetric
Peak intensity:
0.447 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

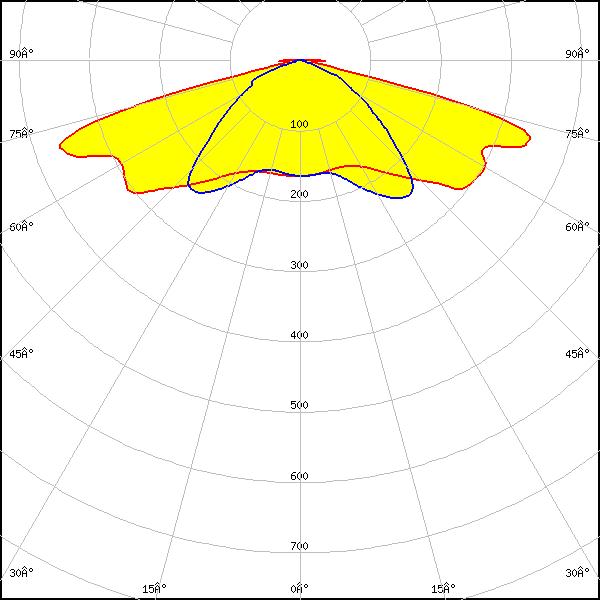

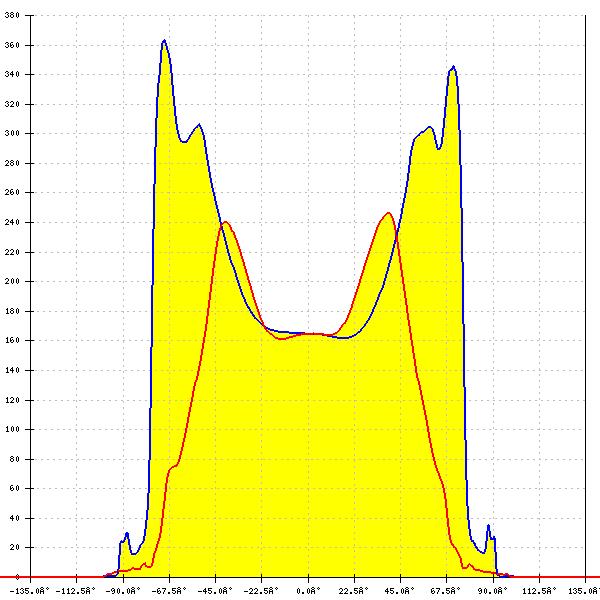

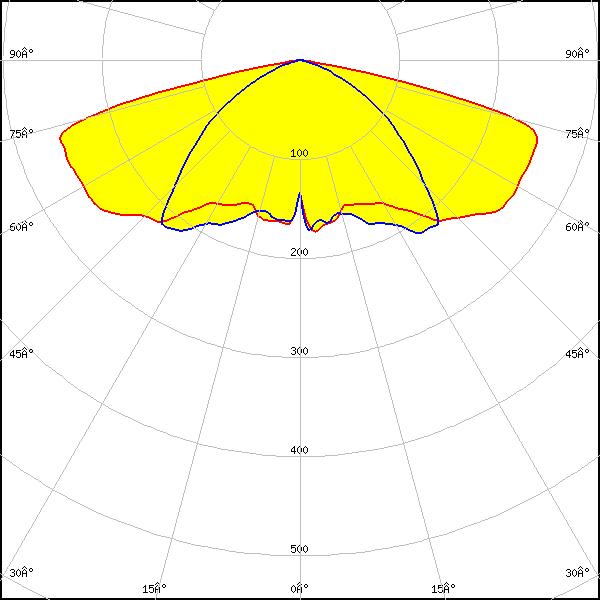

XP-G3
FWHM:
154° + 112°
FWTM:
162° + 142°
Peak intensity:
0.256 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

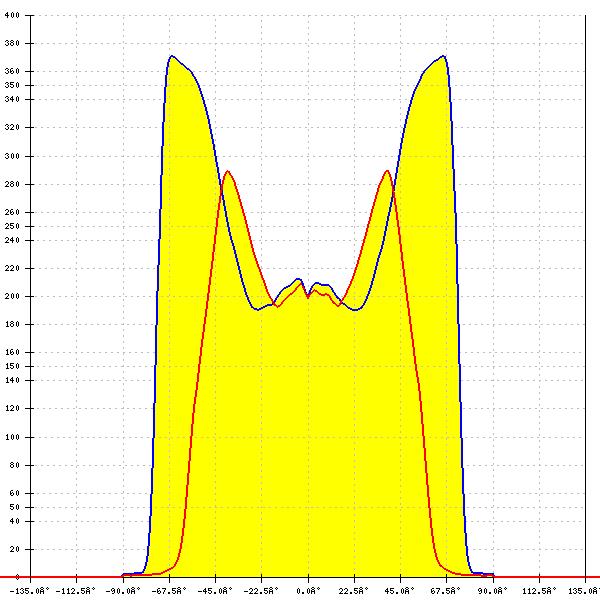

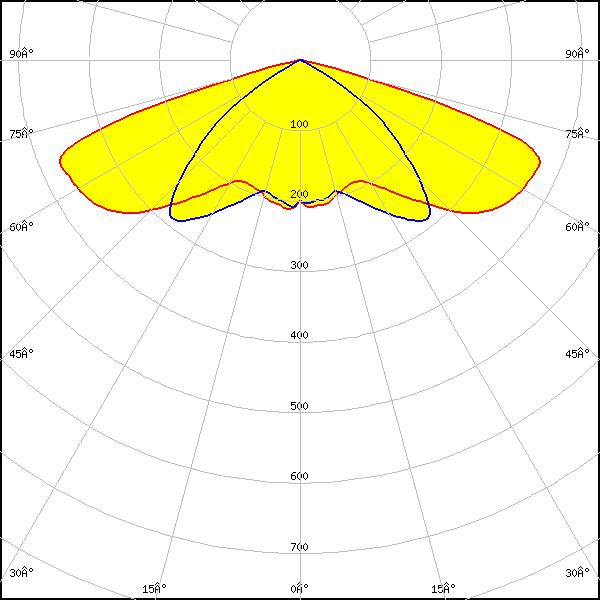

XP-G4
FWHM:
146° + 106°
FWTM:
154° + 122°
Peak intensity:
0.371 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HD
FWHM:
155° + 109°
FWTM:
161° + 132°
Peak intensity:
0.321 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

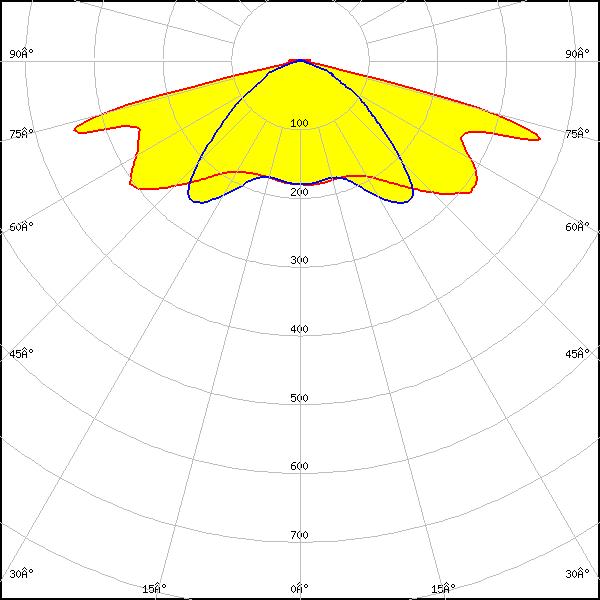

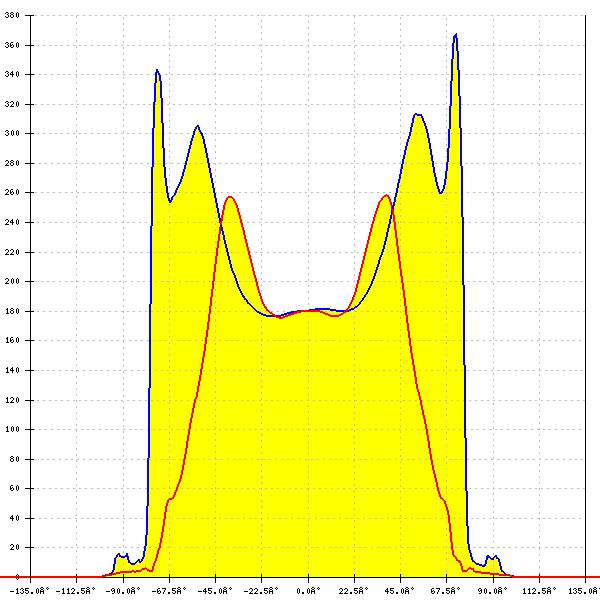

XP-L HI
FWHM:
153° + 118°
FWTM:
156° + 143°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

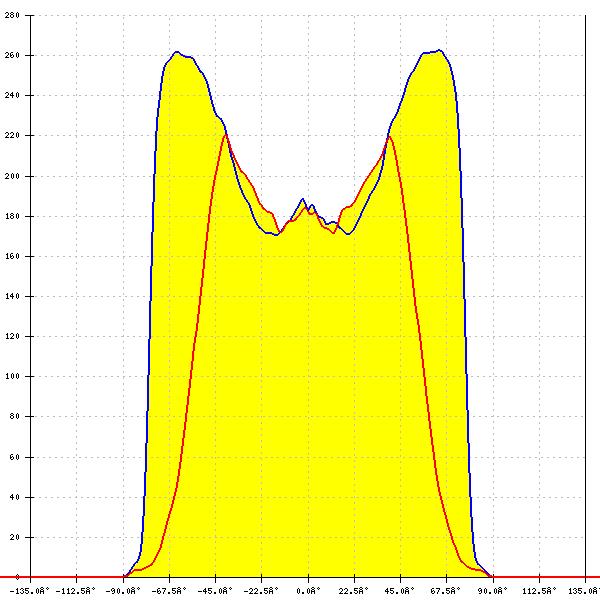

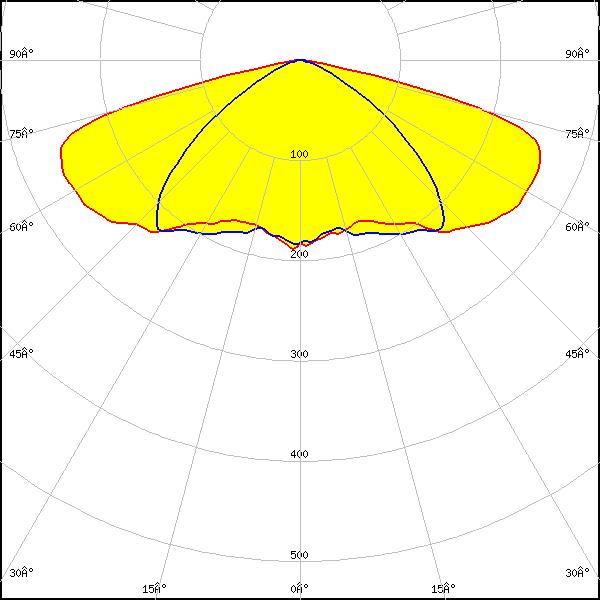

XP-L2
FWHM: asymmetric
Peak intensity:
0.262 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

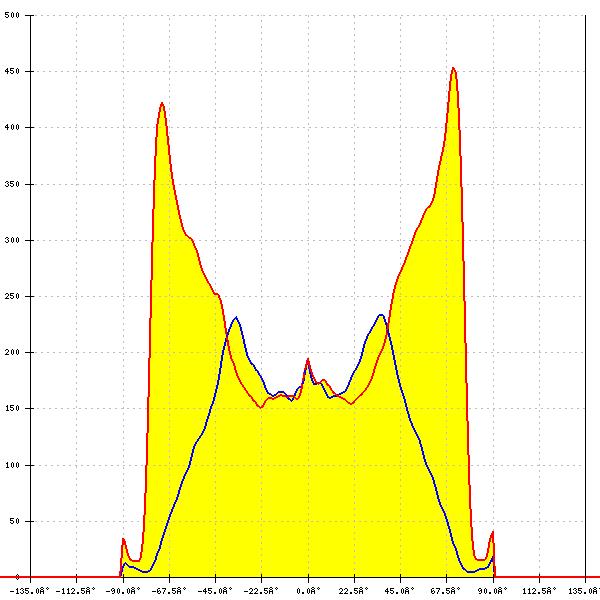

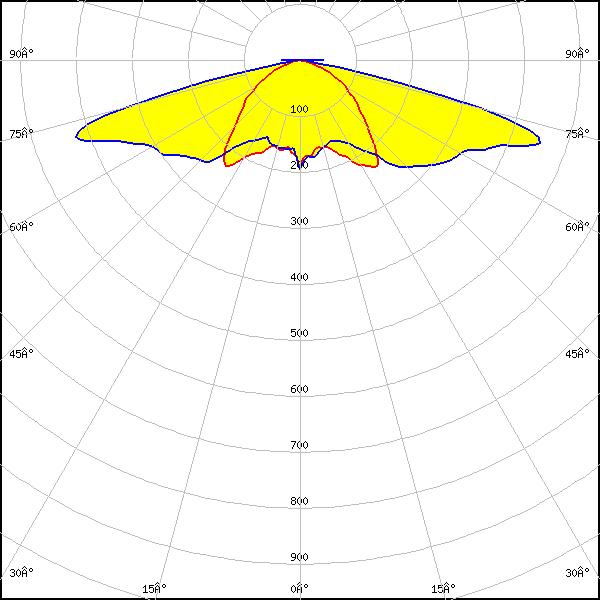

XT-E
FWHM:
153° + 110°
FWTM:
180° + 145°
Peak intensity:
0.454 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
155° + 110°
FWTM:
170° + 146°
Peak intensity:
0.433 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

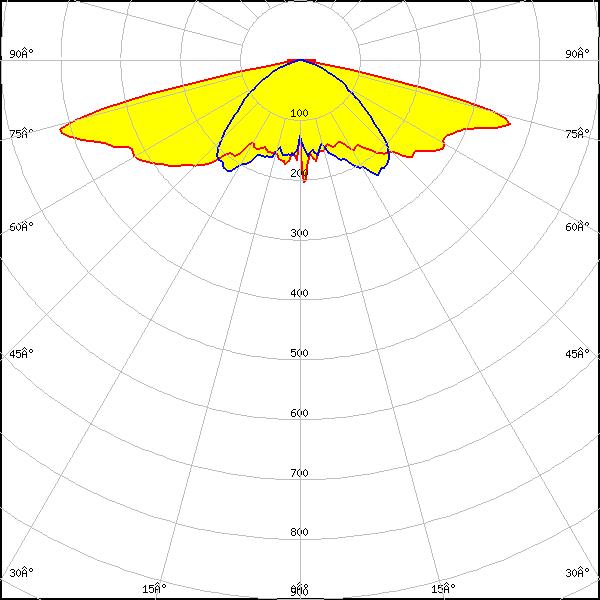

LED:

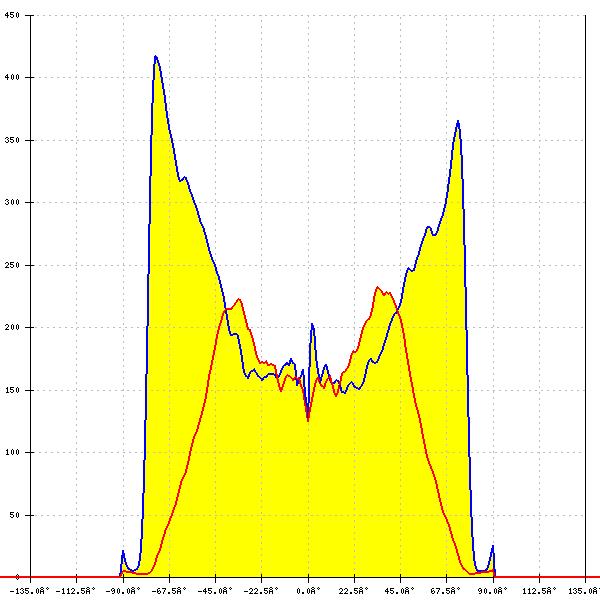

XT-E HVW
FWHM:
155° + 110°
FWTM:
160° + 144°
Peak intensity:
0.417 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

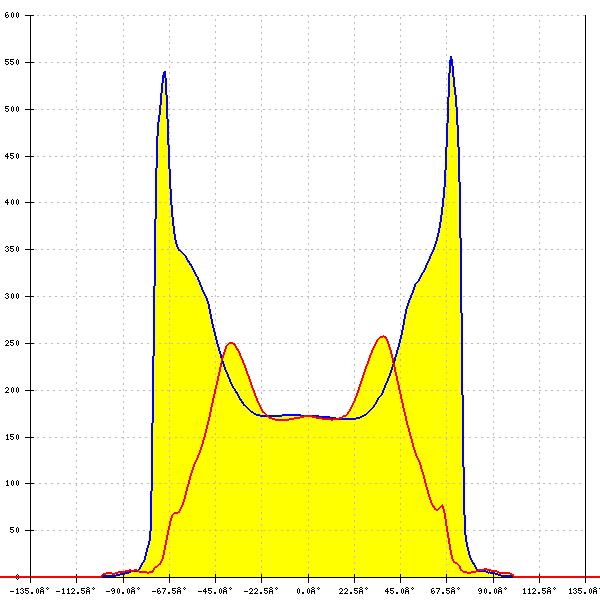

PrevaLED Brick HP 2x8
FWHM:
152° + 119°
FWTM:
155° + 144°
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

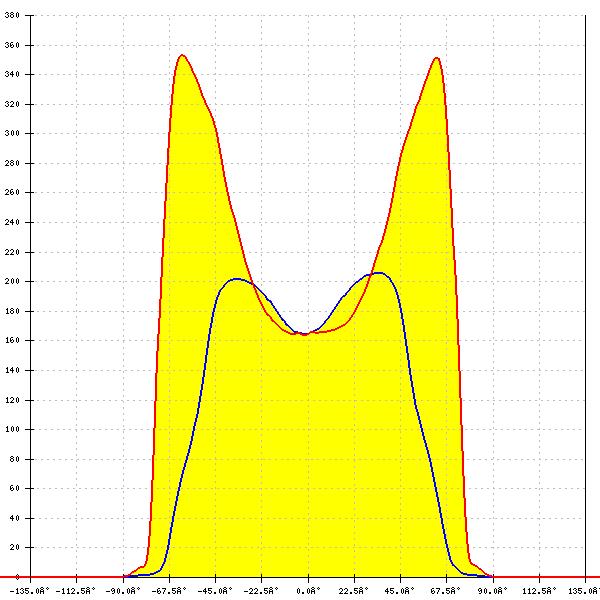

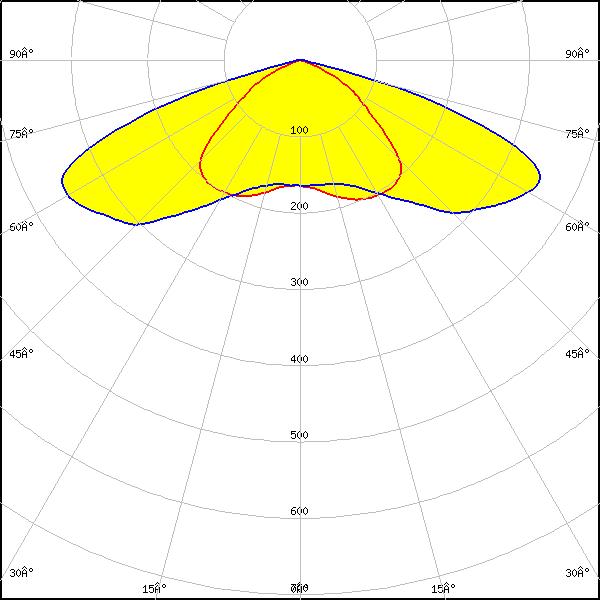

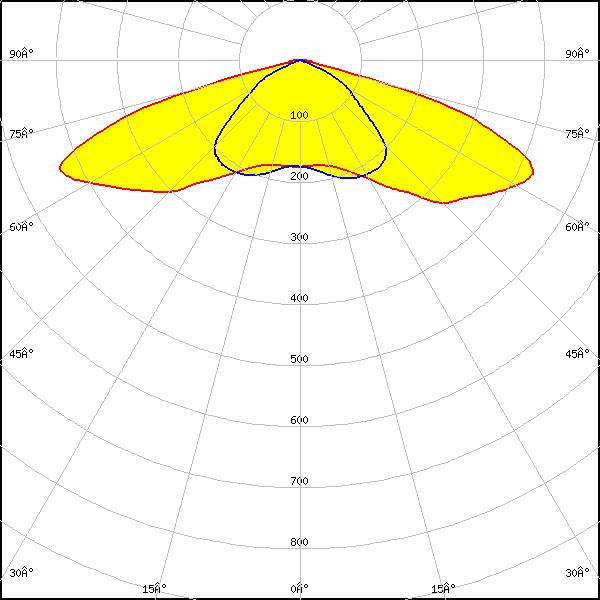

LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.353 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM:
149° + 119°
FWTM:
154° + 138°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

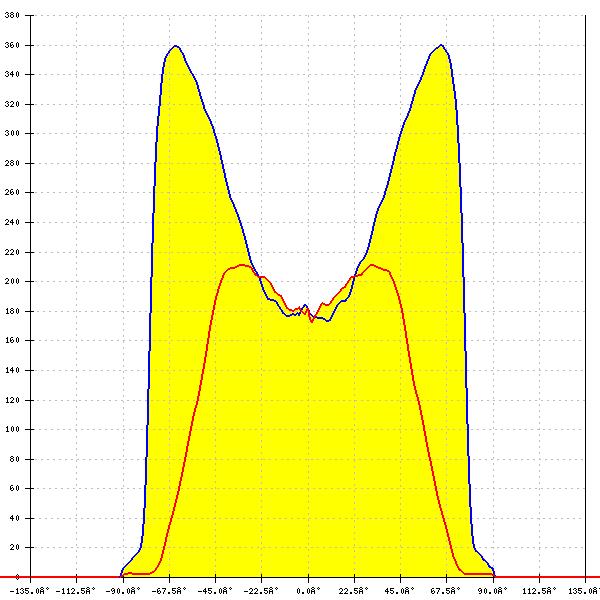

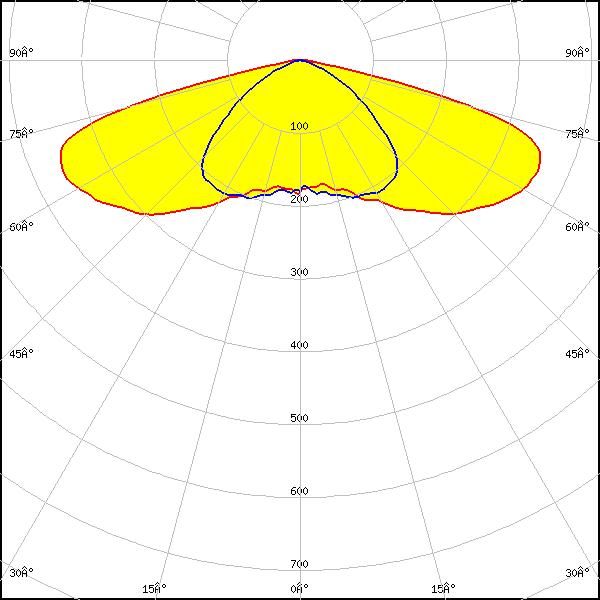

LED:

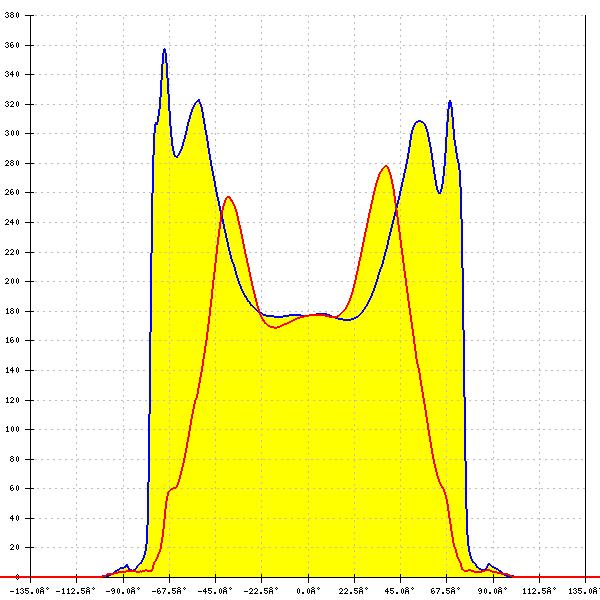

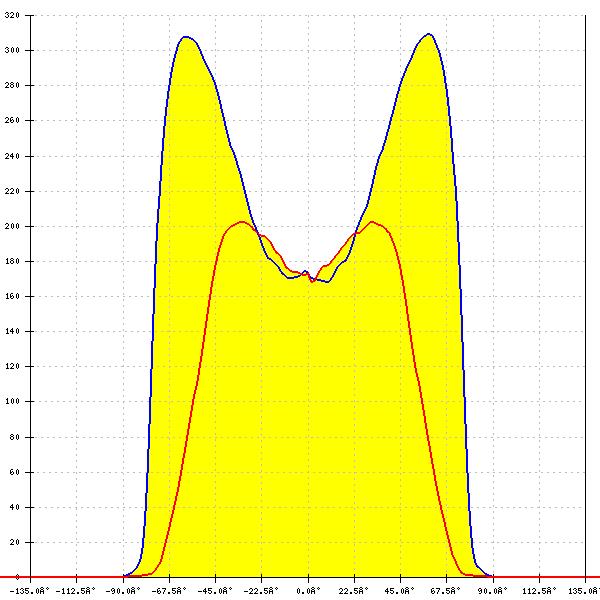

LUXEON 5050 Square LES
FWHM:
152° + 112°
FWTM:
160° + 140°
Peak intensity:
0.360 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

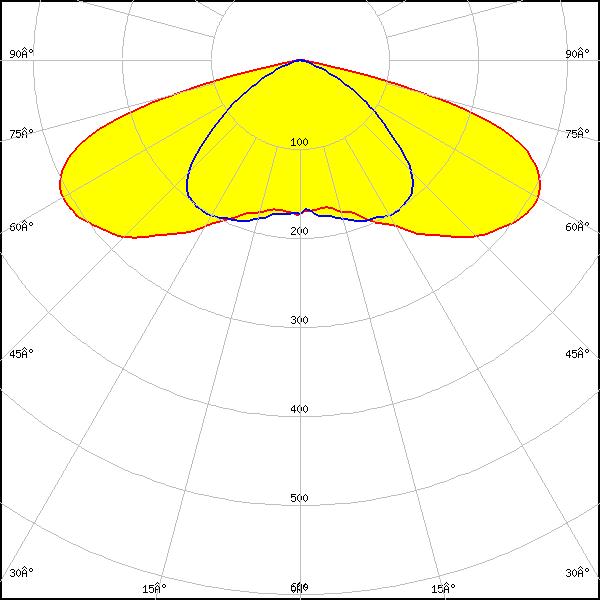

LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.309 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON R
FWHM:
150° + 107°
FWTM:
156° + 138°
Peak intensity:
0.421 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
151° + 106°
FWTM:
157° + 139°
Peak intensity:
0.424 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

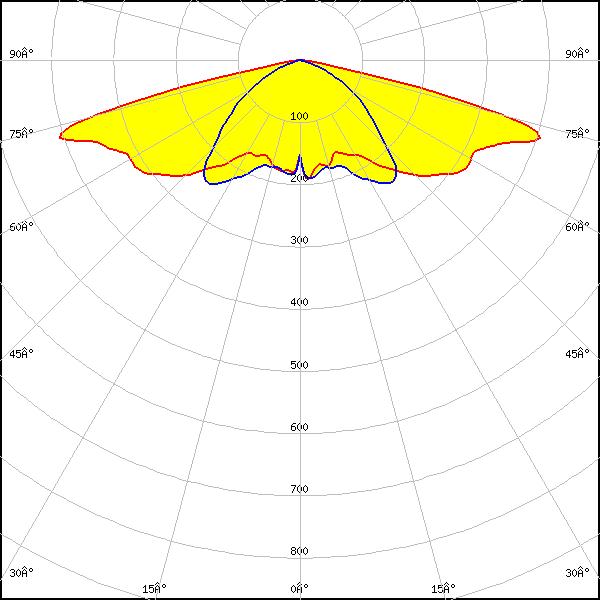

LED:

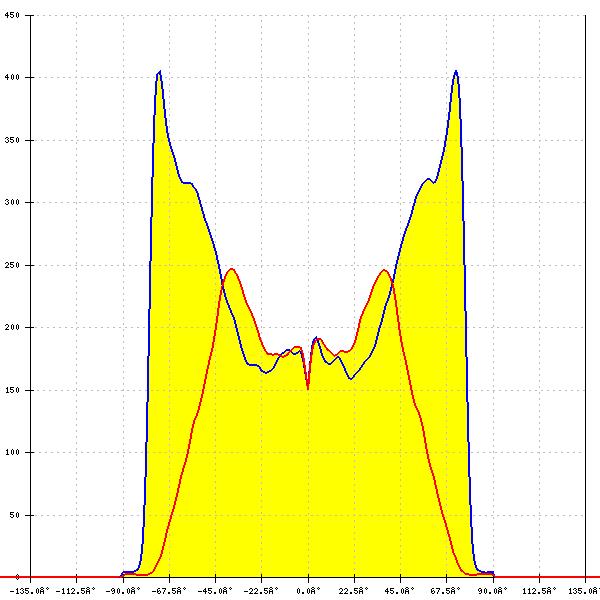

LUXEON T
FWHM:
154° + 110°
FWTM:
160° + 140°
Peak intensity:
0.406 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
FWHM:
153° + 108°
FWTM:
158° + 143°
Peak intensity:
0.468 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

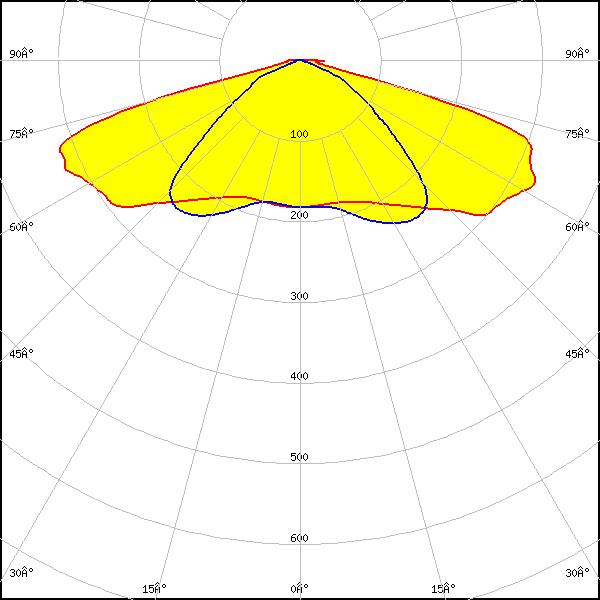

LUXEON V
FWHM:
152° + 117°
FWTM:
174° + 141°
Peak intensity:
0.330 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

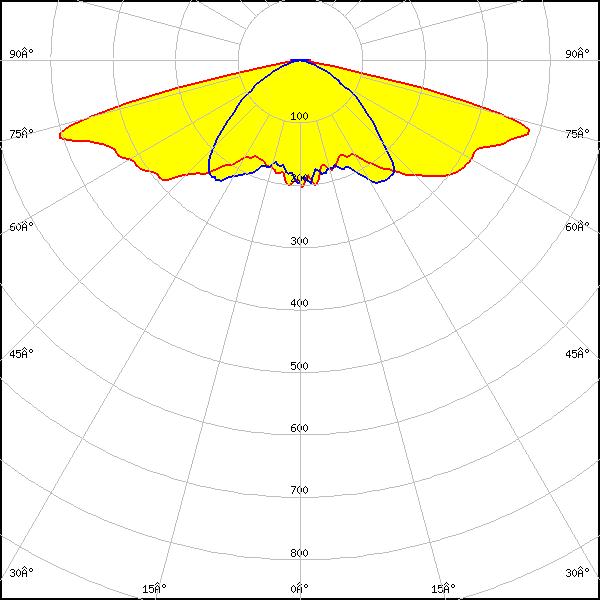

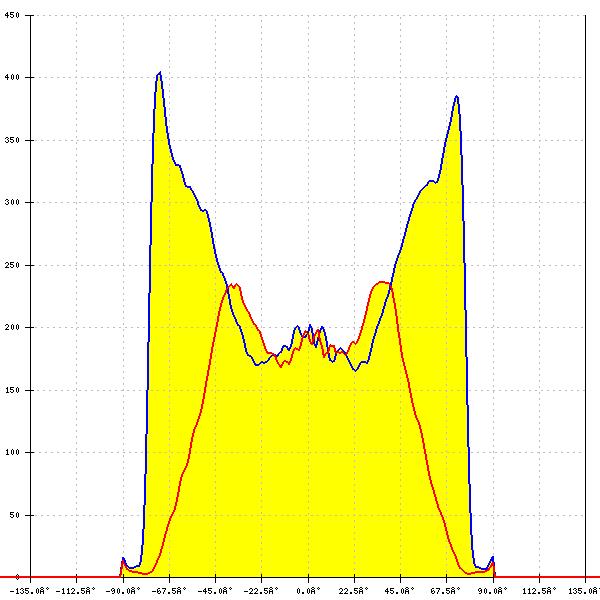

LED:
LUXEON V2
FWHM:
154° + 110°
FWTM:
160° + 141°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

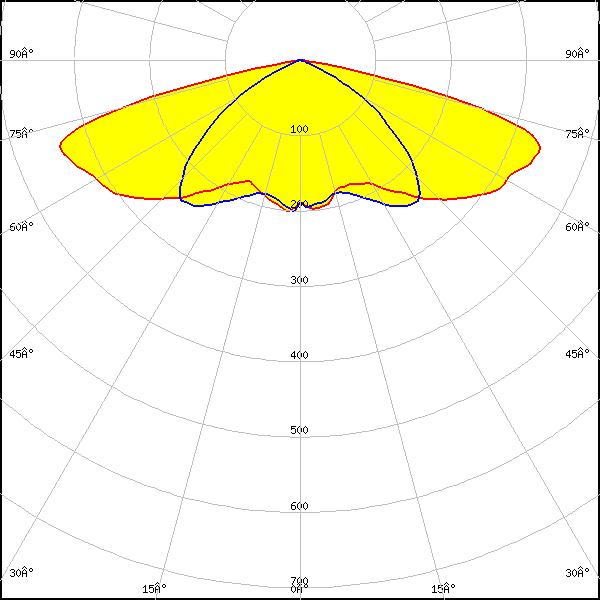

LED:

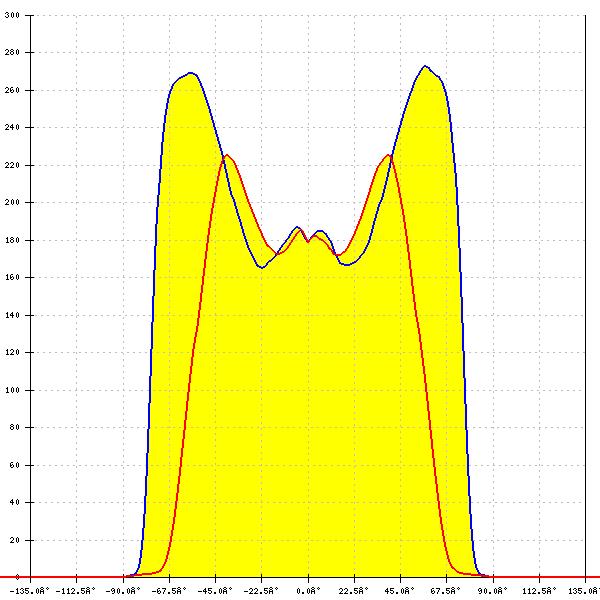

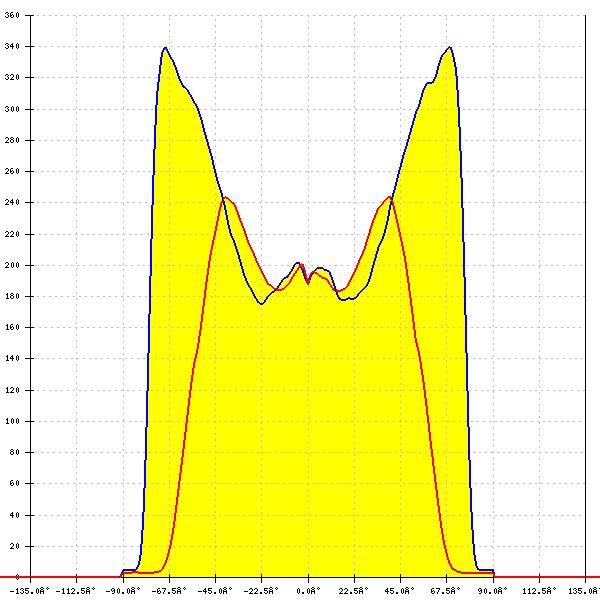

LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
154° + 114°
FWTM:
160° + 132°
Peak intensity:
0.339 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
150° + 112°
FWTM:
160° + 132°
Peak intensity:
0.273 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

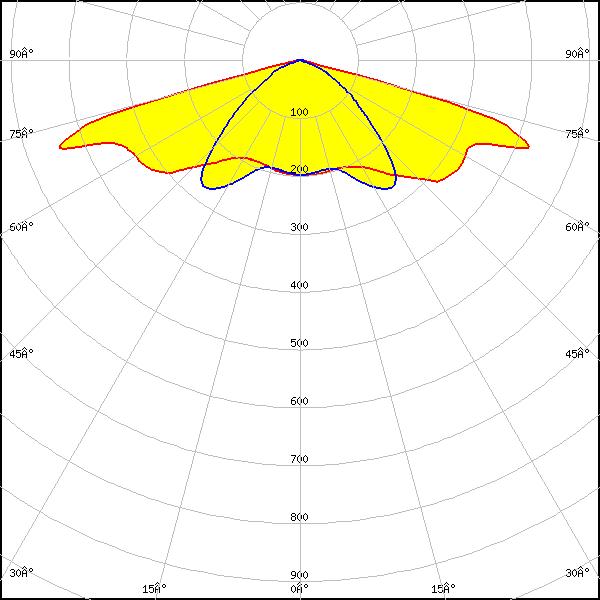

LED:

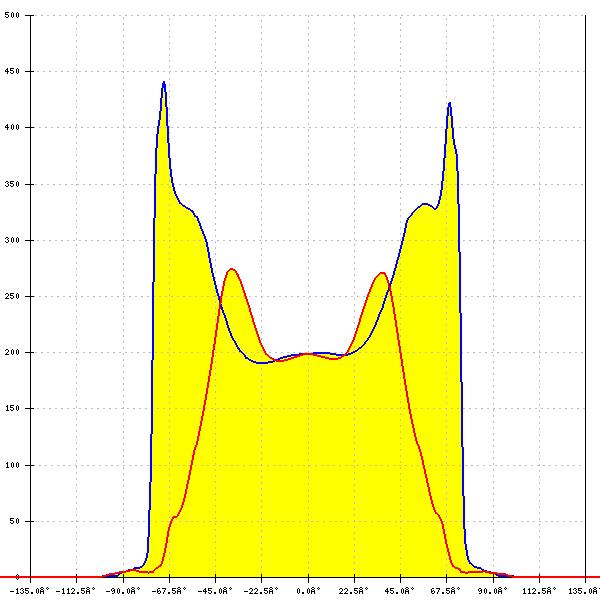

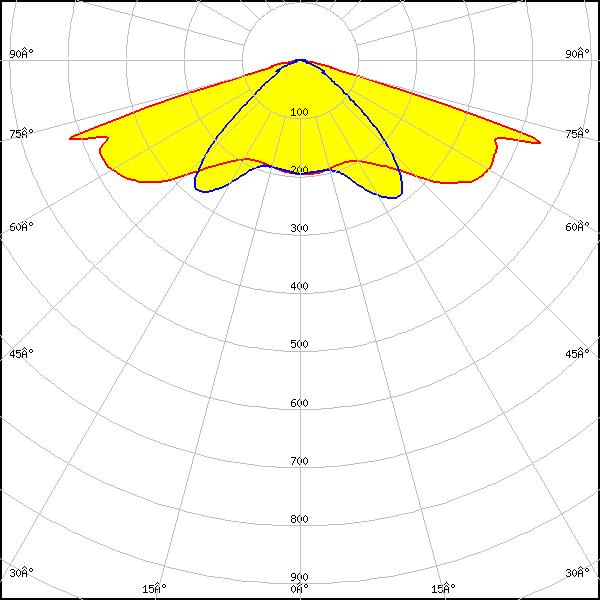

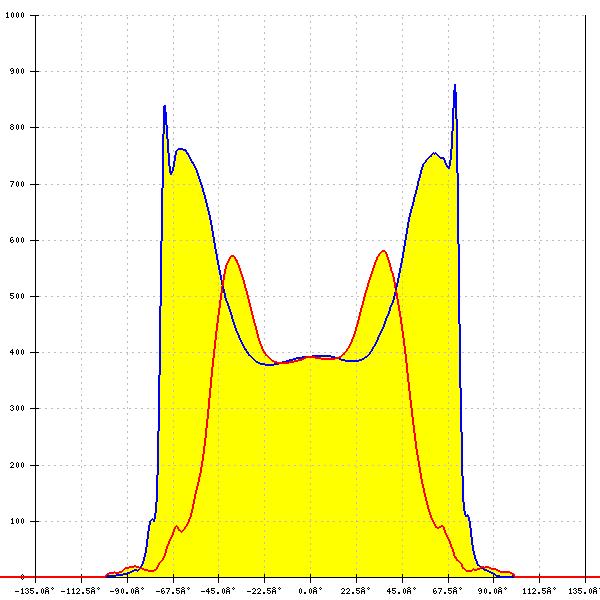

RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity:
0.441 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxx19B
FWHM:
152° + 111°
FWTM:
156° + 162°
Peak intensity:
0.511 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

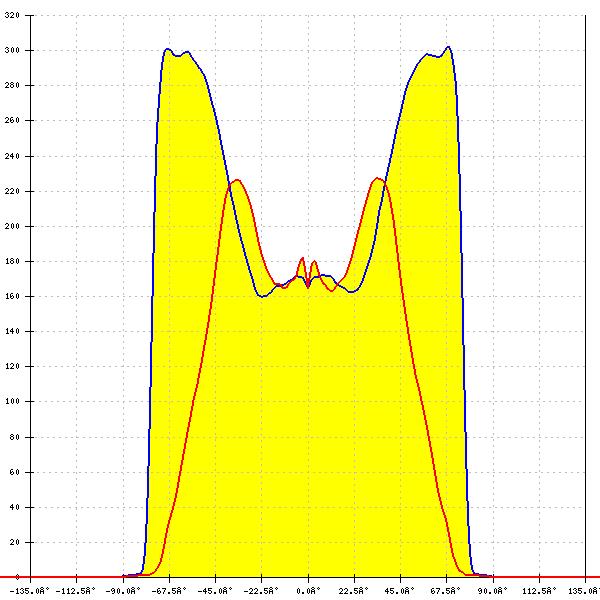

NF2x757G
FWHM:
150° + 106°
FWTM:
156° + 138°
Peak intensity:
0.302 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

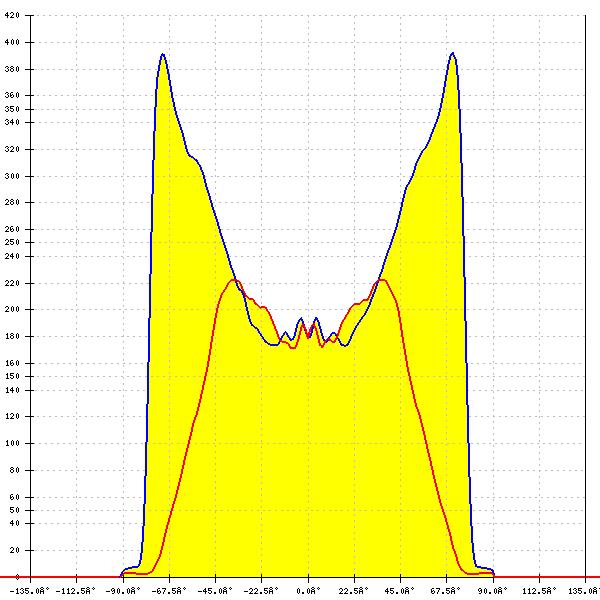

NV4WB35AM
FWHM: asymmetric
Peak intensity:
0.392 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

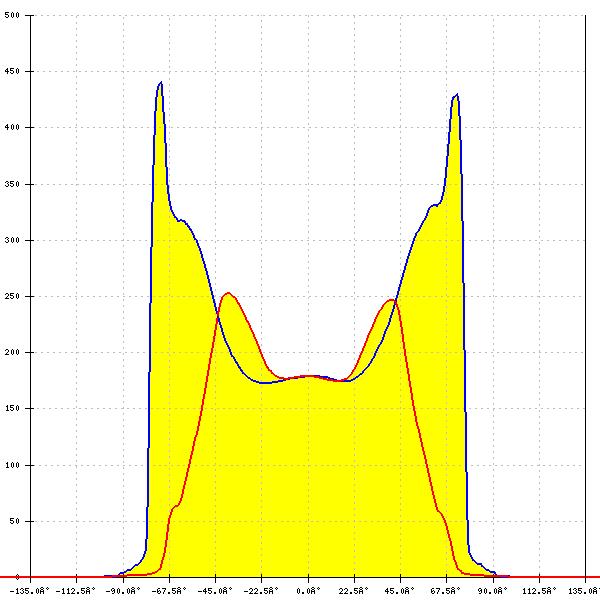

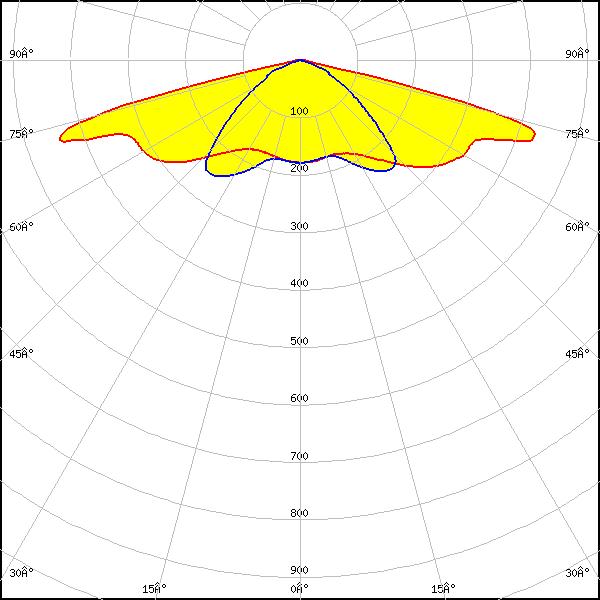

NVSW219F
FWHM:
154° + 118°
FWTM:
156° + 142°
Peak intensity:
0.440 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

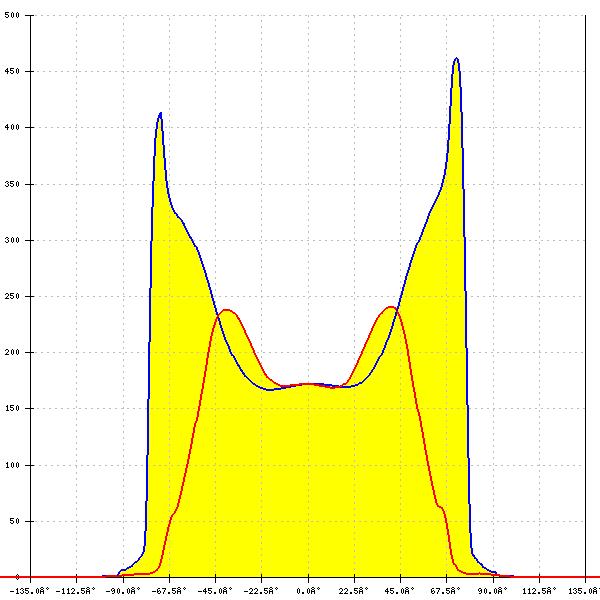

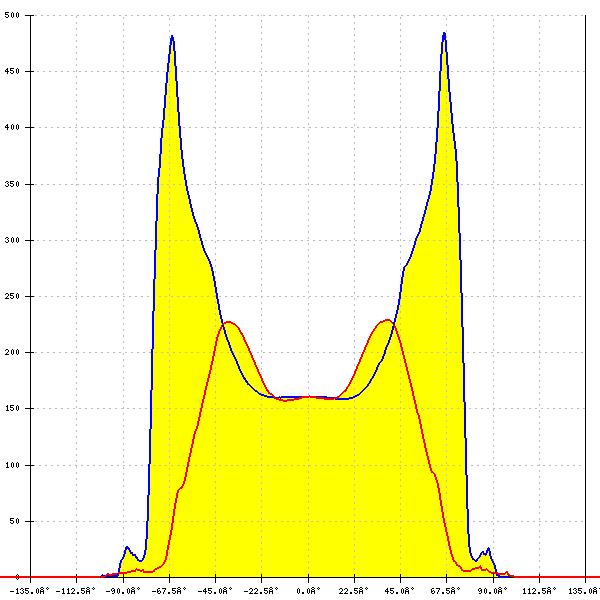

LED:

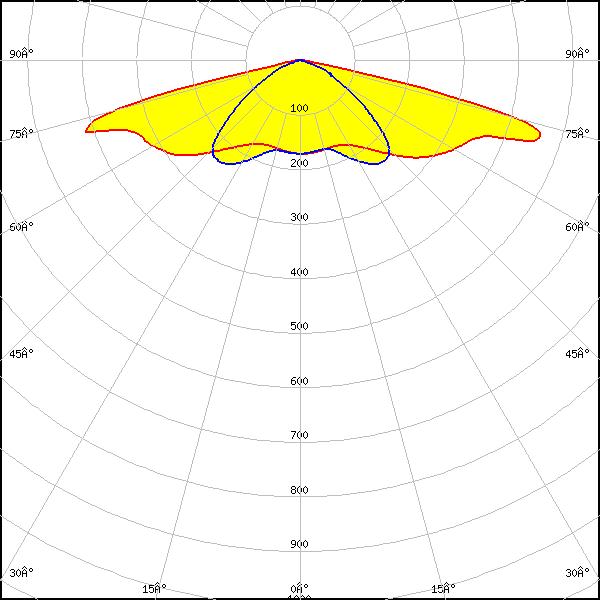

NVSW319B
FWHM:
155° + 120°
FWTM:
158° + 142°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW3x9A
FWHM:
152° + 125°
FWTM:
157° + 140°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

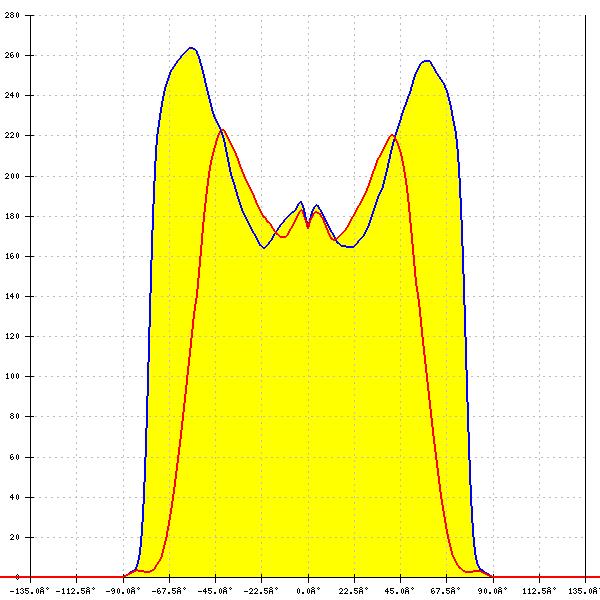

LED:

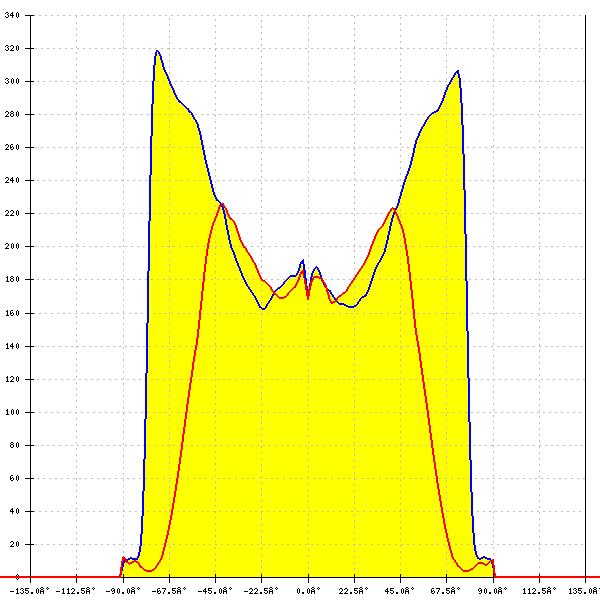

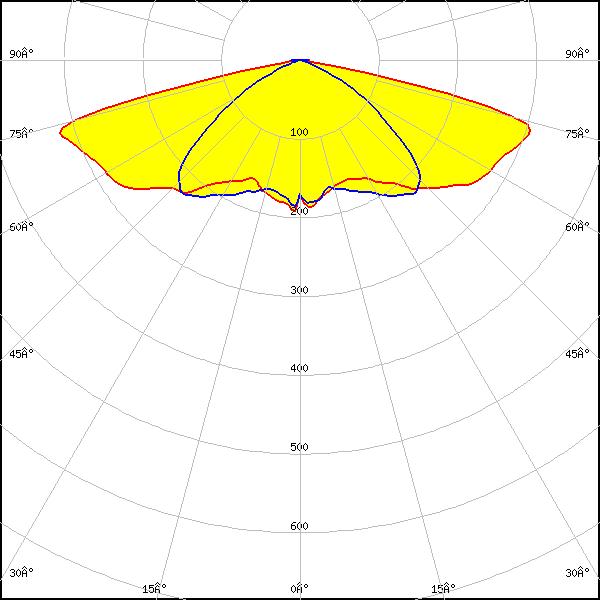

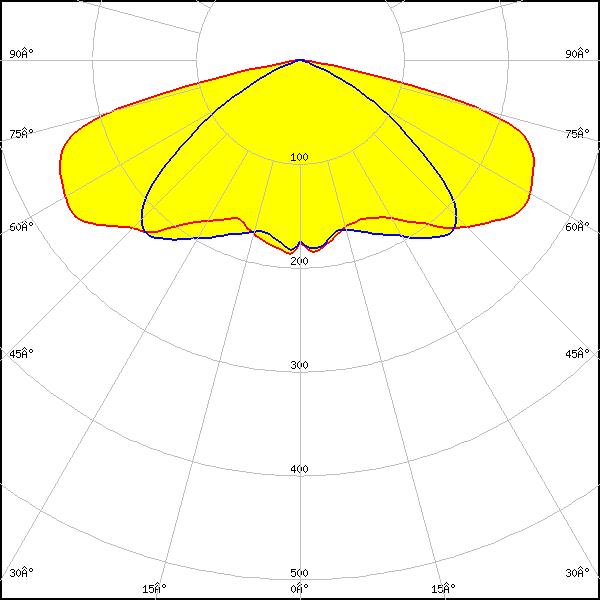

NVSW519A
FWHM:
156° + 114°
FWTM:
162° + 138°
Peak intensity:
0.319 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM: asymmetric
Peak intensity:
0.264 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

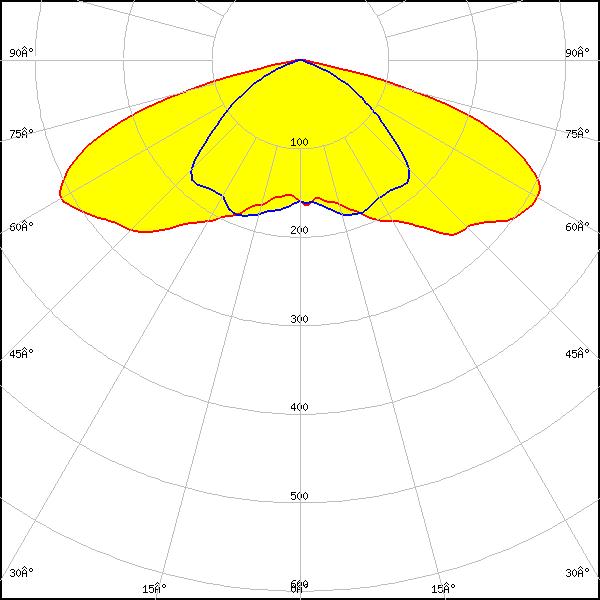

LED:

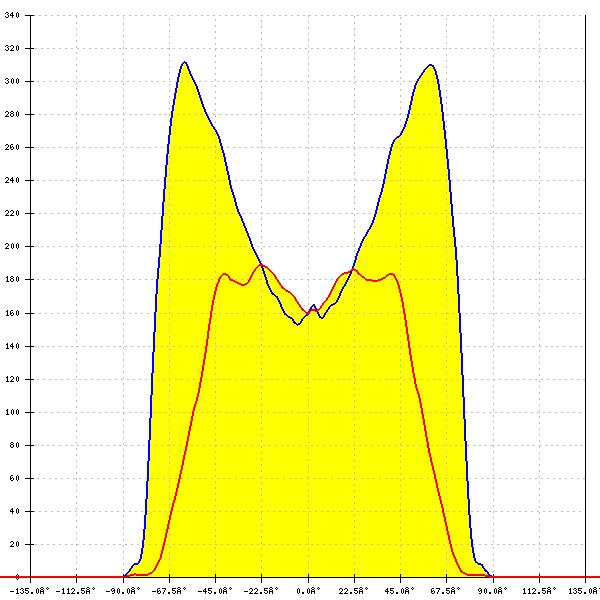

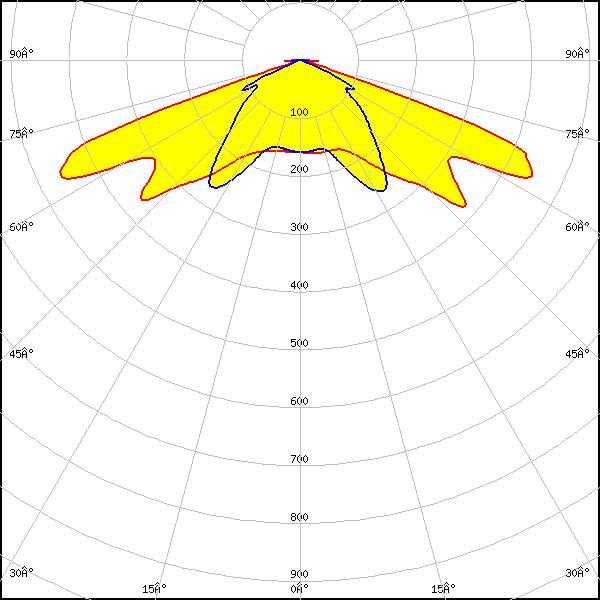

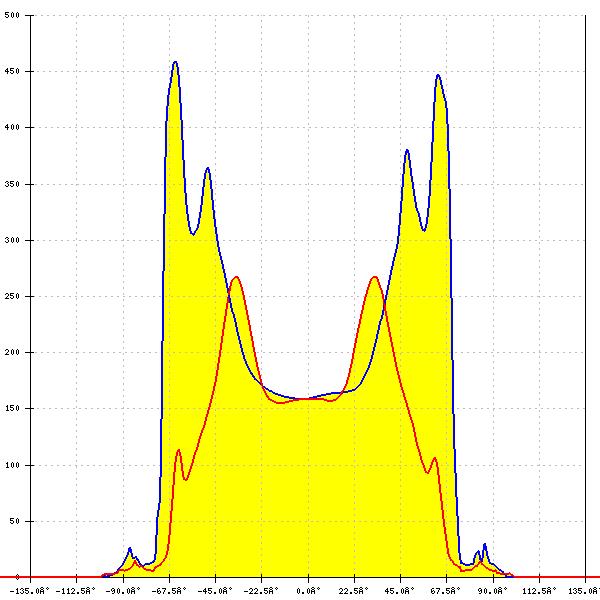

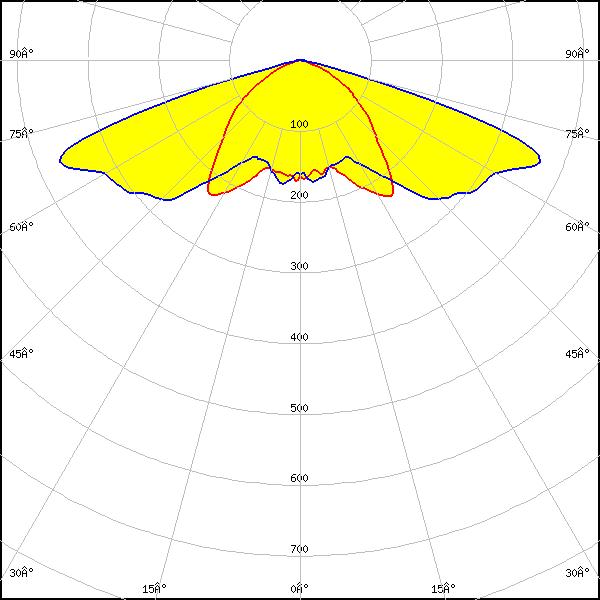

NVSxE21A
FWHM:
148° + 112°
FWTM:
158° + 140°
Peak intensity:
0.312 cd/lm
Efficiency:
84 %
LEDs/each optic:
4
Light colour/type:
White
LED:
NVSxE21A
FWHM:
105° + 146°
FWTM:
138° + 152°
Peak intensity:
0.368 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
142° + 130°
FWTM:
147° + 140°
Peak intensity:
0.470 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

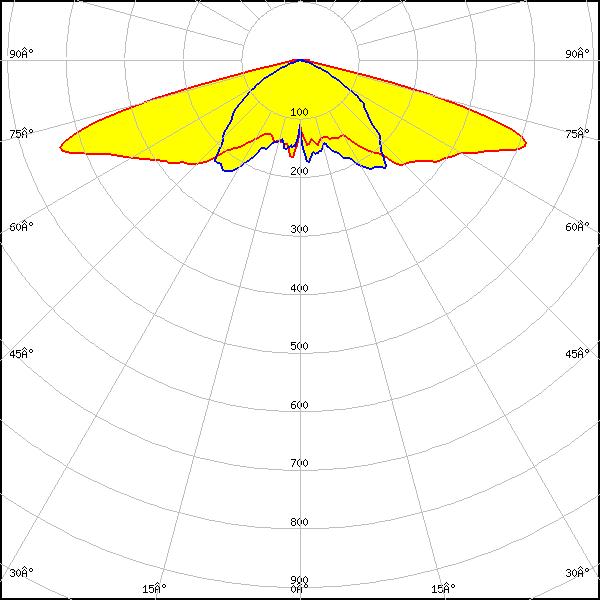

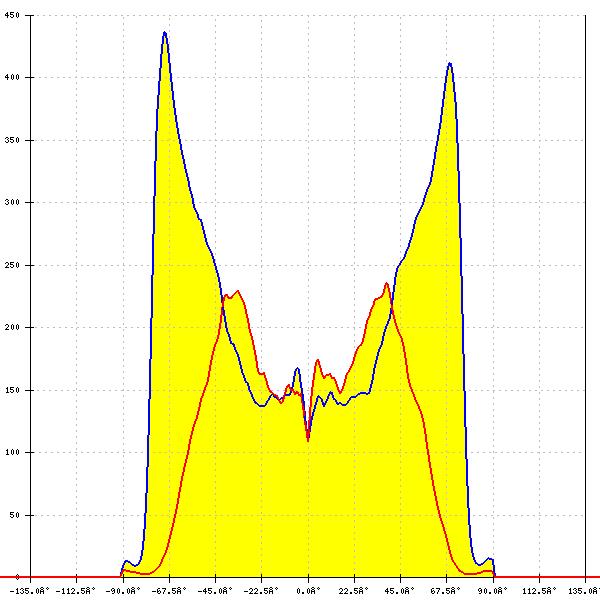

NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity:
0.440 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

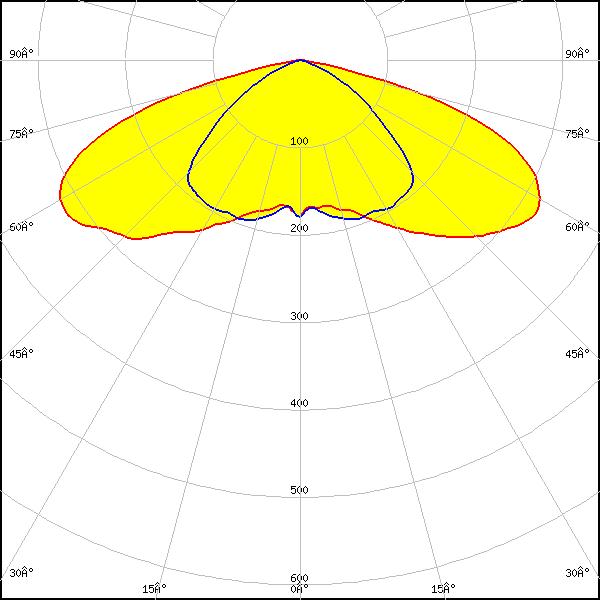

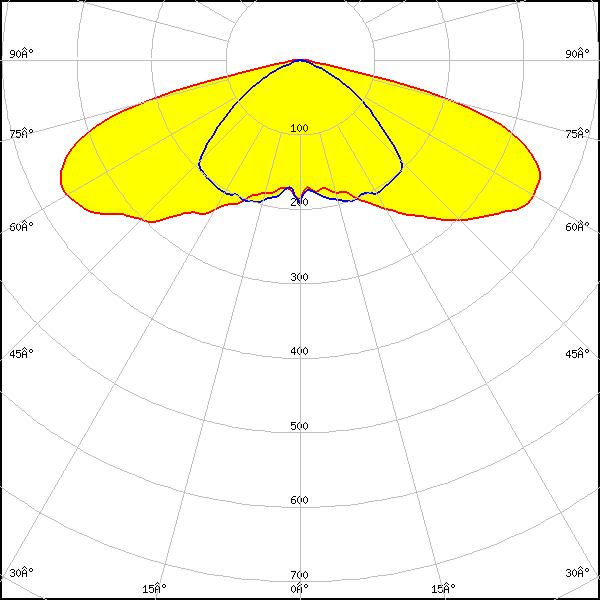

LED:

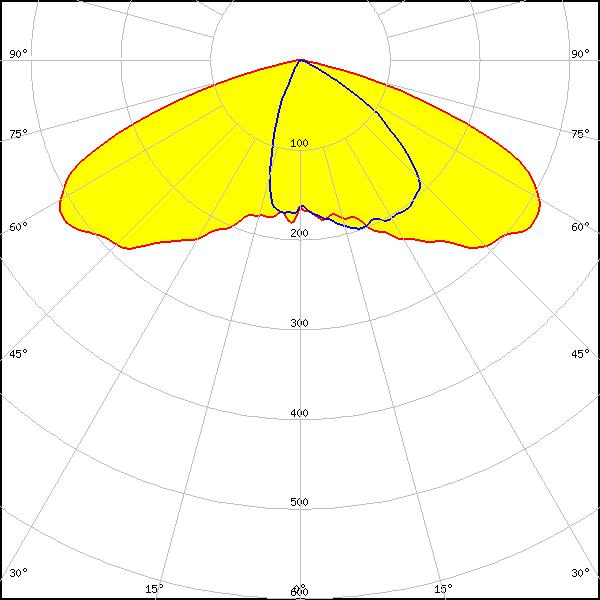

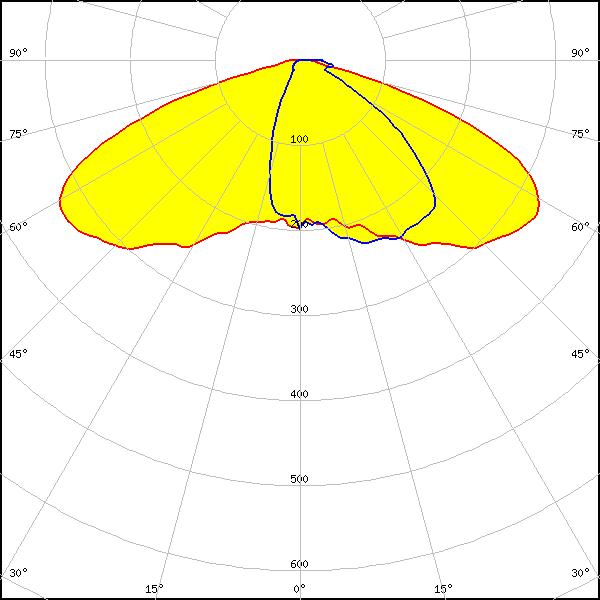

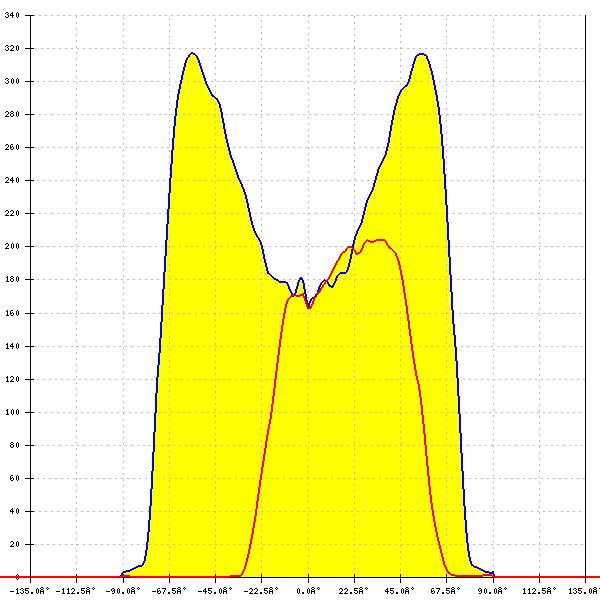

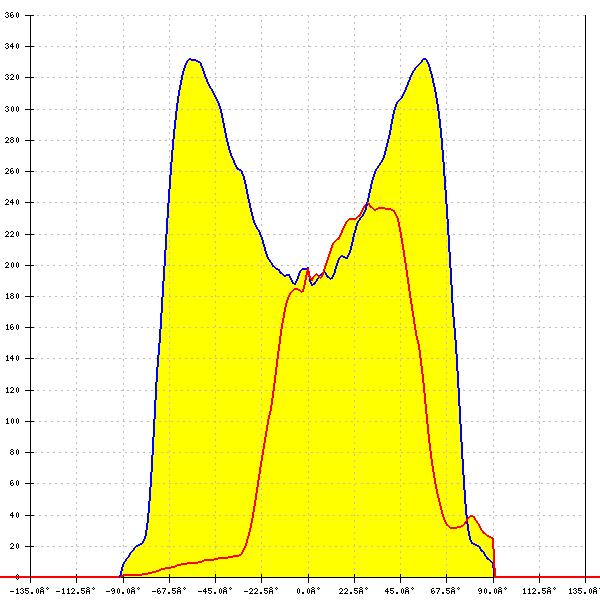

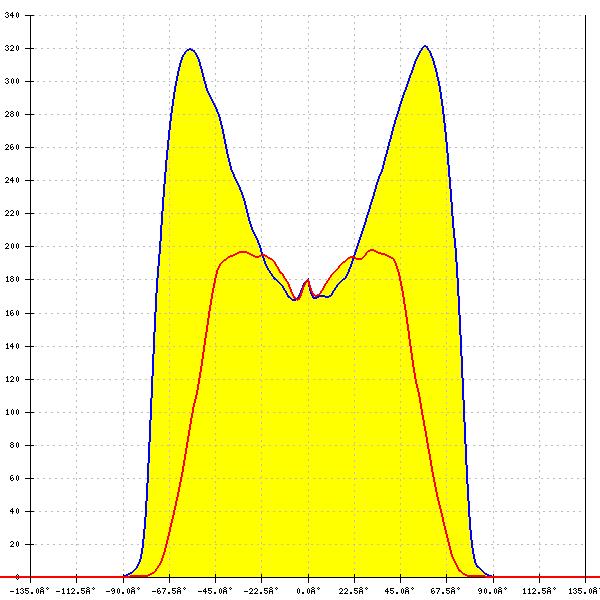

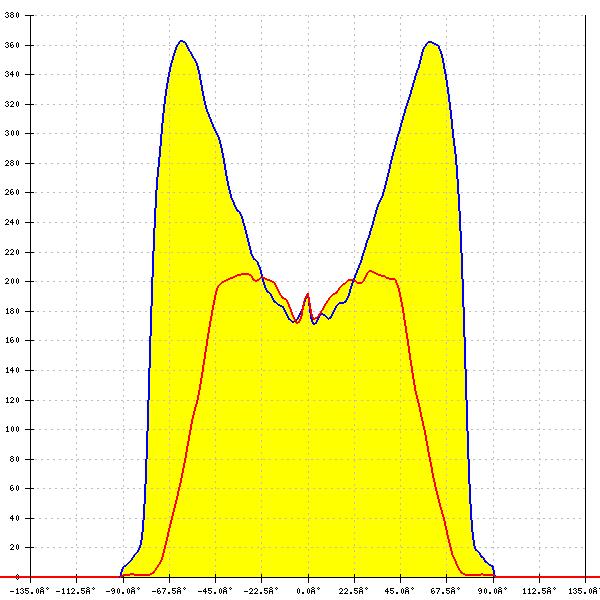

Duris S8
Required components:
FWHM: asymmetric
Peak intensity:
0.344 cd/lm
Efficiency:
61 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
Required components:
FWHM: asymmetric
Peak intensity:
0.364 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM: asymmetric
Peak intensity:
0.363 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM: asymmetric
Peak intensity:
0.321 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (3W version)
FWHM:
153° + 92°
FWTM:
163° + 137°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

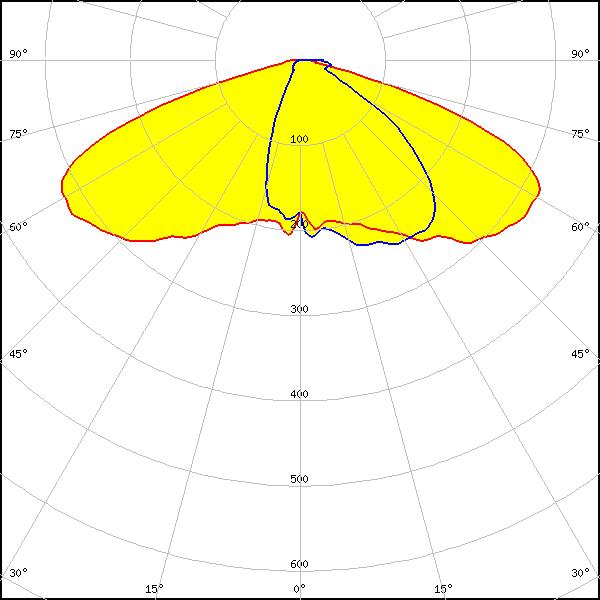

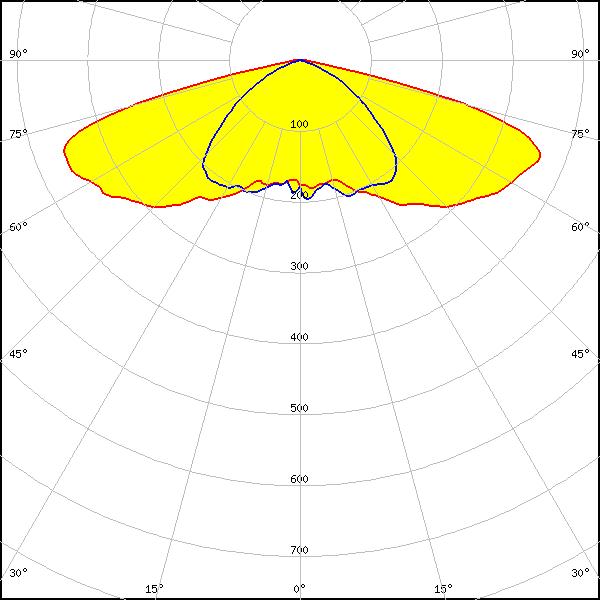

OSCONIQ S 5050 SFC
FWHM: asymmetric
Peak intensity:
0.365 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 SFC
Required components:
FWHM: asymmetric
Peak intensity:
0.332 cd/lm
Efficiency:
61 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 SFC
Required components:
FWHM: asymmetric
Peak intensity:
0.355 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:

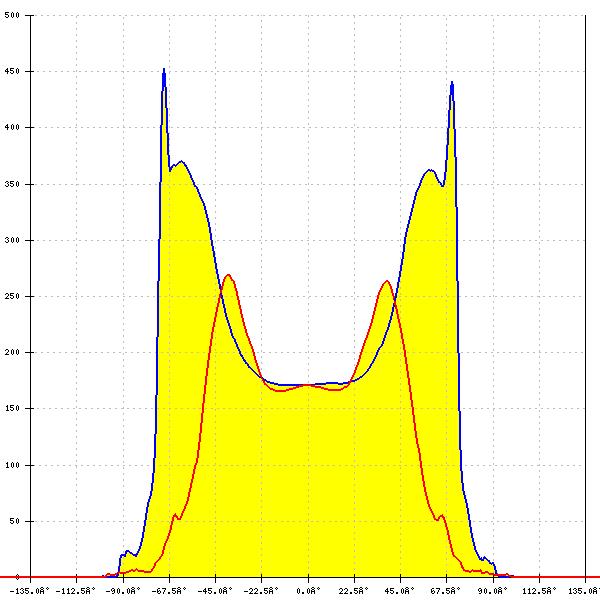

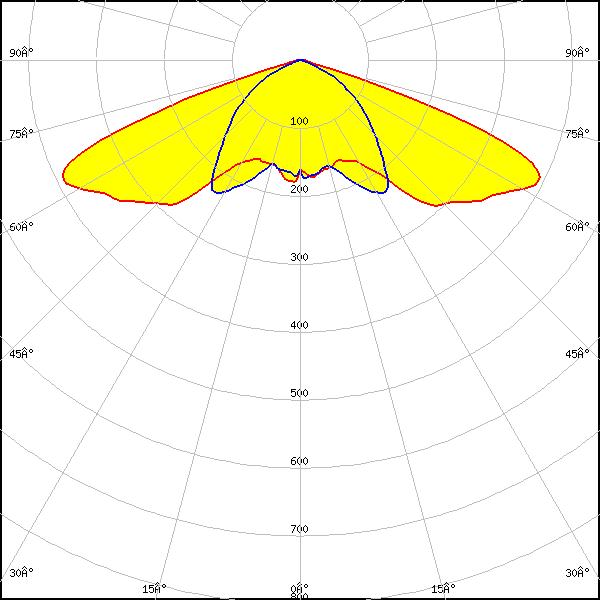

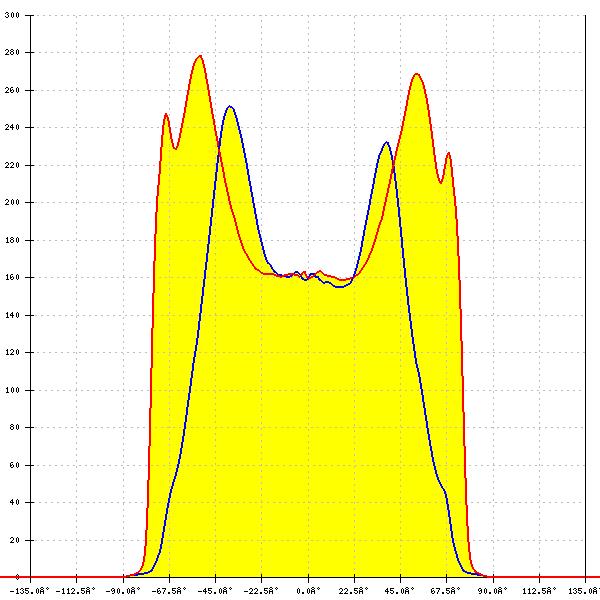

OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.394 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

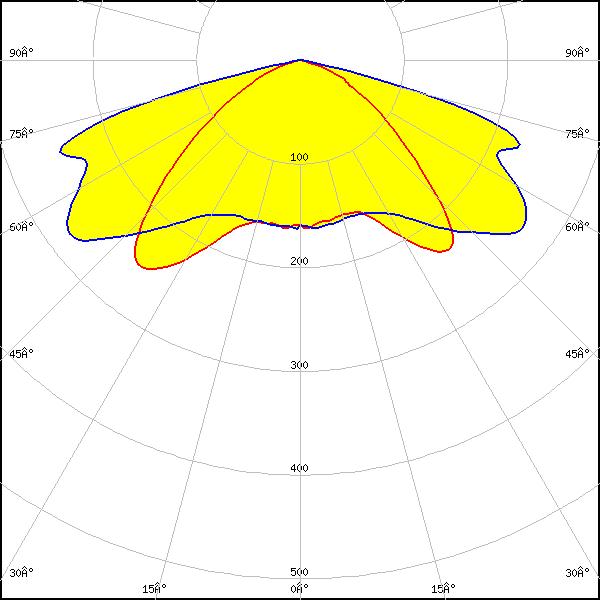

OSLON Square CSSRM2/CSSRM3
FWHM:
148° + 116°
FWTM:
0° + 0°
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
152° + 119°
FWTM:
155° + 144°
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square PC
FWHM: asymmetric
Peak intensity:
0.460 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

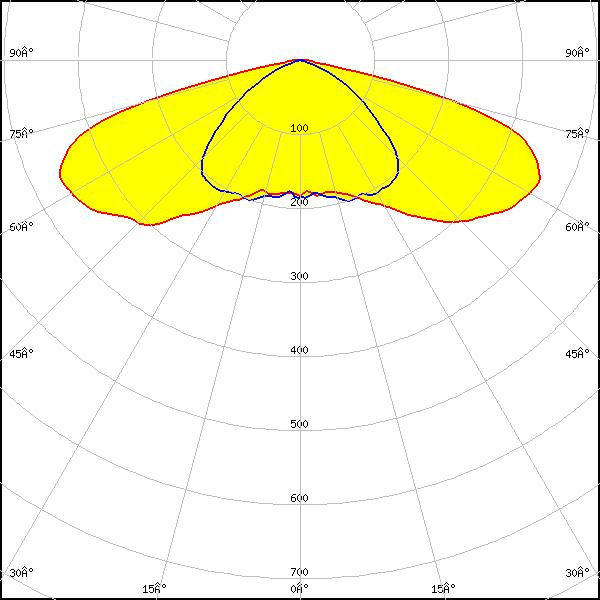

LED:

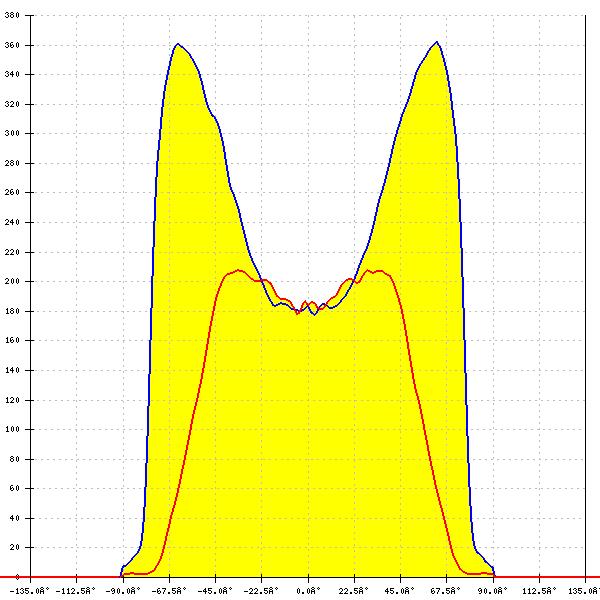

Fortimo FastFlex LED 2x8 DA (U)HE
FWHM:
152° + 112°
FWTM:
160° + 140°
Peak intensity:
0.362 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA (U)HE
FWHM:
148° + 112°
FWTM:
158° + 138°
Peak intensity:
0.306 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4
FWHM:
117° + 153°
FWTM:
143° + 155°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4+
FWHM: asymmetric
Peak intensity:
0.447 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity:
0.452 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

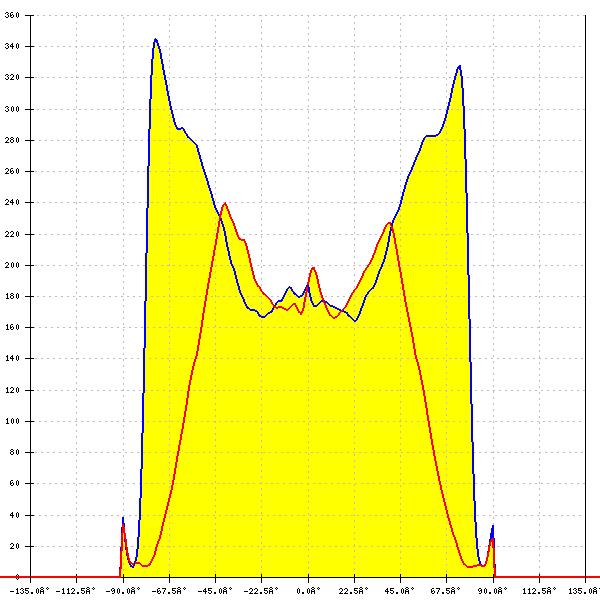

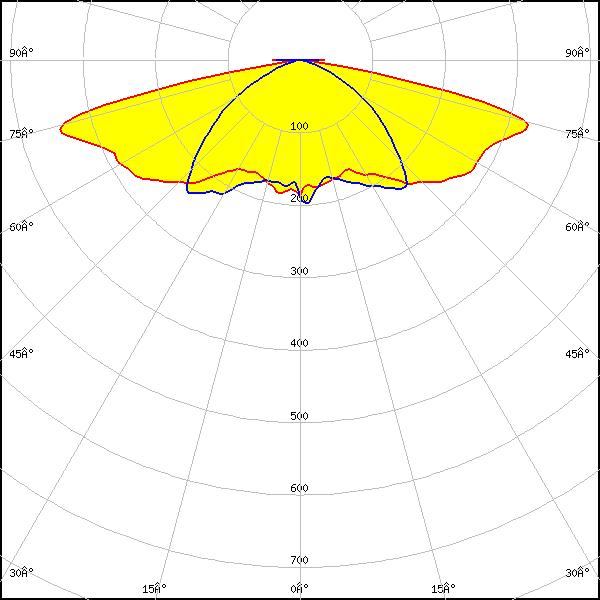

Fortimo FastFlex LED 2x8 DAX G4
FWHM:
157° + 94°
FWTM:
164° + 120°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

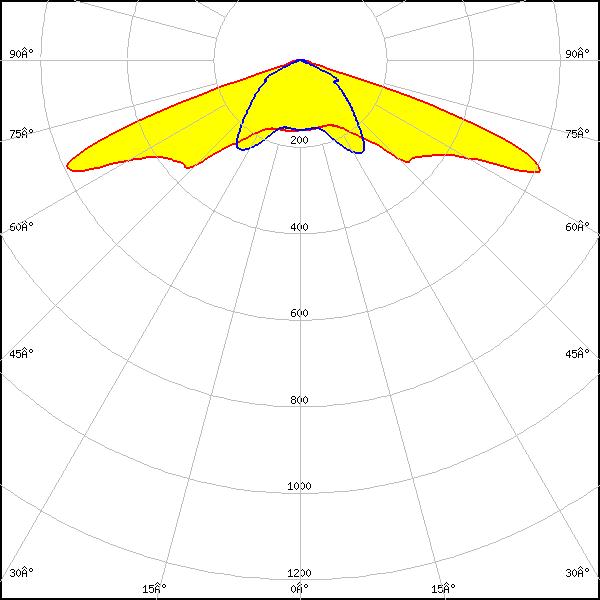

HiLOM RC12 Z (LH181B)
FWHM: asymmetric
Peak intensity:
0.610 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

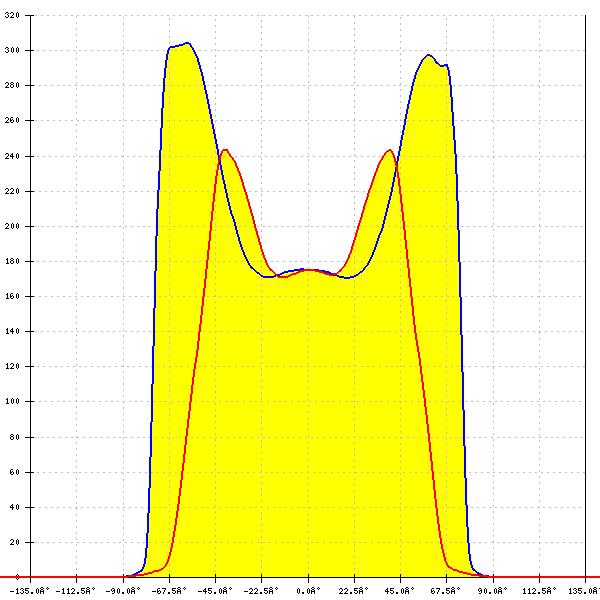

HiLOM RH12 Z (LH351C)
FWHM: asymmetric
Peak intensity:
0.304 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RH12 Z (LH351C)
FWHM: asymmetric
Peak intensity:
0.401 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

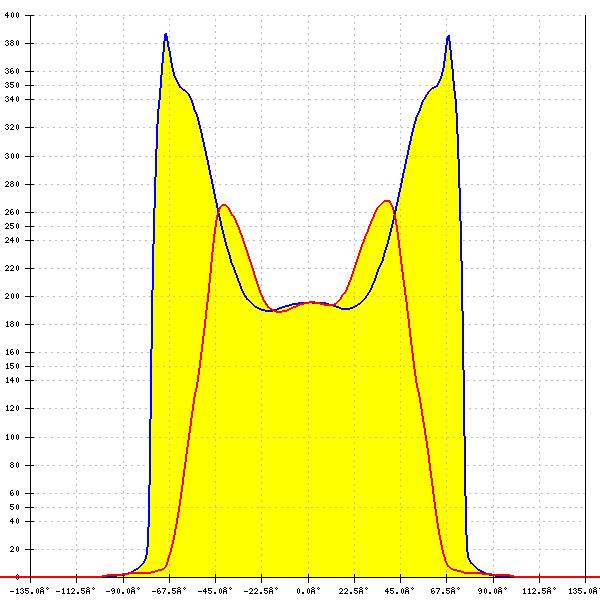

HiLOM RH16 (LH351C)
FWHM: asymmetric
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

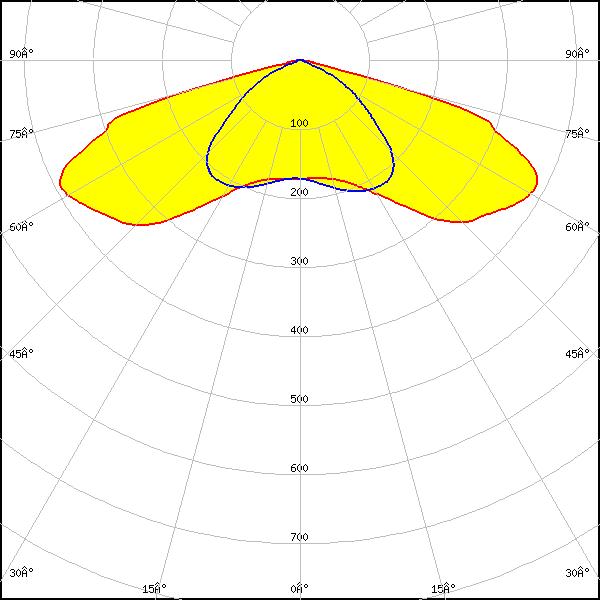

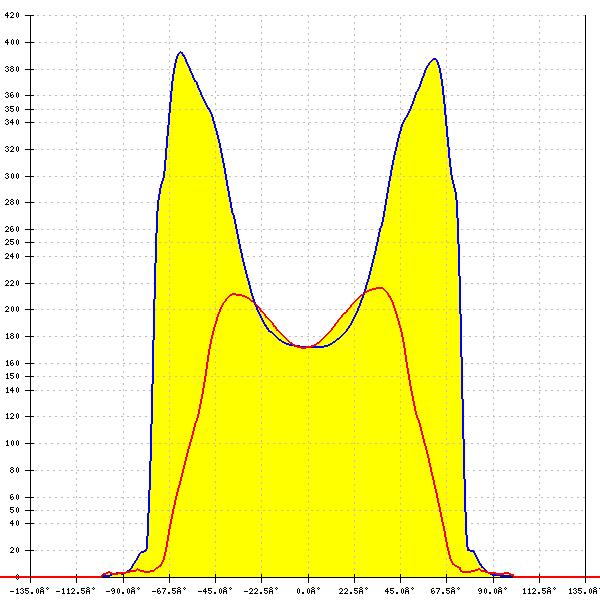

HiLOM RM12 Z (LH502C)
FWHM: asymmetric
Peak intensity:
0.392 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM16 Z (LH502C)
FWHM: asymmetric
Peak intensity:
0.396 cd/lm
Efficiency:
99 %
LEDs/each optic:
1
Light colour/type:
White
LED:

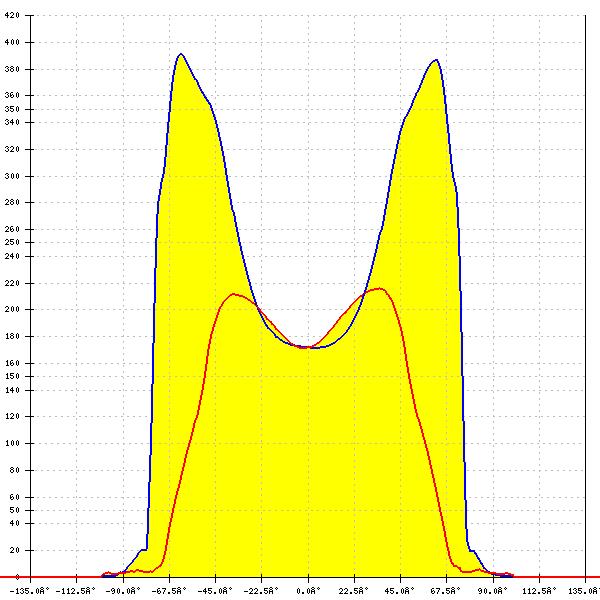

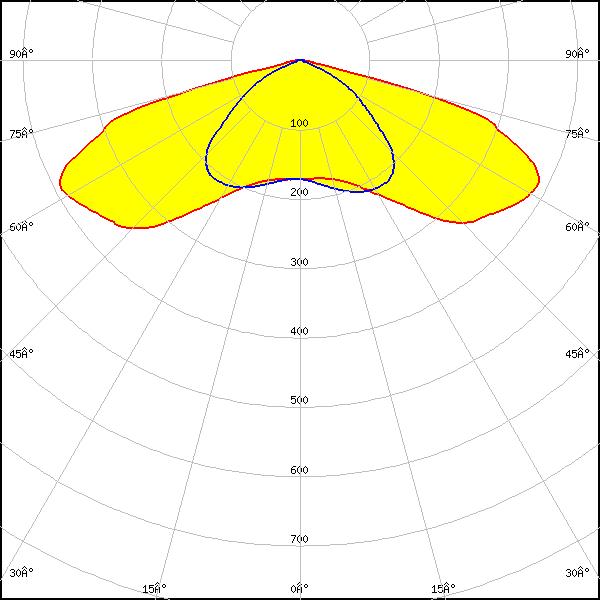

HiLOM RM8 Z (LH502C)
FWHM: asymmetric
Peak intensity:
0.391 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351A
FWHM:
158° + 116°
FWTM:
172° + 163°
Peak intensity:
0.413 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

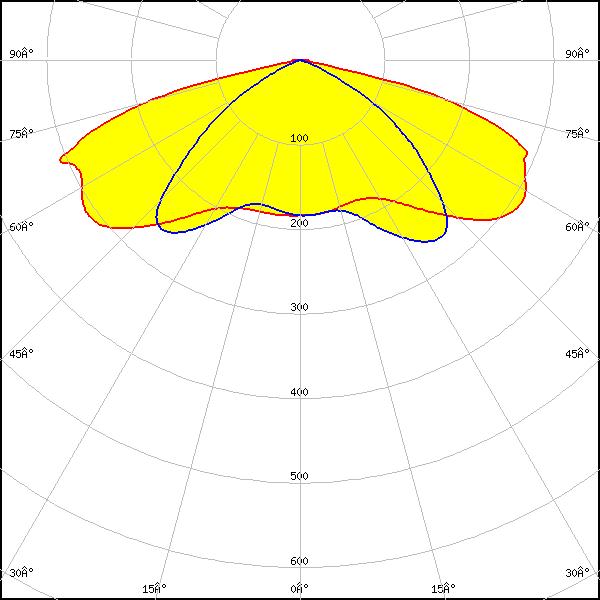

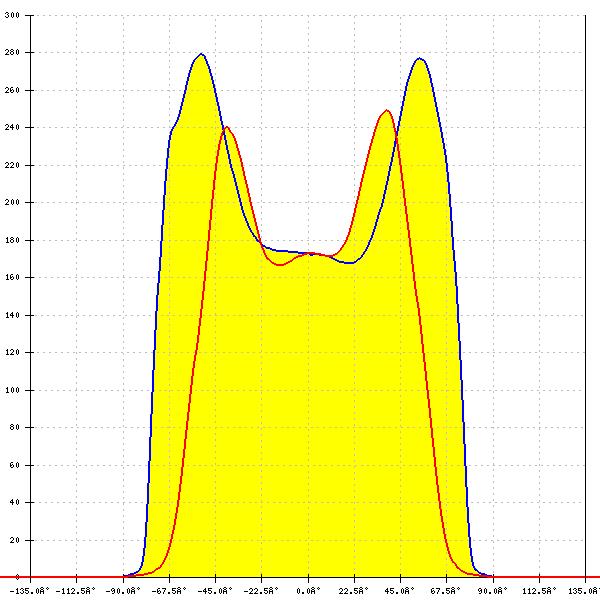

LH351B
FWHM: asymmetric
Peak intensity:
0.285 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
154° + 119°
FWTM:
158° + 136°
Peak intensity:
0.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

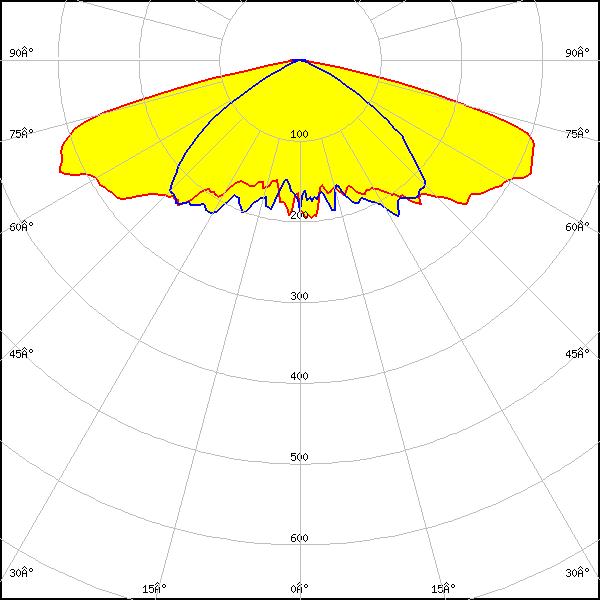

LH351D
FWHM:
153° + 113°
FWTM:
160° + 132°
Peak intensity:
0.331 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351Z
FWHM:
150° + 105°
FWTM:
156° + 126°
Peak intensity:
0.356 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

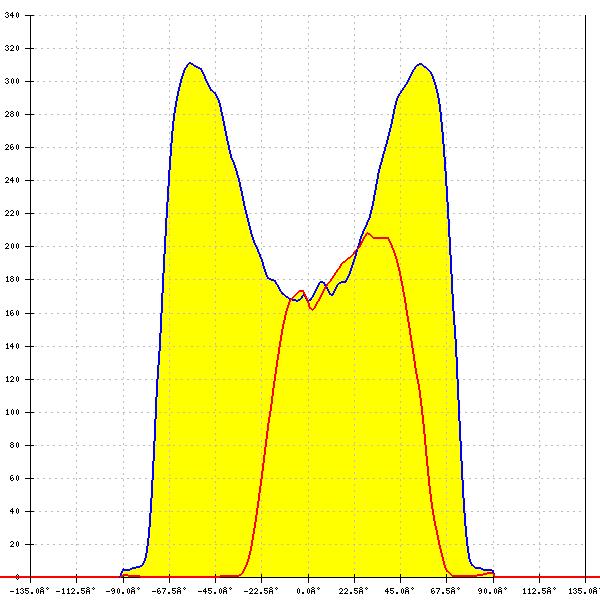

LED:

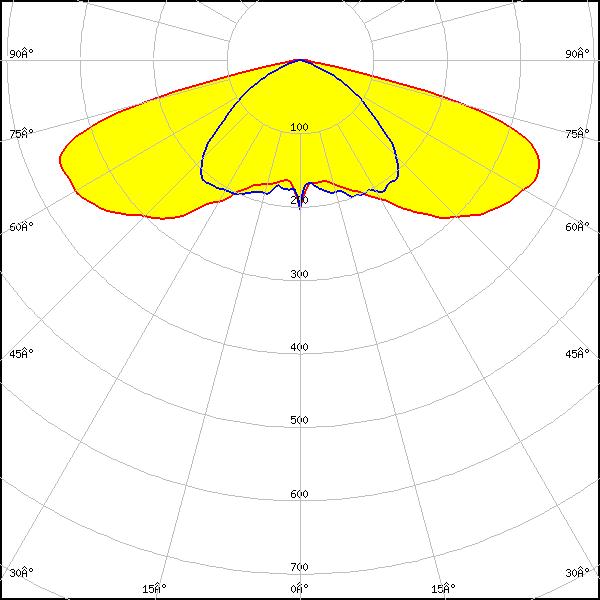

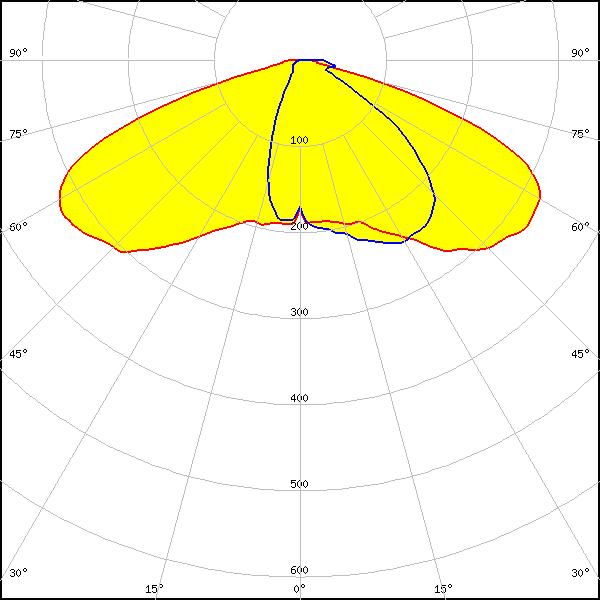

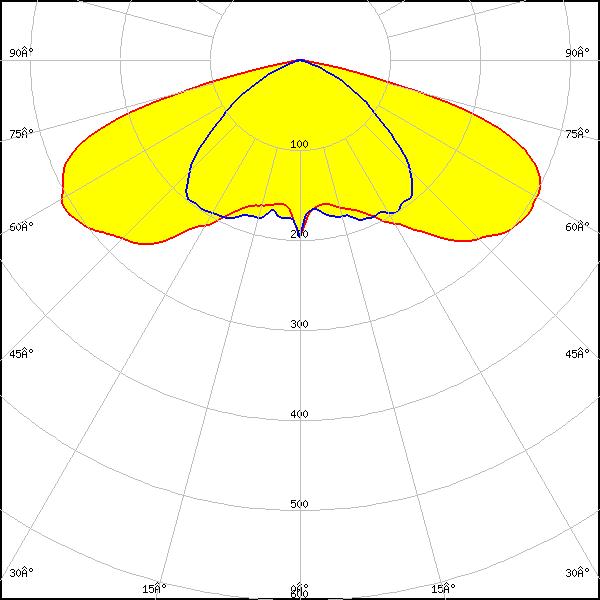

LH502D
FWHM:
152° + 112°
FWTM:
158° + 140°
Peak intensity:
0.359 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

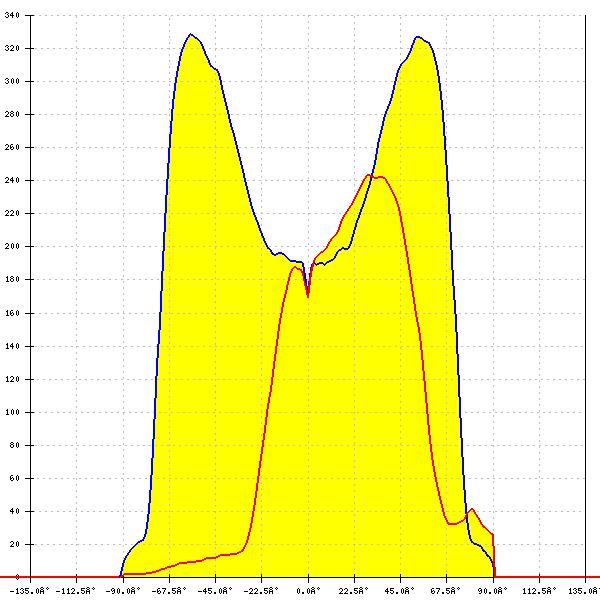

LED:
LH502D
FWHM:
149° + 110°
FWTM:
158° + 138°
Peak intensity:
0.309 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

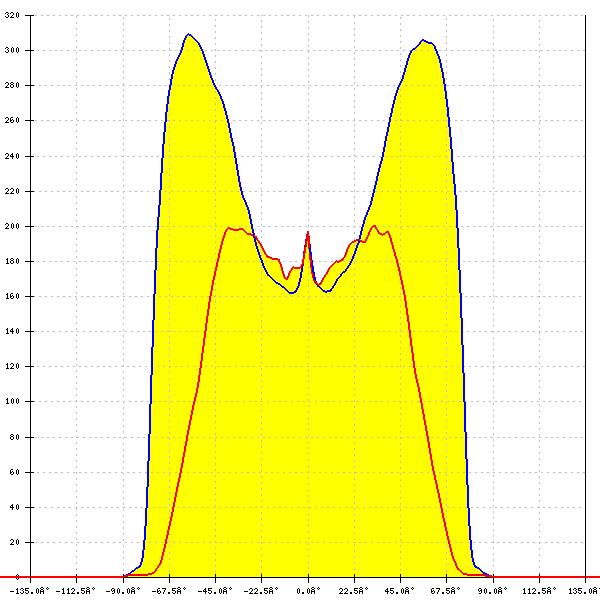

LED:
LH502D
Required components:
FWHM: asymmetric
Peak intensity:
0.334 cd/lm
Efficiency:
61 %
LEDs/each optic:
1
Light colour/type:
White

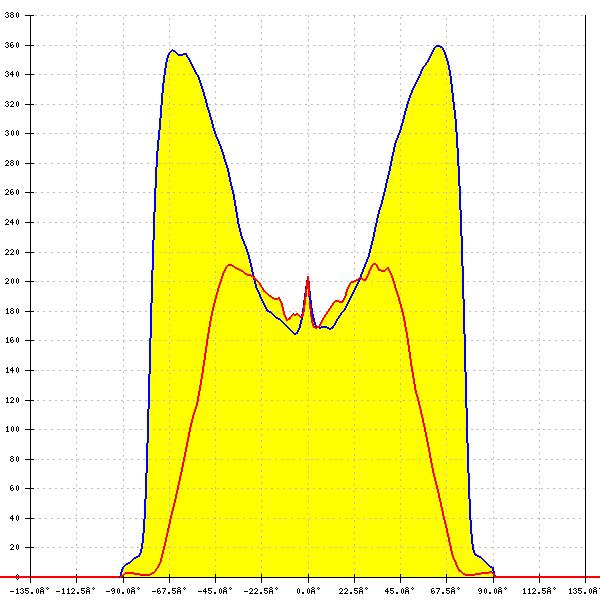

LED:
LH502D
Required components:
FWHM: asymmetric
Peak intensity:
0.357 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:

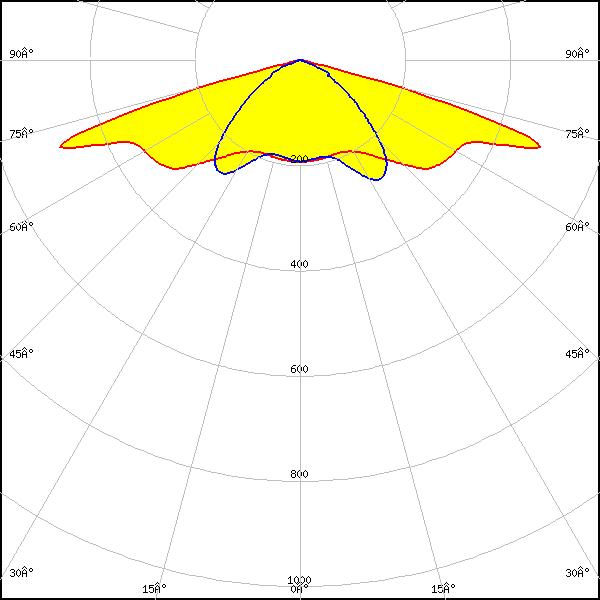

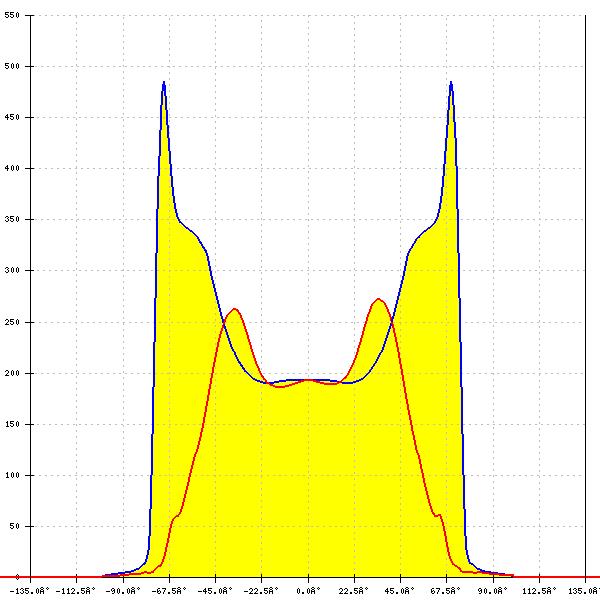

LED-Pa-L15c2W11c2-xxx-C050-01
FWHM: asymmetric
Peak intensity:
0.496 cd/lm
Efficiency:
99 %
LEDs/each optic:
1
Light colour/type:
White
LED:

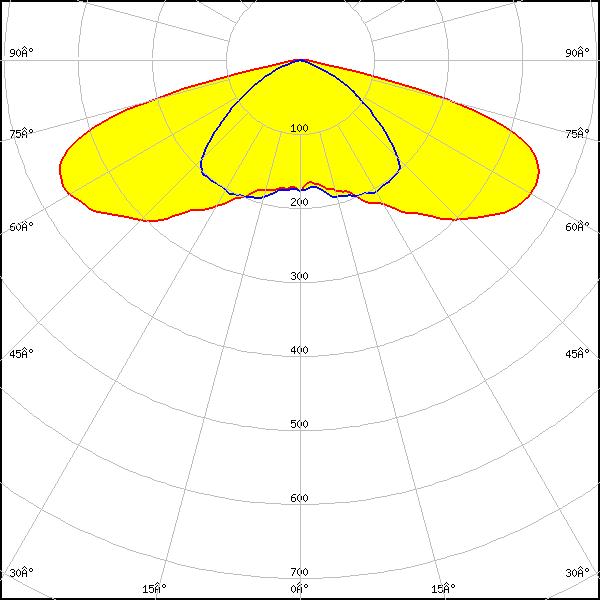

MJT 5050
FWHM: asymmetric
Peak intensity:
0.362 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity:
0.360 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity:
0.308 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
Required components:
FWHM: asymmetric
Peak intensity:
0.357 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
Required components:
FWHM: asymmetric
Peak intensity:
0.334 cd/lm
Efficiency:
61 %
LEDs/each optic:
1
Light colour/type:
White
LED:

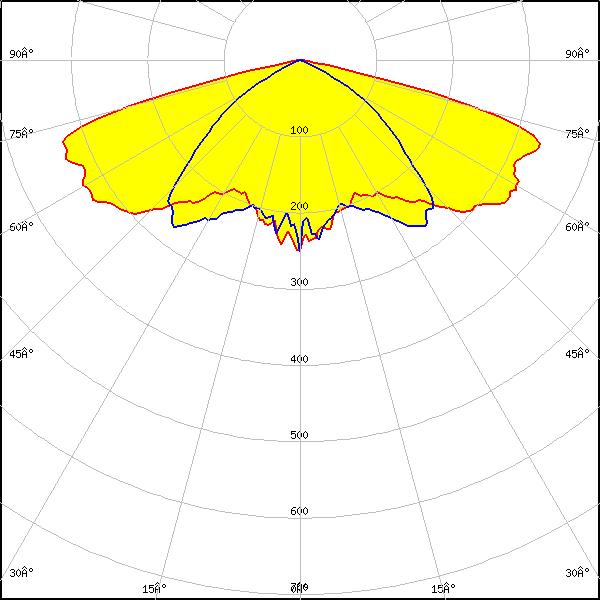

Z5M
FWHM:
153° + 110°
FWTM:
159° + 143°
Peak intensity:
0.428 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

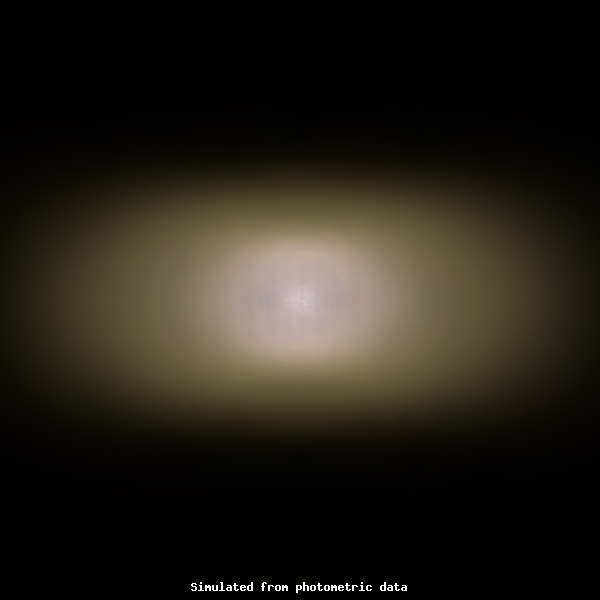

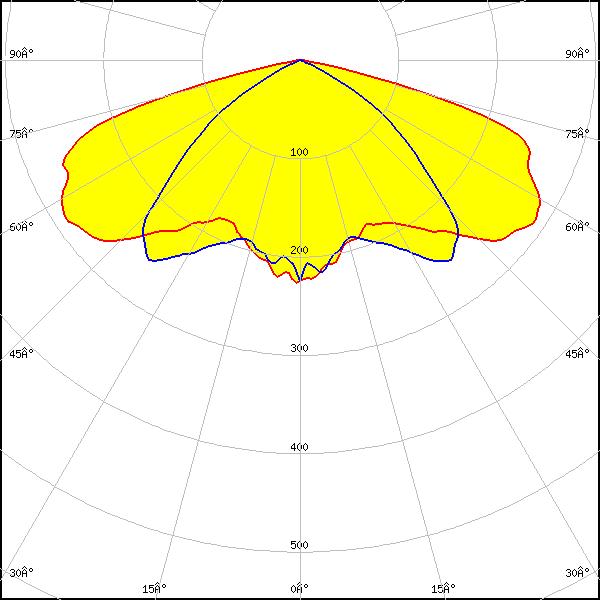

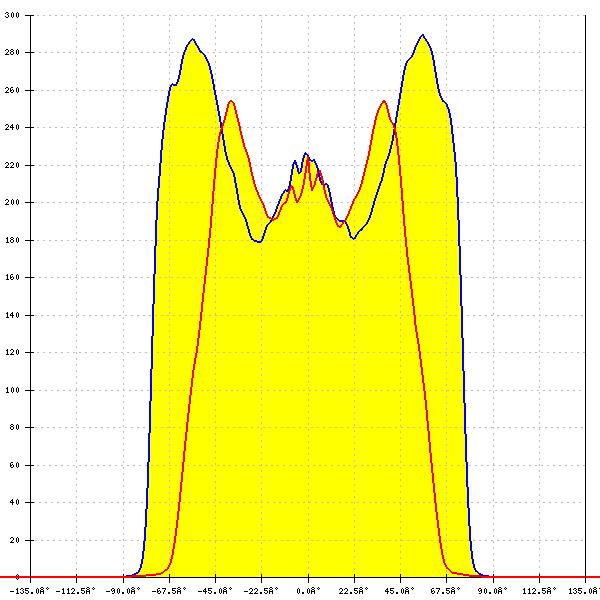

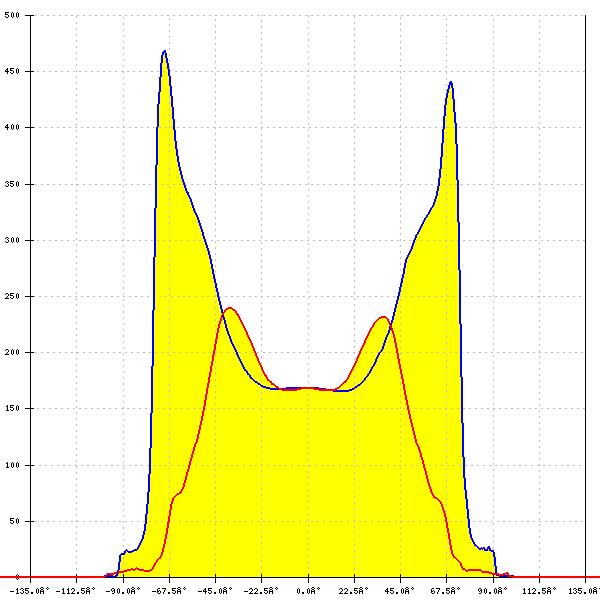

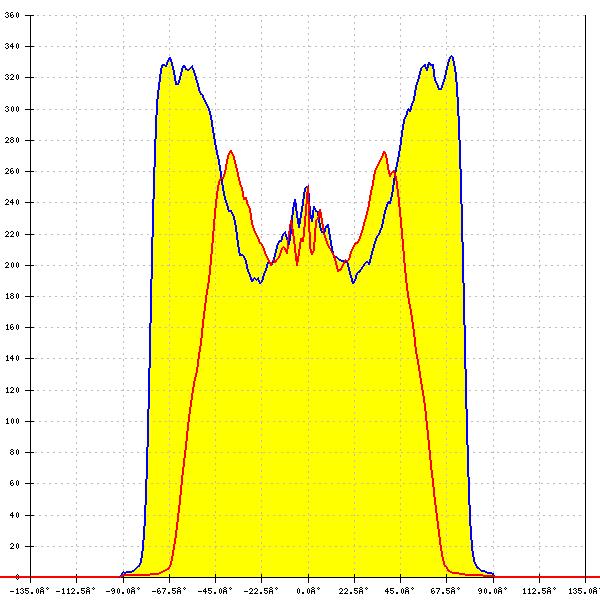

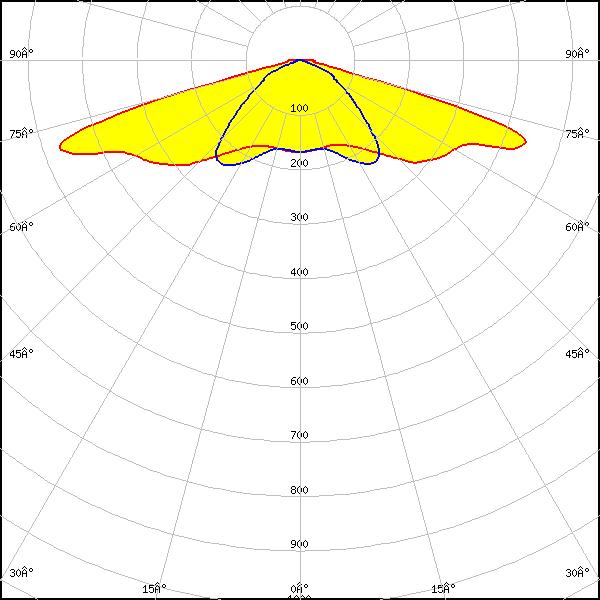

Z5M3
FWHM: asymmetric
Peak intensity:
0.470 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM:
152° + 108°
FWTM:
158° + 128°
Peak intensity:
0.335 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM:
150° + 107°
FWTM:
158° + 128°
Peak intensity:
0.289 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

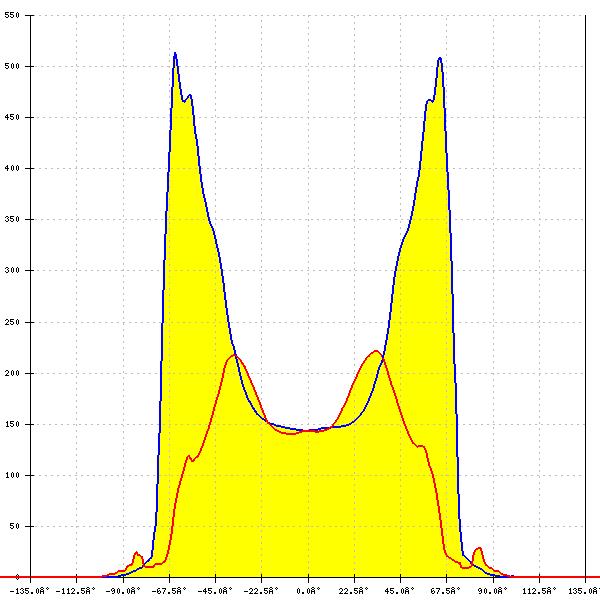

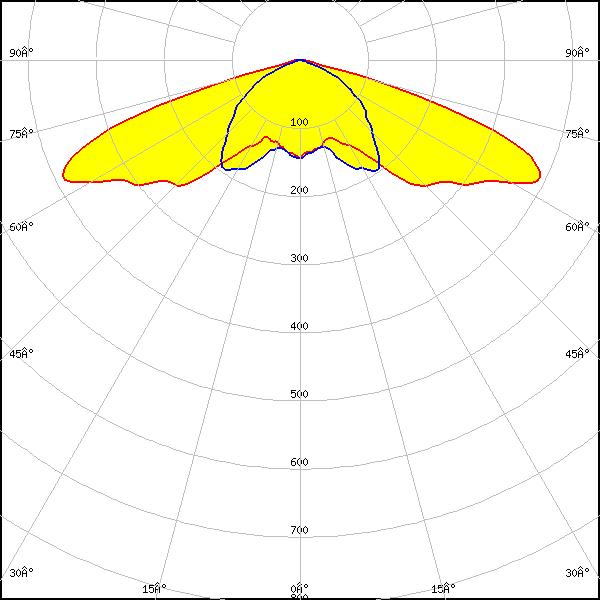

Z8Y22
FWHM: asymmetric
Peak intensity:
0.392 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM:
143° + 128°
FWTM:
149° + 172°
Peak intensity:
0.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22P
FWHM:
151° + 130°
FWTM:
169° + 146°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

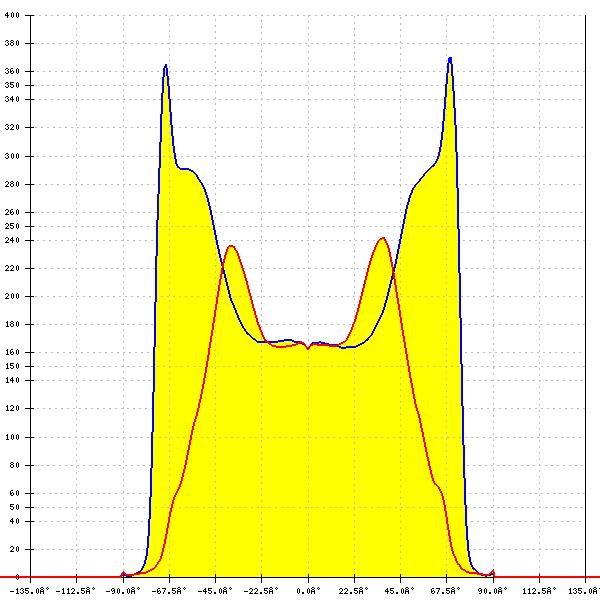

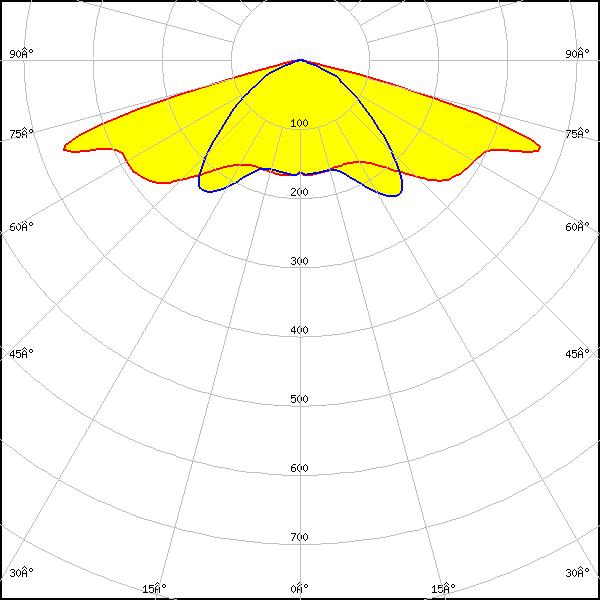

RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity:
0.369 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 2x8 4000lm HP EXC2 OTD
FWHM:
151° + 119°
FWTM:
155° + 142°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM:
147° + 107°
FWTM:
159° + 142°
Peak intensity:
0.440 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM:
147° + 107°
FWTM:
159° + 142°
Peak intensity:
0.440 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM:
147° + 107°
FWTM:
159° + 142°
Peak intensity:
0.440 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM:
147° + 107°
FWTM:
159° + 142°
Peak intensity:
0.440 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
