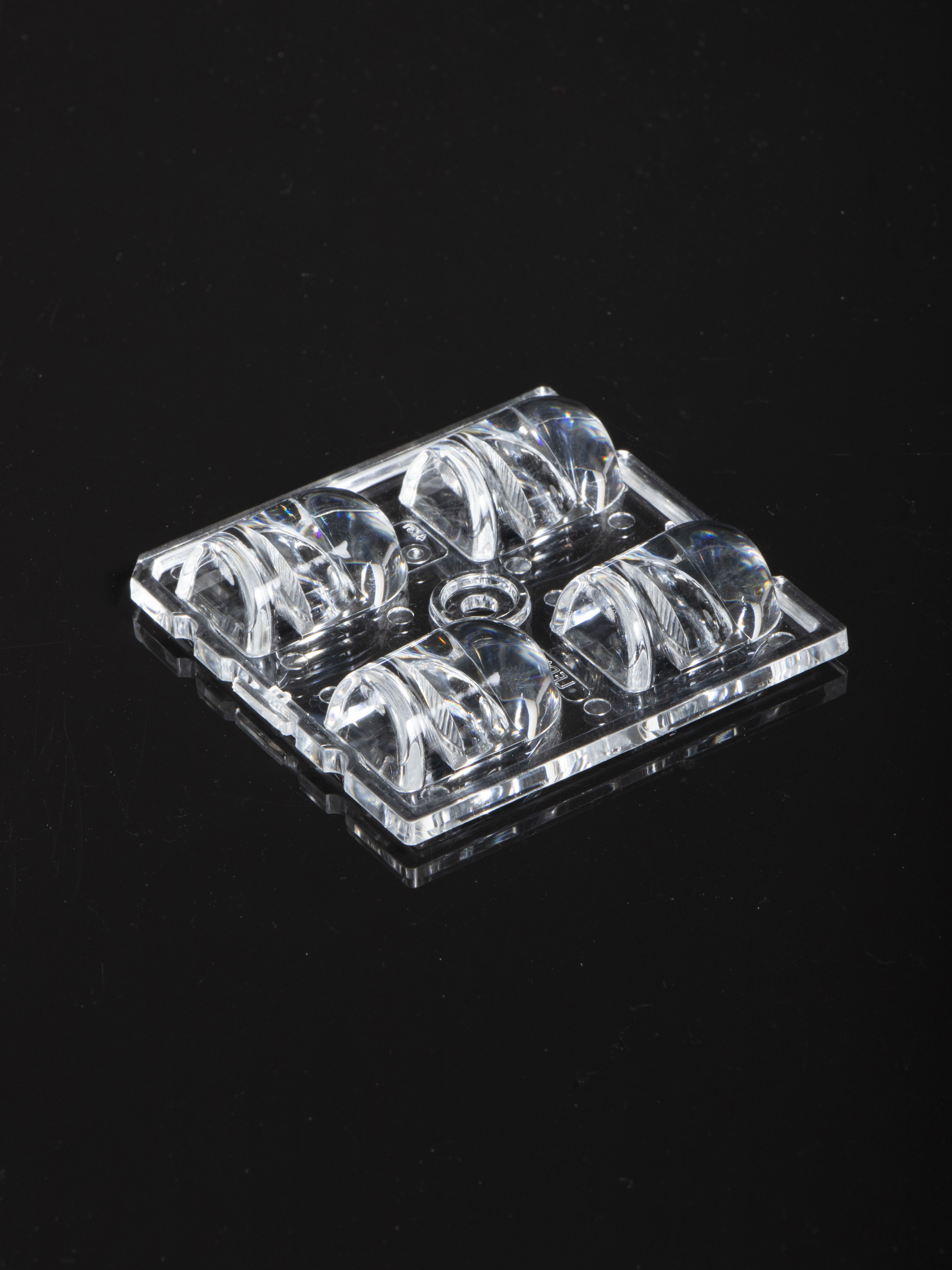

C14731_STRADA-2X2-FN-PC

Narrow forward throw beam for area lighting. Excellent for lighting stadiums and airports from high masts. Variant made from PC.

Specification

Dimensions:

50 x 50 mm
Height:

10.00 mm
Fastening:

pin, screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PC
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

800 pcs
Box size:

480 x 280 x 300 mm
Box weight:

9.0 kg
MPQ:

160 pcs
MOQ:

160 pcs
MOQ size:

480 x 280 x 80 mm
MOQ weight:

2.1 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: C14731_STRADA-2X2-FN-PC

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C14731_STRADA-2X2-FN-PC

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Application example

Difference of F-beams on the ground

Application area

Sports outdoor lighting

Application area

SPORTS INDOOR LIGHTING

News

New Products - 2018-12-20

Case story

Lauben Bozen medieval lighting

Catalogue

LEDiL Latest products catalogue

Application guide

Guide for Street lighting optics

Application area

Urban lighting with LEDiL optics

Application example

Urban lighting with LEDiL optics

Reference product

Bollard lamp for urban environments

Case story

Naberezhne Highway in Kiev

Application area

Industrial Lighting

Installation guide

STRADA-2X2 Installation guide

Application guide

Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

AVAILABLE LEDiL ACCESSORIES

STRADA-2X2-SHD-WHT

White shade for additional backlight control.

STRADA-2X2-SHD-BLK

Black shade for additional backlight control.

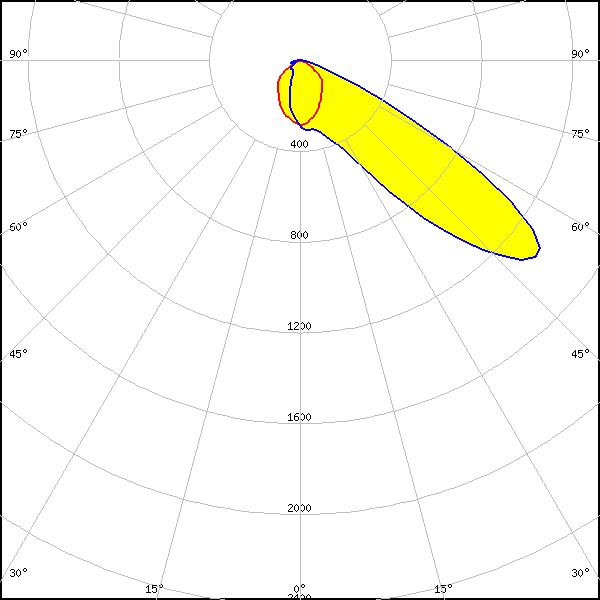

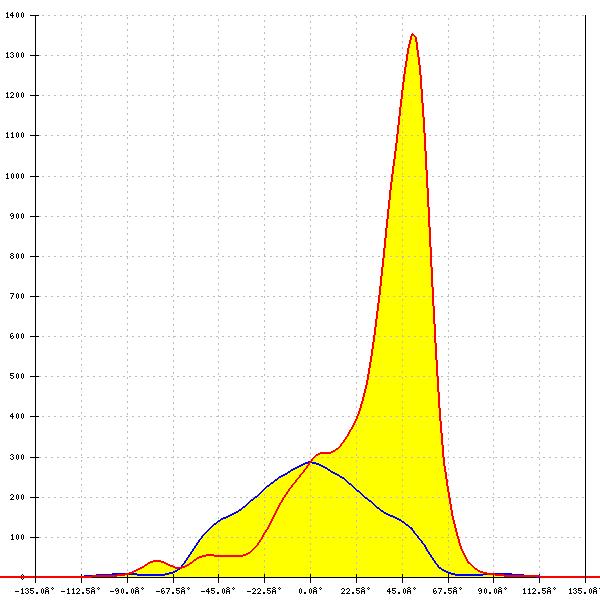

Optical results

LED: LUXEON TX

FWHM: asymmetric

Peak intensity: 1.434 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NV4WB35AM

FWHM: asymmetric

Peak intensity: 1.432 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NV4WB35AM

FWHM: asymmetric

Peak intensity: 1.274 cd/lm

Efficiency: 77 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSW3x9A

FWHM: asymmetric

Peak intensity: 1.300 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSW519A

FWHM: asymmetric

Peak intensity: 1.291 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSW519A

FWHM: asymmetric

Peak intensity: 1.268 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Duris S8

FWHM: asymmetric

Peak intensity: 0.973 cd/lm

Efficiency: 76 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Duris S8

FWHM: asymmetric

Peak intensity: 1.435 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 1.274 cd/lm

Efficiency: 76 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH351D

FWHM: asymmetric

Peak intensity: 1.267 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH502D

FWHM: asymmetric

Peak intensity: 1.334 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH502D

FWHM: asymmetric

Peak intensity: 1.205 cd/lm

Efficiency: 77 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: RLE 2x4 3000lm HP HE EXC3 OTD

FWHM: asymmetric

Peak intensity: 1.334 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: RLE 2x4 3000lm HP HE EXC3 OTD

FWHM: asymmetric

Peak intensity: 1.205 cd/lm

Efficiency: 77 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
