C14680_STRADA-2X2-VSM
Print
IESNA Type V (square) beam for wide areas lighting such as car parks
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

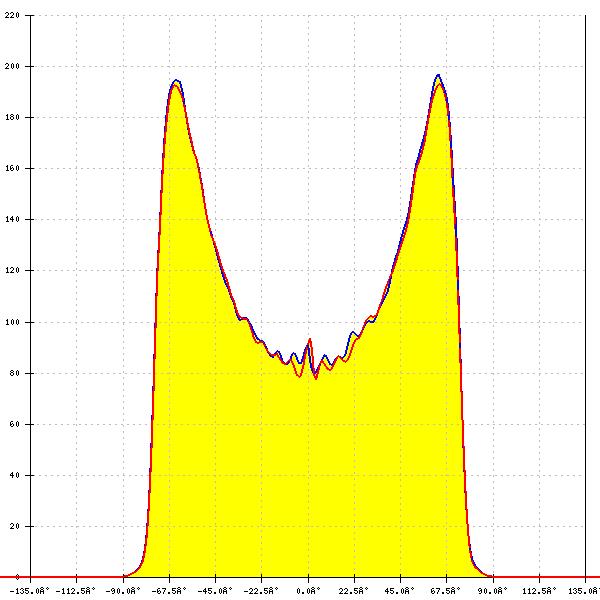

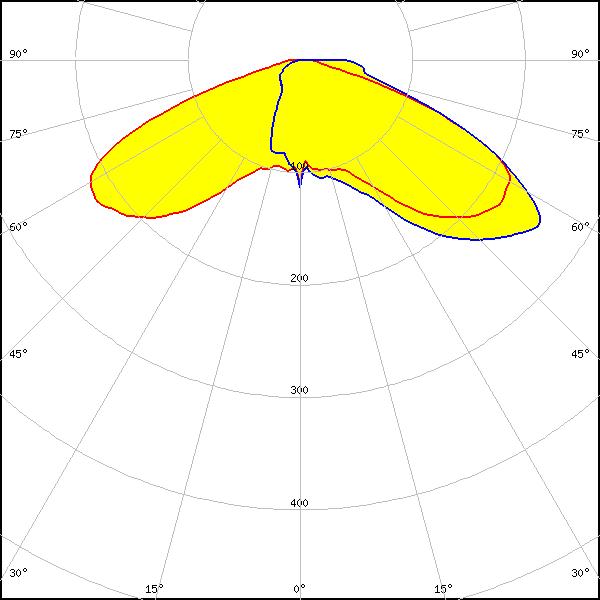

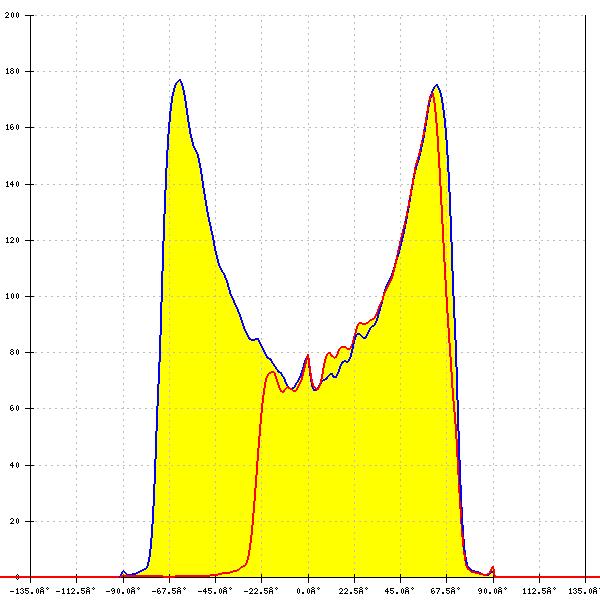

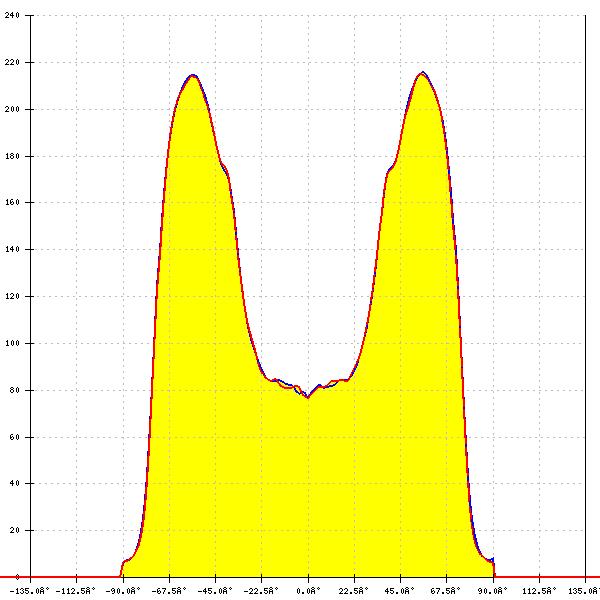

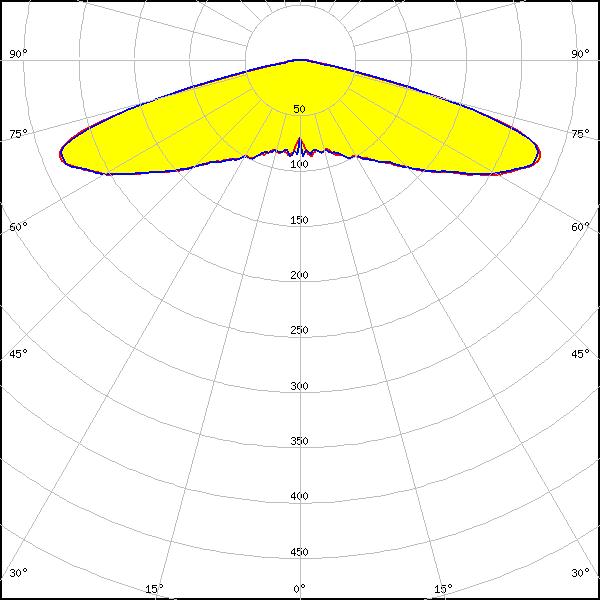

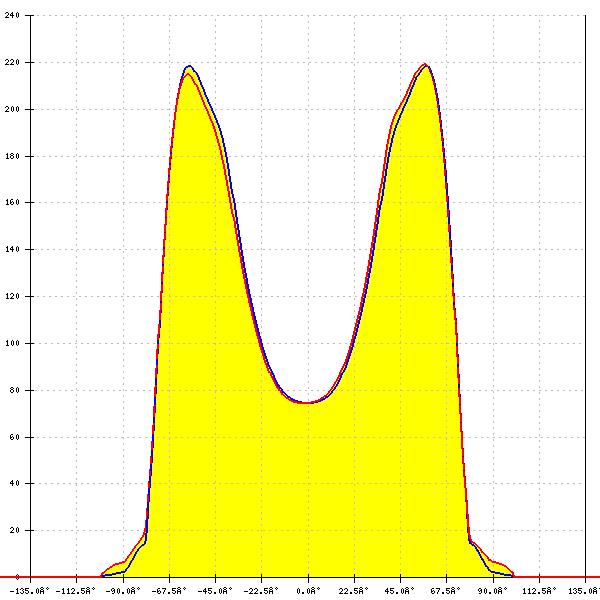

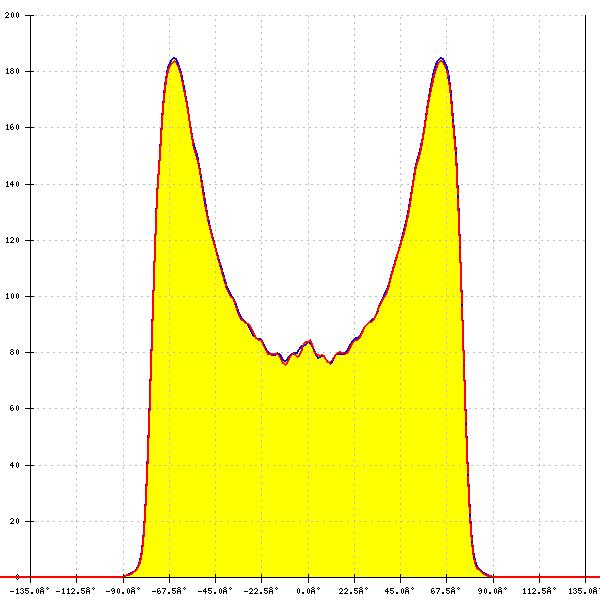

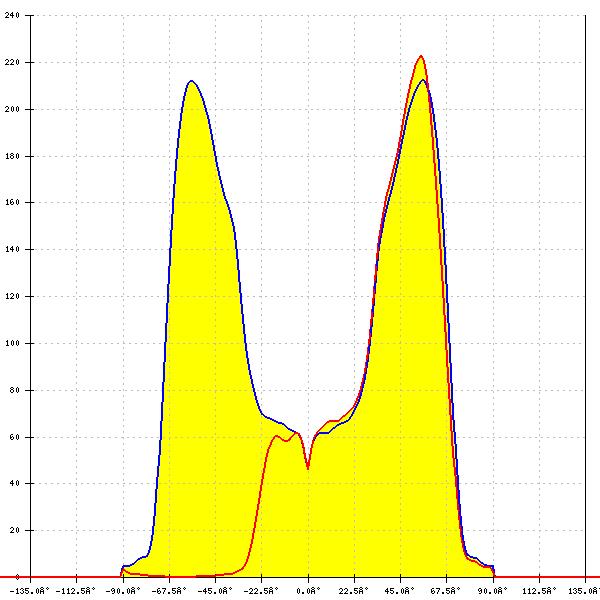

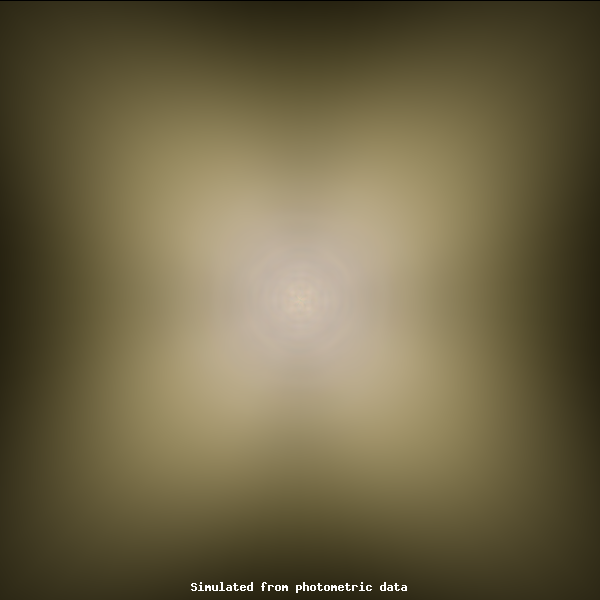

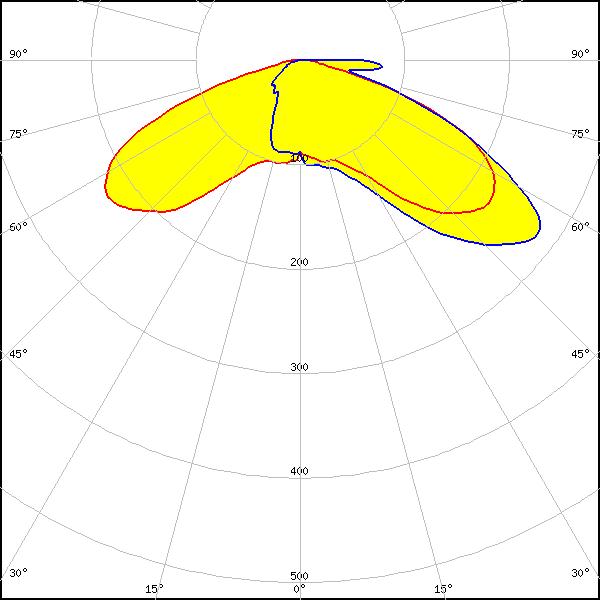

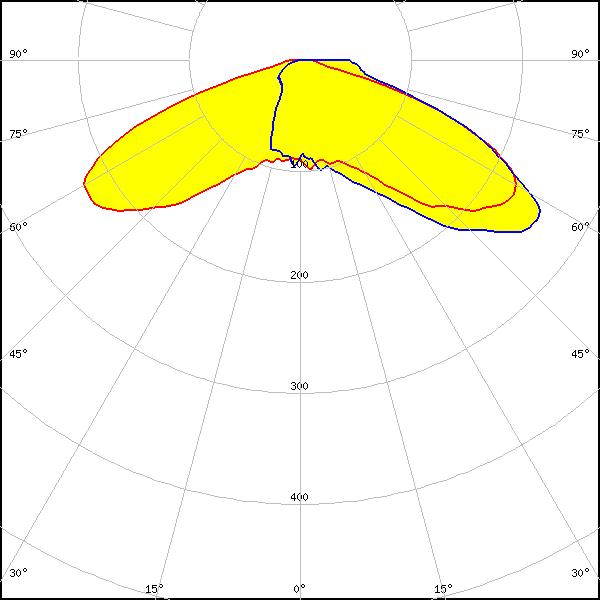

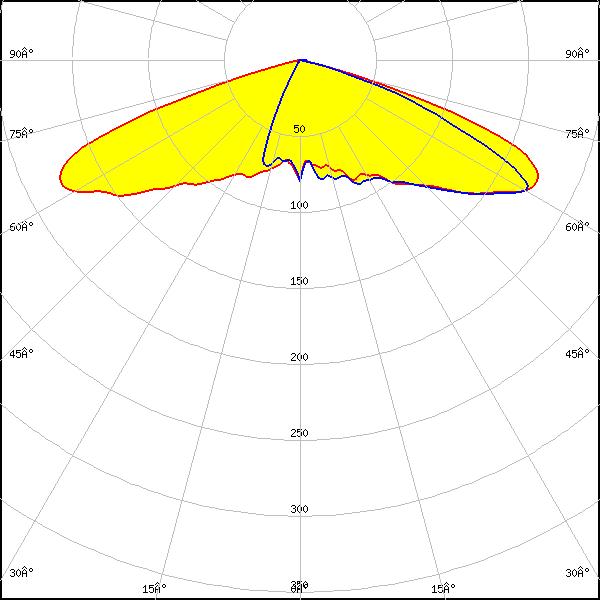

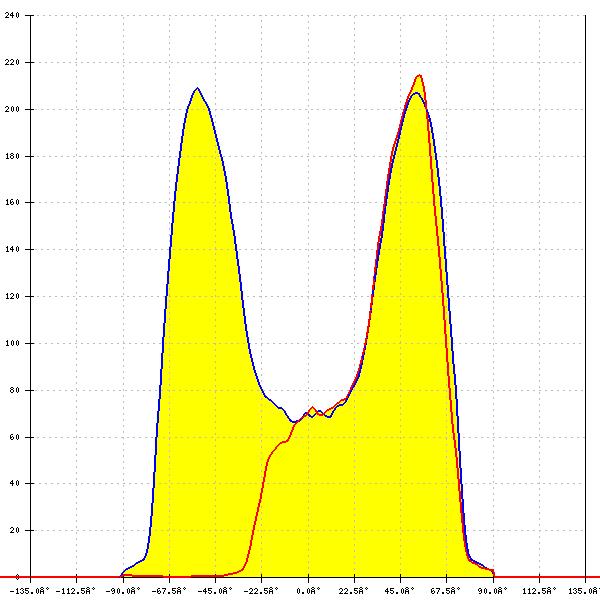

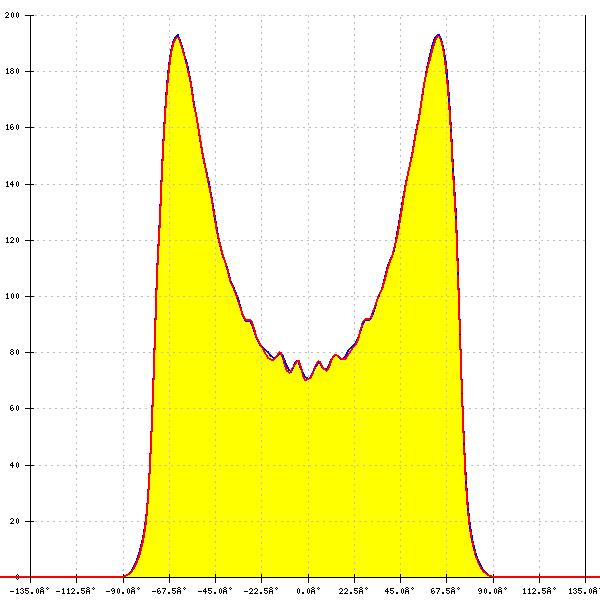

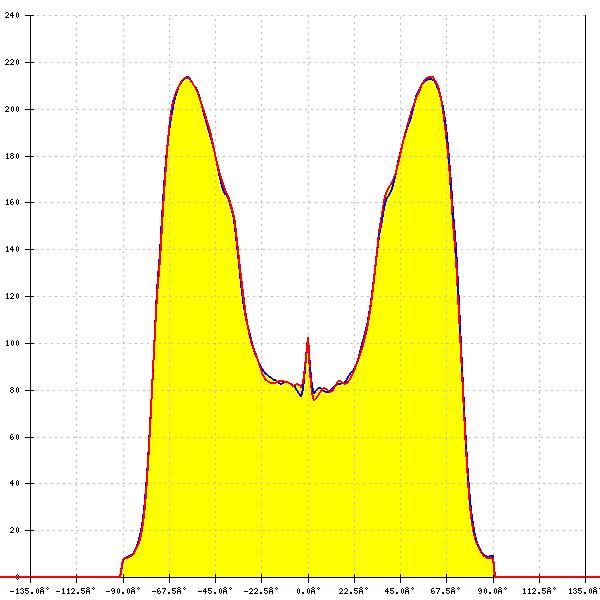

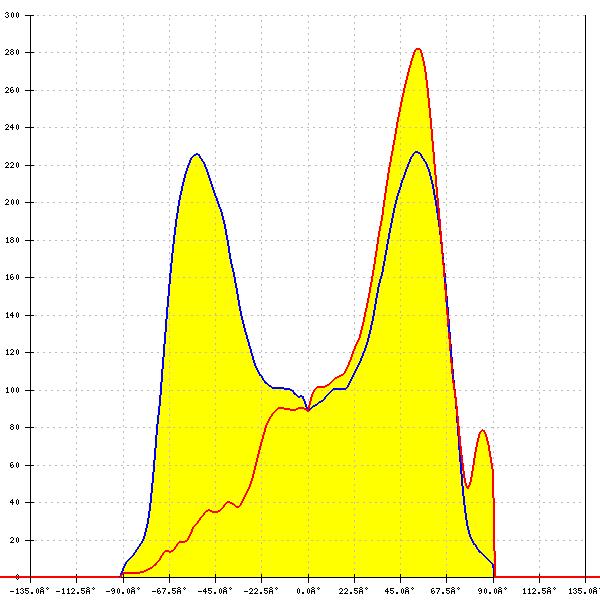

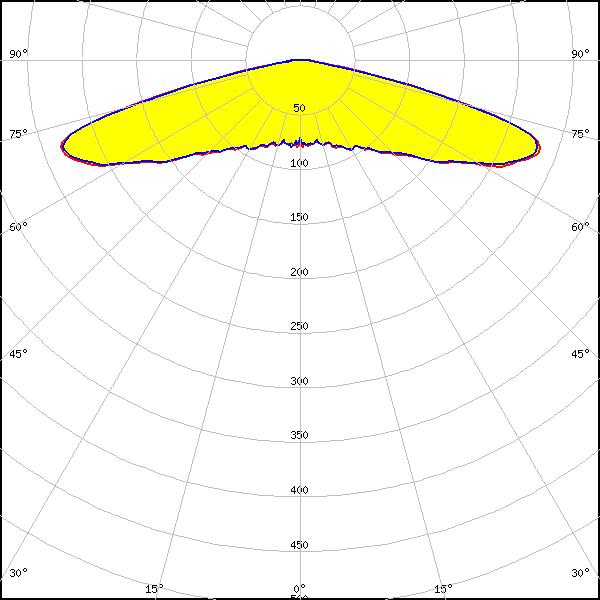

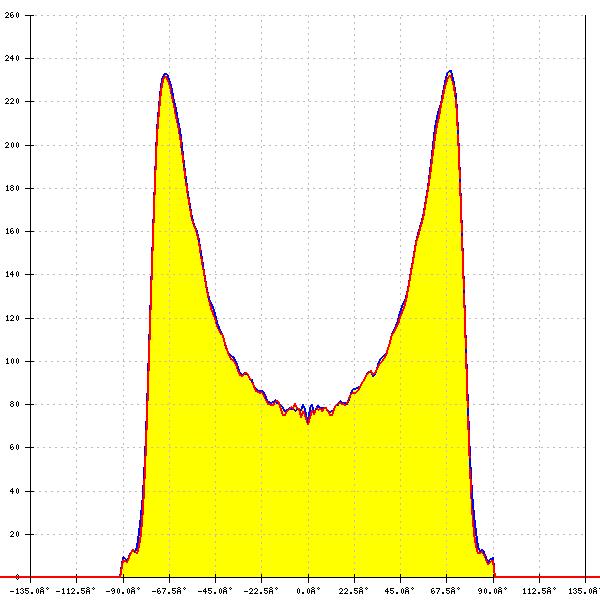

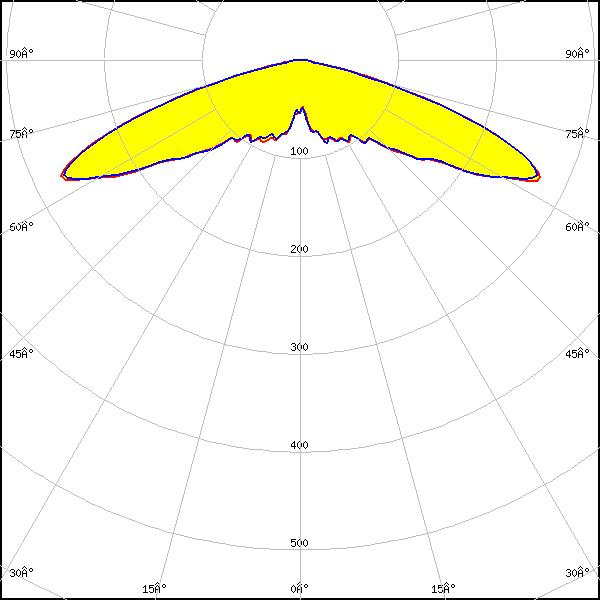

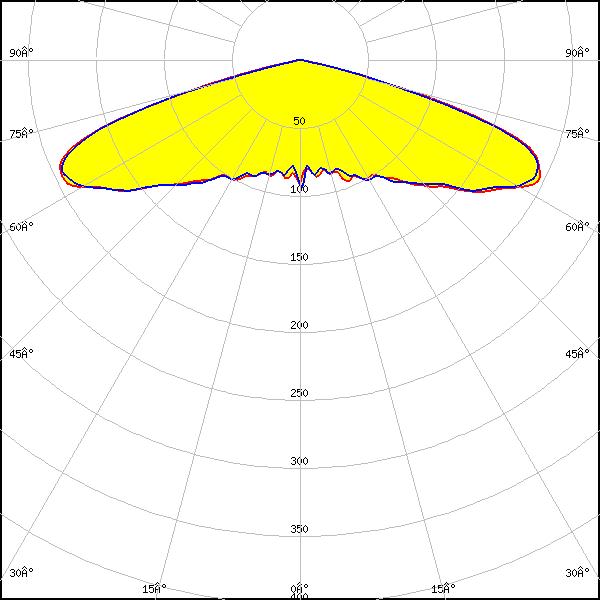

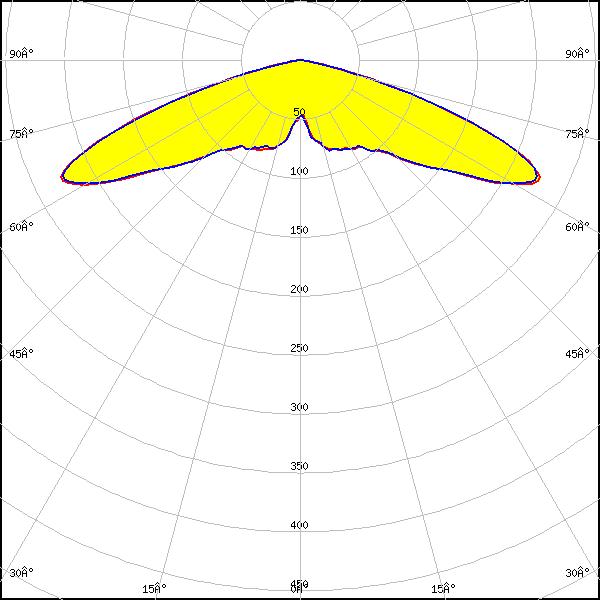

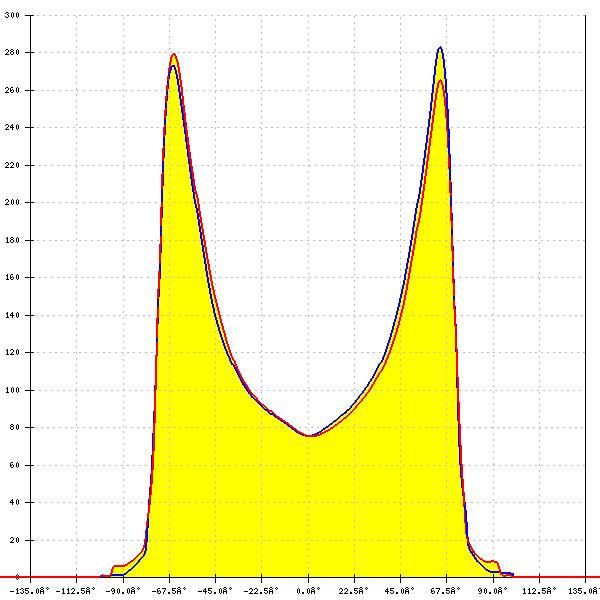

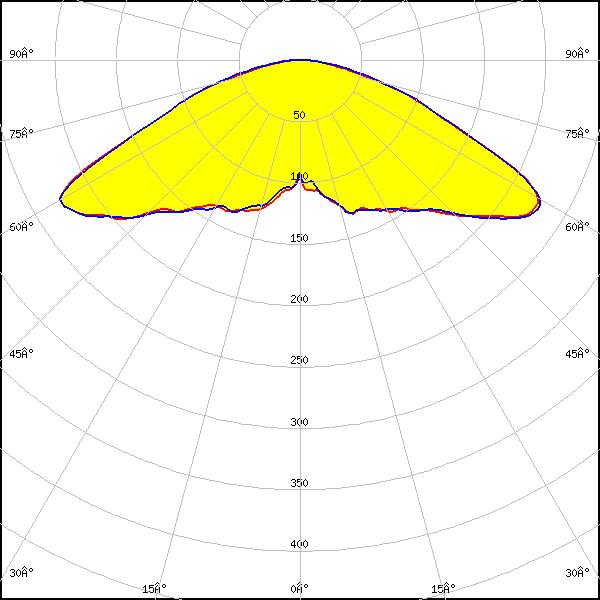

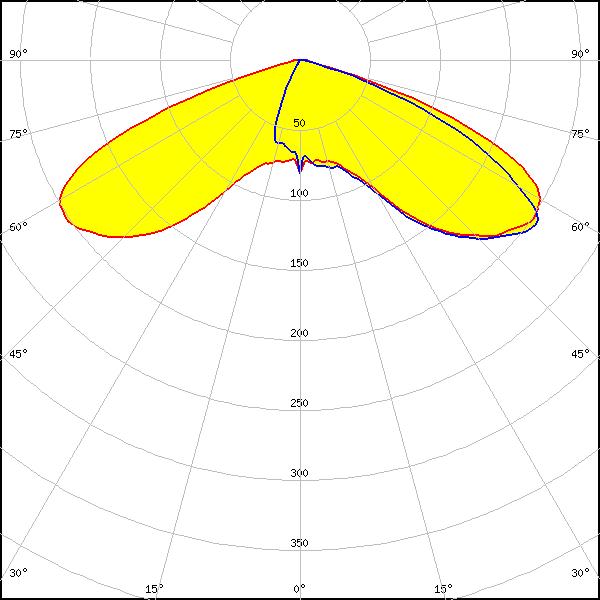

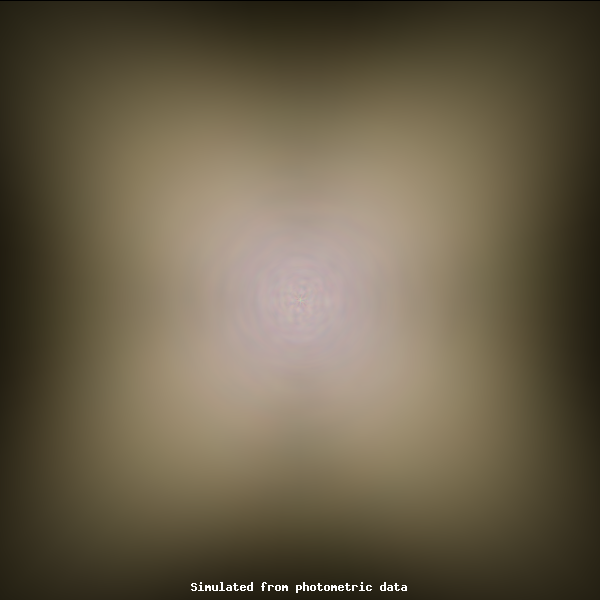

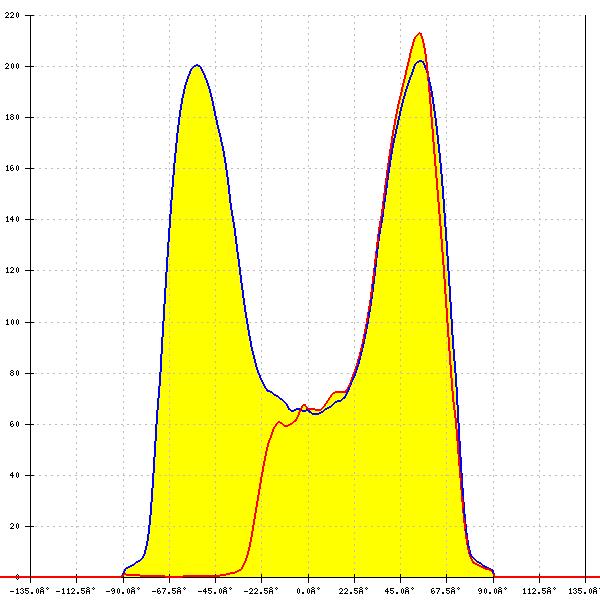

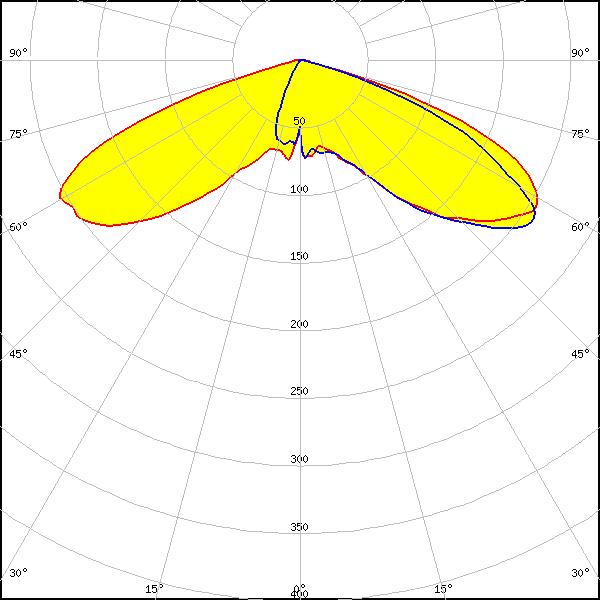

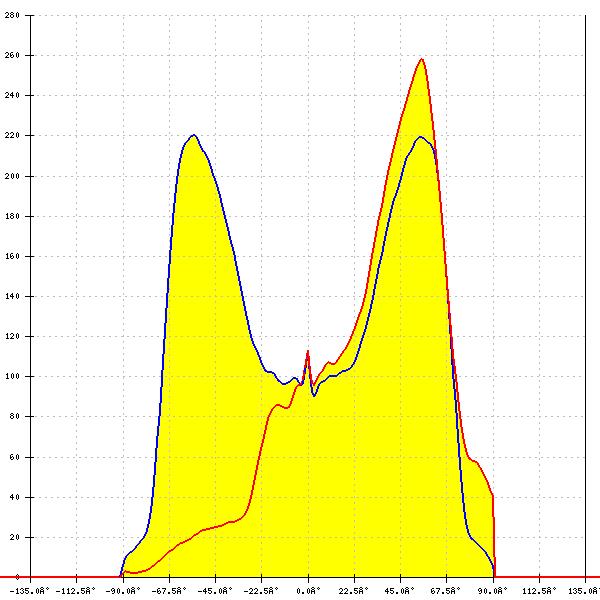

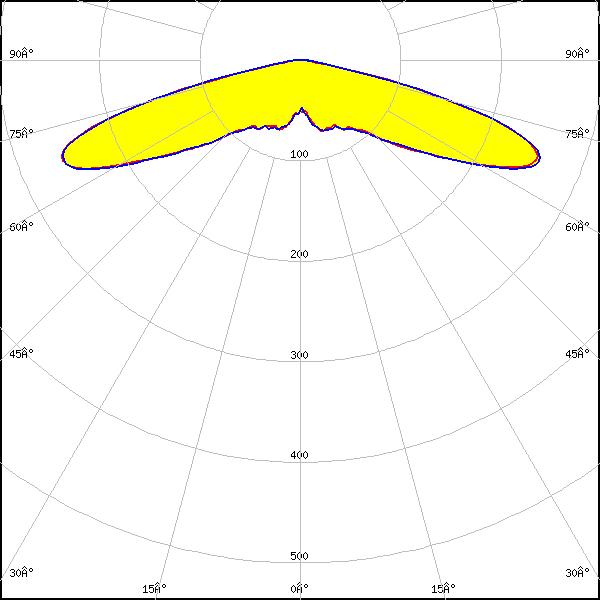

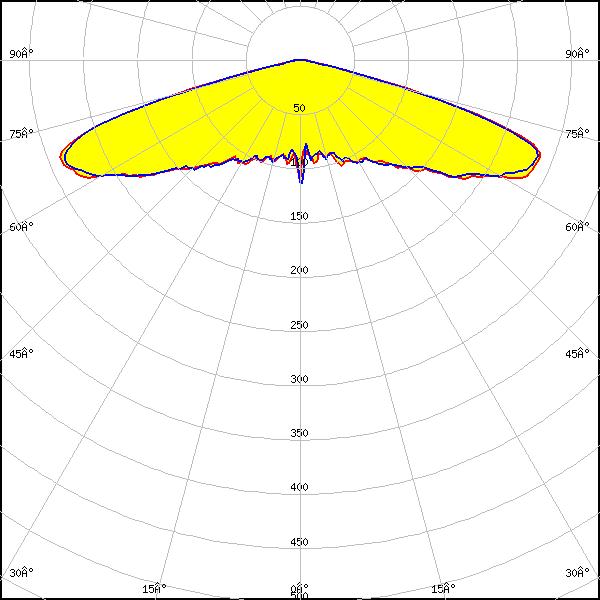

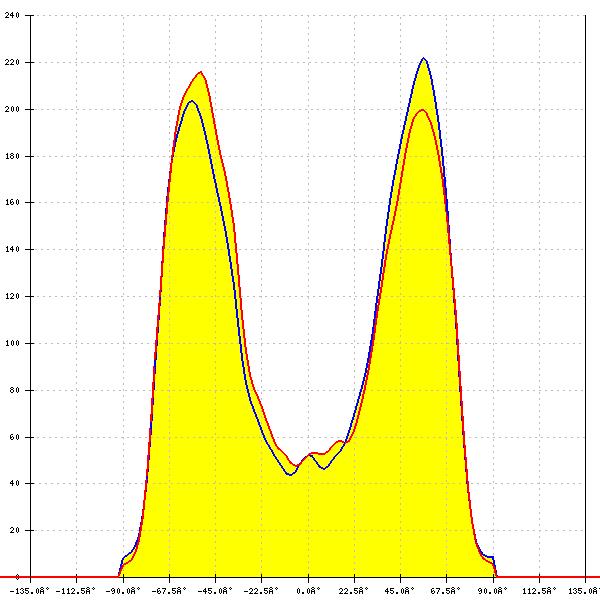

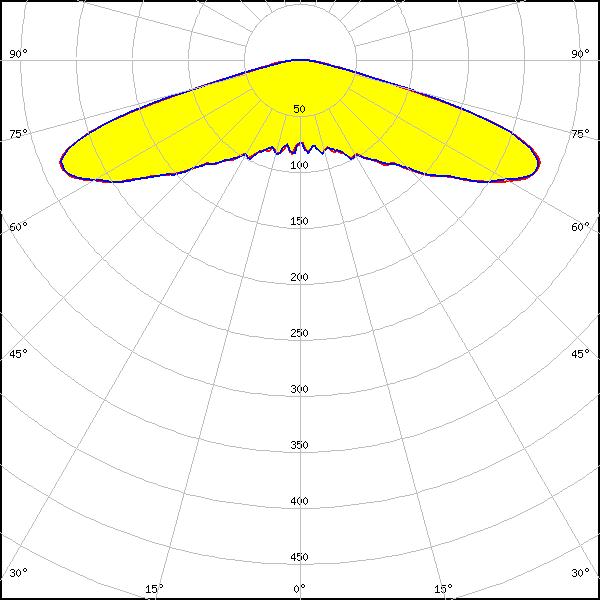

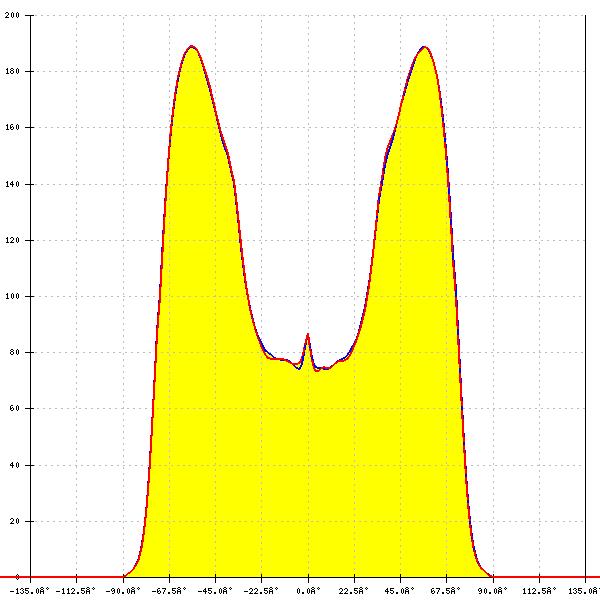

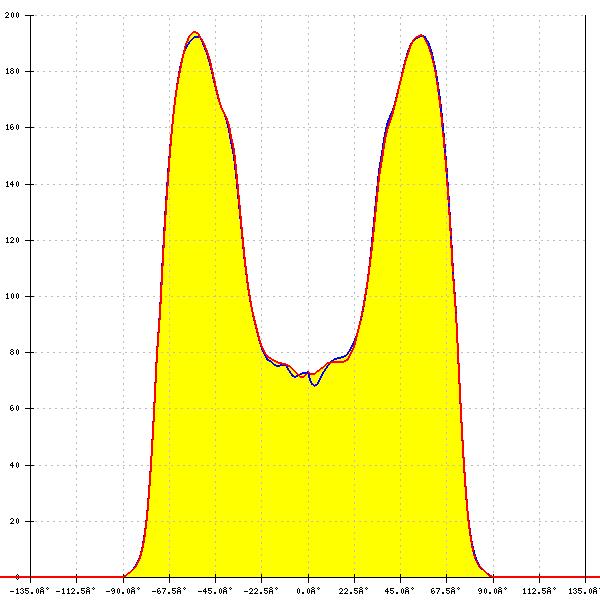

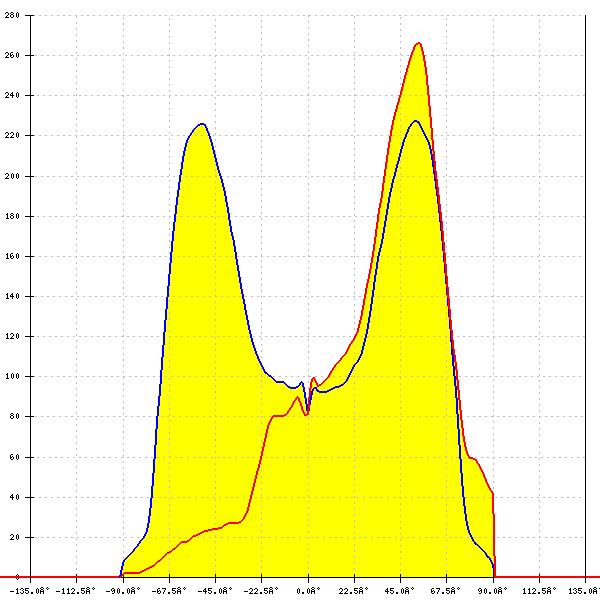

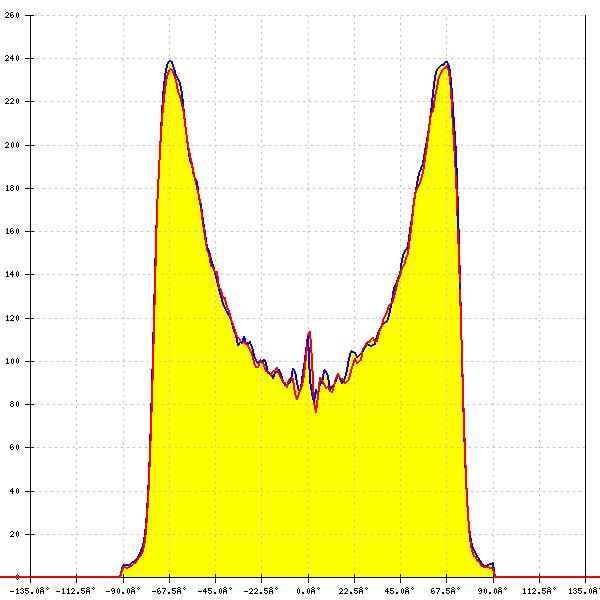

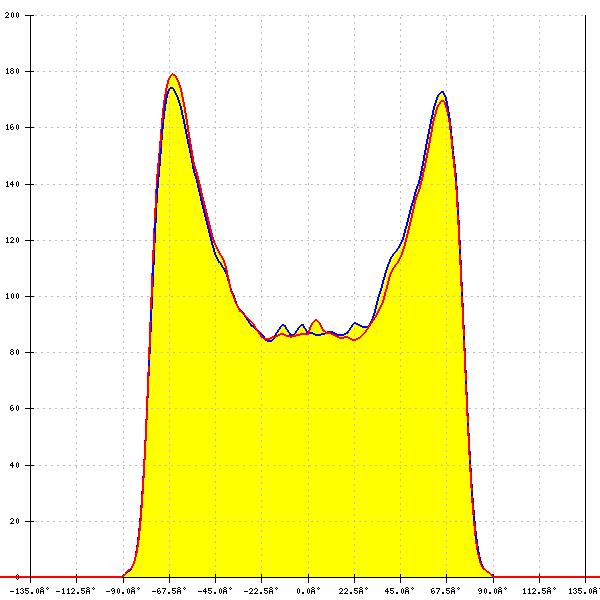

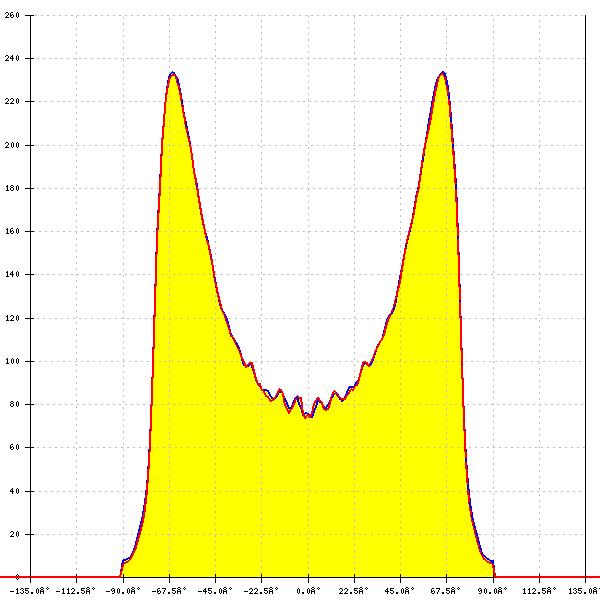

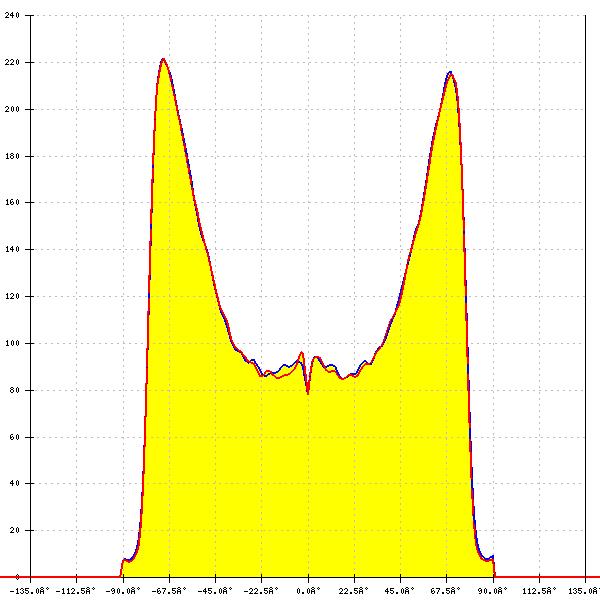

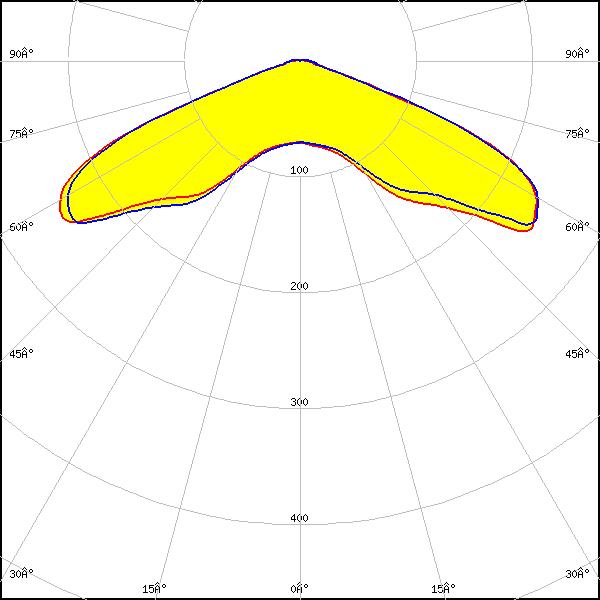

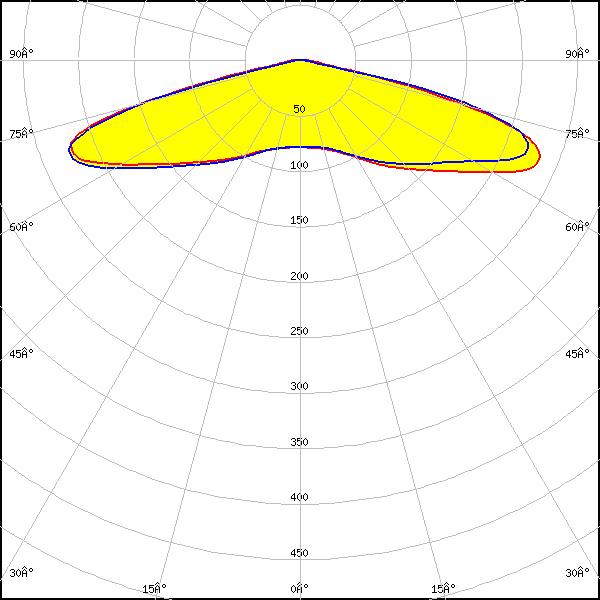

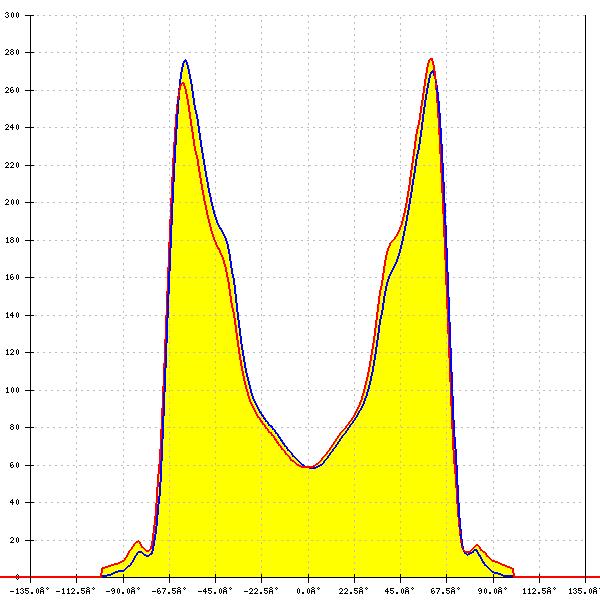

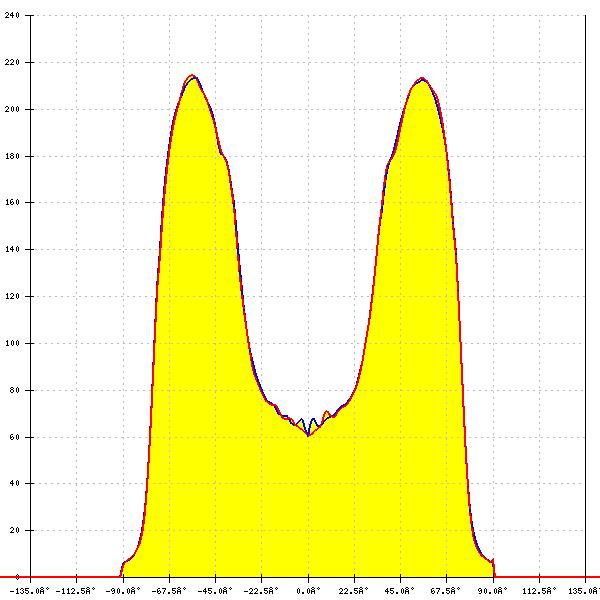

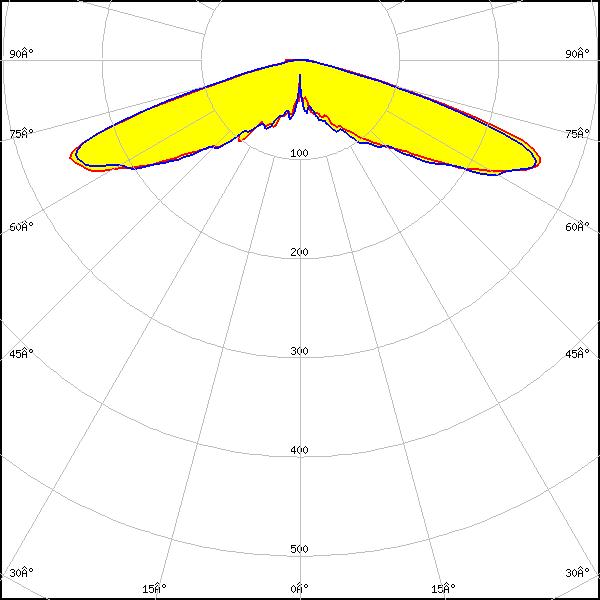

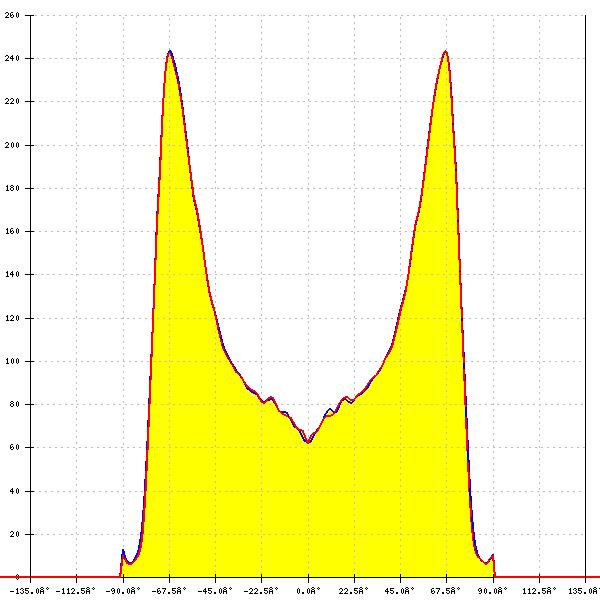

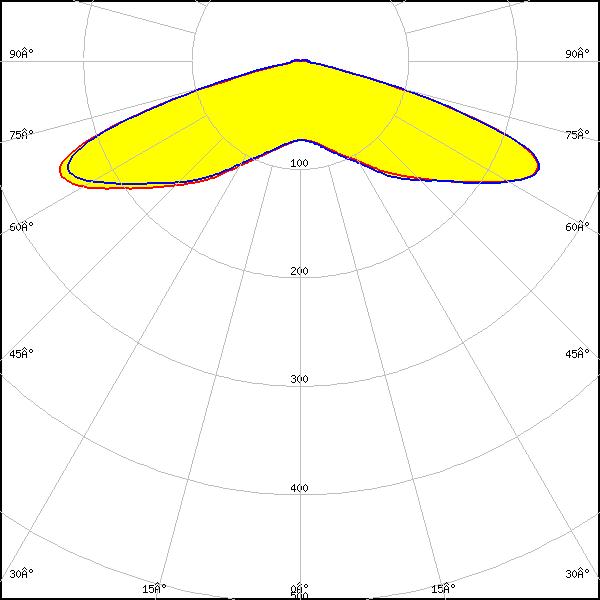

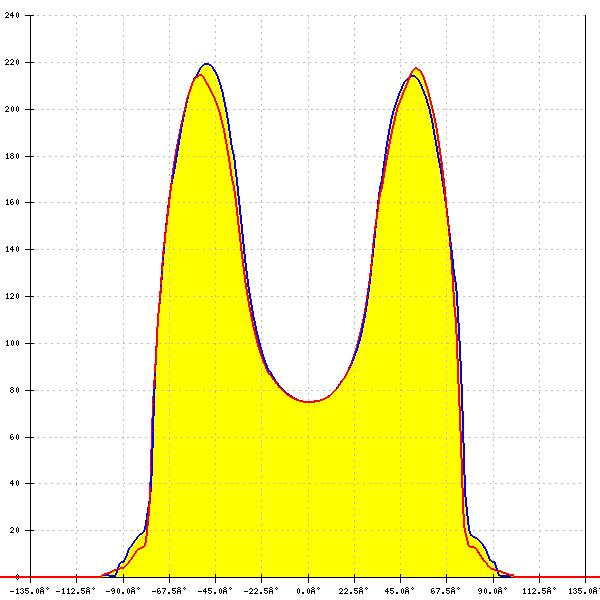

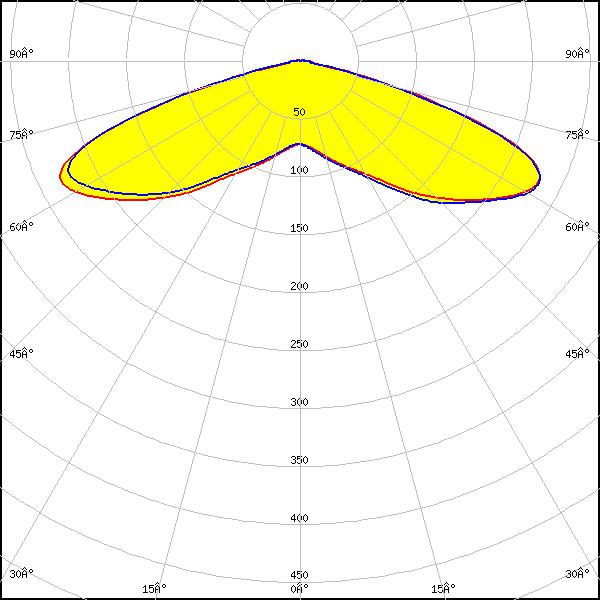

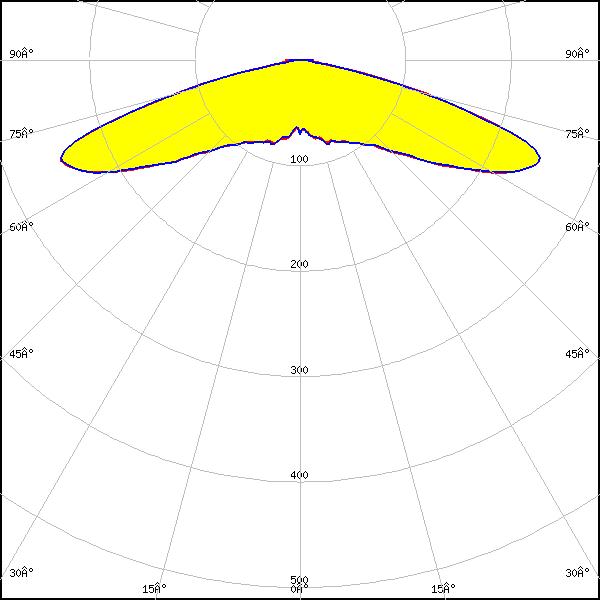

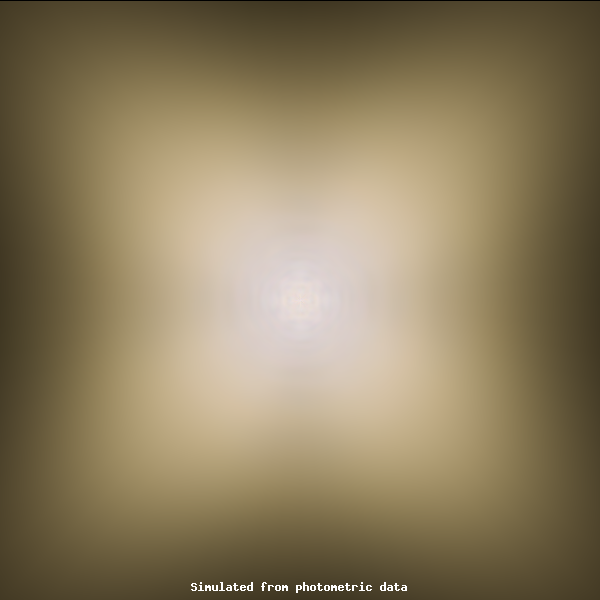

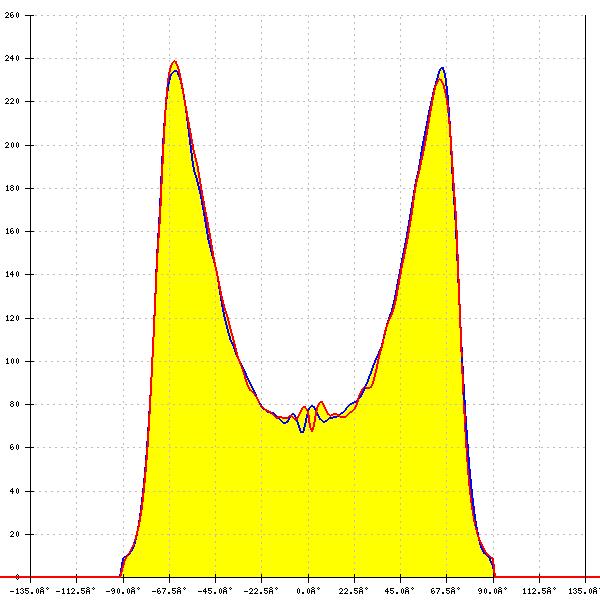

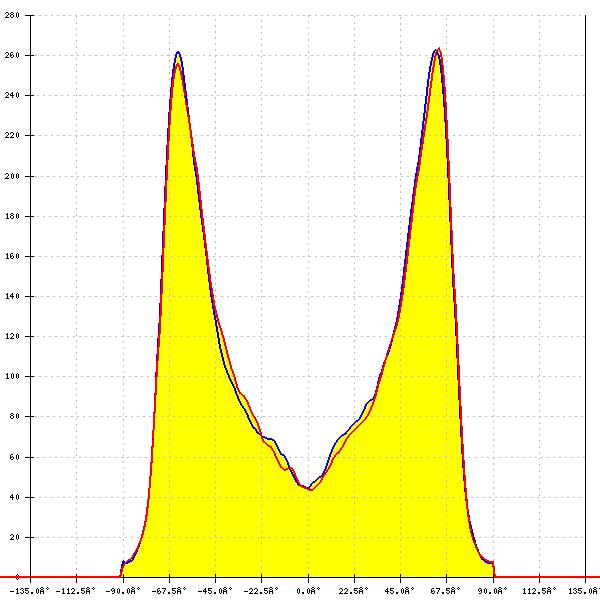

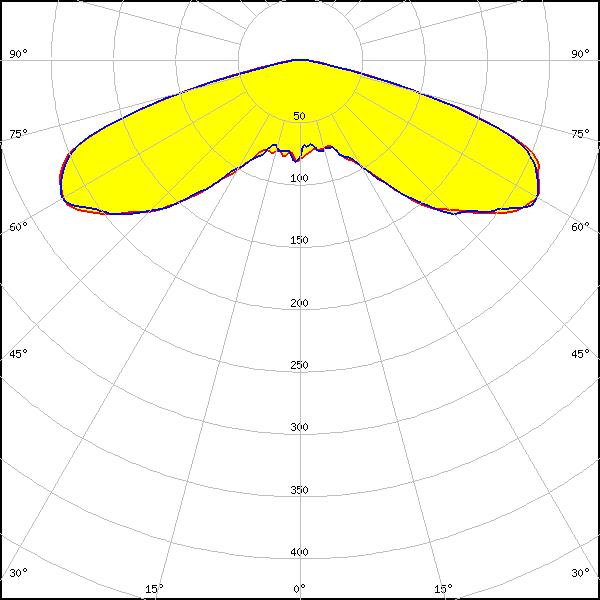

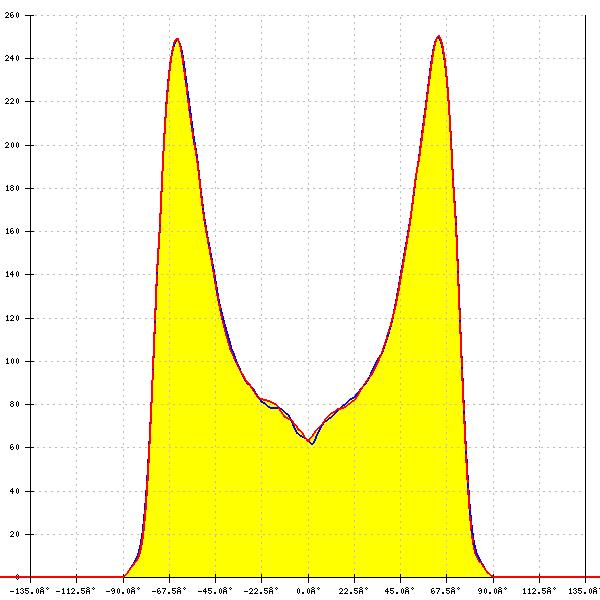

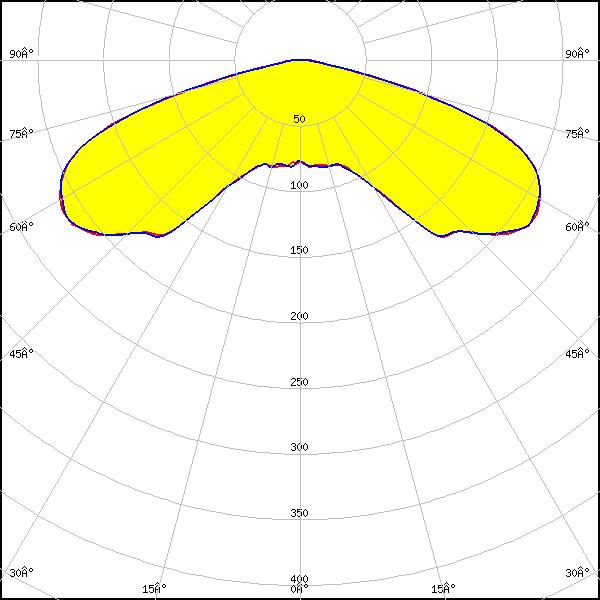

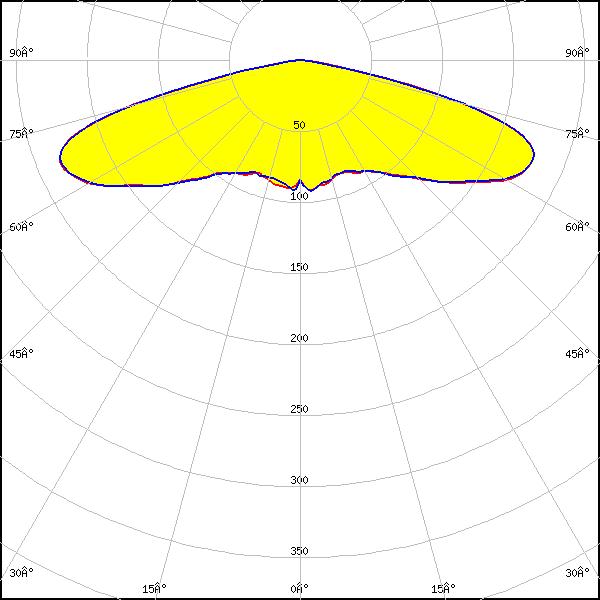

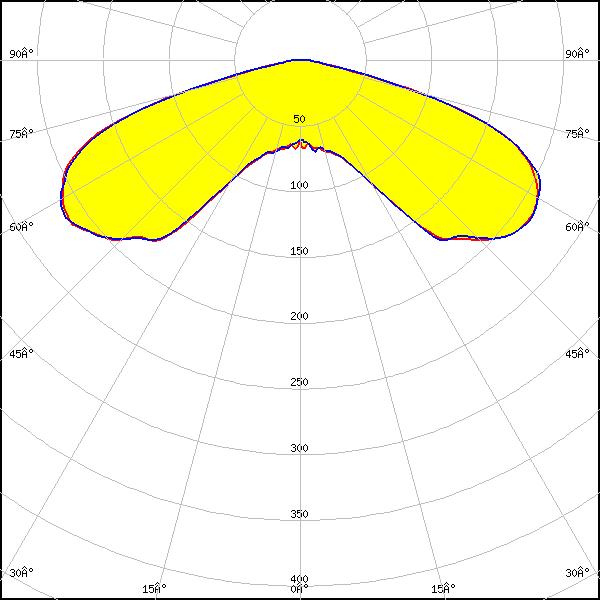

Optical results

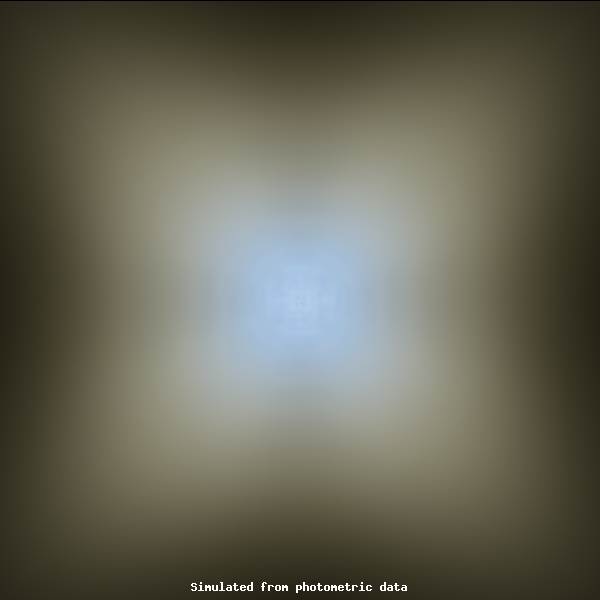

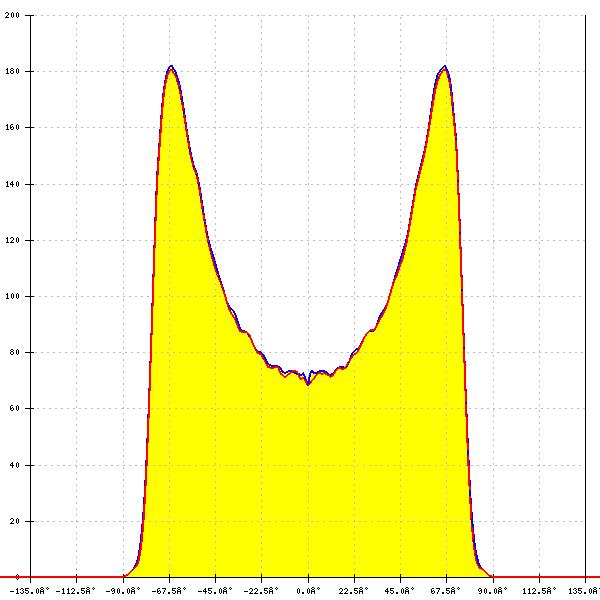

LED:

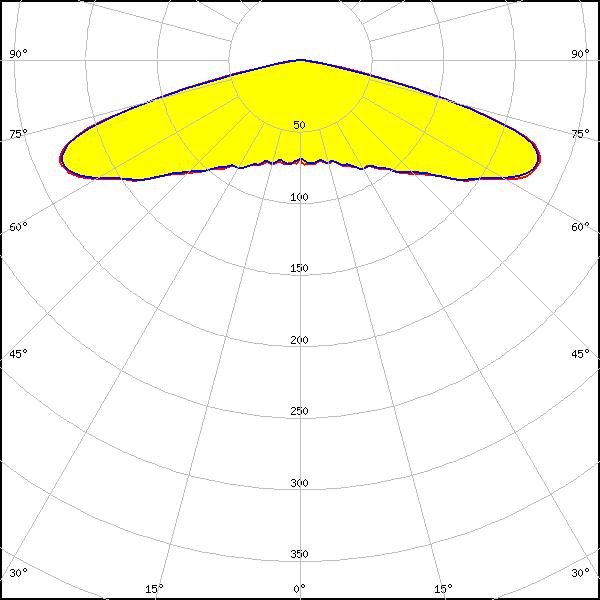

Bridgelux SMD 3535 (3B1)
FWHM:
154°
FWTM:
164°
Peak intensity:
0.407 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Bridgelux SMD 3535 (3B1)
FWHM:
152°
FWTM:
160°
Peak intensity:
0.267 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Bridgelux SMD 5050
FWHM:
149°
FWTM:
158°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
QUICK FLUX XTP 2x4 xxx LS G5
FWHM: asymmetric
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

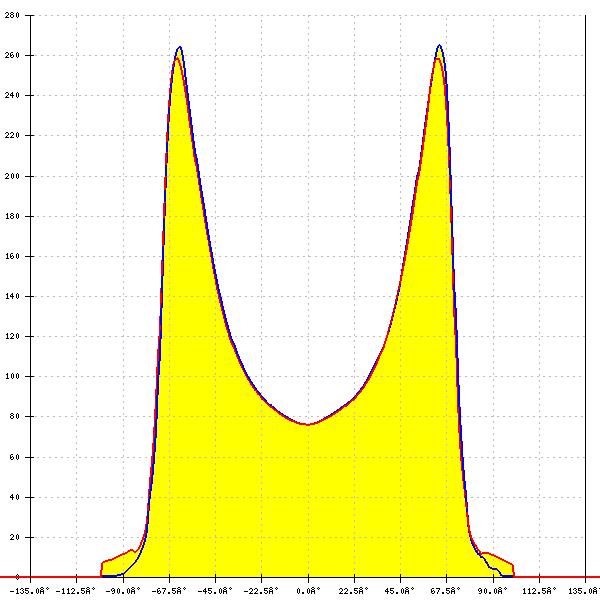

QUICK FLUX XTP 2x6 xxx LS G5
FWHM: asymmetric
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
QUICK FLUX XTP 2x8 xxx LS G5
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

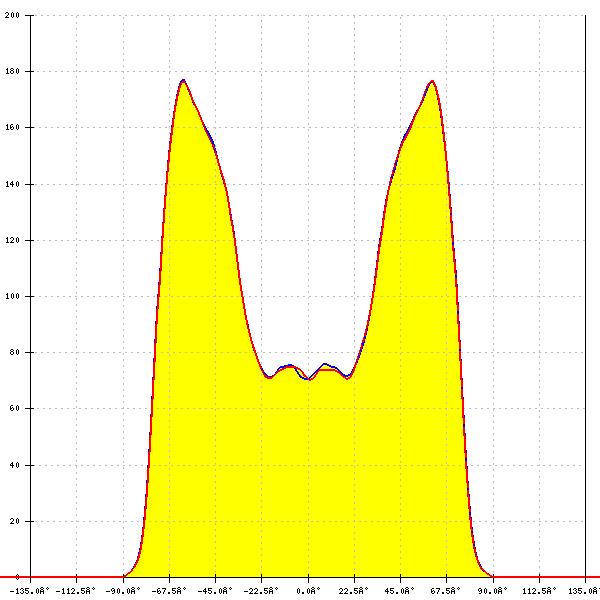

LED:

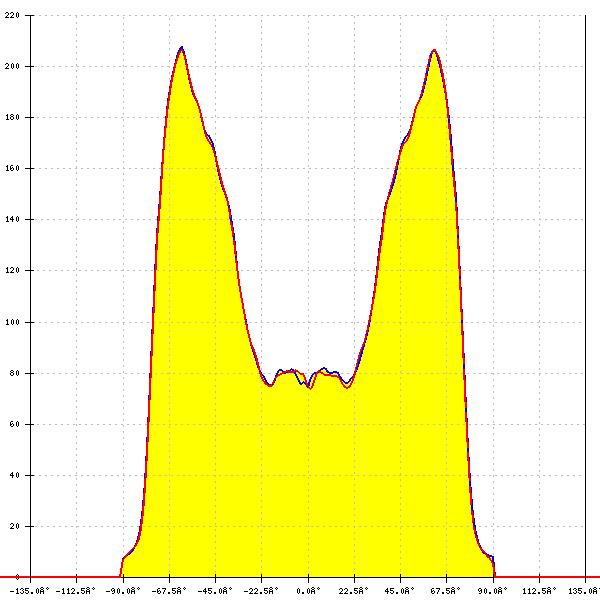

J Series 5050B 30V K Class
FWHM:
150°
FWTM:
162°
Peak intensity:
0.313 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 30V K Class
FWHM:
146°
FWTM:
160°
Peak intensity:
0.237 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

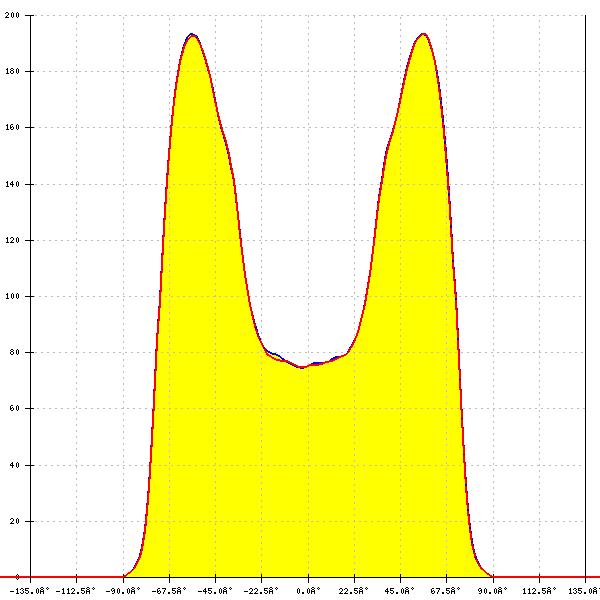

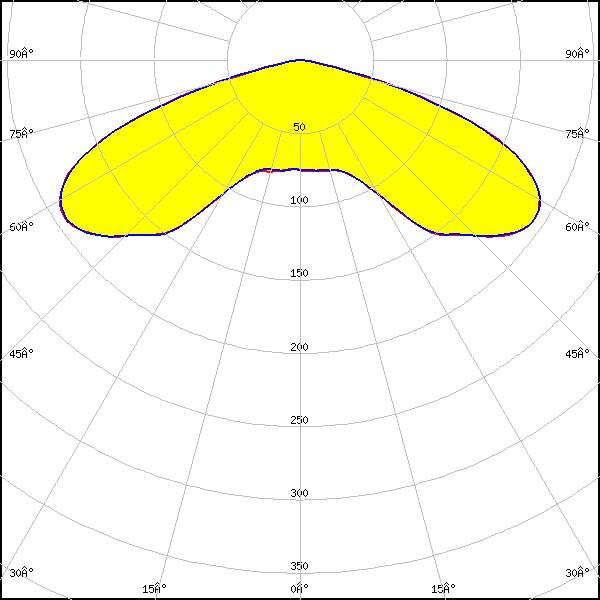

LED:
J Series 5050B 6V K Class
FWHM:
148°
FWTM:
160°
Peak intensity:
0.323 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM:
144°
FWTM:
158°
Peak intensity:
0.255 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

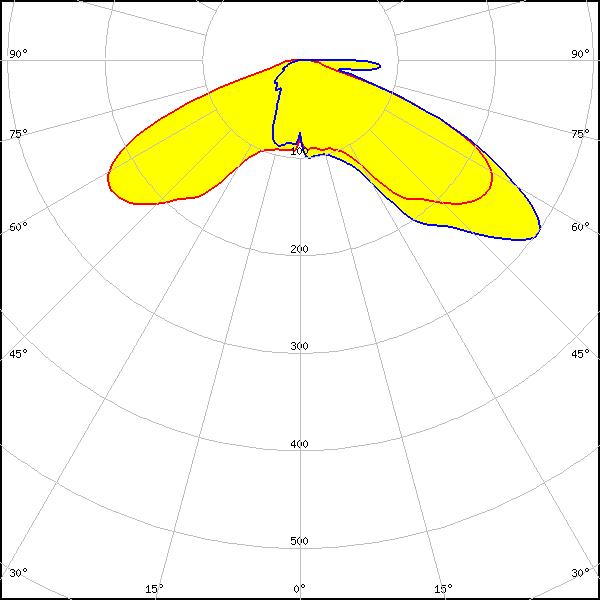

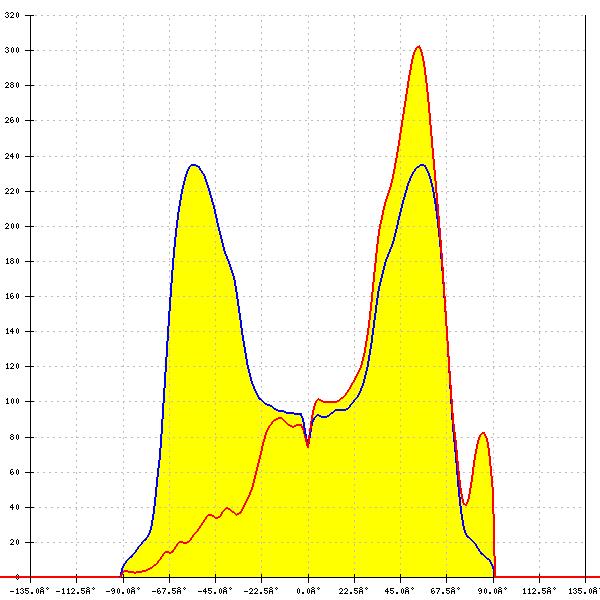

J Series 5050C 6V E Class
Required components:
FWHM: asymmetric
Peak intensity:
0.355 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
Required components:
FWHM: asymmetric
Peak intensity:
0.328 cd/lm
Efficiency:
52 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity:
0.344 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XB-D
FWHM:
151°
FWTM:
180°
Peak intensity:
0.377 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XD16
FWHM: asymmetric
Peak intensity:
0.630 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

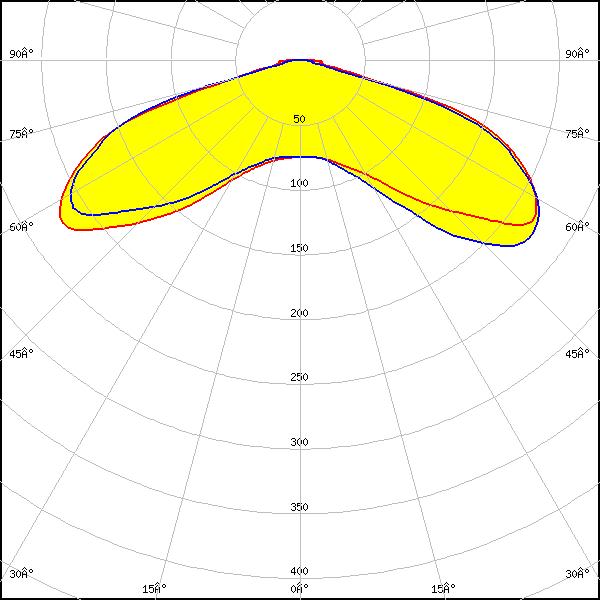

LED:
XD16
FWHM:
149°
FWTM:
159°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:

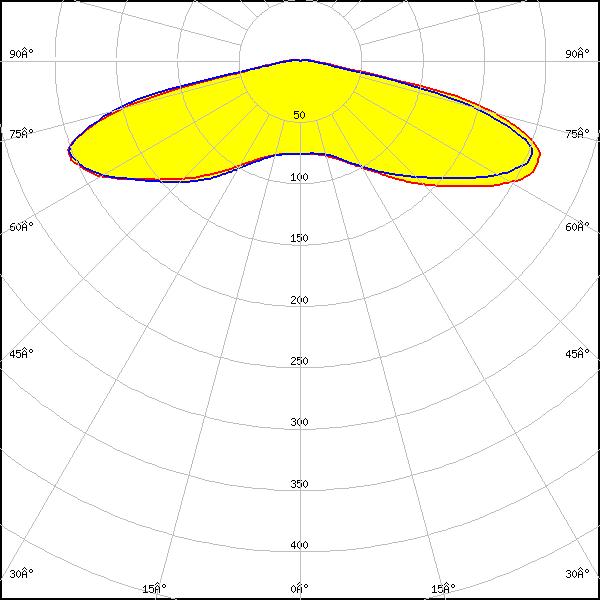

XHP35 HD
FWHM: asymmetric
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

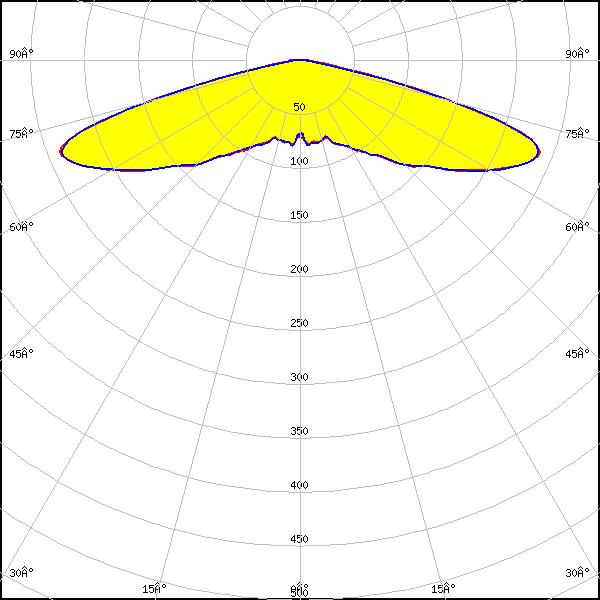

LED:

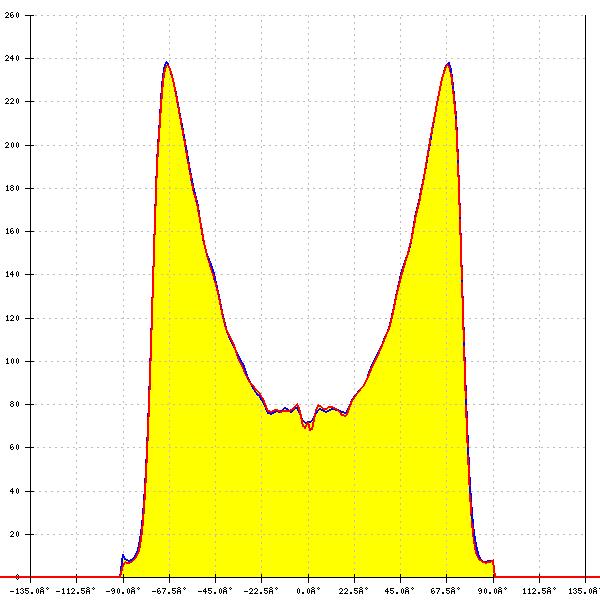

XM-L
FWHM:
152°
FWTM:
161°
Peak intensity:
0.378 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L2
FWHM:
152°
FWTM:
160°
Peak intensity:
0.380 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM:
152°
FWTM:
163°
Peak intensity:
0.400 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
151°
FWTM:
161°
Peak intensity:
0.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2 HE
FWHM:
152°
FWTM:
160°
Peak intensity:
0.424 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
150°
FWTM:
161°
Peak intensity:
0.265 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

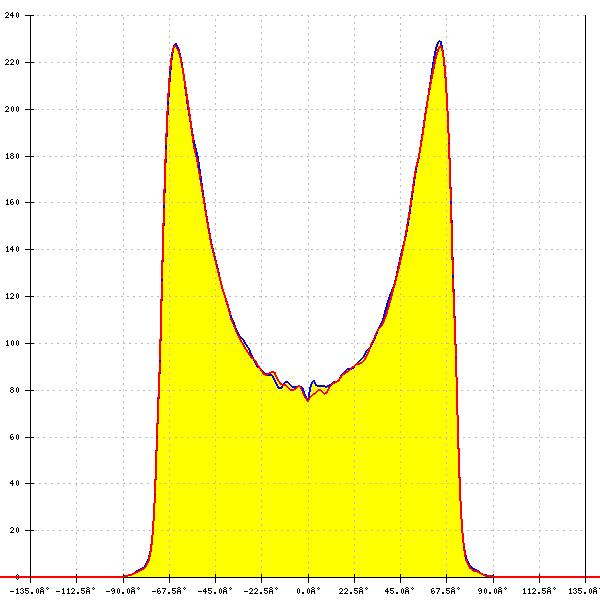

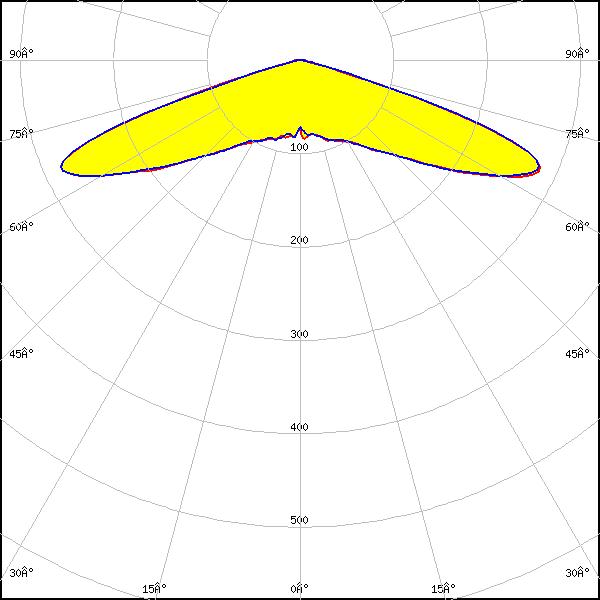

LED:

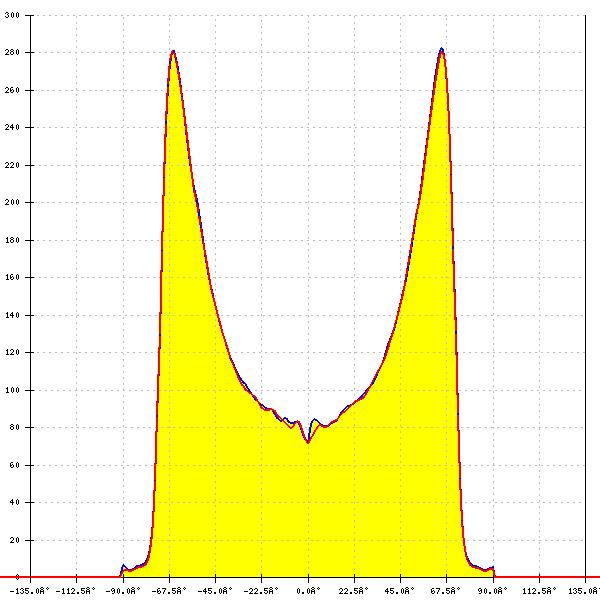

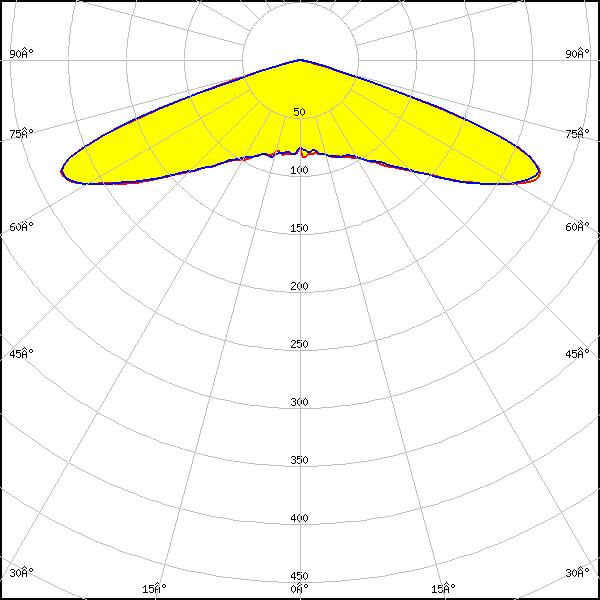

XP-G4
FWHM:
144°
FWTM:
150°
Peak intensity:
0.449 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G4
FWHM:
142°
FWTM:
150°
Peak intensity:
0.335 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L2
FWHM:
151°
FWTM:
161°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

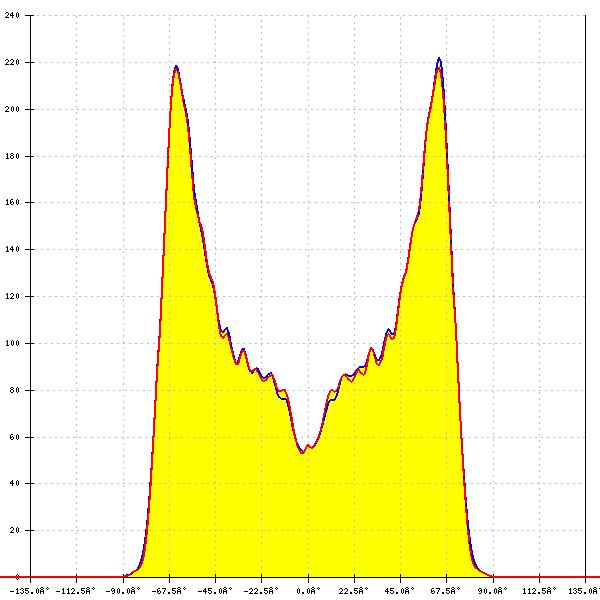

XP-P
FWHM:
144°
FWTM:
156°
Peak intensity:
0.328 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
152°
FWTM:
170°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PL-BRICK HP 3800 2x8 SSG
FWHM: asymmetric
Peak intensity:
0.405 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

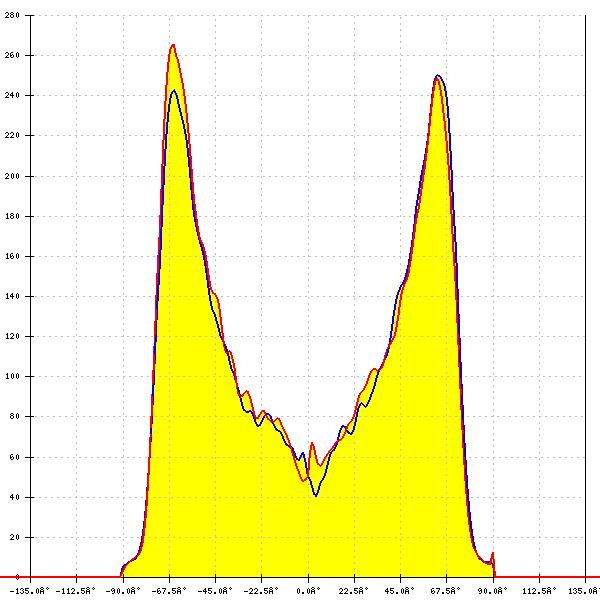

LED:
PrevaLED Brick HP 2x8
FWHM:
146°
FWTM:
160°
Peak intensity:
1.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

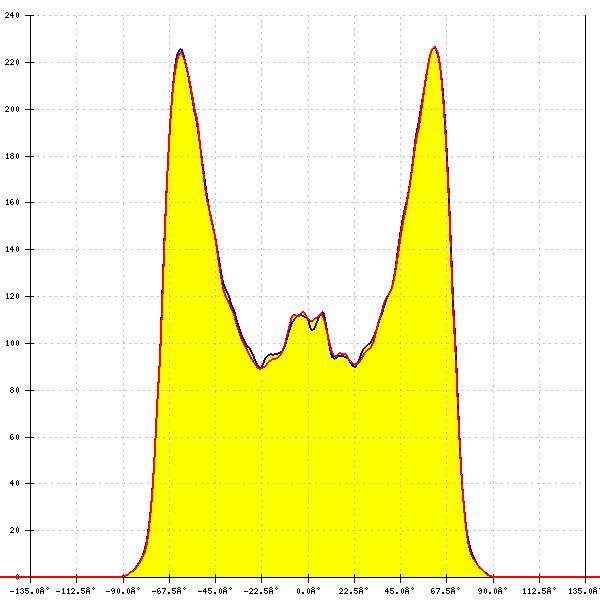

LED:

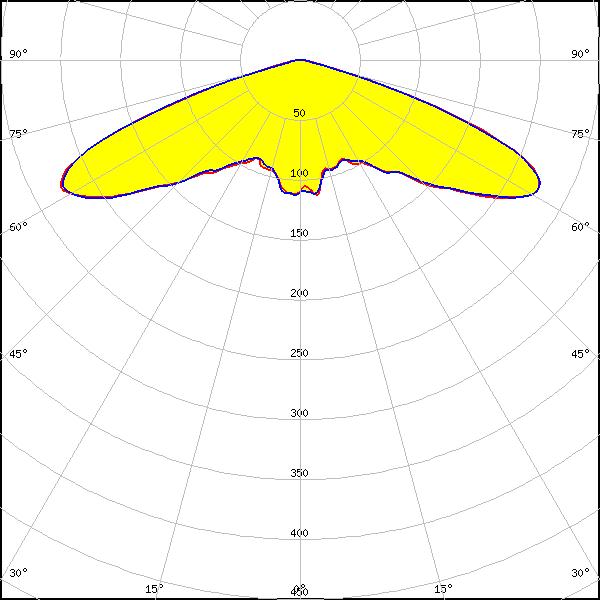

LUXEON 3030 2D (Round LES)
FWHM:
142°
FWTM:
154°
Peak intensity:
0.356 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

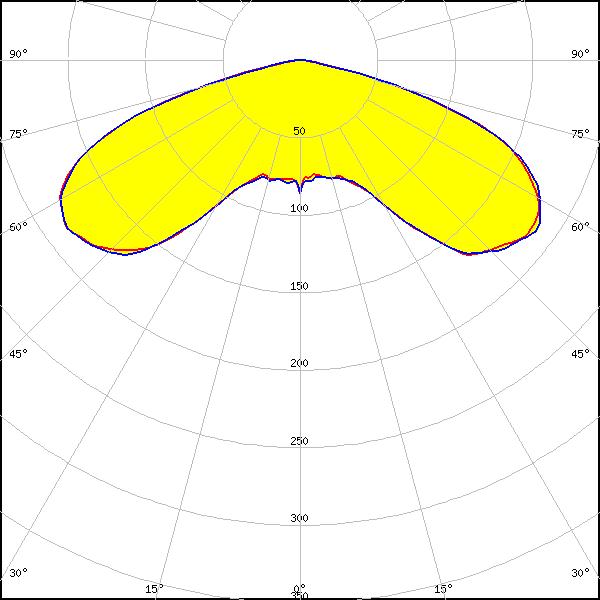

LUXEON 5050 HE Plus
FWHM:
146°
FWTM:
158°
Peak intensity:
0.249 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

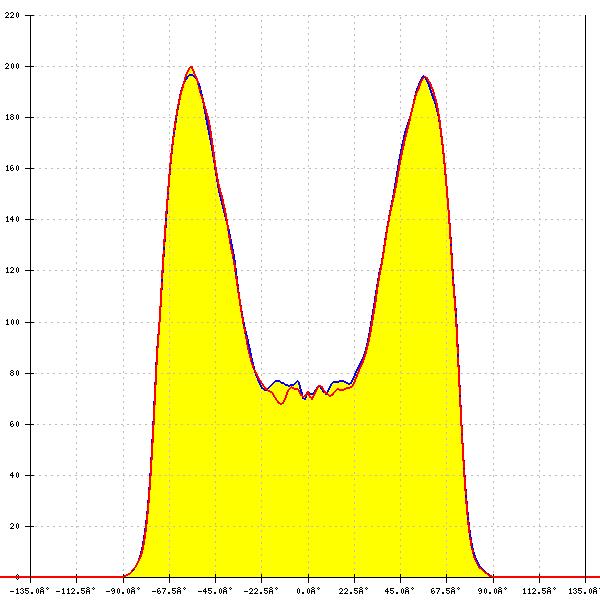

LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.276 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.263 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

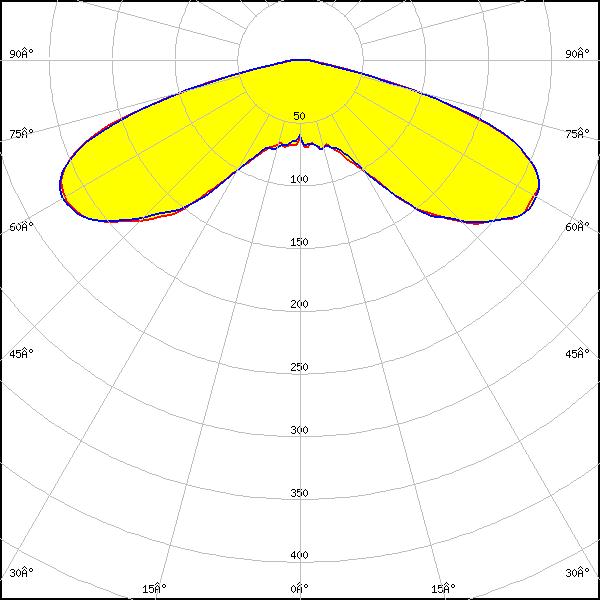

LED:
LUXEON 5050 Square LES
FWHM:
148°
FWTM:
161°
Peak intensity:
0.328 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON C
FWHM: asymmetric
Peak intensity:
0.580 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
PC Amber
LED:

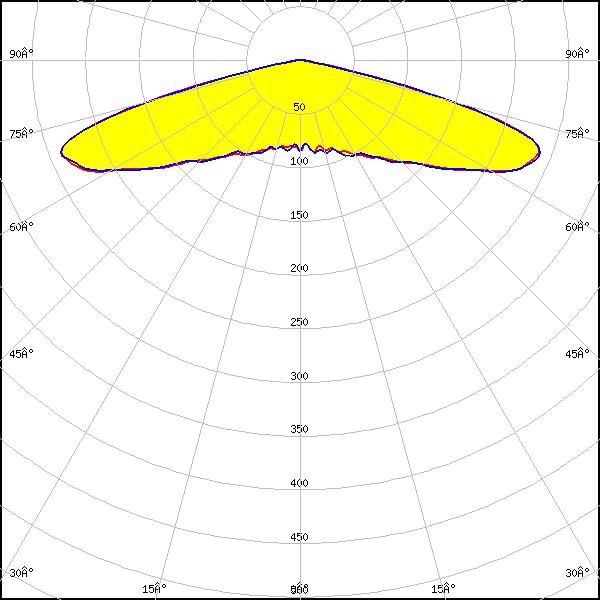

LUXEON HL2X
FWHM:
150°
FWTM:
158°
Peak intensity:
0.389 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

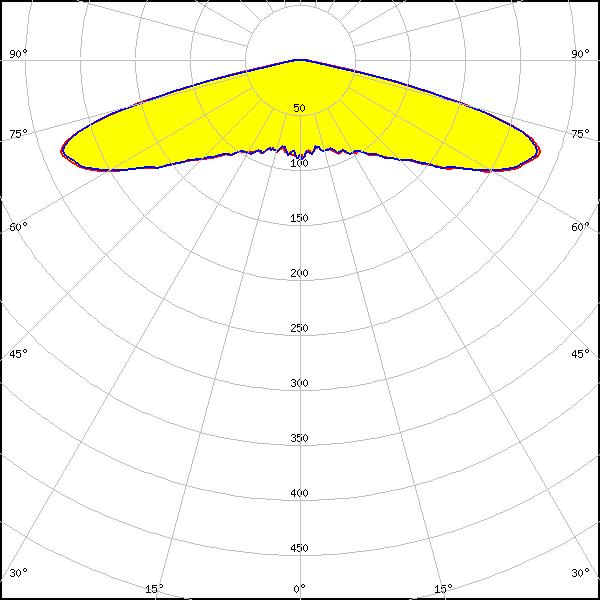

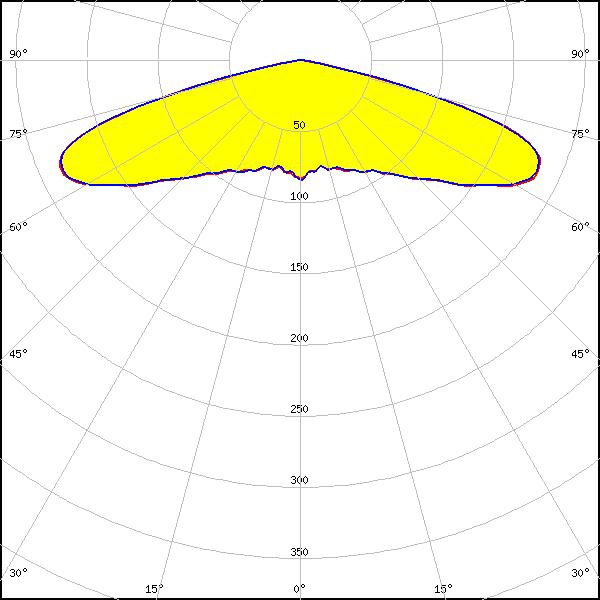

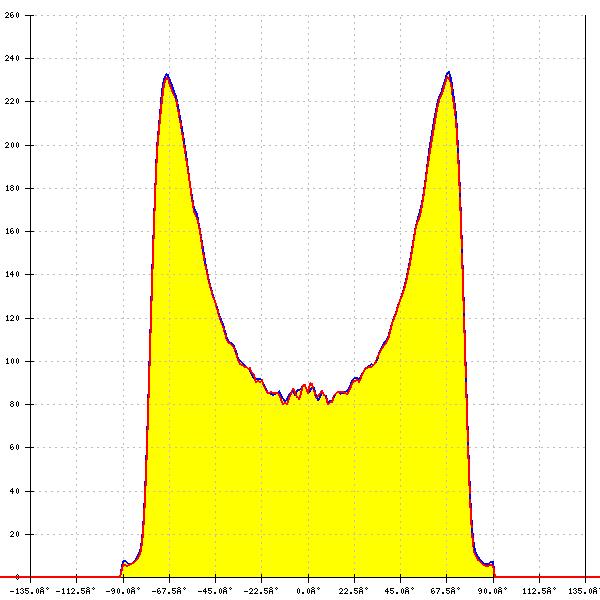

LUXEON HL2X-V
FWHM:
152°
FWTM:
160°
Peak intensity:
0.402 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2X-V
FWHM:
150°
FWTM:
158°
Peak intensity:
0.273 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

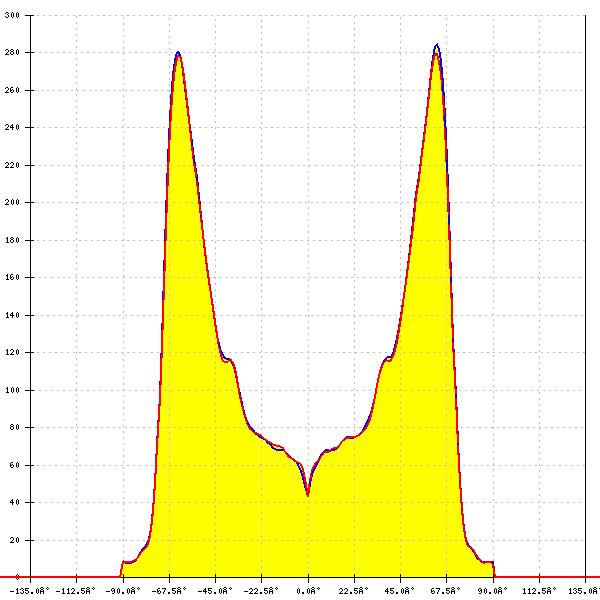

LED:

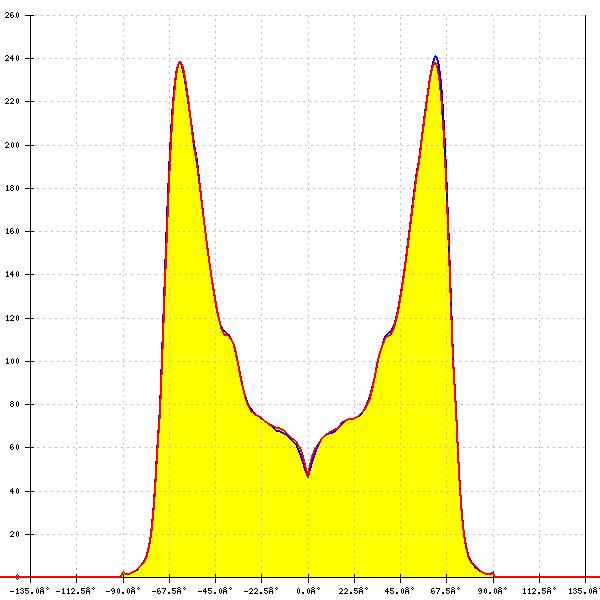

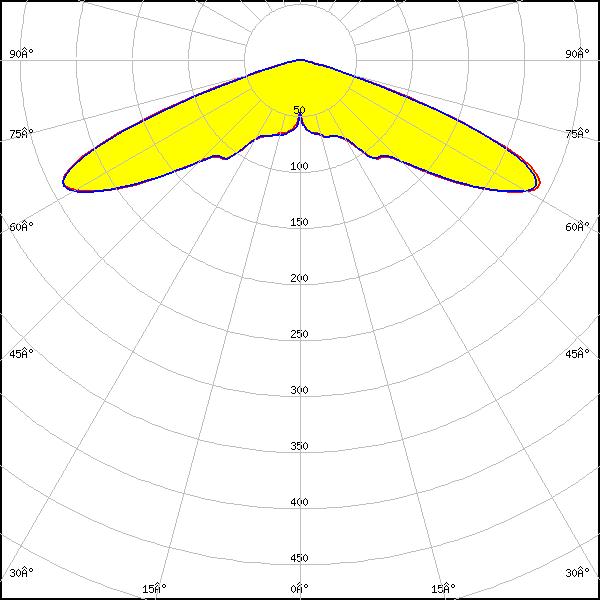

LUXEON HL2Z
FWHM:
142°
FWTM:
152°
Peak intensity:
0.492 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2Z
FWHM:
140°
FWTM:
152°
Peak intensity:
0.362 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

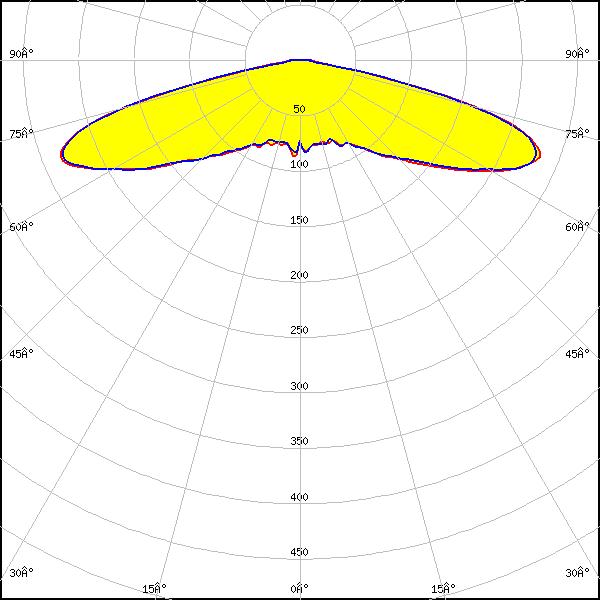

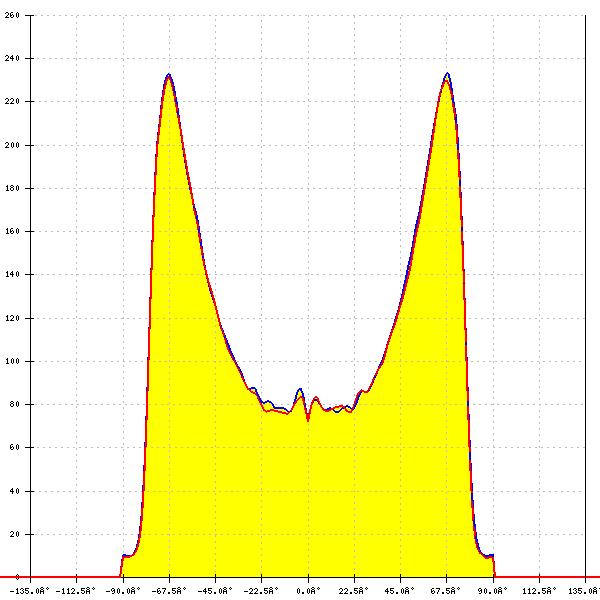

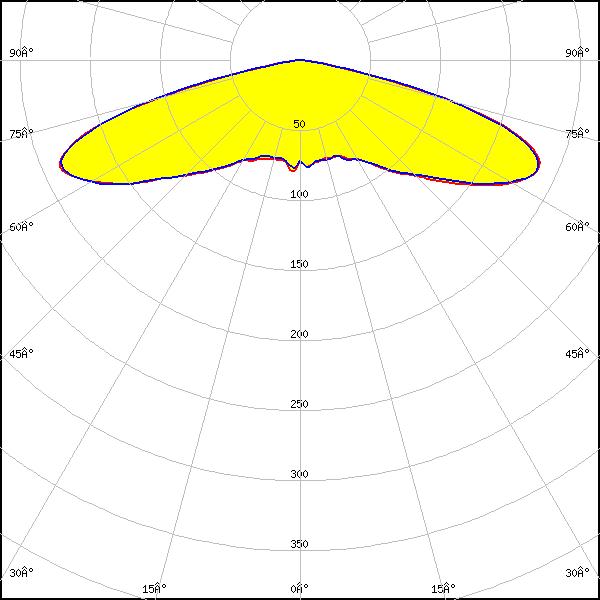

LUXEON HL4X
FWHM:
154°
FWTM:
162°
Peak intensity:
0.387 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

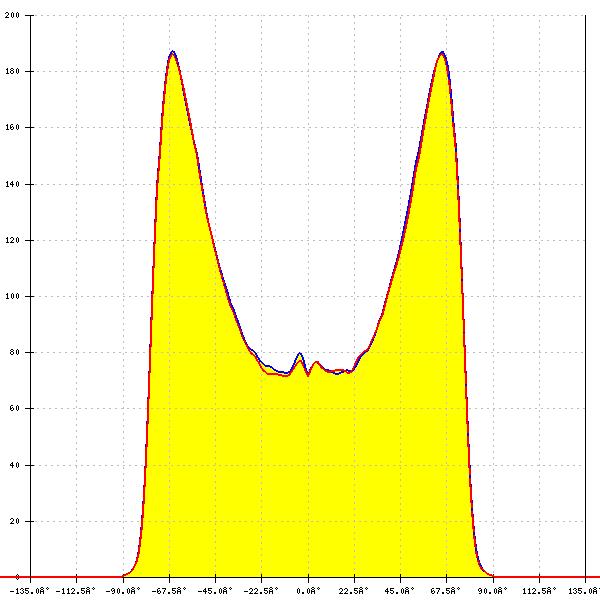

LUXEON HL4X
FWHM:
152°
FWTM:
162°
Peak intensity:
0.265 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
FWHM:
146°
FWTM:
157°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

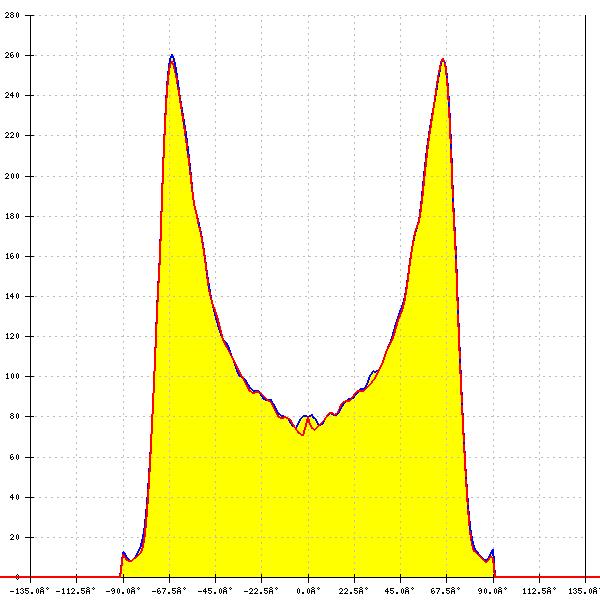

LED:
LUXEON Rebel ES
FWHM:
146°
FWTM:
158°
Peak intensity:
0.423 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON T
FWHM:
150°
FWTM:
160°
Peak intensity:
0.424 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

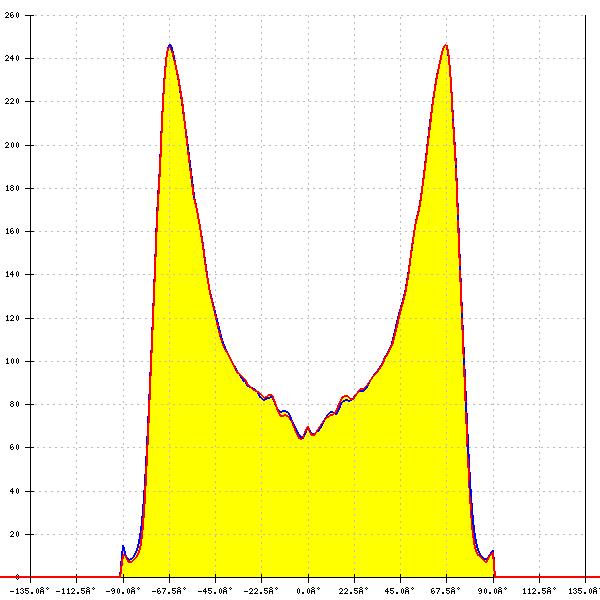

LUXEON TX
FWHM:
150°
FWTM:
160°
Peak intensity:
0.413 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
FWHM:
150°
FWTM:
161°
Peak intensity:
0.416 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

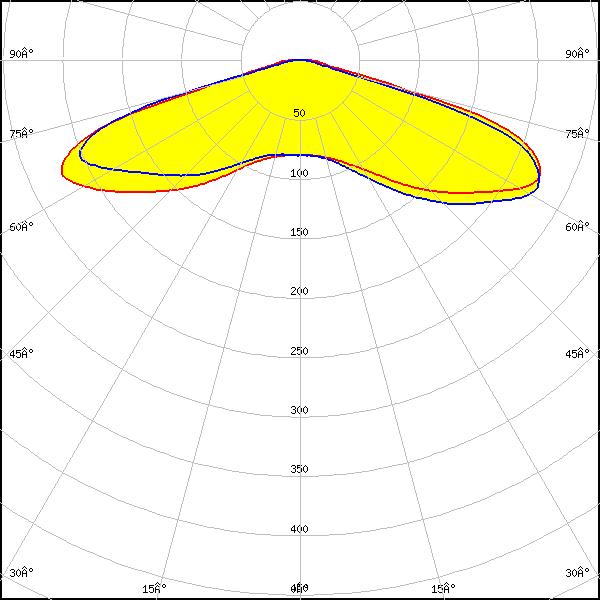

LED:
LUXEON V
FWHM:
151°
FWTM:
167°
Peak intensity:
0.420 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON V2
FWHM:
147°
FWTM:
158°
Peak intensity:
0.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

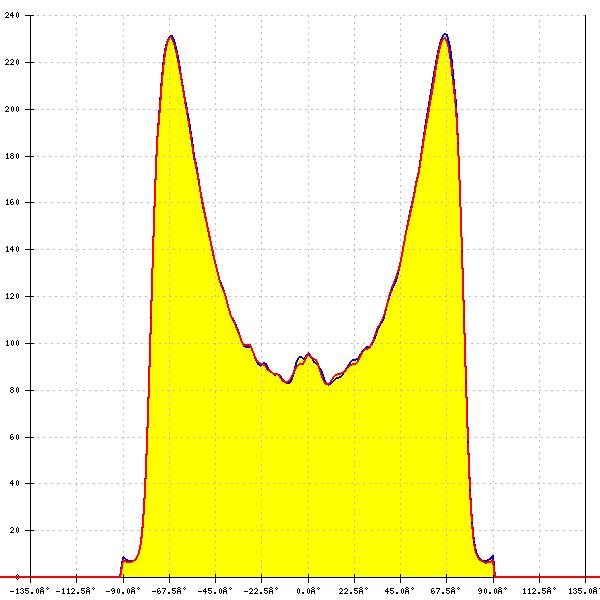

LED:

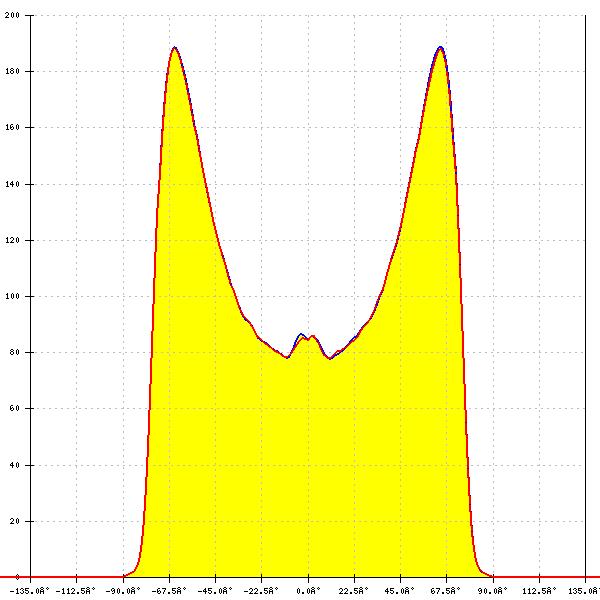

LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
152°
FWTM:
160°
Peak intensity:
0.374 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
150°
FWTM:
160°
Peak intensity:
0.261 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
144°
FWTM:
157°
Peak intensity:
0.578 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
Deep Red
LED:

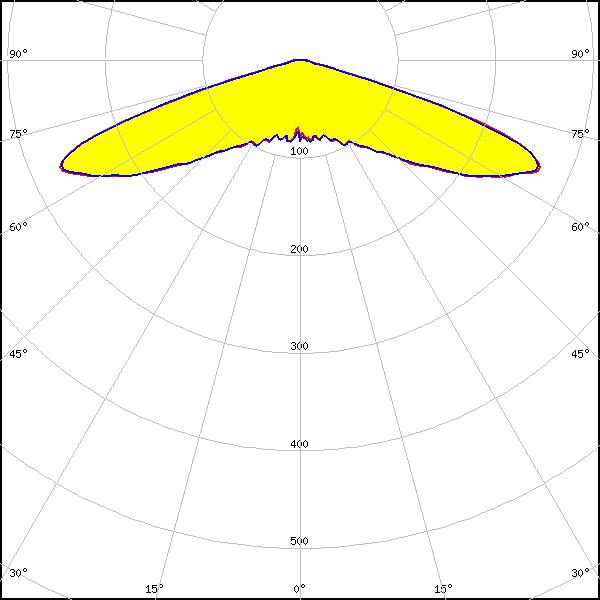

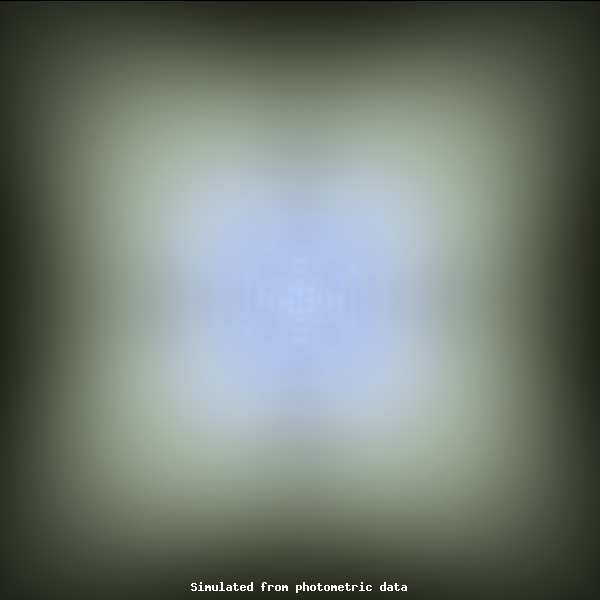

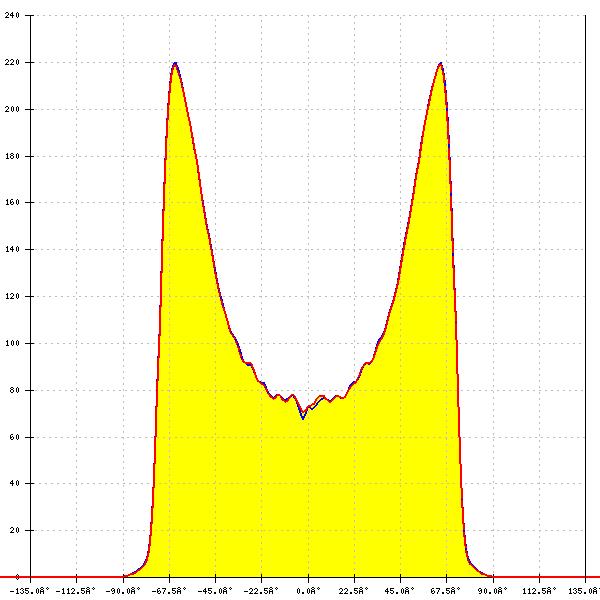

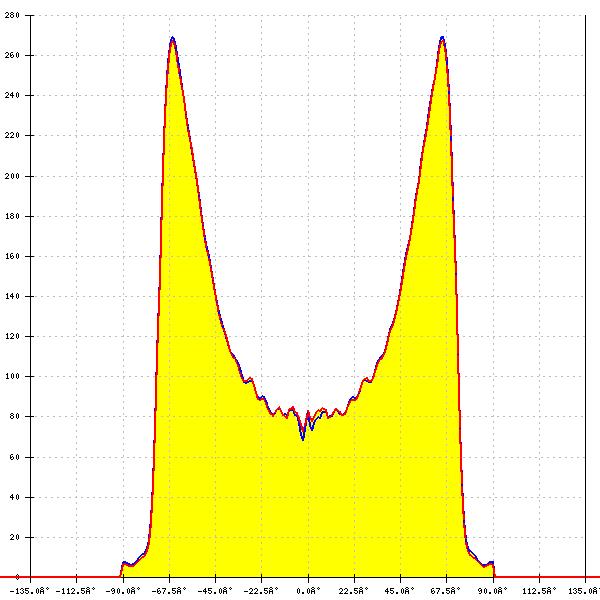

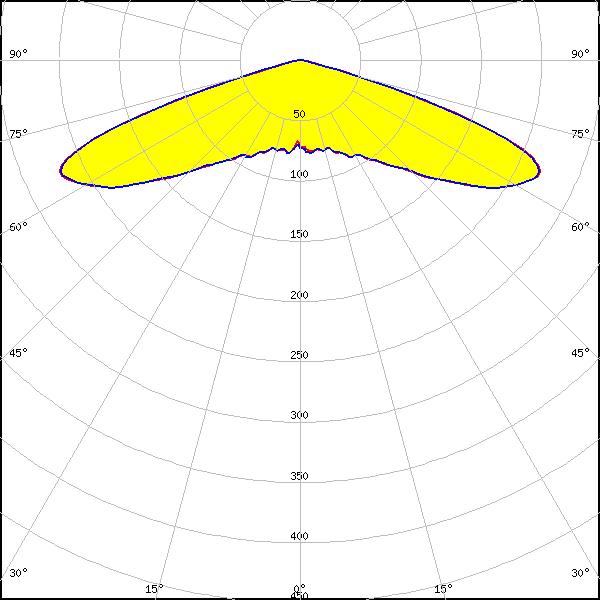

SST-20F-W
FWHM:
144°
FWTM:
152°
Peak intensity:
0.445 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-20F-W
FWHM:
144°
FWTM:
152°
Peak intensity:
0.326 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

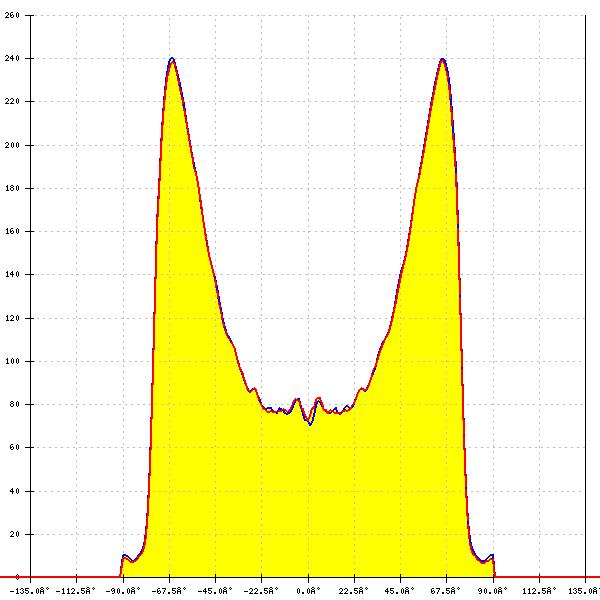

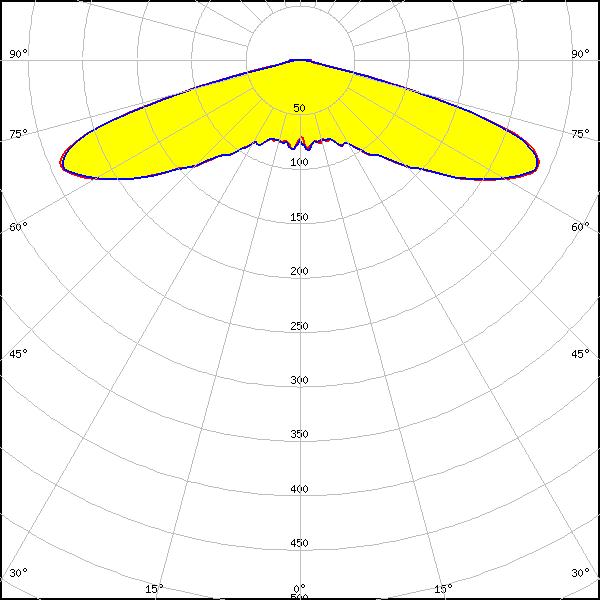

LED:

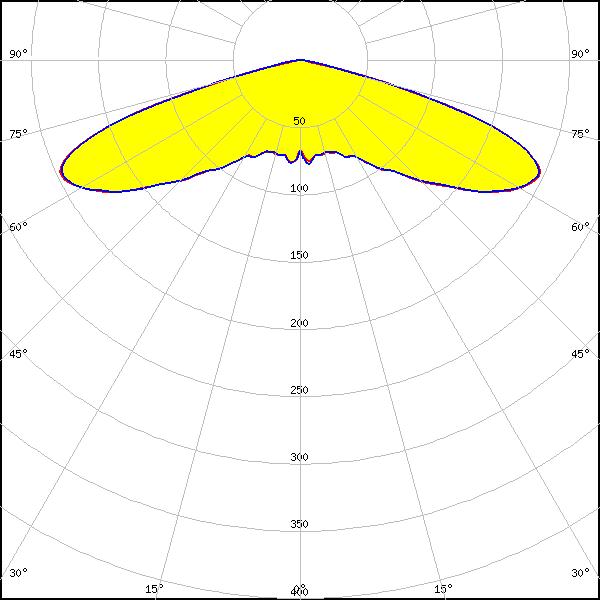

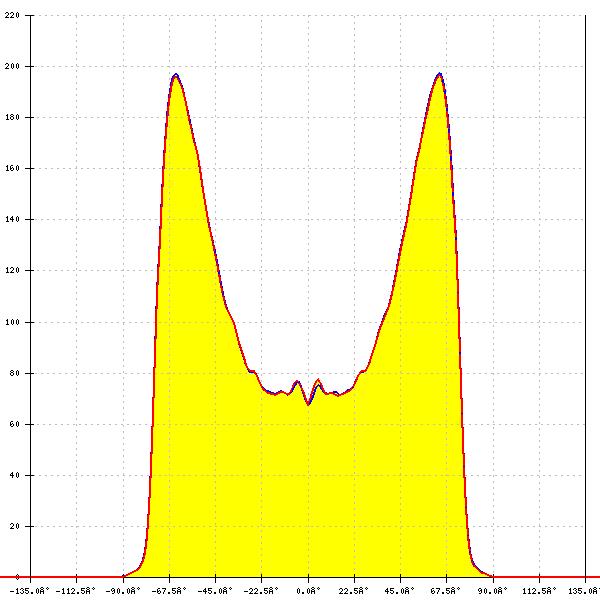

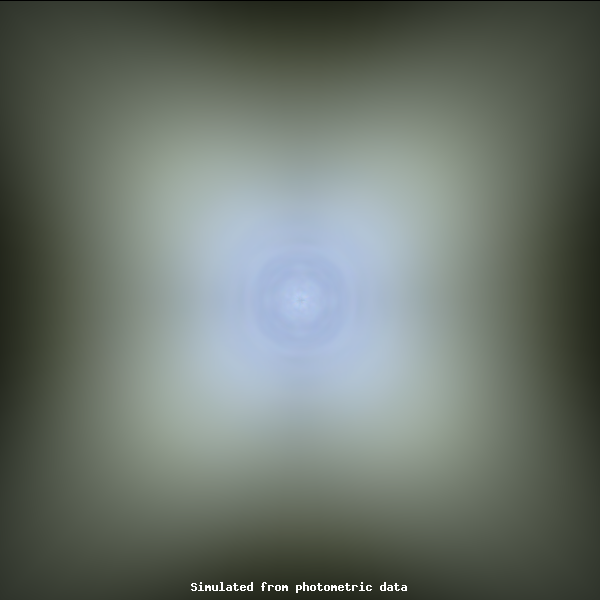

SST-36F-W
FWHM:
148°
FWTM:
156°
Peak intensity:
0.404 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-36F-W
FWHM:
148°
FWTM:
156°
Peak intensity:
0.297 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

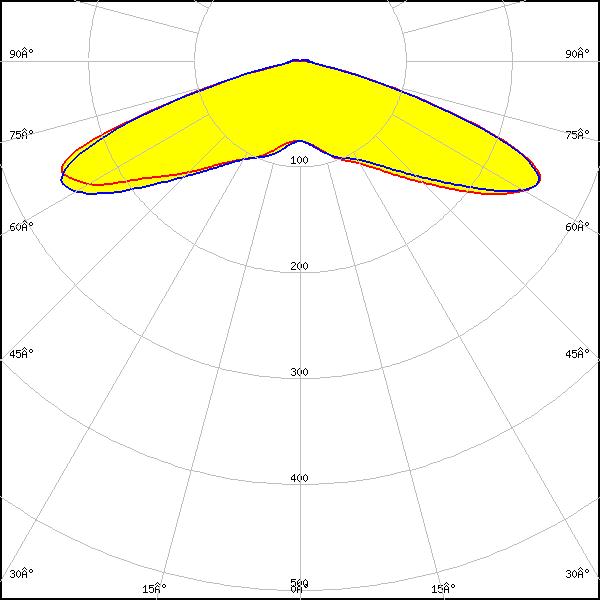

RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity:
0.442 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

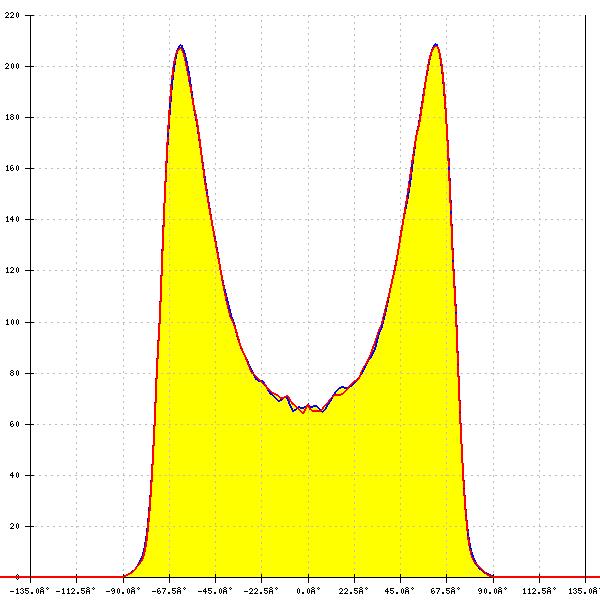

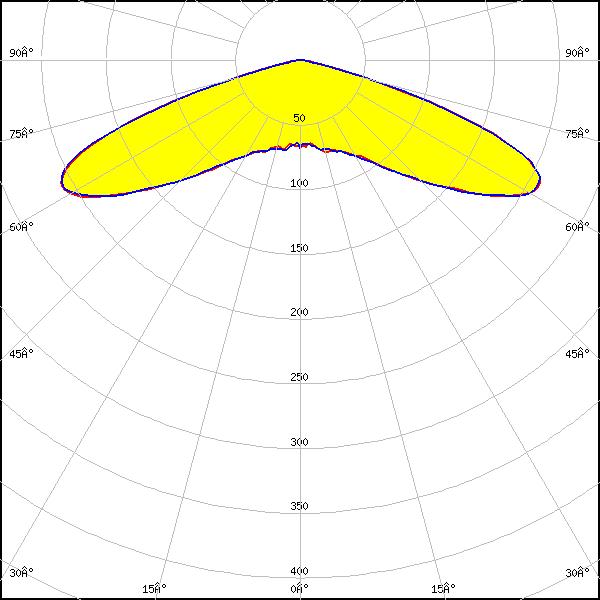

NF2x757G
FWHM:
144°
FWTM:
155°
Peak intensity:
0.325 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

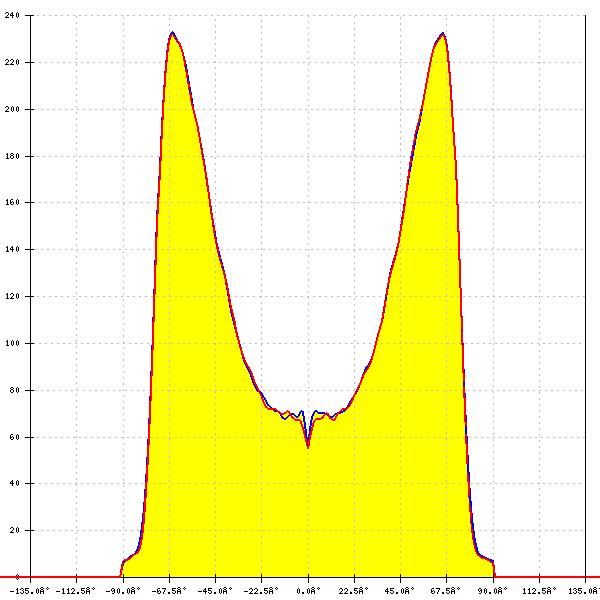

LED:

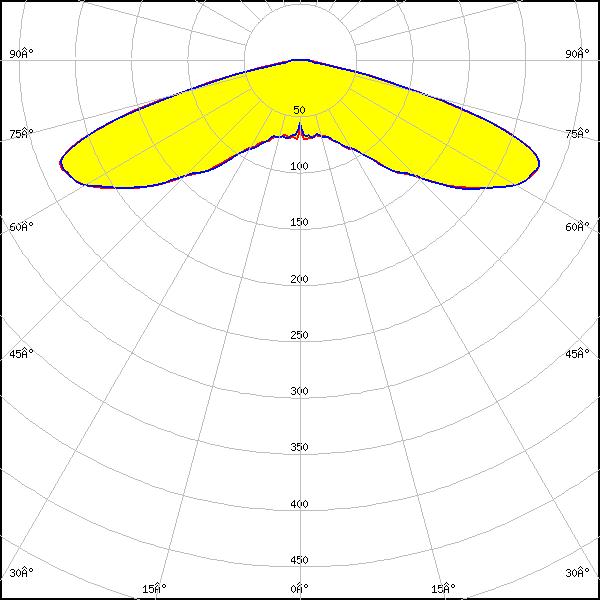

NV4WB35AM
FWHM:
150°
FWTM:
160°
Peak intensity:
0.378 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219D
FWHM:
152°
FWTM:
163°
Peak intensity:
0.440 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

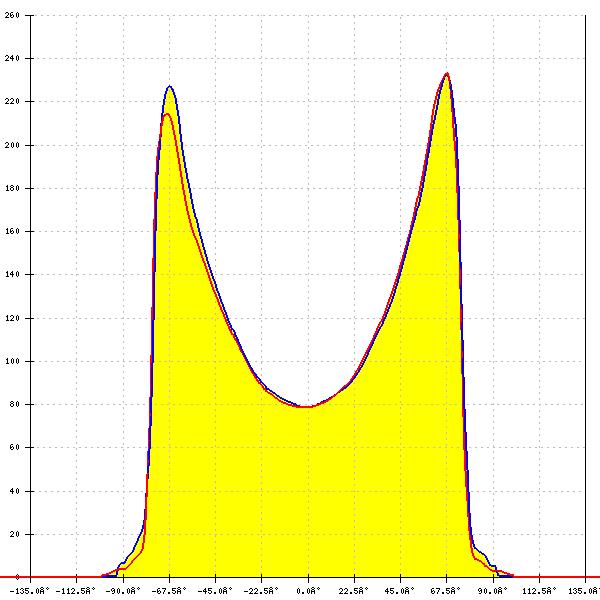

LED:

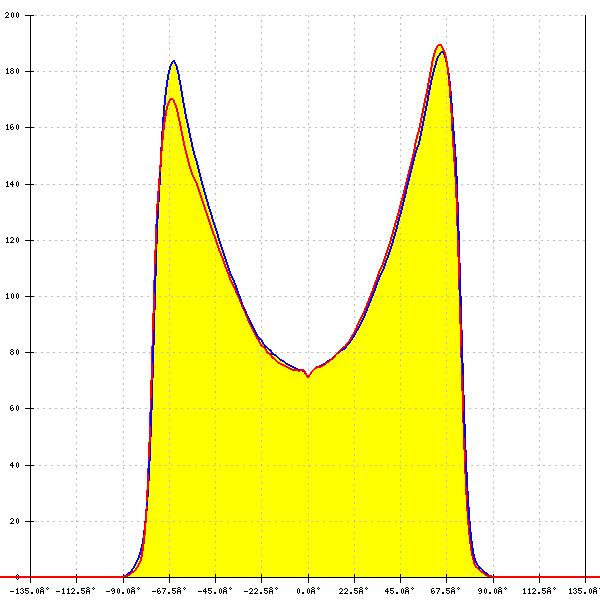

NVSW219F
FWHM: asymmetric
Peak intensity:
0.321 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219F
FWHM:
151°
FWTM:
160°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW319B
FWHM:
156°
FWTM:
164°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW3x9A
FWHM:
152°
FWTM:
161°
Peak intensity:
0.470 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM:
154°
FWTM:
163°
Peak intensity:
0.379 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM:
152°
FWTM:
162°
Peak intensity:
0.256 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
134°
FWTM:
144°
Peak intensity:
0.690 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

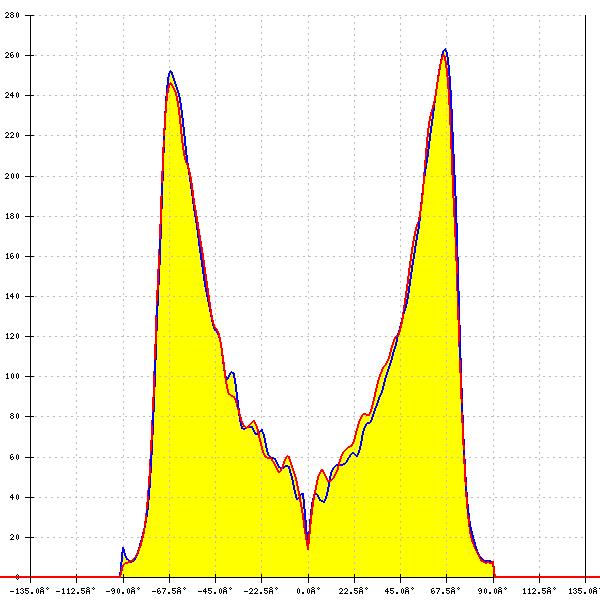

NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity:
0.450 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

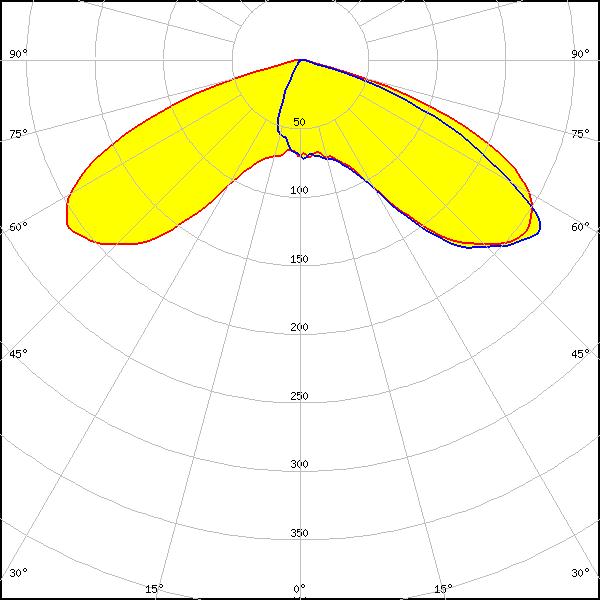

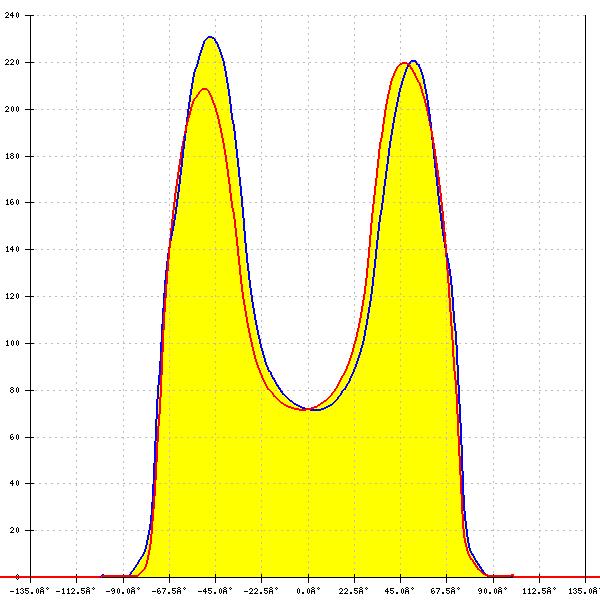

Duris S8
Required components:
FWHM: asymmetric
Peak intensity:
0.301 cd/lm
Efficiency:
52 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
Required components:
FWHM: asymmetric
Peak intensity:
0.331 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM:
144°
FWTM:
160°
Peak intensity:
0.328 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM:
141°
FWTM:
153°
Peak intensity:
0.308 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

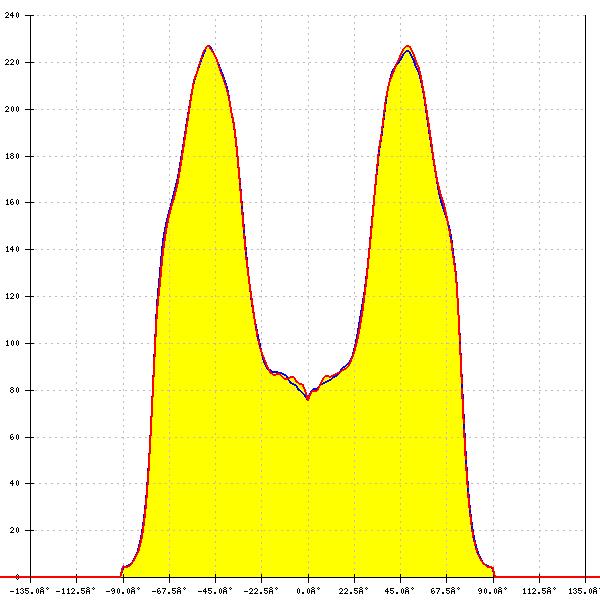

OSCONIQ C 2424
FWHM:
146°
FWTM:
160°
Peak intensity:
0.279 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White
LED:

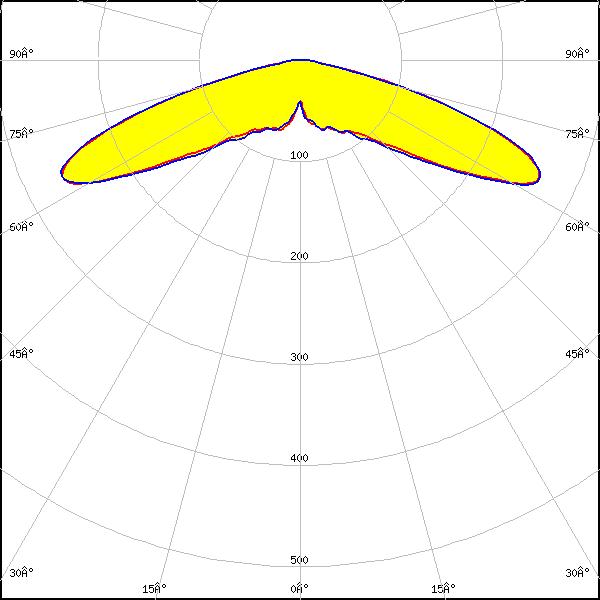

OSCONIQ P 3030
FWHM:
148°
FWTM:
162°
Peak intensity:
0.439 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (2W version)
FWHM:
144°
FWTM:
158°
Peak intensity:
0.440 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (3W version)
FWHM:
148°
FWTM:
164°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 SFC
FWHM:
148°
FWTM:
160°
Peak intensity:
0.338 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 SFC
Required components:
FWHM: asymmetric
Peak intensity:
0.329 cd/lm
Efficiency:
51 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 SFC
Required components:
FWHM: asymmetric
Peak intensity:
0.359 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Pure 1414
FWHM:
146°
FWTM:
158°
Peak intensity:
0.443 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Pure 1414
FWHM:
144°
FWTM:
156°
Peak intensity:
0.326 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:

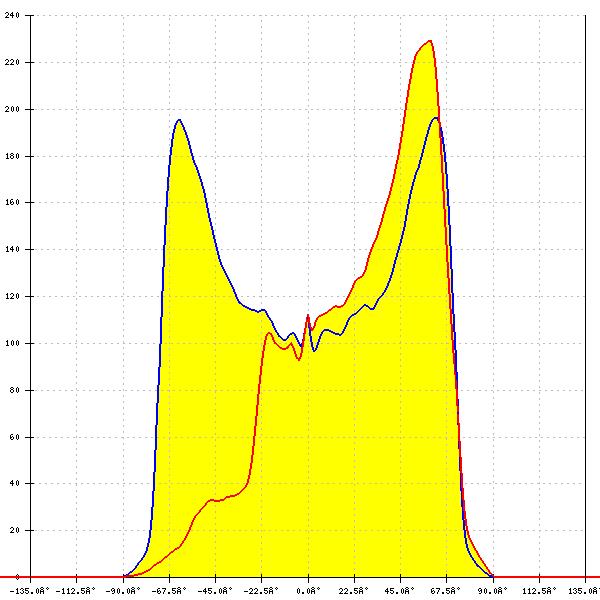

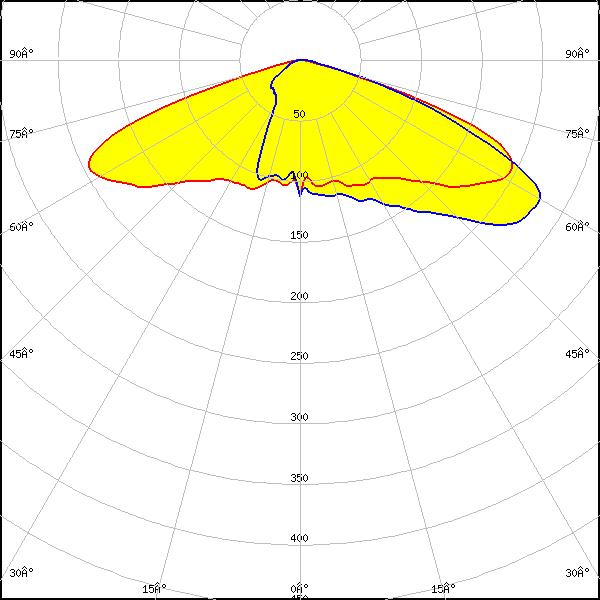

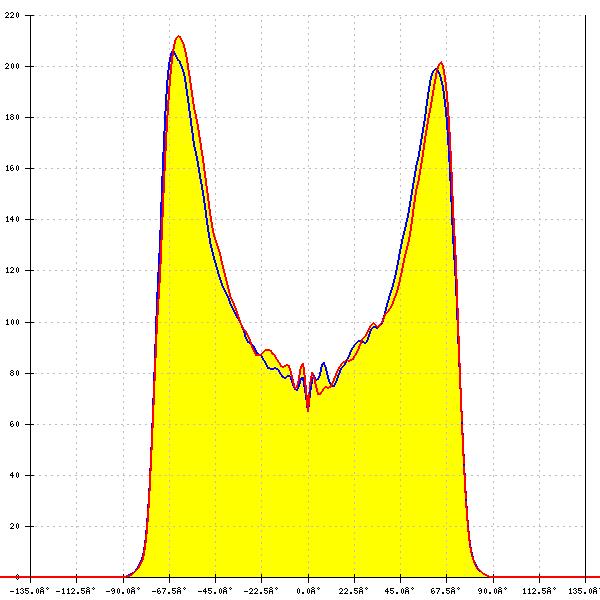

OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity:
0.261 cd/lm
Efficiency:
42 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
146°
FWTM:
156°
Peak intensity:
0.320 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity:
0.287 cd/lm
Efficiency:
57 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
148°
FWTM:
159°
Peak intensity:
0.540 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
144°
FWTM:
156°
Peak intensity:
0.380 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square PC
FWHM:
143°
FWTM:
160°
Peak intensity:
0.510 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

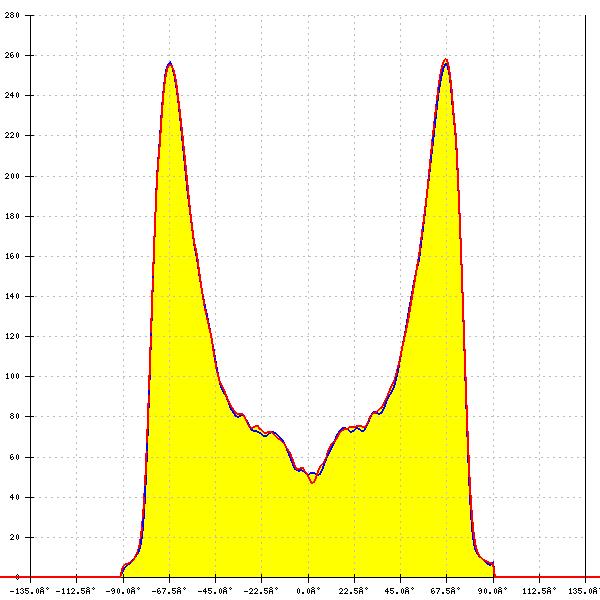

OSLON SSL 150
FWHM:
152°
FWTM:
160°
Peak intensity:
0.443 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

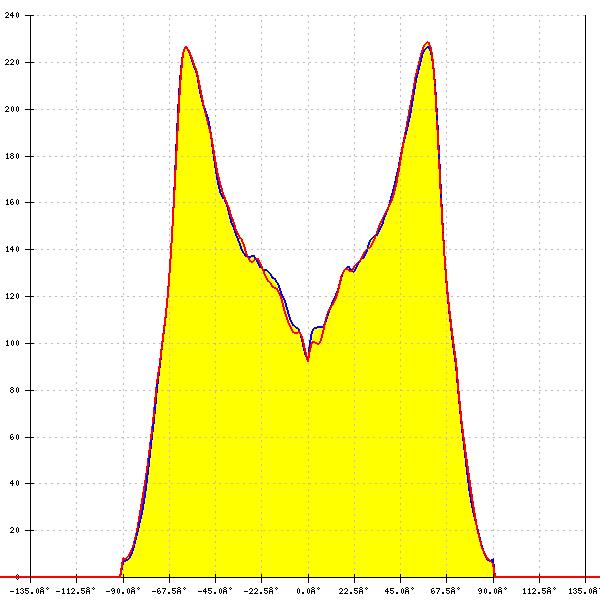

OSLON SSL 80
FWHM:
138°
FWTM:
164°
Peak intensity:
0.321 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4714A
FWHM: asymmetric
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4714A
FWHM:
148°
FWTM:
156°
Peak intensity:
0.622 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x2 DA G5
Required components:
FWHM: asymmetric
Peak intensity:
0.261 cd/lm
Efficiency:
42 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA (U)HE
FWHM:
148°
FWTM:
162°
Peak intensity:
0.314 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA (U)HE
FWHM:
144°
FWTM:
158°
Peak intensity:
0.250 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4
FWHM:
146°
FWTM:
156°
Peak intensity:
0.510 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4+
Required components:
FWHM: asymmetric
Peak intensity:
0.311 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4+
Required components:
FWHM: asymmetric
Peak intensity:
0.228 cd/lm
Efficiency:
43 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4+
FWHM:
152°
FWTM:
160°
Peak intensity:
0.424 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G5
FWHM:
146°
FWTM:
156°
Peak intensity:
0.422 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DAX G4
FWHM:
154°
FWTM:
165°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DAX G4
FWHM:
152°
FWTM:
164°
Peak intensity:
0.245 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RC12 Z (LH181B)
FWHM:
138°
FWTM:
148°
Peak intensity:
0.495 cd/lm
Efficiency:
99 %
LEDs/each optic:
1
Light colour/type:
White
LED:

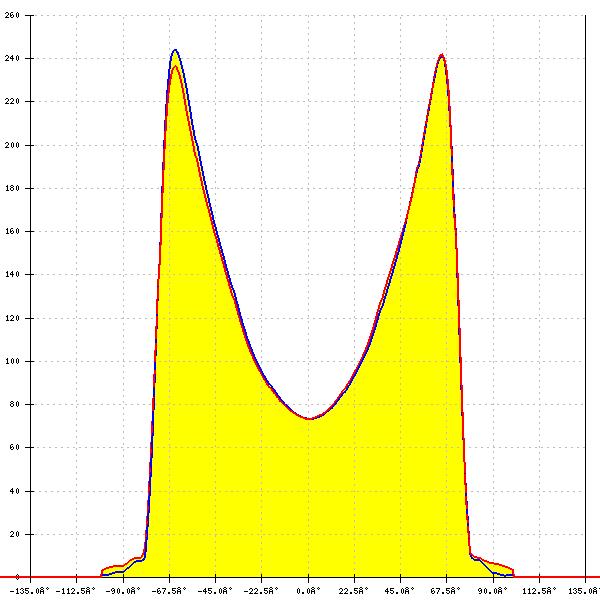

HiLOM RH12 Z (LH351C)
FWHM: asymmetric
Peak intensity:
0.290 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RH12 Z (LH351C)
FWHM:
147°
FWTM:
156°
Peak intensity:
0.420 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RH16 (LH351C)
FWHM: asymmetric
Peak intensity:
0.470 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM12 Z (LH502C)
FWHM:
144°
FWTM:
157°
Peak intensity:
0.321 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM16 Z (LH502C)
FWHM:
144°
FWTM:
156°
Peak intensity:
0.325 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

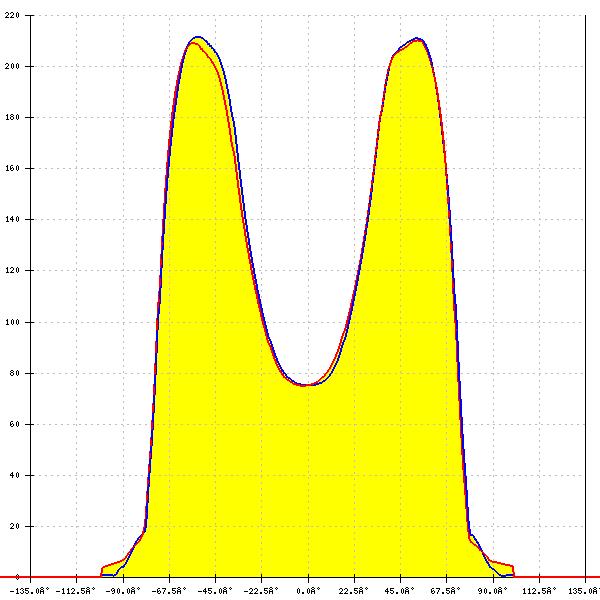

HiLOM RM8 Z (LH502C)
FWHM:
144°
FWTM:
157°
Peak intensity:
0.319 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM: asymmetric
Peak intensity:
0.325 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:

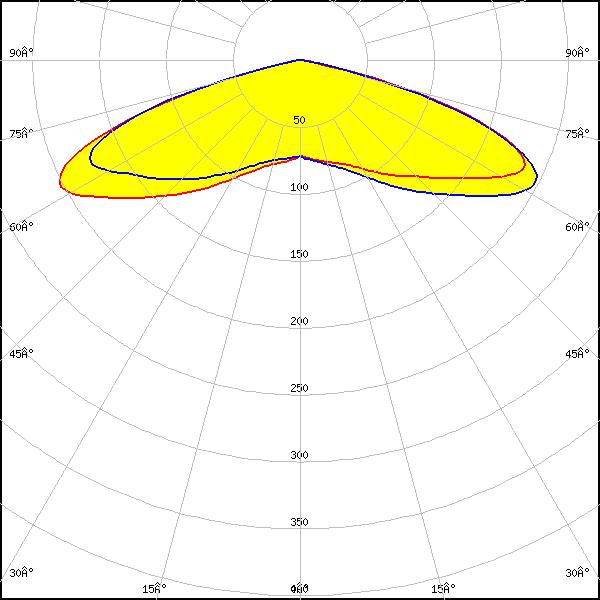

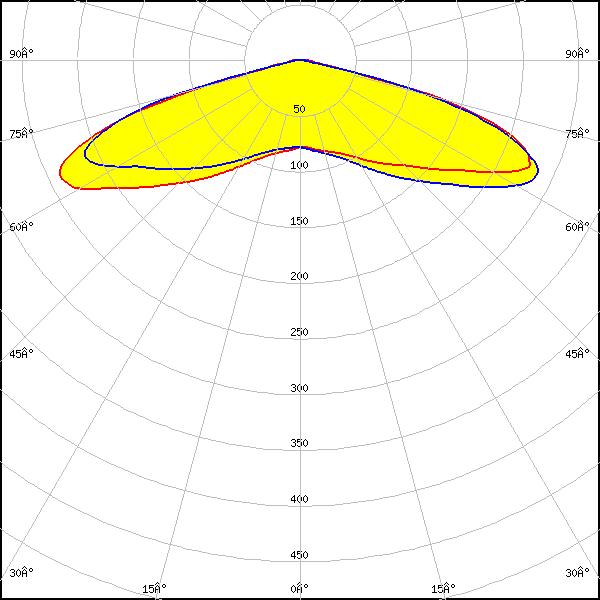

LH351B
FWHM:
153°
FWTM:
161°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

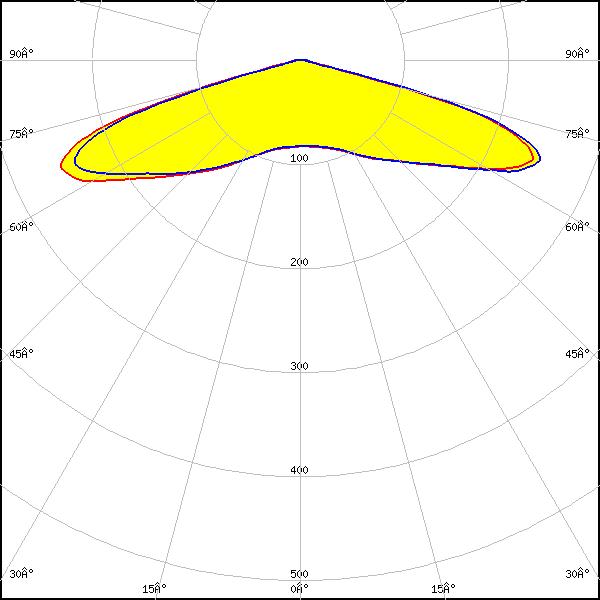

LH351C
FWHM: asymmetric
Peak intensity:
0.335 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM:
149°
FWTM:
157°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

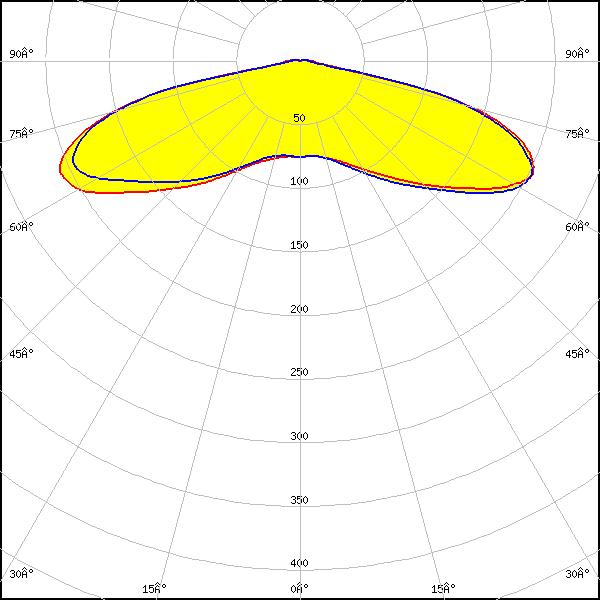

LH351D
FWHM:
156°
FWTM:
162°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

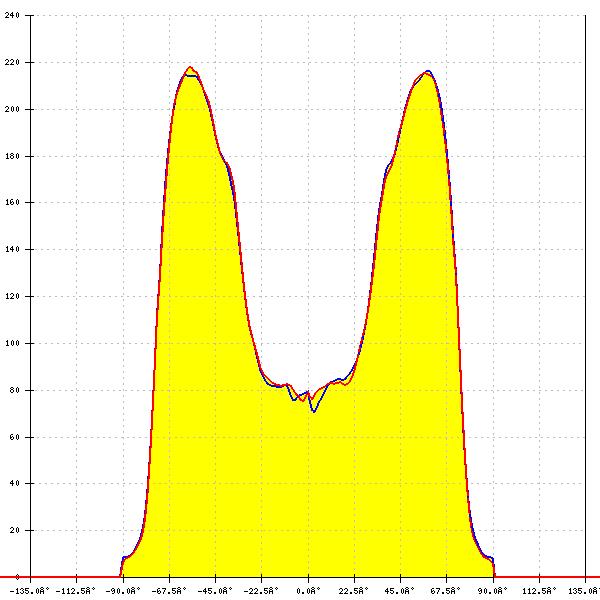

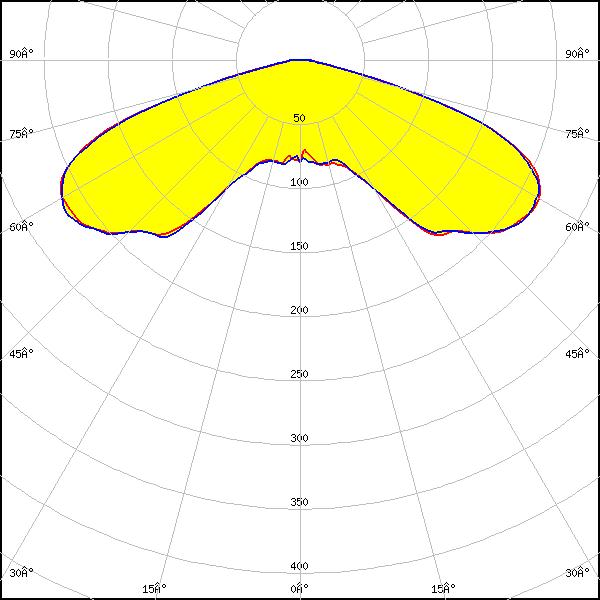

LH502C
FWHM:
146°
FWTM:
160°
Peak intensity:
0.322 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502C
FWHM:
144°
FWTM:
156°
Peak intensity:
0.256 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

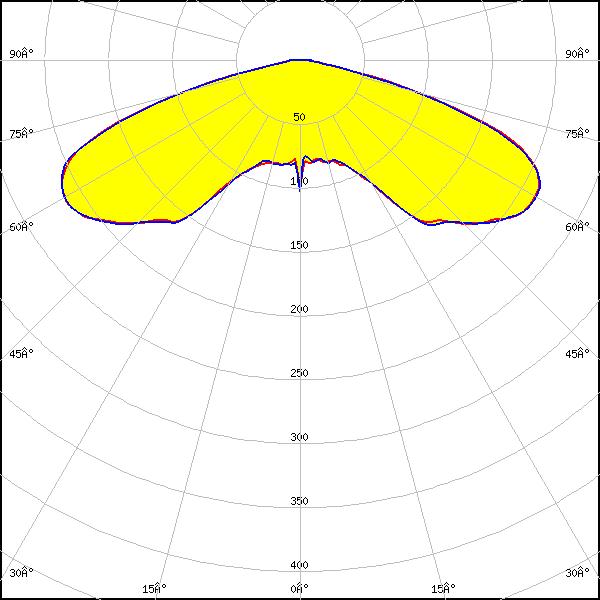

LH502D
FWHM:
148°
FWTM:
162°
Peak intensity:
0.324 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

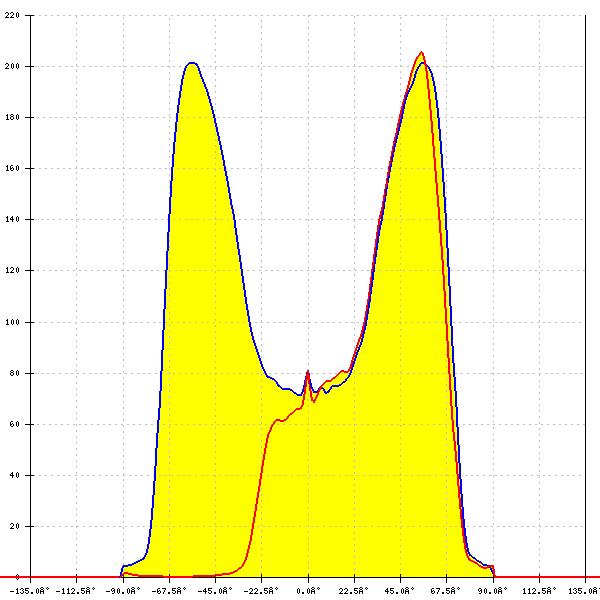

LH502D
FWHM:
145° + 144°
FWTM:
158° + 158°
Peak intensity:
0.253 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502D
Required components:
FWHM: asymmetric
Peak intensity:
0.315 cd/lm
Efficiency:
52 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502D
Required components:
FWHM: asymmetric
Peak intensity:
0.344 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White
LED:

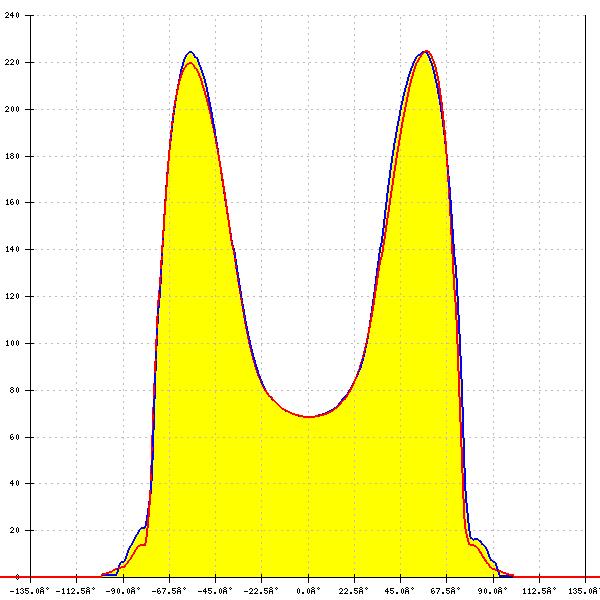

LH508A
FWHM:
146°
FWTM:
157°
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

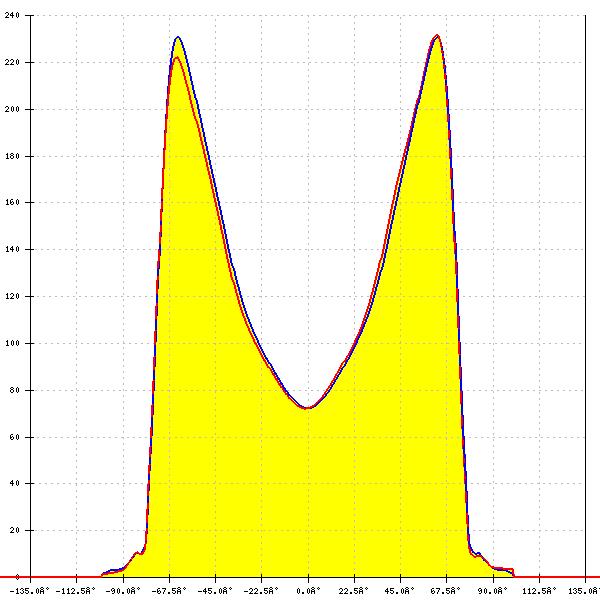

LED-Pa-L15c2W11c2-xxx-C050-01
FWHM:
146°
FWTM:
156°
Peak intensity:
0.431 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT 5050
FWHM: asymmetric
Peak intensity:
0.311 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030C
FWHM:
148°
FWTM:
160°
Peak intensity:
0.397 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM:
148°
FWTM:
161°
Peak intensity:
0.325 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
Required components:
FWHM: asymmetric
Peak intensity:
0.323 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
Required components:
FWHM: asymmetric
Peak intensity:
0.297 cd/lm
Efficiency:
52 %
LEDs/each optic:
1
Light colour/type:
White
LED:

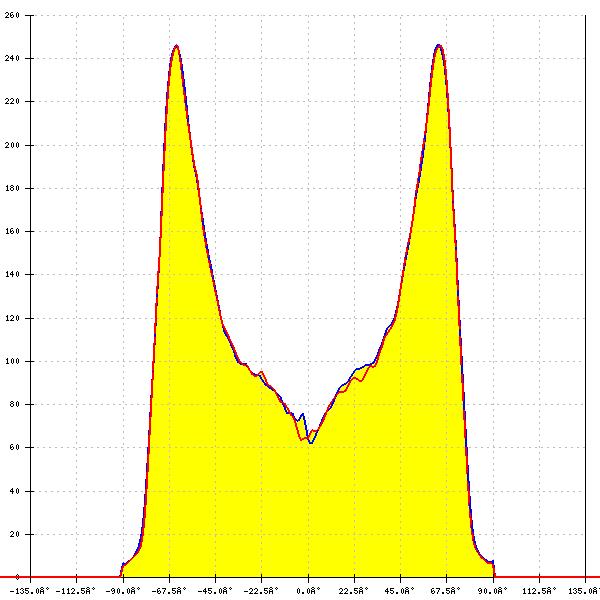

Z5
FWHM:
147°
FWTM:
160°
Peak intensity:
0.403 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3
FWHM: asymmetric
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM:
149° + 148°
FWTM:
158° + 156°
Peak intensity:
0.400 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM:
148°
FWTM:
156°
Peak intensity:
0.283 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:

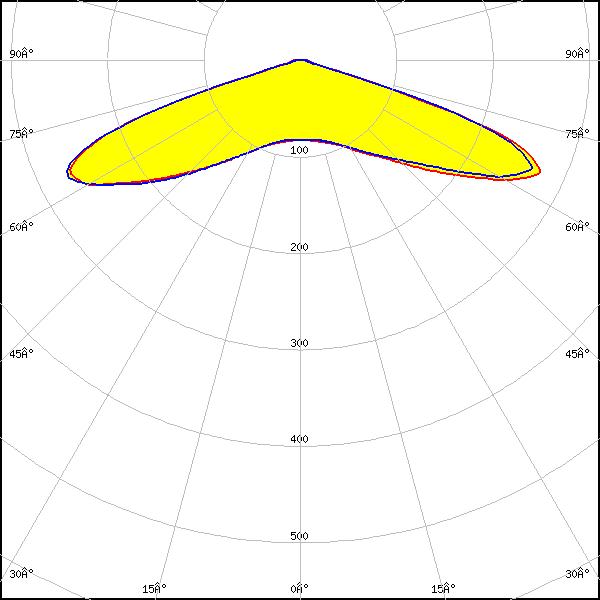

Z5M4
FWHM:
144°
FWTM:
149°
Peak intensity:
0.476 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

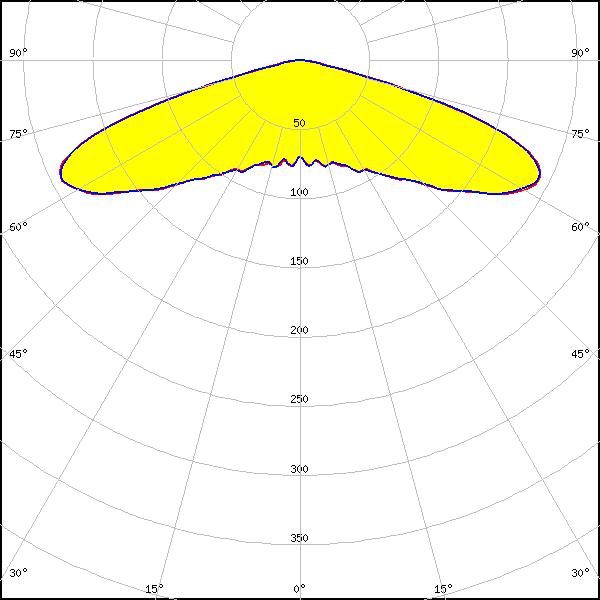

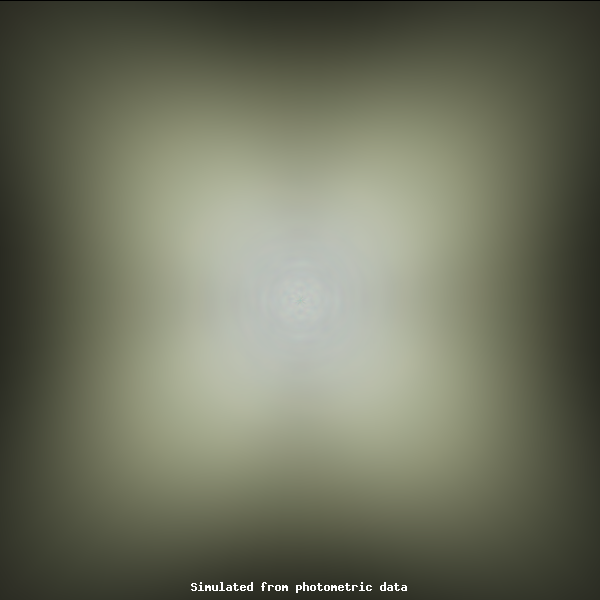

Z5M4-E1
FWHM:
148°
FWTM:
162°
Peak intensity:
0.387 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4-E1
FWHM:
148°
FWTM:
158°
Peak intensity:
0.281 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

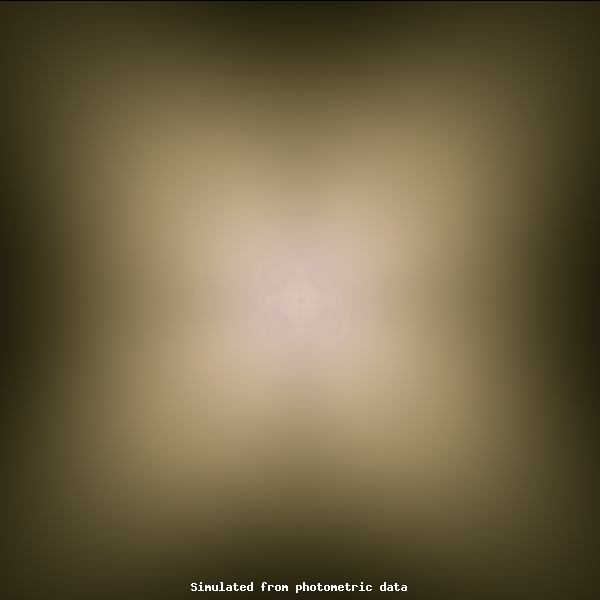

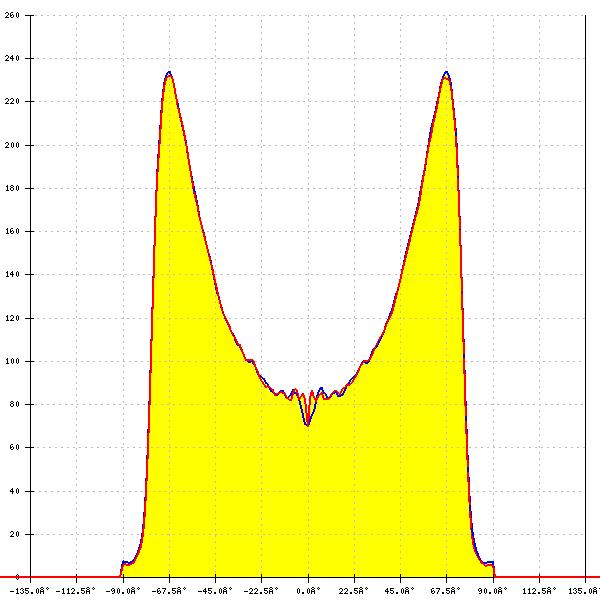

Z5M4-E2
FWHM:
152°
FWTM:
160°
Peak intensity:
0.391 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4-E2
FWHM:
150°
FWTM:
158°
Peak intensity:
0.267 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
146°
FWTM:
158°
Peak intensity:
0.397 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
144°
FWTM:
156°
Peak intensity:
0.307 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM:
141°
FWTM:
151°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22P
FWHM:
146°
FWTM:
161°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

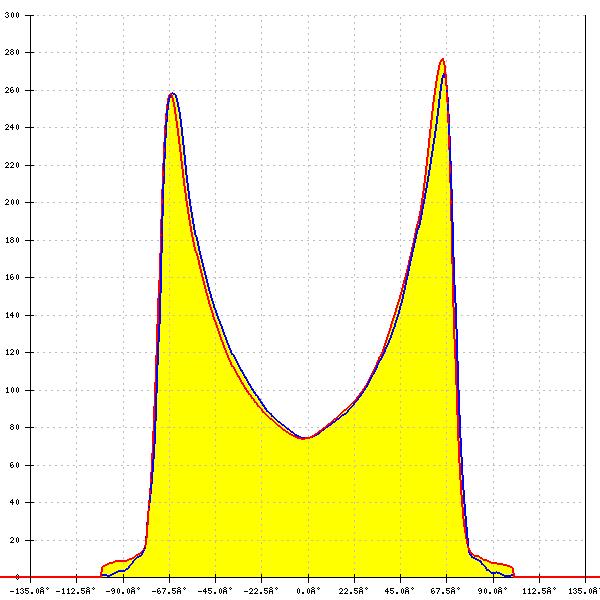

RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 2x8 6000lm HP HE EXC3 OTD
FWHM:
144°
FWTM:
156°
Peak intensity:
0.335 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

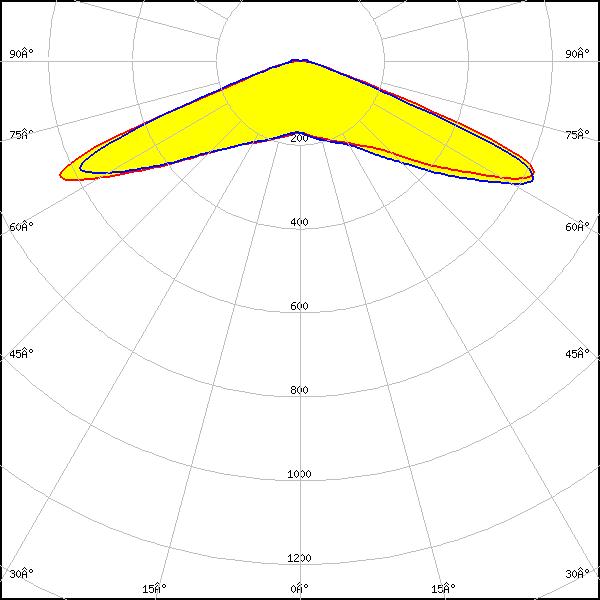

RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM:
139°
FWTM:
155°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM:
139°
FWTM:
155°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM:
139°
FWTM:
155°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM:
139°
FWTM:
155°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
