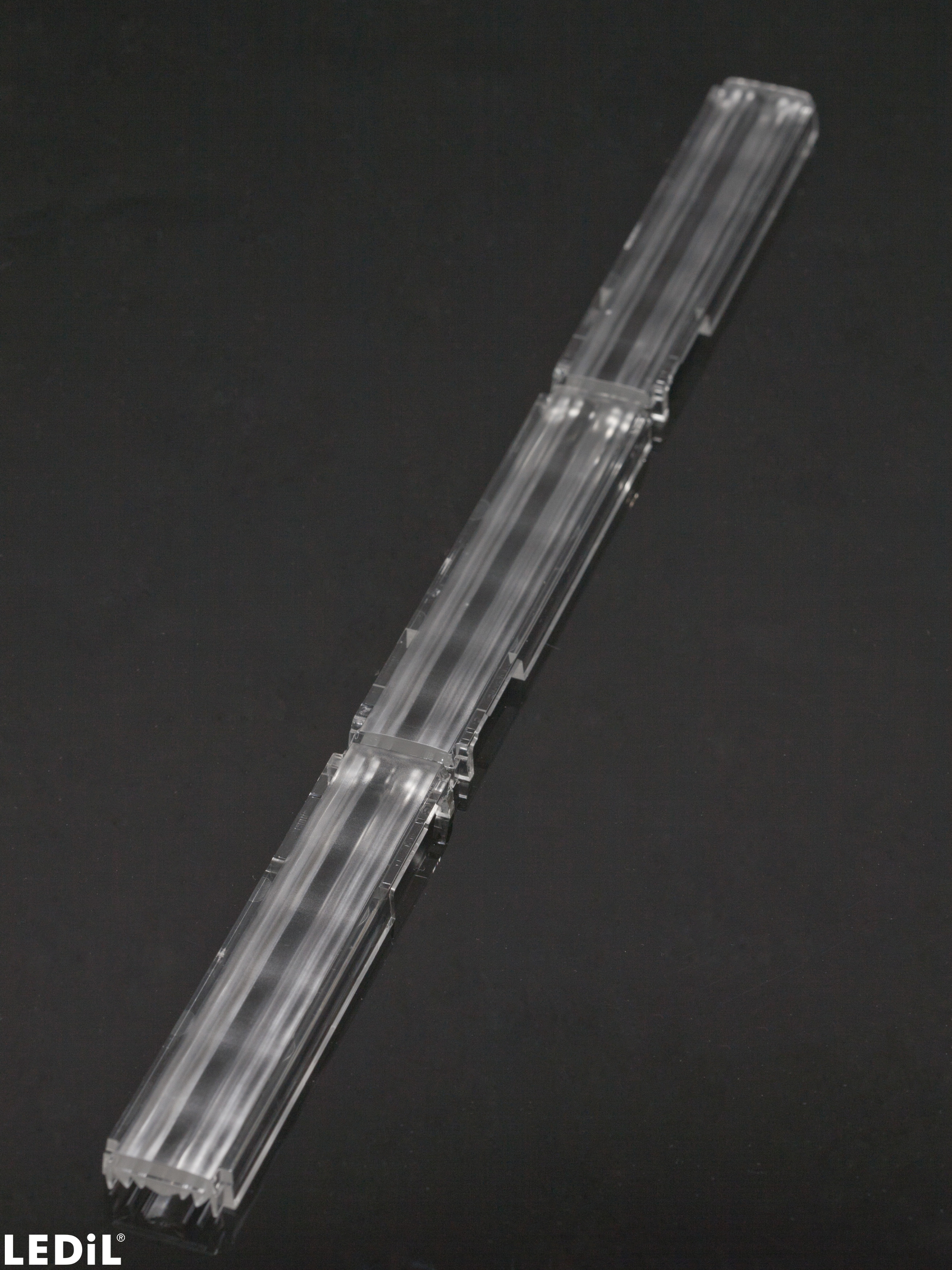

C14454_FLORENCE-1R-O
Print
~95° + 30° oval beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

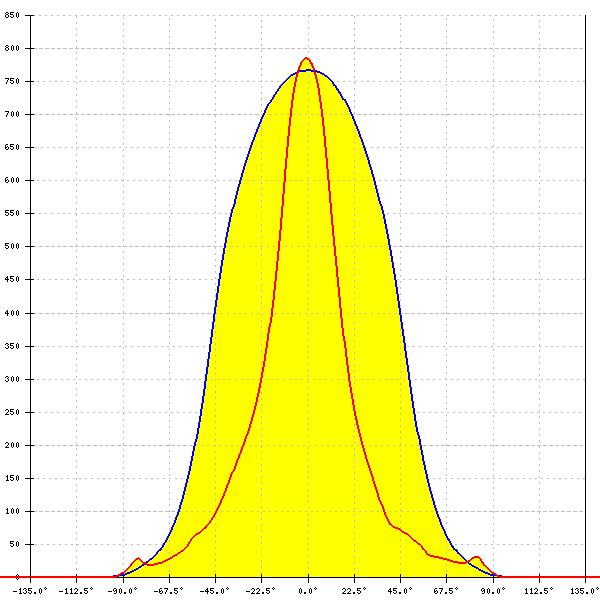

Optical results
LED:
L0-280024-xxx-C0800-L267
FWHM:
92° + 35°
FWTM:
131° + 89°
Peak intensity:
0.780 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

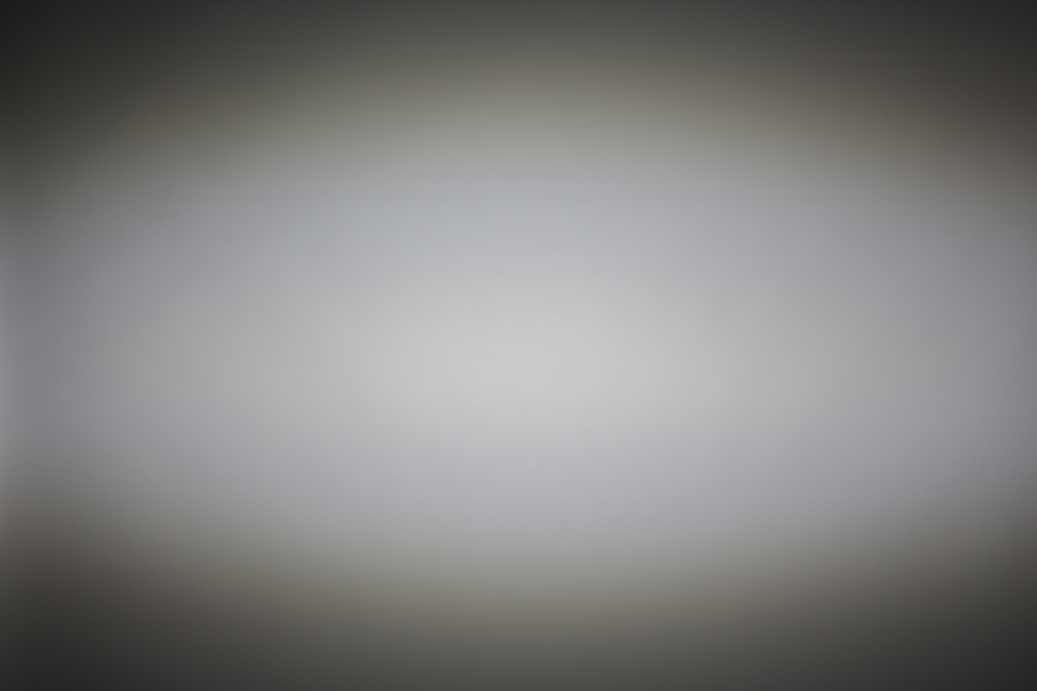

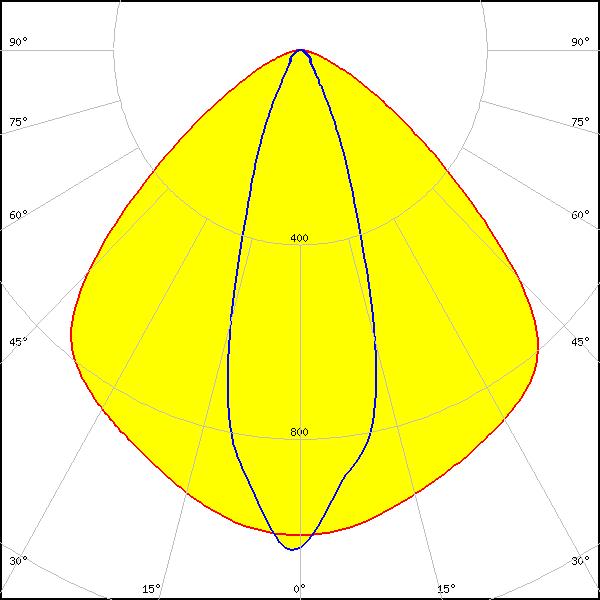

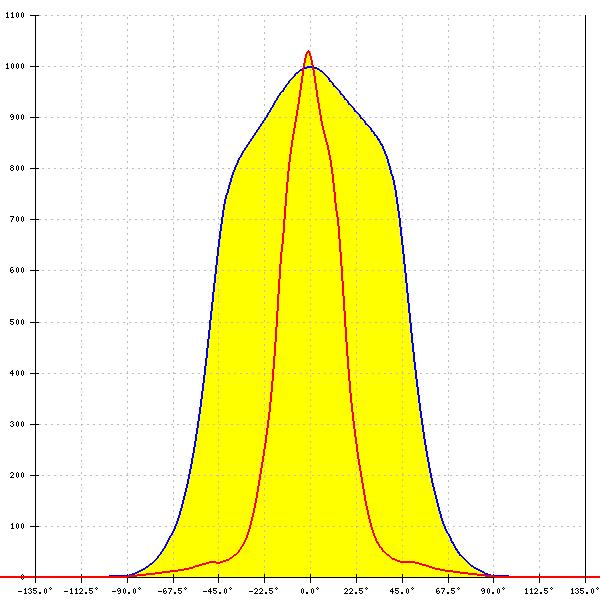

LED:
LUXEON 3014
FWHM:
98° + 33°
FWTM:
133° + 59°
Peak intensity:
1.030 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

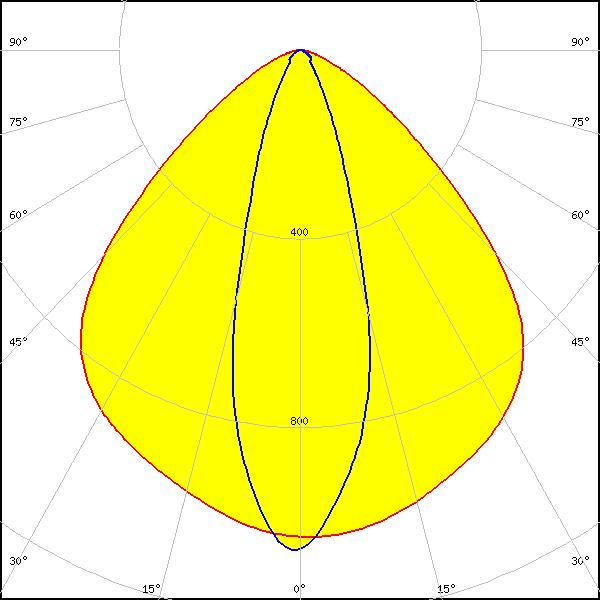

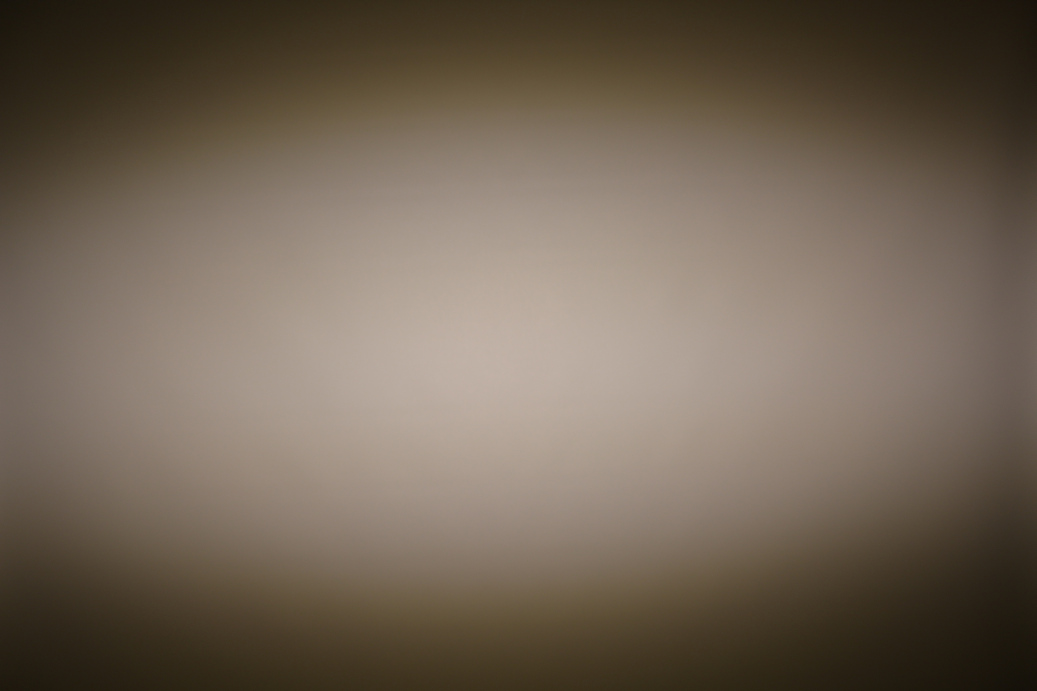

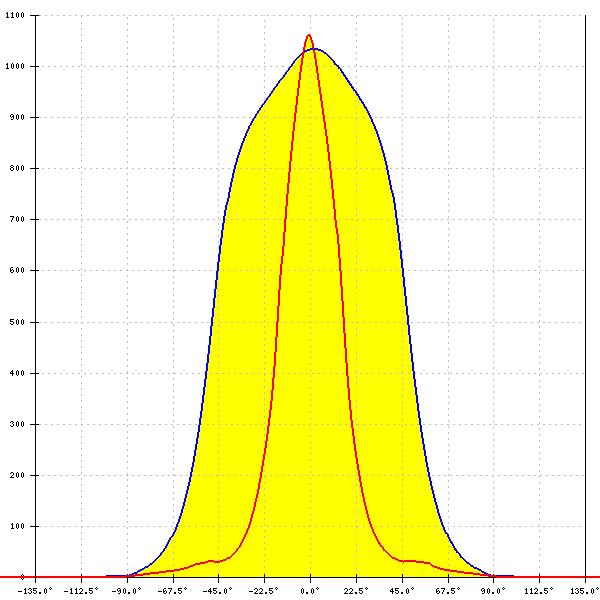

LED:
LUXEON 3020
FWHM:
95° + 31°
FWTM:
131° + 59°
Peak intensity:
1.060 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

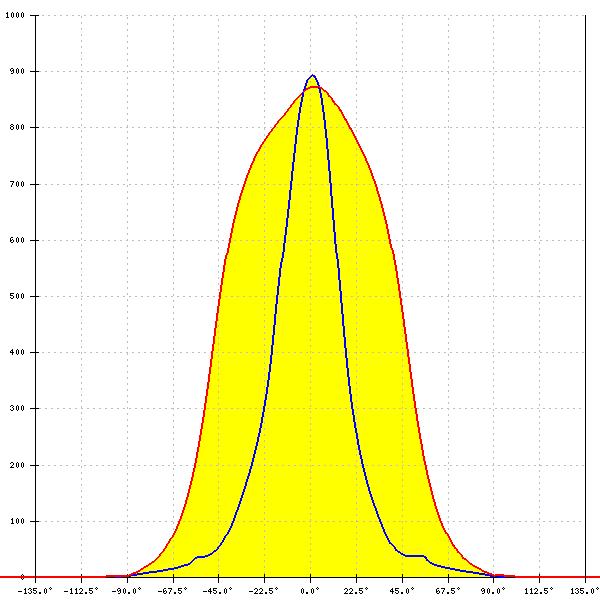

LED:

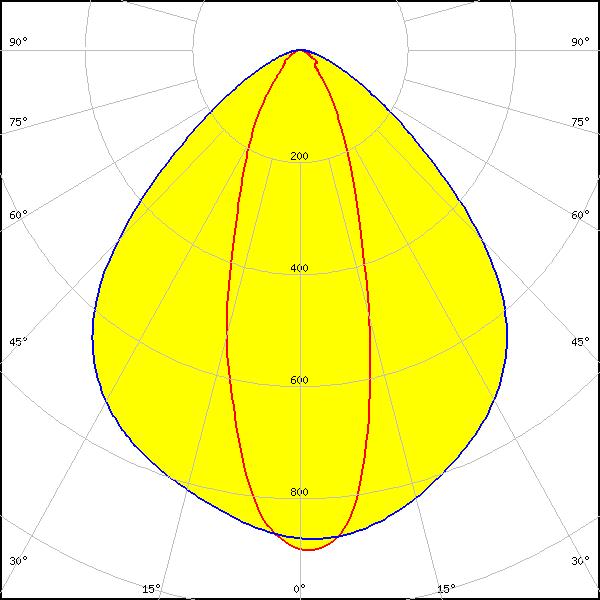

LUXEON 3030 2D (Round LES)
FWHM:
93° + 34°
FWTM:
131° + 75°
Peak intensity:
0.890 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

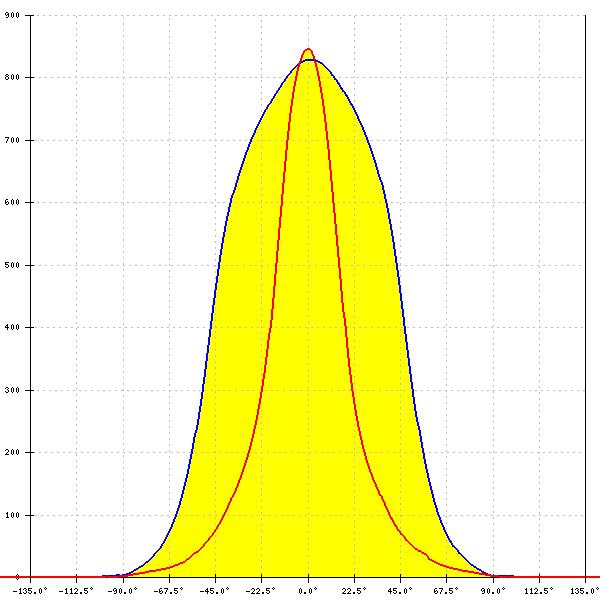

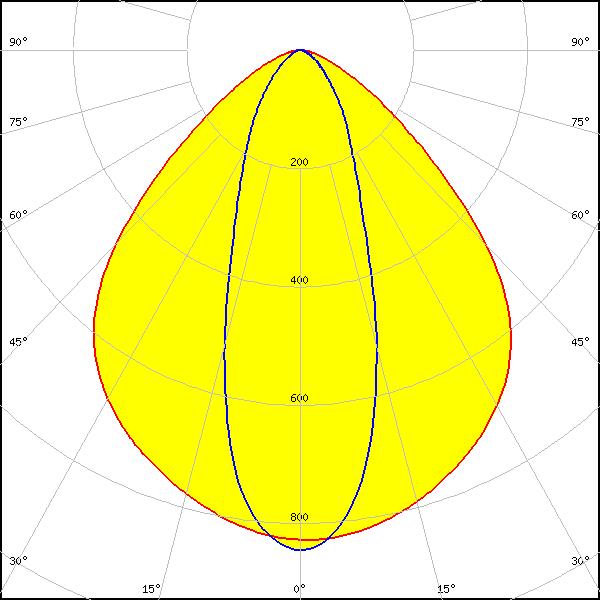

LED:
LUXEON 3535L
FWHM:
93° + 35°
FWTM:
132° + 85°
Peak intensity:
0.850 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

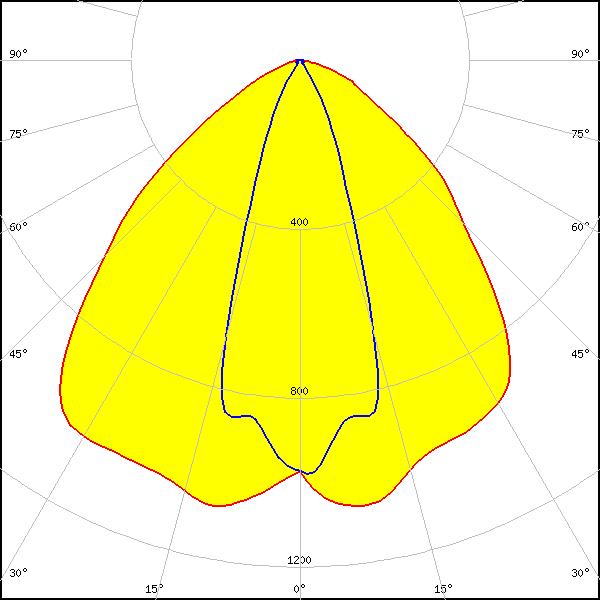

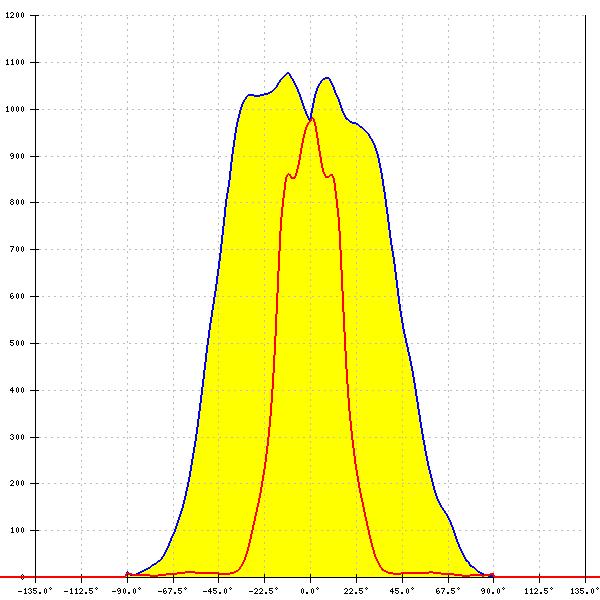

LED:
LUXEON CZ
FWHM:
95° + 33°
FWTM:
136° + 56°
Peak intensity:
1.080 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

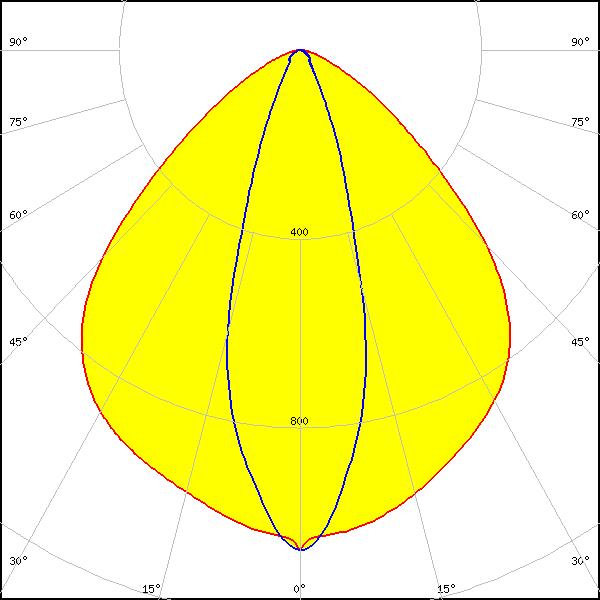

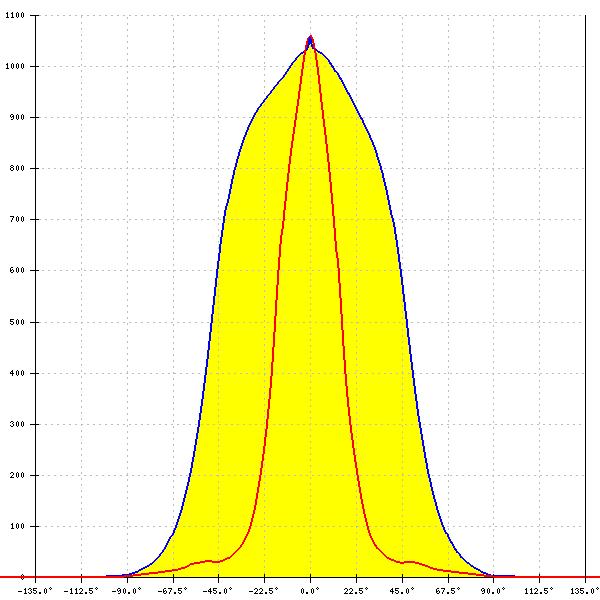

LED:
MP-2016
FWHM:
94° + 31°
FWTM:
130° + 57°
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

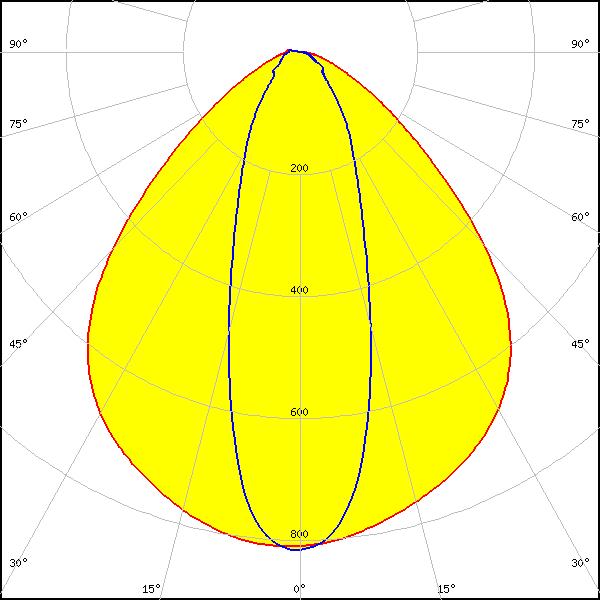

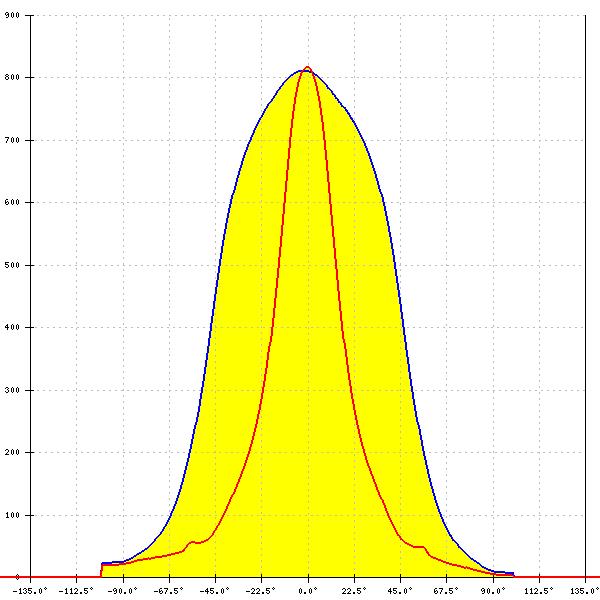

LED:
NF2x757D
FWHM:
93° + 34°
FWTM:
137° + 85°
Peak intensity:
0.820 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

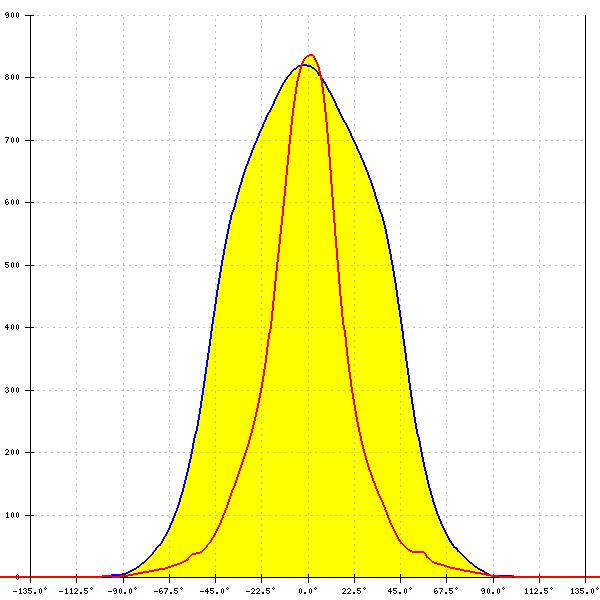

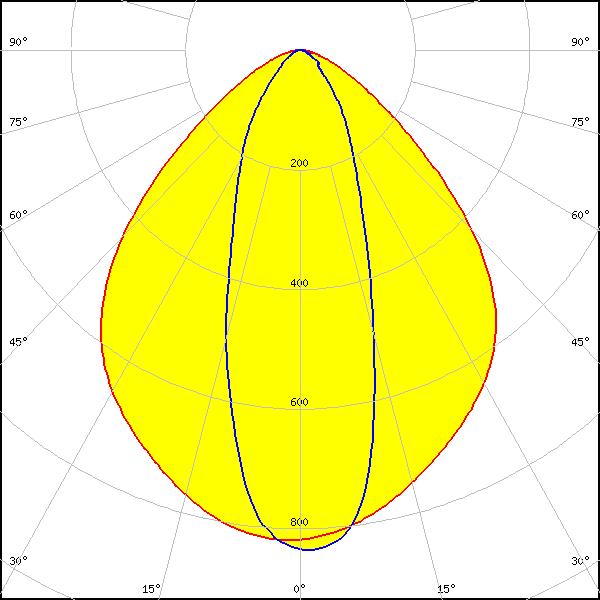

LED:
NF2x757G
FWHM:
92° + 35°
FWTM:
133° + 84°
Peak intensity:
0.870 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

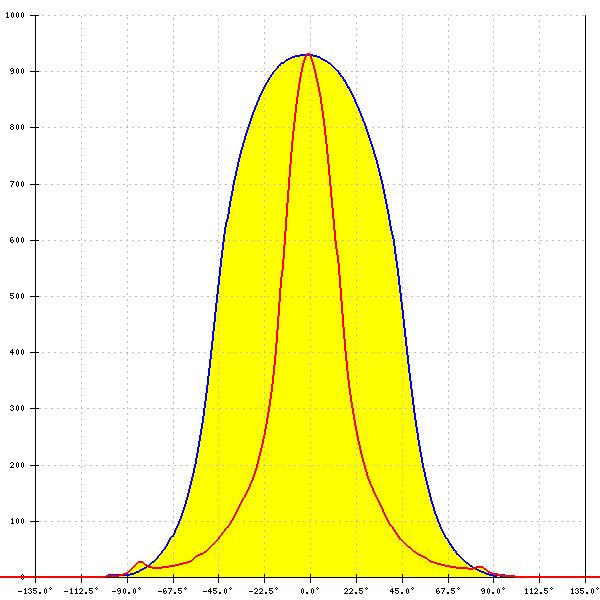

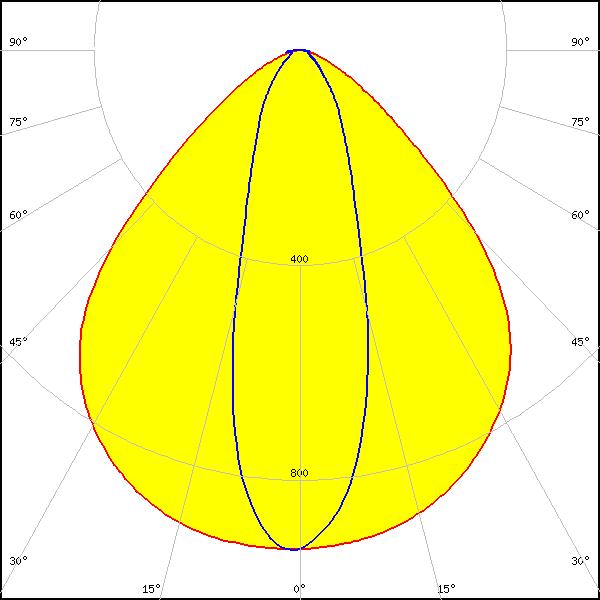

LED:
NFSW757H
Required components:
FWHM:
92° + 31°
FWTM:
129° + 80°
Peak intensity:
0.931 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

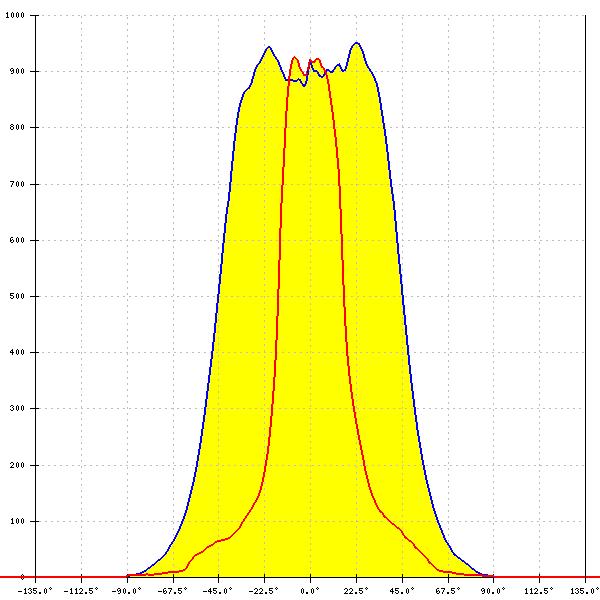

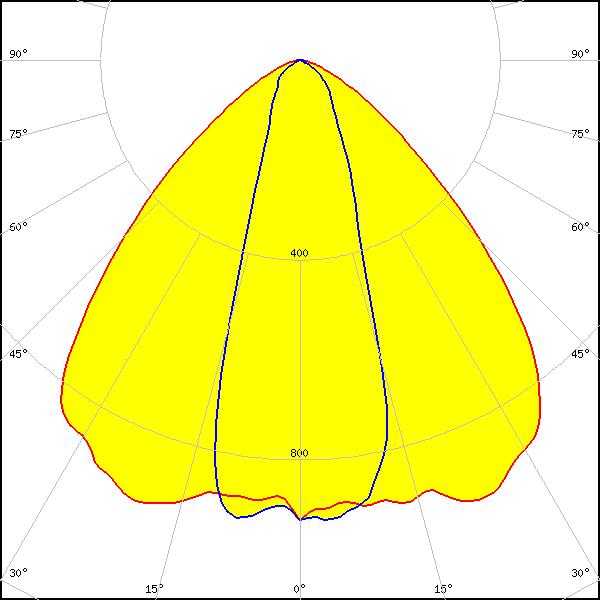

LED:
Duris E 2835
FWHM:
92° + 30°
FWTM:
127° + 71°
Peak intensity:
0.950 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

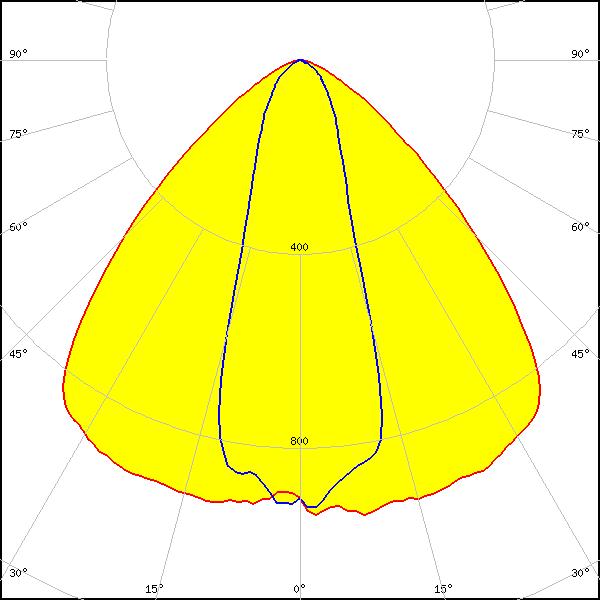

LED:
Duris E5
FWHM:
92° + 32°
FWTM:
125° + 78°
Peak intensity:
0.950 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

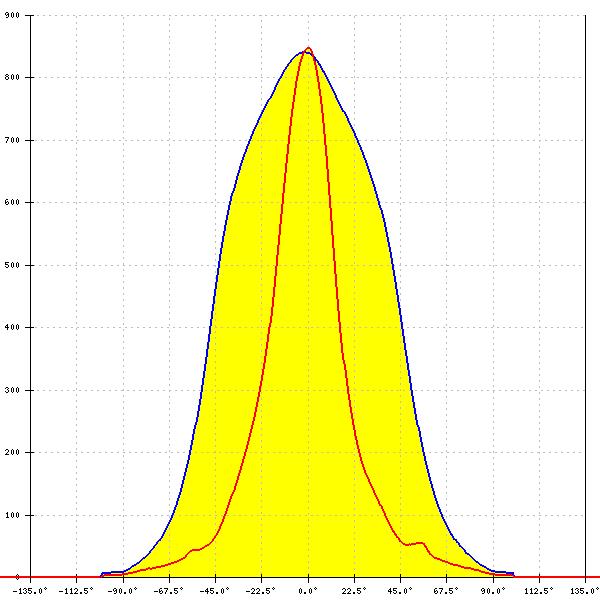

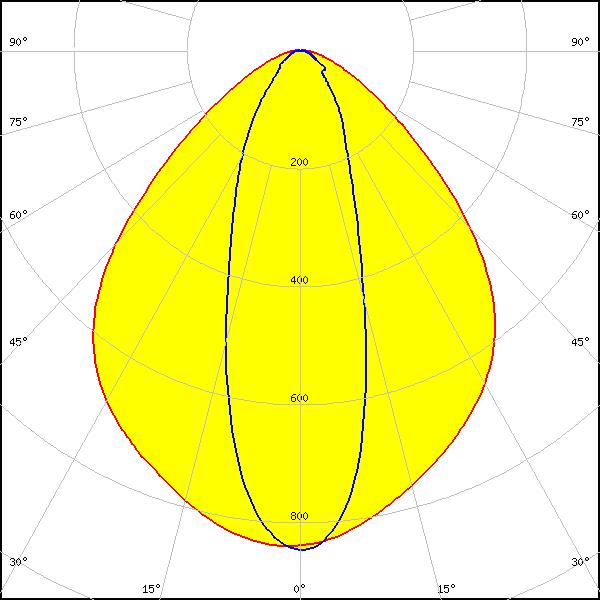

LED:

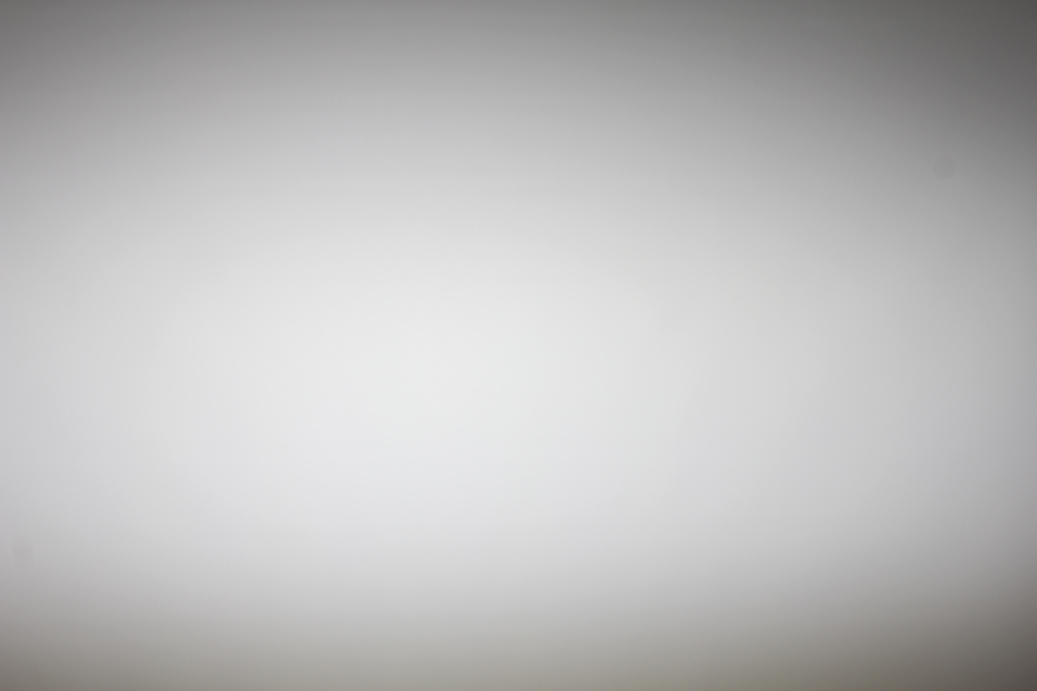

Duris S5 (2 chip)
FWHM:
92° + 33°
FWTM:
135° + 92°
Peak intensity:
0.850 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

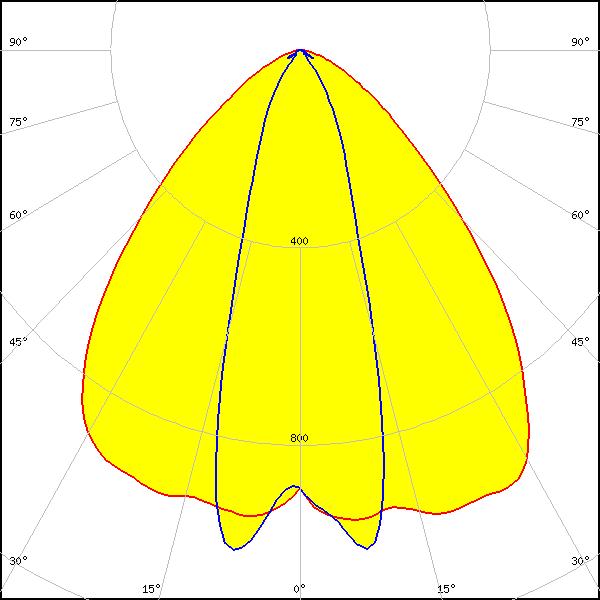

LED:

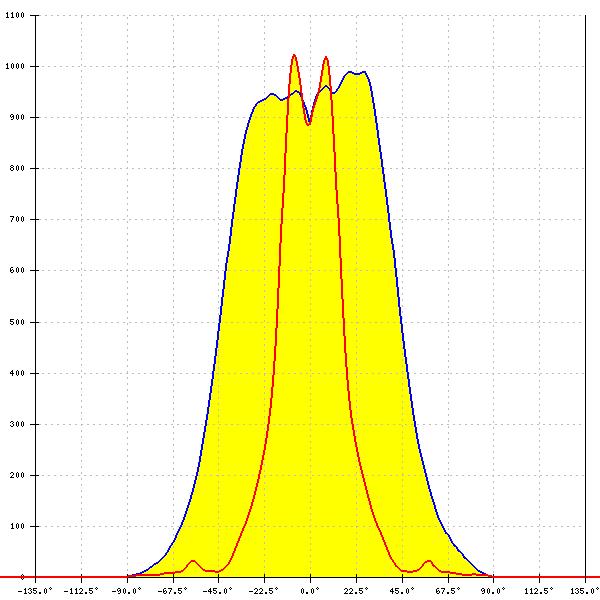

OSCONIQ C 2424
FWHM:
89° + 32°
FWTM:
129° + 65°
Peak intensity:
1.043 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

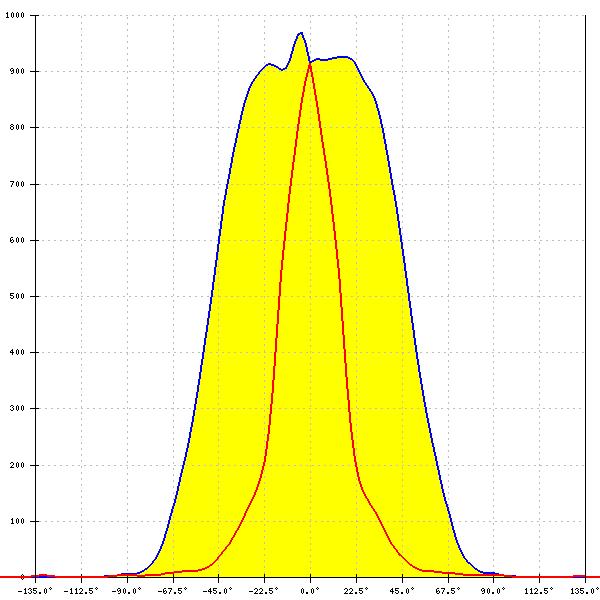

LED:

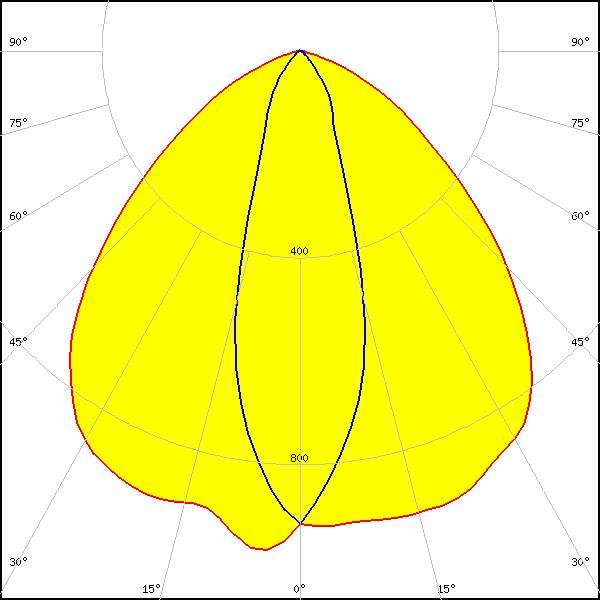

OSLON SSL 150
FWHM:
98° + 32°
FWTM:
140° + 70°
Peak intensity:
0.978 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Far Red

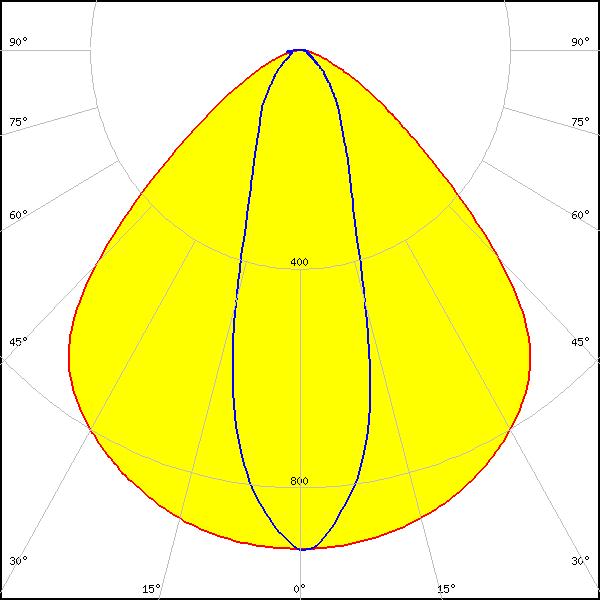

LED:
Fortimo LED Line 1ft 2000lm 1R HV4
Required components:
FWHM:
95° + 31°
FWTM:
131° + 81°
Peak intensity:
0.910 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft HF 1R HV5
Required components:
FWHM:
94° + 34°
FWTM:
132° + 82°
Peak intensity:
0.877 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft MF 1R HV5 & LV5
Required components:
FWHM:
93° + 34°
FWTM:
131° + 80°
Peak intensity:
0.880 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

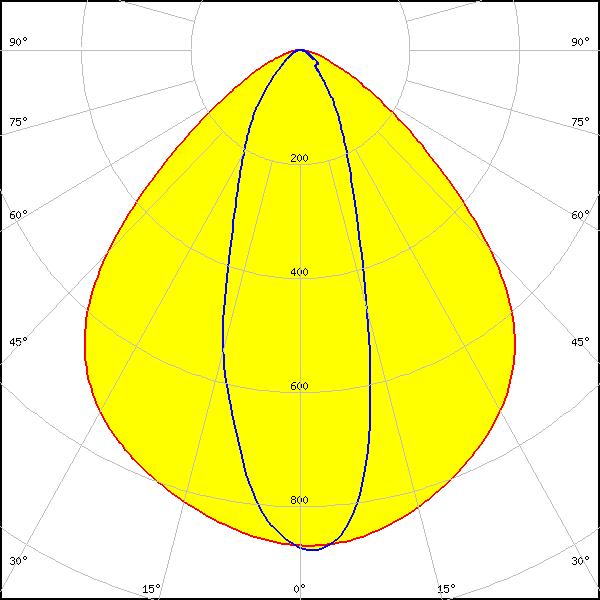

LM28xB Series
FWHM:
94° + 34°
FWTM:
132° + 80°
Peak intensity:
0.880 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

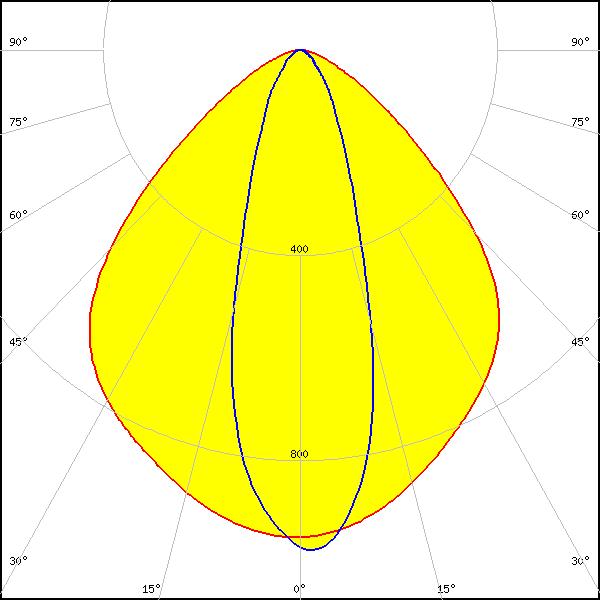

LED:

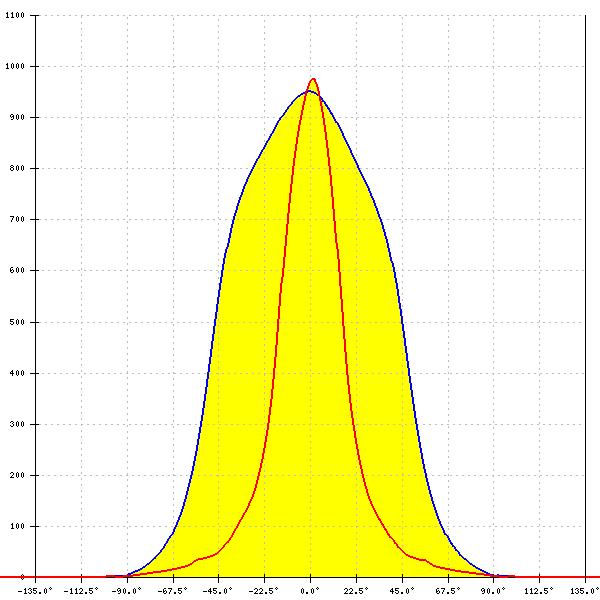

LM301A
FWHM:
93° + 32°
FWTM:
132° + 73°
Peak intensity:
0.975 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

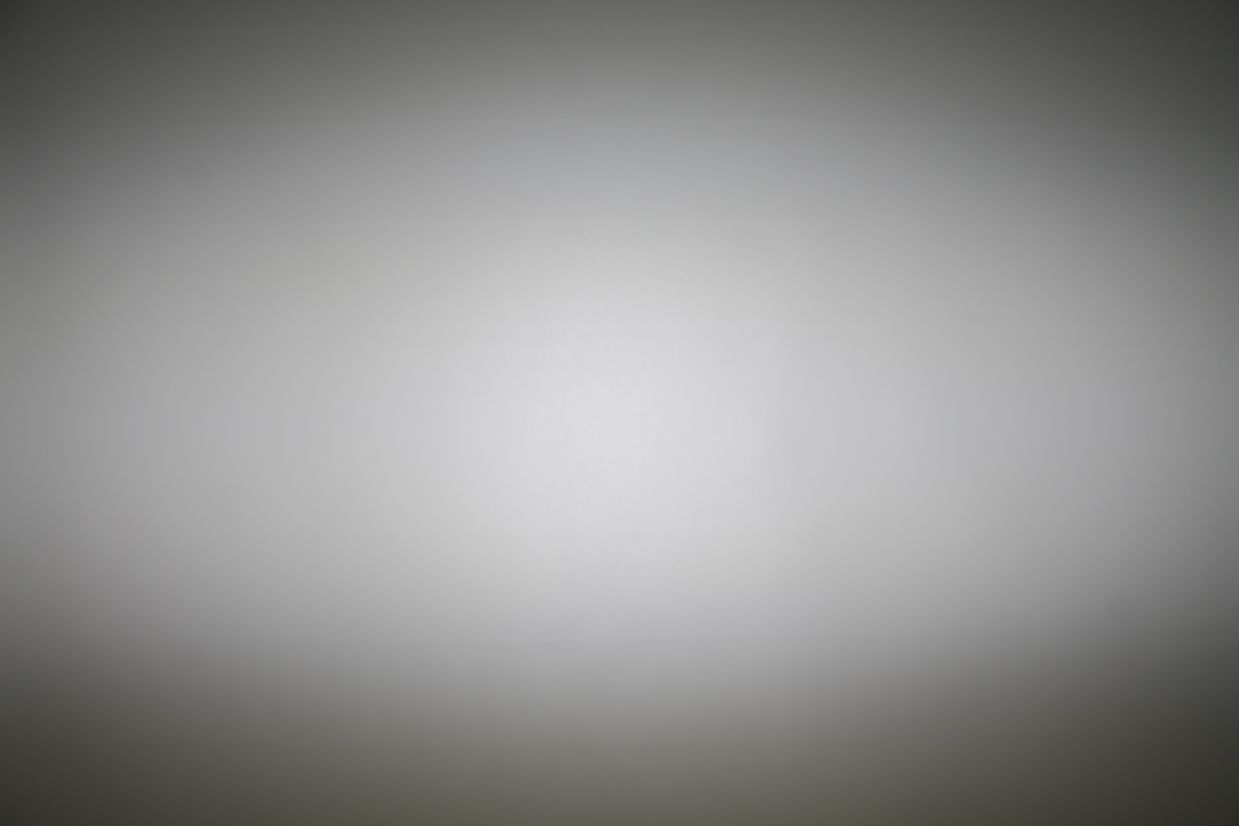

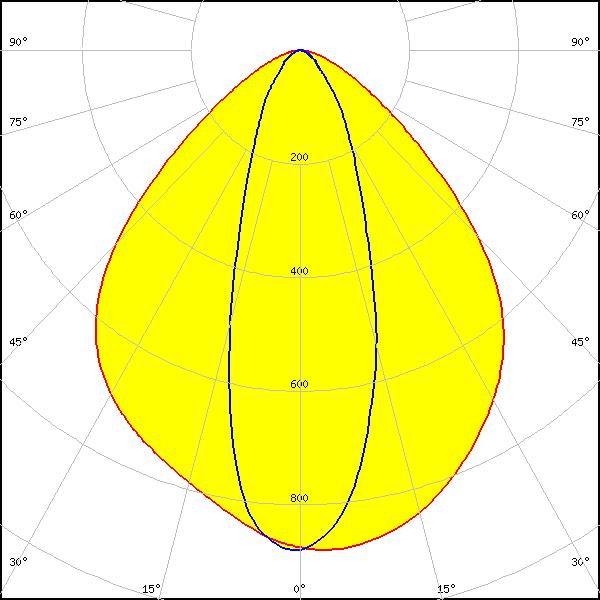

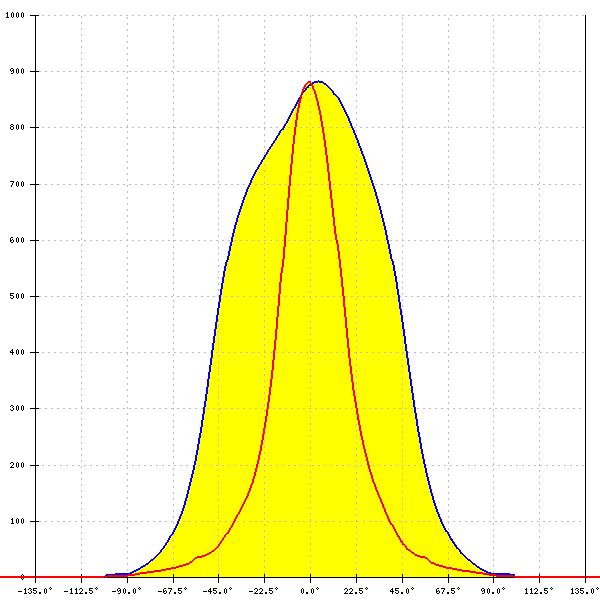

LED:
LM302A
FWHM:
92° + 34°
FWTM:
132° + 80°
Peak intensity:
0.880 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

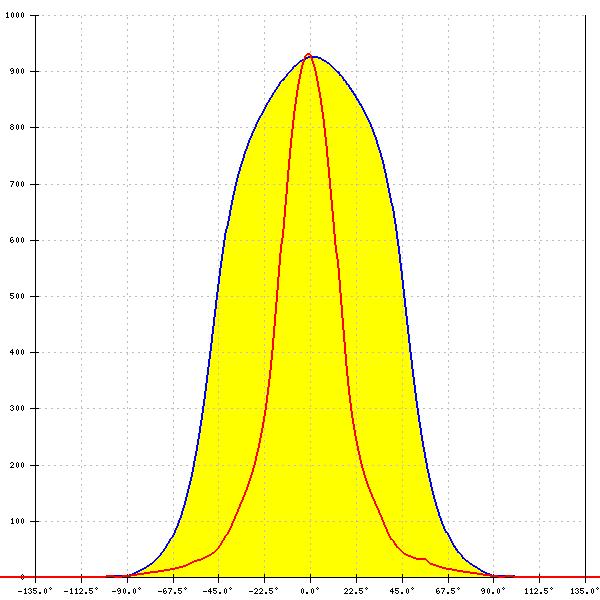

LED:

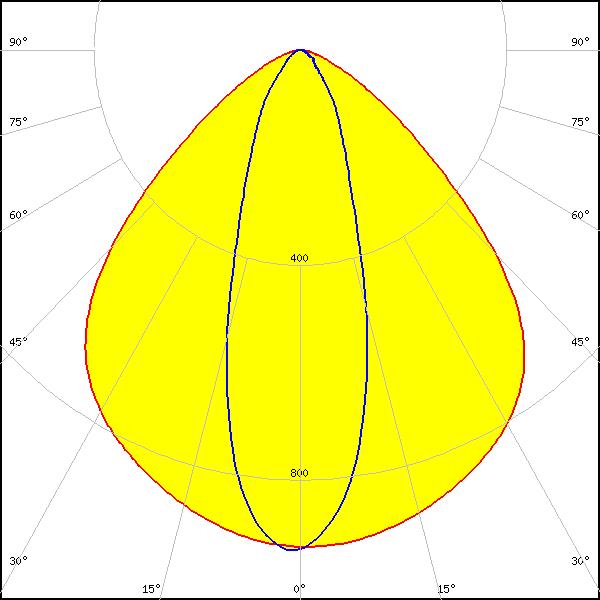

LM561C
FWHM:
94° + 32°
FWTM:
131° + 75°
Peak intensity:
0.930 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

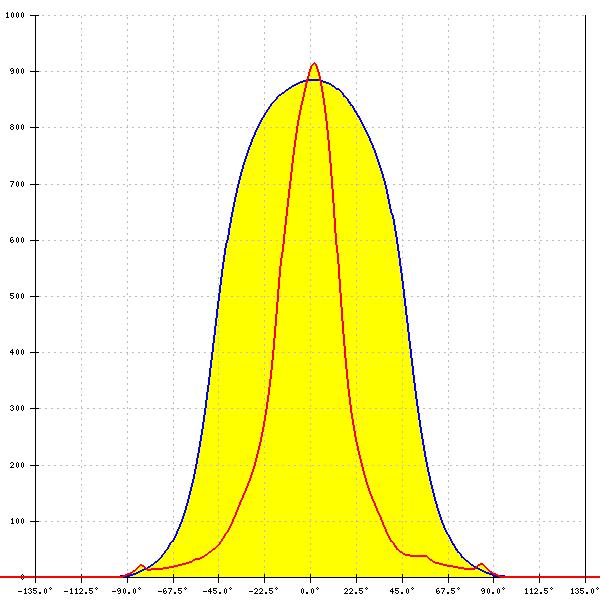

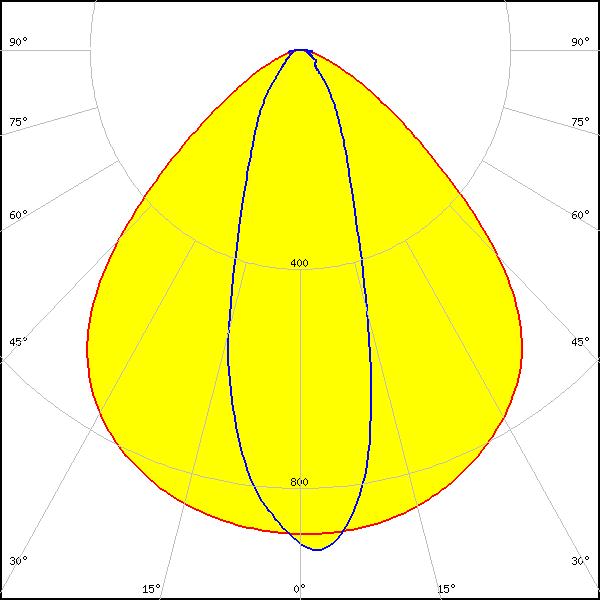

LED:
LT-S282N
FWHM:
95° + 32°
FWTM:
131° + 76°
Peak intensity:
0.910 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

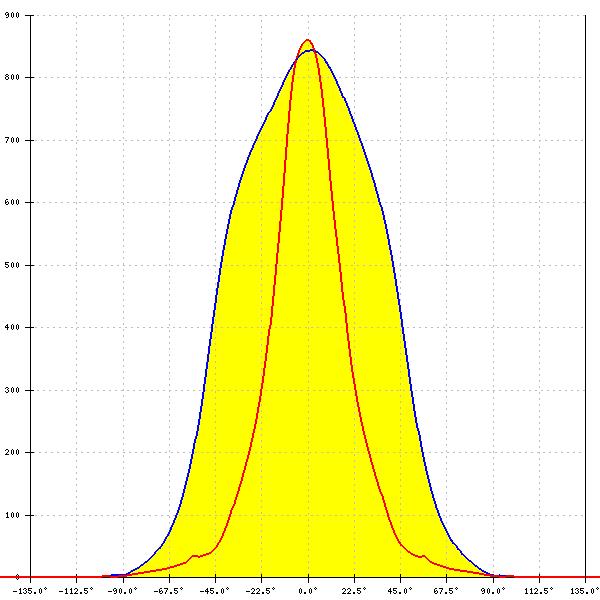

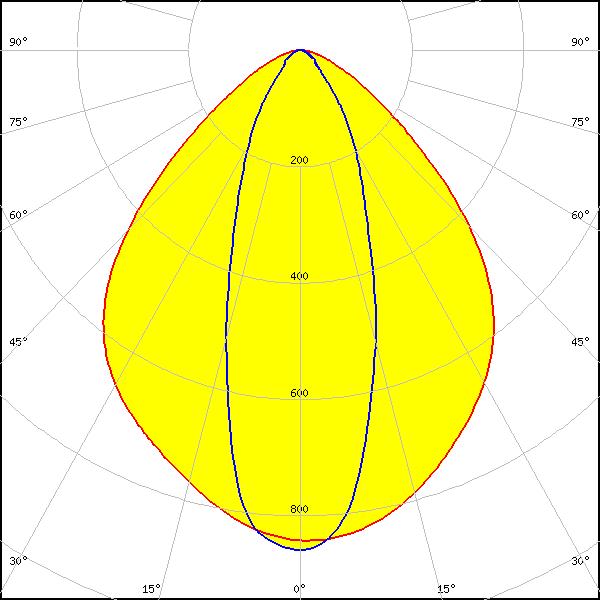

LED:
SEOUL 3030
FWHM:
91° + 35°
FWTM:
132° + 79°
Peak intensity:
0.860 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
Required components:
FWHM:
92° + 30°
FWTM:
129° + 67°
Peak intensity:
0.990 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

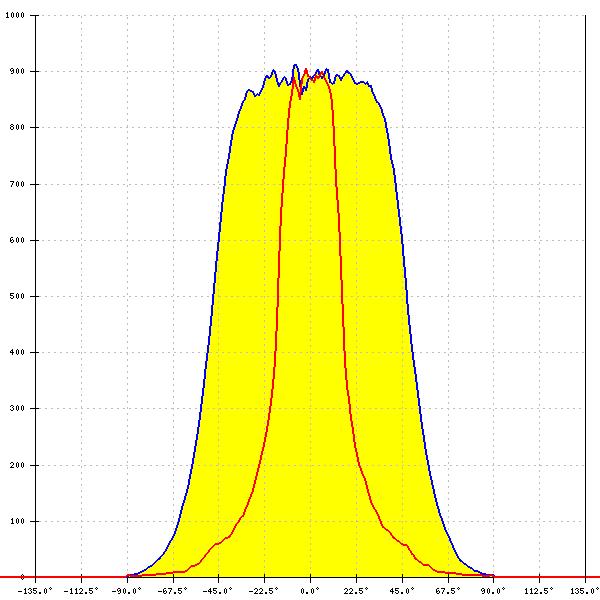

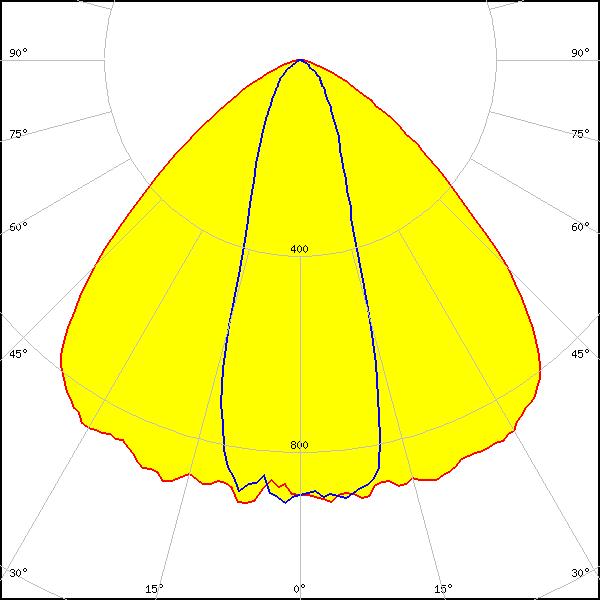

LED:
SEOUL DC 3030C
FWHM:
98° + 32°
FWTM:
131° + 73°
Peak intensity:
0.961 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
