    C14250_SANDRA-12-O

    Print

    ~40° + 20° oval beam

    Specification
    • Dimensions:
      67 mm
    • Height:
      11.10 mm
    • Fastening:
      pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      306 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.4 kg
    • MPQ:
      18 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14250_SANDRA-12-O
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - SANDRA-12-O

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Indoor Architectural Lighting

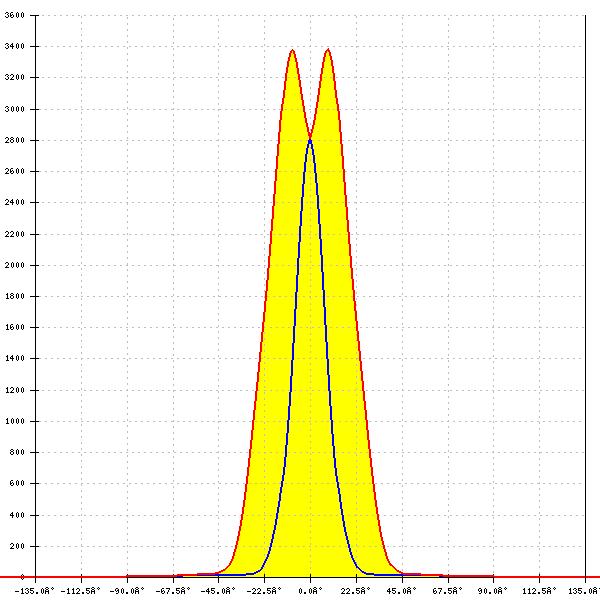

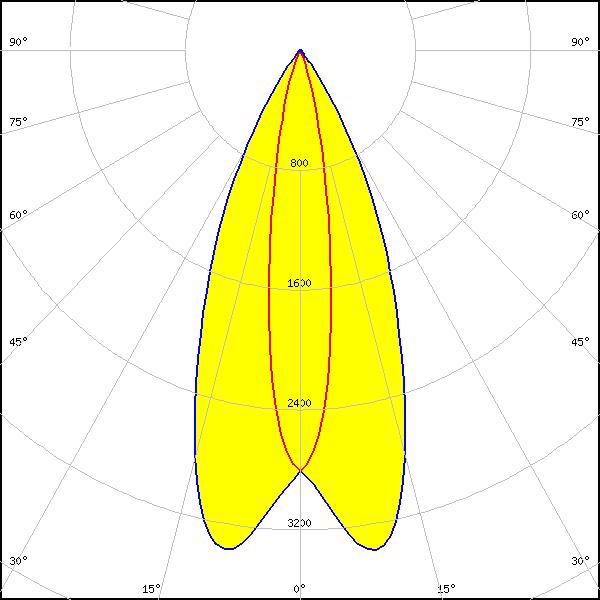

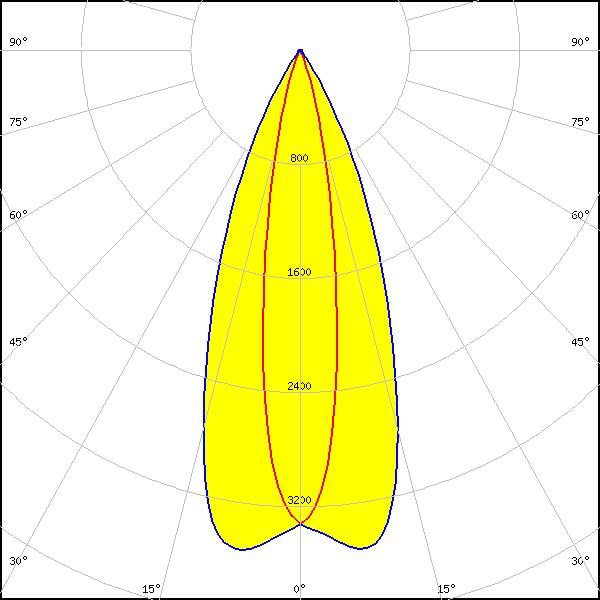

    Optical results

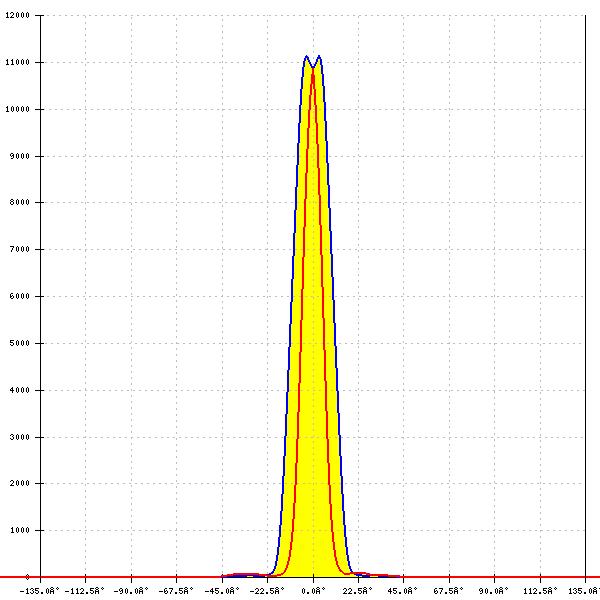

    LED: XB-D
    FWHM: 22° + 10°
    FWTM: 32° + 20°
    Peak intensity: 11.141 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

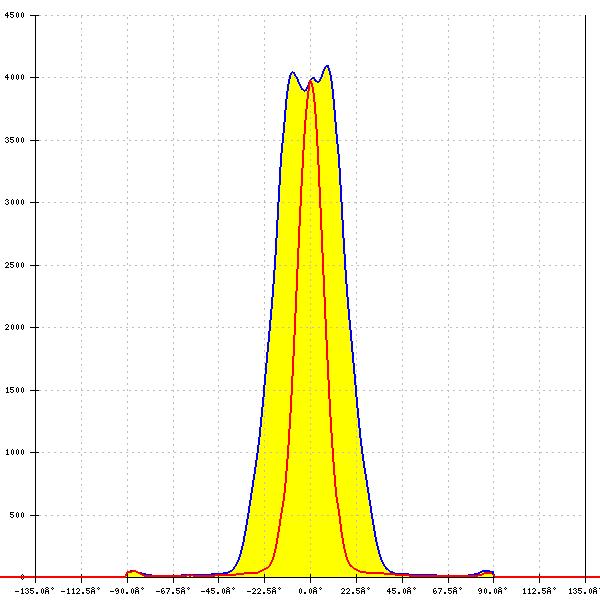

    LED: XB-D
    FWHM: 16° + 38°
    FWTM: 30° + 62°
    Peak intensity: 4.091 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: 18° + 11°
    FWTM: 33° + 20°
    Peak intensity: 12.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: 40° + 15°
    FWTM: 0° + 0°
    Peak intensity: 3.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 42° + 19°
    FWTM: 41° + 70°
    Peak intensity: 2.800 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 44° + 21°
    FWTM: 71° + 40°
    Peak intensity: 2.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: 22° + 42°
    FWTM: 47° + 72°
    Peak intensity: 2.422 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: 39° + 17°
    FWTM: 65° + 32°
    Peak intensity: 3.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X
    FWHM: 22° + 46°
    FWTM: 40° + 74°
    Peak intensity: 2.540 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

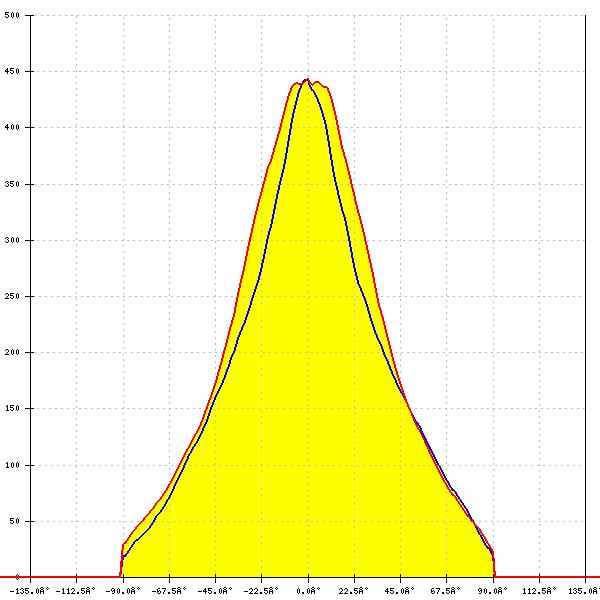

    LED: LUXEON HL2X-P
    FWHM: 65° + 75°
    FWTM: 159° + 166°
    Peak intensity: 0.449 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

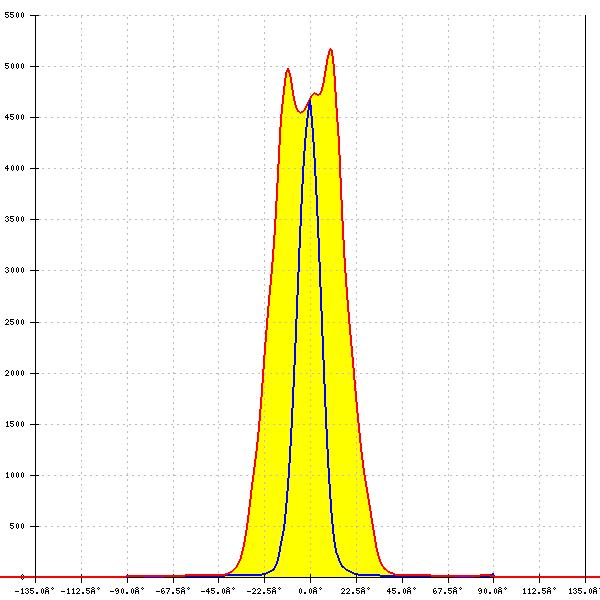

    LED: OSLON SSL 150
    FWHM: asymmetric
    Peak intensity: 5.170 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: 20° + 46°
    FWTM: 39° + 71°
    Peak intensity: 2.783 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

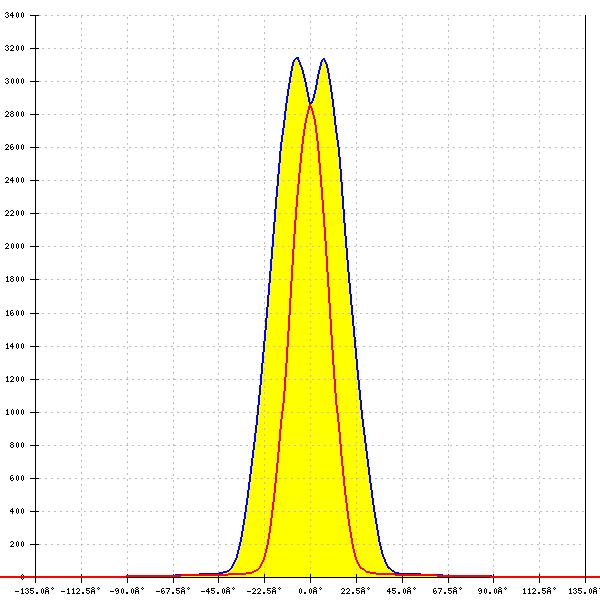

    LED: Z5M4
    FWHM: 22° + 42°
    FWTM: 40° + 66°
    Peak intensity: 3.143 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

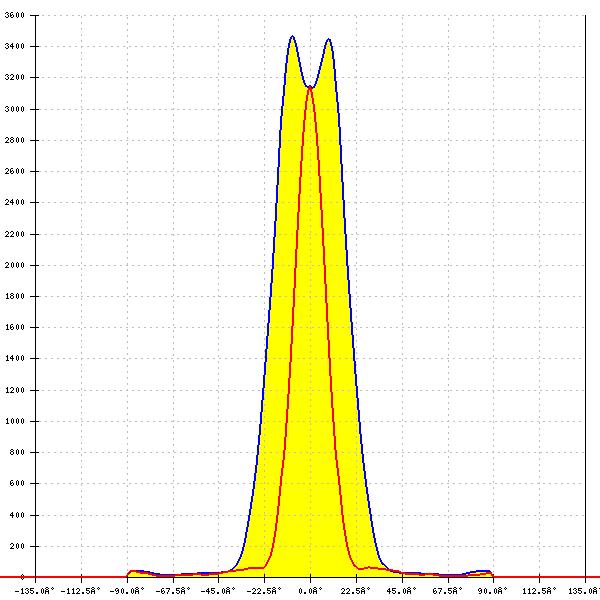

    LED: Z8Y19
    FWHM: 18° + 40°
    FWTM: 34° + 60°
    Peak intensity: 3.466 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22
    FWHM: 22° + 40°
    FWTM: 39° + 64°
    Peak intensity: 2.920 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
