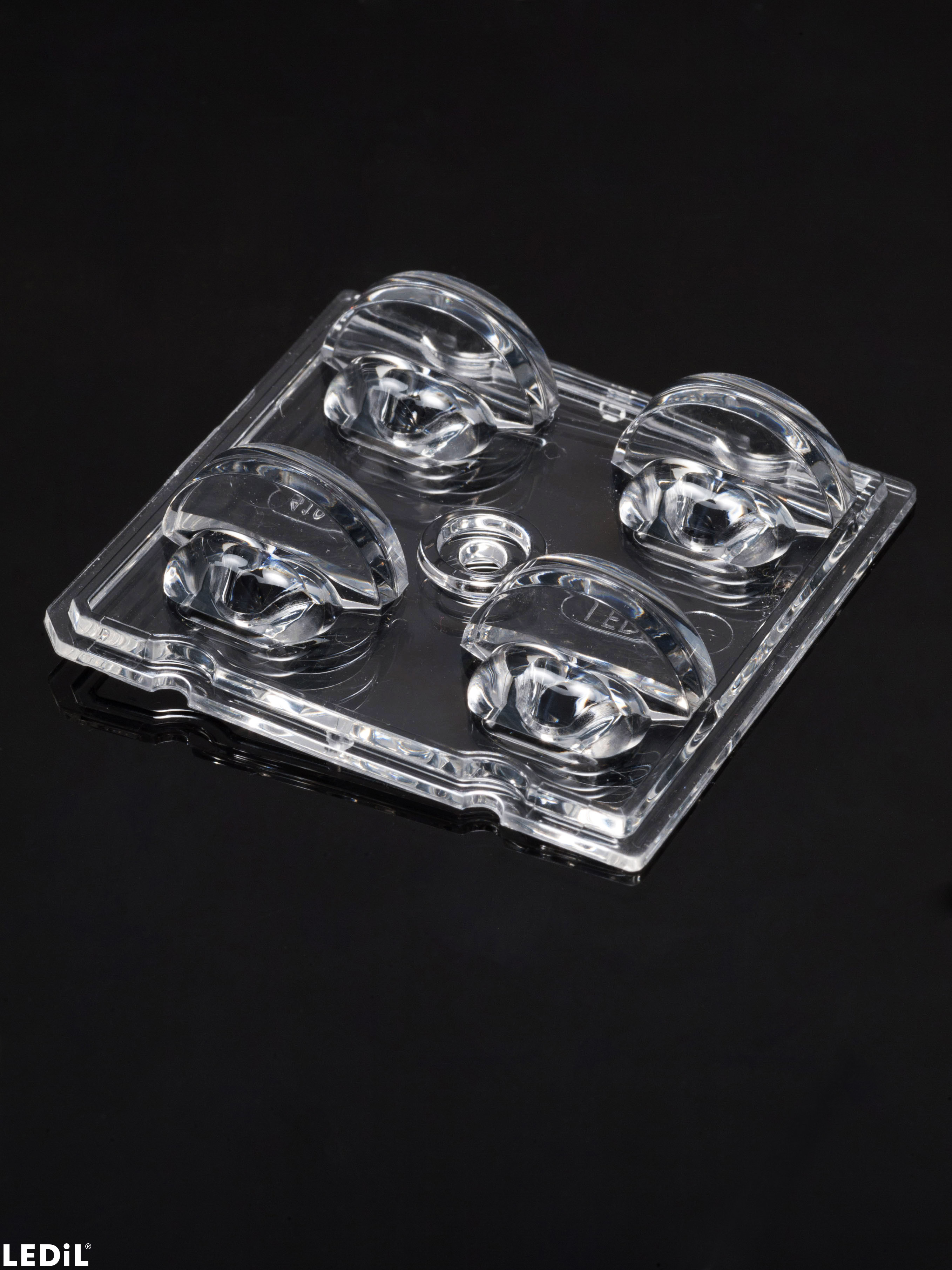

C14109_STRADA-2X2-NHS
Print
Narrow beam with minimal house side backlight
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

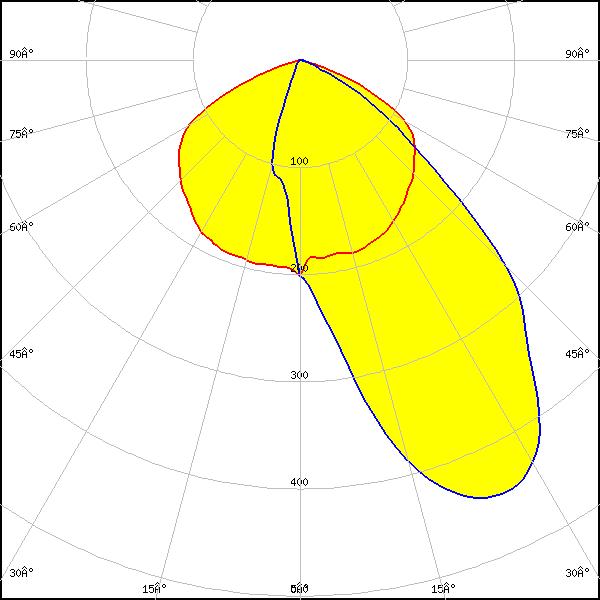

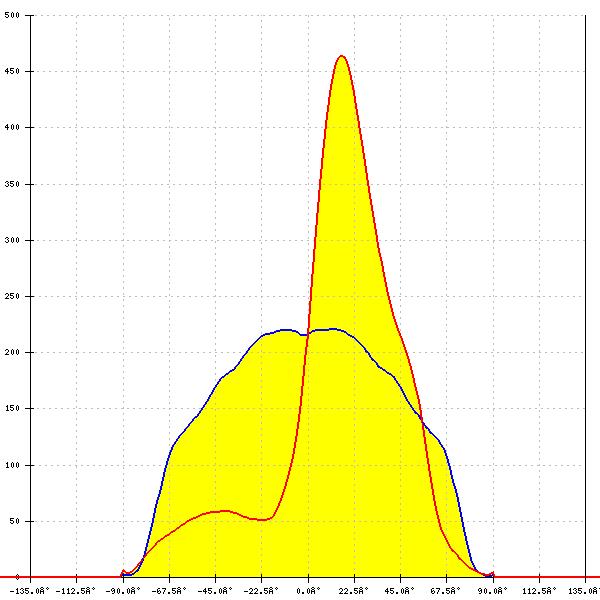

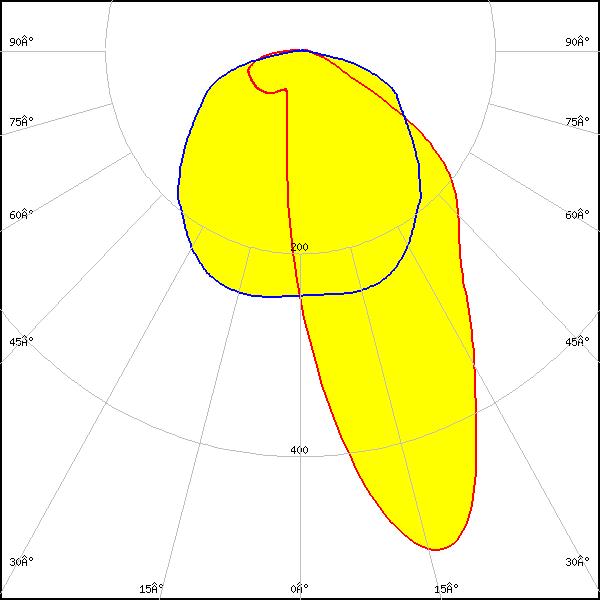

Optical results

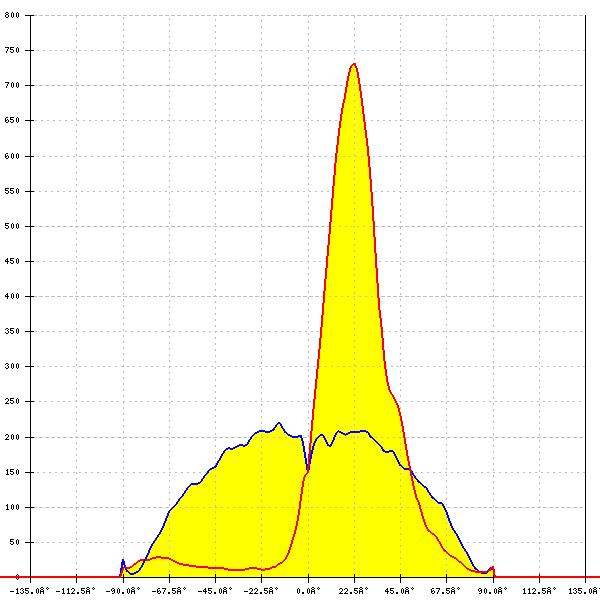

LED:

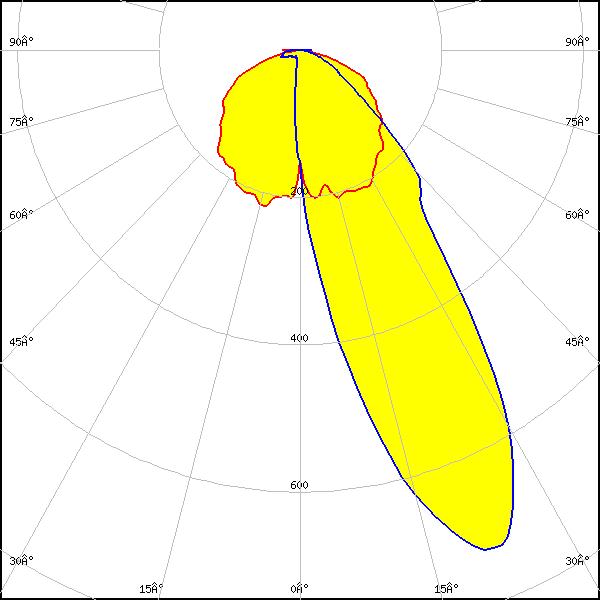

XB-H
FWHM: asymmetric
Peak intensity:
0.750 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

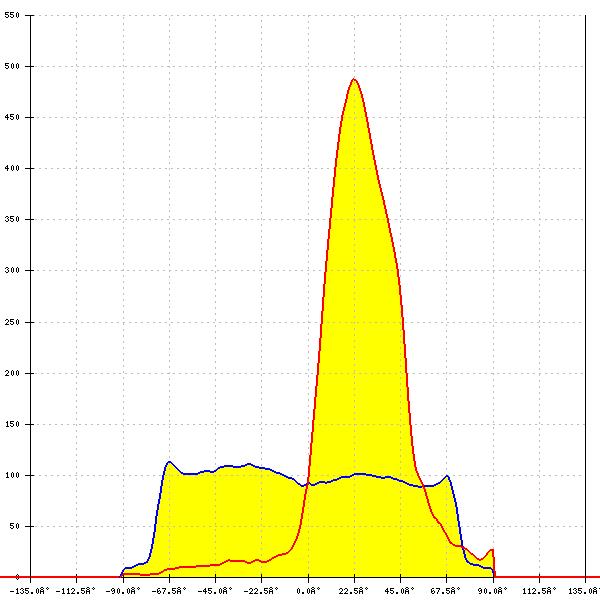

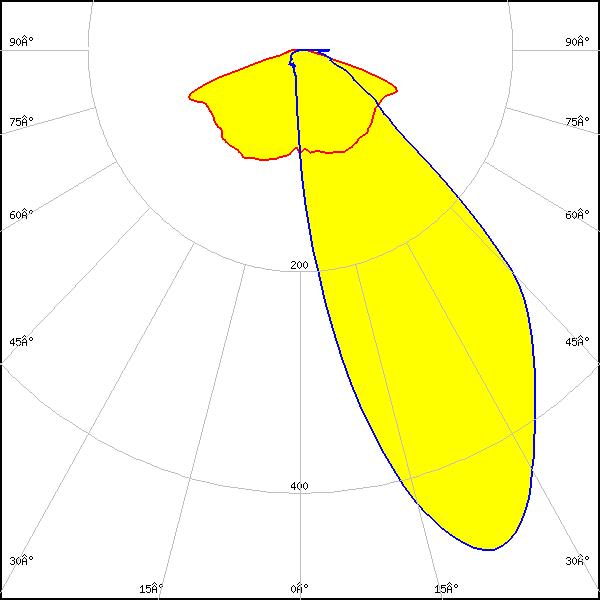

LED:

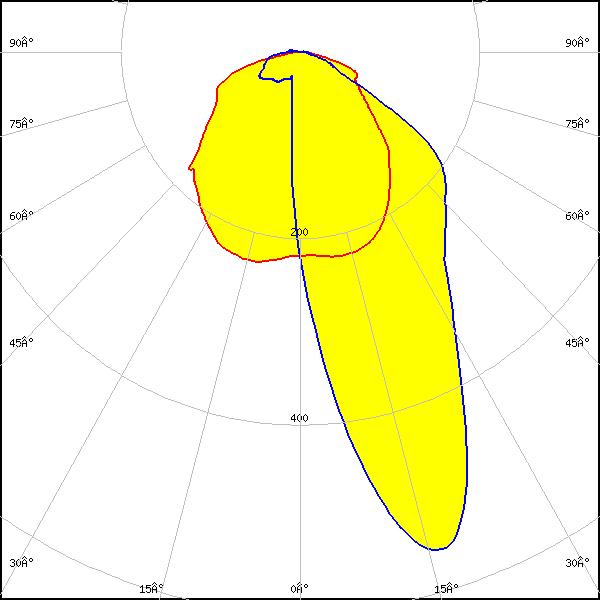

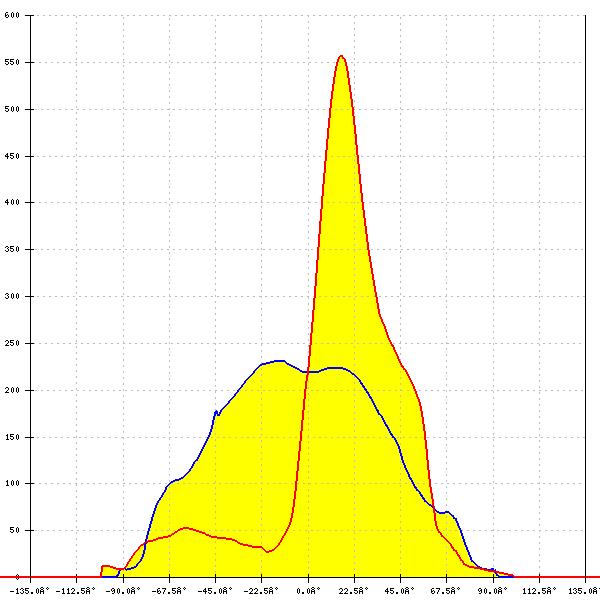

XP-G2
Required components:
FWHM: asymmetric
Peak intensity:
0.702 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM: asymmetric
Peak intensity:
0.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

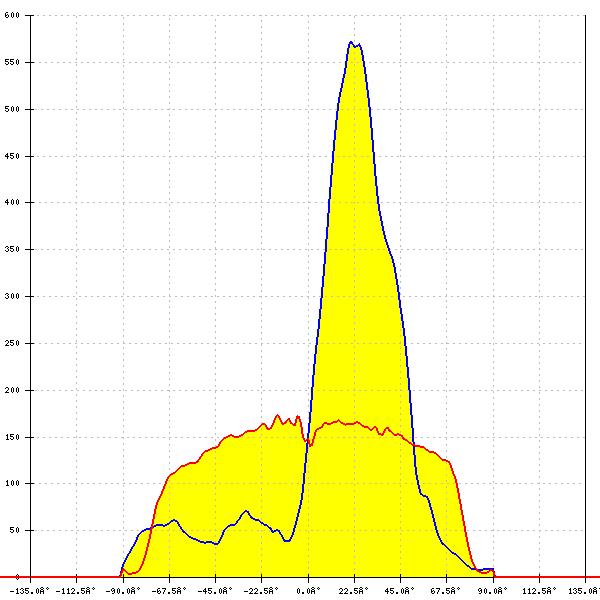

LED:

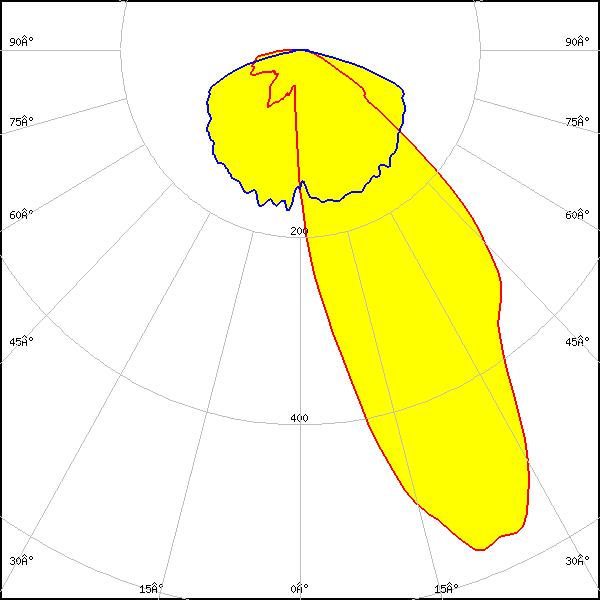

XP-G2 HE
FWHM: asymmetric
Peak intensity:
0.630 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

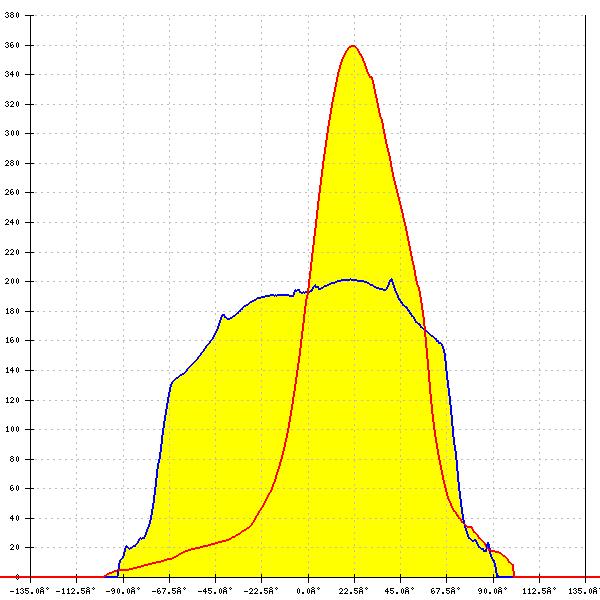

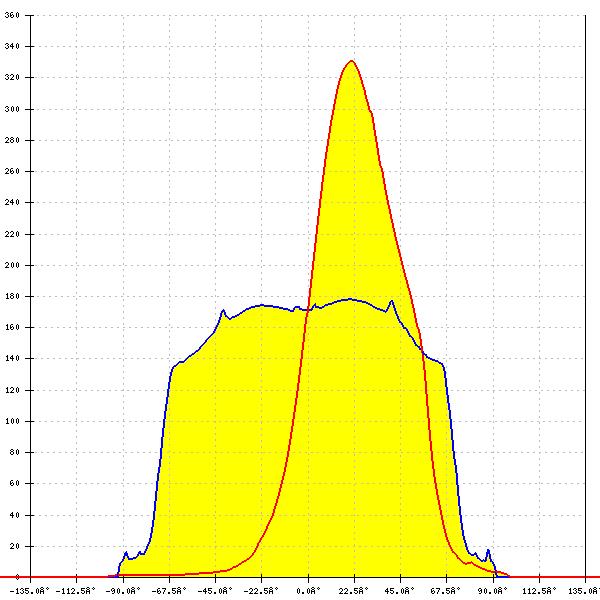

XP-G3
FWHM: asymmetric
Peak intensity:
0.501 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

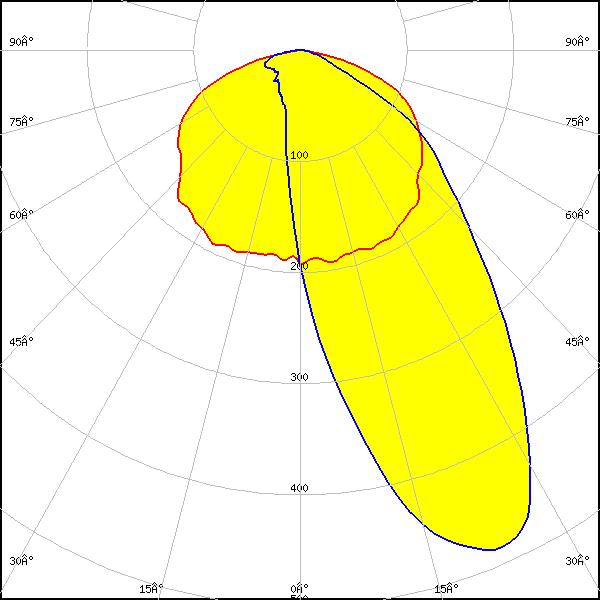

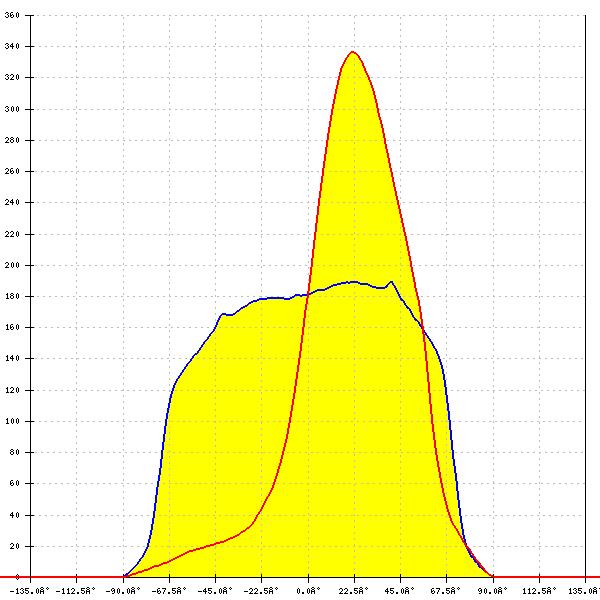

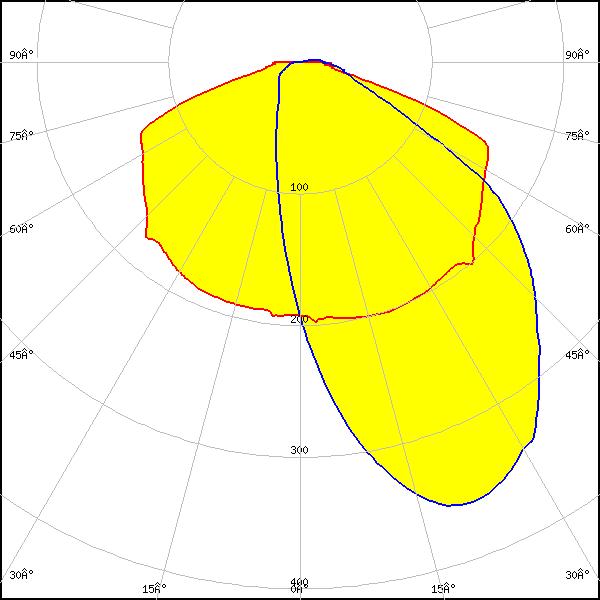

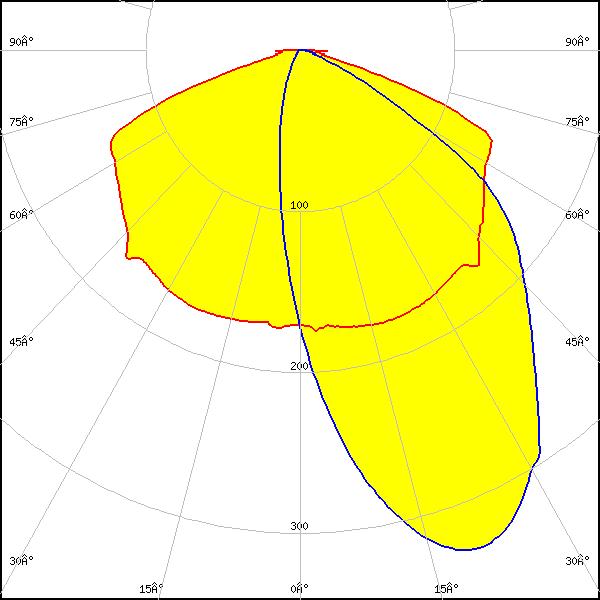

LED:
XP-G3
Required components:
FWHM: asymmetric
Peak intensity:
0.474 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
Required components:
FWHM: asymmetric
Peak intensity:
0.555 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
Required components:
FWHM: asymmetric
Peak intensity:
0.596 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

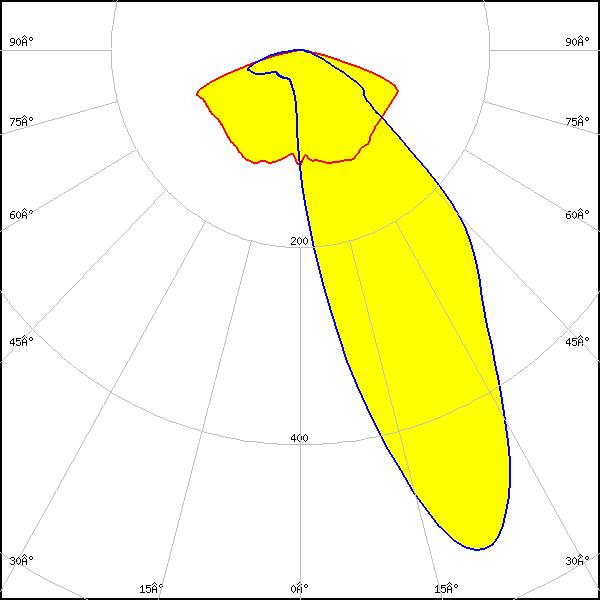

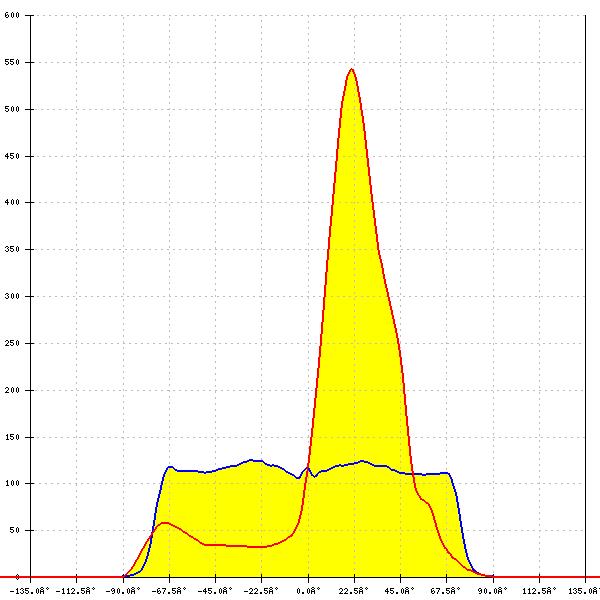

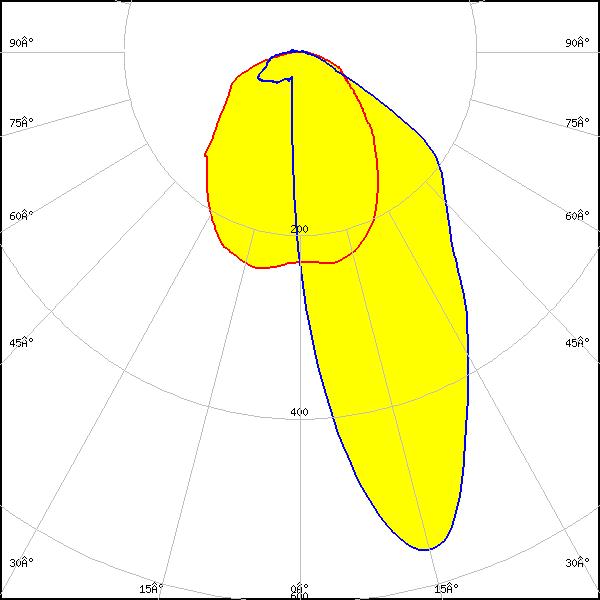

LED:

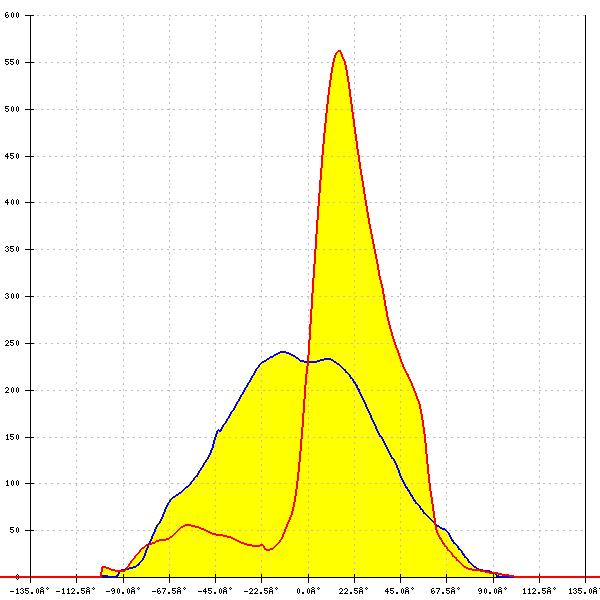

LUXEON TX
FWHM: asymmetric
Peak intensity:
0.810 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

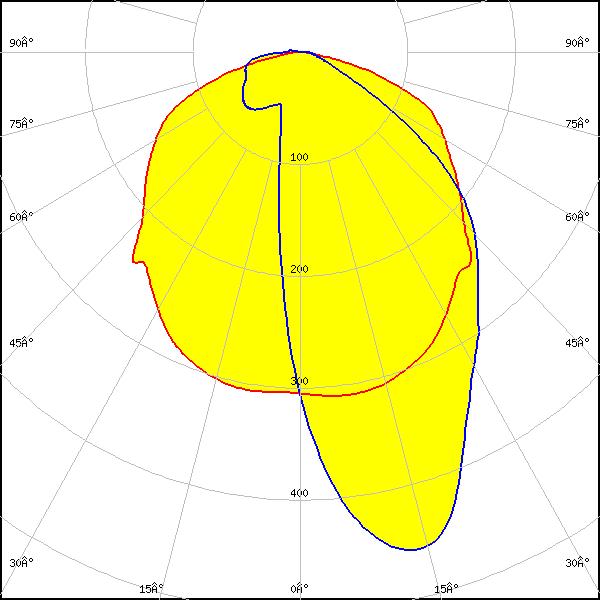

RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity:
0.723 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

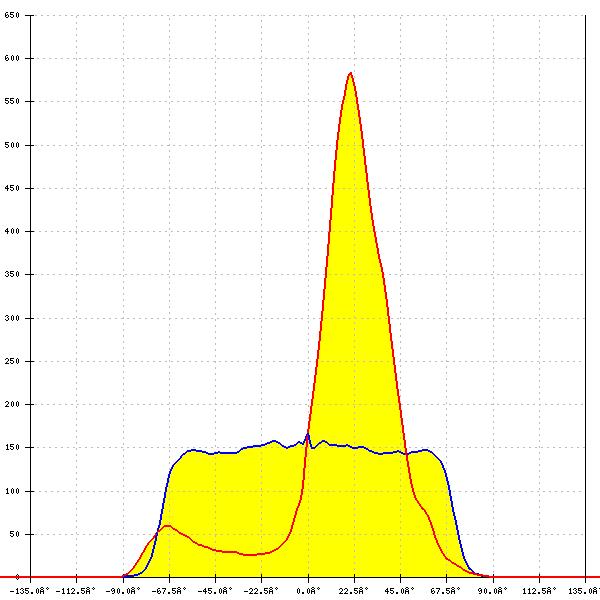

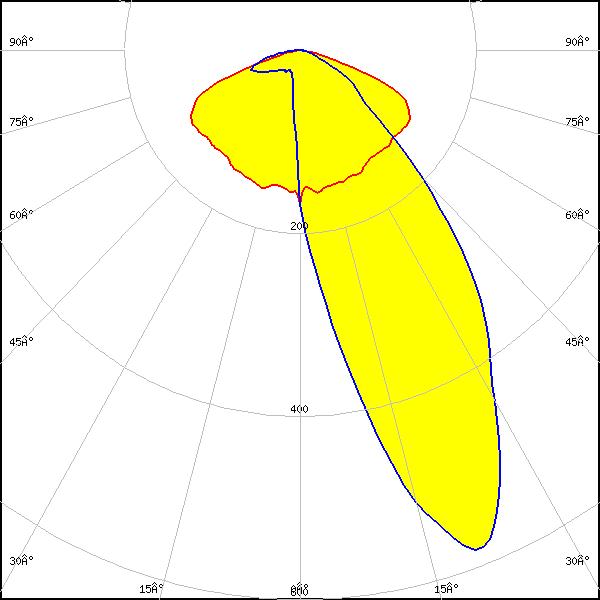

LED:
NFSx757G
FWHM: asymmetric
Peak intensity:
0.647 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

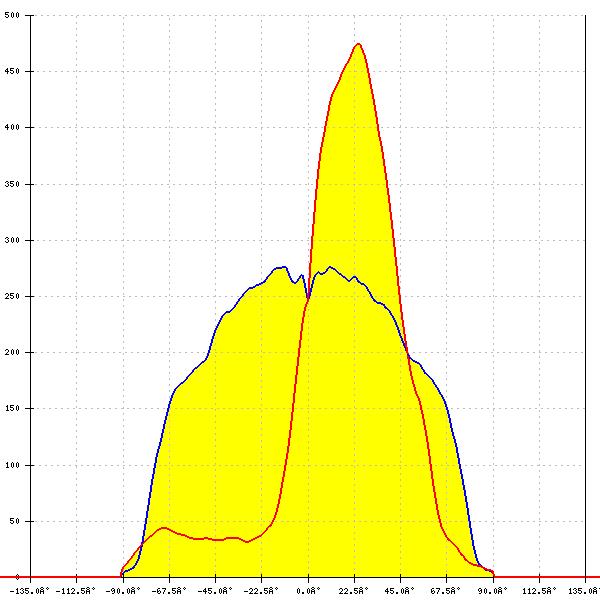

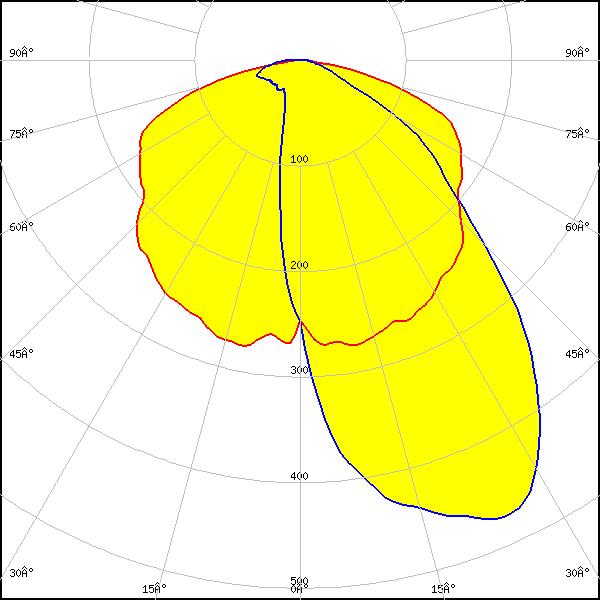

LED:
NV4WB35AM
FWHM: asymmetric
Peak intensity:
0.517 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

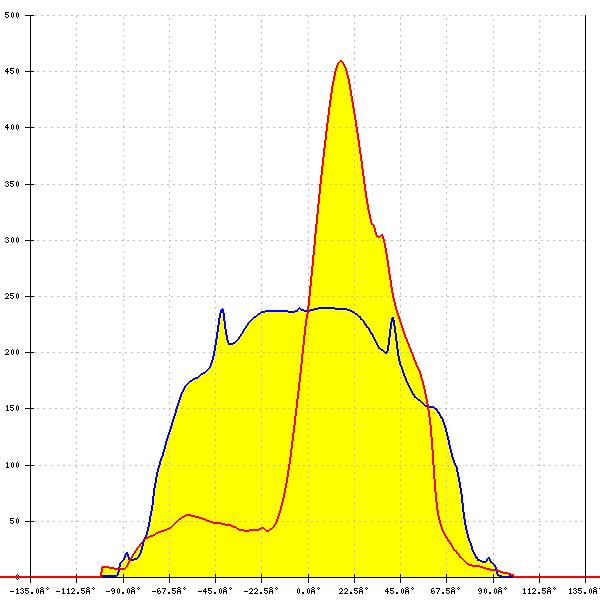

NVSW3x9A
FWHM: asymmetric
Peak intensity:
0.670 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

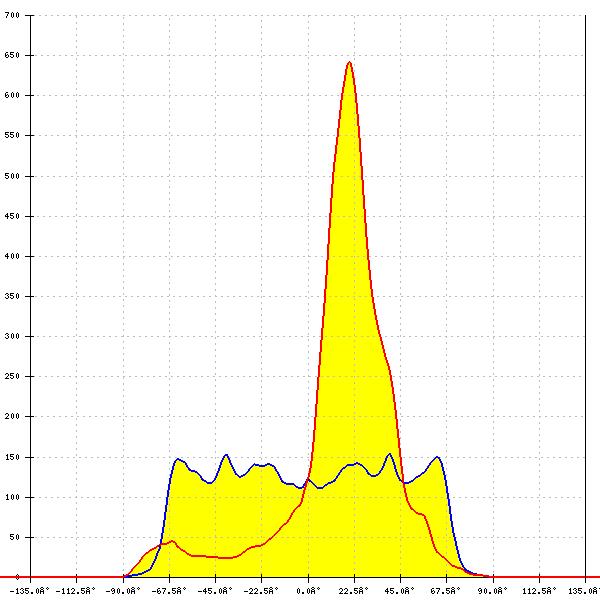

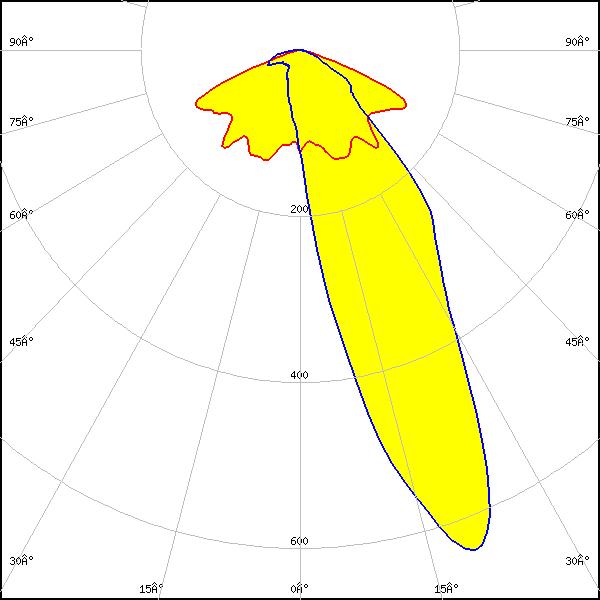

NVSxE21A
FWHM: asymmetric
Peak intensity:
0.767 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

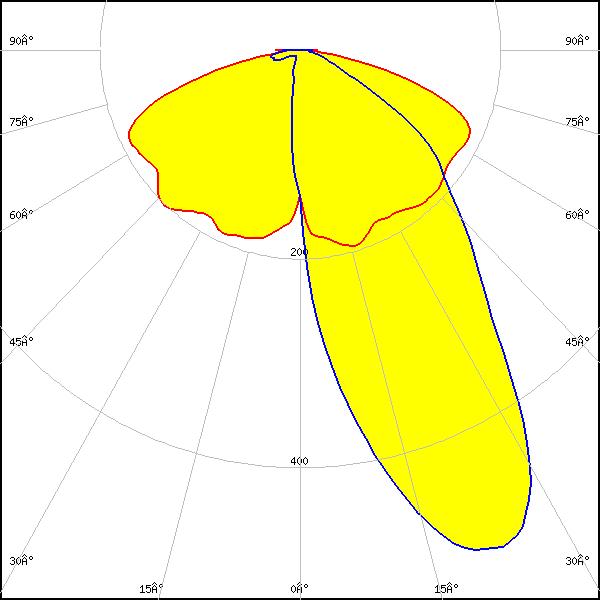

LED:

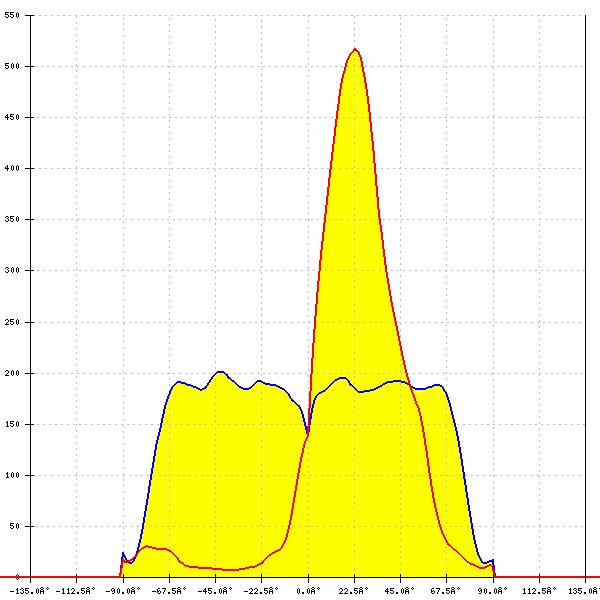

NVSxx19A
FWHM: asymmetric
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

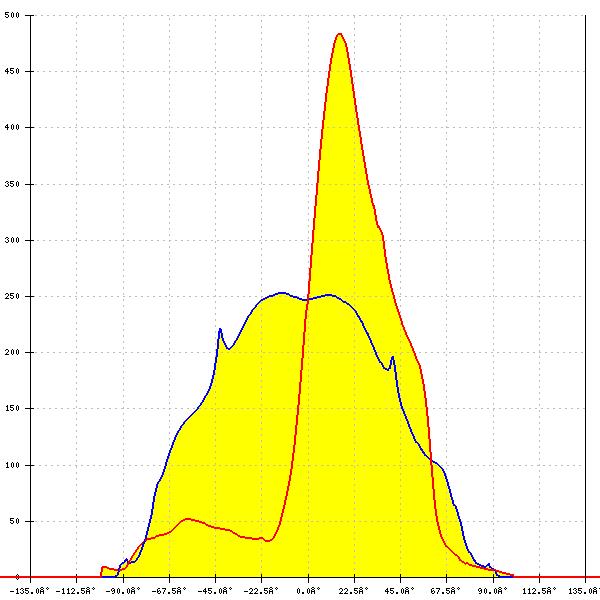

LED:

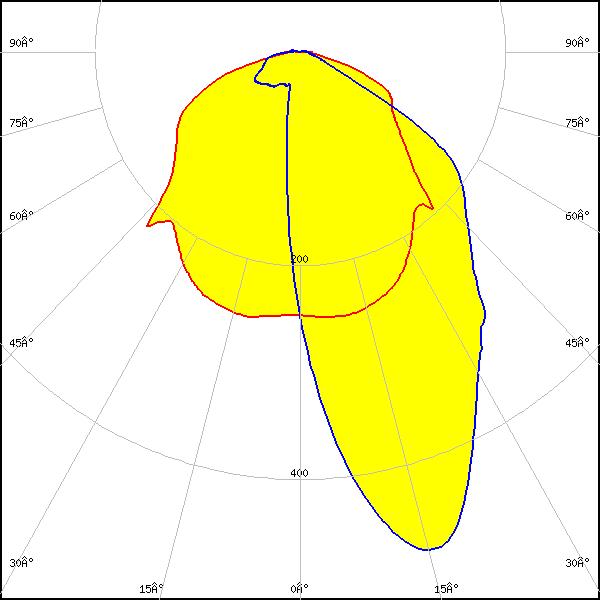

NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity:
0.720 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

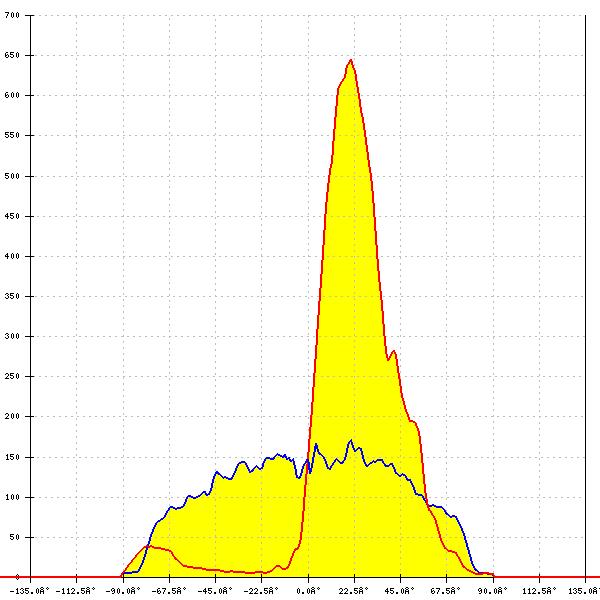

LED:

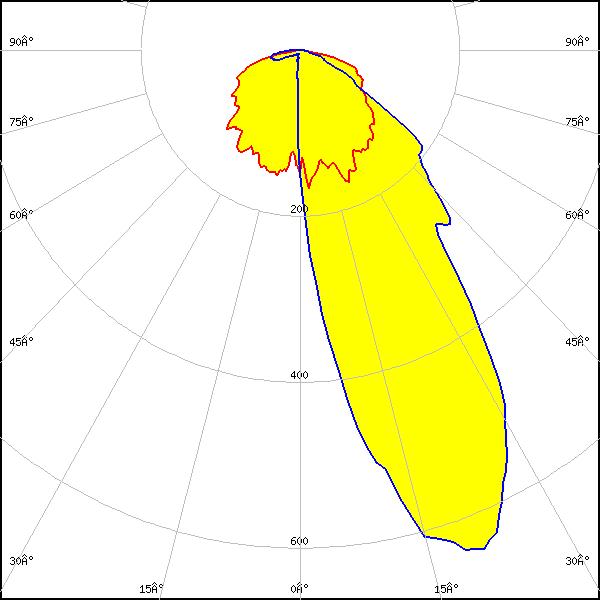

PrevaLED Brick HP 2x8
FWHM: asymmetric
Peak intensity:
0.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

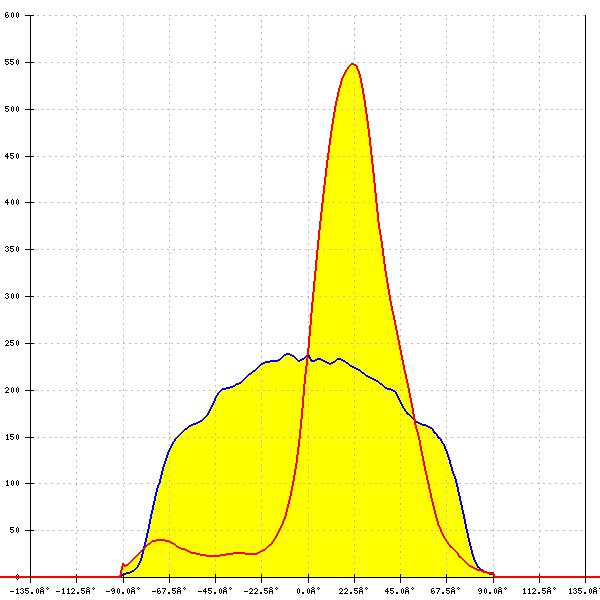

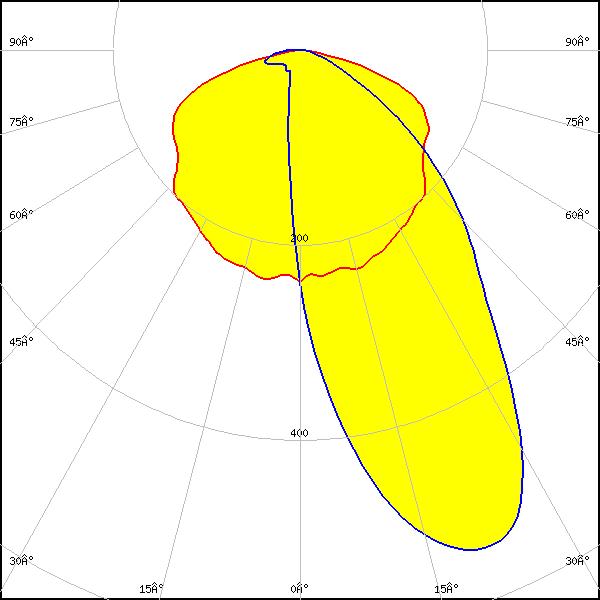

OSCONIQ P 3737 Flat
FWHM: asymmetric
Peak intensity:
0.624 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

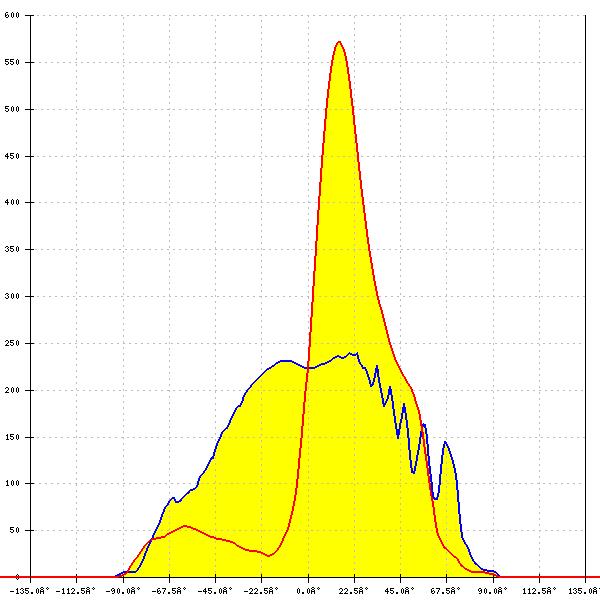

LED:

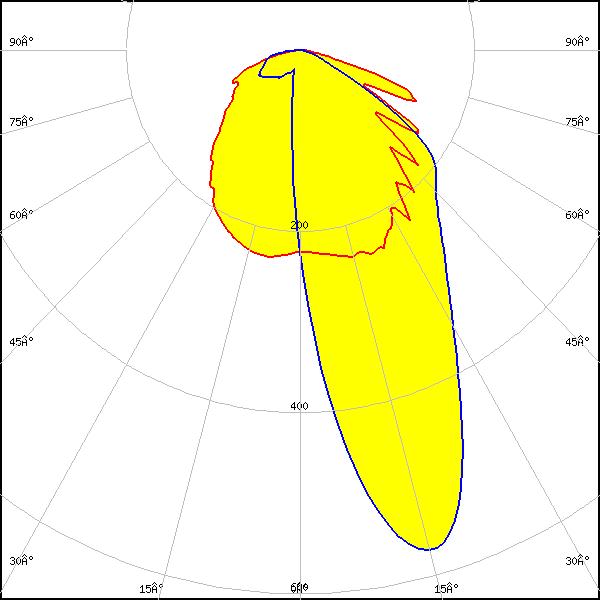

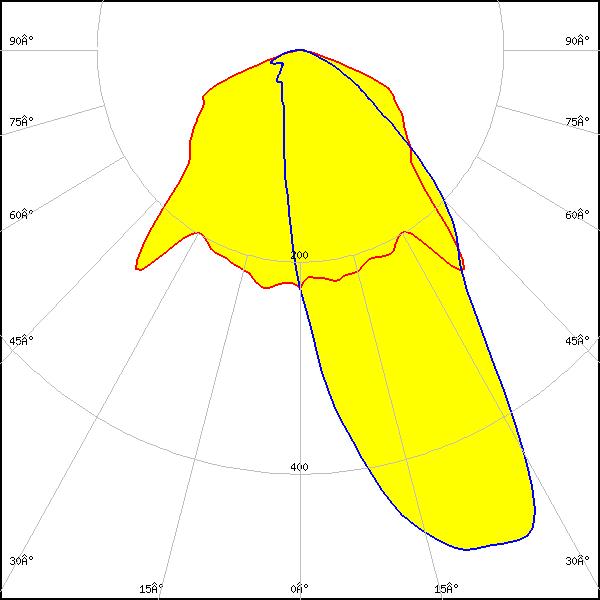

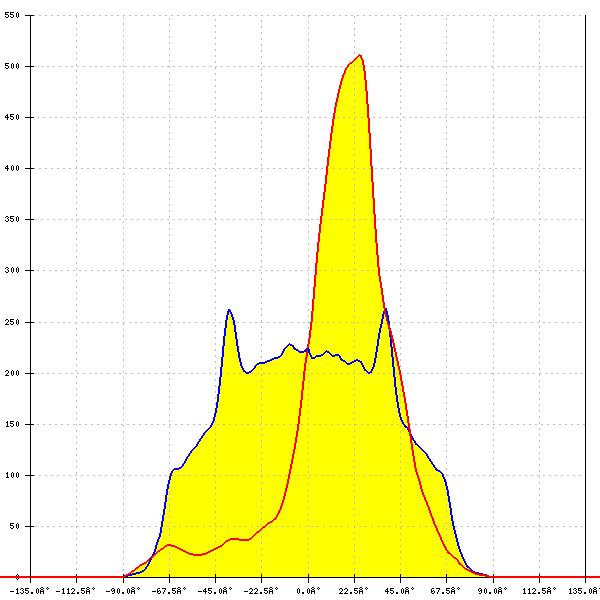

OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity:
0.574 cd/lm
Efficiency:
60 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.752 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.770 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

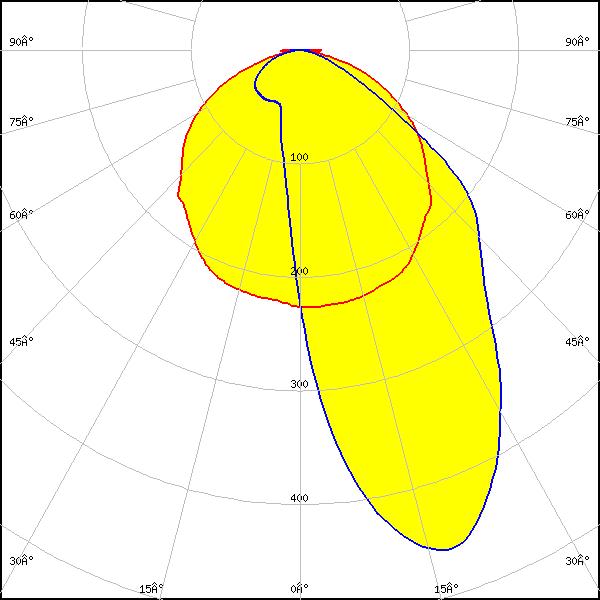

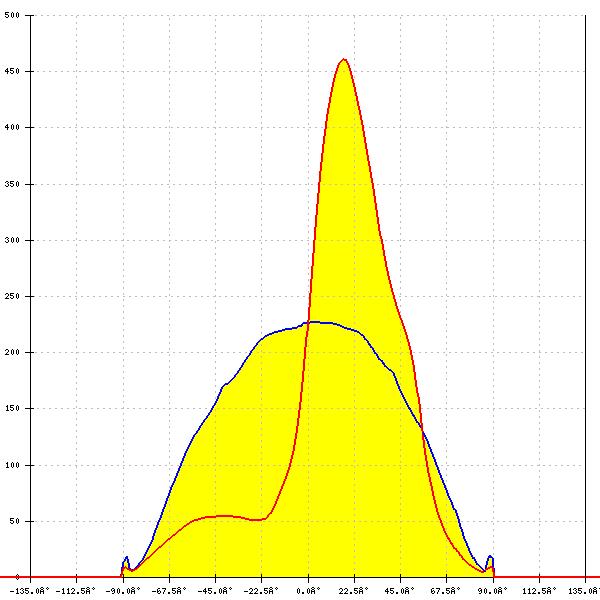

OSLON Square PC
FWHM: asymmetric
Peak intensity:
0.580 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

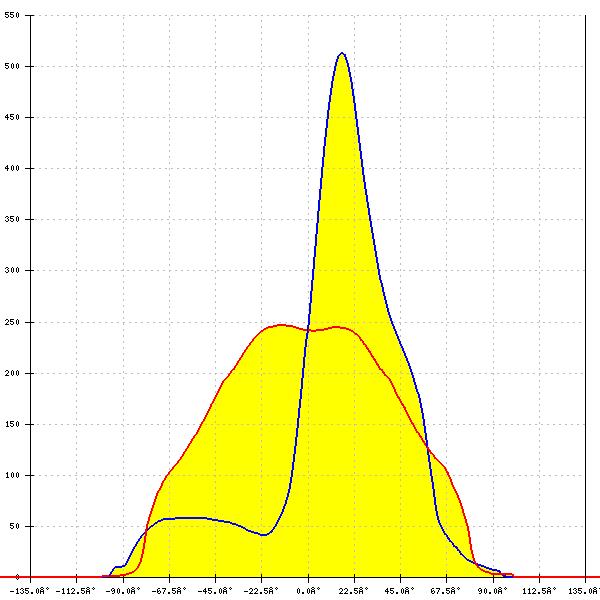

LED:
Fortimo FastFlex LED 2x8 DA G4
FWHM: asymmetric
Peak intensity:
0.720 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4+
FWHM: asymmetric
Peak intensity:
0.604 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

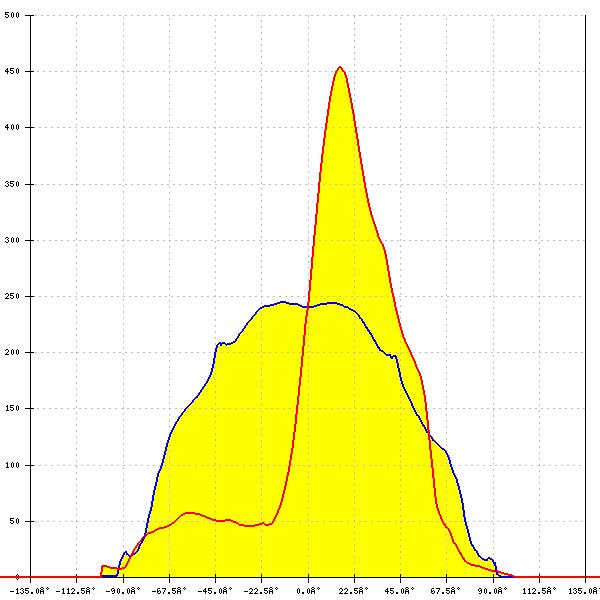

Fortimo FastFlex LED 2x8 DAX G4
FWHM: asymmetric
Peak intensity:
0.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

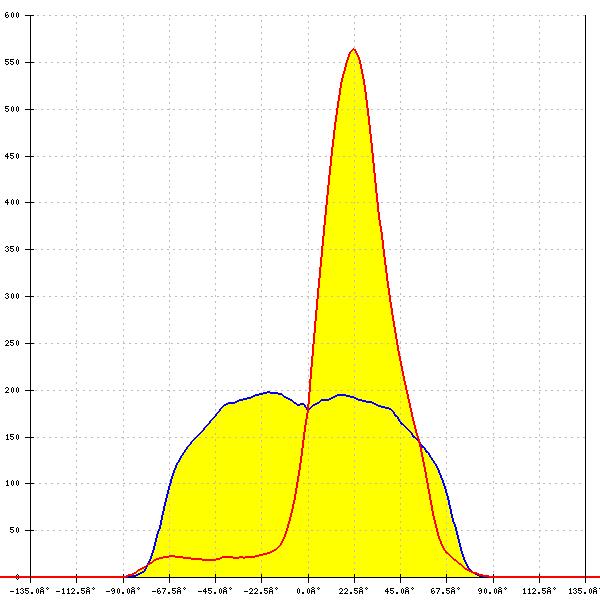

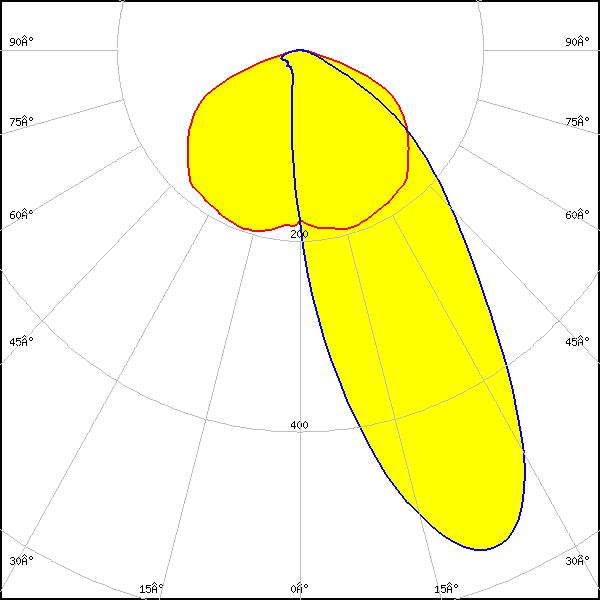

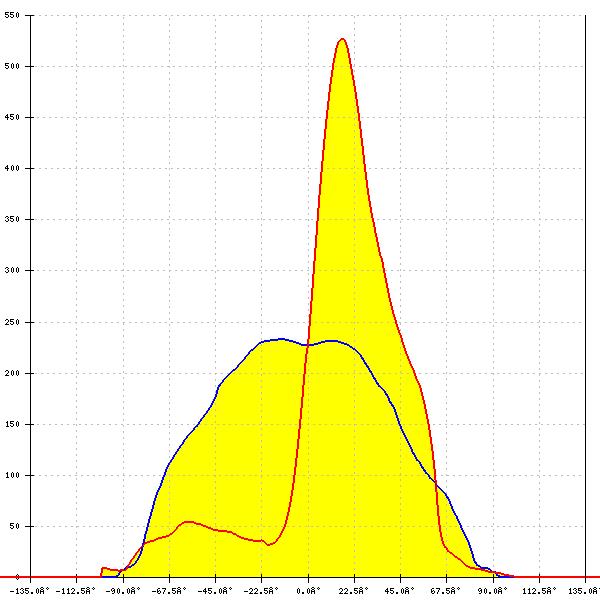

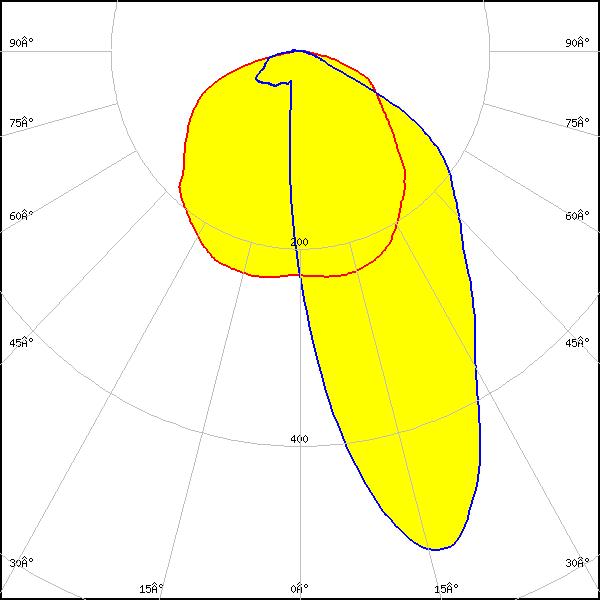

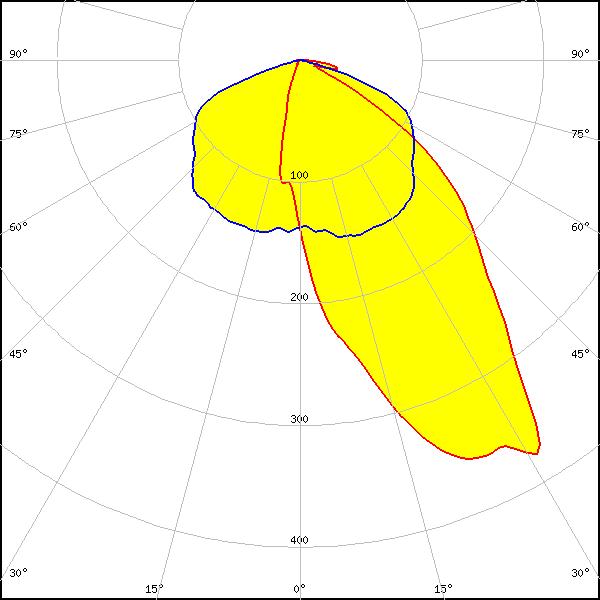

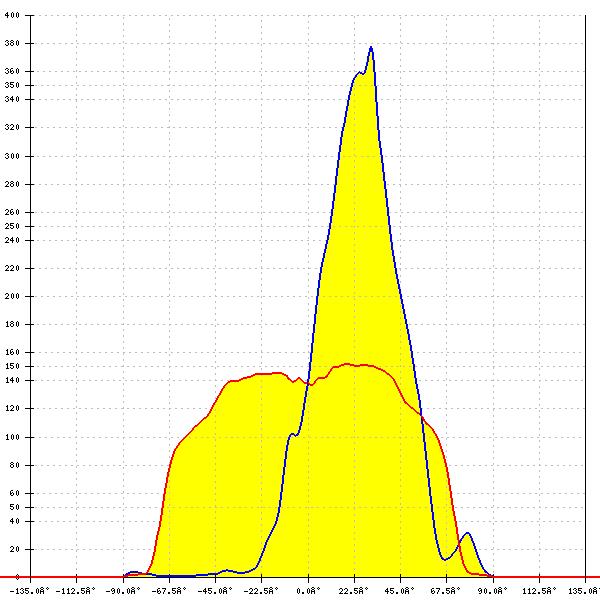

LED:
LH351B
FWHM: asymmetric
Peak intensity:
0.584 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM: asymmetric
Peak intensity:
0.680 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

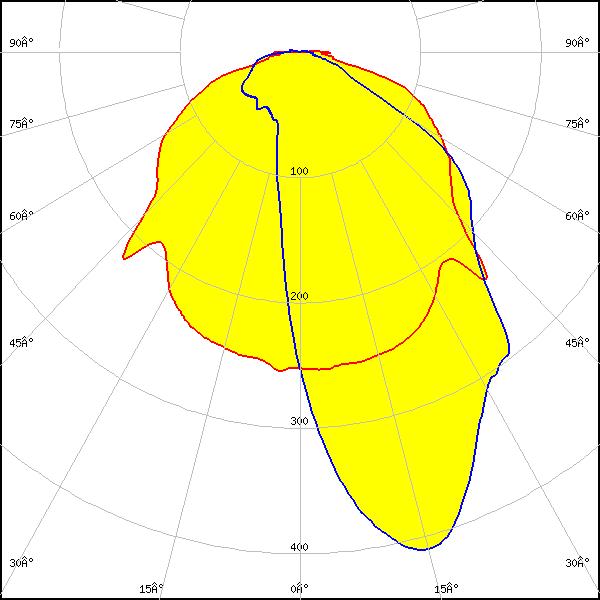

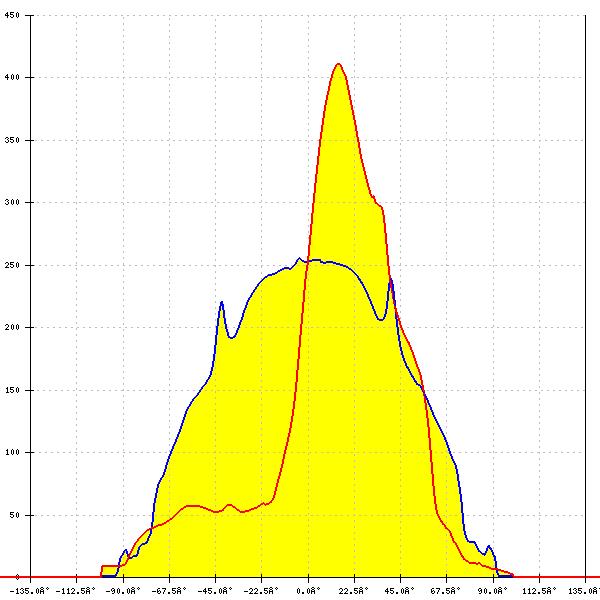

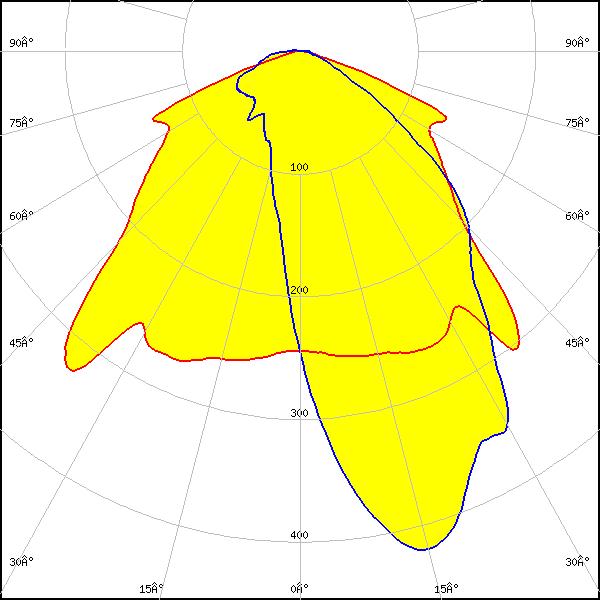

LED:

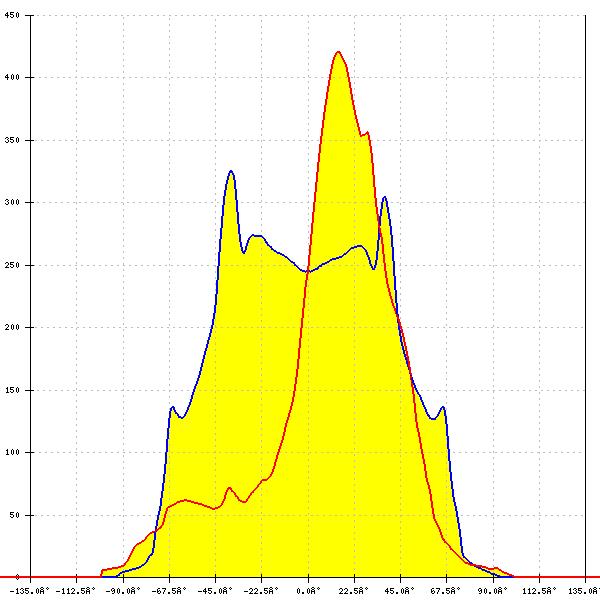

Z8Y22
FWHM: asymmetric
Peak intensity:
0.830 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22P
FWHM: asymmetric
Peak intensity:
0.650 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

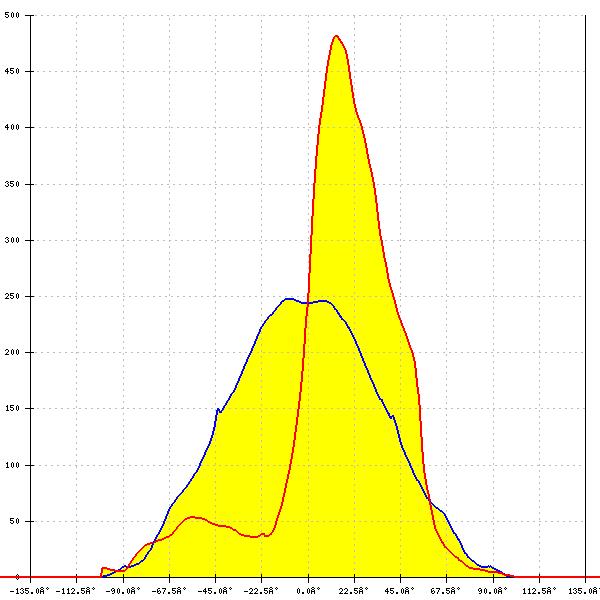

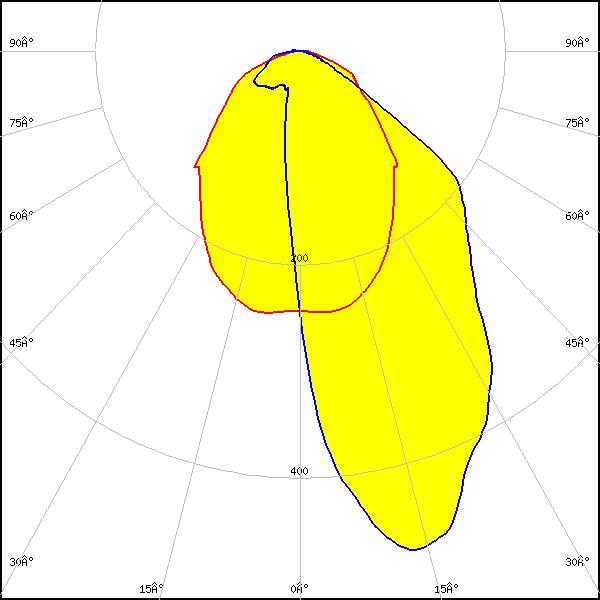

TL1L4
FWHM: asymmetric
Peak intensity:
0.720 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

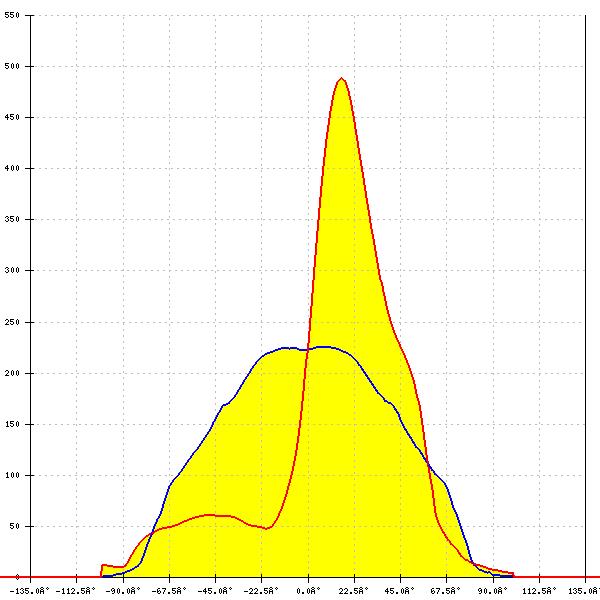

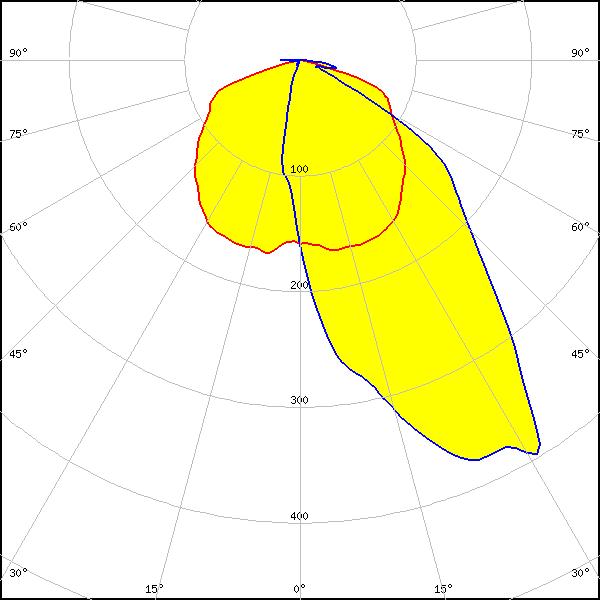

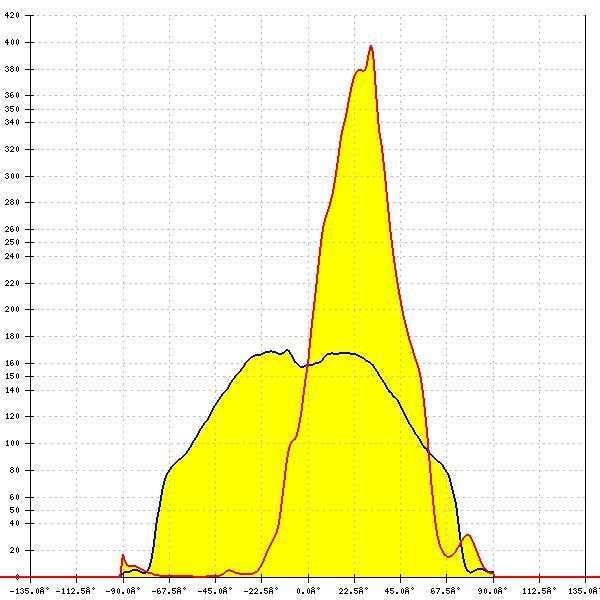

LED:

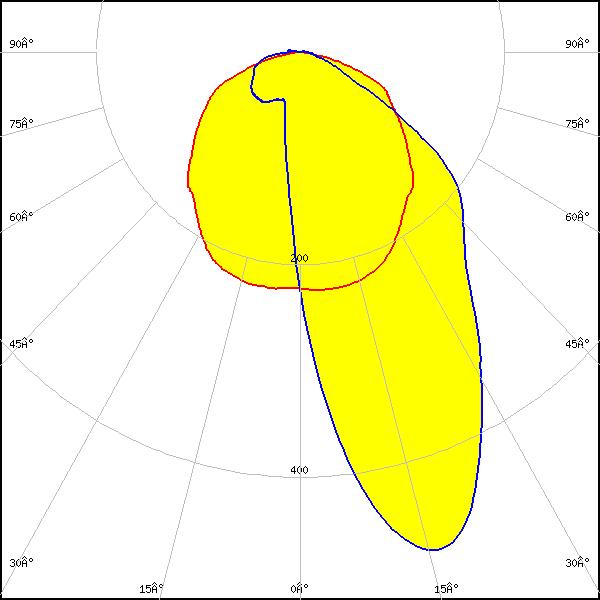

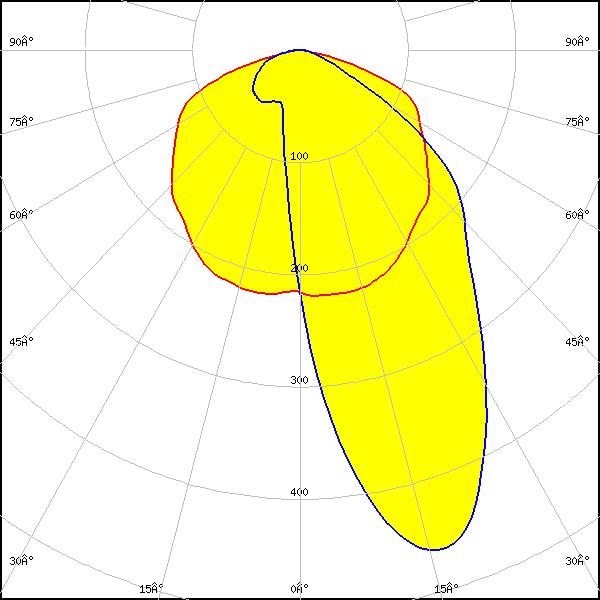

RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity:
0.574 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

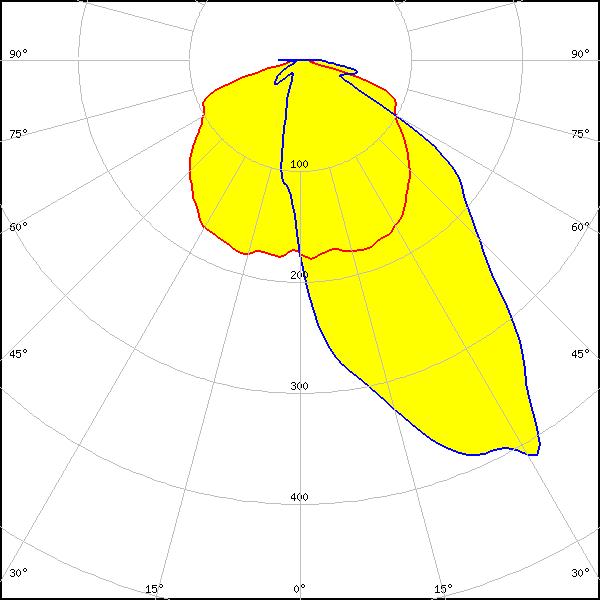

LED:
RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity:
0.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

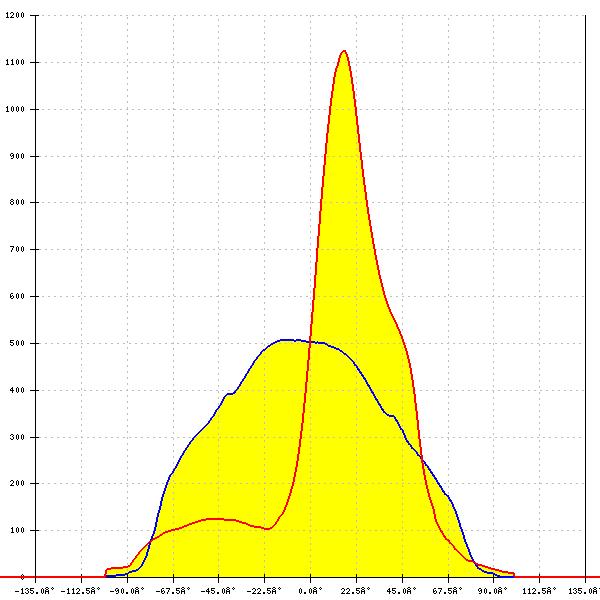

LED:

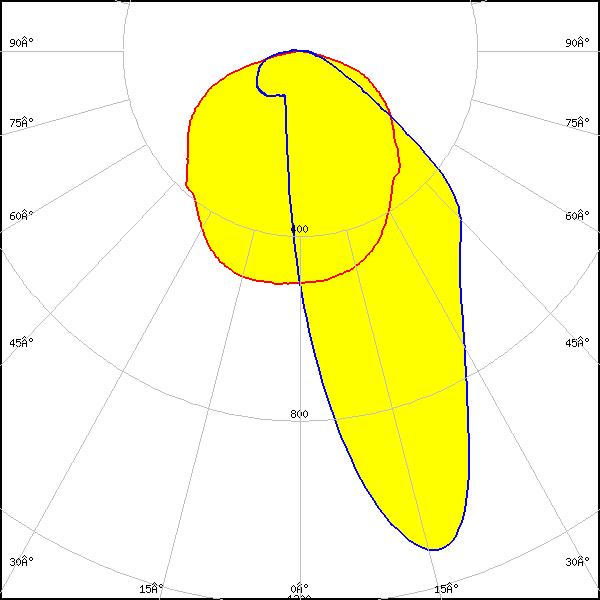

RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity:
0.760 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity:
0.760 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity:
0.760 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity:
0.760 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
