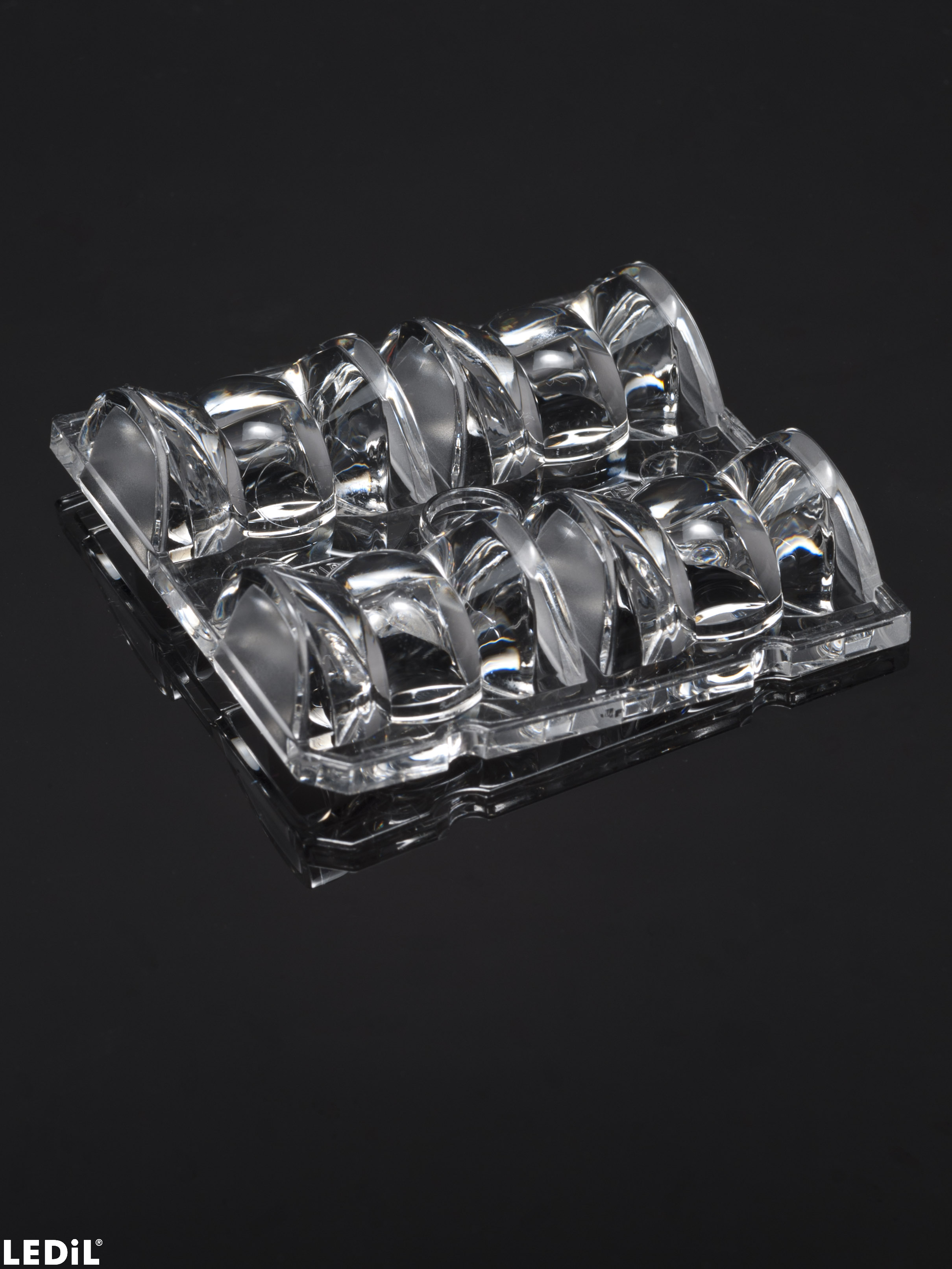

    C13749_HB-2X2-O

    Print

    ~20° + 115° oval beam for aisle lighting

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      10.60 mm
    • Fastening:
      glue, pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.4 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13749_HB-2X2-O
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - HB-2X2-O

    PCN

    Product change notification NR118a - Change of packaging quantities and packaging type 200416

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Stadium lighting

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

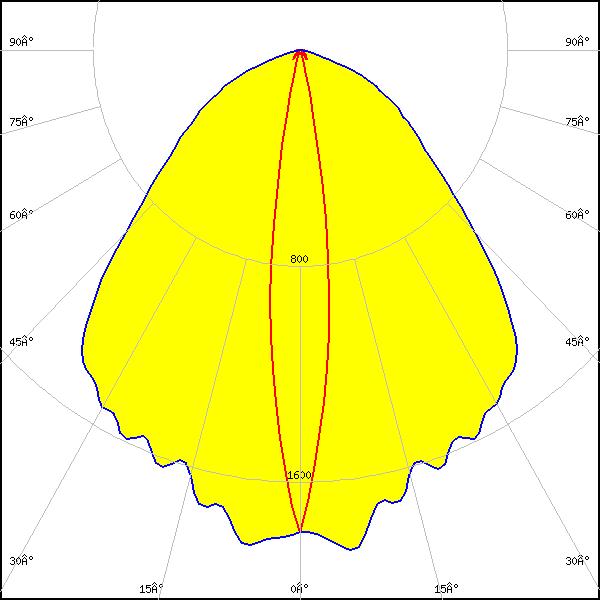

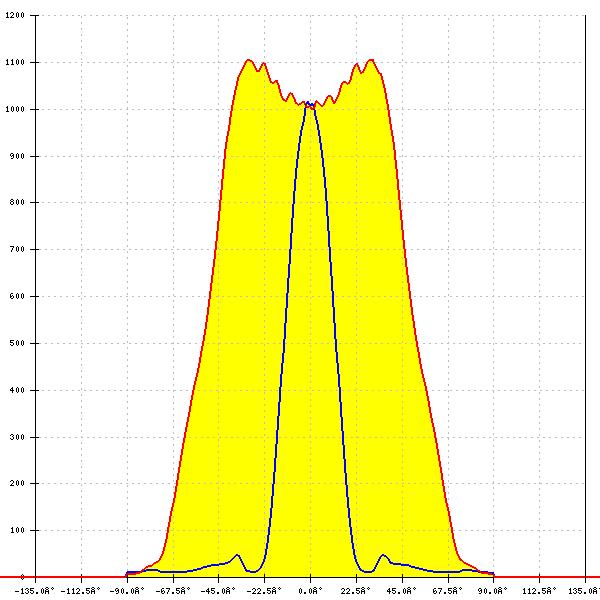

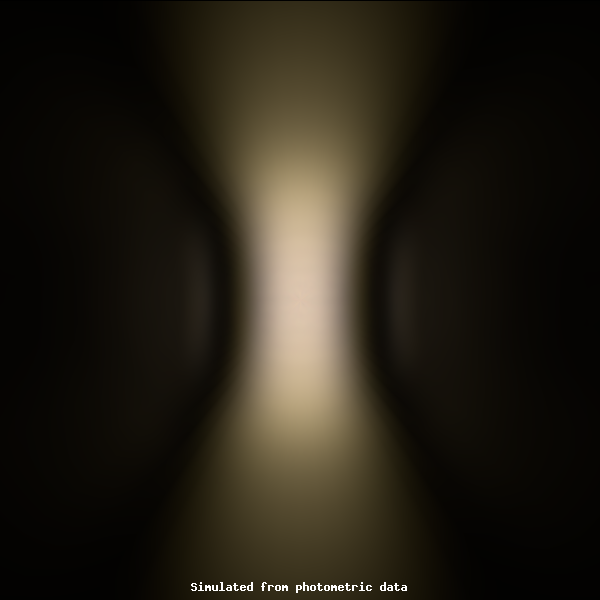

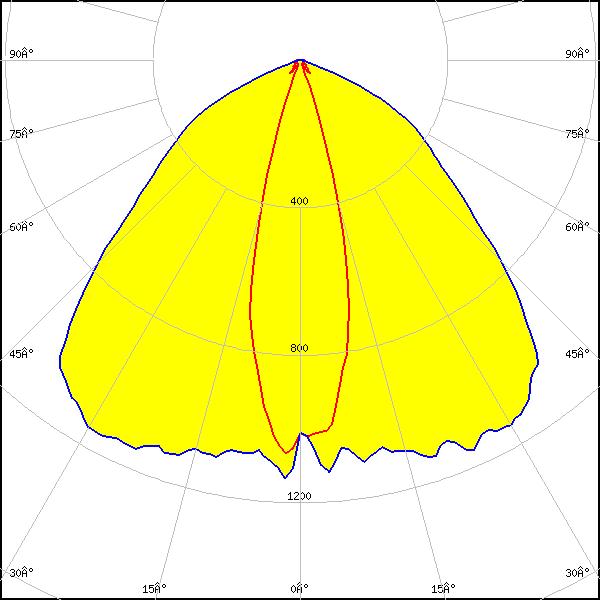

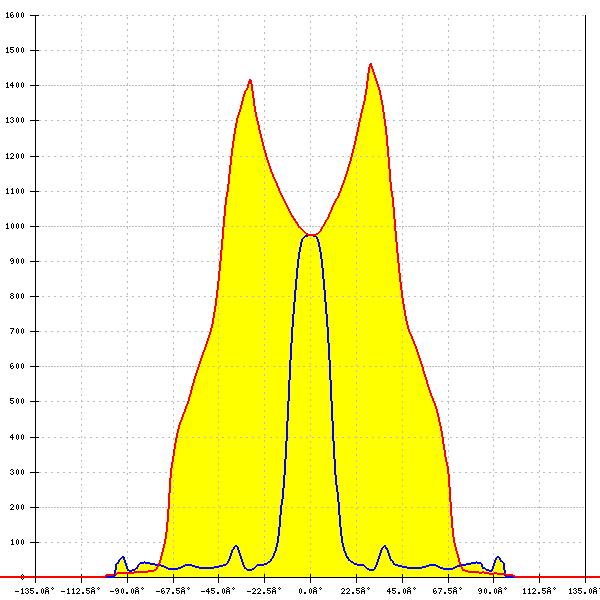

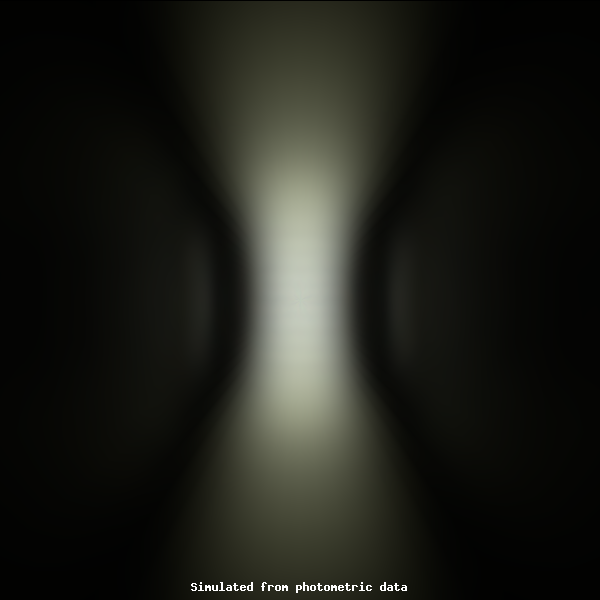

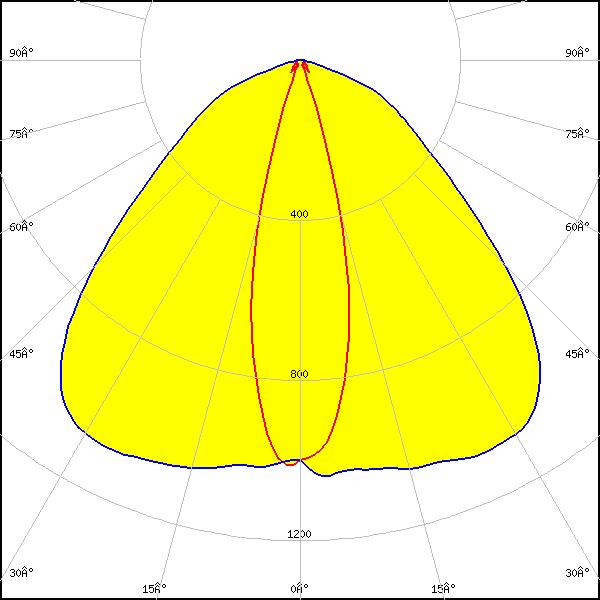

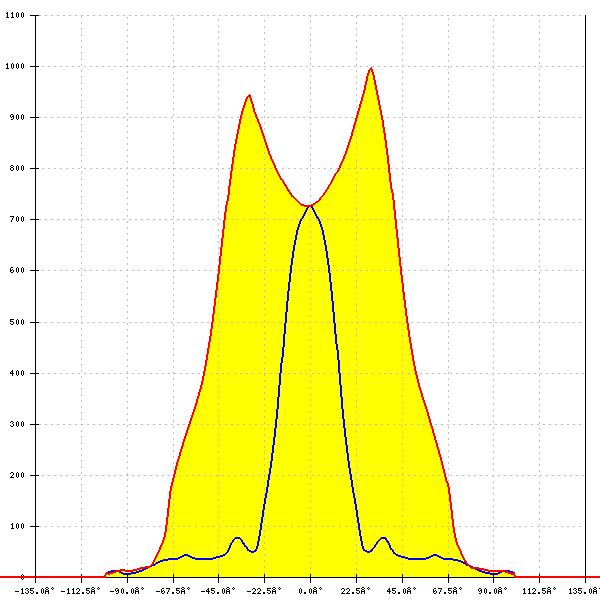

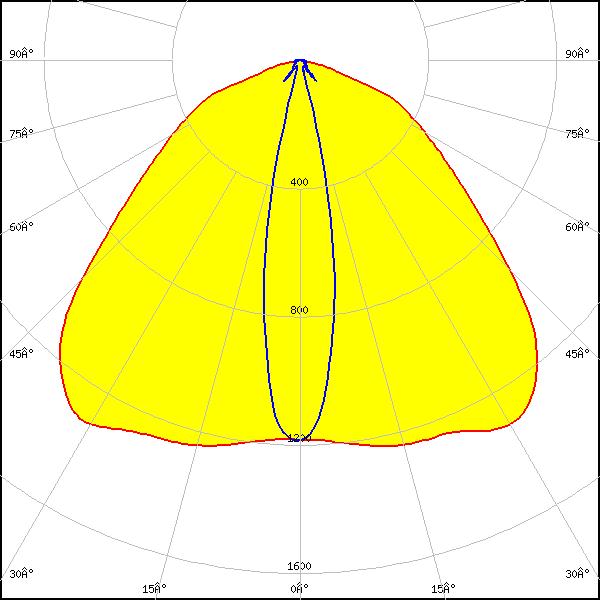

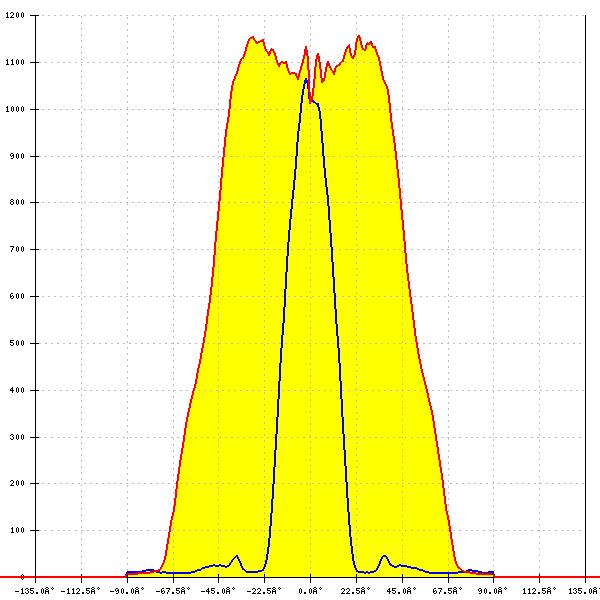

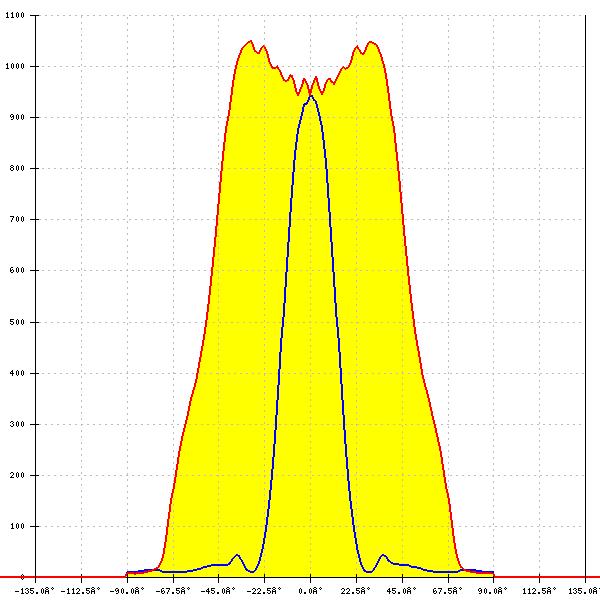

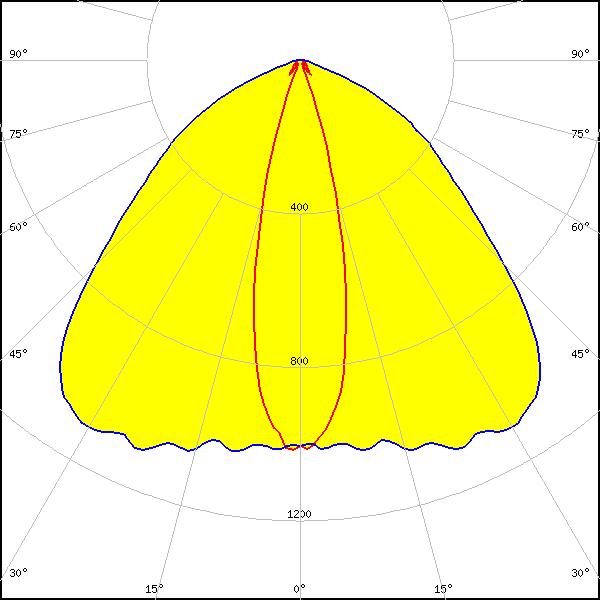

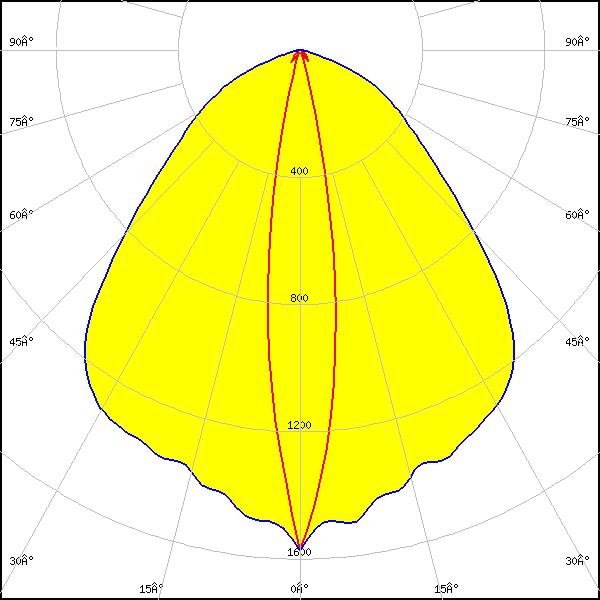

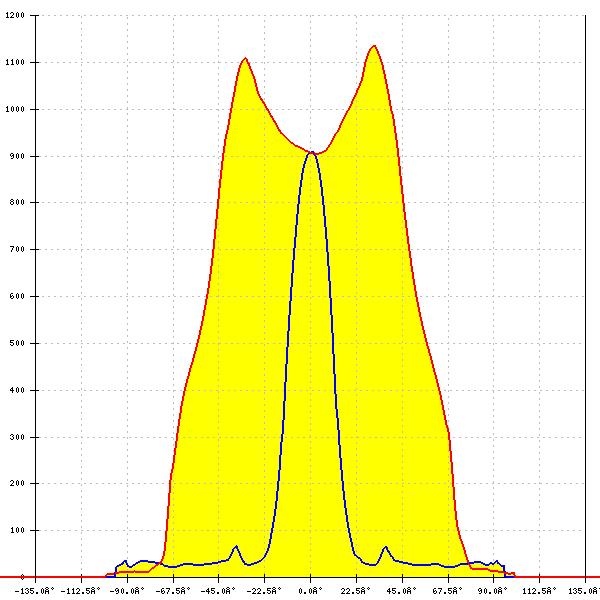

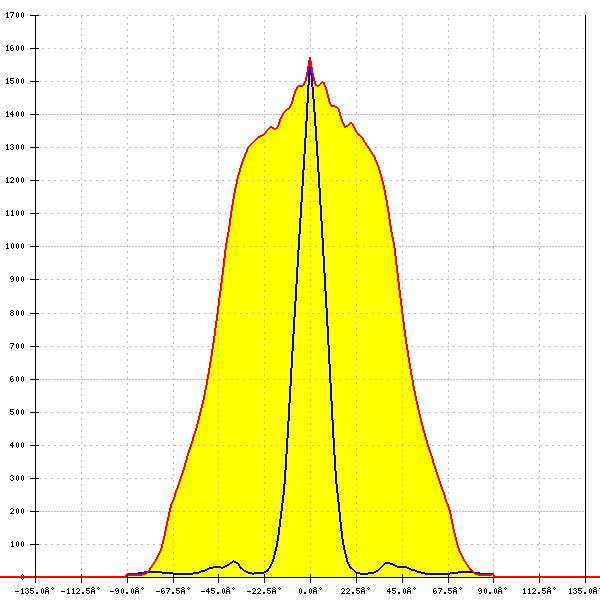

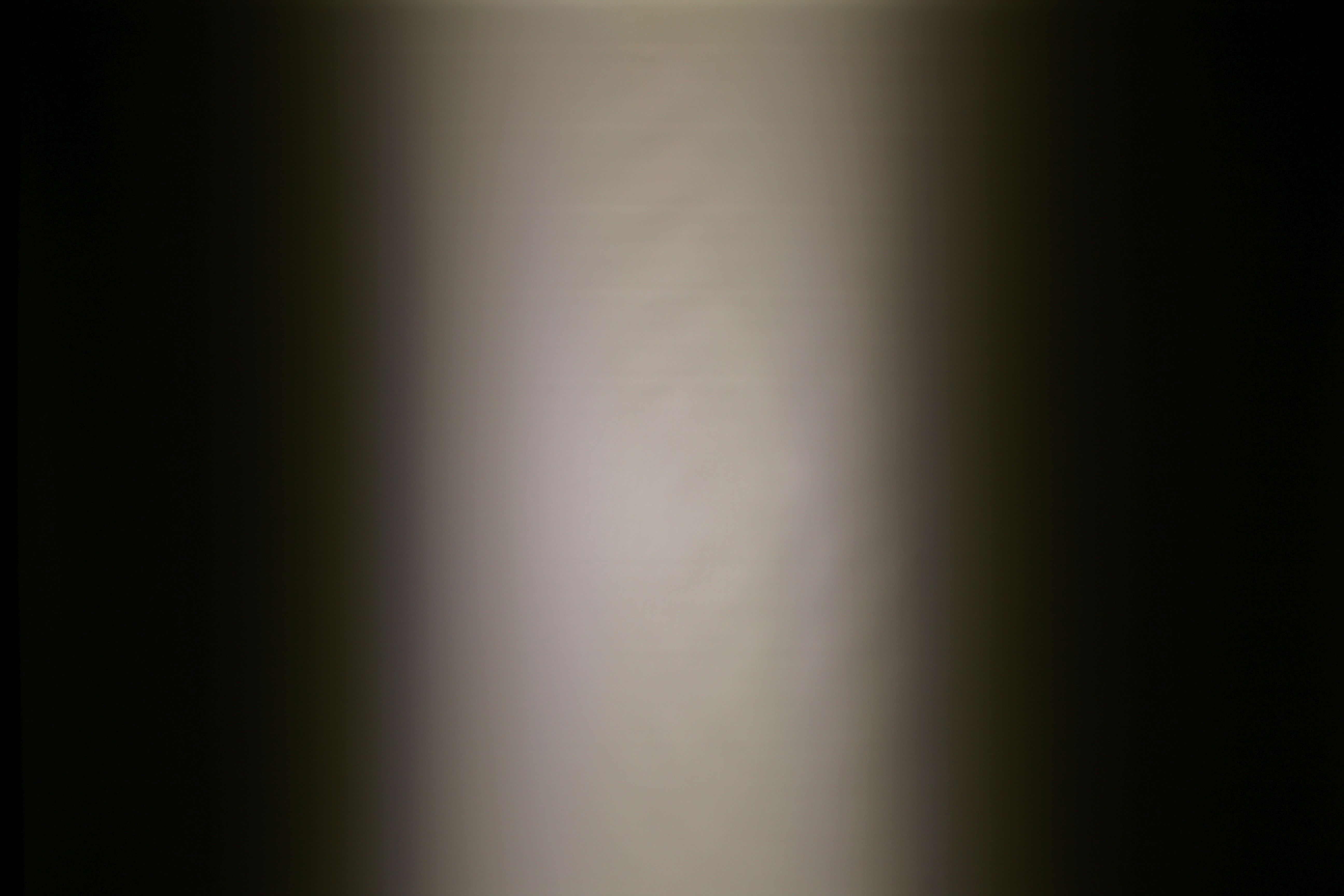

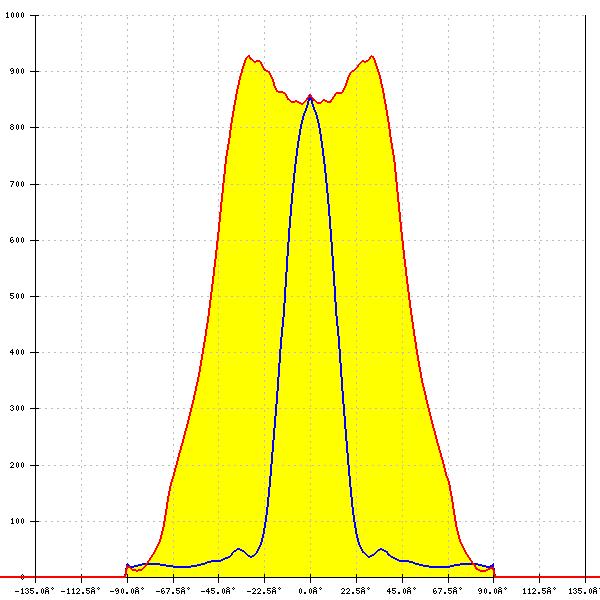

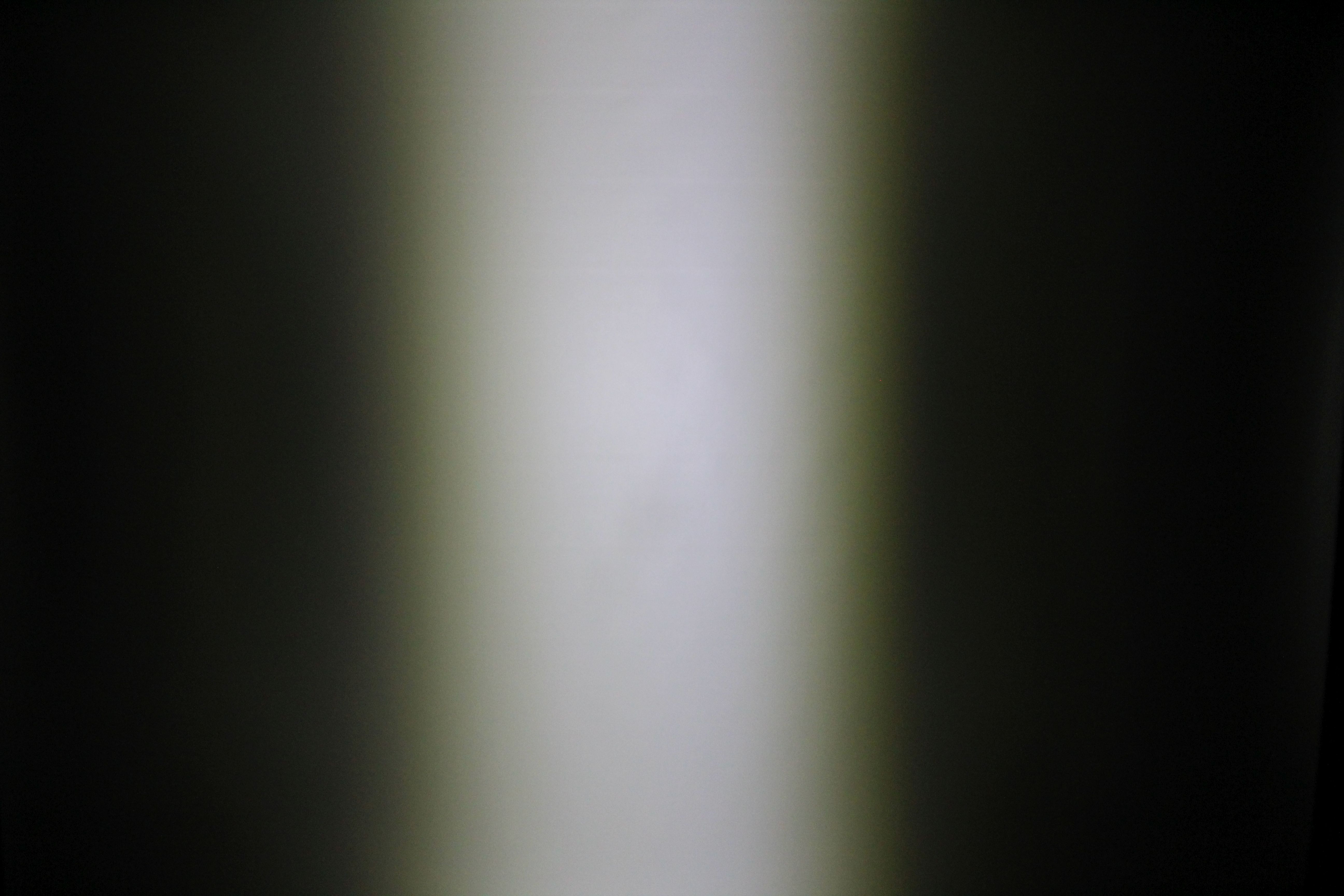

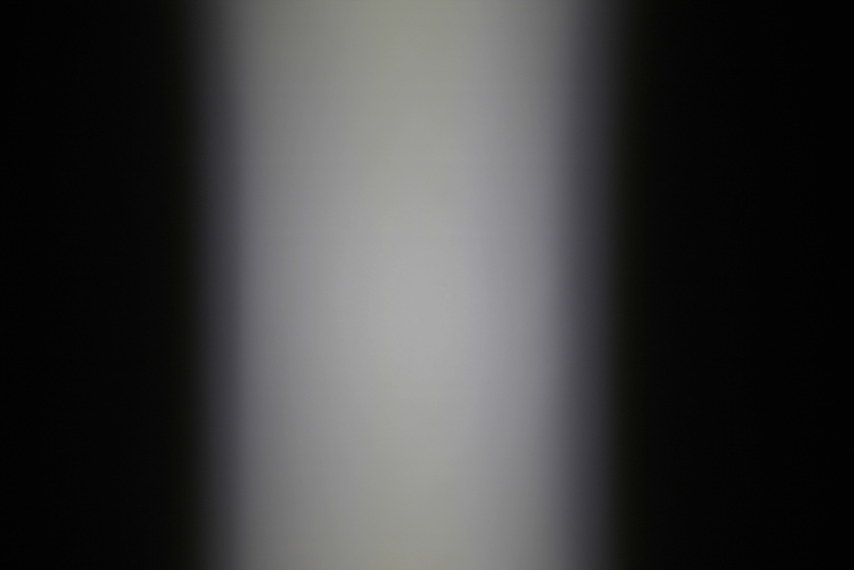

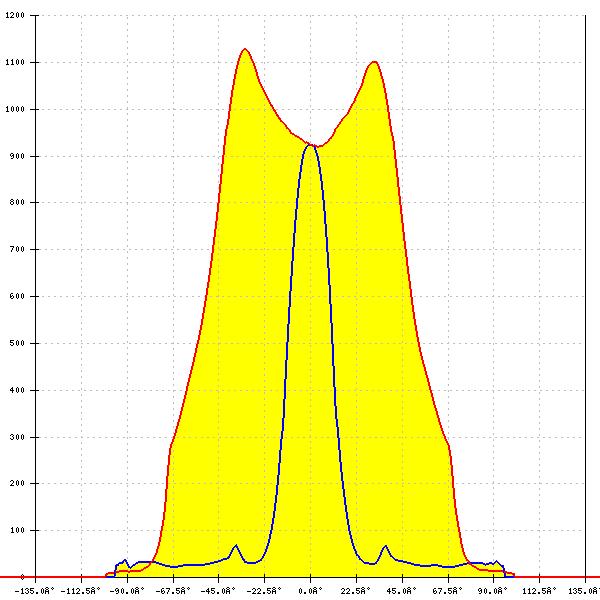

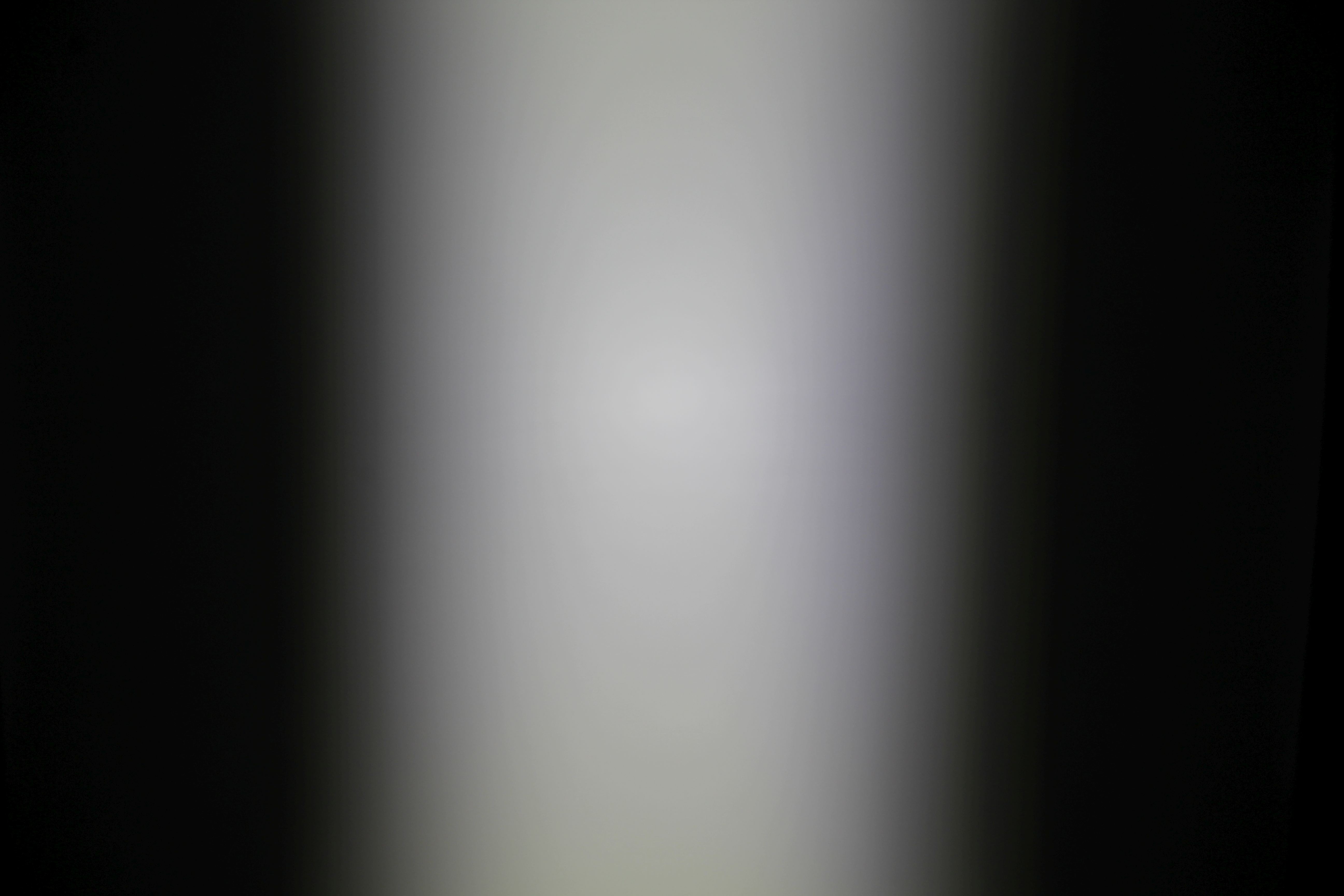

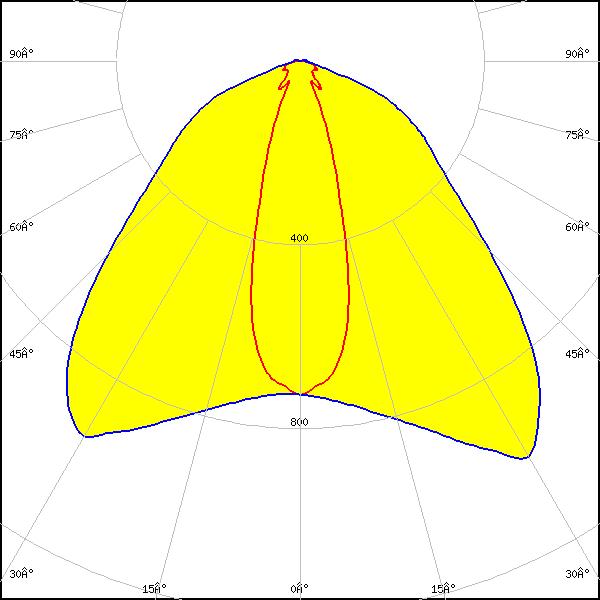

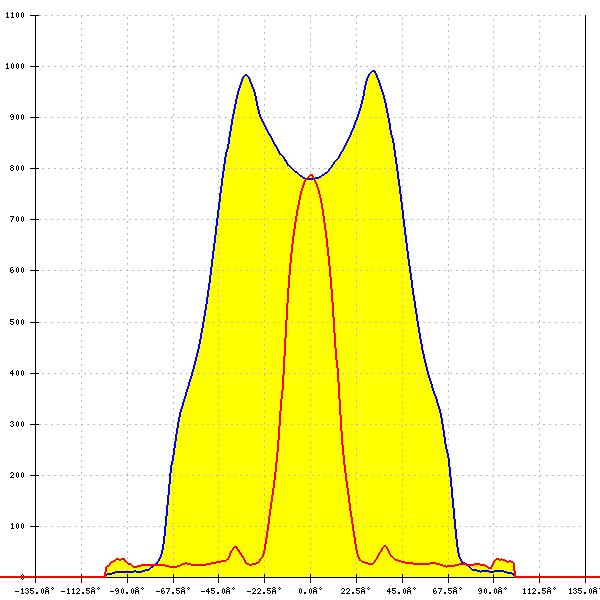

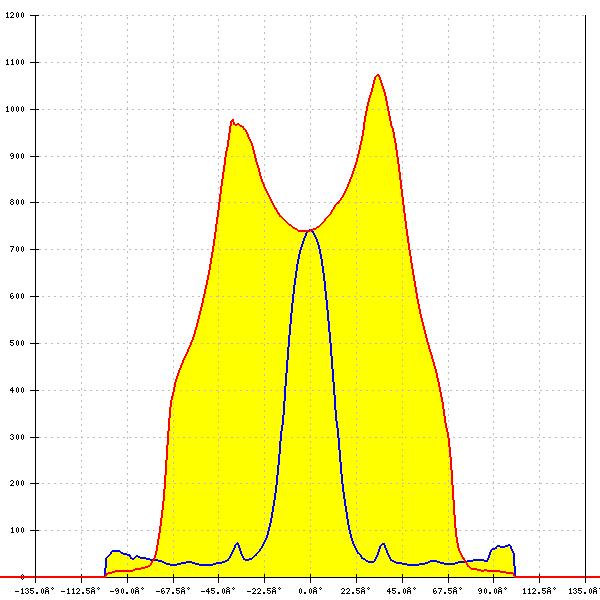

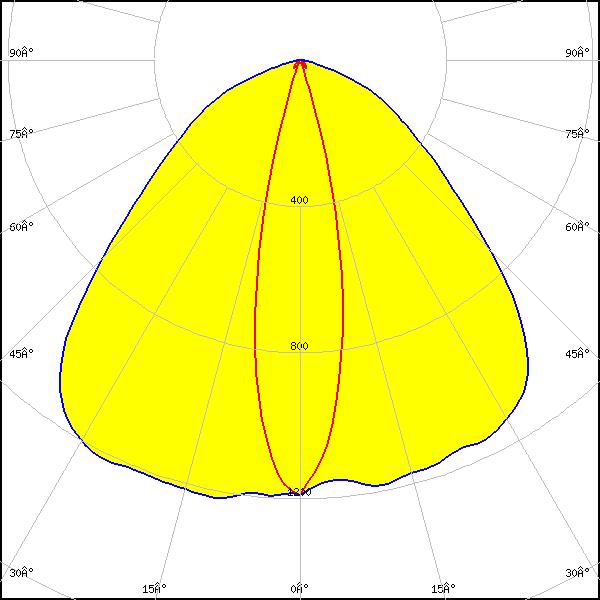

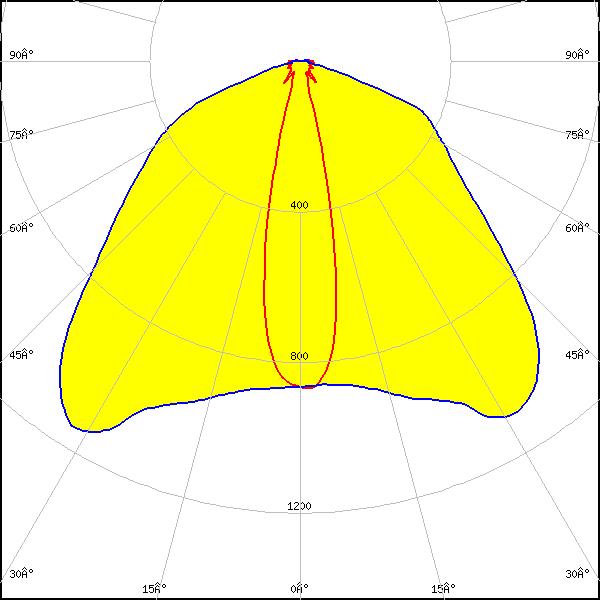

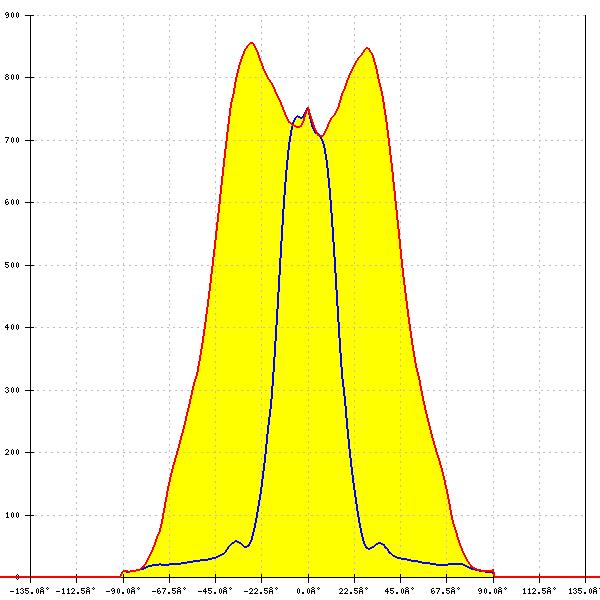

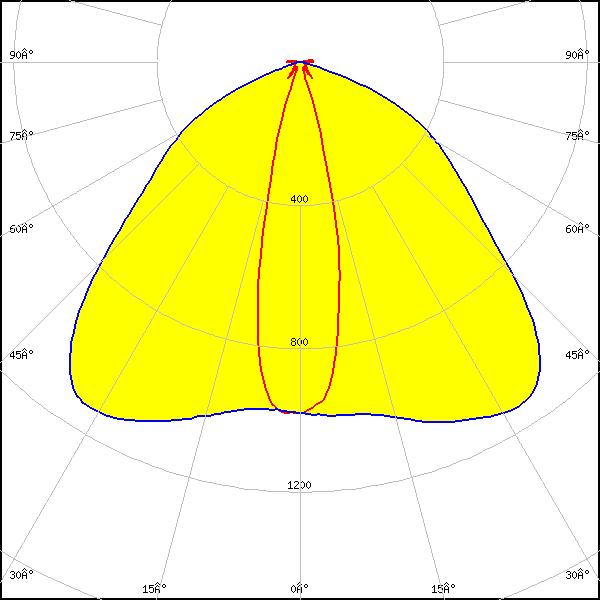

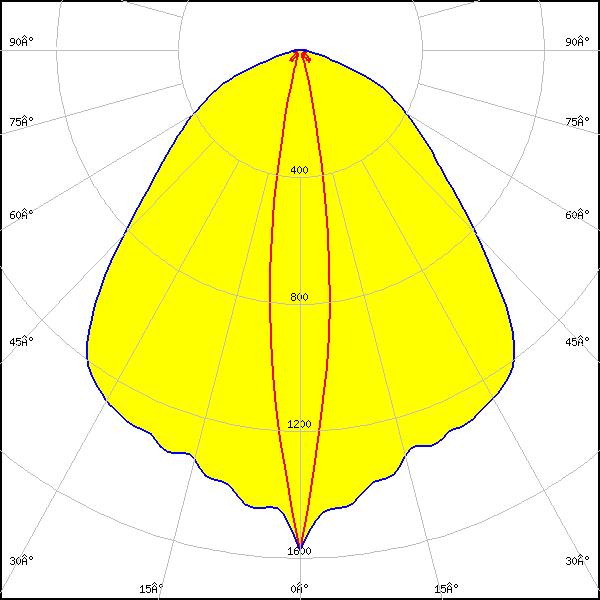

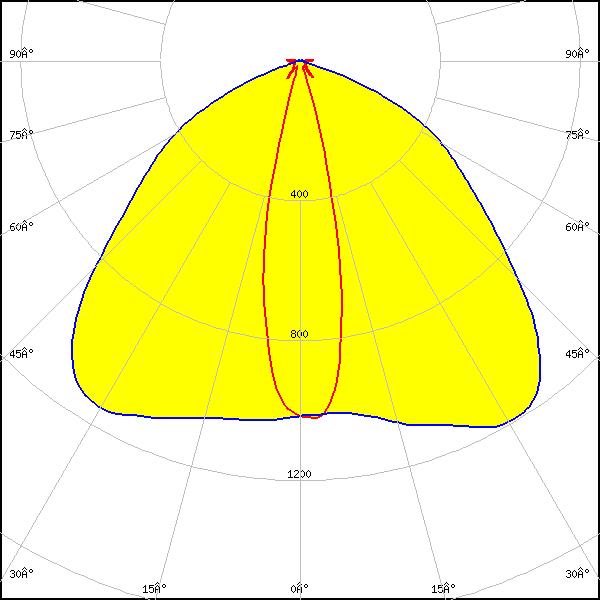

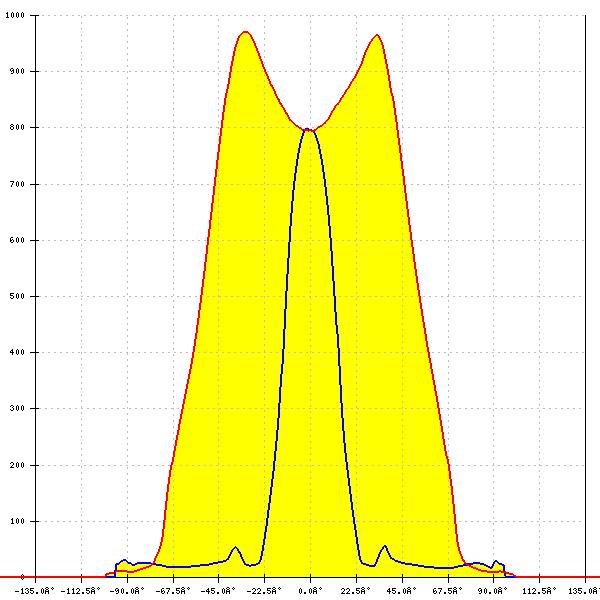

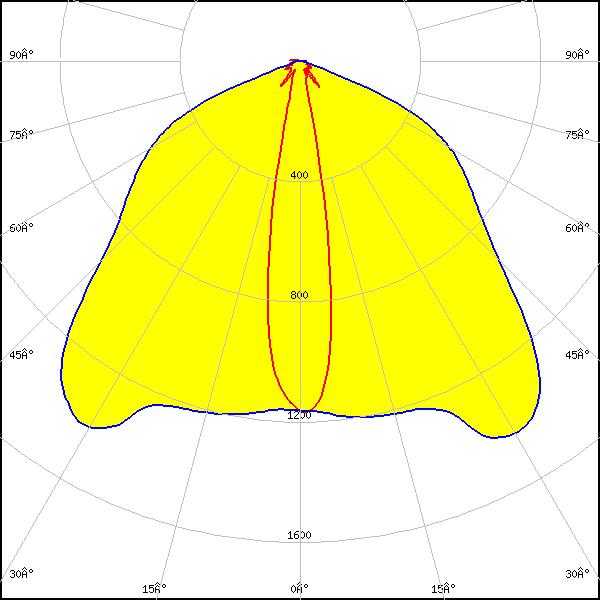

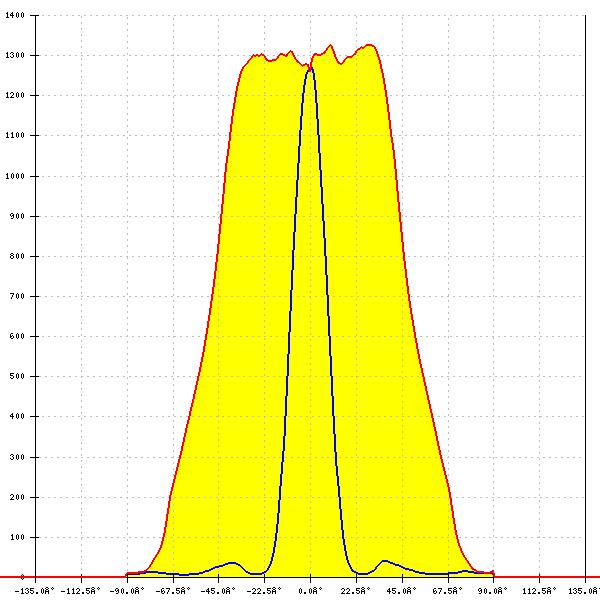

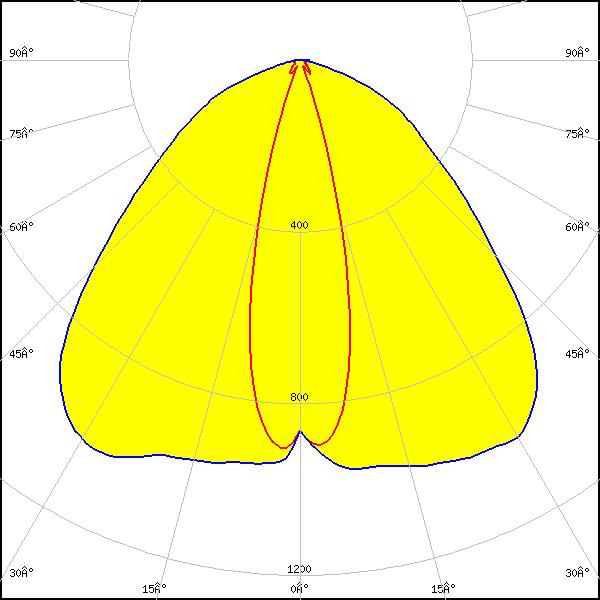

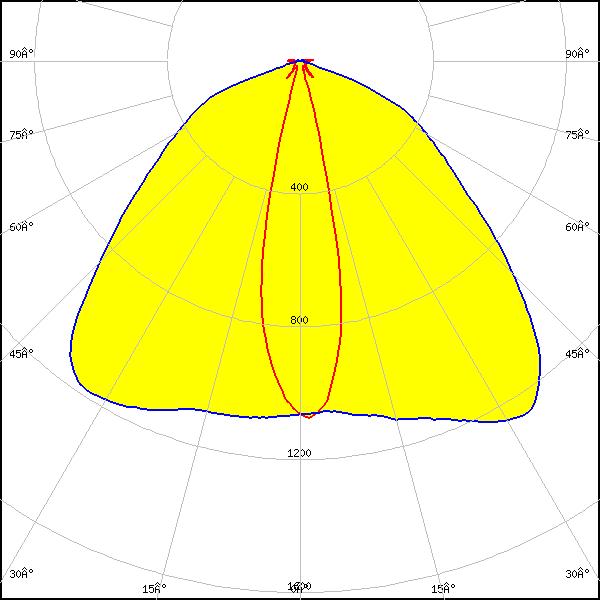

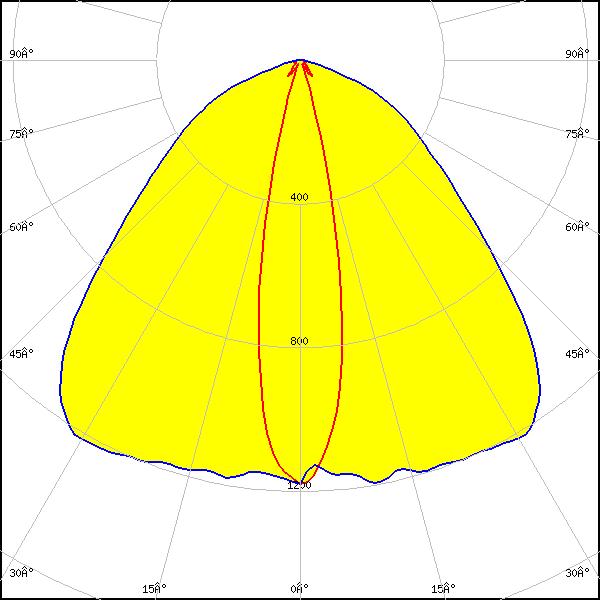

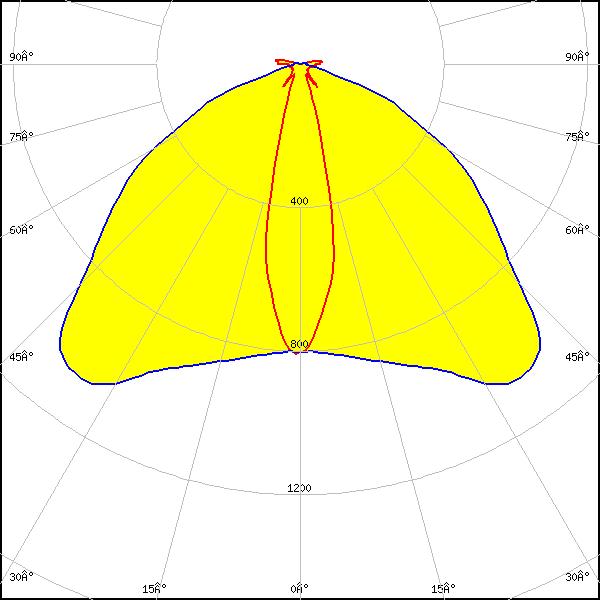

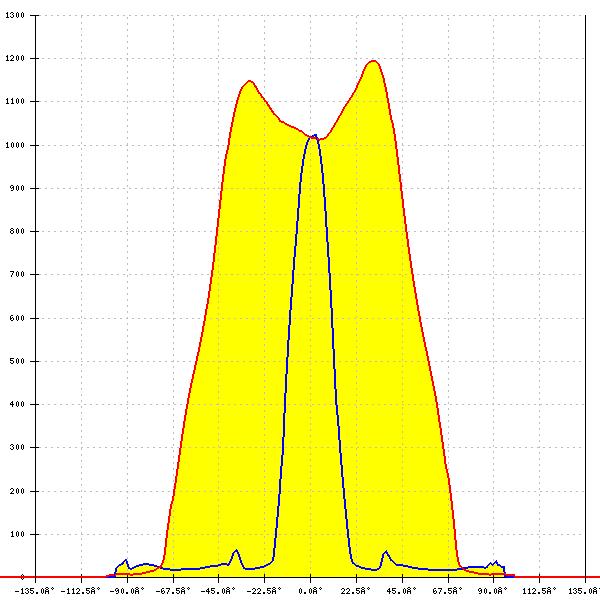

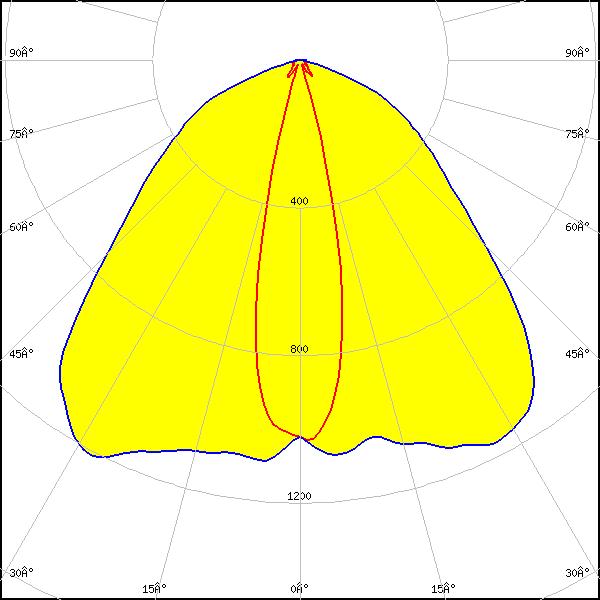

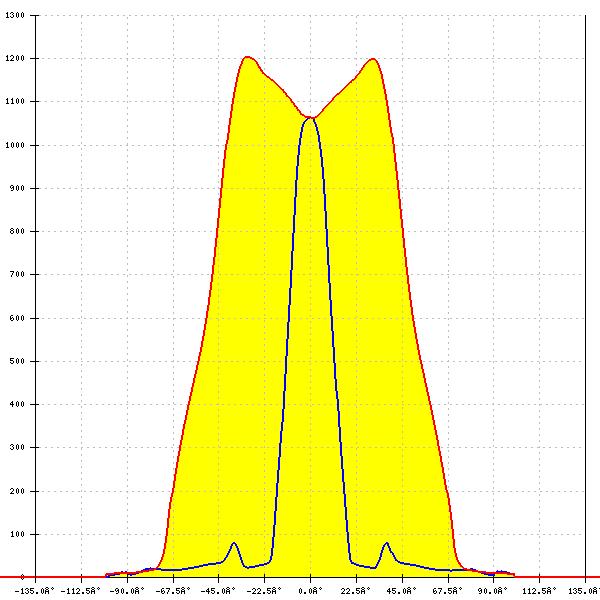

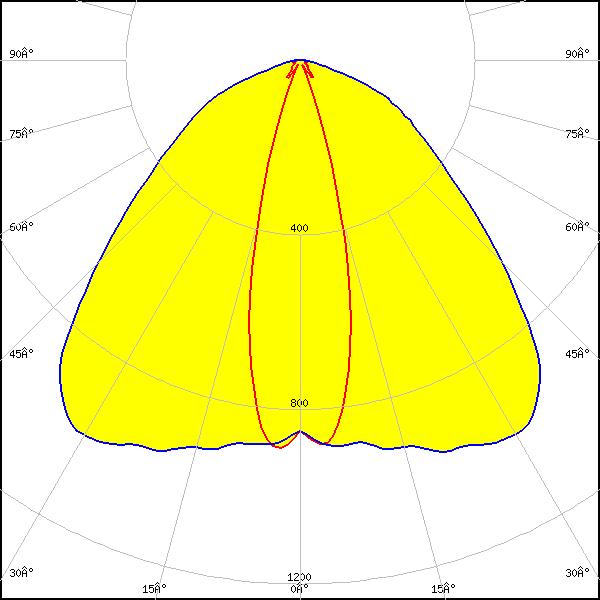

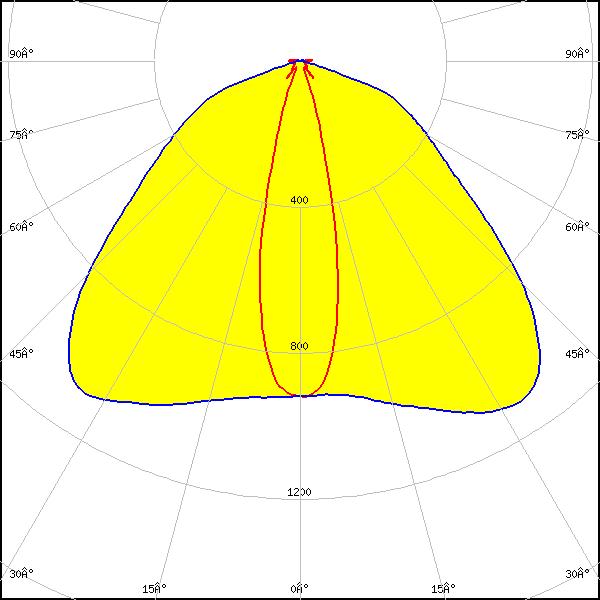

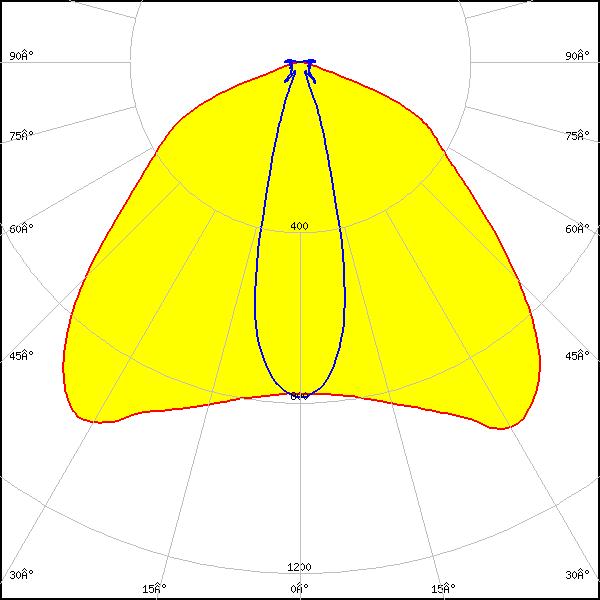

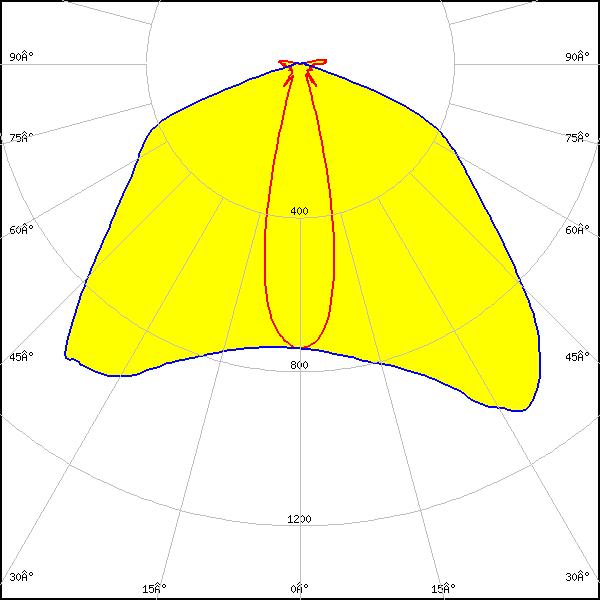

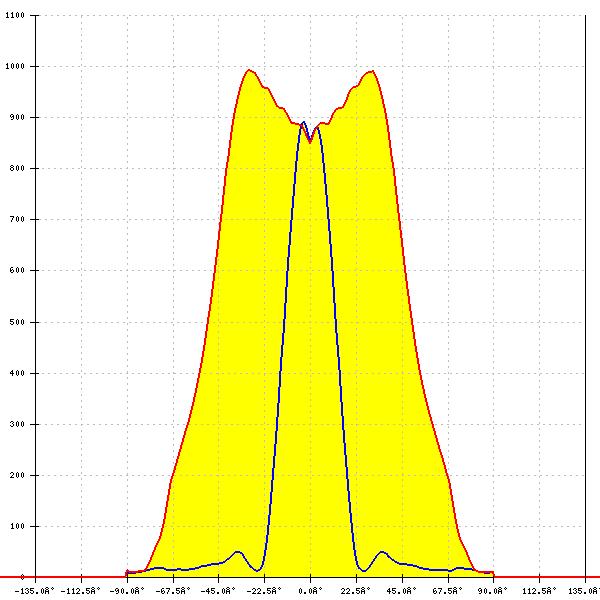

    Optical results

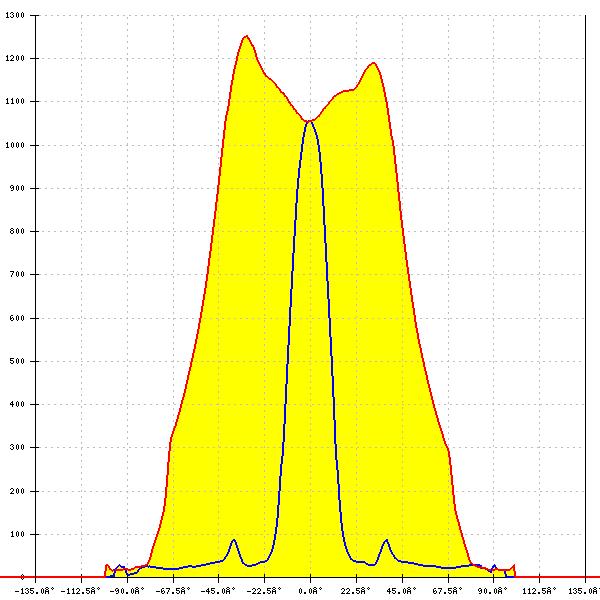

    LED: QUICK FLUX XTP 2x4 xxx LS G5
    FWHM: 21° + 111°
    FWTM: 32° + 148°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: QUICK FLUX XTP 2x6 xxx LS G5
    FWHM: 22° + 111°
    FWTM: 33° + 149°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

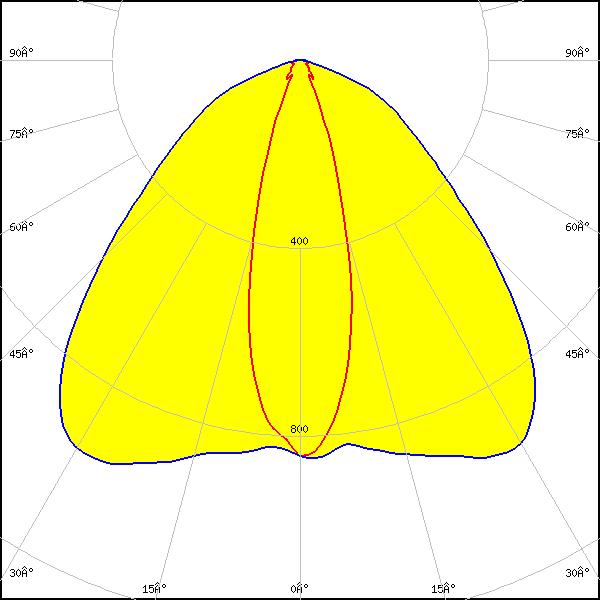

    LED: J Series 5050 Round LES
    FWHM: 30° + 97°
    FWTM: 51° + 141°
    Peak intensity: 0.960 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

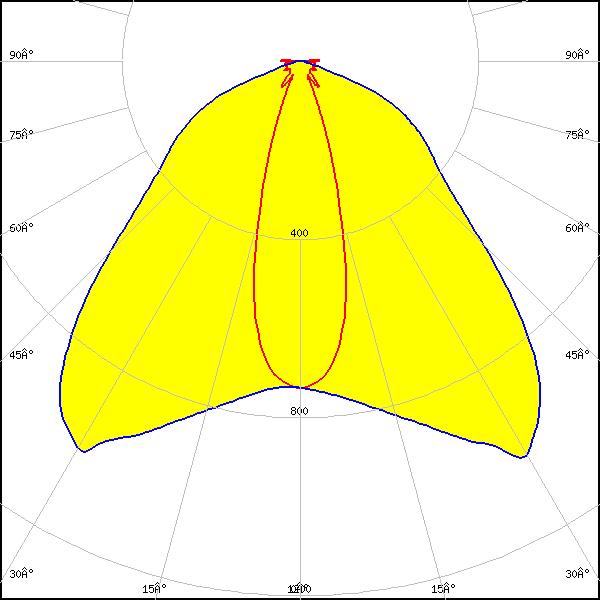

    LED: J Series 5050C 6V E Class
    FWHM: 30° + 95°
    FWTM: 60° + 140°
    Peak intensity: 1.022 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

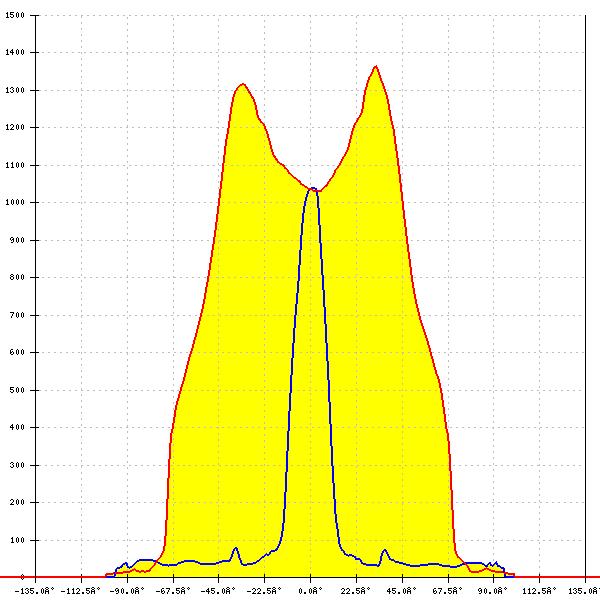

    LED: XD16
    FWHM: 19° + 127°
    FWTM: 28° + 141°
    Peak intensity: 1.400 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: 29° + 116°
    FWTM: 44° + 141°
    Peak intensity: 0.950 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

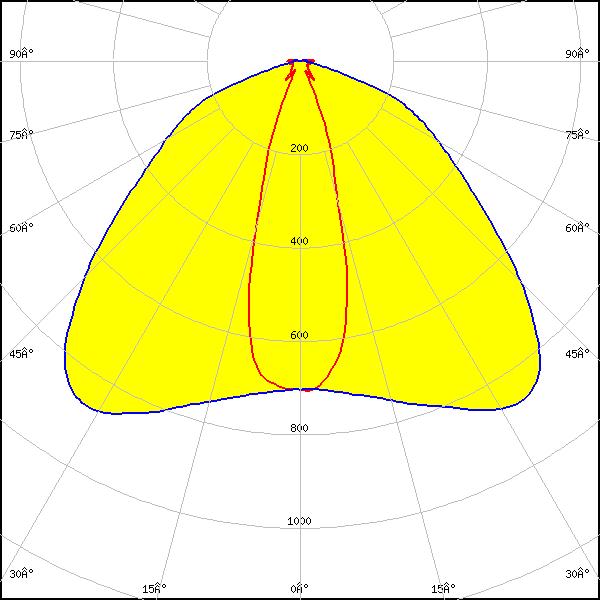

    LED: XHP35 HD
    FWHM: 29° + 117°
    FWTM: 48° + 148°
    Peak intensity: 0.870 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HI
    FWHM: 101° + 27°
    FWTM: 145° + 44°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.3 HI
    FWHM: 28° + 100°
    FWTM: 44° + 144°
    Peak intensity: 0.926 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

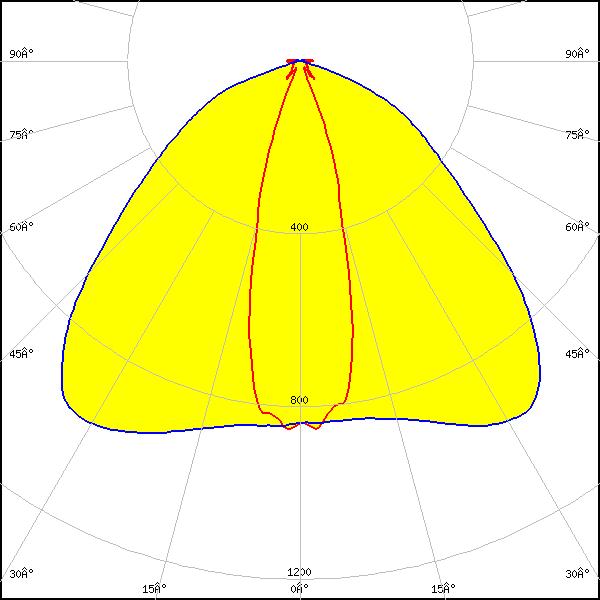

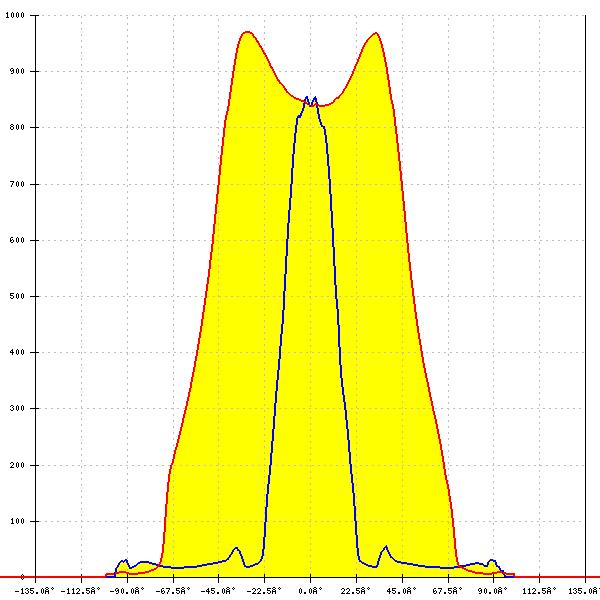

    LED: XM-L
    FWHM: 28° + 108°
    FWTM: 45° + 142°
    Peak intensity: 0.970 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L2
    FWHM: 30° + 106°
    FWTM: 48° + 143°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

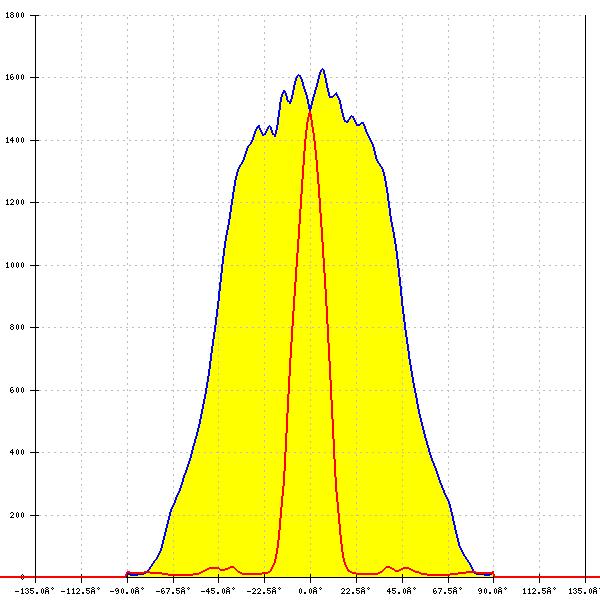

    LED: XP-E2
    FWHM: 93° + 18°
    FWTM: 141° + 30°
    Peak intensity: 1.630 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 26° + 115°
    FWTM: 44° + 158°
    Peak intensity: 1.130 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

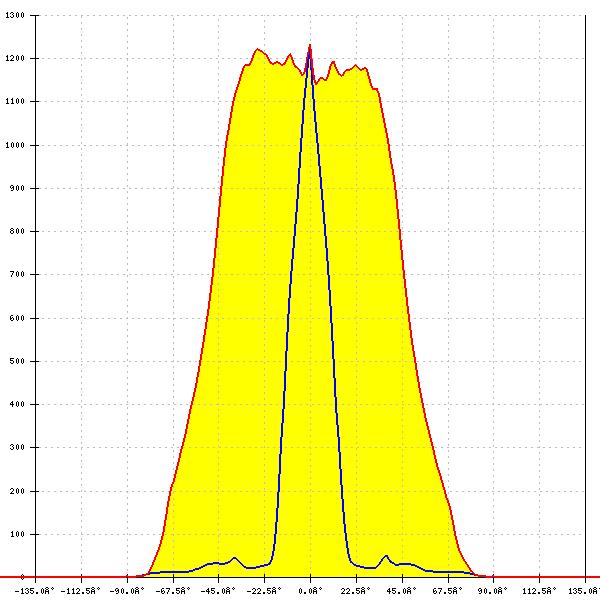

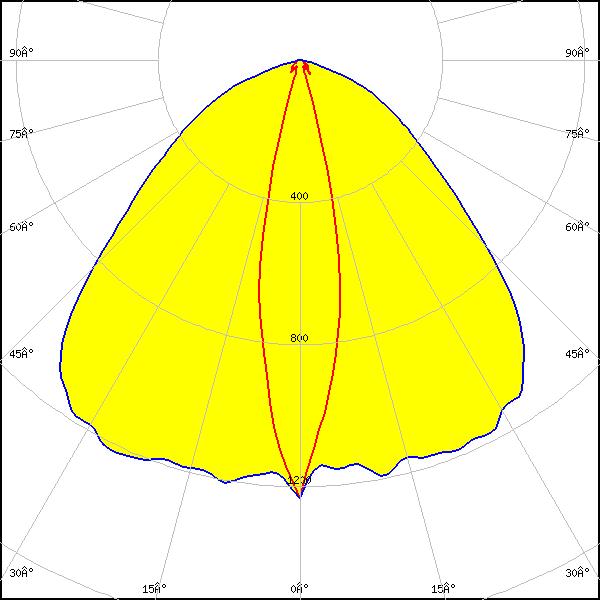

    LED: XP-G2
    FWHM: 21° + 98°
    FWTM: 33° + 141°
    Peak intensity: 1.200 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 27° + 112°
    FWTM: 42° + 146°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

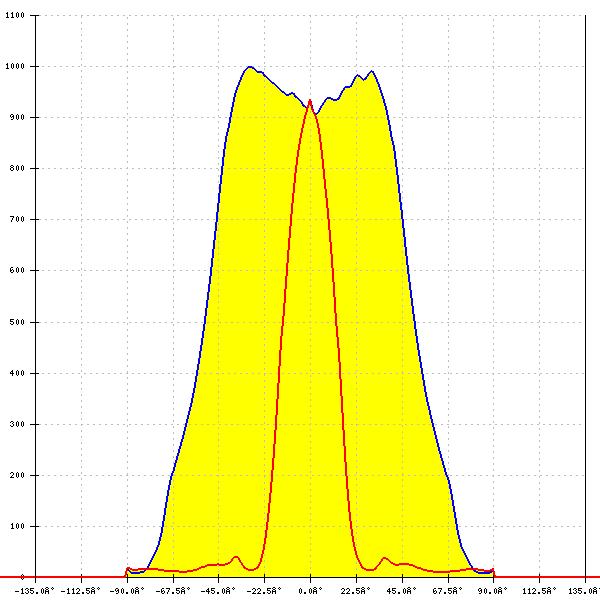

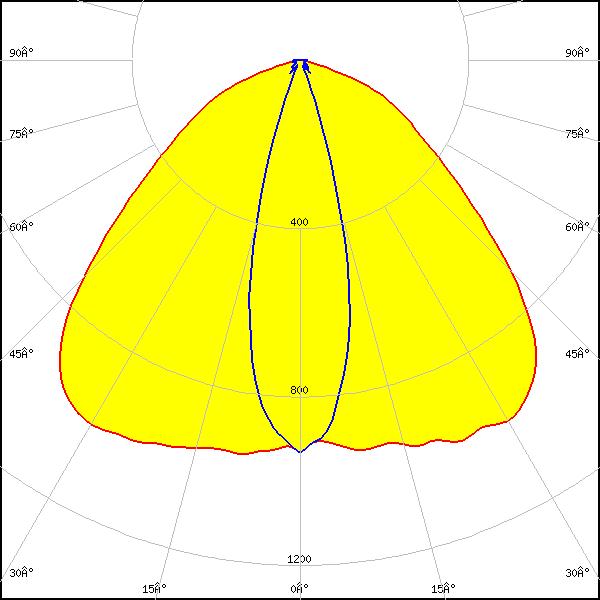

    LED: XP-G2 HE
    FWHM: 28° + 103°
    FWTM: 41° + 144°
    Peak intensity: 0.999 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 24° + 102°
    FWTM: 38° + 146°
    Peak intensity: 1.026 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

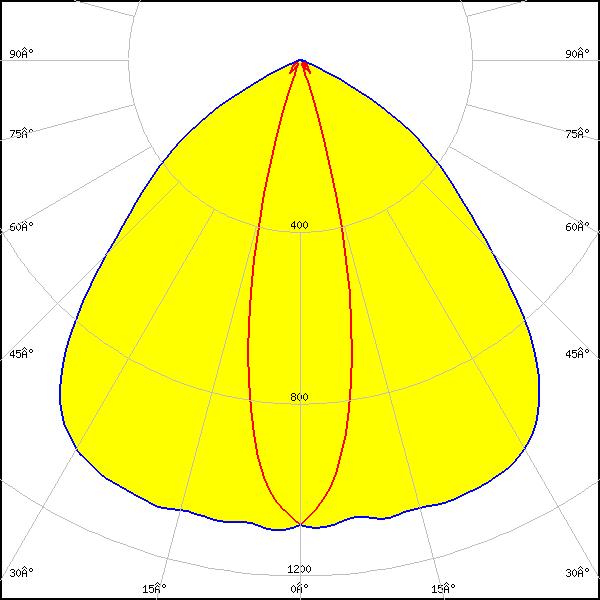

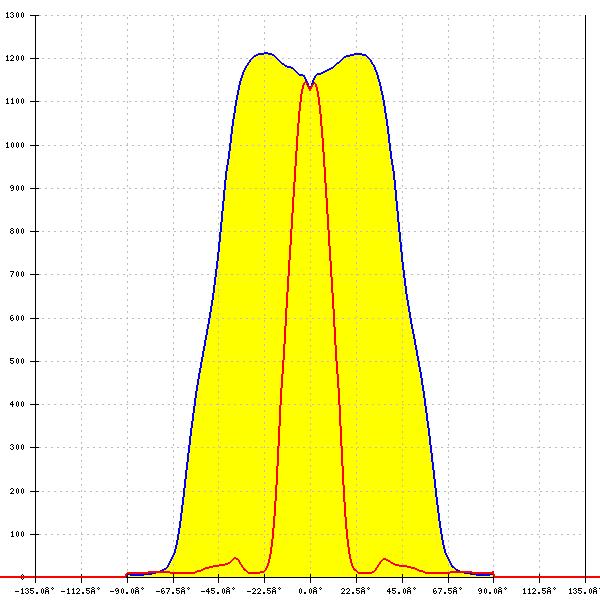

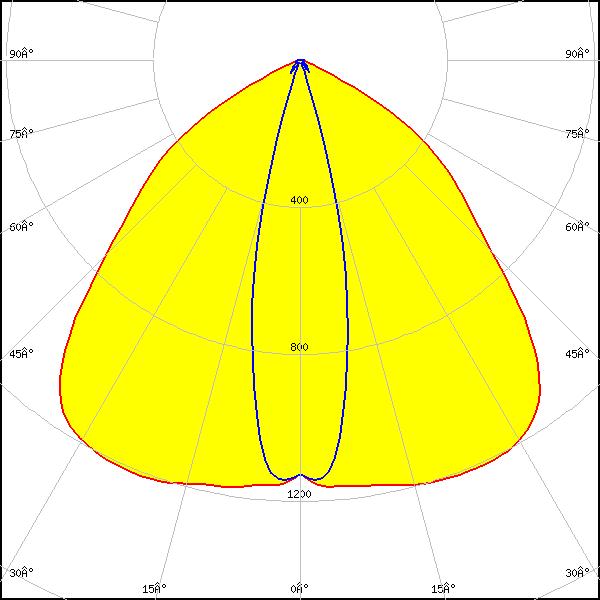

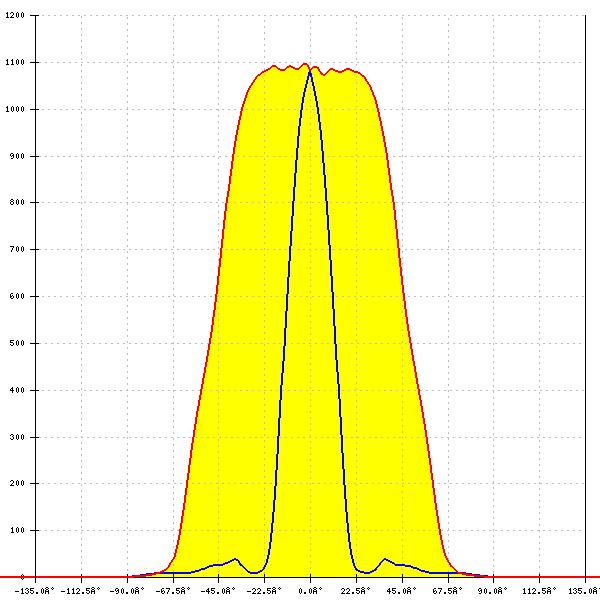

    LED: XP-G4
    FWHM: 24° + 98°
    FWTM: 36° + 128°
    Peak intensity: 1.211 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: 24° + 95°
    FWTM: 36° + 127°
    Peak intensity: 1.096 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

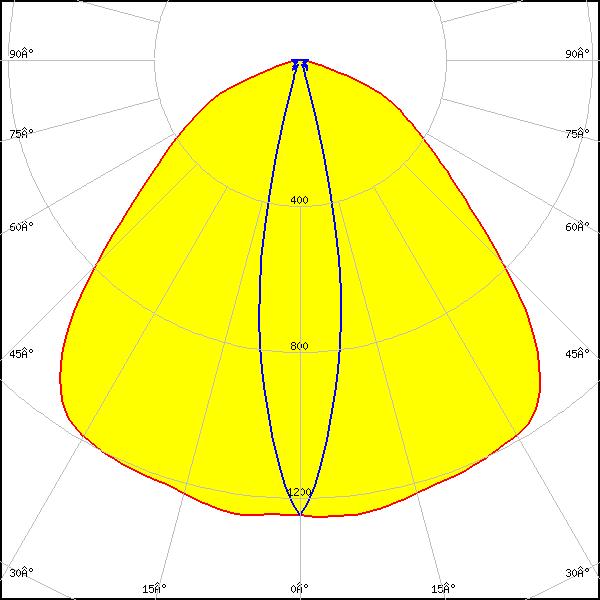

    LED: XP-G4 HI
    FWHM: 20° + 98°
    FWTM: 32° + 143°
    Peak intensity: 1.256 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

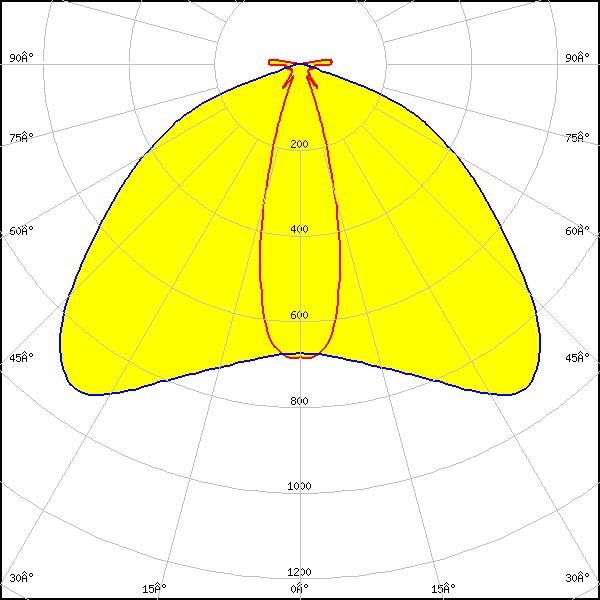

    LED: XP-L HD
    FWHM: 26° + 103°
    FWTM: 42° + 140°
    Peak intensity: 0.945 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: 29° + 117°
    FWTM: 48° + 144°
    Peak intensity: 0.890 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

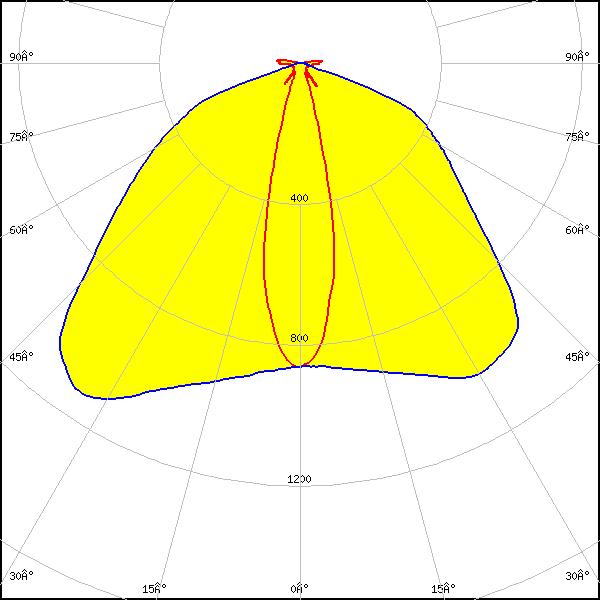

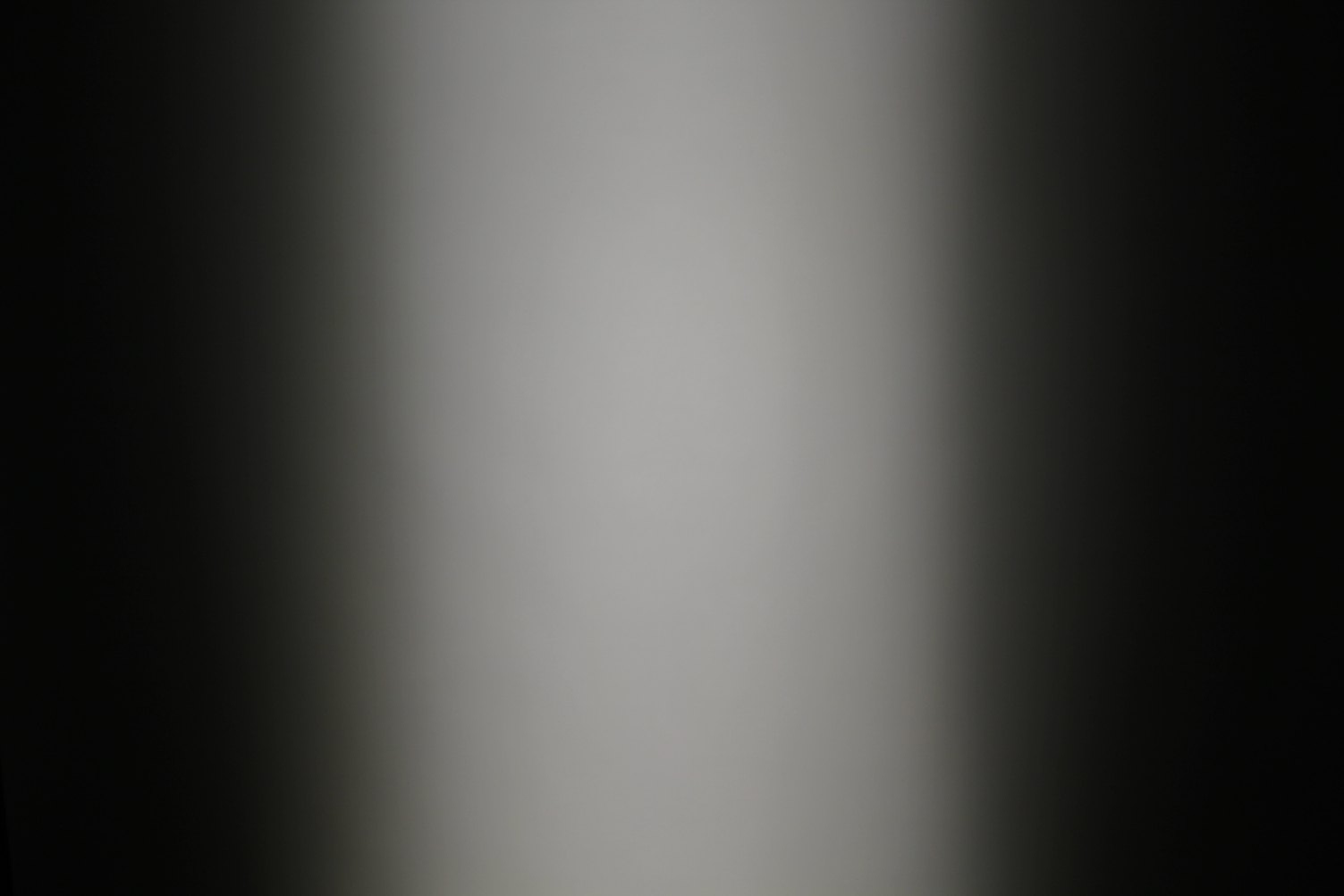

    LED: XP-L HI
    FWHM: 22° + 98°
    FWTM: 34° + 140°
    Peak intensity: 1.175 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: 25° + 123°
    FWTM: 41° + 143°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

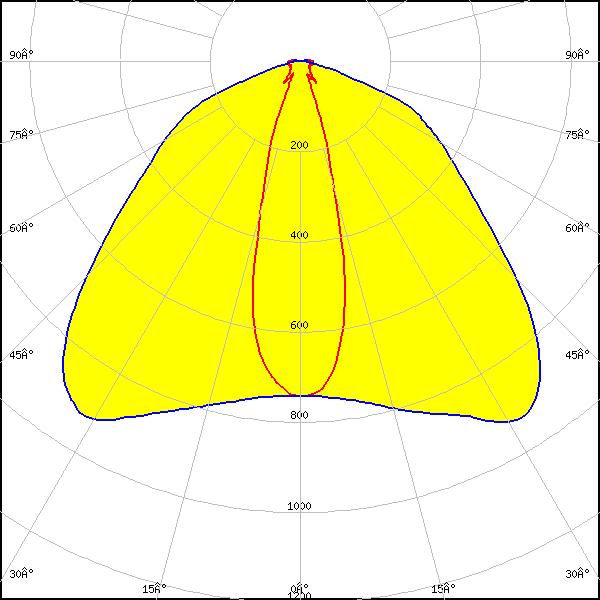

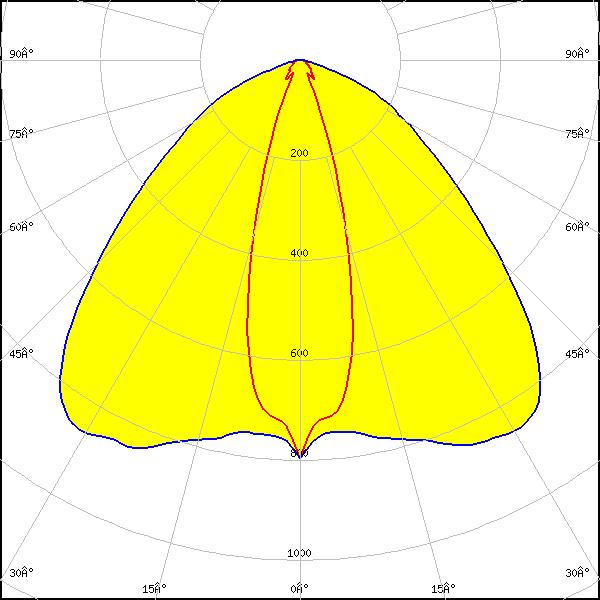

    LED: XP-L2
    FWHM: 28° + 100°
    FWTM: 46° + 140°
    Peak intensity: 0.862 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: 28° + 117°
    FWTM: 47° + 150°
    Peak intensity: 0.930 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XQ-E HI
    FWHM: 96° + 14°
    FWTM: 144° + 25°
    LEDs/each optic: 1
    Light colour/type: White

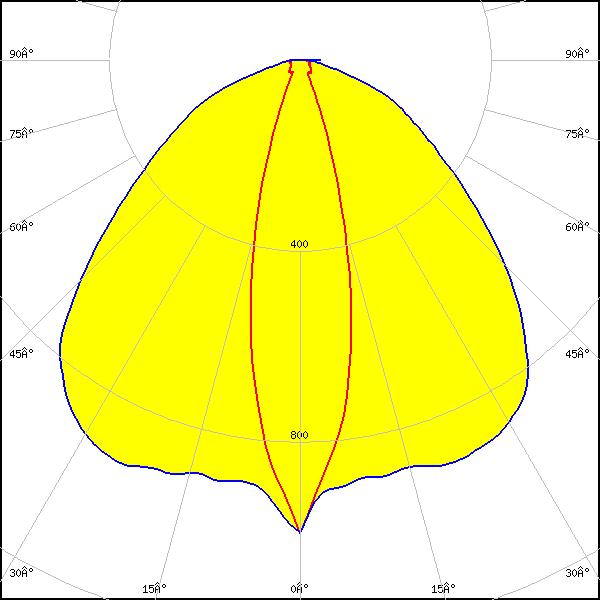

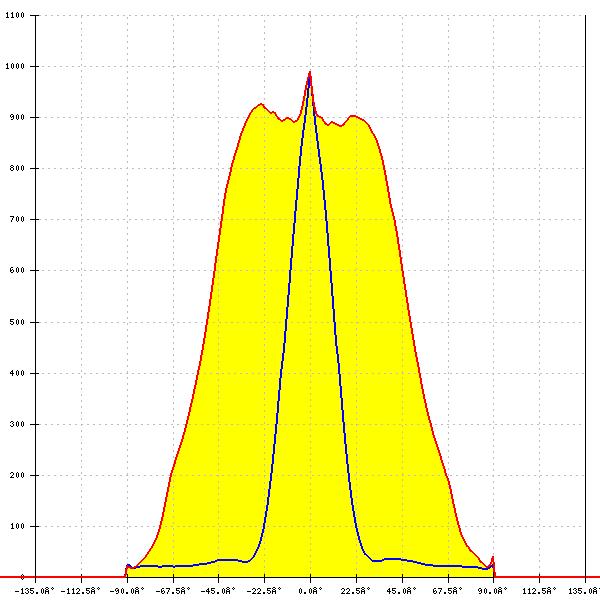

    LED: XT-E HE
    FWHM: 100° + 24°
    FWTM: 0° + 0°
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

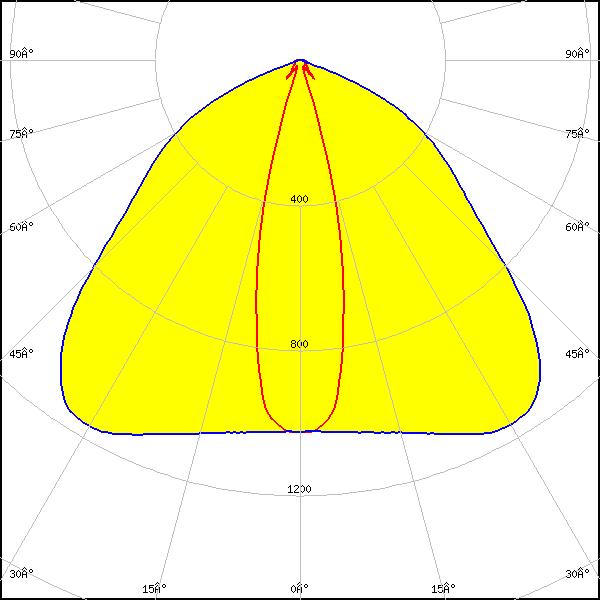

    LED: PL-BRICK HP 3800 2x8 SSG
    FWHM: 26° + 102°
    FWTM: 37° + 139°
    Peak intensity: 1.165 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

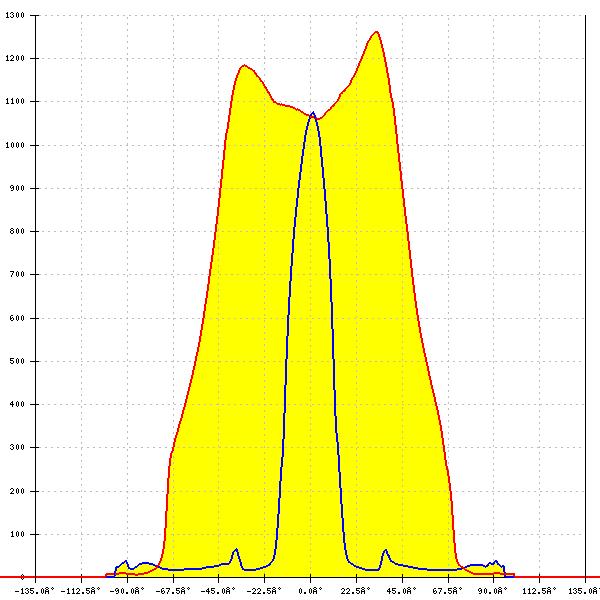

    LED: PrevaLED Brick HP 2x8
    FWHM: 23° + 111°
    FWTM: 32° + 141°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

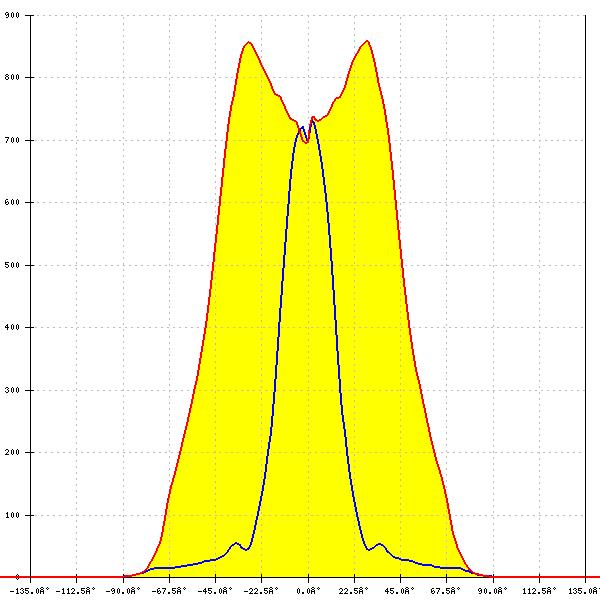

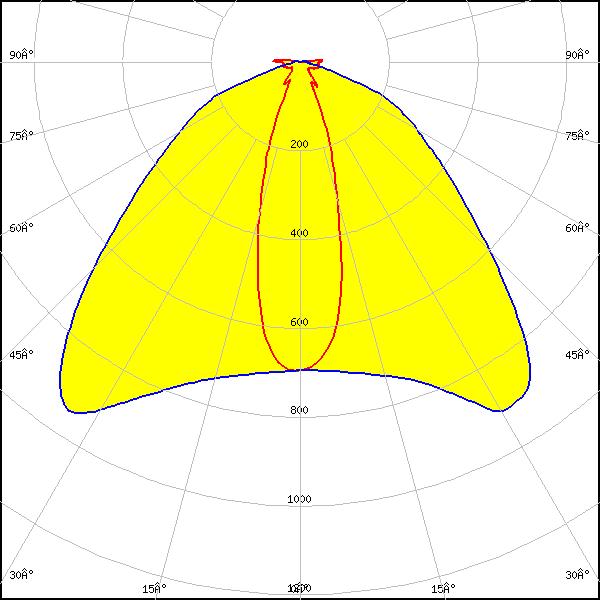

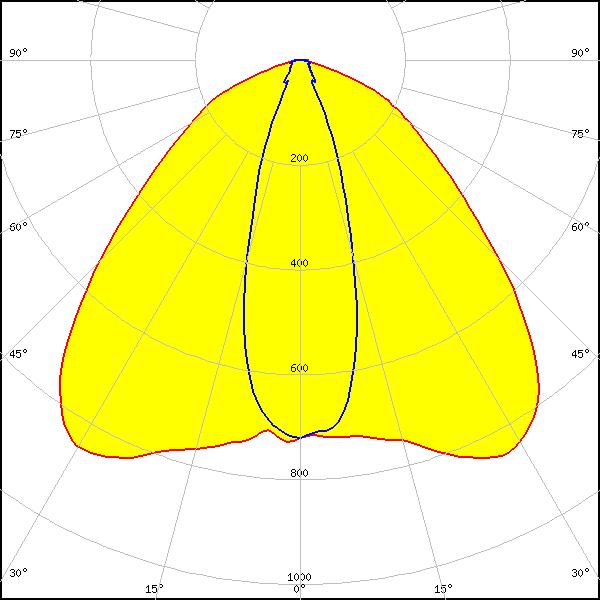

    LED: LUXEON 5050 HE
    FWHM: 30° + 98°
    FWTM: 52° + 140°
    Peak intensity: 0.858 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: 30° + 96°
    FWTM: 48° + 140°
    Peak intensity: 0.890 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: 29° + 114°
    FWTM: 51° + 147°
    Peak intensity: 0.940 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

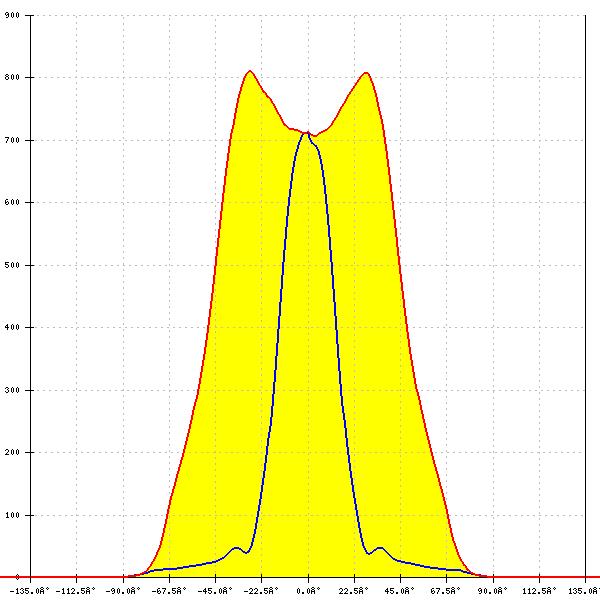

    LED: LUXEON 5050 Square LES
    FWHM: 30° + 96°
    FWTM: 52° + 140°
    Peak intensity: 0.810 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: 30° + 98°
    FWTM: 50° + 142°
    Peak intensity: 0.905 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

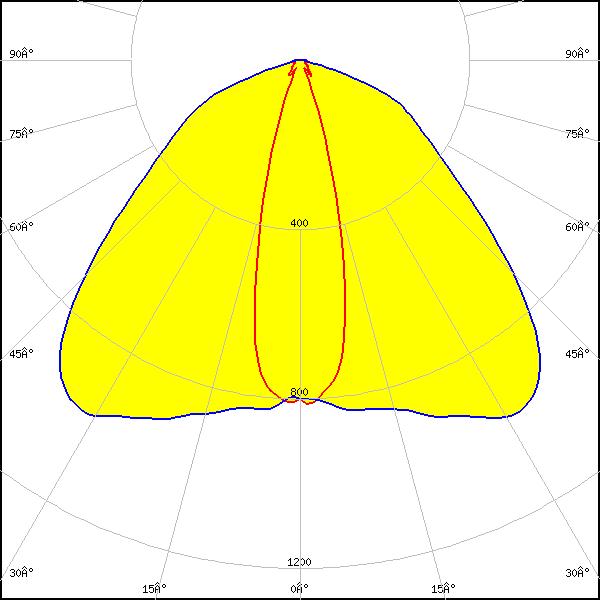

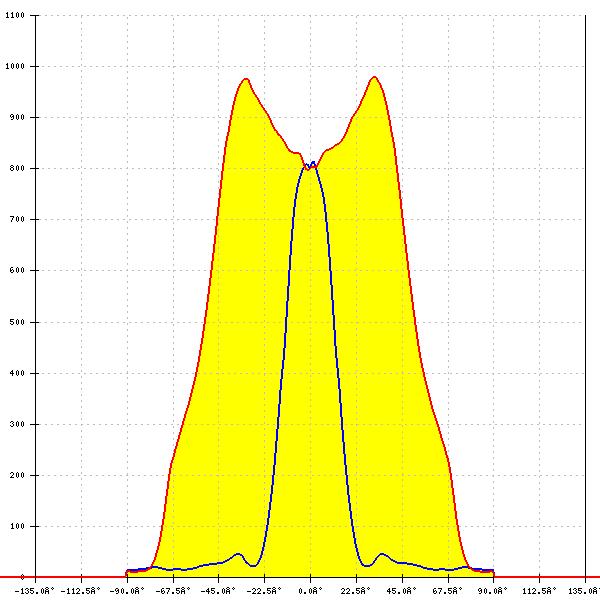

    LED: LUXEON HL4X
    FWHM: 28° + 104°
    FWTM: 44° + 144°
    Peak intensity: 0.978 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

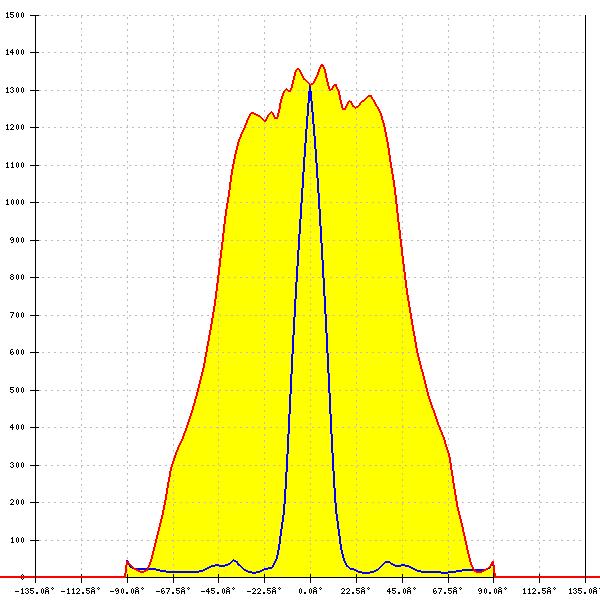

    LED: LUXEON IR Domed 150 (L1I0-0xxx150000000)
    FWHM: 16° + 98°
    FWTM: 28° + 149°
    Peak intensity: 1.369 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

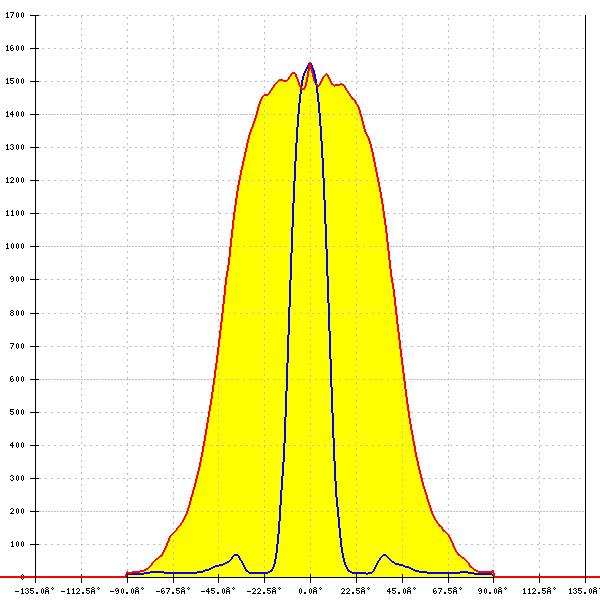

    LED: LUXEON IR Domed 90 (L1I0-0xxx090000000)
    FWHM: 20° + 86°
    FWTM: 29° + 128°
    Peak intensity: 1.558 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

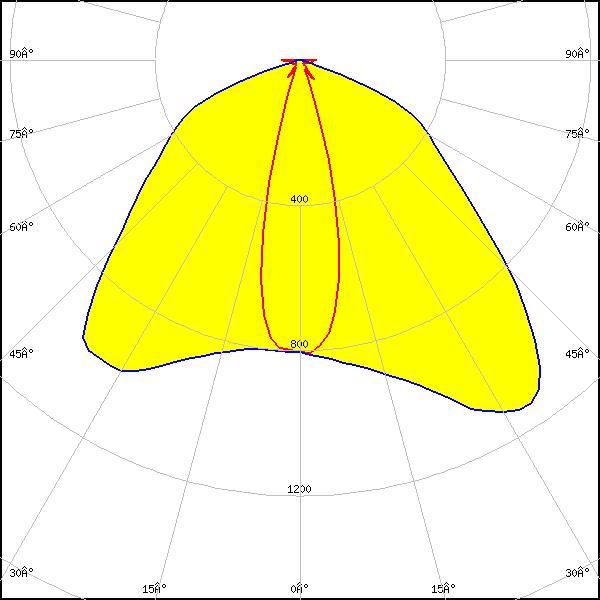

    LED: LUXEON MZ
    FWHM: 28° + 103°
    FWTM: 43° + 14°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON R
    FWHM: 25° + 105°
    FWTM: 44° + 148°
    Peak intensity: 1.240 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

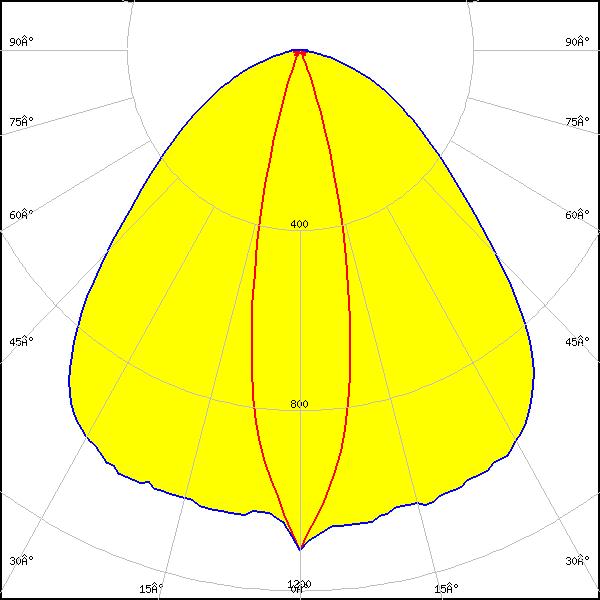

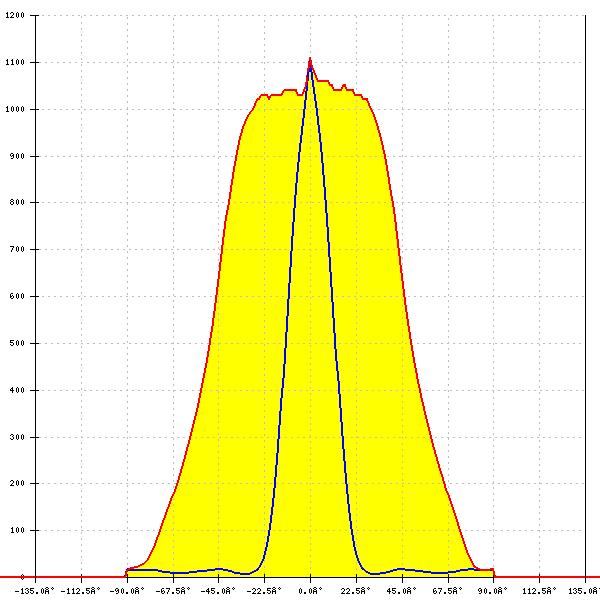

    LED: LUXEON Rebel ES
    FWHM: 25° + 106°
    FWTM: 42° + 150°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

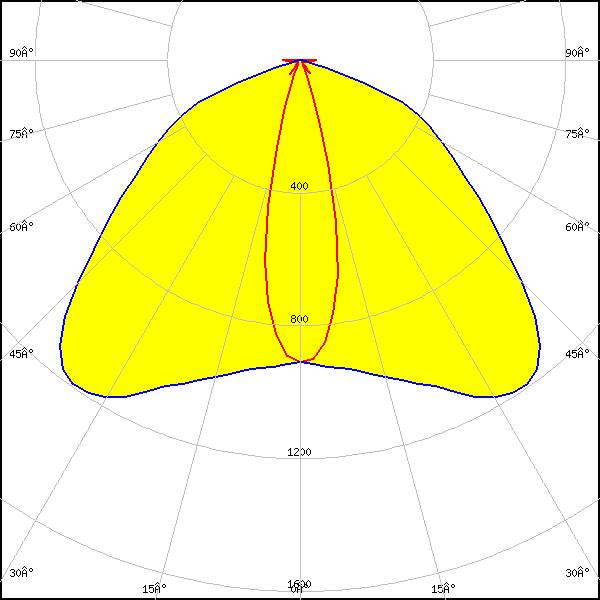

    LED: LUXEON T
    FWHM: 26° + 110°
    FWTM: 41° + 145°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON TX
    FWHM: 24° + 118°
    FWTM: 42° + 146°
    Peak intensity: 1.080 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

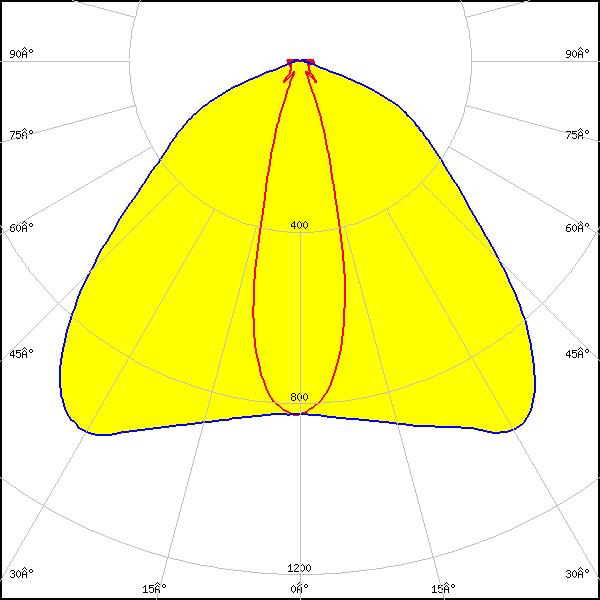

    LED: LUXEON V
    FWHM: 26° + 108°
    FWTM: 44° + 141°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

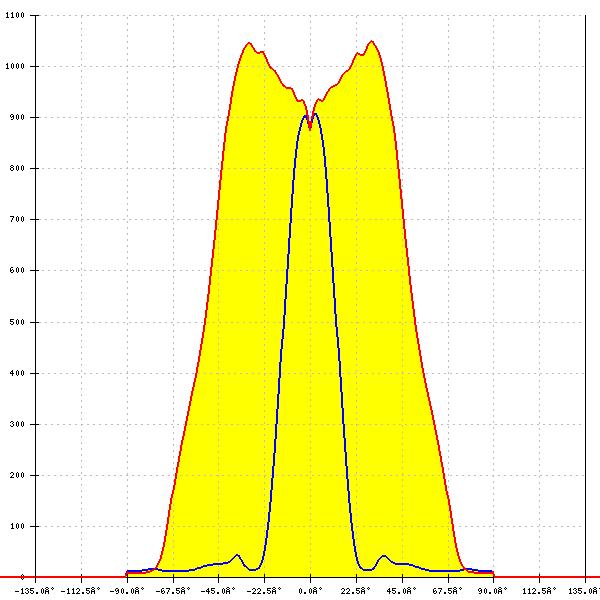

    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 28° + 102°
    FWTM: 42° + 140°
    Peak intensity: 1.048 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 28° + 100°
    FWTM: 42° + 138°
    Peak intensity: 0.917 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

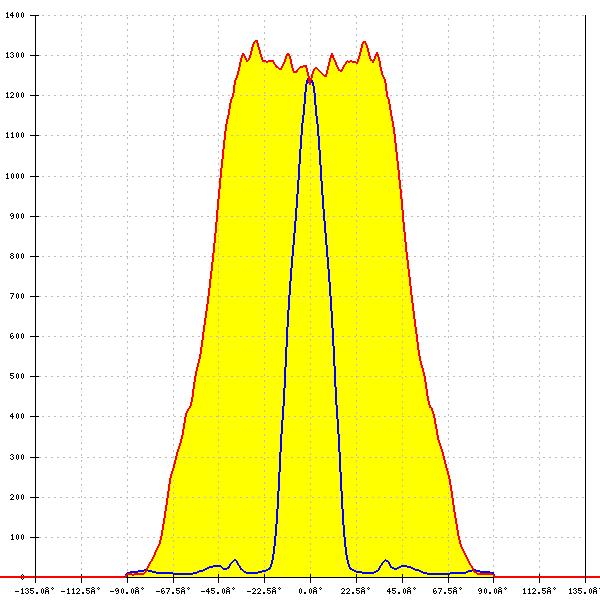

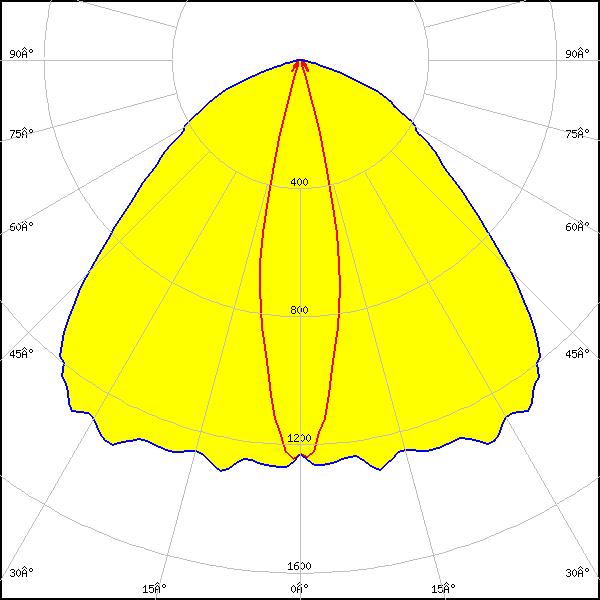

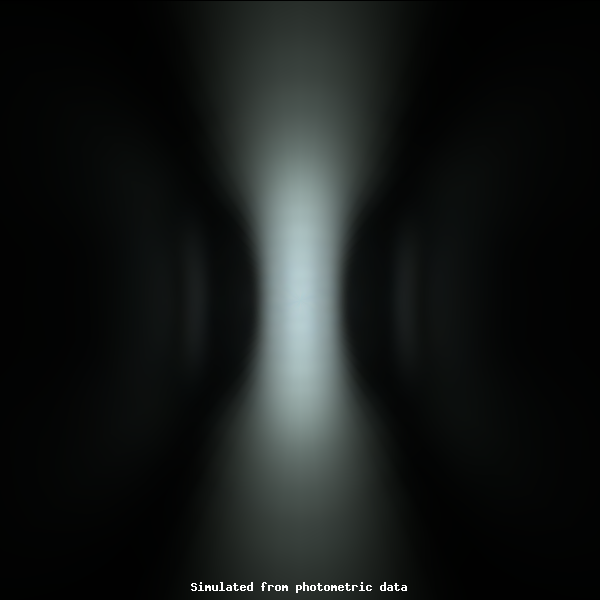

    LED: SFT-40 Gen2
    FWHM: 22° + 102°
    FWTM: 32° + 144°
    Peak intensity: 1.336 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-40 Gen2
    FWHM: 22° + 100°
    FWTM: 34° + 140°
    Peak intensity: 1.193 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

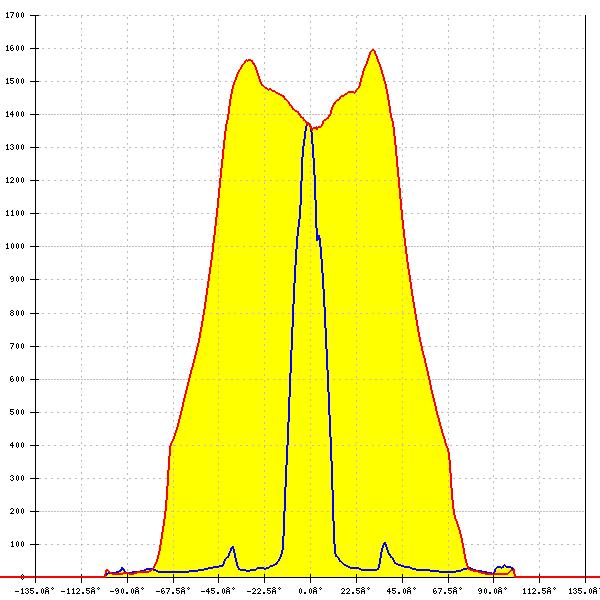

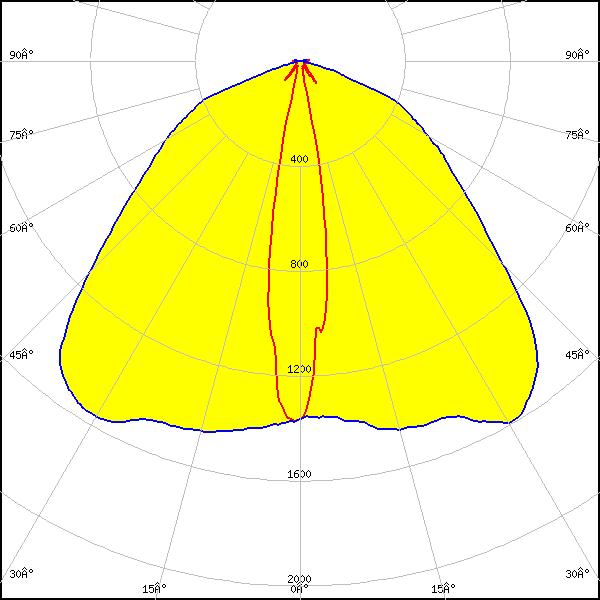

    LED: SST-10-B130
    FWHM: 18° + 104°
    FWTM: 25° + 144°
    Peak intensity: 1.594 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Deep Red

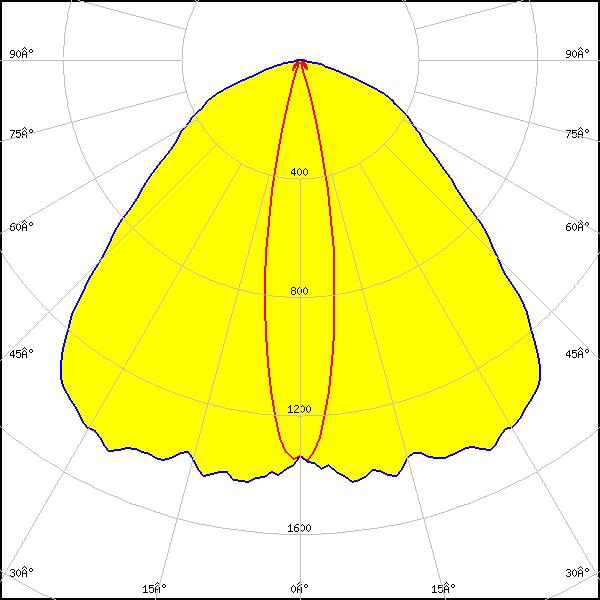

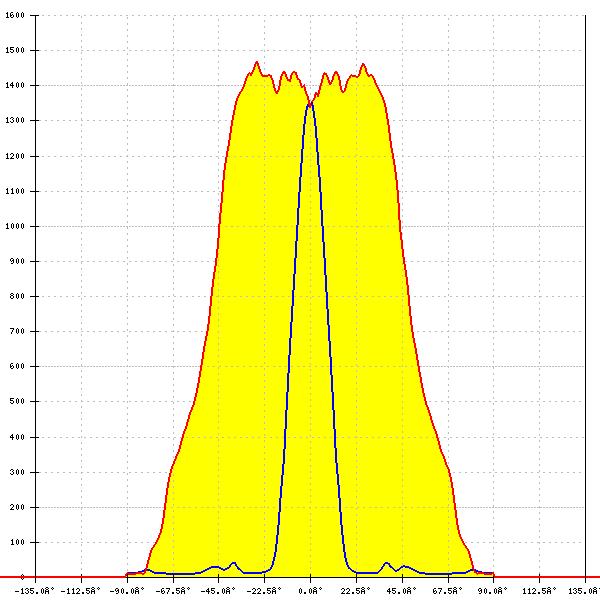

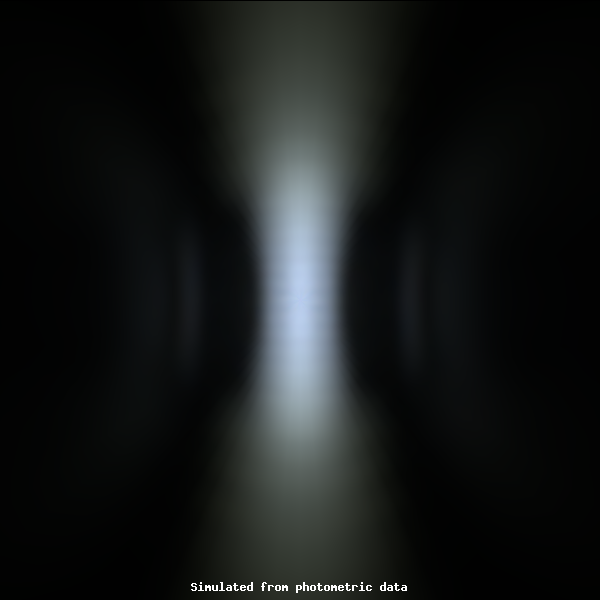

    LED: SST-12 Gen2
    FWHM: 20° + 98°
    FWTM: 31° + 144°
    Peak intensity: 1.470 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

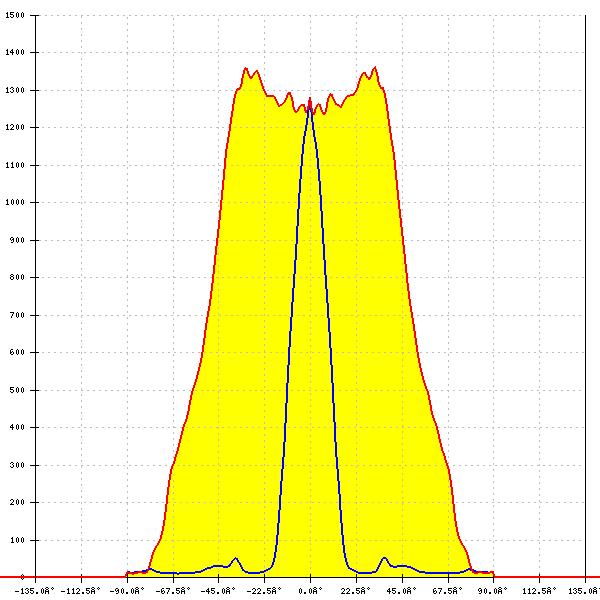

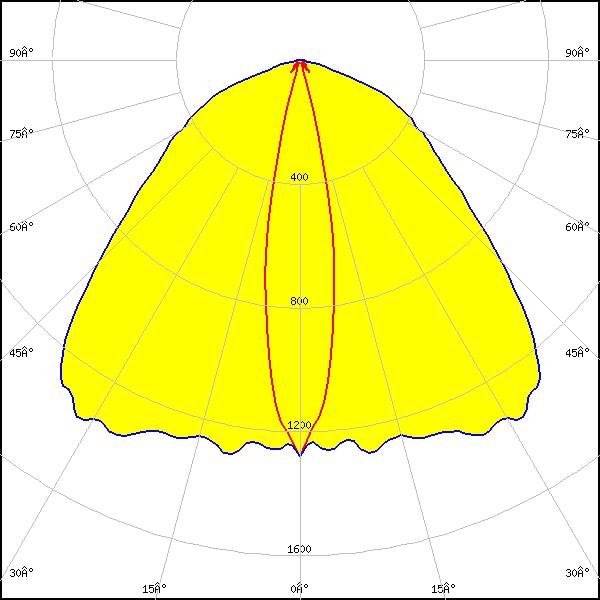

    LED: SST-20 Gen2
    FWHM: 20° + 102°
    FWTM: 31° + 144°
    Peak intensity: 1.361 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

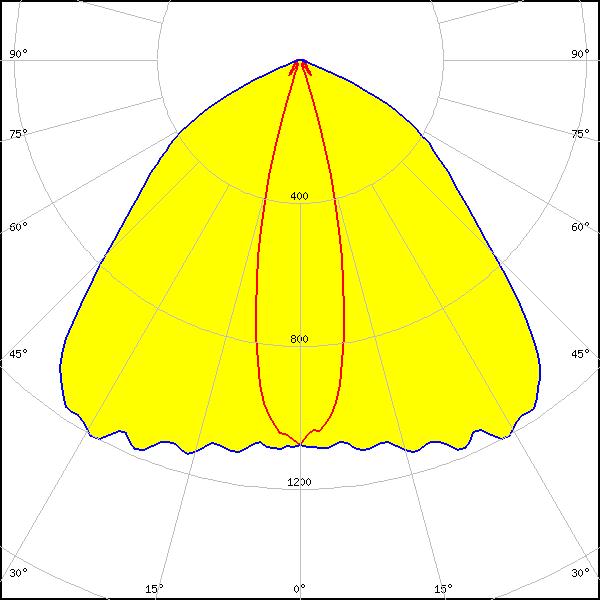

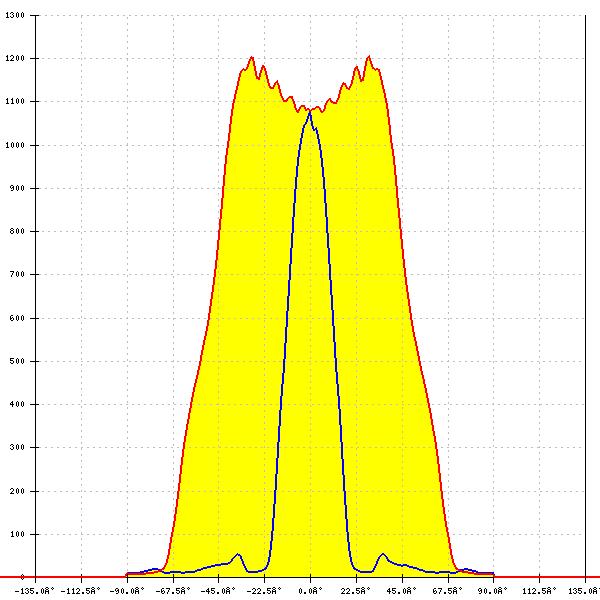

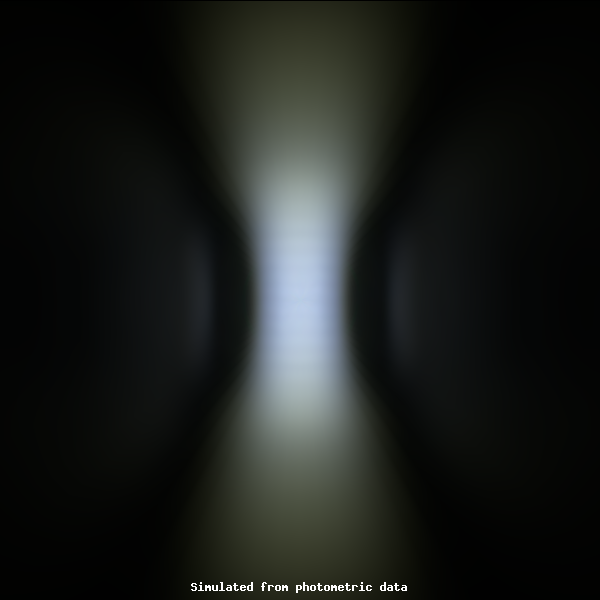

    LED: SST-20F-W
    FWHM: 24° + 100°
    FWTM: 36° + 134°
    Peak intensity: 1.204 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

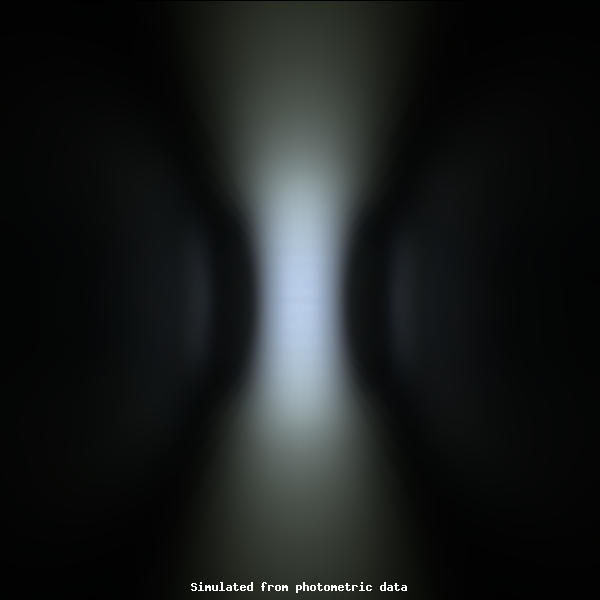

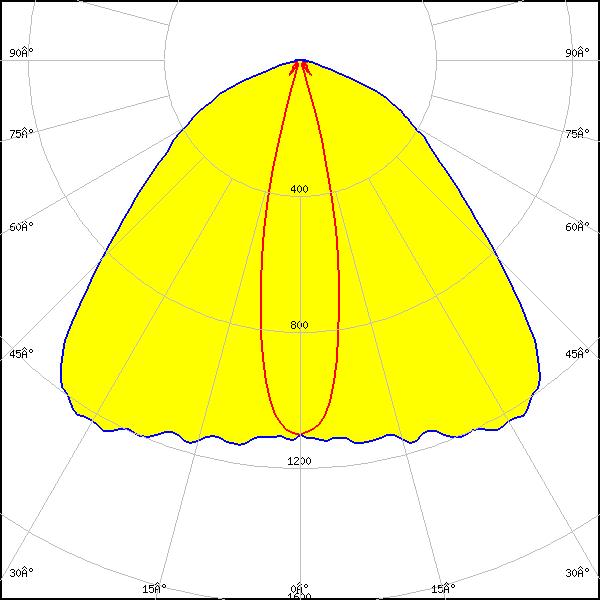

    LED: SST-25-W
    FWHM: 22° + 100°
    FWTM: 34° + 142°
    Peak intensity: 1.235 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

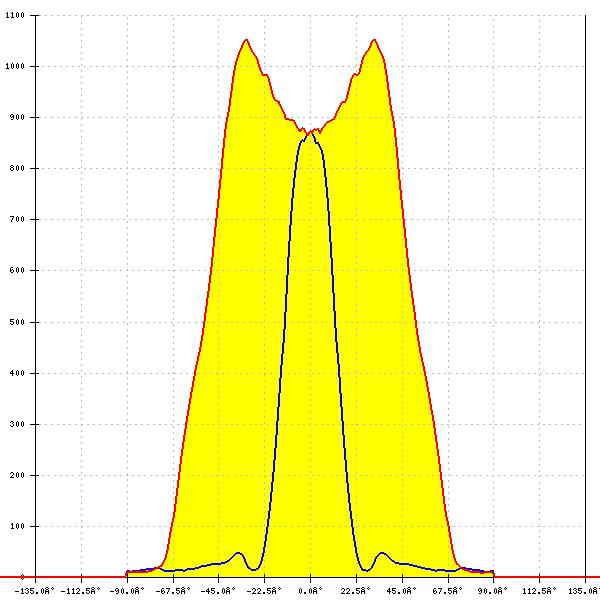

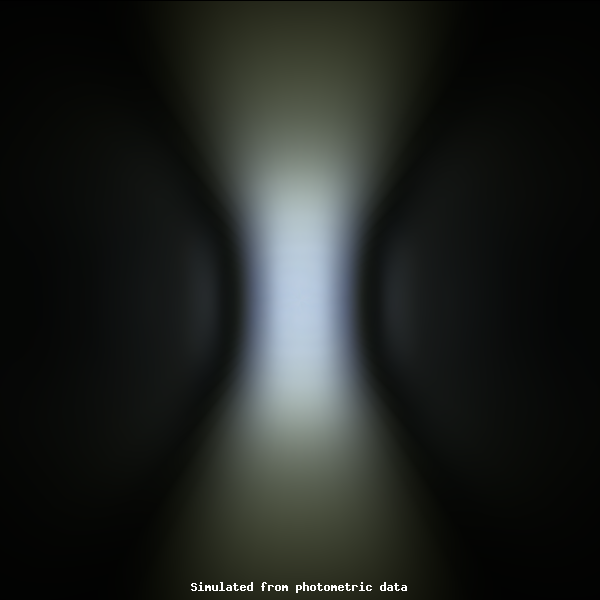

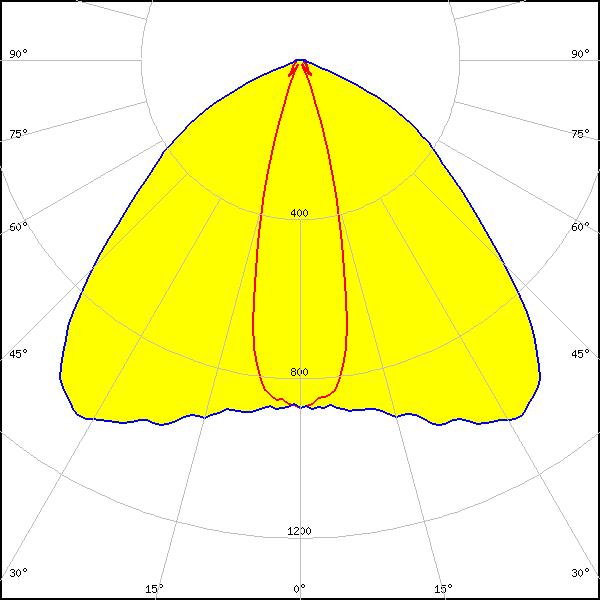

    LED: SST-36F-W
    FWHM: 27° + 102°
    FWTM: 42° + 136°
    Peak intensity: 1.052 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

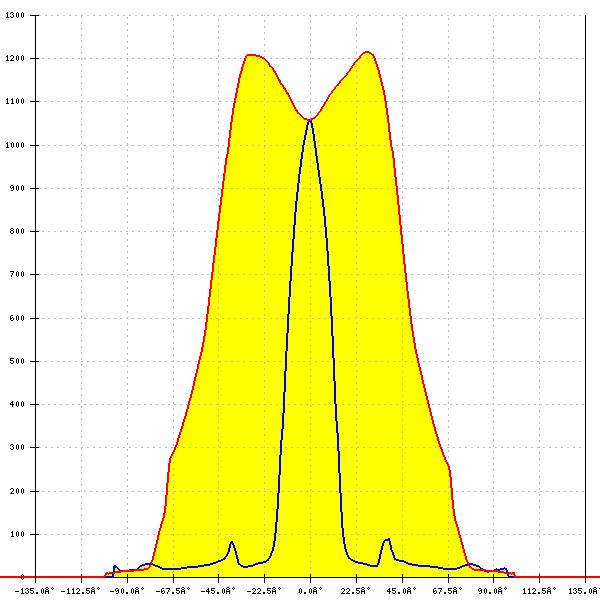

    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: 24° + 97°
    FWTM: 34° + 141°
    Peak intensity: 1.084 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: 23° + 100°
    FWTM: 33° + 145°
    Peak intensity: 1.214 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

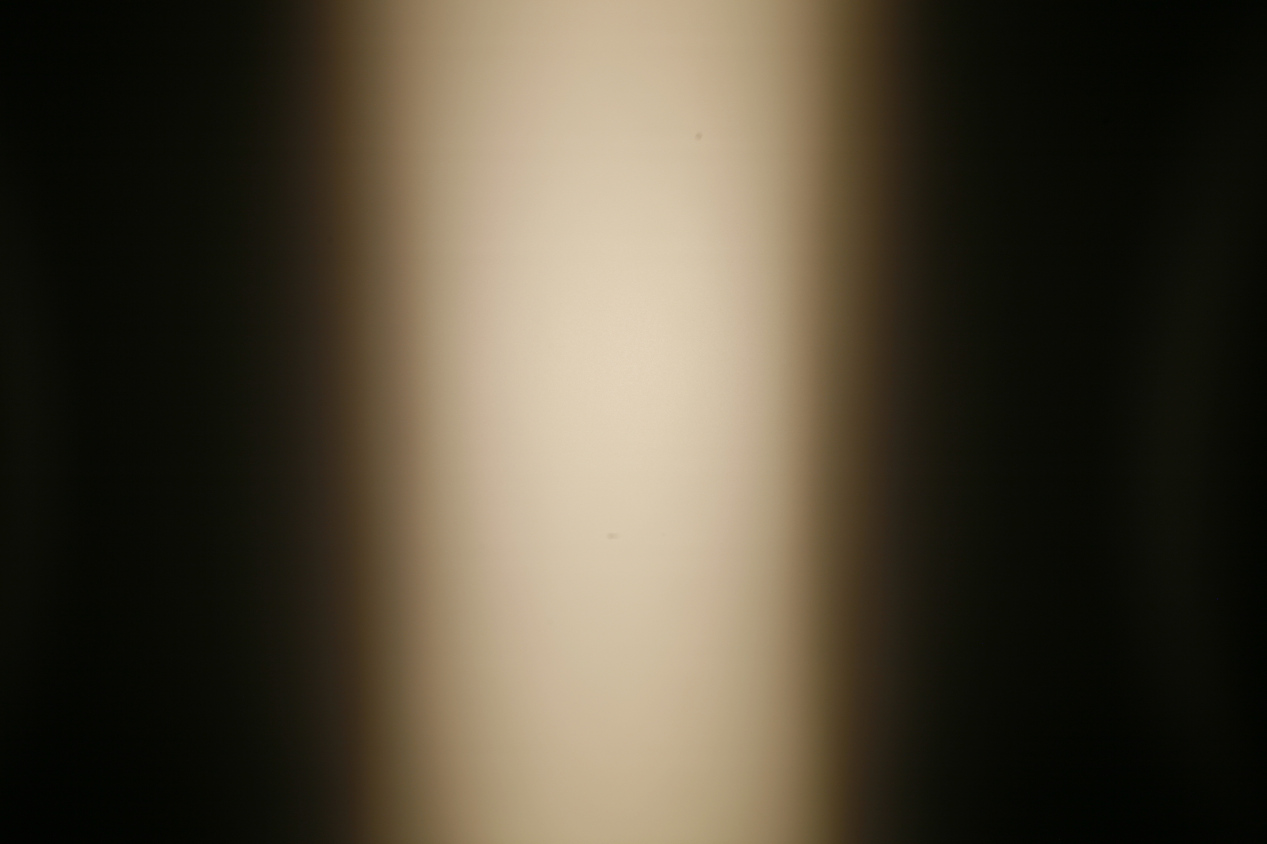

    LED: NCSxx19B
    FWHM: 23° + 113°
    FWTM: 39° + 146°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: 28° + 100°
    FWTM: 42° + 144°
    Peak intensity: 0.992 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

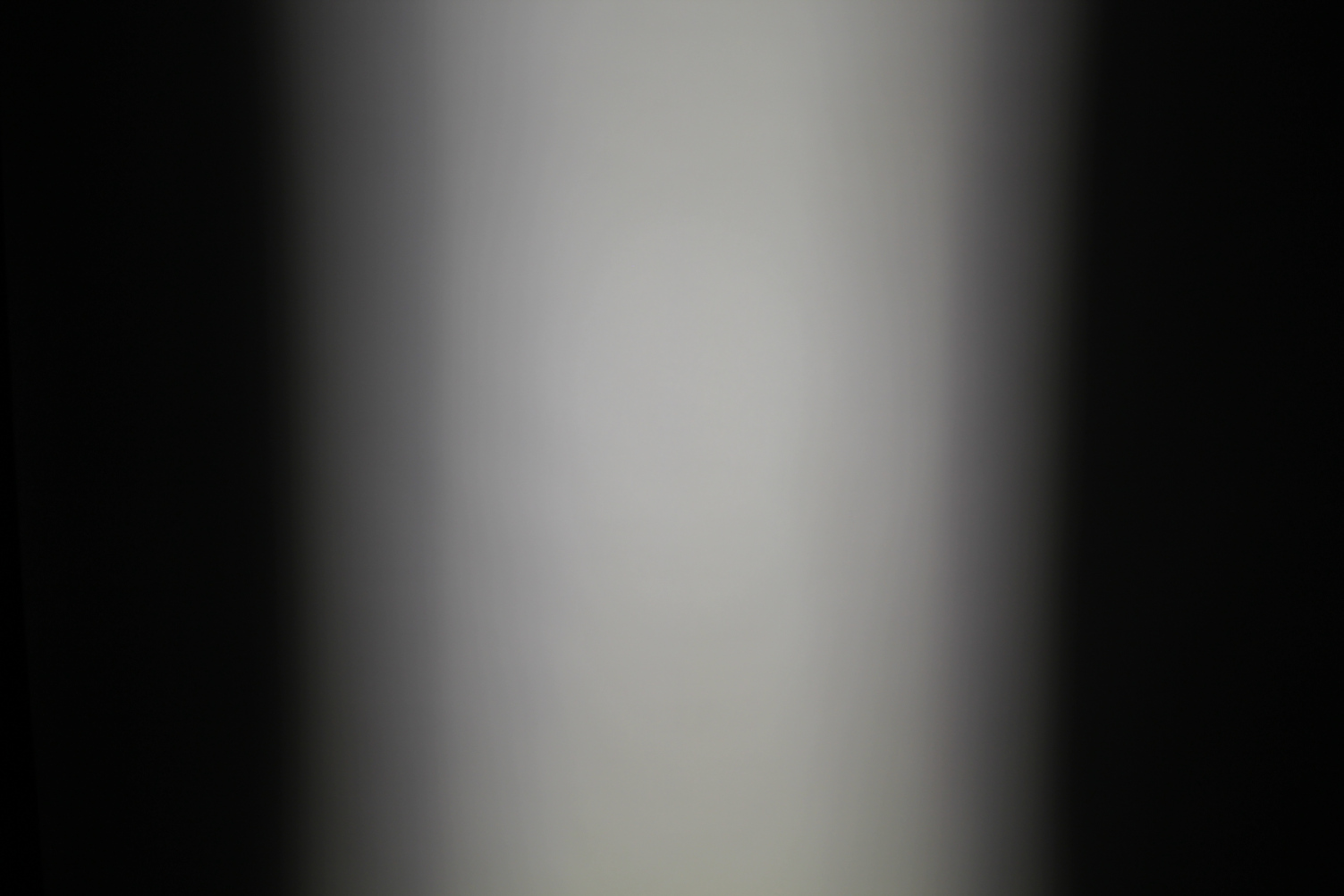

    LED: NVSW219D
    FWHM: 25° + 107°
    FWTM: 37° + 137°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: 26° + 100°
    FWTM: 38° + 142°
    Peak intensity: 1.084 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

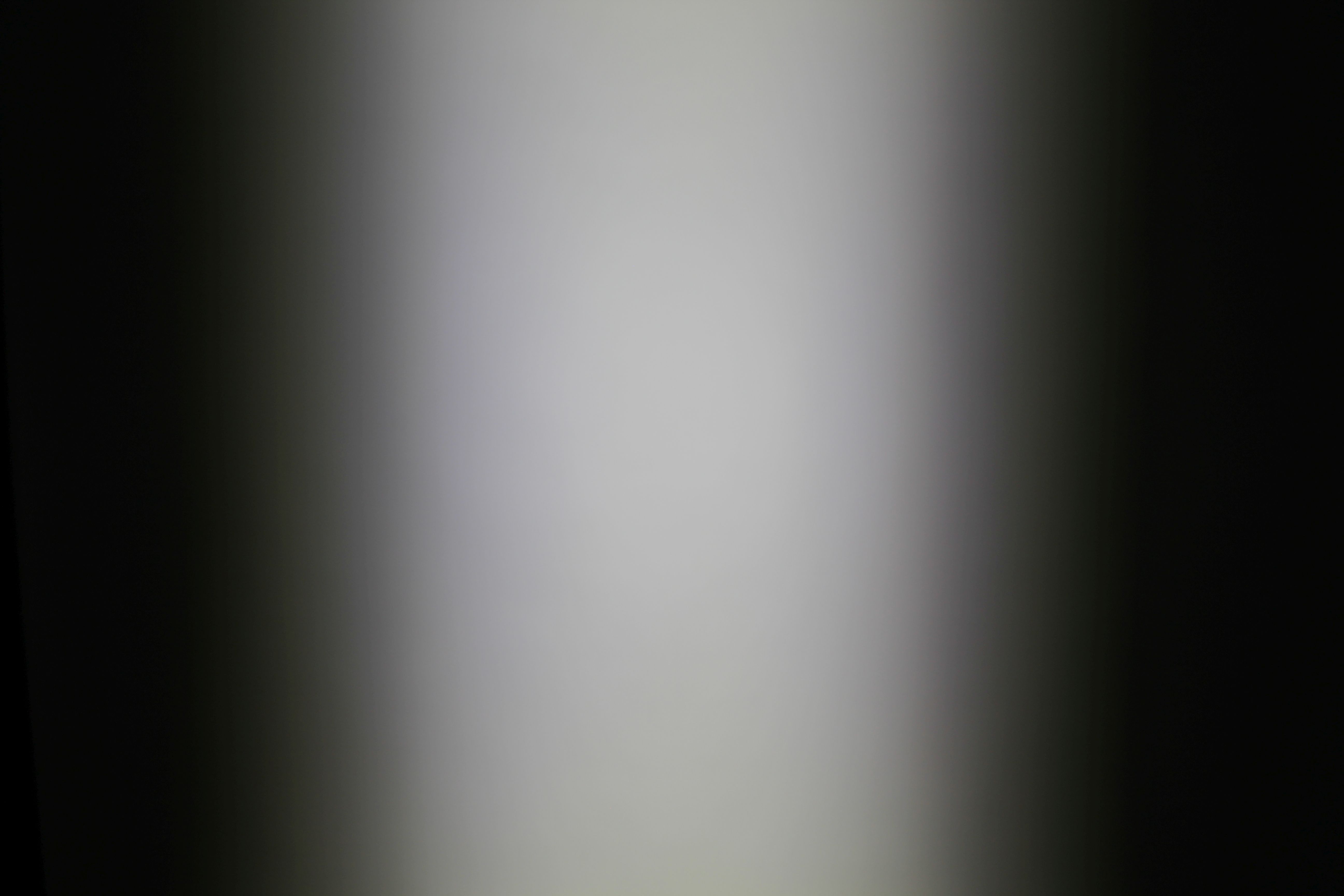

    LED: NVSW319B
    FWHM: 25° + 113°
    FWTM: 41° + 144°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW3x9A
    FWHM: 24° + 119°
    FWTM: 38° + 144°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW3x9A
    FWHM: 25° + 134°
    FWTM: 43° + 147°
    Peak intensity: 0.400 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: 17° + 125°
    FWTM: 27° + 139°
    Peak intensity: 1.680 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19A
    FWHM: 24° + 105°
    FWTM: 44° + 148°
    Peak intensity: 1.220 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 26° + 108°
    FWTM: 41° + 145°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NWSx229A
    FWHM: 27° + 118°
    FWTM: 43° + 143°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 2424
    FWHM: 18° + 96°
    FWTM: 30° + 141°
    Peak intensity: 1.482 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: 21° + 94°
    FWTM: 34° + 138°
    Peak intensity: 1.139 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: 22° + 95°
    FWTM: 32° + 140°
    Peak intensity: 1.462 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3030
    FWHM: 14° + 92°
    FWTM: 28° + 142°
    Peak intensity: 1.576 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: 99° + 19°
    FWTM: 142° + 31°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: 100° + 30°
    FWTM: 144° + 51°
    Peak intensity: 1.030 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

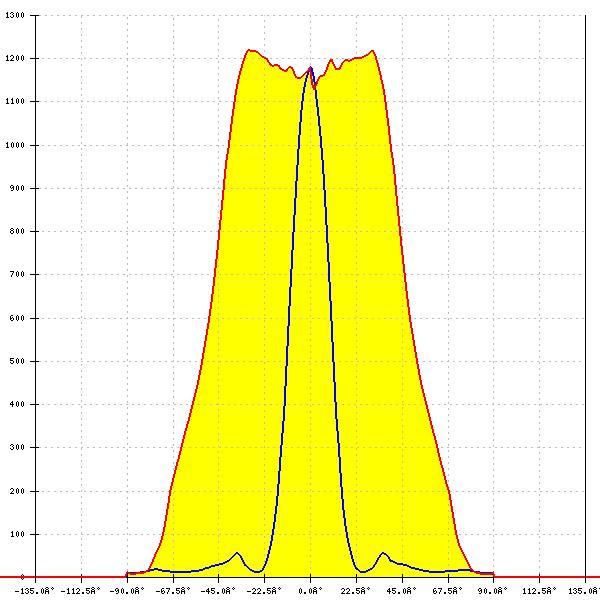

    LED: OSCONIQ P 3737 Flat
    FWHM: 22° + 98°
    FWTM: 35° + 142°
    Peak intensity: 1.219 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: 32° + 99°
    FWTM: 52° + 143°
    Peak intensity: 0.841 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: 32° + 98°
    FWTM: 53° + 140°
    Peak intensity: 0.761 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Pure 1414
    FWHM: 14° + 90°
    FWTM: 26° + 140°
    Peak intensity: 1.863 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 23° + 101°
    FWTM: 33° + 140°
    Peak intensity: 1.104 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 23° + 111°
    FWTM: 32° + 141°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square Flat
    FWHM: 16° + 90°
    FWTM: 30° + 140°
    Peak intensity: 1.573 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

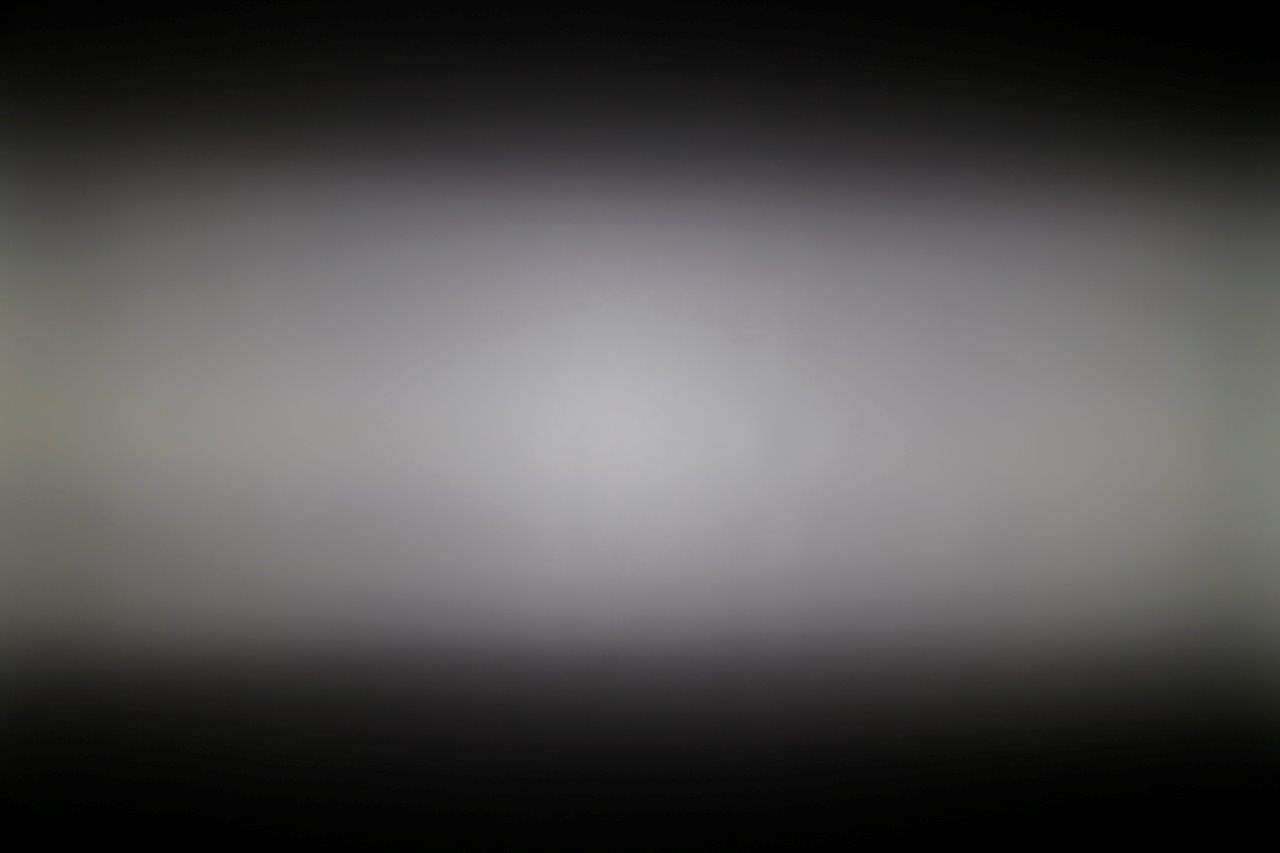

    LED: OSLON Square PC
    FWHM: 25° + 124°
    FWTM: 42° + 145°
    Peak intensity: 1.070 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

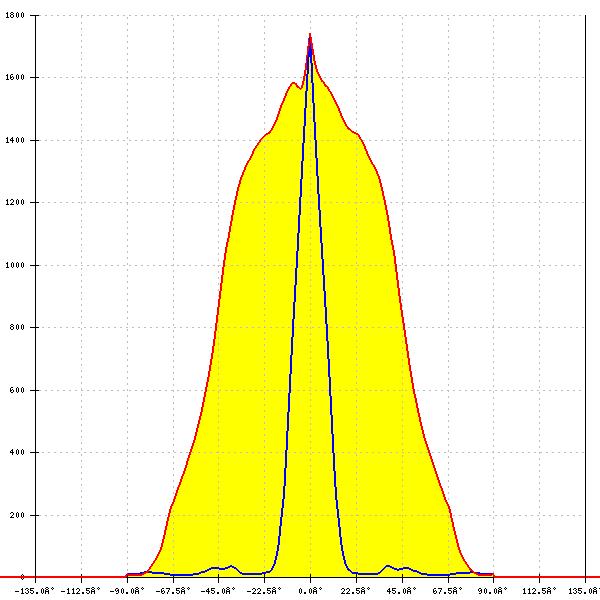

    LED: OSTAR Projection Compact (KW.CSLNM1.TG)
    FWHM: 16° + 89°
    FWTM: 28° + 140°
    Peak intensity: 1.743 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

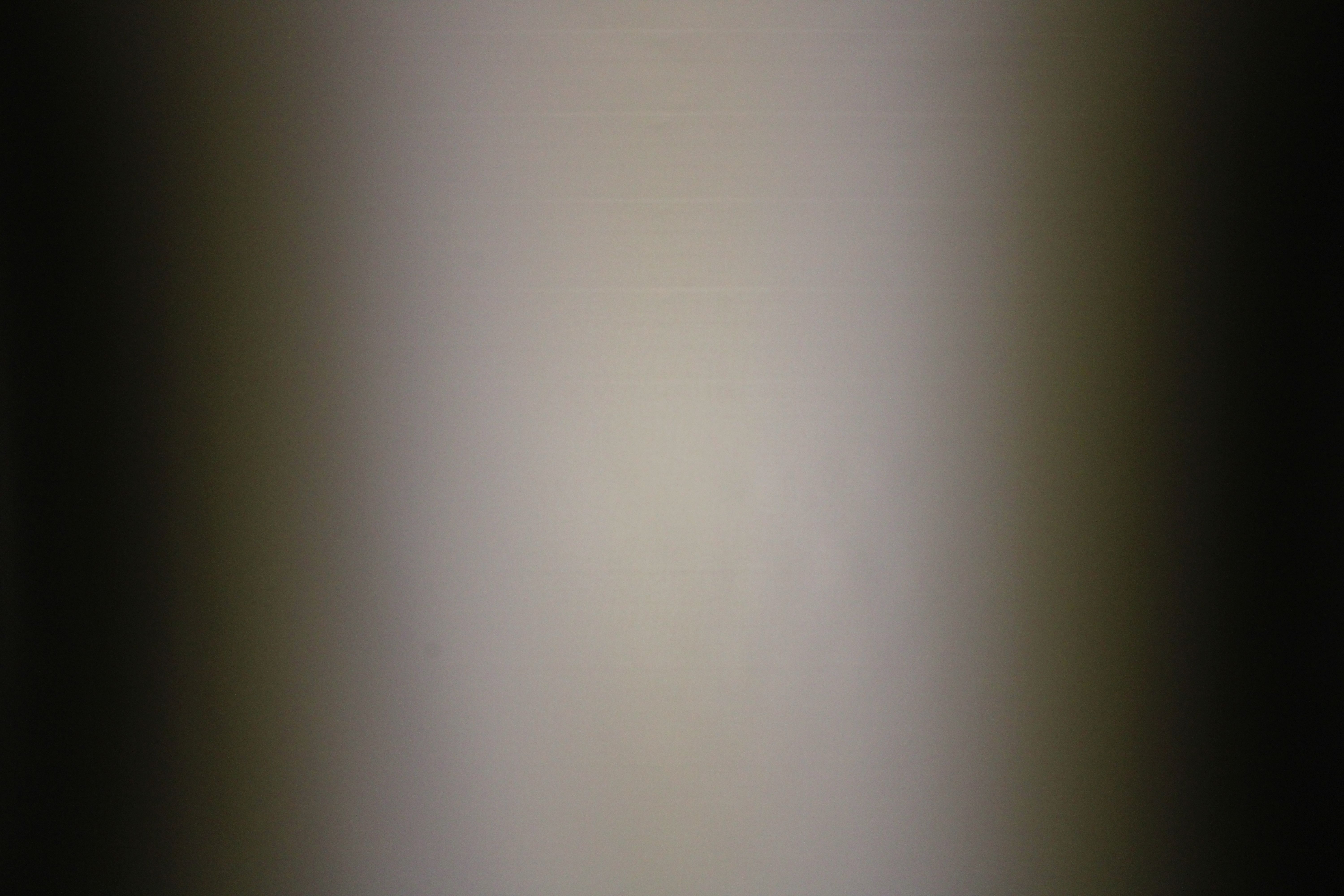

    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: 32° + 98°
    FWTM: 51° + 142°
    Peak intensity: 0.905 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4
    FWHM: 21° + 108°
    FWTM: 31° + 147°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4+
    FWHM: 24° + 104°
    FWTM: 37° + 145°
    Peak intensity: 1.130 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: 24° + 103°
    FWTM: 34° + 144°
    Peak intensity: 1.195 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

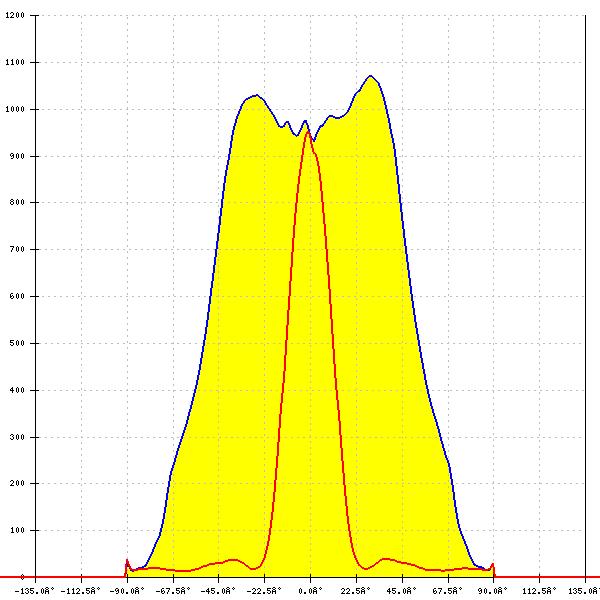

    LED: Fortimo FastFlex LED 2x8 DAX G4
    FWHM: 103° + 29°
    FWTM: 146° + 49°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RC12 Z (LH181B)
    FWHM: 19° + 106°
    FWTM: 31° + 140°
    Peak intensity: 1.431 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

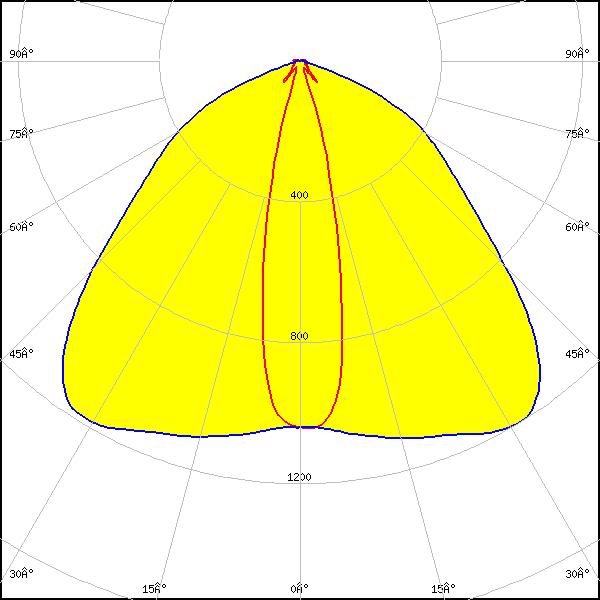

    LED: HiLOM RH12 Z (LH351C)
    FWHM: 23° + 102°
    FWTM: 36° + 139°
    Peak intensity: 1.201 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH16 (LH351C)
    FWHM: 23° + 106°
    FWTM: 36° + 140°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

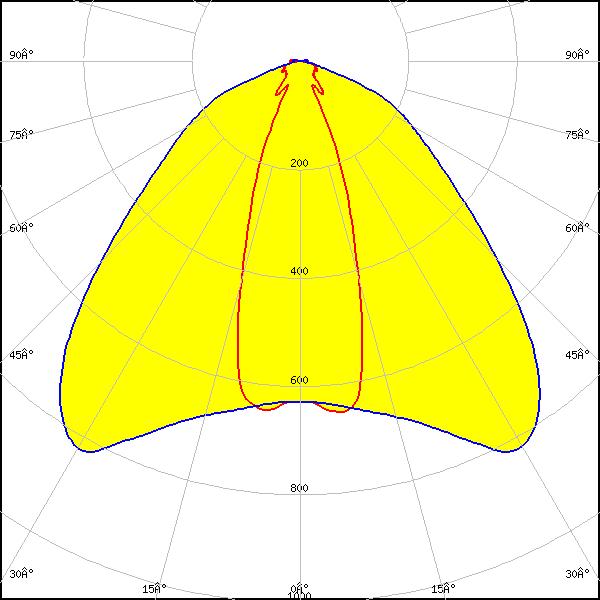

    LED: HiLOM RM12 Z (LH502C)
    FWHM: 36° + 98°
    FWTM: 78° + 140°
    Peak intensity: 0.765 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM12 Z (LH502C)
    FWHM: 35° + 98°
    FWTM: 76° + 141°
    Peak intensity: 0.831 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 23° + 113°
    FWTM: 35° + 141°
    Peak intensity: 1.210 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: 24° + 111°
    FWTM: 37° + 141°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: 27° + 116°
    FWTM: 44° + 144°
    Peak intensity: 0.970 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

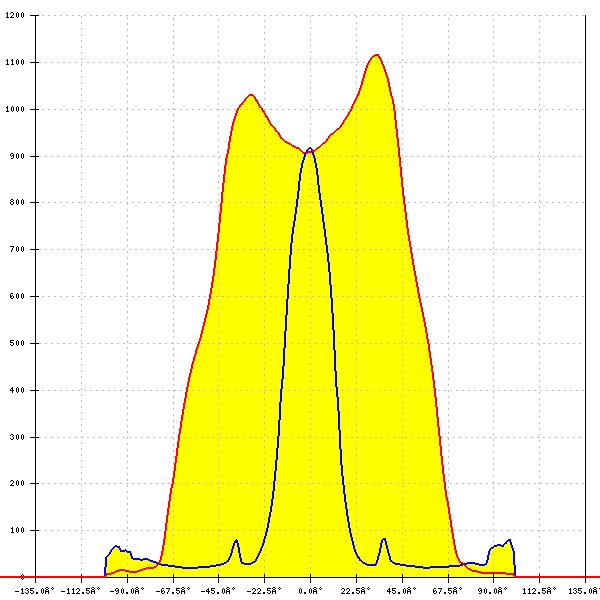

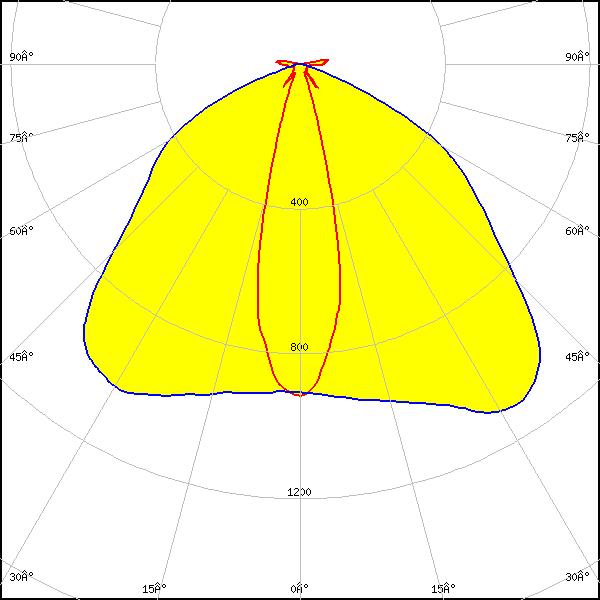

    LED: LH351Z
    FWHM: 26° + 117°
    FWTM: 42° + 141°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

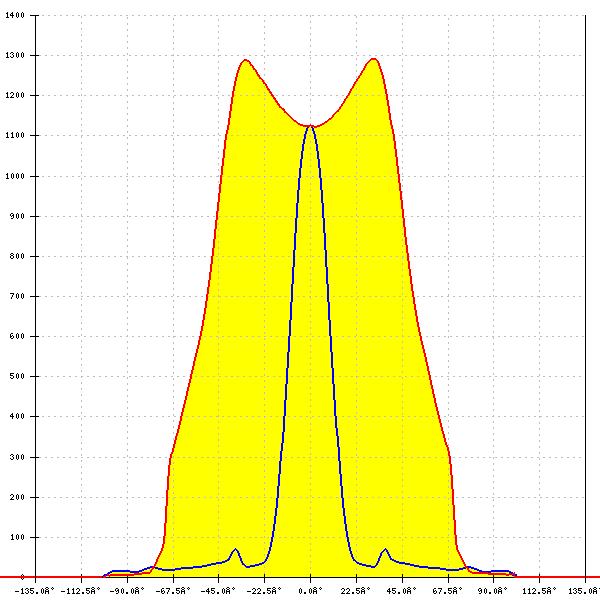

    LED: LED-Pa-L15c2W11c2-xxx-C050-01
    FWHM: 22° + 105°
    FWTM: 36° + 142°
    Peak intensity: 1.291 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT 5050
    FWHM: 32° + 98°
    FWTM: 52° + 142°
    Peak intensity: 0.846 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: 33° + 98°
    FWTM: 58° + 143°
    Peak intensity: 0.860 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M1/Z5M2
    FWHM: 22° + 97°
    FWTM: 34° + 142°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3
    FWHM: 23° + 113°
    FWTM: 39° + 146°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: 26° + 100°
    FWTM: 38° + 136°
    Peak intensity: 1.157 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

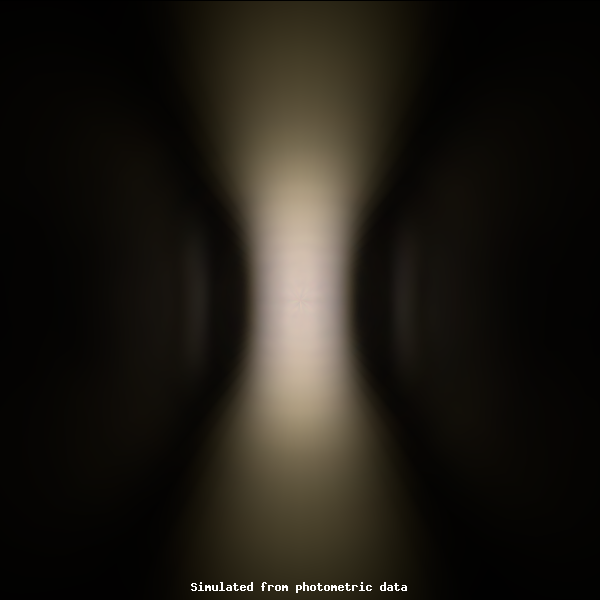

    LED: Z5M4
    FWHM: 22° + 97°
    FWTM: 35° + 135°
    Peak intensity: 1.303 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E1
    FWHM: 26° + 102°
    FWTM: 40° + 138°
    Peak intensity: 1.105 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

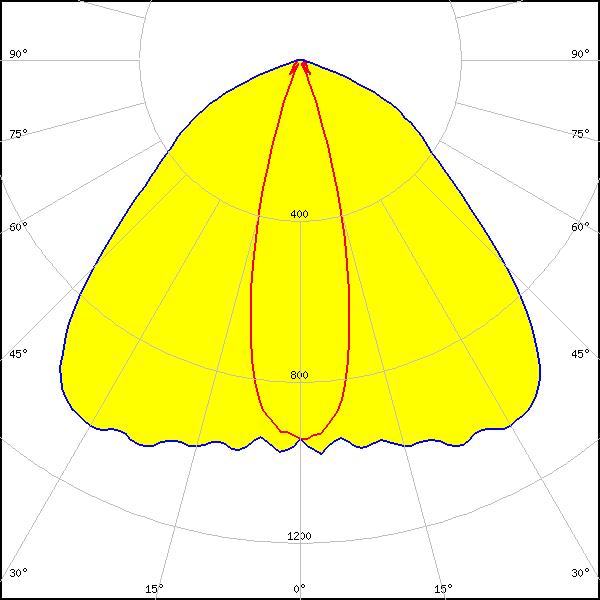

    LED: Z5M4-E2
    FWHM: 28° + 100°
    FWTM: 44° + 140°
    Peak intensity: 1.049 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: 26° + 103°
    FWTM: 38° + 140°
    Peak intensity: 1.065 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: 26° + 100°
    FWTM: 40° + 138°
    Peak intensity: 0.932 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

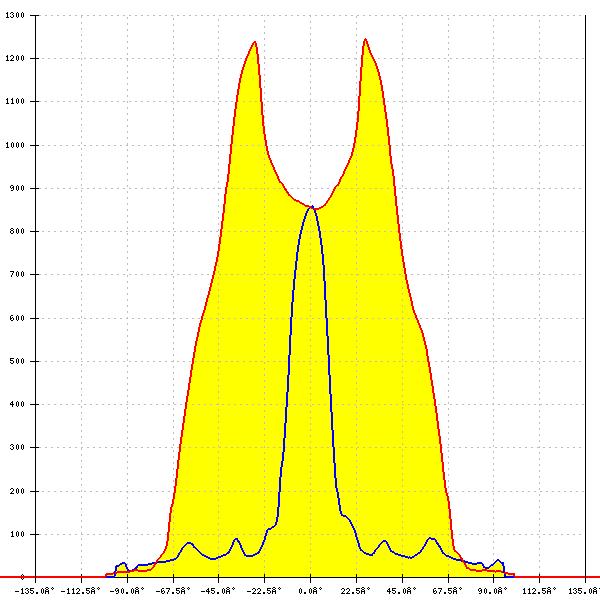

    LED: Z8Y22
    FWHM: 21° + 121°
    FWTM: 99° + 140°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

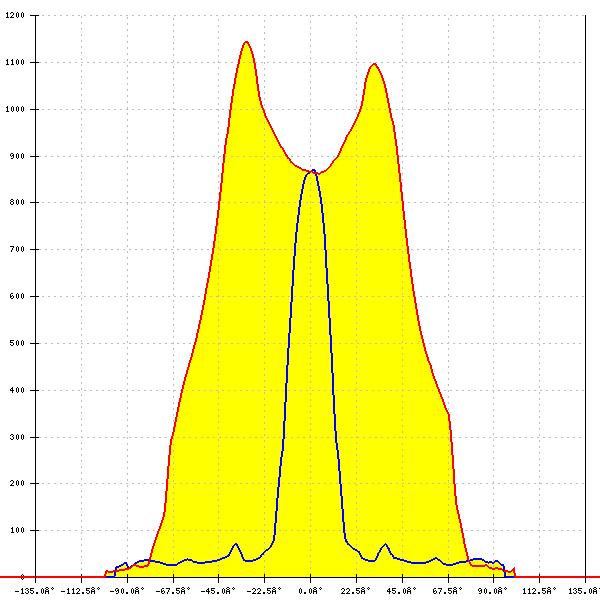

    LED: Z8Y22P
    FWHM: 23° + 121°
    FWTM: 34° + 150°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22T
    FWHM: 21° + 96°
    FWTM: 33° + 141°
    Peak intensity: 1.210 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: TL1L4
    FWHM: 24° + 119°
    FWTM: 39° + 140°
    Peak intensity: 1.100 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: 22° + 113°
    FWTM: 30° + 149°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: 22° + 100°
    FWTM: 32° + 142°
    Peak intensity: 1.039 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: 22° + 113°
    FWTM: 30° + 149°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: 30° + 96°
    FWTM: 76° + 141°
    Peak intensity: 0.995 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x121mm 2000lm xxx EXC OTD
    FWHM: 23° + 104°
    FWTM: 31° + 144°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x133mm 2000lm xxx EXC OTD
    FWHM: 23° + 104°
    FWTM: 31° + 144°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x223mm 4000lm xxx EXC OTD
    FWHM: 23° + 104°
    FWTM: 31° + 144°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x245mm 4000lm xxx EXC OTD
    FWHM: 23° + 104°
    FWTM: 31° + 144°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
