C13499_STRADA-2X2-CY
Print
Beam for canopy lighting with batwing light distribution. Suitable for symmetrical tunnel lighting.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

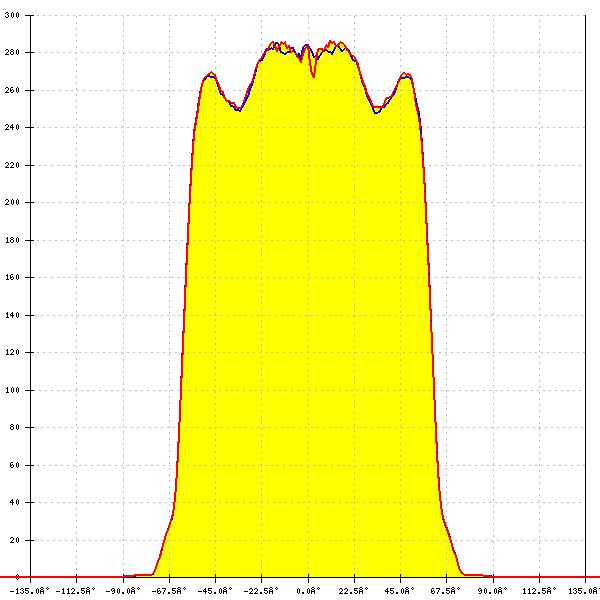

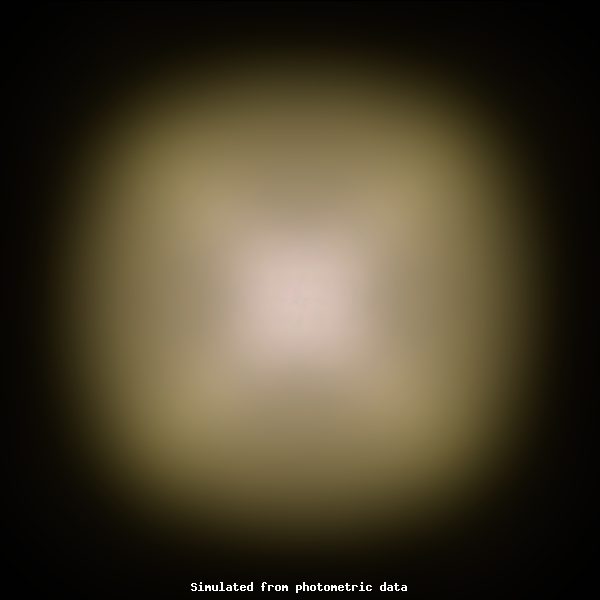

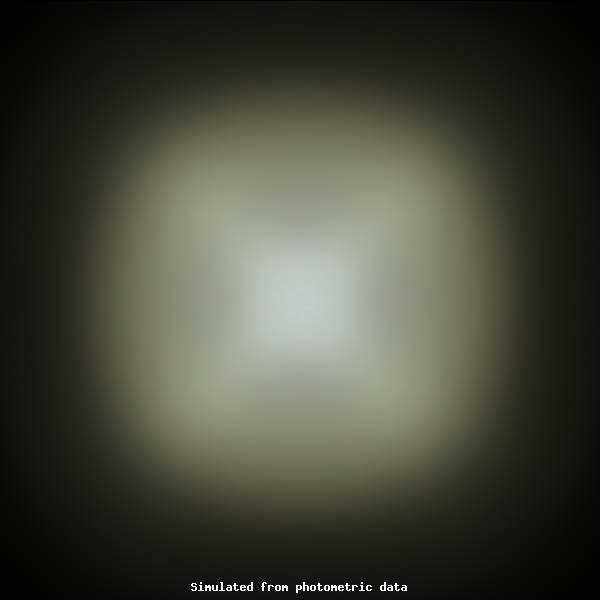

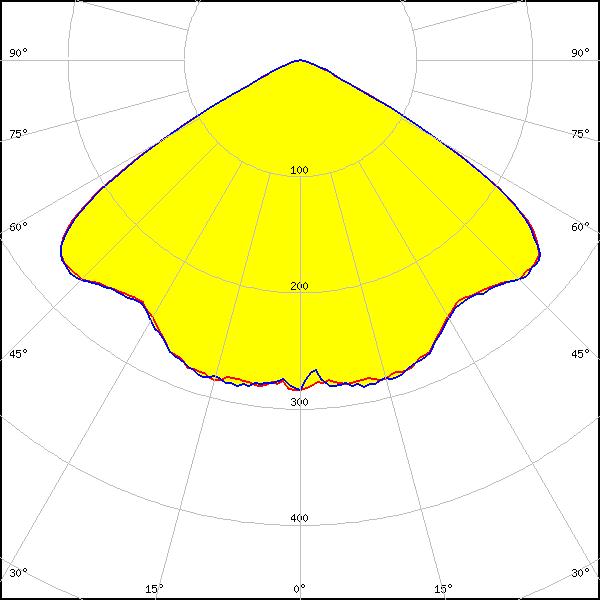

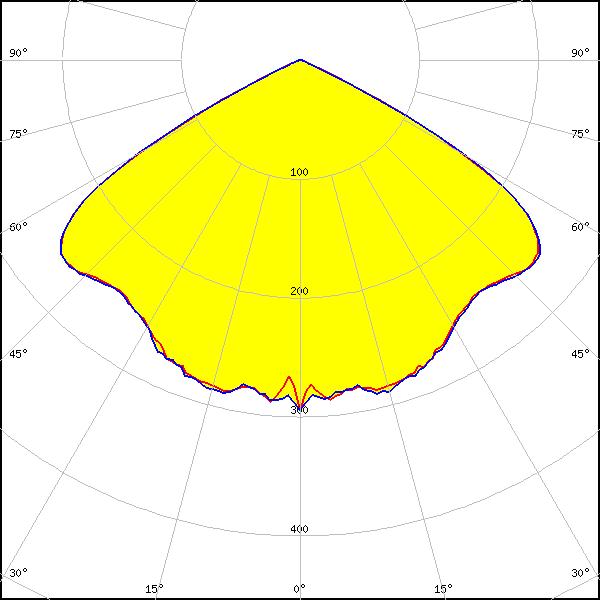

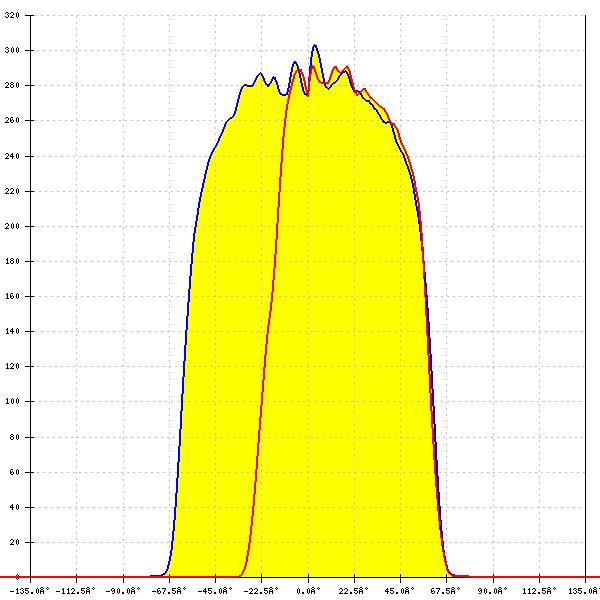

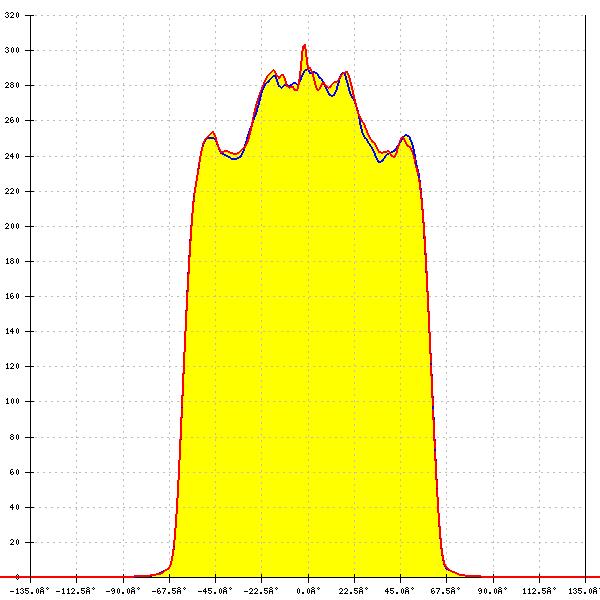

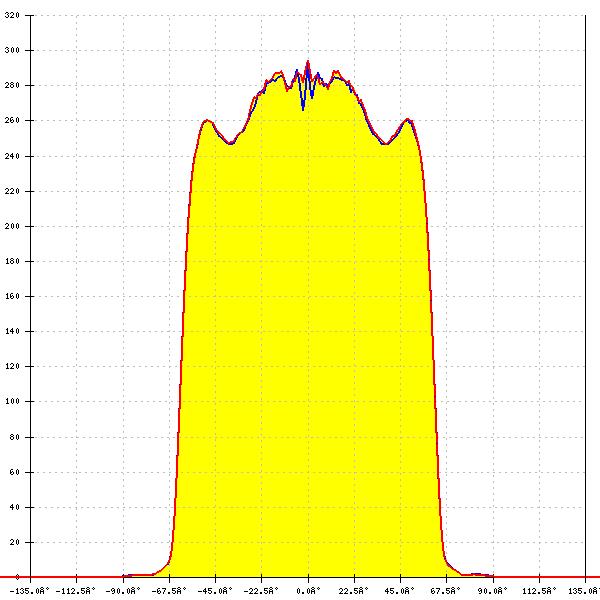

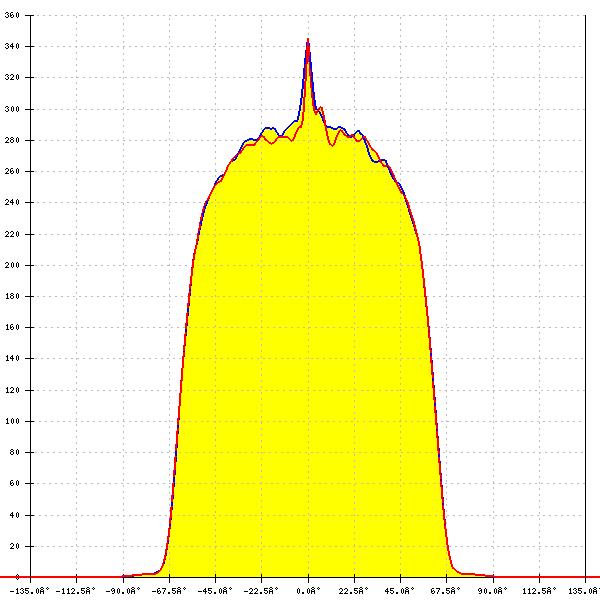

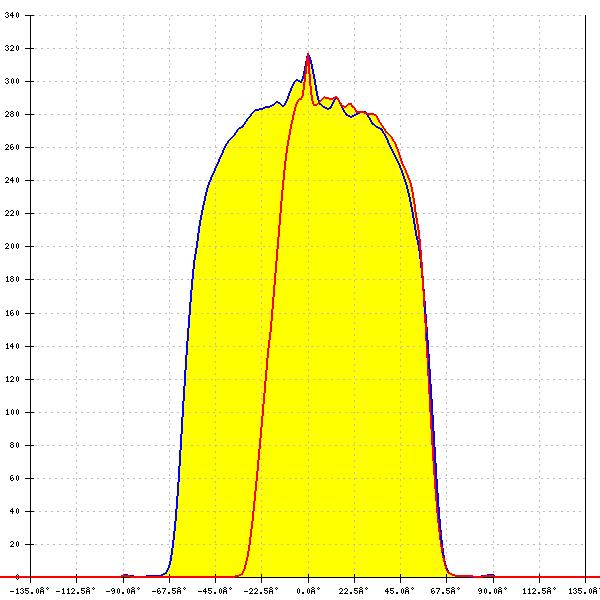

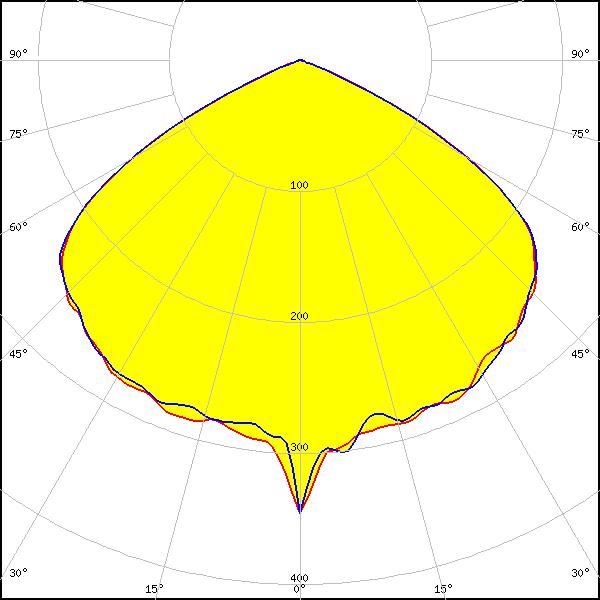

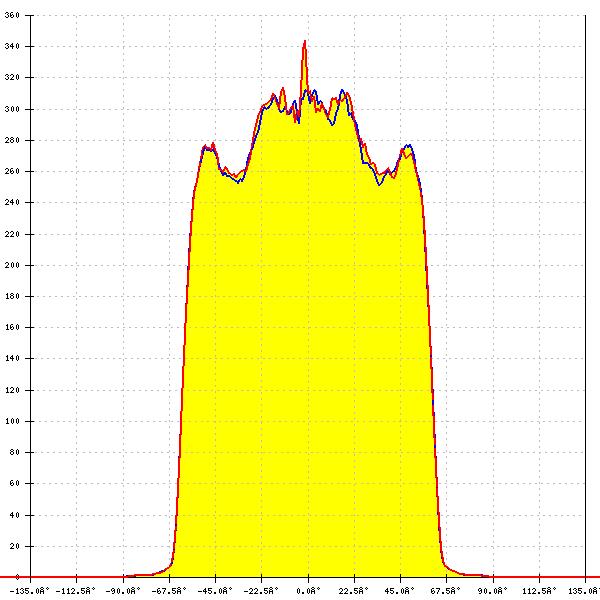

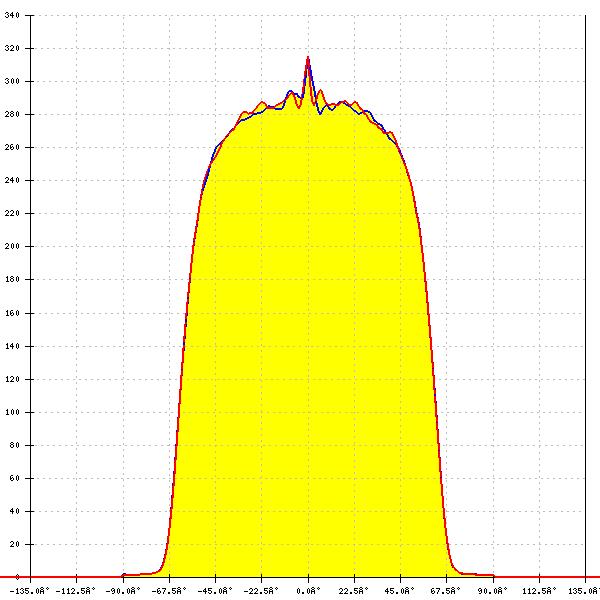

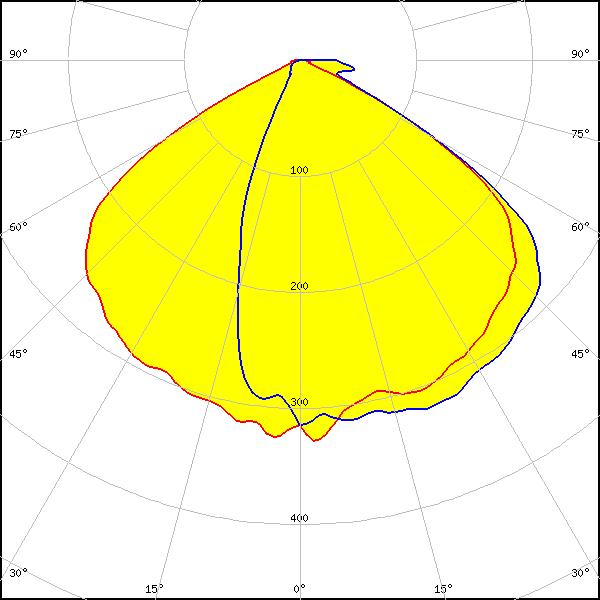

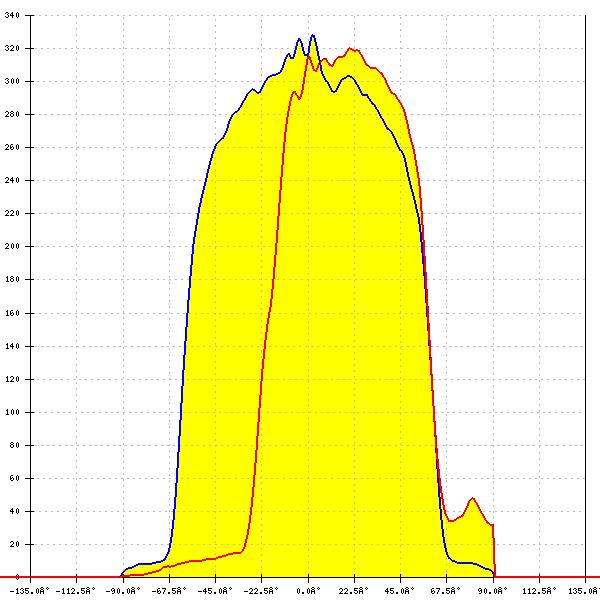

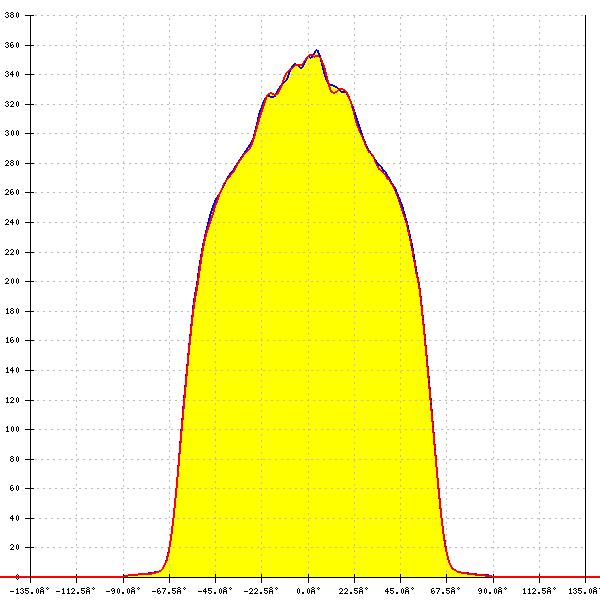

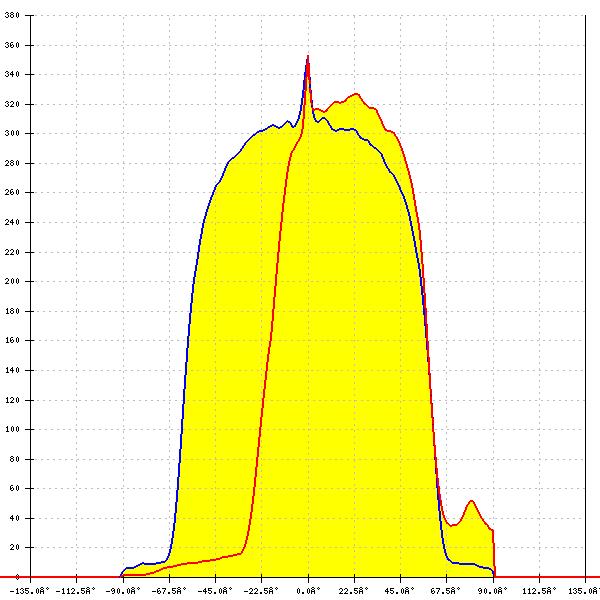

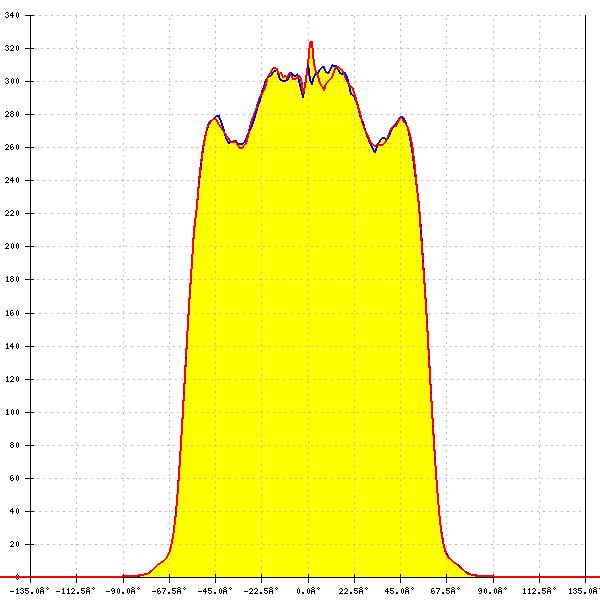

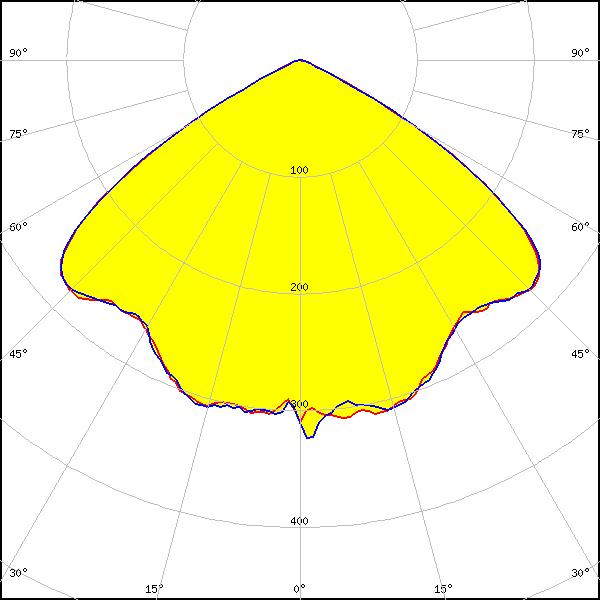

Optical results
LED:
Bridgelux SMD 5050
FWHM:
120° + 119°
FWTM:
143° + 139°
Peak intensity:
0.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
FWHM:
122°
FWTM:
140°
Peak intensity:
0.338 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHB-A/B
FWHM:
117° + 116°
FWTM:
140° + 140°
Peak intensity:
0.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XD16
FWHM:
132° + 130°
FWTM:
152° + 148°
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XD16
FWHM:
125° + 124°
FWTM:
149° + 145°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:
XHP35 HD
FWHM: asymmetric
Peak intensity:
0.333 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L
FWHM:
126°
FWTM:
149°
Peak intensity:
0.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L2
FWHM:
121°
FWTM:
145°
Peak intensity:
0.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L3
FWHM: asymmetric
Peak intensity:
0.326 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM:
131°
FWTM:
152°
Peak intensity:
0.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
129°
FWTM:
151°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2 HE
FWHM:
126°
FWTM:
138°
Peak intensity:
0.337 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
126°
FWTM:
138°
Peak intensity:
0.299 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
131° + 132°
FWTM:
154° + 154°
Peak intensity:
0.330 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
Required components:
FWHM: asymmetric
Peak intensity:
0.342 cd/lm
Efficiency:
62 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
Required components:
FWHM: asymmetric
Peak intensity:
0.390 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G4
FWHM:
116°
FWTM:
126°
Peak intensity:
0.407 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HD
FWHM:
131°
FWTM:
157°
Peak intensity:
0.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HI
FWHM:
127°
FWTM:
150°
Peak intensity:
0.330 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L2
FWHM:
127°
FWTM:
156°
Peak intensity:
0.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
136°
FWTM:
156°
Peak intensity:
0.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

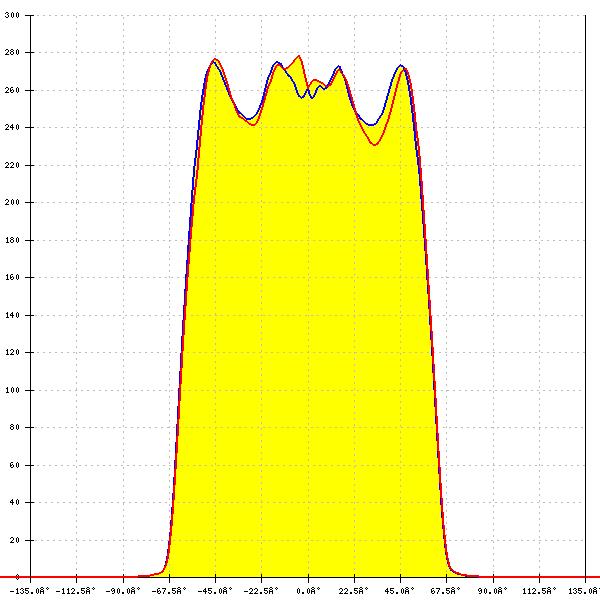

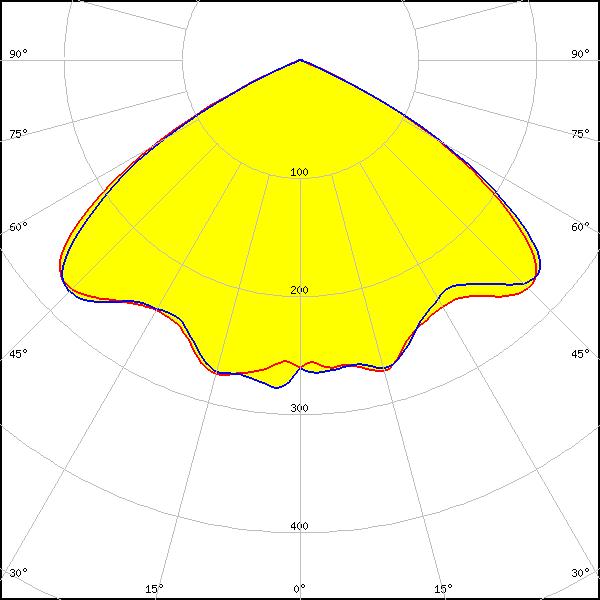

LUXEON 3030 2D (Round LES)
FWHM:
118°
FWTM:
131°
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 2D (Square LES)
FWHM:
119°
FWTM:
133°
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 HE
FWHM:
120°
FWTM:
134°
Peak intensity:
0.336 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 HE
FWHM:
118°
FWTM:
134°
Peak intensity:
0.309 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM:
117°
FWTM:
132°
Peak intensity:
0.318 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM:
121°
FWTM:
143°
Peak intensity:
0.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM:
114°
FWTM:
132°
Peak intensity:
0.318 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM:
118°
FWTM:
134°
Peak intensity:
0.330 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2Z
FWHM:
122°
FWTM:
132°
Peak intensity:
0.408 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2Z
FWHM:
120°
FWTM:
132°
Peak intensity:
0.362 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
FWHM:
123°
FWTM:
144°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Q
FWHM:
134°
FWTM:
157°
Peak intensity:
0.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON T
FWHM:
127°
FWTM:
147°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
FWHM:
123°
FWTM:
146°
Peak intensity:
0.330 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON V
FWHM:
125° + 123°
FWTM:
151° + 145°
Peak intensity:
0.310 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
122°
FWTM:
132°
Peak intensity:
0.359 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
122°
FWTM:
132°
Peak intensity:
0.311 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
126°
FWTM:
147°
Peak intensity:
0.361 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
Deep Red
LED:
RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity:
0.365 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2x757G
FWHM:
120°
FWTM:
134°
Peak intensity:
0.348 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NFMW48xA
FWHM:
120°
FWTM:
134°
Peak intensity:
0.336 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NV4WB35AM
FWHM:
120°
FWTM:
136°
Peak intensity:
0.346 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219D
FWHM: asymmetric
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219F
FWHM:
123°
FWTM:
143°
Peak intensity:
0.340 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW319B
FWHM:
126°
FWTM:
134°
Peak intensity:
0.319 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW319B
FWHM:
125°
FWTM:
144°
Peak intensity:
0.333 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW3x9A
FWHM:
129° + 128°
FWTM:
151° + 148°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM:
126°
FWTM:
136°
Peak intensity:
0.350 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM:
125°
FWTM:
136°
Peak intensity:
0.317 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
125°
FWTM:
144°
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
122°
FWTM:
132°
Peak intensity:
0.391 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Brick HP 2x8
FWHM:
122°
FWTM:
136°
Peak intensity:
0.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

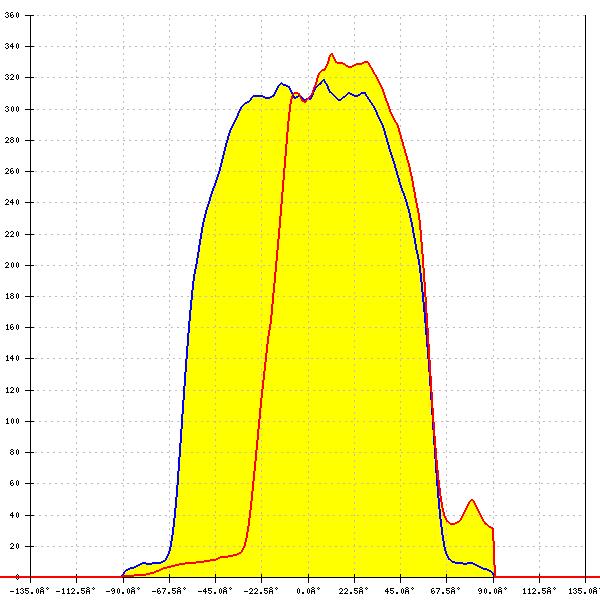

Duris S8
FWHM:
119°
FWTM:
143°
Peak intensity:
0.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
125°
FWTM:
141°
Peak intensity:
0.393 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (2W version)
FWHM:
114°
FWTM:
134°
Peak intensity:
0.380 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity:
0.356 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
122°
FWTM:
134°
Peak intensity:
0.340 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
128° + 127°
FWTM:
149° + 145°
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square PC
FWHM:
122°
FWTM:
154°
Peak intensity:
0.330 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4
FWHM:
125°
FWTM:
145°
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4+
FWHM:
127°
FWTM:
148°
Peak intensity:
0.318 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

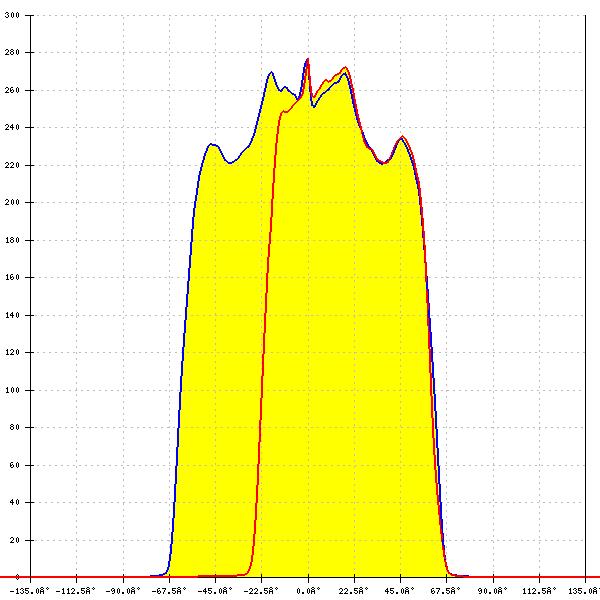

Fortimo FastFlex LED 2x8 DA G5
FWHM:
122°
FWTM:
142°
Peak intensity:
0.365 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA HE
FWHM:
116°
FWTM:
132°
Peak intensity:
0.345 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA HE
FWHM:
116°
FWTM:
132°
Peak intensity:
0.307 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DAX G4
FWHM:
131°
FWTM:
154°
Peak intensity:
0.330 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RC12 Z (LH181B)
FWHM:
120°
FWTM:
138°
Peak intensity:
0.404 cd/lm
Efficiency:
99 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RH12 Z (LH351C)
FWHM:
121°
FWTM:
138°
Peak intensity:
0.316 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RH12 Z (LH351C)
FWHM:
121°
FWTM:
139°
Peak intensity:
0.357 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RH16 (LH351C)
FWHM:
121°
FWTM:
139°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM12 Z (LH502C)
FWHM:
120°
FWTM:
141°
Peak intensity:
0.324 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM16 Z (LH502C)
FWHM:
120°
FWTM:
141°
Peak intensity:
0.330 cd/lm
Efficiency:
99 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM8 Z (LH502C)
FWHM: asymmetric
Peak intensity:
0.330 cd/lm
Efficiency:
99 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH231B
FWHM:
120°
FWTM:
132°
Peak intensity:
0.384 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
118°
FWTM:
130°
Peak intensity:
0.349 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
126°
FWTM:
149°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM:
123°
FWTM:
144°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351D
FWHM:
120°
FWTM:
134°
Peak intensity:
0.332 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH508A
FWHM:
122°
FWTM:
144°
Peak intensity:
0.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LED-Pa-L15c2W11c2-xxx-C050-01
FWHM:
123°
FWTM:
142°
Peak intensity:
0.367 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT 5050
FWHM:
118°
FWTM:
132°
Peak intensity:
0.338 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M1/Z5M2
FWHM:
122°
FWTM:
149°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3
FWHM: asymmetric
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4
FWHM: asymmetric
Peak intensity:
0.379 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM:
127° + 124°
FWTM:
146° + 144°
Peak intensity:
0.380 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
TL1L3
FWHM:
118°
FWTM:
154°
Peak intensity:
0.290 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
TL1L4
FWHM:
119°
FWTM:
146°
Peak intensity:
0.360 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 2x4 2000lm HP EXC2 OTD
FWHM:
128°
FWTM:
147°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 2x8 4000lm HP EXC2 OTD
FWHM:
128°
FWTM:
147°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM:
119° + 117°
FWTM:
147° + 146°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM:
119° + 117°
FWTM:
147° + 146°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM:
119° + 117°
FWTM:
147° + 146°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM:
119° + 117°
FWTM:
147° + 146°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
