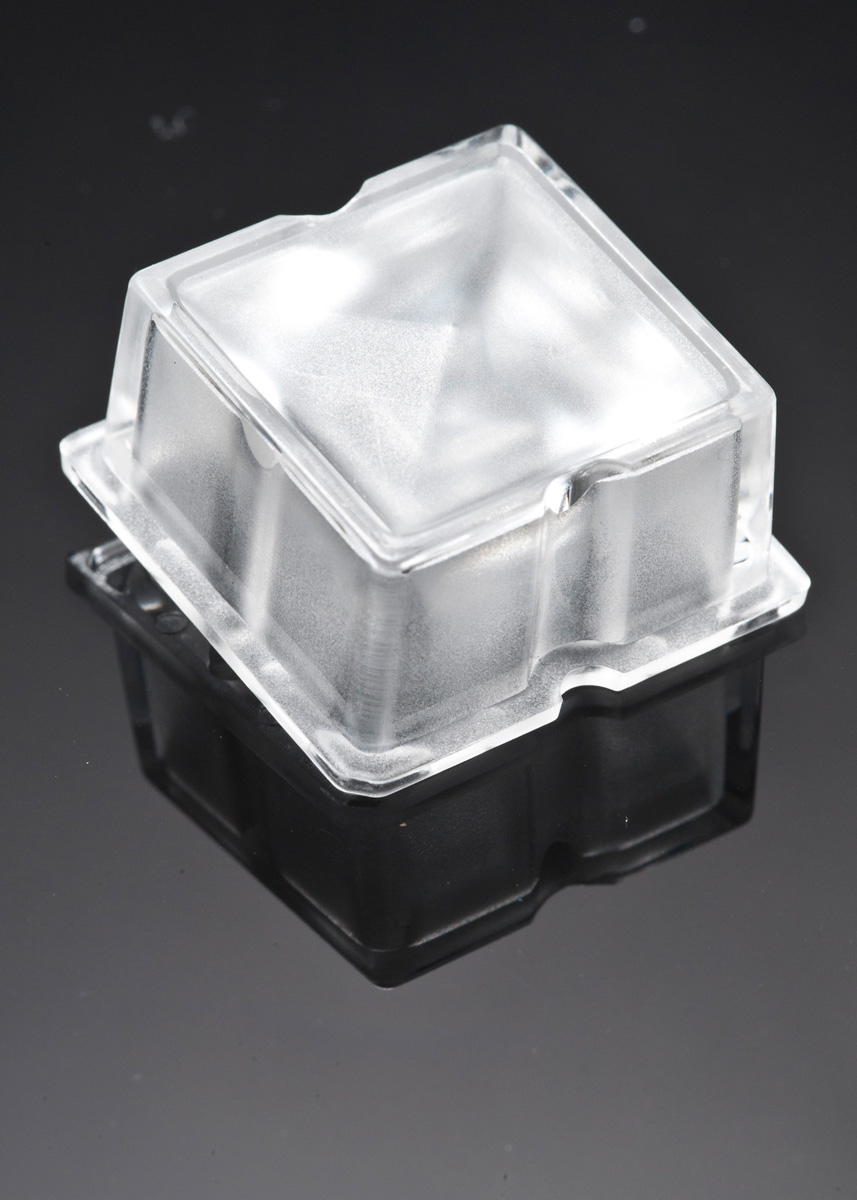

    C12767_HB-SQ-A

    Print

    ~50° wide beam

    Specification
    • Dimensions:
      25 x  25 mm
    • Height:
      12.90 mm
    • Fastening:
      glue, pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      1960 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.7 kg
    • MPQ:
      98 pcs
    • MOQ:
      294 pcs
    • MOQ size:
      480 x 280 x 50 mm
    • MOQ weight:
      1.6 kg
