C12727_STRADA-SQ-VSM
Print

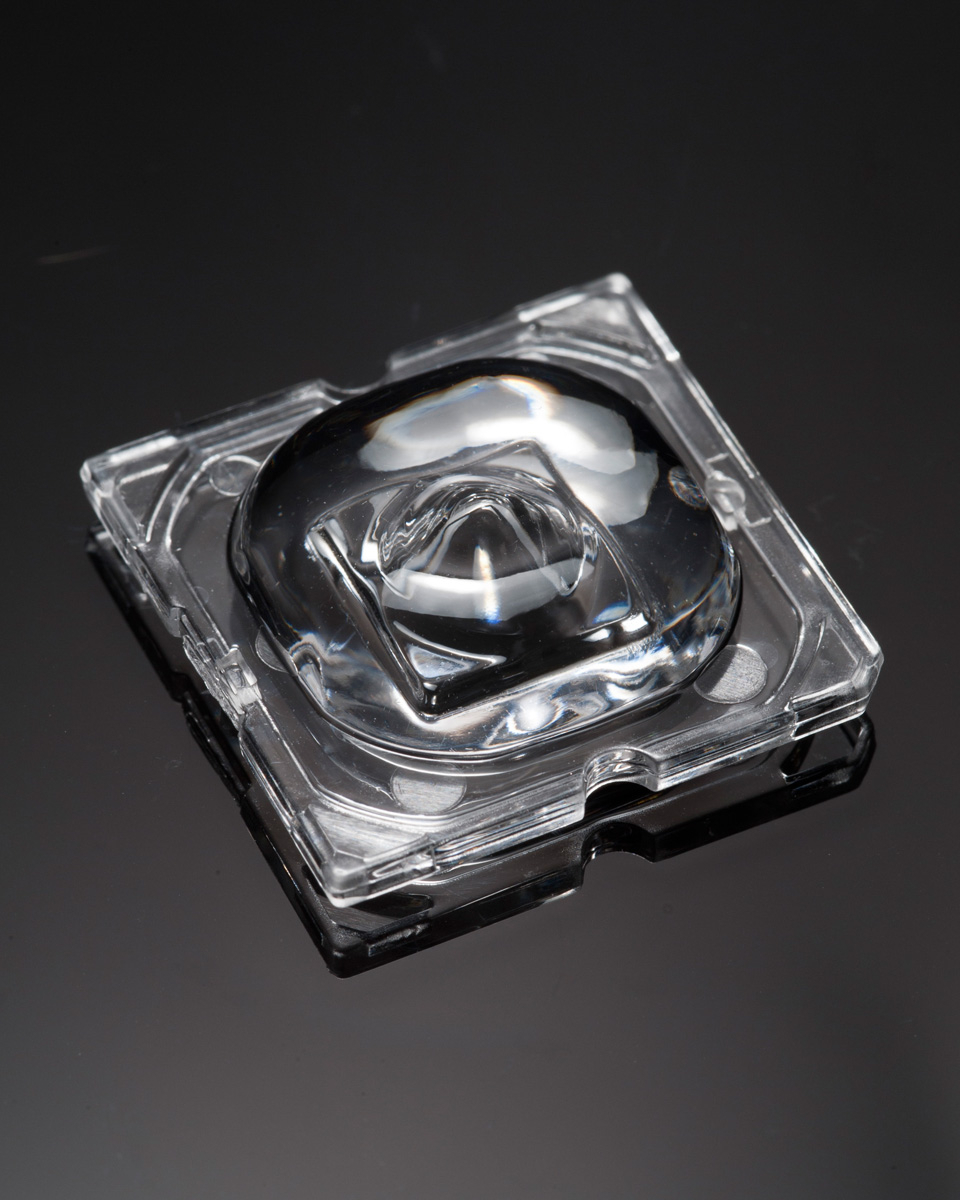

IESNA Type V (square) beam for wide areas lighting such as car parks. Version with location pins.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

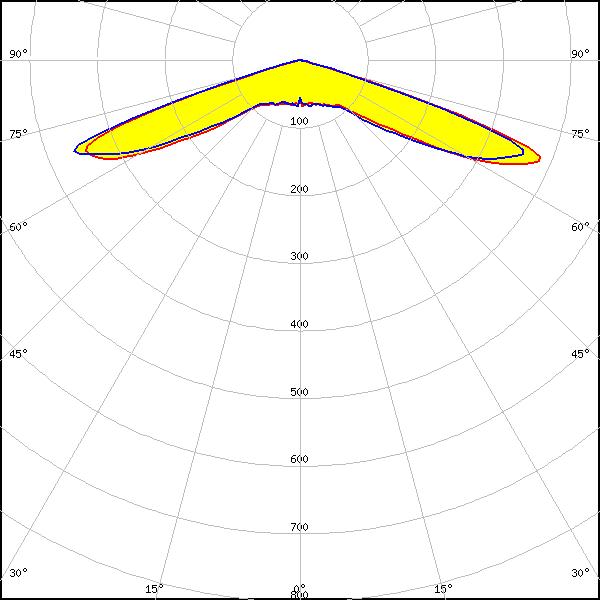

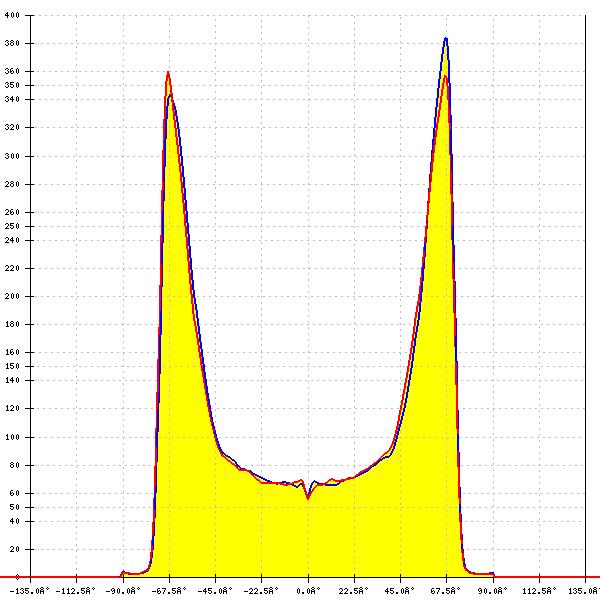

LED:
Bridgelux SMD 3030
FWHM:
144°
FWTM:
149°
Peak intensity:
0.576 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

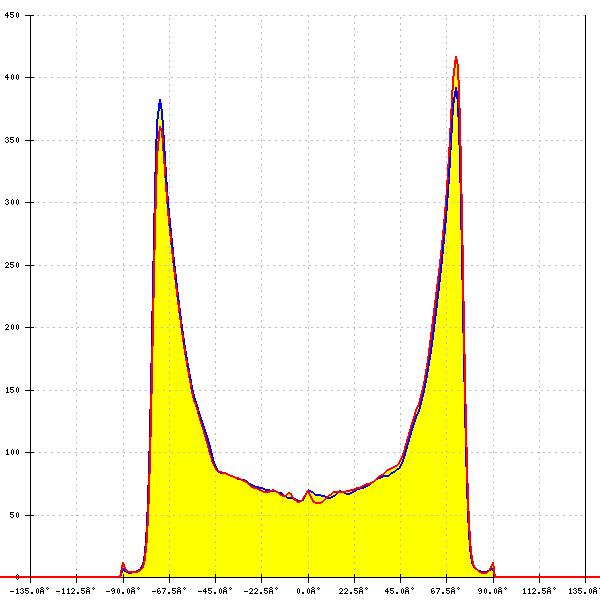

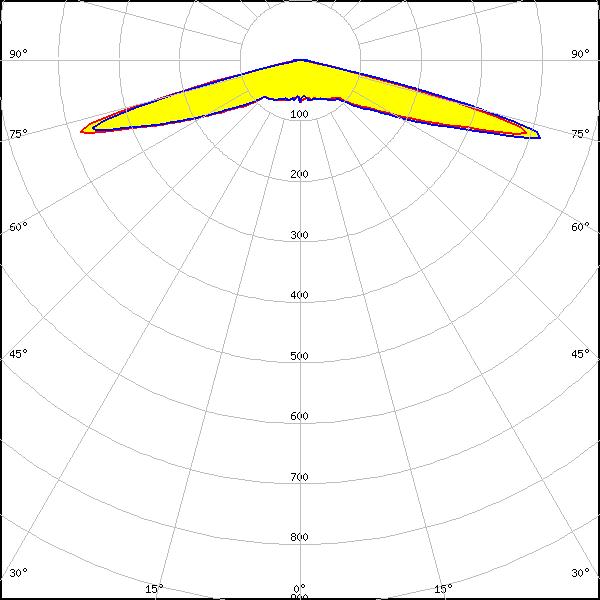

LED:
Bridgelux SMD 3535 (3A1)
FWHM:
151°
FWTM:
157°
Peak intensity:
0.557 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050 Round LES
FWHM:
148°
FWTM:
158°
Peak intensity:
0.378 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

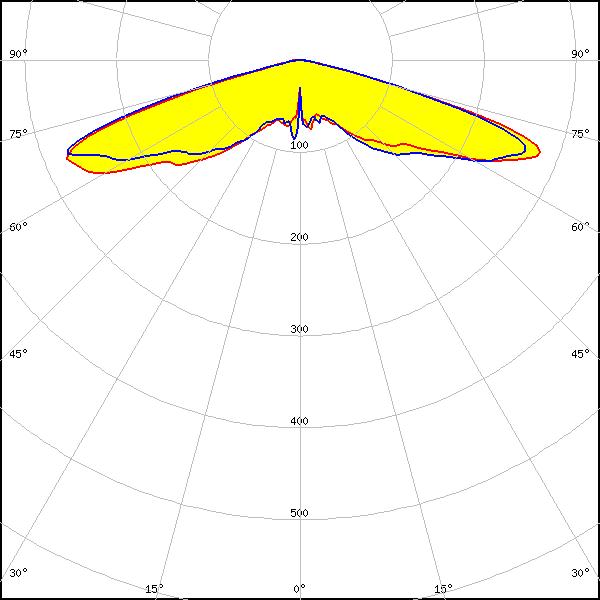

LED:

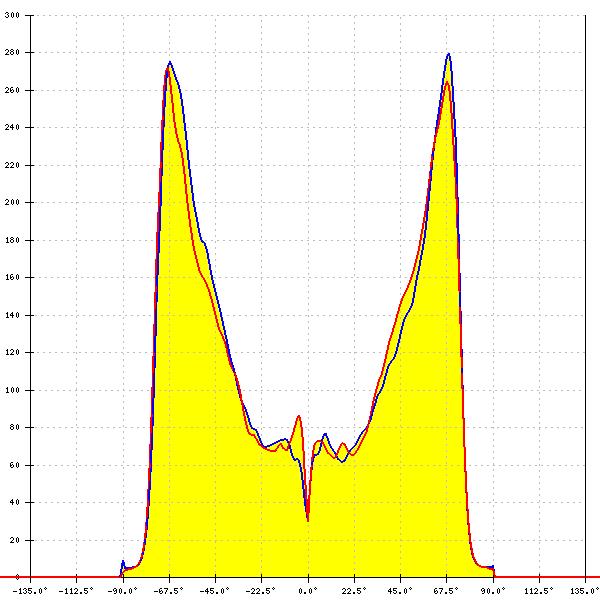

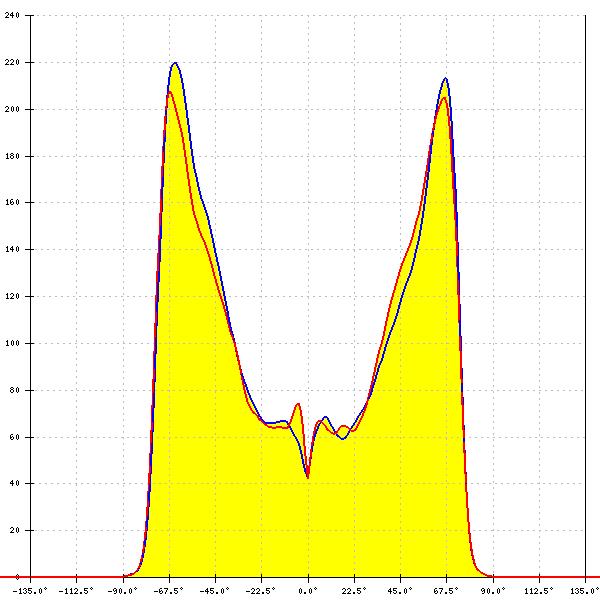

J Series 5050B 30V K Class
FWHM:
148°
FWTM:
156°
Peak intensity:
0.368 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

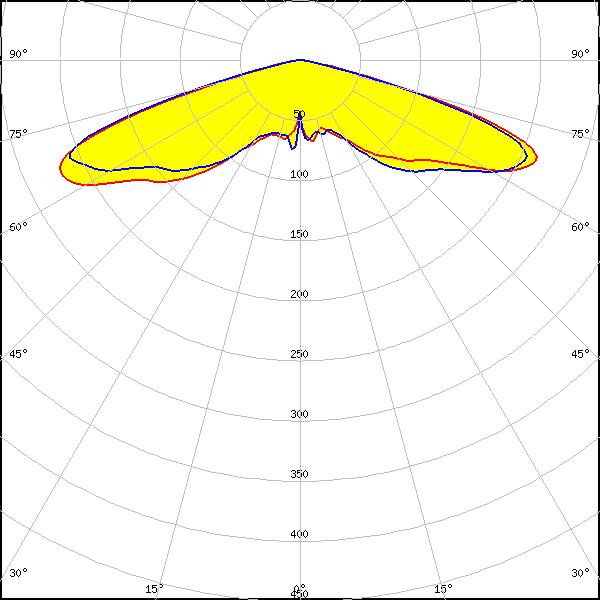

LED:
J Series 5050B 30V K Class
FWHM:
148°
FWTM:
157°
Peak intensity:
0.255 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

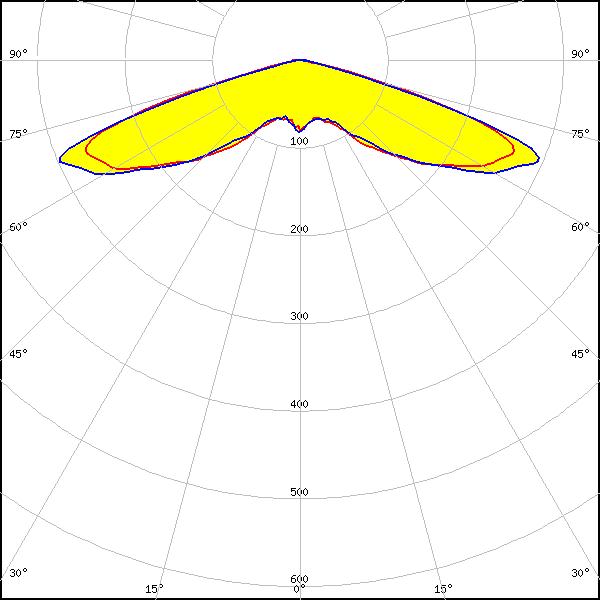

LED:

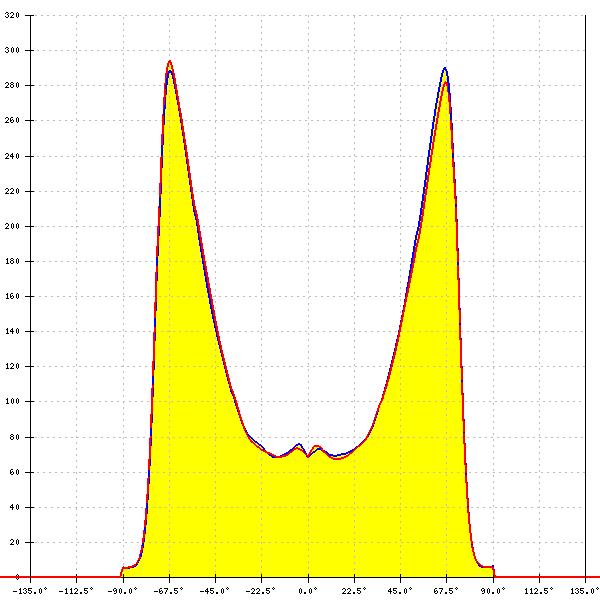

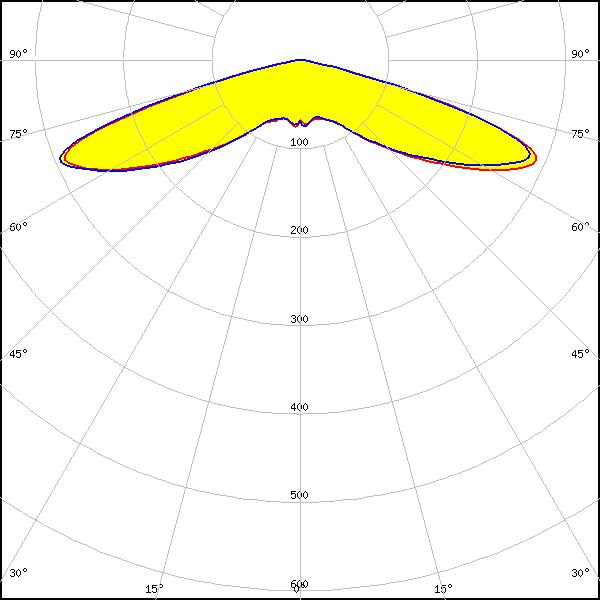

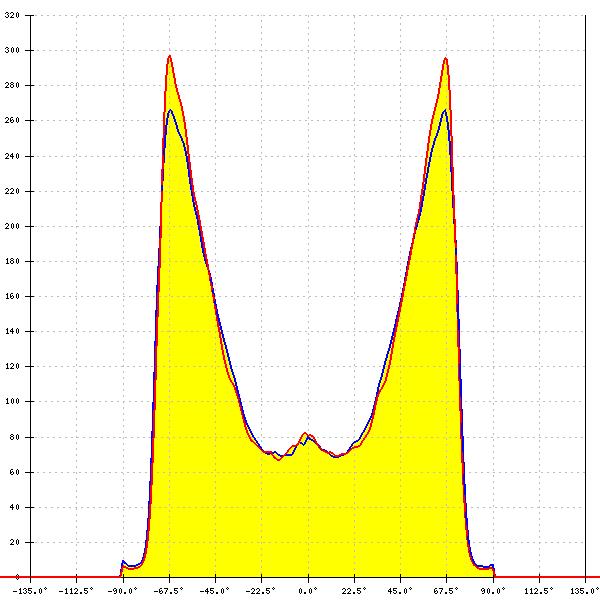

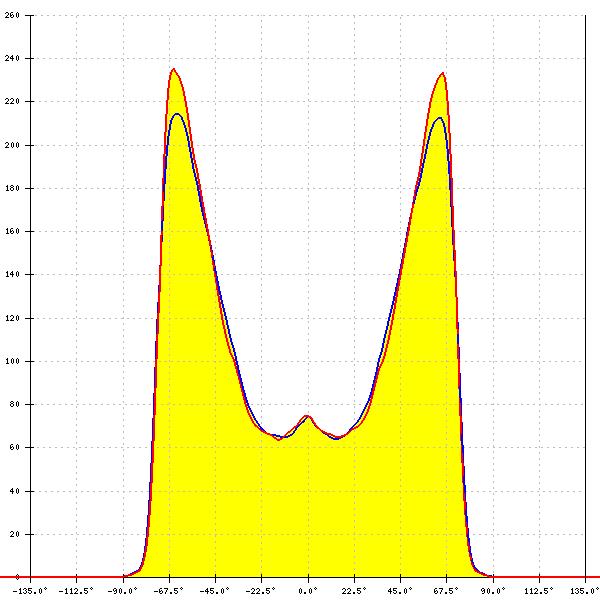

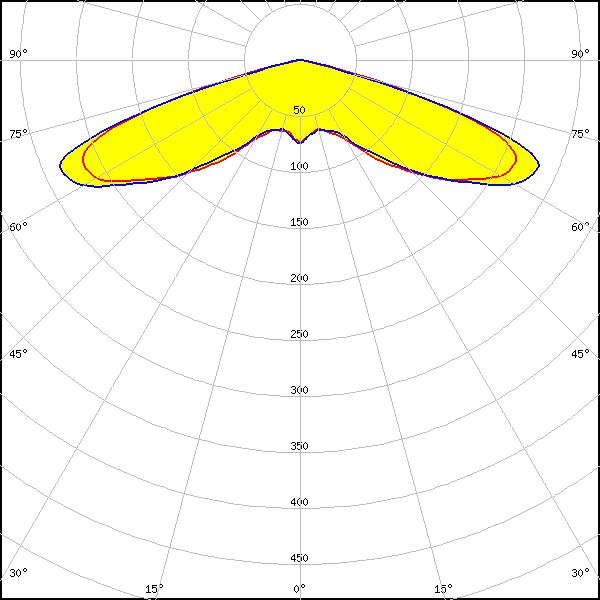

J Series 5050B 6V K Class
FWHM:
147°
FWTM:
155°
Peak intensity:
0.384 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM:
146°
FWTM:
155°
Peak intensity:
0.278 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

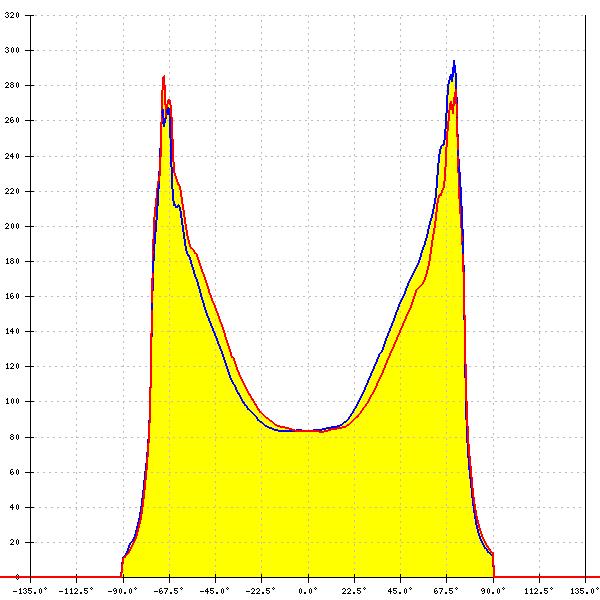

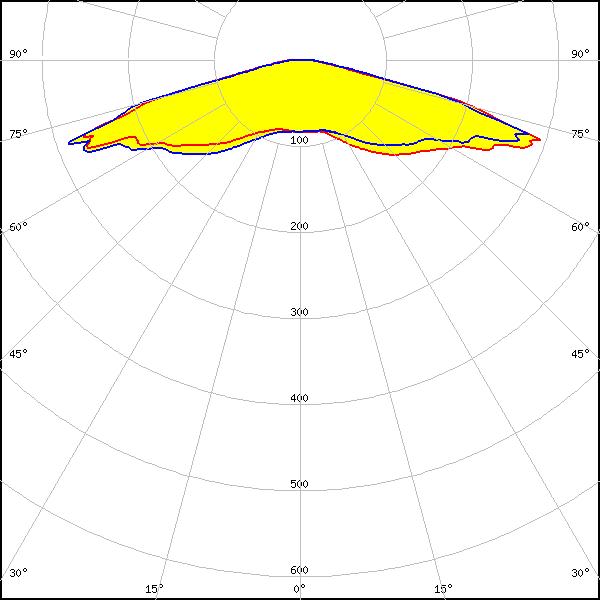

LED:
XHP50
FWHM:
154°
FWTM:
171°
Peak intensity:
0.330 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

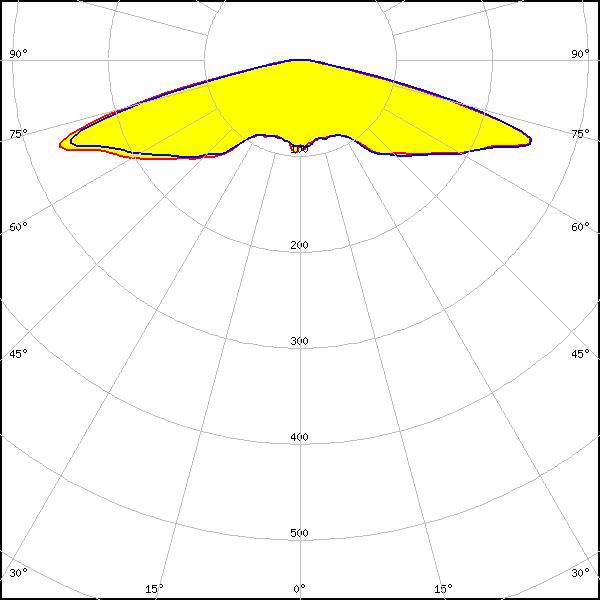

LED:

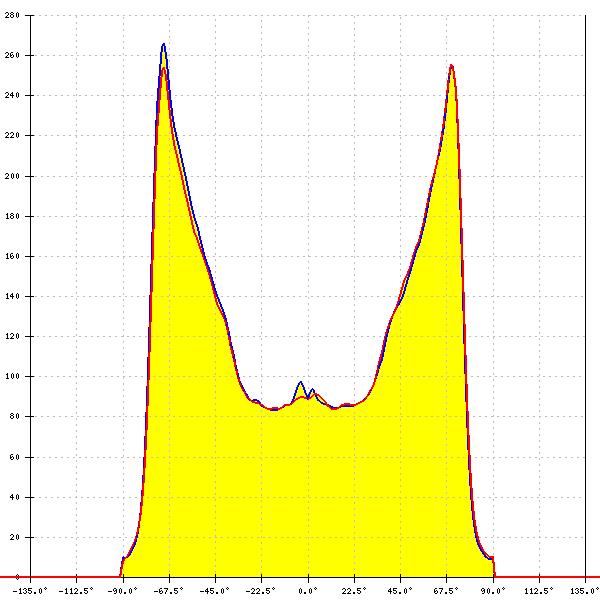

XHP50.3 HD
FWHM:
152°
FWTM:
164°
Peak intensity:
0.323 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

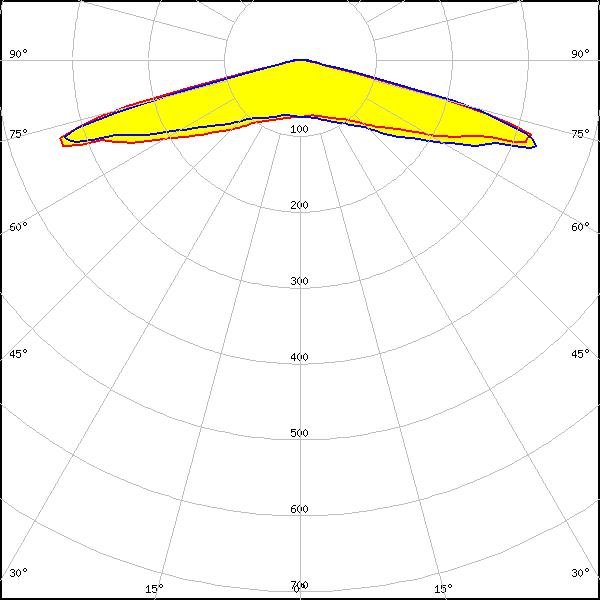

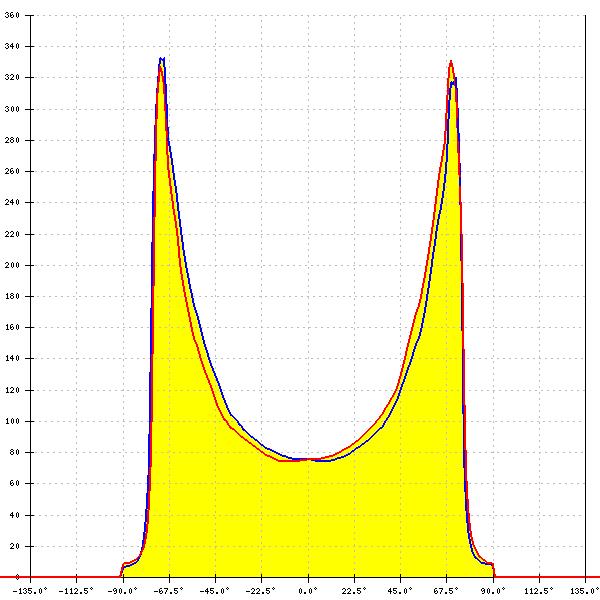

XM-L
FWHM:
154°
FWTM:
-
Peak intensity:
0.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

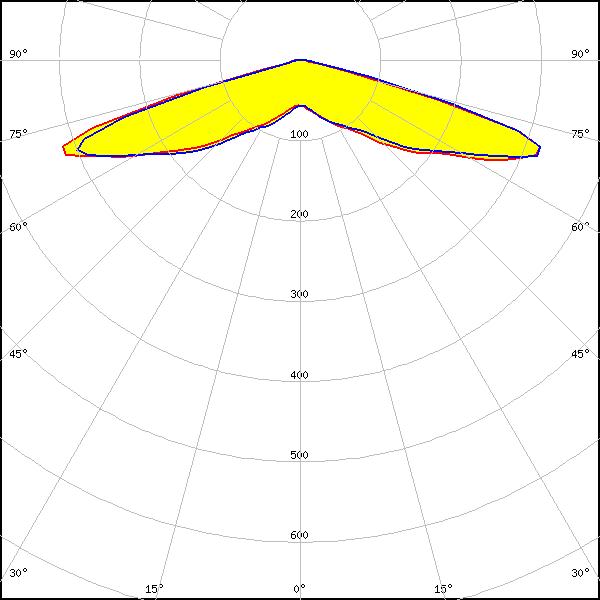

LED:

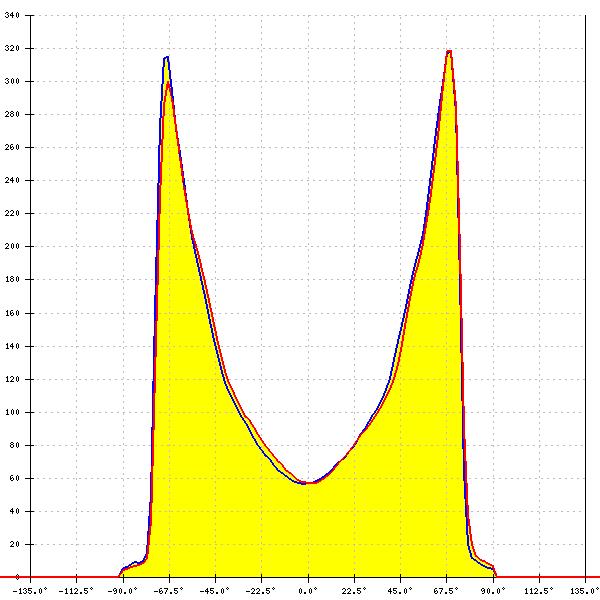

XM-L2
FWHM:
155°
FWTM:
177°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

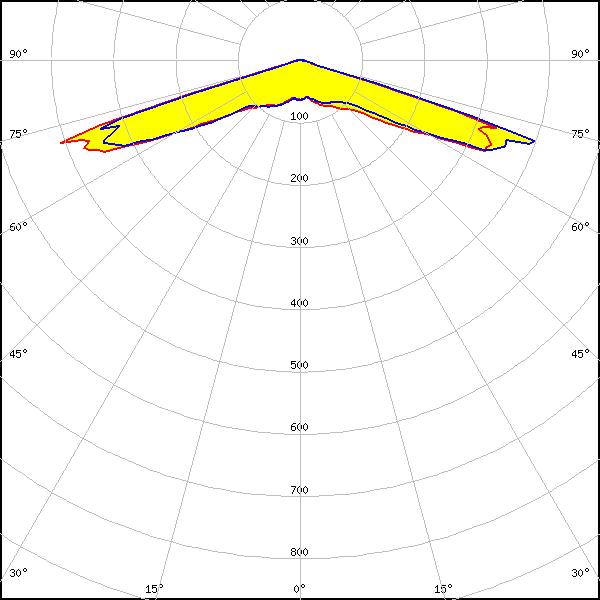

LED:

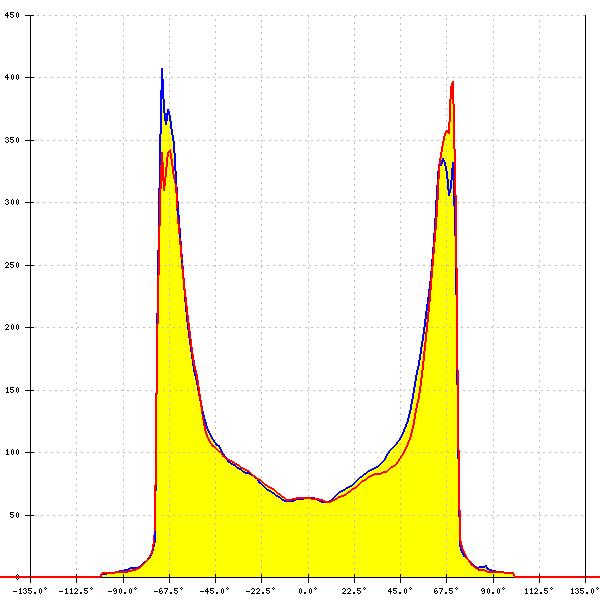

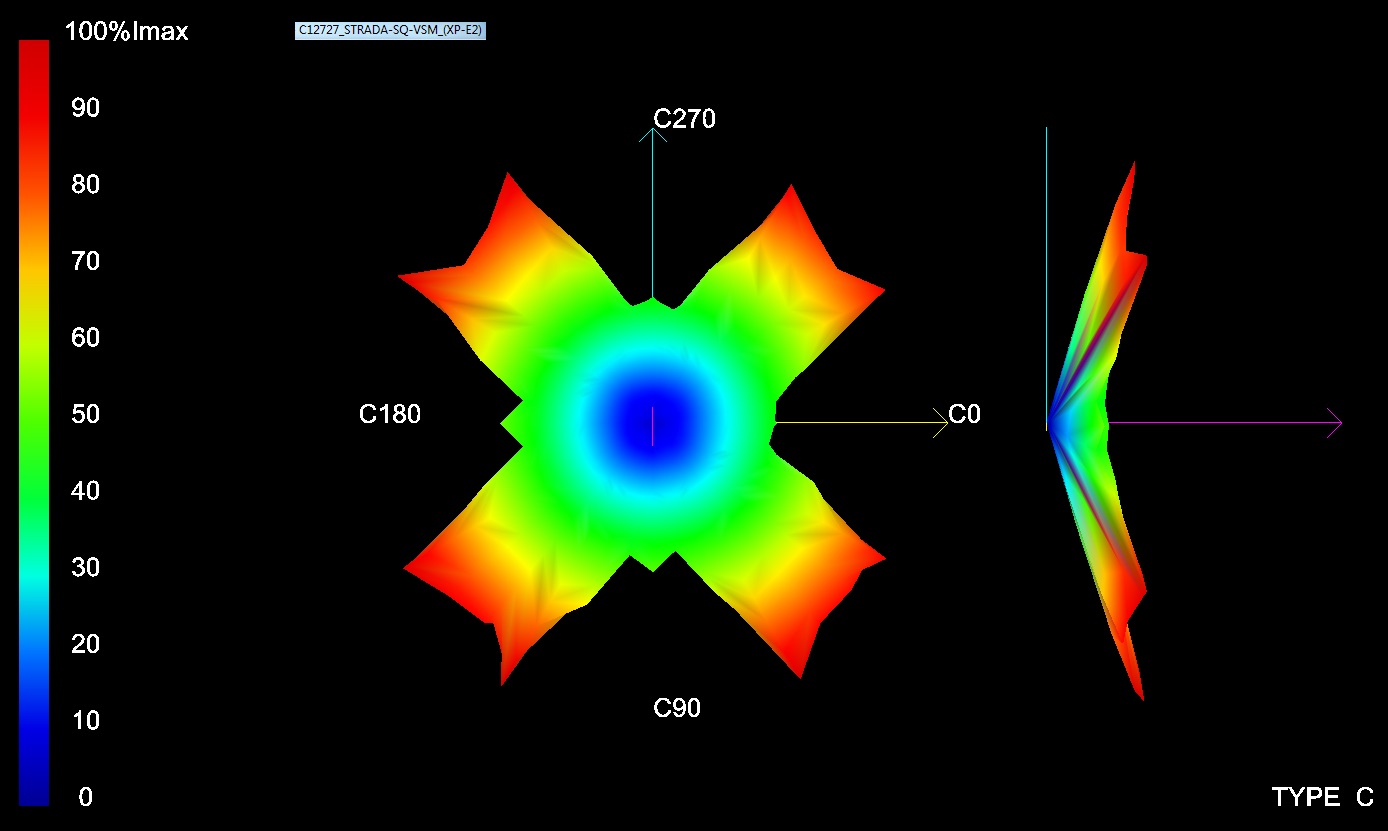

XP-E2
FWHM:
149°
FWTM:
151°
Peak intensity:
0.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

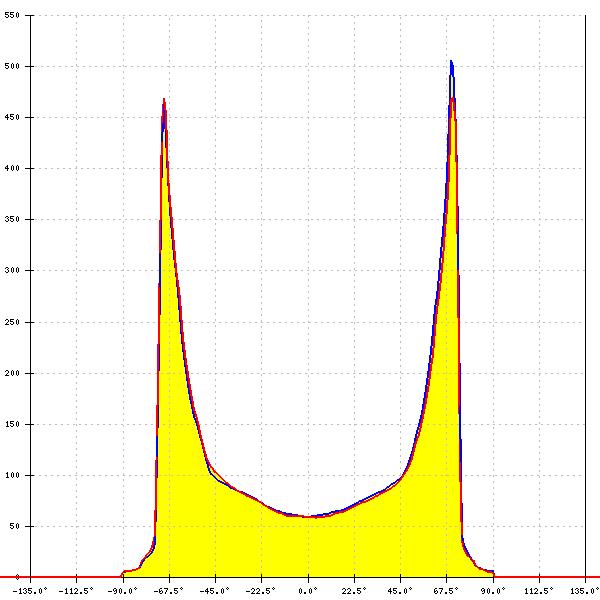

LED:

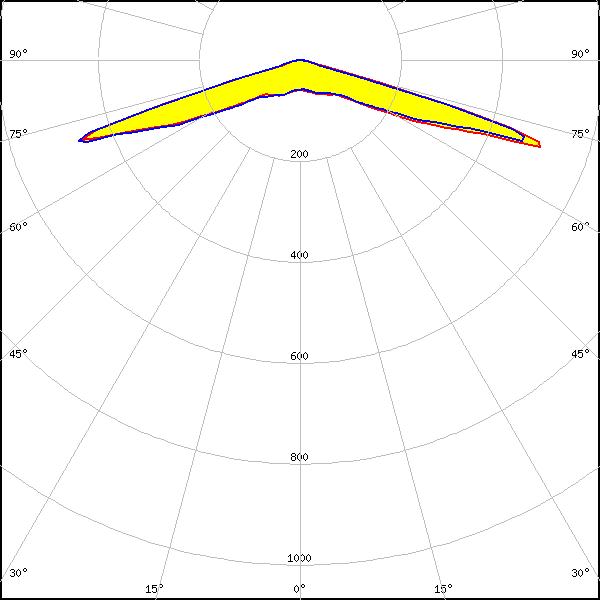

XP-G2
FWHM:
149°
FWTM:
153°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

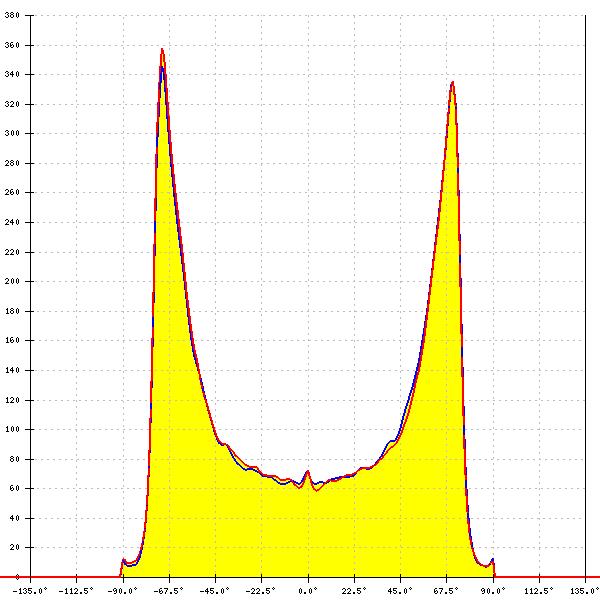

LED:

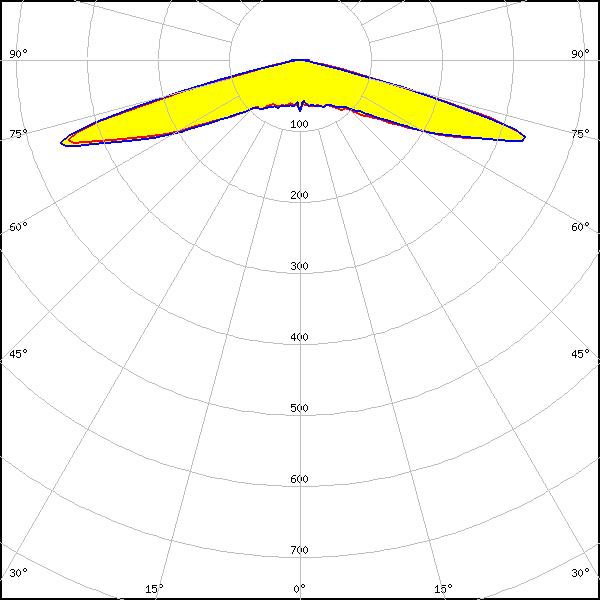

XP-G3
FWHM:
150°
FWTM:
158°
Peak intensity:
0.494 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

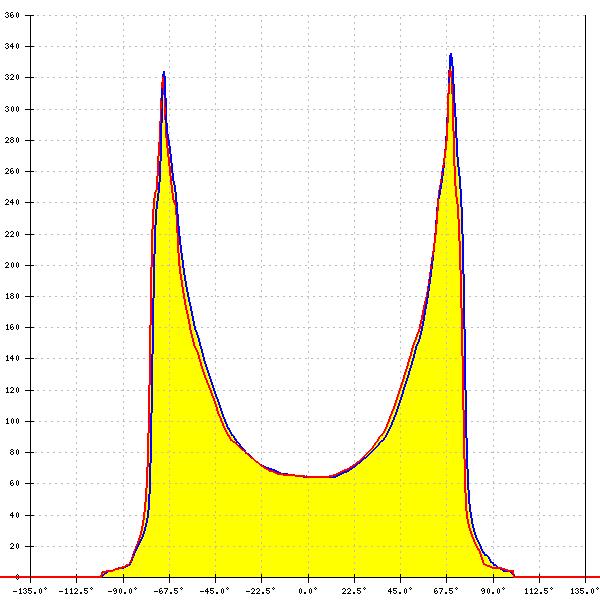

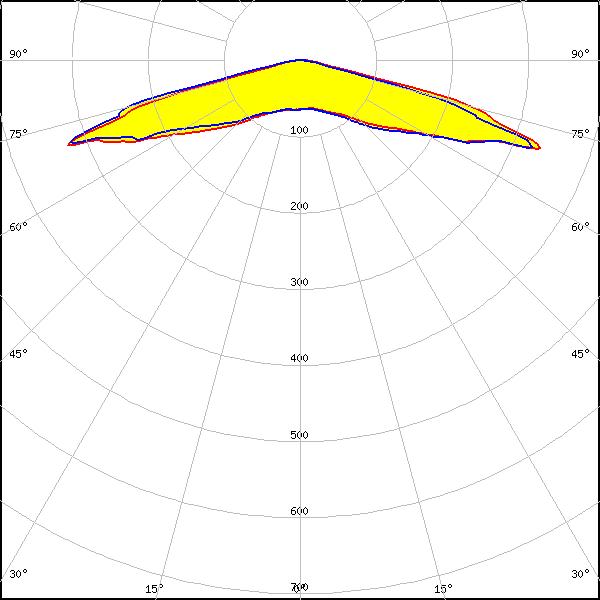

LED:
XP-L HD
FWHM:
152°
FWTM:
162°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

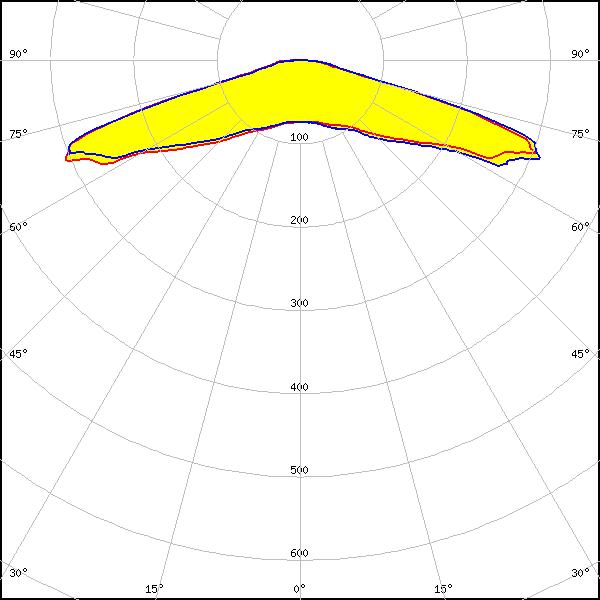

LED:

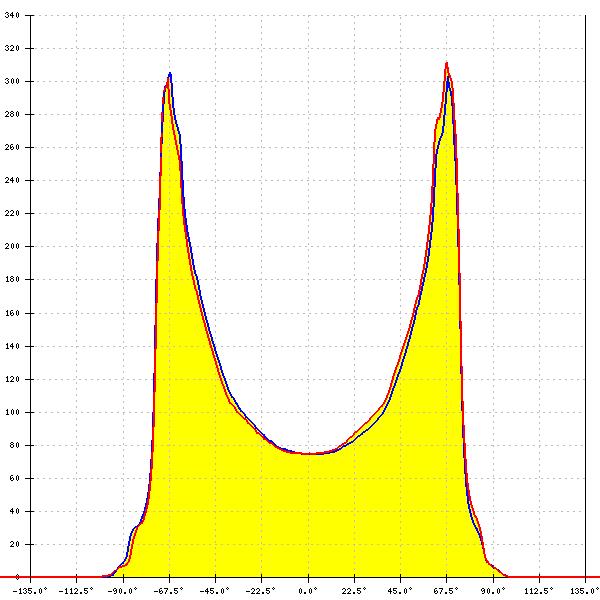

XP-L2
FWHM:
149°
FWTM:
170°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

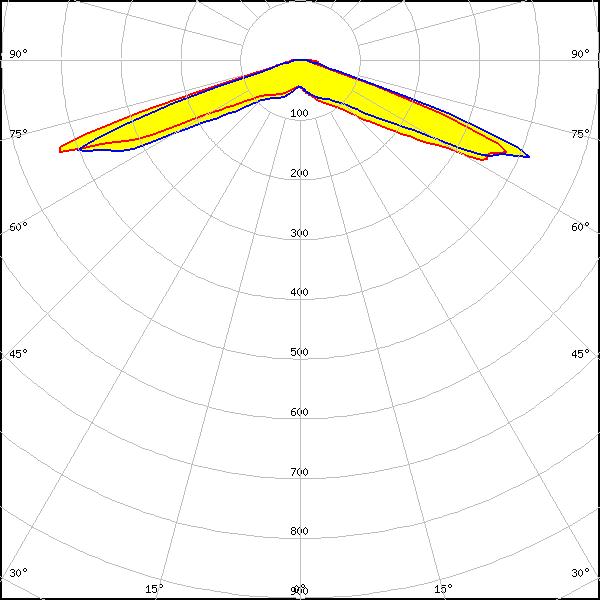

LED:

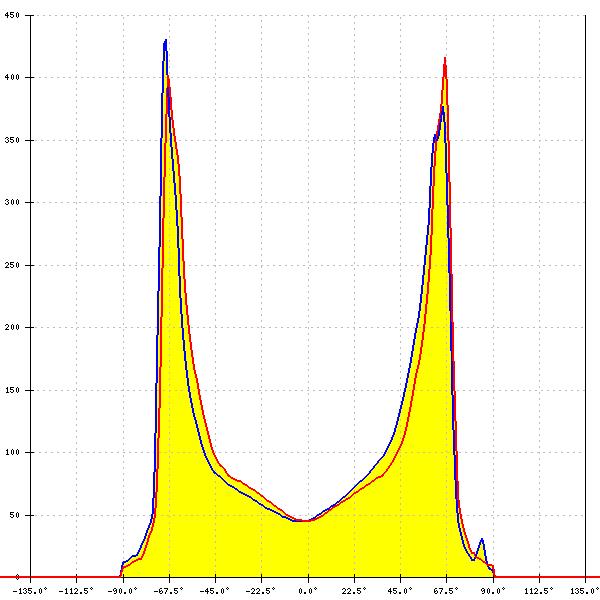

XT-E
FWHM:
151°
FWTM:
-
Peak intensity:
0.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

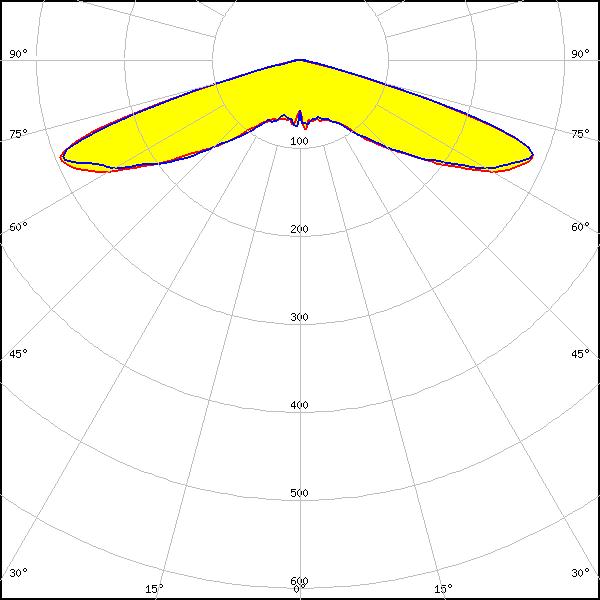

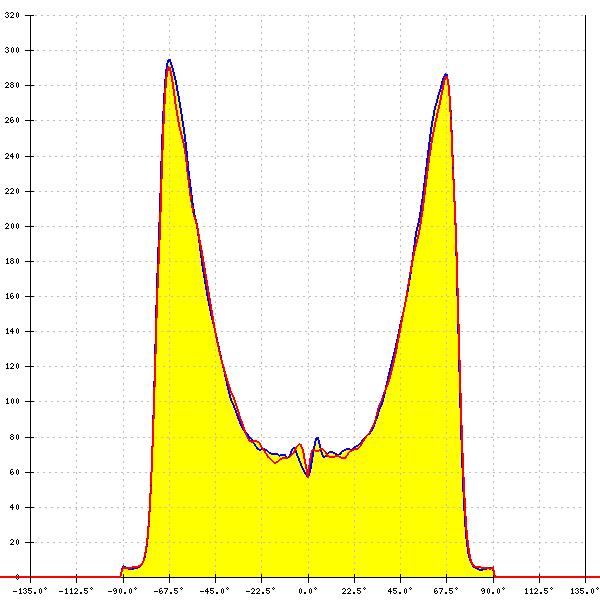

LED:
LUXEON 5050 Round LES
FWHM:
150°
FWTM:
157°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

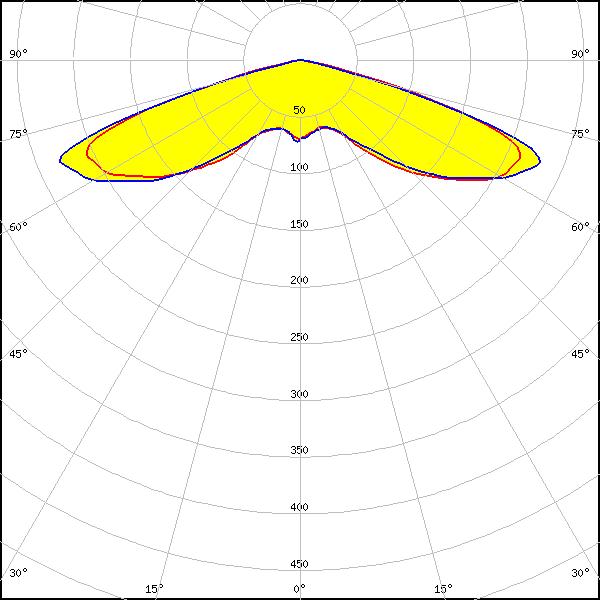

LED:

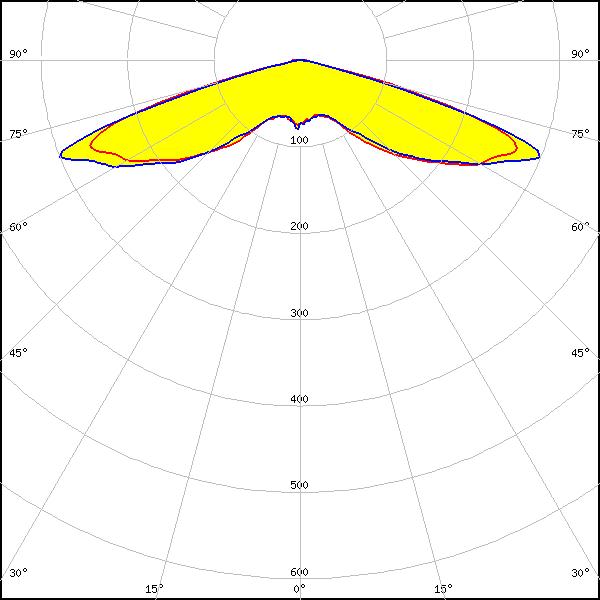

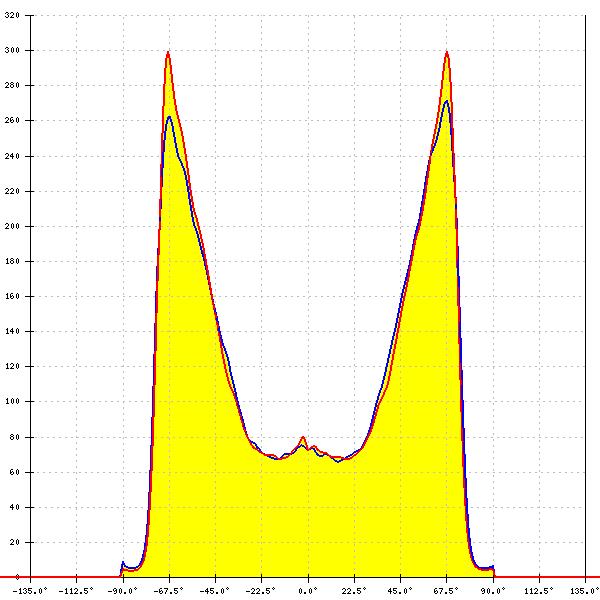

LUXEON 5050 Square LES
FWHM:
147°
FWTM:
155°
Peak intensity:
0.384 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

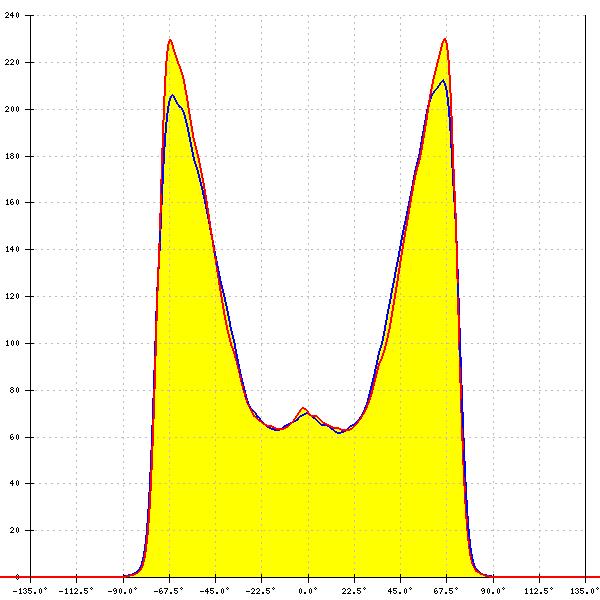

LUXEON 5050 Square LES
FWHM:
147°
FWTM:
155°
Peak intensity:
0.276 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

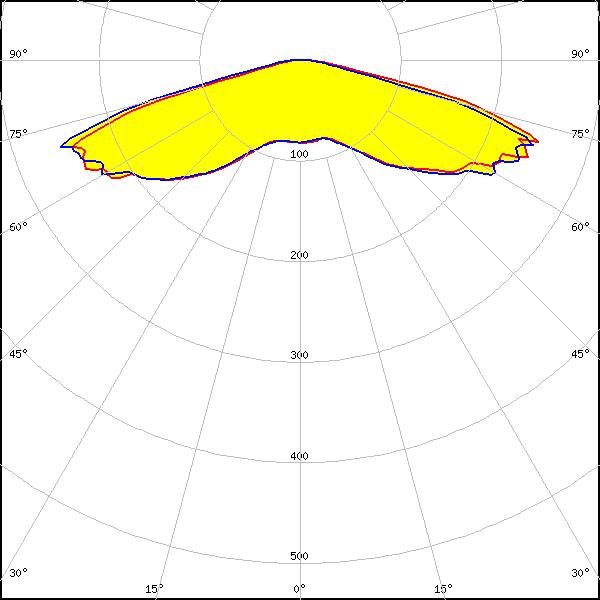

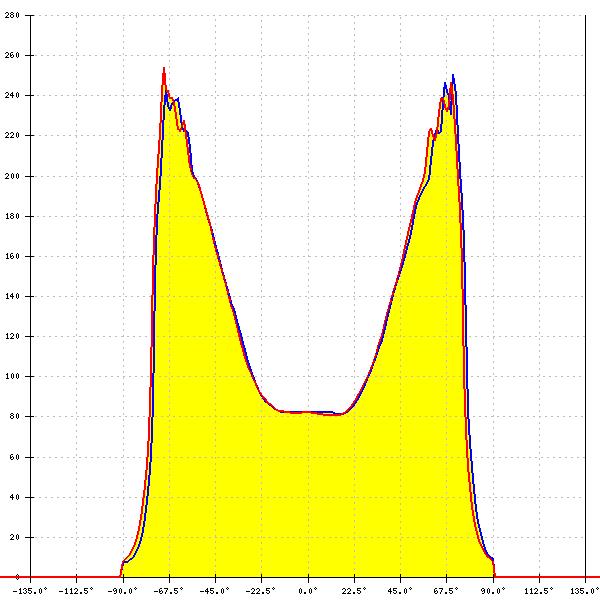

LUXEON M/MX
FWHM:
154°
FWTM:
-
Peak intensity:
0.250 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

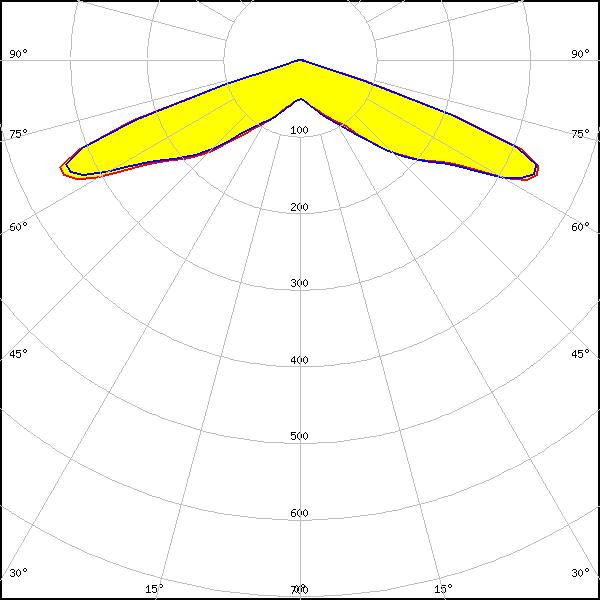

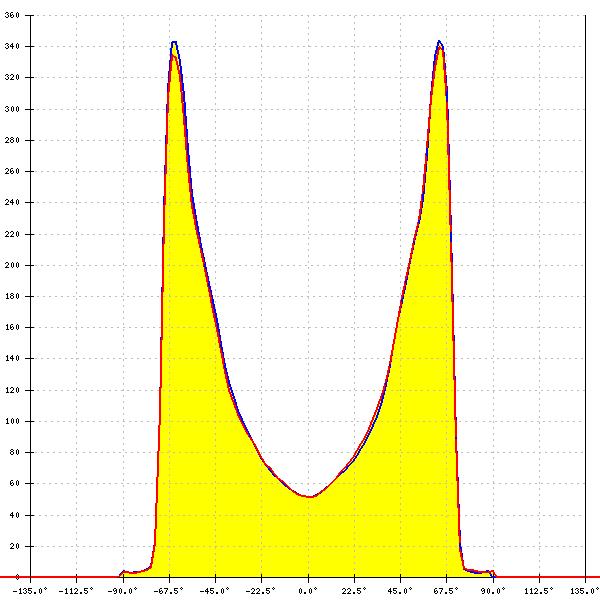

LUXEON MZ
FWHM:
148°
FWTM:
173°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

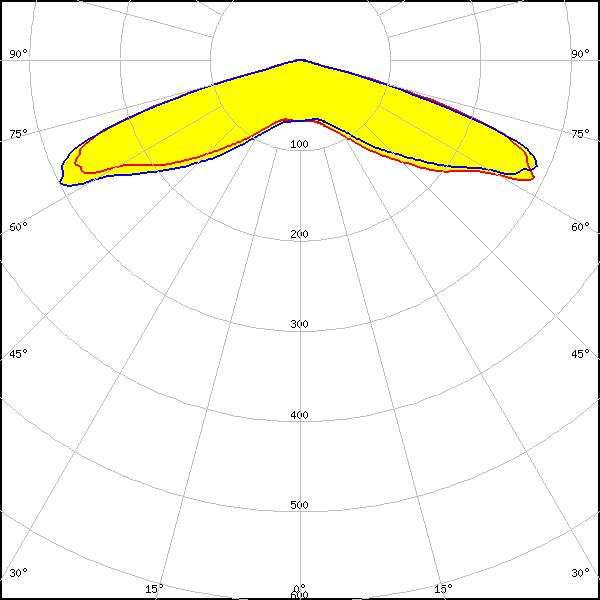

LED:

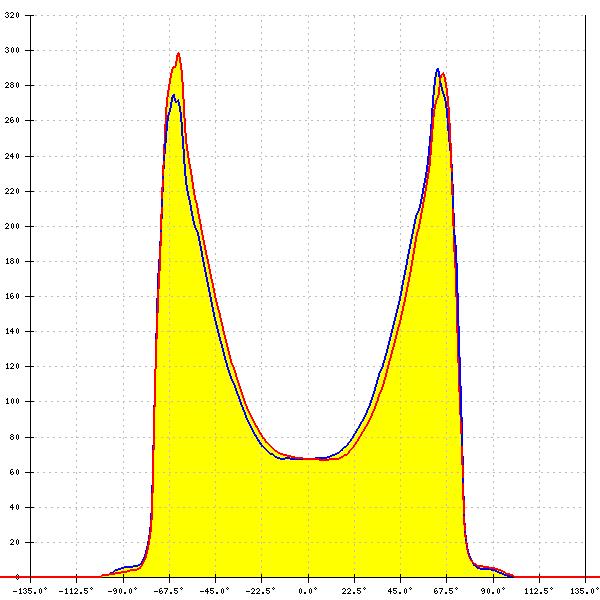

NFMW48xA
FWHM:
148°
FWTM:
154°
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

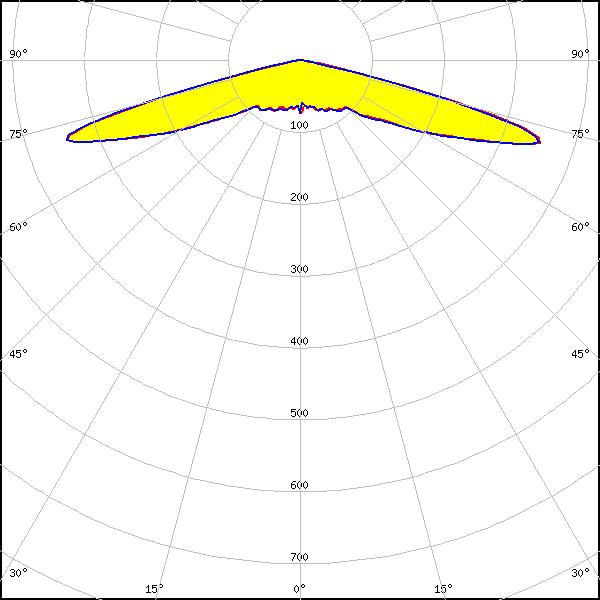

LED:
NVSW219F
FWHM:
150°
FWTM:
150°
Peak intensity:
0.489 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

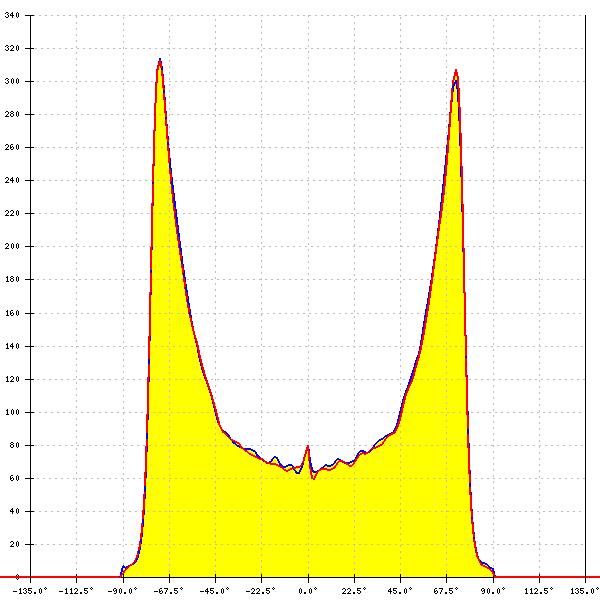

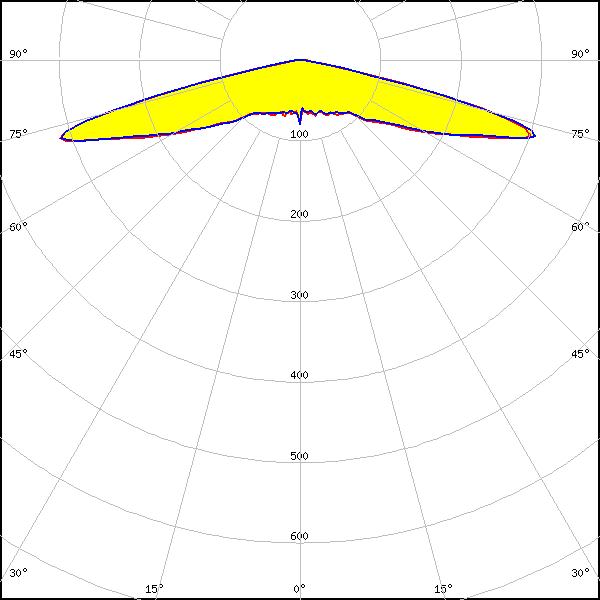

NVSW519A
FWHM:
154°
FWTM:
160°
Peak intensity:
0.434 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
150°
FWTM:
154°
Peak intensity:
0.357 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

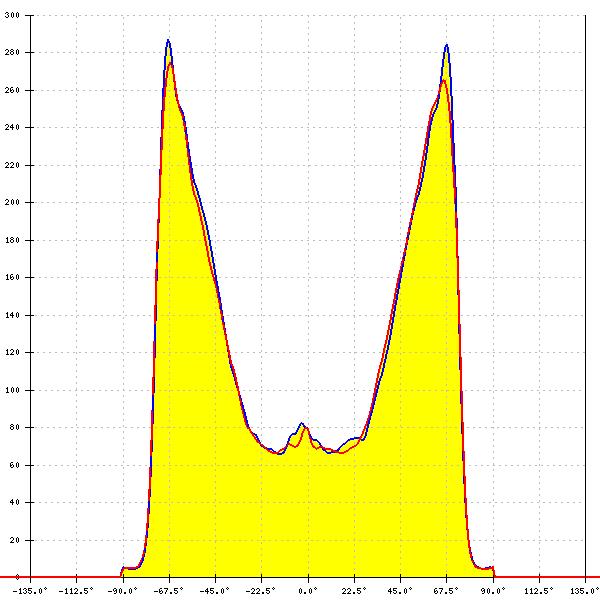

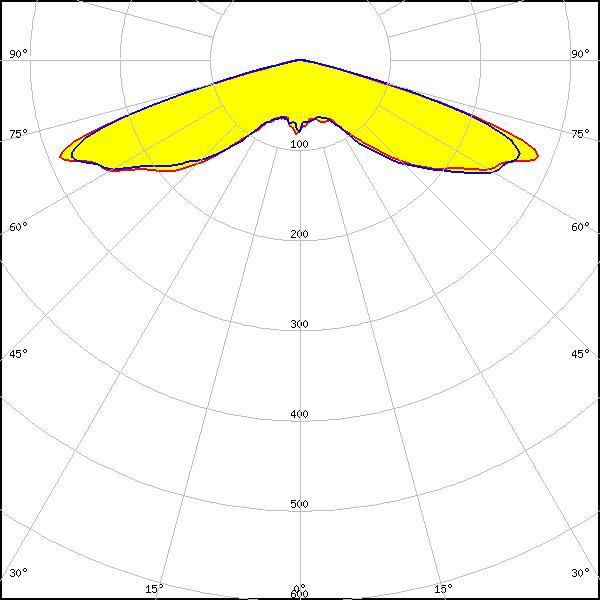

LED:

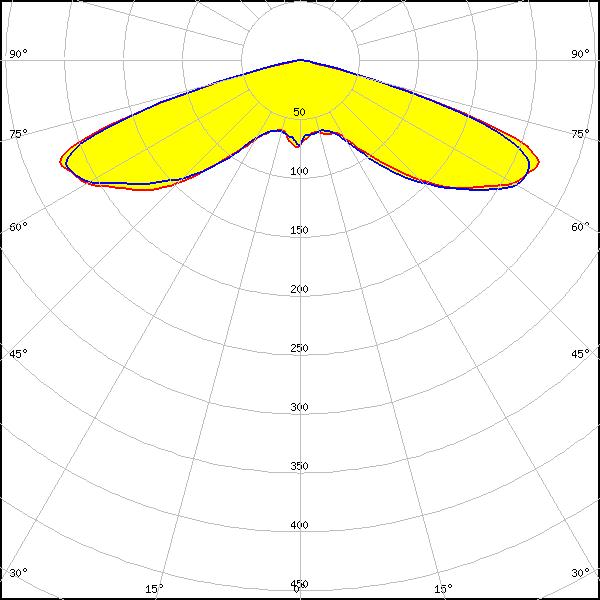

OSCONIQ S 5050 (Q9LR32)
FWHM:
148°
FWTM:
156°
Peak intensity:
0.377 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

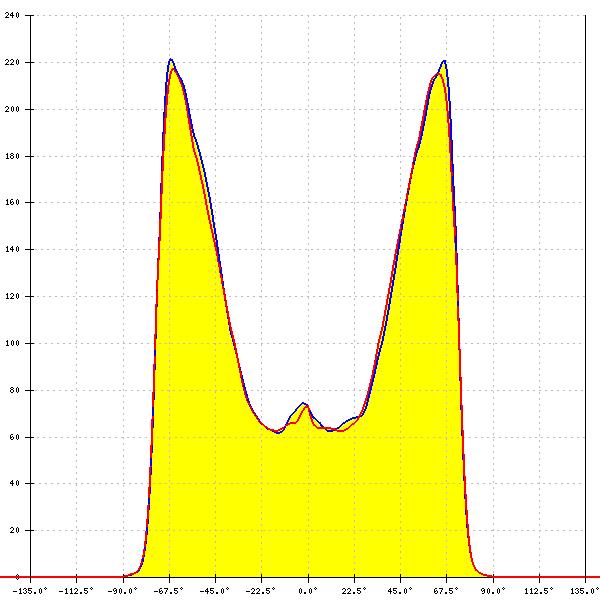

LED:
OSCONIQ S 5050 (Q9LR32)
FWHM:
147°
FWTM:
156°
Peak intensity:
0.275 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

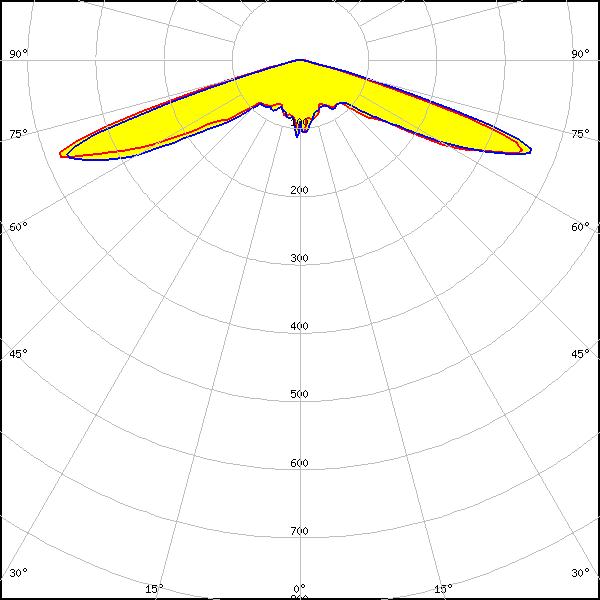

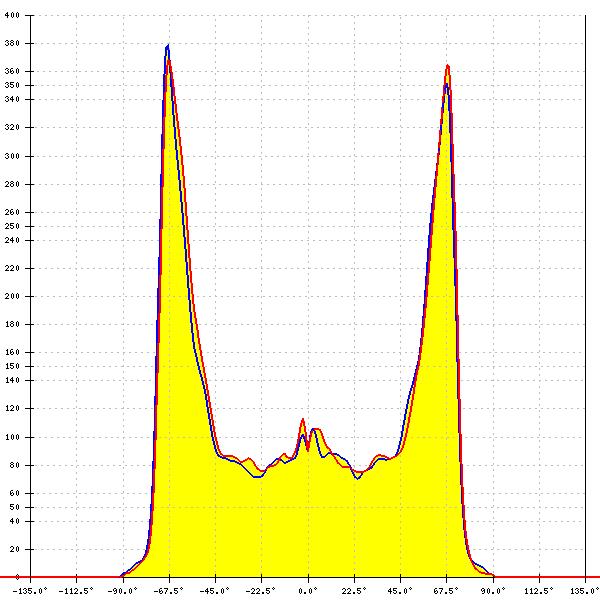

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
144°
FWTM:
-
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

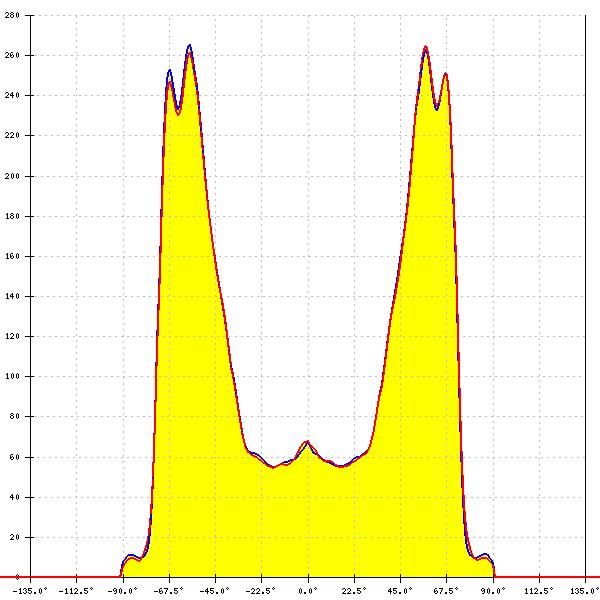

LED:

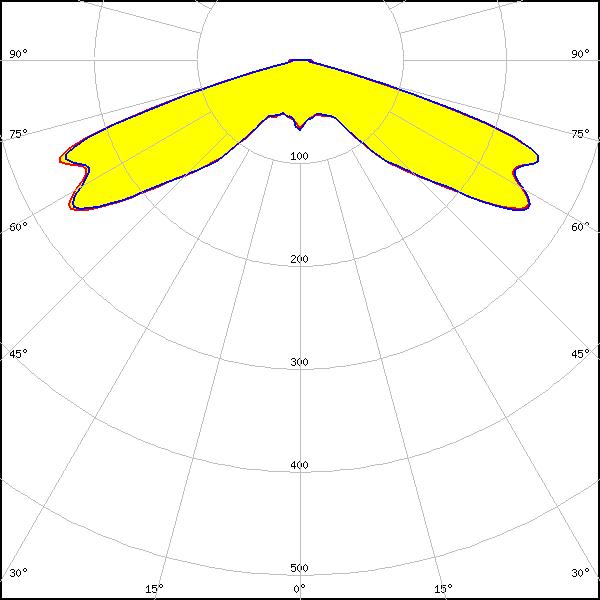

Z8Y19
FWHM:
146°
FWTM:
153°
Peak intensity:
0.408 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
