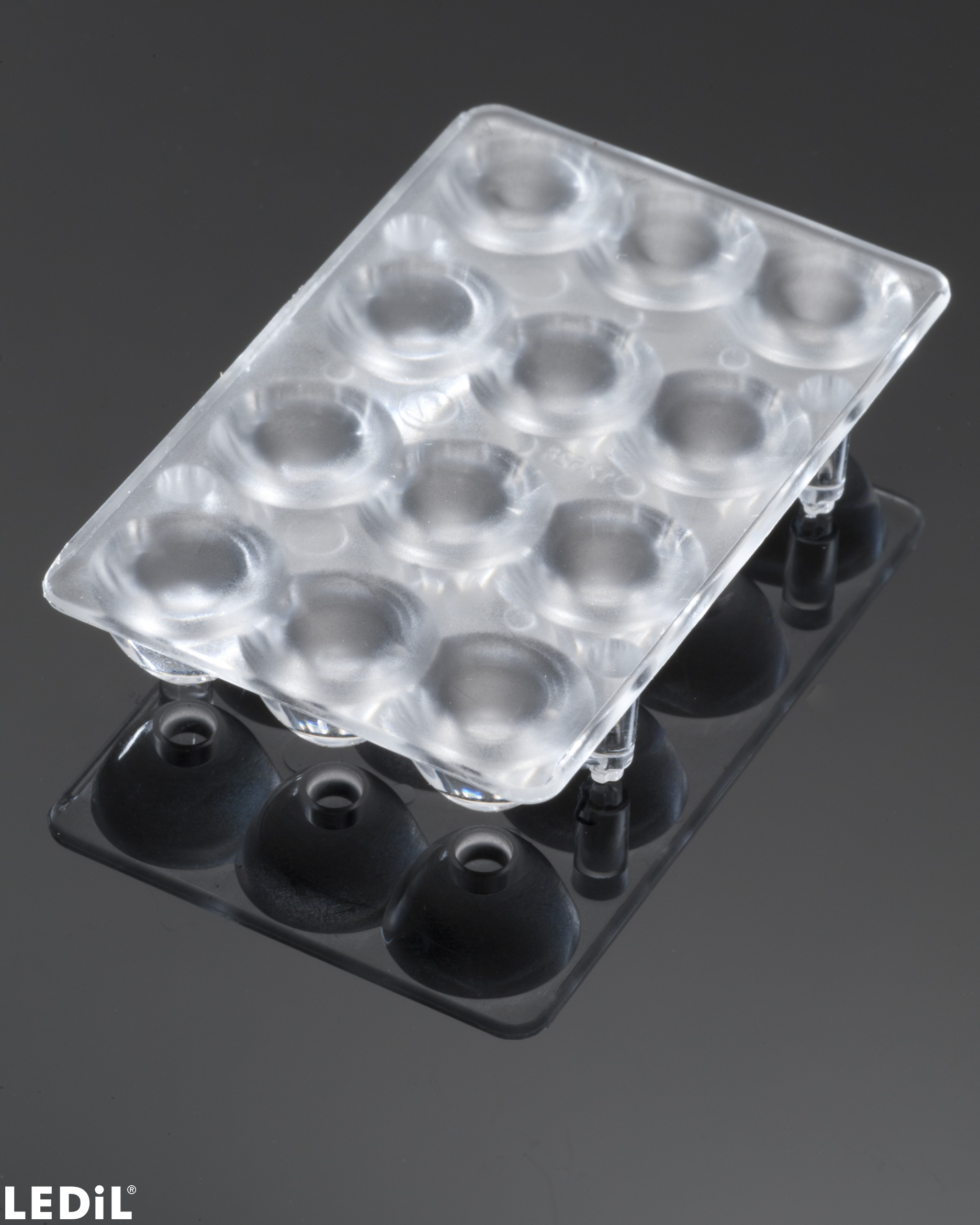

C12528_PETUNIA

Print

~30° medium beam

Specification
  • Dimensions:
    30 x  47 mm
  • Height:
    7.40 mm
  • Fastening:
    pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    1000 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.9 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 40 mm
  • MOQ weight:
    0.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C12528_PETUNIA

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

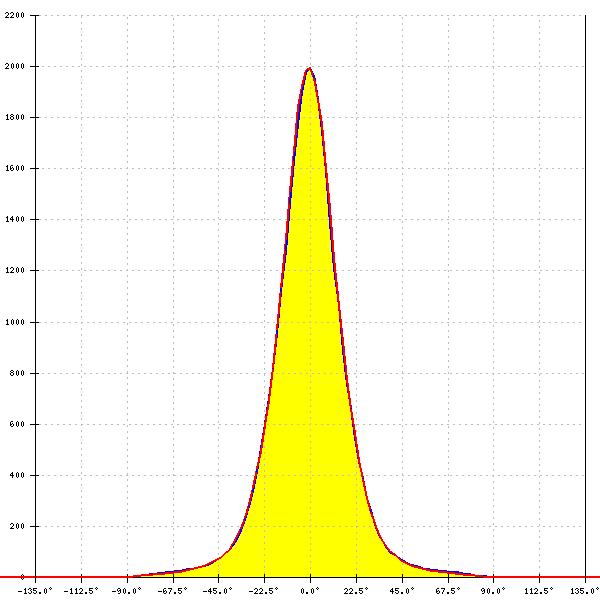

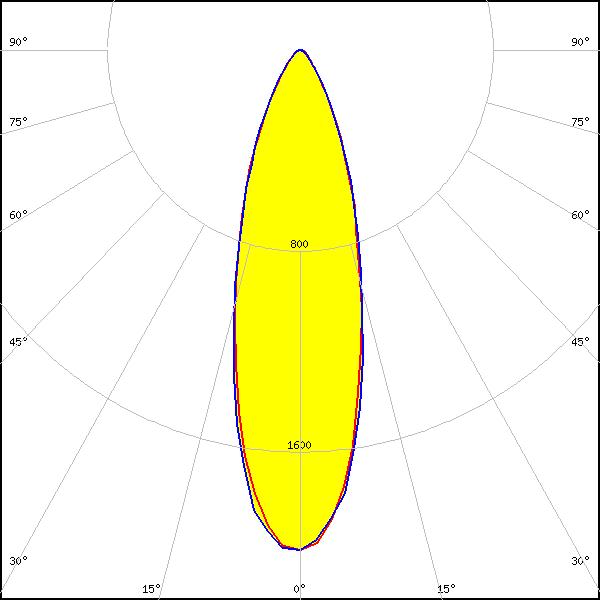

LED: XB-D
FWHM: 29°
FWTM: 65°
Peak intensity: 2.000 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

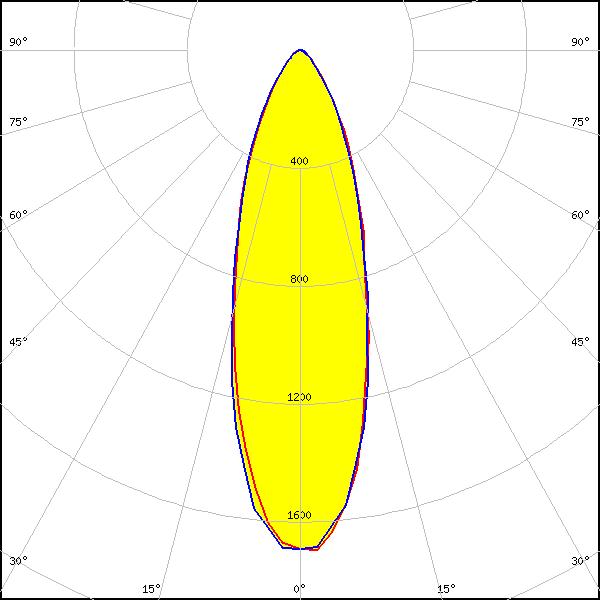

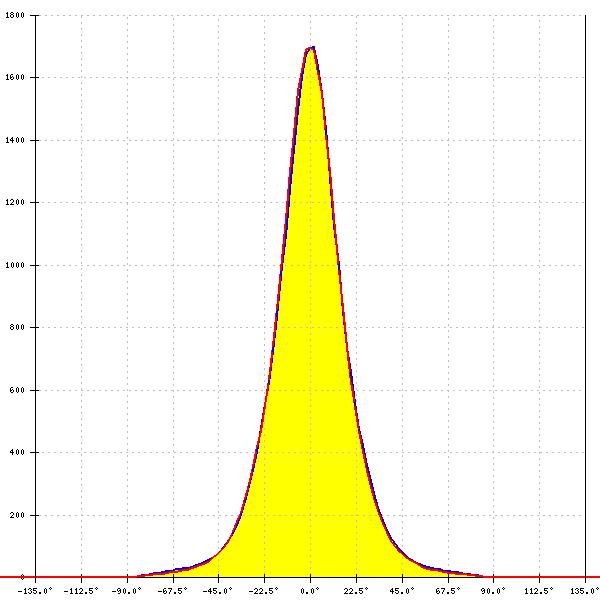

LED: NVSxx19A
FWHM: 32°
FWTM: 73°
Peak intensity: 1.700 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

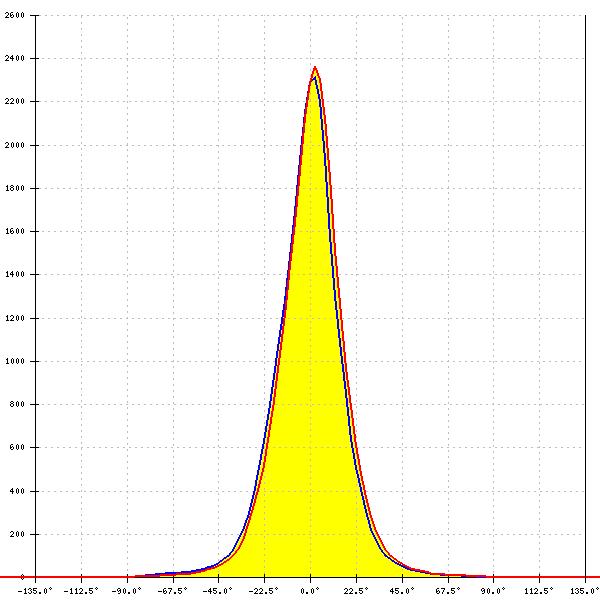

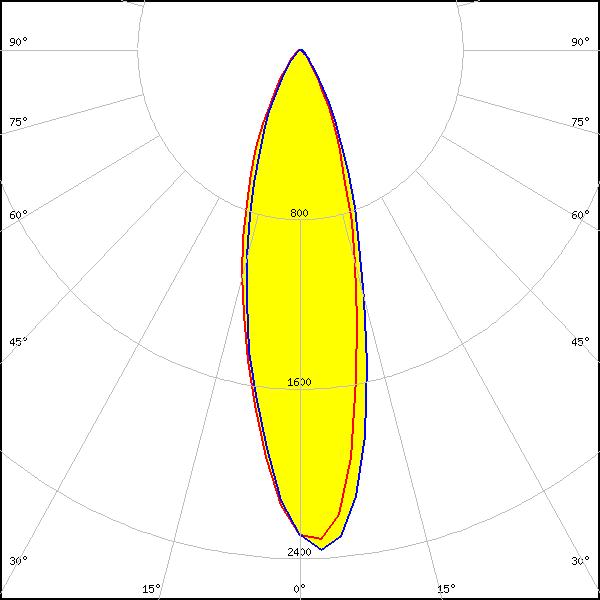

LED: OSLON SSL 150
FWHM: 28°
FWTM: 60°
Peak intensity: 2.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
