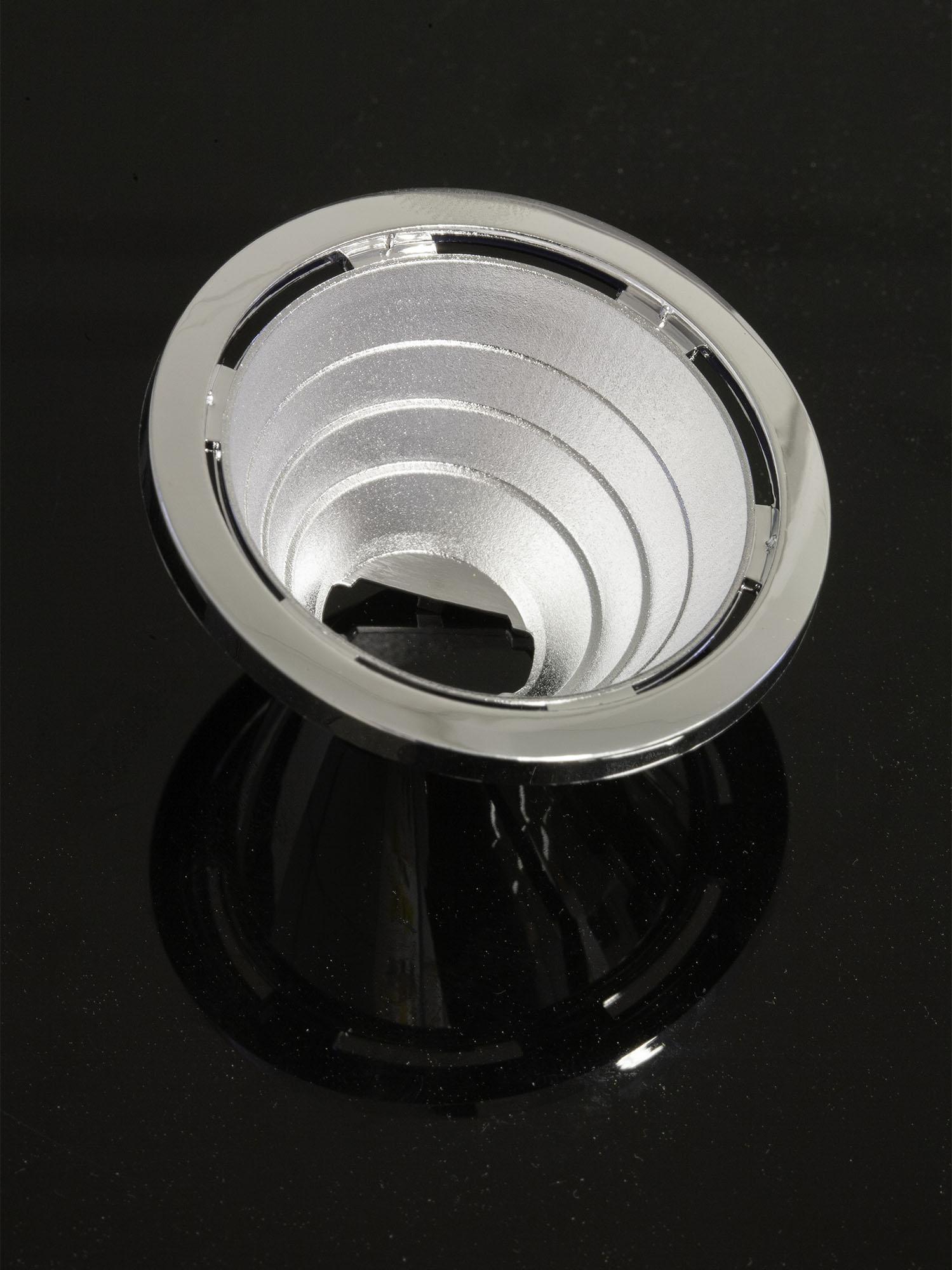

C12481_MIRELLA-50-M-PIN
Print
~30° medium beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Please note that the position pin holes come very close to the LED.
Related Content
AVAILABLE LEDiL ACCESSORIES

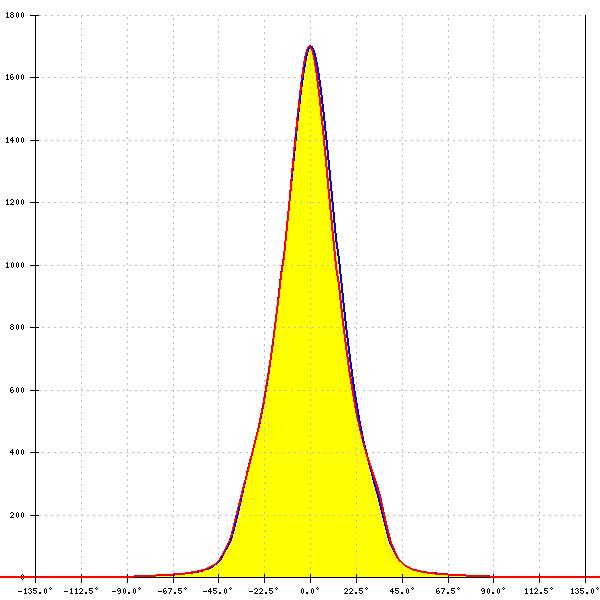

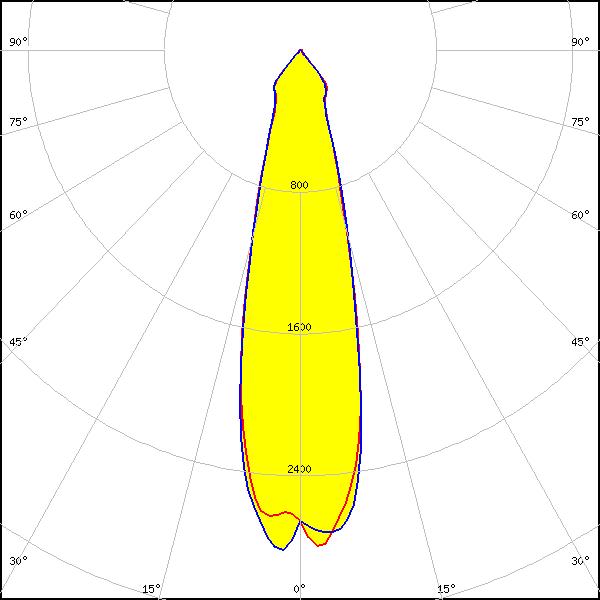

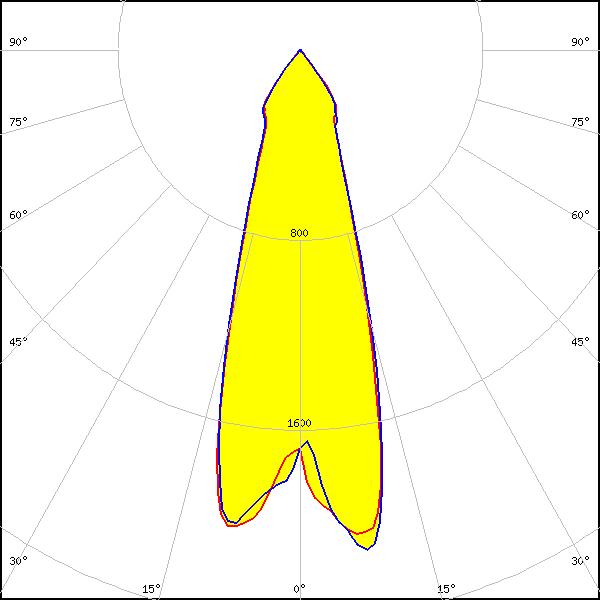

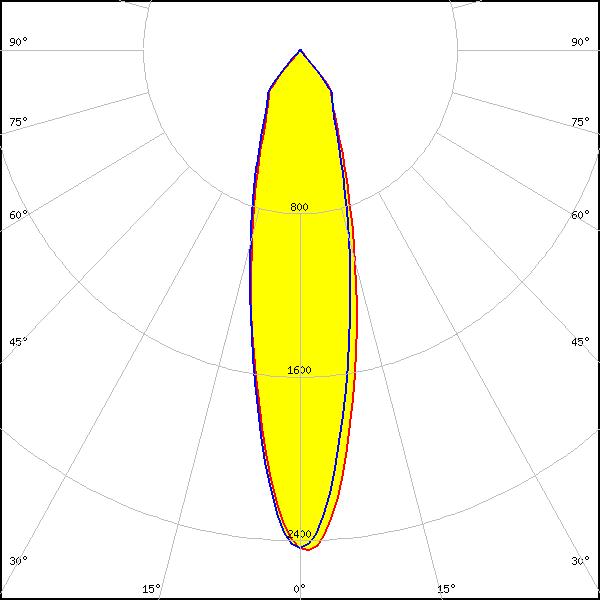

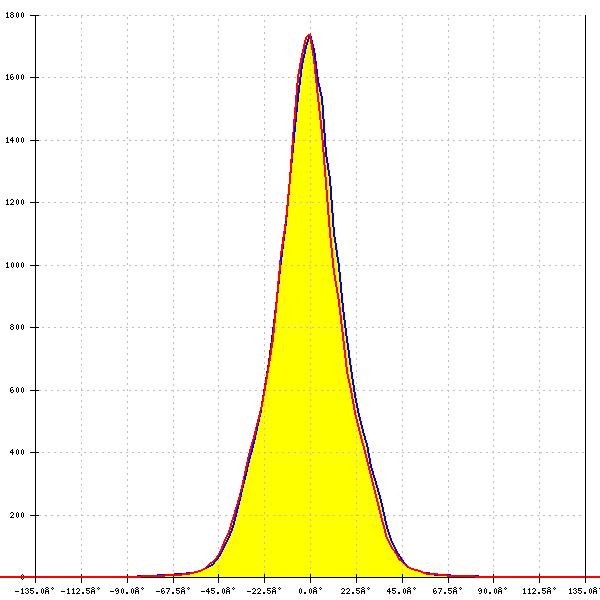

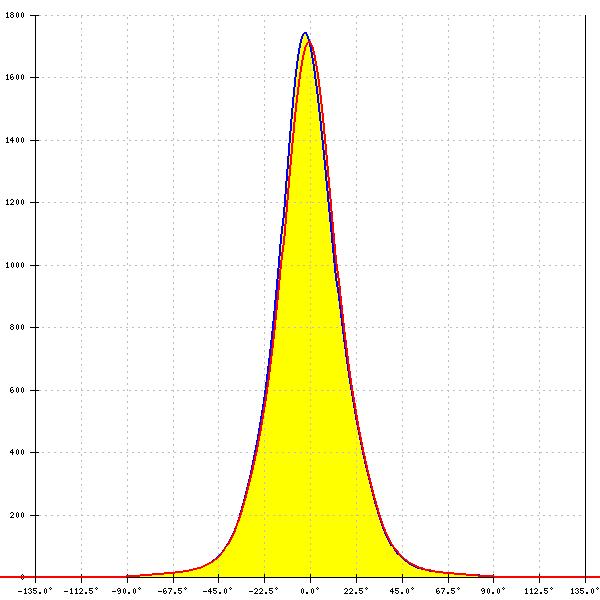

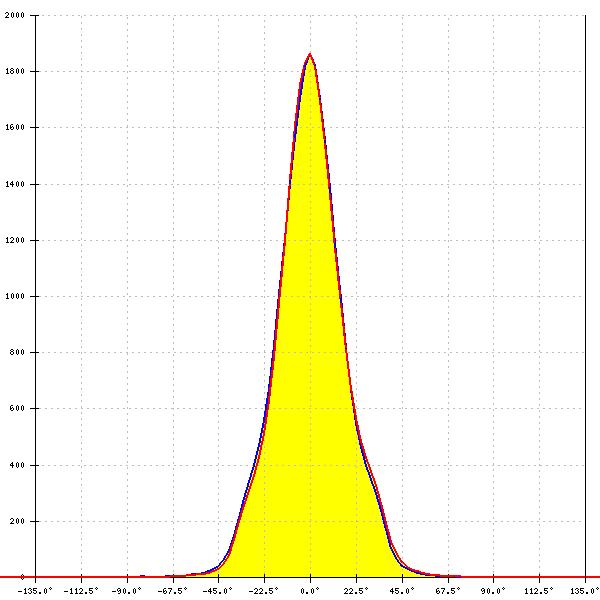

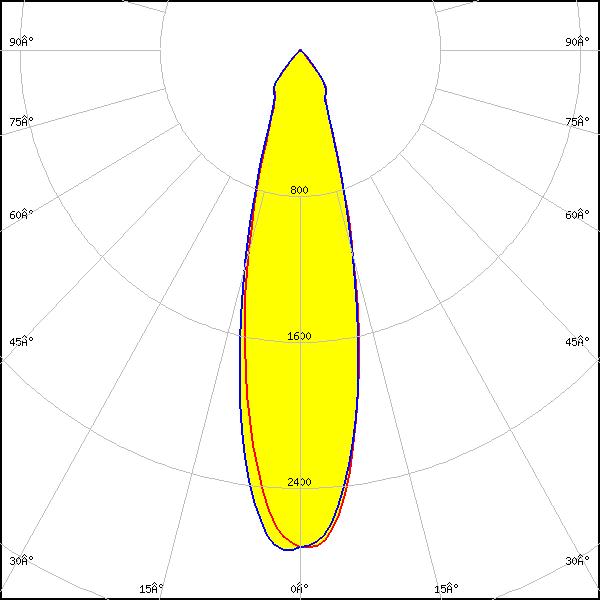

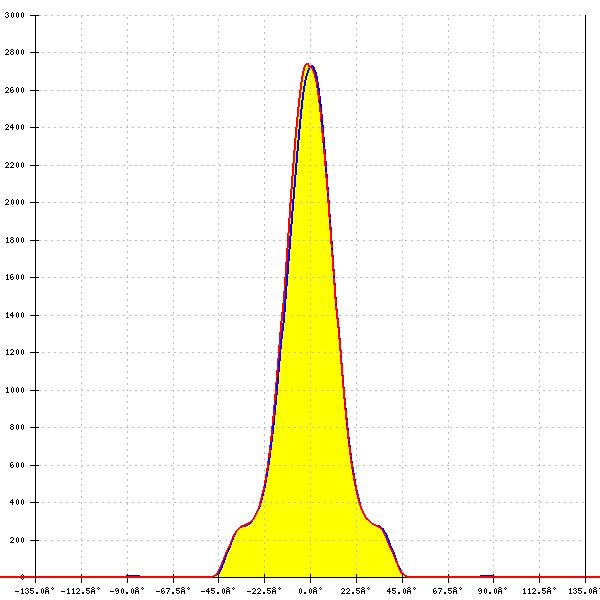

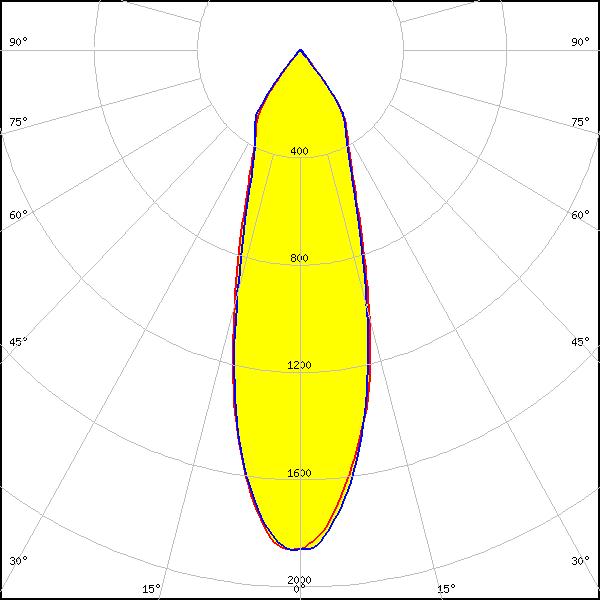

Optical results

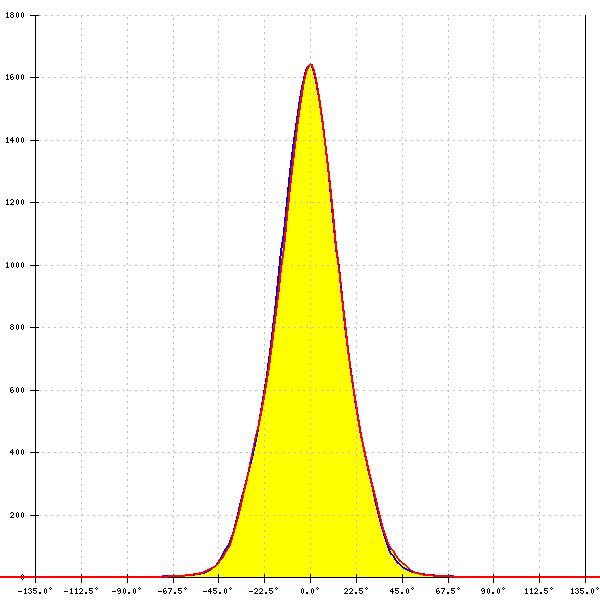

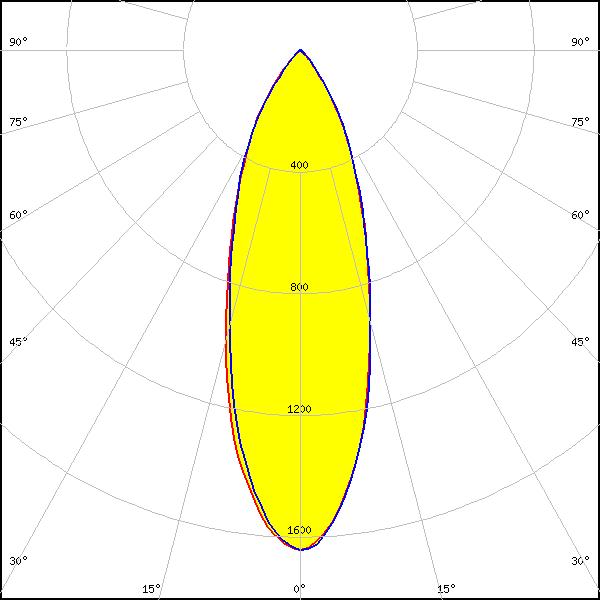

LED:
SM4
Required components:
FWHM:
35°
FWTM:
73°
Peak intensity:
1.650 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

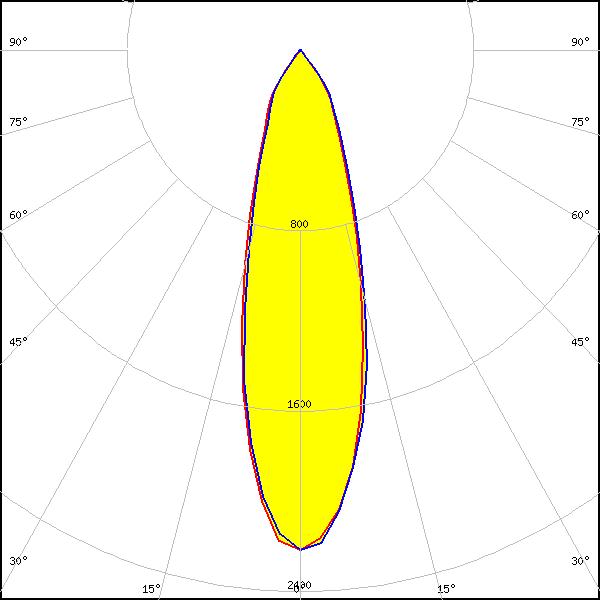

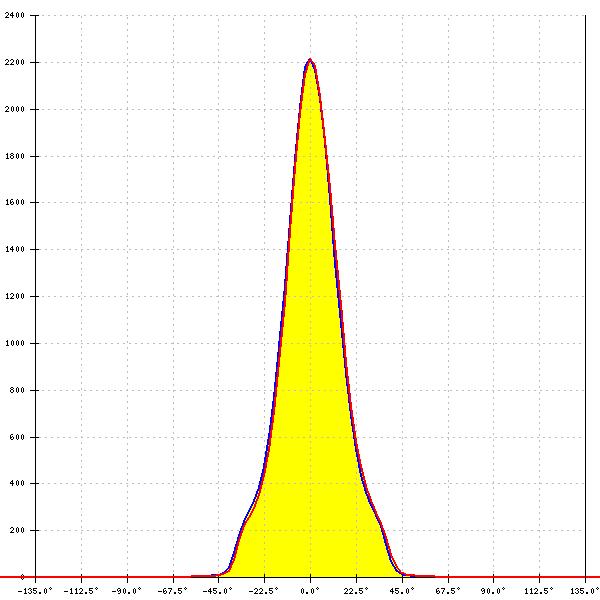

LED:
SM4
Required components:
FWHM:
29°
FWTM:
68°
Peak intensity:
2.200 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

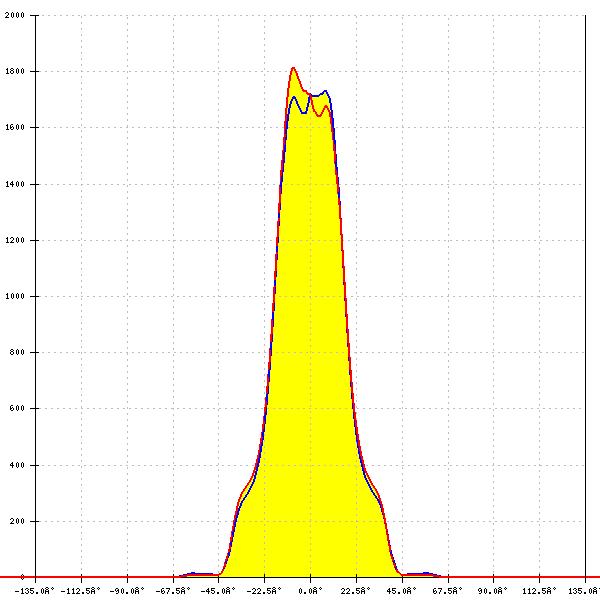

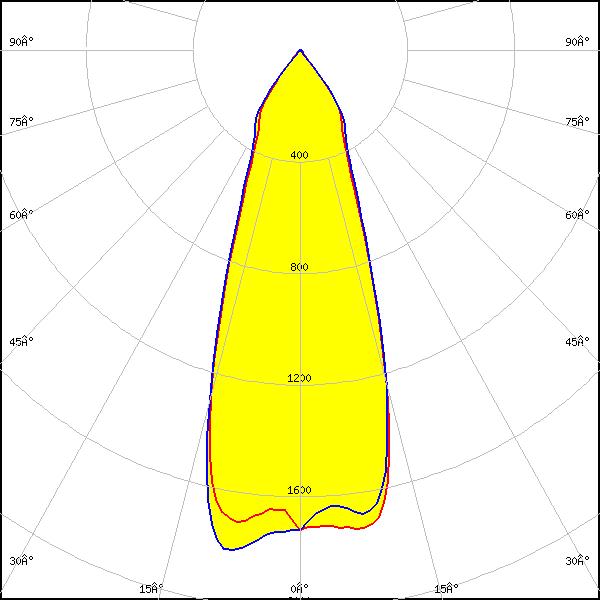

LED:
MHB-A/B
Required components:
FWHM:
35°
FWTM:
76°
Peak intensity:
1.820 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHB-A/B
Required components:
FWHM:
34°
FWTM:
78°
Peak intensity:
1.970 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

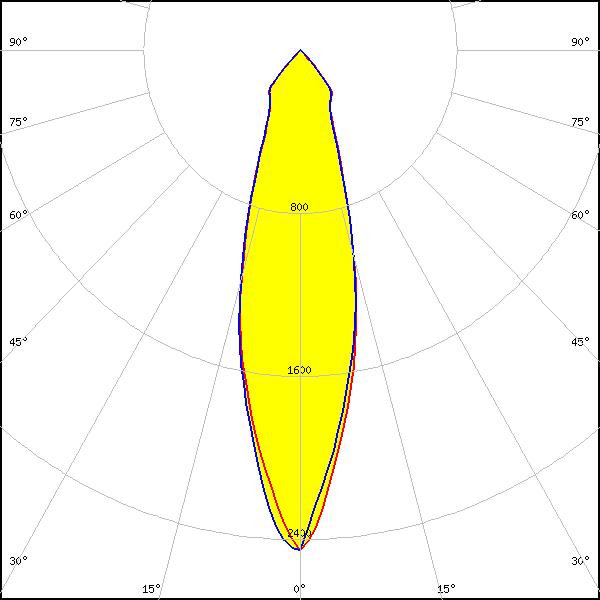

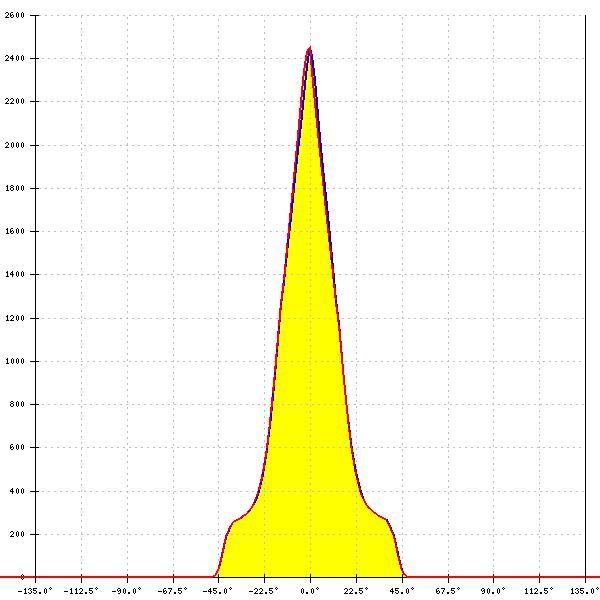

LED:
XHP35 HD
FWHM:
28°
FWTM:
77°
Peak intensity:
2.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

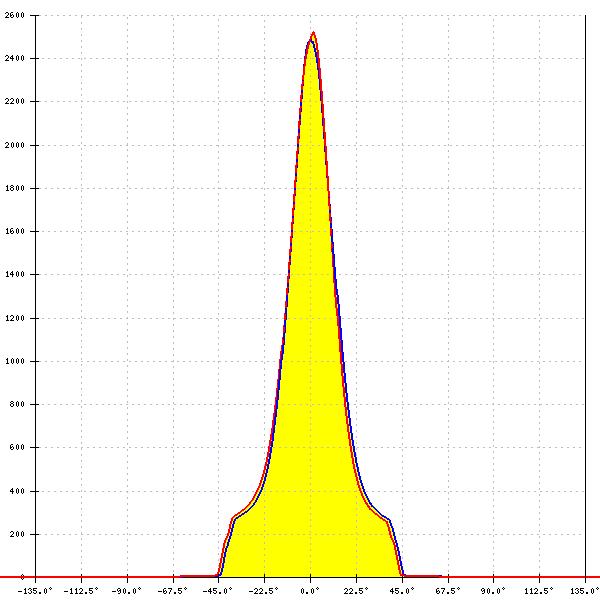

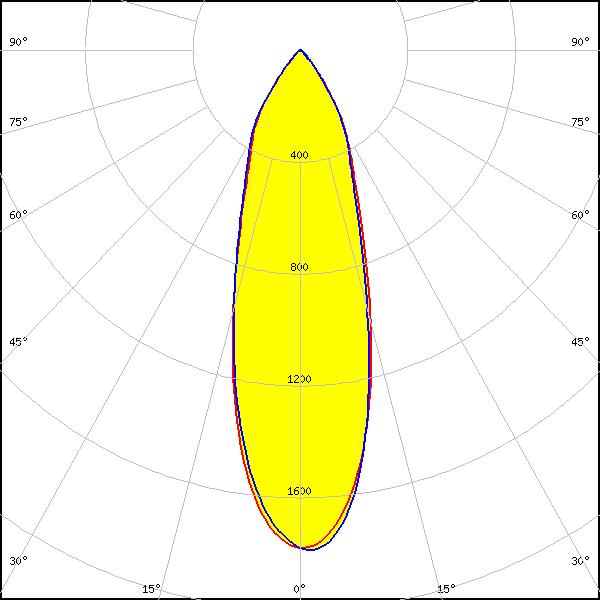

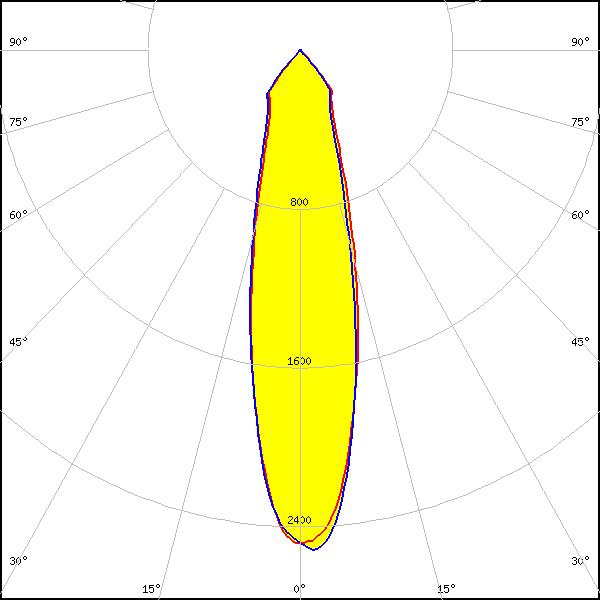

LED:
XHP50
FWHM:
25°
FWTM:
77°
Peak intensity:
2.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

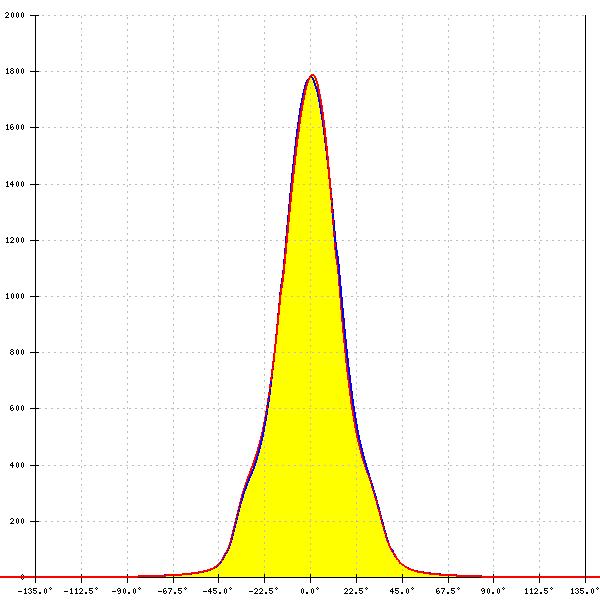

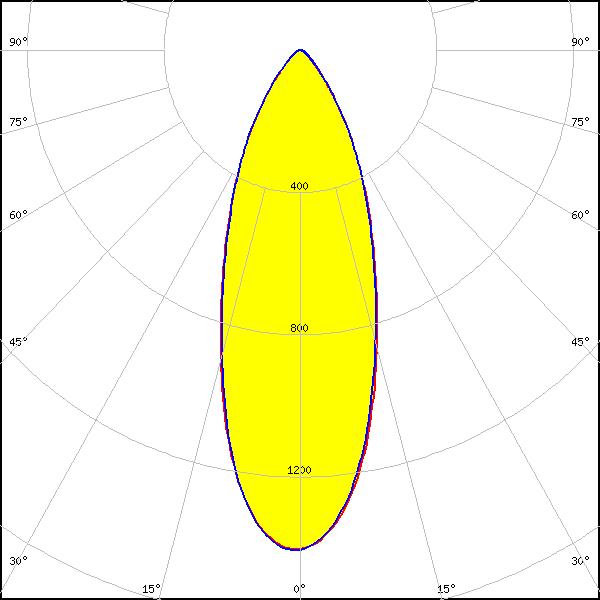

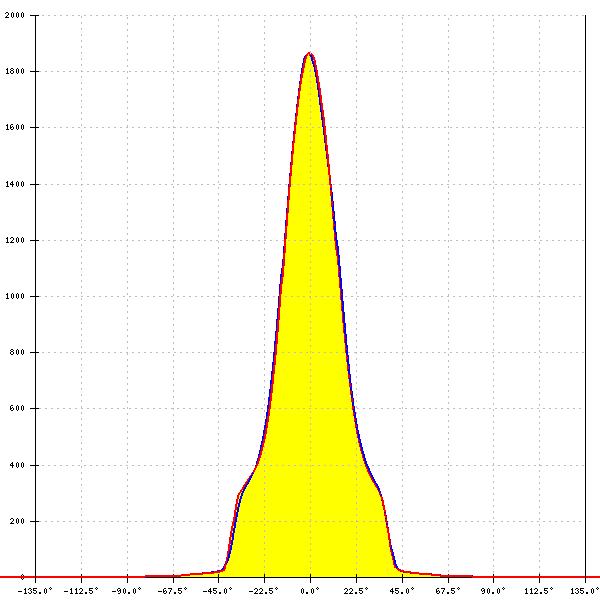

LED:
XHP50
Required components:
FWHM:
32°
FWTM:
74°
Peak intensity:
1.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
Required components:
FWHM:
32°
FWTM:
76°
Peak intensity:
1.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

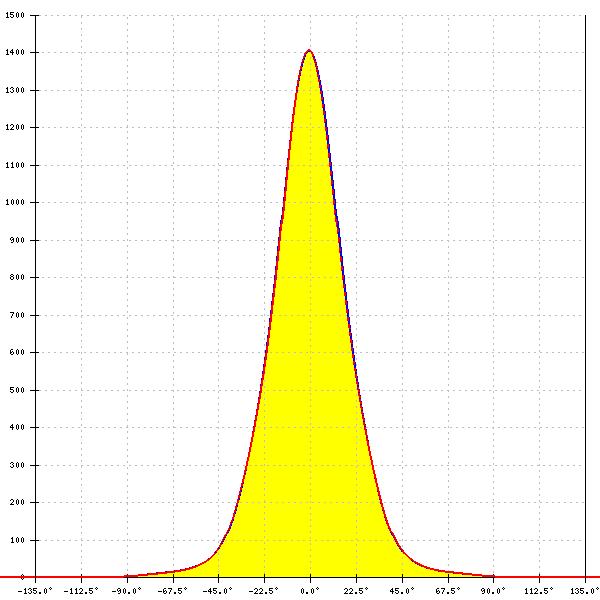

LED:
XHP50
Required components:
FWHM:
37°
FWTM:
78°
Peak intensity:
1.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

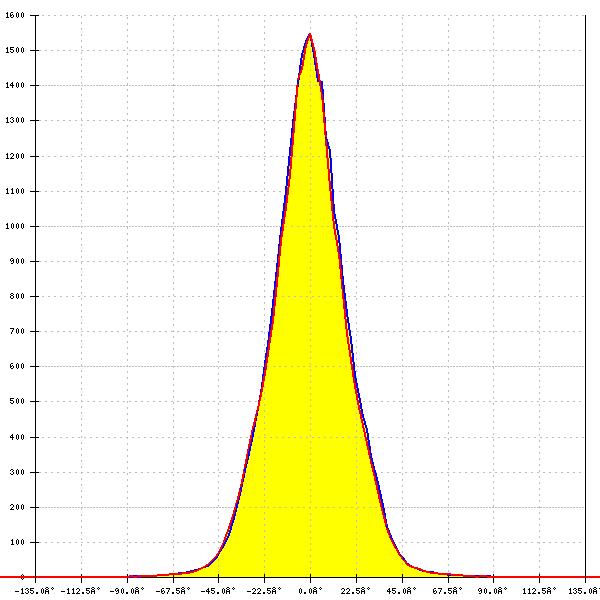

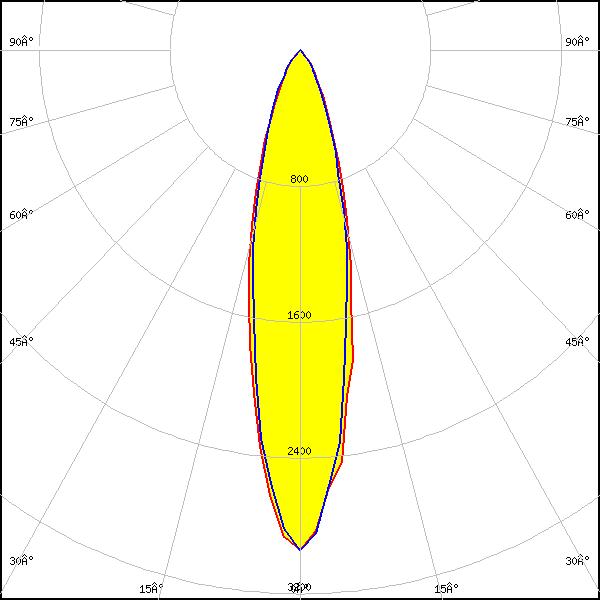

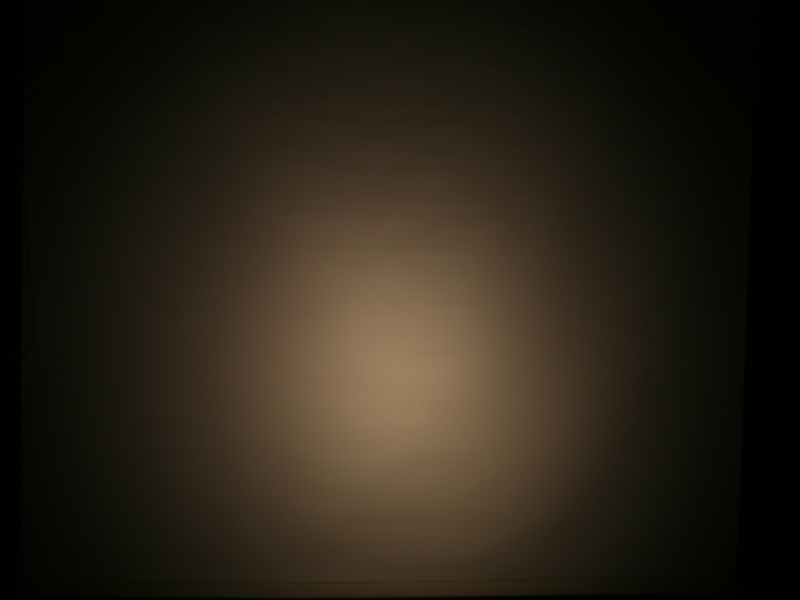

LED:

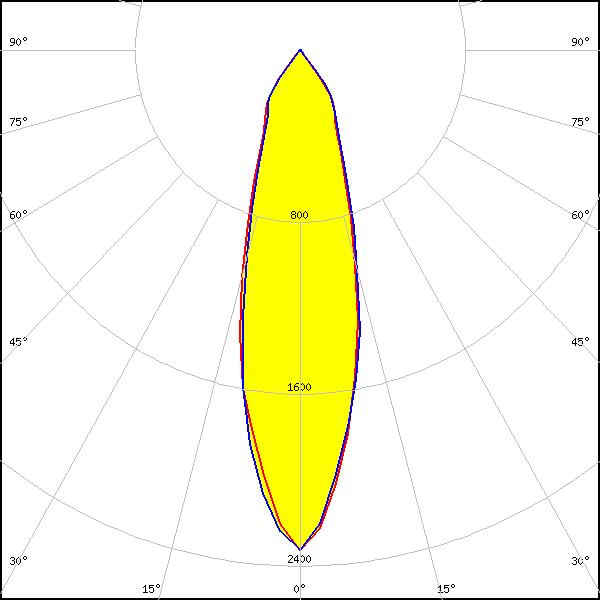

XM-L
FWHM:
24°
FWTM:
56°
Peak intensity:
2.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

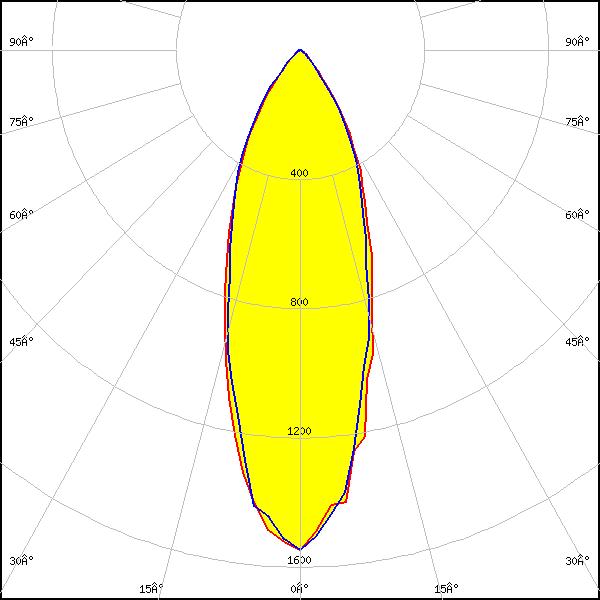

LED:
XM-L
Required components:
FWHM:
35°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

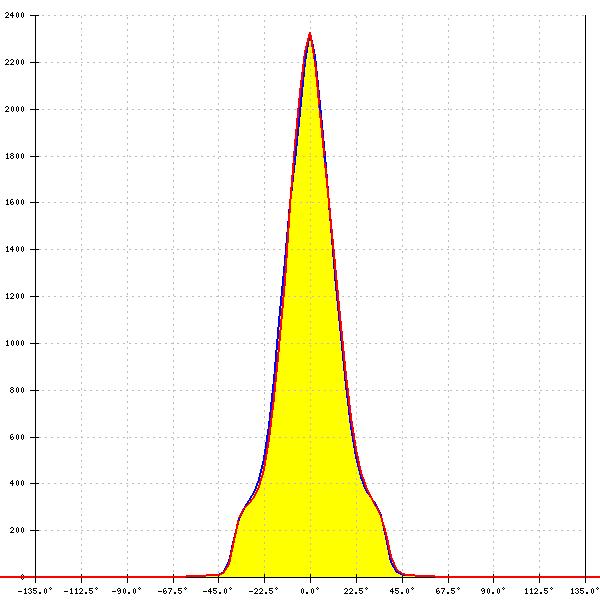

LED:
XM-L
Required components:
FWHM:
28°
FWTM:
72°
Peak intensity:
2.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

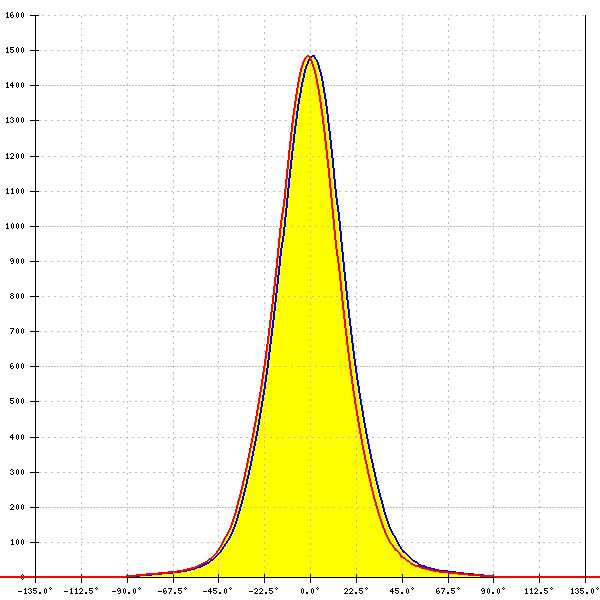

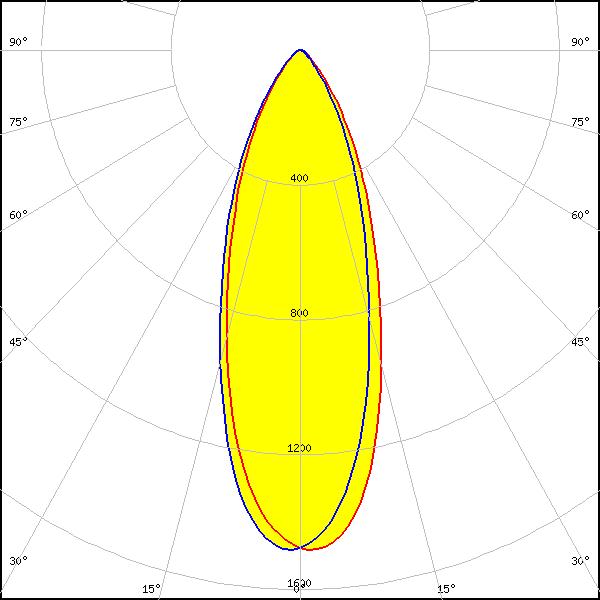

LED:
XM-L RGBW (XMLCTW)
Required components:
FWHM:
37°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

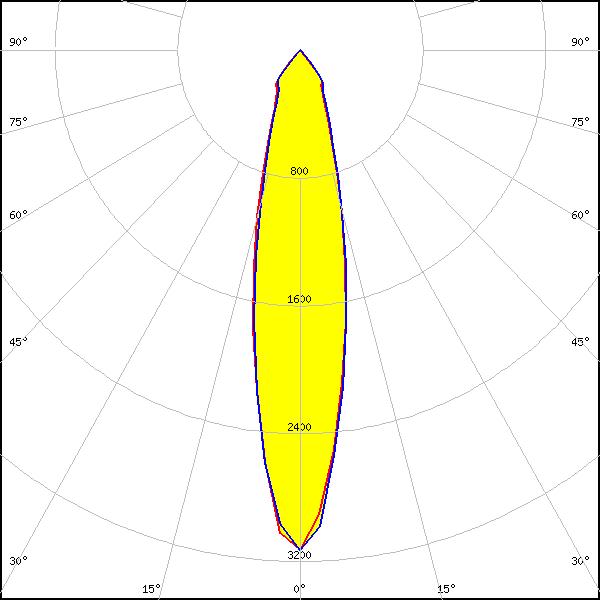

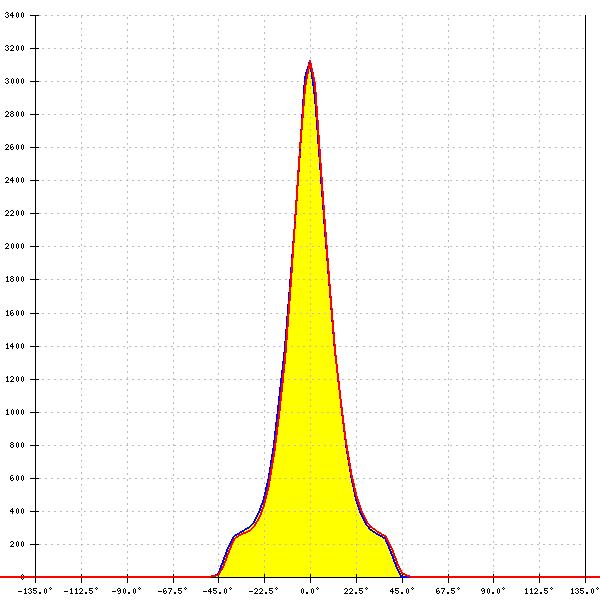

LED:

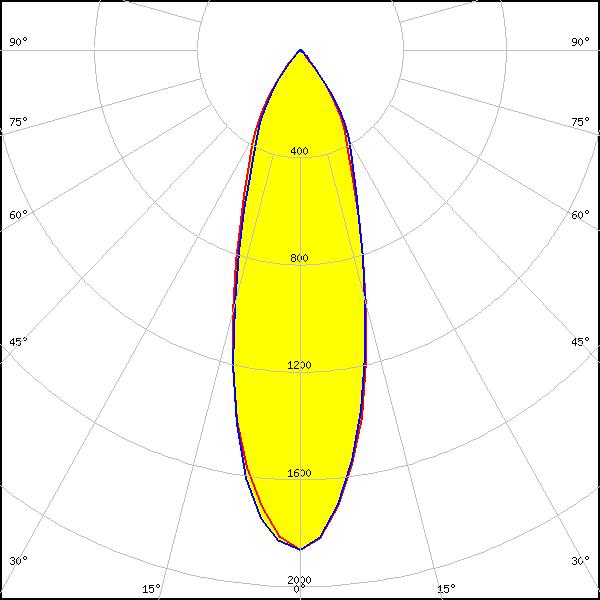

XM-L2
FWHM:
22°
FWTM:
58°
Peak intensity:
3.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L2
Required components:
FWHM:
33°
FWTM:
74°
Peak intensity:
1.900 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

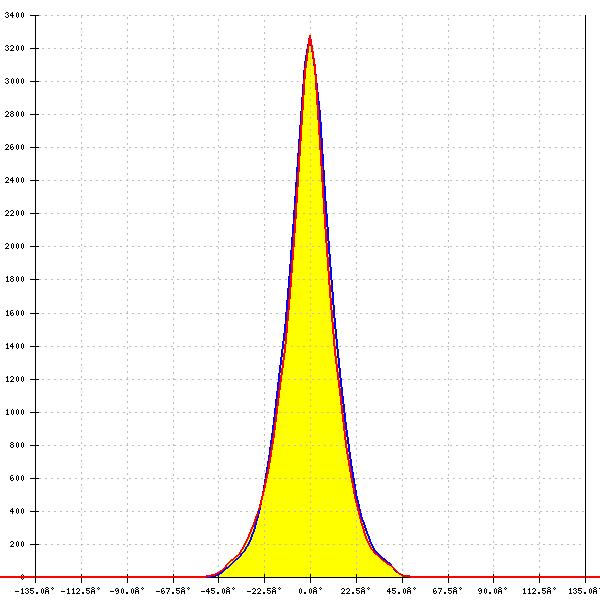

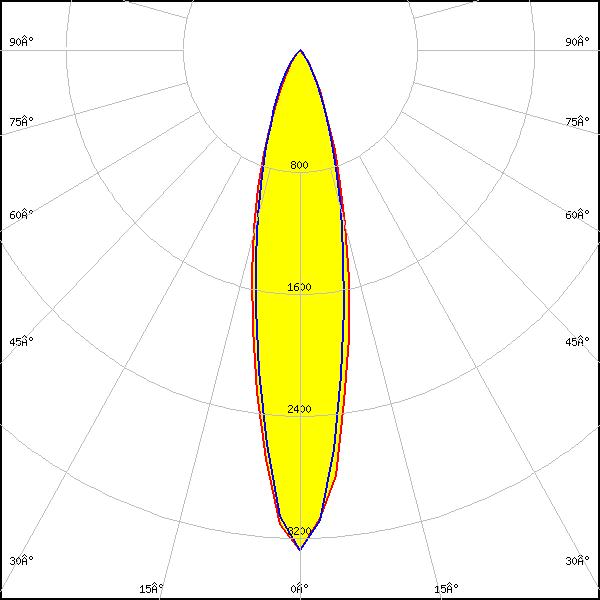

LED:
XP-G
FWHM:
24°
FWTM:
53°
Peak intensity:
3.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

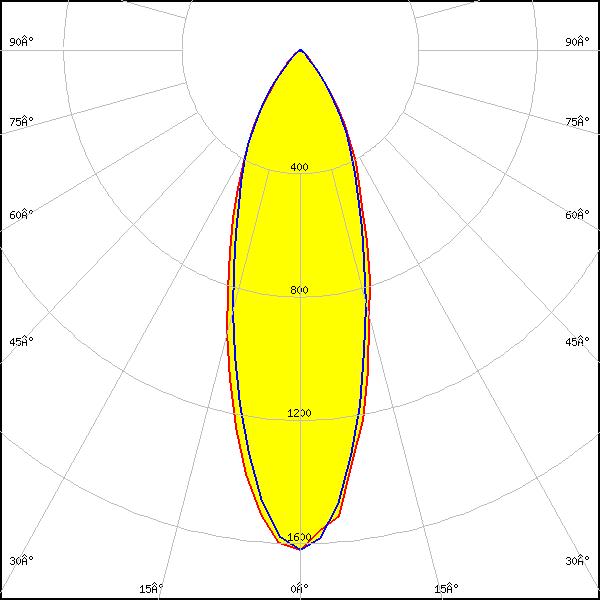

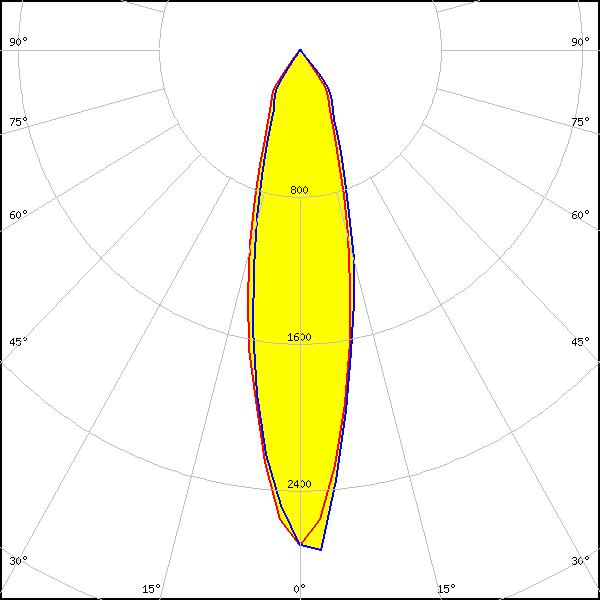

LED:

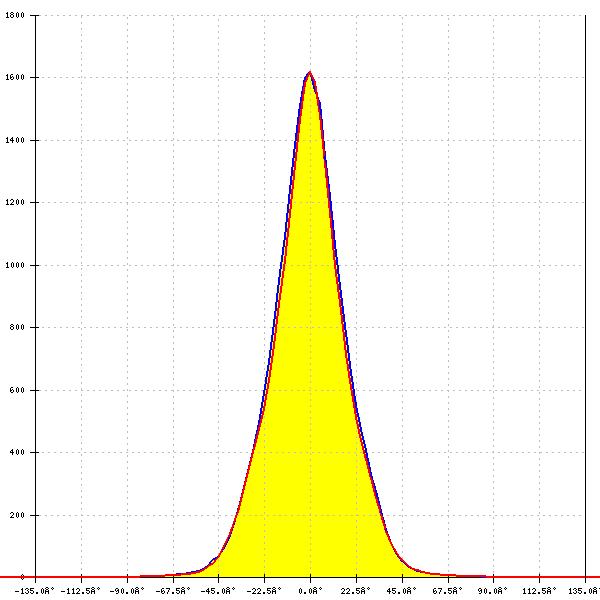

XP-G
Required components:
FWHM:
34°
FWTM:
74°
Peak intensity:
1.620 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

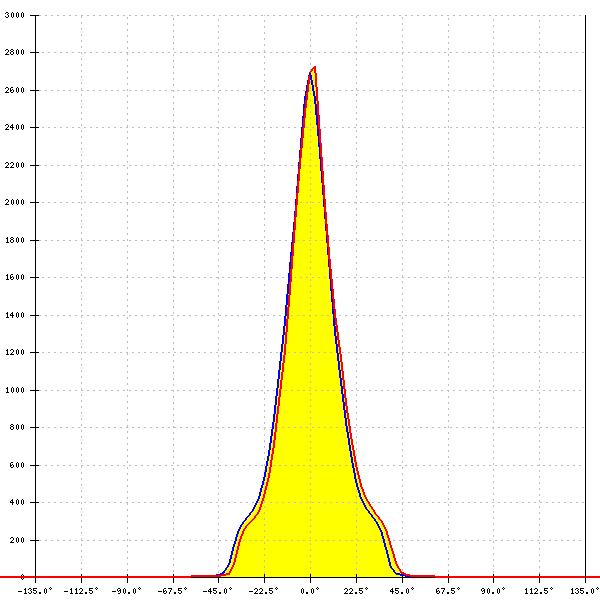

LED:
XP-G
Required components:
FWHM:
24°
FWTM:
68°
Peak intensity:
2.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
22°
FWTM:
76°
Peak intensity:
2.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
Required components:
FWHM:
30°
FWTM:
74°
Peak intensity:
2.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

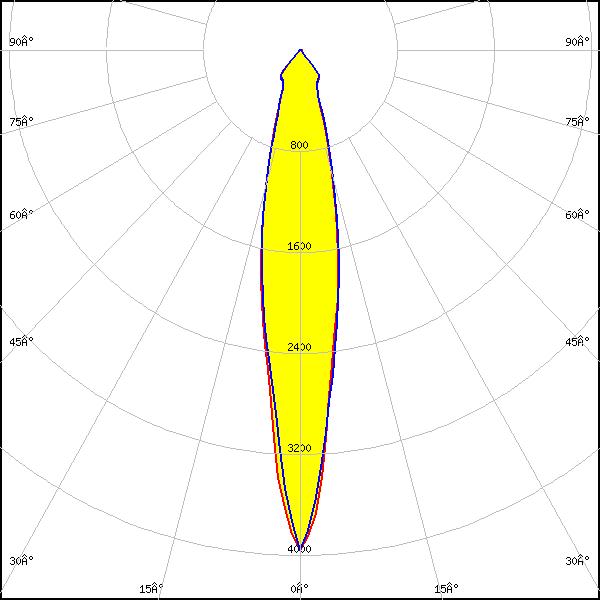

XP-L HI
FWHM:
17°
FWTM:
48°
Peak intensity:
4.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

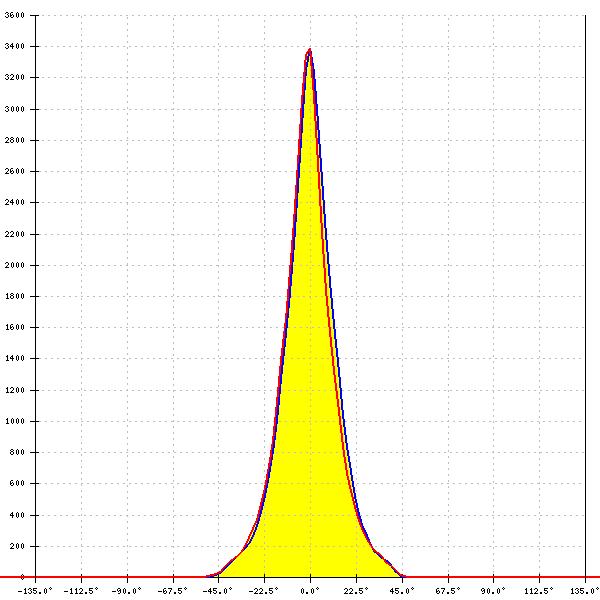

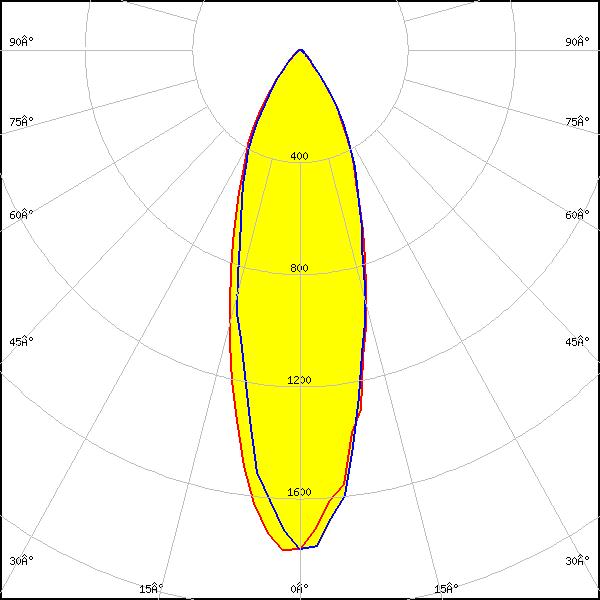

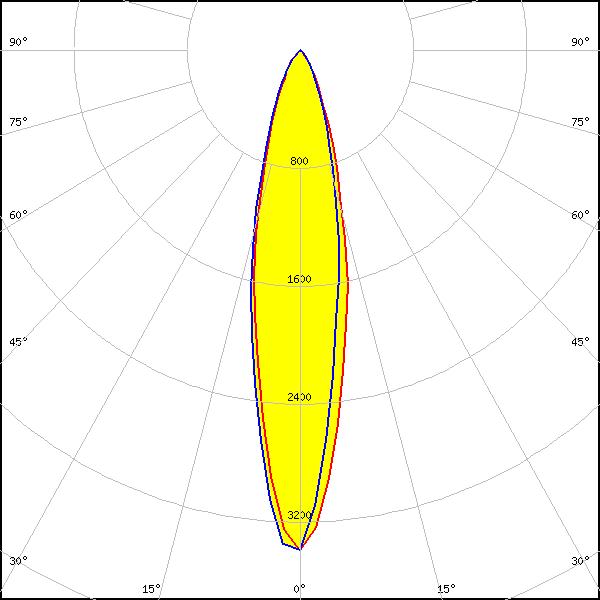

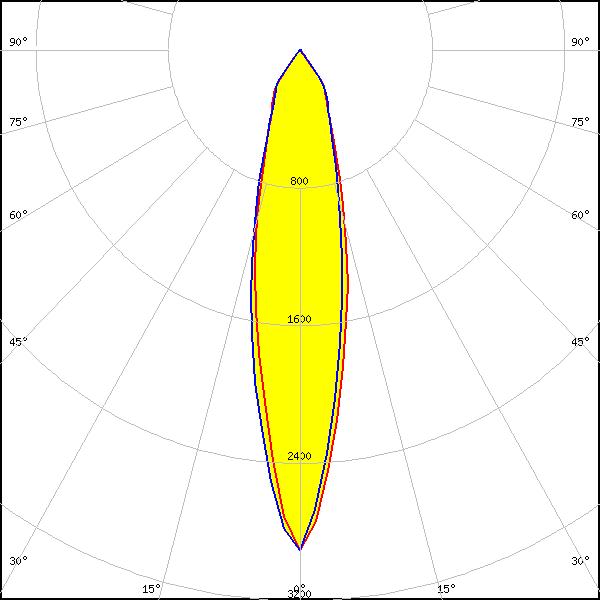

LED:

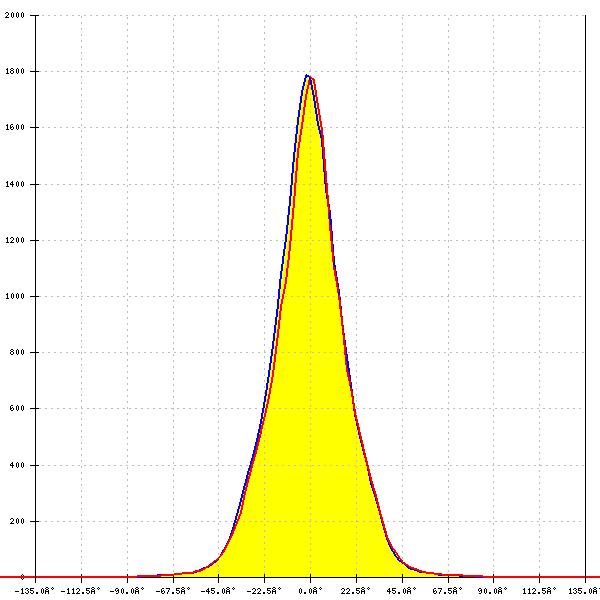

XT-E
FWHM:
23°
FWTM:
51°
Peak intensity:
3.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
Required components:
FWHM:
32°
FWTM:
73°
Peak intensity:
1.780 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
Required components:
FWHM:
22°
FWTM:
64°
Peak intensity:
2.900 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

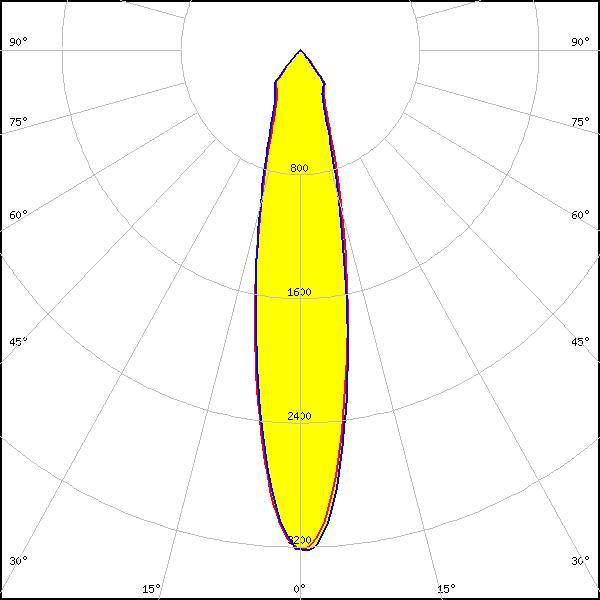

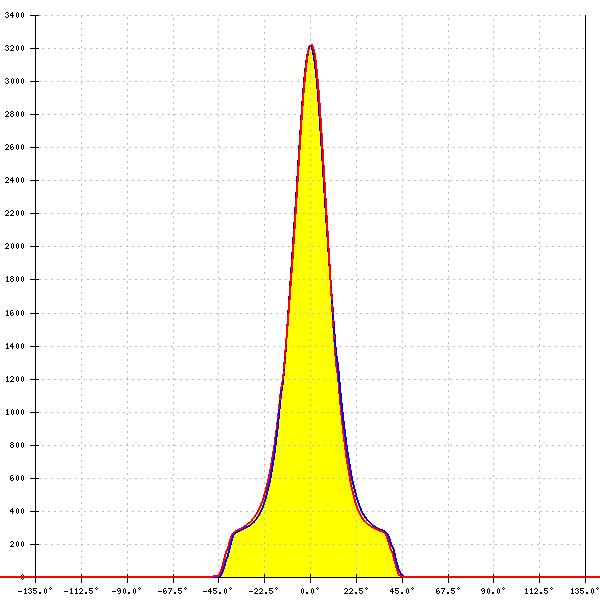

LED:
LUXEON 5050 Round LES
FWHM:
22°
FWTM:
59°
Peak intensity:
3.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

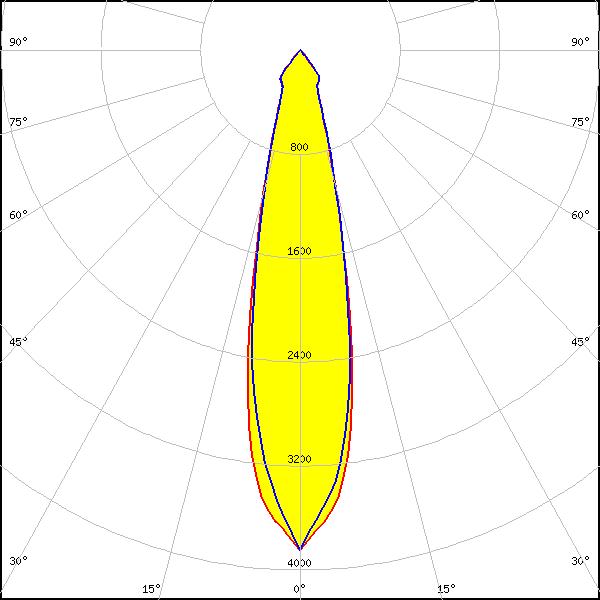

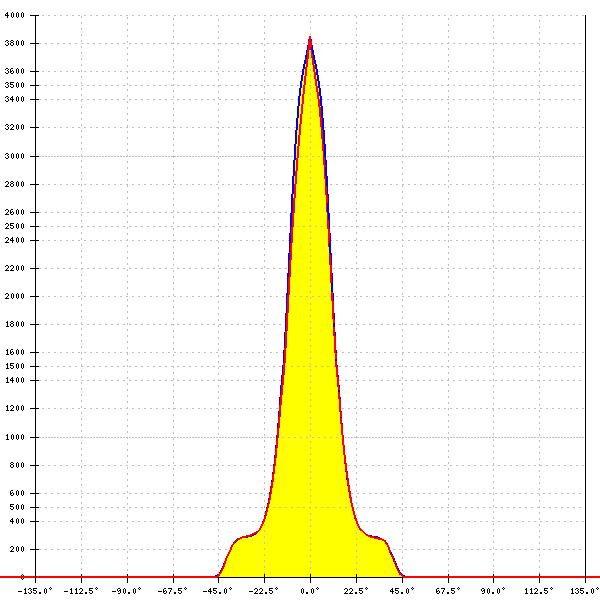

LED:
LUXEON 5258
FWHM:
23°
FWTM:
45°
Peak intensity:
3.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

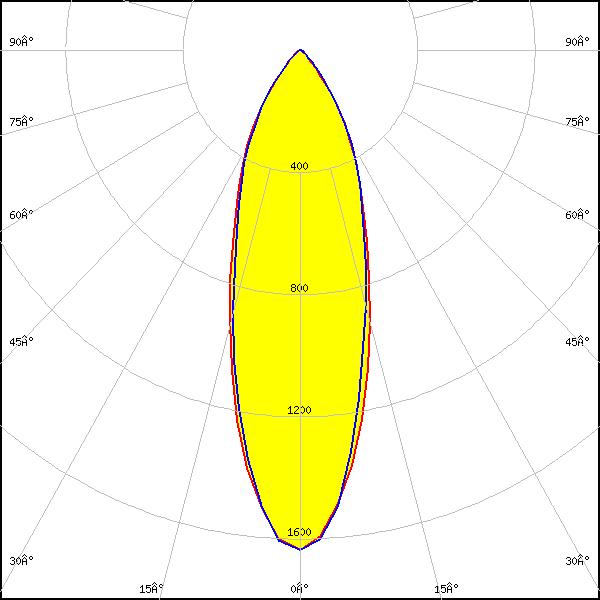

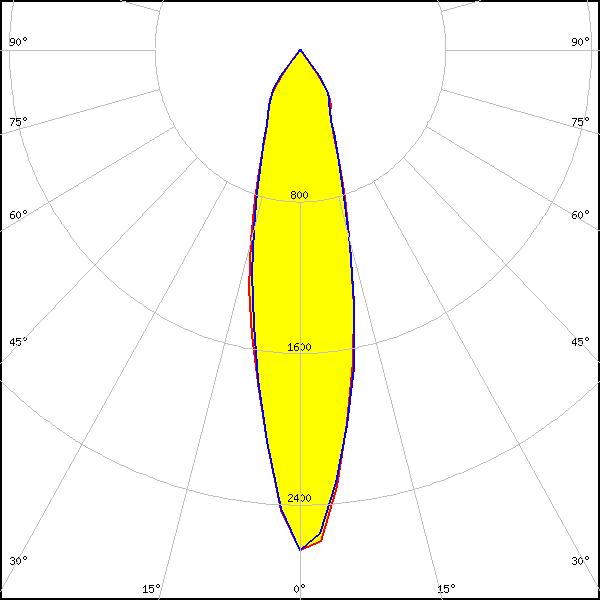

LED:

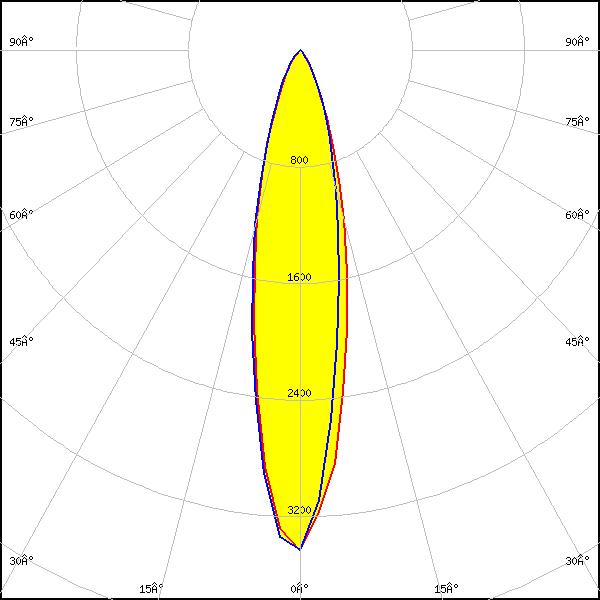

LUXEON A
FWHM:
22°
FWTM:
52°
Peak intensity:
3.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

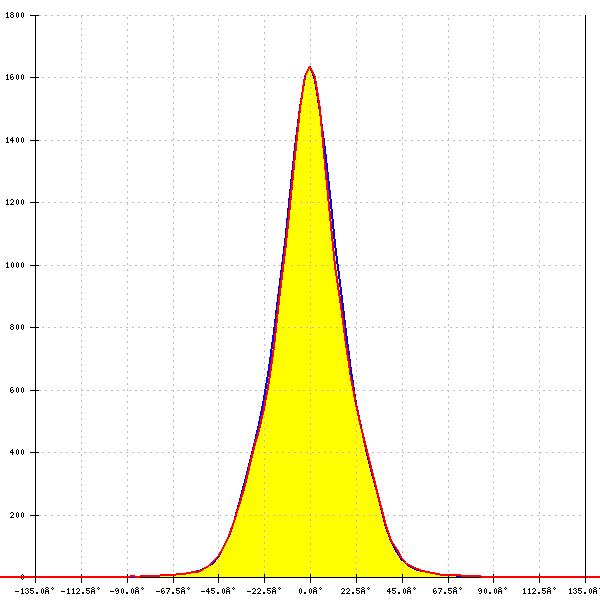

LED:

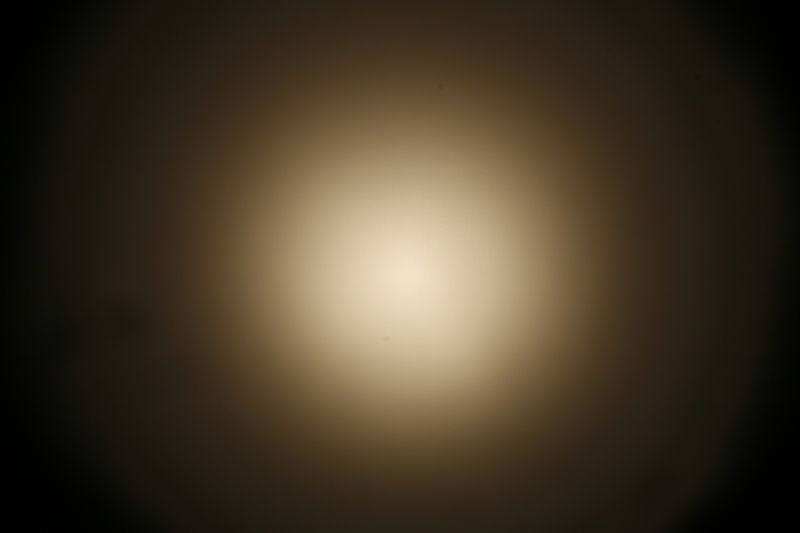

LUXEON A
Required components:
FWHM:
34°
FWTM:
75°
Peak intensity:
1.640 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

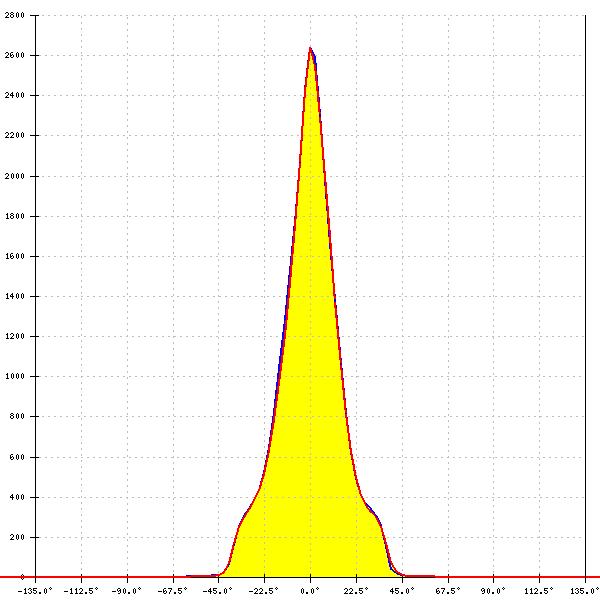

LED:
LUXEON A
Required components:
FWHM:
24°
FWTM:
69°
Peak intensity:
2.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

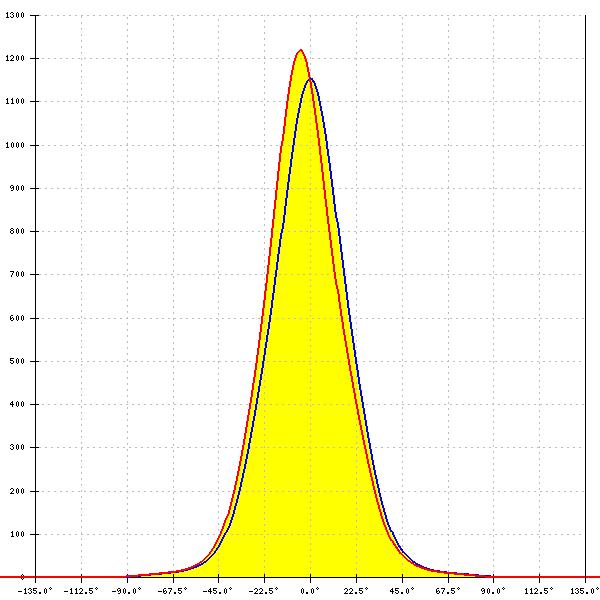

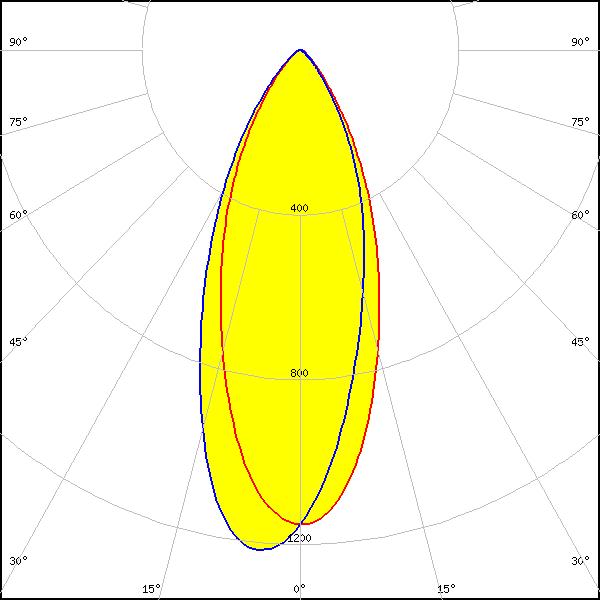

LED:
LUXEON C
Required components:
FWHM:
39°
FWTM:
79°
Peak intensity:
1.220 cd/lm
Efficiency:
74 %
LEDs/each optic:
4
Light colour/type:
RGBW

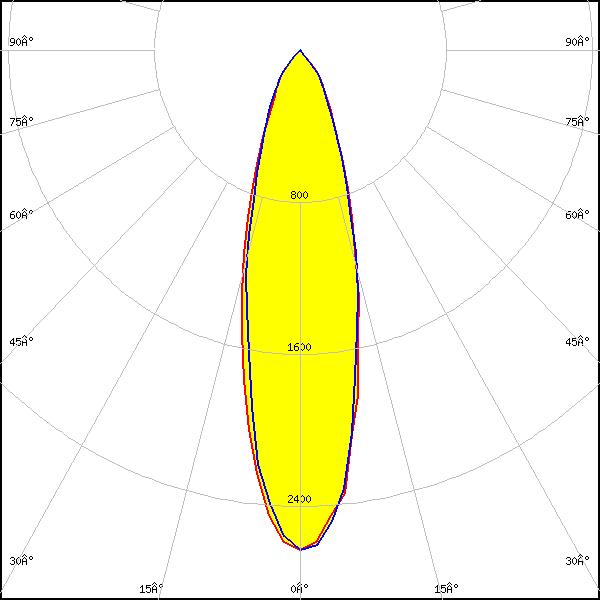

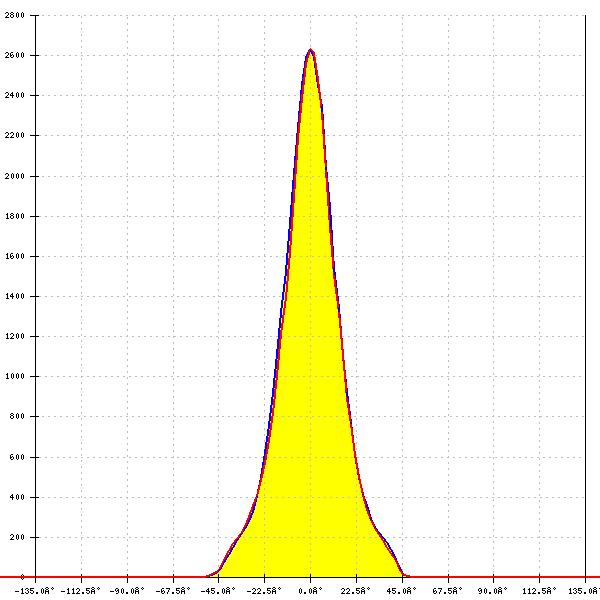

LED:
LUXEON M/MX
FWHM:
24°
FWTM:
63°
Peak intensity:
2.630 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

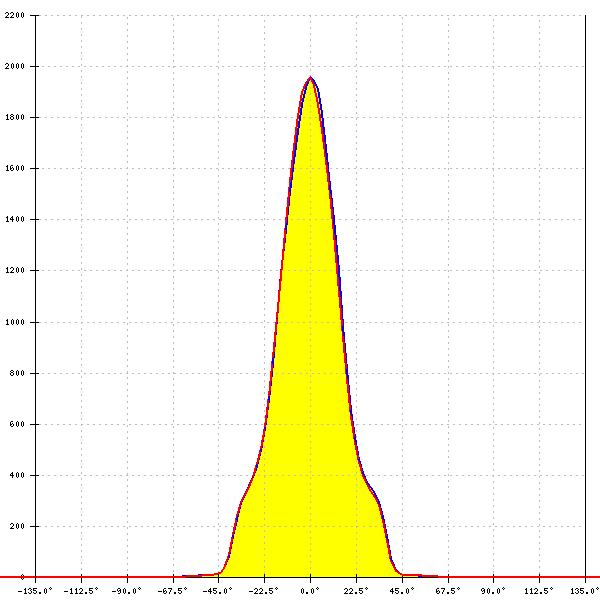

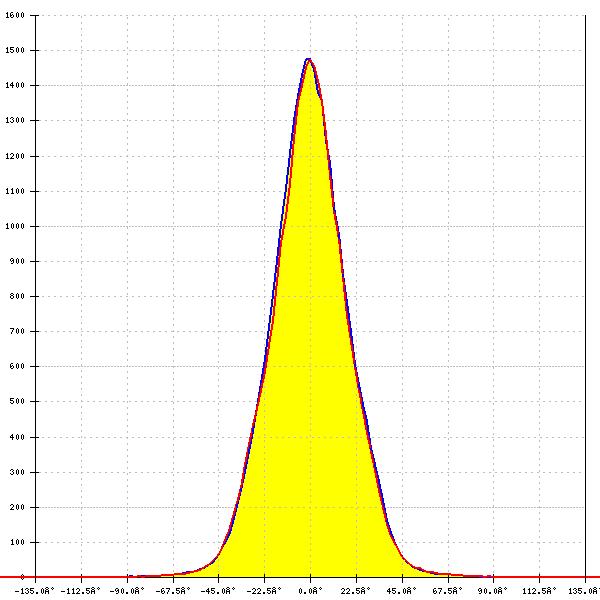

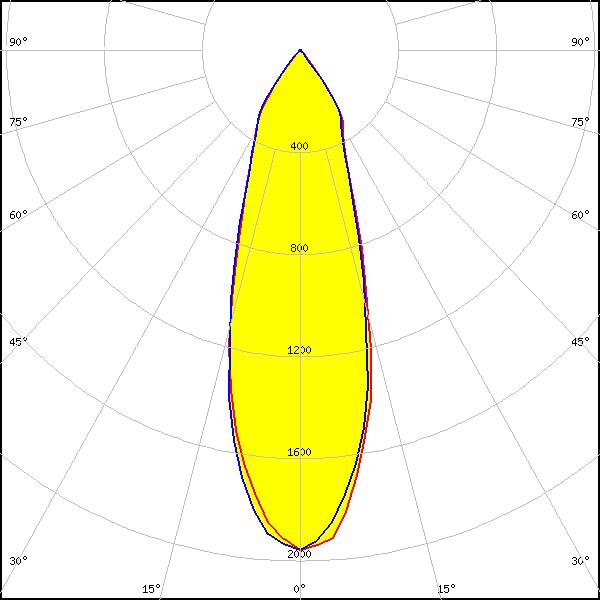

LED:

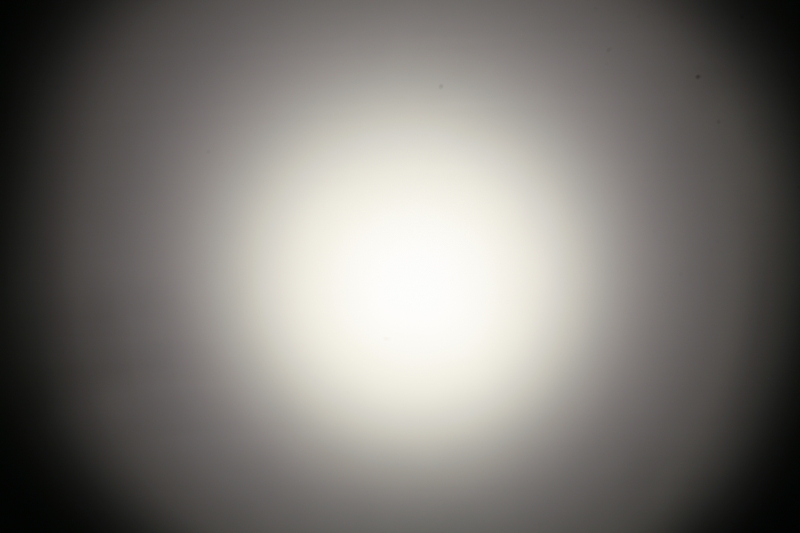

LUXEON M/MX
Required components:
FWHM:
38°
FWTM:
78°
Peak intensity:
1.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
Required components:
FWHM:
33°
FWTM:
74°
Peak intensity:
2.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

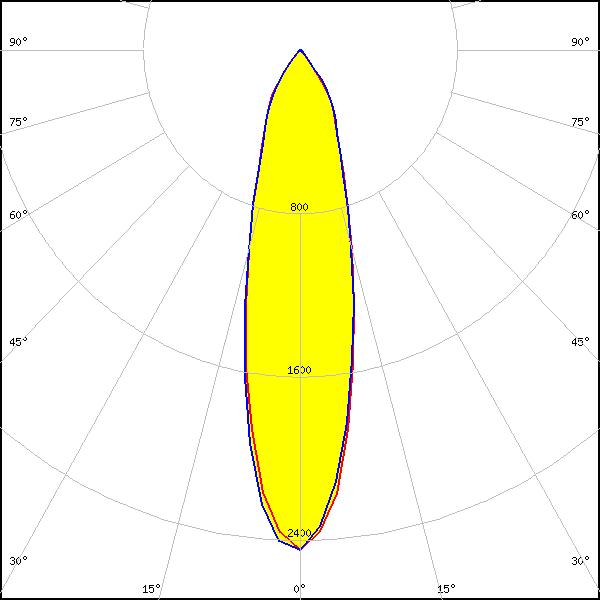

LED:
LUXEON MZ
Required components:
FWHM:
27°
FWTM:
69°
Peak intensity:
2.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

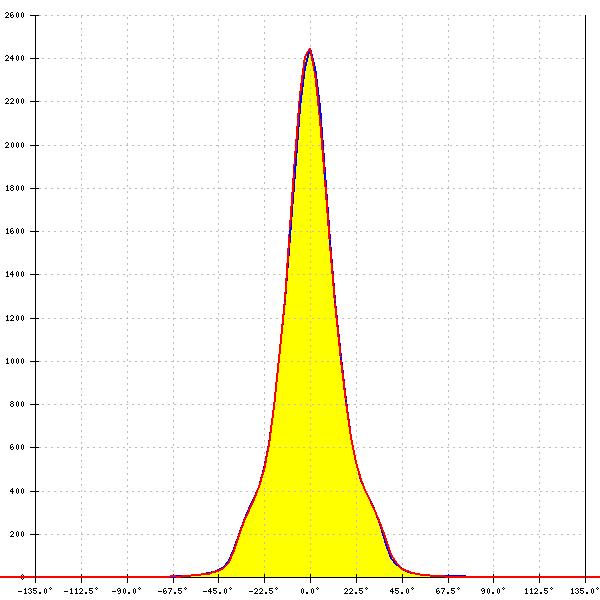

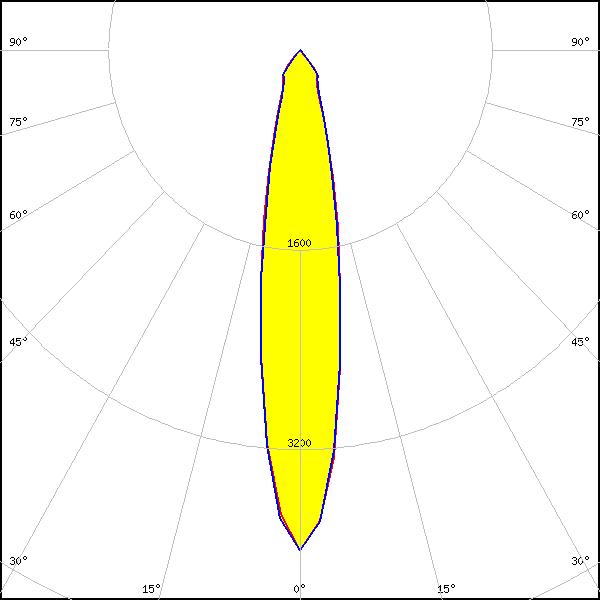

LED:
LUXEON MZ
FWHM:
20°
FWTM:
47°
Peak intensity:
4.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

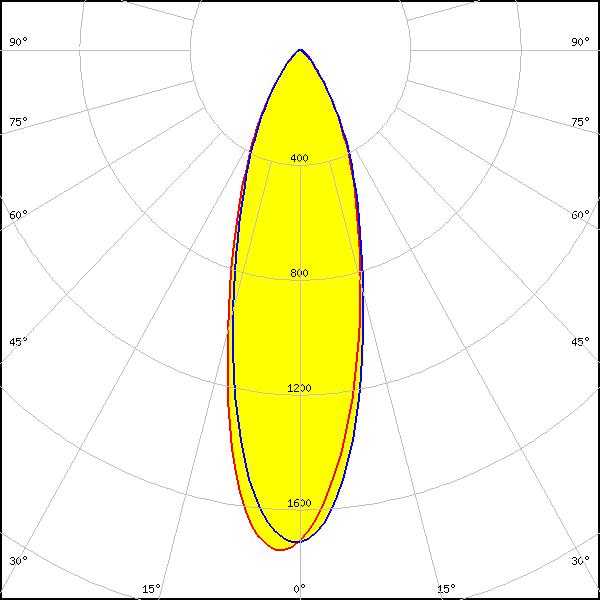

LED:
LUXEON Z
Required components:
FWHM:
31°
FWTM:
71°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
NS9x383
Required components:
FWHM:
32°
FWTM:
74°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NS9x383
FWHM:
24°
FWTM:
78°
Peak intensity:
2.450 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

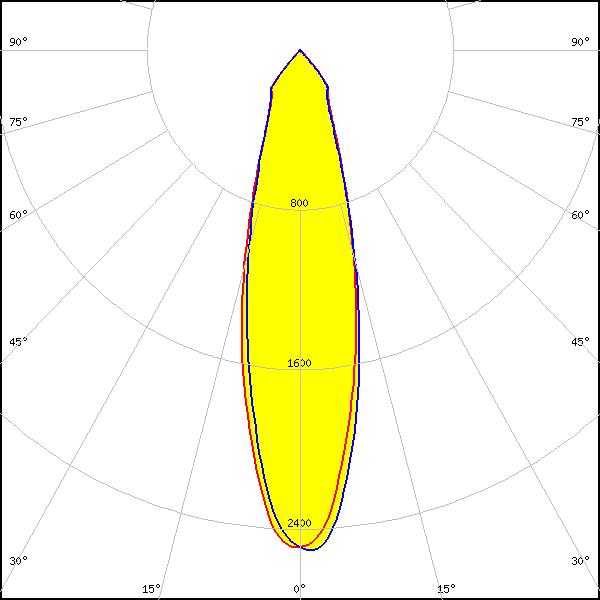

LED:

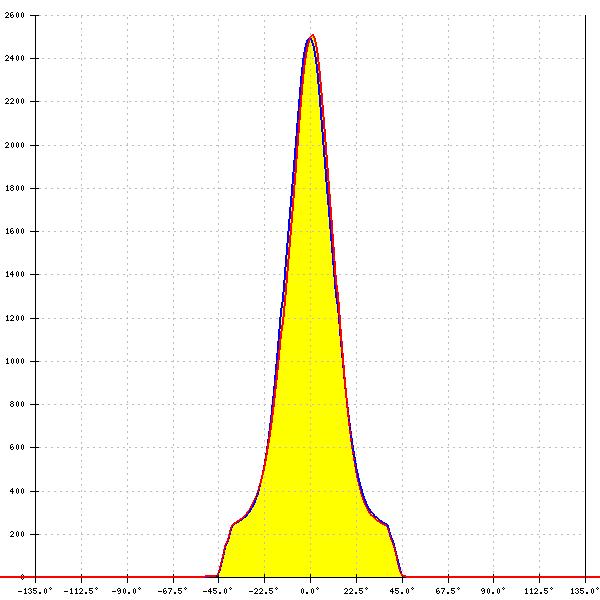

NV4x144A
FWHM:
27°
FWTM:
73°
Peak intensity:
2.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

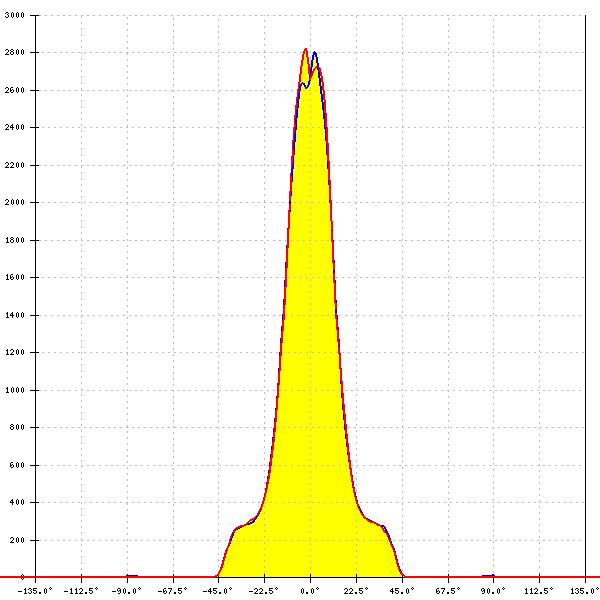

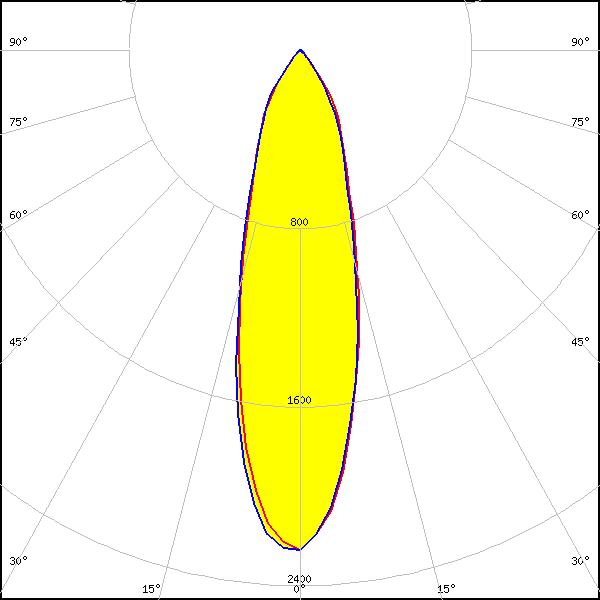

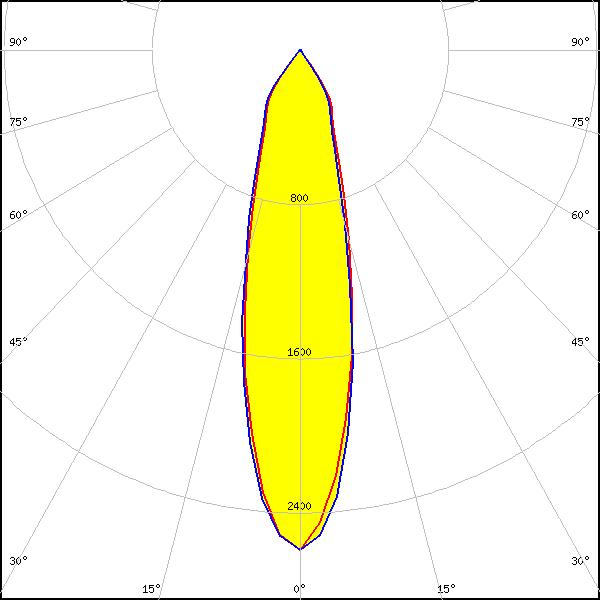

LED:

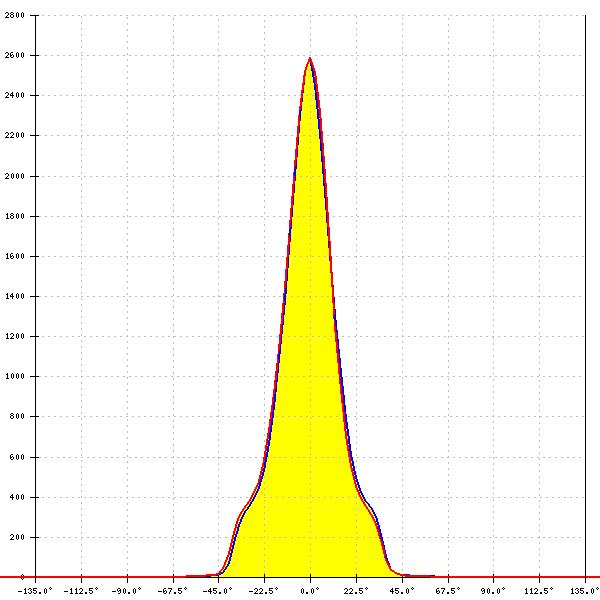

Duris S8
Required components:
FWHM:
28°
FWTM:
69°
Peak intensity:
2.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
Required components:
FWHM:
26°
FWTM:
70°
Peak intensity:
2.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

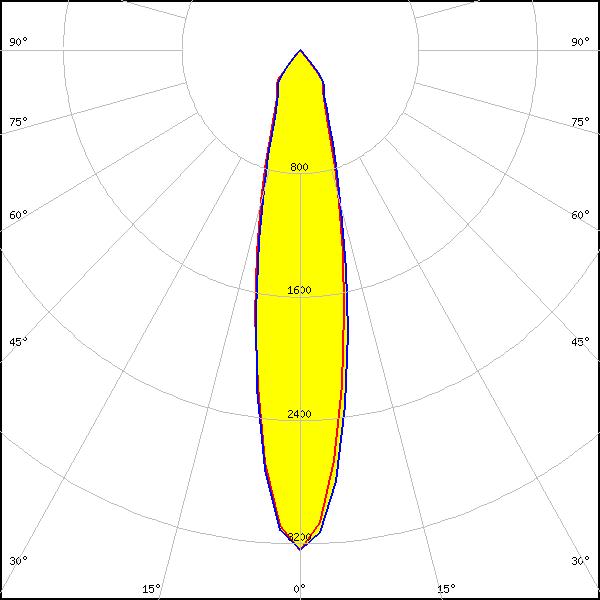

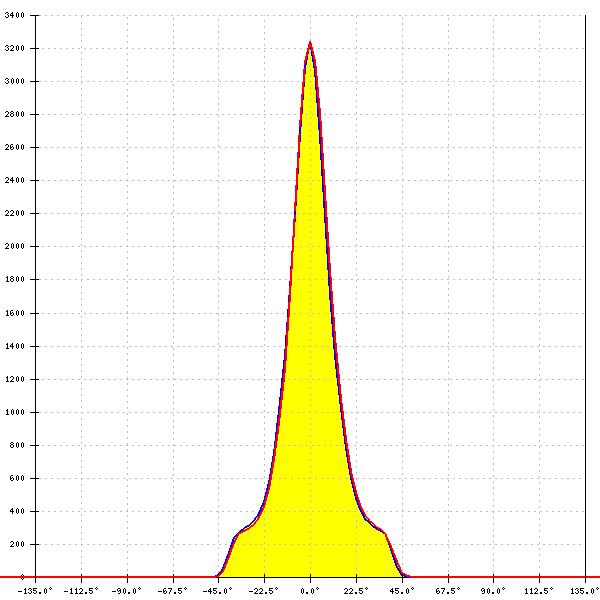

LED:
Duris S8
FWHM:
22°
FWTM:
58°
Peak intensity:
3.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
26°
FWTM:
63°
Peak intensity:
2.890 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
Required components:
FWHM:
31°
FWTM:
72°
Peak intensity:
2.360 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
Required components:
FWHM:
29°
FWTM:
70°
Peak intensity:
2.310 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

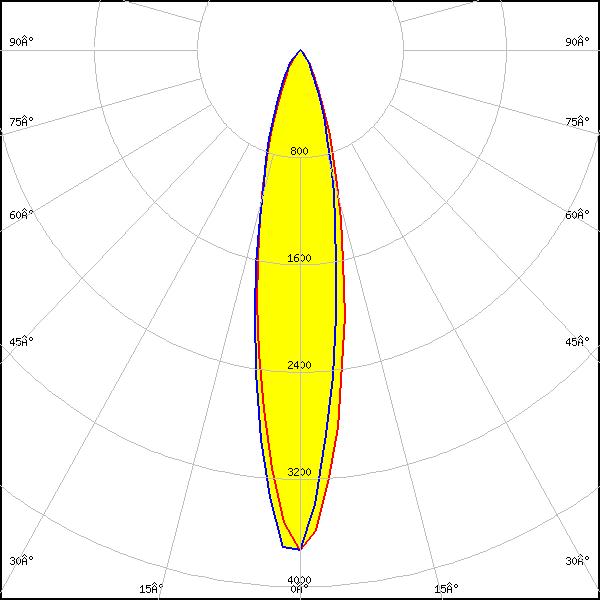

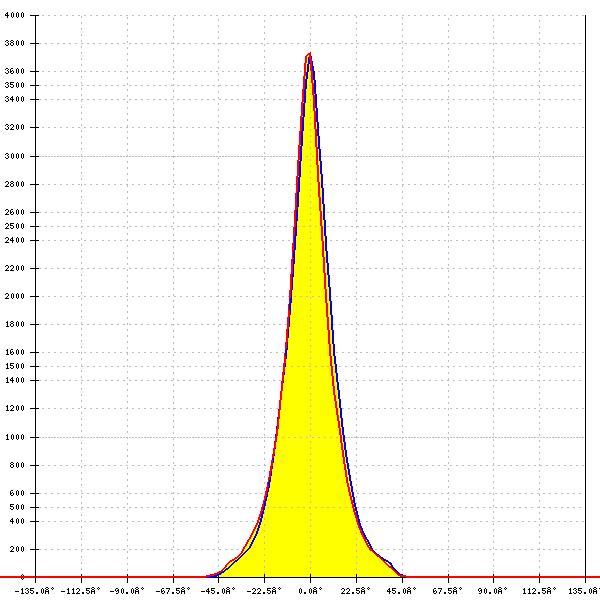

LED:
OSLON Square EC
FWHM:
22°
FWTM:
49°
Peak intensity:
3.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

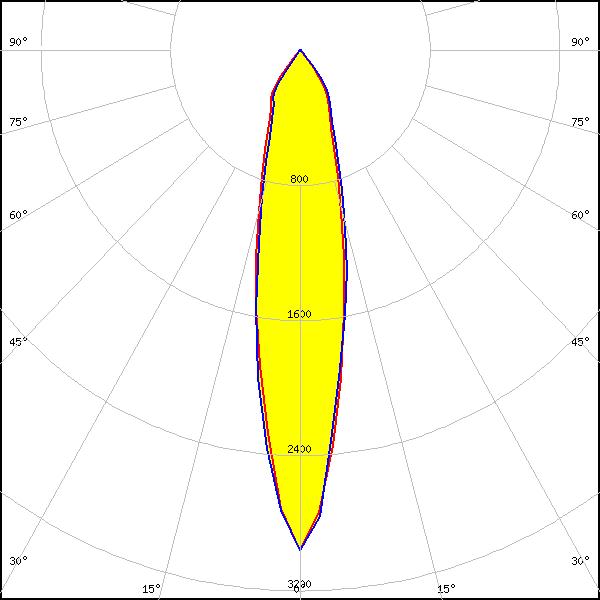

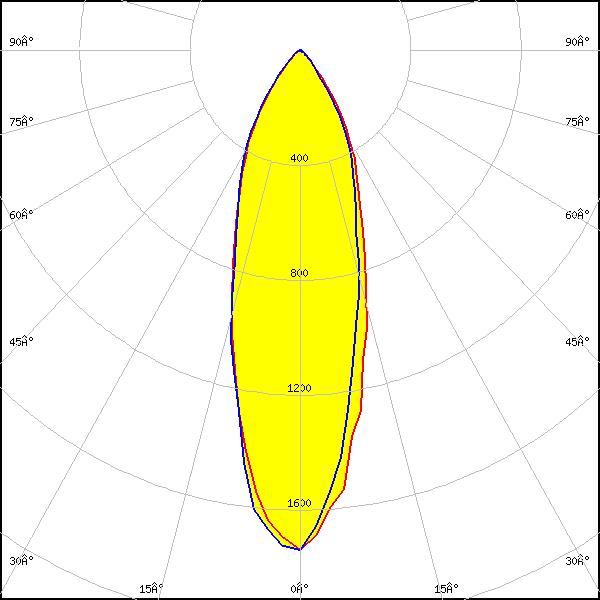

LED:
OSLON Square EC
Required components:
FWHM:
32°
FWTM:
75°
Peak intensity:
1.700 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

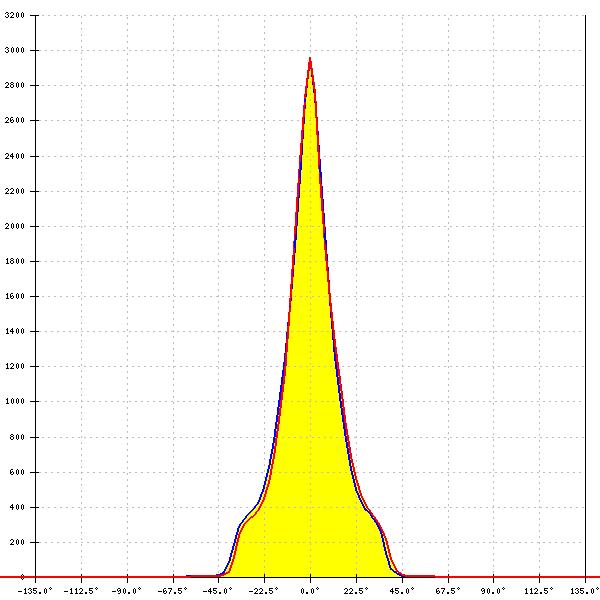

LED:
OSLON Square EC
Required components:
FWHM:
22°
FWTM:
67°
Peak intensity:
3.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

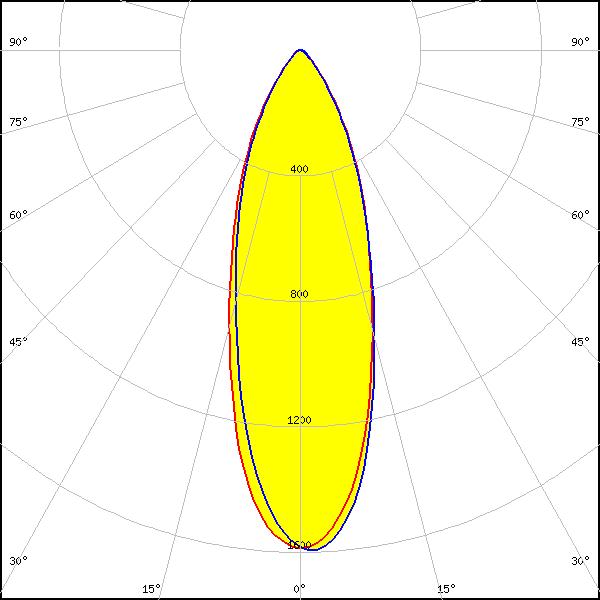

Ostar-SMT RGB
Required components:
FWHM:
34°
FWTM:
74°
Peak intensity:
1.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

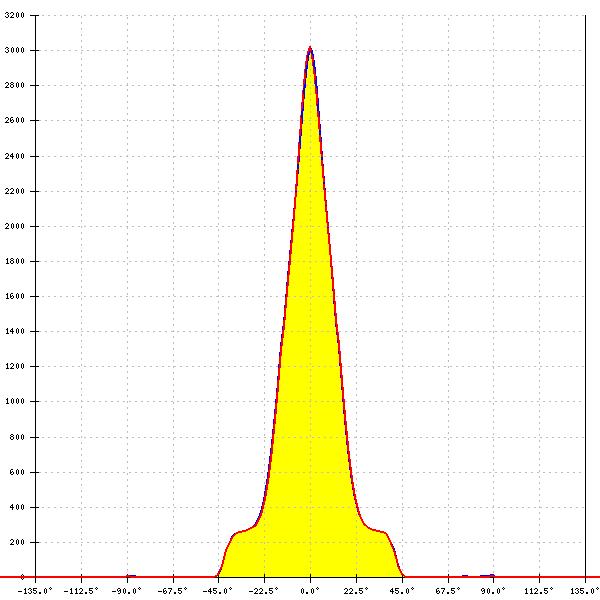

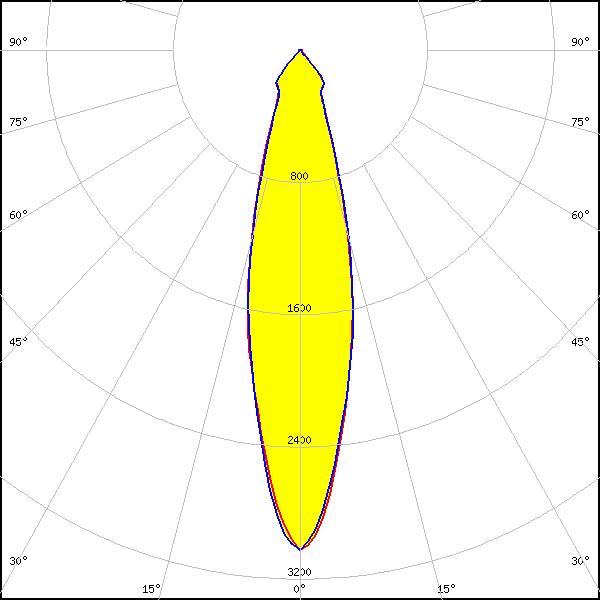

LED:
LH351D
FWHM:
26°
FWTM:
54°
Peak intensity:
3.026 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

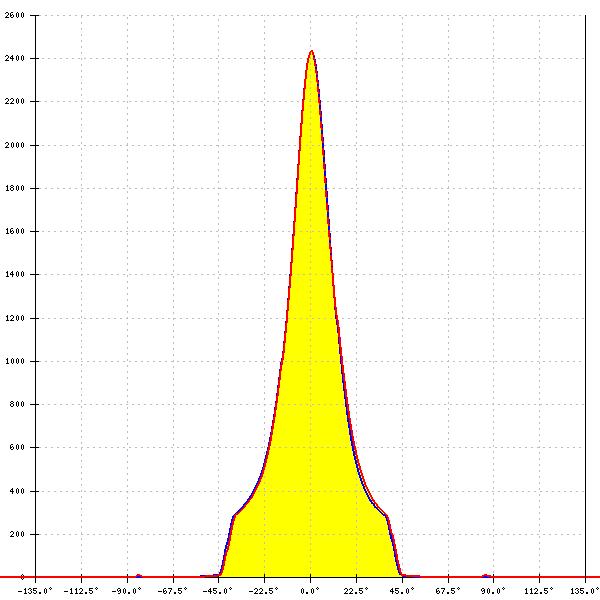

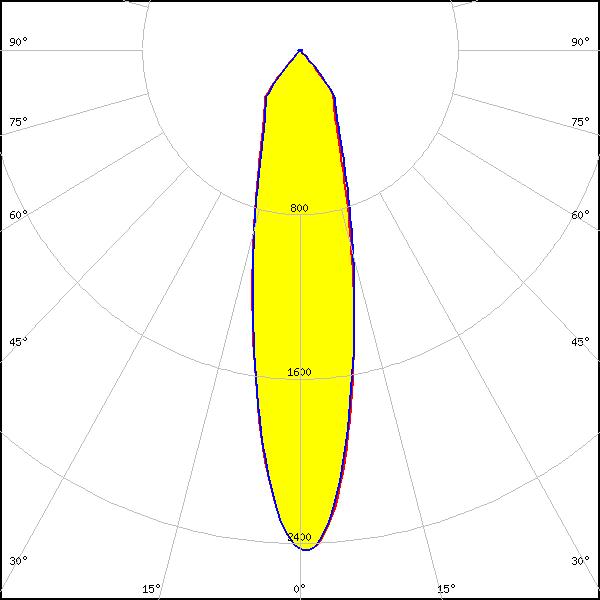

LED:
LH508A
FWHM:
24°
FWTM:
78°
Peak intensity:
2.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
F50360 (RGB)
Required components:
FWHM:
33°
FWTM:
76°
Peak intensity:
1.810 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

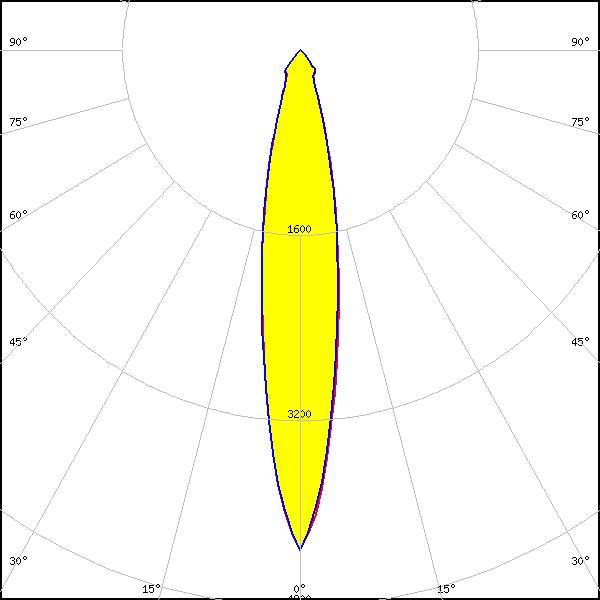

Z8Y22P
FWHM:
19°
FWTM:
44°
Peak intensity:
4.320 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
