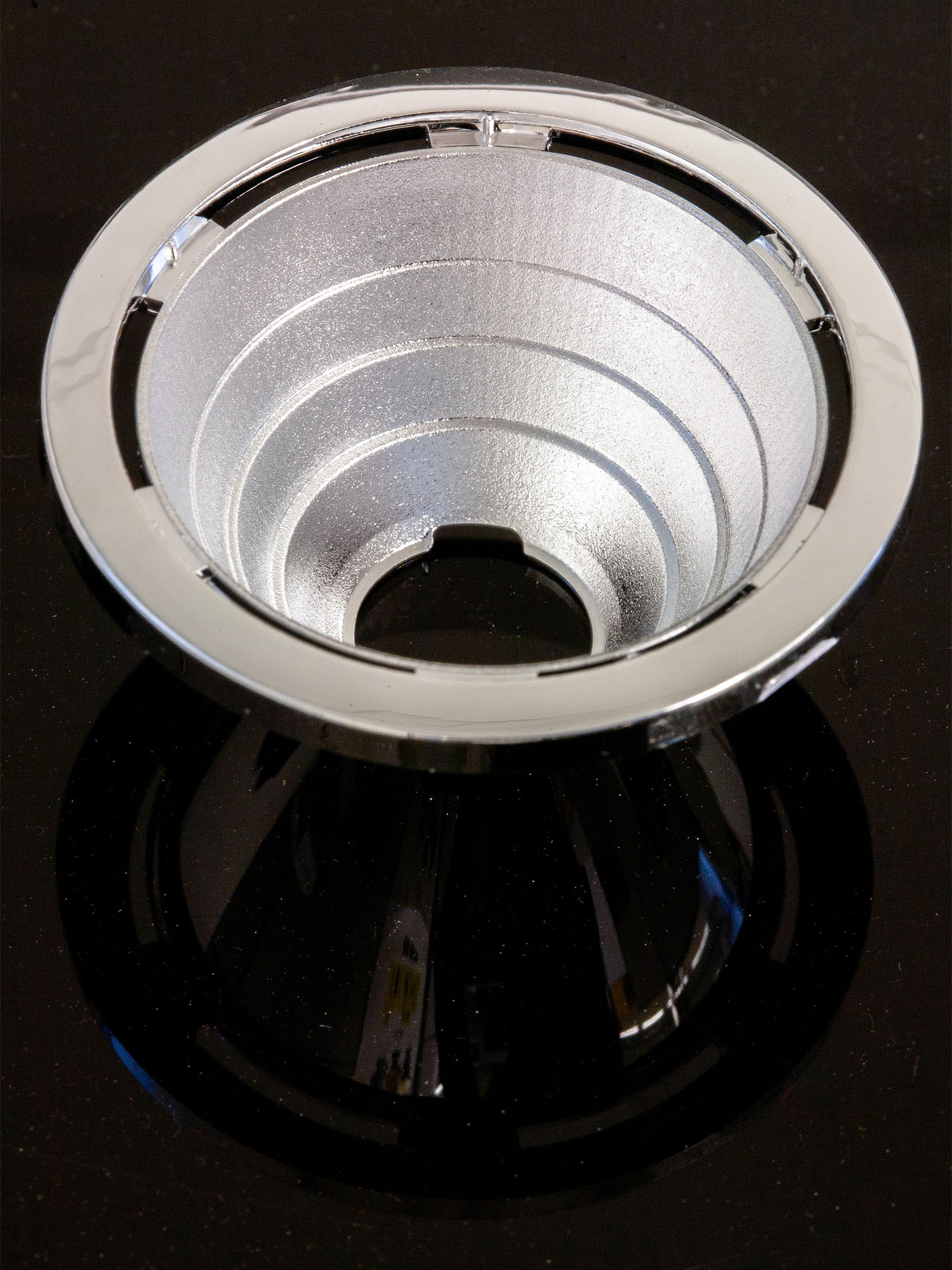

C12477_MIRELLA-50-M
Print
~30° medium beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
BXRA LS
LES size: 6.7 mm
Required components:
FWHM:
27°
FWTM:
69°
Peak intensity:
2.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA LS
LES size: 6.7 mm
FWHM:
27°
FWTM:
64°
Peak intensity:
2.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA LS
LES size: 6.7 mm
Required components:
FWHM:
35°
FWTM:
73°
Peak intensity:
1.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vero SE 10
LES size: 9.9 mm
FWHM:
22°
FWTM:
64°
Peak intensity:
3.147 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL01x
LES size: 6.0 mm
Required components:
FWHM:
35°
FWTM:
76°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL01x
LES size: 6.0 mm
FWHM:
29°
FWTM:
77°
Peak intensity:
3.200 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL01x
LES size: 6.0 mm
Required components:
FWHM:
39°
FWTM:
77°
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
35°
FWTM:
73°
Peak intensity:
1.650 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
30°
FWTM:
71°
Peak intensity:
2.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
37°
FWTM:
75°
Peak intensity:
1.550 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
FWHM:
30°
FWTM:
71°
Peak intensity:
2.370 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
24°
FWTM:
64°
Peak intensity:
2.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
33°
FWTM:
70°
Peak intensity:
1.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
FWHM:
22°
FWTM:
51°
Peak intensity:
3.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
29°
FWTM:
69°
Peak intensity:
2.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
30°
FWTM:
70°
Peak intensity:
2.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
38°
FWTM:
76°
Peak intensity:
1.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
FWHM:
26°
FWTM:
70°
Peak intensity:
2.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
35°
FWTM:
74°
Peak intensity:
1.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
35°
FWTM:
73°
Peak intensity:
1.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
39°
FWTM:
77°
Peak intensity:
1.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
FWHM:
31°
FWTM:
75°
Peak intensity:
2.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
38°
FWTM:
76°
Peak intensity:
1.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
23°
FWTM:
68°
Peak intensity:
2.900 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
26°
FWTM:
67°
Peak intensity:
2.400 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
30°
FWTM:
71°
Peak intensity:
2.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
FWHM:
28°
FWTM:
72°
Peak intensity:
2.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
34°
FWTM:
72°
Peak intensity:
1.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
37°
FWTM:
76°
Peak intensity:
1.800 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
39°
FWTM:
76°
Peak intensity:
1.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHD-E/G
LES size: 0.0 mm
Required components:
FWHM:
35°
FWTM:
76°
Peak intensity:
1.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHD-E/G
LES size: 0.0 mm
FWHM:
30°
FWTM:
79°
Peak intensity:
2.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHD-E/G
LES size: 0.0 mm
Required components:
FWHM:
37°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MT-G
LES size: 0.0 mm
FWHM:
31°
FWTM:
79°
Peak intensity:
2.122 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MT-G2
LES size: 0.0 mm
Required components:
FWHM:
35°
FWTM:
77°
Peak intensity:
1.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MT-G2
LES size: 0.0 mm
FWHM:
30°
FWTM:
78°
Peak intensity:
2.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MT-G2
LES size: 0.0 mm
Required components:
FWHM:
38°
FWTM:
77°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
LES size: 0.0 mm
Required components:
FWHM:
31°
FWTM:
75°
Peak intensity:
2.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
LES size: 0.0 mm
FWHM:
25°
FWTM:
76°
Peak intensity:
2.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
LES size: 0.0 mm
Required components:
FWHM:
33°
FWTM:
74°
Peak intensity:
1.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
LES size: 0.0 mm
Required components:
FWHM:
35°
FWTM:
76°
Peak intensity:
1.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
LES size: 0.0 mm
FWHM:
30°
FWTM:
77°
Peak intensity:
2.300 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
LES size: 0.0 mm
Required components:
FWHM:
36°
FWTM:
74°
Peak intensity:
1.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 7070
LES size: 0.0 mm
FWHM:
26°
FWTM:
52°
Peak intensity:
3.289 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
FWHM:
29°
FWTM:
72°
Peak intensity:
2.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
33°
FWTM:
72°
Peak intensity:
2.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
35°
FWTM:
71°
Peak intensity:
1.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON S1000
LES size: 0.0 mm
Required components:
FWHM:
22°
FWTM:
64°
Peak intensity:
3.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON S1000
LES size: 0.0 mm
FWHM:
22°
FWTM:
66°
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON S1000
LES size: 0.0 mm
Required components:
FWHM:
28°
FWTM:
68°
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
33°
FWTM:
72°
Peak intensity:
1.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
FWHM:
29°
FWTM:
73°
Peak intensity:
2.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
34°
FWTM:
72°
Peak intensity:
1.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
33°
FWTM:
71°
Peak intensity:
2.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
FWHM:
29°
FWTM:
72°
Peak intensity:
2.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
34°
FWTM:
71°
Peak intensity:
1.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NFMW48xA
LES size: 0.0 mm
FWHM:
21°
FWTM:
53°
Peak intensity:
3.300 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NSCxL036A
LES size: 7.0 mm
Required components:
FWHM:
30°
FWTM:
70°
Peak intensity:
2.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NSCxL036A
LES size: 7.0 mm
FWHM:
26°
FWTM:
64°
Peak intensity:
2.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NSCxL036A
LES size: 7.0 mm
Required components:
FWHM:
32°
FWTM:
70°
Peak intensity:
2.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
Required components:
FWHM:
29°
FWTM:
71°
Peak intensity:
2.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
FWHM:
24°
FWTM:
63°
Peak intensity:
3.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
Required components:
FWHM:
32°
FWTM:
72°
Peak intensity:
1.900 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
LES size: 0.0 mm
FWHM:
25°
FWTM:
59°
Peak intensity:
3.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
FWHM:
35°
FWTM:
76°
Peak intensity:
1.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
38°
FWTM:
74°
Peak intensity:
1.600 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
39°
FWTM:
75°
Peak intensity:
1.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S9
LES size: 9.8 mm
Required components:
FWHM:
35°
FWTM:
71°
Peak intensity:
1.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S9
LES size: 9.8 mm
Required components:
FWHM:
34°
FWTM:
71°
Peak intensity:
2.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S9
LES size: 9.8 mm
FWHM:
31°
FWTM:
73°
Peak intensity:
2.300 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
30°
FWTM:
69°
Peak intensity:
2.300 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
FWHM:
26°
FWTM:
66°
Peak intensity:
2.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
32°
FWTM:
70°
Peak intensity:
2.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mini Zenigata (GW5BM)
LES size: 10.0 mm
FWHM:
29°
FWTM:
71°
Peak intensity:
2.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mini Zenigata (GW6BM)
LES size: 8.6 mm
FWHM:
25°
FWTM:
73°
Peak intensity:
2.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
FWHM:
30°
FWTM:
70°
Peak intensity:
1.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
