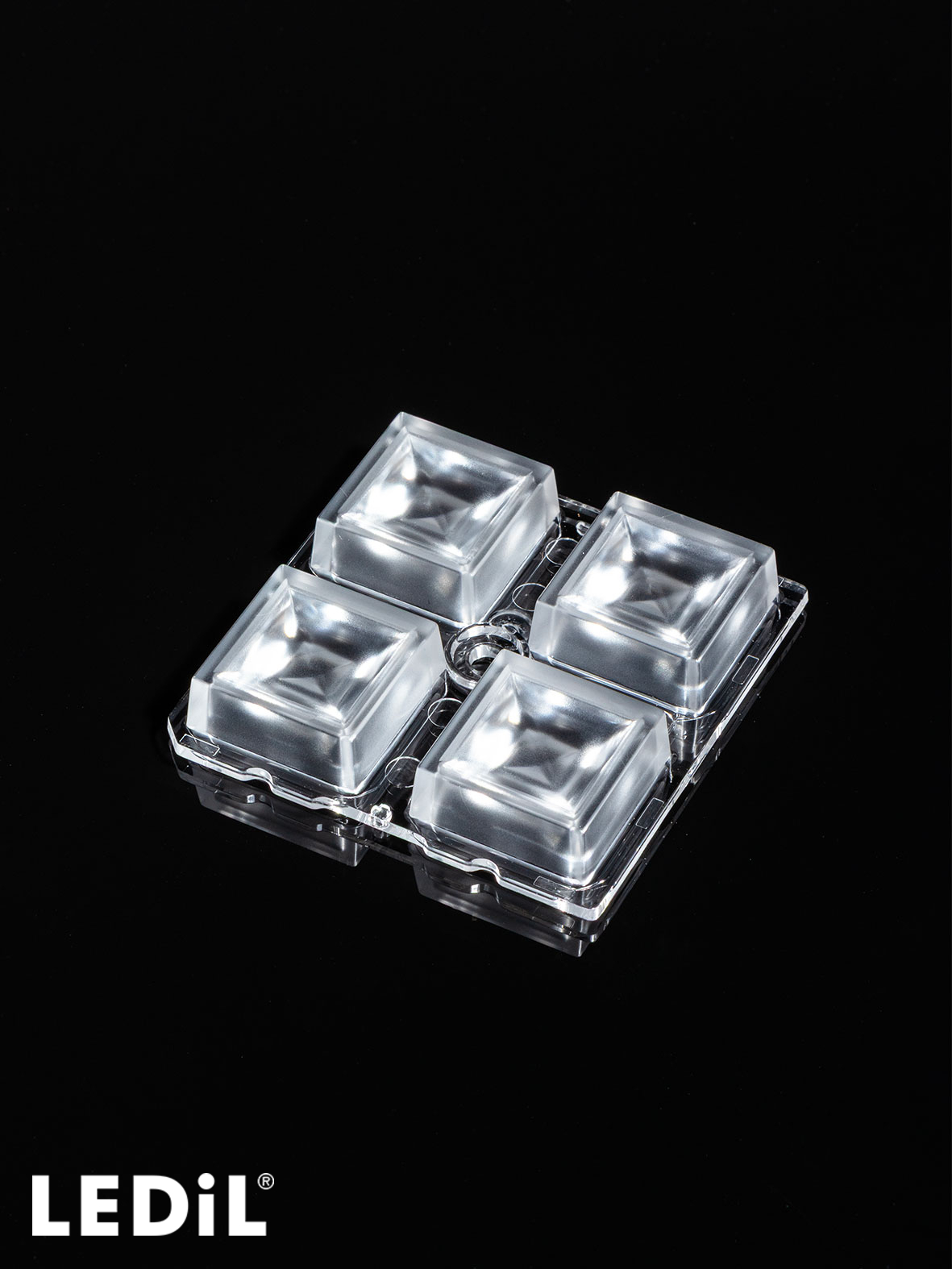

    C12361_HB-2X2-W

    Print

    ~50° wide beam

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      8.50 mm
    • Fastening:
      glue, pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.1 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C12361_HB-2X2-W
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Case story

    Match winning lighting for indoor sports facility in Italy

    Application area

    Sports outdoor lighting

    Application area

    SPORTS INDOOR LIGHTING

    Case story

    Bulochnava café bakery

    News

    PRODUCT NEWS - 2X2 LENS ARRAYS

    PCN

    Product change notification NR118a - Change of packaging quantities and packaging type 200416

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Stadium lighting

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

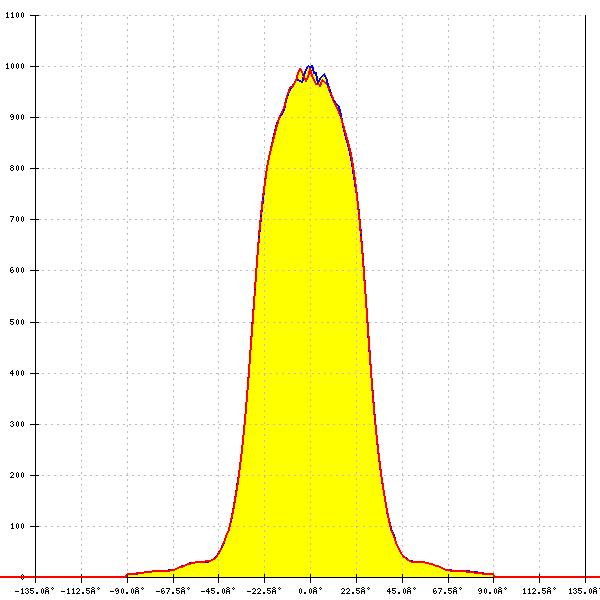

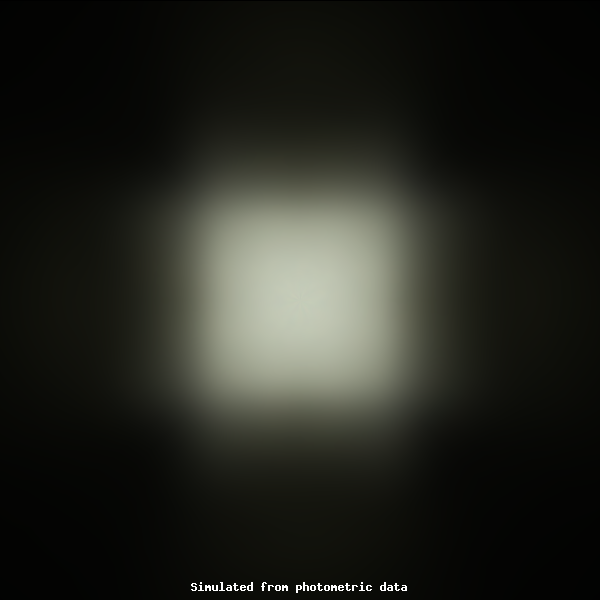

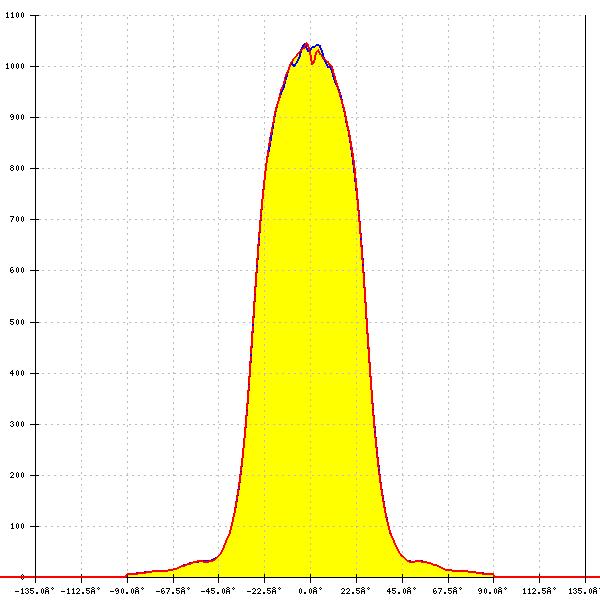

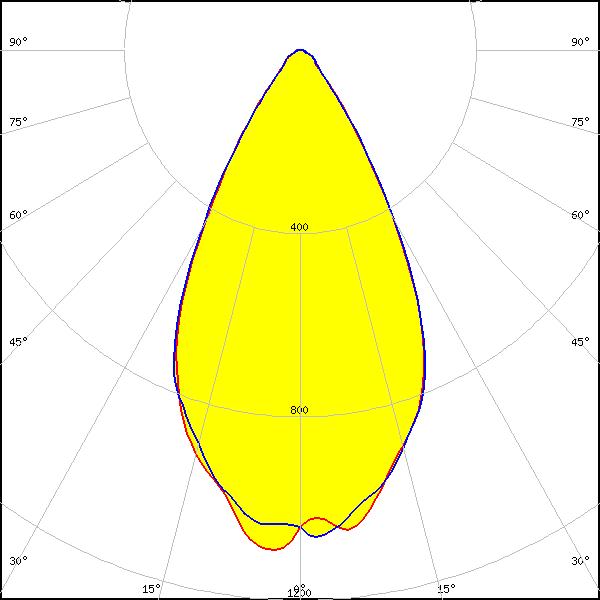

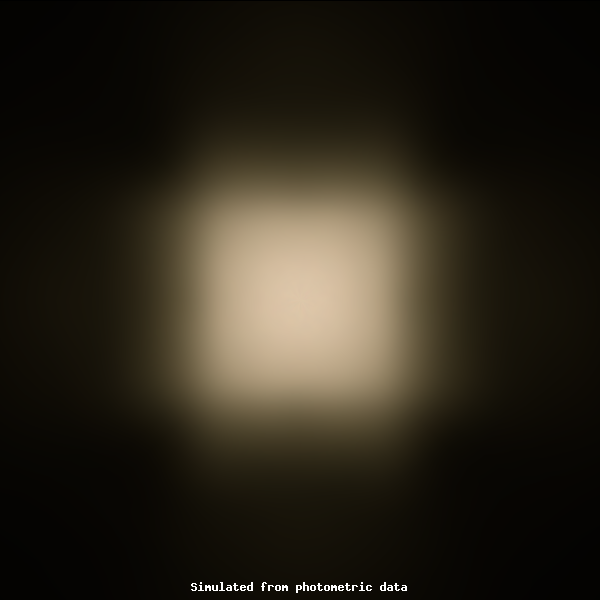

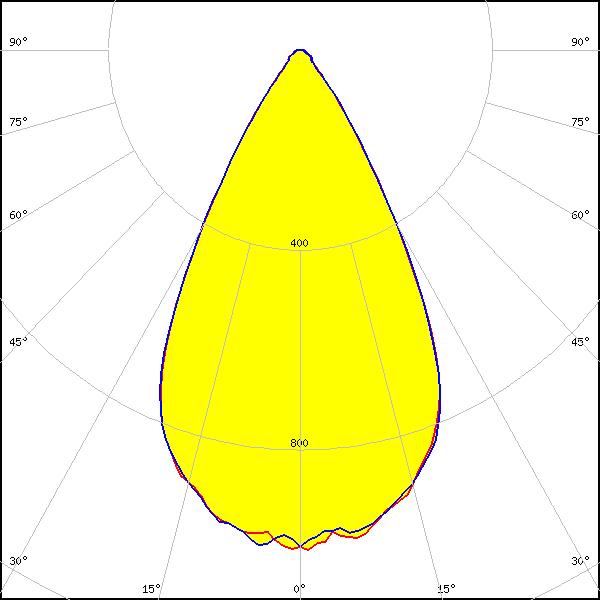

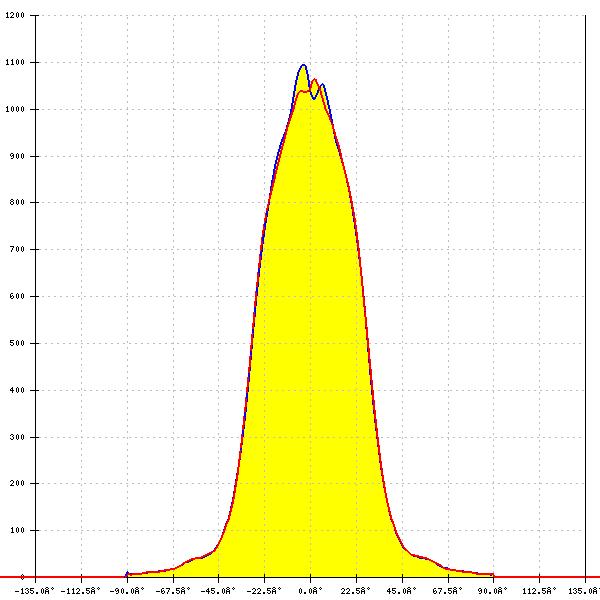

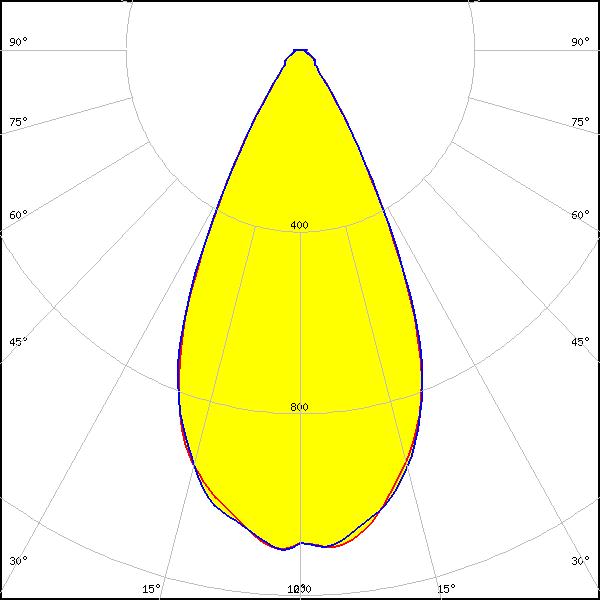

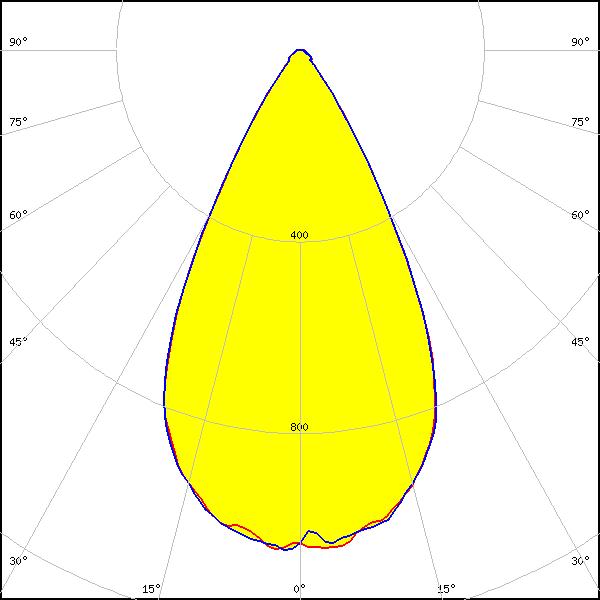

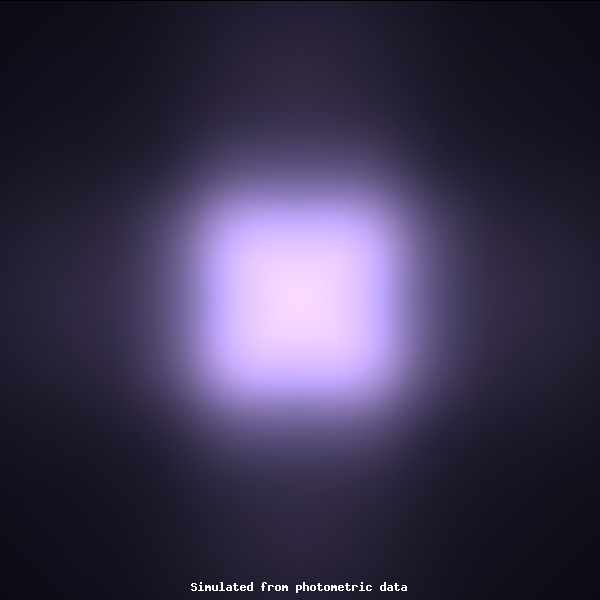

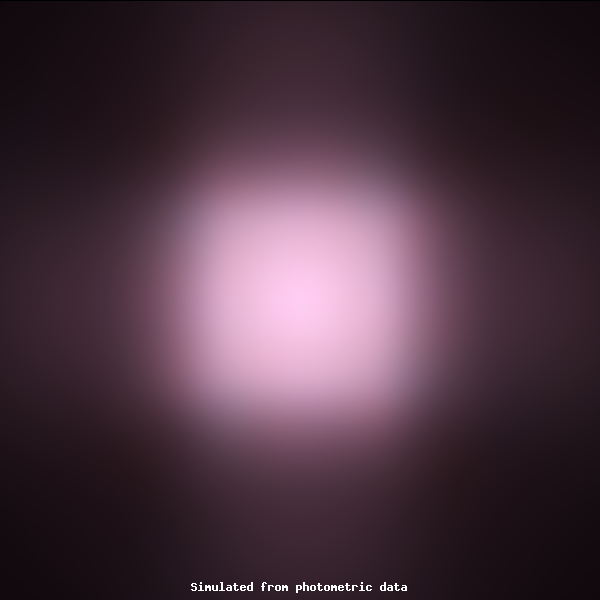

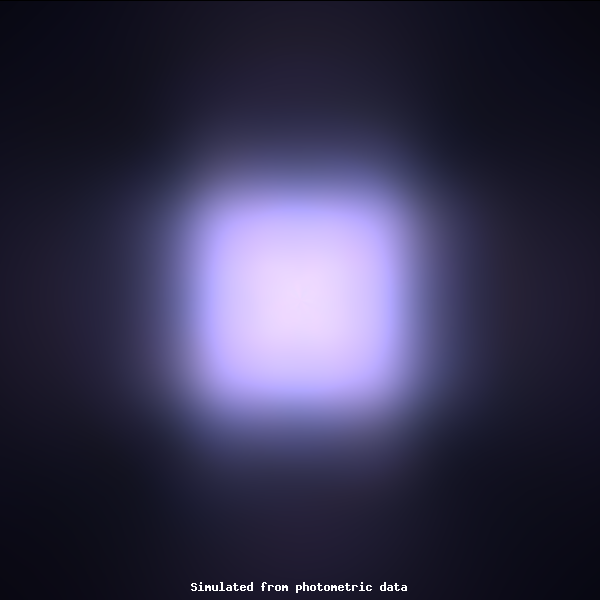

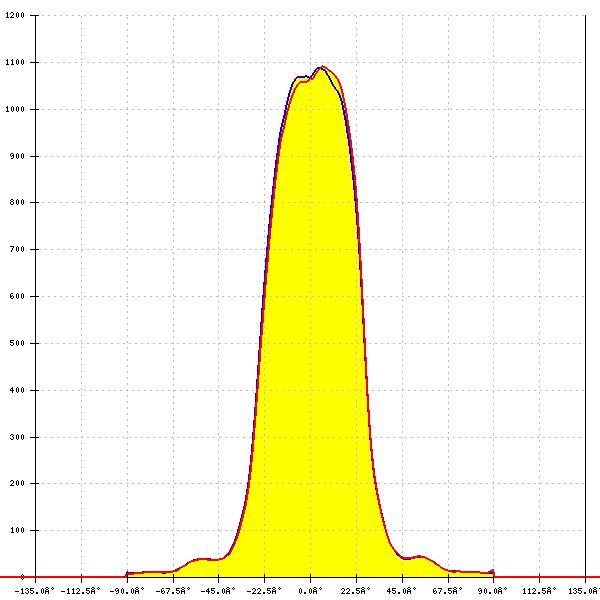

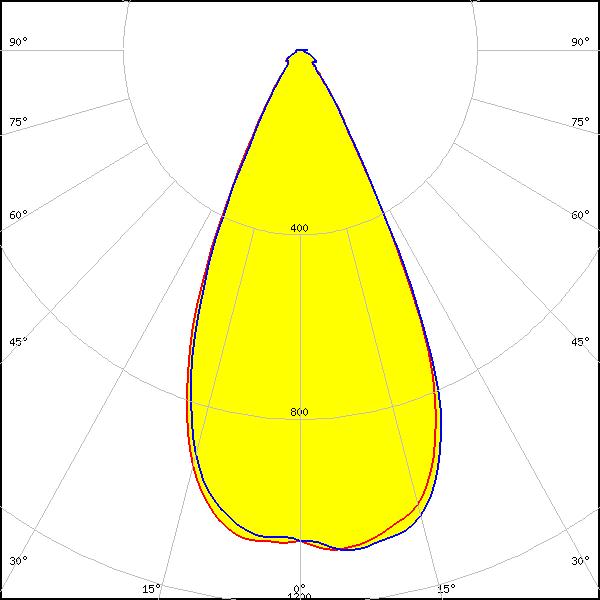

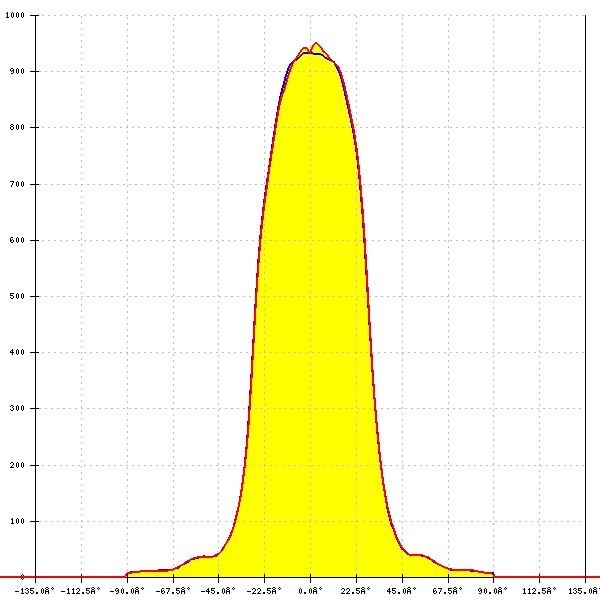

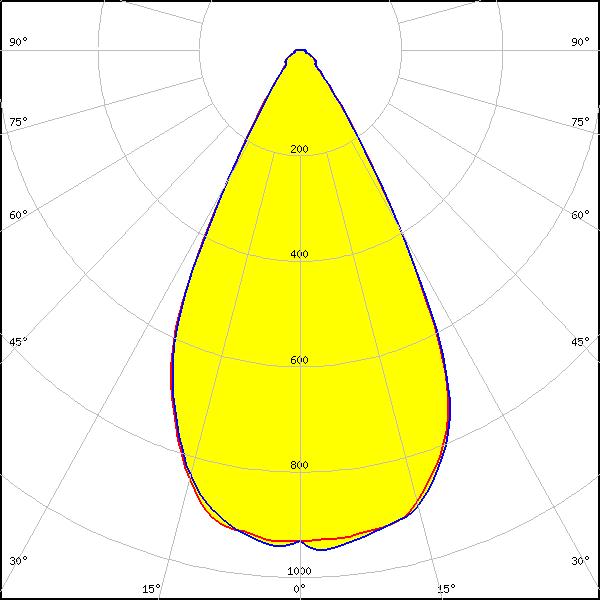

    Optical results

    LED: Bridgelux SMD 5050
    FWHM: 55°
    FWTM: 93°
    Peak intensity: 0.940 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: QUICK FLUX XTP 2x4 xxx LS G5
    FWHM: 52°
    FWTM: 85°
    Peak intensity: 0.990 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: QUICK FLUX XTP 2x6 xxx LS G5
    FWHM: 52°
    FWTM: 86°
    Peak intensity: 0.990 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: 57°
    FWTM: 84°
    Peak intensity: 1.045 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: 56°
    FWTM: 85°
    Peak intensity: 1.021 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: 56°
    FWTM: 86°
    Peak intensity: 0.975 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050C 6V E Class
    FWHM: 54°
    FWTM: 86°
    Peak intensity: 1.006 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MHB-A/B
    FWHM: 58°
    FWTM: 93°
    Peak intensity: 0.960 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XB-D
    FWHM: 48°
    FWTM: 85°
    Peak intensity: 0.960 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: 48°
    FWTM: 89°
    Peak intensity: 0.900 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: 54°
    FWTM: 94°
    Peak intensity: 0.880 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: XHP35 HD
    FWHM: 57°
    FWTM: 92°
    Peak intensity: 0.800 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HI
    FWHM: 52°
    FWTM: 73°
    Peak intensity: 1.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L
    FWHM: 57°
    FWTM: 90°
    Peak intensity: 0.860 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L RGBW (XMLDCL HI)
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.170 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: XM-L2
    FWHM: 56°
    FWTM: 85°
    Peak intensity: 0.900 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L3
    FWHM: 56°
    FWTM: 87°
    Peak intensity: 0.937 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 50°
    FWTM: 68°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E-HEW
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: 48°
    FWTM: 70°
    Peak intensity: 1.198 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 52°
    FWTM: -
    Peak intensity: 0.920 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 51°
    FWTM: 84°
    Peak intensity: 0.970 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    FWHM: 57°
    FWTM: 82°
    Peak intensity: 0.948 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 54°
    FWTM: 79°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 55°
    FWTM: 81°
    Peak intensity: 1.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: 52°
    FWTM: 69°
    Peak intensity: 1.140 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: 54°
    FWTM: 70°
    Peak intensity: 1.034 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4 HI
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.106 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 0.886 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: 56°
    FWTM: 90°
    Peak intensity: 0.800 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.079 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: 50°
    FWTM: 83°
    Peak intensity: 0.990 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: 58°
    FWTM: 86°
    Peak intensity: 0.867 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: 56°
    FWTM: 96°
    Peak intensity: 0.830 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XQ-E HI
    FWHM: 42°
    FWTM: 68°
    Peak intensity: 1.370 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: 50°
    FWTM: 88°
    Peak intensity: 0.970 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PL-BRICK HP 3800 2x8 SSG
    FWHM: 52°
    FWTM: 75°
    Peak intensity: 1.132 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Round LES)
    FWHM: 49°
    FWTM: 73°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3535L
    FWHM: 49°
    FWTM: 73°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE
    FWHM: 56°
    FWTM: 84°
    Peak intensity: 1.048 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE
    FWHM: 54°
    FWTM: 84°
    Peak intensity: 1.019 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE Plus
    FWHM: 56°
    FWTM: 87°
    Peak intensity: 0.998 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: 55°
    FWTM: 91°
    Peak intensity: 0.940 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: 54°
    FWTM: 84°
    Peak intensity: 1.017 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: 55°
    FWTM: 91°
    Peak intensity: 0.938 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON A
    FWHM: 52°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON C
    FWHM: 50°
    FWTM: 75°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON H50-2
    FWHM: 52°
    FWTM: 68°
    Peak intensity: 4.700 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 0.989 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-D
    FWHM: 58°
    FWTM: 78°
    Peak intensity: 1.008 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-D
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 0.930 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

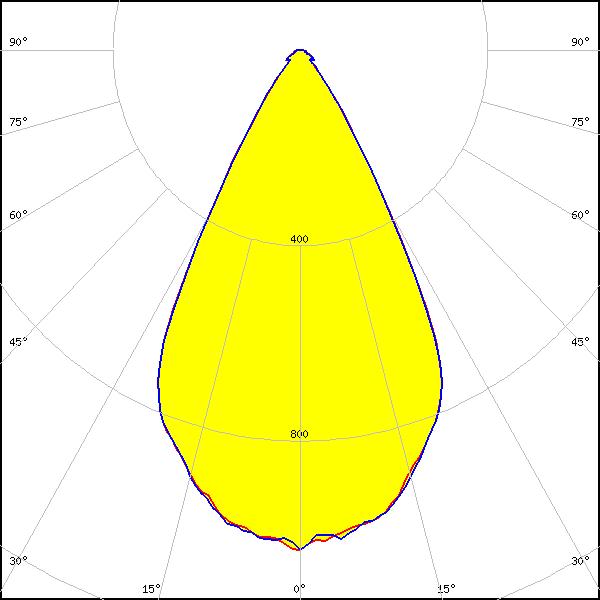

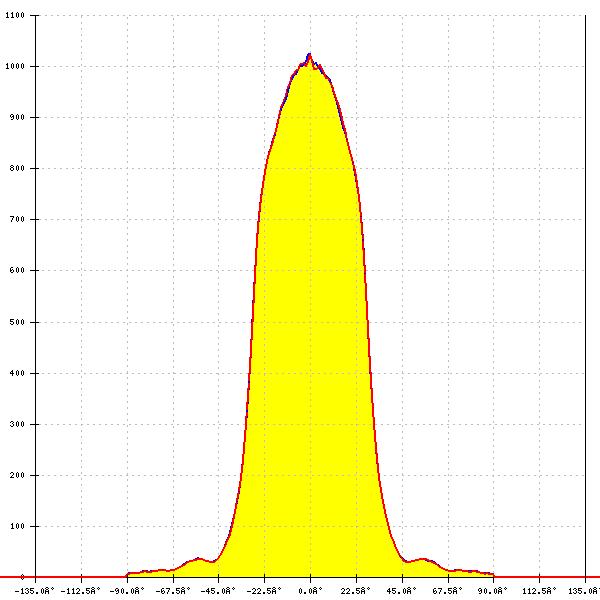

    LED: LUXEON HL2X-E
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 0.961 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-E
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.042 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-P
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.038 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL4X
    FWHM: 58° + 56°
    FWTM: 82° + 82°
    Peak intensity: 0.978 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON MZ
    FWHM: 53°
    FWTM: 86°
    Peak intensity: 1.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Q
    FWHM: 50°
    FWTM: 86°
    Peak intensity: 0.900 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel
    FWHM: 52°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel ES
    FWHM: 51°
    FWTM: 82°
    Peak intensity: 0.940 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON T
    FWHM: 55°
    FWTM: -
    Peak intensity: 0.900 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON TX
    FWHM: 50°
    FWTM: 80°
    Peak intensity: 1.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON V
    FWHM: 55°
    FWTM: 91°
    Peak intensity: 0.890 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON V2
    FWHM: 51°
    FWTM: 86°
    Peak intensity: 0.970 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 56°
    FWTM: 77°
    Peak intensity: 1.029 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 57° + 56°
    FWTM: 78° + 78°
    Peak intensity: 0.945 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Z ES
    FWHM: 46°
    FWTM: 76°
    Peak intensity: 1.180 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-12R-W-A
    FWHM: 44°
    FWTM: 70°
    Peak intensity: 1.307 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-12R-W-A
    FWHM: 44°
    FWTM: 70°
    Peak intensity: 1.227 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-40 Gen2
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.178 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-40 Gen2
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.084 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-10-B130
    FWHM: 51°
    FWTM: 80°
    Peak intensity: 1.039 cd/lm
    Efficiency: 99 %
    LEDs/each optic: 1
    Light colour/type: Deep Red
    LED: SST-20 Gen1
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-20 Gen2
    FWHM: 50°
    FWTM: 72°
    Peak intensity: 1.117 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-20F-W
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.128 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-25-W
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.116 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-36F-W
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.026 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: 50°
    FWTM: 75°
    Peak intensity: 1.111 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxx19A
    FWHM: 48°
    FWTM: 77°
    Peak intensity: 1.100 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxx19B
    FWHM: 50°
    FWTM: 83°
    Peak intensity: 1.000 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFMW48xA
    FWHM: 57°
    FWTM: 86°
    Peak intensity: 1.003 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NS9x383
    FWHM: 54°
    FWTM: 93°
    Peak intensity: 0.880 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.175 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219D
    FWHM: 53°
    FWTM: 83°
    Peak intensity: 0.940 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: 54°
    FWTM: 81°
    Peak intensity: 0.972 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW319B
    FWHM: 56°
    FWTM: 93°
    Peak intensity: 0.900 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW3x9A
    FWHM: 53°
    FWTM: 88°
    Peak intensity: 0.900 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: 43°
    FWTM: 80°
    Peak intensity: 1.100 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19A
    FWHM: 50°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 51°
    FWTM: 82°
    Peak intensity: 0.960 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NWSx229A
    FWHM: 57°
    FWTM: 90°
    Peak intensity: 0.860 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OLP-5065F6L-06A
    FWHM: 56°
    FWTM: 90°
    Peak intensity: 0.940 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: 57°
    FWTM: 88°
    Peak intensity: 0.970 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: 55°
    FWTM: 91°
    Peak intensity: 0.960 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 2424
    FWHM: 48°
    FWTM: 70°
    Peak intensity: 1.267 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: 50°
    FWTM: 72°
    Peak intensity: 1.120 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: 47°
    FWTM: 76°
    Peak intensity: 1.204 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: 47°
    FWTM: 76°
    Peak intensity: 1.204 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: 48°
    FWTM: 70°
    Peak intensity: 1.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: 54°
    FWTM: 77°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 Flat
    FWHM: 50°
    FWTM: 73°
    Peak intensity: 1.217 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: 56°
    FWTM: 83°
    Peak intensity: 1.075 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: 56°
    FWTM: 84°
    Peak intensity: 0.982 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: 55°
    FWTM: 82°
    Peak intensity: 1.097 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 0.957 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.110 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square PC
    FWHM: 54°
    FWTM: 85°
    Peak intensity: 0.900 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 80
    FWHM: 43°
    FWTM: 70°
    Peak intensity: 1.260 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: 54°
    FWTM: 87°
    Peak intensity: 1.041 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4
    FWHM: 52°
    FWTM: 82°
    Peak intensity: 0.990 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4+
    FWHM: 55°
    FWTM: 88°
    Peak intensity: 0.937 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: 50°
    FWTM: 77°
    Peak intensity: 1.090 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DAX G4
    FWHM: 54°
    FWTM: 79°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RC12 Z (LH181B)
    FWHM: 46°
    FWTM: 84°
    Peak intensity: 1.111 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH12 Z (LH351C)
    FWHM: 54°
    FWTM: 84°
    Peak intensity: 0.996 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH16 (LH351C)
    FWHM: 53°
    FWTM: 83°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM12 Z (LH502C)
    FWHM: 55°
    FWTM: 94°
    Peak intensity: 0.933 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM16 Z (LH502C)
    FWHM: 55°
    FWTM: 95°
    Peak intensity: 0.942 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM8 Z (LH502C)
    FWHM: 56°
    FWTM: 95°
    Peak intensity: 0.933 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351A
    FWHM: 49°
    FWTM: 81°
    Peak intensity: 1.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 55°
    FWTM: 85°
    Peak intensity: 0.930 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: 53°
    FWTM: 85°
    Peak intensity: 1.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: 56°
    FWTM: 90°
    Peak intensity: 0.850 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351Z
    FWHM: 50°
    FWTM: 77°
    Peak intensity: 1.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: 55°
    FWTM: 86°
    Peak intensity: 1.081 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH508A
    FWHM: 56°
    FWTM: 92°
    Peak intensity: 0.900 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-Pa-L15c2W11c2-xxx-C050-01
    FWHM: 50°
    FWTM: 78°
    Peak intensity: 1.066 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: 2x2 Y22 module - SMJQ-D48W16AA-XX
    FWHM: 54°
    FWTM: 102°
    Peak intensity: 0.830 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Acrich MJT 4040
    FWHM: 52°
    FWTM: 77°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT 5050
    FWHM: 57°
    FWTM: 88°
    Peak intensity: 0.983 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: 54°
    FWTM: 84°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5
    FWHM: 48°
    FWTM: 80°
    Peak intensity: 1.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M1/Z5M2
    FWHM: 51°
    FWTM: 82°
    Peak intensity: 1.000 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

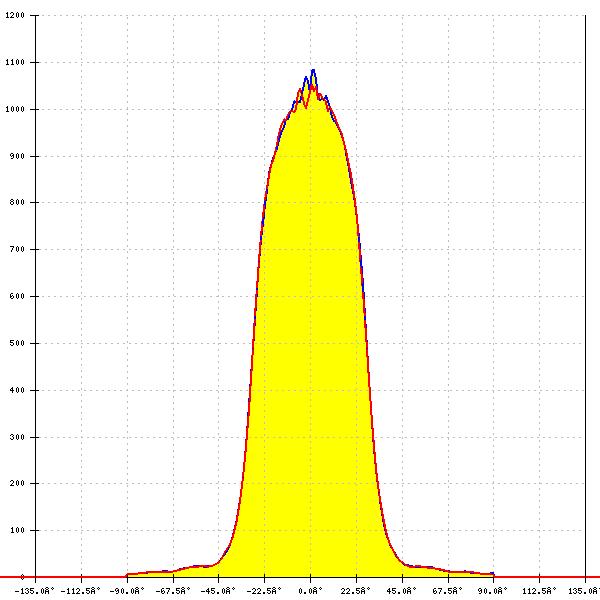

    LED: Z5M3
    FWHM: 53°
    FWTM: 93°
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.096 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: 54°
    FWTM: 80°
    Peak intensity: 1.032 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E1
    FWHM: 55° + 56°
    FWTM: 78° + 77°
    Peak intensity: 1.060 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E2
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.006 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.084 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: 54°
    FWTM: 80°
    Peak intensity: 0.991 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y15
    FWHM: 45°
    FWTM: 89°
    Peak intensity: 0.900 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y19
    FWHM: 46°
    FWTM: 89°
    Peak intensity: 0.900 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y19
    FWHM: 54°
    FWTM: 102°
    Peak intensity: 0.830 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: Z8Y22
    FWHM: 48°
    FWTM: 94°
    Peak intensity: 0.930 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22P
    FWHM: 51°
    FWTM: 93°
    Peak intensity: 0.910 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22T
    FWHM: 50°
    FWTM: 76°
    Peak intensity: 1.160 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: TL1L4
    FWHM: 48°
    FWTM: 78°
    Peak intensity: 0.980 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: 51°
    FWTM: 84°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: 51°
    FWTM: 84°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: 54°
    FWTM: 92°
    Peak intensity: 0.971 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x121mm 2000lm xxx EXC OTD
    FWHM: 52°
    FWTM: 83°
    Peak intensity: 0.980 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x133mm 2000lm xxx EXC OTD
    FWHM: 52°
    FWTM: 83°
    Peak intensity: 0.980 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x223mm 4000lm xxx EXC OTD
    FWHM: 52°
    FWTM: 83°
    Peak intensity: 0.980 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x245mm 4000lm xxx EXC OTD
    FWHM: 52°
    FWTM: 83°
    Peak intensity: 0.980 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
