    C10892_GT3-M

    Print

    ~30° medium beam

    Specification
    • Dimensions:
      35 mm
    • Height:
      9.00 mm
    • Fastening:
      glue, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      864 pcs
    • Box size:
      300 x 250 x 250 mm
    • Box weight:
      4.4 kg
    • MPQ:
      144 pcs
    • MOQ:
      144 pcs
    • MOQ size:
      280 x 180 x 90 mm
    • MOQ weight:
      1.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C10892_GT3-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Case story

    Historic church in Moscow

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Indoor Architectural Lighting

    Optical results

    LED: XB-D
    FWHM: 25°
    FWTM: 58°
    Peak intensity: 2.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

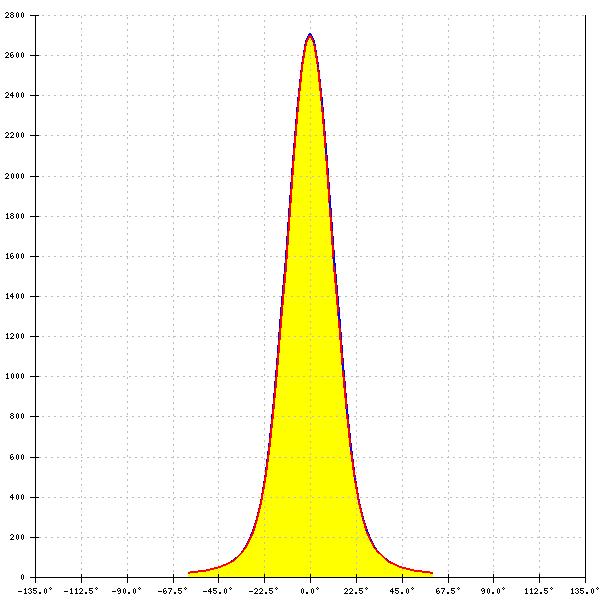

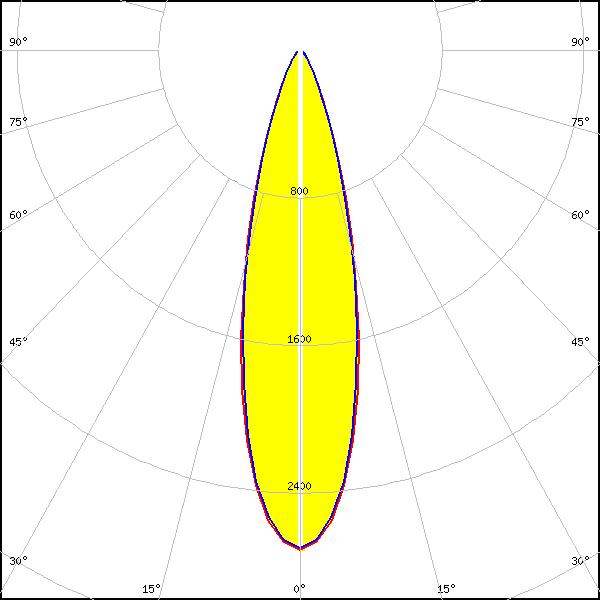

    LED: XP-E
    FWHM: 27°
    FWTM: 54°
    Peak intensity: 2.710 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

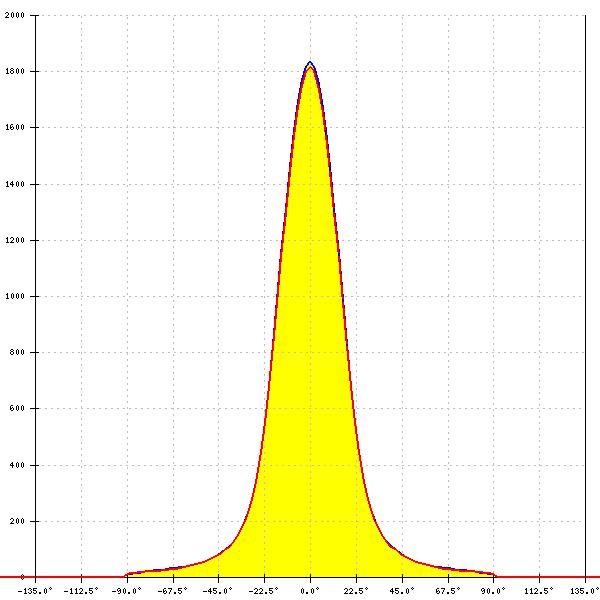

    LED: XP-G
    FWHM: 34°
    FWTM: 66°
    Peak intensity: 1.840 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON A
    FWHM: 32°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel
    FWHM: 28°
    FWTM: -
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel ES
    FWHM: 32°
    FWTM: -
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

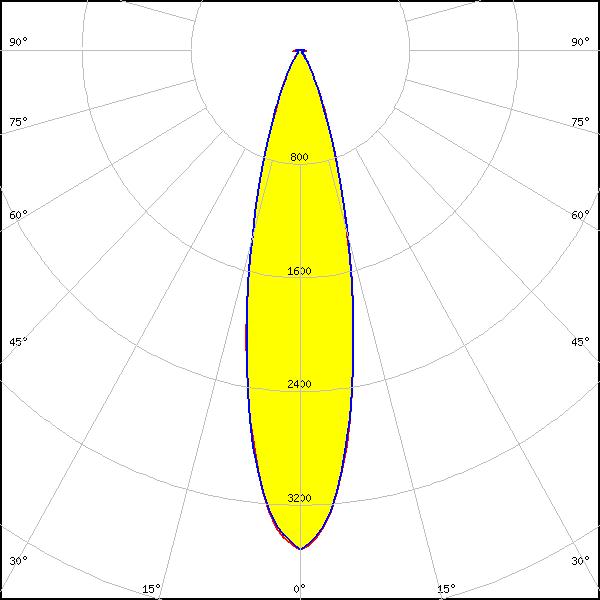

    LED: NCSxE17A
    FWHM: 26°
    FWTM: 50°
    Peak intensity: 3.519 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxx19A
    FWHM: 28°
    FWTM: -
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19A
    FWHM: 34°
    FWTM: -
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    FWHM: 32°
    FWTM: 60°
    Peak intensity: 2.020 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

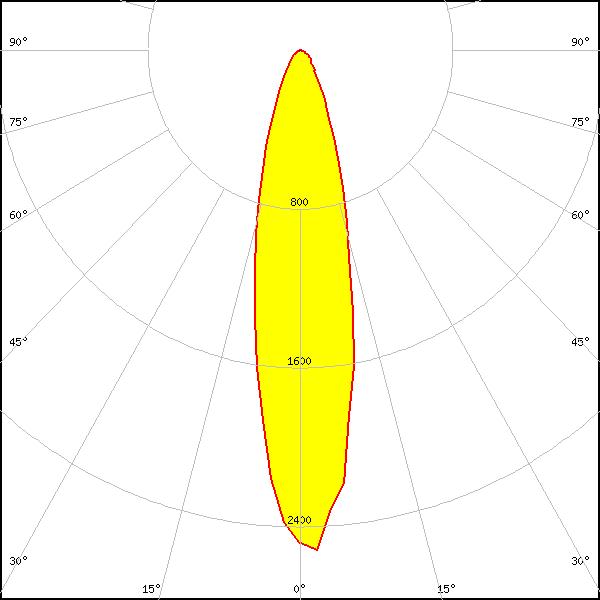

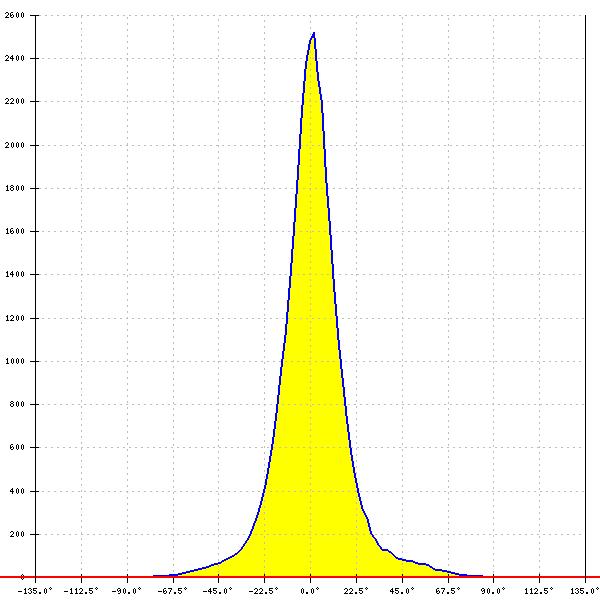

    LED: OSLON SSL 150
    FWHM: 26°
    FWTM: 57°
    Peak intensity: 2.480 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 80
    FWHM: 28°
    FWTM: -
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5
    FWHM: 28°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
    LED: Double Dome (GM2BB)
    FWHM: 30°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
