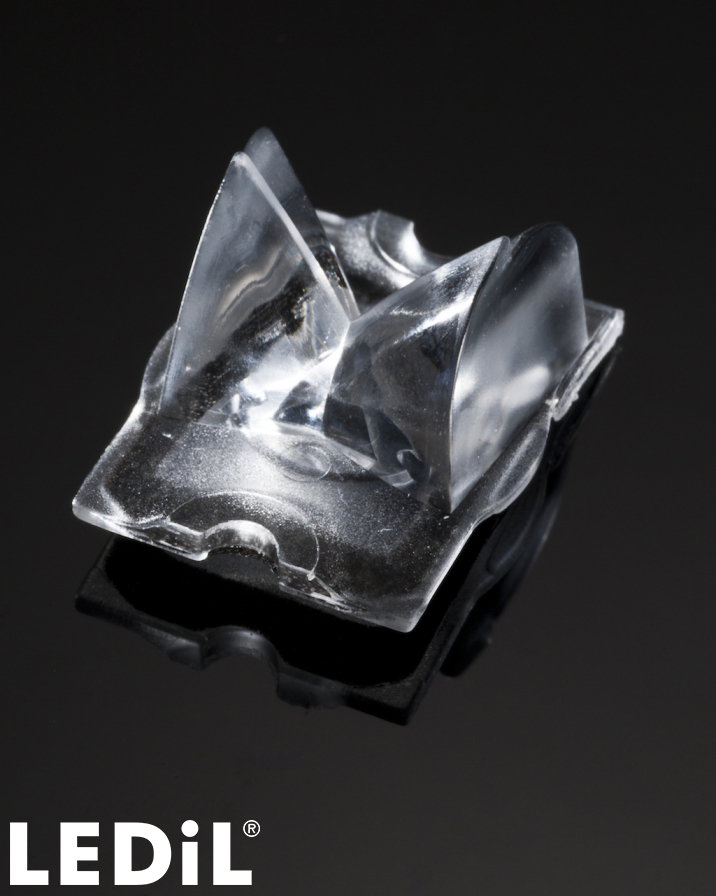

    2FA11993_STRADA-T-DW-EP

    Print

    Soft wide beam with good illuminance uniformity. No position element. Assembly with installation tape.

    Specification
    • Dimensions:
      20 x  16 mm
    • Height:
      10.70 mm
    • Fastening:
      tape, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      2880 pcs
    • Box weight:
      5.1 kg
    • MPQ:
      240 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      2FA11993_STRADA-T-DW-EP

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    Wall pack lighting with STRADA-T-DN and -DW

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

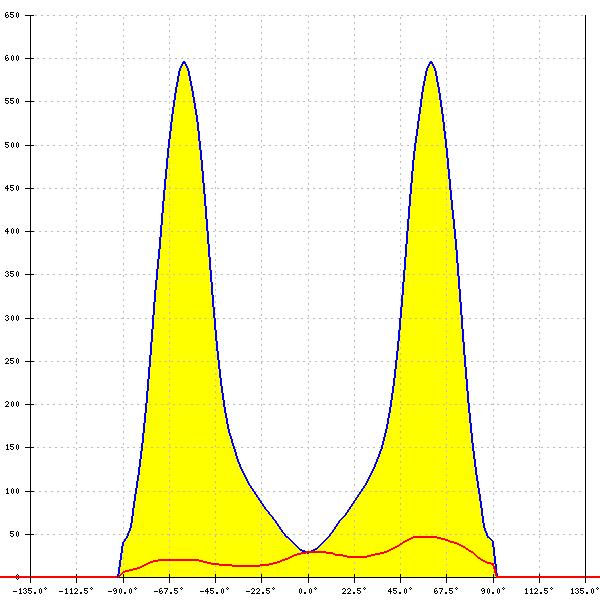

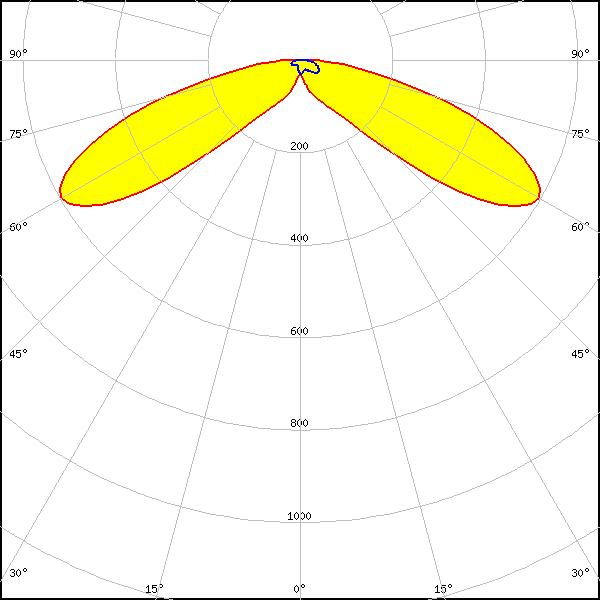

    Optical results

    LED: XP-E
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel ES
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxx19A
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19A
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 150
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 80
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Double Dome (GM2BB)
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
