INSTALLATION GUIDE

RELATED CONTENT:

LEDiL general installation guide
LEDiL General Installation Guide

IRIS LENS ASSEMBLY INSTRUCTIONS

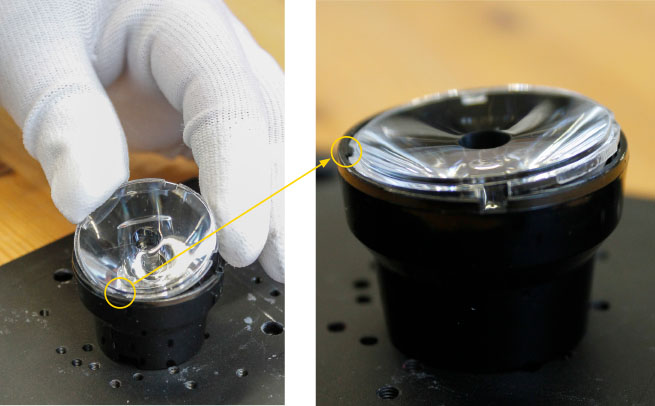

1. Start by tilting the lens under one of the holder two clips.


tilt IRIS lens under one of the holder two clips

2. Press lens down using both thumbs while holding the assembly in place.

press lens down

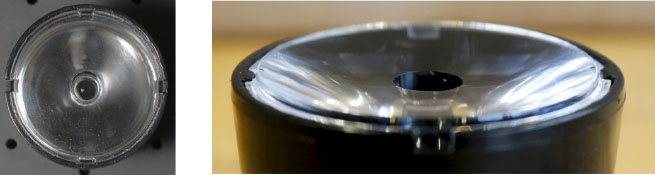

3. Check that the lens is evenly in place.


check that lens is evenly in place



Reccomended screws for holder fastening: M2,5 DIN7985, ISO 7045
(Maximum screw head height 2,1mm)

For more details about the heat sink machining, chemicals, heat control etc. please refer to the LEDiL Installation Guide
