COMPATIBILITY GUIDE

FLORENTINA (12×1) ASSEMBLIES

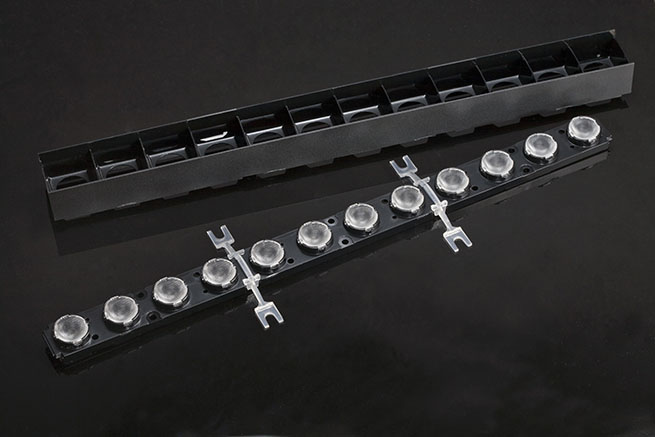

florentina-12x1 product picture

FEATURES

  • Linear multiholder with glare protection for 12 pieces of TINA/TINA2 lenses
  • Dimessions
    FLORENTINA-HLD: 286 x 20 x 10 mm
    FLORENTINA-SHD: 287 x 28 x 23 mm
  • 3 position pins
  • Fastening by either glue, screws or with additional retaining clips C14353_FLORENCE-1R-CLIP-A or C14409_FLORENCE-1R-CLIP-B
  • Can be installed into aluminium profile
  • For smaller LED’s possibility to lower holder for 0.2 mm with PCB design


TYPICAL FWHM’S OF DIFFERENT COMPATIBLE OPTICS

Real spot Smooth spot Medium Wide Very wide Diffuser Oval
TINA 13° N/A 19° 41° 52° 16° 36°x16°
TINA2 14° 23° 20° N/A N/A 16° 35°x17°


LED COMPATIBILITY

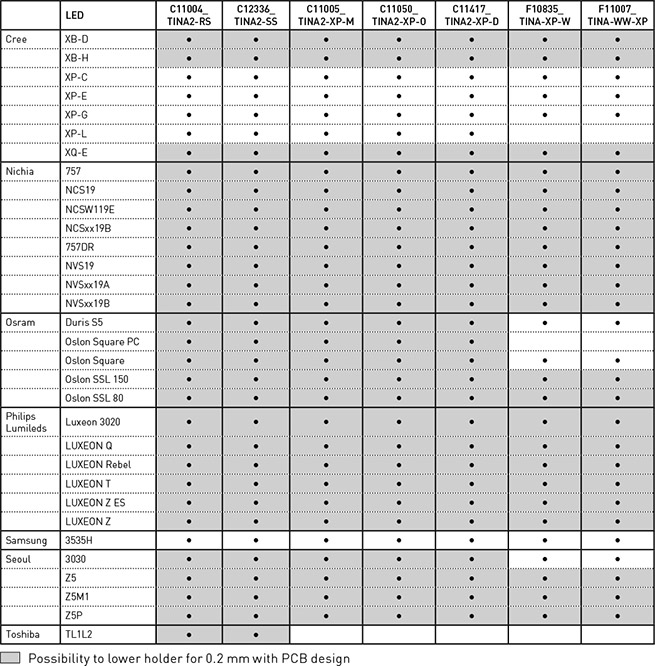

florentina-12x1 LED compatibility chart



Find all related products


The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
