APPLICATION EXAMPLE

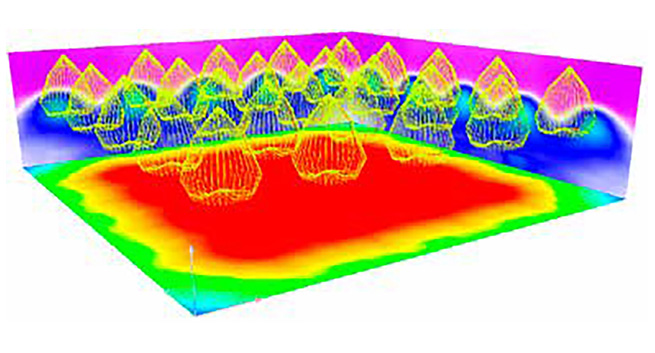

Warehouse lighting with STELLA-HB
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Warehouse |
| Optics: | STELLA-HB |
| Luminous flux (LEDs): | 1500 lm |
| No. of optics in luminaire: | 1 pcs |
| No. of luminaires: | 25 pcs |
| Installation height: | 2.8 m |
| Distance between luminaires: | 2 x 2 m |
RESULTS:
| Average: | 311 lx |
| Max: | 332 lx |
| Uo: | 0.83 |
| FN14074_STELLA-HB | ||
| FN15186_STELLA-HB |
