APPLICATION EXAMPLE
Wall grazing with FLORENCE-1R-MAXI-WG
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

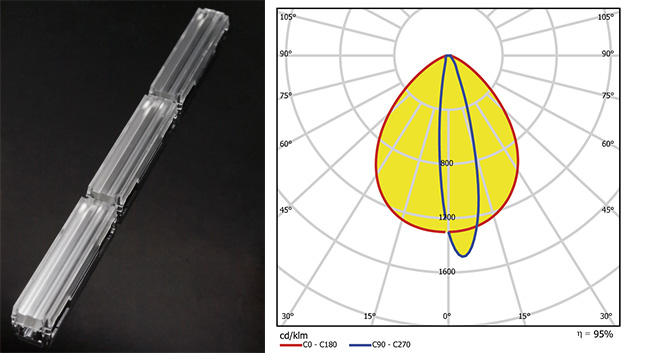

FLORENCE-1R-MAXI-WG
- Good color reproduction
- Uniform wall performance with optimal vertical depth and horizontal wideness
- No tilting required and illumination starts already from the mounting level
- Optics can be installed very close (10 to 20 cm) to the wall
- Optimal distance from wall depend on the wall height and the desired contrast level between the wall and other areas
- Can be used as single unit to highlight a certain zone or as a continuous row for overall wall wash illumination
- It is highly recommended to cover wall-side wire outlets with the fixture design
- For maximum efficiency avoid placing LEDs right under the cutting zone
- Dedicated installation clips available for quick and reliable fastening
SETUP:
| Application: | Wall grazing |
| Optics: | FLORENCE-1R-MAXI-WG |
| Mounting height: | 2.4 m |
| Distance from wall: | 15 cm |
| Luminous flux (LED module): | 1000 lm |
| Arrangement: | Continuous row |

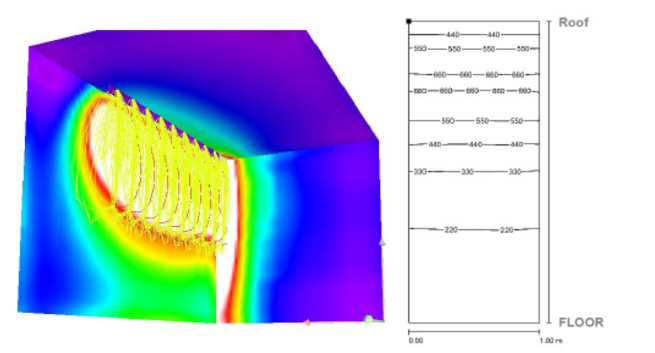

RESULTS:
| Average: | 372 lx |
| Max: | 680 lx |
| Uo: | 0.44 |
| F14487_FLORENCE-1R-MAXI-WG |
