APPLICATION EXAMPLE
RP-8-00 with STRADA-T-6X1-DNW
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Type II short distribution with excellent longitudinal uniformity performance can meet European ME1 standard even on streets with 1:4 pole height to distance ratio.
SETUP:
| Lighting class: | RP-8-00 (US) |
| Optics: | STRADA-T-6X1-DNW |
| Road width: | 33 ft |
| Number of lanes: | 3 |
| Arrangement: | Single row, bottom |
| Maintenance factor: | 1.0 |
| Luminous flux (Luminaire): | 15 000 lm |
| Pole distance: | 164 ft |
| Mounting height: | 32 ft |
| Overhang: | 4 ft |
| Boom angle: | 0° |
| Boom length: | 0 m |

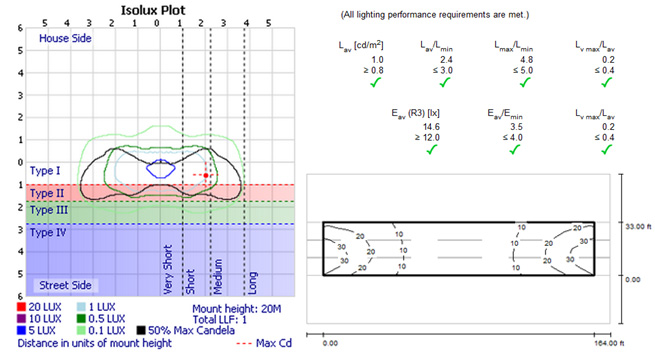

RESULTS:
| Average: | 15 lx |
| Min: | 4.2 lx |
| Max: | 35 lx |
| Uo: | 0.29 |
| C11918_STRADA-T-6X1-DNW |
