APPLICATION EXAMPLE
RP-8-00 (US) with STRADA-2X2-A-T
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Slightly asymmetrical Type II light distribution is suitable for narrow streets where boom length and tilt needs to be minimized.
SETUP:
| Lighting class: | RP-8-00 (US) |
| Street classification: | Collector high pedestrian conflict |
| Arrangement: | Single row, bottom |
| Optics: | STRADA-2X2-A-T |
| LED: | CREE XM-L |
| Road width: | 22 ft |
| Number of lanes: | 2 |
| Pole distance: | 158 ft |
| Mounting height: | 32 ft |
| Overhang: | 0 ft |
| Boom angle: | 5° |
| Boom length: | 0 ft |
| Luminous flux (Luminaire): | 9000 lm |
| Maintenance factor: | 1.0 |

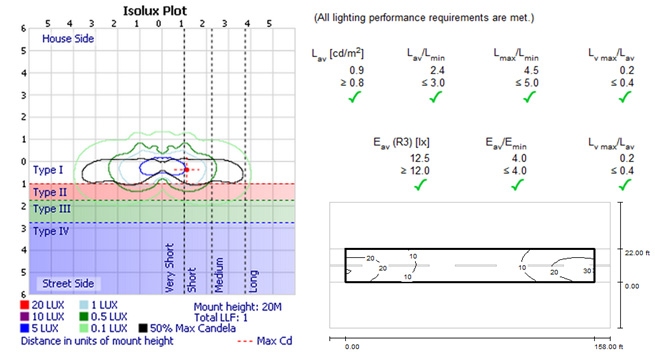

RESULTS:
| Average: | 13 lx |
| Min: | 3 lx |
| Max: | 30 lx |
| Uo: | 0.25 |
| C12419_STRADA-2X2-A-T |
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
