APPLICATION EXAMPLE
Retail lighting with OLIVIA-S and -M
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

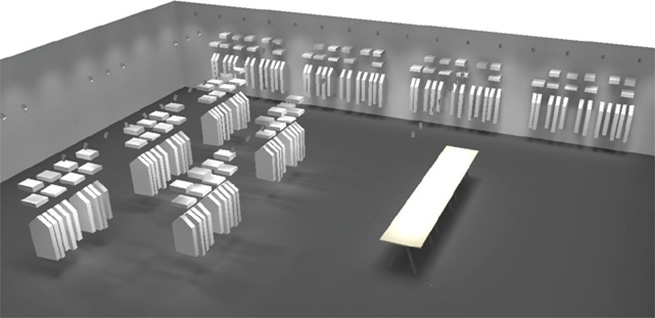

Retail lighting example
SETUP:
| Application: | Retail lighting |
| Optics: | OLIVIA-S, -M |
| OLIVIA-S: | 56 pcs as track lights |
| OLIVIA-M: | 144 pcs as downlights |
| OLIVIA-S luminous flux (LEDs): | 1126 lm with COB LES 14 mm |
| OLIVIA-M luminous flux (LEDs): | 1200 lm with COB LES 14 mm |
| Mounting height: | 2.8 m |

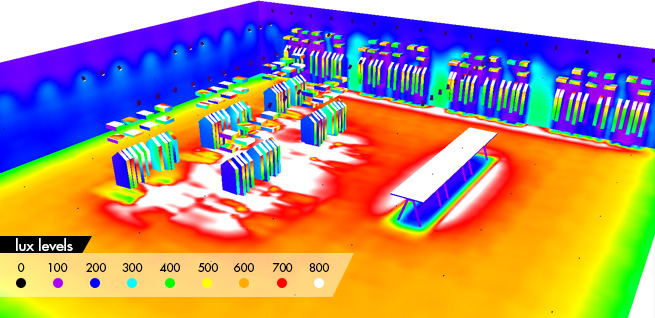

RESULTS:
| Average (floor): | 595 lx |
| Average (walls): | 182 lx |
| FN14637_OLIVIA-S | ||
| FN14828_OLIVIA-M |
