APPLICATION EXAMPLE
Open office lighting with DAISY.
(Room related)
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

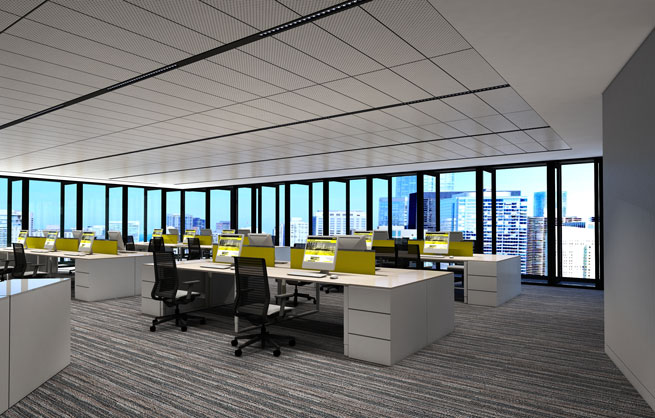

OPEN OFFICE LIGHTING
ROOM RELATED LIGHTING CONCEPT WITH RECESSED DIRECT LIGHT
Shows the most common office lighting installation scene upgraded with DAISY optics. Same setup works with surface mounted luminaires as well.Installation is simple, practical and efficient, but using only direct light can leave the ceiling and walls less bright, which is not recommended. In this case large windows and day-light integration helps to keep the room bright.
The lack of separate task lights means that the workers eyes can adapt to the whole room lighting levels, which reduces eye fatigue.
SETUP:
| Application: | Open office lighting |
| Optics: | DAISY-28X1-WW |
| No. of luminaires: | 15 pcs |
| Installation method: | Recessed |
| Luminous flux (luminaire): | 4000 lm |
| Grid: | 2.4 m |
| Installation height: | 2.7 m |
RESULTS:
| UGR: | < 19 |
| Emin (workplane): | 560 lx + daylight |
| DAISY-28X1-WW |
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
