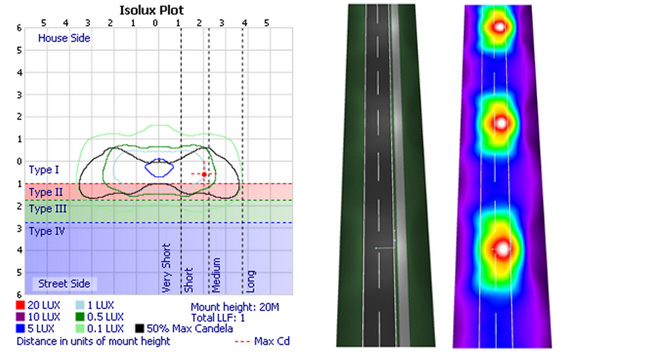

APPLICATION EXAMPLE
ME4a with STRADA-T-6X1-DNW
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:

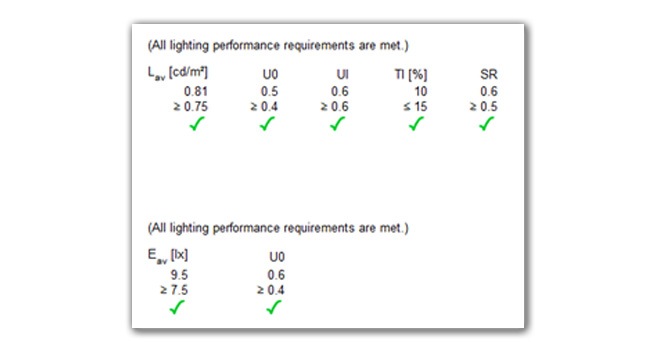

| Lighting class: | ME4a (EU) |
| Lighting class (sidewalk): | CE5 |
| Optics: | STRADA-T-6X1-DNW |
| Road width: | 7 m |
| Number of lanes: | 2 |
| Arrangement: | Single row, bottom |
| Maintenance factor: | 1.0 |
| Luminous flux (Luminaire): | 7500 lm |
| Pole distance: | 34 m |
| Mounting height: | 8 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom length: | 0 m |
| C11918_STRADA-T-6X1-DNW |
